Mounting hole pattern:
From 200mm to 900mm wide
From 200mm to 600mm high

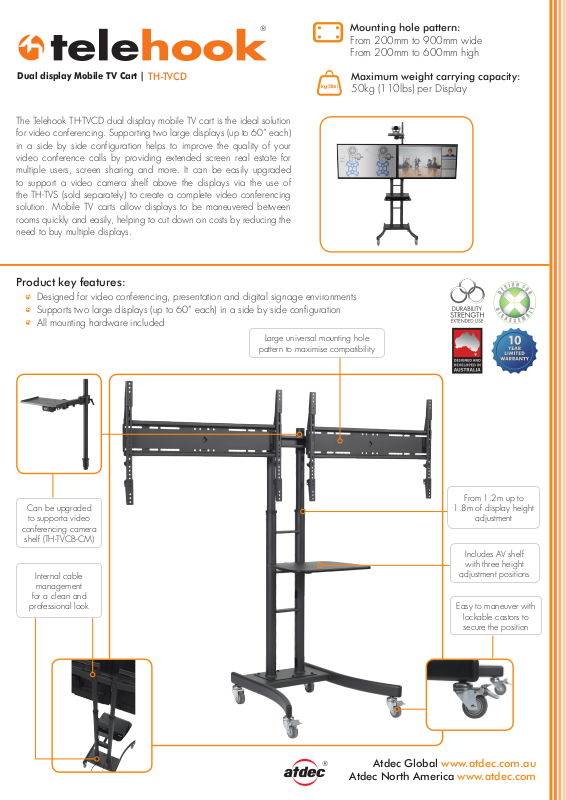

Dual display Mobile TV Cart |
TH-TVCD
The Telehook TH-TVCD dual display mobile TV cart is the ideal solution
for video conferencing. Supporting two large displays (up to 60” each)
in a side by side configuration helps to improve the quality of your
video conference calls by providing extended screen real estate for
multiple users, screen sharing and more. It can be easily upgraded
to support a video camera shelf above the displays via the use of
the TH-TVS (sold separately) to create a complete video conferencing
solution. Mobile TV carts allow displays to be maneuvered between
rooms quickly and easily, helping to cut down on costs by reducing the
need to buy multiple displays.
Product key features:
Designed for video conferencing, presentation and digital signage environments
Supports two large displays (up to 60” each) in a side by side configuration
All mounting hardware included
Large universal mounting hole
pattern to maximise compatibility
Maximum weight carrying capacity:
50kg (110lbs) per Display
Can be upgraded
to supporta video
conferencing camera
shelf (TH-TVCB-CM)
Internal cable
management
for a clean and
professional look
From 1.2m up to
1.8m of display height
Includes AV shelf
with three height
adjustment positions
Easy to maneuver with
lockable castors to
secure the position
®
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
adjustment
Product information
Product Code
Load capacity
Material
Colour
TH-TVCD
Package information, single unit
Size Ship weight
134.5cm x 27cm x 86cm
(53” x 10.6” x 33.9”)
Technical drawings
Dimensions
50kg (110lbs) per Display
68.5kg (151lbs)
530mm
(20.9”)
196mm
(7.72”)
Steel
UPC code
881493008595
Dark Grey
Contents
All hardware required for
installation supplied
400mm
(15.8”)
Max: 1310mm (51.6”)
Min: 1120mm (44.1”)
1230-1830mm (48.4”-72”)
(100mm (3.94”) Increments)
100mm
(3.94”)
500mm
(19.7”)
792mm
(31.2”)
C
L
Max: 900mm (35.4”)
Min: 200mm (7.87”)
Min: 200mm
(7.87”)
605-1065mm (23.8”-41.9”)
(230mm (9.1”) Increments)
400mm
(15.7”)
600mm
(23.6”)
519mm
(20.4”)
C
120mm
(4.72”)
L
190mm
(7.48”)
796mm
(31.3”)
Atdec mounts are designed, developed and tested in Australia. While all efforts
have been made to ensure the information in this brochure was correct as of the
date of printing, we reserve the right to change specifications without notice. Please
refer to the website for our full range along with the latest details on specifications,
compatibility and dealer location. Atdec and Telehook are registered trademarks
with all rights reserved. Copyright January 2014.
180mm (7.1”)
®
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
