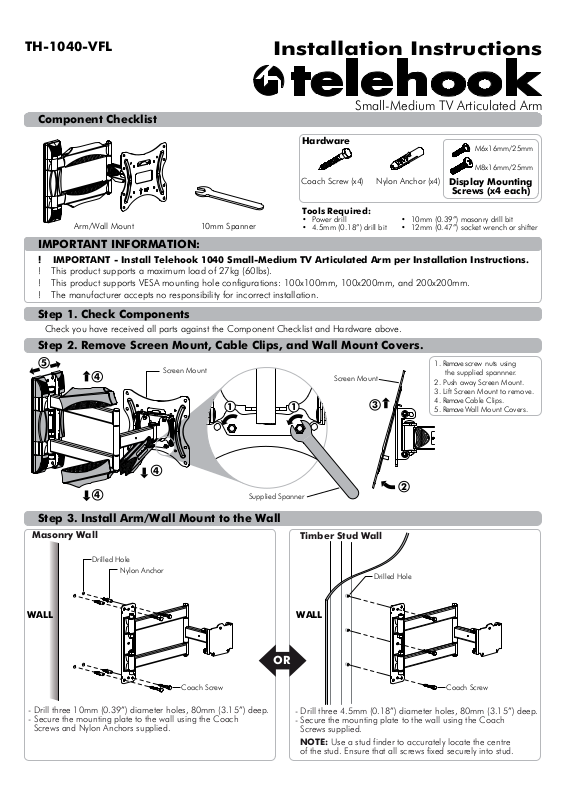

Page 1
TH-1040-VFL
Component Checklist
Installation Instructions
Small-Medium TV Articulated Arm
Hardware
M6x16mm/25mm
M8x16mm/25mm
Coach Screw (x4) Nylon Anchor (x4)
Display Mounting
Screws (x4 each)
Tools Required:
Power drill
Arm/Wall Mount 10mm Spanner
•
4.5mm (0.18”) drill bit
•
10mm (0.39”) masonry drill bit
•
12mm (0.47”) socket wrench or shifter
•
IMPORTANT INFORMATION:
! IMPORTANT - Install Telehook 1040 Small-Medium TV Articulated Arm per Installation Instructions.
! This product supports a maximum load of 27kg (60lbs).
! This product supports VESA mounting hole configurations: 100x100mm, 100x200mm, and 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Remove Screen Mount, Cable Clips, and Wall Mount Covers.
5
4
Screen Mount
Screen Mount
1
1
3
1. Remove screw nuts using
the supplied spannner.
2. Push away Screen Mount.
3. Lift Screen Mount to remove.
4. Remove Cable Clips.
5. Remove Wall Mount Covers.
4
4
Supplied Spanner
Step 3. Install Arm/Wall Mount to the Wall
Masonry Wall
Drilled Hole
Nylon Anchor
Coach Screw
- Drill three 10mm (0.39”) diameter holes, 80mm (3.15”) deep.
- Secure the mounting plate to the wall using the Coach
Screws and Nylon Anchors supplied.
2
Timber Stud Wall
Drilled Hole
WALLWALL
OR
Coach Screw
- Drill three 4.5mm (0.18”) diameter holes, 80mm (3.15”) deep.
- Secure the mounting plate to the wall using the Coach
Screws supplied.
NOTE: Use a stud finder to accurately locate the centre
of the stud. Ensure that all screws fixed securely into stud.
Page 2
Step 4. Attach Wall Mount Covers Step 5. Attach Screen Mount to Display
Mounting Screw
WALL
Step 6. Attach Display to the Arm
1
1. Hook Screen Mount to the Arm.
2. Push bottom of Display to insert studs to the slots.
3. Replace Screw Nuts and tighten to secure.
Screen Mount
The screen mount supports VESA
mounting hole configurations
100x100mm, 100x200mm and
200x200mm.
2
Back of Display
TIGHTEN
3
Supplied Spanner
TOP OF
DISPLAY
Step 7. Horizontal Adjustment
Loosen both nuts to
adjust horizontal tilt.
When the desired
viewing angle has
been achieved,
re-tighten both nuts
to secure.
±3°
LOOSEN
Step 9. Cable Management
Re-attach Cable Management Clips, by pushing
over arm section.
Ensure sufficient slack is left around joints.
TIGHTEN
Step 8. Vertical Adjustment
Loosen each nut on
both the left and
right sides of the
head to adjust the
vertical tilt. When the
desired viewing
angle has been
achieved, re-tighten
both nuts to secure.
PUSH
LOOSEN
left view
OPTION 2
PUSH
0 - 10°
TIGHTEN
right view
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 07.05.12 ©
PUSH
