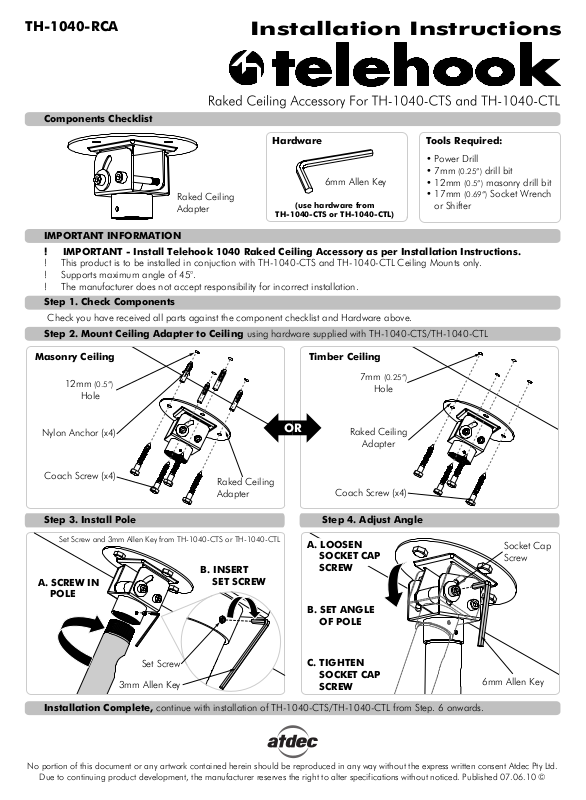

TH-1040-RCA
Components Checklist
Installation Instructions
Tools Required:
•
Power Drill
•
7mm
(0.25”)
drill bit
• 12mm
• 17mm
(0.5”)
masonry drill bit
(0.69”)
Socket Wrench
or Shifter
Raked Ceiling
Adapter
Hardware
6mm Allen Key
(use hardware from
TH-1040-CTS or TH-1040-CTL)
IMPORTANT INFORMATION
! IMPORTANT - Install Telehook 1040 Raked Ceiling Accessory as per Installation Instructions.
! This product is to be installed in conjuction with TH-1040-CTS and TH-1040-CTL Ceiling Mounts only.
! Supports maximum angle of 45°.
! The manufacturer does not accept responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the component checklist and Hardware above.
Step 2. Mount Ceiling Adapter to Ceiling using hardware supplied with TH-1040-CTS/TH-1040-CTL
Masonry Ceiling Timber Ceiling
7mm
12mm
Hole
(0.5”)
(0.25”)
Hole
Nylon Anchor (x4)
OR
Raked Ceiling
Adapter
Coach Screw (x4)
Step 3. Install Pole
Set Screw and 3mm Allen Key from TH-1040-CTS or TH-1040-CTL
Raked Ceiling
Adapter
Coach Screw (x4)
Step 4. Adjust Angle
A. LOOSEN
SOCKET CAP
SCREW
A. SCREW IN
POLE
B. INSERT
SET SCREW
B. SET ANGLE
Set Screw
OF POLE
C. TIGHTEN
SOCKET CAP
3mm Allen Key
SCREW
Installation Complete, continue with installation of TH-1040-CTS/TH-1040-CTL from Step. 6 onwards.
Socket Cap
Screw
6mm Allen Key
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without noticed. Published 07.06.10 ©
