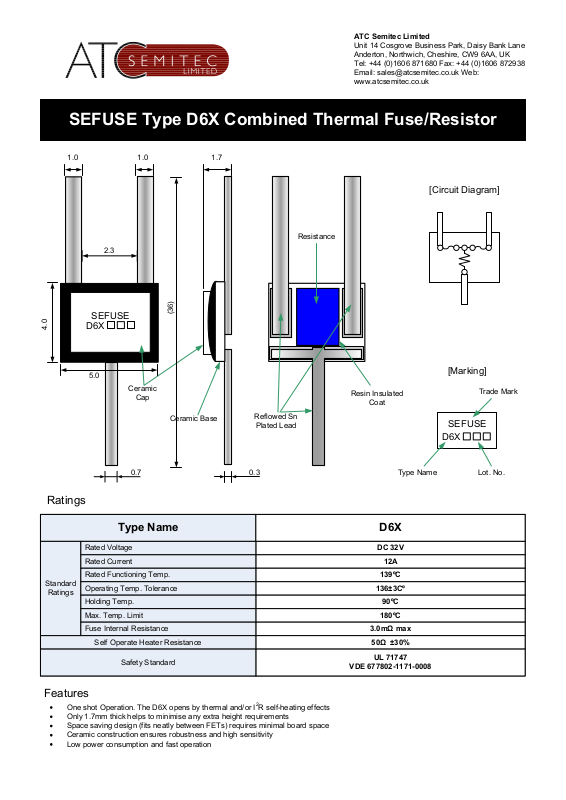

SEFUSE Type D6X Combined Thermal Fuse/Resistor

1.0 1.0

SEFUSE

4.0

D6X

5.0

2.3

Ceramic

Cap

(36)

Ceramic Base

1.7

Reflowed Sn

Plated Lead

Resistance

Resin Insulated

Coat

[Circuit Diagram]

[Marking]

Trade Mark

SEFUSE

D6X

0.7

0.3

Ratings

Type Name D6X

Rated Voltage

Rated Current

Standard

Ratings

Rated Functioning Temp.

Operating Temp. Tolerance

Holding Temp.

Max. Temp. Limit

Fuse Internal Resistance

Self Operate Heater Resistance

Safety Standard

Features

One shot Operation. The D6X opens by thermal and/or I2R self-heating effects
Only 1.7mm thick helps to minimise any extra height requirements
Space saving design (fits neatly between FETs) requires minimal board space
Ceramic construction ensures robustness and high sensitivity
Low power consumption and fast operation

Lot. No.Type Name

DC 32V

12A

139ºC

136±3Cº

90ºC

180ºC

3.0mΩ max

50Ω ±30%

UL 71747

VDE 677802-1171-0008
