ATCOM Rainbow2 User Manual

Download
Rainbow2 IP Phone User Manual
Version: 1.0
2014-03-27
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
Content
CONTACT ATCOM
........................................................................................................................................................................
4
OVERVIEW OF ATCOM
.............................................................................................................................................................
4
1. OVERVIEW OF RAINBOW2
...........................................................................................................................................................
5
1.1 INTERFACES
.....................................................................................................................................................................................
6
1.2 HARDWARE
.....................................................................................................................................................................................
6
1.3 SOFTWARE
......................................................................................................................................................................................
6
1.4 NETWORK
.......................................................................................................................................................................................
6
1.5 MANAGEMENT AND MAINTENANCE
....................................................................................................................................................
7
1.6 PROTOCOL
......................................................................................................................................................................................
7
1.7 COMPLIANT AND CERTIFIED STANDARD
................................................................................................................................................
7
1.8 PACKING LIST
..................................................................................................................................................................................
7
1.9 INSTALLATION
..................................................................................................................................................................................
8
2. KEYPAD OF IP PHONE
.................................................................................................................................................................
13
2.1DESCRIBE OF THE BUTTONS AND SCREEN
.............................................................................................................................................
13
2.2 LINE KEYS LED
...............................................................................................................................................................................
14
2.3 STATUS INDICATOR
........................................................................................................................................................................
14
2.4 PROGRAMMABLE KEYS LED
.............................................................................................................................................................
14
2.5 LCD SCREEN ICONS
........................................................................................................................................................................
15
3. BASIC FUNCTIONS AND OPERATIONS
.......................................................................................................................................
16
3.1 ANSWER THE CALLS
........................................................................................................................................................................
16
3.2 MAKE CALL
..................................................................................................................................................................................
16
3.3 PRE-DIAL
......................................................................................................................................................................................
17
3.4 MULTIPLE LINE DIAL-UP
..................................................................................................................................................................
17
3.5 HANG UP THE PHONE
.....................................................................................................................................................................
18
3.6 CALL TRANSFER
.............................................................................................................................................................................
18
3.7 VOICEMAIL
...................................................................................................................................................................................
18
3.8 MUTE CALLS
..................................................................................................................................................................................
18
3.9 CALL HOLD
...................................................................................................................................................................................
19
3.10 3-WAY CONFERENCE CALL
............................................................................................................................................................
19
3.11 CALL HISTORY
.............................................................................................................................................................................
19
3.12 DEFAULT PASSWORD
....................................................................................................................................................................
20
3.13 CHECK THE PHONE’S IP ADDRESS
....................................................................................................................................................
20
3.14 DIAL PLAN
..................................................................................................................................................................................
20
4. WEB SETTINGS
............................................................................................................................................................................
22

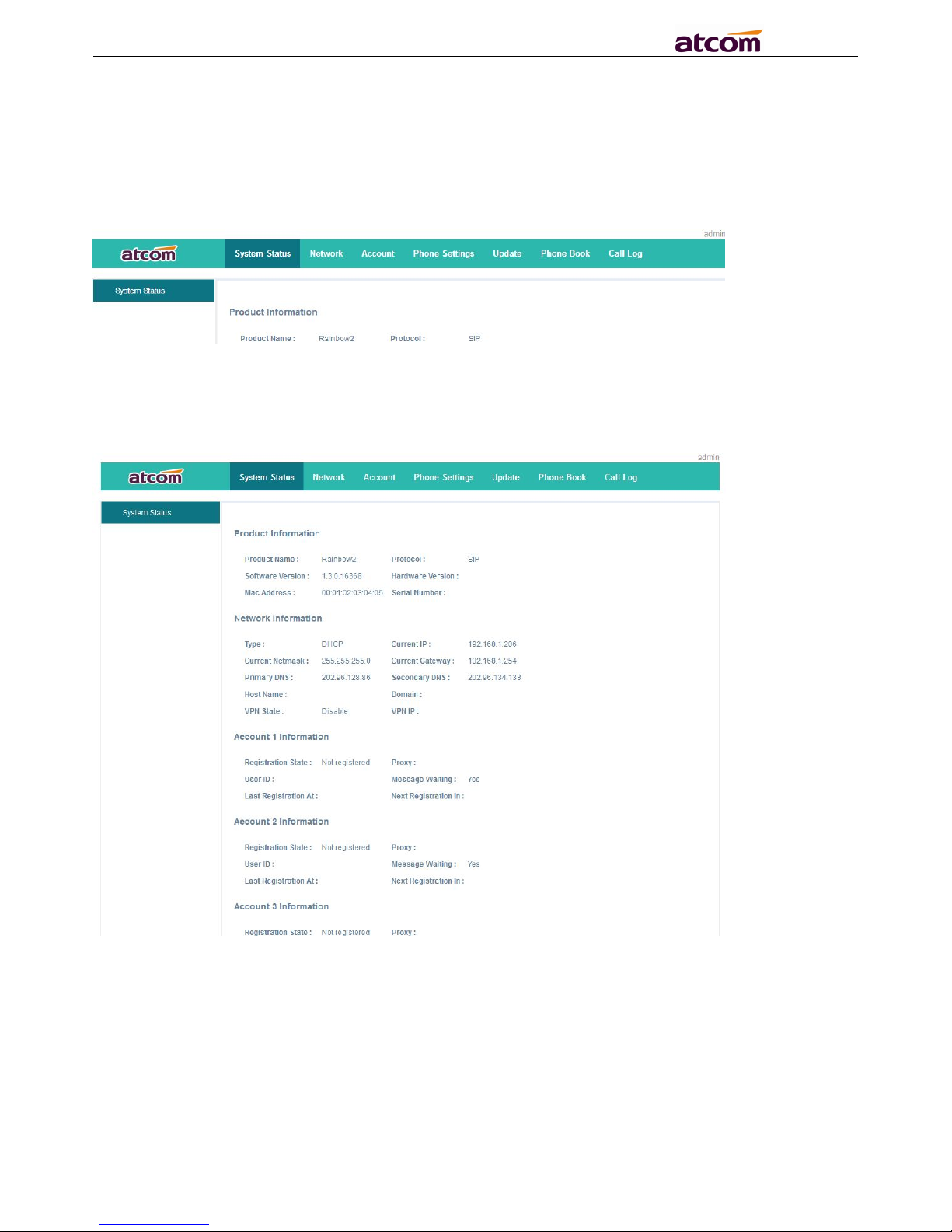

4.1 SYSTEM STATUS
..............................................................................................................................................................................
22
4.2 NETWORK
.....................................................................................................................................................................................
23

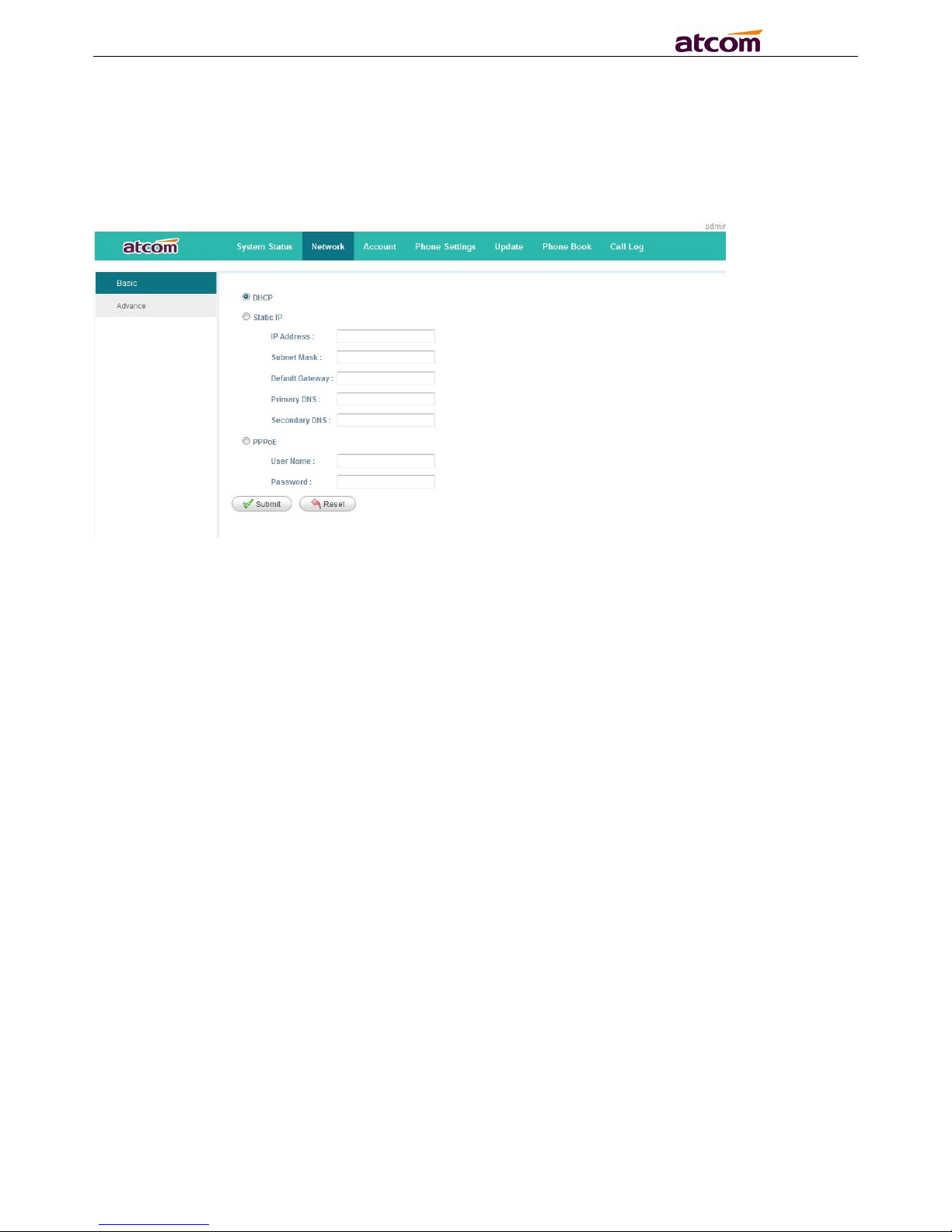

4.2.1 Basic
...................................................................................................................................................................................
23

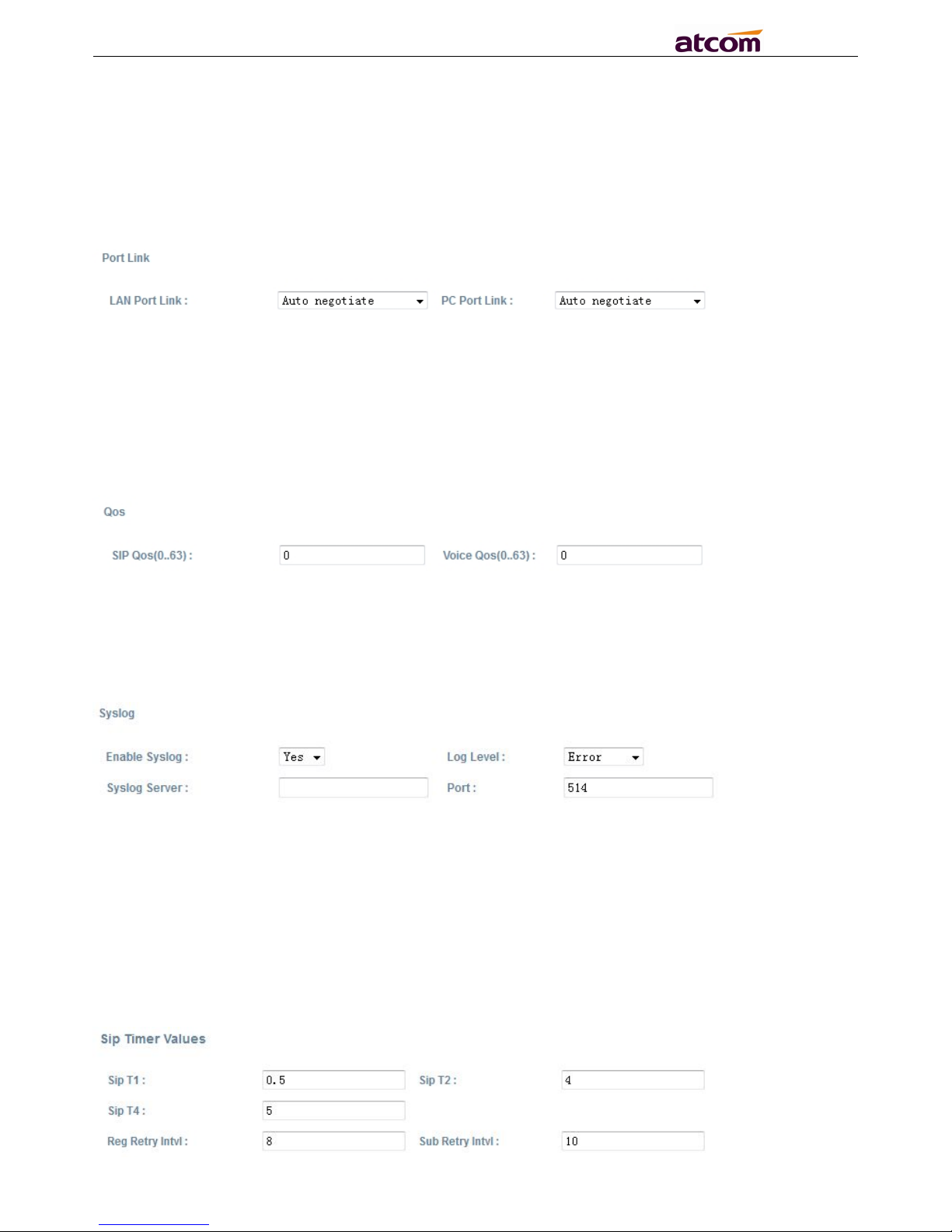

4.2.2 Advance
.............................................................................................................................................................................
24
4.3 SIP SETTING
.................................................................................................................................................................................
25
4.4 ACCOUNT
.....................................................................................................................................................................................
27
4.5 PHONE SETTING
............................................................................................................................................................................
30
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
4.5.1 Preference
..........................................................................................................................................................................
30

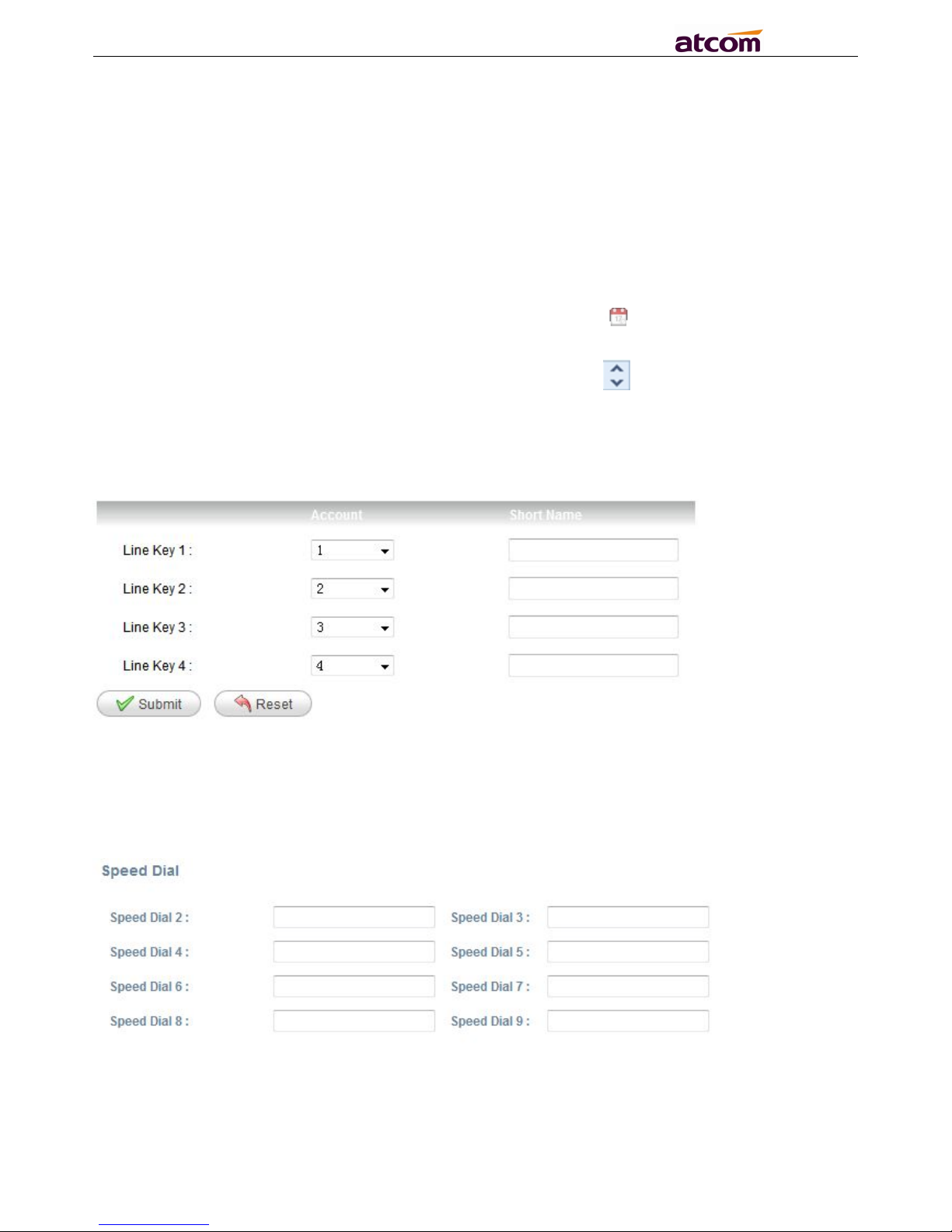

4.5.2 Line
....................................................................................................................................................................................
32

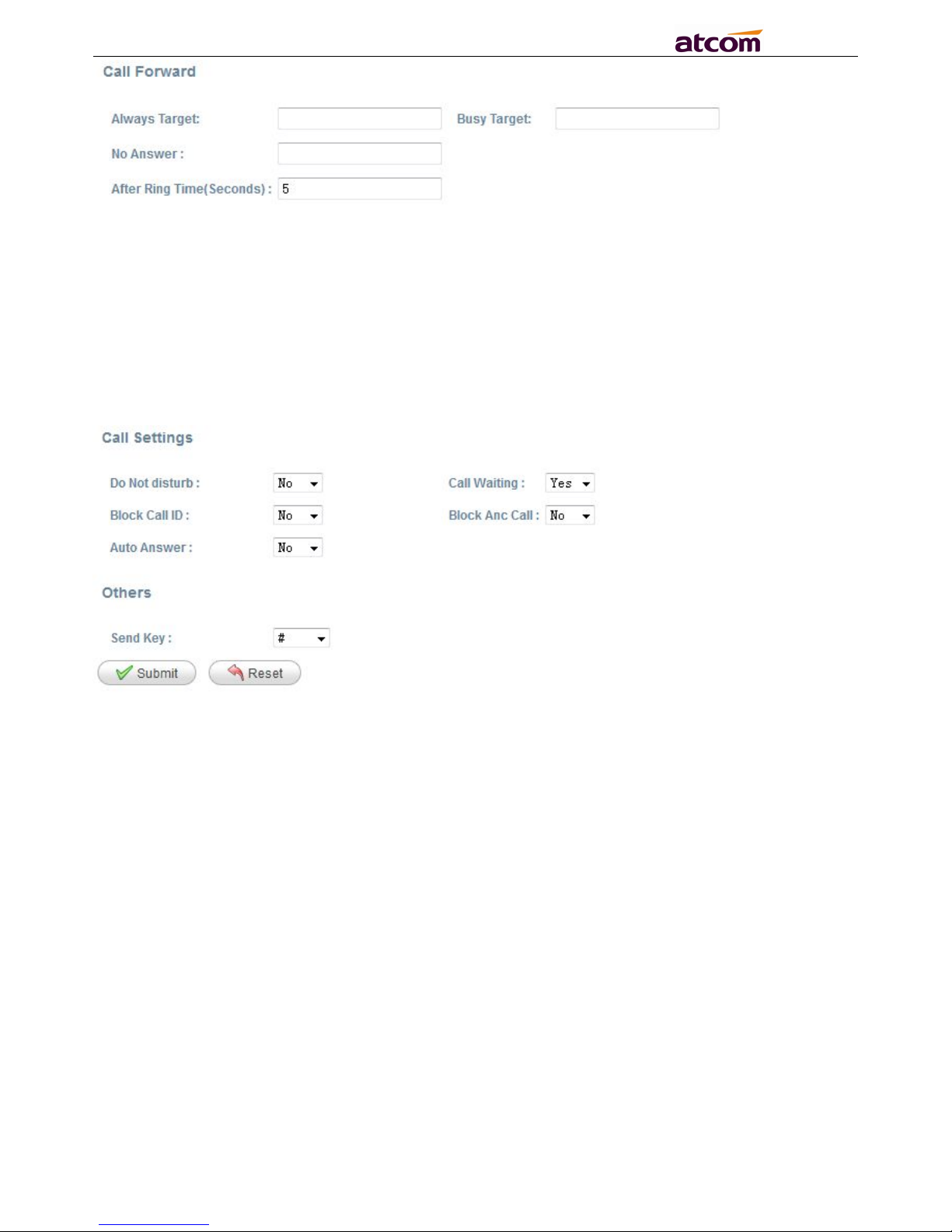

4.5.3 Features
.............................................................................................................................................................................
32

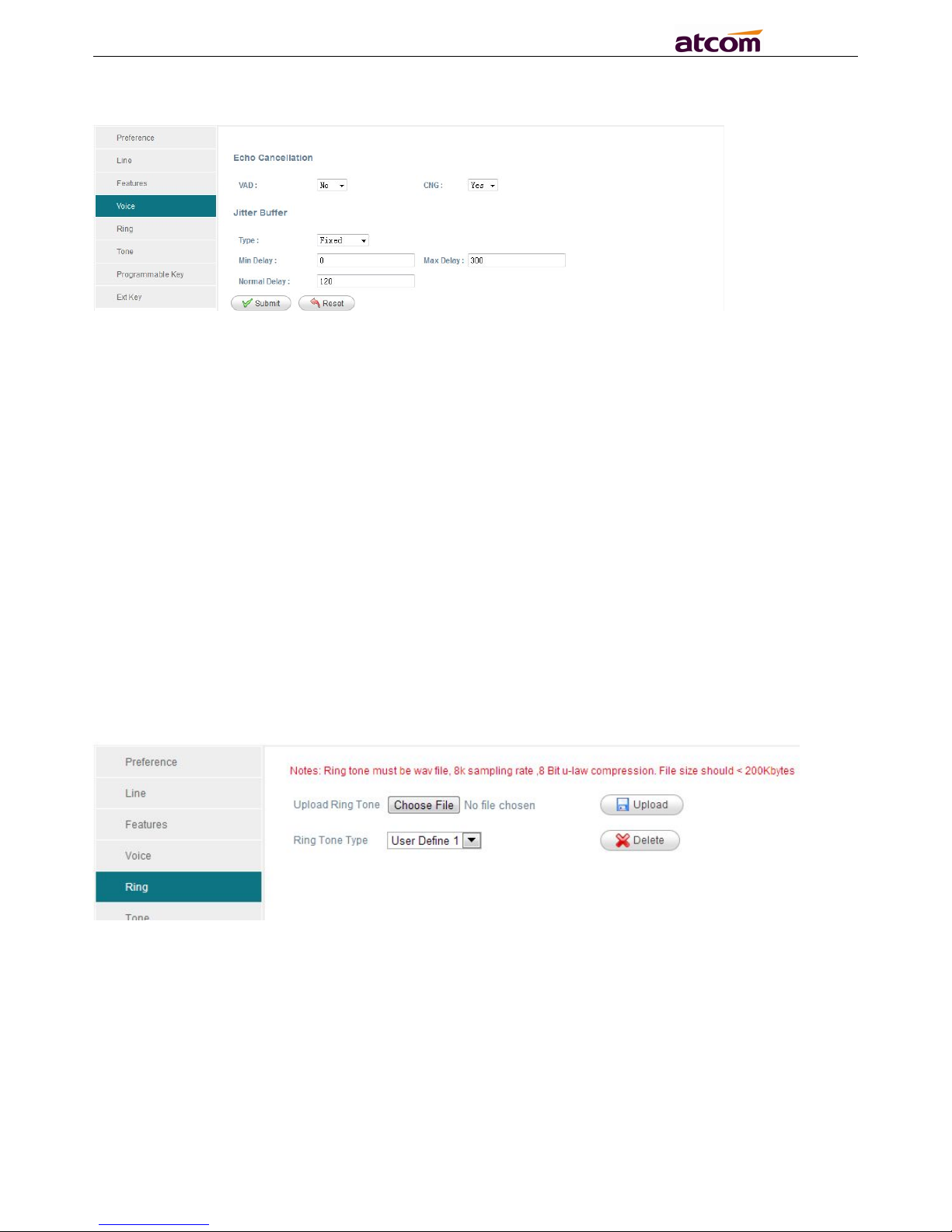

4.5.4 Voice
..................................................................................................................................................................................
34
4.5.5 Ring
....................................................................................................................................................................................
34
4.5.6 Tone
...................................................................................................................................................................................
35

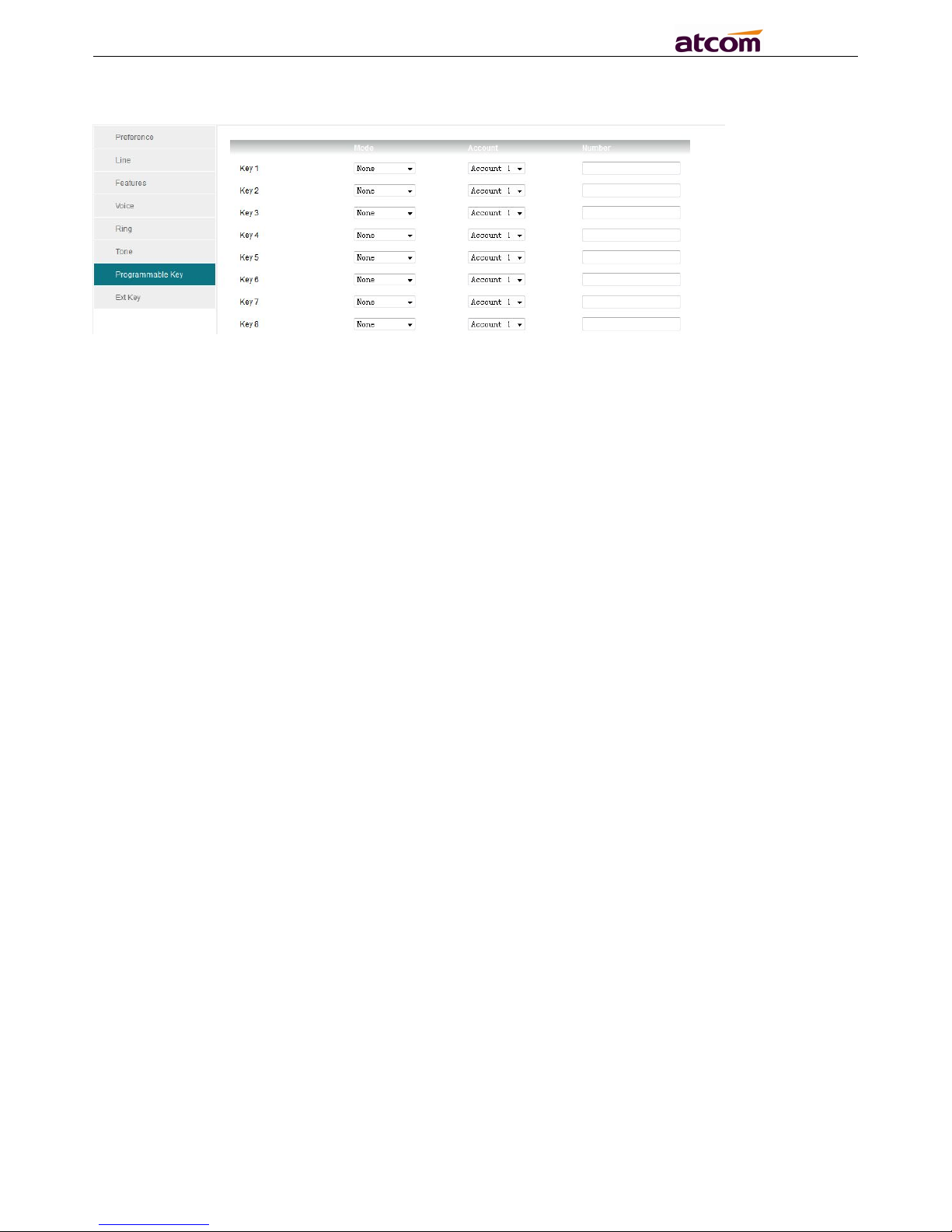

4.5.7 Programmable key
.............................................................................................................................................................
36

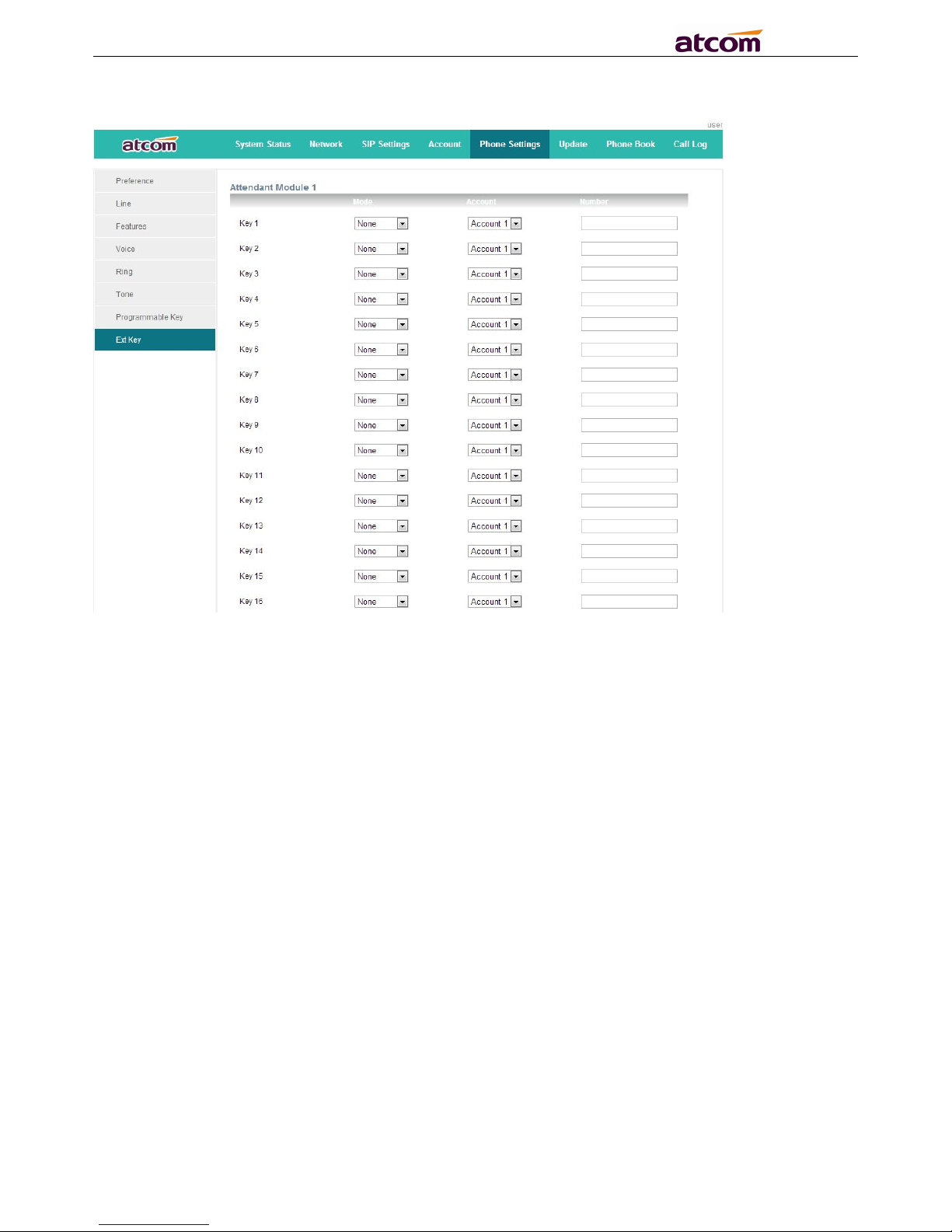

4.5.8 Rainbow E
..........................................................................................................................................................................
37
4.6 UPDATE
........................................................................................................................................................................................
38

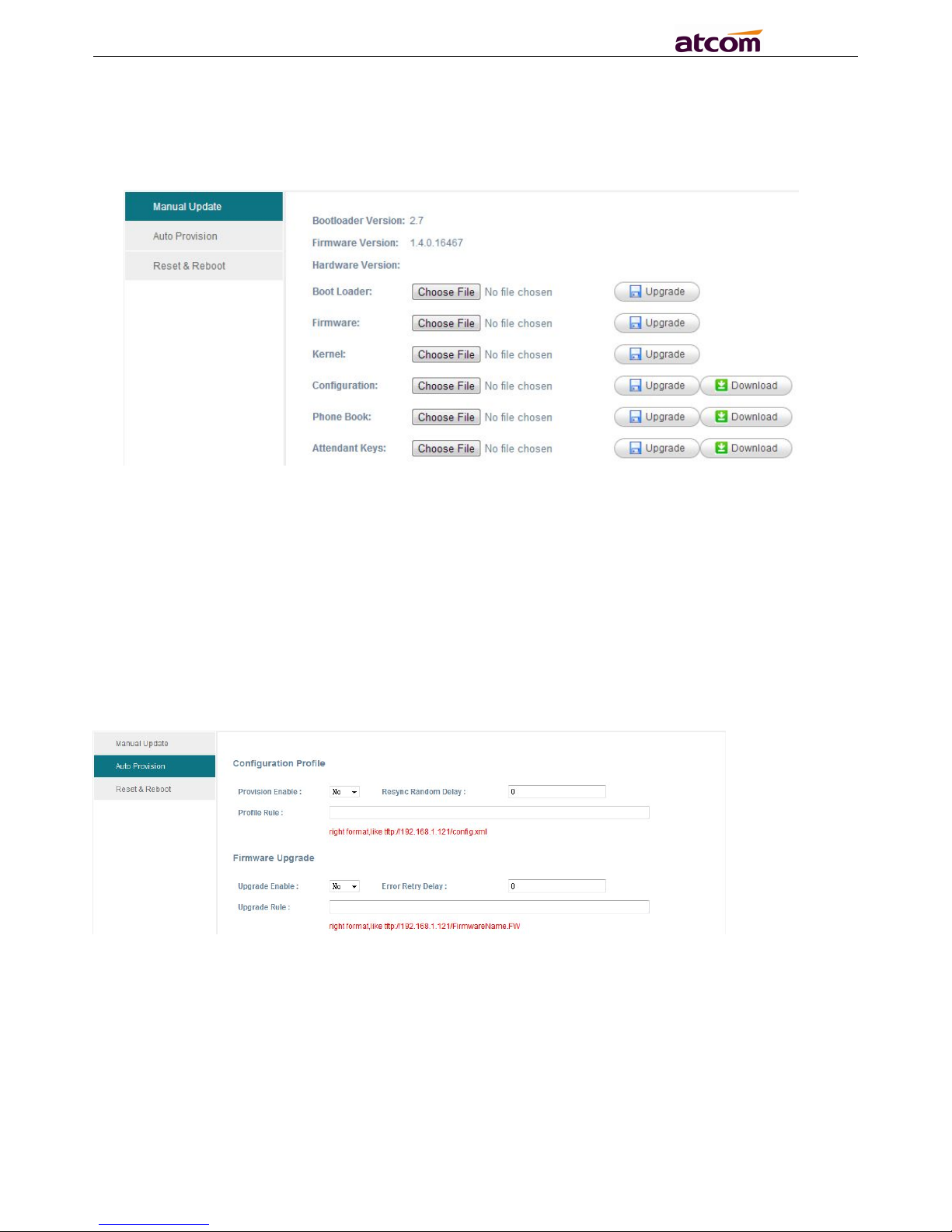

4.6.1 Manual Update
..................................................................................................................................................................
38
4.6.2 Update/Auto Provision
......................................................................................................................................................
38

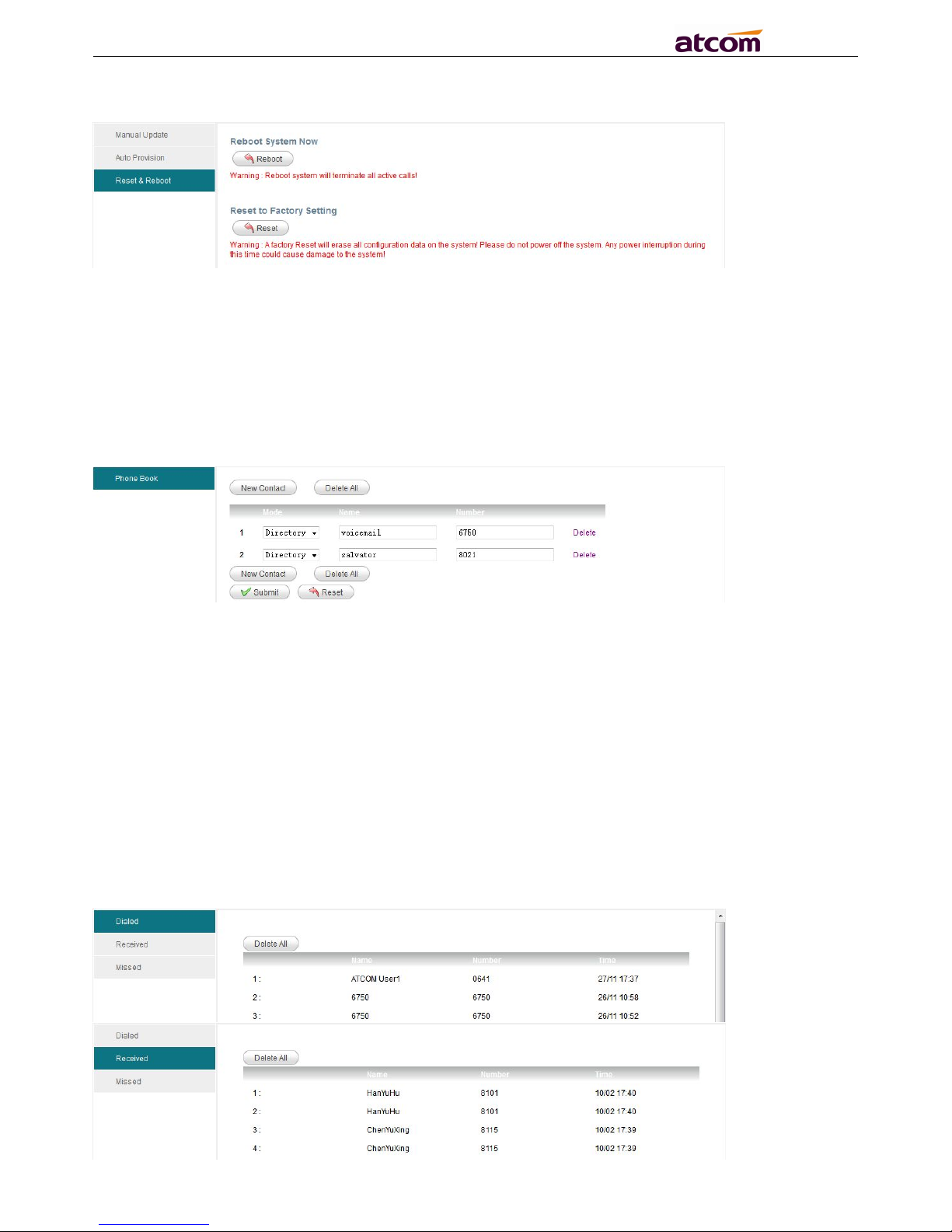

4.6.3 Reset & Reboot
..................................................................................................................................................................
39
4.7 PHONE BOOK
................................................................................................................................................................................
39

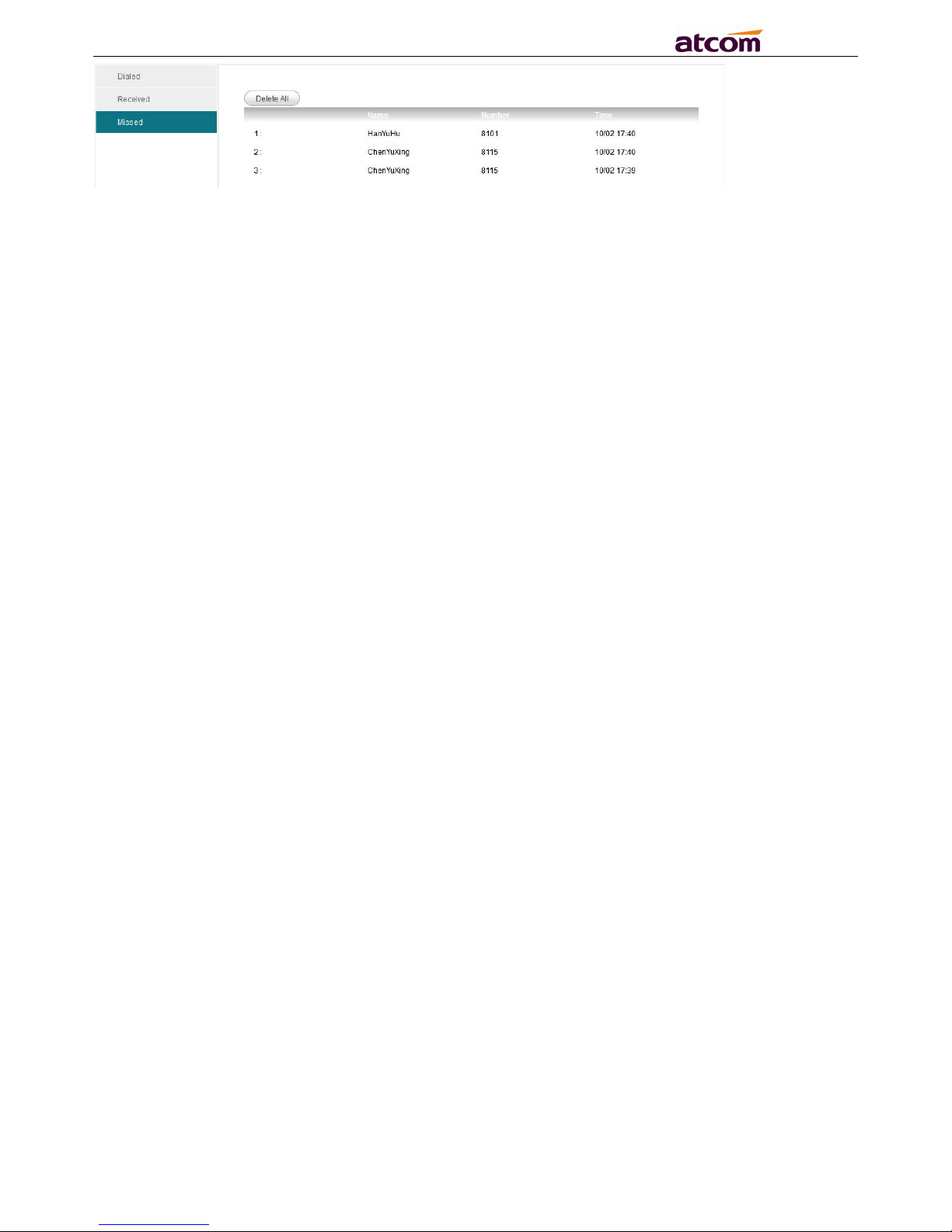

4.8 CALL LOG
.....................................................................................................................................................................................
39
5. FAQ & TROUBLE SHOOTING
.......................................................................................................................................................
41
5.1 How to make a factory reset
.................................................................................................................................................
41
5.2 Upgrade firmware under safe mode
....................................................................................................................................
41
5.3 How to make direct IP call
....................................................................................................................................................
41
6. TROUBLE SHOOTING
..................................................................................................................................................................
42
6.1 The phone can’t register successfully
...................................................................................................................................
42
6.2 The phone can’t obtain IP address
.......................................................................................................................................
42
6.3 Only one part can hear the voice during the call
.................................................................................................................
42
7. ABBREVIATIONS
.........................................................................................................................................................................
43
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
Contact ATCOM
Overview of ATCOM
ATCOM is the leading VoIP hardware manufacturer in global market. We have been keeping innovating with customer’s needs oriented , working with partners to establish a total solution for SMB VoIP with IP phone , IP PBX and Asterisk cards
With over 10 years’ experience of R&D , manufacturing and service in network and VoIP filed ; mission of creating the biggest value for IP terminals , we commit ourselves in supplying the competitive IP phone and other terminals for IP PBX , softswitch , IMS , NGN providers and carriers; supplying the competitive total VoIP solution for SMB market. We keep improving the customer’s experience and creating the bigger value with our reliable products. Until now, our VoIP products have been available in 100+ countries and used by millions of end users.
Contact Sales
Address
Area C, A2F , Block 3 ,Huangguan Technology Park , #21 Tairan 9th Rd, Chegongmiao , Futian District , Shenzhen China
Tel + (86) 755-83018618-8806
Fax + (86) 755-83018319
E-mail sales@atcomemail.com
Contact Technical Support
Tel + (86) 755-83018618-8008
E-mail Support@atcomemail.com
Website Address
:
http://www.atcom.cn/
Download Center
:
http://www.atcom.cn/download.html
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn

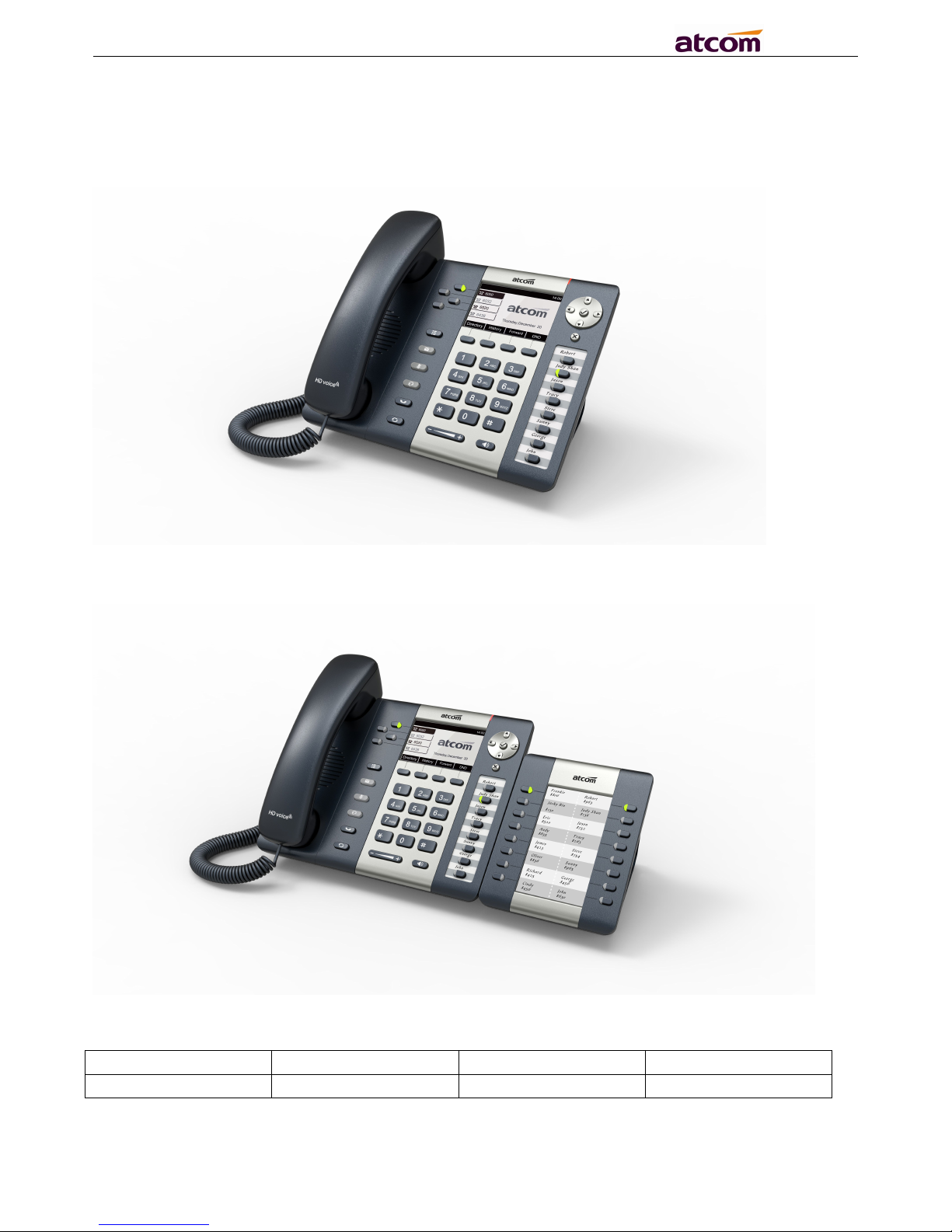

1.Overview of Rainbow2
Rainbow2
Rainbow2 with Rainbow E
Type POE Power adapter Rainbow E
Rainbow2 Yes Optional accessory Optional accessory
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
1.1 Interfaces
Power input: DC 5V, 1000mA （DC 5V, 2000mA when with Rainbow E）or POE
LAN: RJ45 port
PC: RJ45 port
EXPAN: RJ45 port
Headset jack 1 : RJ9 port
Handset jack 1 : RJ9 port
1.2 Hardware
LCD: 224×128 4-gray scale
FLASH: 16M
RAM: 32M
CPU: 262MHz Dual Core
LED indicator: 1 Status Light , 4 line indicators, 8 BLF indicators, 1 voicemail indicator, 1
headset indicator, 1 mute indicator
Rainbow E expansion module: 16 programmable keys on each Rainbow E, can connect up to
5 Rainbow E on a Rainbow2.
1.3 Software
Sip 2.0 (RFC3261) and other related SIP RFCs
4 SIP lines registration with 8 concurrent calls
STUN
Jitter Buffer, VAD,CNG
G.711A/u, G722, G.723, G.726-16, G.726-24, G.726-32, G.726-40, G.729, Lin16-16, iLBC
Echo Cancellation
SIP Domain name, Authentication
DTMF（Inband, RFC2833, SIP INFO)
Call transfer, Call forward, 3-way conference, Call hold, Call back
DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous call, Dial
plan, IP call
Phone book with 200 records, 200 answered calls, 200 missed calls, 200 dialed calls
Auto update via HTTP, FTP, TFTP, PNP
Syslog
SNTP
WEB access with different login level
Multi-language: English, Chinese, Farsi, French, German, Hebrew, Italian, Portuguese,
Russian, Spanish, Turkish
Soft button: soft button * 4
BLFRedundancy SIP server
1.4 Network
LAN/PC：Support bridge mode
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
Support PPPoE（ADSL,cable modem used for Internet connecting）
Support VLAN（DATA VLAN and VOICE VLAN）
Support L2TP VPN
LAN support Primary and Secondary DNS
LAN support DHCP Client
Support QoS
1.5 Management and Maintenance
Support safe mode and firmware updating under safe mode
Support different level user management
Configuration via web , keyboard
Support multi-language
Firmware and configuration file auto provision
Support system log and call log
1.6 Protocol
IEEE 802.3 /802.3 u 10 Base T / 100Base TX
PPPoE: PPP over Ethernet
DHCP: Dynamic Host Configuration Protocol
SIP RFC3261, RFC3262, RFC3263, RFC3264, RFC3265, RFC2543, RFC3489, RFC3842,
RFC3515, RFC2976, RFC3428, RFC2327, RFC2782, RFC1889
TCP/IP: Transfer Control Protocol/Internet Protocol
RTP: Real-time Transport Protocol
RTCP:RTP Control Protocol
DNS: Domain Name Server
TFTP: Trivial File Transfer Protocol
HTTP:Hypertext Transfer Protocol
FTP:File Transfer Protocol
1.7 Compliant and Certified Standard
CE: AGC01180140201E2，AGC01180140202E2
Comply with ROHS in EU
Comply with ROHS in China
  Operation temperature: lower than 60° C
Storage temperature: lower than 60° C
Humidity: 10 to 90% no dew
1.8 Packing List
Model Phone Handset Handset Stand Ethernet User Manual
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
line bracket Cable CD
Rainbow2 1 1 1 1 1pcs
1.5m
1
Note: Power adapter (Input: AC 100~240V, 50/60Hz; Output: 5V,1000mA;)
1.9 Installation
Connect LAN port to PC with Ethernet cable, or connect Rainbow2 to a switch/router which is in the same network as your PC. It uses DHCP mode by default, and you can review its current IP address
by pressing
key on idle state. To access the web interface, you can input the IP address in IE
browser. E.G. The IP address of your Rainbow2 is 192.168.1.100, you can input 192.168.1.100 and press enter key on your browser to access its webpage. There are two login level: User Admin
No password is set for those two accounts with factory settings. You can click admin button on the right corner of the webpage to switch from the user to admin mode. To set the password for user and admin login you can firstly login as admin and enter the Network--->Advance page as following.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn

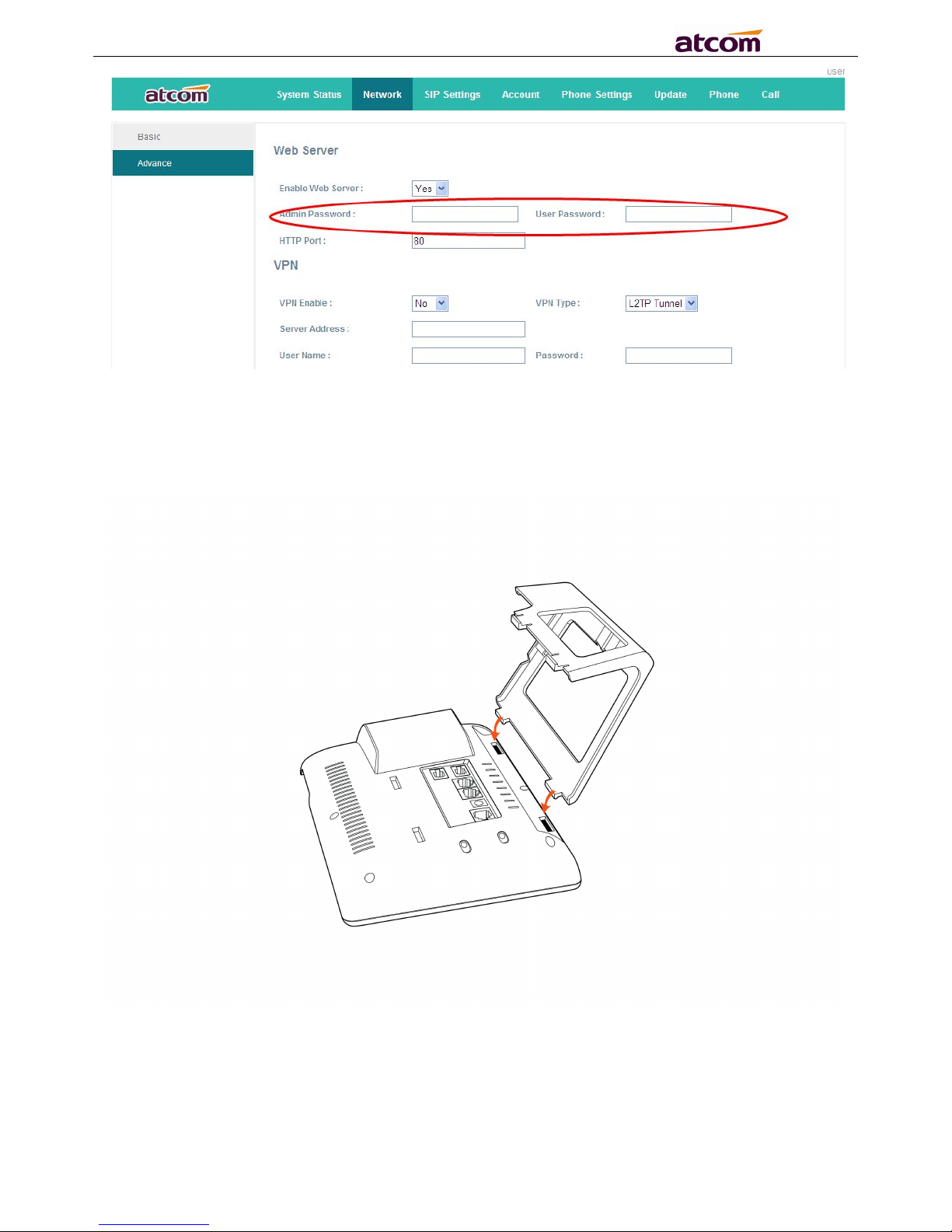

Stand bracket installation instruction
A. Put the bottom side of the IP phone upside and press one-side joints of stand bracket into the slot, please refer the picture as below:
B. Press the other side joints into the slot according to the direction of the arrow:
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
10
C. It is the right picture after fixing the stand bracket below:
D. Disassemble the stand bracket:
Push the spring joint of stand and pull the stand according to the direction of the arrow. When the joints are pulled out of the slot, you can take off the stand bracket
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
11
Programmable keys’ paster using instruction
Step1. Use needle or some other tools to insert into the hole of the plastic sheet, hog the plastic sheet.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
12
Step2. Lift out the plastic sheet
Step3. Take off the plastic sheet
Step4. Use needle or some other tools to insert into the edge of the paster, hog and lift out the paster
Step5. Write down the identification of each programmable key on the paster after taking off the paster
Step6. Put back the paster
Step7. Insert the plastic sheet into the slot
Step8. Push the other side of the plastic sheet into the other slot
Rainbow E’s paster using instruction
Steps to use Rainbow E’s paster are the same as programmable keys’ as below:
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
13
2.Keypad of IP Phone
2.1Describe of the buttons and Screen
Soft Keys
Press to select a function which displayed at the softkey zone of screen Display all optional functions at the last line of LCD screen.
Status Indicator Indicates the phone’s status.
LCD Screen
All information such as date, time, phone number, incoming caller’s ID(if available),line/call status, extension numbers and the soft key features are displayed on it.
Line Key Show extension status and choose corresponding line.
Dial pad Entering numbers or characters.
Programmable Keys
All the programmable keys can be defined as BLF key, Redial key etc.
Navigation keys
Allow users to navigate (left, right, up, down). Press
can enter “Directory”. Press can enter “History”.
Confirm users’ operation and show status when Rainbow2 is idle.
Line key
LCD
Status Indicator
Navigation
OK
Cancel
Soft Key
Programmable
Key
Dial pad
Menu
VoiceMail
Mute
Headset
Hold
Redial
Volume
Speaker
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
14
2.2 Line keys LED
LED Status Description
Off The line is idle or disabled for register
Blink in green at 120ms off, 120ms on The line has incoming call
Green The line is talking
Blink in red at 600ms off, 600ms on The line is held
Table1 Line keys LED Status and Description
2.3 Status Indicator
LED Status Description
On Rainbow2 is being started
Off Rainbow2 is standby
Blink in red at 120ms on, 120ms off There is incoming call
Table2 Status Indicator LED Status and Description
2.4 Programmable keys LED
LED Status Description
Off The monitored account is unregistered
Green The monitored account is idle
Red The monitored account is talking
Fast blink in red The monitored account is ringing
Table3 Programmable keys LED Status and Description
Cancel users’ operation.
Enter menu settings.
Adjust the volume (speaker/handset/headset/ring). Volume level will be displayed on LCD when pressing volume key.
Pick up and hung up under the speaker mode.
Mute the mic in a conversation by pressing the Mute button;
this prevents the person on the active call from hearing
what you or someone else in the room is saying. If the call is muted, the mute LED is lighted in red. To un-mute, press the Mute button again.
Pick up and hung up under headset mode. The LED button will be lighted when talking in headset mode.
Check the Voicemail status. The LED button will be lighted when there is a new message.
Hold the current call.
Redial the last dialed number.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
15
When powering on, all LEDs will be lighted once.
2.5 LCD screen icons
Icon Description
The extension is registered
The extension is unregistered
There is a new voice mail
Rainbow2 is dialing
Rainbow2 is talking
Rainbow2 is calling
There is an incoming call
The call is held
Rainbow2 is in speaker mode
Rainbow2 is in handset mode
Rainbow2 is in headset mode
Rainbow2 is in conference
Table4 LED Screen Icons Description
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
16
3.Basic functions and operations
3.1 Answer the calls
When there is an incoming call, phone will remind user with ringing. There are 3 ways to answer the call:
A. Answer by handset Pick up the handset and talk with the caller. If you want to hang up, just put back the handset. When you are talking with the handset and want to switch to speaker or headset mode, please press
key or key, then put down the handset.
B. Answer by speaker
Press
key and talk with callers by built-in Micro-phone and Speaker. If you want to hang
up, please press
key again. Switch calling or talking into handset mode by lifting the
handset under speaker mode. Press key will switch calling or talking into headset mode.
C. Answer by headset Keep your microphone connected with the RJ9 headset jack, when there is an incoming call, press
and talk with the caller. If you want to hang up, please press again. Pressing
can change calling or talking into speaker mode, and lifting the handset switches to
handset mode.
3.2 Make Call
A. Use the handset
Pickup the handset, the LCD will show the current lines (user is able to switch from line1 to line4 by pressing the line key beside the LCD). Press soft key "Send" to dial the number. When you hear the tones of “du~~du~~” and the phone number your dialed is being displayed on the LCD, the phone at the side of being called should be ringing. If the called party answers this calling, the call is established and the calling timer is started immediately.
B. Use the speaker
Press
key, the LCD will show the current lines (user is able to switch from line1 to line4 by
pressing the line key beside the LCD). Input the phone number and press soft key "Send" to dial the number. When caller hear the tones of “du~~du~~” and the phone number your dialed is being displayed on the LCD, the phone at the side of being called should be ringing. If the called party answers this calling, the call is established and the calling timer is started immediately.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
17
C. Use the headset
Press Key, the LCD will show the current lines (user is able to switch from line1 to line4
by pressing the line key beside the LCD). Input the phone number and press soft key "Send" to dial the number. When caller hear the tones of “du~~du~~” and the phone number your dialed is being displayed on the LCD, the phone at the side of being called should be ringing. If the called party answers this calling, the call is established and the calling timer is started immediately.
D. Dial from phone book
1. Press
key and input the keypad password 123 to enter the menu and choose
“Directory” option. Press "Select" soft key and then find the contact person by navigation keys. When the certain contact person is highlighted, press "Dial" or just pick up the handset to call this number.
2. Pick up the handset, press "Directory" soft key, then select the contact person and press "Dial"
soft key.
3. Pick up the handset, press
and enter “Directory”, then select the contact person and press
“Dial” soft key.
E. Dial from call history
1. Press
key and input the keypad password 123 to enter the menu and choose “History”
option, then enter sub-directory “Dialed Calls”, “Received Calls” or ” Missed Calls” to select one of call history entry, and press "Dial" soft key or pickup the handset to call this number.
2. Pickup the handset, press "History” soft key, then select one of call history entry, and press
"Dial" soft key to call this number.
3. Pickup the handset, press
and enter “Call History” ,then select one of call history entry, and
press "Dial" soft key to call this number.
3.3 Pre-dial
It’s a method to dial a phone number immediacy at standby mode.. The method is as below： A、Dial-up the phone number at standby mode B、Press soft key "Dial" to send out the number
3.4 Multiple line dial-up
Rainbow2 supports 4 SIP lines. That means user can register on 4 different sip accounts simultaneity. User is able to choose line1, line2, line 3 or line 4 by pressing corresponding line key. Line1 is the priority line.
Rainbow2 maximum supports 8 concurrent calls. When there is an incoming call to another line, LCD will show the incoming telephone number and line LED will be blinking in green. User is able to press the corresponding line key or press soft key "Hold" the current line on which you’re talking then press
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
18
“Answer” to receive the incoming call from another line.
3.5 Hang up the phone
1. Handset hang up
Put back the handset at handset mode, the current calling will be hung up.
2. Speaker hang up
Press
key at speaker model, the current calling will be hung up.
3. Headset Hang up
Press key at headset model, the current calling will be hung up.
4. Hang up one line call
Press the hook to hang up the current calling when 2 calls happened simultaneously.
3.6 Call Transfer
1. Attended call transfer
The attended transfer allows user to call a third-party before transferring the calling.
While calling, press the "Transfer" soft key to hold the current call and phone the third party. Then dial the target number you want to transfer to on the activated line and press “Send” soft key to call that number. After the target party answers the call, press "Transfer" soft key again to complete the transfer.
2. Blind call transfer
The blind transfer allows user to transfer a call without speaking to the third party. On the user side, the call will be ended as soon as the target phone number is dialed. Operating steps: Press “More” soft key to get more option, then press “Bxfer” soft key, input the transfer target number and press “Send” soft key.
3.7 Voicemail
Rainbow2 has a
key for entering voicemail box and indicating new voicemail. Press
key to enter the menu to configure voicemail number if you have never configured it
previously. Otherwise, the voicemail number will be called after pressing it. If you want to modify it after configured it, please go to the Account webpage to modify voicemail number.
3.8 Mute calls
The input audio will be not transmitted to peer phone after pressing
key, and the phone
will be muted even switched among different modes of speaker, handset and headset. To un-mute,
just press
key again.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
19
3.9 Call Hold
The current calling will be hold by pressing soft key “Hold” or
. And the held call will be
resumed after pressing soft key “Resume” or
or the corresponding line key. Even on
3-way conference calling, the conference will be held after pressing “Hold” key, and be resumed to 3-way conference after pressing “Hold” Key again. Remember the conversation is still on hold without being ended even if hung up under the status of hold.
3.10 3-Way Conference Call
To initiate a conference call: Press “More” soft key on calling to get more options, then press “Conf” soft key to start a conference call. Enter the phone number of the third party and press “Send” soft key to send it out.
1. After the third party answers the call, pressing "Conf" key again to establish the 3-way conference.
2. 3-way conference initiator can press "Exit" soft key to quit from the conference and leave the other two parties still in the conversation.
3. If the initiator hangs up the call or press the “End Conf” soft key, the conference will be ended and the calling between the other two parties will be hung up.
3.11 Call History
Rainbow2 supports 200 missed calls, 200 incoming calls and 200 dialed calls. When the storage is full, the old record will be erased by the new one.
Press "History" soft key or
key when Rainbow2 is standby, all the incoming(->), outgoing(<-)
and missed calls(!) will be listed. There is another way to check them:
A. Missed call
1. Press
key.
2. Press
key and key to select “Call History” then press “Select” soft key.
3. Press
key and key to select “Missed Calls” then press “Select” soft key.
4. Press
key and
key to browse the missed call record. If there is no record, the LCD
display will be indicated “List is Empty”.
B. Answered call
1. Press
key .
2. Press
key and key to choose “Call History” and then press “Select” soft key.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
20
3. Press
key and key to choose “Answered Calls” and then press “Select” soft key.
4. Press
key and
key to browse the answered call records. If there is no record, the LCD
display will be indicated “List is Empty”.
C. Dialed call
1) Press
key.
2) Press
key and
key to select "Call History" and then press “Select” soft key.
3) Press
key and
key to select “Dialed Calls” and then press “OK” soft key.
4) Press
key and
key to browse the dialed call records. If there is no record, the LCD
display will be indicated “List is Empty”.
3.12 Default Password
Password is needed to access menu and web. The default password for accessing menu is 123. There are 2 modes to access web: User mode and Admin mode. All the parameters can be visible at Admin mode while part of them can be visible at User mode.
User Mode
Username：user no default Password
Admin Mode：
Username：admin no default Password
3.13 Check the Phone’s IP address
Press key, then the status o of the phone will be displayed on the screen and you will see the
current IP address of the phone.
3.14 Dial Plan
Dial plan specify the rule to dial number. The Rainbow2 syntax for the dial plan closely resembles the corresponding syntax specified by MGCP and MEGACO. Dial plan is stipulated by the below configurable parameters:
Interdigit Long Timer——refer to Interdigit long timer for more detail description
Interdigit Short Timer——refer to Interdigit short timer for more detail description
Dial Plan
Dial plan contains a series of digit sequences, separated by the ‘|’ character. The collection of sequences is enclosed in parentheses ‘(‘ and ‘)’. Default: (*xx.|xxxxxxxxxxxx.) When user dials a series of digits, Rainbow2 will response in below way:
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
21
• No candidate sequences matched, the number will be rejected and display “call ended” on the screen. For instance, the default dial plan only supports digits. And ‘*’ character or letters will be rejected when input them.
More than one candidate sequences matched, Rainbow2 will wait for more digits input.
When input timeout occurs, Rainbow2 will dial the input digits.
When input ‘#’ character, Rainbow2 will dial the input digits.
Digit Sequence Syntax: ‘x’: Matches any one numeric digit (‘0’ ... ‘9’) ‘[]’: Numeric ranges are allowed within ‘[]’. For example, [389] means ‘3’ or ‘8’ or ‘9’, [3-6] means
‘3’ or ‘4’ or ‘5’ or ‘6’ , [235-8*] means ‘2’ or ‘3’ or ‘5’ or ‘6’ or ‘7’ or ‘8’ or ‘*’.
‘.’ ：Any element can be repeated zero or more times by appending a ‘.’ Character. For example, 01.
matches 01,011,0111,01111,...,011111111...etc.
‘<>’: subsequence substitution. For example, ‘<8:1650>xxxxxxx’ would match ‘85551212’ and the
first digit ‘8’ will be replaced by ‘1650’ and ‘16505551212’ will be dialed.
‘,’: An “outside line” dial tone can be generated within a sequence by appending a ‘,’ character
between digits. Thus, the sequence “9, 1xxxxxxxxxx” sounds an “outside line” dial tone after the user presses ‘9’, until the ‘1’ is pressed.
‘!’: A sequence can be barred (rejected) by placing a ‘!’ character at the end of the sequence. For
example, “137xxxxxxxx!” will forbid numbers which have 11 digits and start by 137 to be dialed.
Example: (xxxxxxx|[*#]xxxx|9,1xxxxxxxxxx|00xxx!) contains 4 subsequences:
1. Allow to dial numbers with 7 digits
2. Allow to dial numbers with 4 digits and start by ‘*’ or ‘#’
3. Allow to play an “outside line” dial tone after pressing ‘9’ and dial numbers with 11 digits and
start by 1
4. Forbid to dial numbers with 5 digits and start by 00
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
22
4.Web settings
Enter Rainbow2’s IP address in the web browser and press ‘Enter’ key to access Rainbow2's user webpage. Click "admin" which is on the right corner to enter administrator webpage.
4.1 System status
This page shows the IP phone's system status.
1. Product Information shows the product name, protocol, software and hardware version, Mac
address and serial number.
2. Network Information shows the network connection type, IP, netmask, gateway, DNS, host
name, domain and VPN information.
3. Account 1/2/3/4 Information shows registration state, proxy, user ID, message waiting on
or off , the last and next registration time.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
23
4.2 Network
4.2.1 Basic
There are 3 ways to connect to the internet: DHCP, Static and PPPoE, please choose one according to your own situation.
Network mode: DHCP, Static IP and PPPoE
1. DHCP
Auto obtain dynamic IP from DHCP server.
2. Static IP
a) IP Address: set IP address
b) Subnet Mask：set netmask
c) Default Gateway：set gateway
d) Primary DNS：set primary DNS server
e) Secondary DNS：set secondary DNS server
3. PPPoE
The LAN port of Rainbow2 connects to the Ethenet port of mode. You should fill in user name
and password which were assigned by ISP (internet service provider).
a) User name： set PPPoE user name
b) Password：set PPPoE password
Press ‘Submit’ button after finishing setting and all the settings will be saved and take effect after Rainbow2 reboots.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
24

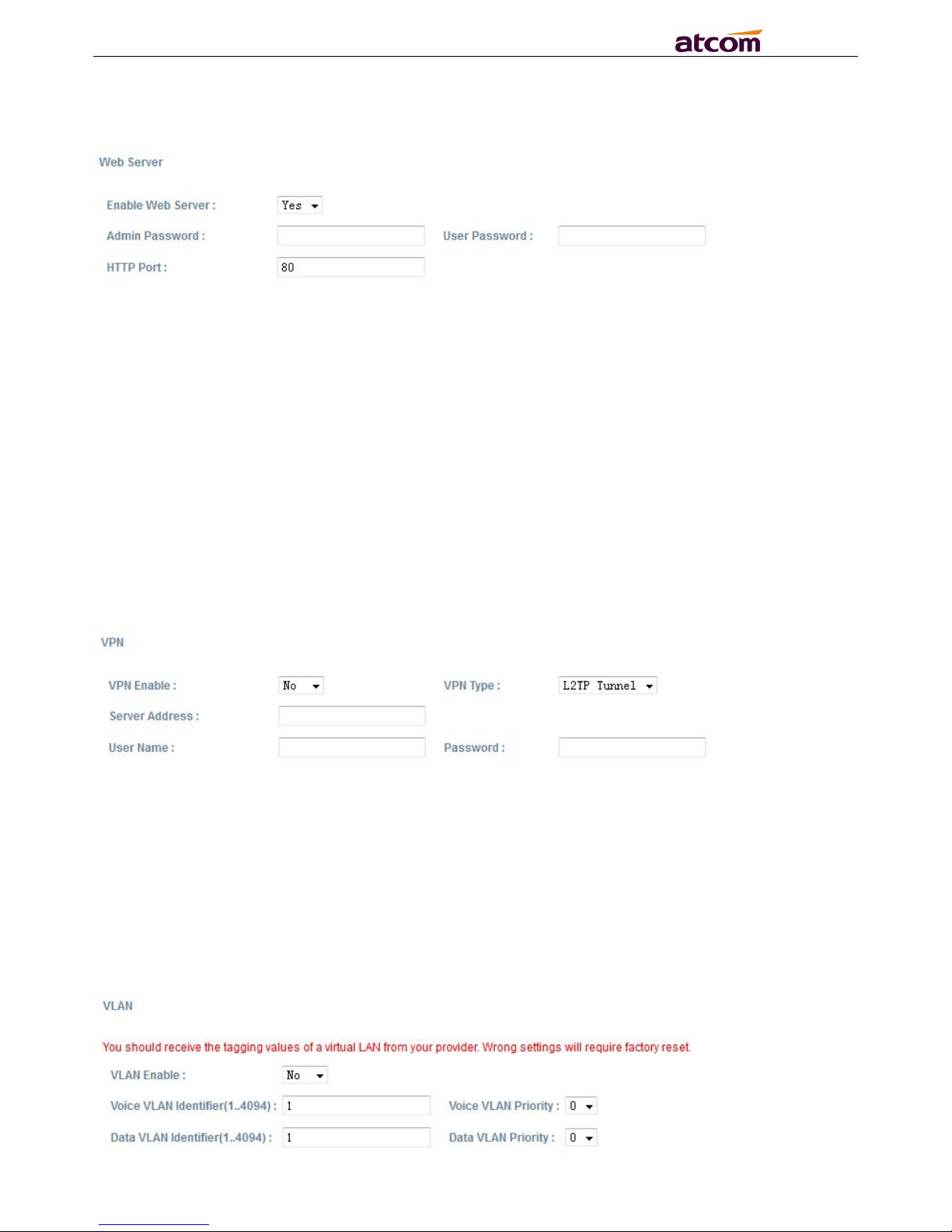

4.2.2 Advance
Web Server
Enable Web Server: enable or disable web access. If choose "no", you can not access Rainbow2’s
webpage.
Admin password: set admin webpage access password. Enter ‘http://ip-address/index.asp’ in
the web browser to access admin’s login webpage after seting the admin password, then input username(admin) and password to access the admin’s webpage.
User password: set user webpage access password. Enter ‘http://ip-address/user.asp’ in the web
browser to access user’s login webpage after setting the user password, then input username(user) and password to access the user’s webpage.
HTTP port: set port for HTTP(defaults to 80)
For example, Rainbow2's IP is 192.168.1.223 HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web browser to enter Rainbow2 webpage.
VPN
1. VPN Enable: whether to enable VPN
2. VPN Type: only support L2TP VPN
3. Server address: VPN server address
4. Username: VPN account's username
5. Password: VPN account's password
After apply, the phone will reboot. The VPN IP will be shown on the System Status webpage.
VLAN
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
25
1. VLAN Enable: Whether to enable VLAN
2. Voice VLAN Identifier(1..4094) : Assign VLAN id for voice stream, range from 1 to 4094
3. Voice VLAN Priority: the degree is 0-7, 7 is the highest priority.
4. Data VLAN Identifier(1..4094) : Assign VLAN id for data stream, range from 1 to 4094
5. Data VLAN Priority: the degree is 0-7, 7 is the highest priority.
Port Link
Choose the network type and port link of LAN/PC
1. LAN Port Link: Auto negotiate, full duplex 10Mbps, full duplex 100Mbps, half duplex 10Mbps, half
duplex 100Mbps.
2. PC Port Link: Auto negotiate, full duplex 10Mbps, full duplex 100Mbps, half duplex 10Mbps, half
duplex 100Mbps.
Qos
QoS: Quality of service
1. SIP Qos: Quality of service for SIP (Diffserv)
2. Voice Qos: Quality of service for RTP (Diffserv)
Syslog
1. Enable Syslog: whether to enable syslog.
2. Log level: None，Alert，Critical，Error，Warning，Notice，Info，Debug. The debug level is the most
detailed.
3. Syslog Server: Syslog Server address.
4. Port: Syslog server port, defaults to 514.
4.3 SIP Setting
Sip Timer Values
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
26
1. Sip T1: RFC 3261 T1 value (RTT). Range: 0 – 64 sec, defaults to 0.5
2. Sip T2: RFC 3261 T2 value (Maximum retransmit interval for non-INVITE requests and INVITE
responses). Range: 0 – 64 sec, defaults to 4
3. Sip T4: RFC 3261 T4 value (Maximum duration a message will remain in the network). Range: 0
– 64 sec, defaults to 5
4. Reg Retry Intvl: Interval to wait before the phone retries registration again after encountering a
failure condition during last registration. Range: 0 –65535, defaults to 8
5. Sub Retry Intvl: Interval to wait before the phone retries subscriber again after encountering a
failure condition during last subscriber. Range: 0 –65535, defaults to 10
RTP Parameters
1. RTP Port Min: Minimum port number for RTP transmission and reception. Range: 1–65535,
defaults to 16384
2. RTP Port Max: Maximum port number for RTP transmission and reception. <RTP Port Max>
should be at least 2 larger than <RTP port Min>.Range: 1–65535, defaults to 16482
3. RTP Packet Size(ms): Packet size in milliseconds, which can be 10ms, 20ms, 30ms, 40ms, 60ms
SDP Payload Types
1. AVT Dynamic Payload---RFC2833 payload type. Defaults to 101
2. G729b Dynamic Payload---G729b dynamic payload type. Defaults to 18
3. G726 Dynamic Payload ---G726 dynamic payload type. Defaults to 108
4. G726 Mode ---G726 codec rate, which can be 16 kBit/s,24 kBit/s,32 kBit/s,40 kBit/s. Defaults to
32kBit/s
5. iLBC Dynamic Payload---iLBC dynamic payload type. Defaults to 98
6. iLBC Mode---iLBC codec rate, which can be 13.3kBit/s, 15.2kBit/s. Defaults to 13.3kBit/s
7. Lin16 Dynamic Payload ---Lin16 dynamic payload type, defaults to 102
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
27
8. G711a Codec Name---G711a codec name used in SDP, defaults to PCMA
9. G711u Codec Name---G711u codec name used in SDP, defaults to PCMU
10. AVT Codec Name---AVT codec name used in SDP, defaults to telephone-event
11. G722 Codec Name---G722 codec name used in SDP, defaults to G722
12. G723 Codec Name---G723 codec name used in SDP, defaults to G723
13. G723 Mode---G723 codec rate, which can be 6.3kBit/s, 5.3kBit/s, defaults to 5.3kBit/s
14. G726 Codec Name---G726 codec name used in SDP, defaults to G726
15. G729ab Codec Name---G729ab codec name used in SDP, defaults to G729
16. iLBC Codec Name---iLBC codec name used in SDP, defaults to iLBC
NAT Support Parameters
1. Enable Stun: Whether to use stun to discover NAT mapping.
2. Stun Server: Set stun server, which can be IP address or domain name.
4.4 Account
Rainbow2 has 4 line keys mapping Account 1、Account 2、Account 3 and Account 4 respectively.
SIP
1. Enable: whether to enable register.
2. Display Name: This name will display on the LCD screen. It will show the User ID instead if
leave Display Name as blank.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
28
3. User ID: Username of sip account.
4. Authenticate ID: normally is the same with User ID, can also leave it as blank.
5. Password: Password of SIP account.
6. SIP Server: SIP server address, support both IP address and domain name.
7. SIP Port: SIP server port , defaults to 5060.
8. SIP Redundancy Server: SIP redundancy server address.
9. Use Outbound Proxy: Whether to use outbound proxy.
10. Outbound Proxy Server：Outbound proxy server address. All signaling request will be send to
outbound proxy server firstly.
11. Outbound Proxy Port: Outbound proxy server port.
12. Register Expires: register expire time, defaults to 300 seconds.
13. Subscribe Expires: subscribe expire time, defaults to 3600 seconds.
14. Transport Type: UDP/TCP/TLS. Defaults to UDP.
15. SIP 100Rel Require: whether to enable 100Rel. If enabled, 100rel parameters will be added to
the SIP request to support PRACK.
16. Session Timer Enable：whether to enable Session Timer.
17. Early Update Enable：whether to enable Early Update.
18. Caller ID Display: whether to display Caller ID
19. AutoSubscribeMWIEnable：whether to enable SubscribeMWI
20. Server List：choose the server type.
21. DNS Mode: choose the DNS mode
22. BLF List URI: set BLF list URI when Rainbow2 cooperate with Broadworks.
Codec Configuration
1. Prefer Codec: Select a preferred codec for all calls. Defaults to G711u. Conversation will be set
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
29
up by the prefer codec preferentially if the far end also supports this codec.
However, the actual codec used in a call still depends on the outcome of the codec negotiation protocol.
2. User Prefer Codec Only: Only use the preferred codec for all calls. The call will fail if the far end
does not support this codec.
3. DTMF Tx Method: select the method to transmit DTMF signals to the far end: Inband, RFC2833,
SIP INFO. Defaults to RFC2833.
Call Feature Setting
1. Message Waiting: whether to prompt if there is a voicemail.
2. Voice Mail Number: set voicemail number.
3. Pickup Service Code: set Pickup Service Code.
4. UDP Keep Alive Enable: whether to enable UDP keep alive. If enabled, Rainbow2 sends UDP
packets periodically to keep the server port alive.
5. UDP Keep Alive Intvl: Set interval to send UDP packets.
6. Default Ring: set default ring tone.
7. SRTP: whether to enable SRTP (Secure Real Time Control Protocol). Only can be used if server
supports SRTP.
Dial Plan
Dial Plan: Configure dial rule for SIP account, please refer to dial plan.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
30
4.5 Phone Setting
4.5.1 Preference
Language
Support customizable multi-language.
Output Volume(1~8)
1. Handset Volume: Specify handset volume grade
2. SpeakerPhone Volume: Specify speaker volume grade
3. Headset Volume: Specify headset volume grade
4. Ring Volume： Specify ring tone volume grade
Input Gain
1. Handset Gain: Specify handset gain, the bigger the gain, the louder the other end heard.
2. SpeakerPhone Mic Volume: Specify speaker gain, the bigger the gain, the louder the other end
heard.
3. Headset Volume: Specify headset gain, the bigger the gain, the louder the other end heard.
LCD
1. Backlight Level: select the backlight level
2. Backlight Time(Seconds): select the backlight time
3. Contrast: select the contrast level
4. Keypad Password: set keypad access password
Control Timer Values(Seconds)
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
31
1. Interdigit Long Timer: If the numbers or characters input are not finished and they have not
matched the full dial plan, the phone will wait for the long time that has been set and then dial them out automatically. Range: 1 – 64 sec
2. Interdigit Short Timer: If the numbers or characters input are matched the full dial plan, the
phone will wait for the short time that has been set and then dial them out automatically. Range: 1 – 64 sec
3. Reorder Delay: Delay after far end hangs up before reorder tone is played. 0 means play
reorder tone immediately. Range: 0 – 60 sec
4. Reorder Time: Set the duration of showing Call ended
Date And Time
NTP: Network time protocol
1. NTP Server: Set NTP server address, which can be IP address or domain name.
2. Time Zone: Choose your own time zone.
3. Daylight Saving Time: whether to enable Daylight saving time.
4. Daylight Saving Time Rule: This parameter is a rule with three fields, each field is separated by
semicolon; as show below: Start=<start-time>; end=<end-time>; save=<save-time>
<start-time> and <end-time> specify the start and end date of daylight saving time, month/date/week and <save-time> is the amount of hour/min/sec to add to the current time during daylight saving period. The <save-time> value can be preceded by a negative (-) sign if subtraction is desired instead of addition.
If <weekday > is 0, it means the date to start or end daylight saving is at exactly the given date. In that case, the <day> value must not be negative. If<weekday >is not zero, then the daylight saving starts or ends on the <weekday >on or after the given date if <day> is positive, or on or before the given date if <day> is negative. If <day> is -1, it means the <weekday> on or before the end-of-the
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
32
–month (in other words the last occurrence of <weekday> in that month)
Optional values inside [] are assumed to be 0 if they are not specified. Midnight means 0:0:0 of the given date.
E.G. start=4/1/7/8:00:00;end=10/1/7/9:00:00; save=-1Start time is 1st April, Sunday, 8:00:00 am. End time is 1st October, Sunday, 9:00:00 am. The display time will be one hour early than the standard time.
Manual
1. Set Local Date(YYYY/mm/dd): manually set local date or click to choose local date .Format:
year/month/day.
2. Set Local Time(HH:mm:ss) : manually set local time or click to adjust local time. Format:
hour/minute/second. e.g. 12:00:00.
4.5.2 Line
Set name for each line showed on LCD, if keep it as blank, it will use SIP user ID as name.
4.5.3 Features
Speed Dial
Set speed dial for 2-9. For example, set Speed Dial 2: 123456789, then if you press 2, 123456789 will be dialed immediately. 3/4/5.../9 also can be set as speed dial.
Call Forward
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
33
1. Always Target: Every incoming call will forward to this target.
2. Busy Target: The incoming call will forward to this target when Rainbow2 is busy.
3. No Answer: The incoming call will forward to this target when there is no answer.
4. After Ring Time (Seconds): After this time, the incoming call will be forwarded to the no answer
target. Defaults to 5. The priority of Always Target is highest when Always Target, Busy Target and No Answer Target have been set. This means all the incoming call will be forwarded to the Always Target.
Call Settings
1. Do Not Disturb: Whether to enable Do Not Disturb, when enabled, all the incoming call will be
rejected. If Always Target or Busy Target was set at the same time, then incoming call will be forwarded to the targets preferentially.
2. Call Waiting：When enable Call Waiting and Rainbow2 is in conversation, incoming call will not be
rejected and ringback tone can be heard by the far end. When disable Call Waiting, there should be only one conversation no matter how many accounts have been registered on Rainbow2.
3. Block Call ID: When enable Block caller ID, Rainbow2 will call others as anonymous.
4. Block Anc Call: When enable block anonymous call, Rainbow2 will reject anonymous caller.
5. Auto Answer: When enable Auto Answer, Rainbow2 will answer the incoming call by speaker
automatically.
6. Send key: Define the send key as # or *, press # or * after dial number, then number will be sent
out immediately.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
34
4.5.4 Voice
Echo Cancellation
1. VAD：Whether to enable VAD(Voice Active Detection). If enable, RTP packets will not be send
when Rainbow2 is mute.
2. CNG：Whether to enable CNG(Comfort Noise Generator). If enable, comfort noise will be send
to the far end to let it perceive the activity of the conversation when Rainbow2 is mute.
Jitter Buffer
Rainbow2 can buffer incoming voice packets to minimize out-of-order packet arrival. This process is known as jitter buffer.
1. Type: Choose type of jitter buffer. When choose Fixed, the size jitter buffer is fixed. When
choose Adaptive, the size of jitter buffer is the sum of Min Delay and the size of RTP packets.
2. Min Delay: The minimum delay of the jitter buffer.
3. Max Delay: The maximum delay of the jitter buffer.
4. Normal Delay: It is used for fixed jitter buffer which should be between Min Delay and Max
Delay.
4.5.5 Ring
Administer can upload 2 user define ring for Rainbow2. The ring file should be wav(8k, 8bit, u-law) and no larger than 200 KBytes.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
35
4.5.6 Tone
Set the ToneScript for each tone. For example, MWI Dial Tone: 350@-19,440@-19;2(.1/,1/1=2);10(*/0/1+2) Frequency1, Frequency2 ;Cadence Section1;Cadence Section2 350@-19: Frequency1 is 350HZ at -19dBm 440@-19: Frequency2 is 440HZ at -19dBm 2(.1/,1/1=2): Cadence Section length is 2s, 0.1s on, 0.1s off, with frequencies 1 and 2 10(*/0/1+2): Cadence Section length is 10s, always on(* means always, 0 means never), with frequencies 1 and 2.
1. Country stands: select a country standard tone as default.
2. Dial Tone：Play when prompting the user to enter a phone number.
3. Outside Dial Tone：An alternative to Dial Tone usually used to prompt the user to enter an
external phone number (versus an internal extension). This is triggered by a “,” character encountered in the dial plan.
4. Busy Tone：Play when a 486 RSC is received for an outbound call.
5. Reorder Tone：Play when an outbound call has failed or after the far end hangs up during an
established call.
6. Off Hook Warning Tone: Play when user does not place the handset on the cradle properly.
7. Ring Back Tone：Play for an outbound call when the far end is ringing.
8. MWI Dial Tone：Play when there are unheard voicemails.
9. Holding Tone：Indicate to the local user that the far end has placed the call on hold.
10. Conference Tone：Play to all parties when a 3 way conference is in progress.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
36
4.5.7 Programmable key
Event:
1. None: Do not use this programmable key
2. Hold: hold a call
3. Xfer: transfer a call
4. Conf: make 3 way conference
5. DND: Do not disturb (can make call but can not receive call).
6. CFWD: call forward
7. Speed dial: Speed dial, need to fill a speed dial number.
8. BLF: Busy lamp field, need to fill a BLF number to monitor.
9. Redial: redial the number.
10. DTMF：send DTMF number
Account: which account you want to used.
Number: which number to set for CFWD, speed dial, BLF etc.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
37
4.5.8 Rainbow E
Rainbow2 can connect 5 Rainbow E at most. There are 16 keys on Rainbow E. After connecting Rainbow E to Rainbow2's EXT port, Rainbow2 will auto detect Rainbow E. Rainbow E can be configured to support two functions: Speed dial and BLF.
Event:
None: Do not use this BLF key
Speed dial: Speed dial, need to fill a speed dial number.
BLF: Busy lamp field, need to fill a BLF number to monitor.
When the BLF number is ringing , the BLF key will turn to green and blink. When the BLF number is during a call, the BLF key will stay for green. The BLF key will be off, if the BLF number is idle or not online. And you can press the BLF Key to call the monitored number.
Account: which account you want to use.
Number: number set for Speed dial and BLF.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
38
4.6 Update
4.6.1 Manual Update
1. Boot Loader: Download Boot file from ATCOM's webpage, then select the file from your PC to
upgrade.
2. Firmware: Download firmware from ATCOM's webpage, then select firmware from your PC to
upgrade.
3. Kernel: Download kernel from ATCOM’s webpage, then select kernel from your PC to upgrade.
4. Configuration: Upgrade config.xml file.
5. Phone Book: Upgrade phonebook.xml file
6. Attendant Keys: Upgrade Rainbow E’s configuration
4.6.2 Update/Auto Provision
Configuration Profile
1. Provision Enable： whether to enable auto provision
2. Resync Random Delay: set a random delay for upgrade configuration files.
3. Profile Rule: support FTP/TFTP/HTTP protocol
Firmware Upgrade
1. Update Enable： whether to enable firmware update
2. Error Retry Delay: set interval to retry update after encountering failed update
3. Upgrade Rule: the same as Profile Rule, the suffix of the firmware name should be ‘.fw’ or
‘.FW’ and the firmware name should not contain blank character or Chinese characters.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
39
4.6.3 Reset & Reboot
1. Reboot
Reboot will terminate all active calls, and cost a little time to restart.
2. Reset
Reset will set Rainbow2 to factory default, please backup the config.xml, phonebook.xml and attendant_keypad.xml before reset.
4.7 Phone Book
1. New Contact: Add a new phonebook record.
2. Delete All: Delete all the phonebook records.
3. Mode: Directory or Blacklist. Numbers in Blacklist will be rejected when calling.
4. Name: name of a number, when the call of this number comes in the LCD will show the name.
5. Number: phone number.
6. Submit: Submit to apply the change.
7. Reset: Cancel the inputting.
8. Delete: Delete this record.
Notice：The maximum of records in the phone book is 200.
4.8 Call Log
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
40
1. Redial: Record of dialed list, maximum 200 records.
2. Received: Record of received list, maximum 200 records.
3. Missed: Record of Missed list, maximum 200 records.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
41
5.FAQ & Trouble Shooting
Frequently Asked Questions
5.1 How to make a factory reset
There are three ways to make a factory reset:
1. Factory reset from keyboard, steps are:
a) Press
and input password 123.
b) Find and select ‘12 Factory Reset’.
c) Press ‘OK’, then the phone will restart automatically and factory reset.
2. Factory reset through web, please refer to Reset & Reboot;
3. Factory reset during rebooting, steps are:
a) Keep pressing ‘*’ and ‘#’ key.
b) Plug in the power adapter.
c) Wait for about 5 seconds and Rainbow2 will reset to factory after rebooted.
5.2 Upgrade firmware under safe mode
If the phone could not start up normally, upgrade firmware under safe mode. Steps are:
1. Build a TFTP server and set its IP address as 192.168.1.200.
2. Copy the firmware to the root directory of the TFTP server and modify the file name as
Rainbow2.FW.
3. Make sure the TFTP server and the phone are connecting with the same switch and reachable
to each other;
4. Keep pressing ‘#’ key and start up the phone until the LCD displays ‘Upgrading…’;
5. The phone will download the firmware from the TFTP server;
6. After the download is done, the phone will upgrade automatically;
7. After the update is finished, the phone will start up with the factory configuration.
5.3 How to make direct IP call
When hook off/ pressing speaker or headset key,
1. Press soft key ‘Num’ until it switch to ‘IP’.
2. Using ‘*’ key to input ‘.’. If user wants to dial 192.168.1.100, then press 192*168*1*100.
3. After inputting the IP address, press dial key to dial it out.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
42
6.Trouble Shooting
6.1 The phone can’t register successfully
1. Check the IP address, and if the mode of WAN port is DHCP, please make sure the DHCP server
is in service.
2. Check the gateway.
3. Check the DNS.
4. Make sure the information of the account is consistent with which offered by the service
supplier.
5. Make sure the SIP server is on.
6. Check the port of the SIP server whose default value is 5060.
6.2 The phone can’t obtain IP address
1. Make sure the cable has been connected to the LAN port of the phone.
2. Make sure the cable and the switch’s port that connected with the cable is available.
3. Make sure the DHCP server is on and there are some assignable IP addresses in the address
pool.
4. Try to change the LAN port mode as Static.
6.3 Only one part can hear the voice during the call
1. Make an IP dial-up call to make sure the telephone receiver and microphone are normal.
2. Enable STUN on web page.
3. Set STUN server as stun.sipgate.com.
4. Click ‘submit’ and wait for the phone to restart.
5. Try to make calls again.
Rainbow2 IP Phone User Manual
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
43
7.Abbreviations
DND ： Do Not Disturb CFWD ： Call Forward Bxfer ： Blind Transfer Conf ： Conference Num ： Number DelChr ： Delete Char Y/N ： Yes/No SIP：Session Initiate Protocol RTP：Real-time Transport Protocol SDP：Session Description Protocol VPN：Virtual Private Network VLAN：Virtual Local Area Network QoS：Quality of Service Syslog ： System log UDP：User Data Protocol TCP：Transmission Control Protocol TLS：Transport Layer Security Protocol BLF：Busy Lamp Field DNS：Domain Name System SRTP：Secure Real-time Transport Protocol NTP：Network Time Protocol VAD：Voice Activity Detection CNG：Comfort Noise Generator
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
