ATC Group BSKF-375 User Manual

REFRIGERATION SOLUTIONS

Printed in U.S.A.

AVAILABLE AT:

2/07

www.atcgroup.net

®

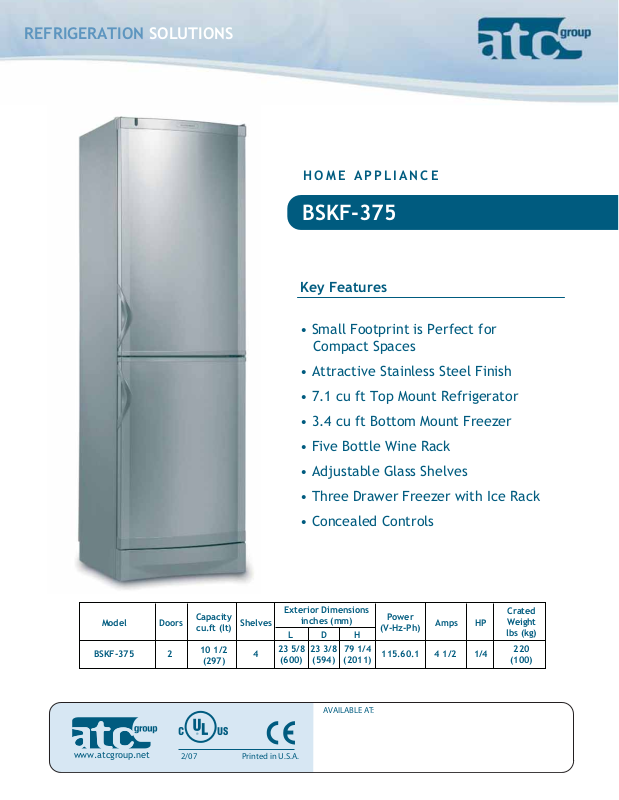

BSKF-375

Key Features

• Small Footprint is Perfect for
Compact Spaces

• Attractive Stainless Steel Finish

• 7.1 cu ft Top Mount Refrigerator

• 3.4 cu ft Bottom Mount Freezer

• Five Bottle Wine Rack

• Adjustable Glass Shelves

• Three Drawer Freezer with Ice Rack

• Concealed Controls

Model

BSKF-375

LDH

2

Shelves Amps HP

Capacity
cu.ft (lt)

Crated
Weight

lbs (kg)

Power

(V-Hz-Ph)

Exterior Dimensions

inches (mm)

Doors

10 1/2

(297)

23 3/8

(594)

23 5/8

(600)

79 1/4
(2011)

220

(100)

115.60.1 4 1/2 1/44

HOME APPLIANCE

REFRIGERATION SOLUTIONS

3235 Industry Drive • Suite C
North Charleston, SC 29418
Phone: [phone]
Toll Free: 800-905-4768

Fax: [phone]
Toll Free Fax: [phone]
www.atcgroup.net
[e-mail]

WARRANTY

One year warranty on

all parts and labor and

an additional 4 year

prorated warranty on

compressor.

Details

NEMA 5-15R

BSKF-375

Technical Drawing

Electrical

Ready for connection to 115V/60Hz
single phase 15 amp dedicated
outlet. Includes a 6’ cord and plug
set.

Refrigeration System

Forced air, environmentally friendly
refrigeration system using CFC-free
R134A refrigerant.
Self-contained heated drain pan
and condensate evaporation
system.
Adjustable temperature control
maintains 34ºF to 41ºF (1ºC to 5ºC).
Bottom mounted refrigeration unit
allows for easy maintenance and
service.

Options

208-230V/ 50Hz
White Steel Cabinet

Cabinet Construction

Exterior: Durable attractive stainless steel
cabinet.
Interior: Durable ABS lining allows for easy
cleaning, white.
High-density, CFC-Free, polyurethane
insulation.
Four (4) low profile adjustable feet.

Door

Self-closing reversible stainless steel doors
with matching handles.
Strong magnetic gasket ensures a tight
seal.

Shelving

Four (4) adjustable glass shelves, two
drawers, and five bottle wine rack in top
mounted refrigerator.
Three (3) sliding drawers in bottom
mounted freezer.

Lighting

Interior lights automatically turn on when
door is open.

79 1/4” (2011)

23 5/8”- (600)

23 5/8”- (600)

23 3/8”- (594)
