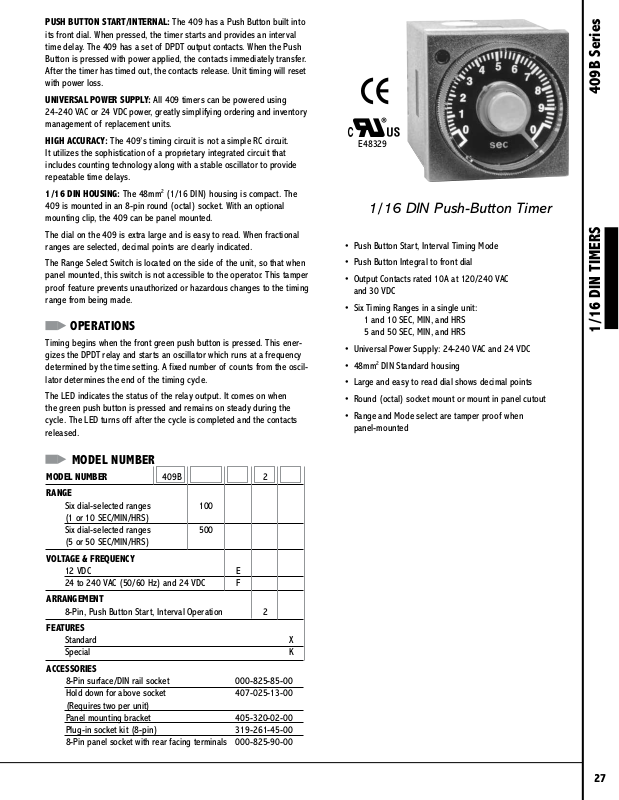

ATC-Automatic Timing & Control 409B Series Data Sheet
PUSH BUTTON START/INTERNAL: The 409 has a Push Button built into
its front dial. When pressed, the timer starts and provides an interval
time delay. The 409 has a set of DPDT output contacts. When the Push
Button is pressed with power applied, the contacts immediately transfer.
After the timer has timed out, the contacts release. Unit timing will reset
with power loss.
UNIVERSAL POWER SUPPLY: All 409 timers can be powered using
24-240 VAC or 24 VDC power, greatly simplifying ordering and inventory
management of replacement units.
HIGH ACCURACY: The 409’s timing circuit is not a simple RC circuit.
It utilizes the sophistication of a proprietary integrated circuit that
includes counting technology along with a stable oscillator to provide
repeatable time delays.
1/16 DIN HOUSING: The 48mm2 (1/16 DIN) housing is compact. The
409 is mounted in an 8-pin round (octal) socket. With an optional
mounting clip, the 409 can be panel mounted.
The dial on the 409 is extra large and is easy to read. When fractional
ranges are selected, decimal points are clearly indicated.
The Range Select Switch is located on the side of the unit, so that when
panel mounted, this switch is not accessible to the operator. This tamper
proof feature prevents unauthorized or hazardous changes to the timing
range from being made.
OPERATIONS
Timing begins when the front green push button is pressed. This energizes the DPDT relay and starts an oscillator which runs at a frequency
determined by the time setting. A fixed number of counts from the oscillator determines the end of the timing cycle.
The LED indicates the status of the relay output. It comes on when
the green push button is pressed and remains on steady during the
cycle. The LED turns off after the cycle is completed and the contacts
released.
E48329
1/16 DIN Push-Button Timer
• Push Button Start, Interval Timing Mode
• Push Button Integral to front dial
• Output Contacts rated 10A at 120/240 VAC
and 30 VDC
• Six Timing Ranges in a single unit:
1 and 10 SEC, MIN, and HRS
5 and 50 SEC, MIN, and HRS
• Universal Power Supply: 24-240 VAC and 24 VDC
• 48mm2 DIN Standard housing
• Large and easy to read dial shows decimal points
• Round (octal) socket mount or mount in panel cutout
• Range and Mode select are tamper proof when
panel-mounted
1/16 DIN TIMERS 409B Series
MODEL NUMBER
MODEL NUMBER 409B 2
RANGE
Six dial-selected ranges 100
(1 or 10 SEC/MIN/HRS)
Six dial-selected ranges 500
(5 or 50 SEC/MIN/HRS)
VOLTAGE & FREQUENCY
12 VDC E
24 to 240 VAC (50/60 Hz) and 24 VDC F
ARRANGEMENT
8-Pin, Push Button Start, Interval Operation 2
FEATURES
Standard X
Special K
ACCESSORIES
8-Pin surface/DIN rail socket 000-825-85-00
Hold down for above socket 407-025-13-00
(Requires two per unit)
Panel mounting bracket 405-320-02-00
Plug-in socket kit (8-pin) 319-261-45-00
8-Pin panel socket with rear facing terminals 000-825-90-00
27
DIMENSIONS (INCHES/MILLIMETERS) SPECIFICATIONS
1/16 DIN TIMERS 409B Series
WIRING
MODEL 409B...F2X
TYPICAL CIRCUITS
409B...F2X
TERMINAL WIRING
MODELS 409B100F2X Push Button Start,
Interval Timing with (1) DPDT relay
(1 or 10 SEC/MIN/HRS)
409B500F2X Push Button Start,
Interval Timing with (1)DPDT relay
(5 or 50 SEC/MIN/HRS)
Both models available in 6 ranges from
1 SEC to 10 HRS or 5 SEC to 50 HRS
CONTACT Rated 10 AMPS resistive at 30 VDC or
RATING 250 VAC (or less)
1/8 HP @ 120 VAC
1/4 HP @ 240 VAC
240 VA @ 240 VAC
LIFE: 10 million operation with no load
100,000 operations with:
10 AMPS at 30 VDC (or less) or
10 AMPS at 250 VAC (or less)
CONTACT Silver Nickel
MATERIAL
TEMPERATURE 0° to 122°F (-18° to 50°C)
RATING
MOUNTING Plug-in octal base; mounts in any position with
retaining clips.
Options: Surface mounting socket
DIN rail mounting socket
Panel-mounting adapter kit
Plug-on socket kit
POWER Universal power supply - reverse polarity protected
REQUIREMENTS Unit will accept power from 24 to 240 VAC, 50 or
60 Hz, (+10%, -20%) 24 VDC (+20%, -20%)
AC Inrush - 1.5 Amps
Power required - 1.2 watts
DC Maximum ripple @ 100 Hz - 5%
Current required - 50mA
Power required - 1.2 watts
REPEAT Varies as a function of temperature.
ACCURACY Any voltage (constant temperature): ±0.5%*
Any voltage (0 F to 140 F): ±2.0%*
*Variation from average actual time.
MINIMUM 2% of range, with the exception of
SETTING 50 mSEC on the 1 second range
SETTING ±5% of range
ACCURACY
RESET a 0 to 20 mSEC power interruption:
guaranteed no reset
b 20 to 65 mSEC; it may reset
(40 mSEC typical reset)
c Over 65 mSEC guaranteed to reset
WEIGHT 5 oz. (140 g)
28
BEFORE START
TIMING
TIMED OUT
O O X
X = LOAD ON
O =
LOAD OFF
