The most economical Solid-State TDR offered from ATC, the 329 on-delay
TDR with plug-in base maintains excellent repeat accuracy despite wide
voltage and temperature variations. A choice of eight fixed ranges are
available from 0.3 seconds to 3 minutes.
Price/Performance Value: The economical 329 is the lowest cost TDR ever
offered by ATC. Ruggedly designed into a 36 x 36 mm housing, the 329
On-Delay TDR combines both highly accurate and repeatable timing with
industrial quality that is usually found in only the more expensive timers.
CHOICE OF RANGES: The 329 is offered in a choice of eight different fixed
ranges between 0.3 seconds to 3.0 minutes to permit optimum setting
accuracy. The dial face clearly displays the range.
DESIGNED FOR INDUSTRIAL SERVICE: The 329 incorporates features
designed to ensure a long trouble-free life expectancy, even in difficult
industrial environments: high impact resistant housing with octal plug-in
base that is easily surface/DIN or panel mounted; a DPDT 5 amp relay rated
for 10 million operations at no load; and an oscillator-based timing circuit
for high accuracy even with changes in temperature and voltage.
HIGH ACCURACY: The 329’s timing circuit is not a simple RC circuit, but it
utilizes the sophistication of a proprietary integrated circuit that includes
counting technology along with a stable oscillator to provide repeatable
time delays.
Timing begins when the start switch is closed. This starts an oscillator
which runs at a frequency determined by the time setting. A fixed number
of counts from the oscillator determines the end of the time cycle. The
time required to accomplish this depends on the oscillator frequency.
IND. CONT. EQ.
101F
E48329
Economical Time Delay Relay
MODEL NUMBER
SPECIFICATIONS
At time out, the built-in relay transfers its contacts. These contacts remain
transferred until the start switch is opened or power is removed by some
other means. The 329 then resets and is ready for another cycle.
WIRING
TERMINAL WIRING
TYPICAL CIRCUIT ON-DELAY
MODEL NUMBER 329A Q
RANGE
1 SEC 362
3 SEC 363
5 SEC 364
10 SEC 365
30 SEC 366
1 MIN 367
3 MIN 368
Special 000
VOLTAGE & FREQUENCY
120 VAC, 50/60 Hz Q
ARRANGEMENT
ON-Delay 1
Special 0
FEATURES
Standard X
Special K
ACCESSORIES
8-Pin surface/DIN rail socket 000-825-85-00
Hold down for above socket 339-025-03-00
(2 required)
Plug-in socket kit (8-pin) 319-261-45-00

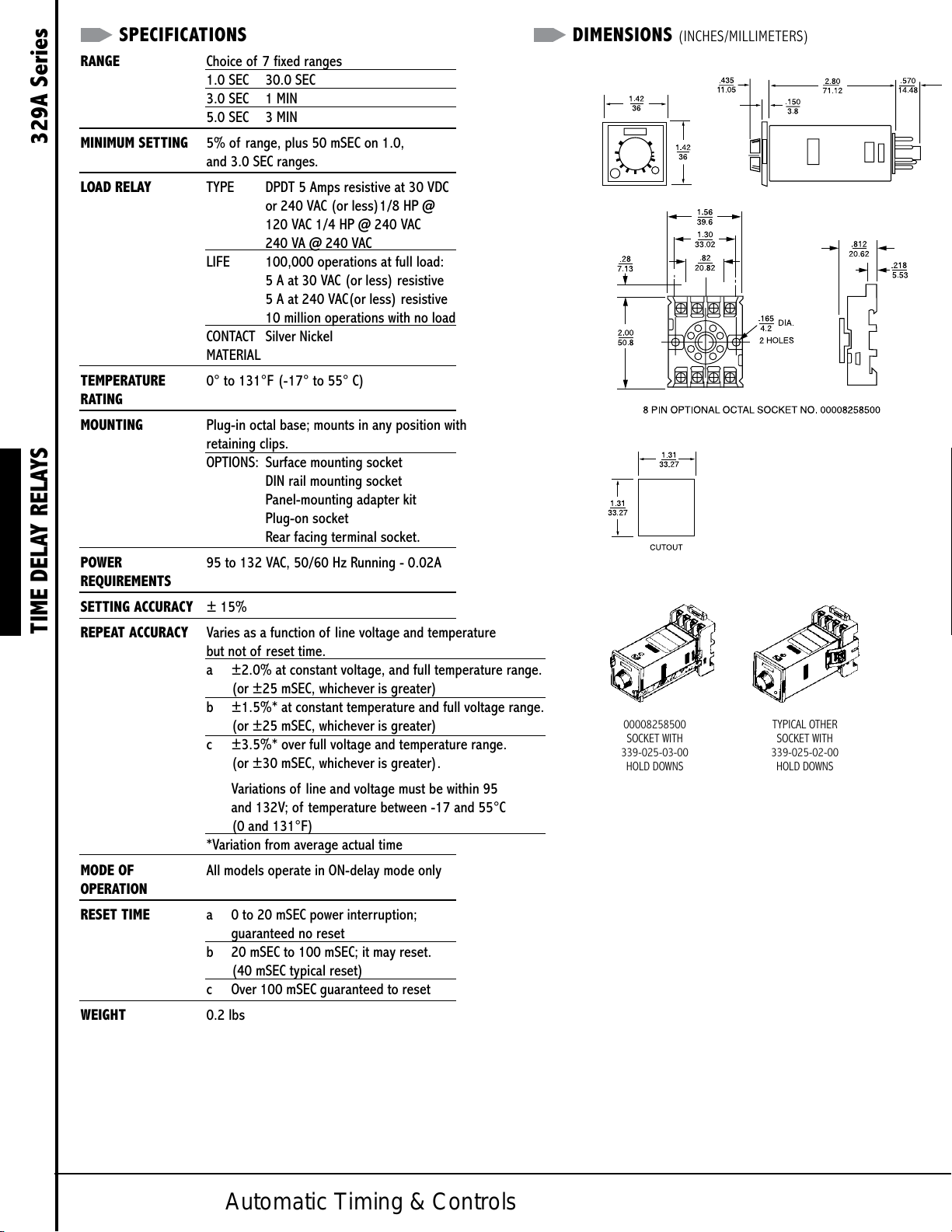

TIME DELAY RELAYS 329A Series
Automatic Timing & Controls
RANGE Choice of 7 fixed ranges
1.0 SEC 30.0 SEC
3.0 SEC 1 MIN
5.0 SEC 3 MIN
MINIMUM SETTING 5% of range, plus 50 mSEC on 1.0,
and 3.0 SEC ranges.
LOAD RELAY TYPE DPDT 5 Amps resistive at 30 VDC
or 240 VAC (or less)1/8 HP @
120 VAC 1/4 HP @ 240 VAC
240 VA @ 240 VAC
LIFE 100,000 operations at full load:
5 A at 30 VAC (or less) resistive
5 A at 240 VAC(or less) resistive
10 million operations with no load
CONTACT Silver Nickel
MATERIAL
TEMPERATURE 0° to 131°F (-17° to 55° C)
RATING
MOUNTING Plug-in octal base; mounts in any position with
retaining clips.
OPTIONS: Surface mounting socket
DIN rail mounting socket
Panel-mounting adapter kit
Plug-on socket
Rear facing terminal socket.
POWER 95 to 132 VAC, 50/60 Hz Running - 0.02A
REQUIREMENTS
SETTING ACCURACY ± 15%
TIME DELAY RELAYS 329A Series
REPEAT ACCURACY Varies as a function of line voltage and temperature
but not of reset time.
a ±2.0% at constant voltage, and full temperature range.
(or ±25 mSEC, whichever is greater)
b ±1.5%* at constant temperature and full voltage range.
(or ±25 mSEC, whichever is greater)
c ±3.5%* over full voltage and temperature range.
(or ±30 mSEC, whichever is greater).
Variations of line and voltage must be within 95
and 132V; of temperature between -17 and 55°C
(0 and 131°F)
*Variation from average actual time
MODE OF All models operate in ON-delay mode only
OPERATION
RESET TIME a 0 to 20 mSEC power interruption;
guaranteed no reset
b 20 mSEC to 100 mSEC; it may reset.
(40 mSEC typical reset)
c Over 100 mSEC guaranteed to reset
WEIGHT 0.2 lbs
DIMENSIONS (INCHES/MILLIMETERS)SPECIFICATIONS
00008258500
SOCKET WITH
339-025-03-00
HOLD DOWNS
TYPICAL OTHER
SOCKET WITH
339-025-02-00
HOLD DOWNS
