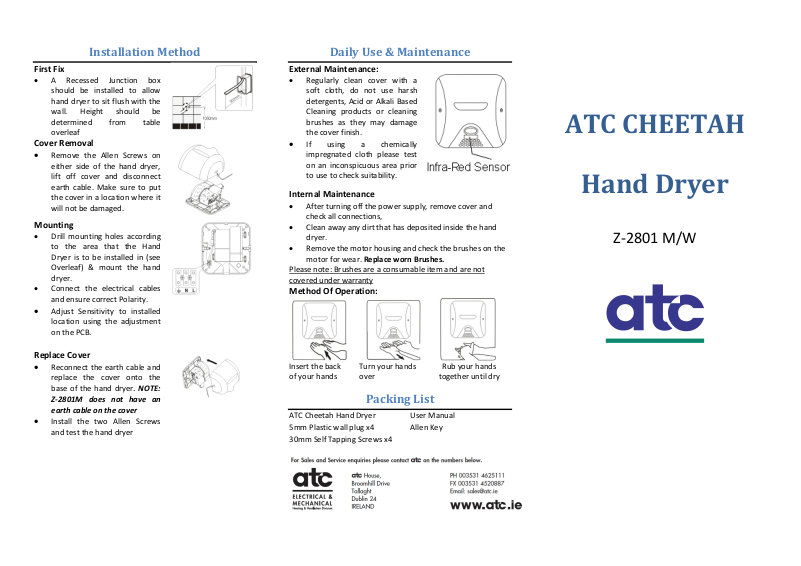

Page 1
Installation Method
First Fix
A Recessed Junction box
Height should be
determined from table
overleaf
Cover Removal
Mounting
to the area that the Hand
Replace Cover
the cover onto the
have an
and test the hand dryer
External Maintenance:
lean cover with a
not use harsh
brushes as they may damage
If using a chemically
Internal Maintenance
covered under warranty
Method Of Operation:
Insert the back
of your hands
Turn your hands
over
Rub your hands
together until dry
•
should be installed to allow
hand dryer to sit flush with the
wall.
Daily Use & Maintenance
• Regularly c
soft cloth, do
detergents, Acid or Alkali Based
Cleaning products or cleaning
• Remove the Allen Screws on
either side of the hand dryer,
lift off cover and disconnect
earth cable. Make sure to put
the cover in a location where it
will not be damaged.
• Drill mounting holes according
Dryer is to be installed in (see
Overleaf) & mount the hand
dryer.
• Connect the electrical cables
and ensure correct Polarity.
• Adjust Sensitivity to installed
location using the adjustment
on the PCB.
• Reconnect the earth cable and
replace
base of the hand dryer. NOTE:
Z-2801M does not
earth cable on the cover
• Install the two Allen Screws
the cover finish.
•
impregnated cloth please test
on an inconspicuous area prior
to use to check suitability.
ATC CHEETAH
Hand Dryer
• After turning off the power supply, remove cover and
check all connections,
• Clean away any dirt that has deposited inside the hand
dryer.
• Remove the motor housing and check the brushes on the
motor for wear. Replace worn Brushes.
Please note: Brushes are a consumable item and are not
Packing List
ATC Cheetah Hand Dryer User Manual
5mm Plastic wall plug x4 Allen Key
30mm Self Tapping Screws x4
Z-2801 M/W
Page 2
Specification
Voltage
230v ~ 50Hz
Sound Level
78.7dB@1m
Phase
1Φ
Sensor Range
15-20cm
Load
1400w
IP Class
IPX1
Air Speed
65m/s
Size (mm)
295x320x170
Heat level
850w
Nett Weight
4.1kg
♻
Waste electrical products should not be disposed
Circuit Diagram
Precautions before installation
Do not install in the following locations; Installation in these
areas can cause the unit to malfunction
Features
• Infra-Red operated Hygienic High Speed hand dryer
• Solid Stainless Steel or Cast Aluminium Cover
• Auto stop Function after 40s to prevent overrun
• Automatic Heating System shuts the element down when
incoming air temperature is sufficient to dry your hands
.
Product Description
• Areas with Temperatures below 0
• In direct Sunlight or areas above reflective surfaces
• Areas where the unit can come into direct contact with
water
• Above counters or sinks
• Areas of High moisture and Humidity levels
• Locations containing Corrosive or Oxidizing gasses
• Areas at Altitude above 2000m
o
C or above 40oC
Installation Location
Environmental Protection
of with household waste, please recycle this
product where the facilities exist.
Please check with your local authority
Warranty
ATC Electrical &Mechanical provides a 1-year limited parts
warranty for the Z-2801 M/L as long as the following conditions
are followed:
Installation and use of the hand dryer is in accordance with the
instruction manual, which is packed with hand dryer.
In order to arrange service for the hand dryer the following
information is required.
Receipt number:
____________________________________________
Date of Manufacture:
__________________________________________
Date of Purchase:
__________________________________________
• The Chart below shows the recommended mounting
height for the Hand Dryer.
• Make sure the dryer is mounted more than 150mm away
from walls on either side of the dryer.
• Ensure the wall the hand dryer is mounted on is flat and
smooth.
Do not mount the unit behind doors where the opening of
•
the door may damage the dryer
Do not install the dryer with the power connected; the
•
dryer must be connected by a qualified electrician when
being installed.
The power cord Supplying the hand dryer should be at least
1.5m² 2 Core & Earth
