ATC SCM-11, SCM-19, SCM-40, SCM-7 Brochure

entry series

A COUSTIC

ENGINEERS

Manufactured in house to exacting tolerances, ATC’s drivers are legendary for their many design innovations.

For instance, our hand-wound short voice coils use only high density edge-wound flat OFC wire and operate in a

precision long magnetic gap. Front and rear magnetic venting not only reduces airflow and noise, but increases power

handling and long term reliability. Meanwhile, massive motor assemblies offer no-compromise optimisation

for each voice coil diameter.

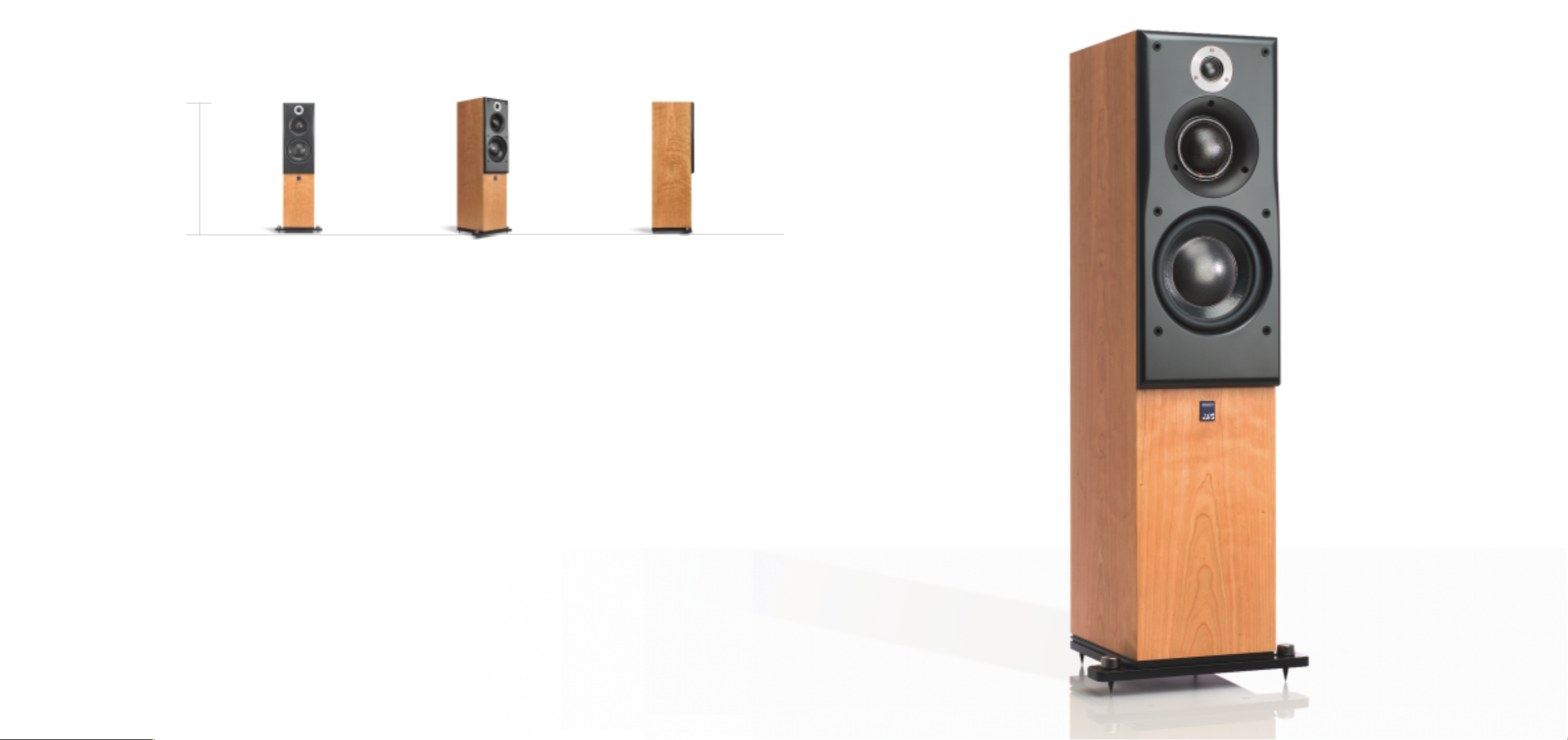

The unique ‘Soft Dome’ technology that features in the mid driver of our SCM 40 floor-standing monitor

was developed by ATC in 1976. Its arrival revolutionised professional studio monitoring.

Remarkably today, as then, it remains the only mid-range device capable of giving ultimate performance.

The Super Linea Technology found in our SCM 19 model is equally ground-breaking.

It has long been recognised that the detrimental effects of magnetic hysteresis is a significant factor

in the production of distortion in loudspeaker drive units.

entry

INTRODUCING

A NEW SERIES

OF HAND-BUILT

2- AND 3-WAY

P ASSIVE MONITORS

FROM ATC

With the clever use of revolutionary materials developed for the communications industry, the problem has been

solved for all time in the form of ATC’s SL drive units.They are unique not only in their ability to accurately

reproduce piano, but also the precise manner in which they articulate male voices.

This is hardly surprising given the reduction of third harmonic distortion 10-15 dB between 100Hz and 3kHz.

Constrained Layer Damping (CLD) is a new driver cone technology from ATC that has been integrated into the

SCM11 monitor and represents a step-change in driver-to-system performance and reproduction of music.

Advantages include reduced harmonic distortion between 300Hz and 3kHz compared to a conventional cone;

extended resonance frequency response (that eases constraints on cross-over filter slopes); and improvements

in off-axis response.

Built to give a lifetime of service and musical enjoyment, all ATC products carry a six year guarantee.

series

■ New soft dome HF unit with precision alloy ATC wave guide.

■ 125mm ATC mid/bass unit with integral soft dome.

■ In-house, hand-wound precision flat wire coil.

■ 3Kg optimised motor assembly.

■ Flat impedance curve allowing easy load for amplifiers.

■ 6 year warranty.

Drivers : HF 25mm Neodynium, Mid/LF 125mm Matched Response : +/- 0.5dB Frequency Response (-6dB) : 60Hz–22kHz

Dispersion : ±80° Coherent Horizontal,±10° Coherent Vertical Sensitivity : 84dB @ 1W @ 1metre Max SPL : 103dB

Recommended Power Amplifier : 50 to 300 Watts Nominal Impedance : 8 Ohm Crossover Frequency : 2.5kHz

Connectors : Binding Posts/4mm Plugs, bi-wire Cabinet Dimensions (HxWxD) : 300x160x230mm Weight : 7kg

ATC reserves the right to vary products and specifications without prior notice.

SCM7:2-way passive

Specifications

300mm

F eatures
