ATBS Technology SC BT6800 User Manual

iTPMSystem for iPod, iPhone, iPad User’s Guide

BT6800

(AT67)

BT6800

(MS30)

receiver

1

1 AT 67 sensor

4

0 AT67 battery

4

0

Lock nut

4

0

Rubber gasket

4

0 Wrench

1

0

MS30 sensor

0

4

MS30 accessories

0

4

User guide

1

1

Power adaptor

(12V to 5V)

1

1

1. Introduction

This Tire Pressure Monitoring System (TPMS) was
designed for increasing security, reliability, and
understanding on tire conditions of your car. Once you
properly install the TPMS, these sensors will
automatically monitor pressures and temperatures of tires
in real time, and send these data to Receiver through
Bluetooth communications. When any abnormal pressure
(under or over inflated) and/or temperature of tire is
detected, iPhone, iPod, and iPad will alert driver by its
LED warning signal and sound alarm immediately.
This system could ensure you are driving in safety.

About This Manual

 The information in this manual is subject to change

without notice.

 This manual has been created with carefulness. In

case that you have any comments or questions
regarding this manual, please contact your local
dealer or our Customer Service Center.

 Before operating this set, please fully understand

the prerequisite such as specifications or
constraints of the hardware and software. We are
not responsible and have no liability for any loss,
damage or injury as a result of misuse.

2. Check Accessories

Copyright (C) ATBS Technology Co. R1
版權所有請勿翻印

3. System Installation

3.1 Install Receiver ：

3.1.1 Plug in power adaptor.

3.1.2 Plug USB connector into power adaptor.

3.1.3 Receiver will display Blue LED to each wheel
position. The LED blue light of receiver will light up
once it gets the sensor’s signal.

3.1.4 However, if L2 wheel is abnormal, the L2 blue light

will flash and the yellow warning signal in the middle
will light up.

(1) If the tire pressure is too low: it’ll alert with a

short sound.

(2) If the tire pressure is too high: it’ll alert with a

long sound and a short sound.

(3) If the tire temperature is too high: it’ll alert with

continuous long sound.

3.1.5 And if the receiver can’t get the signal from R1

sensor, the LED blue light of R1 will go out, then please
check as follows:

(1) replace the sensor’s battery.
(2) go to App to confirm whether the ID position is

correct.

(3) to check whether the installation is correct.

01: Left Front (L1) 02: Right Front (R1)
04: Left Rear (L2) 03: Right Rear (R2)

Model

Note: The mini USB socket in the back is for power only,
there’s no data communication function.

3.2 Install A-Type External Sensor (Battery
replaceable):

3.2.1 Each sensor’s label has been marked its ID and its
wheel order.

EX:

Sensor’s Model. No.:

AT67
Wheel Order: 01:L1
ID: 3C0886B5

3.2.2 Place the battery into the sensor and screw the top
cap onto the sensor. Please follow the battery’s polarity to
place the battery. Upside is +, downside is -.

(3) Please replace sensor’s battery once its voltage

is under 2.6v.

(4) If driver drives on a lumpy road, or the tire

pressure changes rapidly, our device will deem
this as a danger situation, and the device will
alert the driver continuously by sending 10
data, in this condition, the battery will ran out
fast.

3.3 Install M-Type Internal Sensor :

3.3.1 Each sensor’s label has been marked its ID

and its wheel order.

3.3.2 Tire location

3.4 Install Internal Sensor (M-type)

3.2.2 Remove the original valve cap from the tire.

3.2.3 Screw lock nut first (1) and will become (2). Screw
the sensor onto valve stem clockwise (3). Screw (1)
lock nut back and use the wrench to lock tightly (4).
(3)(4) steps can make sure the sensor’s fixity and is
provided with anti-theft function.

3.4.1 Remove the tires from vehicles.

3.4.2 Deflate the tires and detach rim and tire.

3.4.3 Install sensor on rim to appropriate position.

3.4.4 Balance wheels.

Note：
(1) Beware of the conductivity between the sensor
and the valve stem.
(2) Sensors are supposed to be well locked onto the

valve stem to avoid from leaking.

Copyright (C) ATBS Technology Co. R1
版權所有請勿翻印

3.4.5 Install wheel to appropriate position.

4. iTPMS APP Installation:

iTPMS App is for free. Through the App, you can know tire
temperature and pressure, battery voltage of each sensor,
and each sensor’s ID.

4.1 Install App

4.1-1 Download the APP: iTPMS from Apple Store/

Google Play.

4.1-2 Go to Setting  General  Bluetooth Page.

4.1-3 Turn on the Bluetooth, and search the device.

4.1-4 Find iTPMS device and pair with it. The name of

device is BT6800 XXXXXX (X=0-9)

4.1-5 Click Allow to start iTPMS APP.

4.1-5 Choose the vehicle and then user is allowed to read

tire condition from the App.

Copyright (C) ATBS Technology Co. R1
版權所有請勿翻印

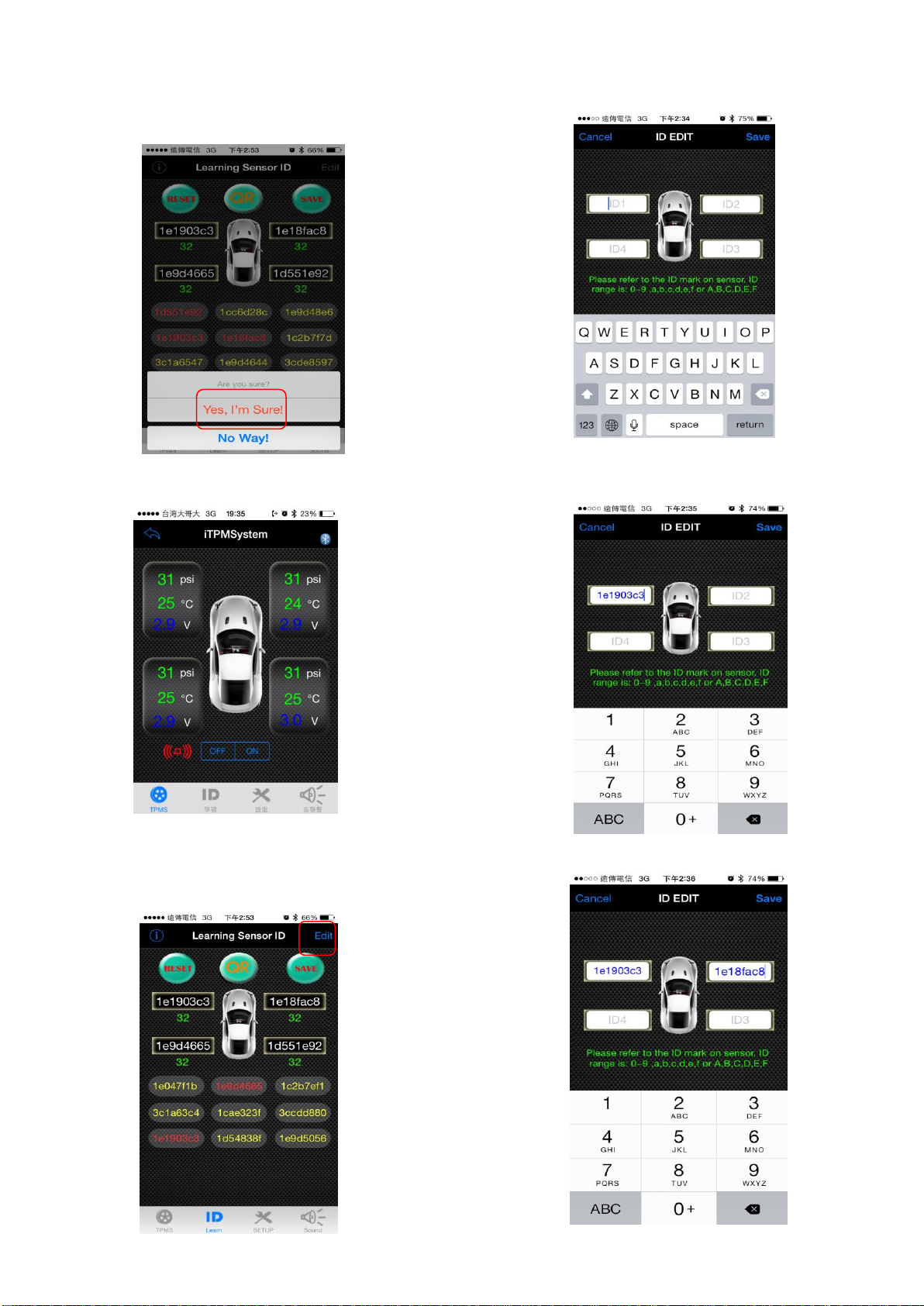

Note: Four sensors was set by the manufacturer, there’s
no need to pair the sensors again. (If there are requests to
change new sensors or to change the wheel order please
follow the instruction: sensor ID learning.)

4.2 iTPMSystem alert and setting instruction:

4.2-1 Enter Setup page, users can set up the unit and limit
of tire pressure and temperature.

Go back to main page to save the setting.

After finishing the setting and go back to main page, the
receiver will flash 1 time, it means the setting is already
saved into the receiver. When downloading a new iTPMS,

make sure to set up the unit, tire pressure and tire
temperature limit, and go back to main page and save it.

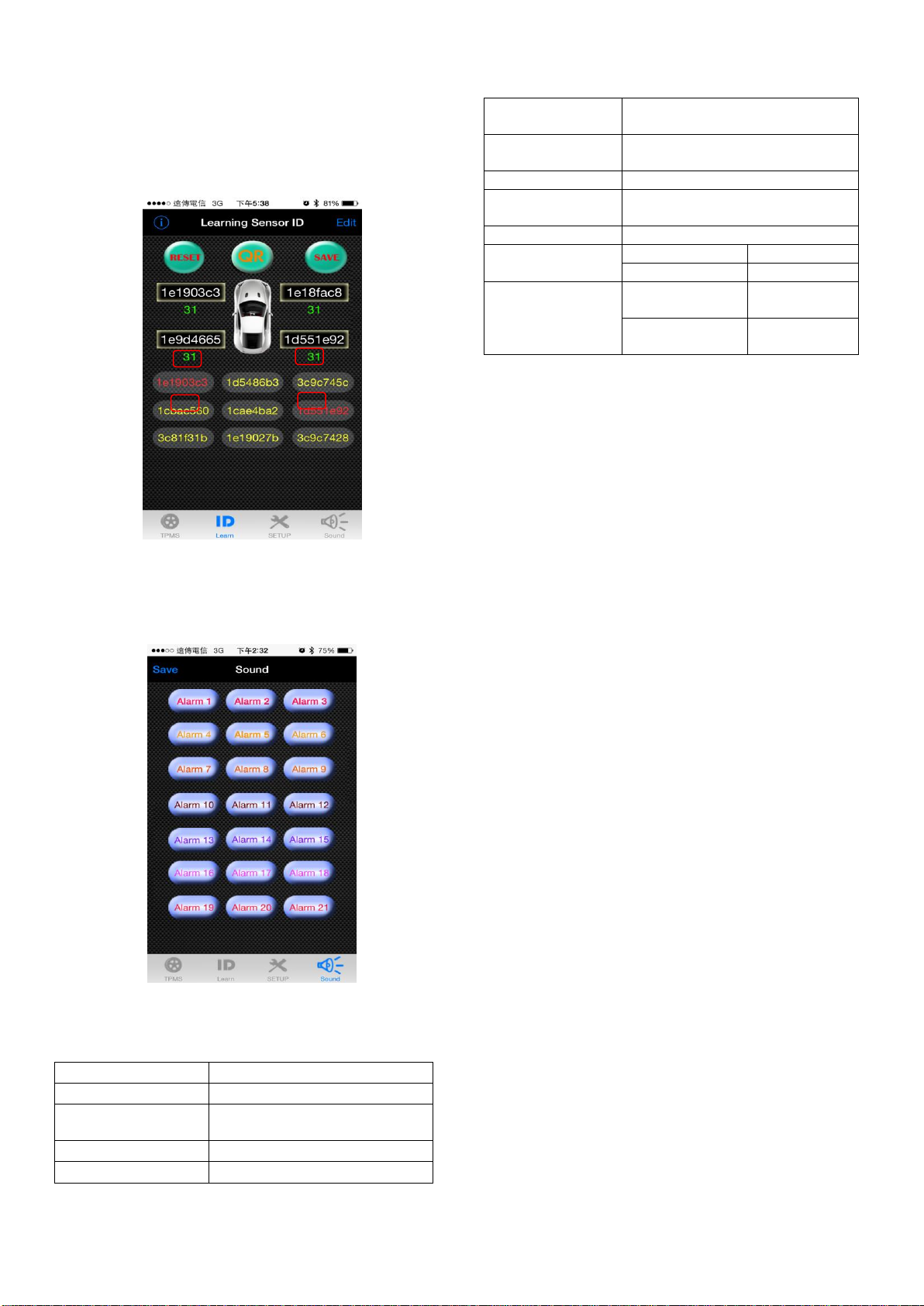

4.2-2 iTPMSystem App alert description:
Go to the setting page and users are allowed to set tire
pressure and temperature limit. (Please refer to the

vehicle’s tire pressure label, we suggest to set the lower

limit to 80% of the normal value.)

Tire pressure is too high and it’s over the

limit.

No pressure.

Tire pressure is too low and it’s under the

limit.

Tire temperature is over the limit.

Sensor’s battery voltage is too low.

Tire condition is abnormal.
