ATAS mFC160 User Manual

ATAS INTERNATIONAL, INC.

16 5⁄8”

2 ¾”

7⁄8”

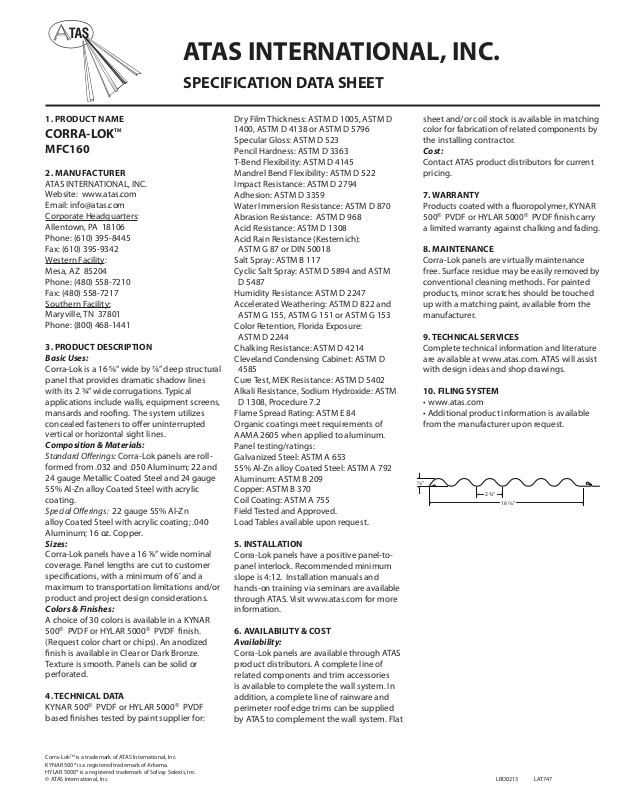

SPECIFICATION DATA SHEET

1. PRODuCT NAmE

CORRA-LOK

Tm

mFC160

2. mANuFACTuRER

ATAS INTERNATIONAL, INC.
Website: www.atas.com
Email: [e-mail]
Corporate Headquarters:
Allentown, PA 18106
Phone: [phone]
Fax: [phone]
Western Facility:
Mesa, AZ 85204
Phone: [phone]
Fax: [phone]
Southern Facility:
Maryville, TN 37801
Phone: [phone]

3. PRODuCT DESCRIPTION

Basic Uses:

Corra-Lok is a 16 ⁄” wide by ⁄” deep structural
panel that provides dramatic shadow lines
with its 2 ¾” wide corrugations. Typical
applications include walls, equipment screens,
mansards and roong. The system utilizes
concealed fasteners to oer uninterrupted
vertical or horizontal sight lines.

Composition & Materials:

Standard Oerings: Corra-Lok panels are roll­formed from .032 and .050 Aluminum; 22 and
24 gauge Metallic Coated Steel and 24 gauge
55% Al-Zn alloy Coated Steel with acrylic
coating.
Special Oerings: 22 gauge 55% Al-Zn
alloy Coated Steel with acrylic coating; .040
Aluminum; 16 oz. Copper.

Sizes:

Corra-Lok panels have a 16 ⁄” wide nominal
coverage. Panel lengths are cut to customer
specications, with a minimum of 6’ and a
maximum to transportation limitations and/or
product and project design considerations.

Colors & Finishes:

A choice of 30 colors is available in a KYNAR

®

PVDF or HYLAR 5000® PVDF nish.

500
(Request color chart or chips). An anodized
nish is available in Clear or Dark Bronze.
Texture is smooth. Panels can be solid or
perforated.

4. TECHNICAL DATA

KYNAR 500® PVDF or HYLAR 5000® PVDF
based nishes tested by paint supplier for:

Dry Film Thickness: ASTM D 1005, ASTM D
1400, ASTM D 4138 or ASTM D 5796
Specular Gloss: ASTM D 523
Pencil Hardness: ASTM D 3363
T-Bend Flexibility: ASTM D 4145
Mandrel Bend Flexibility: ASTM D 522
Impact Resistance: ASTM D 2794
Adhesion: ASTM D 3359
Water Immersion Resistance: ASTM D 870
Abrasion Resistance: ASTM D 968
Acid Resistance: ASTM D 1308
Acid Rain Resistance (Kesternich):
ASTM G 87 or DIN 50018
Salt Spray: ASTM B 117
Cyclic Salt Spray: ASTM D 5894 and ASTM
D 5487
Humidity Resistance: ASTM D 2247
Accelerated Weathering: ASTM D 822 and
ASTM G 155, ASTM G 151 or ASTM G 153
Color Retention, Florida Exposure:
ASTM D 2244
Chalking Resistance: ASTM D 4214
Cleveland Condensing Cabinet: ASTM D
4585
Cure Test, MEK Resistance: ASTM D 5402
Alkali Resistance, Sodium Hydroxide: ASTM
D 1308, Procedure 7.2
Flame Spread Rating: ASTM E 84
Organic coatings meet requirements of
AAMA 2605 when applied to aluminum.
Panel testing/ratings:
Galvanized Steel: ASTM A 653
55% Al-Zn alloy Coated Steel: ASTM A 792
Aluminum: ASTM B 209
Copper: ASTM B 370
Coil Coating: ASTM A 755
Field Tested and Approved.
Load Tables available upon request.

5. INSTALLATION

Corra-Lok panels have a positive panel-to­panel interlock. Recommended minimum
slope is 4:12. Installation manuals and
hands-on training via seminars are available
through ATAS. Visit www.atas.com for more
information.

6. AVAILABILITY & COST

Availability:

Corra-Lok panels are available through ATAS
product distributors. A complete line of
related components and trim accessories
is available to complete the wall system. In
addition, a complete line of rainware and
perimeter roof edge trims can be supplied
by ATAS to complement the wall system. Flat

sheet and/or coil stock is available in matching
color for fabrication of related components by
the installing contractor.

Cost:

Contact ATAS product distributors for current
pricing.

7. WARRANTY

Products coated with a uoropolymer, KYNAR

®

500

PVDF or HYLAR 5000® PVDF nish carry

a limited warranty against chalking and fading.

8. mAINTENANCE

Corra-Lok panels are virtually maintenance
free. Surface residue may be easily removed by
conventional cleaning methods. For painted
products, minor scratches should be touched
up with a matching paint, available from the
manufacturer.

9. TECHNICAL SERVICES

Complete technical information and literature
are available at www.atas.com. ATAS will assist
with design ideas and shop drawings.

10. FILING SYSTEm

• www.atas.com

• Additional product information is available

from the manufacturer upon request.

TM

Corra-Lok
KYNAR 500® is a registered trademark of Arkema.
HYLAR 5000® is a registered trademark of Solvay Solexis, Inc.
© ATAS International, Inc. LRD0213 LAT747

is a trademark of ATAS International, Inc.
