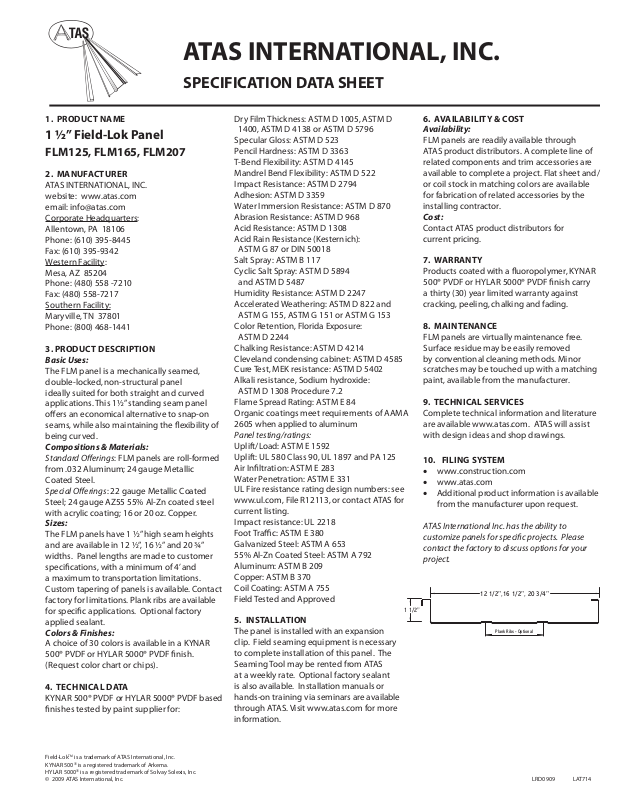

ATAS FLm125, FLm165, FLm207 User Manual

ATAS INTERNATIONAL, INC.

1 1/2”

12 1/2”,16 1/2”, 20 3/4”

Plank Ribs - Optional

SPECIFICATION DATA SHEET

1. PRODuCT NAmE

1 ½” Field-Lok Panel

FLm125, FLm165, FLm207

2. mANuFACTuRER

ATAS INTERNATIONAL, INC.
website: www.atas.com
email: [e-mail]
Corporate Headquarters:
Allentown, PA 18106
Phone: [phone]
Fax: [phone]
Western Facility:
Mesa, AZ 85204
Phone: [phone]
Fax: [phone]
Southern Facility:
Maryville, TN 37801
Phone: [phone]

3. PRODuCT DESCRIPTION

Basic Uses:

The FLM panel is a mechanically seamed,
double-locked, non-structural panel
ideally suited for both straight and curved
applications. This 1½” standing seam panel
oers an economical alternative to snap-on
seams, while also maintaining the exibility of
being curved.

Compositions & Materials:

Standard Oerings: FLM panels are roll-formed
from .032 Aluminum; 24 gauge Metallic
Coated Steel.
Special Oerings: 22 gauge Metallic Coated
Steel; 24 gauge AZ55 55% Al-Zn coated steel
with acrylic coating; 16 or 20 oz. Copper.

Sizes:

The FLM panels have 1 ½” high seam heights
and are available in 12 ½”, 16 ½” and 20 ¾”
widths. Panel lengths are made to customer
specications, with a minimum of 4’ and
a maximum to transportation limitations.
Custom tapering of panels is available. Contact
factory for limitations. Plank ribs are available
for specic applications. Optional factory
applied sealant.

Colors & Finishes:

A choice of 30 colors is available in a KYNAR
500® PVDF or HYLAR 5000® PVDF nish.
(Request color chart or chips).

4. TECHNICAL DATA

KYNAR 500® PVDF or HYLAR 5000® PVDF based
nishes tested by paint supplier for:

Dry Film Thickness: ASTM D 1005, ASTM D
1400, ASTM D 4138 or ASTM D 5796
Specular Gloss: ASTM D 523
Pencil Hardness: ASTM D 3363
T-Bend Flexibility: ASTM D 4145
Mandrel Bend Flexibility: ASTM D 522
Impact Resistance: ASTM D 2794
Adhesion: ASTM D 3359
Water Immersion Resistance: ASTM D 870
Abrasion Resistance: ASTM D 968
Acid Resistance: ASTM D 1308
Acid Rain Resistance (Kesternich):
ASTM G 87 or DIN 50018
Salt Spray: ASTM B 117
Cyclic Salt Spray: ASTM D 5894
and ASTM D 5487
Humidity Resistance: ASTM D 2247
Accelerated Weathering: ASTM D 822 and
ASTM G 155, ASTM G 151 or ASTM G 153
Color Retention, Florida Exposure:
ASTM D 2244
Chalking Resistance: ASTM D 4214
Cleveland condensing cabinet: ASTM D 4585
Cure Test, MEK resistance: ASTM D 5402
Alkali resistance, Sodium hydroxide:
ASTM D 1308 Procedure 7.2
Flame Spread Rating: ASTM E 84
Organic coatings meet requirements of AAMA
2605 when applied to aluminum

Panel testing/ratings:

Uplift/Load: ASTM E 1592
Uplift: UL 580 Class 90, UL 1897 and PA 125
Air Inltration: ASTM E 283
Water Penetration: ASTM E 331
UL Fire resistance rating design numbers: see
www.ul.com, File R12113, or contact ATAS for
current listing.
Impact resistance: UL 2218
Foot Trac: ASTM E 380
Galvanized Steel: ASTM A 653
55% Al-Zn Coated Steel: ASTM A 792
Aluminum: ASTM B 209
Copper: ASTM B 370
Coil Coating: ASTM A 755
Field Tested and Approved

5. INSTALLATION

The panel is installed with an expansion
clip. Field seaming equipment is necessary
to complete installation of this panel. The
Seaming Tool may be rented from ATAS
at a weekly rate. Optional factory sealant
is also available. Installation manuals or
hands-on training via seminars are available
through ATAS. Visit www.atas.com for more
information.

6. AvAILAbILITy & COST

Availability:

FLM panels are readily available through
ATAS product distributors. A complete line of
related components and trim accessories are
available to complete a project. Flat sheet and/
or coil stock in matching colors are available
for fabrication of related accessories by the
installing contractor.

Cost:

Contact ATAS product distributors for
current pricing.

7. WARRANTy

Products coated with a uoropolymer, KYNAR
500® PVDF or HYLAR 5000® PVDF nish carry
a thirty (30) year limited warranty against
cracking, peeling, chalking and fading.

8. mAINTENANCE

FLM panels are virtually maintenance free.
Surface residue may be easily removed
by conventional cleaning methods. Minor
scratches may be touched up with a matching
paint, available from the manufacturer.

9. TECHNICAL SERvICES

Complete technical information and literature
are available www.atas.com. ATAS will assist
with design ideas and shop drawings.

FILINg SySTEm10.

www.construction.com•
www.atas.com•
Additional product information is available •
from the manufacturer upon request.

ATAS International Inc. has the ability to
customize panels for specic projects. Please
contact the factory to discuss options for your
project.
