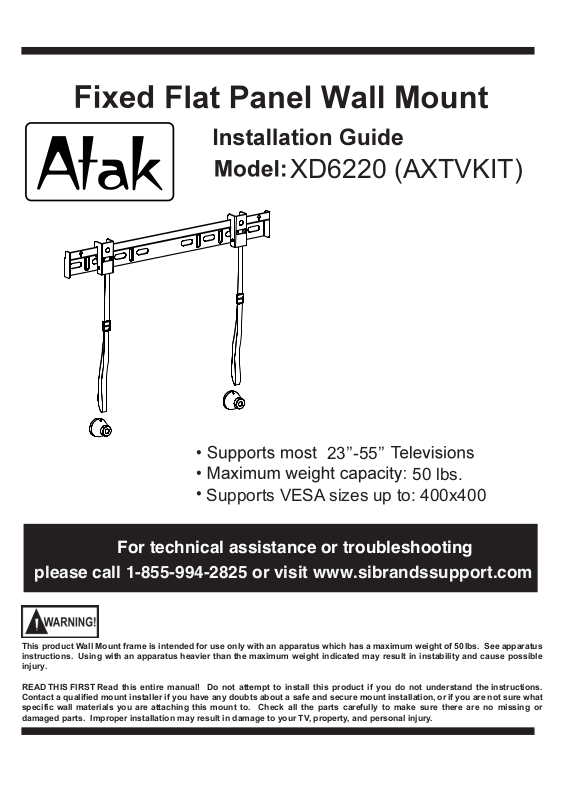

Atak XD6220, AXTVKIT Installation Manual

XD6220 (AXTVKIT)

23’’-55’’

50 lbs.

Supports VESA sizes up to: 400x400

For technical assistance or troubleshooting

please call 1-855-994-2825 or visit www.sibrandssupport.com

This product Wall Mount frame is intended for use only with an apparatus which has a maximum weight of 50lbs. See apparatus
instructions. Using with an apparatus heavier than the maximum weight indicated may result in instability and cause possible
injury.

READ THIS FIRST Read this entire manual! Do not attempt to install this product if you do not understand the instructions.
Contact a qualified mount installer if you have any doubts about a safe and secure mount installation, or if you are not sure what
specific wall materials you are attaching this mount to. Check all the parts carefully to make sure there are no missing or
damaged parts. Improper installation may result in damage to your TV, property, and personal injury.

ATAK

Part List:

1- Wall Plate

1pc

Hardware list:

4 --Lag bolt

2pcs

5--Anchor

2pcs

2- Bracket

6--M8 washer

2 pcs

2pcs

7-- Allen wrench

1pc

3- Wall Spacer

8--Socket tool

1pc

2pcs

A--M4X12 bolt

4pcs

D--M8X25 bolt

4pcs

I --M5/M4

washer 4pcs

B--M5X12 bolt

4pcs

E--M4X30 bolt

4pcs

J--M6 washer

4pcs

C--M6X12 bolt

4pcs

spacer 4pcs

F--M5X30 bolt

4pcs

K --M5/M6

G--M6X35 bolt

4pcs

L--M8 spacer

4pcs

M --10mm

spacer 4pcs

H--M8X50 bolt

4pcs

N--2.5mm

spacer 8pcs

The actual appearance of the parts may be different than shown in the
illustrations.
