Using a mobile telephone for fax transmissions [FAX]

This section describes how to send a fax using a mobile telephone as a modem.

 Setting up the mobile telephone
 Installing a modem
 Setting fax information
 Sending a fax
 Receiving a fax

Important

• Please ensure that any drivers used to connect the PC to the mobile telephone

have been installed.

• A Bluetooth passkey (PIN code) is required for you to connect to the mobile

telephone. Please make a note of your Bluetooth passkey before you start the set­up process.

• A fax application is required for you to be able to send and receive faxes. The

description below is based on a example using Microsoft Fax, which is installed
with Windows XP as standard.

If you are going to use a commercially available fax application

to the manual that came with the application for information on how to send and
receive faxes.

, then please refer

Setting up the mobile telephone

Set up and register the mobile telephone as a fax service.

Procedure

1. Turn on the mobile telephone, and set it to be connectable via Bluetooth

Note

o Please refer to the instruction manual for information on how to operate

the telephone.

2. Right-clickontheBluetoothiconinthetasktray,andthenclickon[Add

New Connection]

Note

o Alternatively, click [Start] [All Programs] [Bluetooth] [Bluetooth

Settings], and then click on [New Connection] from the active [Bluetooth
Settings] window.

The [Add New Connection Wizard (Welcome to the Add New Connection
Wizard)] window will appear.

3. Select [Custom Mode], and then click on the [Next] button

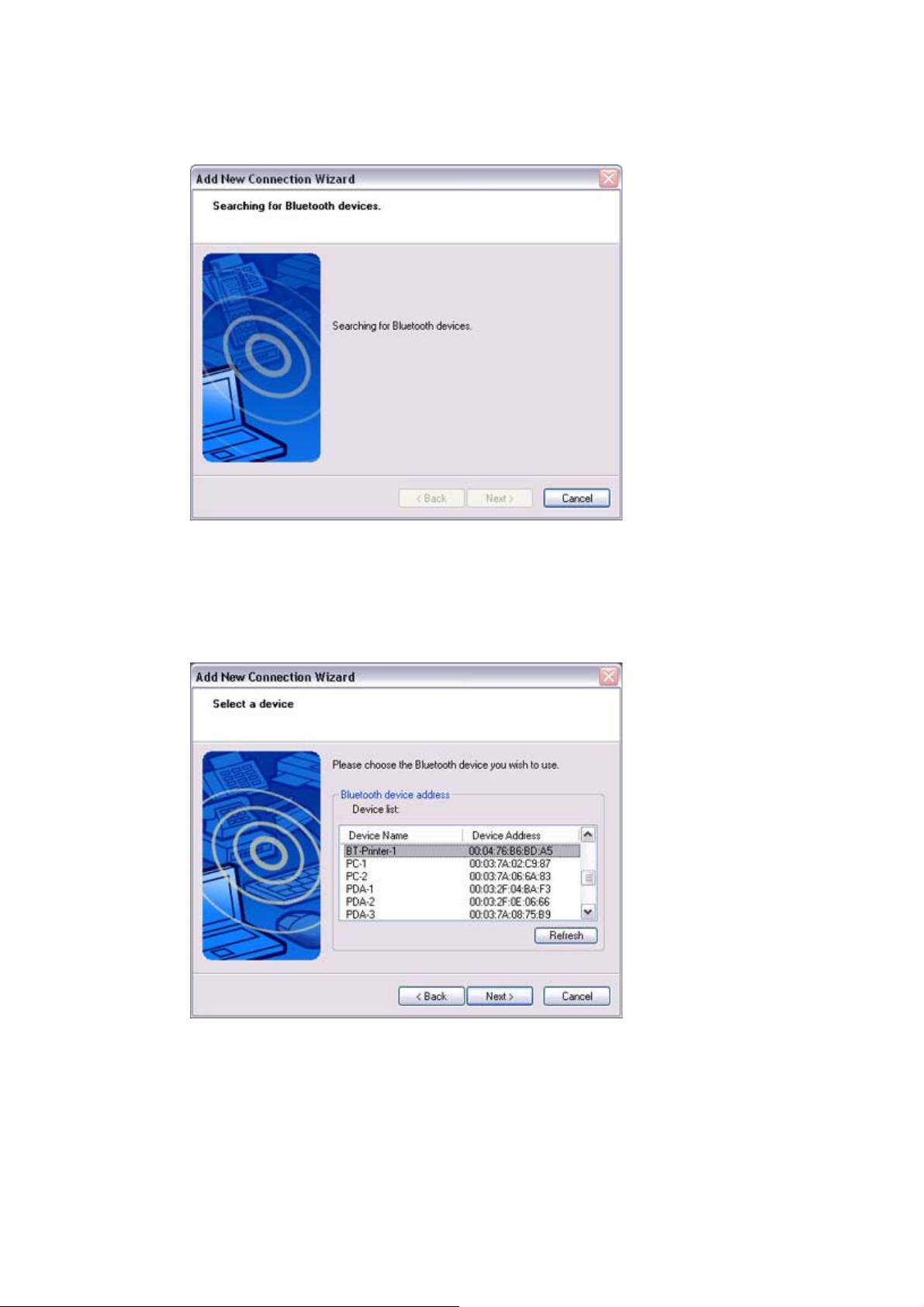

The [Add New Connection Wizard (Searching for Bluetooth devices)] window
will appear.

Once the program has finished searching for the devices, the [Add New
Connection Wizard (Select Device)] window will appear.

4. Select the device name of the mobile telephone from [Device List], and then
click on the [Next] button

The [Add New Connection Wizard (Searching for Services)] window will appear.

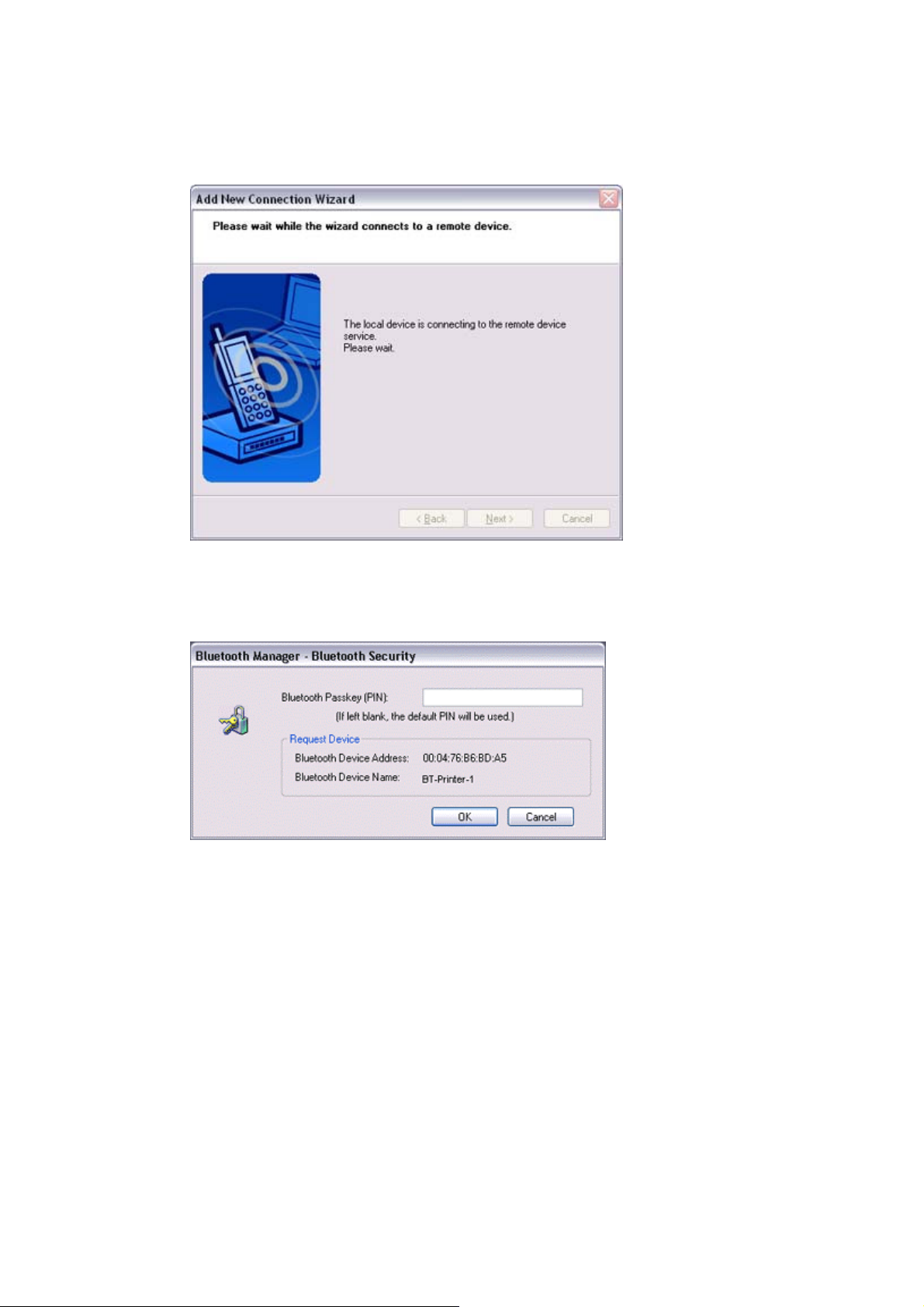

5. If you are connecting to the mobile telephone for the first time, enter the
passkey for the device from the [Bluetooth Passkey (PIN Code)] window, and
then click on the [OK] button.

Once the program has finished searching for the services, the [Add New
Connection Wizard (Select Service)] window will appear.

6. Select "Fax" under [Select Service], and then click on the [Next] button

The [Add New Connection Wizard (Connecting to Remote Device)] screen will
appear.

The COM port and modem registration process will then be automatically
performed.

Once the

COM port and modem (standard 33600 bps type) registration is complete,

the [Add New Connection Wizard (Setting Connection Name)] screen will
appear.

7. Configure the type and name of the icon to appear after registration, and

click on the [Next] button.

Please click only on the [Nex t] button once you are satisfied with the
configuration.

The [Add New Connection Wizard (Completing the Add New Connection
Wizard)] screen will appear.

8. Click on the [Finish] button

The settings will be registered, and the i con will appear on the [Bluetooth

Settings] screen.

Setting fax information

Configure send/receive settings and register fax information.

Procedure

1. Select [Start] [Control Panel], and then double-click on the [Printers and
Other Hardware] icon

Note

o If the control panel is displayed in "Classic view", and you use Windows

2000, please start from Step (2).

2. Double-click on the [Printers and Faxes] icon

The [Printers & Faxes] window will appear.

3. Click on "Set up faxing" in the [Printers and Faxes] window

A window showing installed programs will appear, and a Fax icon will have been
created in the [Printers and Faxes] screen.

4. Click on "Send a fax" under "Printer Tasks" on the left side of the window

If you have not yet configured a fax device, the [Fax Configuration Wizard]
window will appear. In the window you can enter settings pertaining to the sender
(yourself).

Note

o If the fax configuration information has already been registered, the [Send

Fax Wizard] window, which can be viewed under "Sending a fax

" below,

will appear instead of the [ Fax Configuration Wizard] window.

5. Enter the sender information, and click on the [Next] button

Note

o The sender information that you configure here will be automatically

appended as header information when you send a fax.

The [Fax Configuration Wizard (Select Device for Sending or Receiving Faxes)]
window will appear.

6. Select a device to be used for fax transmissions, enable the device for sending

or receiving, and then click on the [Next] button

Note

o If [Enable Receive] is selected, the device will be on standby for receiving

faxes even if it is not sending or receiving anything, and therefore will be
in continuous connection to the wireless modem when COM Auto

Connect is on).

Please decide whether to select this option based on to the desired
objective and/or frequency of transmission.

The [Fax Configuration Wizard (Transmitting Subscriber Identification (TSID))]
window will appear.

7. Click on the [Next] button

It is important that you do not change the transmitter subscriber identification.

The [Fax Configuration Wizard (Completing the Fax Configuration Wizard)]
window will appear.

8. Click on the [Finish] button

The fax information will be have been registered, and the [Fax Console] window
will appear.

This will complete the fax set-up process.

Related topics: "Sending a fax" and "Receiving a fax"
