E-Tool for EMP U360 Operating Manual
ASUSTeK Computer Inc.
Mobile Communication Business Unit
R&D Div.1
Writer：Kevin Hsu & Jim
Reviser：Aden Chang
E-Tool for EMP U360
Revision History
Date Description Old Version
2007/06/01 Draft created V0.1
New Version
2007/06/23 Add “Get Slot ID” and “Switch to TP Mode”
Function
V0.2
1
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Contents
1 Introduction .................................................................................................................................3
2 Set Slot ID ...................................................................................................................................3
3 Switch to TP Mode.................................................................................錯誤
4 Operating Method .......................................................................................................................4
錯誤! 尚未定義書籤
錯誤錯誤
尚未定義書籤。。。。
尚未定義書籤尚未定義書籤
2
ASUSTeK Strictly Confidential
E-Tool for EMP U360
1 Introduction
This document describes the operating method by using E-Tool for EMP U360.
2 Set Slot ID
Step 1
The E-Tool V1.0 dialog box will show when you execute P_E_tool.exe.
Step 2
Choose Function->Slot ID, and click it to Set Slot ID automatically.
Step 3
It will show the following dialog , click “確定” to continue.
3
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Step 4
It will show the following dialog, turn on inactive DUT ,then click “Abort” to continue.
Step 5
If it shows the following dialog , click“確定” and please repeat Step2 through to Step4 .
Step 6
If the following dialog appeared , it represents Set Slot ID successfully.
4 Operating Method
GSM PART
Step 1
The E-Tool V1.0 dialog box will show when you execute P_E_tool.exe.
4
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Step 2
Choose Function->U360->GSM, and click GSM to show GSM_U360_form dialog box.
Step 3
Choice com port number to communicate with Mustang.
5
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Step 4

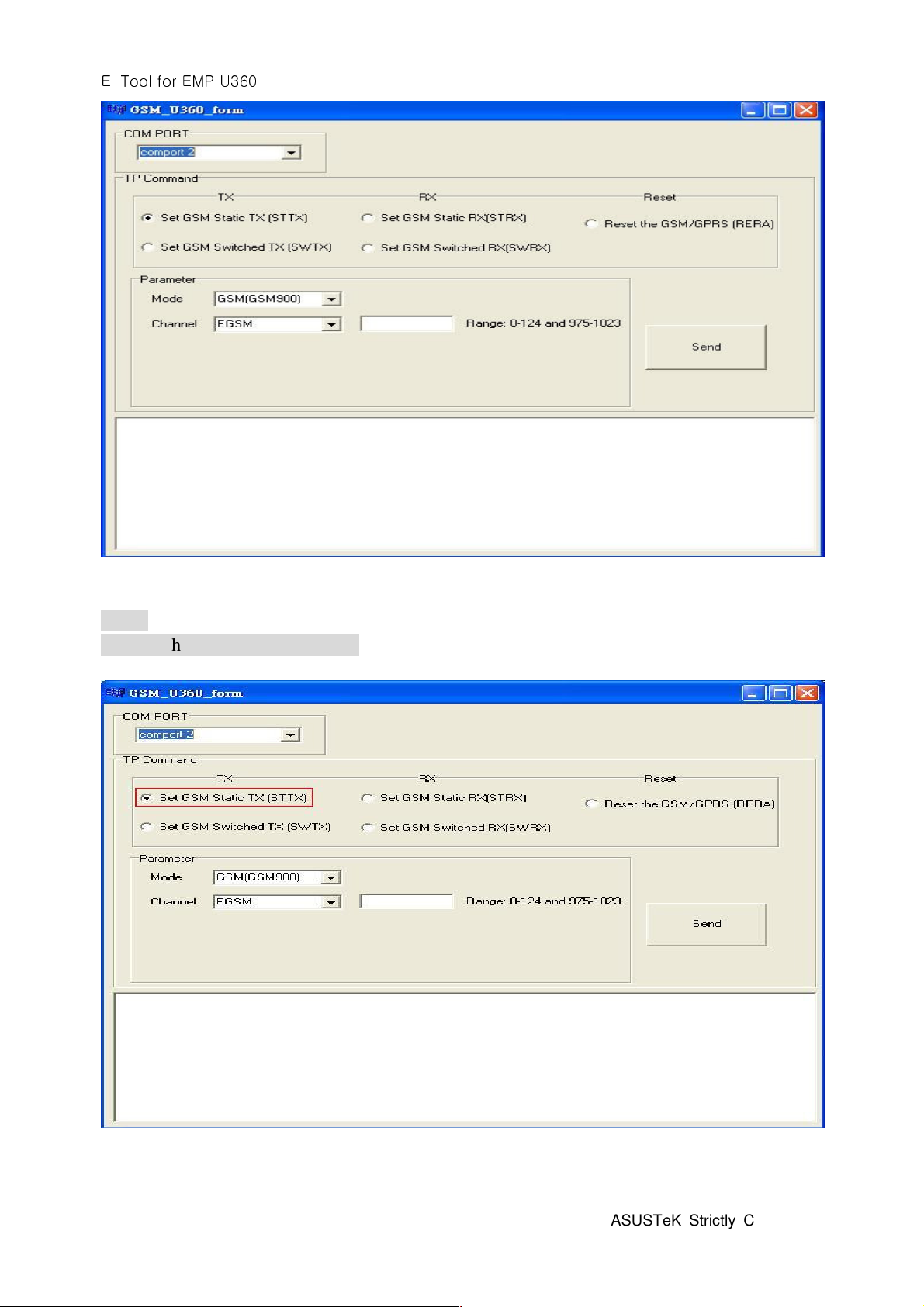

Choice which tp command to send
Set GSM Static TX
Set GSM Switched TX
6
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Set GSM Static RX
Set GSM Switched RX
7
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Reset the GSM Radio
Result is showed as below
8
ASUSTeK Strictly Confidential
E-Tool for EMP U360
WCDMA PART
Step 1
The E-Tool V1.0 dialog box will show when you execute P_E_tool.exe.
Step 2

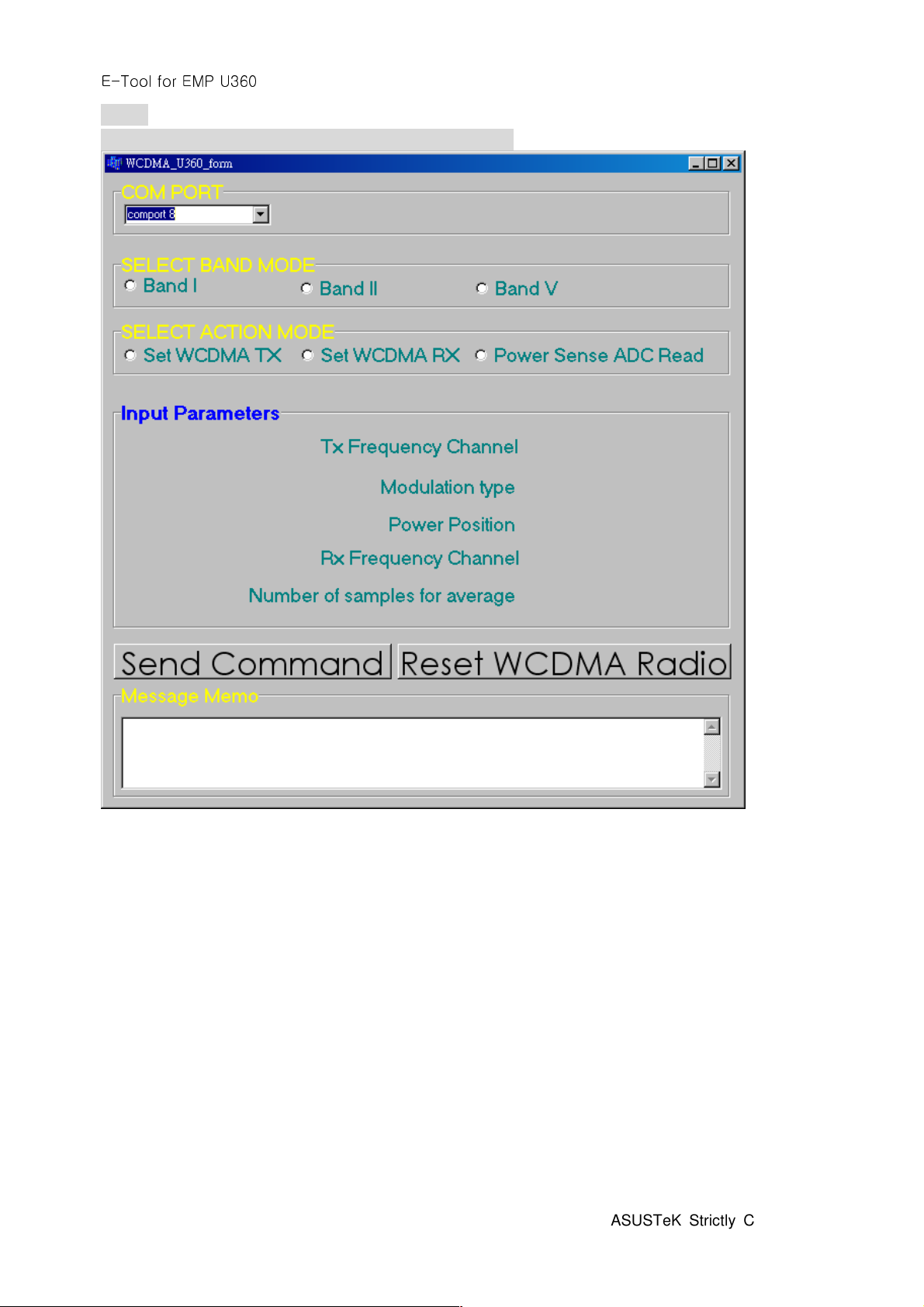

Choose Finction->U360->WCDMA, and click WCDMA to show WCDMA_U360_form
dialog box.
9
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Step 3
Choice com port umber to communicate with Mustang.
10
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Step 4
Choice Band MODE to send the tp command
Set WCDMA TX
11
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Set WCDMA RX
12
ASUSTeK Strictly Confidential
E-Tool for EMP U360

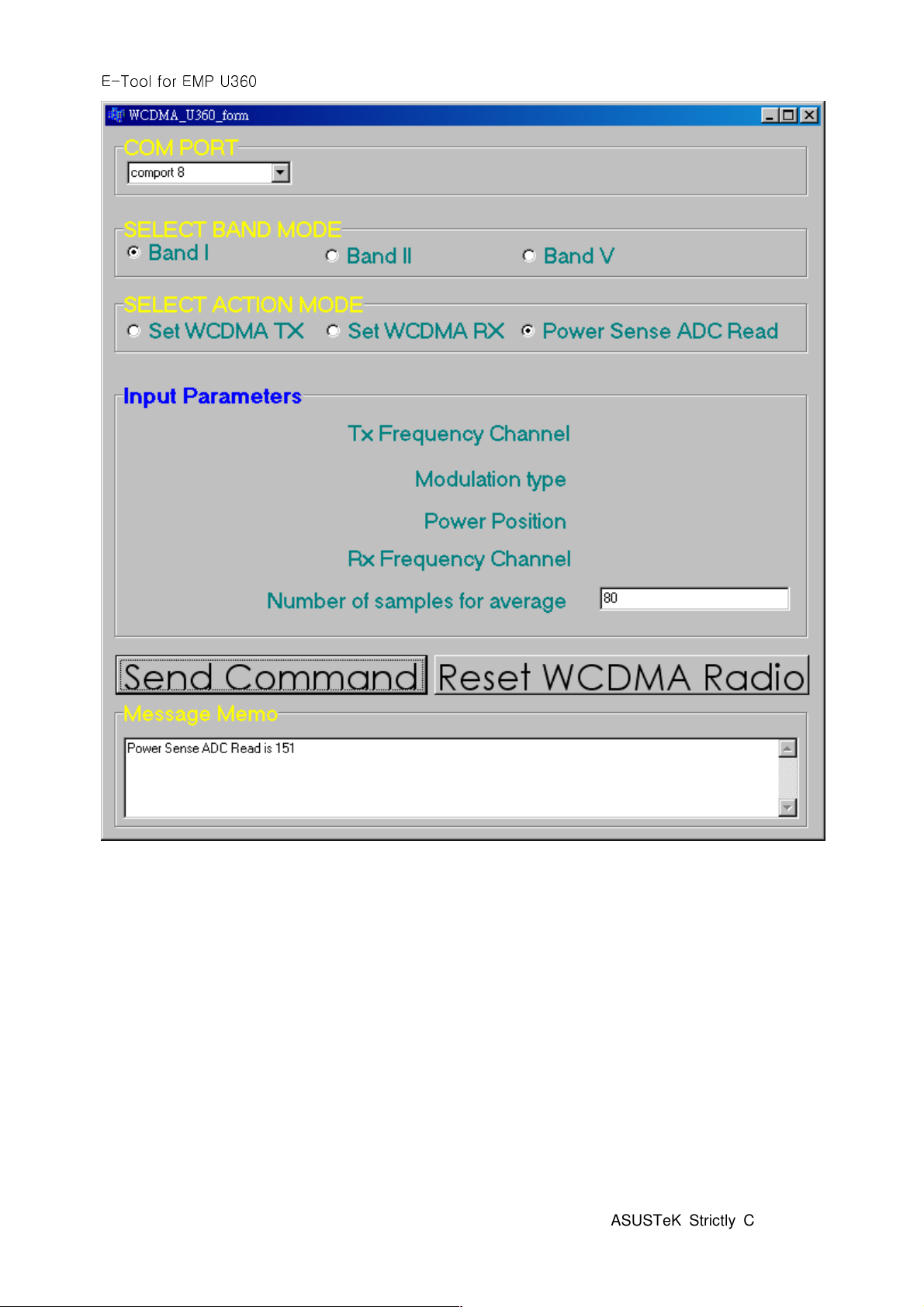

POWER Sense ADC Read
Result is showed as below
13
ASUSTeK Strictly Confidential
E-Tool for EMP U360
14
ASUSTeK Strictly Confidential
E-Tool for EMP U360
Step 5

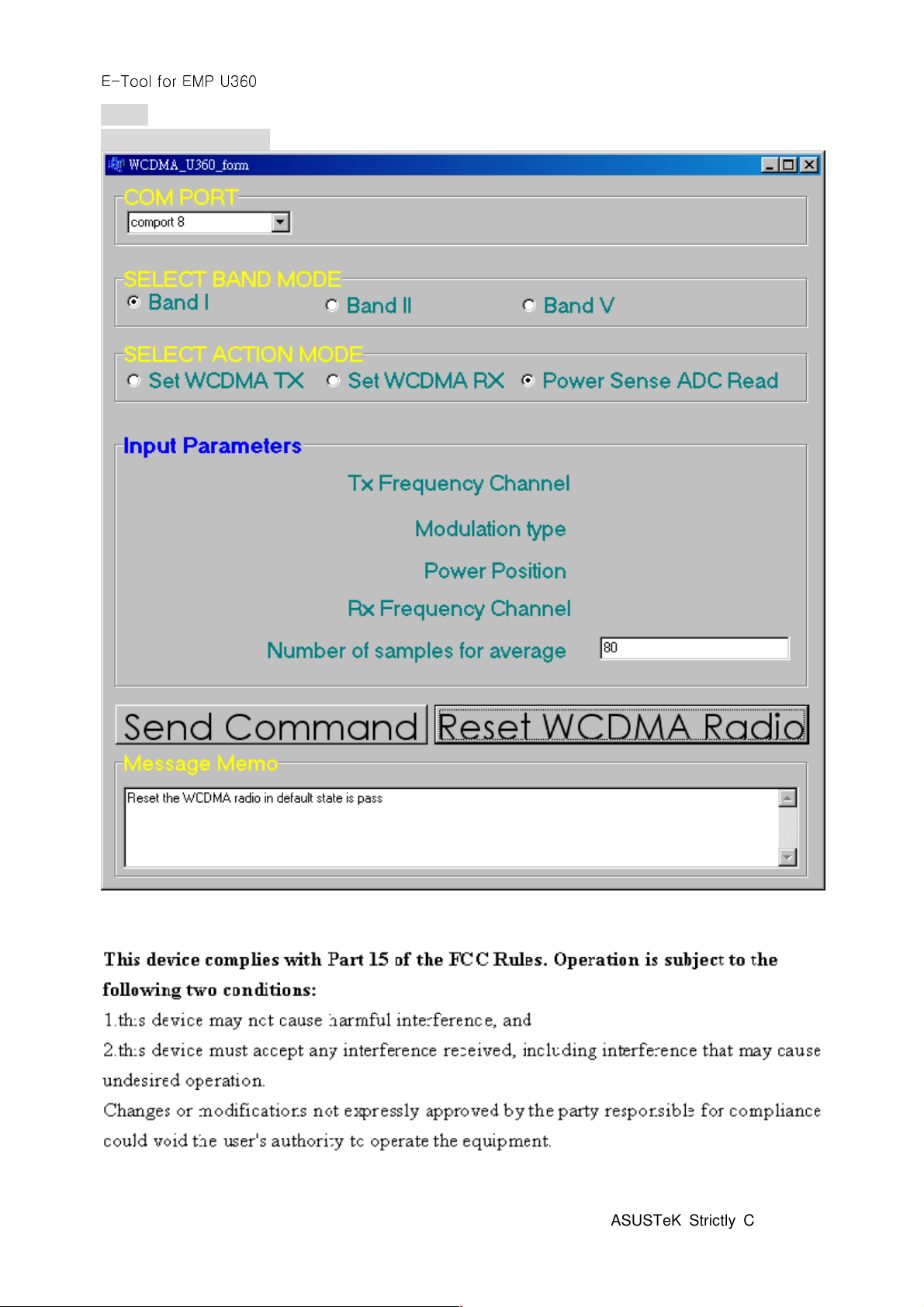

Reset WCDMA Radio
Compliance with FCC rules and regulation:
*The maximum antenna gain allowed for use with this device is 0 dBi.
15
ASUSTeK Strictly Confidential
E-Tool for EMP U360
*When the module is installed in the host device, the FCC ID label must be visible through a
window on the final device or it must be visible when an access panel, door or cover is easily
removed. If not, a second label must be placed on the outside of the final device that contains the
following text: “Contains FCC ID: MSQT 200”.
*RF Exposure Warning:
In order to comply with FCC RF Exposure requirements, this device must be installed such that
a minimum 20 cm separation distance is maintained between the EUT's antenna(s) and all persons
during normal operation. In addition, the antenna(s) must not be co-located or operated in
conjunction with any other antenna or transmitter. OEM integrators may not provide instructions
to end-users pertaining to installation or removal of the EUT.
16
