ASUSTeK Computer RTN15 User Manual
RT-N15 Wireless Router User Manual
20
1) Utility Installation for RT-N15
1. Click
Install ASUS Wireless Router
Utilities
to run the setup installation
program.
2. Click
Next
to continue.
3. Click
Next
to install the utility in the
designated location.
4. Select a program folder and click
Next
.
5. Press Finish to quit the installation program.
6. Open the
WPS Wizard
.
5. Setting up using ASUS utility
RT-N15 Wireless Router User Manual
21
Wireless settings, including Network name and passphrase, are generated automatically. You
can modify these settings manually. Note if your wireless router is congured before, select
Preserve original wireless router settings
to use the current value. Click
Next
to continue.
Follow the insructions to set up your
hardware. When done, click
Next
.
2) WPS utility
1) To use WPS, your should use a wireless router and a wireless LAN card with WPS
function.
2) To use WPS, we recommend using an ASUS wireless adapter such as WL-169gE.
3) Operating systems and wirelss adapters that support WPS:
Note:
Use WPS Wizard with one
wireless client at a time. If the wireless
client computer cannot discover the
wireless router while in WPS mode,
please shorten the distance between
the client and the router.
1
3
2
Click the WPS button in the utility until its
power LED is blinking. When done, click Next
to continue.
OS Support Wireless Adapter Support
Vista 32/64
Intel wireless LAN card
ASUS 167gv2 driver v3.0.6.0 or later
ASUS 160N/130N driver v2.0.0.0 or later
XP SP2
Intel wireless LAN card
ASUS 167gv2 driver v1.2.2.0 or later
ASUS 160N/130N driver v1.0.4.0 or later
XP SP1 and 2000
ASUS LAN card with ASUS WLAN Utility
ASUS 167gv2 driver v1.2.2.0 or later
ASUS 160N/130N driver v1.0.4.0 or later
RT-N15 Wireless Router User Manual
22
5
You have connected to the wireless router. If
you need to congure Internet settings, click
Setup
to open web browser. Click
Finish
to
exit
WPS Wizard
.
If you need to use a USB drive to add other devices to the network. Click Save settings to a
USB ash drive.
1) Plug a USB ash drive into a USB port
on your computer, and then select the
drive from the dropdown list. When
done, click Next to continue.
2) Remove the USB ash drive from this
computer, and then plug to another
computer that you want to add to the
wireless network.
3) Locate the
SetupWireless.exe from the
USB drive ,and double-click to run it.
Click Yes to add this computer to the
wireless network.
4) Click OK to exit the Wireless Network Setup
Wizard.
Setup is complete, press
Save or print
Settings, or Save settings to a USB drive
button for future reference. Click
Next
to
connect to Internet.
4
RT-N15 Wireless Router User Manual
23
6. Congure RT-N15 under Vista OS
The Windows Simple Cong function, which is preinstalled in the ASUS RT-N15,
enables the device to be congured via WCN Net process of Windows Vista.
Note: The WCN Net process of Windows Vista can only discover the device
when it is not congured and is in the default settings state. If the device is
congured, you have to set up the device by WEB or EZsetup. You can also
push the Reset button and then begin WCN-NET setup.

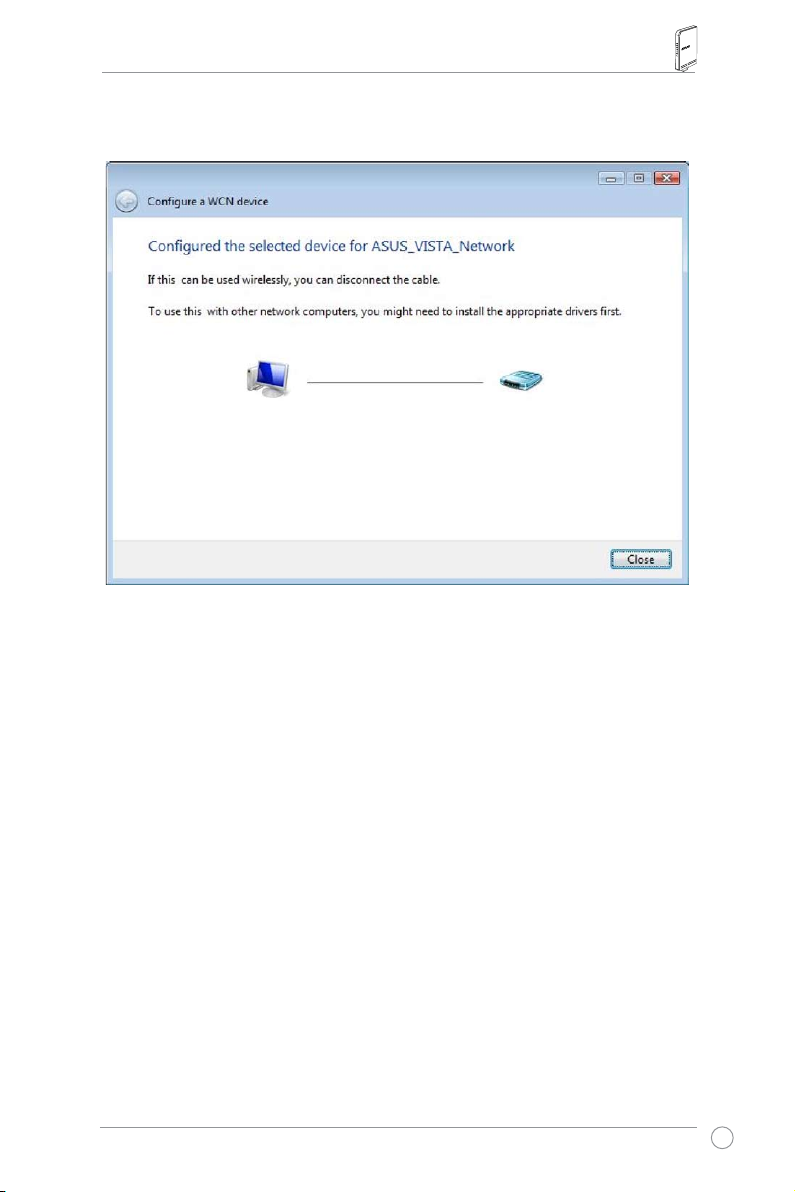

1) Conguring the device
Follow the steps below to congure the device using WCN-Net process of Windows
Vista:
1. Connect the device to your PC and power on it.
2. Click
Start > Network
from the Vista desktop. The Network screen appears.
3. Double-click
ASUS Wireless Router
.
RT-N15 Wireless Router User Manual
24
4. A screen prompts you to enter the PIN, which is located on the sticker posted on the
device. Enter the PIN in the
PIN
box, then click
Next
.
5. Give the network a name and type it in the
Network name
box, then click
Next
.
RT-N15 Wireless Router User Manual
25
6. A Passphrase is generated for WPA security for the network. Click
Next
from this screen.
If you want to create a different passphrase, click
create a different passphrase
for me
. If you want to use security method other than WPA-Personal, click
Show
advanced network security options
.
The screens for
Create a different passphrase
and
Security methods
are shown
in the next page.
RT-N15 Wireless Router User Manual
26
Create a different passphrase
Four security methods
