ASUSTeK Computer EPC9HD780 Users Manual
Eee PC
Windows® XP Edition
Eee PC 1000 Series
User’s Manual
May 2008
Table of Contents
Chapter 1: Introducing the Eee PC
About This User’s Manual............................................................................ 1-2
Notes for This Manual................................................................................... 1-3
Safety Precautions ......................................................................................... 1-4
Transportation Precautions ...................................................................... 1-5
Charging Your Batteries.............................................................................. 1-5
Airplane Precautions................................................................................... 1-5
Preparing your Eee PC.................................................................................. 1-6
Chapter 2: Knowing the Parts
Top Side ............................................................................................................. 2-2
Bottom Side...................................................................................................... 2-6
Right Side.......................................................................................................... 2-8
Left Side...........................................................................................................2-10
Rear Side.......................................................................................................... 2-11
Chapter 3: Getting Started
Power System.................................................................................................. 3-2
Using AC Power............................................................................................. 3-2
Using Battery Power.................................................................................... 3-3
Battery Care .................................................................................................... 3-4
Touchpad Usage............................................................................................. 3-6
Single-finger gesture input....................................................................... 3-6
Multi-finger gesture input......................................................................... 3-7
Keyboard Usage.............................................................................................. 3-8

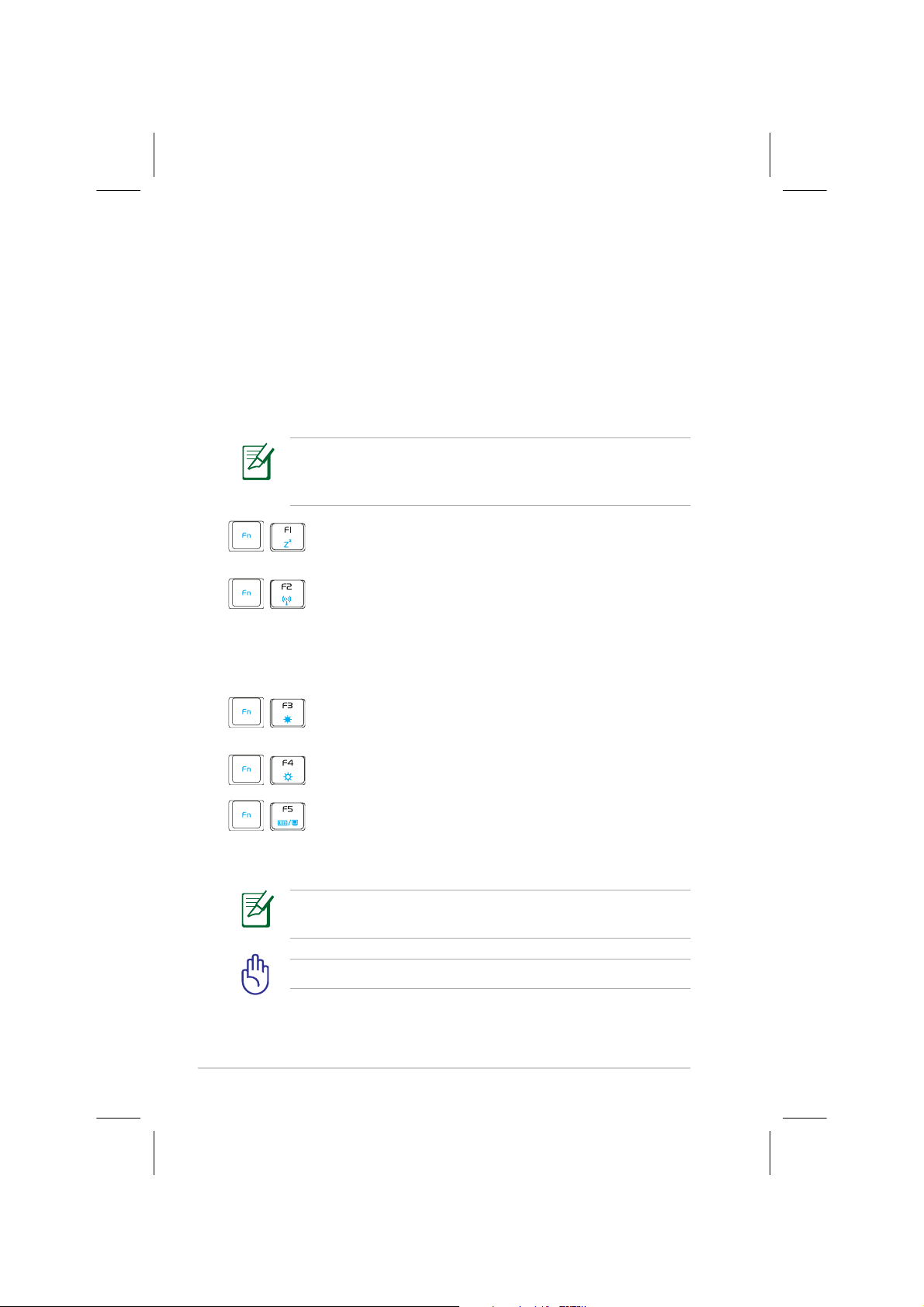

Special Function Keys .................................................................................3-8
First-time Startup .........................................................................................3-11
Desktop............................................................................................................3-14
ASUS EeePC Tray Utility..............................................................................3-15
Enabling and Disabling Devices............................................................3-15
Adjusting the display resolution...........................................................3-16

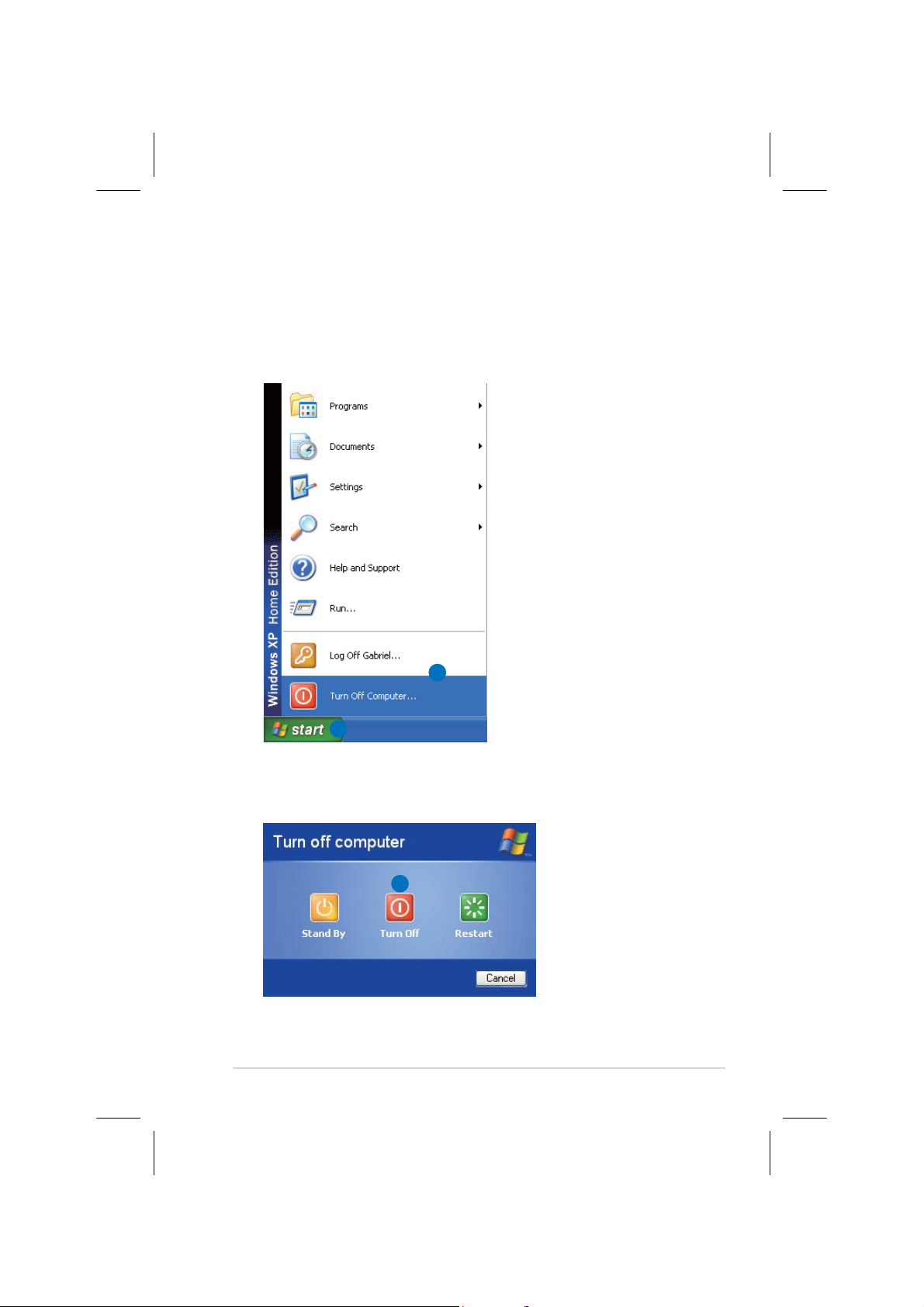

Shutdown........................................................................................................3-17
Chapter 4: Using the Eee PC
Network Connection..................................................................................... 4-2

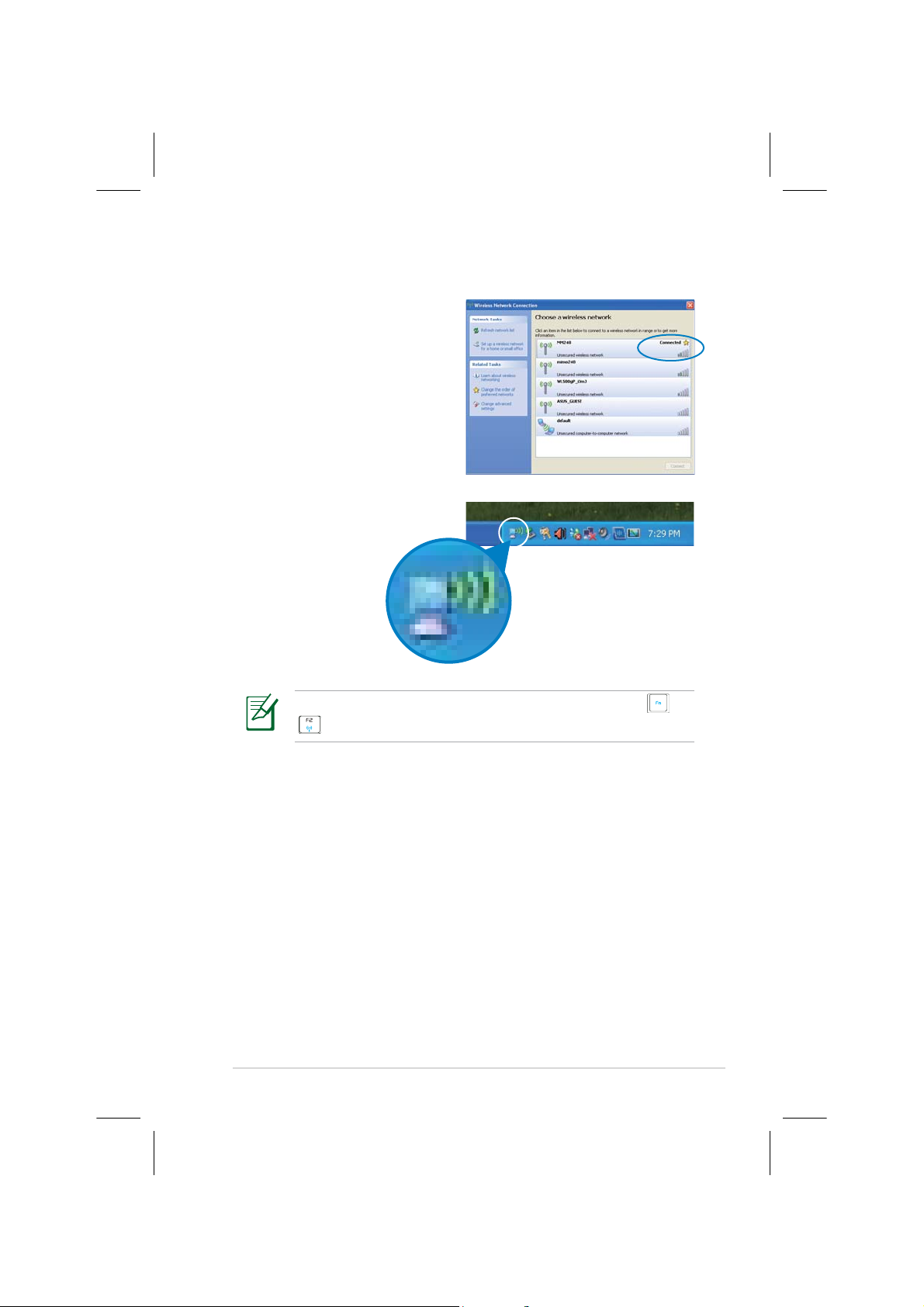

Configuring a wireless network connection....................................... 4-2

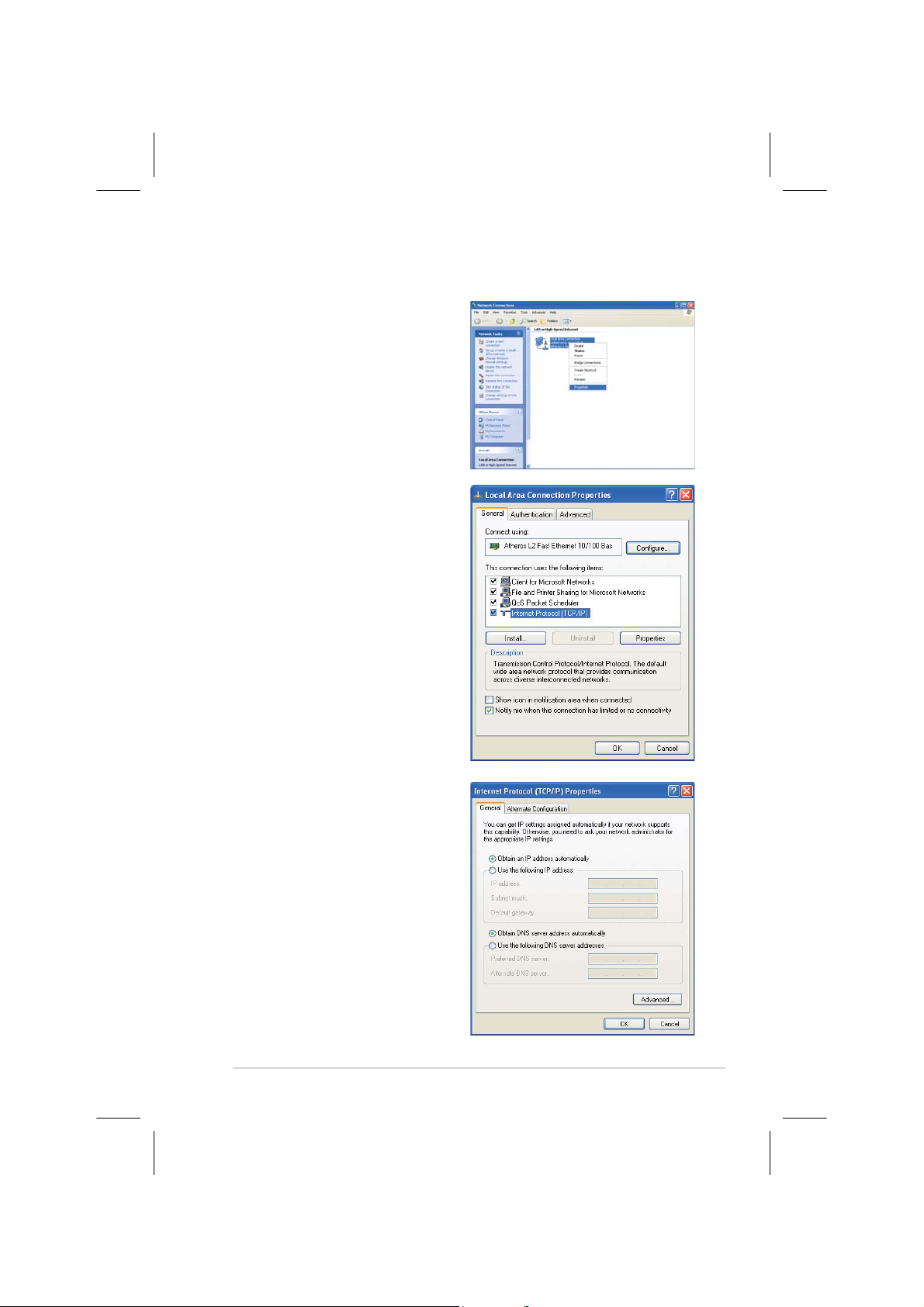

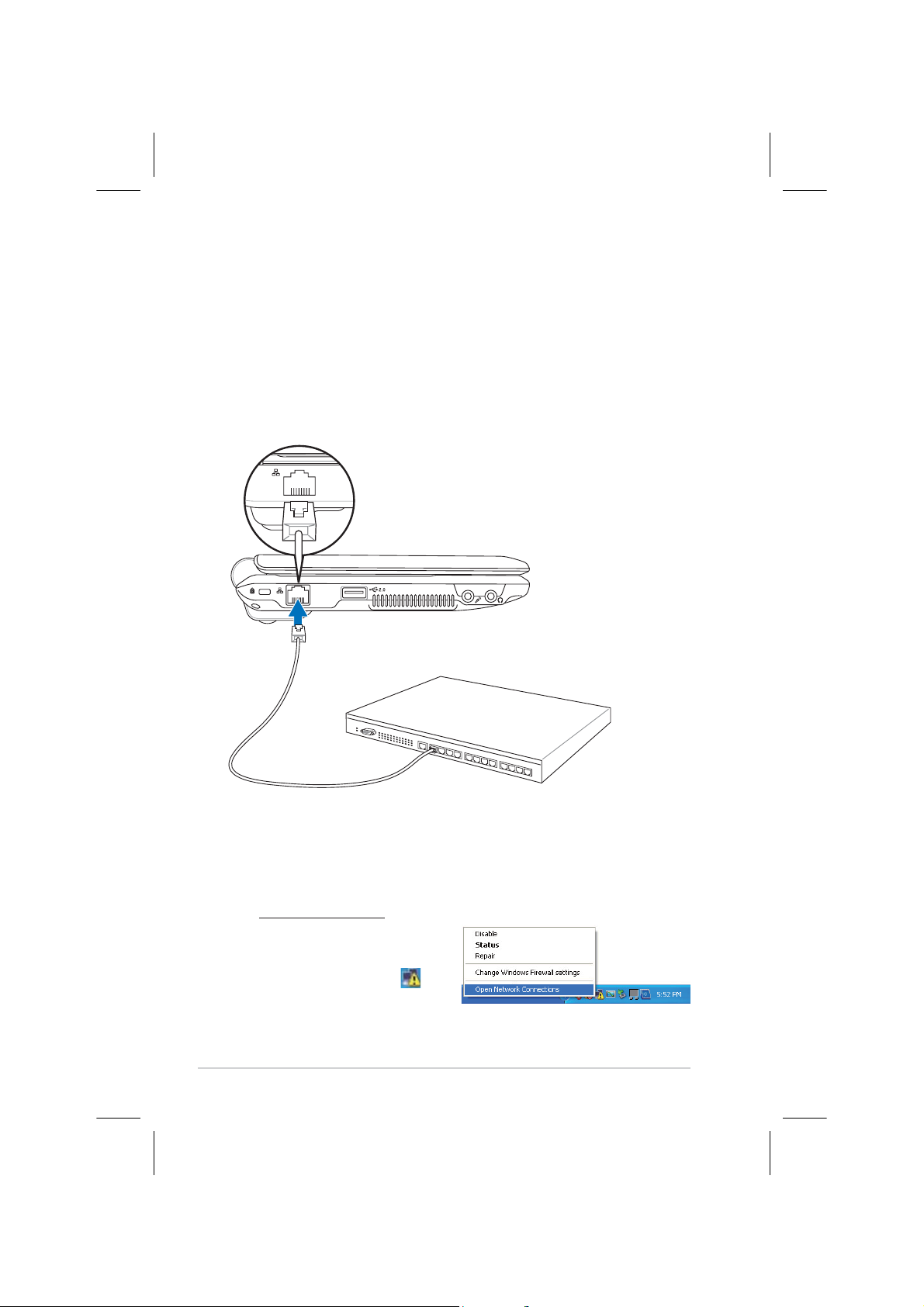

Configuring a network connection........................................................ 4-4
ii
Table of Contents
Table of Contents
Browsing web pages.................................................................................4-10
ASUS Update..................................................................................................4-11
Updating the BIOS through the Internet...........................................4-11
Updating the BIOS through a BIOS file...............................................4-13
Chapter 5: Support DVD &System Recovery
Support DVD information........................................................................... 5-2
Running the support DVD......................................................................... 5-2
Drivers menu.................................................................................................. 5-3
Utilities menu................................................................................................. 5-4
Contact ........................................................................................................... 5-6
Other information ........................................................................................5-6
System Recovery ............................................................................................ 5-7
Using the Support DVD.............................................................................. 5-7
Appendix
Declarations and Safety Statements....................................................... A-2
Federal Communications Commission Statement...........................A-2
FCC Radio Frequency (RF) Exposure Caution Statement...............A-3
Declaration of Conformity(R&TTE directive 1999/5/EC).................A-4
CE Mark Warning...........................................................................................A-4
IC Radiation Exposure Statement for Canada....................................A-4
Wireless Operation Channel for Different Domains.........................A-6
France Restricted Wireless Frequency Bands .....................................A-6
UL Safety Notices..........................................................................................A-8
Power Safety Requirement .......................................................................A-9
Nordic Lithium Cautions (for lithium-ion batteries)...................... A-10
Copyright Information .............................................................................. A-12
Limitation of Liability................................................................................. A-13
Service and Support................................................................................... A-13
ASUS Eee PC
iii
iv
Table of Contents
About This User’s Manual
Notes for This Manual
Safety Precautions
Preparing Your Eee PC
Introducing
the Eee PC
1
About This User’s Manual
You are reading the Eee PC User’s Manual. This User’s Manual
provides information regarding the various components in the Eee
PC and how to use them. The following are major sections of this
User’s Manual:
1. Introducing the Eee PC
Introduces the Eee PC and this User’s Manual.
2. Knowing the Parts
Provides information on the Eee PC’s components.
3. Getting Started
Provides information on getting started with the Eee PC.
4. Using the Eee PC
Provides information on using the Eee PC’s utilities.
5. System Recovery
Gives you information on system recovery.
6. Installing Windows® XP
Gives you information on how to install Windows® XP on your
Eee PC and the content of the support CD.
7. Appendix
1-2
Provides you QVL and gives safety statements.
Chapter 1: Introducing the Eee PC
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing
you to complete certain tasks safely and effectively. These notes have
different degrees of importance as follows:
WARNING! Important information that must be followed for safe
operation.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
ASUS Eee PC
1-3
Safety Precautions
The following safety precautions will increase the life of the Eee
PC. Follow all precautions and instructions. Except as described in
this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use
strong solvents such as thinners, benzene, or other chemicals on or
near the surface.
Disconnect the AC power and remove the battery pack(s)
before cleaning. Wipe the Eee PC using a clean cellulose sponge
or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT place on uneven or
unstable work surfaces. Seek
servicing if the casing has
been damaged.
DO NOT expose to dirty or
dusty environments. DO NOT
operate during a gas leak.
DO NOT press or touch the
display panel. Do not place
together with small items
that may scratch or enter the
Eee PC.
DO NOT leave the Eee PC on
your lap or any part of the
body to prevent discomfort
or injury from heat exposure.
SAFE TEMP: This Eee PC
should only be used in
environments with ambient
temperatures between 5°C
(41°F) and 35°C (95°F)
DO NOT place or drop
objects on top and do not
shove any foreign objects
into the Eee PC.
DO NOT expose to strong
magnetic or electrical fields.
DO NOT expose to or
use near liquids, rain, or
moisture. DO NOT use the
modem during electrical
storms.
Battery safety warning: DO
NOT throw the battery in
fire. DO NOT short circuit
the contacts. DO NOT
disassemble the battery.
INPUT RATING: Refer to the
rating label on the bottom
of the Eee PC and be sure
that your power adapter
complies with the rating.
1-4
DO NOT throw the Eee PC in
municipal waste. Check local
regulations for disposal of
electronic products.
DO NOT carry or cover a
Eee PC that is powered ON
with any materials that will
reduce air circulation such
as a carrying bag.
Chapter 1: Introducing the Eee PC
Transportation Precautions
To prepare the Eee PC for transport, you should close the display
panel to protect the keyboard and display panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape surfaces when transporting your Eee PC.
You can put your Eee PC in a carrying case for protection from dirt,
water, shock, and scratches.
For the model that comes with a hard disk drive, you should
turn it OFF and disconnect all external peripherals to prevent
damage to the connectors when you prepare for transport. The
hard disk drive’s head retracts when the power is turned OFF
to prevent scratching of the hard disk surface during transport.
Never transport it while the power is still ON.
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your
battery pack and any optional battery packs before going on long
trips. Remember that the power adapter charges the battery pack as
long as it is plugged into the computer and an AC power source. Be
aware that it takes much longer to charge the battery pack when the
Eee PC is in use.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane.
Most airlines have restrictions for using electronic devices. Most
airlines allow electronic use only between and not during takeoffs
and landings.
There are three main types of airport security devices: X-ray
machines (used on items placed on conveyor belts), magnetic
detectors (used on people walking through security checks),
and magnetic wands (hand-held devices used on people or
individual items). You can send your Eee PC and diskettes
through airport X-ray machines. However, it is recommended
that you do not send your Eee PC or diskettes through airport
magnetic detectors or expose them to magnetic wands.
ASUS Eee PC
1-5
Preparing your Eee PC
These are only quick instructions for using your Eee PC. Read the
following chapters for detailed information.
1. Install the battery pack
3
1
2
2. Connect the AC power adapter
1-6
ANT.
Your Eee PC may come with either a two or three-prong plug
depending on territory. If a three-prong plug is provided, you
must use a grounded AC outlet or use a properly grounded
adapter to ensure safe operation of the Eee PC.
Chapter 1: Introducing the Eee PC
3. Open the display panel
1.3
MEGA
PIXELS
4. Turn ON the Eee PC
When you open the display panel, do not force it down to the
table or else the hinges may break! Never lift the Eee PC by the
display panel!
ASUS Eee PC
1-7
1-8
Chapter 1: Introducing the Eee PC
Top Side
Bottom Side
Right Side
Left Side
Rear Side
Knowing the Parts
2
Top Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
1
2
3
4
5
2-2
6
7
8
The keyboard differs for each territory.
Chapter 2: Knowing the Parts
1
Built-in Camera
The built-in camera allows picture taking or video
recording.
2
Display Panel
The display panel functions the same as a desktop monitor.
The Eee PC uses an active matrix TFT LCD, which provides
excellent viewing like that of desktop monitors. Unlike
desktop monitors, the LCD panel does not produce any
radiation or flickering, so it is easier on the eyes. Use a soft
cloth without chemical liquids (use plain water if necessary)
to clean the display panel.
3
Array Microphone (Built-in)
The built-in array microphone is more clear and echo-free
compared with traditional single microphones and can
be used for video conferencing, voice narrations, audio
recordings, and multimedia applications.
4
Instant Keys
Instant keys allow you to launch frequently used
applications with one push of a button.
Backlight Key
Pressing this key turns off the LCD monitor backlight.
Any action on the keyboard, mouse or touchpad will
activate monitor again.
ASUS Eee PC
Resolution Key
The Resolution key allows you to adjust display
resolution. Press this key repeatedly to switch
resolution.
User-defined Key
This key is reserved for customized definition. The
default definition is for Super Hybrid Engine function.
2-3
User-defined Key
This key is reserved for customized definition. The
default definition is for launching Skype.
Only models with built-in wireless LAN and Bluetooth supoort
the user-defined key for Skype.
5
Power Switch
The power switch allows powering ON and OFF the Eee PC
and recovering from STR. Press the switch once to turn ON
and hold it to turn OFF the Eee PC. The power switch only
works when the display panel is opened.
6
Keyboard
The keyboard provides keys with comfortable travel (depth
at which the keys can be depressed) and palm rest for both
hands.
7
Touchpad and Buttons
The touchpad and its buttons comprises a pointing device
that provides the same functions as a desktop mouse.
Multi-finger gesture input is available to allow easy web
and document navigation.
2-4
Chapter 2: Knowing the Parts
8
Status Indicators (front)
Power Indicator
The power indicator lights when the Eee PC is turned
ON and blinks slowly when the Eee PC is in the Save-toRAM (Suspend) mode. This indicator is OFF when the
Eee PC is turned OFF.
Battery Charge Indicator
The battery charge indicator (LED) shows the status of
the battery’s power as follows:
ON: The Eee PC’s battery is charging when AC power is
connected.
OFF: The Eee PC’s battery is charged or completely
drained.
Blinking: Battery power is less than 10% and AC
power is not connected.
Solid-State disk (SSD) Indicator
The solid-state disk drive indicator blinks when data is
written to or read from the disk drive.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless
LAN/Bluetooth. When the built-in wireless LAN/
Bluetooth is enabled, this indicator lights.
ASUS Eee PC
2-5
Bottom Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
The bottom side may vary in appearance depending on model.
21 3
12
4
5
2-6
6 6
The bottom of the Eee PC can get very hot. Be careful when
handling the Eee PC while it is in operation or recently been in
operation. High temperatures are normal during charging or
operation. DO NOT use on soft surfaces such as beds or sofas
,which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
1
Battery Lock - Spring
The spring battery lock keeps the battery pack secure.
When the battery pack is inserted, it will automatically lock.
When removing the battery pack, this spring lock must be
retained in the unlocked position.
Chapter 2: Knowing the Parts
2
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected. This allows use when
moving temporarily between locations. Battery time
varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be
purchased as a single unit.
3
Battery Lock - Manual
The manual battery lock is used to keep the battery pack
secured. Move the manual lock to the unlocked position to
insert or remove the battery pack. Move the manual lock to
the locked position after inserting the battery pack.
4
Solid-State Disk & Memory Compartment
The solid-state disk drive and memory are secured in a
dedicated compartment.
5
Reset Button (Emergency)
In case your operating system cannot properly turn OFF or
restart, the reset button can be depressed with a pin or a
straightened paper clip to restart the Eee PC.
6
Audio Speaker System
The built-in stereo speaker system allows you to hear audio
without additional attachments. The multimedia sound
system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with
external stereo headphones or speakers). Audio features
are software controlled.
ASUS Eee PC
2-7
Right Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
ANT.
1 2 3
Memory Card Slot
1
The built-in memory card reader can read MMC/SD cards
from devices such as digital cameras, MP3 players, mobile
phones, and PDAs.
Antenna Input
2
The antenna input is for TV or FM Radio (on selected
models) frequency signal and allows for use with the
provided digital TV/FM antenna or input from subscription
television services. The provided antenna can receive digital
TV or FM radio. Cable service connection can receive digital
TV, analog TV, or FM radio depending on paid services.
3
USB Port (2.0/1.1)
2.0
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, and storage devices, connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single
computer, with some peripherals acting as additional
plug-in sites or hubs. Also, the USB supports hot-swapping
function.
4 5
2-8
Chapter 2: Knowing the Parts
Display (Monitor) Output
4
The 15-pin D-sub monitor port supports a standard VGAcompatible device such as a monitor or projector to allow
viewing on a larger external display.
5
Power (DC) Input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Eee PC and charges the internal
battery pack. To prevent damage to the Eee PC and battery
pack, always use the supplied power adapter.
CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR
BODY.
ASUS Eee PC
2-9
Left Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
21
1
Kensington® Lock Port
3 4 5
The Kensington® lock port allows the Eee PC to be secured
using Kensington®compatible security products. These
security products usually include a metal cable and lock
that prevent the Eee PC to be removed from a fixed object.
2
LAN Port
The eight-pin RJ-45 LAN port (10/100M bit) supports a
standard Ethernet cable for connection to a local network.
The built-in connector allows convenient use without
additional adapters.
2.0
3
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, and storage devices, connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single
computer, with some peripherals acting as additional plugin sites or hubs. Also, it supports hot-swapping function.
2-10
4
Microphone Jack
The microphone jack is designed to connect the
microphone used for Skype, voice narrations, or simple
audio recordings.
Chapter 2: Knowing the Parts
5
Headphone Output Jack
The 1⁄8” stereo headphone jack (3.55mm) connects the Eee
PC’s audio out signal to amplified speakers or headphones.
Using this jack automatically disables the built-in speakers.
Rear Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
1
1
ASUS Eee PC
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected. This allows use when
moving temporarily between locations. Battery time
varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be
purchased as a single unit.
2-11
2-12
Chapter 2: Knowing the Parts
Loading...
