ASUSTeK Computer EP12NE766 Users Manual
Eee PC
User Manual
Windows® XP Edition
Eee PC 1002HA
E4100
Table of Contents
Table of Contents ................................................................................................ii
About This User’s Manual ............................................................................... iv
Notes for This Manual ...................................................................................... iv
Safety Precautions ..............................................................................................v
Transportation Precautions ......................................................................... vi
Charging Your Batteries ................................................................................ vii
Airplane Precautions ..................................................................................... vii
Knowing the Parts
Top Side ............................................................................................................. 1-2
Bottom Side ...................................................................................................... 1-5
Right Side .......................................................................................................... 1-7
Left Side ............................................................................................................. 1-8
Rear Side ............................................................................................................ 1-8
Keyboard Usage ............................................................................................1-10
Getting Started
Powering on your Eee PC ............................................................................ 2-2

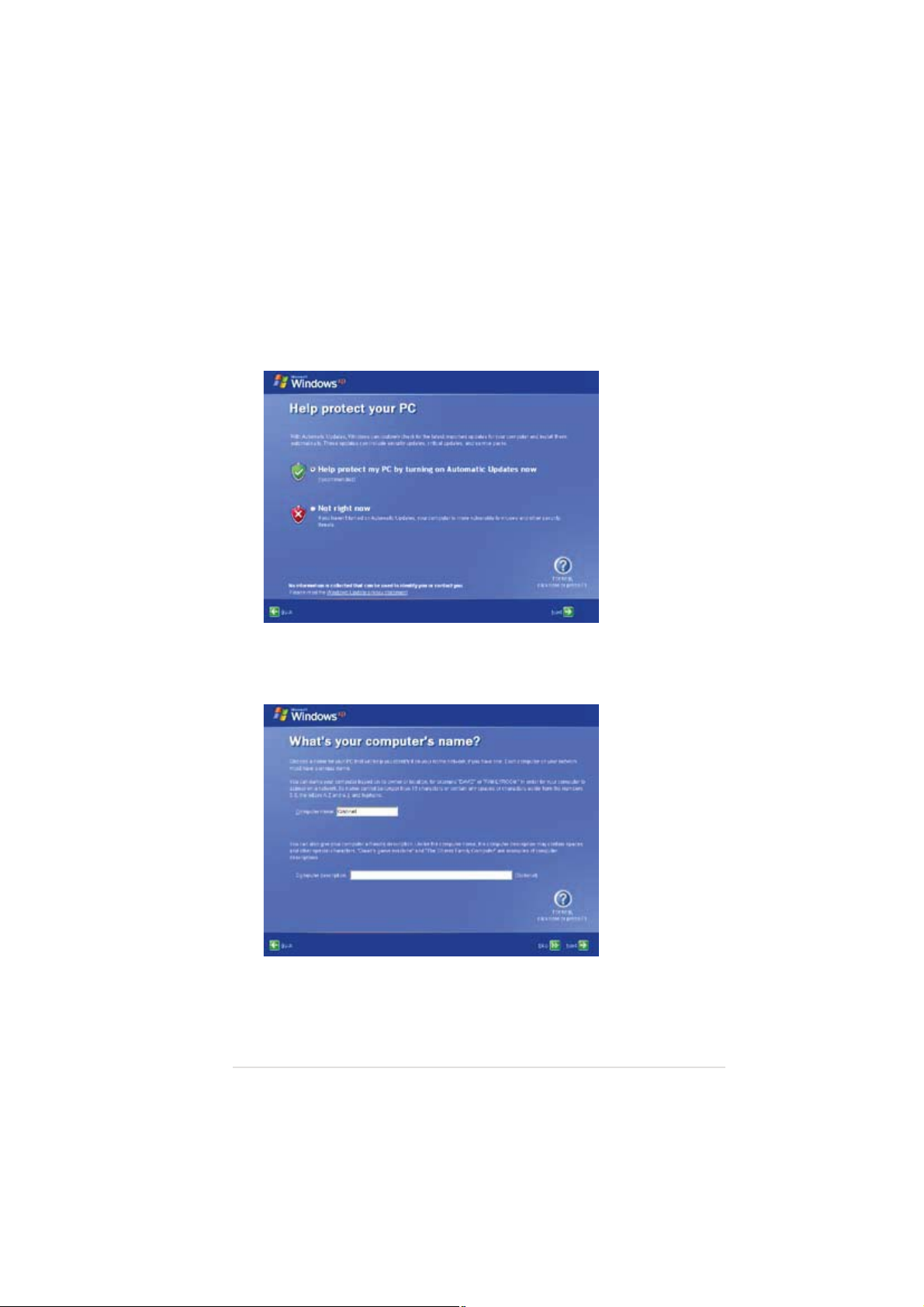

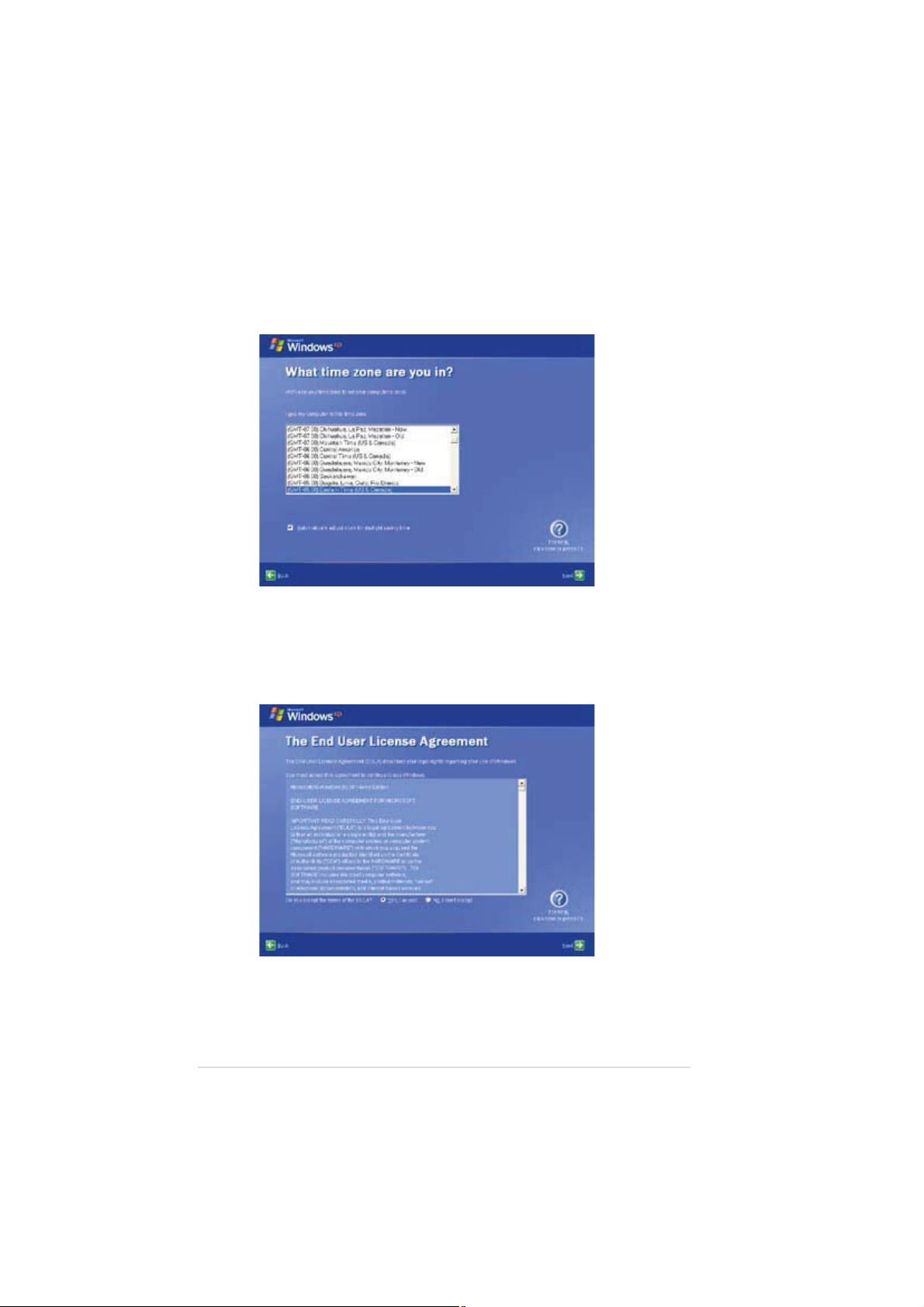

First-time Startup ........................................................................................... 2-3
Desktop .............................................................................................................. 2-6

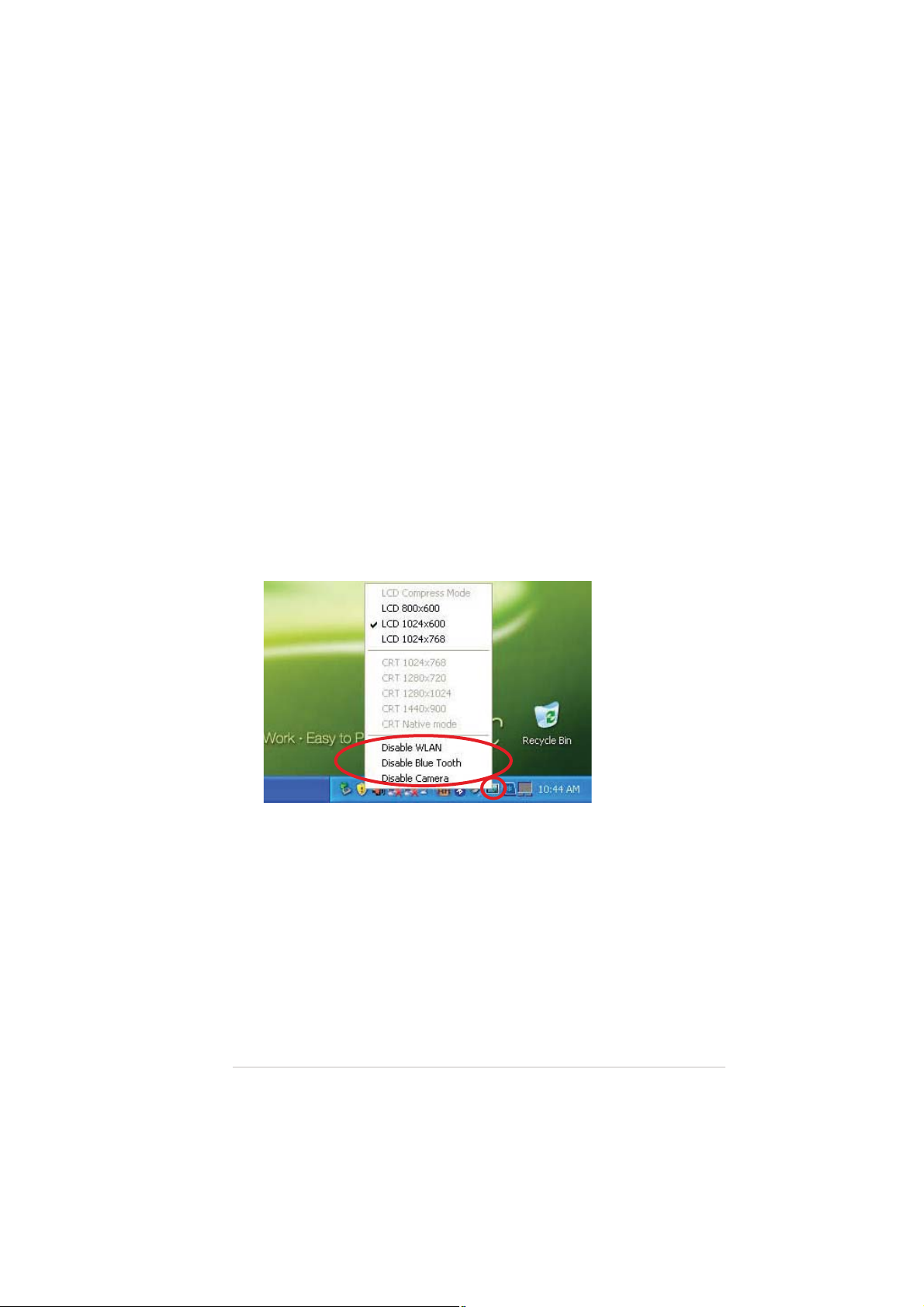

ASUS EeePC Tray Utility ................................................................................ 2-7

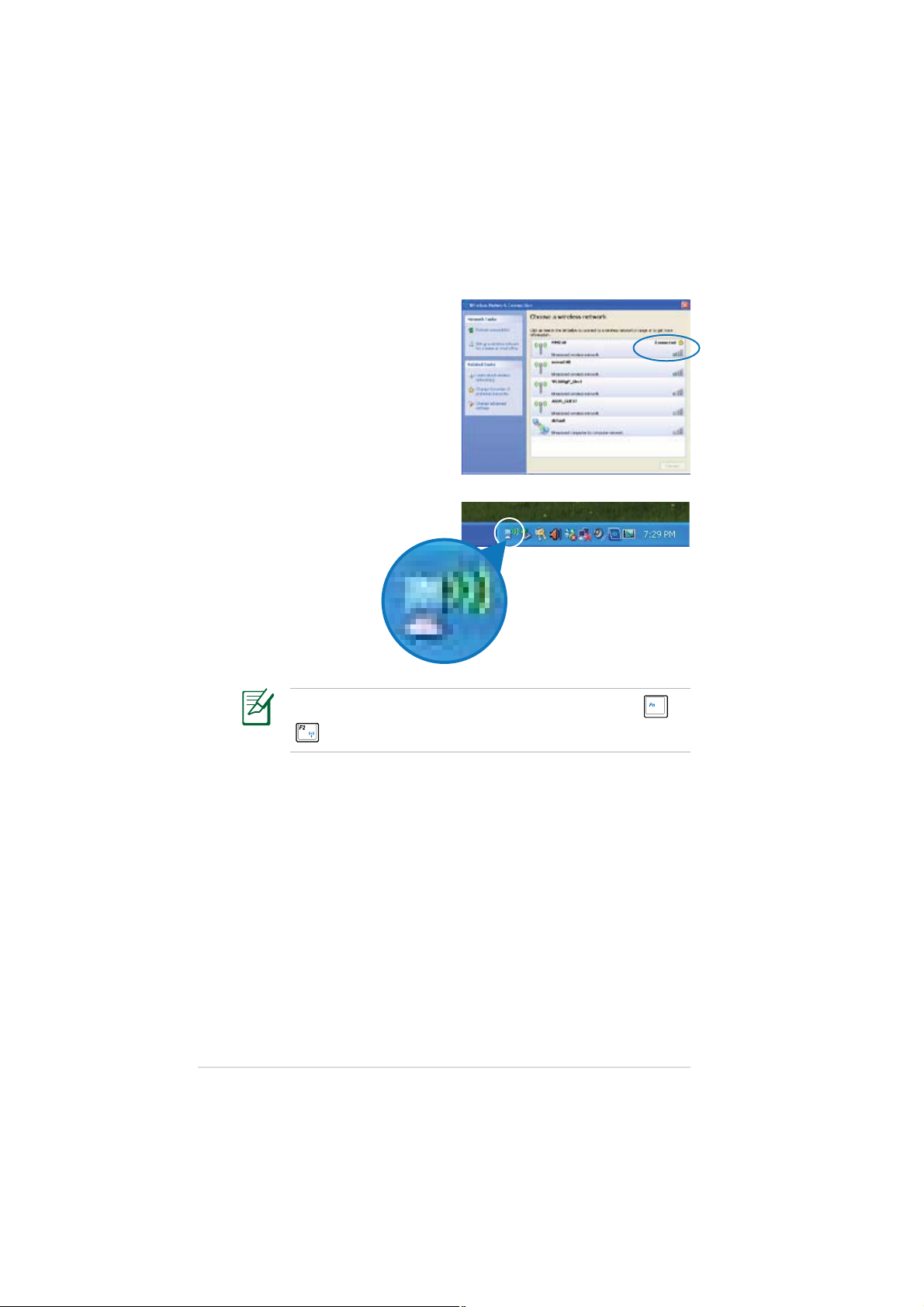

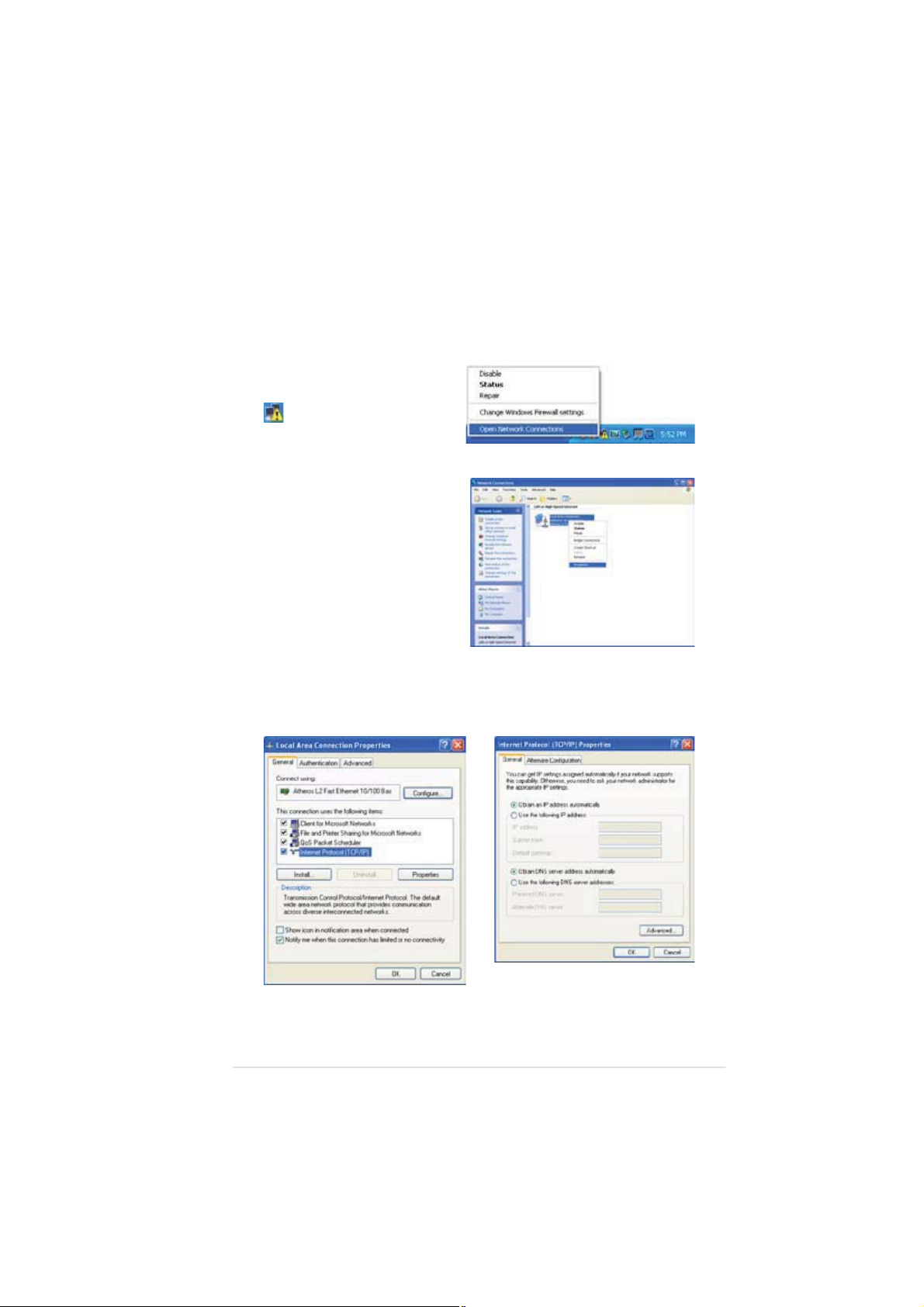

Network Connection ..................................................................................... 2-9
Appendix
Declarations and Safety Statements ....................................................... A-2
Federal Communications Commission Statement ...........................A-2
Wireless Operation Channel for Different Domains .........................A-3
Declaration of Conformity(R&TTE directive 1999/5/EC) .................A-3
CE Mark Warning ...........................................................................................A-3
France Restricted Wireless Frequency Bands .....................................A-4
UL Safety Notices ..........................................................................................A-5
Power Safety Requirement .......................................................................A-6
Nordic Lithium Cautions (for lithium-ion batteries) .........................A-7
Copyright Information .................................................................................A-9
Limitation of Liability ................................................................................. A-10
Service and Support ................................................................................... A-10
ii
Table of Contents
About This User’s Manual
You are reading the Eee PC User’s Manual. This User’s Manual
provides information regarding the various components in the Eee
PC and how to use them. The following are major sections of this
User’s Manual:
1. Knowing the Parts
Provides information on the Eee PC’s components.
2. Getting Started
Provides information on getting started with the Eee PC.
3. Appendix
Provides you safety statements.
The actual bundled applications differ by models and territories.
There may be differences between your Eee PC and the pictures
shown in this manual. Please accept your Eee PC as being correct.
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing
you to complete certain tasks safely and effectively. These notes have
different degrees of importance as follows:
ASUS Eee PC
WARNING! Important information that must be followed for safe
operation.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.
iii
Safety Precautions
The following safety precautions will increase the life of the Eee
PC. Follow all precautions and instructions. Except as described in
this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use
strong solvents such as thinners, benzene, or other chemicals on or
near the surface.
Disconnect the AC power and remove the battery pack(s)
before cleaning. Wipe the Eee PC using a clean cellulose sponge
or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT place on uneven or
unstable work surfaces. Seek
servicing if the casing has
been damaged.
DO NOT expose to dirty or
dusty environments. DO NOT
operate during a gas leak.
DO NOT press or touch the
display panel. Do not place
together with small items
that may scratch or enter the
Eee PC.
DO NOT leave the Eee PC on
your lap or any part of the
body to prevent discomfort
or injury from heat exposure.
DO NOT place or drop
objects on top and do not
shove any foreign objects
into the Eee PC.
DO NOT expose to strong
magnetic or electrical fields.
DO NOT expose to or
use near liquids, rain, or
moisture. DO NOT use the
modem during electrical
storms.
Battery safety warning: DO
NOT throw the battery in
fire. DO NOT short circuit
the contacts. DO NOT
disassemble the battery.
iv
Table of Contents
SAFE TEMP: This Eee PC
should only be used in
environments with ambient
temperatures between 5°C
(41°F) and 35°C (95°F)
INPUT RATING: Refer to the
rating label on the bottom
of the Eee PC and be sure
that your power adapter
complies with the rating.
DO NOT carry or cover a
Eee PC that is powered ON
with any materials that will
reduce air circulation such
as a carrying bag.
Incorrect installation
of battery may cause
explosion and damage
the Eee PC.
DO NOT throw the Eee PC in municipal waste. This product
has been designed to enable proper reuse of parts and
recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol
of the crossed out wheeled bin indicates that the battery
should not be placed in municipal waste.
Transportation Precautions
To prepare your Eee PC for transport, you should turn it OFF and
disconnect all external peripherals to prevent damage to the
connectors. The hard disk drive’s head retracts when the power is
turned OFF to prevent scratching of the hard disk surface during
transport. Therefore, you should not transport your Eee PC
while the power is still ON. Close the display panel to protect the
keyboard and display panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape surfaces when transporting your Eee PC.
You can put your Eee PC in a carrying case for protection from dirt,
water, shock, and scratches.
ASUS Eee PC
v
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your
battery pack and any optional battery packs before going on long
trips. Remember that the power adapter charges the battery pack as
long as it is plugged into the computer and an AC power source. Be
aware that it takes much longer to charge the battery pack when the
Eee PC is in use.
Remember to fully charge the battery (8 hours or more) before
first use and whenever it is depleted to prolong battery life. The
battery reaches its maximmum capacity after a few full charging and
discharging cycles.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane.
Most airlines have restrictions for using electronic devices. Most
airlines allow electronic use only between and not during takeoffs
and landings.
There are three main types of airport security devices: X-ray
machines (used on items placed on conveyor belts), magnetic
detectors (used on people walking through security checks),
and magnetic wands (hand-held devices used on people or
individual items). You can send your Eee PC and diskettes
through airport X-ray machines. However, it is recommended
that you do not send your Eee PC or diskettes through airport
magnetic detectors or expose them to magnetic wands.
vi
Table of Contents
Top Side
Bottom Side
Right Side
Left Side
Rear Side
Keyboard Usage
Knowing the Parts
1
Top Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
The top side may vary in appearance depending on model.
PC
1
2
3
4
5
6
1-2
7
8
The keyboard differs for each territory.
Chapter 1: Knowing the Parts
Built-in Camera
1
Display Panel
2
Array Microphone (Built-in)
3
The built-in array microphone is more clear and echo-
freecompared with traditional single microphones.
4
Super Hybrid Engine Key
Press this key to switch among various power saving
modes. The selected mode is shown on the display.
5
Power Switch
The power switch allows powering ON and OFF the Eee PC
and recovering from STR. Press the switch once to turn ON
and hold it to turn OFF the Eee PC. The power switch only
works when the display panel is opened.
Power Indicator
The power indicator lights when the Eee PC is turned
ON and blinks slowly when the Eee PC is in the Save-to RAM (Suspend) mode. This indicator is OFF when the
Eee PC is turned OFF.
Status Indicators
6
Battery Charge Indicator
The battery charge indicator (LED) shows the status of
the battery’s power as follows:
Powered ON
Battery charge is
95%–100%
Battery charge is
between 11%–94%
Battery charge is
less than 0%–10%
(Continued on the next page)
AC Mode Battery Mode
Green ON Off
Orange ON Off
Orange Blinking Orange Blinking
ASUS Eee PC
1-3
Standby Mode / Powered OFF
Battery charge is
95%–100%
Battery charge is
between 11%–94%
Battery charge is
less than 0%–10%
The Battery Charge Indicator will not light when the battery
is removed from your Eee PC.
AC Mode Battery Mode
Green ON Off
Orange Blinking Off
Orange Blinking Off
Hard Disk Drive (HDD) Indicator
The hard disk drive indicator blinks when data is written
to or read from the disk drive.
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when
lighted.
Wireless/Bluetooth Indicator
This is only applicable on models with built-in wireless
LAN/Bluetooth. When the built-in wireless LAN/
Bluetooth is enabled, this indicator lights.
1-4
7
Keyboard
Touchpad and Buttons
8
The touchpad and its buttons comprises a pointing device
that provides the same functions as a desktop mouse.
Multi-finger gesture input is available to allow easy web
and document navigation.
Chapter 1: Knowing the Parts
Bottom Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
The bottom side may vary in appearance depending on model.
4
3
1
5
2
5
The bottom of the Eee PC can get very hot. Be careful when
handling the Eee PC while it is in operation or recently been in
operation. High temperatures are normal during charging or
operation. DO NOT use on soft surfaces such as beds or sofas
,which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
Battery Lock - Spring
1
The spring battery lock keeps the battery pack secure.
When the battery pack is inserted, it will automatically lock.
When removing the battery pack, this spring lock must be
retained in the unlocked position.
ASUS Eee PC
1-5
2
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected. This allows use when
moving temporarily between locations. Battery time
varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be
purchased as a single unit.
3
Memory Compartment
The memory module is secured in a dedicated
compartment.
4
Reset Button (Emergency)
In case your operating system cannot properly turn OFF or
restart, the reset button can be depressed with a pin or a
straightened paper clip to restart the Eee PC.
The reset button is available on selected models.
5
Audio Speaker System
1-6
Chapter 1: Knowing the Parts
Right Side
Refer to the illustration below to identify the components on this
side of the Eee PC.
1
2
3
USB Port (2.0/1.1)
1
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, and storage devices, connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). Also, the
USB supports hot-swapping function.
Microphone Jack
2
The microphone jack is designed to connect the
microphone used for Skype, voice narrations, or simple
audio recordings.
Headphone Output Jack
3
The 1⁄8” stereo headphone jack (3.55mm) connects the Eee
PC’s audio out signal to amplified speakers or headphones.
Using this jack automatically disables the built-in speakers.
ASUS Eee PC
1-7
Loading...
