Zhone 6218-i3 4-Port Wi-Fi
Ethernet Router
User Manual
Version 1.0
Version Date: June 20, 2007
Document #: BD-ZU0011-10
Table of Contents
GENERAL INFORMATION .......................................................................... 3
Package Contents ........................................................................ 3
Important Safety Instructions.......................................................... 3
Front Panel View ......................................................................... 4
Back Panel View .......................................................................... 5
NSTALLING THE ROUTER......................................................................... 6
I
Connect the ADSL Line and Telephone ........................................ 6
Connect the PC to the Router................................................... 6
Connect the Power Adapter ..................................................... 6
NSTALLATION DIAGRAM.......................................................................... 7
I
OUNTING THE ROUTER ......................................................................... 8
M
ONFIGURING YOUR COMPUTER ................................................................. 9
C
Windows 2000............................................................................. 9
Windows XP ..............................................................................10
OG IN TO THE ROUTER......................................................................... 11
L
EVICE INFO ....................................................................................12
D
Summary..................................................................................12
WAN .......................................................................................13
Statistics..................................................................................13
LAN Statistics ..................................................................... 13
WAN Statistics ....................................................................14
ATM Statistics.....................................................................14
ADSL Statistics ....................................................................15

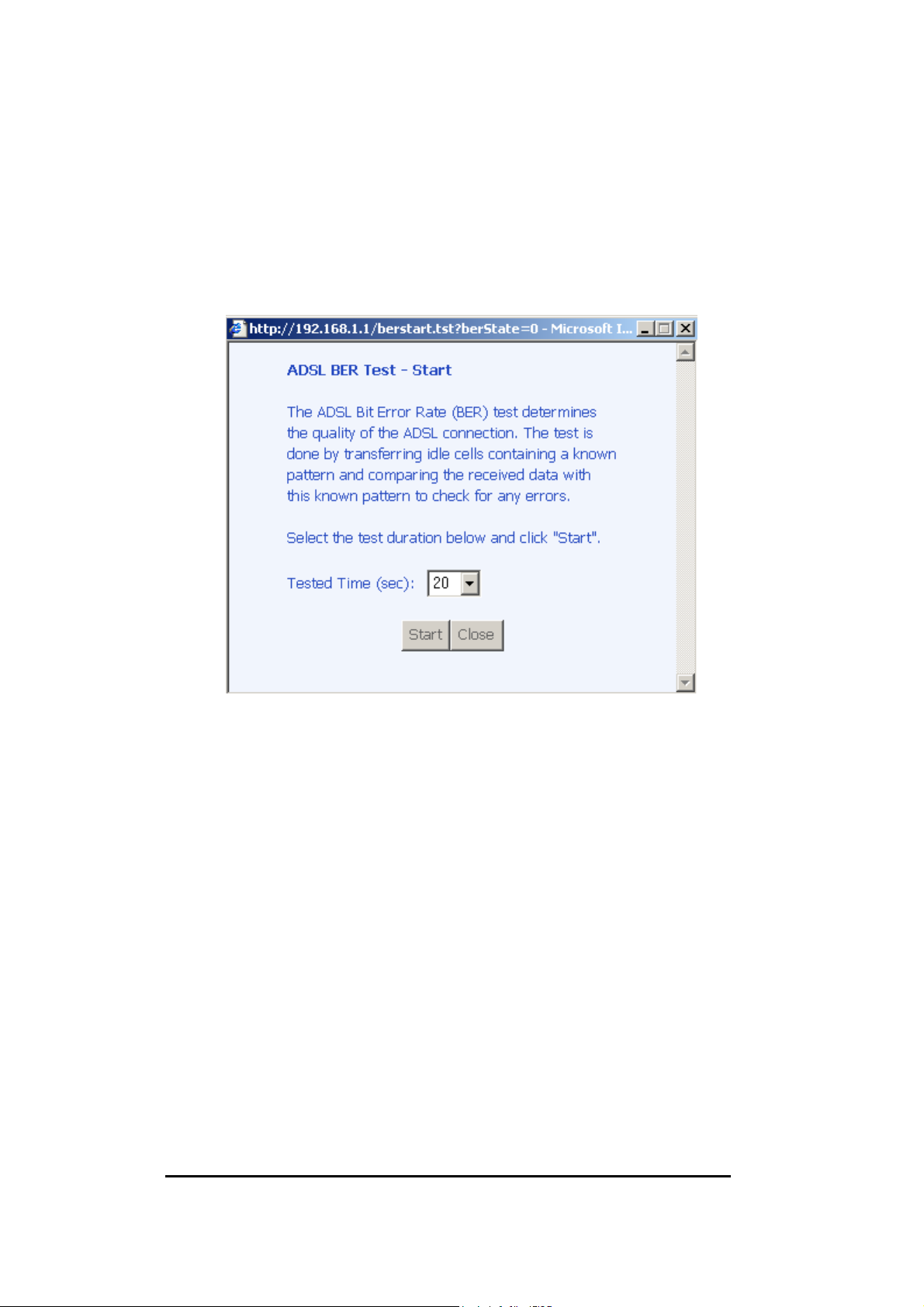

ADSL BER Test ....................................................................16
Route......................................................................................18
ARP ........................................................................................18
DHCP ......................................................................................19
UICK SETUP ...................................................................................20
Q
ATM PVC Configuration ................................................................20
DVANCED SETUP...............................................................................25
A
WAN .......................................................................................25
Connection Type .................................................................26
LAN Local Area Network (LAN) Setup................................................29
NAT ........................................................................................30
Virtual Servers ....................................................................30
Port Triggering ...................................................................32
DMZ Host ..........................................................................34
ALG ........................................................................................34
Firewall...................................................................................35
IP Filtering—Outgoing ...........................................................35
IP Filtering—Incoming ...........................................................36

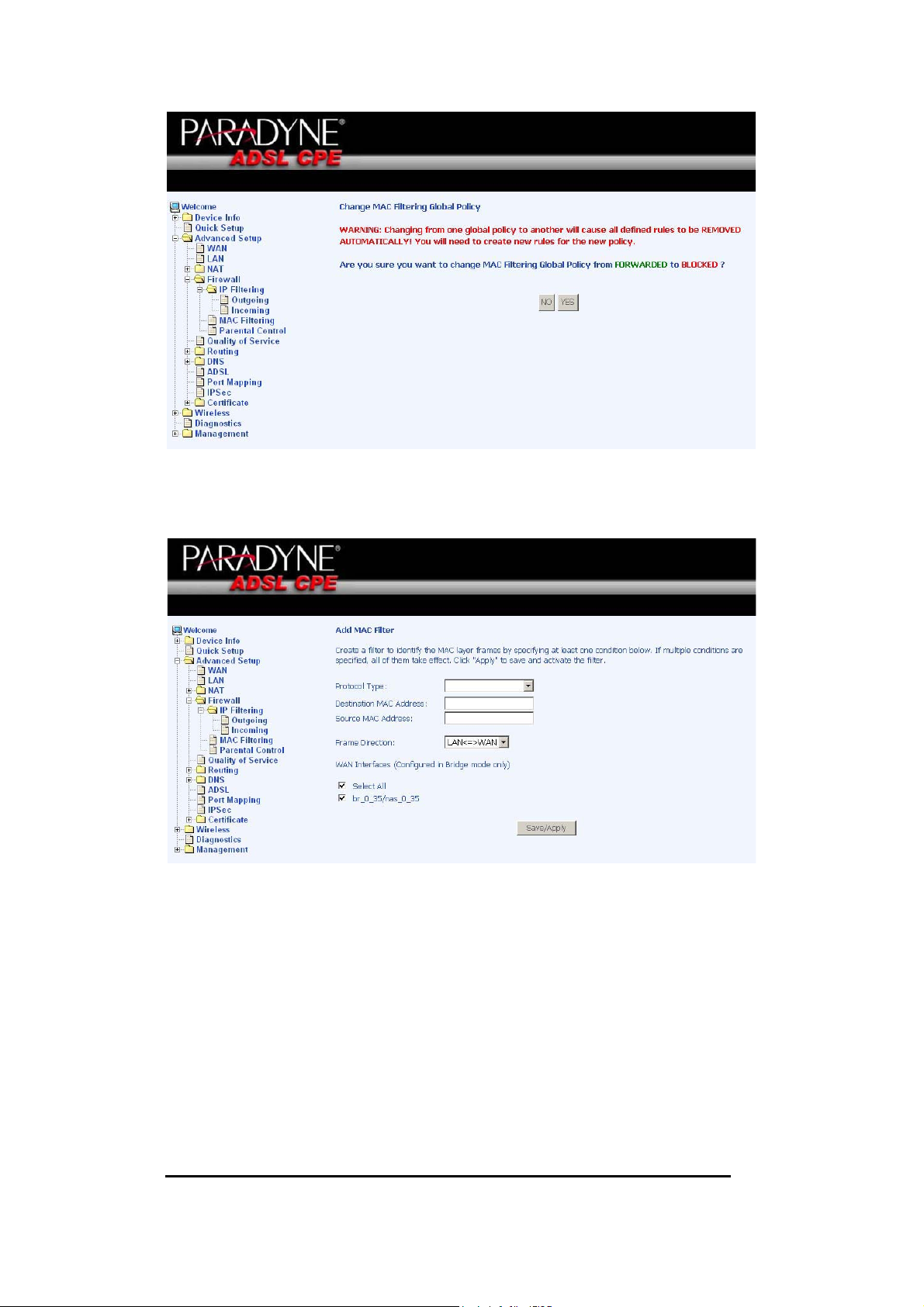

MAC Filtering .....................................................................37
Parental Control .....................................................................38
Quality of Service .......................................................................40
Routing ...................................................................................41
Default Gateway .................................................................41
Static Route.......................................................................42
RIP .................................................................................. 43
DNS ........................................................................................44
DNS Server ........................................................................44
Dynamic DNS ......................................................................45
ADSL .......................................................................................46
DSL Advanced Settings ..........................................................47
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
1
Tone Settings .....................................................................47
Port Mapping.............................................................................48
IPSec.......................................................................................49
Certificate ...............................................................................50
Local ...............................................................................50
Trusted CA ........................................................................53
IRELESS.......................................................................................54
W
Basic.......................................................................................54
Security ...................................................................................54
MAC Filter................................................................................59
Wireless Bridge ..........................................................................60
Advanced .................................................................................61
Quality of Service .......................................................................64
Station Info ..............................................................................66
IAGNOSTICS ...................................................................................67
D
ANAGEMENT ..................................................................................68
M
Settings ...................................................................................68
Backup Settings...................................................................68
Restore User Settings............................................................ 69
Restore Default...................................................................69
System Log ...............................................................................70
Configure System Log............................................................71
TR-069 Client ............................................................................71
Internet Times...........................................................................72
Access Control ...........................................................................73
Services ............................................................................73
IP Addresses.......................................................................73
Passwords .........................................................................74
Update Software ........................................................................ 75
Reboot Router ...........................................................................75
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
2
General Information
The 4-Port Wireless Ethernet Router features 4 LAN ports for added convenience
and accessibility.
Package Contents
Included in the package is one of each of the following—
x 4-Port Wireless Ethernet Router
x 12V 1.5A power adapter
x RJ-11 telephone cable
x RJ-45 Ethernet cable
x User Manual
Important Safety Instructions
x Place your router on a flat surface close to the cables in a location with
sufficient ventilation.
x To prevent overheating, do not obstruct the ventilation openings of this
equipment.
x Plug this equipment into a surge protector to reduce the risk of damage
from power surges and lightning strikes.
x Operate this equipment only from an electrical outlet with the correct
power source as indicated on the adapter.
x Do not open the cover of this equipment. Opening the cover will void any
warranties on the equipment.
x Unplug equipment first before cleaning. A damp cloth can be used to clean
the equipment. Do not use liquid / aerosol cleaners or magnetic / static
cleaning devices.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
3
Front Panel View
LED Mode Indication
Power
Status
Link
LAN1LAN4
AP
Solid Router is powered on.
No light
Solid
Flashing The router is trying to connect to your ISP.
Solid ADSL is connected.
No light ADSL is not connected. The ALARM led will be red.
Blinking The router is connected to ADSL.
Solid Router is connected to the LAN.
No light
Blinking LAN traffic
Solid Wireless is enabled.
No light Wireless is disabled.
Blinking There is wireless traffic.
Router is not powered. Check if the router is plugged in
and if the power switch is turned on.
Connection established. The router is able to
communicate with your ISP via ADSL.
No connection to the LAN. Check if the LAN cable is
connected to the router.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
4
Back Panel View
NOTE: The below port descriptions are listed as they appear on the back panel from left to
right.
Port Description
Power Connects to a 15VAC 1A power adapter.
Restart—press the button for less than 4 seconds.
Reset / Default
LAN1-LAN4
Phone
Line
Default settings—press the button for 4 seconds or
longer.
RJ-45 connects the unit to an Ethernet device such as a
PC or a switch.
RJ-11 cable connects to telephone (no external splitter
necessary; unit has internal splitter).
RJ-11 cable connects between telephone and the LINE
port using a splitter (not included) if needed.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
5
Installing the Router
Connect the ADSL Line and Telephone
x Connect one end of an RJ-11 cable from your ADSL connection and the
other end to the LINE port of the router using a splitter if needed.
NOTE: See connections on the installation diagram.
Connect the PC to the Router
x To use the Ethernet connection, connect the Ethernet cable from the
computer directly to the router.
x Connect one end of the Ethernet cable to one of the 4 ports labeled LAN
(LAN1 – LAN4) on the back of the router and attach the other end to the
Ethernet port of your computer.
Connect the Power Adapter
x Complete the process by connecting the AC power adapter to the POWER
connector on the back of the device and plug the adapter into a wall outlet
or power strip. Then turn on and boot up your PC and any LAN devices,
such as hubs or switches, and any computers connected to them.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
6
Installation Diagram
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
7
Mounting the Router
The router can be mounted on the wall with the screws provided. Mounting can be
done on wall material including concrete, wood, or drywall. Select an appropriate
location free from obstructions or any possible interference. Make sure the cables
can be easily attached to the router without strain. The illustration below shows
how to mount the router horizontally on a wall.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
8
Configuring Your Computer
Prior to accessing the router through the LAN or the USB port, note the following
necessary configurations—
x Your PC’s TCP/IP address: 192.168.1.__( the last number is any number
between 2 and 254)
x The router’s default IP address: 192.168.1.1
x Subnet mask: 255.255.255.0
Below are the procedures for configuring your computer. Follow the instructions
for the operating system that you are using.
Windows 2000
1. In the Windows taskbar, click on the Start button and point to Settings,
Control Panel, and Network and Dial-up Connections (in that order).
2. Click on Local Area Connection. When you have the Local Area Connection
Status window open, click on Properties.
3. Listed in the window are the installed network components. If the list
includes Internet Protocol (TCP/IP), then the protocol has already been
enabled, and you can skip to Step 10.
4. If Internet Protocol (TCP/IP) does not appear as an installed component,
then click on Install.
5. In the Select Network Component Type window, click on protocol and then
the Add button.
6. Select Internet Protocol (TCP/IP) from the list and then click on OK.
7. If prompted to restart your computer with the new settings, click OK.
8. After your computer restarts, click on the Network and Dial-up Connections
icon again, and right click on the Local Area Connection icon and then
select Properties.
9. In the Local Area Connection Properties dialog box, select Internet Protocol
(TCP/IP) and then click on Properties.
10. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio
button labeled Use the following IP address and type 192.168.1.x (where x
is any number between 2 and 254) and 255.255.255.0 in the IP address field
and Subnet Mask field.
11. Click on OK twice to save your changes and then close the Control Panel.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
9
Windows XP
1. In the Windows taskbar, click on the Start button and point to Settings and
then click Network Connections.
2. In the Network Connections window, right click on the Local Area
Connection icon and click on properties.
3. Listed in the Local Area Connection window are the installed network
components. Make sure the box for Internet Protocol (TCP/IP) is checked
and then click on Properties.
4. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio
button labeled Use the following IP address and type 192.168.1.x (where x
is any number between 2 and 254) and 255.255.255.0 in the IP address field
and Subnet Mask field.
5. Click on OK twice to save your changes and then close the Control Panel.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
10
Log in to the Router
This section will explain how to log in to your router using the following steps—
1. Launch your web browser.
2. Enter the URL in the address bar and press Enter.
A login screen like the one below will be displayed after you connect to the user
interface.
http://192.168.1.1
3. Enter your user name and password, and then click on OK to display the
user interface.
NOTE: There are two default user name and password combinations. The
user / user name and password combination can display device status, but cannot
change or save configurations. The admin / admin combination can perform all
functions. Passwords can be changed at any time.
Zhone 4-Port Wireless Ethernet Router
User Manual
Version 1.0
Document #: BD-ZU0011-10
11
Loading...
