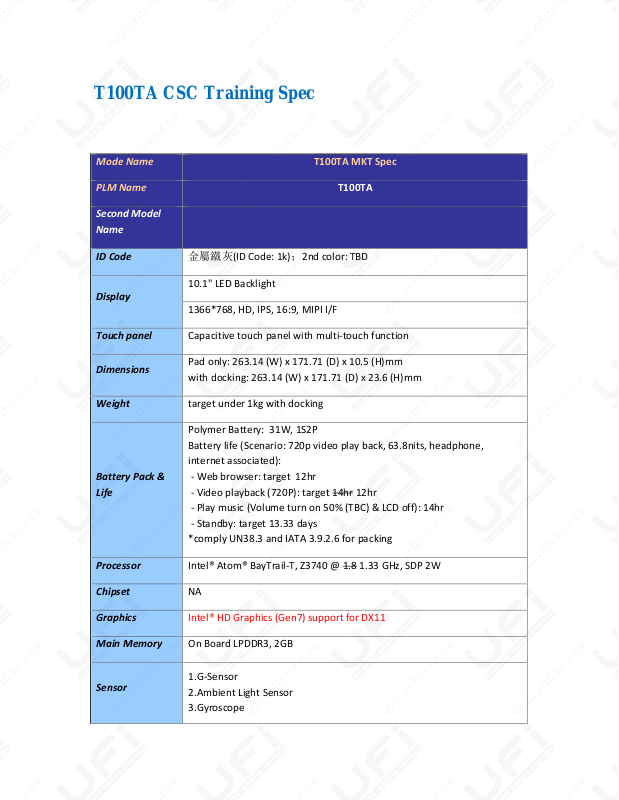

T100TA CSC Training Spec
Mode Name
T100TA MKT Spec
PLM Name
T100TA
Second Model
Name
ID Code
金屬鐵灰
(ID Code: 1k)；2nd color: TBD
Display
10.1" LED Backlight
1366*768, HD, IPS, 16:9, MIPI I/F
Touch panel
Capacitive touch panel with multi-touch function
Dimensions
Pad only: 263.14 (W) x 171.71 (D) x 10.5 (H)mm
with docking: 263.14 (W) x 171.71 (D) x 23.6 (H)mm
Weight
target under 1kg with docking
Battery Pack &
Life
Polymer Battery: 31W, 1S2P
Battery life (Scenario: 720p video play back, 63.8nits, headphone,
internet associated):
- Web browser: target 12hr
- Video playback (720P): target 14hr 12hr
- Play music (Volume turn on 50% (TBC) & LCD off): 14hr
- Standby: target 13.33 days
*comply UN38.3 and IATA 3.9.2.6 for packing
Processor
Intel® Atom® BayTrail-T, Z3740 @ 1.8 1.33 GHz, SDP 2W
Chipset
NA
Graphics
Intel® HD Graphics (Gen7) support for DX11
Main Memory
On Board LPDDR3, 2GB
Sensor
1.G-Sensor
2.Ambient Light Sensor
3.Gyroscope
forum.hocvienit.vn
4.E-compass(M Sensor)
Storage
eMMC 32GB + 8GB TLC NANDFLASH for recovery image
eMMC 64GB(recovery is inluded)
LAN
N/A
Communication
802.11 a/b/g/n + Bluetooth 4.0, 1x1
NFC
N/A
3G/LTE data
N/A
GPS
N/A
I/O on Pad
[Pad]1 x Micro HDMI
[Pad]1 x Mirco USB 2.0 (support charging+debug port+
外接
USB device)
[Pad]1 x Audio jack: Head phone / Mic-in
[Pad]1 x Micro-SD (SD-XC) (up to 64GB)
[Pad]1 x Docking connector
Camera
1.2MP front camera, 720p video capture
Audio
Audio CODEC (4環, iPhone type, no auto-detect)
Build-in high quality stereo speaker x 2 (1.5W 1W per SPK)
Microphone
1 x A-MIC
LED Status
1 x Power button LED (Orange-White)
Vibrator
N/A
Power Button
1 x Power Button
forum.hocvienit.vn
Instant Key
1. Volume (volume up/down)
2. Windows Key (type: physical+Virtual): press winkey, system
將發出一
聲
(Windows
內建音效_開始瀏覽
)
3. Power button (for Connect Standby)
1)
短按
power button 2
秒以內，進入
standby mode
2)
長按
2~10
秒，銀幕應顯示
”slide to shutdown”
3)
長按10秒以上，強迫系統關機
Support OS
1. Windows 8.1 (Blue), support Connect Standby
AC adapter
Input: 100-240V AC, 50-60Hz universal
Output: 5V 2A 10W
Speedy Charging: completing power charging 80% within 2.5hrs (when
power off)
Accessory
User Manual,Warranty Card
Power adapter, MicroUSB (B type) to USB cable
Certification
1. EMI: (
依銷售國別列出需求
)
CE(ITE/Wireless), FCC(ITE/Wireless), BSMI(ITE), NCC(Wireless),
C-TICK(ITE/Wireless), VCCI(ITE), MIC(Wireless), IDA(ITE/Wireless),
SRRC(Wireless), GOST-R(ITE), FAC(Wireless), KC,
越南
2. Safety: (
依銷售國別列出需求
)
CE-LVD, NRTL UL/cUL, BSMI, CB, CCC, GOST-R, KC,
越南
3. Ordinance on Energy
瑞士能源規範
4. E-standby Program
5. RoHS
6. ErP
7. Bluetooth QDL
8. HDMI/HDCP
9.WiFi logo
10. Microsoft Feature PC
組合鍵
BIOS Menu follow ME400
Press "Power + Volume down" to boot up until system into BIOS Menu
Volume key = up and down
Winkey = enter
Docking
I/O on docking
[Docking] 1 x Standard USB 3.0
forum.hocvienit.vn
Storage
Default: No Storage
Support T100TAF hard-disc docking(HDD 320G/500G)
Keyboard
dimension follow TF600
Programable
Hot Keys
Fn+F1 Suspend Switch
Fn+F2 Wireless/Bluetooth Switch
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F8 LCD/CRT Display Switch
Fn+F9 Clickpad lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Ins Numeric Key Pad on/off
Fn+Del Scroll Lock on/off
Fn+↑PgUp
Fn+↓PgDn
Fn+←Home
Fn+→End
Fn+ ? +
Fn+ : -
Fn+ P *
Fn+ 0 /
MP Target
9/E, 2013
