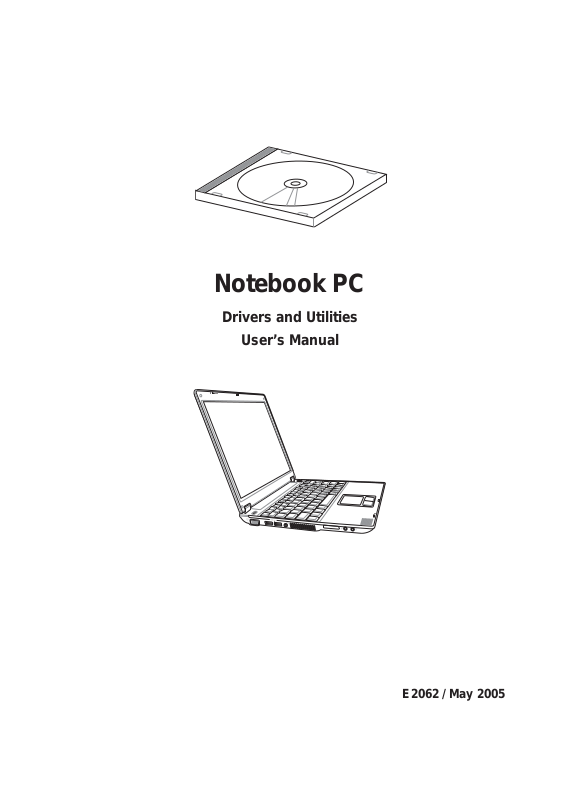

Asus S5A User Manual

Notebook PC

Drivers and Utilities

User’s Manual

E2062 / May 2005

Support CD

Table of Contents

Support CD for Windows...................................................................................................... 5

VGA Driver ........................................................................................................................... 13

ATK0100 Driver (ACPI)........................................................................................................ 17

Audio .................................................................................................................................... 19

INF Update (Intel) ................................................................................................................ 20

INTEL Calexico (Wireless LAN) ......................................................................................... 23

ASUS Wireless LAN ............................................................................................................ 28

New Windows Installation .................................................................................................. 5

Drivers for Windows...........................................................................................................5

Device Manager...............................................................................................................10

VGA Driver Setup............................................................................................................. 14

ATK0100 Driver Setup ..................................................................................................... 18

Audio Driver Setup........................................................................................................... 20

INF Update Driver Setup.................................................................................................. 23

Wireless LAN Driver Setup - Calexico2 (ABG) ................................................................ 24

Wireless LAN Driver Setup - Calexico2 (2200BG)........................................................... 25

ASUS WLAN Driver Setup............................................................................................... 30

ASUS WLAN Utility Setup................................................................................................ 31

LAN....................................................................................................................................... 35

LAN Driver Setup ............................................................................................................. 36

Configuring your LAN....................................................................................................... 37

Modem.................................................................................................................................. 41

Modem Driver Setup ........................................................................................................ 42

Modem Configuration....................................................................................................... 42

RICOH................................................................................................................................... 45

Ricoh Driver Setup........................................................................................................... 46

LiveUpdate........................................................................................................................... 48

LiveUpdate Setup ............................................................................................................ 50

Using LiveUpdate............................................................................................................. 51

Norton Internet Security ..................................................................................................... 53

Norton Internet Security Setup......................................................................................... 54

2

Power4 Gear ........................................................................................................................ 58

Power4 Gear Setup ......................................................................................................... 60

Benefits of Power4 Gear.................................................................................................. 61

Probe2 (PC Probe) .............................................................................................................. 65

PC Probe Setup ............................................................................................................... 66

PC Probe Reference........................................................................................................ 67

TouchPad ............................................................................................................................. 71

Touchpad Setup ............................................................................................................... 72

Synaptics® TouchPad Features....................................................................................... 73

Property Pages ................................................................................................................ 76

Frequently Asked Questions ............................................................................................83

WinFlash .............................................................................................................................. 84

WINFLASH Setup ............................................................................................................ 86

Using WINFLASH ............................................................................................................87

Support CD

3

Support CD

4

Support CD for Windows

The Notebook PC you purchased may or may not be preloaded with
an operating system. The support CD included with this Notebook
PC provides all the necessary drivers and utilities in order for you to
use your Notebook PC with Microsoft® Windows® XP (referred to
as “Windows” in this User’s Manual).

The levels of hardware and software support may vary depending on the installed operating system. Operating
systems not pre-installed on this Notebook PC may produce different results than the ones described in the
provided user’s manuals.

If your Notebook PC is not preloaded with any operating system, or you want to install another operating
system other than the preloaded one, the following pages will give step-by-step installation procedures for
typical system configurations under the Windows
online help provided with each of the applications after installation. The following are contents of a typical
support CD. Variations may be found for each territory or language. If the autorun menu does not appear,
double clicking the CD-ROM disc drive icon in “My Computer” (may be the (D:) drive or (E:) drive on hard
drives with two partitions) or running SETUP.EXE (through Start menu “Run...”) located in the root of the
support CD, will bring up the autorun menu.

New Windows Installation

®

operating system. For application usage, please see the

Support CD

If you install a new operating system on your Notebook PC, there will be many hardware devices without
drivers. Use the provided support CD to correct this problem.

Drivers for Windows

Next page gives descriptions of each support CD item. Due to ongoing improvements in the support CD,
there may be some differences between this User’s Manual and your support CD. The names in quotations
are the actual driver names displayed in the System Properties of MS Windows. Windows cannot contain all
the device drivers from every manufacturer, with every update; therefore the provided support CD will
contain the best driver for your built-in devices and should be used in place of any Windows default drivers.

Some drivers may already be provided in Windows. If you have any problems with these drivers, visit the
Microsoft Windows Update site. A link is provided in Microsoft Windows Explorer under “Tools.” The
exact controller and driver will vary by model and territory .

5

Support CD

Software Drivers

Some drivers may already be provided in Windows. If you have any problems with these drivers, visit the
Microsoft W indows Update site. A link is provided in Microsoft Windows Explorer under “Tools.”

VGA (Display) “Mobile Intel(R) 915GM/GMS,910GML Express Chipset Family” Driver

Installing the VGA driver first will make viewing other setup screens much easier. This installs display
drivers for your operating system in order to properly use the Notebook PC’ s built-in graphics controller and
to provide optimal display features. Once the display driver is installed, you can change your display’s
resolution and color through Display Properties.

This device is shown under W indows Device Manager “Display adapters.”

ATK0100 “ATK0100 ACPI UTILITY” Utility

This utility is required for special utilities provided in the support CD. This installs drivers for the Notebook
PC’s Advanced Configuration and Power Interface (ACPI) for features utilizing power management functions.

This device is shown under Windows Device Manager “System devices.”

Audio “Microsoft UAA Function Driver for High Definition Audio - Realtek 880” Driver

This installs audio drivers for your operating system in order to properly use the Notebook PC’ s built-in sound
controller. All audio functions are configured through Windows and help can be located within Windows
documentation or W indows help files.

This device is shown under Windows Device Manager “Sound, video and game contr ollers.”

INFupdate “Intel 828XX” Drivers

This installs Windows support drivers for the Notebook PC’s chipset.
This device is shown under W indows “System devices.”

Intel Calexico2 / ASUS WLAN (Depends on model)

“Intel(R) PRO/Wireless 2200BG Network Connection” or “ASUS WLAN” Driver

Required on models with internal wireless LAN. Installs the required network driver for the Notebook PC’s
optional internal wireless LAN controller. If you purchased the optional internal wireless LAN, you need to
install this driver. If you did not purchase the optional internal wireless LAN, you cannot install this driver.

This device is shown under W indows Device Manager “Network Adapters.”

LAN “Realtek RTL8139/810x Family Fast Ethernet NIC” Driver

Installs the required LAN driver for the Notebook PC’ s built-in Ethernet controller for connection to computer
networks.

This device is shown under W indows Device Manager “Network Adapters.”

6

Modem “HDAUDIO SoftV92 Data Fax Modem with SmartCP” Driver

Installs the necessary driver in order for your operating system to have the correct files for the Notebook PC
with built-in modem and drivers for integration with the internal audio. With third-party software, fax and
speaker phone capabilities are possible using this Notebook PC.

This device is shown under Windows Device Manager “Modems.”

RICOH “Ricoh R/RL/5C476(II) or Compatible CardBus Controller” Driver

A version of this driver is provided by Microsoft in its Windows XP operating system. The support CD
includes this driver called for added enhancements for W indows XP and other Windows versions.

This device is shown under Windows Device Manager “PCMCIA adapters.”

Software Utilities

AFLASH2 DOS Utility

This utility allows you to upgrade your Notebook PC’s BIOS in DOS mode. You enter DOS mode by
booting to a DOS system on a floppy disk, CD, or USB drive instead of entering the Windows operating
system. AFLASH2.EXE can be found in the “Aflash” folder of the support CD. (This utility is not shown in
this User’s Manual.)

Support CD

LiveUpdate Utility

This utility helps you easily upgrade your Notebook PC’s BIOS through an Internet connection.

Norton Internet Secruity 2005 Utility

Installs Norton Internet Security to provide comprehensive virus prevention, threat detection, and repair
software for your computer. It automatically detects and repairs known viruses. Norton Internet Security
detects viruses and other potential risks in instant messenger attachments as well as in email messages,
Internet downloads, and other files. Easy updating of the virus definitions over the Internet keeps Norton
Internet Security prepared for the latest threats. Norton Internet Security also includes: Security protection
features, Personal Firewall, Spam filtering features, and Ad blocking features.

You may skip this software if you have your own antivirus software.

Power4 Gear Utility (Requires ATK0100)

Power4 Gear is a custom utility designed for this Notebook PC that allows you to use predefined or user
defined values for multi-selectable power saving modes or “gears”. You can “shift” between the “gears”
using the taskbar icon or the keys above the keyboard.

Probe2 ASUS Probe Utility (Requires ATK0100)

Installs ASUS Probe utility to monitor the Notebook PC’ s CPU temperature and other resources. This is an
optional software to help you better manage your Notebook PC’s resources.

7

Support CD

TouchPad “Synaptics PS/2 TouchPad” Driver

Shown under Windows “Mice and other pointing devices.” Installs “Synaptics® TouchPad” utility. The
Notebook PC already supports built-in or externally connected keyboard and PS/2 mouse devices. However,
the provided device driver will provide enhancements and features to the T ouchPad to increase the functionality
of the TouchPad. For detailed information, see the Software Reference in the next section. To access help,
right-click the TouchPad icon on the taskbar and select Help.

WinFlash Utility (Requires ATK0100)

Installs a BIOS update utility for Windows so that you can conveniently update your Notebook PC’s BIOS
without having to restart your Notebook PC in DOS mode.

8

Drivers Provided in Windows XP

If you have any problems with these drivers, visit the Microsoft Windows Update site. A link is provided in
Microsoft Windows Explorer under “Tools.”

1394 (Already supported in Windows XP)

This driver is provided by Microsoft in its Windows XP operating system.
This device is shown under Windows Device Manager “IEEE 1394 Bus host contr ollers”.

AGP (Already supported in Windows XP)

This function is already supported in Windows XP. The support CD also includes a version of this utility for
other Windows versions. Installation will not be possible under Windows XP.

This device is shown under Windows Device Manager “System devices”.

PCMCIA (Already supported in Windows XP)

This driver is provided by Microsoft in its Windows XP operating system.
This device is shown under Windows Device Manager “PCMCIA adapters”.

SteepStep (Already supported in Windows XP)

This function is already supported in Windows XP. The support CD also includes a version of this utility for
other Windows versions. Installation will not be possible under Windows XP.

®

SpeedStep™ is a technology that provides adjustable processor speeds for maximum performance

Intel
when connected to an external power and battery optimized performance when going mobile. The processors
can dynamically switch clock frequency and voltage, depending on whether the computer is running on
batteries or is plugged into AC power . These changes in frequency happen in only 1/2000th of a second — so
fast, they are invisible to users, even if they occur in the middle of performance-intensive applications.

Support CD

USB 2.0 (Already supported in Windows XP SP1 & Windows 2000 SP4)

This driver is provided by Microsoft in its Windows operating system. The support CD also includes a
version of this driver for Windows 98 SE or W indows ME. This driver is not required for W indows 2000 or
Windows XP and installation will not be possible.

This device is shown under Windows Device Manager “Universal Serial Bus contr ollers ”.

9

Support CD

Device Manager

“Device Manager” will be used in many device driver installation, upgrade, and verification processes.

1. Click “start” button.

2. Click “My Computer” icon.

4. Click “Hardware” tab.

5. Click “Device Manager” button.

3. Click “View system information” link.

Hardware Devices

After installing your operating system, several
question marks will appear under “Other devices”
representing hardware devices that Windows
cannot recognize. After installing the drivers from
the provided support CD. Those question marks
will go away.

10

Software Drivers

Software Drivers

11

Software Drivers

Software Drivers

12

VGA Driver

(It is necessary to install the VGA driver first in order

to see other setup screens in their proper sizes.)

Topics Covered:
VGA Driver Setup
Display Settings for Windows XP
Taskbar Menu

Software Drivers

Before After

(Screens and drivers may vary depending on your model and operating system.)

13

Software Drivers

VGA Driver Setup

Your VGA driver will depend on the Notebook PC model purchased. Running setup will give you the
following wizard.

1. On the “Welcome” screen, click Next after
reading the message.

3. When setup is complete, select “Yes...” and
click Finish in order to restart Windows with
a higher screen resolution*.

* Windows may have already provided the
highest screen resolution support for this
graphics controller.

2. On the “License Agreement” screen, click Yes
after reading.

14

Make screen resolution settings in “Display Properties”. Higher resolutions may be available but panning will
occur if you surpass the display panel’s specifications.

Software Drivers

Before VGA drivers are installed, graphics
functions are limited.

Windows XP does support 1024 x 768 without
additional drivers for this display controller.

After VGA driver installation, display settings will
be adjusted for your system.

Left or Right click - for shortcuts to display
settings.

15

Software Drivers

16

ATK0100 Driver (ACPI)

(Required driver)

Topics Covered:
ATK0100 Driver Setup

Software Drivers

Before After

(Screens and drivers may vary depending on your model and operating system.)

17

Software Drivers

ATK0100 Driver Setup

This driver requires that you manually install it from Device Manager . No software operation is required.

1. Double click Unknown device.

3. Select “No...” and click Next.

2. Click Reinstall Driver.

4. Select “Install from...” and click Next.

5. Browse to the sub folder (folder names will
vary) under “ATK0100” and click Next.

18

6. Click Finish when setup is complete.

7. Click Close to close the properties window.

Audio

Topics Covered:
Audio Driver Setup
Using CD Player in Windows

(Required driver)

Software Drivers

Before

The notebook PC has built-in speakers and microphone,
however, external audio accessories may be used.
External audio connections will disable the notebook PC’s
relevant built-in audio device (mic and/or speakers).

After

(Screens and drivers may vary depending on your model and operating system.)

19

Software Drivers

Audio Driver Setup

Running setup will give you the following wizard:

1. Click Next to begin setup.

2. When setup is complete, select No... and
click Finish in order to install other items.

20

INF Update (Intel)

(Required driver)

Topics Covered:
INF Update Driver Setup

Software Drivers

(Screens and drivers may vary depending on your model and operating system.)

21

Software Drivers

INF Update Driver Setup

Running setup will give you the following wizard:

1. On the “Welcome” screen, click Next after
confirming this is what you want to setup.

3. On the “Readme” screen, click Next after
reading.

2. On the “License Agreement” screen, click
Next after reading.

4. Setup is now complete, select “No...” and
click Finish in order to install other items.

22

INTEL Calexico (Wireless LAN)

(Required driver on selected models)

Topics Covered:
Wireless LAN Driver Setup
Wireless LAN Utility Setup
Wireless LAN Utility Quick Start

An optional access point is required to setup a
wireless network for the Notebook PC to connect to.

Software Drivers

Before After

Note: The internal WLAN varies depending on model and is not a user option. Y ou may use external
WLAN PC Cards (PCMCIA) from various manufacturers.

(Screens and drivers may vary depending on your model and operating system.)

23

Software Drivers

Wireless LAN Driver Setup - Calexico2 (ABG)

Driver depends on model. Running setup will give you the following wizard:

1. On the “Autorun” screen click Install Software. 2. On the “Welcome” screen click Next after
reading the message.

3. On the “Agreement” screen, click Next after

selecting “I accept...”

5. On the “Ready” screen click Install to begin

the installation.

24

4. On the “Select Components” screen, click Next
to use the default settings.

6. On the “Wizard Complete” screen, click Finish
to exit the installation wizard.

Wireless LAN Driver Setup - Calexico2 (2200BG)

Driver depends on model. Running setup will give you the following wizard:

1. On the “Autorun” screen click Install Software. 2. On the “Agreement” screen, click Next after
selecting “I accept...”

Software Drivers

3. On the “Setup T ype” screen, click Next to use

the default settings.

5. Wait while components are installed.

4. On the “Install default components” screen,
click OK to use the default settings.

6. When complete, click Ok to exit the installer.

25

Software Drivers

Wireless LAN Utility Introduction

After installing the W ireless driver and utility, the utility will automatically start with Windows. If you need
to start it manually, you can launch the utility using the desktop icon or through Windows start. You will
need to make some wireless LAN settings before being able to use your wireless connection.

After installation, you will have several options
available through the icon on the task bar.

Green icon indicates connected, yellow
indicates disconnected mode, and white
indicates that the WLAN is OFF.

The wireless LAN utility will automatically search
for available networks if not connected.

Double click the taskbar icon to bring up the
connection status window. Click Details to view
available access point information.

26

Configure - Make a new profile to save specific

settings for use in different WLAN networks.

Windows Wireless Settings

Windows provides a wireless utility to configure your wireless network controller.

Software Drivers

From “My Network Places”, you can view
network connections.

Clicking the taskbar icon will bring up window
displaying available networks. (Wireless
networks can be hidden for security purposes.)

You can manually add wireless networks from
the properties page.

Connection status will show the connected
network name and the signal strength.

27

Software Drivers

28

ASUS Wireless LAN

(Required driver an selected models)

Topics Covered:
ASUS WLAN Driver Setup
ASUS WLAN Utility Setup
ASUS WLAN Utility Quick Start

An optional access point is required to setup a
wireless network for the Notebook PC to connect to.

Software Drivers

Note: The internal WLAN varies depending on model and is not a user option. Y ou may use external
WLAN PC Cards (PCMCIA) from various manufacturers.

Screens will vary depending on your operating system but the contents should be the same.

29

Software Drivers

ASUS WLAN Driver Setup

Running setup will give you the following wizard:

1. Click Next after reading the “W elcome” screen.

3. On the “Select Program Folder” screen, click
Next to continue or you may first change the
folder.

2. Click Next after reading the “Information”
screen.

4. Setup is now complete, select “No...” and click

Finish in order to install other items.

30

ASUS WLAN Utility Setup

After installing driver, you need to install the wireless utility.

Software Drivers

1. Click Next after reading the “W elcome” screen.

3. On the “Choose Destination Location” screen,

click Next to continue or you may first change
the destination folder.

2. Click Next after reading the “Information”
screen.

4. On the “Select Program Folder” screen, click

Next to continue or enter a dif ferent folder name.

31

Software Drivers

ASUS WLAN Utility Setup (Cont.)

5. Click Finish on the “Setup Complete” screen.

6. Select to use “...ASUS Utilities...” for added
features while using the wireless LAN device.

ASUS WLAN Utility Quick Start

After installing the ASUS WLAN driver and utility , the utility will automatically start with
Windows. If you need to start it manually, you can launch the utility using the desktop icon
or through Windows start. You will need to make some wireless LAN settings before
being able to use your wireless connection.

(Right-Click Menu)

1. Right-click the ASUS WLAN icon and select
“Wireless Settings”

32

2. Set the Network Name (SSID) to the same
name as the SSID set in your wireless access
point.

ASUS WLAN Utility Quick Start (Cont.)

Software Drivers

3. Use “Site Survey” if you don’t know the name
of your access point(s).

5. Check the “Status” page to see the “Association
State”. It should show “Connected ­xx:xx:xx:xx:xx:xx”.

4. Encryption settings must also match those set
in the access point. Talk with your network
administrator if necessary. Click Apply to save
your settings

6. You can also see the connection quality on
the “Connection” page. Click OK to exit the utility .

33

Software Drivers

34

Topics Covered:
LAN Driver Setup
Configuring your LAN

LAN

(Required driver)

Software Drivers

Before

After

(Screens and drivers may vary depending on your model and operating system.)

35

Software Drivers

LAN Driver Setup

Running setup will give you the following wizard:

1. Click Next to install files to your system. 2. When setup is complete, click Finish.

36

Configuring your LAN

Joining a Domain or Workgroup (Windows XP)

Software Drivers

(1) Click Start and My Computer.

(3) Your computer name, workgroup or

domain information is shown here. Click
Change to view options.

(2) Click View system information.

You cannot use spaces or symbols in the
computer name. In the example here, a warning
is given when trying to use “Notebook PC”. Y ou
can use the single word “Notebook” instead.

37

Software Drivers

Joining a Domain or Workgroup (Cont.)

(4a) Domain:

The primary server in the domain will perform
routing functions and security verifications for
your computer. Select Domain and enter an
existing domain you wish to join. NOTE: After
clicking “OK”, you will be asked for the Domain
Controller’s Administrator password to join the
domain in Windows XP.

(4b) Workgroup:

If your network does not have a domain or
you are not authorized to join a domain, select
Workgroup and type in an existing name or
create your own (by typing an unused
workgroup name)

Administrator Name or Password not
accepted: You cannot login with the

Administrator name and use one password,
then use the Administrator name with another
password to add to a domain. You must login
using another name. See Windows
documentation to “Add New User” from User
Accounts in the Control Panel.

38

Joining a Domain or Workgroup (Cont.)

(5) After you restart your computer, you should

see some contents through Entire
Network.

Viewing Your Network

Software Drivers

(6) Clicking on “My Network Places” will display

networks which you have installed protocols
for. Clicking a network protocol such as “MS
Windows Network” will display all the servers
available under that protocol.

39

Software Drivers

40

Topics Covered:
Modem Driver Setup
Modem Configuration

Modem

(Required driver)

Software Drivers

Before

Connect a telephone cable from your Notebook
PC to a telephone jack.

After

(Screens and drivers may vary depending on your model and operating system.)

41

Software Drivers

Modem Driver Setup

Running setup will give you the following wizard:

1. On the “Welcome” screen, click Next after
reading.

2. Setup is now complete, click OK to exit the
wizard.

Modem Configuration

Use New Connection W izard in “Network Connections” to start the configuration wizard to your modem.
The New Connection W izard also allows configuration for other communication devices (if available) such
as LAN, ISDN, ADSL, or Bluetooth.

1. Double-click New Connection Wizard in
Network Connections

42

2. Select “Connect to the Internet” and click

Next.

Modem Configuration (Cont.)

Software Drivers

3. Select “Set up my connection manually” and
click Next.

5. Select your modem and click Next.

4. Select “Connect using a dialup modem” and
click Next.

6. Enter any name to represent your ISP.

7. Enter the dial up number for your ISP.

8. Select one of the security preferences and
click Next.

43

Software Drivers

Modem Configuration (Cont.)

9. Enter your ISP account name and password
and click Next.

10. Select “Add a shortcut...” and click Finish.

11. When you click on the link, the connection
window will show. Click Dial to connect to
your ISP.

44

RICOH Media Driver

d)

o

(Optional driver)

Topics Covered:
Ricoh Media Driver Setup

Software Drivers

After the memory reader driver is installed, you
can read or write to various memory types. See
the hardware manual for information on
supported memory types.

Before After

(Screens and drivers may vary depending on your model and operating system.)

SD (Secure Digital)
MMC (MultiMedia Car

MS (Memory Stick)
MS Select/Duo/Pro/Duo Pr

45

Software Drivers

Ricoh Media Driver Setup

Running setup will give you the following wizard:

1. On the “Welcome” screen, click Next after
confirming this is what you want to setup.

3. When complete, click Finish.

2. On the “Ready to install” screen, click Install
to begin copying files to your system.

4. Setup is now complete, select “No...” and
click Finish in order to install other items.

46

Software Utilities

Software Utilities

48

LiveUpdate

Topics Covered:
LiveUpdate Setup
Using LiveUpdate

(Recommended utility)

Software Utilities

(Screens and drivers may vary depending on your model and operating system.)

49

Software Utilities

LiveUpdate Setup

Running setup will give you the following wizard:

1. On the “Welcome” screen, click Next after
confirming this is what you want to setup.

3. On the “Select Program Folder” screen, click

Next to continue or enter a dif ferent folder name.

NOTE: You cannot run this utility without
first installing “ATK0100”. You will be given
this message if you do not have the driver
installed.

2. On the “Choose Destination Location” screen,

click Next to continue or you may first change
the destination folder.

4. On the “Setup Complete” screen, click Finish.

50

Using LiveUpdate

Close other software to ensure no conflicts.

Newer versions will be shown. Check the items
to update or select “Check all”.

Click OK to connect to the “Live Update” server .

Software Utilities

Click OK to download and install the update.

When update is complete, click OK to exit.

You may be instructed to “reset your BIOS”. It
entails pressing [F2] on bootup to enter BIOS
setup and selecting Load Setup Defaults, and
then Exit Saving Changes on the “Exit” menu.

51

Software Utilities

52

Norton Internet Security

(Recommended utility)

Topics Covered:
Norton Internet Security Setup
Internet Proxy Settings
Internet Security Main Window
Internet Security Features

Software Utilities

(Screens and drivers may vary depending on your model and operating system.)

53

Software Utilities

Norton Internet Security Setup

Running setup will give you the following wizard:

1. On the “Autorun” screen, click Install Norton
Internet Security 2005.

3. On the “Preinstall Scanner” screen, click Next
to skip if you are installing on a new system,
otherwise you may click “Start Scan” if you are
reinstalling on a used system.

2. On the “Welcome” screen, click Next after

reading.

4. On the “installation type” screen, click Next to

continue or you may “Browse” to another
destination folder or change other features using
“Custom” installation.

54

5. On the “Ready to install” screen, click Next to
continue or click “Back” to change settings.

A program icon will be placed on your desktop.

After Windows restart

6. When setup is complete, select “Restart
Windows Later” and click Finish in order to install
other items before restarting your system.

Software Utilities

Norton Internet Security will startup each time
with Windows. This icon will be placed in the
taskbar to show that it is running and also to
provide shortcuts to configuration items.

1. On the “License Agreement” screen, select “I
accept...” and click Next to continue.

2. On the “Registration” screen, select “your
country or region” and click Next to continue. Y ou
may give enter your information if you do not mind
being contacted by Symantec.

55

Software Utilities

341

2

3. On the “Registration” screen, enter your
information and click Next to continue. Checking
“...postal mail from Symantec” is optional.

4. Your registration information will be sent to
Symantec through the Internet.

Check your Network and Internet settings if you
cannot connect to the Symantec server.

Internet Proxy Settings

Internet access within a company usually require proxy settings.

56

5. Click Finish when registration is complete.

Click Finish to complete additional tasks.

Internet Security Main window

Open the main window from the program icon or the taskbar icon.

Click LiveUpdate
to update the
software and virus
definitions.

When you open the main window, you will see
status for each function. When you have time,
you can review each of the functions and make
adjustments to your desire.

Software Utilities

Click Help for
detailed descriptions
and instructions for
each function.

57

Software Utilities

Internet Security Features

Virus and threat protection features

Norton AntiVirus provides comprehensive virus prevention, threat detection, and repair software for your
computer. It automatically detects and repairs known viruses. Norton AntiVirus detects viruses and other
potential risks in instant messenger attachments as well as in email messages, Internet downloads, and other
files. Easy updating of the virus definitions over the Internet keeps Norton AntiVirus prepared for the latest
threats.

Norton AntiVirus includes expanded threat detection of both known and emerging threats, such as spyware
and other files that could put your computer at risk. Norton AntiVirus also scans files inside of compressed
files.

As always, Norton AntiVirus features continually monitor your computer and protect it from known and
unknown threats.

Security protection features

Norton Internet Security includes a suite of security tools that help keep your computer safe from security
threats and privacy intrusions.

Personal Firewall

Protects your computer from Internet attacks, dangerous W eb content, port scans, and other suspicious behavior .

Spam filtering features

As email becomes more popular, many users are receiving an increasing amount of the unsolicited commercial
email messages known as spam. Not only does spam make it difficult to identify valid email messages, some
spam contains offensive messages and images.

Norton AntiSpam incorporates several powerful features to reduce your exposure to unwanted online content.

Ad blocking features

Many W eb sites are using more aggressive techniques to draw attention to the ads on their pages. Some have
begun using larger, more prominent ads, while others rely on ad windows that appear when you enter or
leave the site. Along with increasing the amount of time that it takes to display Web pages, some ads contain
offensive content, cause software conflicts, or use HTML tricks to open additional browser windows.

58

Power4 Gear

Topics Covered:
Power4 Gear Setup
Benefits of Power4 Gear
Power4 Gear Interface
Power4 Gear Configuration

(Required utility)

Software Utilities

(Screens and drivers may vary depending on your model and operating system.)

59

Software Utilities

Power4 Gear Setup

Running setup will give you the following wizard:

1. On the “Welcome” screen, click Next after
confirming this is what you want to setup.

3. On the “Setup Complete” screen, click

Finish.

NOTE: You cannot run this utility without
first installing “ATK0100”. You will be given
this message if you do not have the driver
installed.

2. On the “Select Program Folder” screen, click
Next to continue or enter a different folder
name.

60

Benefits of Power4 Gear

Power4 Gear gives you control over power consumption items by allowing you to instantly “shift” from one
power consumption scheme to another. The preferences or “gears” are shown below. You can change or
“shift” gears by using the Power4 Gear button above the keyboard or by using the task bar icon. Power4 Gear
can also be automatically activated when AC power is removed.

Power4 Gear Interface

Understanding the Power4 Gear buttons

Press the Power4 Gear button
(The icon

may vary depending on your Notebook PC model.)

above the taskbar to shift between the gears as labeled below .

Program Icons

From Windows Start – Programs, you will find Power4
Gear folder containing PMode Config and Power4
Gear icons.

PMode Configuration

Use PMode Config to set the display output resolution
to be used in conjunction with Presentation Mode. This
window will also show when Presentation Mode is
selected.

Power4 Gear

Software Utilities

Power4 Gear starts automatically with Windows. You can right-click the icon on the taskbar for quick access
to Power4 Gear settings.

Modes and Power Segments

When you are using an AC adapter, the Power4 Gear button will allow switching between modes as shown
in AC Mode. When you remove the AC adapter, the Power4 Gear button will allow switching between
modes as in Battery Mode. When you remove or apply the AC adapter, Power4 Gear will automatically shift
you up or down into the proper mode segment.

61

AC Mode

Battery Mode

Software Utilities

Press Power4
Gear button

Right-click the taskbar item to bring up a menu.
Available items will depend on whether you are
using AC power or battery power

Press Power4
Gear button

Power4 Gear Configuration

Double click an item to bring up a menu of selections and click on a value to change. To save, select “Save
Configuration” form the “File” pull-down menu. If you did not save, you will be prompted to when you exit.
If you change Windows “Power Options Properties,” those settings will also be reflected in Power4 Gear
and vice versa.

Renaming Settings

You can rename the power saving levels as you
like using the same method to rename files or
folders in W indows. In the example on the right,
the brightness level is decreased to 13% and the
name is changed to “Max Battery Time”.

62

Power Saving Details

Double click an item to view possible settings.
Some power saving items are only available
under certain modes.

CPU Performance

System Standby Timer

Display Panel Brightness

Hard Drive Off Timer

Software Utilities

Display Panel Off Timer

63

Software Utilities

64

Probe2 (PC Probe)

(Recommended Utility)

Topics Covered:
PC Probe Setup
PC Probe Reference
Starting PC Probe
Using PC Probe Monitoring
PC Probe Task Bar Icon

Software Utilities

Screens will vary depending on your operating system but the contents should be the same.

65

Software Utilities

PC Probe Setup

Running setup will give you the following wizard:

On the “Welcome” screen, click Next after reading
the message.

On the “Select Program Folder” screen, click Next
to continue or enter a different folder name.

On “Choose Destination Location” , click Next to
continue or enter another destination folder.

On the “Setup Complete” screen, click Finish.

66

PC Probe Reference

PC Probe is a convenient utility to continuously monitor your computer system’s vital components, such
as fan rotations, voltages, and temperatures. It also has a utility that lets you review useful information
about your computer, such as hard disk space, memory usage, and CPU type, CPU speed, and internal/
external frequencies through the DMI Explorer.

Starting PC Probe

If the PC Probe icon (magnifying glass) is not shown on the taskbar (see below), click the Windows
Start button, point to Programs, and then ASUS Utility, and then click Probe VX.XX.

When PC Probe starts, a splash screen appears allowing you to select whether to show the screen again
when you open PC Probe or not. To bypass this startup screen, clear the Show up in next execution
check box.

Software Utilities

The PC Probe icon will appear on the taskbar’s system tray indicating that PC Probe is running.
Clicking the icon once will allow open the PC Probe interface.

Windows XP Taskbar

Windows XP will hide taskbar items. Click the arrow to show running services.

67

Using PC Probe Monitoring

Software Utilities

Monitor Summary

Shows a summary of the items being monitored.

Settings

Lets you set threshold levels and polling intervals
or refresh times of the PC’s temperature, fan
rotation, and voltages.

Temperature Monitor

Shows the PC’s temperature.

History

Lets you record the temperature monitoring
activity by date, time, and target history. Click
the record button and select a date. To view a
previous recording, simply choose that date.

68

Using PC Probe Monitoring (Cont’)

Information

Hard Drives

Shows the used and free space of the PC’s hard
disk drives and the file allocation table or file
system used. Information on other hard drives can
be accessed by clicking on the relevant drive letter.

DMI Explorer

Shows information pertinent to the PC, such as
CPU type, CPU speed, and internal/external fre­quencies, and memory size.

Memory

Shows the PC’s memory load, memory usage,
and paging file usage.

Software Utilities

PC Probe Taskbar Icon

Right clicking the PC Probe icon will bring up a
menu to open or exit PC Probe and pause or re­sume all system monitoring.

When the PC Probe
senses a problem with
your PC, portions of
the PC Probe icon changes to red and audio alerts
will be heard from the speaker.

69

Software Utilities

70

TouchPad

(Recommended Utility)

Topics Covered:
TouchPad Setup
Overview of the TouchPad
Property Pages
Frequently Asked Questions

Software Utilities

(Screens and drivers may vary depending on your model and operating system.)

71

Software Utilities

Touchpad Setup

Running setup will give you the following wizard:

1. On the “Choose Setup Language” screen,
select a language and click OK to continue.

2. On the “Welcome” screen, click Next after
confirming this is what you want to setup.

3. On the “Information” screen, click Next after
reading.

5. On the “Setup Complete” screen, select
“No,...”and click Finish.

72

4. On the “Start Copying Files” screen, click
Next after confirming the current settings.

6. You can deselect the welcome screen from
appearing each time you start Windows.

Synaptics® TouchPad Features

Your Synaptics T ouchPad is much more powerful than an old-fashioned mouse. In addition to providing all
the features of an ordinary mouse, your TouchPad allows you to:

• Tap on the Pad Instead of Pressing the Buttons

• Drag Icons, Windows and Other Objects without Using Buttons

• Adjust the Overall Touch Sensitivity

• Customize Buttons and Taps

• Prevent Accidental Pointing While Typing (also known as Palm Check)

• Scroll Through a Document Without Using Scroll Bars

• Zoom In/Out and Pan on Documents

• Move the Pointer Long Distances

• Fine Tune the Pointer Movement

Tap on the Pad Instead of Pressing the Buttons

T apping on the surface of the pad is the same as clicking the left mouse or TouchPad button (i.e. the primary
T ouchPad button). Tapping is usually quicker and more convenient than using the button. To double-click,
just tap twice. A light, quick tap works best; very hard or very slow taps are less likely to work.

Drag Icons, Windows and Other Objects without Using Buttons

Software Utilities

Often, you need to hold the mouse or TouchPad button down while moving the pointer (to move an icon or
window around the screen, for example). This action is called dragging. Just like clicking and double
clicking, you can also drag without using the button.

To move or drag an object (equivalent to pressing and holding the left TouchPad button):

1) Position the pointer over the object and tap twice, down-up-down, leaving your finger on the T ouch­Pad on the second tap. This action is sometimes called tap-and-a-half.

2) Now move the selected object by sliding your finger across the TouchPad surface.

3) Lift your finger to drop the object.

Tap-and-a-Half

You might wonder what happens when you reach the edge of the pad and you are dragging an object. The
Synaptics T ouchPad has a feature called Locking Drags. This feature allows you to lift your finger from the
pad without ending the drag. You can drag an object across the screen using several finger strokes. To end
a Locking Drag action, tap again. The Synaptics TouchPad also has a feature called Edge Motion to help
with long distance dragging. See Move the Pointer Long Distances for details.

The Tap and Drag and Locking Drags features are located on the Touch Properties Page in the Mouse
Properties dialog.

73

Software Utilities

Adjust the Overall Touch Sensitivity

You can control how much finger pressure you must apply before the TouchPad responds by adjusting the
T ouch Sensitivity slider . This slider is located on the Touch Properties Page in the Mouse Properties dialog.

At higher (more sensitive) T ouch Sensitivity settings, the TouchPad recognizes even a very slight touch. If
you see undesired or erratic pointer motion, try a lower setting. Lower (less sensitive) settings require a
firmer touch to move the pointer. In general, a lighter touch works best.

Customize Buttons and Taps

Most T ouchPads come with two buttons that work just like traditional mouse buttons. You can customize the
behavior of these buttons.

T apping on the TouchPad surface also performs the same action as pressing a button. T apping in the center
of the pad will always produce a left-click (the action of the primary button), but you can configure each of
the four corners of the TouchPad surface to act as different buttons. These special corner regions are called
tap zones . With four corner tap zones, the center of the T ouchPad, and the two physical buttons you can turn
your TouchPad into a seven-button mouse!

A customization example:

Suppose you want to use your TouchPad like a three-button mouse. You can configure the left TouchPad
button to produce middle clicks when pressed. Remember that tapping on the TouchPad will produce left
clicks, and pressing the right TouchPad button will produce right clicks. For additional convenience, you
can configure the top right corner tap zone of the T ouchPad to produce right clicks. Looking at the T ouchPad
surface in the picture below, taps in the top right corner (the red shaded area) will produce right clicks, but
tapping anywhere else on the TouchPad (the solid gray area) produces left clicks.

An Example TouchPad

There are many different actions that you can assign to the buttons and tap zones. The following actions are
provided as built-in features with the Synaptics T ouchPad device driver . Additional actions might be available
if you have installed any third-party TouchPad Plug-In software.

• Jump to the Start Button. This action causes the pointer to jump to the Start button in the Windows
task bar and automatically opens the Start Menu.

• Jump to the current application’s menu. This action causes the pointer to jump to the left-most entry
in the application’s window menu (usually the File menu) and automatically pops up the submenu.

• Minimize the current application. This action minimizes the current application’ s window. If the current
application’ s window is already minimized, this action will restore it to its normal size and location.

• Maximize the current application. This action maximizes the current application’ s window (expands
it to cover the full screen). If the current application’ s window is already maximized, this action will
restore it to its normal size and location.

• Run a program of your choosing. This action allows you to specify the name of any program you
want to run automatically when you click the button or tap in the tap zone.

T o customize taps and buttons, go to the Button Actions Properties Page in the Mouse Properties dialog.

74

Prevent Accidental Pointing While Typing

Unintentional pointer movement and accidental taps can be caused by accidentally brushing the surface of
the TouchPad with your palm or another part of your hand. The results of this contact can be observed as a
changing cursor location when typing, causing subsequent text to appear in the wrong place. Or text may
“spontaneously” be highlighted and replaced. Most often, this unwanted pointing activity occurs when typing
on the keyboard. The TouchPad can detect and prevent accidental and unwanted pointer movement while
you are typing.

If you see unwanted pointer movement occurring while you are typing, you can adjust the Palm Check slider
located on the Touch Properties Page in the Mouse Properties dialog. Move the slider thumb to the right
towards Maximum. Now accidental brushes of your hand on the TouchPad while you are typing are more
likely to be ignored.

On the other hand, in the midst of typing, you might purposefully use the TouchPad to point and click, and
sometimes the TouchPad may not seem to respond. In this case, move the slider thumb to the left towards
Minimum. Now pointing during typing is less likely to be interpreted as an accidental brush with the pad
surface, and will not be ignored.

Scroll Through A Document without Using Scroll Bars

Virtual Scrolling allows you to perform a very common task – scrolling documents – without having to
move the pointer away from your work. By simply sliding your finger up and down the right edge of the
T ouchPad, the contents of the current window will scroll vertically . Similarly , by sliding your finger left and
right along the bottom edge of the TouchPad, the contents will scroll horizontally. You no longer need to
laboriously maneuver the pointer to the small scroll bar elements; you can scroll no matter where the pointer
happens to be.

Virtual Scrolling works with document windows (like word processors and spreadsheets), and it also works
with file lists, font lists, and other scrollable items. As a rule, you can use Virtual Scrolling when you are
working in any window that has a scroll bar.

And V irtual Scrolling does more than just make scrolling more convenient. It also can make scrolling smoother.
When you scroll by dragging the scroll thumb with the mouse, many applications do not re-display the
document window until you release the mouse button. V irtual Scrolling makes navigation through documents
easier, because it forces the application to re-display the window contents as you scroll.

How do I use Virtual Scrolling?

To customize the V irtual Scrolling feature, go to the Scrolling Properties Page located in the Mouse Properties
dialog.

Zoom In/Out and Pan on Documents

Note that zooming and panning only work in applications that support the Microsoft Intellimouse. With
Intellimouse aware applications, you can zoom and/or pan to quickly maneuver your way through lengthy
documents. T o jump to a distant location within your document, zoom out, click on the desired location, then
zoom in. To scroll horizontally and vertically at the same time, simply pan in a diagonal direction!

Software Utilities

75

Move the Pointer Long Distances

Suppose you are dragging an object, scrolling at high speed (via Virtual Scrolling! ), or merrily moving the
pointer when you suddenly reach the edge of your TouchPad. Don’t despair, the Synaptics TouchPad Edge
Motion feature comes to the rescue! Edge Motion helps with long distance pointer motion. When you reach
an edge of the T ouchPad, the pointer (or scroll thumb when Virtual Scrolling) continues to move in the same
direction until you lift your finger from the TouchPad or move your finger away from the edge.

Edge Motion speed can be pressure-sensitive or constant. Pressure-sensitive speed means that the harder
you press, the faster the object or pointer moves.

You can configure the Edge Motion feature on the Edge Motion Properties Page in the Mouse Properties
dialog.

Software Utilities

Fine Tune the Pointer Movement

The Synaptics TouchPad has many additional features to help you control the way your pointer moves.
Please take a look at the list of additional features.

Accessories

Your T ouchPad is a productivity enhancing tool, designed for serious work. But we think it should also be
fun. W e have included two fun application programs that demonstrate some of the capabilities of the T ouchPad:
Pressure Graph and The Incomparable, Mysterious Synaptics MoodPad.

To run these applications, click once on the Synaptics TouchPad Icon in the Taskbar, go to the Accessories
menu and select the desired application.

More About the TouchPad

The T ouchPad detects your finger by capacitive sensing (it is not sensitive to heat or applied force). As your
finger approaches the pad, it alters the electric field in the vicinity of the pad surface. The TouchPad sensor
is just a circuit board with a matrix of conductive traces printed on the top surface. A special chip on the back
side of the TouchPad continuously measures the capacitance of these traces, and thus can determine the
presence and location of your finger.

T o get the most out of your T ouchPad, be sure that the T ouchPad driver software is installed. If the Synaptics
T ouchPad driver is properly installed, the Mouse Properties dialog will include several TouchPad tabs along
the top in addition to the standard mouse tabs.

Property Pages

The property pages allow you to customize TouchPad settings for your Notebook PC. The following pages
will describe each property page with the Synaptics logo. The “Buttons”, “Pointers”, and “Pointer Options”
pages come with Windows and should be described in Windows documentation.

76

Scrolling Properties Page

The Scrolling properties page allows you to customize the
Virtual Scrolling capabilities of your TouchPad.

In some applications, the scroll zones which activate V irtual
Scrolling can be used for zooming too.

Enabling Virtual Scrolling of the
Active Window

Check the appropriate boxes on this page for the type of V irtual
Scrolling that you prefer:

• Horizontal Scrolling

• Vertical Scrolling

• Coasting

Choose where you want Virtual Scrolling to occur:

• Scroll Selected Item

- OR -

• Scroll Item Under Pointer

Customizing Scroll Zone Sizes

This page includes a small map of the TouchPad with the scroll zones shaded in red. See the Scroll Zone
T ouchPad Map for a more detailed description.

You can adjust the size of each zone by dragging one of the black resize handles on the T ouchPad map. If
you are having trouble activating the V irtual Scrolling feature, you might want to try making the scroll zones
wider. If you find that scrolling sometimes gets activated when you didn’ t mean to scroll, try narrowing the
scroll zones.

Customizing Virtual Scrolling Speed

Y ou can control the speed of V irtual Scrolling by adjusting the Scrolling Speed slider on this page. Drag the
slider thumb to the right for faster scrolling.

Software Utilities

77

Software Utilities

Tap Zones Properties Pages

The Tap Zones properties pages allow you to assign custom
actions to taps in the Touchpad’s corner zone regions (or tap
zone regions).

The Synaptics TouchPad driver may also control other
pointing devices attached to your system. If the Synaptics
T ouchPad driver is controlling more than one pointing device
on your system, the Synaptics pages on the Mouse control
panel will have a drop-down box listing all of the pointing
devices that are controlled. You may set separate settings for
each by selecting the appropriate device (settings which don’t
apply to a particular pointing device will be grayed out).

Customizing the Tap Zones

When the tap zones are enabled, each tap inside a corresponding tap zone region on your T ouchPad can have
a different meaning or action. For example, you can define the upper right corner tap zone to mean right
clicks. Then when you tap your finger on the upper right corner of your T ouchPad, it is as if you are clicking
the right mouse or TouchPad button.

This page includes a small map of the TouchPad with the active tap zones shaded in red. Next to each zone
is a text box specifying the action for that zone.

To Customize:

1. T o activate the corner tap zones, check the box next to the text Enable Tap Zones. An unchecked box
means that all taps on every part of the TouchPad surface will have left-click behavior.

2. T o change an action for a particular zone, locate the text box nearest the zone. The text box displays
the current action for this zone (for example, it might say No Zone which means that this particular
zone is disabled and any taps here will produce the default left-click action). Click on the down
arrow button located to the right of the text to display a list of actions. Select the desired action.

3. Each tap zone can be resized to be as large or as small as you desire by dragging one of the black
resize handles located on the TouchPad map.

78

More Features Properties Page

The More Features properties page allows you to control the
following features of you Synaptics TouchPad:

Stop Pointer at Window Borders

This feature constrains the pointer to stay inside the active
window. When you try to move the pointer outside the
window, it stops at the edge. If you try a second time, the
pointer is free to leave the window .

Stopping the pointer at the window borders makes it easy to
access controls that lie around the edges of windows. For
example, to close or resize a window, you can casually toss
the pointer in the general direction of the close box or the
edge of the window, and the pointer will stop exactly where
you want it.

Snap to Default Button

This feature automatically moves the pointer to the Default Button when a dialog box appears on your
screen.

Slow Motion Key

Software Utilities

Sometimes you might need more accuracy when pointing with the T ouchPad, such as in a drawing program.
The speed of the pointer can make this type of accuracy difficult to obtain. T o slow down the pointer movement,
you can specify a slow motion key. Then, for slow pointer movement, press and hold this key as you move
the pointer.

Constrained Pointer Key

At times you may want to restrict the pointer to move only horizontally or only vertically . You can specify a
constrained pointer key, then press and hold this key as you move the pointer. The initial pointer direction
when holding this key determines whether the pointer is constrained to move only horizontally or only
vertically.

Synaptics TouchPad Tray Icon

The Synaptics T ouchPad tray icon appears in the W indows Taskbar near the clock. Y ou can
choose between two icons:

This is the animated T ouch Meter icon. The size of the dot on the touch meter indicates the

amount of finger pressure. The icon turns blue while Virtual Scrolling is in progress.
This is the non-animated Synaptics logo icon.
You can access the “TouchPad Properties” dialog by double clicking on either tray icon.

79

Software Utilities

Button Actions Properties Page

The Button Actions properties page allows you to customize
the physical buttons of your TouchPad.

The Rocker Switch settings are available on Notebook PC’s
with scroll buttons between the left and right buttons.

Customizing Button Assignments

You can customize the TouchPad buttons in the same way
that you customize the tap zones.

To Customize:

Each button has a text box that displays the current action
(for example, it might say Left, which means the left-click or primary-click action). To display a list of
possible actions, click on the down arrow button located to the right of the text. Select the desired action.

80

Touch Properties Page

The Touch properties page allows you to customize the tap
response and sensitivity of your TouchPad.

Taps

Check the appropriate boxes in the T aps section of the T ouch
Properties Page for the tapping capabilities that you prefer:

• Tap to Click

• Tap and Drag

• Locking Drags

Touch Sensitivity

Use the Touch Sensitivity slider to control how much finger
pressure you must apply before the T ouchPad responds. See
Adjust the Overall Touch Sensitivity.

Palm Check

The Palm Check slider controls the TouchPad’s detection of accidental and unwanted pointing movement.
In addition to detecting palm contact with the TouchPad, the TouchPad can ignore much of the accidental
and unwanted pointer movement that may occur while typing (due to accidentally contacting your T ouchPad).
See Prevent Accidental Pointing While Typing for more details.

Software Utilities

81

Edge Motion Properties Page

The Edge Motion properties page allows you to customize
the long distance pointer motion capabilities of your
TouchPad. When your finger reaches the edge of your
TouchPad, the Edge Motion feature allows the pointer to
continue to move until you lift your finger. See Move the
Pointer Long Distances for more details about the Edge
Motion feature.

Enabling Edge Motion

Check the appropriate boxes on this page for the types of
Edge Motion that you desire:

Software Utilities

• When Dragging

• Always

• When Scrolling

Customizing Edge Zone Sizes

This page includes a small map of the TouchPad with the edge zones shaded in red. See the Edge Zone
T ouchPad Map for a more detailed description. You can adjust the size of each zone by dragging one of the
black resize handles on the TouchPad map. If you are having trouble activating the Edge Motion feature,
you might want to try making the edge zones wider.

Customizing Edge Motion Speed

During Edge Motion, the speed at which the pointer (or dragged object or Virtual Scrolling scroll thumb)
moves can be pressure-sensitive or constant. With pressure-sensitive speed, the harder you press the faster
the object or pointer moves. For this type of speed, check the box labeled Control edge motion speed with
finger pressure.

If you prefer a constant speed for Edge Motion, you can adjust the speed with the Edge Motion speed slider
located on this page.

82

Frequently Asked Questions

Q: When I use Virtual Scrolling, the pointer jumps over to the scroll bar, and then jumps back where it

came from when I’m done. Is this normal?

A: Yes.

Q: Why doesn’t the Virtual Scrolling feature work in some windows, even though they have a scroll bar?
A: In order to scroll, Virtual Scrolling must be able to “see” the window’s scroll bar. If the scroll bar is

partially obscured by another window, or partially off the screen, then Virtual Scrolling will not
activate in that window. In general, a window’s scroll bar must be entirely on the screen, and fully
visible, in order to use Virtual Scrolling in that window. There is an exception to this rule: Virtual
Scrolling has “special knowledge” about many common types of windows, and can scroll them even
if their scroll bars are not visible on the screen. A very small number of applications use nonstandard
scroll bars that might not work reliably with Virtual Scrolling.

Q: Why do some windows scroll smoothly, while others re-display their contents only occasionally as I

scroll?

A: The way a window responds to its scroll bars is entirely up to the application which owns that win-

dow. Some applications “smooth-scroll,” while others wait until you release the scroll bar before
updating their contents. Virtual Scrolling “knows” about many common applications and window
types, and uses this knowledge to “trick” many windows into smooth-scrolling (Microsoft ® Word
™ document windows, for example, do not normally smooth-scroll, but they do when you use Vir­tual Scrolling). If Virtual Scrolling does not “know” about a particular type of window, it still ap­proximates smooth-scrolling by causing the window to re-display when your finger slows down or
stops. This can help you more accurately scroll to the right place in a document.

Q: Why does the scroll thumb sometimes “jump around” when I scroll, and not go exactly where the

pointer is?

A: Again, the application actually has complete control over the way the scroll thumb moves. Depending

upon the window contents, some applications will actually prevent you from moving the scroll thumb
to certain locations. Sometimes, the scroll thumb is only “allowed” to come to rest at one or two posi­tions along the scroll bar! In these cases, even if you were to manually drag the scroll thumb with the
pointer, you would find that it would “jump” to a final location when you released it. Virtual Scrolling,
unfortunately, cannot control how applications manage their scroll bars.

Software Utilities

83

Software Utilities

Frequently Asked Questions (Cont.)

Q: Why doesn’t Virtual Scrolling work properly with Microsoft Internet Explorer?
A: Make sure you are using Internet Explorer version 4.01 or later, and that the Use Smooth Scrolling

option on the Advanced page of the Internet Explorer Properties dialog is NOT checked.

Q: When I press and hold the shift key or the control key (CTRL), the pointer movement is either very

slow or restricted to move only horizontally or only vertically. What is happening?

A: The shift keys and the control keys are special and are used for various things, such as selecting

multiple files in Microsoft Windows Explorer or for zooming in and out on a spread sheet in Mi­crosoft Excel. These keys can also be used for special pointer movement, such as for slowing the
pointer down or for constraining the pointer to move only horizontally or only vertically. For ex­ample, you can assign the left shift key to be the Slow Motion Key. Then when you press and hold
the left shift key, the pointer motion will be slower than usual. Note that you can still use this shift
key for other special behaviors! You can still press and hold the left shift key to select multiple files
in Microsoft Windows Explorer, but the pointer motion will also be a bit slower. If you see slow or
constrained pointer movement when pressing shift or CTRL and you want to turn off this special
behavior, go to the More Features Properties Page in the Mouse Properties dialog and uncheck the
appropriate boxes.

84

Topics Covered:
WinFlash Setup
Using WinFlash

WinFlash

(Recommended Utility)

Software Utilities

(Screens and drivers may vary depending on your model and operating system.)

85

Software Utilities

WINFLASH Setup

Running setup will give you the following wizard:

1. On the “Welcome” screen, click Next after
confirming this is what you want to setup.

3. On the “Select Program Folder” screen, click
Next to continue or enter a different folder
name.

Make sure you install A TKACPI first or else
you will get this message.

2. On the “Choose Destination Location”
screen, click Next to continue or you may
first change the destination folder.

4. On the “Setup Complete” screen, click

Finish.

86

Using WINFLASH

WINFLASH is a simple utility to update your Notebook PC’s BIOS. To run WINFLASH, access the All
Programs shortcut through the Start button.

Do not update your BIOS for no reason.

You will be warned that you should only update
your BIOS if you know it will solve a specific
problem. If you update your BIOS using the wrong
BIOS file, your Notebook PC may not boot up.

When you enter WINFLASH, you will be
immediately asked for the BIOS image file.
Browse to the file and click Open.

Software Utilities

Text in these screens are examples only and will not reflect
your system.

Compare the BIOS ROM (your current BIOS)
to the BIOS image (the new BIOS). If this is
correct, click Flash to write the new BIOS to
your Notebook PC. You need to restart your
Notebook PC and “reset your BIOS”. See
instructions on the next page.

You may be instructed to “reset your BIOS”. It
entails pressing [F2] on bootup to enter BIOS
setup and selecting Load Setup Defaults, and
then Exit Saving Changes on the “Exit” menu.

87

Software Utilities

88

Copyright Information

No part of this manual, including the products and software described in it, may be reproduced, transmitted, tran­scribed, stored in a retrieval system, or translated into any language in any form or by any means, except documen­tation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COM­PUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED T O THE IMPLIED WARRANTIES OR CONDITIONS OF MER­CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIREC­TORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENT AL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSI­NESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR
IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such
repair, modification or alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced
or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of
their respective companies, and are used only for identification or explanation and to the owners’ benefit, without
intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFOR­MA TIONAL USE ONL Y, AND ARE SUBJECT T O CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD
NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LI­ABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING
THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2005 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover
damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from
ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and
tangible personal property; or any other actual and direct damages resulted from omission or failure of performing
legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringe­ment under this Warranty Statement.

This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your
reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR
(3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL
DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RE­SELLER IS INFORMED OF THEIR POSSIBILITY.

Contact Information

ASUSTeK COMPUTER INC.

Company address: 15 Li-Te Road, Beitou, Taipei 11259
General (tel): [phone] Web site address: www.asus.com.tw
General (fax): [phone] General email: [e-mail]

ASUS COMPUTER INTERNATIONAL (America)

Company address: 44370 Nobel Drive, Fremont, CA 94538, USA
General (fax): [phone] Web site address: usa.asus.com

Technical support

General support (tel): [phone] Online support: http://vip.asus.com/eservice/techserv .aspx
Notebook (tel): [phone] x5110 Support (fax): [phone]

ASUS COMPUTER GmbH (Germany & Austria)

Company address: Harkort Str. 25, D-40880 Ratingen, Germany
General (tel): [phone] Web site address: www.asuscom.de
General (fax): [phone] Online contact: www.asuscom.de/sales

Technical support

Component support: [phone] Online support: www.asuscom.de/support
Notebook support: [phone] Support (fax): [phone]
