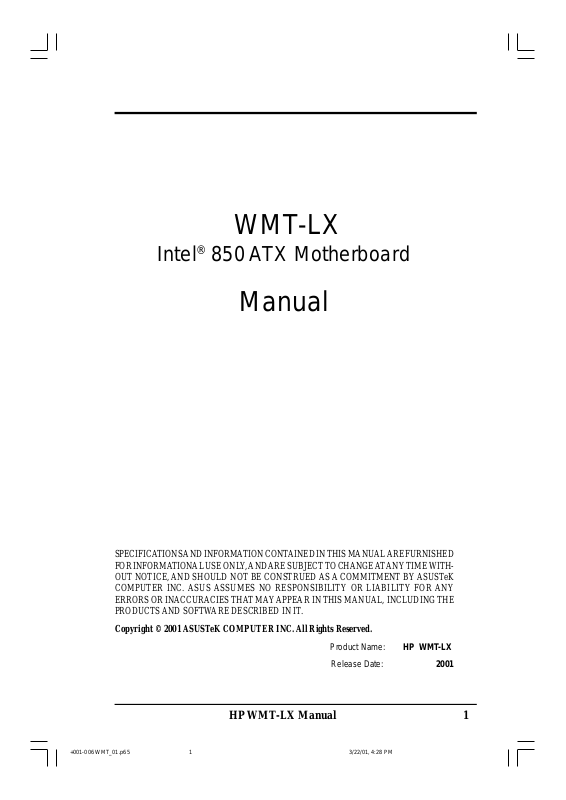

WMT-LX

Intel® 850 ATX Motherboard

Manual

SPECIFICA TIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMA TIONAL USE ONL Y, AND ARE SUBJECT TO CHANGE A T ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUSTeK COMPUTER INC. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

+001-006 WMT_01.p65 3/22/01, 4:28 PM1

Product Name: HP WMT-LX

Release Date: 2001

HP WMT-LX Manual 1

1. FEATURES

1.1 WMT-LX Motherboard Layout

24.4cm (9.60in)

PS/2KBMS

T: Mouse B: Keyboard

Bottom:

Top:

RJ-45

USB1 USB2

COM1

IEEE 1394

Top:

PARALLEL PORT

Realtek

RTL8139C

Socket 423

1394 HEAD

1394

Physical

Layer

Accelerated Graphics Port (AGP)

Chip

PCI1

PCI2

PCI3

WMT-LX

Intel 850

Memory

Controller

Hub (MCH)

WOLCON

CPU_FAN

CR2032 3V Lithium Cell

CMOS Power

RIMMA2 (16/18 bit, 184-pin module)

RIMMA1 (16/18 bit, 184-pin module)

1394

Link

CLRTC

Intel I/O

Controller

(ICH2)

Layer

Chip

RIMMB2 (16/18 bit, 184-pin module)

RIMMB1 (16/18 bit, 184-pin module)

Hub

USB2/3

Multi

I/O

ATX12V

PWR_FAN

SECONDARY IDE

BIOS

PANEL

ATX Power Connector

24.4cm (9.6in)

FLOPPY

PRIMARY IDE

Grayed components are available only on certain models at the time of purchase.

+001-006 WMT_01.p65 3/22/01, 4:28 PM2

HP WMT-LX Manual

1. FEATURES

1.2 Layout Contents

Expansion

1) RIMMA1/A2/B1/B2 p. 5 184-Pin System Memory Support

2) CPU p. 7 Central Processing Unit

3) PCI1/2/3/ p. 12 32-bit PCI Bus Expansion Slots

4) AGPPRO p. 13 Accelerated Graphics Port Slot

Connectors

1) PS2MS p.14 PS/2 Mouse Connector (Green 6-pin female)

2) PS2KB p.14 PS/2 Keyboard Connector (Purple 6-pin female)

3) PRINTER p.15 Parallel Port Connector (Burgundy 25-pin female)

4) COM1 p.15 Serial Port Connectors (Turquoise 10-1 pin male)

5) 1394_CON p.15 IEEE-1394 Controller Interface Connector (6-pin male)

6) USB p.16 Universal Serial Bus Ports (Black two 4-pin female)

7) RJ45 p.16 Fast-Ethernet Port Connector (female)

8) PRIMAR Y/SECONDAR Y IDE p.17 Primary/Secondary IDE Connectors (Two 40-1pin)

9) FLOPPY p.18 Floppy Disk Drive Connector (34-1pin)

10) 1394HEAD2/1394HEAD3 p.18 IEEE-1394 Headers (8-pin)

11) CPU_FAN, PWR_FAN p.19 POWER, CPU Fan Connectors (3 pin)

12) WOL p.20 Wake-On-LAN Connector (3 pin)

13) USB2/3 p.20 USB Header (10-1 pin)

14) ATXPWR, AUXPWR, p.21 ATX 12V Power Supply Connectors ATX12V

15) PWR (PANEL) p.22 ATX Power / Soft-Off Switch Lead (2 pin)

16) IDELED (PANEL) p.22 IDE Activity LED (2 pin)

17) PLED (PANEL) p.22 System Power LED Lead (3-1 pin)

18) RESET (PANEL) p.22 Reset Switch Lead (2 pin)

19) MLED (PANEL) p.22 System Message LED (2 pin)

20) KEYLOCK (PANEL) p.22 Keyboard Lock Switch Lead (2 pin)

21) SMI (PANEL) p.22 System Management Interrupt Switch Lead (2 pin)

22) SPEAKER (PANEL) p.22 System Warning Speaker Connector (4 pin)

23) RTC p.23 Real Time Clock Jumper

+001-006 WMT_01.p65 3/22/01, 4:28 PM3

HP WMT-LX Manual 3

2. HARDWARE SETUP

2.1 Getting Started

IMPORTANT: Due to Pentium 4 CPU’s power consumption requirement, an

ATX12V power supply is recommended for this motherboard. For typical system configurations, an ATX12V power supply that can supply at least 230W and at least

8.5A on the +12V lead is required. For heavily-loaded configurations, an ATX12V power supply that can supply at least 300W is required.

Before using your computer, you must complete the following steps:

• Check Motherboard Settings

• Install Memory Modules

• Install the Central Processing Unit (CPU)

• Install Expansion Cards

• Connect Ribbon Cables, Panel Wires, and Power Supply

WARNING! Computer motherboards and expansion cards contain very delicate

Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer .

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or connectors, or other components.

4. Place components on a grounded antistatic pad or on the bag that came with the component whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power connector on the motherboard.

WARNING! Make sure that you unplug your power supply when adding or

removing system components. Failure to do so may cause severe damage to your motherboard, peripherals, and/or components. The onboard LED when lit acts as a reminder that the system is in suspend or soft-off mode and not powered OFF.

+001-006 WMT_01.p65 3/22/01, 4:28 PM4

HP WMT-LX Manual

2. HARDWARE SETUP

2.2 System Memory

NOTE: No hardware or BIOS setup is required after adding or removing memory . This motherboard has four 184-pin Rambus Inline Memory Modules (RIMM) sockets.

These sockets support 64Mbit, 128Mbit, and 256Mbit Direct RDRAM technologies.

Location Memory Module Subtotal

RIMMA1 (Rows 0&1)

RIMMA2 (Rows 2&3)

RIMMB1 (Rows 4&5)

RIMMB2 (Rows 6&7)

RDRAM x 1 C-RIMM (use when socket will not be populated)

TOT AL SYSTEM MEMOR Y =

(2GB Max)

IMPORTANT

1. The memory configuration of channel A (RIMMA1 and RIMMA2) and channel B (RIMMB1 and RIMMB2) must be identical (see below).

2. C-RIMMs (Continuity RIMM) must be used to complete the sockets that are not populated by RDRAMs. A C-RIMM is necessary to avoid breaking the signal lines, which are a serial connection in a Rambus interface, such as used in this motherboard. This assures the electrical integrity of a Rambus interface.

3. When C-RIMMs are required, it is recommended that they be inserted into RIMMA2 and RIMMB2.

C-RIMM

128MB RDRAM

C-RIMM

128MB RDRAM

C-RIMM

128MB RDRAM

C-RIMM

128MB RDRAM 128MB RDRAM

+001-006 WMT_01.p65 3/22/01, 4:28 PM5

RIMMB2 RIMMB1

RIMMA2 RIMMA1

RIMMB2 RIMMB1

RIMMA2 RIMMA1

RIMMB2 RIMMB1

RIMMA2 RIMMA1

NOTE: When using only two memory modules, it is recommended that you use configuration a.

HP WMT-LX Manual 5

2. HARDWARE SETUP

2.2.1 Installing Memory

The memory module (RIMM/C-RIMM) will fit in only one orientation.

IMPORTANT: Do not touch the memory module’s connectors. Handle the mod-

ule only by the edges.

Top:

RJ-45

WMT-LX

WMT-LX 184-Pin RIMM Sockets

RIMM Sockets

RIMM with Heat Spreader

C-RIMM

1. Make sure that the notch keys in the module are aligned with the small ribs inside the RIMM sockets.

NOTCH KEYS

CONNECTORS

(TOP VIEW)

EJECTOR

RDRAM (with heat spreader)MOUNTING NOTCH

RIBS (inside socket)

2. With the ejectors in the open position (as shown), push down gently but firmly on the memory module until it snaps into place. The guides on the socket’s ejectors should go through the two mounting notches on the module and the ejectors should close. If necessary, push the ejectors inward to secure the mod-

ule in place.

Removing Memory

T o release a memory module, push both ejectors outward and pull the module straight up and out of the RIMM sockets.

WARNING! RIMM modules become extremely hot during operation. To re-

duce the risk of personal injury from hot surfaces, allow the modules to cool off before removing them.

+001-006 WMT_01.p65 3/22/01, 4:28 PM6

HP WMT-LX Manual

2. HARDWARE SETUP

2.3 Central Processing Unit (CPU)

The motherboard provides a ZIF Socket for the P4 CPU. The CPU that came with the motherboard should have a fan attached to it to prevent overheating. If this is not the case, then purchase a fan before you turn on your system.

Socket 423 Pentium 4

Top:

RJ-45

WMT-LX

Gold Arrow

WMT-LX Socket 423

Gold Arrow

Before you start, you should check to see that you have the following items:

Rubber Pad

2 Metal heatsink retaining clips

4 Copper captive nuts

4 Pan Head screws

Metal Baseboard

4 Washers

2 Heatsink support bases

HP WMT-LX User’s Manual
