Asus G60VX User Manual

E-SATA
HDMI
1394
ANT.
E4693
Notebook PC User Manual
May 2009
Table of Contents
Safety Precautions ............................................................................................. 3
Preparing your Notebook PC ......................................................................... 5
Using the Touchpad .......................................................................................... 7
Knowing the Parts .............................................................................................. 8
Right Side ............................................................................................................8
Left Side .............................................................................................................11

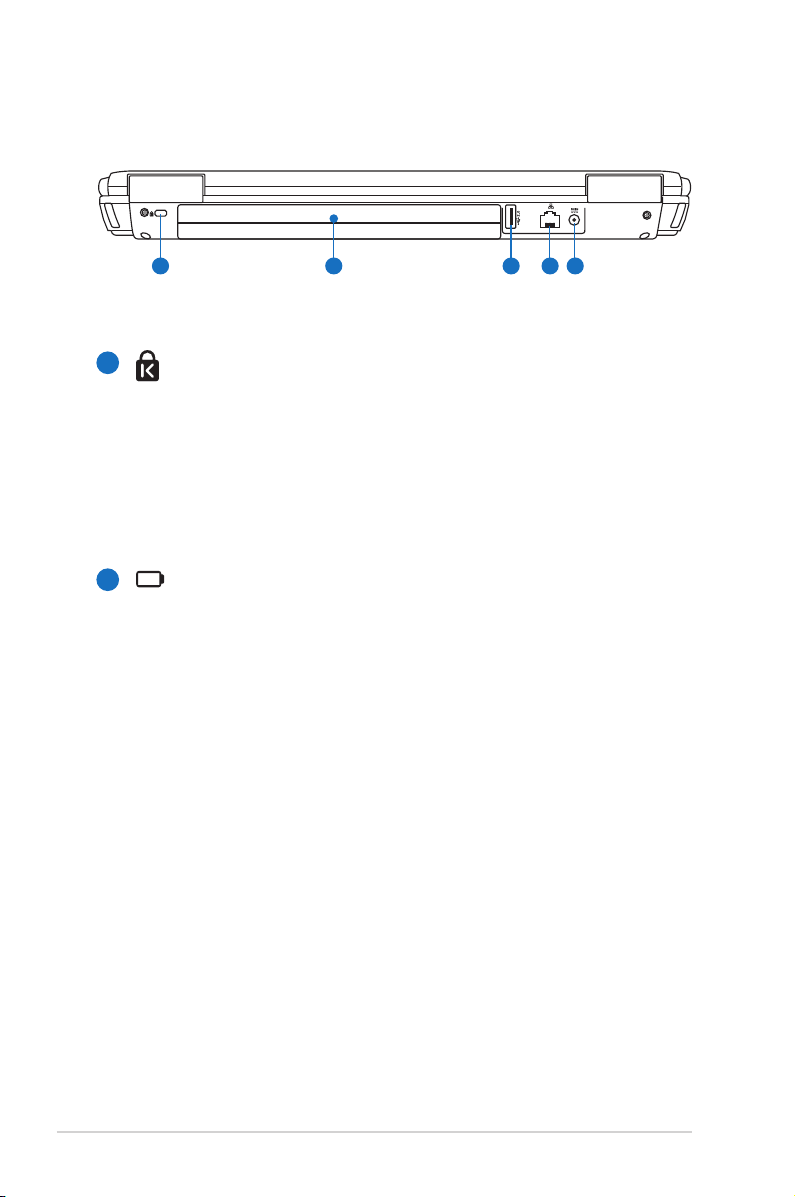

Rear Side ............................................................................................................14
Front Side ..........................................................................................................16
Recovering Your Notebook PC ....................................................................17
Using Recovery Partition ............................................................................17
Using Recovery DVD (on selected models) ...........................................18
Declarations and Safety Statements .........................................................20
Federal Communications Commission Statement .............................20
FCC Radio Frequency (RF) Exposure Caution Statement .................21
Declaration of Conformity(R&TTE directive 1999/5/EC) ...................21
CE Mark Warning .............................................................................................22
IC Radiation Exposure Statement for Canada ......................................22
Wireless Operation Channel for Different Domains ...........................23
France Restricted Wireless Frequency Bands .......................................23
UL Safety Notices ............................................................................................25
Power Safety Requirement .........................................................................26
REACH .............................................................................................................26
Nordic Lithium Cautions (for lithium-ion batteries) ...........................27
Notebook PC User Manual
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel.
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.
DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.
DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Notebook PC.
DO NOT leave the Notebook PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.
DO NOT place or drop objects on top and do not shove any foreign objects into the Notebook PC.
DO NOT expose to strong magnetic or electrical fields.
DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.
Notebook PC User Manual
SAFE TEMP: This Notebook PC should only be used in environments with ambient temperatures between 10°C (50°F) and 35°C (95°F)
INPUT RATING: Refer to the rating label on the bottom of the Notebook PC and be sure that your power adapter complies with the rating.
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation
DO NOT use strong solvents such as thinners, benzene, or other chemicals on or near the surface.
such as a carrying bag.
DO NOT use damaged power cords, accessories, or other peripherals.
Incorrect installation of battery may cause explosion and damage the Notebook PC.
DO NOT throw the Notebook PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.
Notebook PC User Manual
Preparing your Notebook PC
1
2
3
1
2
3
110V-220V
These are only quick instructions for using your Notebook PC.
Installing the Battery Pack
Connecting the Power Adapter
Notebook PC User Manual
Opening the LCD display panel
1. Press the display panel button and lift up the display panel with your thumb.
2. Slowly tilt the display panel forward or backward to a comfortable viewing angle.
Turning on the Power
1. Push and release the power button located beneath the LCD display panel.
2. Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.
Notebook PC User Manual
Using the Touchpad
A
B
Right button
Left button
Right button
Left button
C
A. Slide your finger across the touchpad to move the pointer. You
can also hold the left button and slide your finger to drag the selected item.
B. Use the left and right buttons like a standard mouse.
C. Slide your finger up or down on the right side to scroll up or
down a window.
Notebook PC User Manual
Knowing the Parts
1 2 3 4
5
6
7 8
Right Side
Microphone Input Jack
1
The mono microphone jack (1/8 inch) can be used to
connect an external microphone or output signals from audio devices. Using this jack automatically disables the built-in microphone. Use this feature for video conferencing, voice narrations, or simple audio recordings.
Audio Input Jack
2
The stereo input jack (1/8 inch) can be used to connect a
stereo audio source to the Notebook PC. This feature is used mainly to add audio to multimedia applications.
3
This jack provides connection to SPDIF (Sony/Philips Digital
The stereo headphone jack (1/8 inch) is used to connect
SPDIF Output Jack
Interface) compliant devices for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home
Combo
entertainment system.
Headphone Output Jack
the Notebook PC’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers.
Notebook PC User Manual
4
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected without restarting the computer.
5
Optical Drive
The Notebook PC comes in various models with different
optical drives. The Notebook PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD) and may have recordable (R) or re-writable (RW) capabilities. See the marketing specifications for details on each model.
Optical Drive Activity Indicator
6
(location varies by model)
The optical drive activity indicator shows when data is
being transferred by the optical disk drive. This indicator will light in proportion to the data size transferred.
7
Optical Drive Electronic Eject
The optical drive eject has an electronic eject button for
opening the tray. You can also eject the optical drive tray through any software player or by right clicking the optical drive in Windows “Computer” and selecting Eject. This eject also functions as the optical drive activity indicator which shows when data is being transferred by the optical disk drive. This indicator will light in proportion to the data size transferred.
Notebook PC User Manual
