Notebook PC Upgrade Guide
E17243
Upgrade Guide

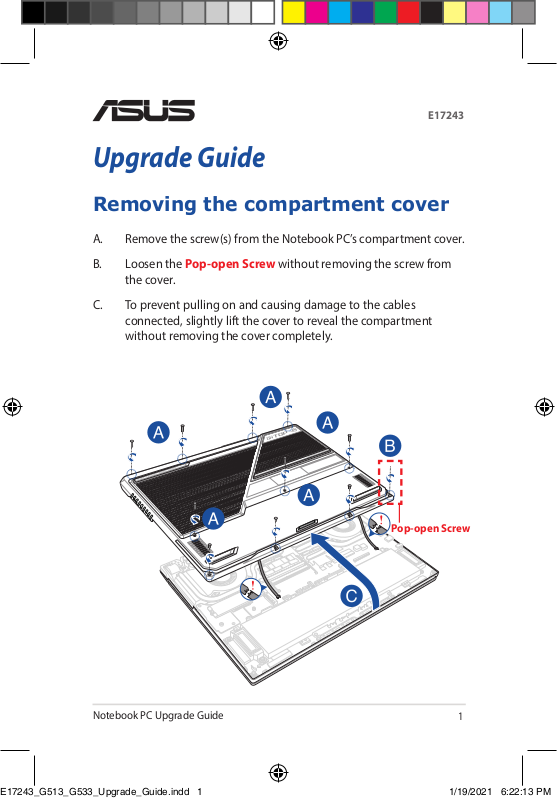

Removing the compartment cover
A. Remove the screw(s) from the Notebook PC’s compartment cover.
B. Loosen the Pop-open Screw without removing the screw from
the cover.
C. To prevent pulling on and causing damage to the cables
connected, slightly lift the cover to reveal the compartment
without removing the cover completely.
Pop-open Screw
E17243_G513_G533_Upgrade_Guide.indd 1E17243_G513_G533_Upgrade_Guide.indd 1 1/19/2021 6:22:13 PM1/19/2021 6:22:13 PM
1
Notebook PC Upgrade Guide
To reattach the compartment cover:
A. Align and reattach the cover of the compartment.
B. Secure the cover using the screw(s) you removed earlier.
C. Tighten the Pop-open Screw.
Pop-open Screw
E17243_G513_G533_Upgrade_Guide.indd 2E17243_G513_G533_Upgrade_Guide.indd 2 1/19/2021 6:22:13 PM1/19/2021 6:22:13 PM
2
Notebook PC Upgrade Guide
Cover screw map
G533QS G533QR G533QM G543QS G543QR G543QM
G513QR G513QM G513IR G513IM GL543QR GL543QM
GL543IR GL543IM PX513QR PX513QM PX513IR PX513IM
M2.5 X 12 (7PCS)
M2.5 X 6 (3PCS)
M2.5 X 7 (1PC Pop-open Screw)
Model
E17243_G513_G533_Upgrade_Guide.indd 3E17243_G513_G533_Upgrade_Guide.indd 3 1/19/2021 6:22:14 PM1/19/2021 6:22:14 PM
3
Notebook PC Upgrade Guide
G513QC G513QE G513QH G513IC G513IE G513IH
GL543QC GL543QE GL543QH GL543IC GL543IE GL543IH
PX513QC PX513QE PX513QH PX513IC PX513IE PX513IH
M2.5 X 9 (7PCS)
M2.5 X 4.5 (3PCS)
M2.5 X 5 (1PC Pop-open Screw)
Model
E17243_G513_G533_Upgrade_Guide.indd 4E17243_G513_G533_Upgrade_Guide.indd 4 1/19/2021 6:22:14 PM1/19/2021 6:22:14 PM
4
Notebook PC Upgrade Guide
Installing a RAM module
Upgrade the memory capacity of your Notebook PC by installing
a RAM (Random Access Memory) module in the memory module
compartment. The following steps show you how to install a RAM
module into your Notebook PC:
WARNING! Disconnect all the connected peripherals, any telephone or
telecommunication lines and power connector (such as external power
supply, battery pack, etc.) before removing the compartment cover.
IMPORTANT! Visit an authorized service center or retailer for information
on RAM module upgrades for your Notebook PC. Purchase RAM modules
from authorized retailers of this Notebook PC to ensure maximum
compatibility and reliability.
NOTE:
• The appearance of your Notebook PC’s bottom view and RAM
module may vary per model but the RAM module installation
remains the same.
• It is recommended that you install the RAM module under
professional supervision. You may also visit an authorized service
center for further assistance.
E17243_G513_G533_Upgrade_Guide.indd 5E17243_G513_G533_Upgrade_Guide.indd 5 1/19/2021 6:22:14 PM1/19/2021 6:22:14 PM
5
Notebook PC Upgrade Guide
A. Remove the compartment cover.
NOTE: For more details, refer to the Removing the compartment cover
section in this manual.
B. Align and insert the RAM module into the RAM module slot.
C. Push down the RAM module until it clicks in place.
30° angle
notches
E17243_G513_G533_Upgrade_Guide.indd 6E17243_G513_G533_Upgrade_Guide.indd 6 1/19/2021 6:22:15 PM1/19/2021 6:22:15 PM
6
Notebook PC Upgrade Guide
Installing an M.2 card
Refer to the following steps when installing a compatible M.2 card in
your Notebook PC:
IMPORTANT! Purchase your M.2 card from authorized retailers of this
Notebook PC to ensure maximum compatibility and reliability.
WARNING! Disconnect all the connected peripherals, any telephone or
telecommunication lines and power connector (such as external power
supply, battery pack, etc.) before removing the compartment cover.
NOTE:
• The appearance of your Notebook PC’s bottom view and M.2 card
may vary per model but the module installation remains the same.
• It is recommended that you install the M.2 card under professional
supervision. You may also visit an authorized service center for
further assistance.
• The M.2 2280 slot does not support M.2 SATA SSD.
E17243_G513_G533_Upgrade_Guide.indd 7E17243_G513_G533_Upgrade_Guide.indd 7 1/19/2021 6:22:15 PM1/19/2021 6:22:15 PM
7
Notebook PC Upgrade Guide
A. Remove the compartment cover.
NOTE: For more details, refer to the Removing the compartment cover
section in this manual.
B. Align and insert the M.2 card into its card module slot.
C. Secure the M.2 card in place using the bundled screw(s).
E17243_G513_G533_Upgrade_Guide.indd 8E17243_G513_G533_Upgrade_Guide.indd 8 1/19/2021 6:22:15 PM1/19/2021 6:22:15 PM
8
