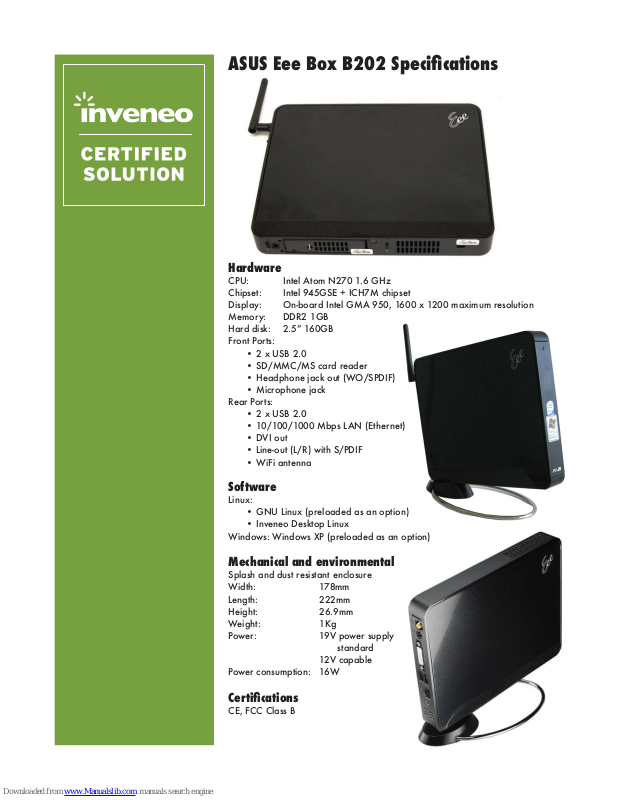

ASUS Eee Box B202 Specifi cations
Hardware
CPU: Intel Atom N270 1.6 GHz
Chipset: Intel 945GSE + ICH7M chipset
Display: On-board Intel GMA 950, 1600 x 1200 maximum resolution
Memory: DDR2 1GB
Hard disk: 2.5” 160GB
Front Ports:
• 2 x USB 2.0
• SD/MMC/MS card reader
• Headphone jack out (WO/SPDIF)
• Microphone jack
Rear Ports:
• 2 x USB 2.0
• 10/100/1000 Mbps LAN (Ethernet)
• DVI out
• Line-out (L/R) with S/PDIF
• WiFi antenna
Software
Linux:
• GNU Linux (preloaded as an option)
• Inveneo Desktop Linux
Windows: Windows XP (preloaded as an option)
Mechanical and environmental
Splash and dust resistant enclosure
Width: 178mm
Length: 222mm
Height: 26.9mm
Weight: 1Kg
Power: 19V power supply
standard
12V capable
Power consumption: 16W
Certifi cations
CE, FCC Class B
