ASUS CUV4XC User Manual

Download

Page 1

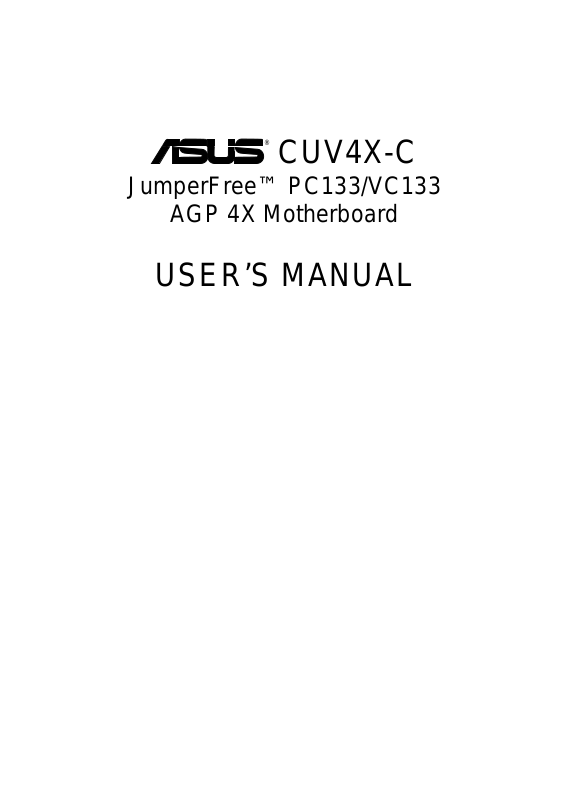

CUV4X-C

JumperFree™ PC133/VC133

AGP 4X Motherboard

USER’S MANUAL

Page 2

USER'S NOTICE

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED T O THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A P ARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DA TA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

• VIA and Apollo Pro133A are trademarks of VIA Technologies, Inc.

• Intel, LANDesk, Pentium, and Celeron are trademarks of Intel Corporation.

• IBM and OS/2 are registered trademarks of International Business Machines.

• Symbios is a registered trademark of Symbios Logic Corporation.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.

The product name and revision number are both printed on the product itself. Manual revisions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number.

For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www .asus.com.tw or through any of the means indicated on the following page.

SPECIFICA TIONS AND INFORMA TION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMA TIONAL USE ONL Y, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Product Name: ASUS CUV4X-C Manual Revision: 1.00 E634 Release Date: November 2000

ASUS CUV4X-C User’s Manual

Page 3

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC. (Asia-Pacific)

Marketing

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 Telephone: +886-2-2894-3447 Fax: +886-2-2894-3449 Email: [email protected]

Technical Support

MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server (Tel): +886-2-2890-7123 (English) Fax: +886-2-2893-7775 Email: [email protected] WWW: www.asus.com.tw FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL (America)

Marketing

Address: 6737 Mowry Avenue, Mowry Business Center, Building 2

Newark, CA 94560, USA Fax: +1-510-608-4555 Email: [email protected]

Technical Support

Fax: +1-510-608-4555 Email: [email protected] WWW: www.asus.com FTP: ftp.asus.com/Pub/ASUS

ASUS COMPUTER GmbH (Europe)

Marketing

Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany Fax: +49-2102-442066 Email: [email protected] (for marketing requests only)

Technical Support

Hotline: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10 Fax: +49-2102-9599-11 Support (Email): www.asuscom.de/de/support (for online support) WWW: www.asuscom.de FTP: ftp.asuscom.de/pub/ASUSCOM

ASUS CUV4X-C User’s Manual 3

Page 4

CONTENTS

1. INTRODUCTION ............................................................................. 7

1.1 How This Manual Is Organized ................................................... 7

1.2 Item Checklist .............................................................................. 7

2. FEATURES ........................................................................................ 8

2.1 ASUS CUV4X-C Motherboard ................................................... 8

2.1.1 Specifications ..................................................................... 8

2.1.2 Special Features................................................................ 10

2.1.3 Performance Features ....................................................... 10

2.1.4 Intelligence ....................................................................... 11

2.2 Motherboard Components.......................................................... 12

2.2.1 Component Locations....................................................... 13

3. HARDWARE SETUP ...................................................................... 14

3.1 Motherboard Layout .................................................................. 14

3.2 Layout Contents ......................................................................... 15

3.3 Hardware Setup Procedure......................................................... 16

3.4 Motherboard Settings ................................................................. 16

3.5 System Memory ......................................................................... 21

3.5.1 General DIMM Notes....................................................... 21

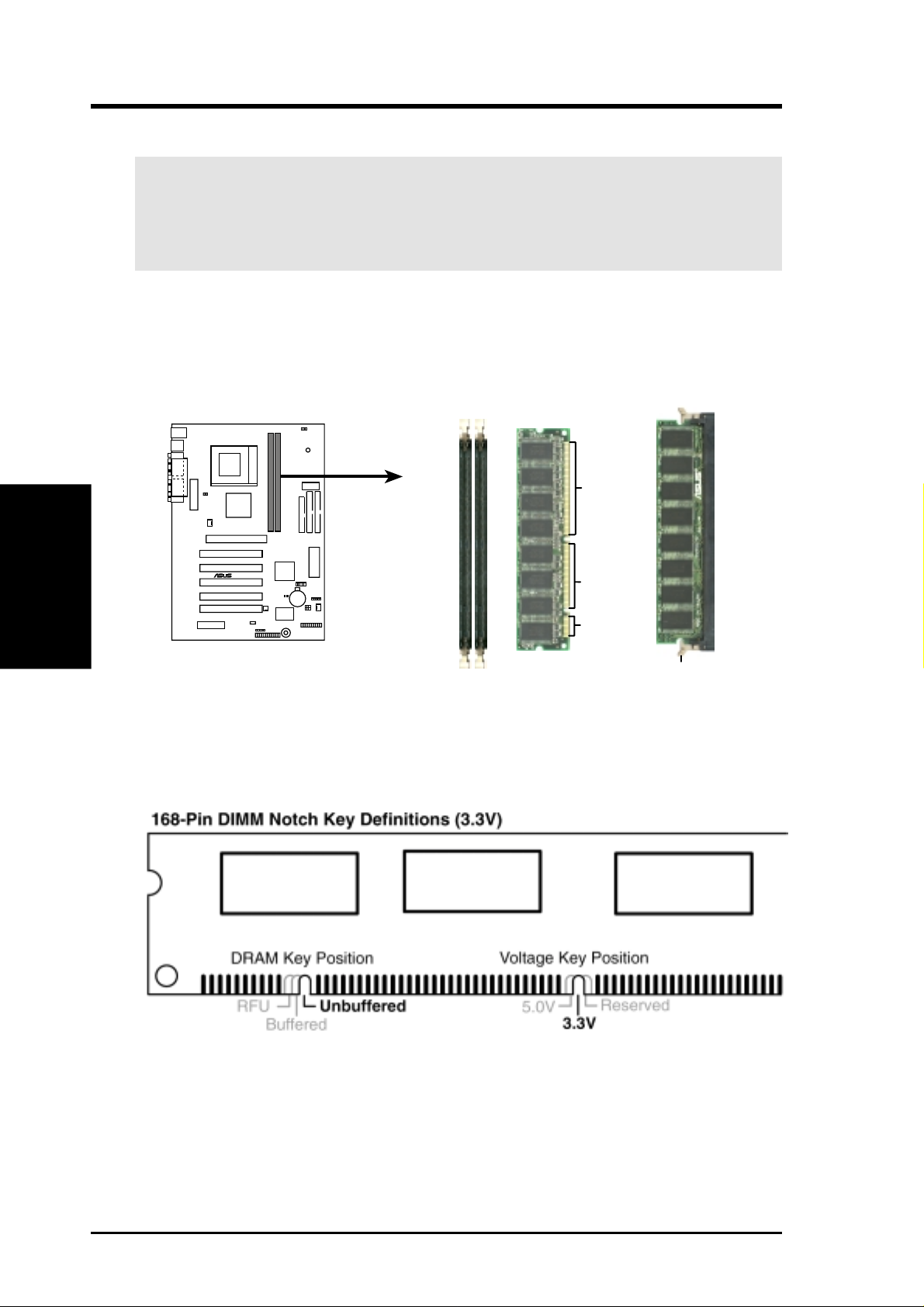

3.5.2 Memory Installation ......................................................... 22

3.6 Central Processing Unit (CPU) .................................................. 23

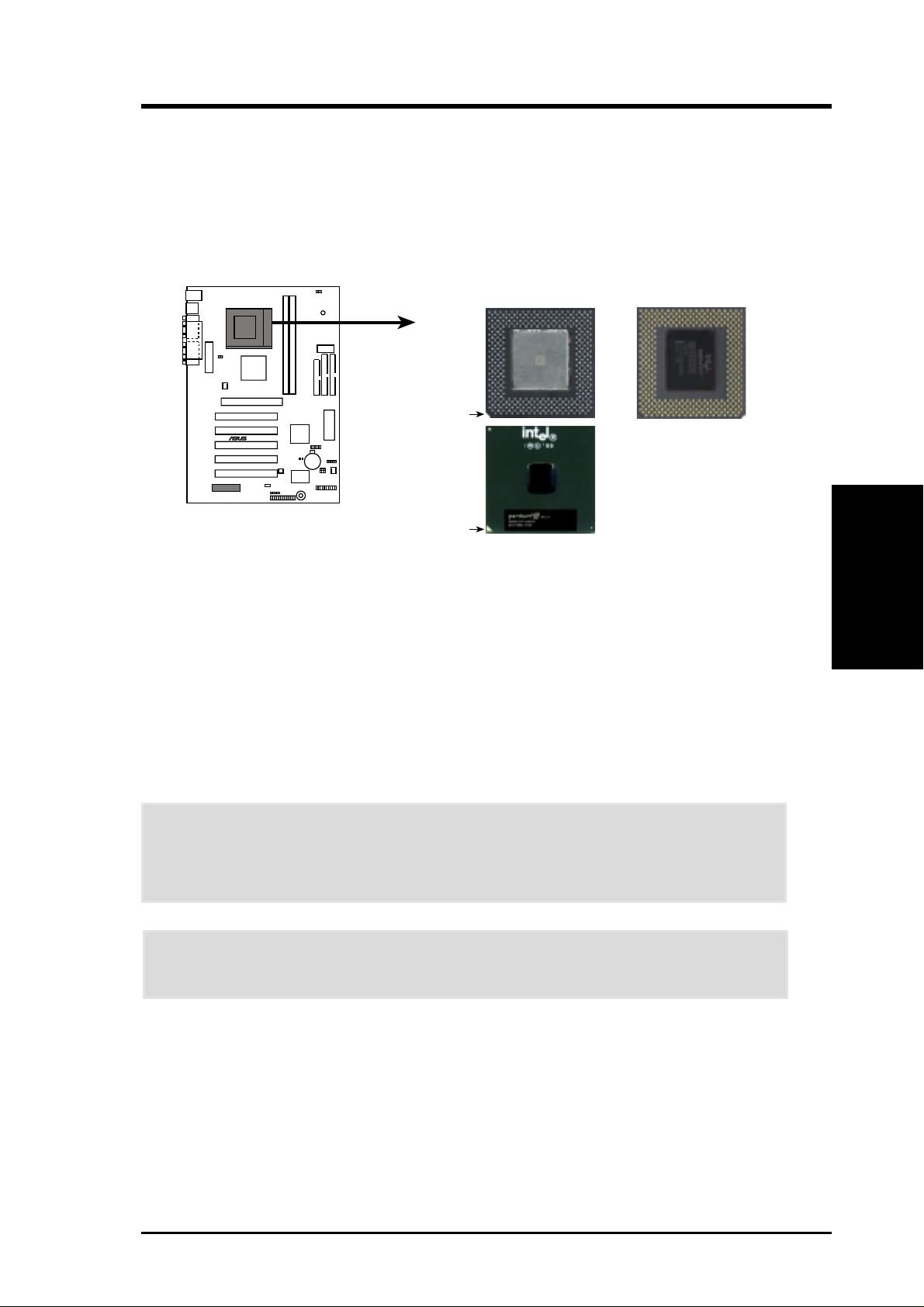

3.6.1 CPU Installation ............................................................... 24

3.7 Expansion Cards ........................................................................ 25

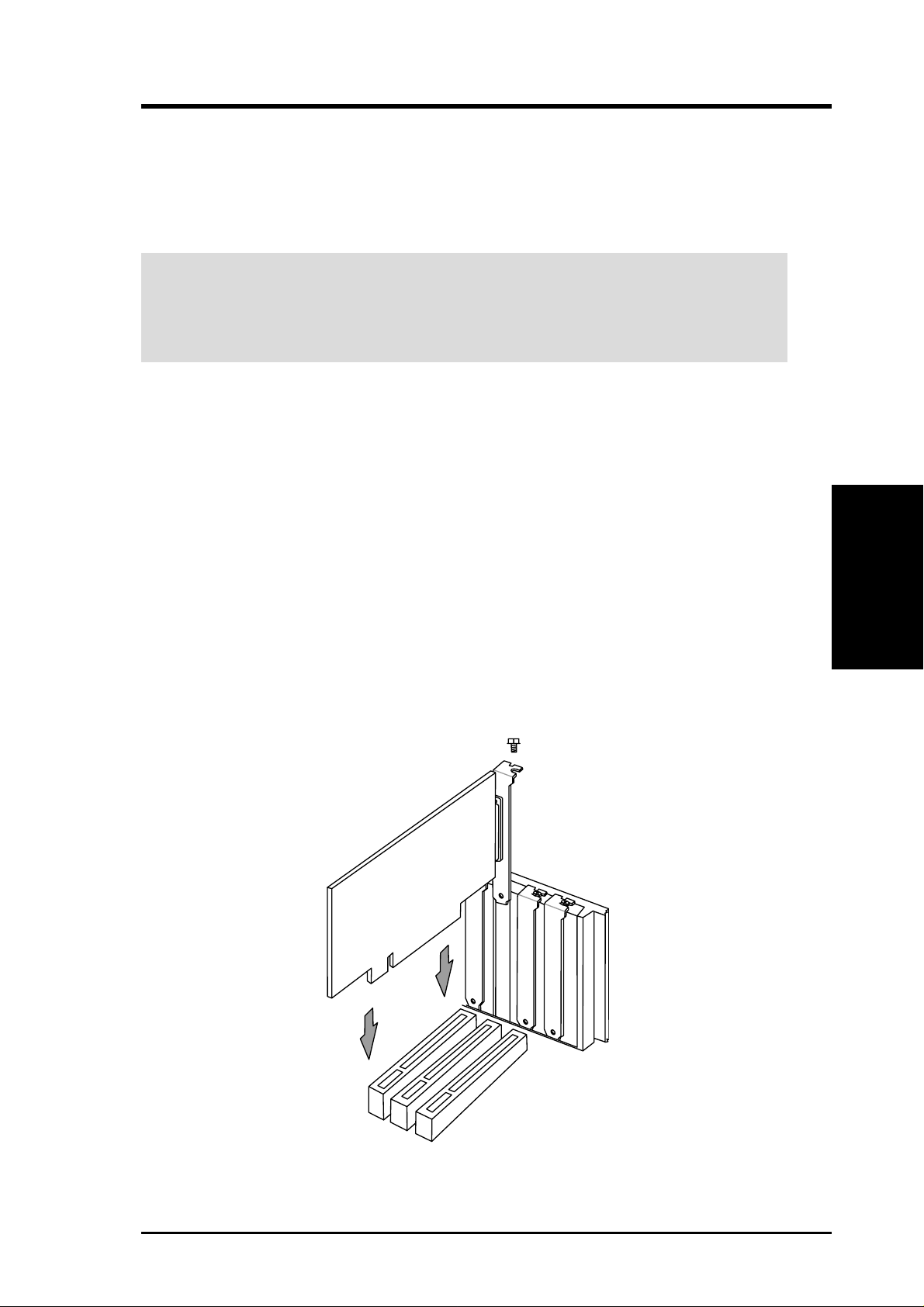

3.7.1 Installing an Expansion Card ........................................... 25

3.7.2 Assigning IRQs for Expansion Cards .............................. 26

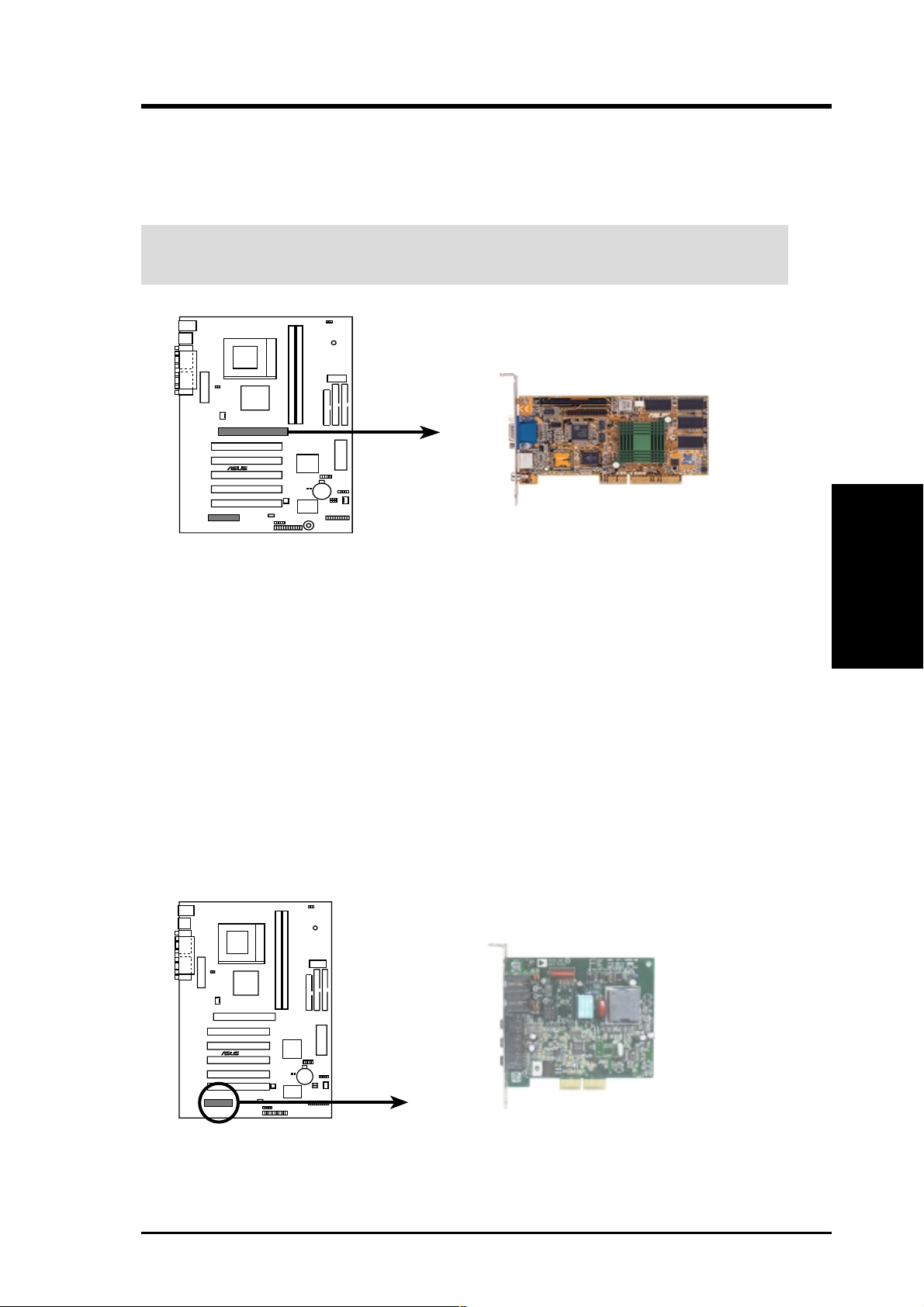

3.7.3 Accelerated Graphics Port (AGP) .................................... 27

3.7.4 Audio Modem Riser (AMR) Slot ..................................... 27

3.8 Connectors ................................................................................ 29

3.8.1 External Connectors ......................................................... 29

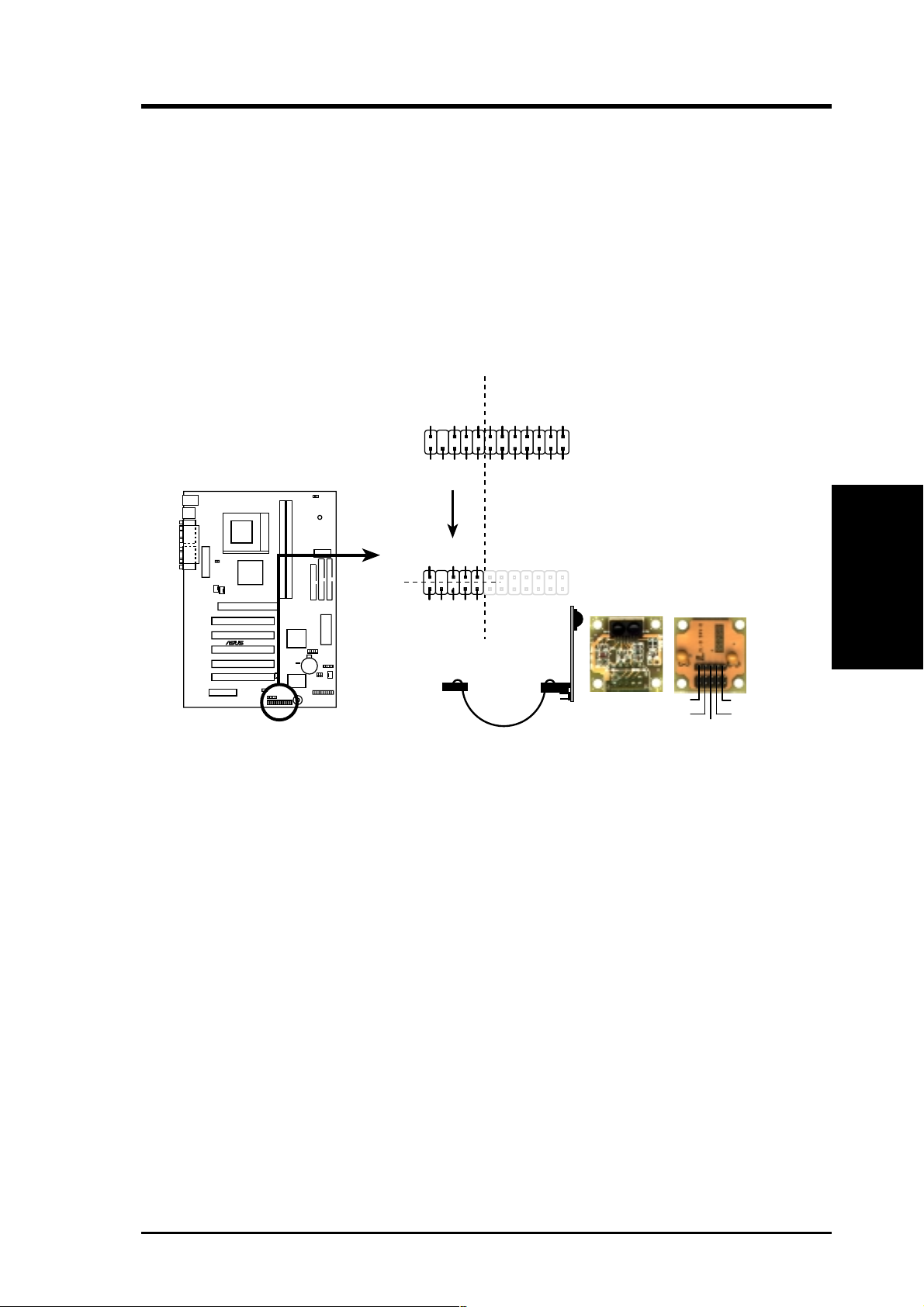

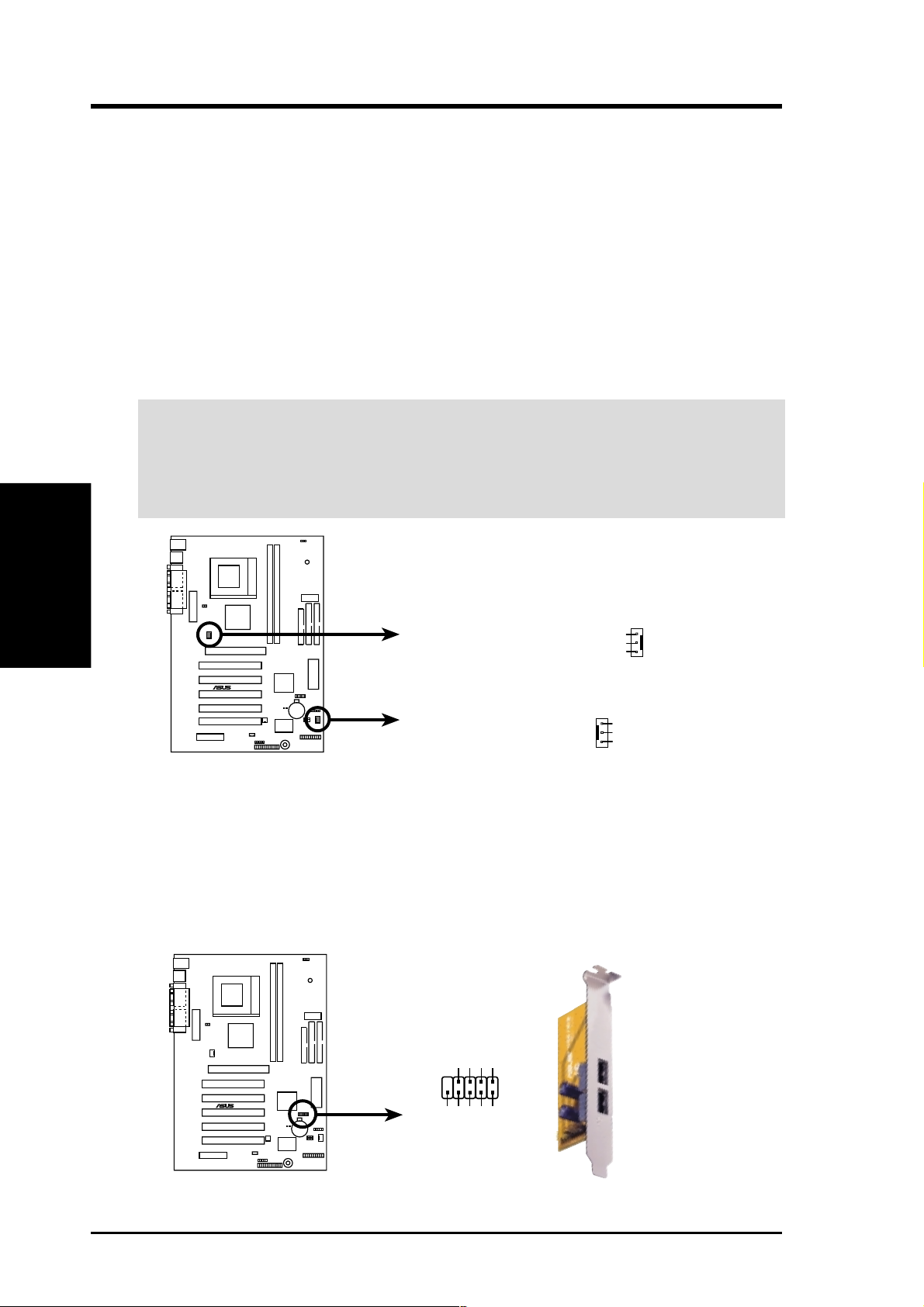

3.8.2 Internal Connectors .......................................................... 31

3.9 Starting Up the First Time.......................................................... 39

ASUS CUV4X-C User’s Manual

Page 5

CONTENTS

4. BIOS SETUP..................................................................................... 41

4.1 Managing and Updating Your BIOS .......................................... 41

4.1.1 Upon First Use of the Computer System.......................... 41

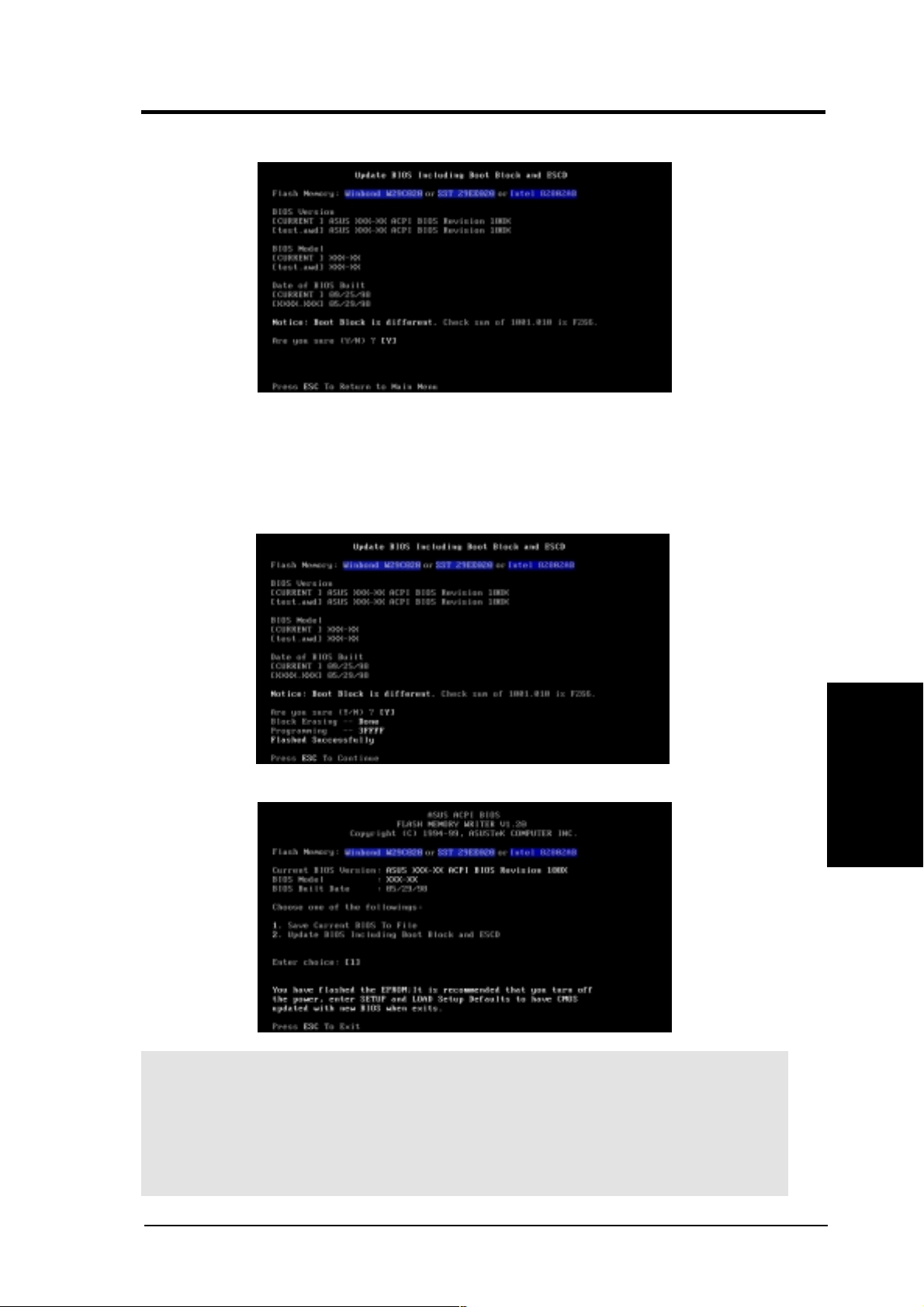

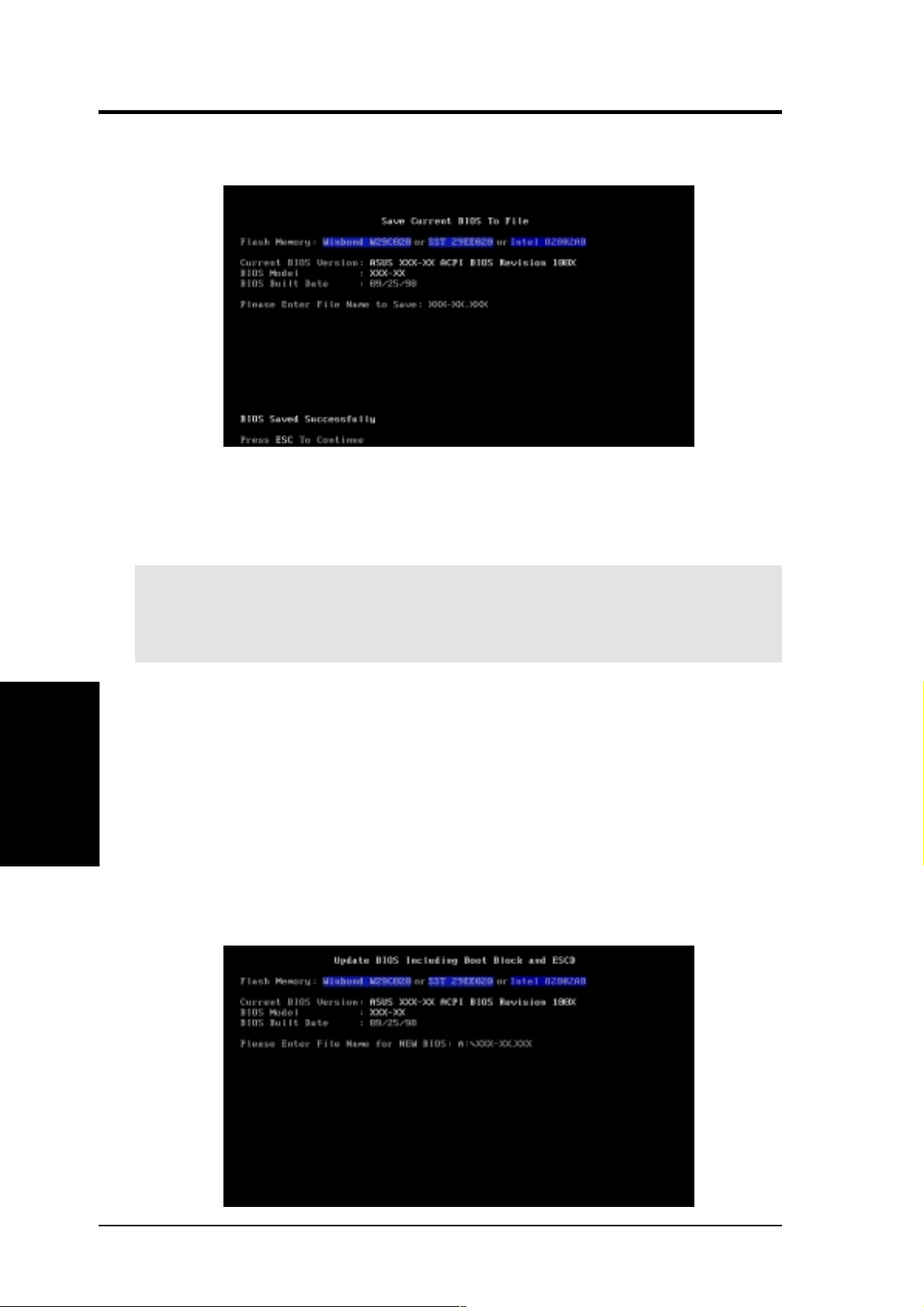

4.1.2 Updating BIOS Procedures .............................................. 42

4.2 BIOS Setup Program.................................................................. 45

4.2.1 BIOS Menu Bar................................................................ 46

4.2.2 Legend Bar ....................................................................... 46

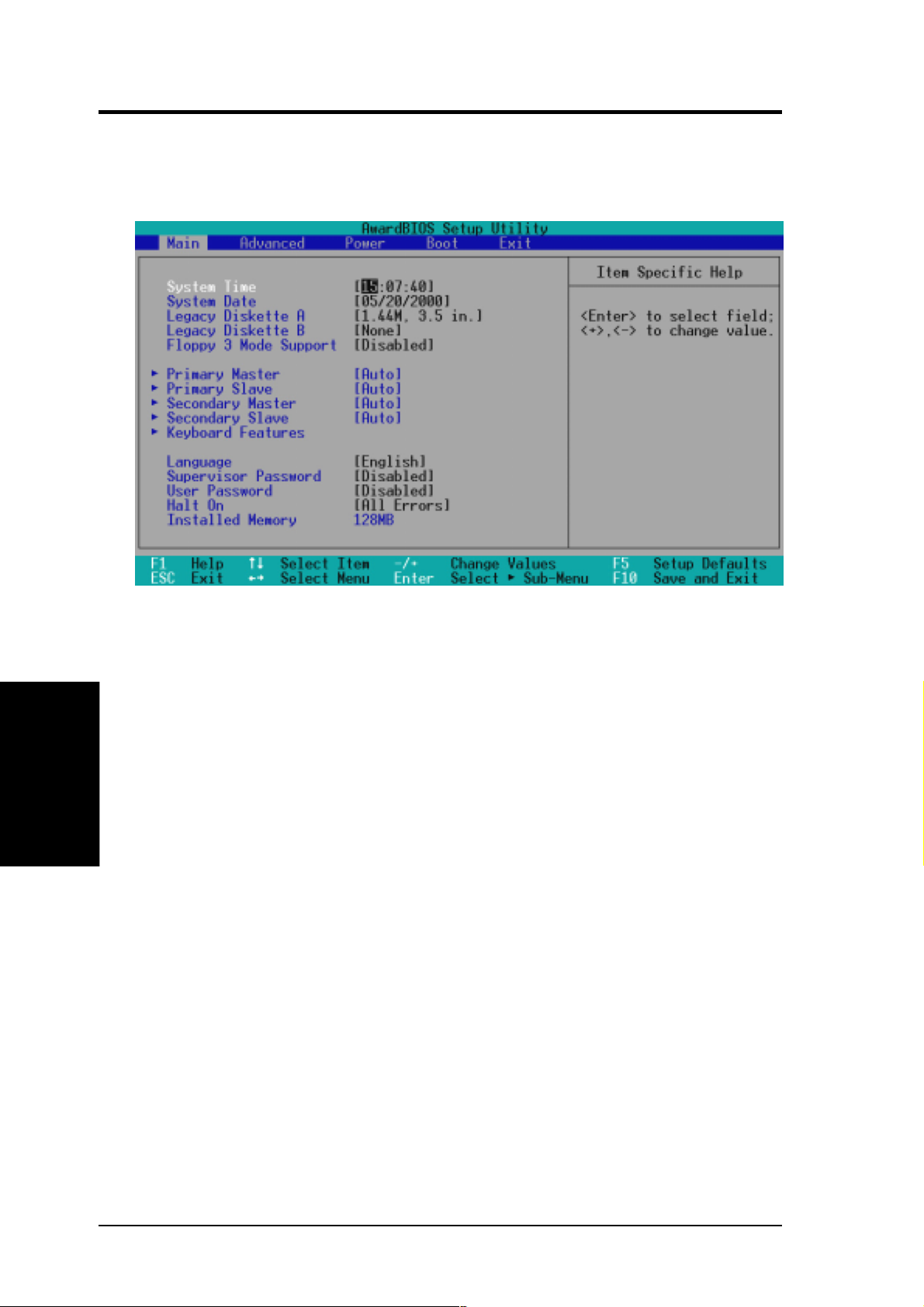

4.3 Main Menu................................................................................. 48

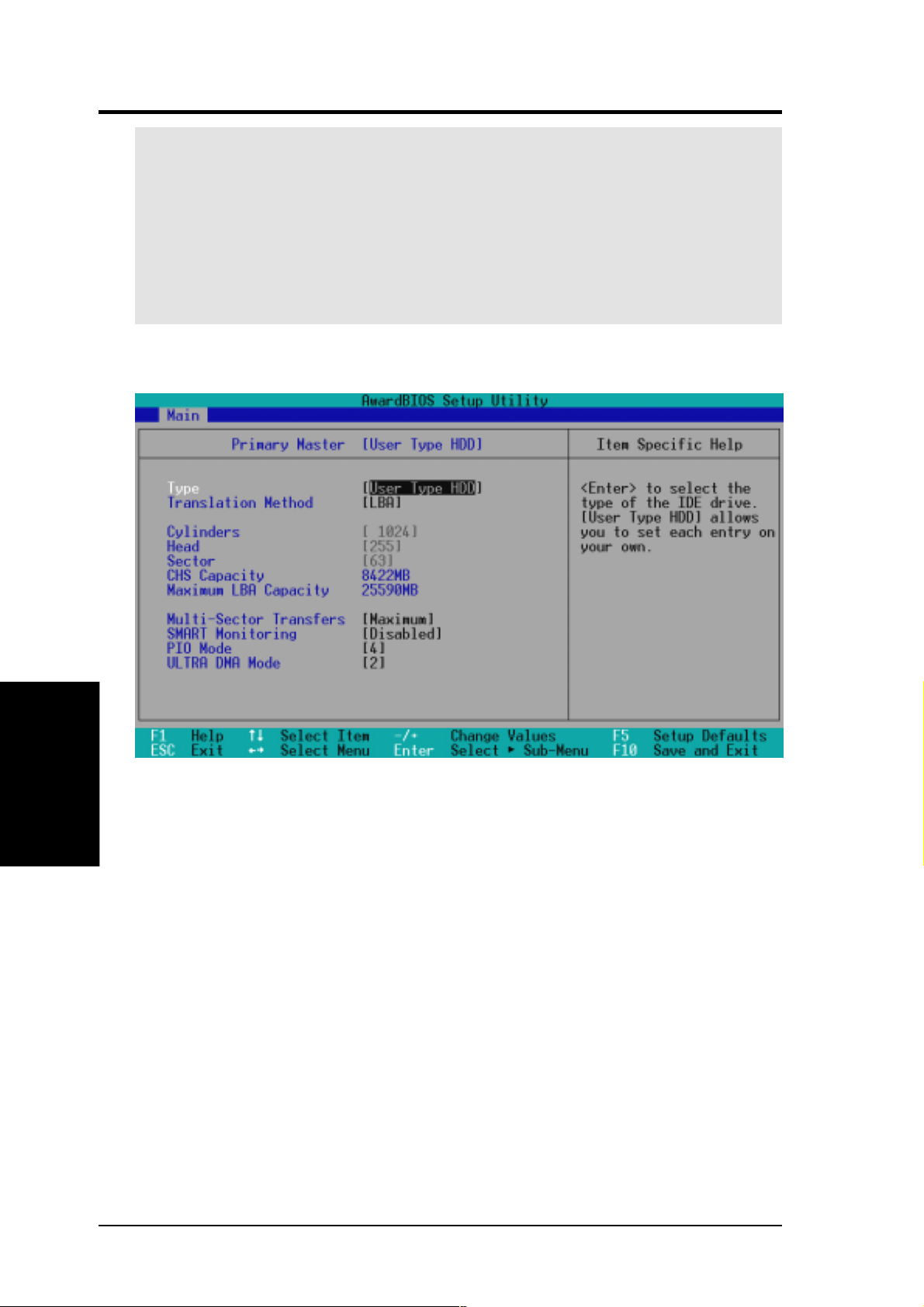

4.3.1 Primary & Secondary Master/Slave ................................. 49

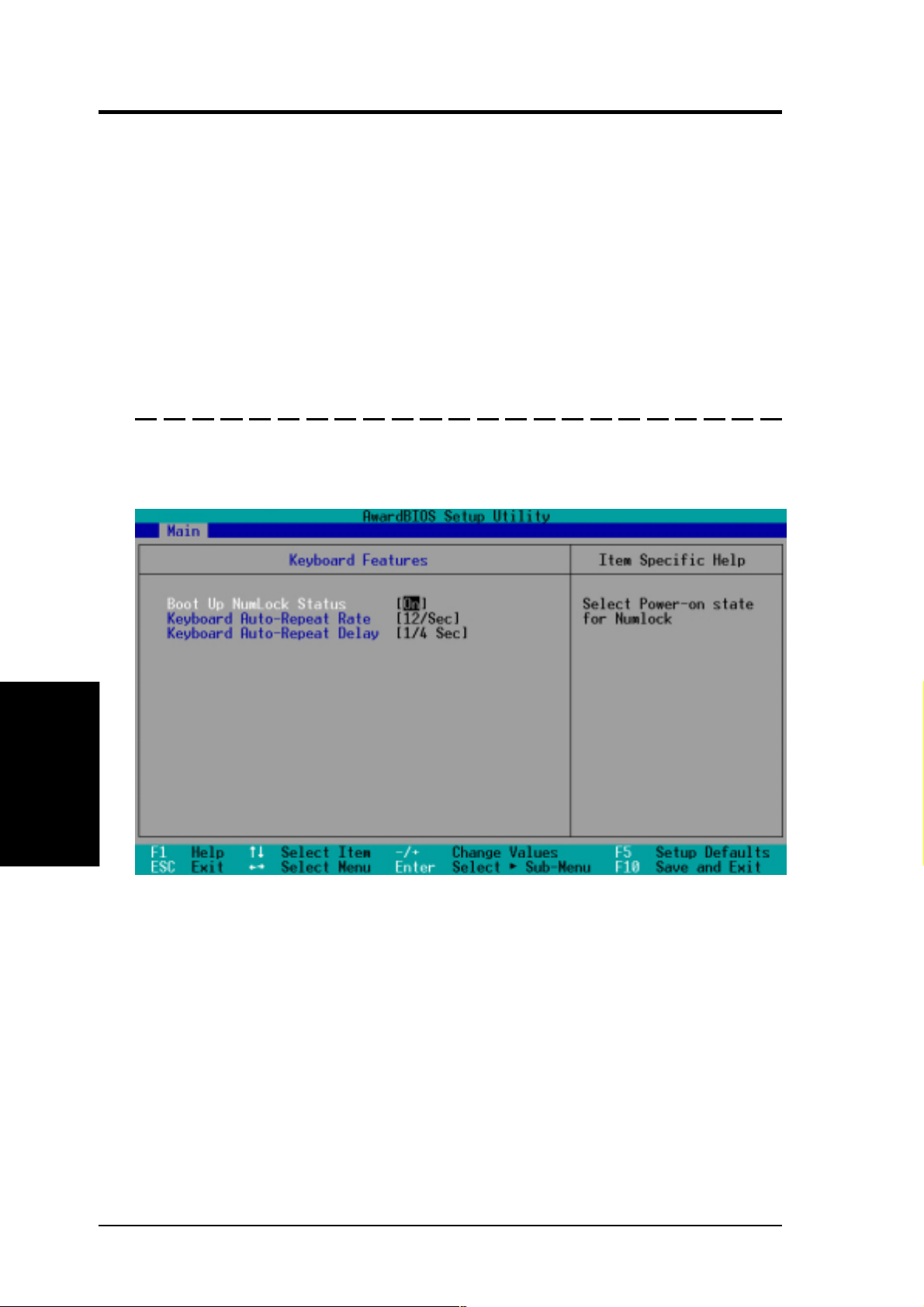

4.3.2 Keyboard Features............................................................ 52

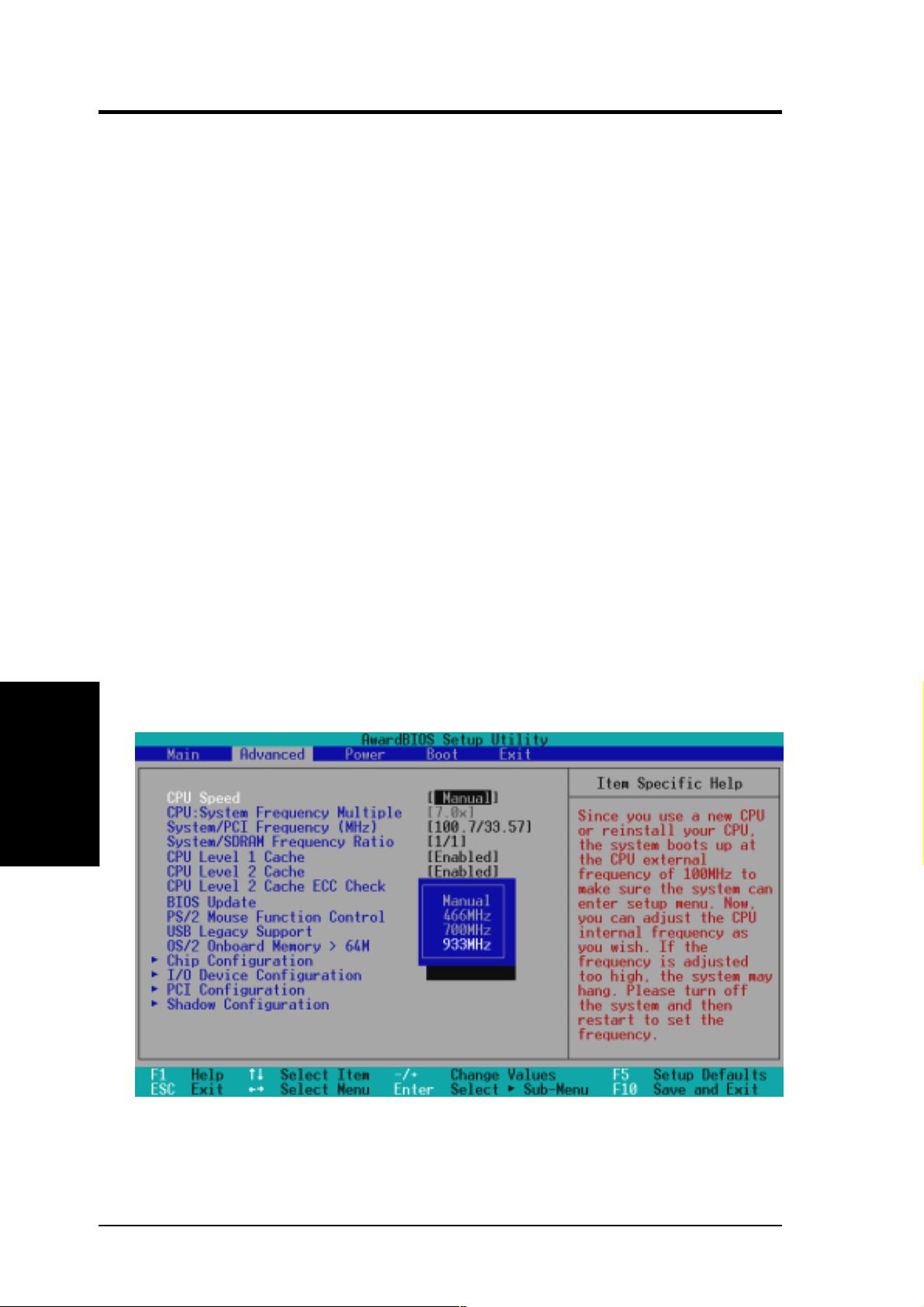

4.4 Advanced Menu ......................................................................... 54

4.4.1 Chip Configuration........................................................... 58

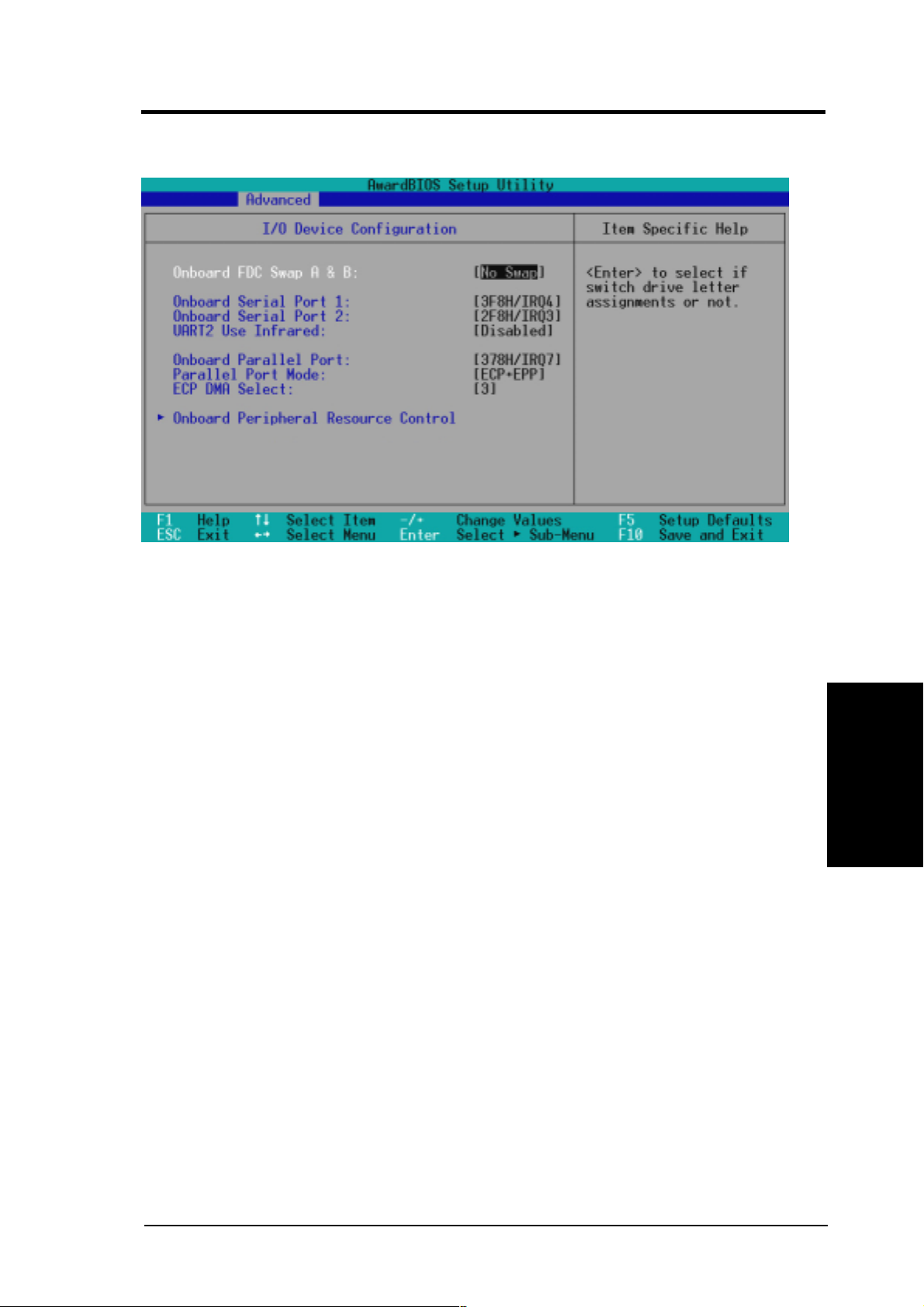

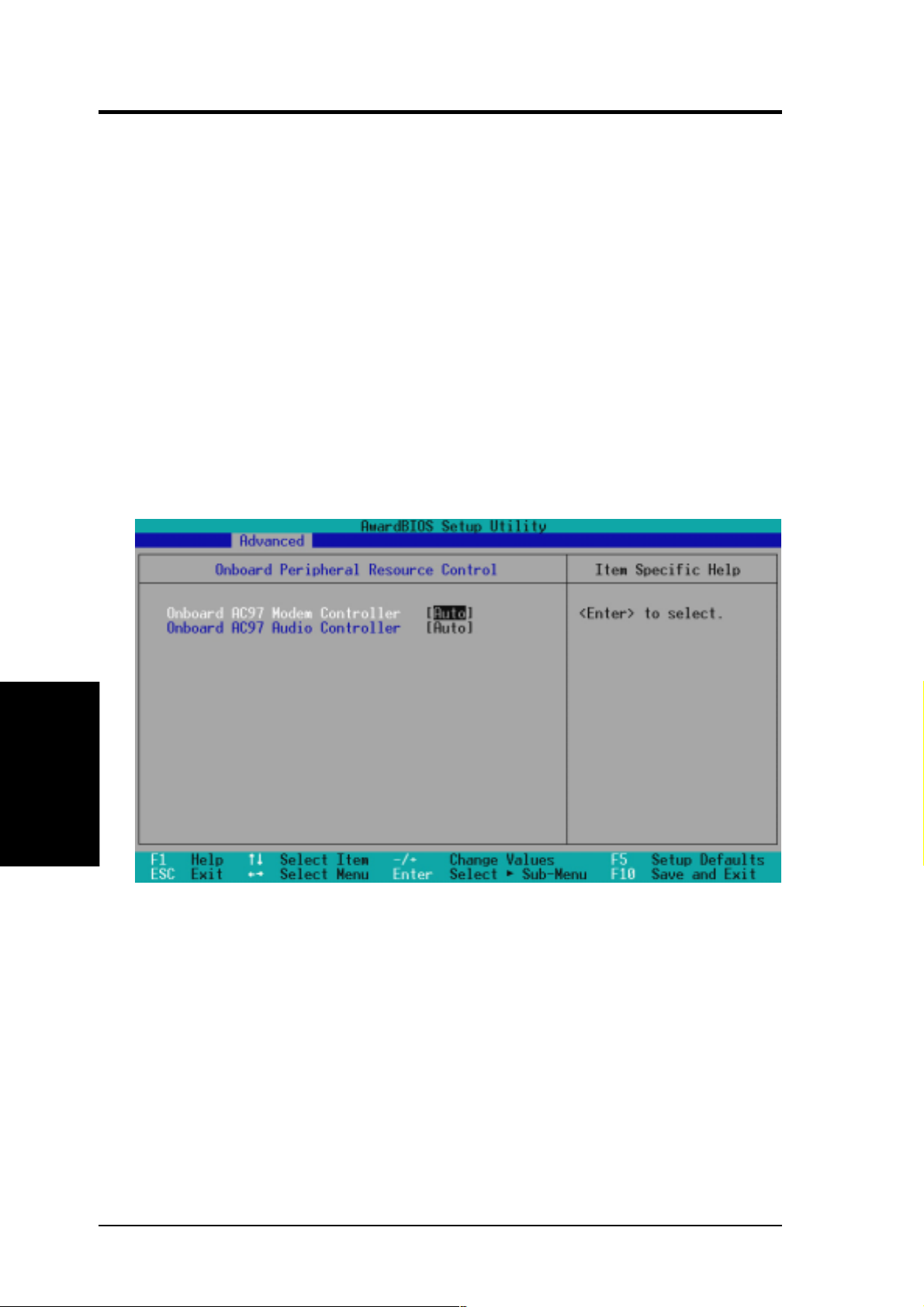

4.4.2 I/O Device Configuration ................................................. 61

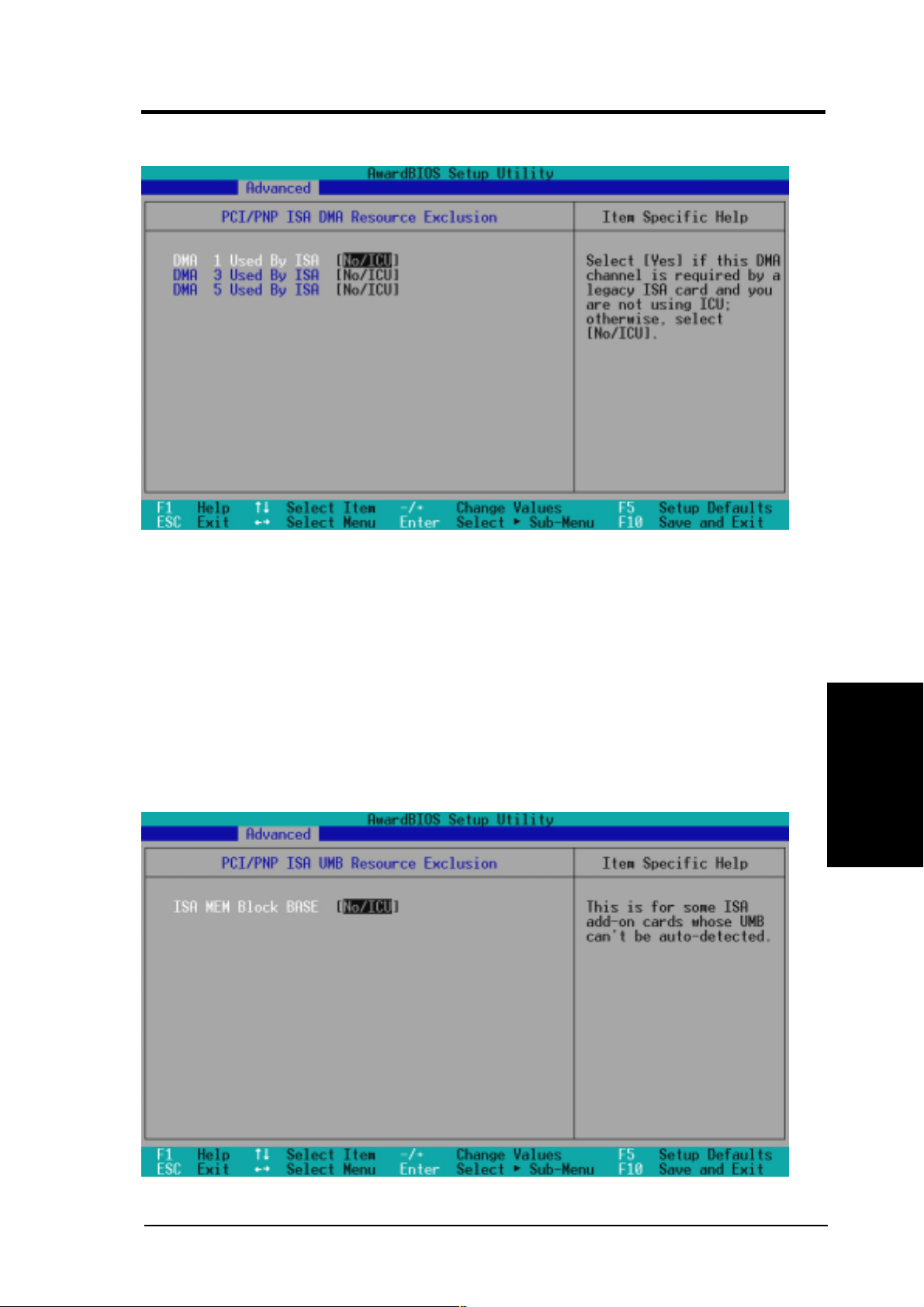

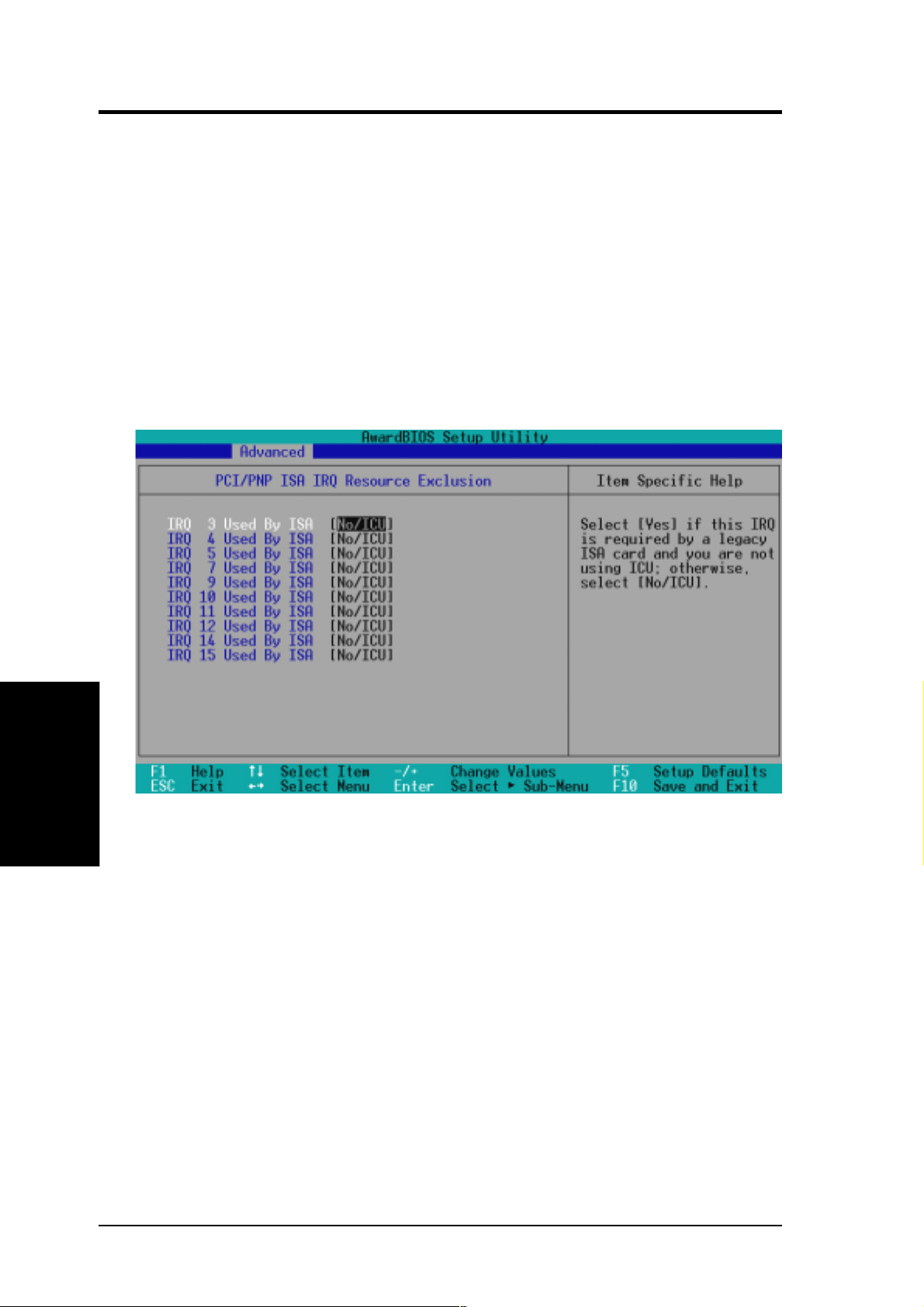

4.4.3 PCI Configuration ............................................................ 63

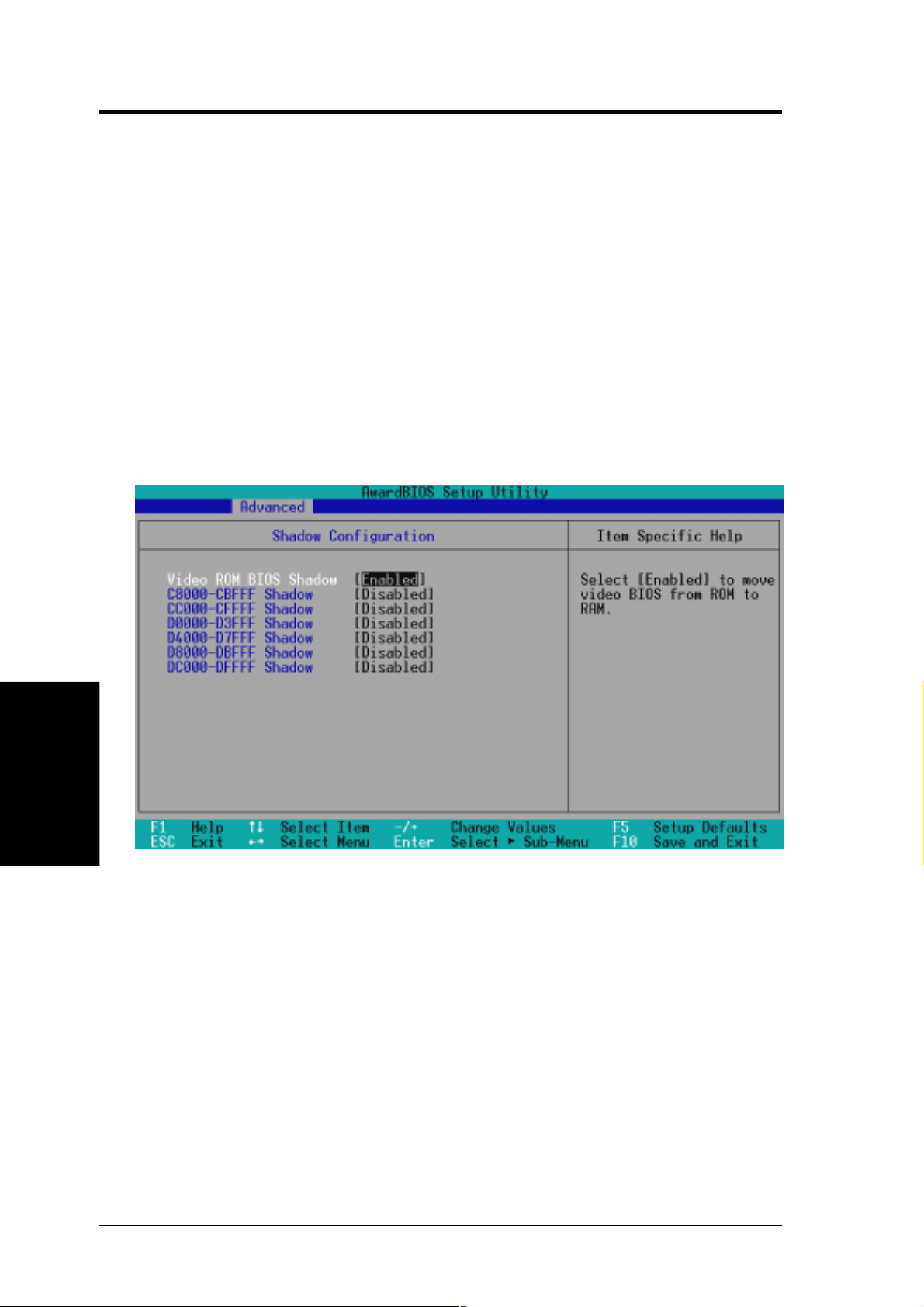

4.4.4 Shadow Configuration ...................................................... 66

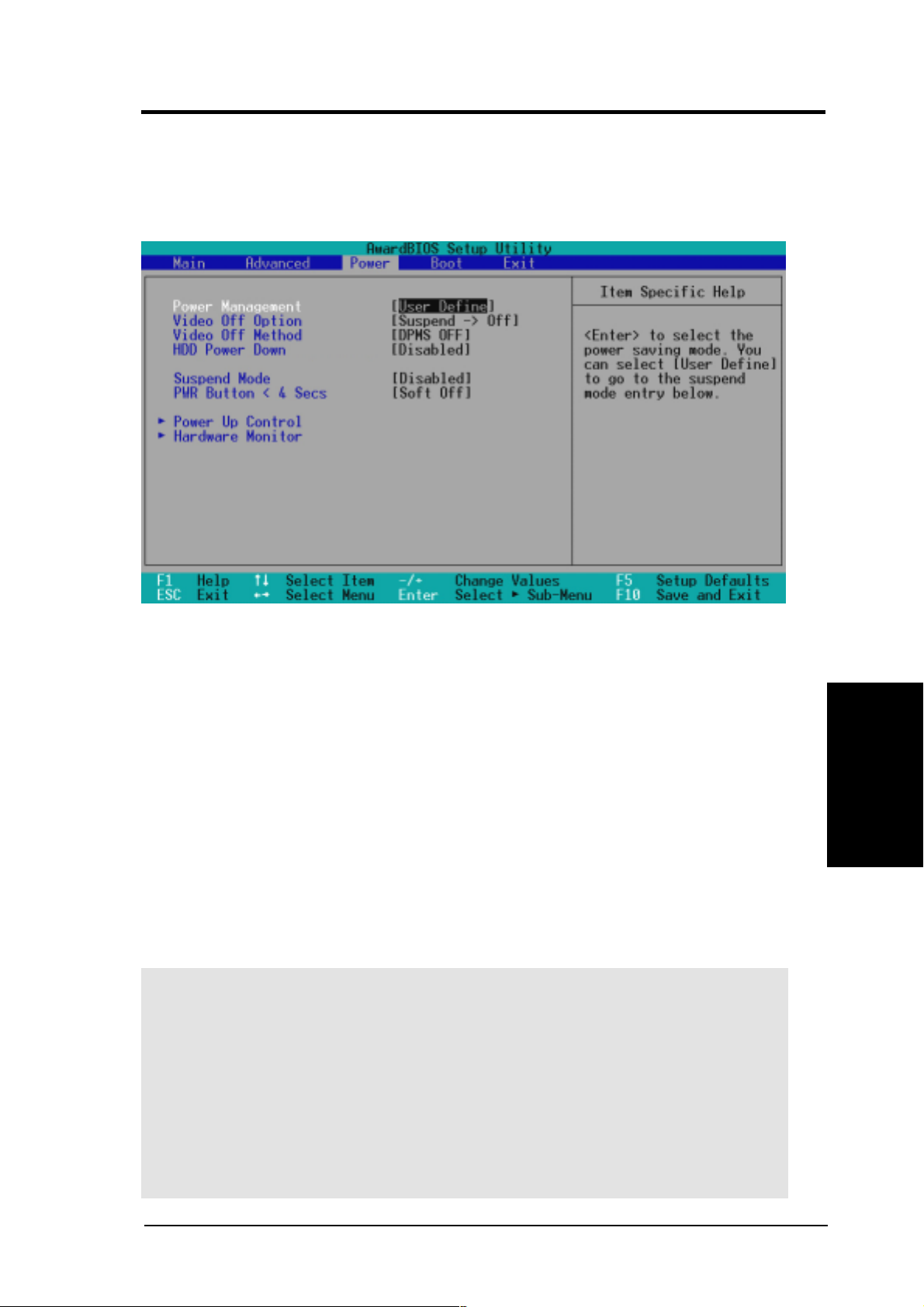

4.5 Power Menu ............................................................................... 67

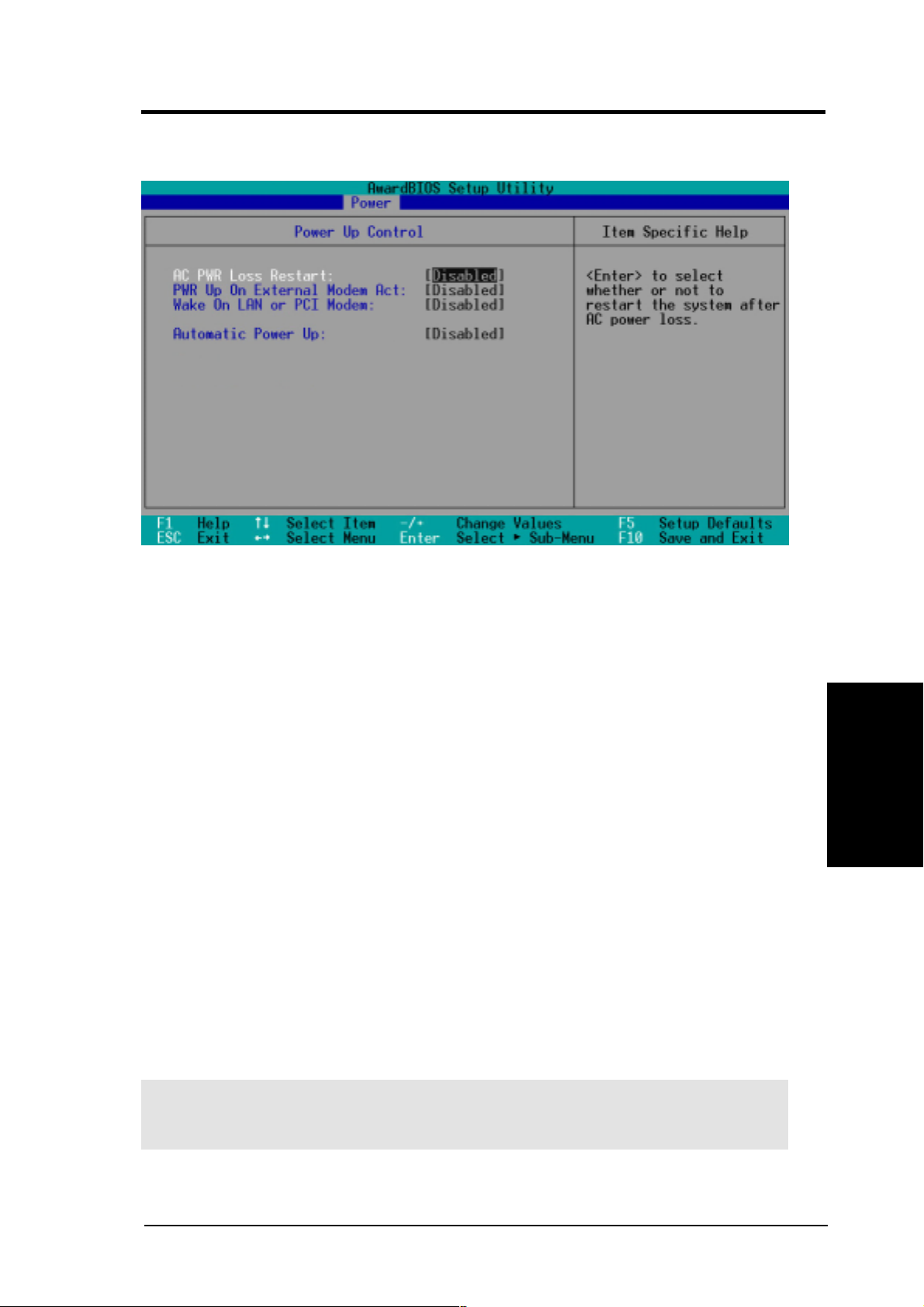

4.5.1 Power Up Control............................................................. 69

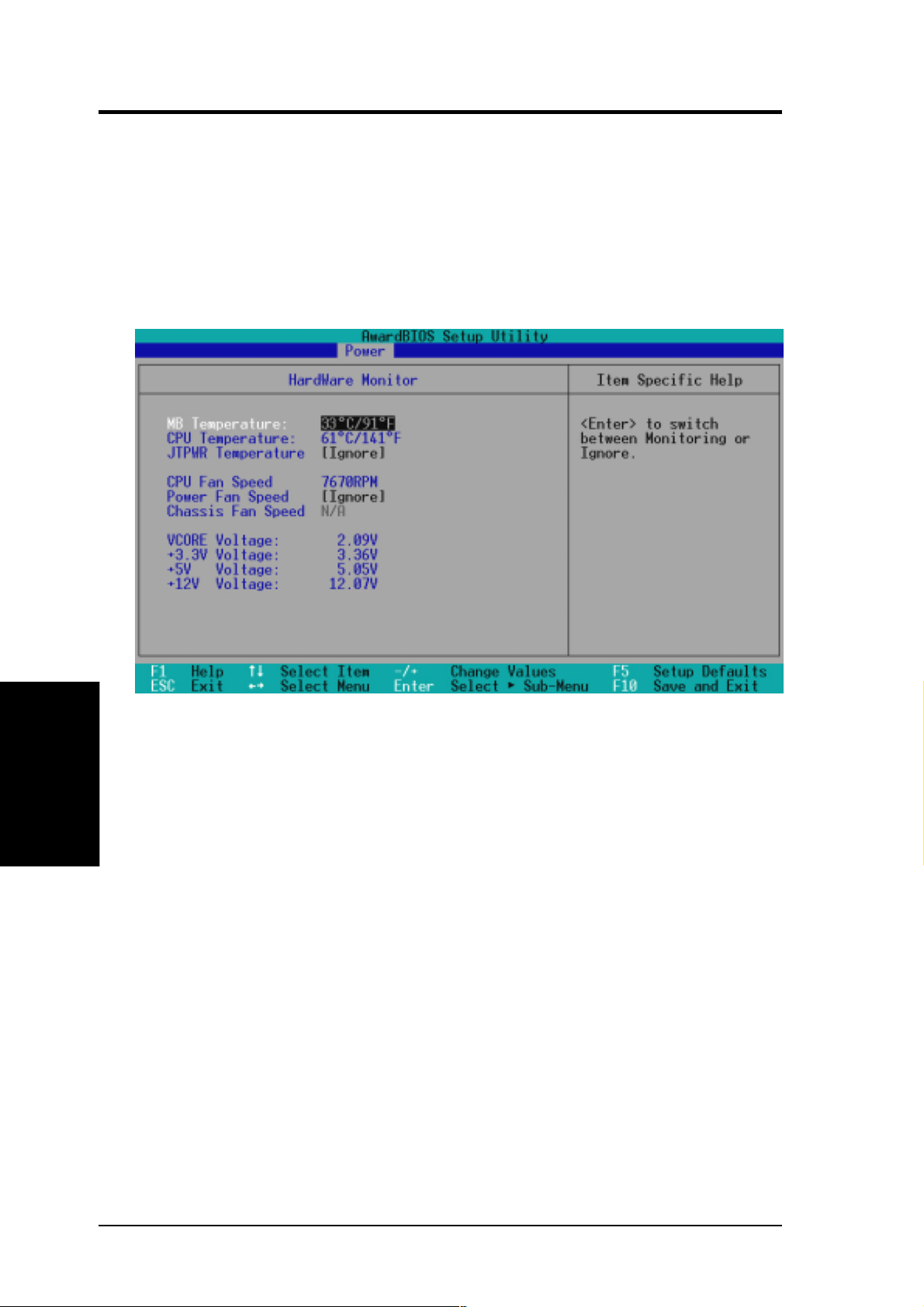

4.5.2 Hardware Monitor ............................................................ 70

4.6 Boot Menu ................................................................................. 71

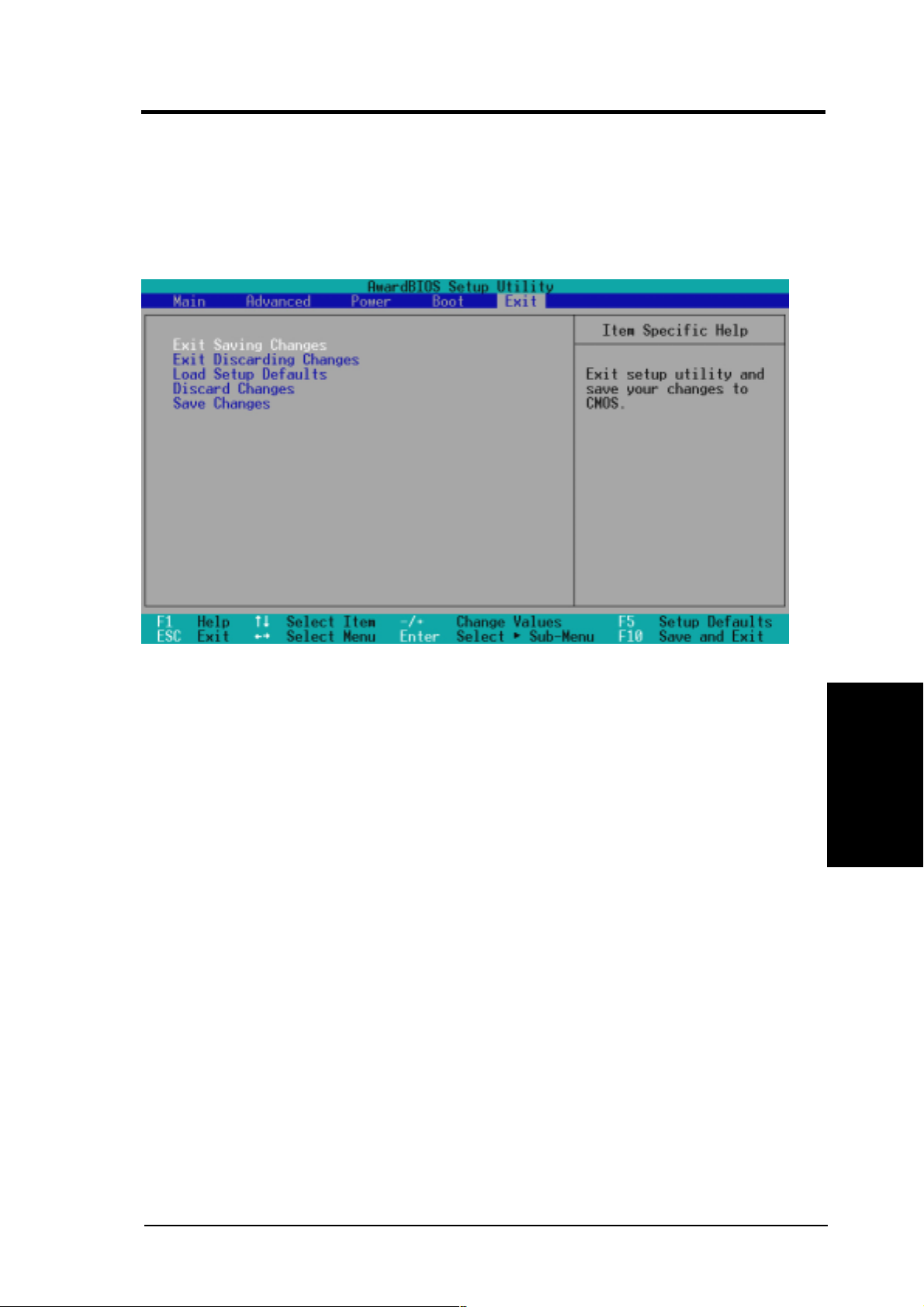

4.7 Exit Menu................................................................................... 73

5. SOFTWARE SETUP....................................................................... 75

5.1 Operating Systems ..................................................................... 75

5.1.1 Windows 98 First Time Installation ................................. 75

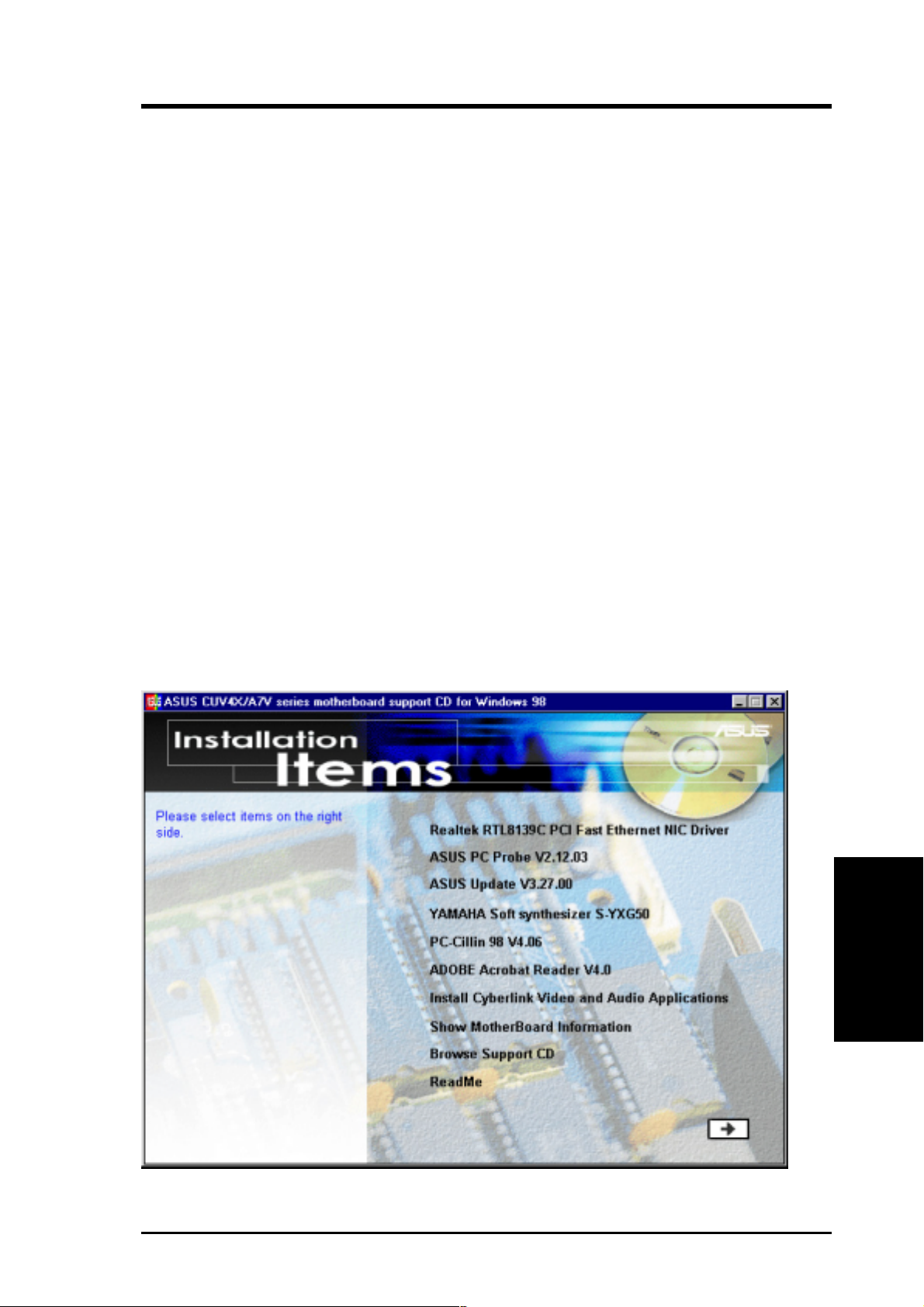

5.2 CUV4X-C Motherboard Support CD ........................................ 75

5.2.1 Installation Menu.............................................................. 75

5.2.2 Applications...................................................................... 76

6. SOFTWARE REFERENCE ........................................................... 77

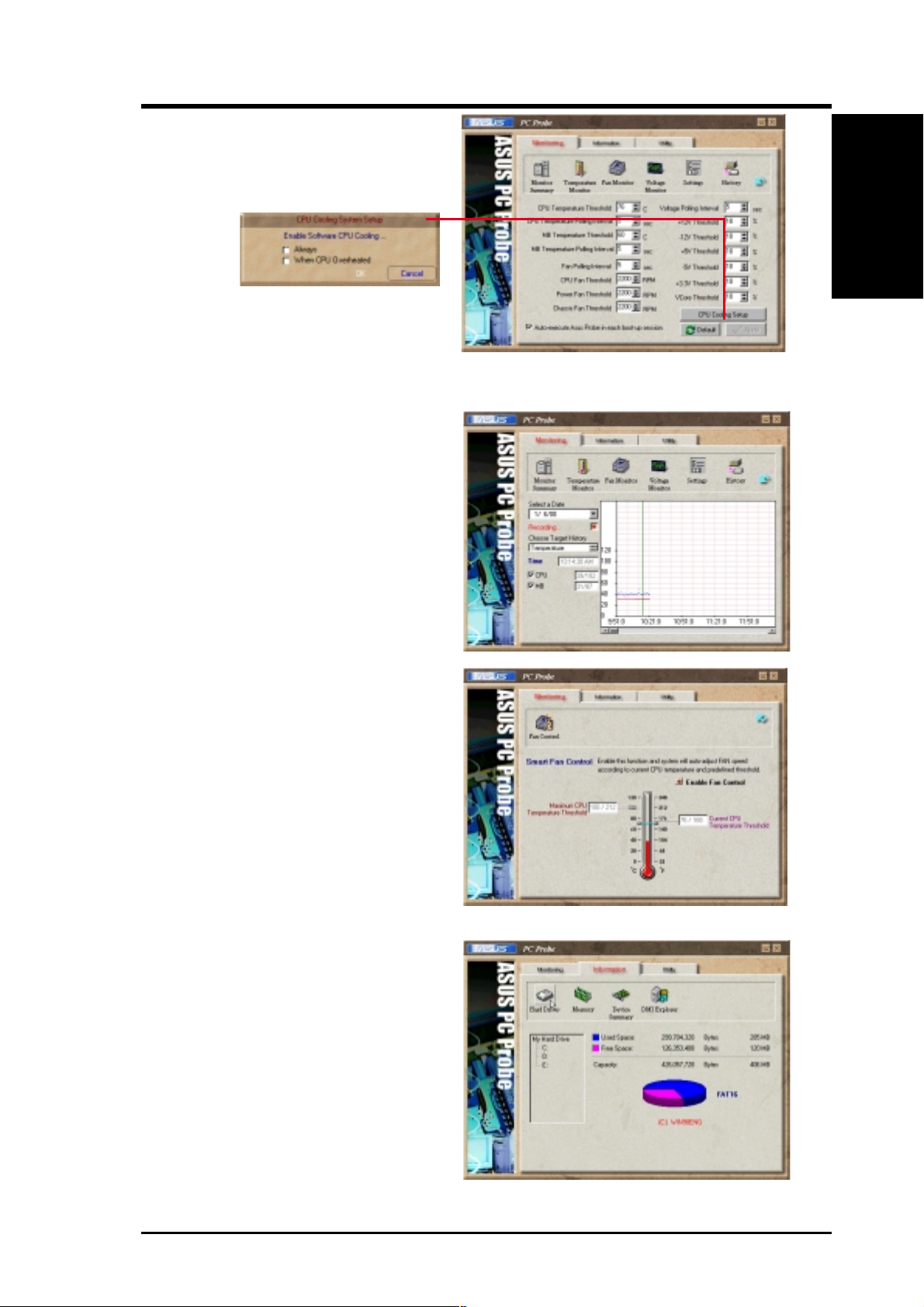

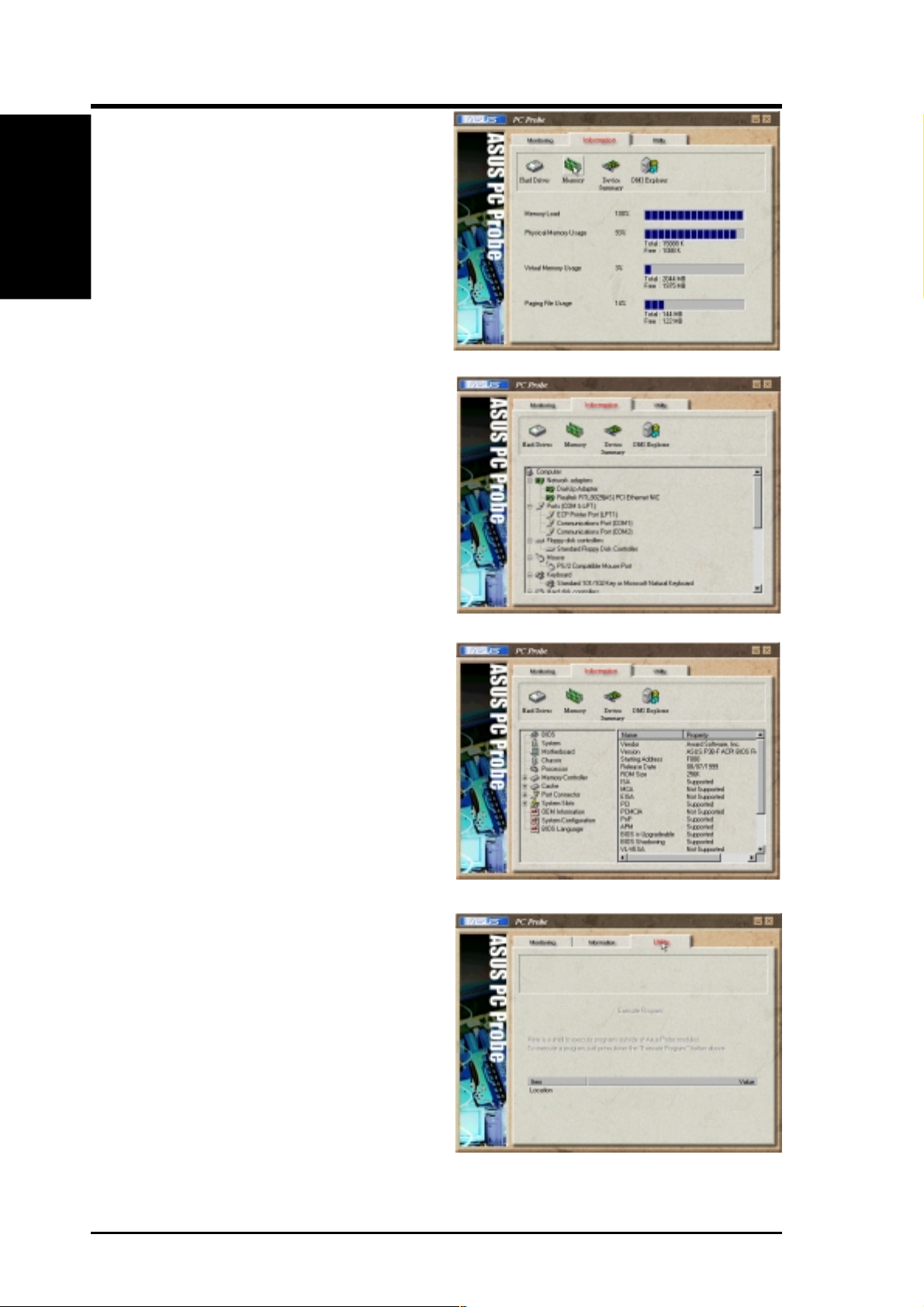

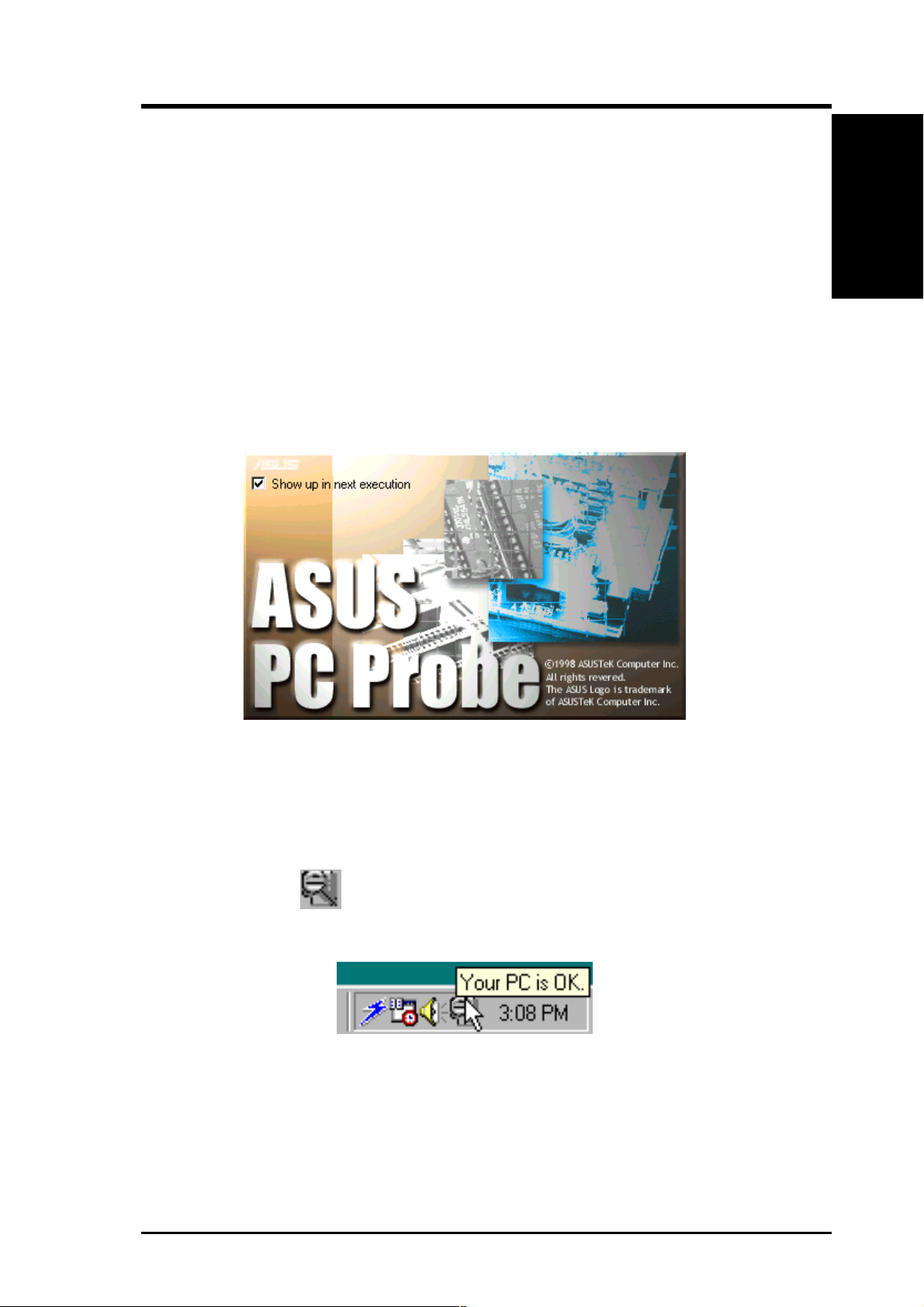

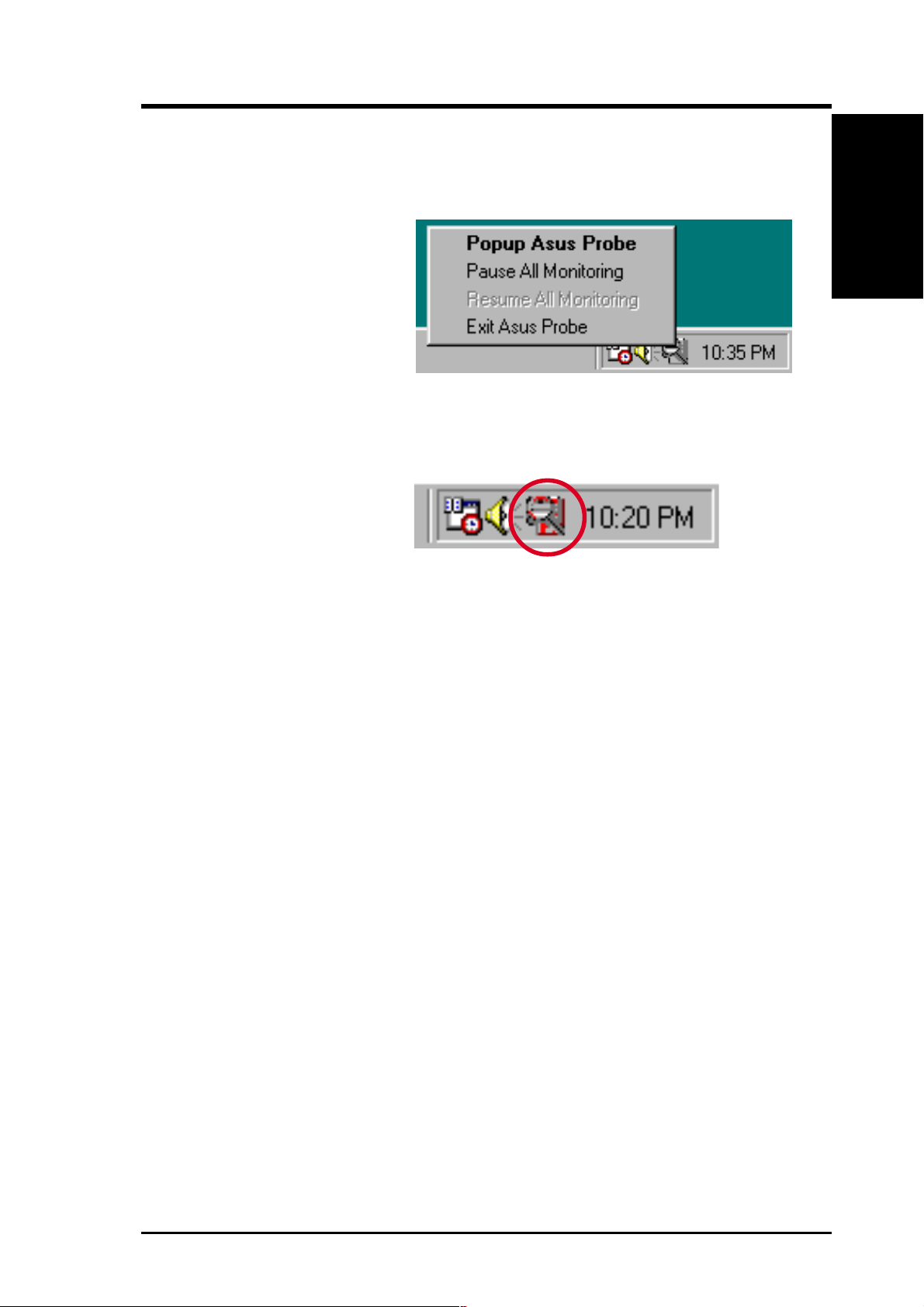

6.1 ASUS PC Probe ......................................................................... 77

7. APPENDIX........................................................................................ 83

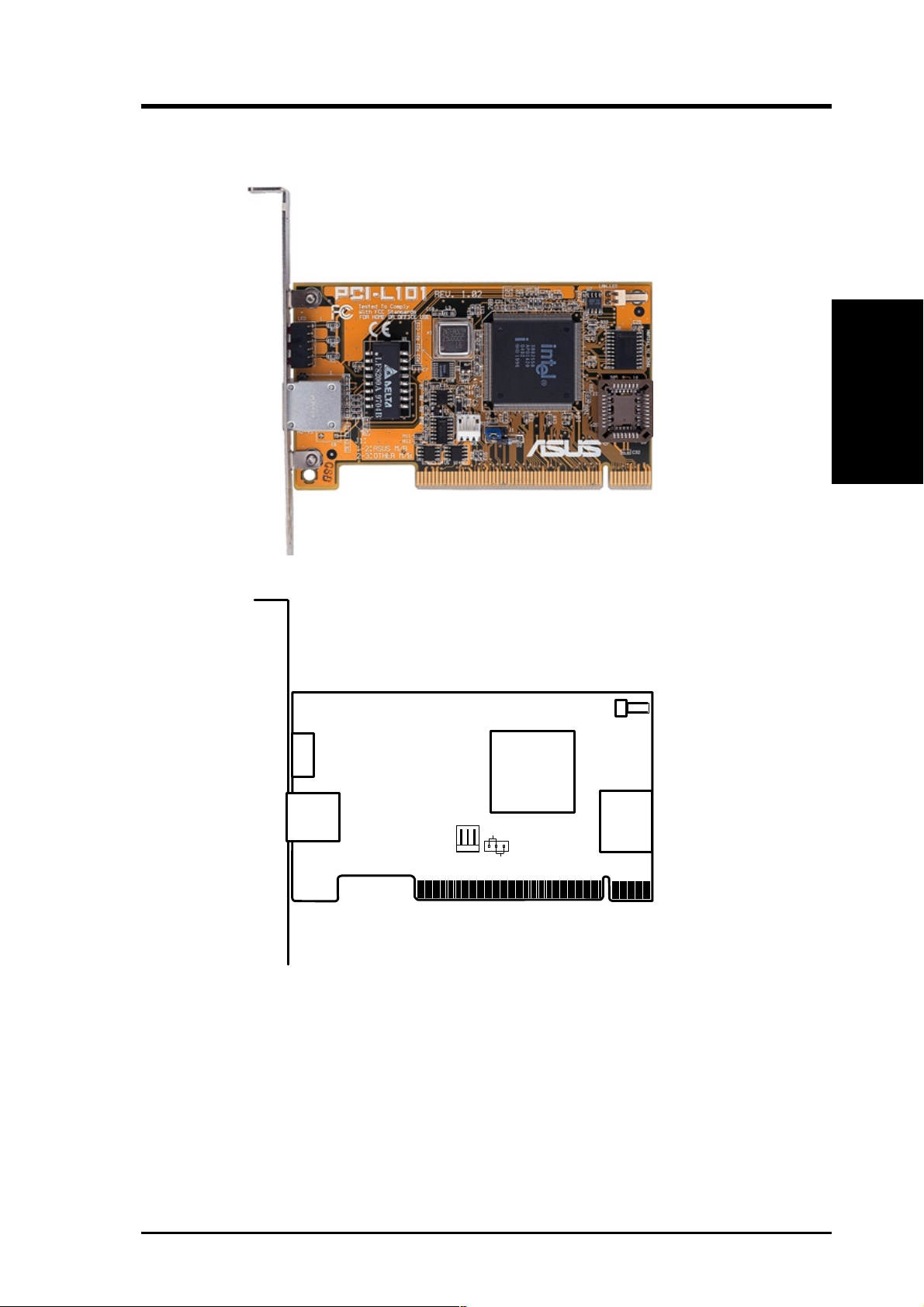

7.1 PCI-L101 Fast Ethernet Card..................................................... 83

7.2 Modem Riser.............................................................................. 85

7.3 Glossary ..................................................................................... 87

INDEX ................................................................................................... 91

ASUS CUV4X-C User’s Manual 5

Page 6

FCC & DOC COMPLIANCE

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications to this product not expressly approved

by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules.

Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

ASUS CUV4X-C User’s Manual

Page 7

1. INTRODUCTION

1.1 How This Manual Is Organized

This manual is divided into the following sections:

1. INTRODUCTION Manual information and checklist

2. FEATURES Production information and specifications

3. HARDWARE SETUP Instructions on setting up the motherboard.

4. BIOS SETUP Instructions on setting up the BIOS

5. SOFTWARE SETUP Instructions on setting up the included software

6. SOFTWARE REFERENCE Reference material for the included software

7. APPENDIX Optional items and general reference

1.2 Item Checklist

Check that your package is complete. If you discover damaged or missing items, contact your retailer.

Manual / Checklist

1. INTRODUCTION

Package Contents

(1) ASUS Motherboard (1) 40-pin 80-conductor ribbon

cable for internal UltraDMA/ 66 or UltraDMA/33 IDE drives

(1) Ribbon cable for one 5.25” and

two 3.5” floppy disk drives (1) Bag of spare jumper caps (1) ASUS Support CD with

drivers and utilities (1) User’s Manual

Optional Items

ASUS Modem MR ASUS IrDA-compliant infrared

module ASUS PCI-L101 Wake-On-LAN

10/100 Ethernet Card

ASUS 2-port USB Connector Set

ASUS CUV4X-C User’s Manual 7

Page 8

2.1 ASUS CUV4X-C Motherboard

The ASUS CUV4X-C motherboard is carefully designed for the demanding PC user who wants advanced features processed by the fastest processors.

2.1.1 Specifications

• Latest Processor Support

2. FEATURES

Specifications

• North Bridge System Chipset: Features the VIA VT82C694X system controller

• South Bridge System Chipset: VIA VT82C686A PCIset with PCI Super I/O

2. FEATURES

Intel Pentium Intel Pentium® III 100MHz FSB Coppermine core FC-PGA Intel Celeron™ 66MHz FSB Mendocino core PPGA

PCI-to-ISA bridge with support for AGP 4X mode; 133/100/66MHz Front Side Bus (FSB); and 133MHz memory bus.

integrated peripheral controller supports UltraDMA/66 for burst mode data transfer rates of up to 66.6MB/sec, multi-channel DirectSound AC97 audio interface, and four USB ports.

III 133MHz FSB Coppermine core FC-PGA

• PC133 SDRAM / VC133 VCM / HSDRAM Support: Equipped with two Dual

Inline Memory Module (DIMM) sockets to support Intel PC133/PC100-compliant (16, 32, 64, 128, 256, or 512MB), NEC’s VC133-compliant V irtual Channel (VC) SDRAM, or Enhanced Memory System’s High-speed DRAMs (HSDRAMs) up to 1GB. VC SDRAM and HSDRAM are new DRAM core architectures that dramatically improves the memory system’s ability to service high multimedia requirements.

• JumperFree™ Mode: Allows processor settings and easy overclocking of

frequency and Vcore voltage all through BIOS setup when the JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included to allow manual adjustment of the processor external/internal frequency.

• Multi-Cache: Supports processors with 256, 128, or 0KB Pipelined Burst Level

2 cache.

• AGP 4X Slot: Supports AGP/2X/4X cards for high performance, component

level interconnection targeted at 3D graphical applications supporting 133MHz 4X mode.

• UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE controller

with two connectors that support four IDE devices on two channels. Supports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.

• Wake-On-LAN Connector: Supports Wake-On-LAN activity through an

optional ASUS PCI-L101 10/100 Fast Ethernet PCI card.

ASUS CUV4X-C User’s Manual

Page 9

2. FEATURES

• Wake-On-Ring Connector: Supports Wake-On-Ring activity through a PCI

modem card through a WOR connector.

• PC Health Monitoring: Provides an easy way to examine and manage system

status information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ASUS ASIC and the bundled ASUS PC Probe.

• SMBus: Features the System Management Bus interface used to physically

transport commands and information between SMBus devices.

• PCI/AMR Expansion Slots: Provides five 32-bit PCI (Rev. 2.2) expansion

slots that can support Bus Master PCI cards, such as SCSI or LAN cards (PCI supports up to 133MB/s maximum throughput) and one Audio Modem Riser (AMR) slot that supports an audio and/or modem riser card.

• Super Multi-I/O: Provides two high-speed UART compatible serial ports and

one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.

• Smart BIOS: 2MB firmware provides Vcore and CPU/SDRAM frequency

adjustments, boot block write protection, and HD/SCSI/MO/ZIP/CD/Floppy boot selection.

Specifications

2. FEATURES

• Enhanced ACPI and Anti-Boot Virus Pr otection: Programmable BIOS (Flash

EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in firmware-based virus protection, and autodetection of most devices for a virtual automatic setup.

• IrDA: Supports an optional infrared port module for wireless interface.

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI master

busses to the memory and processor.

• Desktop Management Interface (DMI): Supports DMI through BIOS, which

allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.)

ASUS CUV4X-C User’s Manual 9

Page 10

2. FEATURES

2.1.2 Special Features

• ACPI Support: Advanced Configuration Power Interface (ACPI) provides more

Energy Saving Features for operating systems that support OS Direct Power Management (OSPM) functionality . W ith these features implemented in the OS, PCs can be ready around the clock, yet satisfy all the energy saving standards. To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows 98 must be used.

2. FEATURES

Features

• Easy Installation: Incorporates BIOS that supports autodetection of hard disk

drives, PS/2 mouse, and Plug and Play devices to make the setup of hard disk drives, expansion cards, and other devices virtually automatic.

• PC’99 Compliant: Both the BIOS and hardware levels of ASUS smart series

motherboards are PC’99 compliant. The new PC’99 requirements for systems and components are based on the following high-level goals: Support for Plugn-Play compatibility and power management for configuring and managing all system components, and 32-bit device drivers and installation procedures for Windows95/98/NT . Color-coded connectors and descriptive icons make identification easy as required by PC’99.

2.1.3 Performance Features

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI master

busses to the memory and processor.

• High-Speed Data Transfer Interface: IDE transfers using UltraDMA/33 Bus

Master IDE can handle rates up to 33MB/s. This motherboard with its chipset and support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to

66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and with existing DMA devices so there is no need to upgrade current EIDE/IDE drives. (UltraDMA/66 requires a 40-pin 80-conductor cable).

• VCM/SDRAM Optimized Performance: This motherboard supports the new

generation memory , NEC 64Mb Virtual Channel Memory (VCM) Synchronous Dynamic Random Access Memory (SDRAM), that is compatible to the industry standard SDRAM. The VCM’s core design provides up to 50% higher SDRAM speed at reduced power consumption of about 30%. This motherboard also supports the standard SDRAM for a the data transfer rate of up to 1.064GB/s using PC133-compliant SDRAMs and up to 800MB/s using PC100-compliant SDRAMs).

ASUS CUV4X-C User’s Manual

Page 11

2. FEATURES

2.1.4 Intelligence

• Auto Fan Off: The system fans powers off automatically even in sleep mode. This function reduces both energy consumption and system noise, and is an important feature in implementing silent PC systems.

• Dual Function Power Button: Pushing the power button for less than 4 seconds when the system is in the working state places the system into one of two states: sleep mode or soft-off mode, depending on the BIOS or OS setting (see PWR Button < 4 Secs in 4.5 Power Menu). When the power button is pressed for more than 4 seconds, the system enters the soft-off mode regardless of the BIOS setting.

• Fan Status Monitoring and Alarm: To prevent system overheat and system damage, the CPU and system fans can be monitored for RPM and failure. All fans are set for its normal RPM range and alarm thresholds.

• Power LED (requir es ACPI OS support): The power LED indicates the system status.

• Remote Ring On (requires modem): This allows a computer to be turned on remotely through an internal or external modem. With this benefit on-hand, users can access vital information from their computers anywhere.

Intelligence

2. FEATURES

• System Resources Alert: Today’s operating systems such as Windows 95/98/ NT and OS/2, require much more memory and hard drive space to present enormous user interfaces and run large applications. The system resource monitor warns the user before the system resources are used up to prevent possible application crashes. Suggestions provide the user some information on managing their limited resources more efficiently.

• Temperature Monitoring and Alert: CPU temperature is monitored by the ASUS ASIC through the CPU’s internal thermal diode (on Pentium III and Celeron) to prevent system overheat and system damage.

• Voltage Monitoring and Alert: System voltage levels are monitored to ensure stable voltage to critical motherboard components. Voltage specifications are more critical for future processors, so monitoring is necessary to ensure proper system configuration and management.

ASUS CUV4X-C User’s Manual 11

Page 12

2. FEATURES

2.2 Motherboard Components

See opposite page for locations.

Processor Support Socket 370 for Pentium III/Celeron Processors ....................... 2

Motherboard Parts

2. FEATURES

Expansion Slots 5 PCI Slots .............................................................................. 17

Location

Feature Setting DIP Switches ................................................... 7

Chipsets VIA VT82C694X system controller.......................................... 3

VIA VT82C686A PCIset ......................................................... 11

2Mbit Programmable Flash EEPROM ..................................... 9

Main Memory Maximum 1GB support

2 DIMM Sockets ...................................................................... 4

PC133 SDRAM support

1 Accelerated Graphics Port (AGP) 4X Slot .......................... 18

1 Audio Modem Riser (AMR) Slot ........................................ 16

System I/O 1 Floppy Disk Drive Connector ............................................... 5

2 IDE Connectors (UltraDMA66 Support) .............................. 8

1 ASUS iPanel Connector ...................................................... 13

1 Parallel Port ............................................................... (Top) 19

2 Serial Ports (COM1/COM 2) .............................. (Bottom) 19

USB Connectors (Port 0 & Port 1) ........................................ 20

USB Connectors (Port 2 & Port 3) ........................................ 10

1 PS/2 Mouse Connector .............................................. (Top) 21

1 PS/2 Keyboard Connector ................................... (Bottom) 21

Network Features Wake-On-LAN Connector...................................................... 15

Wake-On-Ring Connector ...................................................... 14

Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 12

2 Fan Power and Speed Monitoring Connectors

Power ATX Power Supply Connector ................................................. 1

Special Feature Onboard LED ........................................................................... 6

Form Factor ATX

ASUS CUV4X-C User’s Manual

Page 13

2. FEATURES

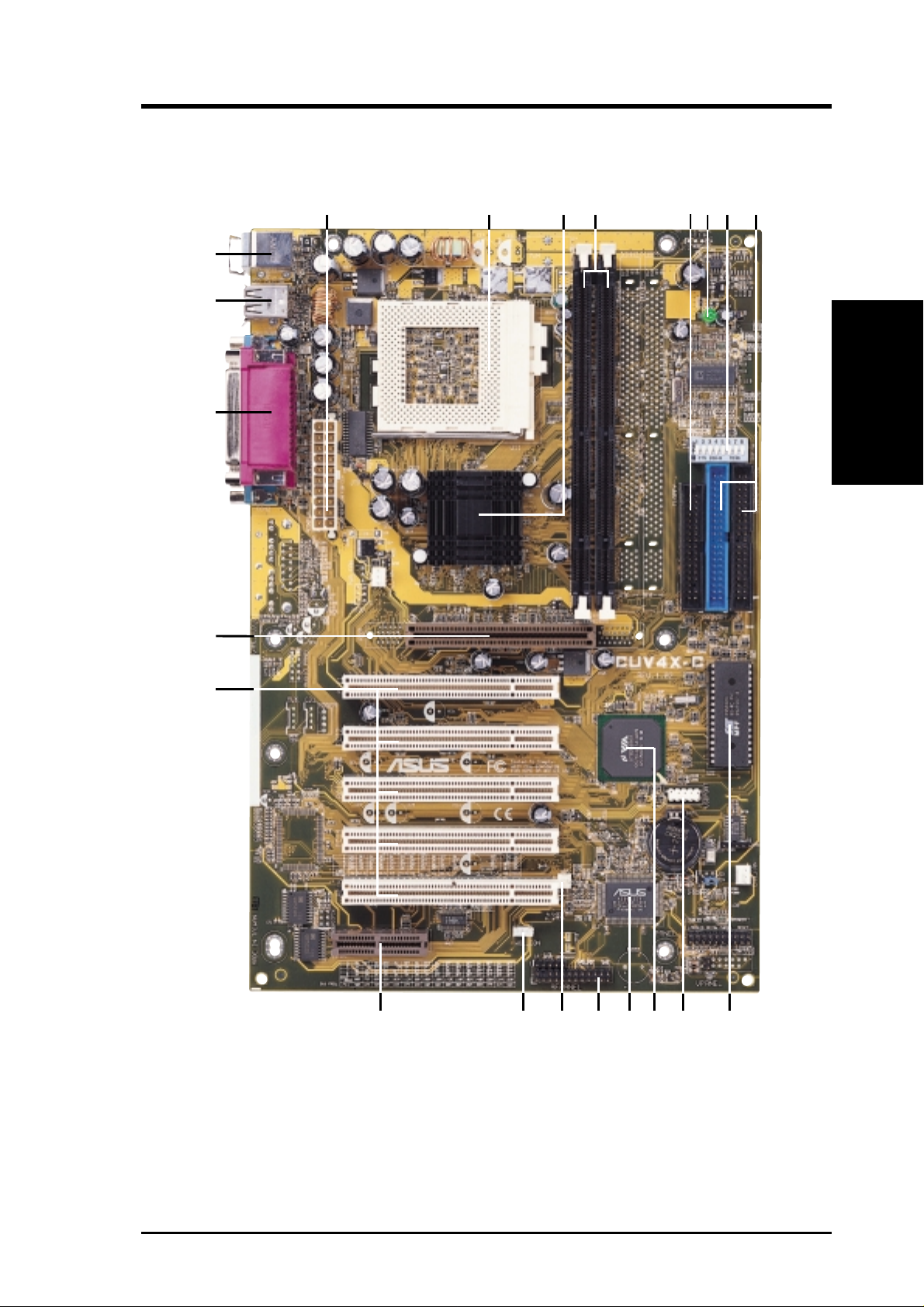

2.2.1 Component Locations

21 20

2. FEATURES

Motherboard Parts

14 1113

91216 15 10

ASUS CUV4X-C User’s Manual 13

Page 14

3. HARDWARE SETUP

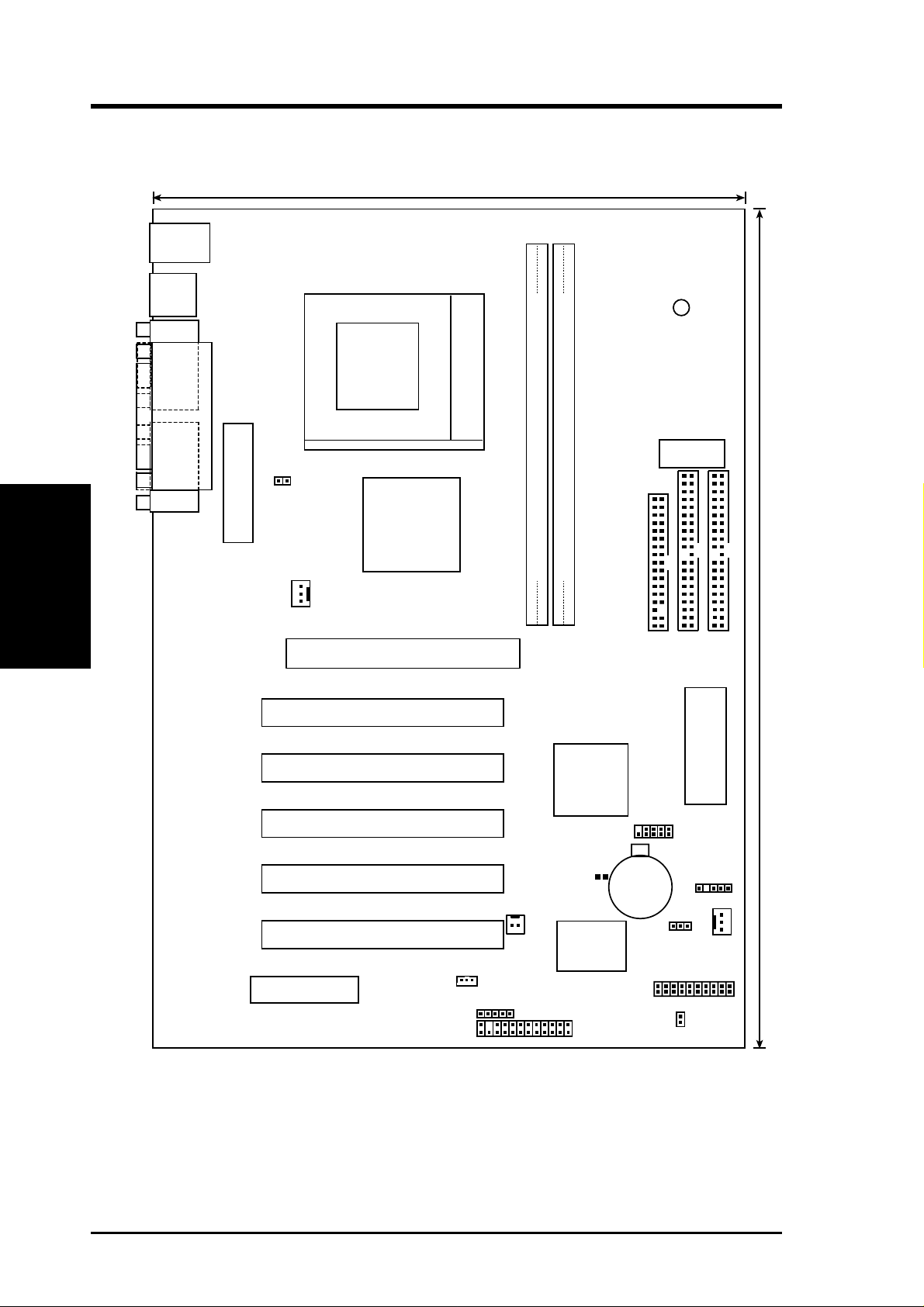

3.1 Motherboard Layout

20.9cm (8.22in)

PS/2

T: Mouse B: Keyboard

USB1 USB2

COM1

LED

Motherboard Layout

3. H/W SETUP

COM2

PARALLEL PORT

JTPWR

ATX Power Connector

Audio Modem Riser

Socket 370

VIA

VT82C694X

Chipset

CPU_FAN

Accelerated Graphics Port

PCI 1

PCI 2

PCI 3

PCI 4

PCI 5

WOL_CON

(AMR)

AFPANEL

DIP Switches

DIP_SW

FLOPPY

DIMM Socket 1 (64/72-bit, 168-pin module)

DIMM Socket 2 (64/72-bit, 168-pin module)

CUV4X-C

Row

Primary IDE

VIA

WOR

VT82C686A

Chipset

CLRTC

CR2032 3V Lithium Cell

CMOS Power

ASUS

ASIC

with Hardware

Monitor

PANEL

USBPORT

IDELED

Flash EEPROM

(Programable BIOS)

SMB

CHA_FAN JEN

Secondary IDE

30.5cm (12.0in)

ASUS CUV4X-C User’s Manual

Page 15

3. HARDWARE SETUP

3.2 Layout Contents

Motherboard Settings

1) JEN p. 17 JumperFree Mode Setting (Disable/Enable)

2) DIP_SW 5–8 p. 18 CPU External Frequency Selection

3) DIP_SW 1-4 p. 19 CPU Core:BUS Frequency Multiple Selection

Expansion Slots/Sockets

1) System Memory p.21 System Memory Support

2) DIMM 1/2 p.22 DIMM Support

3) Socket 370 p.23 CPU Support

4) PCI 1/2/3/4/5 p.25 32-bit PCI Bus Expansion Slots

5) AGP p.27 Accelerated Graphics Port

6) AMR p.27 Audio Modem Riser Slot

Connectors

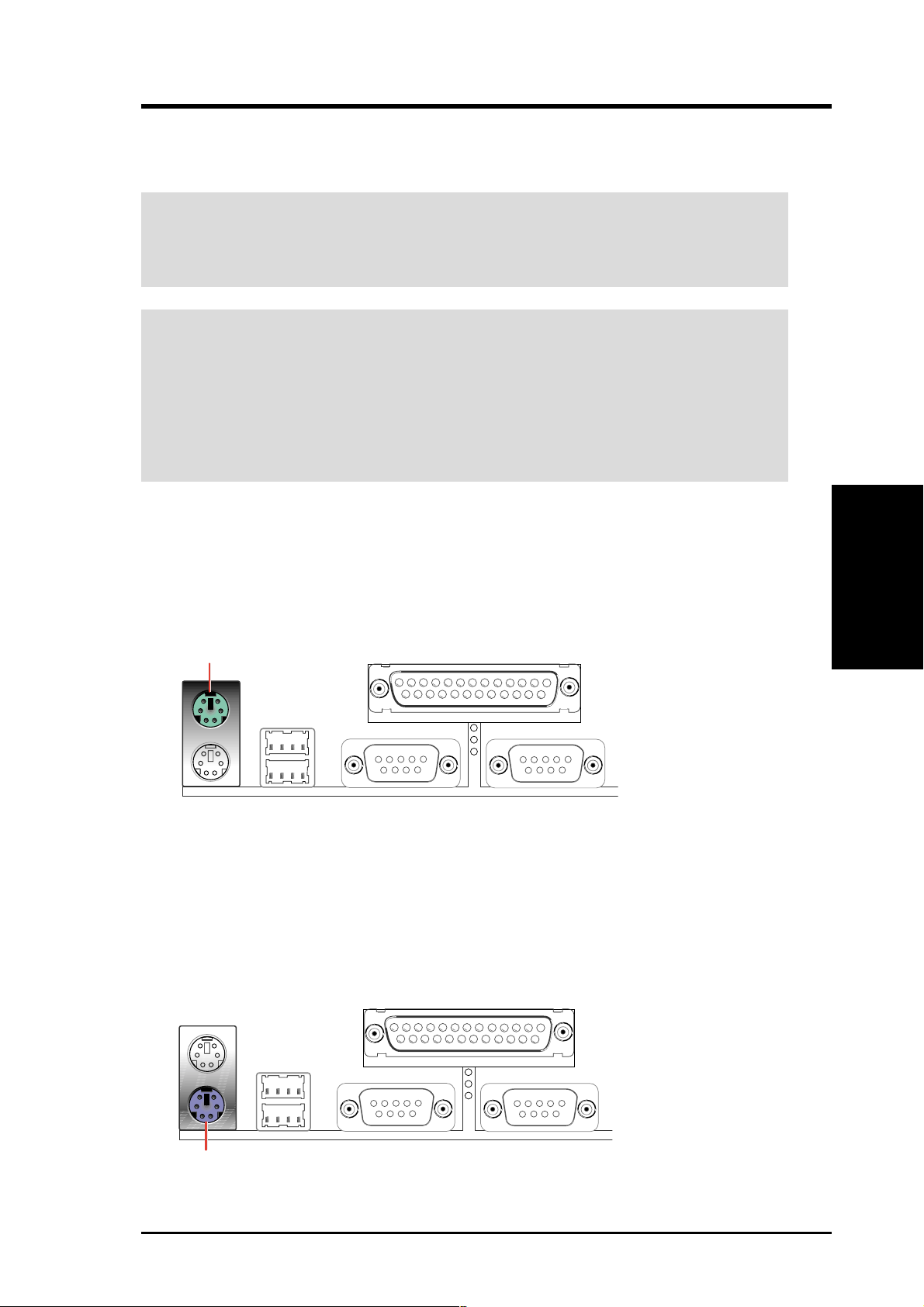

1) PS2KBMS p.29 PS/2 Mouse Port Connector (6 pin-female)

2) PS2KBMS p.29 PS/2 Keyboard Port Connector (6-pin female)

3) USB p.30 Universal Serial Bus Connectors 1 & 2 (Two 4-pin female)

4) COM1/COM2 p.30 Serial Port Connector (9-pin /10-1 pin male)

5) PRINTER p.30 Parallel Port Connector (25-pin female)

6) IDE LED p. 31 IDE Activity LED (2 pins)

7) FLOPPY p. 31 Floppy Disk Drive Port Connector (34 pins)

8) PRIMARY IDE p. 32 IDE Connectors (Two 40-1 pins) SECONDARY IDE

9) WOL_CON p. 33 Wake-On-LAN Connector (3 pins)

10) WOR p. 33 Wake-On-Ring Connector (2 pins)

11) CPU_FAN, CHA_FAN p. 34 Chassis and CPU Fan Connectors (3 pins)

12) USB2 p. 34 USB Header (10-1 pins)

13) IR p. 35 Infrared Module Connector (5 pins)

14) JTPWR p. 35 Power Supply Thermal Sensor Connector (2 pins)

15) ATXPWR p. 36 ATX Power Supply Connector (20 pins)

16) SMB p. 36 SMBus Connector (5-1 pins)

17) AFPANEL p. 37 ASUS iPanel Connector (12-1 pins)

18)

PWR.LED (

19) SPEAKER (PANEL) p. 38 System Warning Speaker Connector (4 pins)

PANEL

)

p. 38 System Power LED Lead (3 pins)

3. H/W SETUP

Layout Contents

20) MSG.LED (PANEL) p. 38 System Message LED (2 pins)

21) SMI (PANEL) p. 38 System Management Interrupt Lead (2 pins)

22) PWR.SW (PANEL) p. 38 ATX / Soft-Off Switch Lead (2 pins)

23) RESET (PANEL) p. 38 Reset Switch Lead (2 pins)

ASUS CUV4X-C User’s Manual 15

Page 16

3. HARDWARE SETUP

3.3 Hardware Setup Procedure

Before using your computer, you must complete the following steps:

1. Check motherboard settings

2. Install memory modules

3. Install the Central Processing Unit (CPU)

4. Install Expansion Cards

5. Connect Ribbon Cables, Panel Wires, and Power Supply

6. Setup the BIOS Software

3.4 Motherboard Settings

This section explains how to change your motherboard function settings through the switches and/or jumpers.

Motherboard Settings

3. H/W SETUP

WARNING! Computer motherboards and expansion cards contain very delicate

Integrated Circuit (IC) chips. T o protect them against damage from static electricity , you should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or connectors, or other components.

4. Place components on a grounded antistatic pad or on the bag that came with the component whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power connector on the motherboard.

WARNING! Make sure that you unplug the power supply when adding or

removing system components. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components. When lit, the onboard LED indicates that the system is in suspend or soft-off mode, not powered OFF.

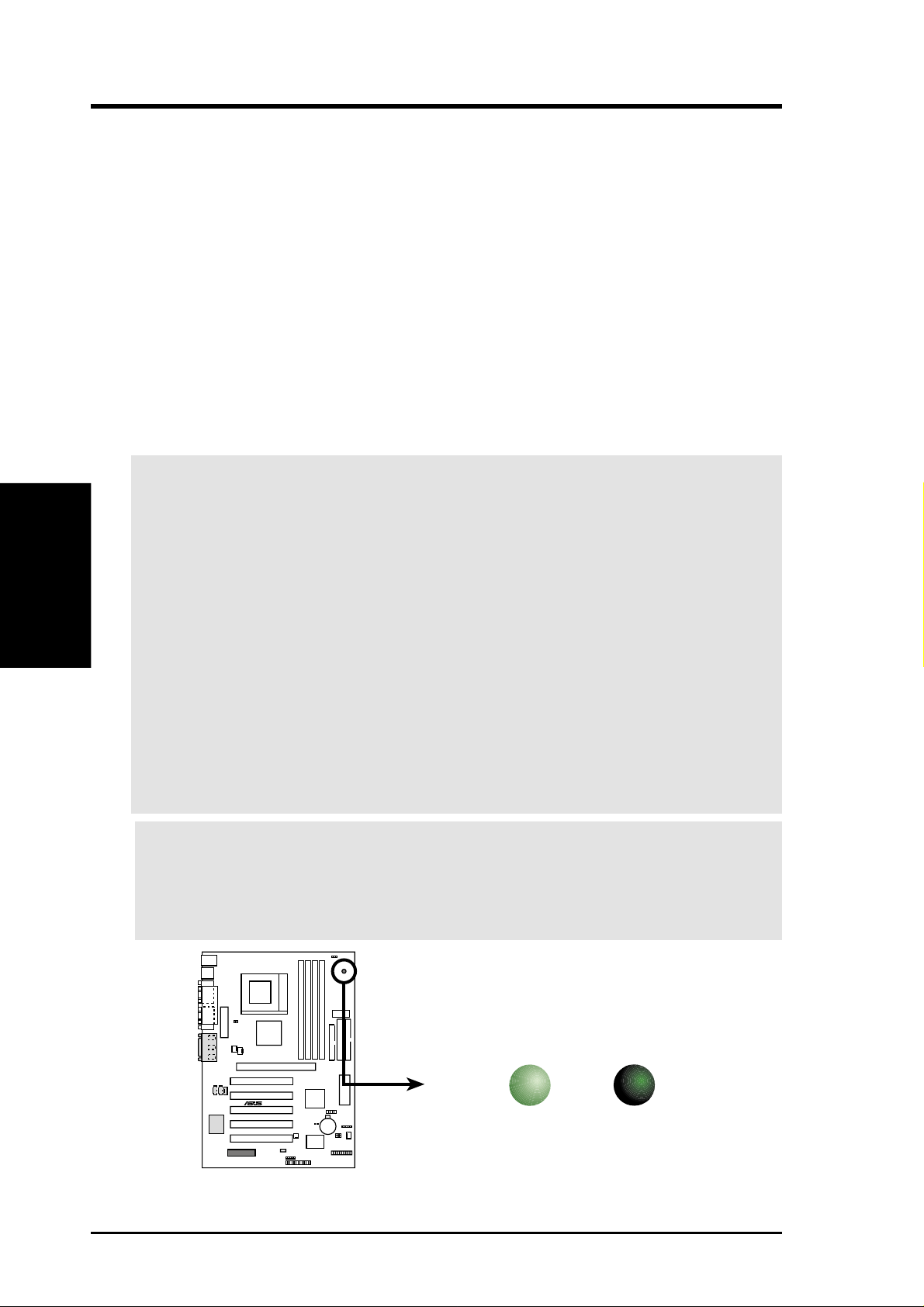

CUV4X-C

CUV4X-C Onboard LED

ASUS CUV4X-C User’s Manual

Standby

Power

LED

OFF

Powered

Off

Page 17

3. HARDWARE SETUP

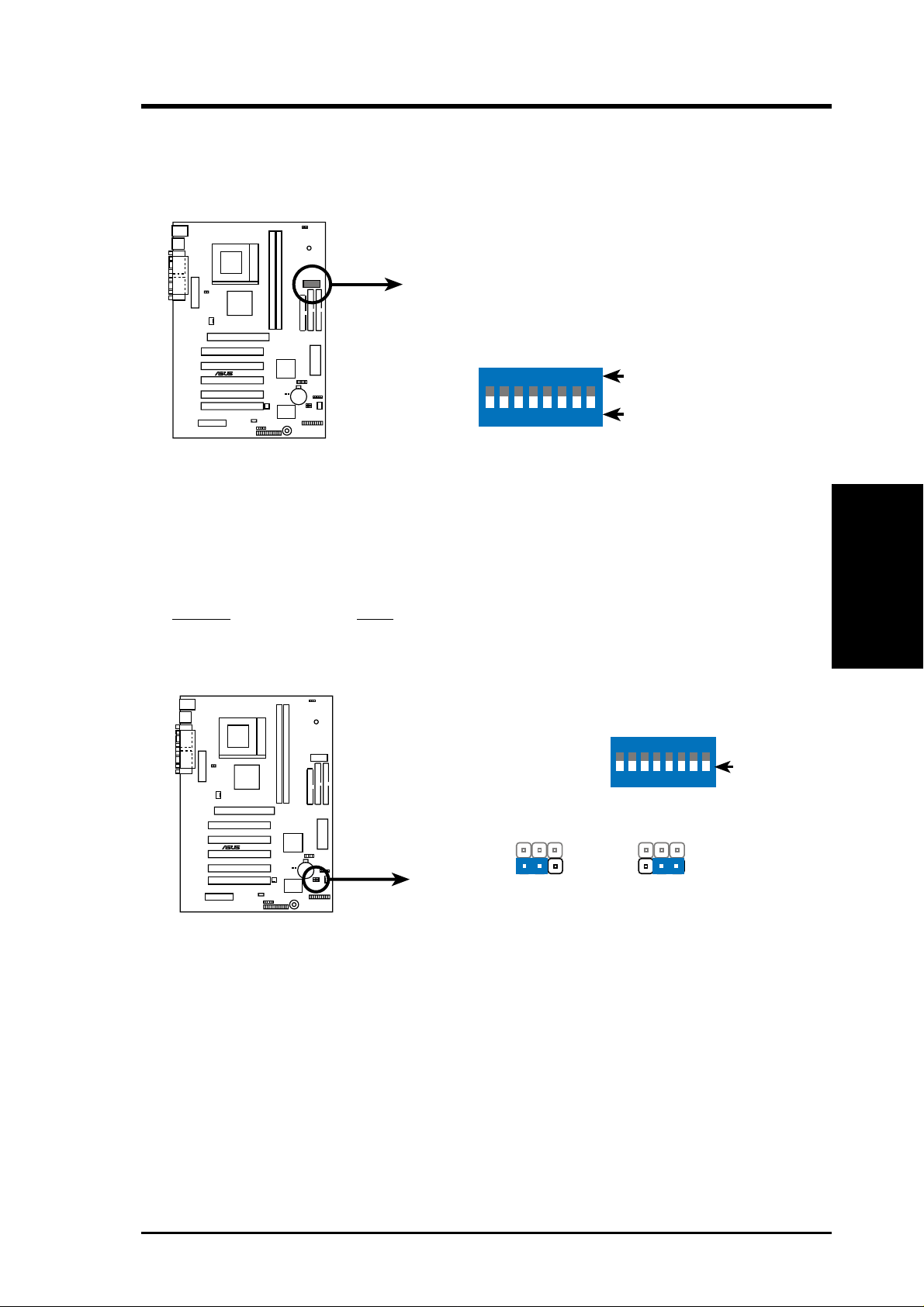

Motherboard Frequency Settings (DIP Switches - DIP_SW)

The motherboard frequency is adjusted through the DIP switches. The white block represents the switch’s position. The example below shows all the switches in the

OFF position.

CUV4X-C

< Frequency Multiple

< Frequency Selection

12345678

< Frequency Selection

OFF

CUV4X-C DIP Switches

1) JumperFree™ Mode (JEN)

This jumper allows you to enable or disable the JumperFree™ mode. The JumperFree™ mode allows processor settings to be made through the BIOS setup (see 4.4 Advanced Menu).

Setting JEN

Enable (JumperFree) [2-3] (default) Disable (Jumper) [1-2]

DIP_SW

12345678

OFF

3. H/W SETUP

Motherboard Settings

CUV4X-C

Jumper

Mode

JEN

JumperFree

Mode

(Default)

CUV4X-C JumperFree™ Mode Setting

NOTE: In JumperFree™ mode, set all DIP switches (DIP_SW) to OFF.

ASUS CUV4X-C User’s Manual 17

Page 18

3. HARDWARE SETUP

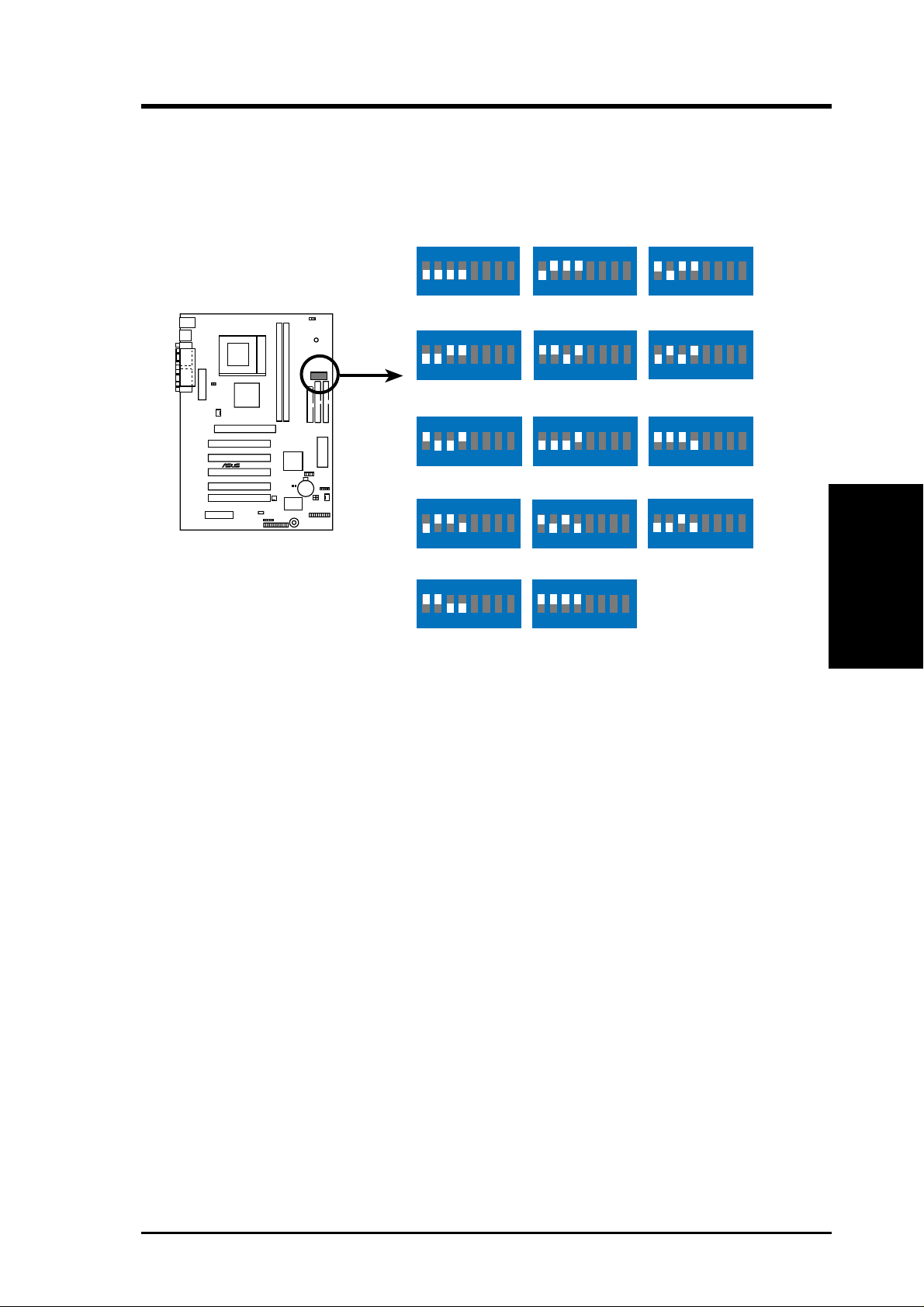

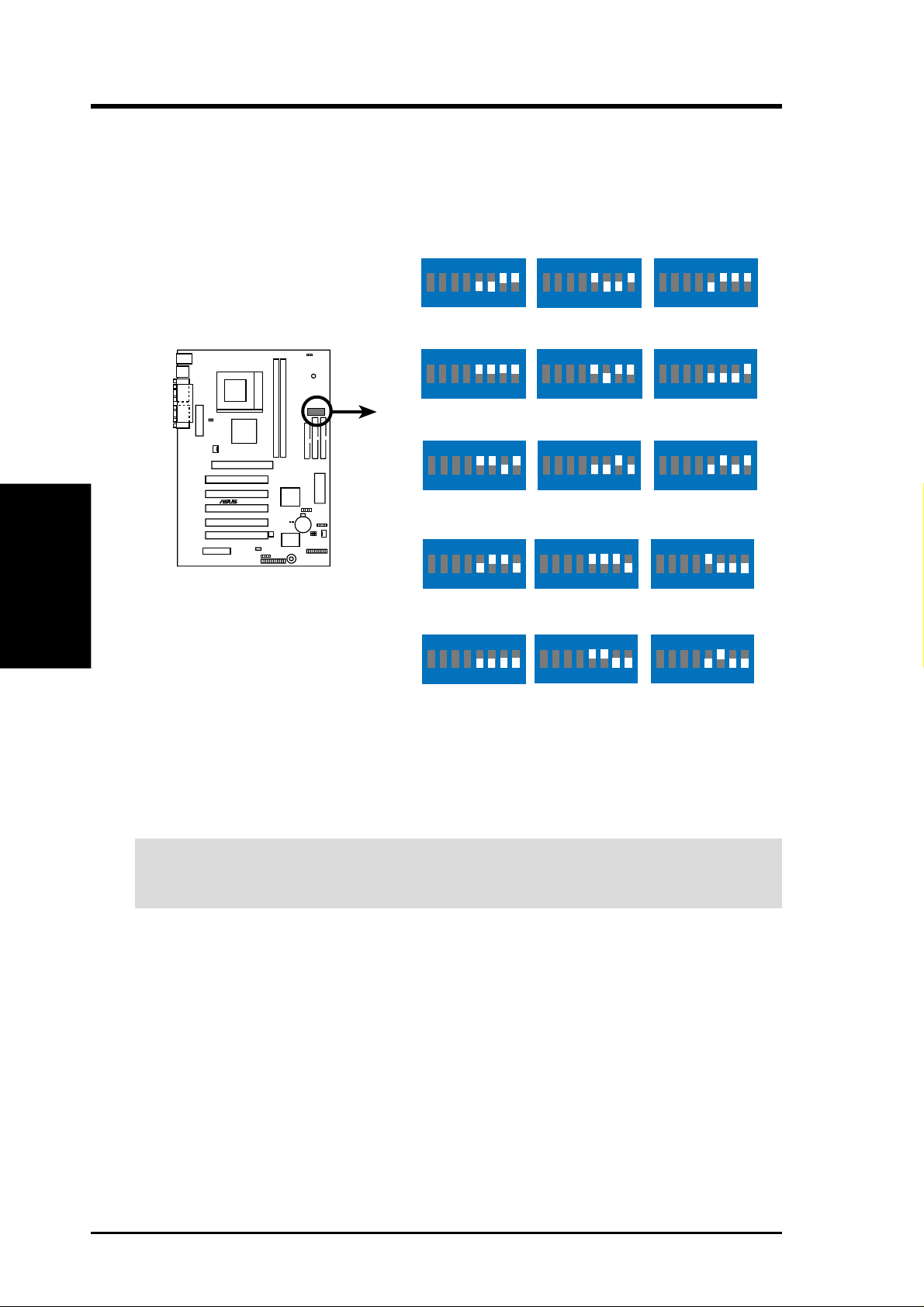

3) CPU External Frequency Selection (DIP_SW Switches 5–8)

This option tells the clock generator what frequency to send to the CPU, DRAM, and the PCI bus. This allows the selection of the CPU’s External frequency (or BUS Clock). The BUS Clock multiplied by the Frequency Multiple equals the CPU’s Internal frequency (the advertised CPU speed).

Motherboard Settings

3. H/W SETUP

CUV4X-C CPU External Frequency Selection

12345678

CPU PCI

CUV4X-C

CPU PCI

66MHz 33MHz

12345678

80MHz 40MHz

12345678

103MHz

34MHz

12345678

115MHz

38MHz

12345678

133MHz

33MHz

12345678

68MHz 34MHz

12345678

83MHz 42MHz

12345678

105MHz

35MHz

12345678

120MHz

40MHz

12345678

140MHz

35MHz

12345678

75MHz 37MHz

12345678

100MHz

33MHz

12345678

112MHz

37MHz

12345678

124MHz

31MHz

12345678

150MHz

37MHz

NOTE: Overclocking your processor is not recommended. It may result in a slower speed.

WARNING! Frequencies other than the recommended CPU bus frequencies are

not guaranteed to be stable.

ASUS CUV4X-C User’s Manual

Page 19

3. HARDWARE SETUP

4) CPU Core:BUS Frequency Multiple (DIP_SW Switches 1–4)

This option sets the frequency multiple between the Internal frequency of the CPU and the CPU’s External frequency. These must be set in conjunction with the

CPU Bus Frequency.

CUV4X-C

CUV4X-C CPU Core:Bus Frequency Multiple

12345678

2.0x

12345678

3.5x

12345678

5.0x

12345678

6.5x

12345678

8.0x

12345678

2.5x

12345678

4.0x

12345678

5.5x

12345678

7.0x

12345678

Test

12345678

3.0x

12345678

4.5x

12345678

6.0x

12345678

7.5x

3. H/W SETUP

Motherboard Settings

ASUS CUV4X-C User’s Manual 19

Page 20

Manual CPU Settings

NOTE: Disable the JumperFree™ mode when you are manually setting the

CPU frequency through the DIP switches.

Set the DIP switches by the Internal speed of your processor as follows:

Intel CPU Model

Pentium III 933MHz 7.0x 133MHz [OFF] [OFF] [OFF] [OFF] [ON] [OFF] [ON] [OFF] Pentium III 866MHz 6.5x 133MHz [OFF] [OFF] [OFF] [OFF] [OFF] [ON] [ON] [OFF] Pentium III 800MHz 6.0x 133MHz [OFF] [OFF] [OFF] [OFF] [ON] [ON] [ON] [OFF] Pentium III 733MHz 5.5x 133MHz [OFF] [OFF] [OFF] [OFF] [OFF] [OFF] [OFF] [ON] Pentium III 667MHz 5.0x 133MHz [OFF] [OFF] [OFF] [OFF] [ON] [OFF] [OFF] [ON] Pentium III 600MHz 4.5x 133MHz [OFF] [OFF] [OFF] [OFF] [OFF] [ON] [OFF] [ON]

Motherboard Settings

3. H/W SETUP

Pentium III 533MHz 4.0x 133MHz [OFF] [OFF] [OFF] [OFF] [ON] [ON] [OFF] [ON] Pentium III 800MHz 8.0x 100MHz [OFF] [OFF] [OFF] [ON] [ON] [ON] [OFF] [OFF]

Pentium III 750MHz 7.5x 100MHz [OFF] [OFF] [OFF] [ON] [OFF] [OFF] [ON] [OFF] Pentium III 700MHz 7.0x 100MHz [OFF] [OFF] [OFF] [ON] [ON] [OFF] [ON] [OFF] Pentium III 650MHz 6.5x 100MHz [OFF] [OFF] [OFF] [ON] [OFF] [ON] [ON] [OFF] Pentium III 600MHz 6.0x 100MHz [OFF] [OFF] [OFF] [ON] [ON] [ON] [ON] [OFF] Pentium III 550MHz 5.5x 100MHz [OFF] [OFF] [OFF] [ON] [OFF] [OFF] [OFF] [ON] Pentium III 500MHz 5.0x 100MHz [OFF] [OFF] [OFF] [ON] [ON] [OFF] [OFF] [ON]

Pentium III 450MHz 4.5x 100MHz [OFF] [OFF] [OFF] [ON] [OFF] [ON] [OFF] [ON]

3. HARDWARE SETUP

(CPU BUS Freq.) (Freq. Multiple)

Freq. Mult. Bus F. 5 6 7 8 1 2 3 4

Celeron 533MHz 8.0x 66MHz [OFF] [OFF] [ON] [ON] [ON] [ON] [OFF] [OFF] Celeron 500MHz 7.5x 66MHz [OFF] [OFF] [ON] [ON] [OFF] [OFF] [ON] [OFF] Celeron 466MHz 7.0x 66MHz [OFF] [OFF] [ON] [ON] [ON] [OFF] [ON] [OFF] Celeron 433MHz 6.5x 66MHz [OFF] [OFF] [ON] [ON] [OFF] [ON] [ON] [OFF] Celeron 400MHz 6.0x 66MHz [OFF] [OFF] [ON] [ON] [ON] [ON] [ON] [OFF] Celeron 366MHz 5.5x 66MHz [OFF] [OFF] [ON] [ON] [OFF] [OFF] [OFF] [ON] Celeron 333MHz 5.0x 66MHz [OFF] [OFF] [ON] [ON] [ON] [OFF] [OFF] [ON] Celeron 300MHz 4.5x 66MHz [OFF] [OFF] [ON] [ON] [OFF] [ON] [OFF] [ON] Celeron 266MHz 4.0x 66MHz [OFF] [OFF] [ON] [ON] [ON] [ON] [OFF] [ON]

IMPORTANT When using Celeron CPUs faster than 533MHz, select the

JumperFree™ mode to allow the system to autodetect the CPU and self-adjust to the optimum frequency.

For updated processor settings, visit the ASUS web site. See also ASUS CONT ACT INFORMATION at the beginning of this manual.

ASUS CUV4X-C User’s Manual

Page 21

3. HARDWARE SETUP

3.5 System Memory

This motherboard uses only Dual Inline Memory Modules (DIMMs). Two DIMM sockets are available for 3.3Volt (power level) unbuffered Synchronous Dynamic Random Access Memory (SDRAM) of 16, 32, 64, 128, 256, or 512MB to form a memory size between 16MB to 1GB. One side (with memory chips) of the DIMM takes up one row on the motherboard. This motherboard also supports NEC’s V irtual Channel (VC) SDRAMs and Enhanced Memory System’s High-speed DRAMs

(HSDRAMs). Memory speed setup is recommended through SDRAM Configuration under “Chipset

Features Setup”.

IMPORTANT (see General DIMM Notes below for more)

• SDRAMs used must be compatible with the current Intel PC133 SDRAM specification.

• DO NOT attempt to mix registered SDRAMs with VCM SDRAMs.

• When using all the four DIMM sockets, the Suspend-to-RAM (STR) feature

is not available.

Install memory in any combination as follows:

DIMM Location 168-pin DIMM Total Memory

Socket 1 (Rows 0&1) SDRAM 16, 32, 64, 128, 256, 512MB x1 Socket 2 (Rows 2&3) SDRAM 16, 32, 64, 128, 256, 512MB x1

Total System Memory (Max. 1GB) =

3.5.1 General DIMM Notes

• DIMMs that have more than 18 chips are not supported on this motherboard.

• For the system CPU bus to operate 100MHz/133MHz, use only PC100-/PC133-

compliant DIMMs.

• ASUS motherboards support Serial Presence Detect (SPD) DIMMs. This is the memory of choice for best performance vs. stability.

• SDRAM chips are generally thinner with higher pin density than EDO (Extended Data Output) chips.

• BIOS shows SDRAM memory on bootup screen.

• Single-sided DIMMs come in 16, 32, 64,128, 256MB; double-sided come in 32, 64,

128, 256, 512MB.

3. H/W SETUP

System Memory

ASUS CUV4X-C User’s Manual 21

Page 22

3.5.2 Memory Installation

WARNING! Make sure that you unplug the power supply when adding or

removing memory modules or other system components. Failure to do so may cause severe damage to both the motherboard and expansion cards (see 3.3 Hardware Setup Procedure for more information).

Insert the module(s) into the DIMM sockets as shown. Because the number of pins are different on either side of the breaks, the module only fits in one direction. SDRAM DIMMs have different pin contacts on each side and have a higher pin density than DRAM SIMMs.

System Memory

3. H/W SETUP

3. HARDWARE SETUP

88 Pins

CUV4X-C

CUV4X-C 168-Pin DIMM Sockets

60 Pins

20 Pins

Lock

The DIMMs must be 3.3Volt unbuffered SDRAMs. To determine the DIMM type, check the notches on the DIMMs (see the figure below).

The notches on the DIMM shifts between left, center, or right to identify the type and also to prevent the wrong type from being inserted into the DIMM slot on the motherboard. You must tell your retailer the correct DIMM type before purchasing. This motherboard supports four clock signals per DIMM.

ASUS CUV4X-C User’s Manual

Page 23

3. HARDWARE SETUP

3.6 Central Processing Unit (CPU)

The motherboard comes with a ZIF Socket for the supported CPUs listed in section

2.1.1 Specifications. The following illustration shows the CPU socket location on

the motherboard and the correct CPU orientation.

Socket 370 CPU (Top) Socket 370 CPU (Bottom)

Celeron (PPGA)

CUV4X-C

CUV4X-C Socket 370

Notch

Pentium III &Celeron (FC-PGA)

Gold Arrow

Note in the illustration that CPUs have marks (usually a notch or a gold mark on one corner) to help you identify the proper orientation and enable you to correctly install a CPU. It is important that you match the marked corner of the CPU with the corresponding corner on the socket so as not to damage the CPU pins.

The CPU picture above is for reference only. Usually, when you buy a CPU, the heatsink and fan are already attached to the CPU. If a heatsink and fan did not come with the package, make sure you obtain one before installing the CPU.

WARNING! You must install the proper heatsink and fan to the CPU. Failure to

do so will cause the CPU to overheat and may damage both the CPU and the motherboard. Install an auxillary fan, if necessary.

CPU

3. H/W SETUP

CAUTION! Be careful not to scrape the motherboard when mounting/unmounting

a clamp-style processor fan to avoid damaging the motherboard.

Proceed to the next section for the steps on how to properly install a CPU.

ASUS CUV4X-C User’s Manual 23

Page 24

3.6.1 CPU Installation

Follow these steps to install a CPU.

1. Locate the ZIP socket on the motherboard.

2. Unlock the socket by pressing the lever sideways then lifting it up to a 90°-100°

3. Position the CPU above the socket such that its notched or marked corner matches

4. Carefuly insert the CPU into the socket until it fits in place.

CAUTION! The CPU fits only in one orientation. Do not force the CPU into the

socket to prevent bending the pins and damaging the CPU. If the CPU does not

CPU Installation

3. H/W SETUP

fit completely, check its orientation or check for bent pins.

3. HARDWARE SETUP

angle.

the socket corner near the end of the lever, while making sure that the CPU is parallel to the socket.

5. Secure the CPU into the socket by pushing the socket lever all the way down. You will hear a click indicating that the lever is in place.

6. Attach the heatsink and fan to the CPU, if they were not pre-installed by the vendor . Refer to the installation instructions that came with the heatsink and fan.

NOTE: Do not forget to set the correct Bus Frequency and Multiple (frequency multiple setting is available only on unlocked processors) for the processor to avoid start-up problems.

24 ASUS CUV4X-C User’s Manual

Page 25

3. HARDWARE SETUP

3.7 Expansion Cards

In the future, you may need to install expansion cards. The motherboard has five PCI expansion slots to support these cards. Follow the steps in the next section when installing expansion cards.

WARNING! Unplug the system power cord when adding or removing expansion

cards or other system components. Failure to do so may cause severe damage to both the motherboard and expansion cards.

3.7.1 Installing an Expansion Card

1. Read the documentation that comes with the expansion card and make any necessary hardware settings for the card before installing it.

2. Remove the system unit cover and the bracket plate on the slot you intend to use. Keep the screw for later use.

3. Align the card connectors with the slot and press firmly until the card fits in place.

4. Secure the card to the slot with the screw you removed earlier.

5. Replace the system cover.

6. Change the necessary BIOS settings, if any. (see section 4.4.3 PCI Configuration to change the settings.)

7. Install the necessary software drivers for the expansion card.

3. H/W SETUP

Expansion Cards

ASUS CUV4X-C User’s Manual 25

Page 26

3.7.2 Assigning IRQs for Expansion Cards

Some expansion cards need an IRQ to operate. Generally , an IRQ must be exclusively assigned to one use. In a standard design, there are 16 IRQs available but most of them are already in use, leaving 6 IRQs free for expansion cards. If your motherboard has PCI audio onboard, an additional IRQ will be used. If your motherboard also has MIDI enabled, another IRQ will be used, leaving 4 IRQs free.

IMPORTANT: If using PCI cards on shared slots, make sure that the drivers support “Share IRQ” or that the cards do not need IRQ assignments. Conflicts arise between the two PCI groups that will make the system unstable or cards inoperable.

The following table lists the default IRQ assignments for standard PC devices. Use this table when configuring your system and for resolving IRQ conflicts.

Standard Interrupt Assignments

IRQ Priority Standard Function

Expansion Cards

3. H/W SETUP

0 1 System Timer 1 2 Keyboard Controller 2 N/A Programmable Interrupt 3* 11 Communications Port (COM2) 4* 12 Communications Port (COM1) 5* 13 Sound Card (sometimes LPT2) 6 14 Floppy Disk Controller 7* 15 Printer Port (LPT1) 8 3 System CMOS/Real Time Clock 9* 4 ACPI Mode when used 10* 5 IRQ Holder for PCI Steering 11* 6 IRQ Holder for PCI Steering 12* 7 PS/2 Compatible Mouse Port 13 8 Numeric Data Processor 14* 9 Primary IDE Channel 15* 10 Secondary IDE Channel

3. HARDWARE SETUP

*These IRQs are usually available for ISA or PCI devices.

Interrupt Request Table for this Motherboard

INT-A INT-B INT-C INT-D

PCI slot 1 — shared —— PCI slot 2 ——shared — PCI slot 3 ———shared PCI slot 4 shared ——— PCI slot 5 — shared —— AGP slot shared shared —— Onboard USB controller ———shared Onboard audio/AMR — shared ——

26 ASUS CUV4X-C User’s Manual

Page 27

3. HARDWARE SETUP

3.7.3 Accelerated Graphics Port (AGP)

This motherboard has an Accelerated Graphics Port (AGP) slot to support AGP/2X/ 4X graphics cards, such as an ASUS AGP-V6800DDR/64M.

CAUTION! To avoid damaging the AGP/2X/4X graphics card, unplug the system

power cord before installing the card into the slot.

CUV4X-C

CUV4X-C Accelerated Graphics Port (AGP)

3.7.4 Audio Modem Riser (AMR) Slot

This connector supports a specially designed audio and/or modem card called an AMR. The motherboard system chipset controls the main processing which is done through software. This provides an upgradeable audio and/or modem solution at an incredibly low cost. There are two types of AMR, primary and secondary. Use a primary AMR card on this motherboard.

NOTE: An AMR card is not included with this motherboard.

3. H/W SETUP

Expansion Cards

CUV4X-C

CUV4X-C Audio Modem Riser (AMR) Connector

ASUS CUV4X-C User’s Manual 27

Page 28

(This page was intentionally left blank.)

Expansion Cards

3. H/W SETUP

3. HARDWARE SETUP

28 ASUS CUV4X-C User’s Manual

Page 29

3. HARDWARE SETUP

3.8 Connectors

3.8.1 External Connectors

WARNING! Some pins are used for connectors or power sources. These are

clearly distinguished from jumpers in the Motherboard Layout. Placing jumper caps over these connector pins will cause damage to your motherboard.

IMPORTANT: Ribbon cables should always be connected with the red stripe to

Pin 1 on the connectors. Pin 1 is usually on the side closest to the power connector on hard drives and CD-ROM drives, but may be on the opposite side on floppy disk drives. Check the connectors before installation because there may be exceptions. IDE ribbon cable must be less than 46 cm (18 in.), with the second drive connector no more than 15 cm (6 in.) from the first connector.

1) PS/2 Mouse Connector (Green 6-pin PS2KBMS)

The system automatically directs IRQ12 to the PS/2 mouse if one is detected. If no mouse is detected, IRQ12 become available to expansion cards. See PS/2 Mouse Function Control in 4.4 Advanced Menu.

PS/2 Mouse (6-pin Female)

Connectors

3. H/W SETUP

2) PS/2 Keyboard Connector (Purple 6-pin PS2KBMS) This connection is for a standard keyboard using an PS/2 plug (mini DIN). This connector does not allow standard A T size (large DIN) keyboard plugs. You may use a DIN to mini DIN adapter on standard AT keyboards.

PS/2 Keyboard (6-pin Female)

ASUS CUV4X-C User’s Manual 29

Page 30

3. H/W SETUP

Connectors

3. HARDWARE SETUP

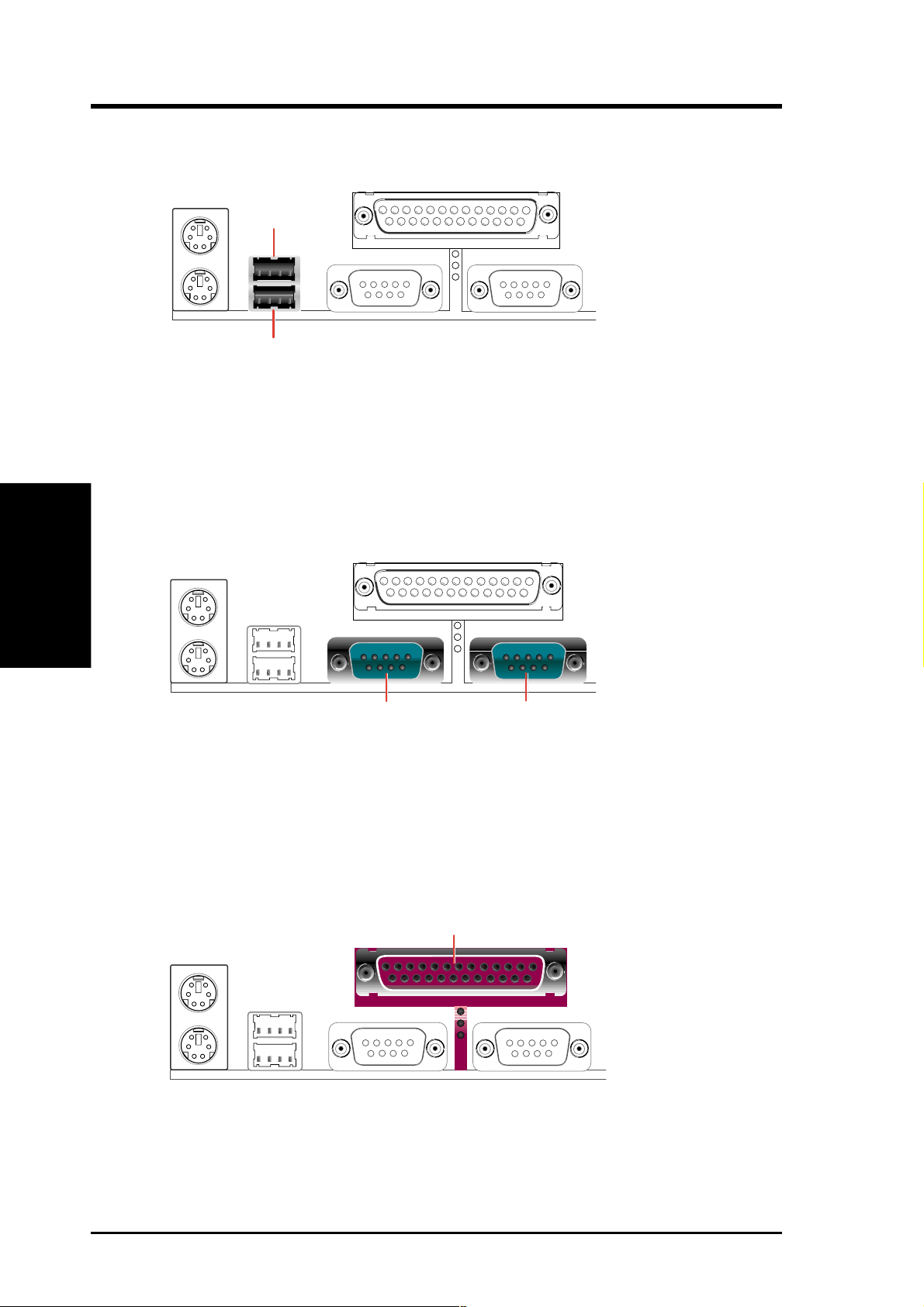

3) Universal Serial BUS Ports 1 & 2 (Black two 4-pin USB)

Two USB ports are available for connecting USB devices.

USB 1

Universal Serial Bus (USB) 2

4) Serial Port Connectors (Teal/Turquoise 9-pin COM1 / 9-pin COM2)

Two serial ports can be used for pointing devices or other serial devices. To enable these ports, see Onboard Serial Port 1 / Onboard Serial Port 2 in 4.4.2 I/O Device Configuration for the settings.

COM2COM1

Serial Ports (9-pin Male)

5) Parallel Port Connector (Burgundy 25-pin PRINTER) You can enable the parallel port and choose the IRQ through Onboard Parallel Port (see 4.4.2 I/O Device Configuration). NOTE: Serial printers must be connected to the serial port.

Parallel Port (25-pin Female)

30 ASUS CUV4X-C User’s Manual

Page 31

3. HARDWARE SETUP

3.8.2 Internal Connectors

1) IDE Activity LED (2-pin IDELED)

This connector supplies power to the cabinet’s IDE activity LED. Read and write activity by devices connected to the Primary or Secondary IDE connectors cause the IDE LED to light up.

CUV4X-C

IDELED

TIP: If the case-mounted LED does not light, try reversing the 2-pin plug.

CUV4X-C IDE Activity LED

2) Floppy Disk Drive Connector (34-1 pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After connecting the single end to the board, connect the two plugs on the other end to the floppy drives. (Pin 5 is removed to prevent inserting in the wr ong orientation when

using ribbon cables with pin 5 plugged).

CUV4X-C

CUV4X-C Floppy Disk Drive Connector

NOTE: Orient the red markings on

the floppy ribbon cable to

PIN 1

Connectors

3. H/W SETUP

ASUS CUV4X-C User’s Manual 31

Page 32

3. H/W SETUP

Connectors

3. HARDWARE SETUP

3) Primary (Blue) / Secondary IDE Connectors (40-1 pin IDE1/IDE2)

These connectors support the provided UltraDMA/66 IDE hard disk ribbon cable. Connect the cable’s blue connector to the primary (recommended) or secondary IDE connector, then connect the gray connector to the UltraDMA/66 slave device (hard disk drive) and the black connector to your UltraDMA/66 master device. It is recommended that non-UltraDMA/66 devices be connected to the secondary IDE connector . If you install two hard disks, you must configure the second drive to Slave mode by setting its jumper accordingly. Refer to the hard disk documentation for the jumper settings. BIOS now supports specific device bootup (see 4.4.1 Advanced CMOS Setup). (Pin 20 is removed to prevent

inserting in the wrong orientation when using ribbon cables with pin 20 plugged). If you have more than two UltraDMA/66 devices, you need to purchase

another UltraDMA/66 cable.

NOTE: The hole near the blue connector on the UltraDMA/66 cable is intentional. TIP: You may configure two hard disks to be both Masters with two ribbon

cables – one for the primary IDE connector and another for the secondary IDE connector . You may install one operating system on an IDE drive and another on a SCSI drive and select the boot disk through 4.4.1 Advanced CMOS Setup.

IMPORT ANT: UltraDMA/66 IDE devices must use a 40-pin 80-conductor IDE cable.

NOTE: Orient the red markings

CUV4X-C

CUV4X-C IDE Connectors

Primary IDE Connector

PIN 1

(usually zigzag) on the IDE ribbon cable to PIN 1.

Secondary IDE Connector

32 ASUS CUV4X-C User’s Manual

Page 33

3. HARDWARE SETUP

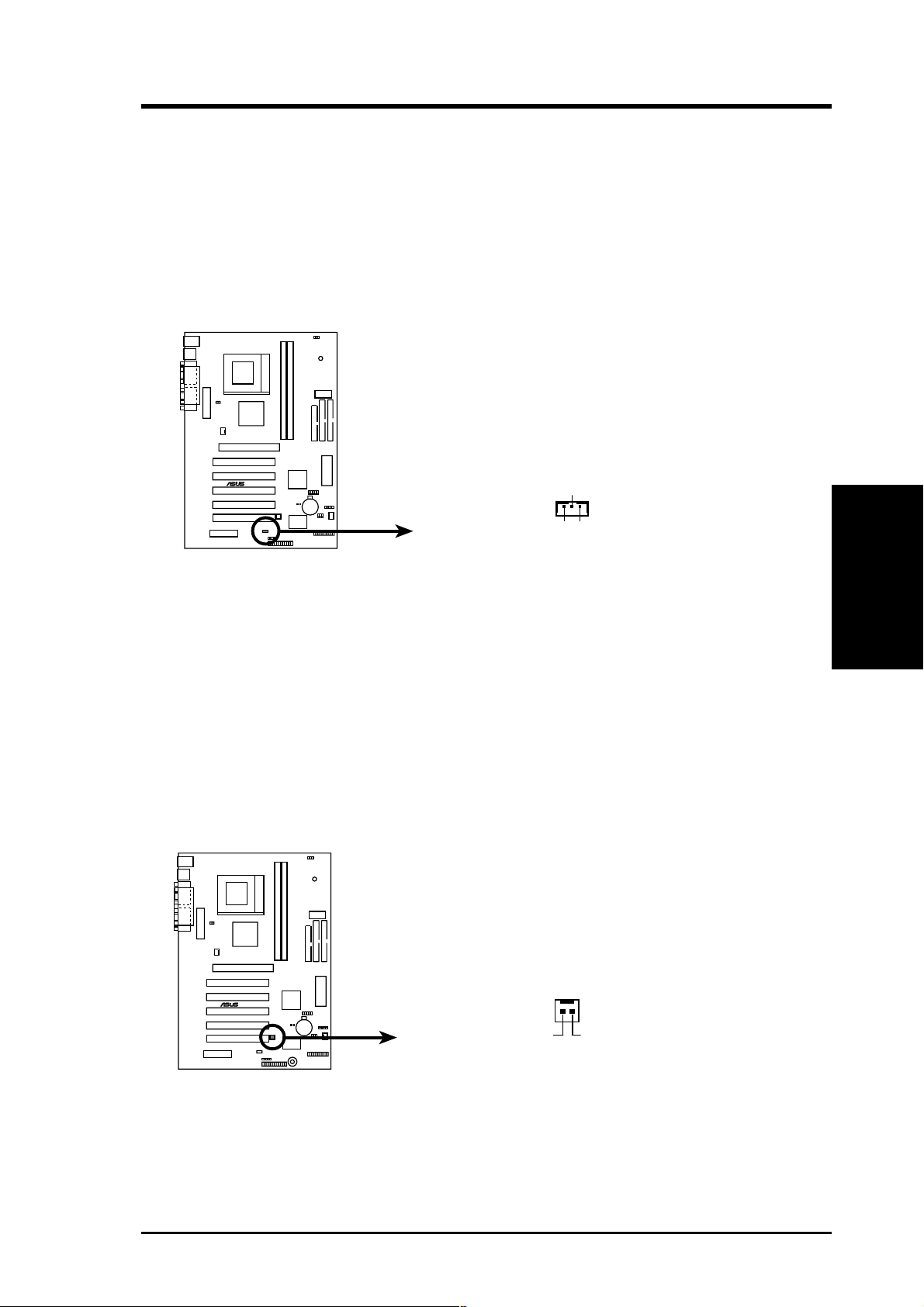

4) Wake-On-LAN Connector (3-pin WOL_CON)

This connector connects to a LAN card with a Wake-On-LAN output, such as the ASUS PCI-L101 Ethernet card (see 7. Appendix). The connector powers up the system when a wakeup packet or signal is received through the LAN card.

IMPORTANT: This feature requires that Wake-On-LAN features are enabled (see 4.4.3 Power Management) and that your system has an ATX power supply with at least 720mA +5V standby power.

IMPORTANT: Requires an ATX power supply with at least 720mA +5 volt standby power.

CUV4X-C

CUV4X-C Wake-On-LAN Connector

WOL_CON

Ground

PME

+5 Volt Standby

5) Wake-On-Ring Connector (2-pin WOR)

This connector connects to internal modem cards with a Wake-On-Ring output. The connector powers up the system when a ringup packet or signal is received through the internal modem card. NOTE: For external modems, W ake-On-Ring is detected through the COM port.

IMPORTANT: This feature requires that Wake-On-Ring features are enabled (see 4.4.3 Power Management) and that your system has an ATX power supply with at least 720mA +5V standby power.

Connectors

3. H/W SETUP

CUV4X-C

CUV4X-C Wake-On-Ring Connector

ASUS CUV4X-C User’s Manual 33

WOR

RI#Ground

Page 34

3. H/W SETUP

Connectors

3. HARDWARE SETUP

6) CPU and Chassis Fan Connectors

The two 3-pin fan connectors (CPU_FAN, CHA_F AN) support cooling fans of 350mA (4.2 W atts) or less. Orient the fans so that the heat sink fins allow airflow to go across the onboard heat sink(s) instead of the expansion slots. The fan wiring and plug may vary depending on the fan manufacturer. The red wire should be positive while the black should be ground. Connect the fan plug to the board taking into consideration the polarity of the connector.

NOTE: Use th e “Rotation” signal only with a specially designed fan with a rotation signal. The Rotations Per Minute (RPM) can be monitored using ASUS PC Probe (see 6. SOFTWARE REFERENCE).

WARNING! The CPU and/or motherboard will overheat if there is no airflow

across the CPU and onboard heatsinks. Damage may occur to the motherboard and/or the CPU fan if these pins are incorrectly used. These are not jumpers,

do not place jumper caps over these pins.

CPU_FAN

Rotation

+12V

CUV4X-C

GND

CHA_FAN

GND +12V

Rotation

CUV4X-C 12-Volt Cooling Fan Power

7) USB Header (10-1 pin USBPORT) (optional)

If the USB port connectors on the back panel are inadequate, one USB header is available for two additional USB port connectors. Connect the USB header to a 2-port USB connector set and mount the bracket to an open slot on the chassis. (The USB connector set does not come with the motherboard package.)

USBPORT

USB Power

USBP3+

USBP3–

GND

CUV4X-C

USBP2+

GND

610

USB Power

USBP2–

CUV4X-C Front Panel USB Header

34 ASUS CUV4X-C User’s Manual

Page 35

3. HARDWARE SETUP

8) Standard Infrared Module Connector (5-pin IR)

This connector supports an optional wireless transmitting and receiving infrared module. This module mounts to a small opening on system cases that support this feature. You must also configure the setting through UART2 Use Infrared (see 4.4.2 I/O Device Configuration) to select whether UART2 is directed for use with COM2 or IrDA. Use the five pins as shown in Back View and connect a ribbon cable from the module to the motherboard SIR connector according to the pin definitions.

Front View Back View

+5V

GND

IRTX

(NC)

CUV4X-C

IRRX

IRTX GND

+5V (NC)

IRRX

CUV4X-C Infrared Module Connector

9) Power Supply Thermal Sensor Connector (2-pin block JTPWR)

If you have a power supply with thermal monitoring, connect its thermal sensor cable to this connector.

JTPWR

Connectors

3. H/W SETUP

CUV4X-C

CUV4X-C Thermal Sensor Connector

ASUS CUV4X-C User’s Manual 35

Power Supply Thermal Sensor

Page 36

3. HARDWARE SETUP

10) ATX Power Supply Connector (20-pin block ATXPWR)

This connector connects to an ATX power supply . The plug from the power supply fits in only one orientation because of the different hole sizes. Find the proper orientation and push down firmly making sure that the pins are aligned.

IMPORTANT: Make sure that your A TX power supply can supply at least 10mA

on the +5-volt standby lead (+5VSB). You may experience difficulty in turning the system ON if the power supply cannot support the load. For Wake-On-LAN support, the ATX power supply must supply at least 720mA +5VSB.

3. H/W SETUP

Connectors

+12.0 Volts

+5V Standby

Power Good

Ground

CUV4X-C

+5.0 Volts

Ground

+5.0 Volts

Ground +3.3 Volts +3.3 Volts

+5.0 Volts +5.0 Volts

-5.0 Volts Ground Ground Ground Power Supply On Ground

-12.0 Volts +3.3 Volts

CUV4X-C ATX Power Connector

11) SMBus Connector (5-1 pin SMB)

This connector allows you to connect SMBus (System Management Bus) devices. SMBus devices communicate by means of the SMBus with an SMBus host and/ or other SMBus devices. SMBus is a specific implementation of an I

C bus, which is a multi-device bus; that is, multiple chips can be connected to the same bus and each one can act as a master by initiating data transfer.

SMB

CUV4X-C

Ground

SMBCLK

+5V

SMBDATA

CUV4X-C SMBus Connector

36 ASUS CUV4X-C User’s Manual

Page 37

3. HARDWARE SETUP

12) ASUS iPanel Connector (12-1 pin AFPANEL)

This connector allows you to connect an optional ASUS iPanel, an easy-to-access drive bay with front I/O ports, status LEDs, and space reserved for a hard disk drive. If you are not using an ASUS iPanel, you can connect an optional wireless transmitting and receiving infrared module to the SIR connector, or an optional consumer infrared connector set to the CIR or SIR connectors for both wireless transmitting and remote control functions through one external infrared module.

AFPANEL

+5 V

GND

+5 V

SIR CIR

CUV4X-C

GND

IR_CON

CUV4X-C Front Panel Connectors

IRRX

GND

IRTX

CIRRX

+5VSB

GND

IRTX

CIRRX

+5VSB

SMBDATA

+3VSB

+5V SMBCLK

EXTSMI#

CHASSIS#

LOCKKEYNCNC

BATT

MLED-

PCIRST#

Standard Infrared (SIR)

Front View Back View

IRTX GND

IRRX

Connectors

3. H/W SETUP

+5V (NC)

ASUS CUV4X-C User’s Manual 37

Page 38

3. HARDWARE SETUP

13) Panel Connector (20-pin SMB)

The following PANEL illustration is for items 14-19.

3. H/W SETUP

Connectors

Power LED

PLED

+5 V

CUV4X-C

Message LED

+5 V

MLED

ExtSMI#

SMI Lead

Requires an ATX power supply.

Speaker

Connector

SPKR

Ground

+5V

Ground

ResetCon

Reset SW

Ground

PWR_SW

ATX Power Switch*

CUV4X-C System Panel Connectors

14) System Power LED Connector(3-1 pin PWR.LED)

This 3-1 pin connector connects to the system power LED. The LED lights up when you turn on the system power, and blinks when the system is in sleep or soft-off mode.

15) System Warning Speaker Connector (4-pin SPEAKER)

This 4-pin connector connects to the case-mounted speaker.

16) System Message LED Connector (2-pin MSG.LED)

This 2-pin connector is for the system message LED that indicates receipt of messages from a fax/modem. The normal status for this LED is ON, when there is no incoming data signal. The LED blinks when there is data received. The system message LED feature requires an ACPI OS and driver support.

17) System Management Interrupt Connector (2-pin SMI)

This 2-pin connector allows you to manually place the system into a suspend mode, or “Green” mode, where system activity is instantly decreased to save power and to expand the life of certain system components. Attach the casemounted suspend switch this 2-pin connector.

18) ATX Power Switch / Soft-Off Switch Connector (2-pin PWR.SW)

The system power is controlled by a momentary switch attached to this connector . Pressing the button switches the system between ON and SLEEP, or ON and SOFT OFF, depending on the BIOS or OS settings. Pressing the button while in the ON mode for more than 4 seconds turns the system off.

19) Reset Switch Connector (2-pin RESET)

This 2-pin connector connects to the case-mounted reset switch for rebooting the system without turning off the power switch. This is a preferred method

38 ASUS CUV4X-C User’s Manual

Page 39

3. HARDWARE SETUP

3.9 Starting Up the First Time

1. After all connections are made, close the system case cover.

2. Be sure that all switches are off (in some systems, marked with

3. Connect the power supply cord into the power supply located on the back of your system case according to your system user’s manual.

4. Connect the power cord into a power outlet that is equipped with a surge protector.

5. You may then turn on your devices in the following order: a. Your monitor b. External SCSI devices (starting with the last device on the chain) c. Your system power. For ATX power supplies, you need to switch on

the power supply as well as press the ATX power switch on the front of the case.

6. The power LED on the front panel of the system case will light. For ATX power supplies, the system LED will light when the ATX power switch is pressed. The LED on the monitor may light up or switch between orange and green after the system’s if it complies with “green” standards or if it has a power standby feature. The system will then run power-on tests. While the tests are running, the BIOS will alarm beeps or additional messages will appear on the screen. If you do not see anything within 30 seconds from the time you turn on the power, the system may have failed a power-on test. Recheck your jumper settings and connections or call your retailer for assistance.

Powering Up

3. H/W SETUP

Award BIOS Beep Codes

Beep Meaning

One short beep when No error during POST displaying logo Long beeps in an endless loop No DRAM installed or detected One long beep followed by Video card not found or video card three short beeps memory bad

High frequency beeps when CPU overheated system is working System running at a lower frequency

ASUS CUV4X-C User’s Manual 39

Page 40

7. During power-on, hold down <Delete> to enter BIOS setup. Follow the

* Powering Off your computer: You must first exit or shut down your

3. H/W SETUP

Powering Up

3. HARDWARE SETUP

instructions in 4. BIOS SETUP.

operating system before switching off the power switch. For ATX power supplies, you can press the ATX power switch after exiting or shutting down your operating system. If you use Windows 9X, click the Start button, click Shut Down, and then click Shut down the computer? The power supply should turn off after Windows shuts down.

NOTE: The message “You can now safely turn off your computer” will not appear when shutting down with ATX power supplies.

ASUS CUV4X-C User’s Manual40

Page 41

4. BIOS SETUP

4.1 Managing and Updating Your BIOS

4.1.1 Upon First Use of the Computer System

It is recommended that you save a copy of the original motherboard BIOS along with a Flash Memory Writer utility (AFLASH.EXE) to a bootable floppy disk in case you need to reinstall the BIOS later . AFLASH.EXE is a Flash Memory Writer utility that updates the BIOS by uploading a new BIOS file to the programmable flash ROM on the motherboard. This file works only in DOS mode. To determine the BIOS version of your motherboard, check the last four numbers of the code displayed on the upper lefthand corner of your screen during bootup. Larger numbers represent a newer BIOS file.

1. Type FORMAT A:/S at the DOS prompt to create a bootable system floppy disk. DO NOT copy AUTOEXEC.BAT & CONFIG.SYS to the disk.

2. Type COPY D:\AFLASH\AFLASH.EXE A:\ (assuming D is your CD- ROM drive) to copy AFLASH.EXE to the just created boot disk.

NOTE: AFLASH works only in DOS mode. It will not work with DOS prompt in Windows and will not work with certain memory drivers that may be loaded when you boot from your hard drive. It is recommended that you reboot using a floppy.

3. Reboot your computer from the floppy disk. NOTE: BIOS setup must specify “Floppy” as the first item in the boot sequence.

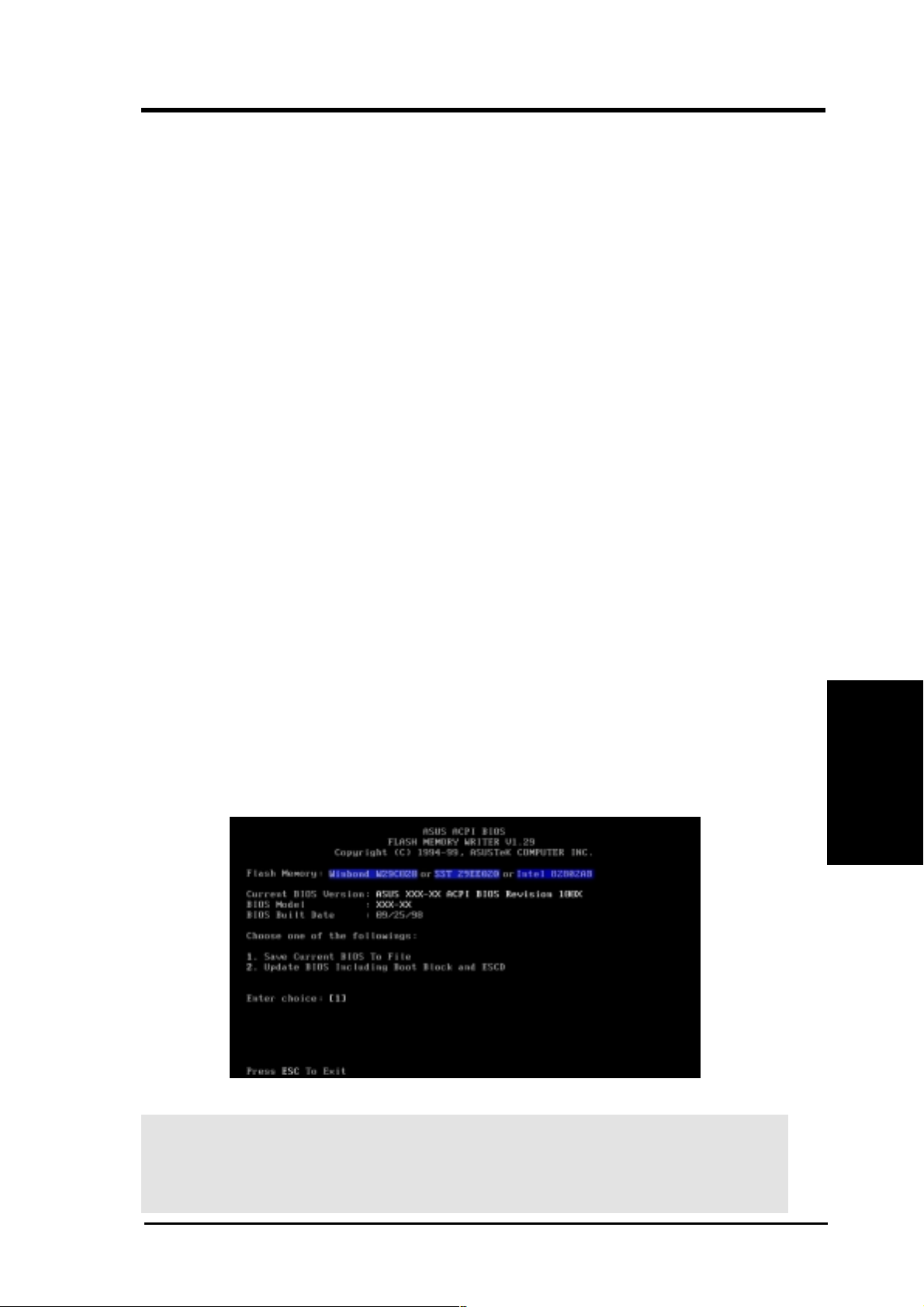

4. In DOS mode, type A:\AFLASH <Enter> to run AFLASH.

Updating BIOS

4. BIOS SETUP

IMPORTANT! If “unknown” is displayed after Flash Memory:, the memory

chip is either not programmable or is not supported by the ACPI BIOS and therefore, cannot be programmed by the Flash Memory Writer utility.

ASUS CUV4X-C User’s Manual 41

Page 42

4. BIOS SETUP

5. Select 1. Save Current BIOS to File from the Main menu and press <Enter>. The Save Current BIOS To File screen appears.

6. Type a filename and the path, for example, A:\XXX-XX.XXX and then press <Enter>.

4.1.2 Updating BIOS Procedures

WARNING! Only update your BIOS if you have problems with your mother-

board and you know that the new BIOS revision will solve your problems. Careless updating can result in your motherboard having more problems!

4. BIOS SETUP

Updating BIOS

1. Download an updated ASUS BIOS file from the Internet (WWW or

2. Boot from the disk you created earlier.

3. At the “A:\” prompt, type AFLASH and then press <Enter>.

4. At the Main Menu, type 2 and then press <Enter>. The Update BIOS

5. Type the filename of your new BIOS and the path, for example, A:\XXX-

FTP) (see ASUS CONTACT INFORMATION on page 3 for details) and save to the disk you created earlier.

Including Boot Block and ESCD screen appears.

XX.XXX, and then press <Enter>. NOTE: To cancel this operation, press <Enter>.

ASUS CUV4X-C User’s Manual42

Page 43

4. BIOS SETUP

6. When prompted to confirm the BIOS update, press Y to start the update.

7. The utility starts to program the new BIOS information into the flash ROM. The boot block will be updated automatically only when necessary. This will minimize the chance that a failed update will prevent your system from booting up. When the programming is finished, Flashed Successfully will be displayed.

8. Follow the onscreen instructions to continue.

WARNING! If you encounter problems while updating the new BIOS, DO NOT

turn off your system since this might prevent your system from booting up. Just repeat the process, and if the problem still persists, update the original BIOS file you saved to disk above. If the Flash Memory Writer utility was not able to successfully update a complete BIOS file, your system may not be able to boot up. If this happens, your system will need servicing.

Updating BIOS

4. BIOS SETUP

ASUS CUV4X-C User’s Manual 43

Page 44

4. BIOS SETUP

(This page was intentionally left blank.)

4. BIOS SETUP

Updating BIOS

ASUS CUV4X-C User’s Manual44

Page 45

4. BIOS SETUP

4.2 BIOS Setup Program

This motherboard supports a programmable EEPROM that can be updated using the provided utility as described in 4.1 Managing and Updating Your BIOS.

The utility is used if you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup”. This section describes how to configure your system using this utility.

Even if you are not prompted to use the Setup program, at some time in the future you may want to change the configuration of your computer. For example, you may want to enable the Security Password Feature or make changes to the power management settings. It will then be necessary to reconfigure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the EEPROM.

The EEPROM on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. This appears during the Power-On Self Test (POST). Press <Delete> to call up the Setup utility . If you are a little bit late in pressing the mentioned key, POST will continue with its test routines, thus preventing you from calling up Setup. If you still need to call Setup, restart the system by pressing <Ctrl> + <Alt> + <Delete>, or by pressing the Reset button on the system chassis. You can also restart by turning the system off and then back on again. But do so only if the first two methods fail.

The Setup program has been designed to make it as easy to use as possible. It is a menu-driven program, which means you can scroll through the various sub-menus and make your selections among the predetermined choices.

To access the BIOS Setup program, press the <Delete> key after the computer has run through its POST.

NOTE: Because the BIOS software is constantly being updated, the following BIOS screens and descriptions are for reference purposes only and may not reflect your BIOS screens exactly.

4. BIOS SETUP

Program Information

ASUS CUV4X-C User’s Manual 45

Page 46

4. BIOS SETUP

4.2.1 BIOS Menu Bar

The top of the screen has a menu bar with the following selections:

MAIN Use this menu to make changes to the basic system configuration. ADVANCED Use this menu to enable and make changes to the advanced

features.

POWER Use this menu to configure and enable Power Management

features.

BOOT Use this menu to configure the default system device used to lo-

cate and load the Operating System.

EXIT Use this menu to exit the current menu or specify how to exit the

Setup program.

To access the menu bar items, press the right or left arrow key on the keyboard until the desired item is highlighted.

4.2.2 Legend Bar

At the bottom of the Setup screen you will notice a legend bar. The keys in the legend bar allow you to navigate through the various setup menus. The following table lists the keys found in the legend bar with their corresponding alternates and

Menu Introduction

4. BIOS SETUP

functions.

Navigation Key(s) Function Description

<F1> or <Alt + H> Displays the General Help screen from anywhere in the BIOS

<Esc> Jumps to the Exit menu or returns to the main menu from a sub-

← or → (keypad arrow) Selects the menu item to the left or right ↑ or ↓ (keypad arrow) Moves the highlight up or down between fields

- (minus key) Scrolls backward through the values for the highlighted field

+ (plus key) or spacebar Scrolls forward through the values for the highlighted field <Enter> Brings up a selection menu for the highlighted field <Home> or <PgUp> Moves the cursor to the first field <End> or <PgDn> Moves the cursor to the last field

Setup

<F5> Resets the current screen to its Setup Defaults <F10> Saves changes and exits Setup

ASUS CUV4X-C User’s Manual46

Page 47

4. BIOS SETUP

General Help

In addition to the Item Specific Help window, the BIOS setup program also provides a General Help screen. This screen can be called up from any menu by simply pressing <F1> or the <Alt> + <H> combination. The General Help screen lists the legend keys with their corresponding alternates and functions.

Saving Changes and Exiting the Setup Program

See 4.7 Exit Menu for detailed information on saving changes and exiting the setup program.

Scroll Bar

When a scroll bar appears to the right of a help window, it indicates that there is more information to be displayed that will not fit in the window. Use <PgUp> and <PgDn> or the up and down arrow keys to scroll through the entire help document. Press <Home> to display the first page, press <End> to go to the last page. To exit the help window, press <Enter> or <Esc>.

Sub-Menu

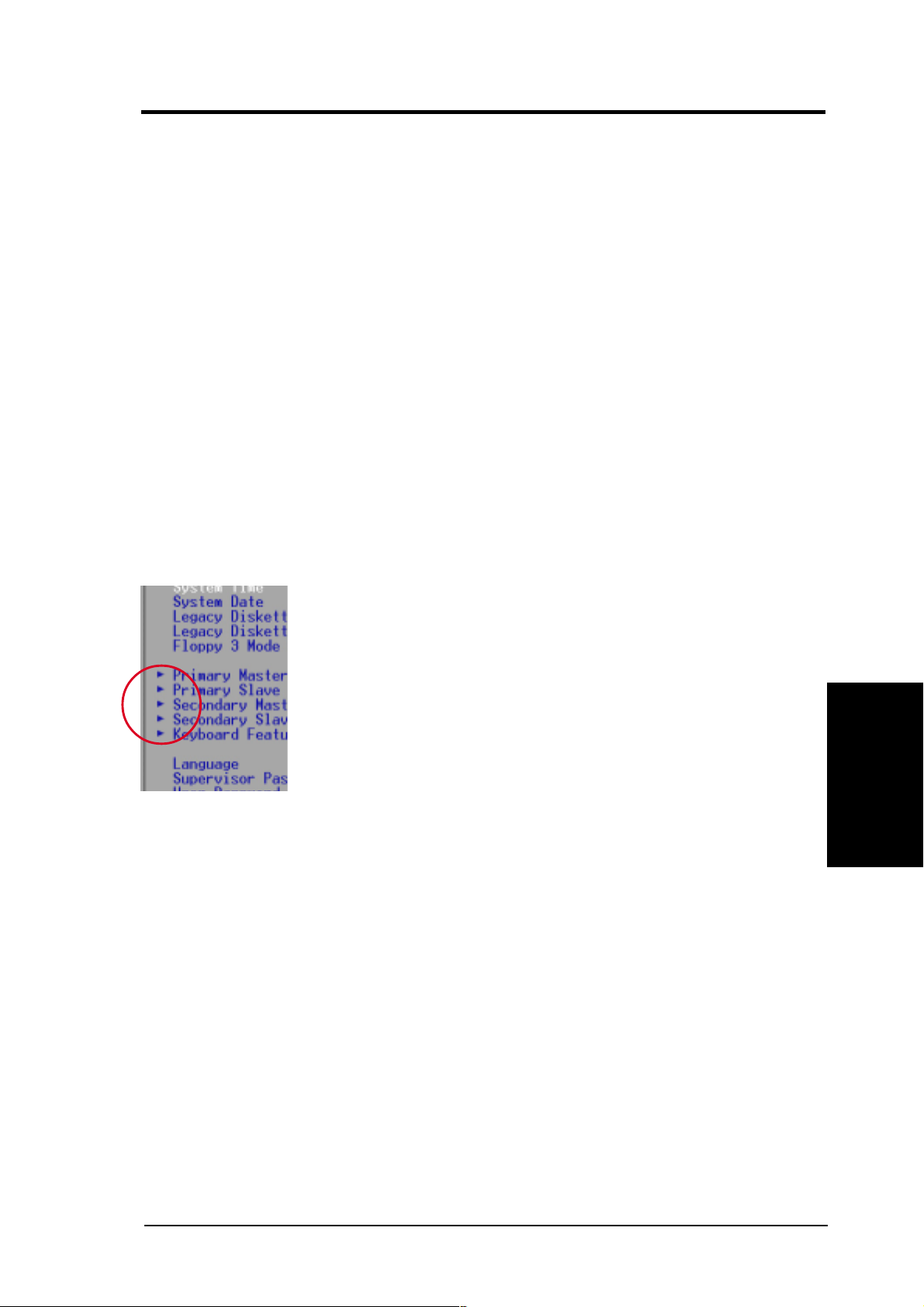

Note that a right pointer symbol (as shown in the left view) appears to the left of certain fields. This pointer indicates that a sub-menu can be launched from this field. A sub-menu contains additional options for a field parameter . To call up a submenu, simply move the highlight to the field and press <Enter>. The sub-menu will then immediately appear. Use the legend keys to enter values and move from field to field within a sub-menu just as you would within a menu. Use the <Esc> key to return to the main menu.

Take some time to familiarize yourself with each of the legend keys and their corresponding functions. Practice navigating through the various menus and submenus. If you accidentally make unwanted changes to any of the fields, use the set default hot key <F5>. While moving around through the Setup program, note that explanations appear in the Item Specific Help window located to the right of each menu. This window displays the help text for the currently highlighted field.

4. BIOS SETUP

Menu Introduction

NOTE: The item heading in square brackets represents the default setting for that field.

ASUS CUV4X-C User’s Manual 47

Page 48

4. BIOS SETUP

4.3 Main Menu

When the Setup program is accessed, the following screen appears:

System Time [XX:XX:XX]

Sets your system to the time that you specify (usually the current time).

4. BIOS SETUP

Main Menu

The format is hour, minute, second. Valid values for hour, minute and second are Hour: (00 to 23), Minute: (00 to 59), Second: (00 to 59). Use the <Tab> or <Shift> + <Tab> keys to move between the hour, minute, and second fields.

System Date [XX/XX/XXXX]

Sets your system to the date that you specify (usually the current date). The format is month, day , year . Valid values for month, day, and year are Month: (1 to 12), Day: (1 to 31), Y ear: (100 year range). Use the <T ab> or <Shift> + <Tab> keys to move between the month, day, and year fields.

Legacy Diskette A [1.44M, 3.5 in.], Legacy Diskette B [None]

Sets the type of floppy drives installed. Configuration options: [None] [360K, 5.25 in.] [1.2M , 5.25 in.] [720K , 3.5 in.] [1.44M, 3.5 in.] [2.88M, 3.5 in.]

Floppy 3 Mode Support [Disabled]

This is required to support older Japanese floppy drives. Floppy 3 Mode support will allow reading and writing of 1.2MB (as opposed to 1.44MB) on a 3.5-inch diskette. Configuration options: [Disabled] [Enabled]

ASUS CUV4X-C User’s Manual48

Page 49

4. BIOS SETUP

General Help

Saving Changes and Exiting the Setup Program

See 4.7 Exit Menu for detailed information on saving changes and exiting the setup program.

Scroll Bar

Sub-Menu

4. BIOS SETUP

Menu Introduction

NOTE: The item heading in square brackets represents the default setting for that field.

ASUS CUV4X User’s Manual 49

Page 50

4. BIOS SETUP

IMPORT ANT: If your hard disk was already formatted on an older previous system,

incorrect parameters may be detected. You will need to enter the correct parameters manually or use low-level format if you do not need the data stored on the hard disk.

If the parameters listed differ from the ones used when the disk was formatted, the disk will not be readable. If the auto-detected parameters do not match the ones that should be used for your disk, you should enter the correct ones manually by setting [User Type HDD].

[User Type HDD]

Master/Slave Drives

4. BIOS SETUP

Manually enter the number of cylinders, heads and sectors per track for your drive. Refer to your drive documentation or look on the drive for this information. If no drive is installed or if you are removing a drive and not replacing it, select [None].

Translation Method [LBA]

Select the hard disk drive type in this field. When Logical Block Addressing is enabled, 28-bit addressing of the hard drive is used without regard for cylinders, heads, or sectors. Note that LBA Mode is necessary for drives with greater than 504MB in storage capacity. Configuration options: [LBA] [LARGE] [Normal] [Match Partition Table] [Manual]

Cylinders

This field configures the number of cylinders. Refer to your drive documentation to determine the correct value to enter into this field. NOTE: To make changes to this field, the Type field must be set to [User Type HDD] and the Translation Method field must be set to [Manual].

ASUS CUV4X-C User’s Manual50

Page 51

4. BIOS SETUP

Head

This field configures the number of read/write heads. Refer to your drive documentation to determine the correct value to enter into this field. NOTE: To make changes to this field, the Type field must be set to [User T ype HDD] and the T ranslation Method field must be set to [Manual].

Sector

This field configures the number of sectors per track. Refer to your drive documentation to determine the correct value to enter into this field. NOTE: To make changes to this field, the Type field must be set to [User T ype HDD] and the Trans-

lation Method field must be set to [Manual]. CHS Capacity

This field shows the drive’s maximum CHS capacity calculated automatically by the BIOS from the drive information you entered.

Maximum LBA Capacity

This field shows the drive’s maximum LBA capacity calculated automatically by the BIOS from the drive information you entered.

Multi-Sector Transfers [Maximum]

This option automatically sets the number of sectors per block to the highest number supported by the drive. This field can also be configured manually. Note that when this field is automatically configured, the set value may not always be the fastest value for the drive. Refer to the documentation that came with your hard drive to determine the optimal value and set it manually. NOTE: To make changes to this field, the Type field must be set to [User Type HDD]. Configuration options: [Dis- abled] [2 Sectors] [4 Sectors] [8 Sectors] [16 Sectors] [32 Sectors] [Maximum]

SMART Monitoring [Disabled]

This allows the enabling or disabling of the S.M.A.R.T. (Self-Monitoring, Analysis and Reporting T echnology) system which utilizes internal hard disk drive monitoring technology . This feature is normally disabled because system resources used in this feature may decrease system performance. Configuration options: [Disabled] [Enabled]

PIO Mode [4]

This option lets you set a PIO (Programmed Input/Output) mode for the IDE device. Modes 0 through 4 provide successively increased performance. Configuration options: [0] [1] [2] [3] [4]

4. BIOS SETUP

Master/Slave Drives

Ultra DMA Mode [Disabled]

Ultra DMA capability allows improved transfer speeds and data integrity for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA capability. NOTE: To make changes to this field, the Type field must be set to [User Type HDD]. Configuration options: [0] [1] [2] [3] [4] [Disabled]

ASUS CUV4X-C User’s Manual 51

Page 52

4. BIOS SETUP

IMPORT ANT: If your hard disk was already formatted on an older previous system,

incorrect parameters may be detected. You will need to enter the correct parameters manually or use low-level format if you do not need the data stored on the hard disk.

[User Type HDD]

Master/Slave Drives

4. BIOS SETUP

Translation Method [LBA]

Cylinders

Method field must be set to [Manual].

ASUS CUV4X User’s Manual52

Page 53

4. BIOS SETUP

Head

Sector

lation Method field must be set to [Manual]. CHS Capacity

This field shows the drive’s maximum CHS capacity calculated automatically by the BIOS from the drive information you entered.

Maximum LBA Capacity

This field shows the drive’s maximum LBA capacity calculated automatically by the BIOS from the drive information you entered.

Multi-Sector Transfers [Maximum]

SMART Monitoring [Disabled]

PIO Mode [4]

This option lets you set a PIO (Programmed Input/Output) mode for the IDE device. Modes 0 through 4 provide successively increased performance. Configuration options: [0] [1] [2] [3] [4]

4. BIOS SETUP

Master/Slave Drives

Ultra DMA Mode [Disabled]

ASUS CUV4X User’s Manual 53

Page 54

4. BIOS SETUP

Other options for “Type:” are: [CD-ROM] - for IDE CD-ROM drives

[LS-120] - for LS-120 compatible floppy disk drives [ZIP-100] - for ZIP-100 compatible disk drives [MO] - for IDE magneto optical disk drives [Other ATAPI Device] - for IDE devices not listed here

After using the legend keys to make your selections on this sub-menu, press the <Esc> key to exit back to the Main menu. When the Main menu appears, you will notice that the drive size appear in the field for the hard disk drive that you just configured.

4.3.2 Keyboard Features

4. BIOS SETUP

Main Menu

Boot Up NumLock Status [On]

This field enables users to activate the Number Lock function upon system boot. Configuration options: [Off] [On]

Keyboard Auto-Repeat Rate [12/Sec]

This controls the speed at which the system registers repeated keystrokes. Options range from 6 to 30 characters per second. Configuration options: [6/Sec] [8/Sec] [10/Sec] [12/Sec] [15/Sec] [20/Sec] [24/Sec] [30/Sec]

Keyboard Auto-Repeat Delay [1/4 Sec]

This field sets the time interval for displaying the first and second characters. Configuration options: [1/4 Sec] [1/2 Sec] [3/4 Sec] [1 Sec]

ASUS CUV4X User’s Manual54

Page 55

4. BIOS SETUP

System/SDRAM Frequency Ratio [Auto]

This field determines whether the memory clock frequency is set to be in synchronous or asynchronous mode with respect to the system frequency. The options displayed in the popup menu vary according to the System/ PCI Frequency (MHz).

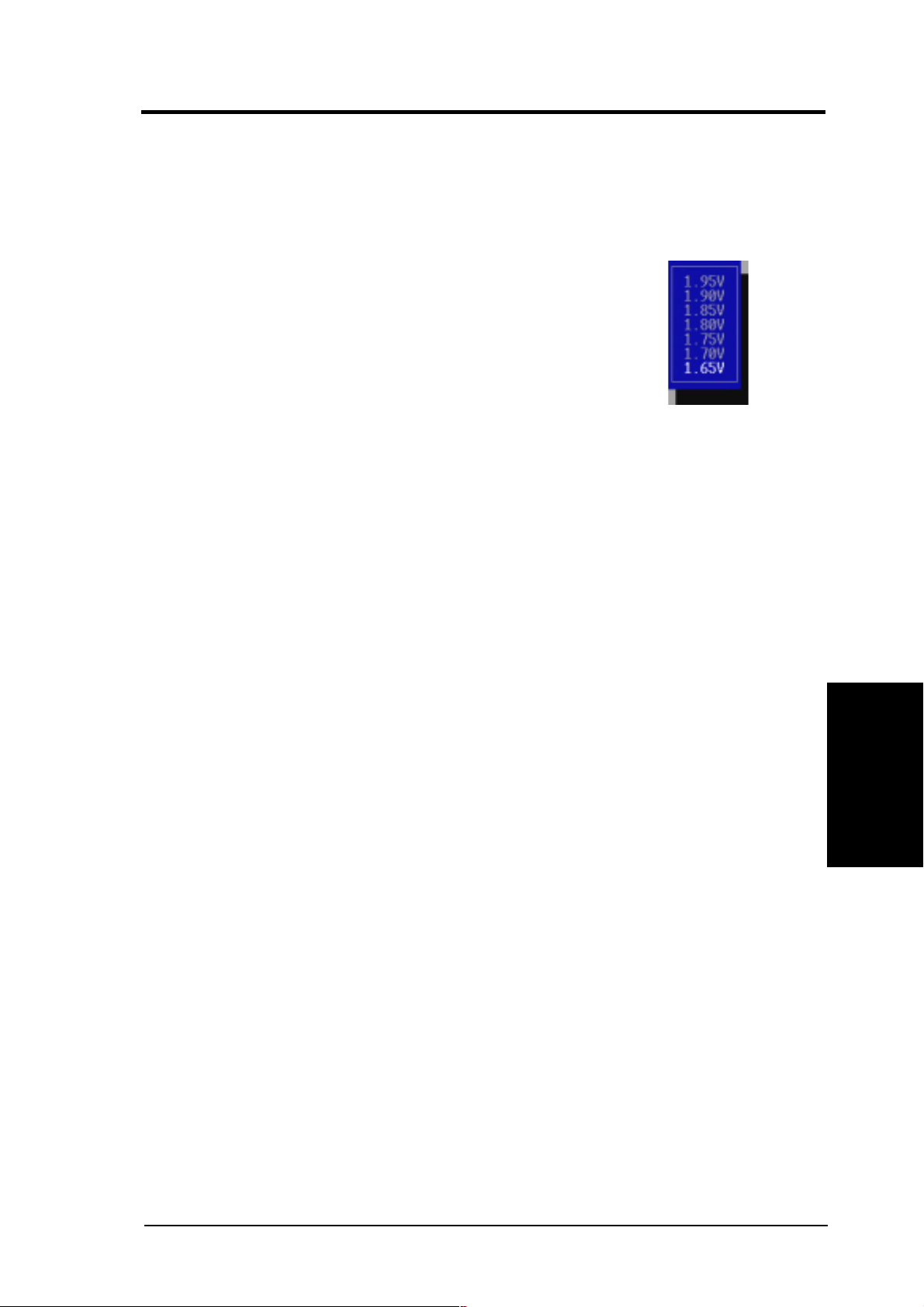

CPU Vcore

In JumperFree mode, this field displays the core voltage supplied to the CPU. If you want to set it manually, refer to the CPU documentation. The picture shown here provides only an example of Vcore ranges.

CPU Level 1 Cache, CPU Level 2 Cache [Enabled]

These fields allow you to choose from the default of [Enabled] or choose [Disabled] to turn on or off the CPU’s Level 1 and Level 2 built-in cache. Configuration options: [Disabled] [Enabled]

CPU Level 2 Cache ECC Check [Disabled]

This function controls the ECC capability in the CPU level 2 cache. Configuration options: [Disabled] [Enabled]

Processor Serial Number [Disabled]

The Processor Serial Number is a unique number that is added to every Pentium III processor to help verify the identity of the user across the Internet. Set this field to [Enabled] when you need increased security for doing business online or e-commerce. Otherwise, leave it to its default setting [Disabled] for greater anonymity when surfing the Internet.

NOTE: This field is available only when a Pentium III processor is installed in the system.

BIOS Update [Enabled]

This functions as an update loader integrated into the BIOS to supply the processor with the required data. In the default position of [Enabled], the BIOS will load the update on all processors during system bootup. Configuration options: [Disabled] [Enabled]

PS/2 Mouse Function Control [Auto]

The default of [Auto] allows the system to detect a PS/2 mouse on startup. If detected, IRQ12 will be used for the PS/2 mouse. IRQ12 will be reserved for expansion cards only if a PS/2 mouse is not detected. [Enabled] will always reserve IRQ12, whether on startup a PS/2 mouse is detected or not. Configuration options: [Enabled] [Auto]

Advanced Menu

4. BIOS SETUP

ASUS CUV4X-C User’s Manual 55

Page 56

4. BIOS SETUP

USB Legacy Support [Auto]

This motherboard supports Universal Serial Bus (USB) devices. The default of [Auto] allows the system to detect a USB device on startup. If detected, the USB controller will be enabled. If not detected, the USB controller will be disabled. When this field is set to [Disabled], the USB controller is disabled no matter whether you are using a USB device or not. Configuration options: [Disabled] [Enabled] [Auto]

OS/2 Onboard Memory > 64M [Disabled]

When using OS/2 operating systems with installed DRAM of greater than 64MB, you need to set this option to [Enabled]; otherwise, leave this on [Disabled]. Configuration options: [Disabled] [Enabled]

Notes for JumperFree Mode

CPU Upgrade/Reinstallation

To ensure that your system can enter BIOS setup after the processor has been changed or reinstalled, your system will start up running at a bus speed of 66MHz and a fail-safe CPU internal frequency (4x66MHz for the Intel Coppermine processor or 2x66MHz for non-Coppermine processors). It will

JumperFree Mode

4. BIOS SETUP

then automatically take you to the Advanced menu with a popup menu of all the officially possible CPU internal frequencies.

For processors with locked frequency multiplier

ASUS CUV4X-C User’s Manual56

Page 57

4. BIOS SETUP

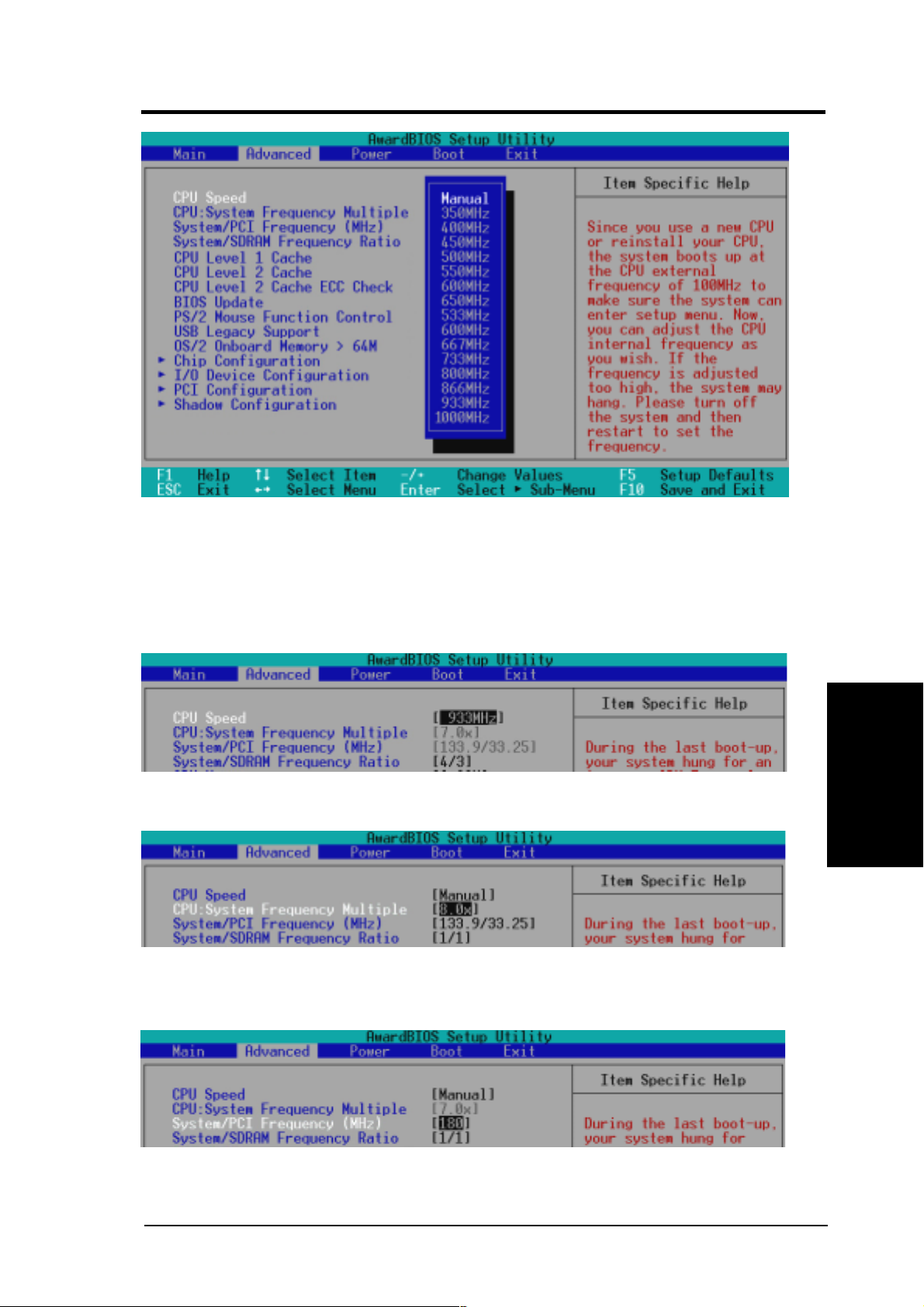

For processors with unlocked frequency multiplier

System Hangup

If your system crashes or hangs due to improper frequency settings, power OFF your system and restart. The system will start up in safe mode running at a bus speed of 66MHz and enter BIOS setup.

Cause for Hangup: Improper CPU Speed

Cause for Hangup: Improper CPU: System Frequency Multiple

(For processors with unlocked frequency multiplier only)

4. BIOS SETUP

JumperFree Mode

Cause for Hangup: Improper System/SDRAM Frequency Ratio

ASUS CUV4X-C User’s Manual 57

Page 58

4. BIOS SETUP

USB Legacy Support [Auto]

OS/2 Onboard Memory > 64M [Disabled]

When using OS/2 operating systems with installed DRAM of greater than 64MB, you need to set this option to [Enabled]; otherwise, leave this on [Disabled]. Configuration options: [Disabled] [Enabled]

Notes for JumperFree Mode

CPU Upgrade/Reinstallation

JumperFree Mode

4. BIOS SETUP

then automatically take you to the Advanced menu with a popup menu of all the officially possible CPU internal frequencies.

For processors with locked frequency multiplier

ASUS CUV4X User’s Manual58

Page 59

4. BIOS SETUP

Read Around Write [Enabled]

With the Read Around Write (RAW) feature, after the CPU issues a write command, the memory controller stores the write data in its buffer so that next time the CPU needs the data, it can provide them without accessing the SDRAM. Configuration options: [Disabled] [Enabled]

CPU-DRAM Back-Back Transaction [Enabled]

Configuration options: [Enabled] [Disabled]

Delayed Transaction [Disabled]

When [Enabled], this frees the PCI Bus when the CPU is accessing 8-bit ISA cards that normally consume about 50-60 PCI Clocks without PCI delayed transaction. Select [Disabled] for ISA cards that are not PCI 2.1 compliant. Configuration options: [Enabled] [Disabled]

PCI to DRAM Prefetch [Disabled]

Configuration options: [Disabled] [Enabled]

Byte Merge [Disabled]

To optimize the data transfer on PCI, this merges a sequence of individual memory writes (bytes or words) into a single 32-bit block of data. However, byte merging may only be done when the bytes within a data phase are in a prefetchable address range. Configuration options: [Disabled] [Enabled]

DRAM Read Latch Delay [1 ns]

Configuration options: [0.0 ns] [0.5 ns] [1.0 ns] [1.5 ns]

AGP Capability [4X Mode]

This motherboard supports the AGP 4x interface, which transfers video data at 1066MB/s. Since AGP 4x is backward-compatible, you may leave the default [4X Mode] on no matter you are using an AGP 1x or 2x video card. When set to [1X Mode], the AGP interface will only provide a peak data throughput of 266MB/s even if you are using an AGP 2x/4x card. When set to [2X Mode], the AGP interface will only provide a peak data throughput of 533MB/s even if you are using an AGP 4x card. Configuration options: [1X Mode] [2X Mode] [4X Mode]

4. BIOS SETUP

Chip Configuration

Graphics Window Size [32MB]

This feature allows you to select the size of mapped memory for AGP graphic data. Configuration options: [4MB] [8MB] [16MB] [32MB] [64MB] [128MB] [256MB]

ASUS CUV4X-C User’s Manual 59

Page 60

4. BIOS SETUP

Video Memory Cache Mode [UC]

USWC (uncacheable, speculative write combining) is a new cache technology for the video memory of the processor. It can greatly improve the display speed by caching the display data. You must set this to UC (uncacheable) if your display card cannot support this feature; otherwise your system may not boot. Configuration options: [UC] [USWC]

Onboard PCI IDE Enable [Both]

You can select to enable the primary IDE channel, secondary IDE channel, both, or disable both channels. Configuration options: [Both] [Primary] [Secondary] [Disabled]

Memory Hole At 15M-16M [Disabled]

This field allows you to reserve an address space for ISA expansion cards that require it. Setting the address space to a particular setting will make that memory space unavailable to the system. Expansion cards can only access memory up to 16MB. Configuration options: [Disabled] [Enabled]

Chip Configuration

4. BIOS SETUP

ASUS CUV4X-C User’s Manual60

Page 61

4. BIOS SETUP

4.4.2 I/O Device Configuration

Onboard FDC Swap A & B [No Swap]

This field allows you to reverse the hardware drive letter assignments of your floppy disk drives. Configuration options: [No Swap] [Swap AB]

Onboard Serial Port 1 [3F8H/IRQ4] Onboard Serial Port 2 [2F8H/IRQ3]

These fields allow you to set the addresses for the onboard serial connectors. Serial Port 1 and Serial Port 2 must have different addresses. Configuration options: [3F8H/IRQ4] [2F8H/IRQ3] [3E8H/IRQ4] [2E8H/IRQ10] [Disabled]

UART2 Use Standard Infrared [Disabled]

When enabled, this field activates the onboard standard infrared feature and sets the second serial UART to support the infrared module connector on the motherboard. If your system already has a second serial port connected to the onboard COM2 connector, it will no longer work if you enable the infrared feature. See IrDA-Compliant Infrared Module Connector in 3.8 External Connectors. Configuration options: [Disabled] [Enabled]

4. BIOS SETUP

I/O Device Config

Onboard Parallel Port [378H/IRQ7]

This field sets the address of the onboard parallel port connector. If you disable this feature, Parallel Port Mode and ECP DMA Select configurations will not be avail- able. Configuration options: [Disabled] [378H/IRQ7] [278H/IRQ5]

ASUS CUV4X-C User’s Manual 61

Page 62

4. BIOS SETUP

Parallel Port Mode [ECP+EPP]

This field allows you to set the operation mode of the parallel port. [Normal] allows normal-speed operation but in one direction only; [EPP] allows bidirectional parallel port operation; [ECP] allows the parallel port to operate in bidirectional DMA mode; [ECP+EPP] allows normal speed operation in a two-way mode. Configuration options: [Normal] [EPP] [ECP] [ECP+EPP]

ECP DMA Select [3]

This field allows you to configure the parallel port DMA channel for the selected ECP mode. This selection is available only if you select [ECP] or [ECP+EPP] in Parallel Port Mode above. Configuration options: [1] [3] [Disabled]

Onboard Peripheral Resource Control

I/O Device Config

4. BIOS SETUP

Onboard AC97 Modem Controller, Audio Controller [Auto]

[Auto] allows the motherboard’ s BIOS to detect whether you are using any modem/ audio device. If a modem/audio device is detected, the onboard modem/audio controller will be enabled; if no modem/audio device is detected, the onboard modem/audio controller will be disabled. If you have conflicts with the onboard modem/audio controller, you may set the appropriate field to [Disabled]. Configuration options: [Disabled] [Auto]

ASUS CUV4X-C User’s Manual62

Page 63

4. BIOS SETUP

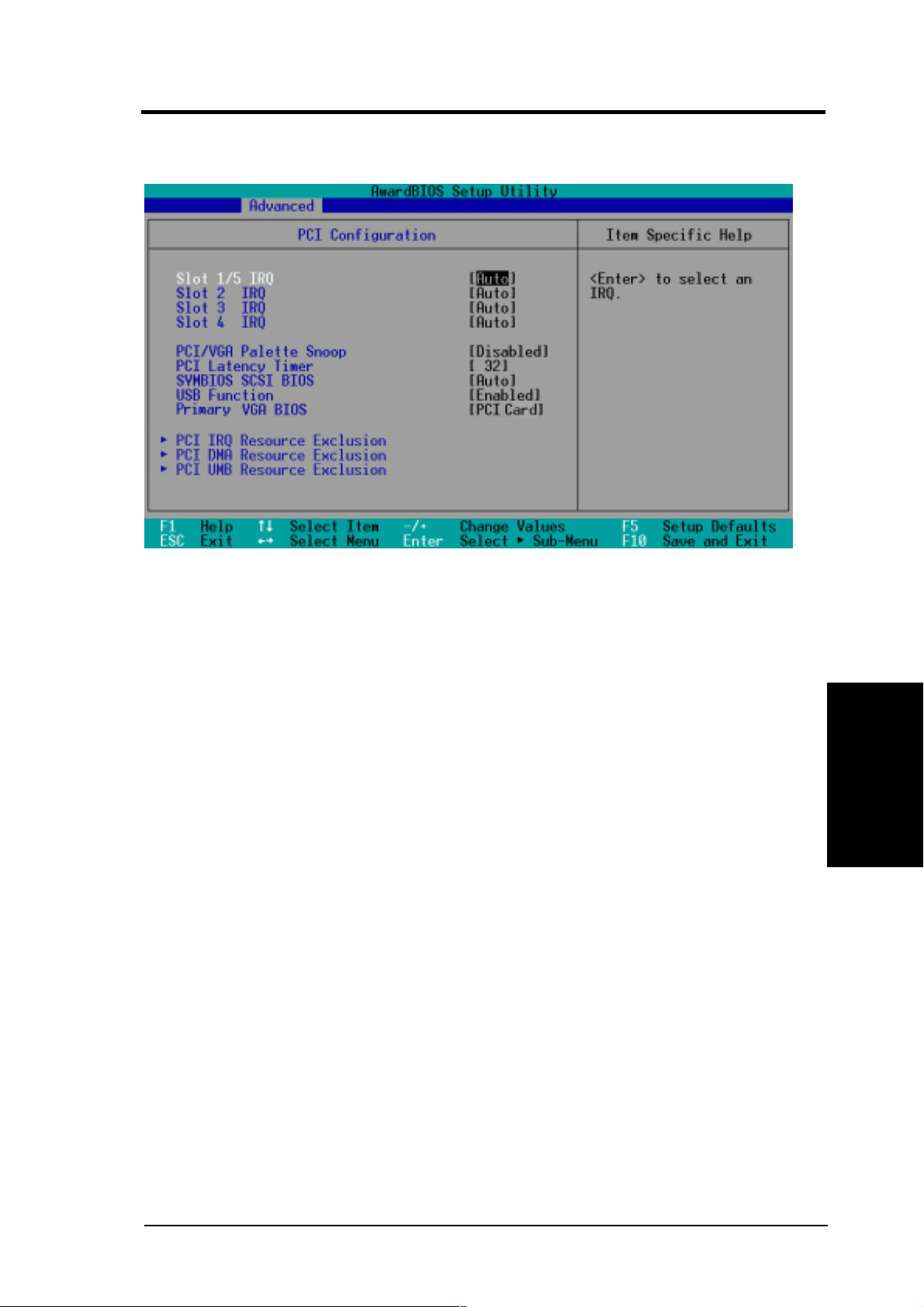

4.4.3 PCI Configuration

Slot 1/5, Slot 2, Slot 3, Slot 4 IRQ [Auto]

These fields set how IRQ use is determined for each PCI slot. The default setting for each field is [Auto], which utilizes auto-routing to determine IRQ use. Configuration options: [Auto] [NA] [3] [4] [5] [7] [9] [10] [11] [12] [14] [15]

PCI/VGA Palette Snoop [Disabled]

Some nonstandard VGA cards, such as graphics accelerators or MPEG video cards, may not show colors properly. The setting [Enabled] should correct this problem. Otherwise, leave this on the default setting of [Disabled]. Configuration options: [Disabled] [Enabled]

PCI Latency Timer [32]

Leave on default setting for best performance vs. stability.

SYMBIOS SCSI BIOS [Auto]

[Auto] allows the motherboard’s BIOS to detect whether you have a Symbios SCSI card. If the Symbios SCSI card is detected, the motherboard’s Symbios BIOS will be enabled; if no Symbios SCSI card is detected, the onboard Symbios SCSI BIOS will be disabled.

4. BIOS SETUP

PCI Configuration

[Disabled] will disable the motherboard’s Symbios SCSI BIOS so that the BIOS on an add-on Symbios SCSI card can be used. If your Symbios SCSI card does not have a BIOS, the Symbios SCSI card will not function. Configuration options: [Auto] [Disabled]

ASUS CUV4X-C User’s Manual 63

Page 64

4. BIOS SETUP

USB Function [Enabled]

Set to [Enabled] if you want to use Universal Serial Bus devices. Configuration options: [Disabled] [Enabled]

Primary VGA BIOS [PCI Card]

This field allows you to select your primary graphics card. Configuration options: [PCI Card] [AGP Card]

PCI IRQ Resource Exclusion

PCI Configuration

4. BIOS SETUP

IRQ XX Used By ISA [No/ICU]

These fields indicate whether or not the displayed IRQ for each field is being used by a legacy (non-PnP) ISA card. The default value indicates either that the displayed IRQ is not used or that ISA Configuration Utility (ICU) is being used to determine if an ISA card is using that IRQ. If you install a legacy ISA card that requires a unique IRQ and you are not using an ICU, you must set the field for that IRQ to [Yes]. For example: If you install a legacy ISA card that requires IRQ 10, then set IRQ10 Used By ISA to [Yes]. Configuration options: [No/ICU] [Yes]

ASUS CUV4X-C User’s Manual64

Page 65

4. BIOS SETUP

PCI DMA Resource Exclusion

DMA x Used By ISA [No/ICU]

These fields indicate whether or not the displayed DMA channel for each field is being used by a legacy (non-PnP) ISA card. The default setting indicates either that the displayed DMA channel is not used or an ICU is being used to determine if an ISA card is using that channel. If you install a legacy ISA card that requires a unique DMA channel, and you are not using an ICU, you must set the field for that channel to [Yes]. Configuration options: [No/ICU] [Yes]

PCI UMB Resource Exclusion

4. BIOS SETUP

PCI Configuration

ASUS CUV4X-C User’s Manual 65

Page 66

4. BIOS SETUP

ISA MEM Block BASE [No/ICU]

This field allows you to set the base address and block size of a legacy ISA card that uses any memory segment within the C800 and DFFF address range. If you have such a card and you are not using an ICU to specify its address range, select a base address from the six available options; the ISA MEM Block SIZE field will then appear for selecting the block size. If you have more than one legacy ISA card in your system that requires the use of this address range, you can increase the block size to 8K, 16K, 32K, or 64K. If you are using an ICU to accomplish this task, leave ISA MEM Block BASE to its default setting of [No/ICU]. Configuration options: [No/ICU] [C800] [CC00] [D000] [D400] [D800] [DC00]

4.4.4 Shadow Configuration

4. BIOS SETUP

Shadow Config

Video ROM BIOS Shadow [Enabled]

This field allows you to change the video BIOS location from ROM to RAM. Relocating to RAM enhances system performance, as information access is faster than the ROM. Configuration options: [Disabled] [Enabled]

C8000-DFFFF Shadow [Disabled]

These fields are used for shadowing other expansion card ROMs. If you install other expansion cards with ROMs on them, you will need to know which addresses the ROMs use to shadow them specifically. Shadowing a ROM reduces the memory available between 640K and 1024K by the amount used for this purpose. Configuration options: [Disabled] [Enabled]

ASUS CUV4X-C User’s Manual66

Page 67

4. BIOS SETUP

4.5 Power Menu

The Power menu allows you to reduce power consumption. This feature turns off the video display and shuts down the hard disk after a period of inactivity.

Power Management [User Define]

This option must be enabled to use any of the automatic power saving features. If this menu item is set to [Disabled], power management features will not function regardless of other field settings on this menu. The [User Define] option allows you to make your own selections in the Power menu. When set to [Max Saving], system power will be conserved to its greatest amount. The Suspend Mode field will then be set to predefined value that ensures maximum power savings.

This field acts as the master control for the power management modes. [Max Saving] puts the system into power saving mode after a brief period of system inactivity; [Min Saving] is almost the same as [Max Saving] except that the system inactivity period is longer; [Disabled] disables the power saving features; [User Define] allows you to set power saving options according to your preference. Configuration options: [User Define] [Disabled] [Min Saving] [Max Saving]

IMPORT ANT: Advanced Power Management (APM) should be installed to keep

the system time updated when the computer enters suspend mode activated by the BIOS Power Management. For DOS environments, you need to add the statement, DEVICE=C:\DOS\POWER.EXE, to your CONFIG.SYS file. For Windows 3.x and Windows 95, you need to install Windows with the APM feature. For Windows 98 and later, APM is automatically installed. A battery and power cord icon labeled “Power Management” will appear in the “Control Panel.” Choose “Advanced” in the Power Management Properties dialog box.

Power Menu

4. BIOS SETUP

ASUS CUV4X-C User’s Manual 67

Page 68

4. BIOS SETUP

Video Off Option [Suspend -> Off ]

This field determines when to activate the video off feature for monitor power management. Configuration options: [Always On] [Suspend -> Off]

Video Off Method [DPMS OFF]

This field defines the video off features. The DPMS (Display Power Management System) feature allows the BIOS to control the video display card if it supports the DPMS feature. [Blank Screen] only blanks the screen (use this for monitors without power management or “green” features. If set up in your system, your screen saver will not display with [Blank Screen] selected). [V/ H SYNC+Blank] blanks the screen and turns off vertical and horizontal scan- ning. Configuration options: [Blank Screen] [V/H SYNC+Blank] [DPMS Standby] [DPMS Suspend] [DPMS OFF] [DPMS Reduce ON]

HDD Power Down [Disabled]

Shuts down any IDE hard disk drives in the system after a period of inactivity as set in this user-configurable field. This feature does not affect SCSI hard drives. Configuration options: [Disabled] [1 Min] [2 Min] [3 Min]...[15 Min]

Suspend Mode [Disabled]

Sets the time period before the system goes into suspend mode. Configuration options: [Disabled] [30 Sec] [1 Min] [2 Min]...[1 Hour]

4. BIOS SETUP

Power Menu

PWR Button < 4 Secs [Soft Off]

When set to [Soft off], the ATX switch can be used as a normal system power-off button when pressed for less than 4 seconds. [Suspend] allows the button to have a dual function where pressing less than 4 seconds will place the system in sleep mode. Regardless of the setting, holding the ATX switch for more than 4 seconds will power off the system. Configuration options: [Soft off] [Suspend]

ASUS CUV4X-C User’s Manual68

Page 69

4. BIOS SETUP

4.5.1 Power Up Control

AC PWR Loss Restart [Disabled]

This allows you to set whether you want your system to reboot after the power has been interrupted. [Disabled] leaves your system off and [Enabled] reboots your system. [Previous State] sets your system back to the state it is before the power interruption. Configuration options: [Disabled] [Enabled] [Previous State]

PWR Up On External Modem Act [Disabled]

This allows either settings of [Enabled] or [Disabled] for powering up the computer when the external modem receives a call while the computer is in Soft-off mode. NOTE: The computer cannot receive or transmit data until the computer and applications are fully running. Thus connection cannot be made on the first try . T urning an external modem off and then back on while the computer is off causes an initialization string that will also cause the system to power on. Configuration options: [Disabled] [Enabled]

Wake On LAN or PCI Modem [Enabled]

Wake-On-LAN/PCI Modem allows your computer to be booted from another computer via a network by sending a wake-up frame or signal. Configuration options: [Disabled] [Enabled]

4. BIOS SETUP

Power Up Control

IMPORTANT: This feature requires an optional network interface with Wake-On-

LAN and an ATX power supply with at least 720mA +5V standby power.

ASUS CUV4X-C User’s Manual 69

Page 70

4. BIOS SETUP

Automatic Power Up [Disabled]

This allows an unattended or automatic system power up. You may configure your system to power up at a certain time of the day by selecting [Everyday] or at a certain time and day by selecting [By Date]. Configuration options: [Disabled] [Everyday] [By Date]

4.5.2 Hardware Monitor

Hardware Monitor

4. BIOS SETUP

MB Temperature, CPU Temperature [xxxC/xxxF], JTPWR Temperature [Ignore]

The onboard hardware monitor is able to detect the MB (motherboard), CPU and power supply temperatures. Set to [Ignore] only if necessary.

CPU Fan [xxxxRPM], Power Fan Speed [Ignore], Chassis Fan Speed [N/A]

The onboard hardware monitor is able to detect the CPU fan speed, power supply fan speed, and the chassis fan speed in rotations per minute (RPM). The presence of the fans is automatically detected. Set to [Ignore] only if necessary.

VCORE Voltage, +3.3V Voltage, +5V Voltage, +12V Voltage

The onboard hardware monitor is able to detect the voltage output by the onboard voltage regulators. Set to [Ignore] only if necessary.

NOTE: If any of the monitored items is out of range, an error message will appear: “Hardware Monitor found an error. Enter Power setup menu for details”. You will then be prompted to “Press F1 to continue, DEL to enter SETUP”.

ASUS CUV4X-C User’s Manual70

Page 71

4. BIOS SETUP

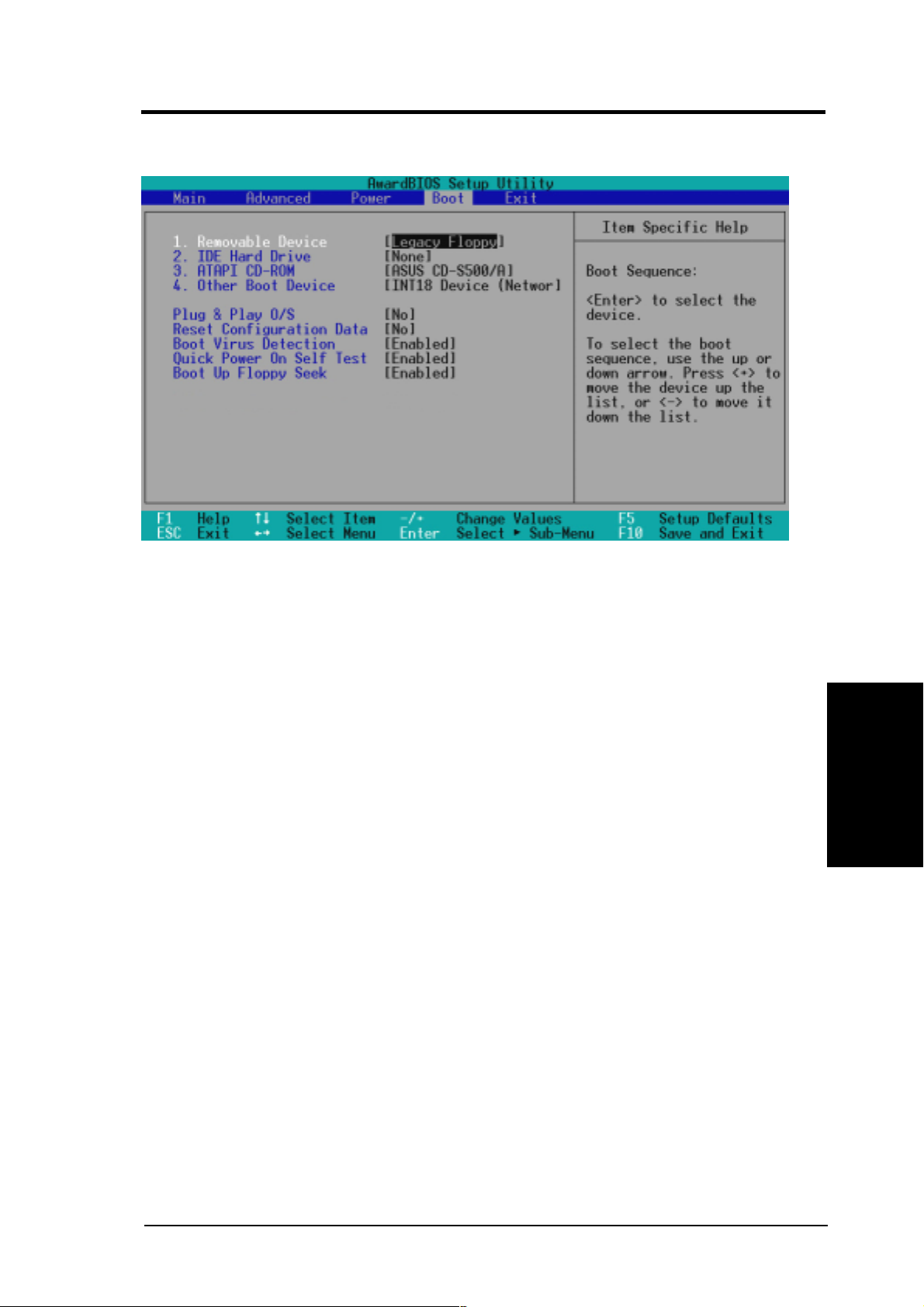

4.6 Boot Menu

Boot Sequence

The Boot menu allows you to select among the four possible types of boot devices listed using the up and down arrow keys. By using the <+> or <Space> key, you can promote devices and by using the <-> key, you can demote devices. Promotion or demotion of devices alters the priority which the system uses to search for a boot device on system power up. Configuration fields include Removable Devices, IDE Hard Drive , A T API CD-ROM, and Other Boot Device.

Removable Device [Legacy Floppy]

Configuration options: [Disabled] [Legacy Floppy] [LS120] [ZIP-100] [ATAPI MO]

IDE Hard Drive

This field allows you to select which IDE hard disk drive to use in the boot sequence. Pressing [Enter] will show the product IDs of all connected IDE hard disk drives.

ATAPI CD-ROM

This field allows you to select which ATAPI CD-ROM drive to use in the boot sequence. Pressing [Enter] will show the product IDs of all your connected AT API CD-ROM drives.

Boot Menu

4. BIOS SETUP

Other Boot Device Select [INT18 Device (Network)]

Configuration options: [Disabled] [SCSI Boot Device] [INT18 Device (Network)]

ASUS CUV4X-C User’s Manual 71

Page 72

4. BIOS SETUP

Plug & Play O/S [No]

This field allows you to use a Plug-and-Play (PnP) operating system to configure the PCI bus slots instead of using the BIOS. When [Y es] is selected, interrupts may be reassigned by the OS. When a non-PnP OS is installed or you want to prevent reassigning of interrupt settings, select the default setting of [No]. Configuration options: [No] [Yes]

Reset Configuration Data [No]

The Extended System Configuration Data (ESCD) contain information about non-PnP devices. It can also hold the complete record of how the system was configured the last time it was booted. Select [Yes] only if you want to clear these data during the Power-On Self Test (POST). Configuration options: [No] [Yes]

Boot Virus Detection [Enabled]

This field allows you to set boot virus detection, ensuring a virus-free boot sector . The system halts and displays a warning message when it detects a virus. If this occurs, you can either allow the operation to continue or use a virus-free bootable floppy disk to restart and investigate your system. Configuration options: [Disabled] [Enabled]

Quick Power On Self Test [Enabled]

This field speeds up the Power-On-Self Test (POST) routine by skipping

4. BIOS SETUP

Boot Menu

retesting a second, third, and fourth time. Configuration options: [Disabled] [Enabled]

Boot Up Floppy Seek [Enabled]

When enabled, the BIOS will seek the floppy disk drive to determine whether the drive has 40 or 80 tracks. Configuration options: [Disabled] [Enabled]

ASUS CUV4X-C User’s Manual72

Page 73

4. BIOS SETUP

4.7 Exit Menu

Once you have made all of your selections from the various menus in the Setup program, you should save your changes and exit Setup. Select Exit from the menu bar to display the following menu:

NOTE: Pressing <Esc> does not exit this menu. You must select one of the options from this menu or <F10> from the legend bar to exit this menu.

Exit Saving Changes

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on even when the PC is turned off. Once this option is selected, a confirmation is asked. Select [Yes] to save changes and exit.

NOTE: If you attempt to exit the Setup program without saving your changes, the program will prompt you with a message asking if you want to save your changes before exiting. Pressing <Enter> will then save changes while exiting.

Exit Discarding Changes

This option should only be used if you do not want to save the changes you have made to the Setup program. If you have made changes to fields other than system date, system time, and password, the system will ask for confirmation before exiting.

Exit Menu

4. BIOS SETUP

ASUS CUV4X-C User’s Manual 73

Page 74

4. BIOS SETUP

Load Setup Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When this option is selected or if <F5> is pressed, a confirmation is requested. Select [Yes] to load default values. You can now select Exit Saving Changes or make other changes before saving the values to the non-volatile RAM.

Discard Changes

This option allows you to discard the selections you made and restore the values you previously saved. After selecting this option, a confirmation is requested. Select [Y es] to discard any changes and load the previously saved values.

Save Changes

This option saves your selections without exiting the Setup program. You can then return to other menus and make changes. After selecting this option, all selections are saved and a confirmation is requested. Select [Yes] to save any changes to the non-volatile RAM.

4. BIOS SETUP

Exit Menu

ASUS CUV4X-C User’s Manual74

Page 75

5. SOFTWARE SETUP

5.1 Operating Systems

You should always use the latest operating system and updates when using new hardware to ensure full compliance. You may use any version of Windows 98, but for W indows 95, you must use OSR 2.0 or later . For W indows NT 4.0, you must use Service Pack 3.0 or later.

5.1.1 Windows 98 First Time Installation

When you start W indows for the first time after the installation of the motherboard, Windows 98 detects the onboard audio and video chips and may attempt to install a driver from its system registry . When prompted to restart, select No and then follow the normal setup procedures on the screen.

5.2 CUV4X-C Motherboard Support CD

To begin using the support CD, insert it into the CD-ROM drive. The support installation menu should appear. If the menu does not appear, double-click or run

D:\ASSETUP.EXE (assuming that your CD-ROM drive is drive D). NOTE: The support CD contents are subject to change at any time without notice.

5.2.1 Installation Menu

5. S/W SETUP

Operating Systems

75ASUS CUV4X-C User’s Manual

Page 76

5. S/W SETUP

Applications

5. SOFTWARE SETUP

5.2.2 Applications

• Realtek RTL8139C PCI Fast Ethernet NIC Driver: Installs the Realtek

RTL8139C PCI Fast Ethernet NIC Driver V5.376.0523.2000.

• ASUS PC Probe Vx.xx: Installs a smart utility that can monitor your computer

fan, temperature, and voltages.

• ASUS Update V3.27.00: Installs the ASUS Update program. This program

allows you download the latest version of Flash BIOS from the ASUS website. Before using ASUS Update, make sure that you have a network card and a TCP/ IP network driver.

• YAMAHA SoftSynthesizer S-YXG50: Installs the YAMAHA SoftSynthesizer

for playing MIDI files, audio files, movie files and audio CDs. Before installing this program, make sure that you have an audio driver installed in your computer . Refer to the online help for more information.

• PC-Cillin 98 V4.06: Installs the PC-cillin virus protection software. View the

online help for more information.

• ADOBE AcroBat Reader V4.0: Installs the Adobe Acrobat Reader software

necessary to view user’s manuals in PDF format.

• Install Cyberlink Video and Audio Applications: Installs the Cyberlink

PowerPlayer SE 5.0, Cyberlink PowerDVD T rial 2.55, and Cyberlink V ideoLive Mail 3.10.

• VIA 4 in 1 Drivers: Installs Bus Master PCI IDE Driver, AGP VxD Driver , VIA

chipset functions Registry, and IRQ Routing Miniport Driver. (NOTE: This item does not appear on the Installation Menu. To access these drivers, click on the Browse Support CD item, then on the VIA folder.)

• Show Motherboard Information: Allows you to view information about the

motherboard, such as product name, BIOS version, and CPU.

• Browse Support CD: Allows you to view the contents of the support CD.

• ReadMe: Allows you to view a list of the files included in the support CD and

ASUS contact information.

• Exit: Exits the CD installation menu.

NOTE: The Exit item is on the next menu screen. To see the item, click on the

arrow (pointing to the right) on the lower right corner of the screen. T o return to the first menu screen, click on the arrow (pointing to the left) on the lower right corner of the second screen.

ASUS CUV4X-C User’s Manual

Page 77

6. SOFTWARE REFERENCE

6.1 ASUS PC Probe

ASUS PC Probe is a convenient utility to continuously monitor your computer system’s vital components, such as fan rotations, voltages, and temperatures. It also has a utility that lets you review useful information about your computer, such as hard disk space, memory usage, and CPU type, CPU speed, and internal/external frequencies through the DMI Explorer.

6.1.1 Starting ASUS PC Probe

When ASUS PC Probe starts, a splash screen appears allowing you to select whether to show the screen again when you open PC Probe or not. To bypass this startup screen, clear the Show up in next execution check box.

ASUS PC Probe

6. S/W REFERENCE

T o open ASUS PC Pr obe, click the W indows Start button, point to Programs, and then ASUS Utility, and then click Probe Vx.xx.

The PC Probe icon PC Probe is running. Clicking the icon allows you to see the status of your PC.

appears on the taskbar system tray indicating that ASUS

ASUS CUV4X-C User’s Manual 77

Page 78

6. S/W REFERENCE

ASUS PC Probe

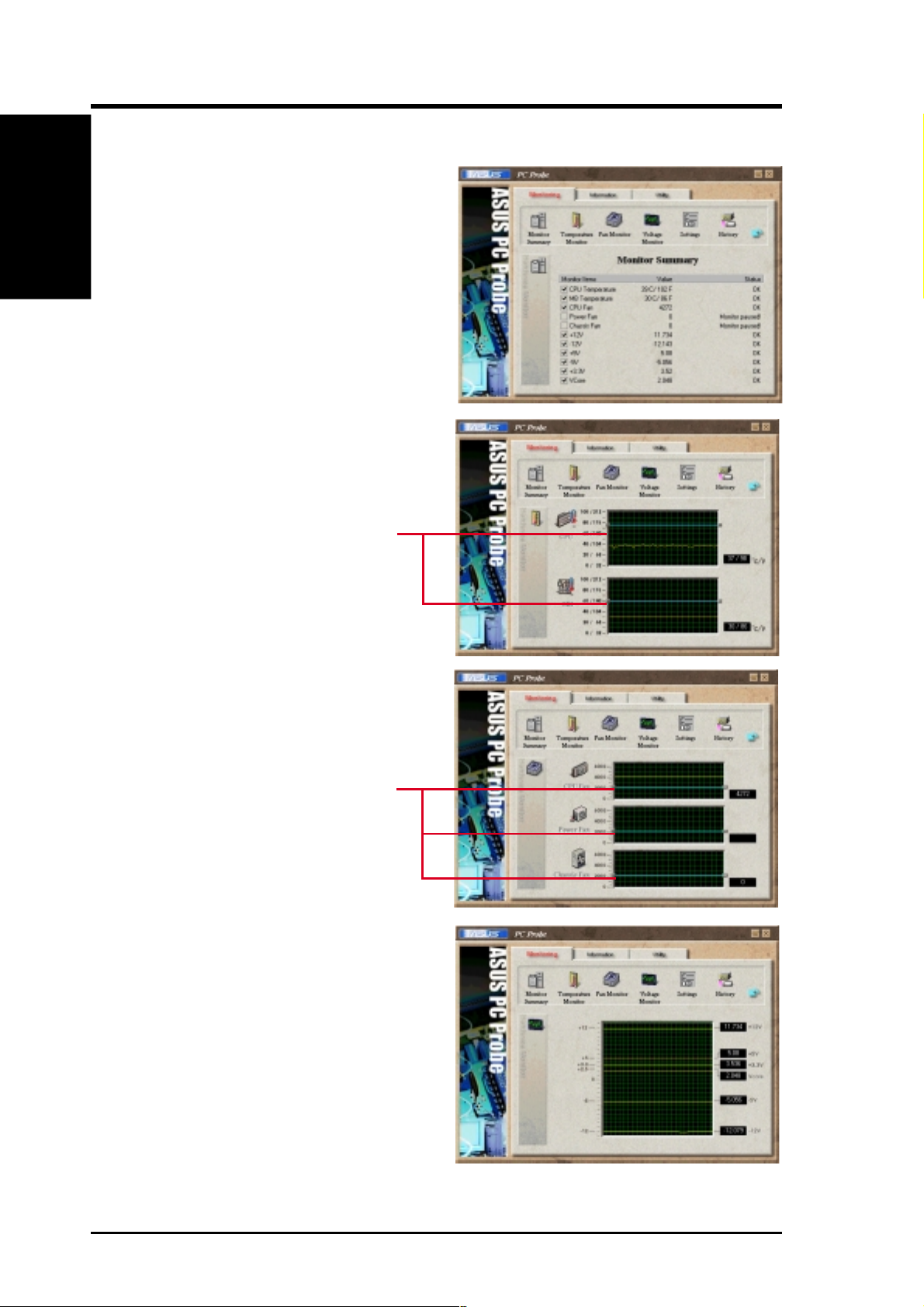

6.1.2 Using ASUS PC Probe

Monitoring

Monitor Summary

Shows a summary of the items being monitored.

Temperature Monitor

Shows the PC temperature (for supported processors only).

(Move the slider up to increase the

threshold level or down to decrease

6. SOFTWARE REFERENCE

Temperature Warning

threshold adjustment

the threshold level)

Fan Monitor

Shows the PC fan rotation.

Fan Warning

threshold adjustment

(Move the slider up to increase the

threshold level or down to decrease

the threshold level)

Voltage Monitor

Shows the PC voltages.

ASUS CUV4X-C User’s Manual78

Page 79

6. SOFTWARE REFERENCE

Settings

Lets you set threshold levels and polling intervals or refresh times of the PC’s temperature, fan rotation, and voltages.

CPU Cooling System Setup

Lets you select when to enable software

CPU cooling. When When CPU

Overheated is selected, the CPU cooling

system is enabled whenever the CPU

temperature reaches the threshold value.

History

Lets you record the monitoring activity of a certain component of your PC for future reference.

ASUS PC Probe

6. S/W REFERENCE

Fan Control

Lets you enable/disable Smart Fan Control. Smart Fan Control adjusts the fan speed automatically based on the current CPU temperature and predefined threshold.

Information

Hard Drives

Shows the used and free space of the PC’s hard disk drives and the file allocation table or file system used.

ASUS CUV4X-C User’s Manual 79

Page 80

6. SOFTWARE REFERENCE

6. S/W REFERENCE

ASUS PC Probe

Memory

Shows the PC memory load, memory usage, and paging file usage.

Device Summary

Shows a summary of devices present in your PC.

DMI Explorer

Shows information pertinent to the PC, such as CPU type, CPU speed, and internal/external frequencies, and memory size.

Utility

Lets you run programs outside of the ASUS Probe modules. To run a program, click Execute Program. NOTE: This feature is currently unavailable.

ASUS CUV4X-C User’s Manual80

Page 81

6. SOFTWARE REFERENCE

6.1.3 ASUS PC Probe Task Bar Icon

Right clicking the PC Probe icon brings up a menu to open or exit ASUS PC Probe and pause or resume all system monitoring.

When the ASUS PC Probe senses a problem with your PC, portions of the ASUS PC Probe icon changes to red, the PC speaker beeps, and the ASUS PC Probe monitor appears.

ASUS PC Probe

6. S/W REFERENCE

ASUS CUV4X-C User’s Manual 81

Page 82

6. S/W REFERENCE

ASUS PC Probe

(This page was intentionally left blank.)

6. SOFTWARE REFERENCE

ASUS CUV4X-C User’s Manual82

Page 83

7. APPENDIX

7.1 PCI-L101 Fast Ethernet Card

7. APPENDIX

ASUS LAN Card

LAN Activity Output Signal

LEDs

RJ45

Wake on LAN Output Signal

Intel Chipset

ASUS

Motherboard type

Other

If you are using the ASUS PCI-L101 on an ASUS motherboard, leave the jumper on its defaut setting of “ASUS.” If you are using another brand of motherboard, set the jumper to “Other.” Connect the Wake on LAN (WOL) output signal to the motherboard’s WOL_CON in order to utilize the wake on LAN feature of the moth- erboard. Connect the LAN activity output signal (LAN_LED) to the system cabinet’s front panel LAN_LED in order to display the LAN data activity.

ASUS CUV4X-C User’s Manual 83

Page 84

7.1.1 Features

• Intel 82558 Ethernet LAN Controller (Fully integrated 10BASE-T/100BASE-TX)

• Wake-On-LAN Remote Control Function Supported

• PCI Bus Master Complies to PCI Local Bus Rev. 2.1 specifications

• Consists of MAC & PHY (10/100Mbps) interfaces

• Complies to IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX interfaces

• Fully supports 10BASE-T & 100BASE-TX operations through a single RJ45 port

ASUS LAN Card

7. APPENDIX

• Supports 32-bit Bus Master Technology / PCI Rev. 2.1

• Enhancements on ACPI & APM

• Adheres to PCI Bus Power Management Interface Rev . 1.0, ACPI Rev . 1.0, and

• IEEE 802.3u auto-negotiation for 10Mbps/100Mbps Network Data Transfer

• Provides LED indicators for monitoring network conditions

• Plug and Play

7. APPENDIX

Device Class Power Management Rev. 1.0

Rates.

7.1.2 Software Driver Support

• NetWare ODI Drivers - Novell Netware 3.x, 4.x, DOS, OS/2 Client

• NDIS 2.01 Drivers - Microsoft LAN Manager, Microsoft Windows 3.11, IBM

LAN Server

• NDIS 3.0 Drivers - Microsoft W indows NT , Microsoft W indows 95, Microsoft

Windows 3.11

7.1.3 Question and Answer

Q: What is Wake-On-LAN ? A: The Wake-On-LAN feature provides the capability to remotely power on sys-

tems supporting Wake-On-LAN by simply sending a wake-up frame. With this feature, remotely uploading/downloading data to/from systems during off-peak

hours will be feasible. Q: What can Wake-On-LAN do for you ? A: Wake-On-LAN is a remote management tool with advantages that can reduce

system management workload, provide flexibility to the system administrator’s

job, and then of course save you time-consuming efforts and costs. Q: What components does Wake-On-LAN require to be enable? A: To enable Wake-On-LAN function, your system requires Ethernet LAN adapter

card that can activate W ake-On-LAN function, a client with W ake-On-LAN capa-

bility , and software such as LDCM Rev . 3.10 or up that can trigger wake-up frame.

ASUS CUV4X-C User’s Manual84

Page 85

7. APPENDIX

7.2 Modem Riser

7.2.1 56K Software Modem

The Modem Riser (MR) is a high-speed PC communication peripheral which works with AMC’97/MC’97 compliant codecs. W ith this software modem, you can connect your computer to a remote location, receiving data at up to 56 Kbps in V.90 or K56flex modes.

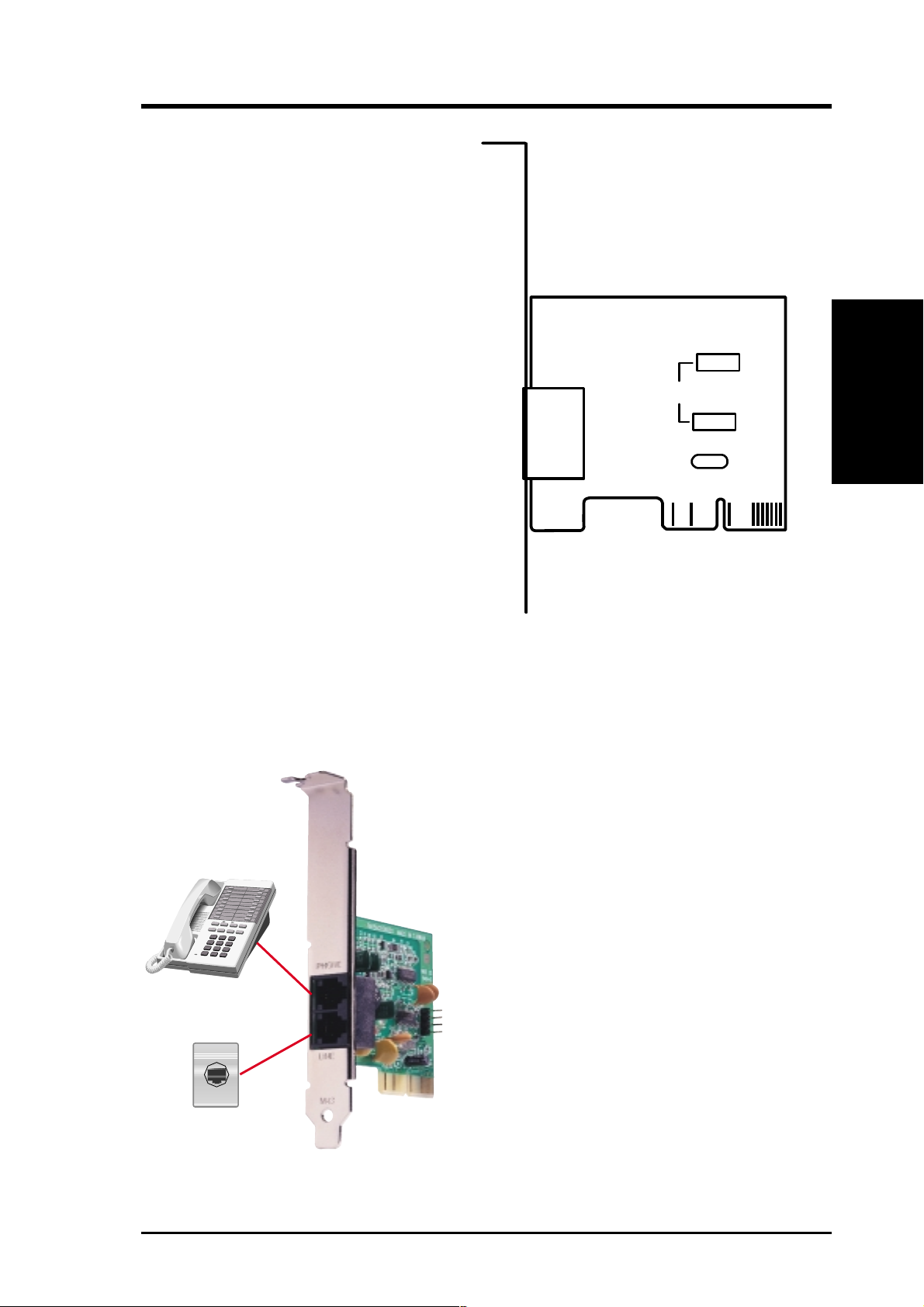

Layout of Primary MR

Top:

7.2.2 Primary/Seconday MR

There are two types of modem risers: primary MR and secondary MR. In appearance, the primary MR has a crystal onboard but the secondary does not. If your motherboard has an audio codec and no PCI audio chipset onboard, you may use the secondary MR; otherwise, you should use the primary MR.

PHONE

Bottom:

LINE

7.2.3 Hardware Installation Procedure

1. Power OFF your computer.

2. Open the computer chassis and remove the metal plate on the AMR expansion slot.

3. Carefully align the MR card’s connector to the AMR slot and press firmly.

4. Secure the MR card onto the chassis with the screw removed in step 2.

5. Connect the MR card’s LINE connec- tor to a telephone wall jack. Connect the PHONE connector to a telephone (optional).

6. Replace the computer chassis.

Codec

Crystal

Modem Riser

7. APPENDIX

ASUS CUV4X-C User’s Manual 85

Page 86

7. APPENDIX

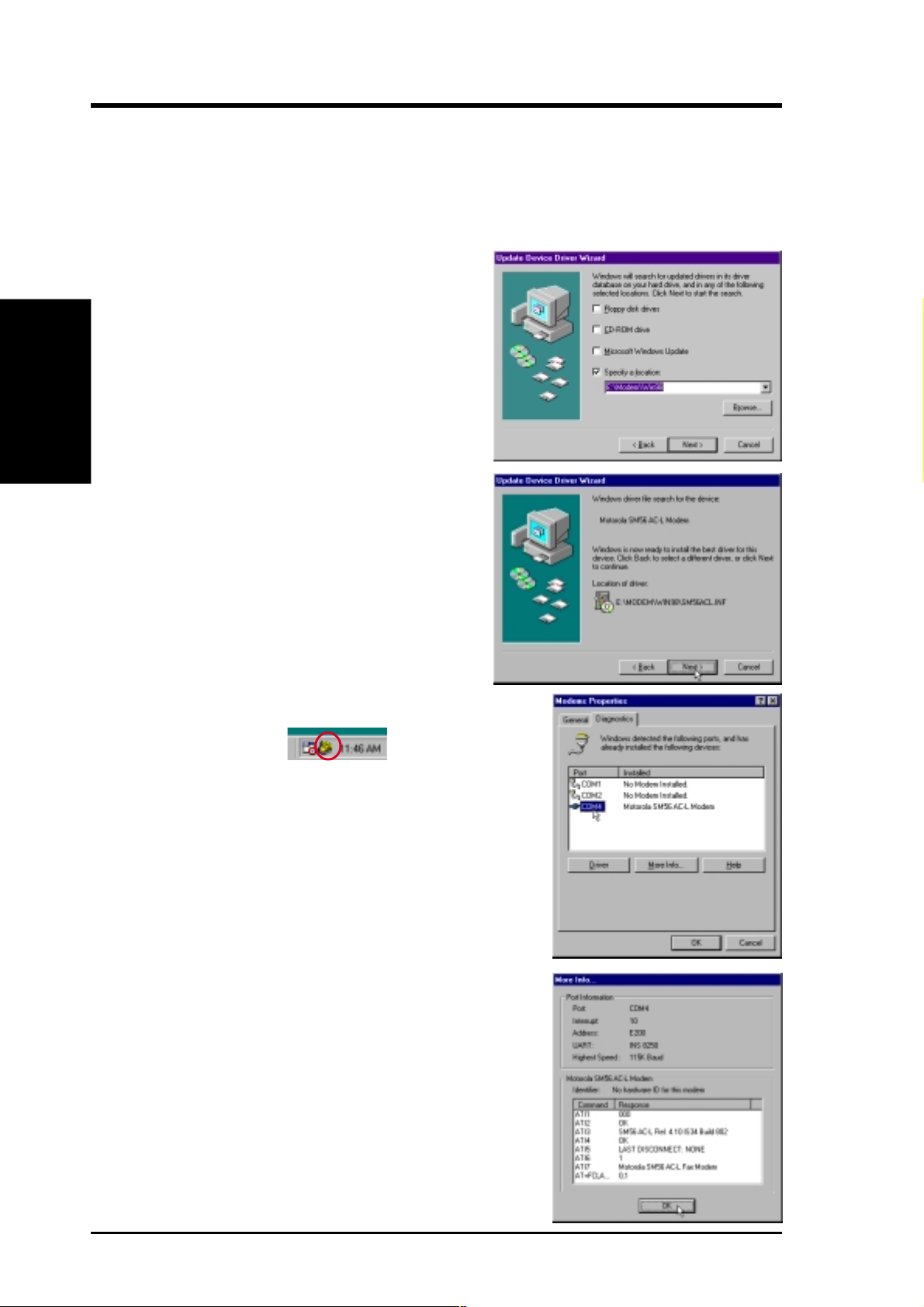

7.2.4 Software Setup in Windows 98

The Modem Riser supports the Plug and Play feature. It allows your computer to automatically set the optimal configurations for the MR and communication software. Follow the procedure below to install the modem driver.

1. Power ON the computer after the hardware installation is completed.

7. APPENDIX

Modem Riser

2. W indows 98 will automatically detect the

3. Select Search for the best driver for

4. Insert the Support CD that came with

5. After the driver is located, click Next

6. Restart your computer. Double click the

modem and display a “PCI Card” message under “Add New Hardware Found”.

your device and click Next.

your motherboard into your CD-ROM drive. Enter the path E:\Modem\Win98 (assuming that your CD-ROM drive is drive E:) for the MR driver.

and then click Finish.

modem icon at the bottom-right corner of the window.

7. Click the Settings tab. Select your country and language. Click OK.

8. Click Start , point to Settings, click Control Panel, double click Modems, click the General tab, and click Motorala SM56 AC-L Modem.

9. Click Diagnostic and then click the designated COM port as shown.

10. Click More Info... . If the computer sys-

tem successfully communicates with the modem, responses will be displayed as shown.

ASUS CUV4X-C User’s Manual86

Page 87

7. APPENDIX

7.3 Glossary

1394

1394 is the IEEE designation for the high performance serial bus at 12.5, 25 or 50MBytes/sec speeds. This serial bus defines both a back plane physical layer and a point-to-point cable-connected virtual bus. The primary application of the cable version is the integration of I/O connectivity at the back panel of personal computers using a low-cost, scalable, high-speed serial interface. The 1394 standard also provides new services such as live connect/disconnect capability for external devices including disk drives, printers and hand-held peripherals such as scanners and cameras. This is a new standard to complement the slower USB interface and to compete with the more expensive SCSI interface.

AC97 (Audio Codec '97)

AC '97 is the next step in enabling PCs with audio quality comparable to consumer electronics devices. The specification defines new cost-effective options to help integrate the components necessary to support next-generation auto-intensive PC applications such as DVD, 3-D multiplayer gaming and interactive music. The specification also defines new extensions supporting modem and docking to help both desktop and mobile manufacturers adopt these new technologies more quickly and cost-effectively . This specification uses software emulation to compete with the PCI SoundBlaster specification.

ACPI (Advanced Configuration and Power Interface)

The ACPI specification defines a cross-platform interface designed to support many operating systems. ACPI defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a PC system, including hardware, operating system and application software. This enables the system to automatically turn ON and OFF peripherals such as CD-ROMs, network cards, hard disk drives, and printers, as well as consumer devices connected to the PC such as VCRs, TVs, phones, and stereos. With this technology, peripherals will also be able to activate the PC. For example, inserting a tape into a VCR can turn on the PC, which could then activate a large-screen TV and high-fidelity sound system.

AGP (Accelerated Graphics Port)

An interface specification that enables high-performance 3D graphics on mainstream PCs. AGP was designed to offer the necessary bandwidth and latency to perform texture mapping directly from system memory.

Glossary

7 . APPENDIX

Bus Bus Frequency Bandwidth Data Transfer Rate

PCI 33MHz 33MHz 133MByte/sec AGP 1X 66MHz 66MHz 266MByte/sec AGP 2X 66MHz 133MHz 512MByte/sec

AGP 4X 66MHz 266MHz 1024MByte/sec

BIOS (Basic Input/Output System)

BIOS is a set of routines that affect how the computer transfers data between computer components, such as memory, disks, and the display adapter. The BIOS instructions are built into the computer’s read-only memory. BIOS parameters can be configured by the user through the BIOS Setup program. The BIOS can be updated using the provided utility to copy a new BIOS file into the EEPROM.

Bit (Binary Digit)

Represents the smallest unit of data used by the computer . A bit can have one of two values: 0 or 1.

ASUS CUV4X-C User’s Manual 87

Page 88

7. APPENDIX

Glossary

7. APPENDIX

Boot

Boot means to start the computer operating system by loading it into system memory . When the manual instructs you to “boot” your system (or computer), it means to turn ON your computer . “Reboot” means to restart your computer . When using W indows 95 or later, selecting “Restart” from “Start | Shut Down...” will reboot your computer.

Bus Master IDE

PIO (Programmable I/O) IDE requires that the CPU be involved in IDE access and waiting for mechanical events. Bus master IDE transfers data to/from the memory without interrupting the CPU. Bus master IDE driver and bus master IDE hard disk drives are required to support bus master IDE mode.

Byte (Binary Term)

One byte is a group of eight contiguous bits. A byte is used to represent a single alphanumeric character, punctuation mark, or other symbol.

COM Port

COM is a logical device name used by to designate the computer serial ports. Pointing devices, modems, and infrared modules can be connected to COM ports. Each COM port is configured to use a different IRQ and address assignment.

Concurrent PCI

Concurrent PCI maximizes system performance with simultaneous CPU, PCI and ISA bus activities. It includes multi-transaction timing, enhanced write performance, a passive release mechanism and support for PCI 2.1 compliant delayed transactions. Concurrent PCI provides increased bandwidth, reduced system latencies, improves video and audio performance, and improves processing of host based applications.

CPU (Central Processing Unit)

The CPU, sometimes called “Processor,” actually functions as the “brain” of the computer. It interprets and executes program commands and processes data stored in memory. Currently, there are socket 370 (for Pentium III FC-PGA and CeleronPPGA), socket 7 (for Pentium, AMD, Cyrix, IBM), slot 1 (for Pentium II and III), slot 2 (for Xeon), and slot A (for AMD) processors.

Device Driver

A device driver is a special set of instructions that allows the computer’s operating system to communicate with devices such as VGA, audio, printer, or modem.

DOS (Disk Operating System)

DOS is the foundation on which all other programs and software applications operate, including W indows. DOS is responsible for allocating system resources such as memory, CPU time, disk space, and access to peripheral devices. For this reason, DOS constitutes the basic interface between you and your computer.

DRAM (Dynamic Random Access Memory)

There are several different types of DRAM such as, EDO DRAM (Extended Data Output DRAM), SDRAM (Synchronous DRAM), and RDRAM (Rambus DRAM).

Flash ROM

The flash ROM is designed to be a resident program and can be updated by a specific programming method. Normally , the flash ROM is used for system BIOS which initiates hardware devices and sets up necessary parameters for the OS. Since the contents of flash ROM can be modified, users are able to update the BIOS by themselves.

IDE (Integrated Drive Electronics)

IDE devices integrate the drive control circuitry directly on the drive itself, eliminating the need for a separate adapter card (in the case for SCSI devices). UltraDMA/ 33 IDE devices can achieve up to 33MB/Sec transfer.

ASUS CUV4X-C User’s Manual88

Page 89

7. APPENDIX

LPT Port (Line Printer Port)

Logical device name reserved by DOS for the computer parallel ports. Each LPT port is configured to use a different IRQ and address assignment.

MMX

A set of 57 new instructions based on a technique called Single Instruction, Multiple Data (SIMD), which is built into the new Intel Pentium PP/MT (P55C) and Pentium II (Klamath) CPU as well as other x86-compatible microprocessors. The MMX instructions are designed to accelerate multimedia and communications applications, such as 3D video, 3D sound, video conference.

OnNow

The OnNow design initiative is a comprehensive, system-wide approach to system and device power control. OnNow is a term for PC that is always ON but appears OFF and responds immediately to user or other requests. The OnNow design initiative involves changes that will occur in the Microsoft Windows operating system, device drivers, hardware, and applications, and also relies on the changes defined in the Advanced Configuration and Power Interface (ACPI) specification.

PC100

SDRAM is Intel's goal is to ensure that memory subsystems continue to support evolving platform requirements and to assure that memory does not become a bottleneck to system performance. It is especially important to ensure that the PC memory roadmap evolves together with the performance roadmaps for the processors, I/O and graphics.

PCI Bus (Peripheral Component Interconnect Local Bus)

PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard widely used by expansion card manufacturers.

PCI Bus Master

The PCI Bus Master can perform data transfer without local CPU help and furthermore, the CPU can be treated as one of the Bus Masters. PCI 2.1 supports concurrent PCI operation to allow the local CPU and bus master to work simultaneously.

Plug and Play BIOS

The ISA bus architecture requires the allocation of memory and I/O address, DMA channels and interrupt levels among multiple ISA cards. However, configuration of ISA cards is typically done with jumpers that change the decode maps for memory and I/O space and steer the DMA and interrupt signals to different pins on the bus. Further, system configuration files may need to be updated to reflect these changes. Users typically resolve sharing conflicts by referring to documentation provided by each manufacturer. For the average user, this configuration process can be unreliable and frustrating. Plug and play (PnP) BIOS eliminates the ISA add-on card hardware conflict problem. The PnP BIOS uses a memory block to define and remember each card's configuration, which allows the user to change the card's IRQs and DMA in BIOS either automatically or manually.

POST (Power On Self Test)

When you turn ON the computer, it will first run through the POST, a series of software-controlled diagnostic tests. The POST checks system memory , the mother board circuitry, the display, the keyboard, the diskette drive, and other I/O devices.

PS/2 Port

PS/2 ports are based on IBM Micro Channel Architecture. This type of architecture transfers data through a 16-bit or 32-bit bus. A PS/2 mouse and/or keyboard may be used on ATX motherboards.

Glossary

7 . APPENDIX

RDRAM (Rambus DRAM)

Developed by Rambus, Inc., this type of memory can deliver up to 1.6GB of data per second. RDRAM is the first interface standard that can be directly implemented on high performance VLSI components such as, CMOS DRAMs, memory control-

lers, and graphics/video ICs.

ASUS CUV4X-C User’s Manual 89

Page 90

7. APPENDIX

Glossary

7. APPENDIX

ROM (Read Only Memory)

ROM is nonvolatile memory used to store permanent programs (called firmware) used in certain computer components. Flash ROM (or EEPROM) can be reprogrammed with new programs (or BIOS).

SCSI (Small Computer System Interface)

High speed multi-threaded I/O interface defined by the X3T9.2 committee of the American National Standards Institute (ANSI) for connecting many peripheral devices. The standard started from 10MBytes/sec to 160MBytes/sec available today.

SDRAM (Synchronous DRAM)

The SDRAM features a fully synchronous operation referenced to a positive edge clock whereby all operations are synchronized at a clock input which enables the coexistence of high performance and a simple user interface. SDRAM takes memory access away from the CPU's control; internal registers in the chips accept the request, and let the CPU do something else while the data requested is assembled for the next time the CPU talks to the memory. As they work on their own clock cycle, the rest of the system can be clocked faster. There is a version optimized for video cards, and main memory for motherboards.

SPD for SDRAM module

Serial Presence Detect (SPD) is most like an ID detect for SDRAM module, it using a EEPROM component on DIMM module for storing module configuration information inside. The Serial Presence Detect function is implemented using a 2048 bit EEPROM component. This nonvolatile storage device contains data programmed by the DIMM manufacturer that identifies the module type and various SDRAM organization and timing parameters.

SSE (Streaming SIMD Extensions)

A set of new instructions added to existing architectures that enables a better visual experience with an accelerated 3D geometry pipeline and support for new applications, such as real-time video encoding and speech recognition.

System Disk

A system disk contains the core file of an operating system and is used to boot up the operating system.

UltraDMA

Ultra DMA/33 is a "synchronous DMA" protocol designed by Intel. This function is included into Intel's PIIX4 chipset. The traditional IDE transfer only uses one edge of the data stroke as the data transfer . Ultra DMA/33 uses both edges of data strobe when the data is transferred. Hence, the data transfer rate is double of the PIO mode 4 or DMA mode 2 (16.6MB/s x2 = 33MB/s) on ATA-2 devices.

Ultra ATA/66, also known as Ultra DMA/66, is an extension of current Ultra ATA/ 33 interface. This new high-speed interface has doubled the Ultra AT A/33 burst data transfer rate to 66.6 Mbytes/sec and maximized disk performance under current PCI local bus environment

USB (Universal Serial Bus)

A 4-pin serial cable bus that allows up to 127 plug and play computer peripherals such as keyboard, mouse, joystick, scanner, printer, modem, and monitor to share a bandwidth through a host scheduled token based protocol. This allows attaching or detaching while the host and other peripherals are in operation. Supports synchronous and asynchronous transfer types over the same set of wires up to 12Mbit/sec. USB 2.0 provides twice the transfer rate compared to USB 1.0 and competes with the 1394 standard.

Wake-On-LAN

The computer automatically wakes up upon receiving a wake-up packet through a Network interface when it is under power soft-off, suspend or sleep mode.

ASUS CUV4X-C User’s Manual90

Page 91

INDEX

AC PWR Loss Restart 69 Accessories

Fast Ethernet Card 83 Modem Riser 85

ASUS PC Probe

Using 77 ATAPI CD-ROM 71 ATX Power Supply Connector 36, 37 Audio Controller 62 Audio Modem Riser 27

BIOS

Beep Code 39 BIOS Beep Codes 39 Boot Sequence 71 Boot Up Floppy Seek 72

CPU Bus Frequency (MHz) 54 CPU Fan Speed 70 CPU Speed 54 CPU Temperature 70 Cylinders 50

Discard Changes 74 DMA x Used By ISA 65

ECP DMA Select 62 Ethernet Card 83 Exit Discarding Changes 73 Exit Saving Changes 73 Expansion Cards

Assigning IRQs 26 Audio Modem Riser 27

Boot Up NumLock Status 52 Boot Virus Detection 72

Central Processing Unit 23 Chassis Fan Speed 70 CHS Capacity 51 Connectors

ATX Power Supply 36, 37

Floppy Disk Drive 31

IDE 32

Infrared Module 35

Keyboard 29

Parallel Port 30

Power Supply Thermal Sensor 35, 38

PS/2 Keyboard 29

PS/2 Mouse 29

Serial Port 30

SMBus 34, 36

Thermal Sensor 35

USB 30

Wake-On-LAN 33

Wake-On-Ring 33

Floppy 3 Mode Support 48 Floppy Disk Drive Connector 31

Halt On 53 Hardware Setup

CPU Installation 23

Memory Installation 22 HDD Power Down 68 Head 51 Headers

USB 34

IDE Activity LED Lead 31 IDE Connectors 32

ASUS CUV4X-C User’s Manual 91

Page 92

INDEX

IDE Hard Drive 71 Infrared Module Connector 35 Installation

CPU 23 Installed Memory 53 Interrupts

Standard Assignments 26 IRQ XX Used By ISA 64 ISA MEM Block BASE 66

Keyboard Connector 29

Language 53 Leads

IDE Activity LED 31 Legacy Diskette A 48 Legacy Diskette B 48

Parallel Port Connector 30 Parallel Port Mode 62 PCI Latency Timer 63 PCI/VGA Palette Snoop 63 PIO Mode 51 Plug & Play O/S 72 Power Fan Speed 70 Power Management 67 Procedure

CPU Installation 23

Procedures

Modem Riser Installation 85

Updating BIOS 42 PS/2 Keyboard Connector 29 PS/2 Mouse Connector 29 PWR Button < 4 Secs 68 PWR Up On Modem Act 69

Load Setup Defaults 74

Maximum LBA Capacity 51 MB Temperature 70 Memory Hole At 15M-16M 60 Memory Installation 22 Modem Riser 85 Mouse Connector 29 Multi-Sector Transfers 51

Onboard AC97 Modem Controlle 62 Onboard Parallel Port 61 Onboard Serial Port 1 61 Onboard Serial Port 2 61 OS/2 Onboard Memory > 64M 56 Other Boot Device Select 71

Quick Power On Self Test 72

Removable Device 71

Save Changes 74 SDRAM CAS Latency 58 SDRAM Configuration 58 SDRAM RAS Precharge Time 58 Sector 51 Serial Port Connectors 30 Slot 1/5 IRQ 63 Slot 2 IRQ 63 Slot 3/6 IRQ 63 Slot 4 IRQ 63 SMART Monitoring 51 SMBus Connector 34, 36 Starting Up 39

92 ASUS CUV4X-C User’s Manual

Page 93

Supervisor Password 53 Suspend Mode 68 Suspend-to-RAM Capability 68 SYMBIOS SCSI BIOS 63 System Date 48 System Time 48

Thermal Sensor Connector 35, 38 Translation Method 50 Type 49

UART2 Use Standard Infrared 61 Ultra DMA Mode 51

INDEX

Updating Your BIOS 41 USB Function 64 USB Headers 34 USB Legacy Support 56 USB Ports 30 Using

ASUS PC Probe 77

VCORE Voltage 70 Video Off Method 68 Video Off Option 68 Video ROM BIOS Shadow 66 Voltage

+12 70 +3.3 70 +5 70

-12 70

-5 70 VCORE 70

Wake On LAN 69 Wake-On-LAN Connector 33 Wake-On-Ring Connector 33

ASUS CUV4X-C User’s Manual 93

Page 94

INDEX

94 ASUS CUV4X-C User’s Manual
