Asus CUSI-M User Manual

CUSI-M

Socket 370 microATX Motherboard

USER’S MANUAL

USER'S NOTICE

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED T O THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

• SiS is a trademark of Silicon Integrated Corporation.

• Intel, Celeron, LANDesk, and Pentium are trademarks of Intel Corporation.

• IBM and OS/2 are registered trademarks of International Business Machines.

• Symbios is a registered trademark of Symbios Logic Corporation.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the product itself. Manual revi-

sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number.

For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Product Name: ASUS CUSI-M Manual Revision: 1.01 E605 Release Date: September 2000

2 ASUS CUSI-M User’s Manual

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC. (Asia-Pacific)

Marketing

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 Telephone: +886-2-2894-3447 Fax: +886-2-2894-3449 Email: info@asus.com.tw

Technical Support

Tel (English): +886-2-2894-3447 ext. 706 Tel (Chinese): +886-2-2894-3447 ext. 111 Fax: +886-2-2895-9254 Email: tsd@asus.com.tw Newsgroup: news2.asus.com.tw WWW: www.asus.com.tw FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL (America)

Marketing

Address: 6737 Mowry Avenue, Mowry Business Center, Building 2

Newark, CA 94560, USA Fax: +1-510-608-4555 Email: info-usa@asus.com.tw

Technical Support

Fax: +1-510-608-4555 BBS: +1-510-739-3774 Email: tsd-usa@asus.com.tw WWW: www.asus.com FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER GmbH (Europe)

Marketing

Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany Telephone: 49-2102-445011 Fax: 49-2102-442066 Email: sales@asuscom.de

Technical Support

Hotline: 49-2102-499712 BBS: 49-2102-448690 Email: tsd@asuscom.de WWW: www.asuscom.de FTP: ftp.asuscom.de/pub/ASUSCOM

ASUS CUSI-M User’s Manual 3

CONTENTS

1. INTRODUCTION ............................................................................. 7

1.1 How This Manual Is Organized .................................................. 7

1.2 Item Checklist ............................................................................. 7

2. FEATURES ........................................................................................ 8

2.1 The ASUS CUSI-M .................................................................... 8

2.1.1 Specifications..................................................................... 8

2.1.2 Specifications–Optional Components................................ 9

2.1.3 Performance ..................................................................... 10

2.1.4 Intelligence....................................................................... 11

2.2 CUSI-M Motherboard Components ......................................... 12

3. HARDWARE SETUP ...................................................................... 14

3.1 CUSI-M Motherboard Layout .................................................. 14

3.2 Layout Contents ........................................................................ 15

3.3 Hardware Setup Procedure ....................................................... 16

3.4 Motherboard Settings................................................................ 16

3.5 System Memory (DIMM) ......................................................... 20

3.5.1 General DIMM Notes ...................................................... 20

3.5.2 DIMM Memory Installation ............................................ 21

3.6 Central Processing Unit (CPU) ................................................. 22

3.7 Expansion Cards ....................................................................... 23

3.7.1 Expansion Card Installation Procedure............................ 23

3.7.2 Assigning IRQs for Expansion Cards .............................. 23

3.7.3 Audio Modem Riser (AMR) Slot .................................... 25

3.8 Connectors ................................................................................ 26

3.9 Starting Up the First Time ........................................................ 39

4. BIOS SETUP..................................................................................... 41

4.1 Managing and Updating Your BIOS......................................... 41

4.1.1 Upon First Use of the Computer System ......................... 41

4.1.2 Updating BIOS Procedures.............................................. 42

4.2 BIOS Setup Program ................................................................ 45

4.2.1 BIOS Menu Bar ............................................................... 46

4.2.2 Legend Bar....................................................................... 46

4.3 Main Menu................................................................................ 48

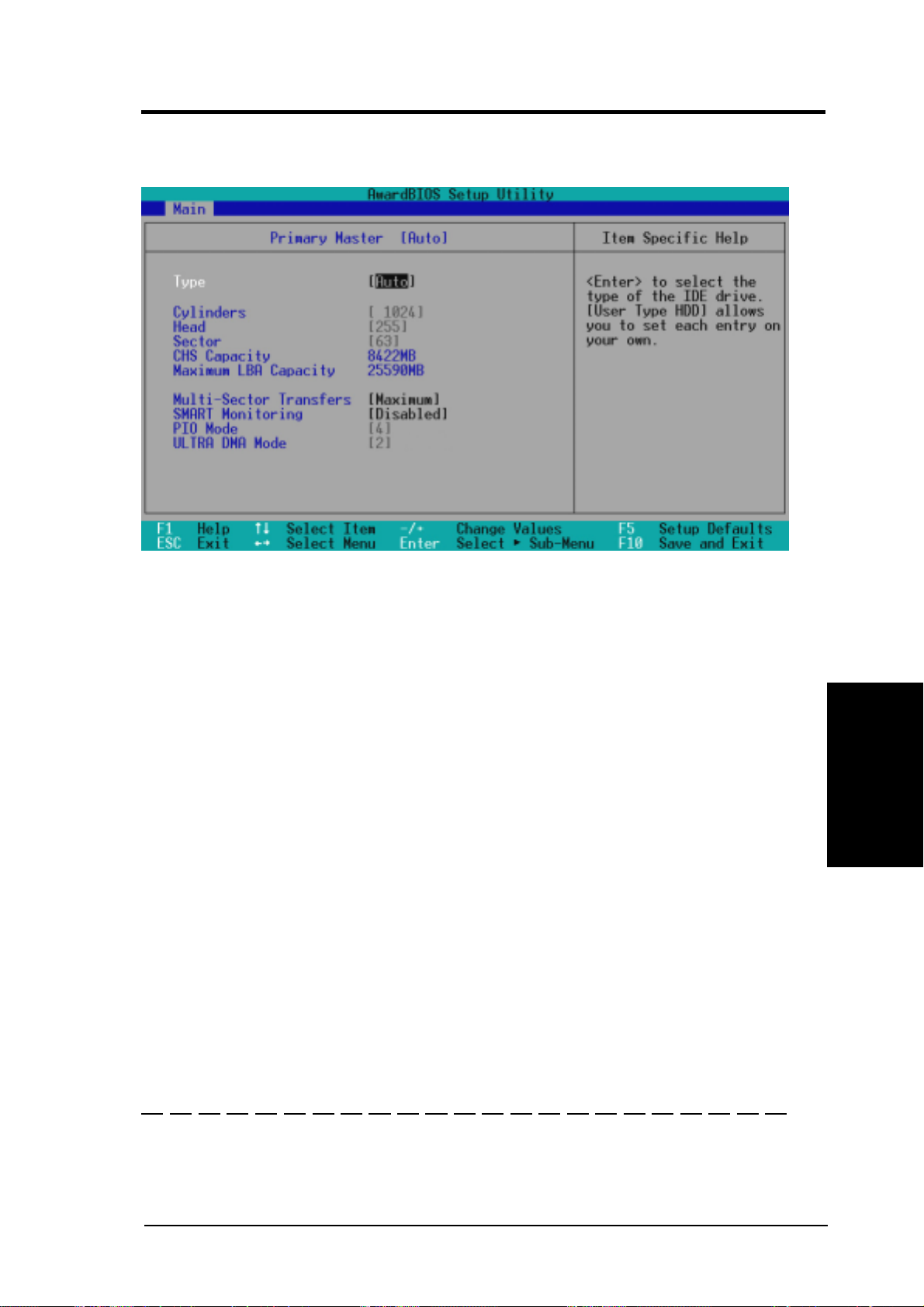

4.3.1 Primary & Secondary Master/Slave ................................ 49

4.3.2 Keyboard Features ........................................................... 52

4 ASUS CUSI-M User’s Manual

CONTENTS

4.4 Advanced Menu ........................................................................ 54

4.4.1 Chip Configuration .......................................................... 57

4.4.2 I/O Device Configuration ................................................ 60

4.4.3 PCI Configuration............................................................ 62

4.4.4 Shadow Configuration ..................................................... 64

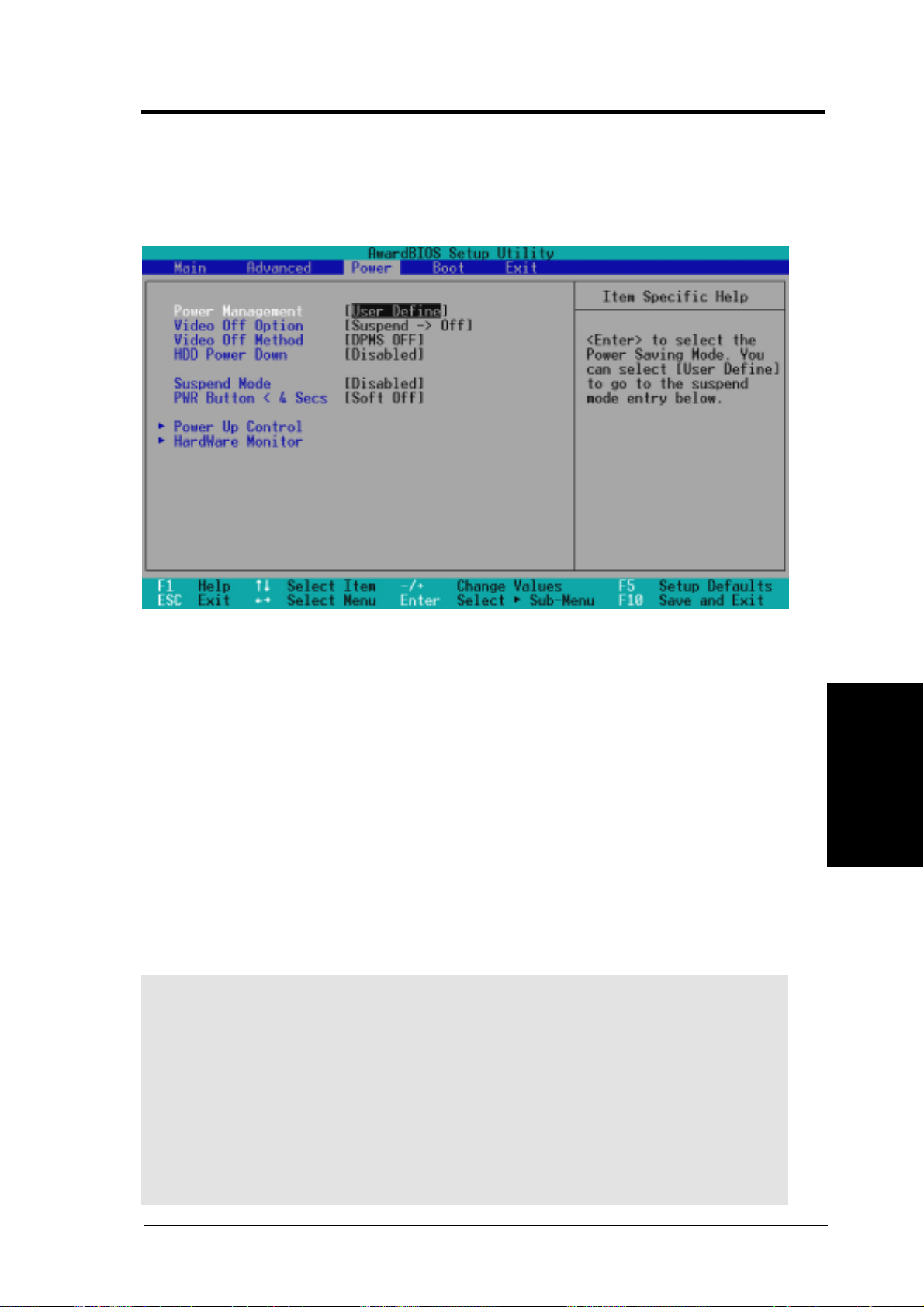

4.5 Power Menu .............................................................................. 65

4.5.1 Power Up Control ............................................................ 67

4.5.2 Hardware Monitor............................................................ 69

4.6 Boot Menu ................................................................................ 70

4.7 Exit Menu ................................................................................. 72

5. SOFTWARE SETUP....................................................................... 75

5.1 Install Operating System........................................................... 75

5.2 Start Windows........................................................................... 75

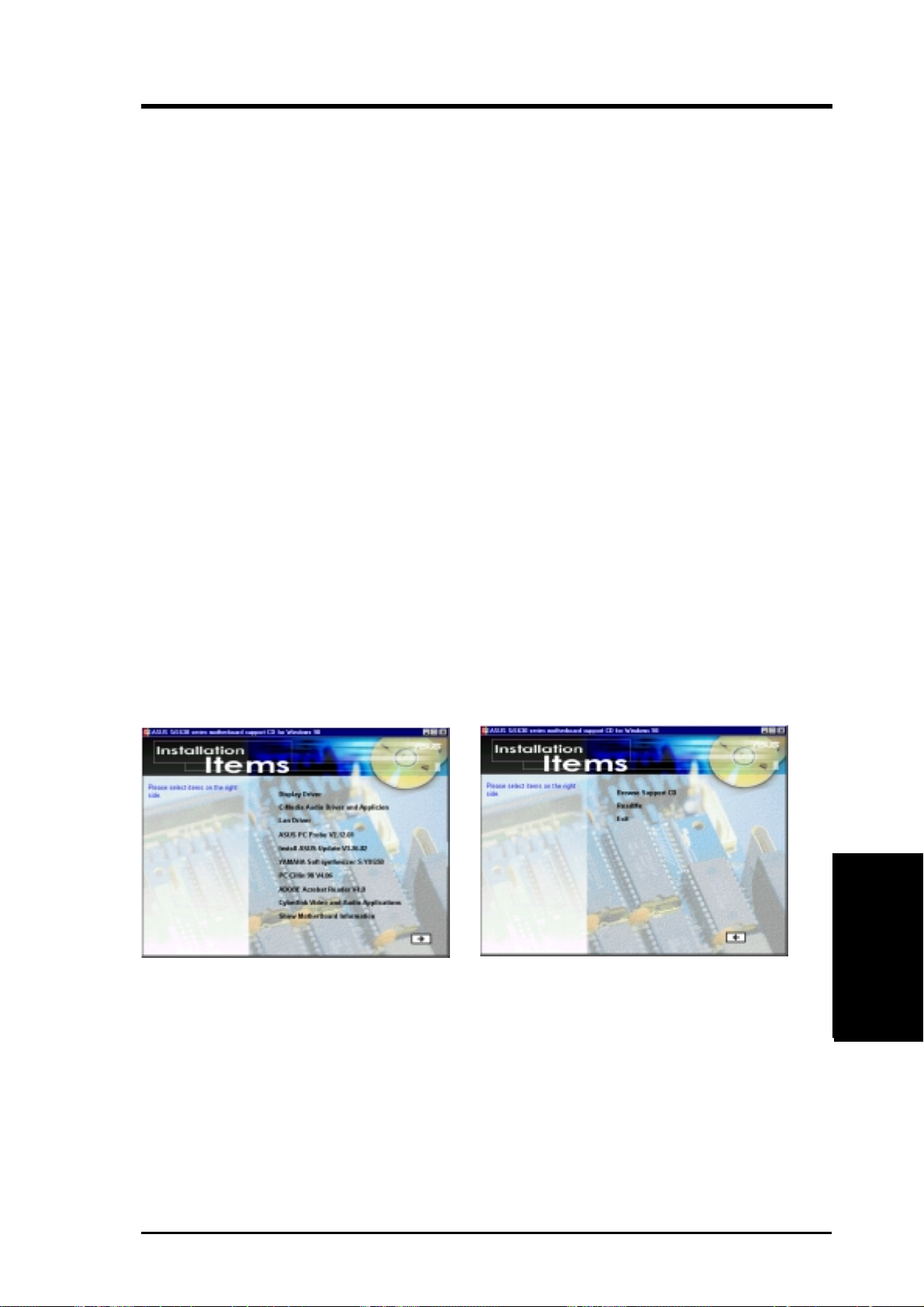

5.3 CUSI-M Motherboard Support CD .......................................... 75

5.4 Display Driver........................................................................... 77

5.5 C-Media Driver and Application .............................................. 78

5.6 Lan Driver................................................................................. 79

5.7 ASUS PC Probe Vx.xx ............................................................. 80

5.8 Install ASUS Update Vx.xx ...................................................... 81

5.9 YAMAHA SoftSynthesizer S-YXG50...................................... 83

5.10 PC-Cillin 98 Vx.xx ................................................................... 83

5.11 Adobe Acrobat Reader Vx.x ..................................................... 84

5.12 Cyberlink Video and Audio Applications ................................. 85

5.13 Uninstalling Programs .............................................................. 86

6. SOFTWARE REFERENCE ............................................................ 89

6.1 Display Properties..................................................................... 89

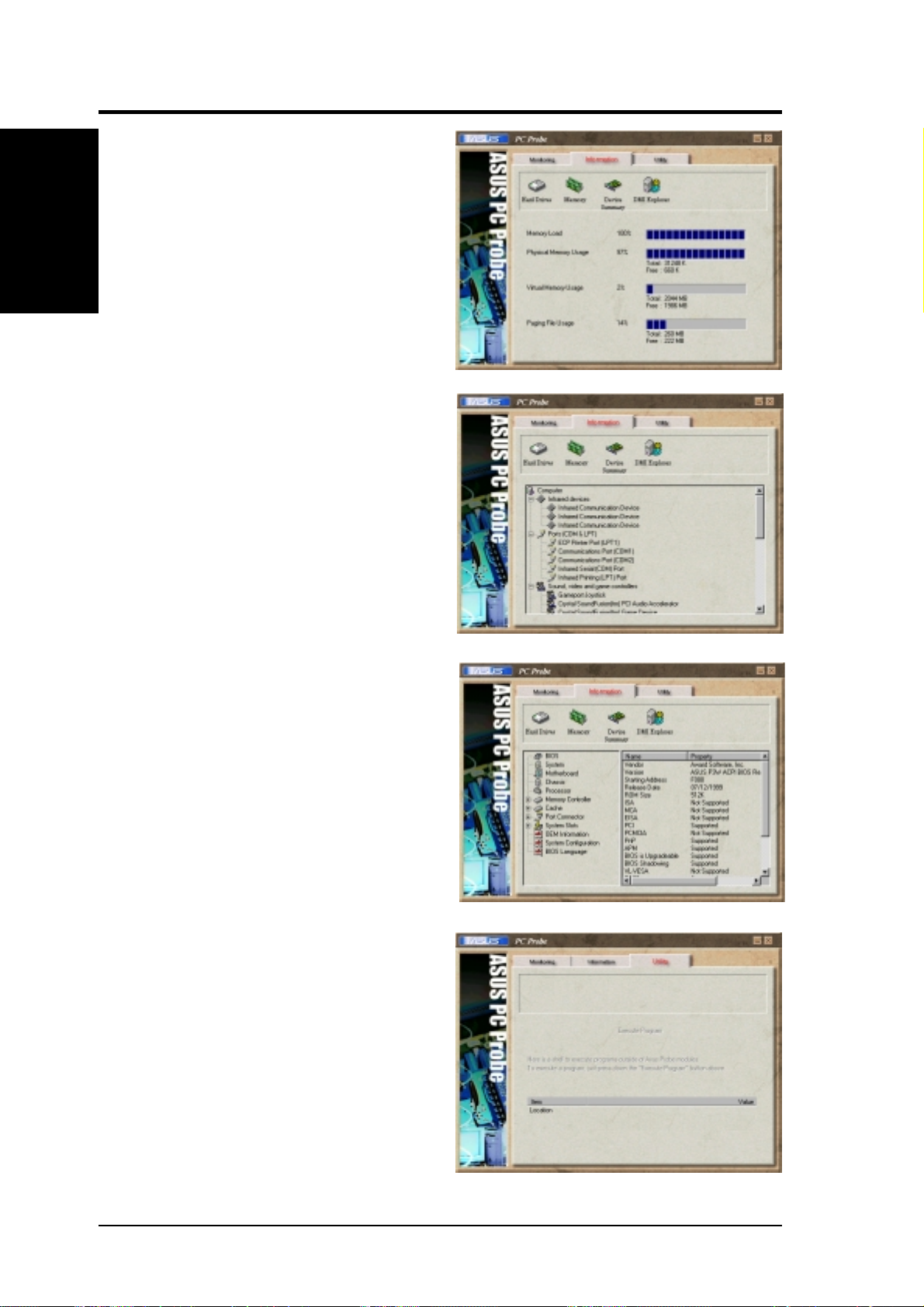

6.2 ASUS PC Probe ........................................................................ 93

6.3 ASUS Update............................................................................ 98

6.4 Yamaha XGPlayer..................................................................... 99

6.5 CyberLink PowerPlayer SE .................................................... 100

6.6 CyberLink PowerDVD ........................................................... 101

6.7 CyberLink V ideoLive Mail..................................................... 102

7. APPENDIX...................................................................................... 105

7.1 Glossary .................................................................................. 105

INDEX ................................................................................................. 109

ASUS CUSI-M User’s Manual 5

FCC & DOC COMPLIANCE

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications to this product not expressly ap-

proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6 ASUS CUSI-M User’s Manual

1. INTRODUCTION

1.1 How This Manual Is Organized

This manual is divided into the following sections:

1. INTRODUCTION Manual information and checklist

2. FEATURES Production information and specifications

3. HARDWARE SETUP Intructions on setting up the motherboard.

4. BIOS SETUP Intructions on setting up the BIOS

5. SOFTWARE SETUP Intructions on setting up the included software

6. SOFTWARE REFERENCE Reference material for the included software

7. APPENDIX Optional items and general reference

1.2 Item Checklist

Check that your package is complete. If you discover damaged or missing items, contact your retailer.

Manual / Checklist

1. INTRODUCTION

Package Contents

(1) ASUS Motherboard (1) 40-pin 80-conductor ribbon

cable for internal UltraDMA/ 66 or UltraDMA/33 IDE drives

(1) Ribbon cable for (1) 5.25” and

(2) 3.5” floppy disk drives

(1) ASUS 3-port USB connector set

with bracket

(1) I/O Shield (1) Bag of spare jumpers (1) Support drivers and utilities (1) This Motherboard User’s

Manual

Optional Items

ASUS consumer infrared set Modem riser

ASUS CUSI-M User’s Manual 7

2. FEATURES

2.1 The ASUS CUSI-M

The ASUS CUSI-M motherboard is carefully designed for the demanding PC user who wants advanced features processed by the fastest processors.

2.1.1 Specifications

• Latest Processor Support

2. FEATURES

Specifications

• SiS AGPset: SiS 630E AGPset with integrated SiS300 AGP graphics controller

• PC100/133 Memory Support: Equipped with two Dual Inline Memory Module

• UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE controller

• More USB Ports: Supports a total of 5 USB ports for more peripheral connec-

• Peripheral Wakeup: Supports Wakeup on LAN, USB, and PS/2 Mouse/Key-

Intel Pentium Intel Celeron™ 66MHz FSB Coppermine core FC-PGA Intel Celeron™ 66MHz FSB Mendocino core PPGA

supports a 133MHz Front Side Bus (FSB) and UltraDMA/66, which allows burst mode data transfer rates of up to 66.6MB/sec.

(DIMM) sockets to support Intel PC100/133-compliant SDRAMs (available in 64, 128, 256, or 512MB densities) up to 1GB.

with two connectors that support four IDE devices on two channels. Supports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/R W , LS-120, and Tape Backup drives.

tivity options.

board.

III 100/133MHz FSB Coppermine core FC-PGA

• SMBus: Features the System Management Bus interface, which is used to physi-

cally transport commands and information between SMBus devices.

• PC Health Monitoring: Provides an easy way to examine and manage system

status information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ITE 8705 and the bundled ASUS PC Probe or Intel LDCM software.

• AMR Slot: Audio Modem Riser slot supports a very affordable audio and/or

modem riser card.

• Legacy Free: Provides three 32-bit PCI (Asynchronous PCI 2.2 compliant) with

no ISA, eliminating bottlenecks and system memory management issues. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to 133MB/s maximum throughput.)

• Low Pin Count (LPC) Multi-I/O: Provides two high-speed UAR T compatible

serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.

ASUS CUSI-M User’s Manual

2. FEATURES

• Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash

EEPROM), offering enhanced ACPI for Windows 98/2000/Millenium compatibility, built-in firmware-based virus protection, and autodetection of most devices for virtually automatic setup.

• Smart BIOS: 2Mbit flash ROM gives a new easy-to-use interface which pro-

vides more control and protection over the motherboard. Provides Vcore and CPU/ SDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/ ZIP/CD/Floppy boot selection. Hardware random number generator supports new security software for data protection and secured Internet transactions.

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

ter busses to the memory and processor.

• Smart Networking: Features the SiS630E 10/100Mb Fast Ethernet Controller,

which supports W ired for Management, remote wake-up, and OnNow initiative to reduce Total Cost of Ownership (TCO).

2.1.2 Specifications–Optional Components

2. FEATURES

Optional Components

The following onboard components are optional at the time of purchase:

• PCI Audio: Smart Audio: Provides C-Media Electronics Inc.’s CMI-8738 PCI

3D Extension Positional Audio Chip. With this chip onboard, no external CODEC is needed. CMI-8738 supports legacy audio (SB16™), FM emulator/DLS wavetable music synthesis, and HR TF 3D positional audio functions, and PCtel® HSP56 (1789) interface.Compatible with A3D™ and DirectSound™ 3D, CMI8738 thus meets PC98® requirements, and supports professional digital audio interface.

ASUS CUSI-M User’s Manual 9

2. FEATURES

2.1.3 Performance

• UltraPerformance: Onboard IDE Bus Master controller with two connectors that

support four IDE devices in two channels. Supports UltraDMA/66, UltraDMA/33 (IDE DMA Mode 2), PIO Modes 3 & 4, and supports Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and T ape Backup drives.

• Dual Speeds: CPU frequency can operate at either 133MHz or 100MHz.

2. FEATURES

Performance

• High-Speed Data Transfer Interface: IDE transfers using UltraDMA/33 Bus

Master IDE can handle rates up to 33MB/s. This motherboard with its chipset and support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to

66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and DMA and with existing DMA devices and systems so there is no need to upgrade current EIDE/IDE drives and host systems. (UltraDMA/66 requires a 40-pin 80-conductor cable to be enabled and/or for UltraDMA Mode 4.)

• Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

ter buses to memory and processor.

• SDRAM Optimized Performance: This motherboard supports PC133-com-

pliant Synchronous Dynamic Random Access Memory (SDRAM), which increases the data transfer rate to 1066MB/s max.

• ACPI Ready: ACPI (Advanced Configuration and Power Interface) is also imple-

mented on all ASUS smart series motherboards. ACPI provides more Energy Saving Features for future operating systems (OS) supporting OS Direct Power Management (OSPM) functionality . W ith these features implemented in the OS, PCs can be ready around the clock, yet satisfy all the energy saving standards. To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows 98/2000/Millenium, must be used.

• New Compliancy: Both the BIOS and hardware levels of the motherboard meet

the stringent requirements for PC 99 certification. The new PC 99 requirements for systems and components are based on the following high-level goals: support for Plug and Play compatibility and power management for configuring and managing all system components, and 32-bit device drivers and installation procedures for Windows 95/NT and later. Color-coded connectors and descriptive icons make identification easy as required by PC 99.

ASUS CUSI-M User’s Manual

2. FEATURES

2.1.4 Intelligence

• Fan Status Monitoring and Alarm: To prevent system overheat and system

damage, the CPU, power supply, and system fans can be monitored for RPM and failure. All the fans are set for its normal RPM range and alarm thresholds.

• T emperature Monitoring and Alert: T o prevent system overheat and system dam-

age, this motherboard supports processor thermal sensing and auto-protection.

• Voltage Monitoring and Alert: System voltage levels are monitored to ensure

stable current to critical motherboard components. Voltage specifications are more critical for future processors, so monitoring is necessary to ensure proper system configuration and management.

• System Resources Alert: Today’s operating systems, such as Windows 98/

Millenium, W indows NT/2000, and OS/2, require much more memory and hard drive space to present enormous user interfaces and run large applications. The onboard hardware ASUS ASIC in conjunction with either the bundled ASUS PC Probe or Intel LDCM will warn the user before the system resources are used up to prevent possible application crashes. Suggestions will give the user information on managing their limited resources more efficiently.

• Dual Function Power Button: Through BIOS, the power button can be defined as the “Stand by” (a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button. Regardless of the setting, pushing the power button for more than 4 seconds will enter the Soft-Off mode.

• Remote Ring On (requires modem): This allows a computer to be turned on remotely through an internal or external modem. With this benefit on-hand, users can access any information from their computers from anywhere in the world.

• Message LED (requires ACPI OS support): Message LEDs now act as infor- mation providers. Through the way a particular LED illuminates, the user can determine if a message has been received from a fax/modem. A simple glimpse provides useful information to the user. This function requires ACPI OS and driver support.

Intelligence

2. FEATURES

• Peripheral Power Up: Keyboard power up can be enabled or disabled through BIOS setup to allow the computer to be powered ON using your keyboard.

ASUS CUSI-M User’s Manual 11

2.2 CUSI-M Motherboard Components

See opposite page for locations.

Processor Support Socket 370 for Pentium III/Celeron Processors ....................... 2

MB Components

2. FEATURES

Location

Chipsets SiS 630E 3C Integration Single Chip ....................................... 3

ITE 8705 Super I/O Chipset ................................................... 14

2Mbit Flash BIOS .................................................................. 13

Main Memory Maximum 1GB support

2 DIMM Sockets ...................................................................... 4

PC100/133 SDRAM and VCM SDRAM support

Expansion Slots 3 PCI Slots .............................................................................. 15

1 AMR Slot............................................................................. 12

System I/O 2 IDE Connectors (UltraDMA/66 support) .............................. 6

1 Floppy Disk Drive Connector ............................................... 7

2 USB Headers (support 3 USB ports).................................... 8

1 Serial COM2 Header ........................................................... 11

2 USB Port Connectors .......................................... (Bottom) 22

1 Parallel Port Connector ............................................. (Top) 20

1 VGA Monitor Output Connector......................................... 19

1 Serial COM1 Port Connectors............................. (Bottom) 21

1 PS/2 Mouse Connector .............................................. (Top) 23

1 PS/2 Keyboard Connector ................................... (Bottom) 23

Audio Cmedia 8738 PCI Audio Chipset (optional)........................... 16

1 Game/MIDI Connector (on audio model only) ......... (Top) 17

1 Line Out Connector (on audio model only) ........ (Bottom) 17

1 Line In Connector (on audio model only) ........... (Bottom) 17

1 Microphone Connector (on audio model only) ... (Bottom) 17

Network Features SiS630E Ethernet Controller

1 LAN (RJ45) Connector (optional) ............................ (Top) 22

Wake-On-LAN Connector...................................................... 10

Wake-On-Ring Connector ........................................................ 1

Other Features ASUS iPanel Connector ........................................................... 9

ASUS iPanel Audio Connector .............................................. 18

Power ATX Power Supply Connector ................................................. 5

Form Factor microATX

ASUS CUSI-M User’s Manual

2. FEATURES

2.2.1 Component Locations

23 22

19 18

2345

2. FEATURES

Component Locations

15 14

710

ASUS CUSI-M User’s Manual 13

3. HARDWARE SETUP

3.1 CUSI-M Motherboard Layout

PS/2

T: Mouse B: Keyboard

Bottom:

USB1 USB2

COM1

Motherboard Layout

3. H/W SETUP

VGA

GAME_AUDIO

CPU_FAN

Top: RJ-45

PARALLEL PORT

Line Out

Line

Mic

PWRTMP

USBPWR1

AUX

CD1

AUDIO_PANEL

32-bit

PCI

Audio

Chipset

Socket 370

PWR_FAN

MODEM

WOR

SiS630E

Integration

Single

Chip

SCPU

Row

ATXPWR

ATX Power Connector

JP1

JP2

JP3

JP0

DIMM Socket 2 (64/72-bit, 168-pin module)

DIMM Socket 1 (64/72-bit, 168-pin module)

Primary IDE

Secondary IDE

CR2032 3V Lithium Cell

CMOS Power

CLRTC

PCI Slot 1

FLOPPY

ITE 8705 Super I/O

USBPWR0

AFPANEL

2Mbit Flash BIOS

JEN

PCI Slot 2

CUSI-M

PCI Slot 3

Audio Modem Riser

(AMR)

COM2

WOL_CON

CH_FAN

IDELED

NOTE: Gray components are optional at the time of purchase.

PANEL

BUZZER

USB1

USB2

ASUS CUSI-M User’s Manual

3. HARDWARE SETUP

3.2 Layout Contents

Motherboard Settings

1) JEN p.16 JumperFree Mode Setting (Enable/Disable)

2) USBPWR0/USBPWR1 p.17 USB Power Up Settings (Enable/Disable)

3) FS3, FS1, FS2, FS0 p.18 CPU External Frequency Selection

Expansion Slots

1) DIMM1, DIMM2 p.20 168-Pin DIMM Memory Support

2) Socket 370 p.22 Central Processing Unit (CPU)

3) PCI1, PCI2, PCI3 p.23 32-bit PCI Bus Expansion Slots

4) AMR p.25 Audio Modem Riser Slot

Connectors

1) PS2KBMS p.26 PS/2 Mouse Connector (6-pin female)

2) PS2KBMS p.26 PS/2 Keyboard Connector (6-pin female)

3) RJ-45 p.27 Fast-Ethernet Port Connector

4) USB p.27 Universal Serial Bus Ports 0 & 1 (Two 4-pin female)

5) PARALLEL p.27 Parallel Port Connector (25-pin female)

6) COM1/COM2 p.28 Serial Port Connectors (9 pins, 10-1 pins)

7) VGA1 p.28 Monitor Port Connector (15-pin female)

8) GAME_AUDIO p.29 Game/MIDI Connector (15-pin female) (optional)

9) GAME_AUDIO p.29 Audio Port Connectors (Three 1/8” female) (optional)

10) PRIMARY/SECONDAR Y IDE p.30 Primary/Secondary IDE Connectors (Two 40-1pins)

11) FLOPPY p.30 Floppy Disk Drive Connector (34-1pins)

12) PLED p.31 IDE Activity LED (2 pins)

13) PWR_, CPU_, CH_FAN

14) WOR p.32 Wake-On-Ring Connector (2 pins)

15) WOL_CON p.32 Wake-On-LAN Connector (3 pins)

16) USB1, USB2 p.33 USB Connector Set (10-1 pins, 5-1 pins)

17) CD1, AUX, MODEM p.34 Internal Audio Connectors (Two 4 pins) (optional)

18) AFPANEL p.35 ASUS iPanel Connector (12-1 pins)

19) AAPANEL p.35 ASUS iPanel Audio Connector (12-1 pins)

20) SPEAKER (PANEL) p.37 System Warning Speaker Connector (4 pins)

31 Power Supply , CPU, Chassis Fan Connectors (Three 3-pin)

3. H/W SETUP

Layout Contents

21) KLOCK (PANEL) p.37 Keyboard Lock Switch Lead (2 pins)

22) PWRLED (PANEL) p.37 System Power LED Lead (3-1 pins)

23) MSG.LED (PANEL) p.37 System MessageLED Lead (2 pins)

24) SMI (PANEL) p.37 System Management Interrupt Switch Lead (2 pins)

25) PWRSW (PANEL) p.37 ATX Power / Soft-Off Switch Lead (2 pins)

26) RESET (PANEL) p.37 Reset Switch Lead (2 pins)

27) ATXPWR p.38 ATX Power Supply Connector (20 pins)

28) PWRTMP p.38 Power Supply Thermal Sensor Connector (2 pins)

ASUS CUSI-M User’s Manual 15

3.3 Hardware Setup Procedure

Before using your computer, you must complete the following steps:

• Check Motherboard Settings

• Install Memory Modules

• Install the Central Processing Unit (CPU)

• Install Expansion Cards

• Connect Ribbon Cables, Panel Wires, and Power Supply

3.4 Motherboard Settings

This section explains in detail how to change your motherboard’s function settings through the use of switches and/or jumpers.

WARNING! Computer motherboards and expansion cards contain very delicate Inte-

Motherboard Settings

3. H/W SETUP

grated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer .

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or connectors, or other components.

4. Place components on a grounded antistatic pad or on the bag that came with the component whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power connector on the motherboard.

3. HARDWARE SETUP

1) JumperFree™ Mode (JEN)

This jumper allows you to enable or disable the JumperFree™ mode. The JumperFree™ mode allows processor settings to be made through the BIOS setup (see 4.4 Advanced Menu)

IMPORTANT: In JumperFree mode, all jumpers must be set to [1-2].

0 1

JP1

JP3

JP2

3 2 1

JEN

CUSI-M

CUSI-M JumperFree™ Mode Setting

Jumperless Mode12Jumper Mode

16 ASUS CUSI-M User’s Manual

JP0

3. HARDWARE SETUP

2) USB Device Wake Up (USBPWR0, USBPWR1)

These jumpers allow you to enable or disable the USB device power up function for USB devices connected to your system.This feature requires an ATX power supply that can supply at least 2A on the +5VSB lead. The default is set to Disable because not all computers have the appropriate A TX power supply. Y our computer will not power ON if you set these to Enable and do not have the appropriate ATX power supply.

NOTES:

1. These two jumpers must be set in unison; that is, either both must be set to Disable or both to Enable.

2. These settings must also be set in conjunction with Wake On USB Device in

4.5.1 Power Up Control.

Setting USBPWR0/USBPWR1

Enable [1-2] (default) Disable [2-3]

0 1

CUSI-M

CUSI-M USB Device Wake Up

USBPWR1

2 1

Enable Disable

USBPWR0

Enable Disable

3 2

(Default)

3. H/W SETUP

Motherboard Settings

ASUS CUSI-M User’s Manual 17

3. HARDWARE SETUP

3) CPU External Frequency Setting (JP3, JP1, JP2, JP0)

This option tells the clock generator what frequency to send to the CPU, SDRAM, and the chipset. This allows the selection of the CPU’s External frequency. The CPU External Frequency multiplied by the Frequency Multiple equals the CPU’s Internal frequency (the advertised CPU speed).

Motherboard Settings

3. H/W SETUP

CUSI-M CPU External Frequency Selection

JP1

JP3

100.0MHz

33.3MHz

JP1

JP3

96.2MHz

32.1MHz

JP1

JP3

133.3MHz

33.3MHz

JP1

JP3

70.0MHz

105.0MHz

35.0MHz

JP2

JP0

JP1

JP3

JP2

JP0

3 2 1

CPU

PCI

CPU

PCI

CPU

PCI

CPU

PCI

66.6MHz

100.0MHz

33.3MHz

3 2 1

133.3MHz

100.0MHz

33.3MHz

3 2 1

100.0MHz

150.0MHz

37.5MHz

3 2 1

97.0MHz

32.3MHz

JP3

JP1

JP2

JP0

SDRAM

0 1

CUSI-M

SDRAM

JP1

JP3

JP2

150.0MHz

100.0MHz

37.5MHz

JP1

JP3

JP2

100.0MHz

133.3MHz

33.3MHz

JP1

JP3

JP2

66.8MHz

33.4MHz

JP1

JP3

JP2

95.0MHz

31.7MHz

JP0

JP1

JP3

JP2

JP0

3 2 1

CPU

SDRAM

PCI

95.0MHz

126.7MHz

31.7MHz

112.0MHz

18 ASUS CUSI-M User’s Manual

JP1

JP3

37.3MHz

JP2

JP0

JP1

JP3

JP2

97.0MHz

129.3MHz

32.2MHz

JP0

3. HARDWARE SETUP

Manual CPU Settings (NOTE: JumperFree mode must be disabled.)

Set the jumpers according to the internal speed of your processor as follows:

CPU SDRAM Frequency Selection Switches

(MHz) (MHz) JP3 JP1 JP2 JP0

66 100 [1-2] [1-2] [1-2] [1-2] 100 100 [1-2] [1-2] [1-2] [2-3] 150 100 [1-2] [2-3] [1-2] [1-2] 133 100 [1-2] [2-3] [1-2] [2-3] 100 133 [1-2] [1-2] [2-3] [2-3] 100 150 [1-2] [2-3] [2-3] [1-2] 133 133 [1-2] [2-3] [2-3] [2-3]

66 66 [2-3] [1-2] [1-2] [1-2]

97 97 [2-3] [1-2] [1-2] [2-3]

70 105 [2-3] [2-3] [1-2] [1-2]

95 95 [2-3] [2-3] [1-2] [2-3]

95 126 [2-3] [1-2] [2-3] [1-2] 112 112 [2-3] [1-2] [2-3] [2-3]

97 129 [2-3] [2-3] [2-3] [1-2]

96 96 [2-3] [2-3] [2-3] [2-3]

For updated processor settings, visit ASUS’s web site (see ASUS CONTACT IN- FORMATION).

WARNING! Premature wearing of the processor may result when overclocking.

Be sure that the DIMM you use can handle the specified SDRAM MHz or else bootup will not be possible.

3. H/W SETUP

Motherboard Settings

ASUS CUSI-M User’s Manual 19

3. HARDWARE SETUP

3.5 System Memory (DIMM)

NOTE: No hardware or BIOS setup is required after adding or removing memory. This motherboard uses only Dual Inline Memory Modules (DIMMs). Sockets are

available for 3.3Volt (power level) unbuffered Synchronous Dynamic Random Ac- cess Memory (SDRAM) of 16, 32, 64, 128MB, 256 or 512MB. to form a memory size between 16MB and 1GB. One side (with memory chips) of the DIMM takes up one row on the motherboard. This motherboard also supports NEC’s Virtual Channel (VC) SDRAMs.

To use the chipset’s Error Checking and Correction (ECC) feature, you must use a DIMM with 9 chips per side (standard 8 chips/side + 1 ECC chip).

Memory speed setup is recommended through Configure SDRAM T iming by SPD (see 4.4.2 Advanced Chipset Setup).

Install memory in any combination as follows:

System Memory

3. H/W SETUP

IMPORTANT

Location 168-pin DIMM Total Memory

DIMM1 (Rows 0&1) SDRAM 16, 32, 64, 128, 256, 512MB x1 DIMM2 (Rows 2&3) SDRAM 16, 32, 64, 128, 256, 512MB x1

3.5.1 General DIMM Notes

• This motherboard supports SPD (Serial Presence Detect) DIMMs. This is the

• This motherboard does NOT support registered memory.

• SDRAM chips are generally thinner with higher pin density than EDO (Ex-

• BIOS shows SDRAM memory on bootup screen.

• Single-sided DIMMs come in 16, 32, 64,128, 256MB; double-sided come in 32,

•For optimum signal integrity, inserting the DIMMs in the following order is

recommended: DIMM1, DIMM2

•SDRAMs used must be compatible with the current PC133/PC100 SDRAM

specification.

•DO NOT mix SDRAMs with VC SDRAMs.

Total System Memory (Max 1GB) =

memory of choice for best performance vs. stability.

tended Data Output) chips.

64, 128, 256, 512MB.

20 ASUS CUSI-M User’s Manual

3. HARDWARE SETUP

3.5.2 DIMM Memory Installation

Insert the module(s) as shown. Because the number of pins are different on either side of the breaks, the module will only fit in the orientation shown. DIMM modules are longer and have different pin contact on each side and therefore have a higher pin density. SIMM modules have the same pin contact on both sides.

0 1

Lock

88 Pins

60 Pins

CUSI-M

20 Pins

CUSI-M 168-Pin DIMM Sockets

The DIMMs must be 3.3V Unbuffered for this motherboard. T o determine the DIMM type, check the notches on the DIMMs (see figure below).

3. H/W SETUP

System Memory

168-Pin DIMM Notch Key Definitions (3.3V)

DRAM Key Position

RFU

Buffered

Unbuffered

Voltage Key Position

5.0V

Reserved

3.3V

The notches on the DIMM module will shift between left, center , or right to identify the type and also to prevent the wrong type from being inserted into the DIMM slot on the motherboard. You must ask your retailer the correct DIMM type before purchasing. This motherboard supports four clock signals.

ASUS CUSI-M User’s Manual 21

3. H/W SETUP

CPU

3. HARDWARE SETUP

3.6 Central Processing Unit (CPU)

The motherboard provides a ZIF Socket 370. The CPU that came with the motherboard should have a fan attached to it to prevent overheating. If this is not the case, then purchase a fan before you turn on your system.

WARNING! Be sure that there is sufficient air circulation across the processor’s

heatsink by regularly checking that your CPU fan is working. W ithout sufficient circulation, the processor could overheat and damage both the processor and the motherboard. You may install an auxiliary fan, if necessary.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open it by first pulling the lever sideways away from the socket then upwards to a 90-degree angle. Insert the CPU with the correct orientation as shown. The notched corner should point towards the end of the lever . Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown. The picture is for reference only; you should have a CPU fan that covers the face of the CPU. With the added weight of the CPU fan, no force is required to insert the CPU. Once completely inserted, close the socket’s lever while holding down the CPU. After the CPU is , install an Intel recommended fan heatsink. Locate the CPU fan connector (see 3.1 Motherboard Layout or 3.8 Connectors) and connect the CPU fan cable to it.

NOTE: Do not forget to set the correct Bus Frequency and Multiple (frequency multiple setting is available only on unlocked processors) for your Socket 370 processor or else boot-up may not be possible. Socket 370 processors provide internal thermal sensing so that a socket mounted thermal resistor is not needed.

CAUTION! Be careful not to scrape the motherboard when mounting a clamp-

style processor fan or else damage may occur to the motherboard.

0 1

CUSI-M

CUSI-M Socket 370

Notch

Gold Arrow

Socket 370 CPU

(Top)

Celeron

Pentium III

Socket 370 CPU

(Bottom)

22 ASUS CUSI-M User’s Manual

3. HARDWARE SETUP

3.7 Expansion Cards

WARNING! Unplug your power supply when adding or removing expansion

cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.

3.7.1 Expansion Card Installation Procedure

1. Read the documentation for your expansion card and make any necessary hardware or software settings for your expansion card, such as jumpers.

2. Remove your computer system’s cover and the bracket plate on the slot you intend to use. Keep the bracket for possible future use.

3. Carefully align the card’s connectors and press firmly.

4. Secure the card on the slot with the screw you removed above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary (such as IRQ xx Used By ISA: Yes in PNP AND PCI SETUP)

7. Install the necessary software drivers for your expansion card.

3.7.2 Assigning IRQs for Expansion Cards

Some expansion cards need an IRQ to operate. Generally, an IRQ must be exclusively assigned to one use. In a standard design, there are 16 IRQs available but most of them are already in use, leaving 6 IRQs free for expansion cards. If your motherboard has PCI audio onboard, an additional IRQ will be used. If your motherboard also has MIDI enabled, another IRQ will be used, leaving 4 IRQs free.

3. H/W SETUP

Expansion Cards

ASUS CUSI-M User’s Manual 23

3. HARDWARE SETUP

The following table lists the default IRQ assignments for standard PC devices. Use this table when configuring your system and for resolving IRQ conflicts.

Standard Interrupt Assignments

IRQ Priority Standard Function

0 1 System Timer 1 2 Keyboard Controller 2 N/A Programmable Interrupt 3* 11 Communications Port (COM2) 4* 12 Communications Port (COM1) 5* 13 Sound Card (sometimes LPT2) 6 14 Floppy Disk Controller 7* 15 Printer Port (LPT1)

Expansion Cards

3. H/W SETUP

8 3 System CMOS/Real Time Clock 9* 4 ACPI Mode when enabled 10* 5 IRQ Holder for PCI Steering 11* 6 IRQ Holder for PCI Steering 12* 7 PS/2 Compatible Mouse Port 13 8 Numeric Data Processor 14* 9 Primary IDE Channel 15* 10 Secondary IDE Channel

*These IRQs are usually available for ISA or PCI devices.

Interrupt Request Table for this Motherboard

Interrupt requests are shared as shown by the following table:

PCI slot 1 shared ——— PCI slot 2 ———shared PCI slot 3 — shared ——

INT-A INT-B INT-C INT-D

Onboard VGA shared ——— Onboard LAN ——shared — Onboard USB controller ———shared Onboard Audio ——shared — AMR — shared ——

IMPORTANT: If using PCI cards on shared slots, make sure that the drivers sup-

port “Share IRQ” or that the cards do not need IRQ assignments. Conflicts will arise between the two PCI groups that will make the system unstable or cards inoperable.

24 ASUS CUSI-M User’s Manual

3. HARDWARE SETUP

3.7.3 Audio Modem Riser (AMR) Slot

This connector supports a specially designed audio and/or modem card called an AMR. Main processing is done through software and controlled by the motherboard’s sys- tem chipset. This provides an upgradeable audio and/or modem solution at an incredibly low cost. There are two types of AMR, one defined as primary and another defined as secondary. You can only use primary AMRs with this motherboard.

NOTE: An AMR is not included with this motherboard.

0 1

CUSI-M

CUSI-M Audio Modem Riser (AMR) Connector

3. H/W SETUP

Expansion Cards

ASUS CUSI-M User’s Manual 25

3. H/W SETUP

Connectors

3. HARDWARE SETUP

3.8 Connectors

WARNING! Some pins are used for connectors or power sources. These are

clearly distinguished from jumpers in the Motherboard Layout. Placing jumper caps over these connector pins will cause damage to your motherboard.

IMPORTANT: Ribbon cables should always be connected with the red stripe to

Pin 1 on the connectors. Pin 1 is usually on the side closest to the power connector on hard drives and CD-ROM drives, but may be on the opposite side on floppy disk drives. Check the connectors before installation because there may be exceptions. IDE ribbon cable must be less than 46 cm (18 in.), with the second drive connector no more than 15 cm (6 in.) from the first connector.

1) PS/2 Mouse Connector (Green 6-pin PS2KBMS)

The system will direct IRQ12 to the PS/2 mouse if one is detected. If one is not detected, expansion cards can use IRQ12. See PS/2 Mouse Function Control in 4.4 Advanced Menu.

PS/2 Mouse (6-pin female)

2) PS/2 Keyboard Connector (Purple 6-pin PS2KBMS) This connection is for a standard keyboard using an PS/2 plug (mini DIN). This connector will not allow standard AT size (large DIN) keyboard plugs. You may use a DIN to mini DIN adapter on standard AT keyboards.

PS/2 Keyboard (6-pin female)

26 ASUS CUSI-M User’s Manual

3. HARDWARE SETUP

3) Fast-Ethernet Port Connector (RJ45)

The RJ-45 connector is located on top of the USB connectors. The connector allows the motherboard to connect to a Local Area Network (LAN) through a network hub.

RJ-45

LED1

LED2

LED1 LED2

On Power Good connection

Off No power Bad connection

Blinking --- Data transfer

4) Universal Serial Bus Ports 0 & 1 (Black two 4-pin USB)

Two USB ports are available for connecting USB devices.

Universal Serial Bus (USB)

5) Parallel Port Connector (Burgundy 25-pin PRINTER) You can enable the parallel port and choose the IRQ through Onboard Parallel Port (see 4.4.2 I/O Device Configuration). NOTE: Serial printers must be connected to the serial port.

Connectors

3. H/W SETUP

Parallel (Printer) Port (25-pin female)

ASUS CUSI-M User’s Manual 27

3. H/W SETUP

Connectors

3. HARDWARE SETUP

6) Serial Port Connectors (Teal/Turquoise 9-pin COM1)

One serial port is ready for a mouse or other serial devices. A second serial port is available using a serial port bracket connected from the motherboard to an expansion slot opening. See Onboard Serial Port 1 in 4.2.2 I/O Device Con- figuration for settings.

COM 1

Serial Port (9-pin male)

0 1

COM2

Pin 1

CUSI-M

CUSI-M Serial Port Header

7) Monitor Output Connector (Blue 15-pin VGA1)

This connector is for output to a VGA-compatible device.

VGA Monitor (15-pin female)

28 ASUS CUSI-M User’s Manual

3. HARDWARE SETUP

8) Game/MIDI Connector (Gold 15-pin GAME_AUDIO) (optional)

You may connect game joysticks or game pads to this connector for playing games. Connect MIDI devices for playing or editing professional audio.

Game/MIDI (15-pin female)

9) Audio Port Connectors (Three 1/8” GAME_AUDIO) (optional) Line Out (lime) can be connected to headphones or preferably powered speak-

ers. Line In (light blue) allows tape players or other audio sources to be re- corded by your computer or played through the Line Out (lime). Mic (pink) allows microphones to be connected for inputting voice.

MicLine InLine Out

1/8" Stereo Audio Connectors

Connectors DMA Channels

3. H/W SETUP

ASUS CUSI-M User’s Manual 29

3. H/W SETUP

Connectors

3. HARDWARE SETUP

10) Primary (Blue) / Secondary IDE Connectors (Two 40-1pin IDE)

These connectors support the provided UltraDMA/66 IDE hard disk ribbon cable. Connect the cable’s blue connector to the motherboard’s primary (recommended) or secondary IDE connector, and then connect the gray connector to your UltraDMA/66 slave device (hard disk drive) and the black connector to your UltraDMA/66 master device. It is recommended that non-UltraDMA/66 devices be connected to the secondary IDE connector . If you install two hard disks, you must configure the second drive to Slave mode by setting its jumper accordingly . Please refer to your hard disk documentation for the jumper settings. BIOS now supports specific device bootup (see 4.4.1 Advanced CMOS Setup). (Pin

20 is removed to prevent inserting in the wrong orientation when using ribbon cables with pin 20 plugged).

TIP: You may configure two hard disks to be both Masters with two ribbon

cables – one for the primary IDE connector and another for the secondary IDE connector . You may install one operating system on an IDE drive and another on a SCSI drive and select the boot disk through 4.4.1 Advanced CMOS Setup.

IMPORTANT: UltraDMA/66 IDE devices must use a 40-pin 80-conductor IDE

cable for 66MBytes/s transfer rates.

0 1

CUSI-M

CUSI-M IDE Connectors

NOTE: Orient the red markings

on the IDE ribbon cable to

Primary IDE Connector

Secondary IDE Connector

PIN 1

11) Floppy Disk Drive Connector (34-1pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After connecting the single end to the board, connect the two plugs on the other end to the floppy drives. (Pin 5 is removed to prevent inserting in the wrong orienta-

tion when using ribbon cables with pin 5 plugged).

0 1

NOTE: Orient the red markings on the floppy ribbon cable to PIN 1.

CUSI-M

PIN 1

CUSI-M Floppy Disk Drive Connector

30 ASUS CUSI-M User’s Manual

+ 90 hidden pages
