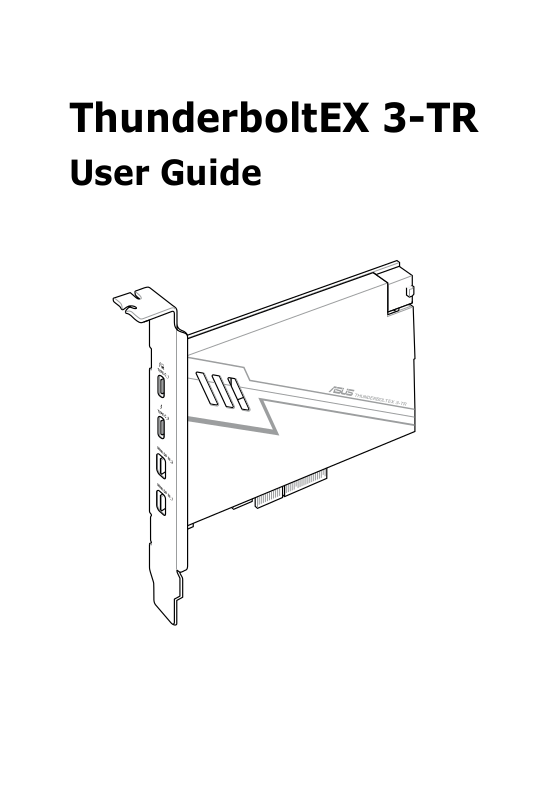

ThunderboltEX 3-TR
User Guide
E16773
Revised Edition V2
May 2020
Copyright © 2020 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASUS, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if ASUS has been advised of the possibility of such damages arising from any defect or error in this manual or product.
Specifications and information contained in this manual are furnished for informational use only, and are subject to change at any time without notice, and should not be construed as a commitment by ASUS. ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual, including the products and software described in it.
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
2
Welcome!
Congratulations and thank you for buying an ASUS ThunderboltEX 3-TR card!
The ASUS ThunderboltEX 3-TR card provides Thunderbolt™ connection to other Thunderbolt-enabled devices. Use this card to quickly transfer native PCIe and DisplayPort protocols between a PC and Thunderbolt™ devices.
Features
Your ASUS ThunderboltEX 3-TR card features two Thunderbolt™ 3 ports that support Thunderbolt™ 3 technology, and two mini DisplayPort IN ports (support DisplayPort 1.4 specifications) that allow you to redirect VGA input signals through the ThunderboltEX 3-TR card for video output. The Thunderbolt™ 3 port also features a number or features such
as 40 Gb/s bi-directional bandwidth and incorporates DisplayPort 1.4 support, enabling transfer and display of 8K video files simultaneously, and allows you to connect up to six Thunderbolt-enabled devices in a daisy-chain configuration using Thunderbolt™ cables. The
TYPEC_1 port also supports up to 100W for laptop quick charging.
Package contents
Check your package for the following items:
•1 x ThunderboltEX 3-TR card
•2 x Mini DisplayPort Cables
•1 x USB 2.0 cable
•1 x 14-1 pin Thunderbolt header cable
•1 x User manual
•1 x Support DVD with Thunderbolt™ driver
If any of the above items is damaged or missing, contact your retailer.
3
ThunderboltEX 3-TR specifications summary
Chipset |
Intel® Thunderbolt™ 3 JHL7540 Controller |
|
2 x Thunderbolt™ 3 USB Type-C® ports |
|
- TypeC_1 port supports up to 20V/5A, 100W quick charge feature. |
|
- TypeC_2 port supports up to 9V/3A, 27W quick charge feature. |
External Connectors |
2 x Mini DisplayPort IN ports |
|
|
|
1 x 6-pin PCIe power connector for quick charge function |
|
1 x USB 2.0 header |
|
1 x Thunderbolt header |
|
|
Interface |
PCIe 3.0 x4 interface |
|
|
VGA |
Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz |
|
|
|
2 x Mini DisplayPort Cables |
|
(links graphics output from motherboard’s or discrete graphics card’s |
Accessories |
DisplayPort to the mini DisplayPort IN port on the ThunderboltEX |
3-TR card) |
|
|
1 x USB 2.0 cable |
|
1 x 14-1 pin Thunderbolt header cable |
|
|
|
ASUS Z490/H470/B460 series motherboards and later models* |
Compatible Models |
featuring a 14-1 pin Thunderbolt header |
|
* Refer to www.asus.com for up-to-date compatible models. |
|
|
Operating System |
Windows® 10 64-bit |
Form Factor |
4.6 inch x 3.1 inch (11.77 cm x 8.05 cm) |
|
|
Specifications are subject to change without notice.
•Use only Thunderbolt™ technology-enabled devices that have passed Intel®
validation to ensure optimum performance and compatibility with your ThunderboltEX 3-TR card.
•Ensure your monitor complies with DisplayPort 1.4 specifications if you want to connect them in a daisy-chain configuration using the Thunderbolt™ 3 port.
4
ThunderboltEX 3 card layout
Thunderbolt™ 3 USB Type-C® port
(supports up to 20V/5A, 100W quick charge feature)
Thunderbolt™ 3 USB Type-C® port
(supports up to 9V/3A, 27W quick charge feature)
Mini DisplayPort IN ports
6-pin PCIe power connector
USB 2.0 header
14-1 Pin Thunderbolt header
PCIE 3.0 x4 interface
