Asuka Autotronics 888 Operators Guide

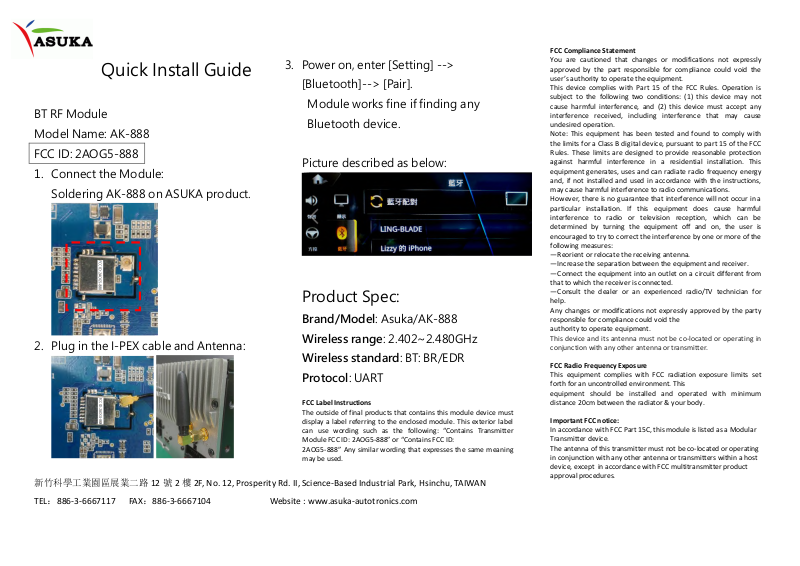

Quick Install Guide

FCC Compliance Statement

FCC Label Instructions

3. Power on, enter [Setting] -->

[Bluetooth]--> [Pair].

Module works fine if finding any

BT RF Module

Bluetooth device.

Model Name: AK-888

FCC ID: 2AOG5-888

Picture described as below:

1. Connect the Module:

Soldering AK-888 on ASUKA product.

Product Spec:

Brand/Model: Asuka/AK-888

2. Plug in the I-PEX cable and Antenna:

新竹科學工業園區展業二路 12 號 2 樓 2F, No. 12, Prosperity Rd. II, Science-Based Industrial Park, Hsinchu, TAIWAN

Wireless range: 2.402~2.480GHz

Wireless standard: BT: BR/EDR

Protocol: UART

The outside of final products that contains this module device must
display a label referring to the enclosed module. This exterior label
can use wording such as the following: “Contains Transmitter
Module FCC ID: 2AOG5-888” or “Contains FCC ID:
2AOG5-888” Any similar wording that expresses the same meaning
may be used.

You are cautioned that changes or modifications not expressly
approved by the part responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the
authority to operate equipment.

This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.

FCC Radio Frequency Exposure

This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.

Important FCC notice:

In accordance with FCC Part 15C, this module is listed as a Modular
Transmitter device.
The antenna of this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitters within a host
device, except in accordance with FCC multitransmitter product
approval procedures.

TEL：[phone] FAX：[phone] Website : www.asuka-autotronics.com
