Astus ELD User Manual

Astus ELD – Hours of Service

March 2018/ V1.0.1804-1805

1 [phone]| [e-mail] | www.astus.com

2

Page2

1 [phone]| [e-mail] | www.astus.com

Change Log

This section includes the following pages with the modified section details:

Page

Modified Section

Page 12

Updated 2.1.3 Customizing the Carrier Information

Page 18

Updated 2.1.4 Driving Rules>Available US Exceptions Options

Page 29

Updated 3.2 Changing the Driver’s Duty Status

Page 34

Updated 3.5 Data Transfer>Select Vehicle

Page 57

Updated 5.2.12 Edit a Log>Modify Log Event Using Grid View Editing

Page 61

Updated 5.2.12 Edit a Log>Auto Events

Page 75

Updated 5.4.4 Starting Your DVIR

Page 93 & 95

Updated 7.5.3 Manage Vehicles / Trailers – Add

Copyright

© ETL ELECTRONIQUE LTD 2018. All rights reserved.

No part of this publication may be reproduced or transmitted in any form or by any means or stored in
any retrieval system of any nature without prior written permission except as expressly permitted by
any written contract signed by ETL Electronique Ltd with the recipient.

The contents of this documentation are the confidential information of ETL Electronique Ltd and are
subject to the provisions of ETL Electronique Ltd standard Customer Agreement or Non-disclosure
Agreement (as relevant) or any similar agreement signed by ETL Electronique Ltd and entered into with
the recipient. The contents of this documentation (or any part or it) must not be used or disclosed to
any third party by the recipient except as expressly permitted by the relevant agreement. If you (or your
company) have not signed an agreement with ETL Electronique Ltd you must not use this
documentation, must treat it as strictly confidential and must promptly return it to ETL Electronique Ltd.

3

Page3

1 [phone]| [e-mail] | www.astus.com

Contents

Change Log .............................................................................................................................................. 2

Copyright ................................................................................................................................................ 2

1 Main Screen ......................................................................................................................................... 6

1.1 Using the HOS Action Bar ............................................................................................................... 6

2 Customizing the HOS App Preferences .................................................................................................. 8

2.1 Hours of Service Settings................................................................................................................ 8

2.1.1 Set Hours of Service Preferences ............................................................................................. 8

2.1.2 Capturing the Driver’s Signature .............................................................................................. 9

2.1.3 Customizing the Carrier Information ..................................................................................... 11

2.1.4 Driving Rules ......................................................................................................................... 11

2.2 Vehicle Data Settings ................................................................................................................... 23

2.3 Device Preferences ...................................................................................................................... 24

3 Familiarizing the Hours of Service Main Screen Tiles ........................................................................... 27

3.1 Time Remaining Tile ..................................................................................................................... 27

3.2 Changing the Driver’s Duty Status ................................................................................................ 28

3.3 Recap ........................................................................................................................................... 30

3.4 Start Break ................................................................................................................................... 31

3.5 Data Transfer ............................................................................................................................... 32

3.6 Options ........................................................................................................................................ 38

3.7 Logs ............................................................................................................................................. 38

3.8 DVIR ............................................................................................................................................ 39

3.9 Shift/Cycle ................................................................................................................................... 40

4 Check Driver Availability ..................................................................................................................... 41

5 Driver Logs ......................................................................................................................................... 42

5.1 Using the Driver Logs Bulk/ Multiple Selection Functions ............................................................. 43

5.2 The Driver Logs Accordion Header Features ................................................................................. 43

5.2.1 Daily Driver’s Log Entry Check-box (Uncertified Log).............................................................. 43

5.2.2 Daily Driver’s Log Entry Check-box (Already Certified) ........................................................... 43

5.2.3 Daily Driver’s Title Log (Recertify Log).................................................................................... 44

5.2.4 Recap .................................................................................................................................... 44

5.2.5 Daily Drivers Log Grid ............................................................................................................ 45

4

Page4

1 [phone]| [e-mail] | www.astus.com

5.2.6 Edit Daily Drivers Log Form.................................................................................................... 46

5.2.7 Shipment Details ................................................................................................................... 47

5.2.8 Miles Driven by State ............................................................................................................ 48

5.2.9 DVIR ...................................................................................................................................... 49

5.2.10 Certify a Log ........................................................................................................................ 49

5.2.11 Email a Log .......................................................................................................................... 51

5.2.12 Edit a Log ............................................................................................................................ 53

5.3 Malfunction and Data Diagnostic Events ...................................................................................... 64

5.4 DVIR ............................................................................................................................................ 72

5.4.1 DVIR Feature – Main Navigation Menu .................................................................................. 72

5.4.2 DVIR Feature – Hours of Service Main Screen ........................................................................ 72

5.4.3 Selecting Your DVIR Type ...................................................................................................... 74

5.4.4 Starting Your DVIR ................................................................................................................. 75

5.4.5 Completing the First DVIR Area ............................................................................................. 75

5.4.6 Capturing an Image of a DVIR Item ........................................................................................ 76

5.4.7 Add a Comment or Remark to a DVIR Item ............................................................................ 76

5.4.8 Finishing / Certifying Your DVIR ............................................................................................. 77

5.4.9 Submit or Certify the DVIR .................................................................................................... 80

5.4.10 Deleting a DVIR ................................................................................................................... 81

5.4.11 Emailing a DVIR ................................................................................................................... 81

5.5 DVIR History ................................................................................................................................ 82

5.5.1 Viewing DVIR History by Vehicle ............................................................................................ 82

6 Roadside Inspection............................................................................................................................ 83

6.1 Roadside Inspection – Main Navigation Menu.............................................................................. 83

6.2 Roadside Inspection – HOS Main Menu ........................................................................................ 84

6.3 Inspection Screen – Start Review ................................................................................................. 84

6.4 Roadside Inspection Screen – Data Transfer ................................................................................. 85

7 Switch Equipment ............................................................................................................................... 87

7.1 Switch Equipment – Main Navigation Menu ................................................................................. 87

7.2 Options Menu .............................................................................................................................. 88

7.3 Switch Equipment – DVIR Screen ................................................................................................. 88

7.4 Switching Equipment ................................................................................................................... 89

5

Page5

1 [phone]| [e-mail] | www.astus.com

7.5 Managing Vehicles / Trailers ........................................................................................................ 90

7.5.1 Manage Vehicles / Trailers – Delete ...................................................................................... 91

7.5.2 Manage Vehicles / Trailers - Edit ........................................................................................... 92

7.5.3 Manage Vehicles / Trailers – Add .......................................................................................... 92

8 Documents ......................................................................................................................................... 97

8.1 Documents – Main Navigation Menu ........................................................................................... 97

8.2 Documents – Options Menu ........................................................................................................ 98

8.3 Adding Documents....................................................................................................................... 99

8.4 Editing / Deleting a Document ................................................................................................... 100

9 Add Fuel Receipts ............................................................................................................................. 101

9.1 Main Navigation Menu .............................................................................................................. 101

9.2 Fuel Receipts Screen .................................................................................................................. 102

9.3 Adding Fuel Receipts .................................................................................................................. 102

9.4 Editing or Deleting a Fuel Receipts ............................................................................................. 104

10 Co-Drivers....................................................................................................................................... 105

10.1 Logon Co-Driver ....................................................................................................................... 105

10.2 Switch Driver ........................................................................................................................... 110

11 Shipping Documents ....................................................................................................................... 111

12 Add Remark .................................................................................................................................... 112

13 Exempt Driver ................................................................................................................................. 113

14 Logout ............................................................................................................................................ 114

15 Unidentified Driving Events ............................................................................................................ 115

16 Warning Features ........................................................................................................................... 116

17 List of Login Errors .......................................................................................................................... 118

6

Page6

1 [phone]| [e-mail] | www.astus.com

1 Main Screen

The Hours of Service main screen is where you log your duty status events and which, in turn,
determines your compliance with FMCSA Hours of Service Regulations. This screen also serves as your
gateway to the rest of the app’s features.

1.1 Using the HOS Action Bar

The HOS Action Bar is the starting point for navigating to the different pages within the app and is
always present in the app’s topmost portion:

The main screen also provides essential
information about the app’s user:

• Driver Name: Displays the name of

the driver who is logged in and
whose logs are displayed

• Vehicle Name: Displays the driver’s

vehicle name

• Trailer Name: Display’s the driver’s

Note: Can tap Vehicle and Trailer name to

display Switch Vehicle Dialog.

7

Page7

1 [phone]| [e-mail] | www.astus.com

The action bar features the following navigational controls of the app:

Action Tool Name

Action Tool Icon

Description

Main navigation hamburger

Tap to open the main navigation menu of the
application

Refresh Button

Tap to manually refresh the data in the app page.

Hidden under submenu icon once all icons are
present.

Logout Button

Tap to log out of the app, this will also set your

status to Off Duty. Hidden under submenu icon
once all icons are present.

Malfunction Button

Tap to see uncleared Malfunctions

Data Diagnostics Button

Tap to see uncleared Data Diagnostics. Turns into an

accent color (based on the app’s theme) if there are

new events and turns white when already viewed.

VBUS Connectivity

Indicates that the device is connected to a VBUS
device and turns to when disconnected. Hence,

connection interruptions may occur which will turn

into flashing icon while in a reconnecting state.

Pending Edit Request Button

Tap to display the pending edit request dialog, edit
request is from Motor Carrier Edit Suggestions,
correction of errors with Team Drivers, and Events
logged under Unidentified Driver Profile.

Connect Button

Tap to display a dialog to Connect to Vehicle’s VBUS

Device. It has the same capabilities as the VBUS icon

.

8

Page8

1 [phone]| [e-mail] | www.astus.com

2 Customizing the HOS App Preferences

The app’s settings and preferences can be customized in the Hours of Service Preferences
screen.

To navigate to this part of the app, select the icon or swipe the screen to the right to
display the main navigation menu, select the Settings option and then select the Hours
of Service option, this will display the Settings screen.

2.1 Hours of Service Settings

2.1.1 Set Hours of Service Preferences

This is where the basic driver, vehicle, carrier and shipping data is entered and stored
within the app. The identification data stored here is then used by the app, web portal
and in the driver’s daily log report.

After logging in to the app for the first time

When the app is used for the first time, the driver is taken directly to the Main
Dashboard after which a Select Equipment dialog box will be displayed requiring the
driver to select a vehicle and trailer (if needed).

9

Page9

1 [phone]| [e-mail] | www.astus.com

If you are logging in to the device you have logged in to before, the driver can login and
logout successfully to the app when an internet connection is not available.

2.1.2 Capturing the Driver’s Signature

The application can capture the signature of the driver which is then used for digitally
certifying a log. To create the driver signature, select the main navigation hamburger ,
select the Settings option and then select Hours of Service:

The Driver Information section of the screen
will be displayed along with any signature that
has been created for the driver. Tap on the

icon to create or change the signature.

10

Page10

1 [phone]| [e-mail] | www.astus.com

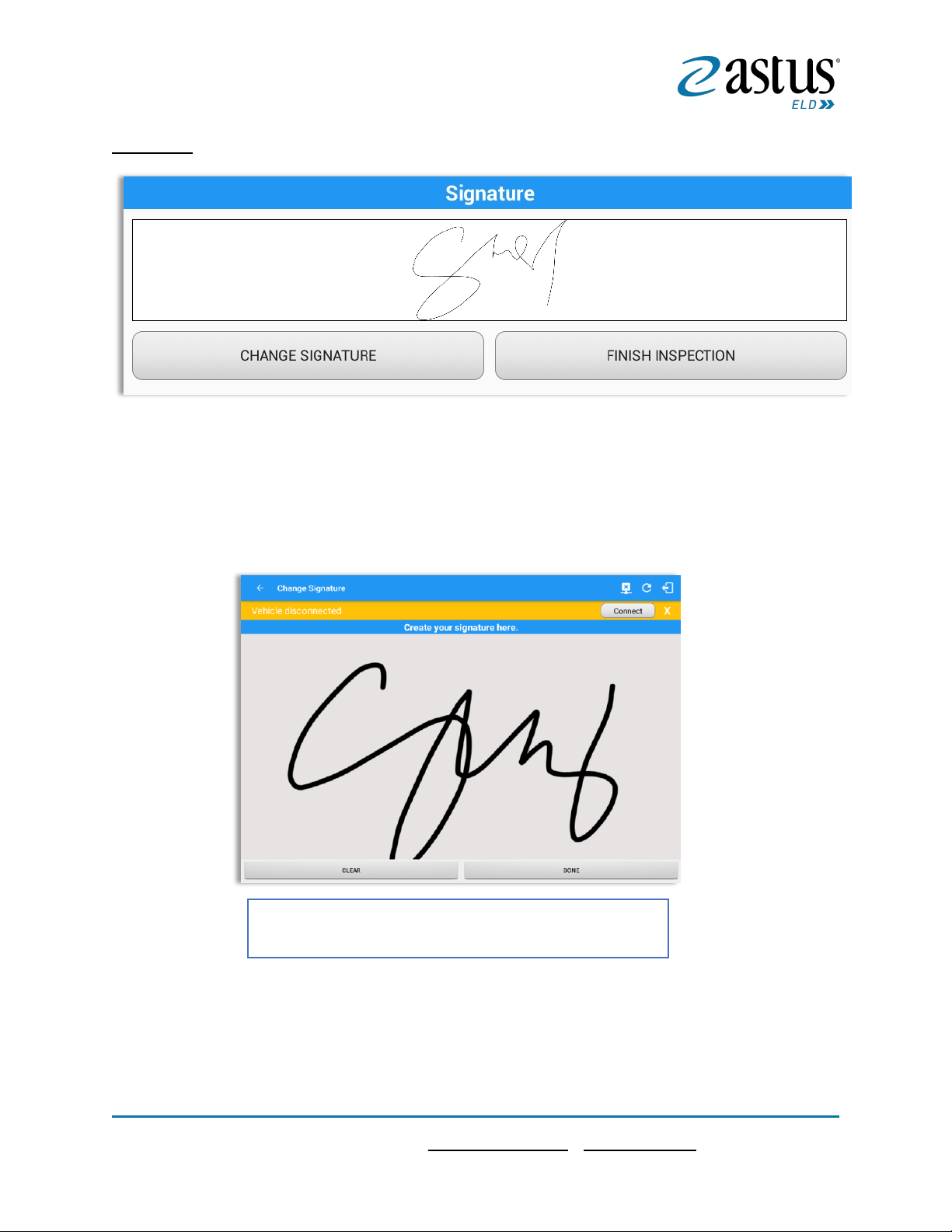

Create or update your signature in the app
by using your finger to create your signature.

Tap the Done button to save your signature.
You can also select the Clear button to clear
the captured signature and start again.

11

Page11

1 [phone]| [e-mail] | www.astus.com

2.1.3 Customizing the Carrier Information

The carrier information can also be set from within the Hours of Service section (main
navigation hamburger > Settings > Hours of Service) You can scroll the screen down to
the Carrier Information section:

Note: The driver is allowed to select a specific Carrier Information if ‘Allow driver ability to change

carrier’ in portal->settings->account setting under Portal Controls and ‘Allow Carrier Change’ in Drivers
Management page are enabled.

2.1.4 Driving Rules

This is where you change the HOS rules or the Federal Motor Carrier Safety
Administration’s (FMCSA) regulations that govern the hours that a commercial vehicle
driver can legally accumulate driving or being on duty for a motor carrier in a working day
and week. This is also where you apply the HOS rules exceptions.

Enter details for the following:

1. Carrier Name

2. Carrier DOT Number

3. Main Office Address

4. Phone Number

5. Home Terminal Details of the driver

12

Page12

1 [phone]| [e-mail] | www.astus.com

The driving rules can also be set from within the Hours of Service section (main
navigation hamburger > Settings > Hours of Service). You can scroll the screen down to
the Driving Rules section:

Region

This is where you can set the region. The options are USA and Canada. The cycle and
exceptions displayed are dependent on which region has been set by the driver.

Note: If the region selected is Canada, then the condition “Canada Off-Duty Deferral” is enabled. This
means that you are allowed to get an extra two hours of driving and on duty in a 24-hour period (day 1)
and take the required extra two hours off on the following day (day 2). The Deferral status is shown on the
Driver’s Daily Logs

Cycle

This is where you can set the consecutive multi-day duty period which the driver will
follow. Choosing a cycle will take into effect the corresponding legal limitations on the
hours that can be used by the driver in a 7 day or 8 day working cycle.

Select the appropriate HOS rules that you would like the app to use from the drop-down list.

You can customize the region, cycle, cargo, exceptions and time zone rules

13

Page13

1 [phone]| [e-mail] | www.astus.com

Available Cycle Rules Options

Interstate - Federal Rules

Cycle

Shift Limit

Drive Limit

Until Break

Break Left

US60hr7days

7 days

14 hours

11 hours

8 hours

30 minutes

US70hr8days

8 days

14 hours

11 hours

8 hours

30 minutes

Alaska70hr7days

7 days

20 hours

15 hours

8 hours

30 minutes

Alaska80hr8days

8 days

20 hours

15 hours

8 hours

30 minutes

California80hr8days

8 days

16 hours

12 hours

N/A

N/A

Intrastate Cycle Rules

Cycle

Shift Limit

Drive Limit

Break Limit

Alabama60hr7days

7 days

15 hours

10 hours

N/A

Alabama 70hr8days

8 days

15 hours

10 hours

N/A

Florida 70hr7days

7 days

16 hours

12 hours

N/A

Florida 80hr8days

8 days

16 hours

12 hours

N/A

Illinois 60hr7days

7 days

14 hours

11 hours

N/A

Illinois 70hr8days

8 days

14 hours

11 hours

N/A

Maryland 70hr7days

7 days

16 hours

12 hours

N/A

Maryland 80hr8days

8 days

16 hours

12 hours

N/A

Massachusetts 60hr7days

8 days

14 hours

11 hours

N/A

Massachusetts 70hr8days

8 days

14 hours

11 hours

N/A

Michigan 60hr7days

7 days

14 hours

11 hours

30 minutes

Michigan 70hr8days

7 days

14 hours

11 hours

30 minutes

New Hampshire 60hr7days

7 days

14 hours

11 hours

N/A

14

Page14

1 [phone]| [e-mail] | www.astus.com

New Hampshire 70hr8days

8 days

14 hours

11 hours

N/A

New York 60hr7days

7 days

14 hours

11 hours

N/A

New York 70hr8days

8 days

14 hours

11 hours

N/A

North Carolina 70hr7days

7 days

16 hours

12 hours

N/A

North Carolina 80hr8days

8 days

16 hours

12 hours

N/A

Pennsylvania 60hr7days

7 days

14 hours

11 hours

N/A

Pennsylvania 70hr8days

8 days

14 hours

11 hours

N/A

South Carolina 70hr7days

7 days

16 hours

12 hours

N/A

South Carolina 80hr8days

8 days

16 hours

12 hours

N/A

Tennessee 60hr7days

7 days

14 hours

11 hours

N/A

Tennessee 70hr8days

8 days

14 hours

11 hours

N/A

Texas 70hr7days

7 days

15 hours

12 hours

N/A

Wisconsin 70hr7days

70 days

16 hours

12 hours

30 minutes

Wisconsin 80hr8days

80 days

16 hours

12 hours

30 minutes

Vermont 60hr8days

7 days

14 hours

11 hours

N/A

Vermont 70hrs8days

8 days

14 hours

11 hours

N/A

Virginia 70hr7days

7 days

16 hours

12 hours

N/A

Virginia 80hr8days

8 days

16 hours

12 hours

N/A

Canada Cycle Rules

Cycle

Shift Limit

Drive Limit

Break Limit

Canada 70hr7days South

7 days

16 hours

13 hours

30 minutes

Canada 120hr14days South

7 days

16 hours

13 hours

30 minutes

Canada 80hr7days North

7 days

20 hours

15 hours

30 minutes

15

Page15

1 [phone]| [e-mail] | www.astus.com

Canada 120hr14days North

7 days

20 hours

15 hours

30 minutes

Alberta Province

15 hours

13 hours

30 minutes

• Intrastate to Interstate driving rules

If the driver is operating in intrastate mode and is crossing over a state line then the app
automatically switches to federal rules. A dialog will display confirming that the driving
rules have changed right after crossing boundaries.

Any of the above cycle rules are depending on the region selected and can

be applied given the appropriate rule from the region drop down list

16

Page16

1 [phone]| [e-mail] | www.astus.com

Example:

SouthCarolina80hr8days to US70hr8days

or

SouthCarolina70hr7days to US60hr7days

• Interstate to Intrastate driving rules

The driver must also follow the Federal HOS regulations for a short period of time while
operating in interstate commerce. If the driver were using the 60-hour/7-day schedule,
he must follow the Federal HOS regulations for the next 7 days having done operating in
interstate commerce. If you were using the 70-hour/8-day schedule, you must follow the
Federal hours-of-service regulations for the next 8 days after you finish operating in
interstate commerce.

Note:

To perform intrastate check, enable the option
available in the Settings > HOS Preferences
(however this check is optional). The user has the
ability to whether or not perform to the checking.

Also, it is important for the driver to monitor the cycle used for the past 7 or 8 days.

Cargo

This will set the applicable Hours of Service rules for property carrying or passenger
carrying commercial vehicles.

17

Page17

1 [phone]| [e-mail] | www.astus.com

Available Cargo Rules Options

• Property – the 11 and 14 hours rule will apply

• Passenger – the 10 and 15 hours rule will apply

Exceptions

The options that appear when tapping the Exceptions button will allow the driver to avail
of exceptions from the Hours of Service rules for as long as certain conditions are met as
stipulated the Hours of Service section of the Code of Federal Regulations (49 CFR Part

395.1-Hours of Service of Drivers-Scope of rules in this part) and other pertinent FMCSA
regulations.

Available US Exceptions Options

• 2 Hour Driving Extension for Adverse Driving Conditions

• Relief from all driving rules for Emergency Conditions

• Oilfield Operations with 24-hour restart

• 30 Minute Break Exemption for Short-Haul Drivers

• 30 Minute OnDuty break for Asphalt drivers

• No Logs for Short-haul Drivers operating within 100 air miles or Non-CDL-Drivers

operating within 150 air miles

• 24 Hour Restart for Construction, Groundwater well-drilling

• 16 Hour Driving Window

Either of the above cargo rules can be applied by

selecting the appropriate rule from the drop down

18

Page18

1 [phone]| [e-mail] | www.astus.com

Note: ‘16 Hour Driving Window’ exception can only be used once for the last 7 days or in every

70hr cycle, if the driver attempted to enable the exception an error dialog will display stating the
following:

However, it is possible for the driver to add another ‘16 Hour Driving Window’ exception when a

cycle reset has occurred. Nevertheless, the driver will need to wait for the current cycle to end to
be able to add the exception again.

• Utility Service Vehicle

• 30 Minute Break Exemption for Specialized Carriers & Rigging Association

(SC&RA)

• Agricultural Operations

• Transport of Commercial Bees, Livestock

• Hi-rail 2-hour travel exclusion - 395.1(w)

• Driver salesperson - 395.1(c)

• Relief from Driving rules for State of Emergency - 390.23

Select the appropriate exception from the list; you must then enter a reason for applying the

exception in the Enter reason for exception(s) field. Once complete, select the OK option to apply the

selected exception

Note: Exceptions are different depending on the Region selected.

19

Page19

1 [phone]| [e-mail] | www.astus.com

Available Canada Exceptions Options

• 2 Hour Driving Extension Special Permit

• Oil Well Service permit

• CanEmergencyConditions

• 2 Hour Driving Extension for Adverse Driving Conditions

• No Logs for drivers operating within 160km of home terminal

Available Alberta Province Exceptions Options

• CanEmergencyConditions

• 2 Hour Driving Extension for Adverse Driving Conditions

20

Page20

1 [phone]| [e-mail] | www.astus.com

Time Zone

PDF Report Email Recipients

You can set the default recipients of your Driver Daily Log PDF report in the part of the
Settings Menu.

Select the driver’s Home Terminal time

zone. Time zones available are:

Hawaii
America/Anchorage
Pacific Time (PST8PDT)
Mountain Time (MST7MDT)
Saskatchewan
Central Time (CST6CDT)
Eastern Time (EST5EDT)
Atlantic
Canada/Newfoundland
Asia/Manila

Enter the email address or addresses
that will become a recipient or

recipients of the Hours of Service app’s

Daily Driver Log PDF report.

The email addresses must be
separated by a comma (,)

21

Page21

1 [phone]| [e-mail] | www.astus.com

Lock Screen Style

The user has the ability to control the lock screen display. There are two (2) types
available: new 'Remaining to violation' lock screen or the old '4 clocks' lock screen.

Use Grid View Editing

The user has the ability to use grid view editing. Once enabled, user can also set the edit
increment time. (See Section 5.2.11 Editing a Log) Grid View Editing feature is in Android
app only.

Display Street Address

22

Page22

1 [phone]| [e-mail] | www.astus.com

Display Street address option will allow drivers to select where to get the location if it is
the actual location or the nearest City with 5,000 population when in AOBRD mode. The
option will only display for drivers that have permission which is set by the personnel in
the portal->Account Settings->Carrier Information tab->’Display Street Address for
AOBRD mode’.

Email Sender

Email Sender option allows the driver to specify email sender when drivers’ need to send
certified log PDF and DVIR report PDF. There are (2) two email sender options: via App or
Server.

23

Page23

1 [phone]| [e-mail] | www.astus.com

2.2 Vehicle Data Settings

AOBRD Speed Threshold

For vehicle in AOBRD mode, speed threshold setting is dependent on what is set on the
portal->account settings->AOBRD Speed Threshold. The default value is 100 Mph/Kph.
(For example: When the set AOBRD Speed Threshold is 100 Mph/Kph, lock screen will
be shown and the app will be in driving state once the vehicle speed threshold reached
to 100 mi/hour)

Also, drivers have the ability to set
speed threshold on the app->Vehicle
Data Settings->AOBRD Speed
Threshold only if the driver is allowed.
To allow a specific driver, enable the
option which can be seen in portal­>Drivers Management Page->Set
AOBRD Speed Threshold option.

24

Page24

1 [phone]| [e-mail] | www.astus.com

2.3 Device Preferences

Unit of Distance

Setting the default unit of measures

Disable Notification Sound

The application has a Mute button to silence all sounds that could come from the
application. Also, the ELD rules state that all application sounds should be muted during
Sleeper status. However, the mobile device should not be muted so that sound will be
available for phone calls.

Note: When the current status is Sleeper Berth, it automatically mutes the application sound.

Color Theme

Displays option for selecting Color Theme

25

Page25

1 [phone]| [e-mail] | www.astus.com

Night Theme

By default, the application automatically changes to a night theme based on the sunset
time calculated from the device's location. If location is not available, the local time of
the device is used.

26

Page26

1 [phone]| [e-mail] | www.astus.com

Language Support

The application supports language translation for French-Canadian (Francais (Canada))
and Spanish (Español (Estados Unidos)).

To enable the translation, go to the Android Device Settings > Language and Input > Language. Select

between the supported language and the translation will take effect immediately.

27

Page27

1 [phone]| [e-mail] | www.astus.com

3 Familiarizing the Hours of Service Main Screen Tiles

3.1 Time Remaining Tile

When the time remaining tile displays a grey color, it indicates that the driver is Off
Duty, Sleeper or Waiting at Well Site; when the tile displays a green color, it indicates

that the driver’s status is Driving or On Duty; when the tile displays an amber color, it
indicates that the driver’s status is Driving or On Duty and has less than 3 hours left;
when the tile displays a red color, it indicates that the driver’s status is Driving or On

Duty and has less than 1 hour left or has already ran out of time.

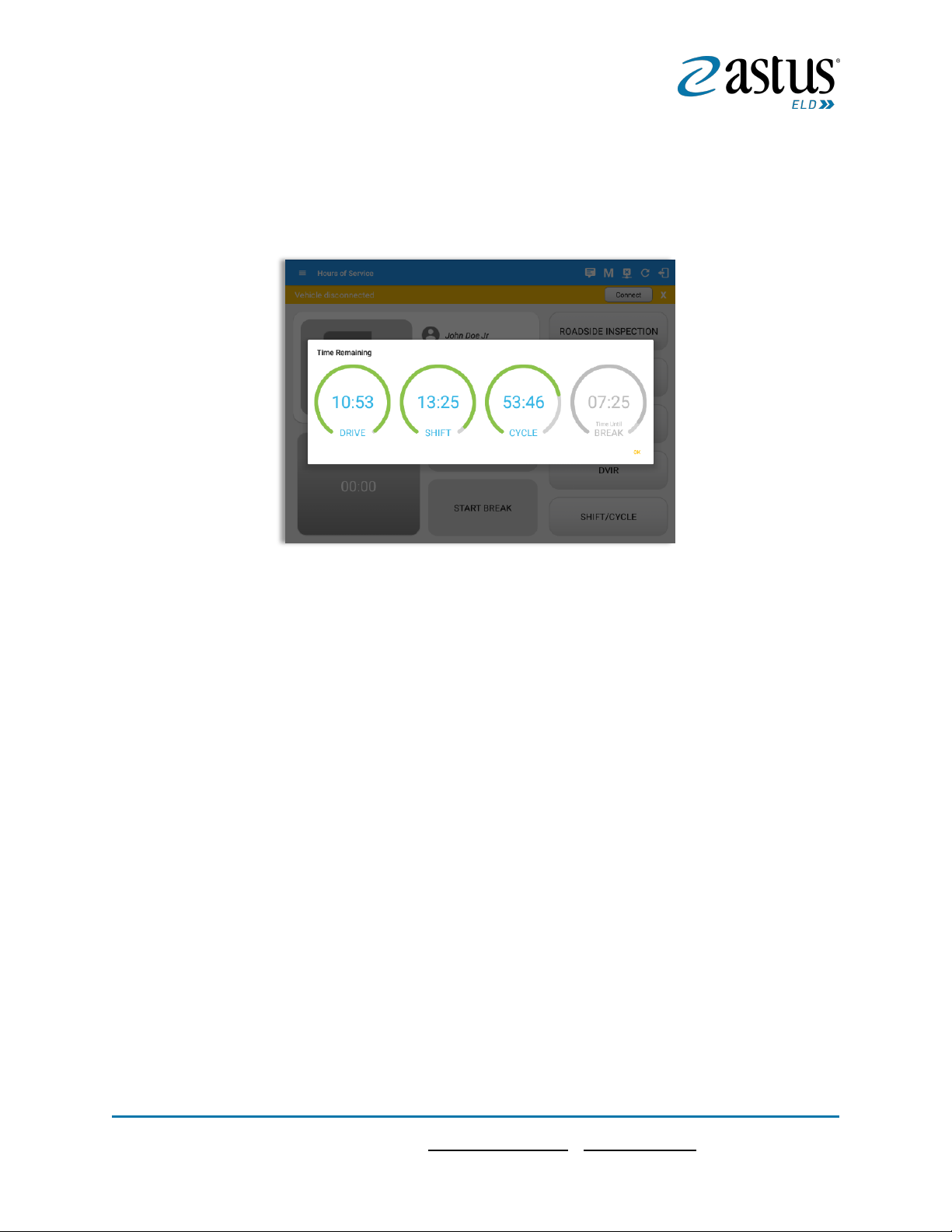

Tap the time remaining panel to view the Time Remaining Clocks

28

Page28

1 [phone]| [e-mail] | www.astus.com

3.2 Changing the Driver’s Duty Status

To change the duty status of the driver, tap the Duty Status button and select the
appropriate driver duty status.

Available Duty Status Options

Duty Status Icon

Duty Status

Duty Status Icon

Duty Status

Off Duty

On Duty

Sleeper Berth

Waiting at Site

Driving

The time remaining clocks are color coded to match the time remaining panel.

29

Page29

1 [phone]| [e-mail] | www.astus.com

Note:

• Attempt to create or edit an event such as Off Duty, On Duty, Sleeper Berth in the middle of an

automatically Driving event is not allowed, instead an error dialog is displayed stating "Error:
shortening of prior driving event is not allowed. Select a time before or after the driving event.".

When the app is able to obtain a valid GPS fix, the Location field will be automatically
populated with the current location information of the user. If there is no GPS fix, the

Tapping the duty status button will show the Change Status pop up dialog. You can adjust the duration

of the duty status event by tapping the Previous 15 minutes Time Interval button to increase the time

duration and the Next 15 minutes Time Interval button to decrease the time duration. However, these

buttons are disabled prevent time from going before or after the current day. (eg. 12:00AM –

11:59PM).

• If Personal Use is enabled, the status will be set to Off Duty automatically and will disable the

other checkboxes. Selection of this option will be recorded within the events history.

• If Personal Use is enabled, events except Off Duty will not be displayed in the grid but is

displayed in the event history list. Off duty will always be the display in the grid and when the
driver makes an automatic event, lock screen will also be shown.

• If Yard Moves is enabled, the status will be set to On Duty automatically and will disable the

other checkboxes. Selection of this option will be recorded within the events history.

• If Yard Moves is enabled, events except On Duty will not be displayed in the grid but is displayed

in the event history list. On Duty will always be the display in the grid and when the driver makes
an automatic event, lock screen will also be shown.

30

Page30

1 [phone]| [e-mail] | www.astus.com

Location field will remain blank, in this instance; you must manually input the relevant
details.

Once all relevant details have been entered and the correct duty status selected, tap the
OK button to save the new duty status event. You can also select the Cancel button to
cancel adding the selected duty status.

Changing the status to On Duty or Driving also enables the options for ‘Personal Use’ and
‘Off Road’. Personal Use is mentioned in the FMCSA’s Supplemental Proposal, which was

published on March 28, 2014, that mandates ELDs for most drivers of CMVs that currently
log. The proposal says that ELDs may be set up to allow drivers to put themselves in a

special driving category called “personal use.” When a driver selects this option, the ELD

will record the time as off duty until the driver de-selects the option. Off Road, on the
other hand, means that the vehicle is running on rough terrain. Lastly, Yard Moves, has
been established under a mandate which allows a driver or another personnel to perform
duties like moving trucks around the home yard by establishing a single set of thresholds
for all ELDs in an On Duty, not Driving status without triggering the device by reaching the
thresholds.

3.3 Recap

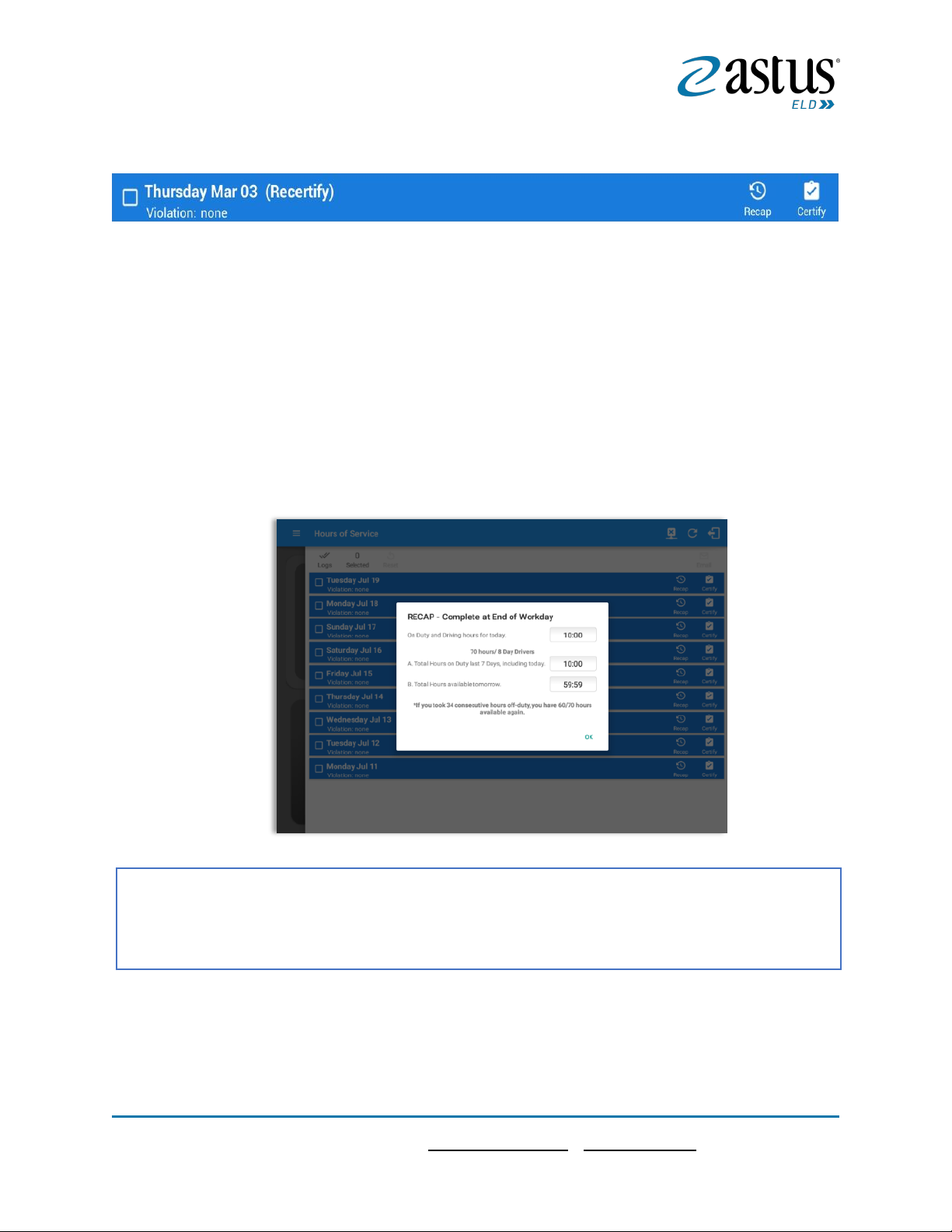

Tap the Recap button to bring up the

recap information for the specified duty

day and corresponding cycle data.

31

Page31

1 [phone]| [e-mail] | www.astus.com

3.4 Start Break

The Start Break button will be disabled when the duty status is Off Duty, Sleeper Berth
or Waiting at Well Site.

The Start Break button will be enabled when the duty status is On Duty or Driving. Once
you tap the Start Break button, a pop-up dialog will be displayed asking you to confirm
that you wish to start your break.

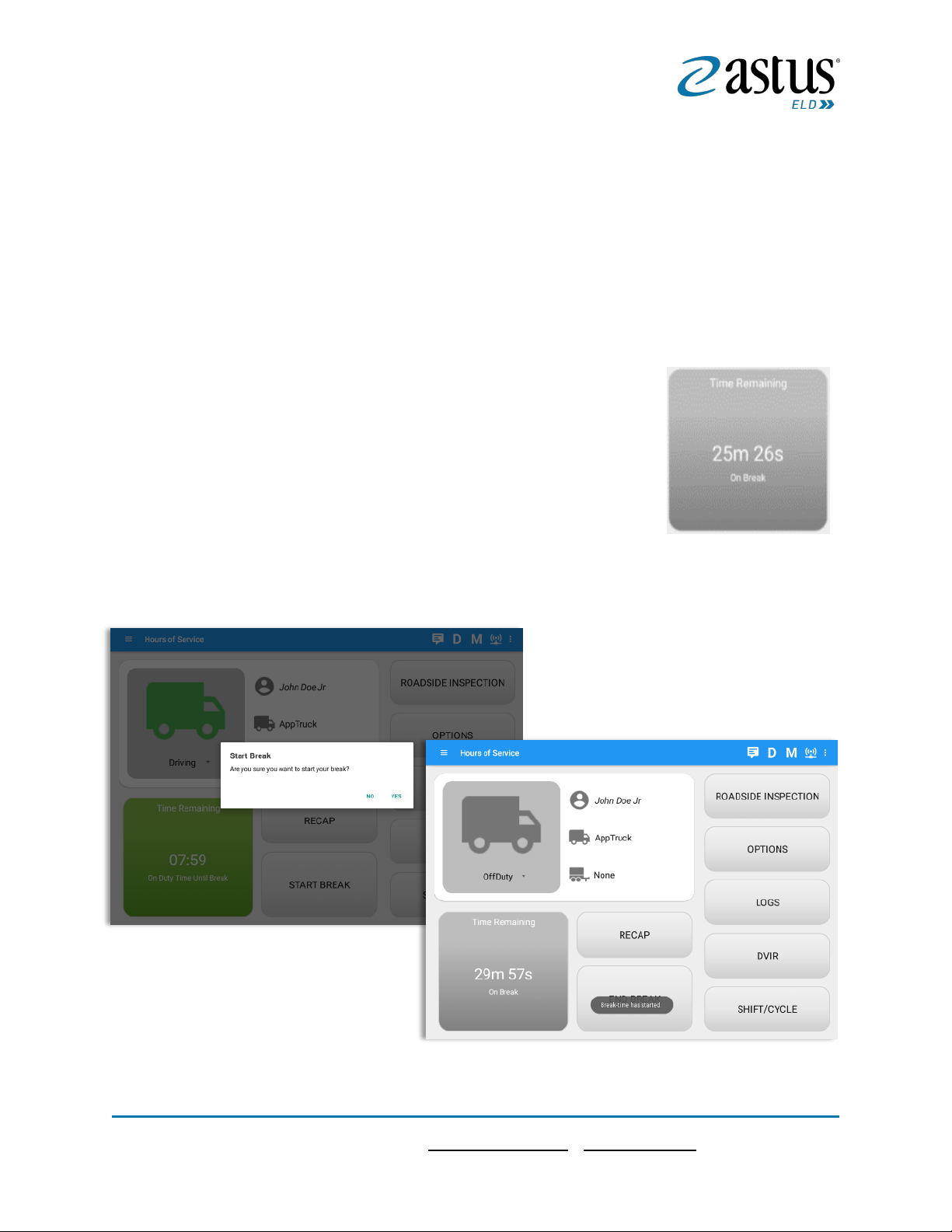

➢ If the ‘Start Break’ button is pressed, then:

o It sets the status to OffDuty
o The ‘Start Break’ button turns to ‘End Break’
o The Time remaining button turns to On Break and the second line

shows “time remaining 00:00”

➢ If the ‘End Break’ button is pressed, then:

o It sets the status to ‘On Duty’ (if the vehicle is not moving) or

‘Driving’ (if the vehicle is moving)

Note: An audible alert activated when 30-minute break is over.

32

Page32

1 [phone]| [e-mail] | www.astus.com

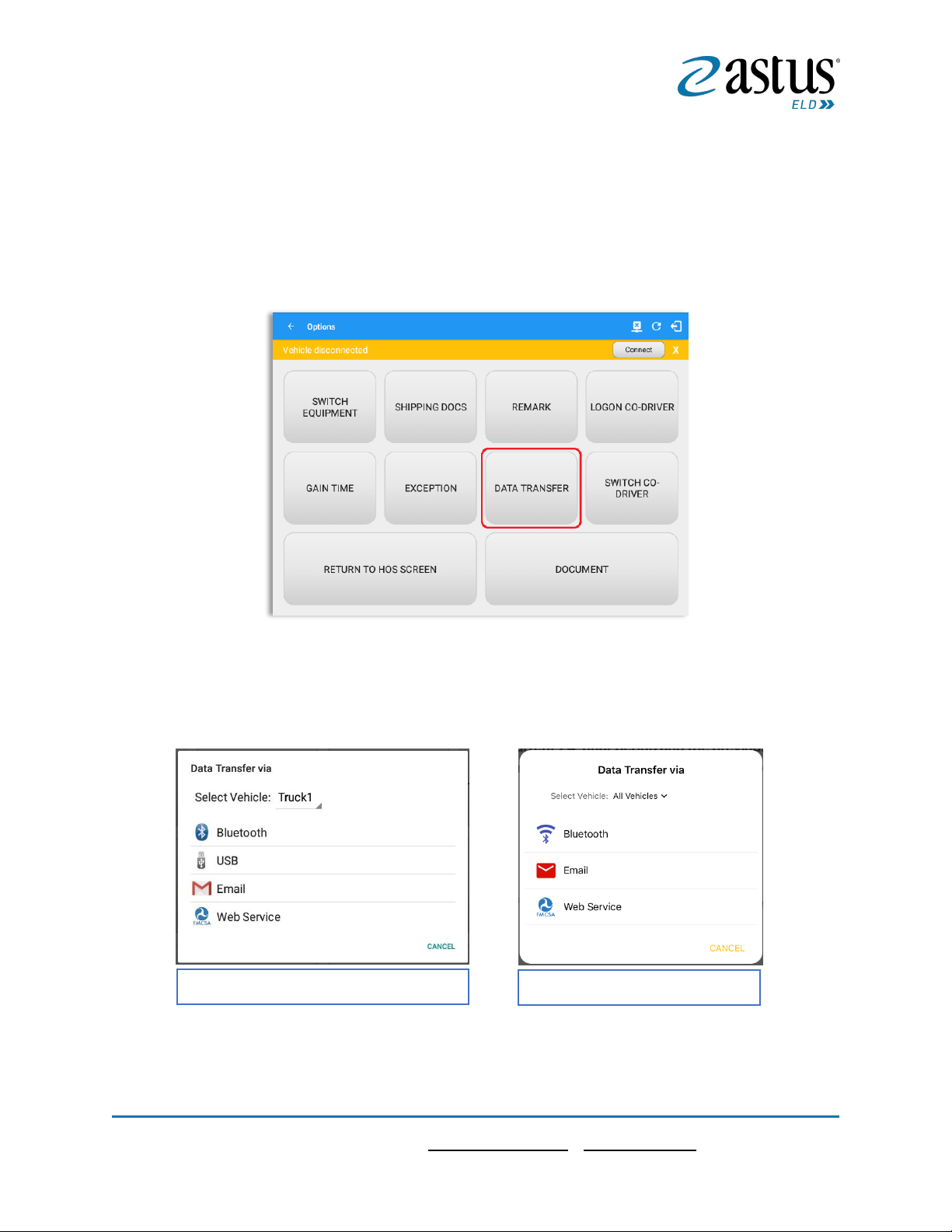

3.5 Data Transfer

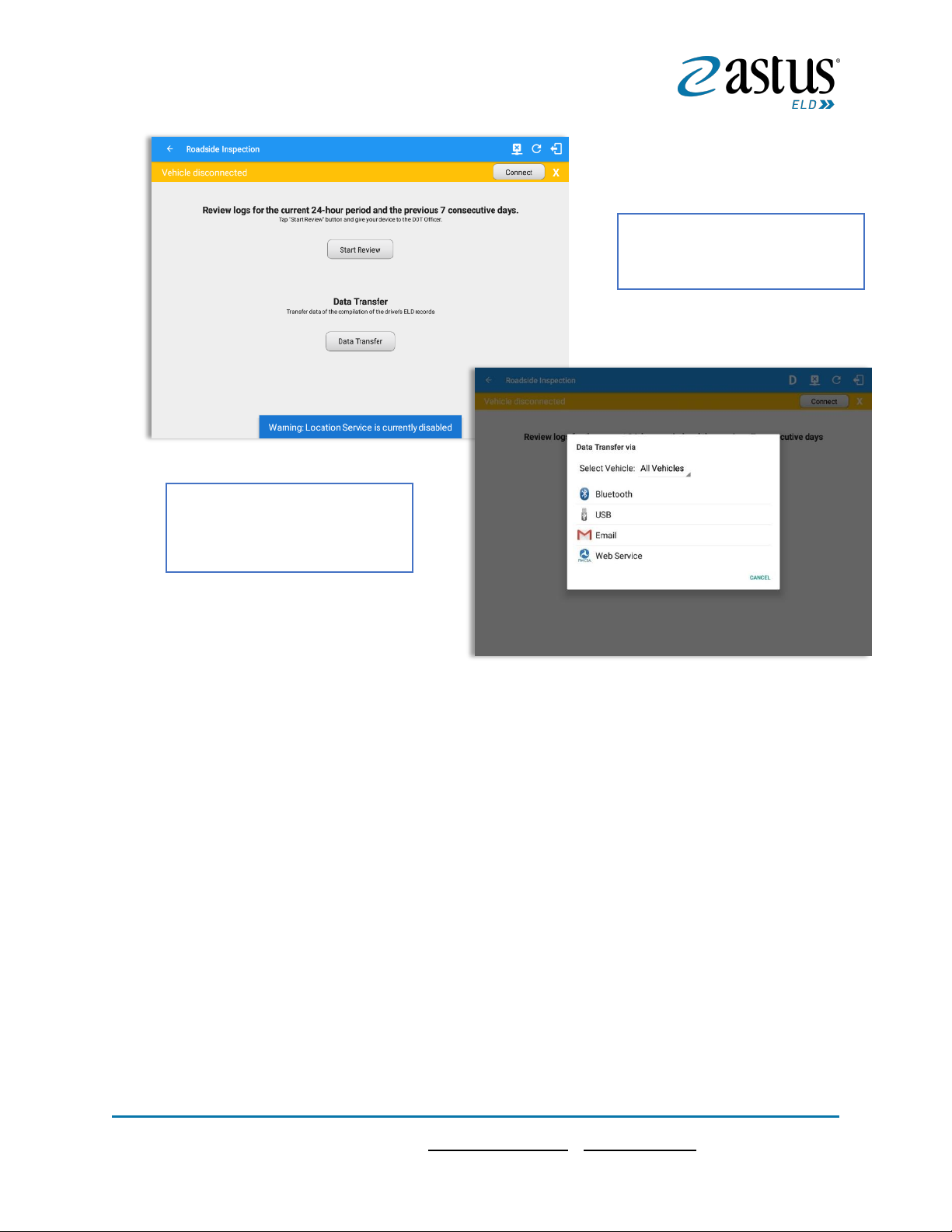

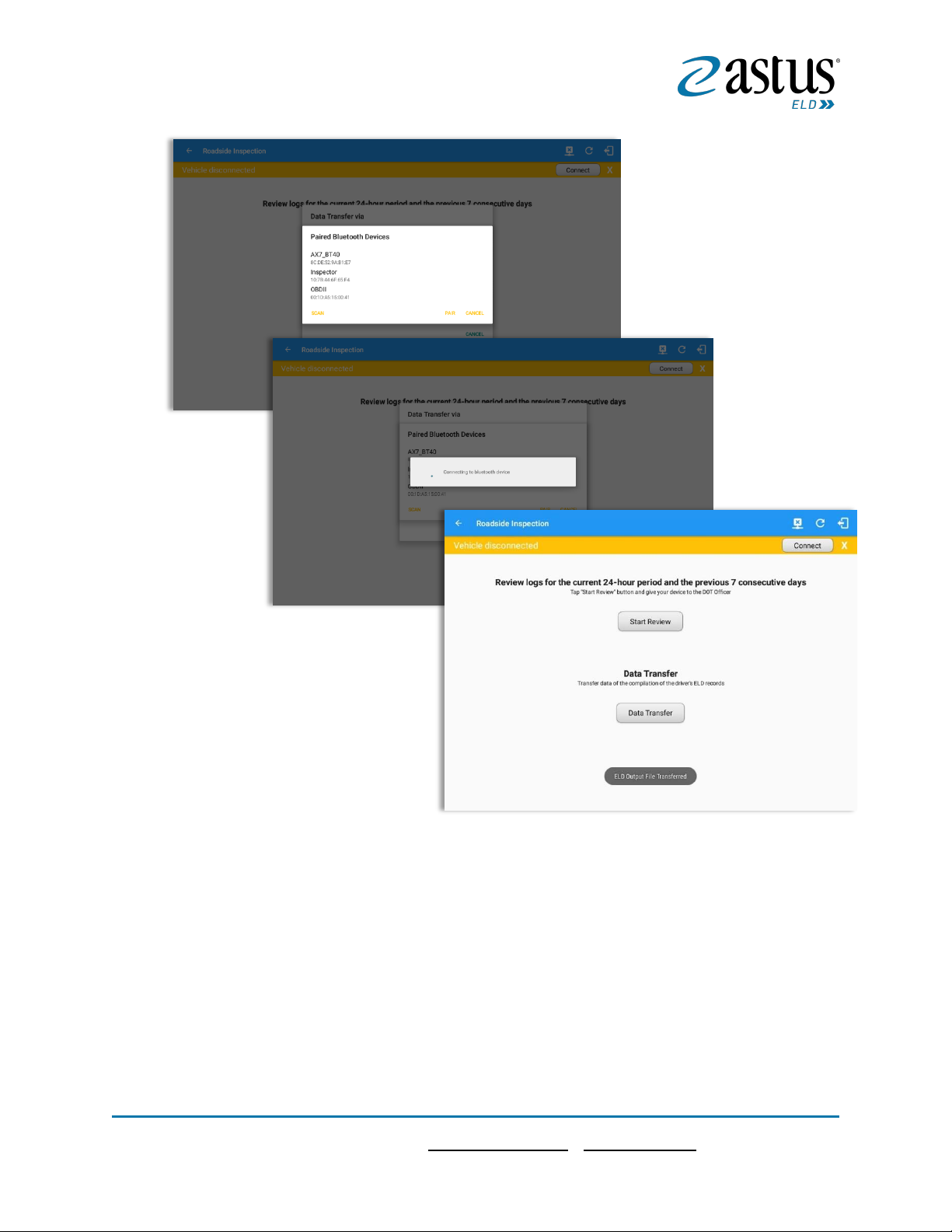

Selecting the Data Transfer button from the Options Screen will display the list of
supported data transfer options.

The ELD provides a standardized single-step compilation for the driver’s ELD records and
initiation of the data transfer to authorized safety officials when requested during a
roadside inspection.

Tap the Data Transfer button to transfer data of the compilation of the driver’s ELD
records. Once tapped, a selection of the supported data transfer options by the ELD will
prompt to the user. For iOS app, the available data transfer services are thru Bluetooth,
Email and Web Services only.

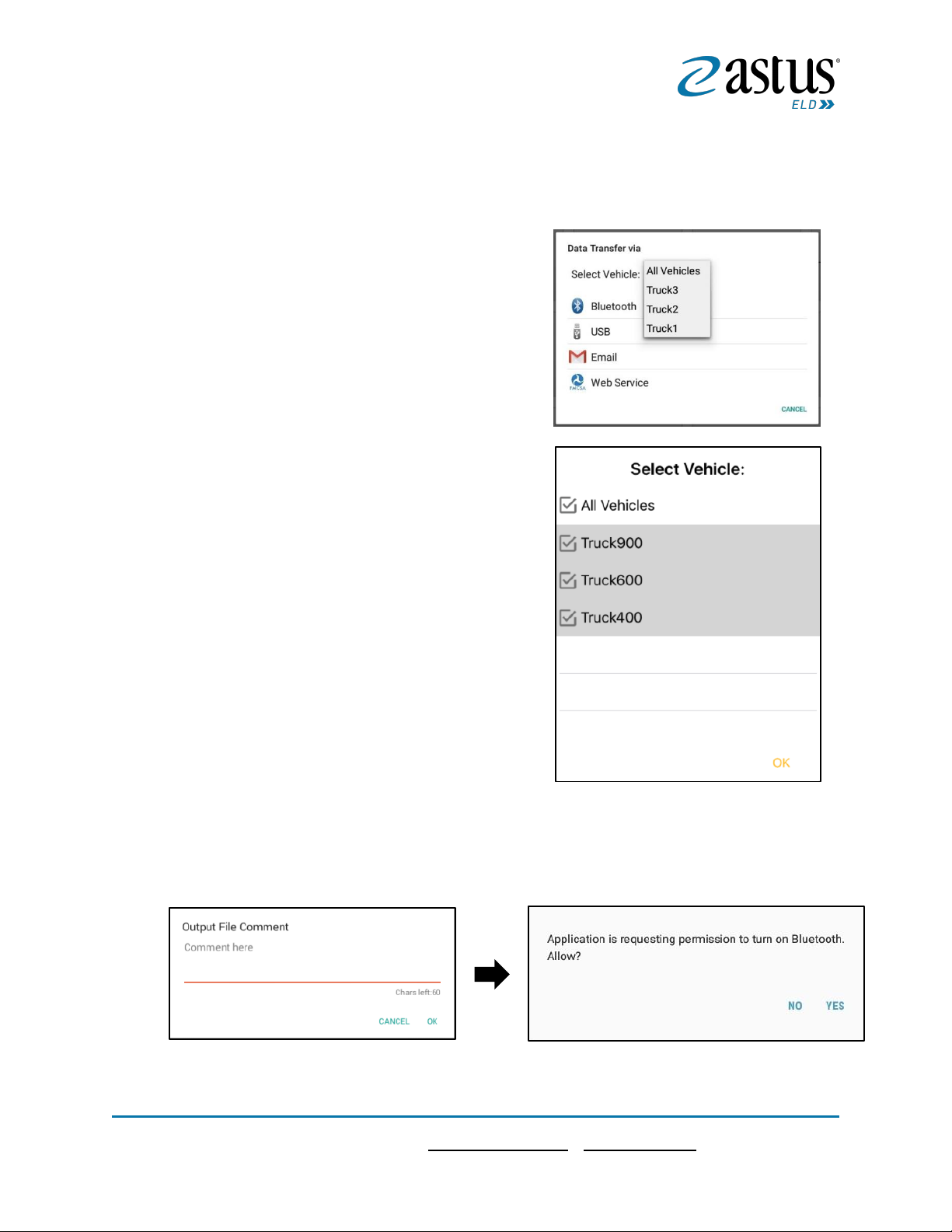

• Select Vehicle - this option enables the ELD to produce a data file or a series of

data files of ELD records for a subset of its vehicles used by the driver.

Tap the Select Vehicle menu to show the list of vehicles used by the driver.

Android app Data Transfer options

iOS app Data Transfer options

33

Page33

1 [phone]| [e-mail] | www.astus.com

The ‘All Vehicles’ option will only display on the list when the driver has already driven
multiple vehicles for the day.

For Android app, list of vehicle/s are displayed in
drop down list which allows to select a specific

vehicle or ‘All Vehicles’ in Data Transfer.

For iOS app, list of vehicle/s are displayed in
checkboxes. The app allows to select specific
vehicle(s) to be included in ELD output file. The list
of vehicles displayed are the vehicles that the driver
used within the current cycle.

Select or deselect vehicle or vehicles by tapping the
checkbox button. Tap OK button to save selection.

• Transfer via Bluetooth Tethering - this option enables the user to transfer files

through Bluetooth tethering. The ELD prompts for an output file comment which
the driver may enter (optional). After the input, if Bluetooth is not yet turned on,
a prompt will appear asking you to turn it on.

You will then be asked to pick the device to which the ELD output file will be
transmitted via Bluetooth tethering.

34

Page34

1 [phone]| [e-mail] | www.astus.com

After the data transfer process is successful, a toast message will then display at
the bottom stating that the ‘ELD Output File Transferred’.

• Transfer via USB (Android Only) - this option enables the user to transfer files

through USB (external devices).

35

Page35

1 [phone]| [e-mail] | www.astus.com

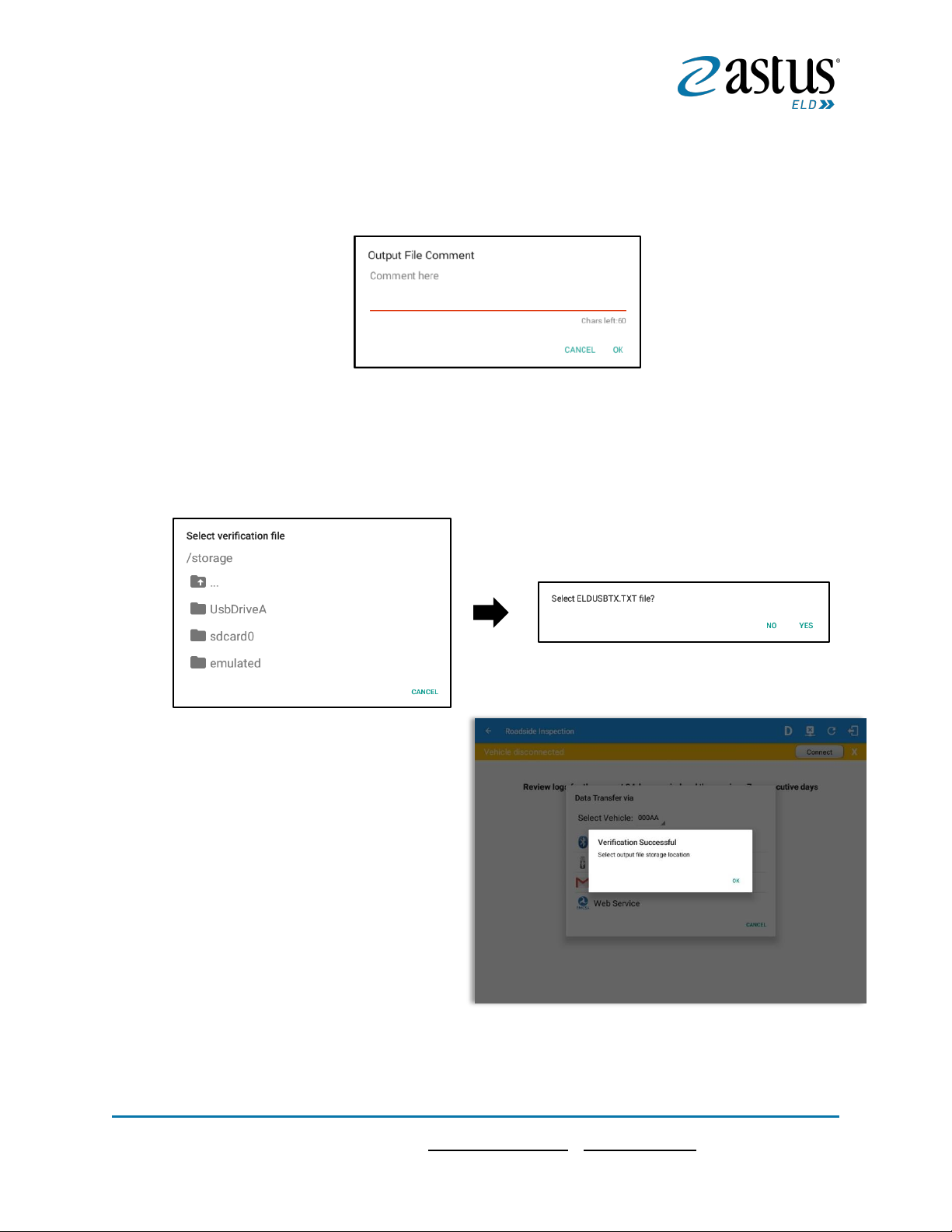

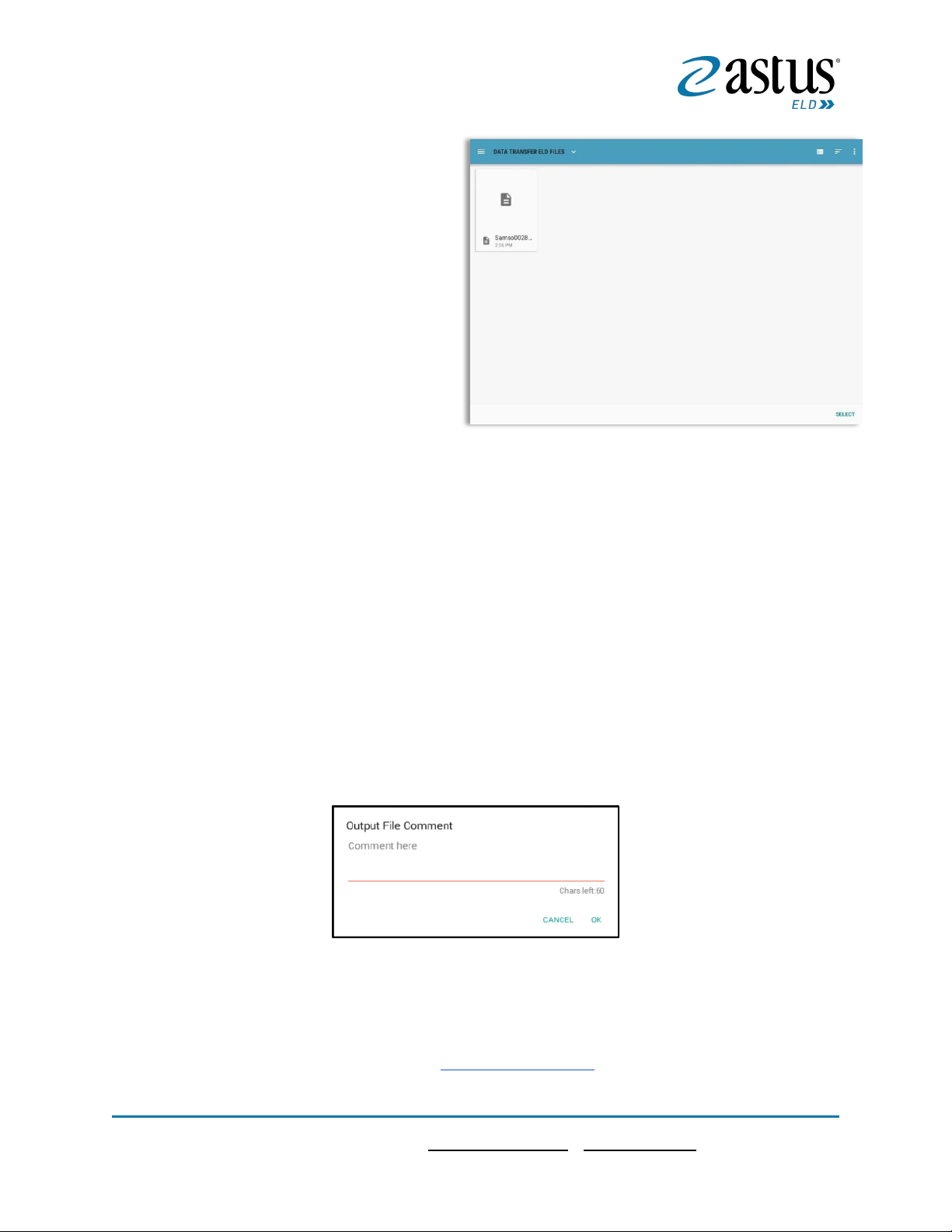

After selecting a data transfer option, the ELD prompts for an output file comment
which the driver may enter (optional). The ELD accommodates the entry of an
output file comment up to 60 characters long.

Prior to saving the driver’s ELD file to an external storage/device, the ELD must

read a verification text file from the USB device provided by the Authorized
Safety Officials. This can be done by selecting the path where the verification file
is located on the Safety Official’s USB device.

If the verification process is

successful, a ‘Verification
Successful’ dialog will display.

36

Page36

1 [phone]| [e-mail] | www.astus.com

Once ‘OK’ button is tapped, then

the driver can now select on
where to save the ELD file.

Upon confirmation, the ELD generates the compliant output file and performs the

data transfer. A toast message will display at the bottom stating that the ‘ELD
Output File Transferred’.

Note: You cannot transfer a file via USB when the verification file on the device is not the same

as the verification file on the inspector’s USB drive. If this issue occurs a toast message will
display stating ‘Invalid verification file’.

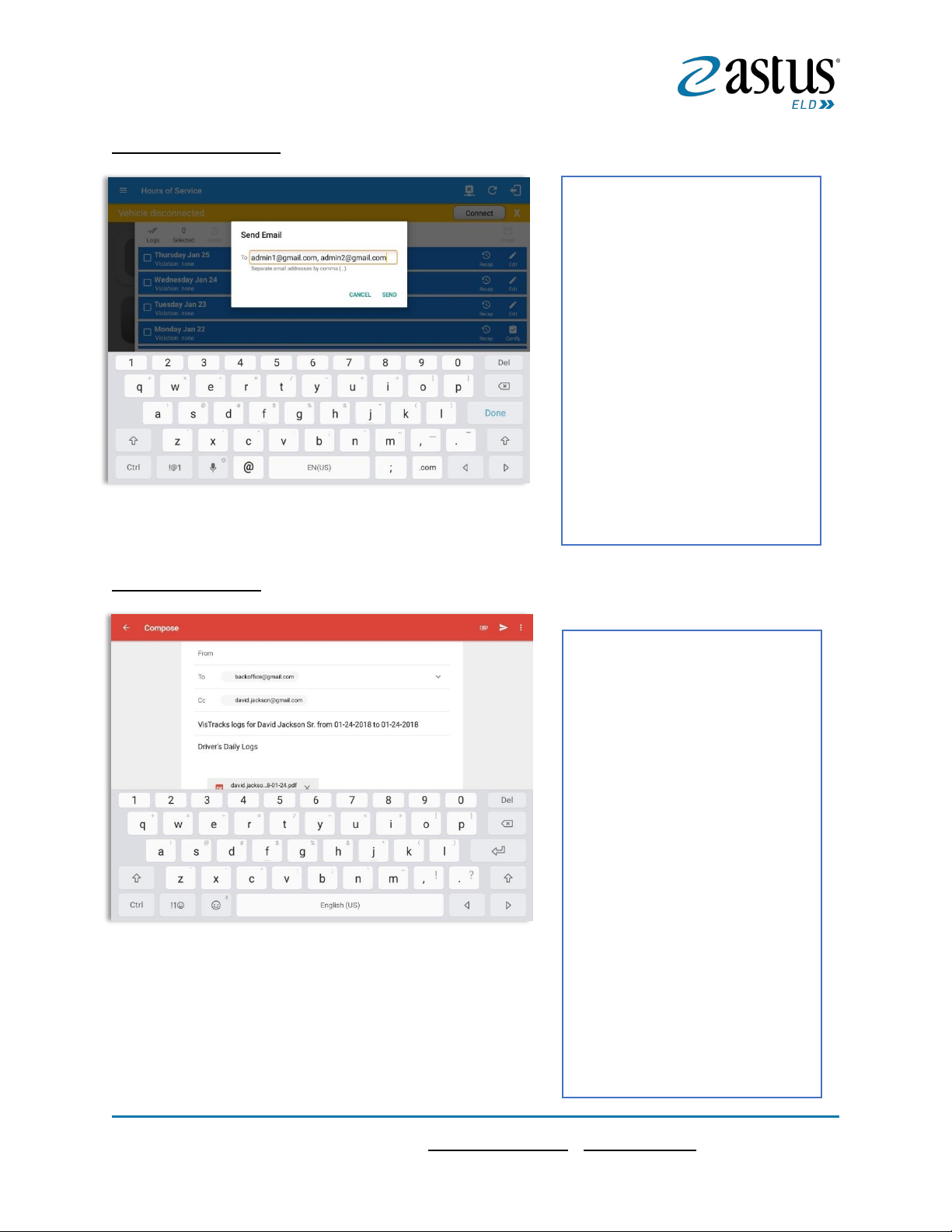

• Transfer via Email - this option enables the user to transfer files through email.

The ELD output file transferred is encrypted using AES-256 in FIPS Publication

197. Before sending, the ELD prompts for an output file comment which the
driver may enter (optional).

After the data transfer process is successful, a toast message will then display at
the bottom stating that ‘ELD Output File Transferred’.

Note: Data transfer via email is sent to [e-mail].

37

Page37

1 [phone]| [e-mail] | www.astus.com

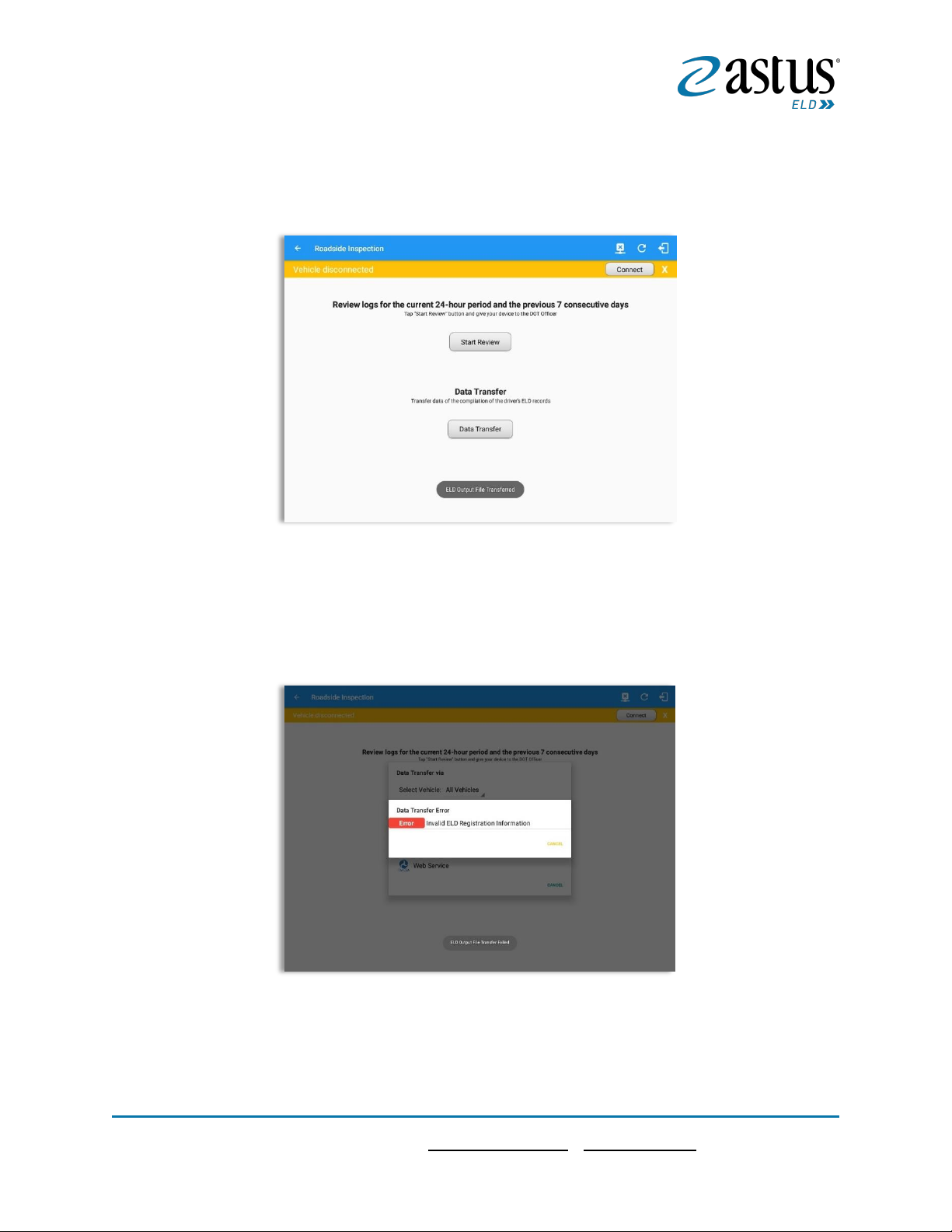

• Transfer via Web Service - this option enables the user to submit ELD output

files, and verify that the ELD’s certificate, ELD Identifier, and Registration ID are

still valid.

After the data transfer process is successful, a toast message will then display at

the bottom stating that ‘ELD Output File Transferred’. When the selected vehicle
has an invalid information then a dialog will display with an error message “Data
Transfer Error: Invalid ELD Registration Information”.

38

Page38

1 [phone]| [e-mail] | www.astus.com

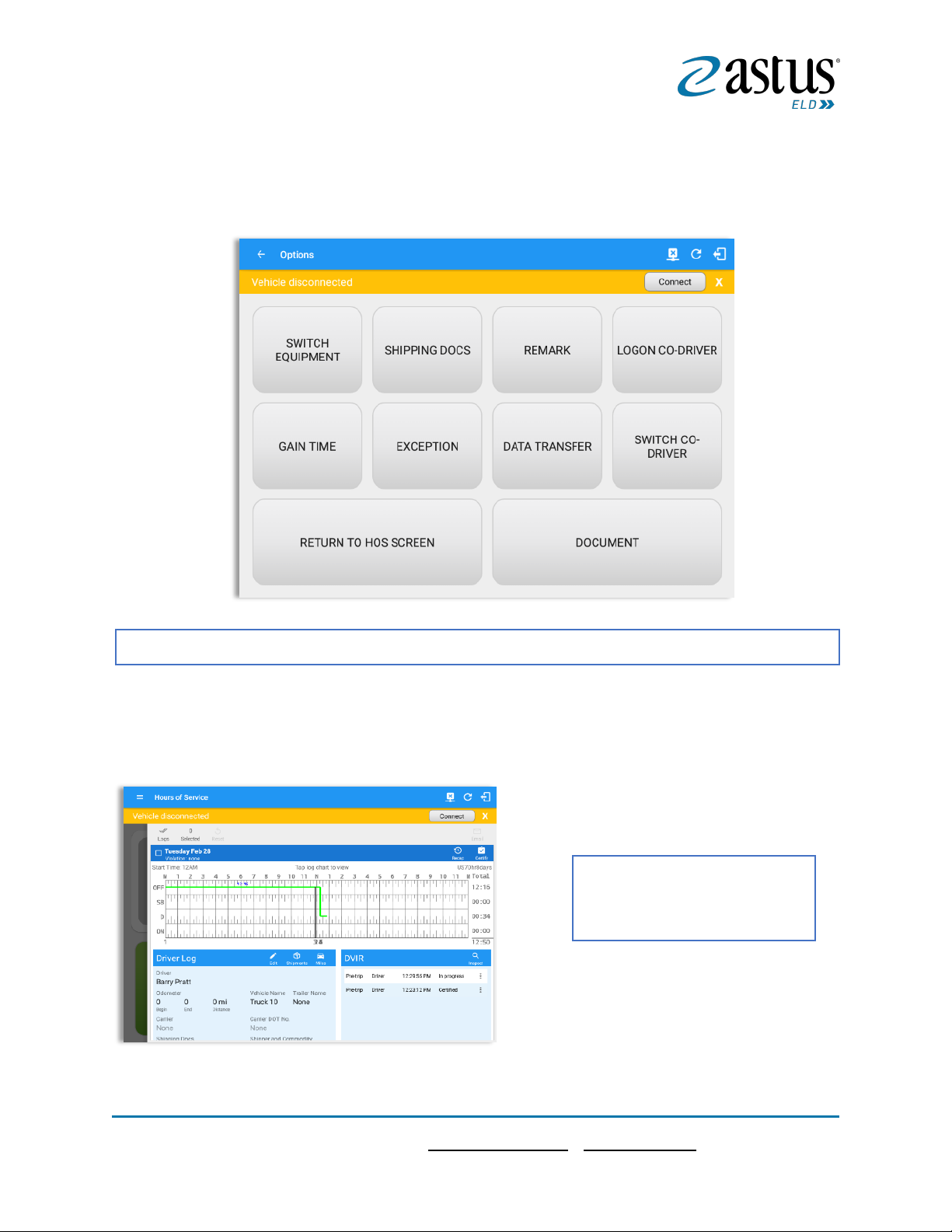

3.6 Options

Selecting the Options button from the HOS Main Screen will display the Options
module:

3.7 Logs

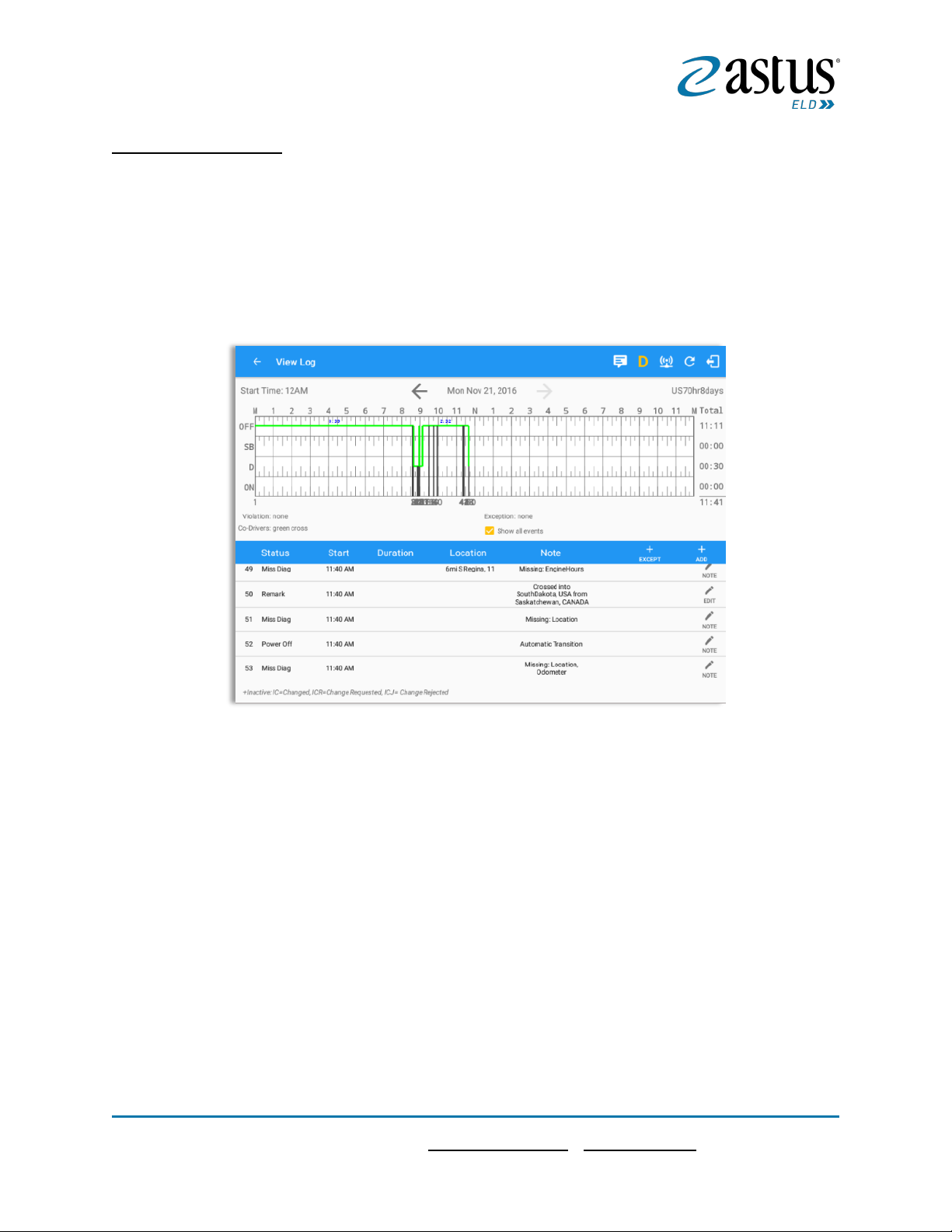

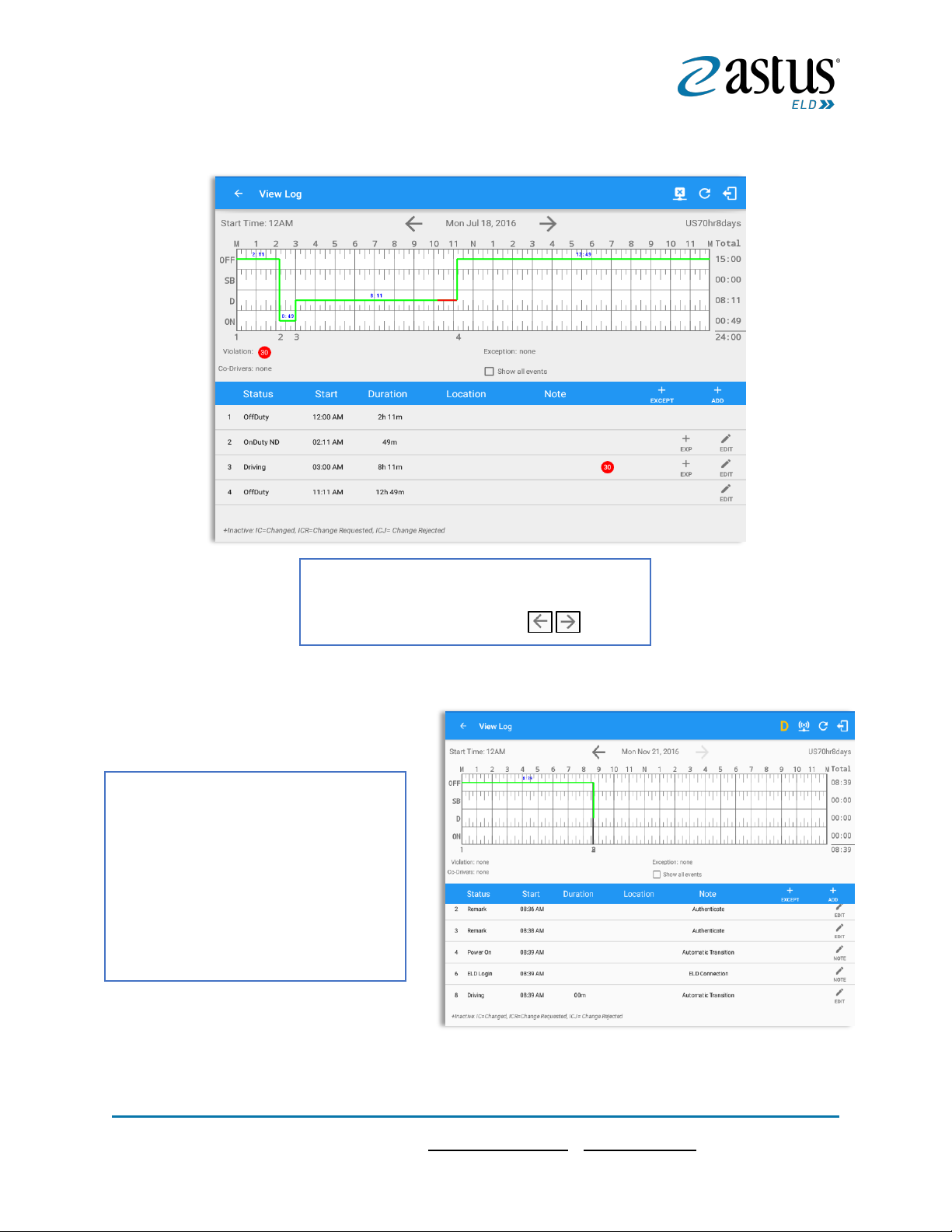

Selecting the Logs button from the HOS Main Screen will display the current days log
and provide the ability to navigate backwards to view the previous seven logs:

The functions within the Options module will be covered in more detail throughout this document.

Scroll the screen to view all of

the information, or, tap the log

grid to view the log events.

39

Page39

1 [phone]| [e-mail] | www.astus.com

3.8 DVIR

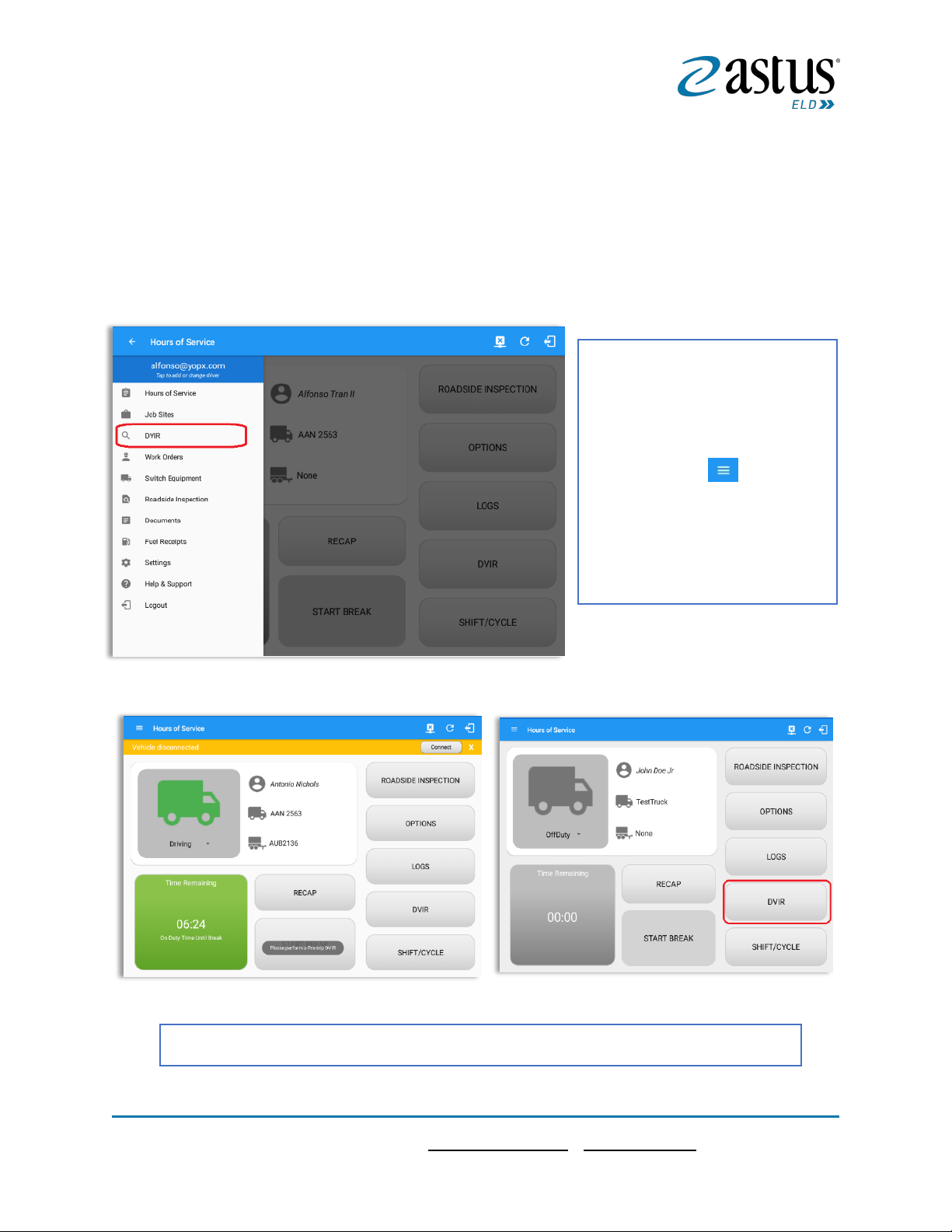

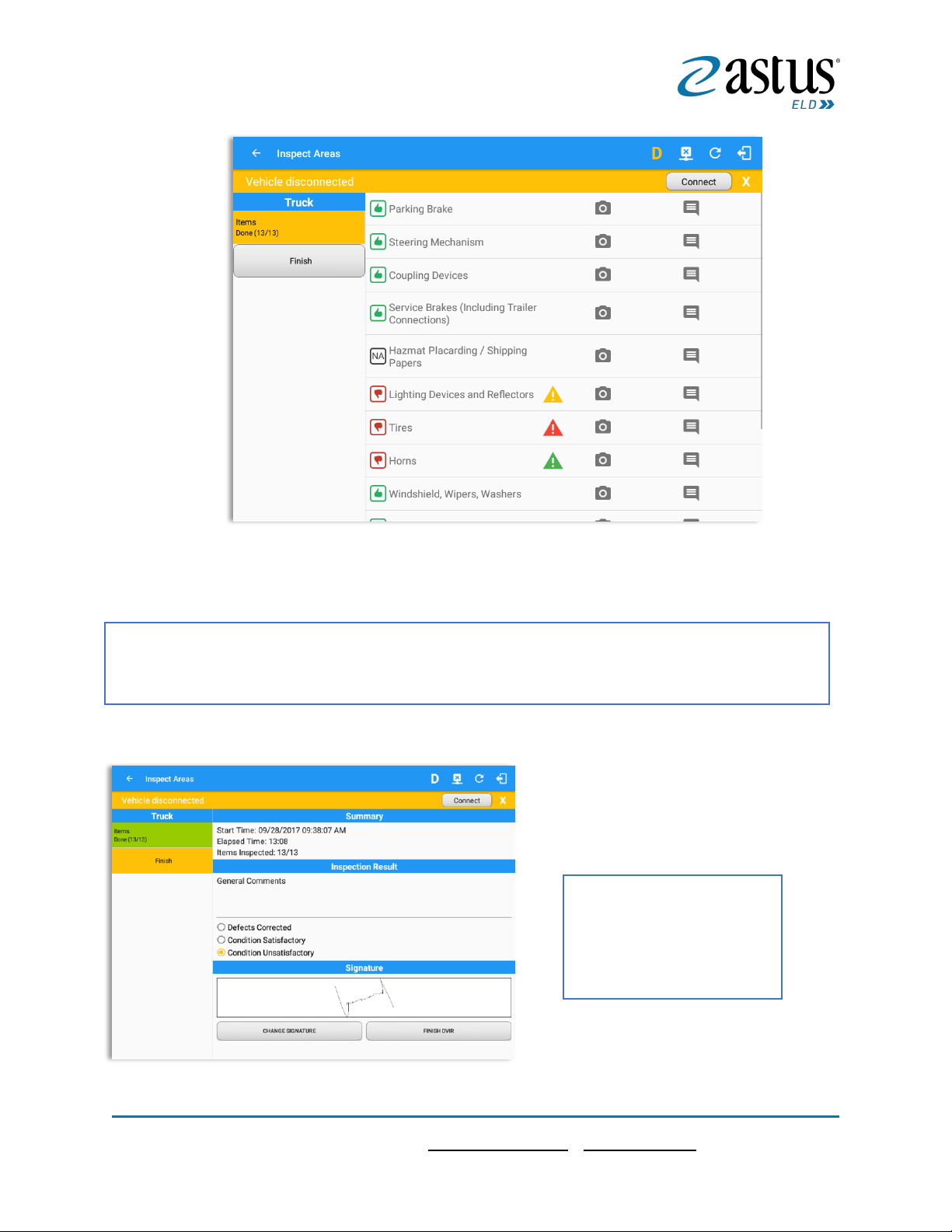

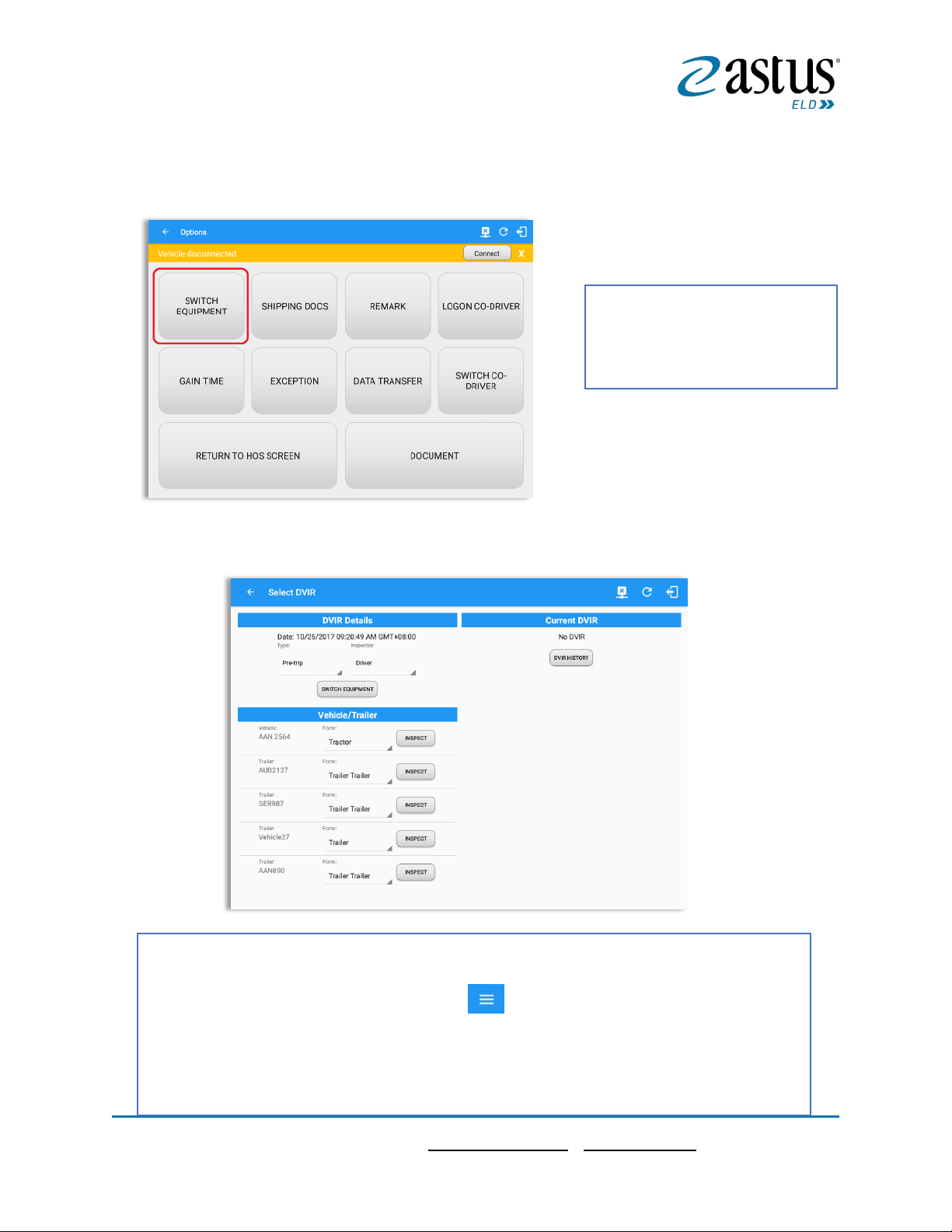

Selecting the DVIR button from the HOS Main Screen will display the Select DVIR screen:

Note:

• When switching the vehicles, the equipment’s will be displayed along with their associated

forms. Changing the forms used will pop up a message dialog stating “Are you sure you want to
use a different form?” with a ‘Cancel’ or ‘Ok’ button.

• Highlighted text only displays when conducting an inspection for the first time and that no DVIR

forms are associated to the current equipment used.

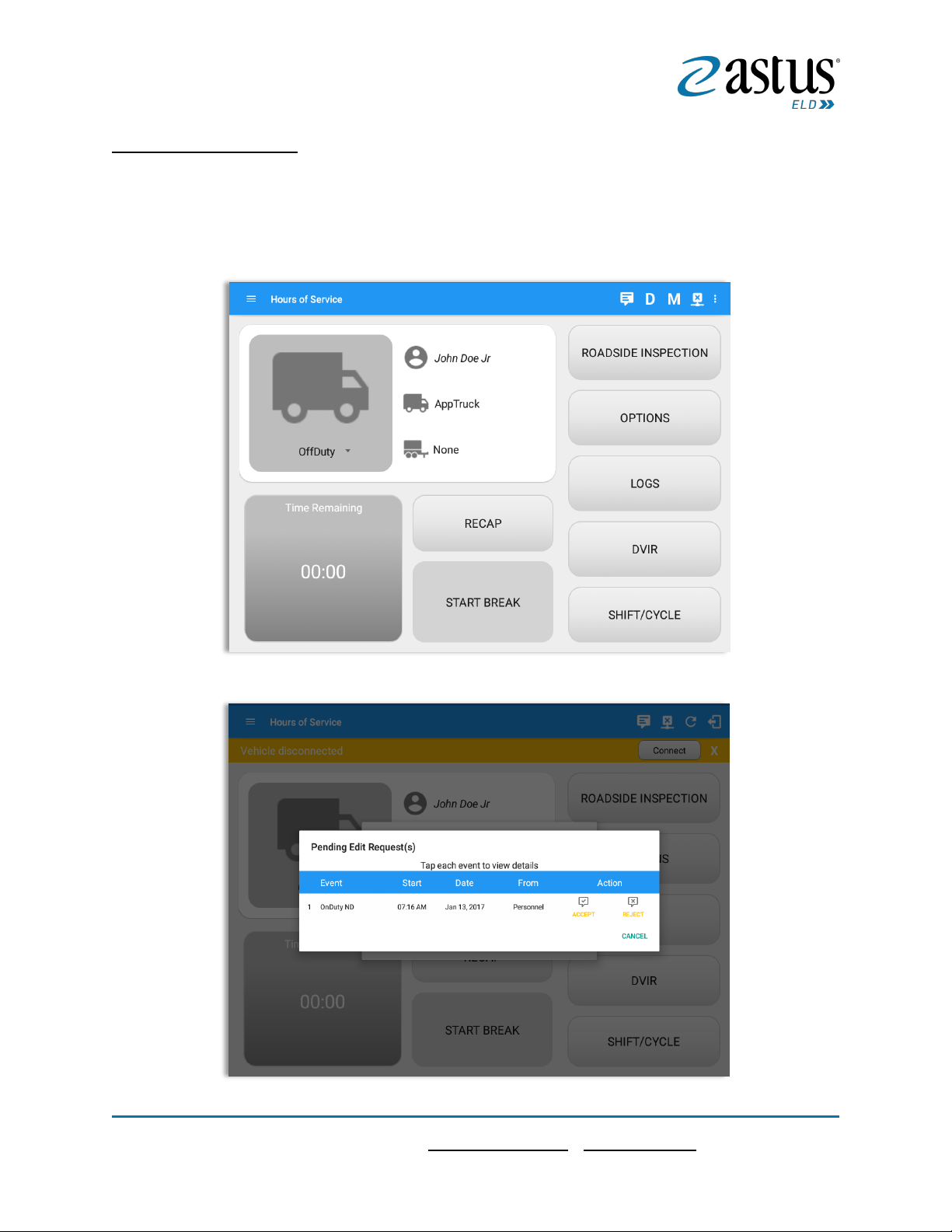

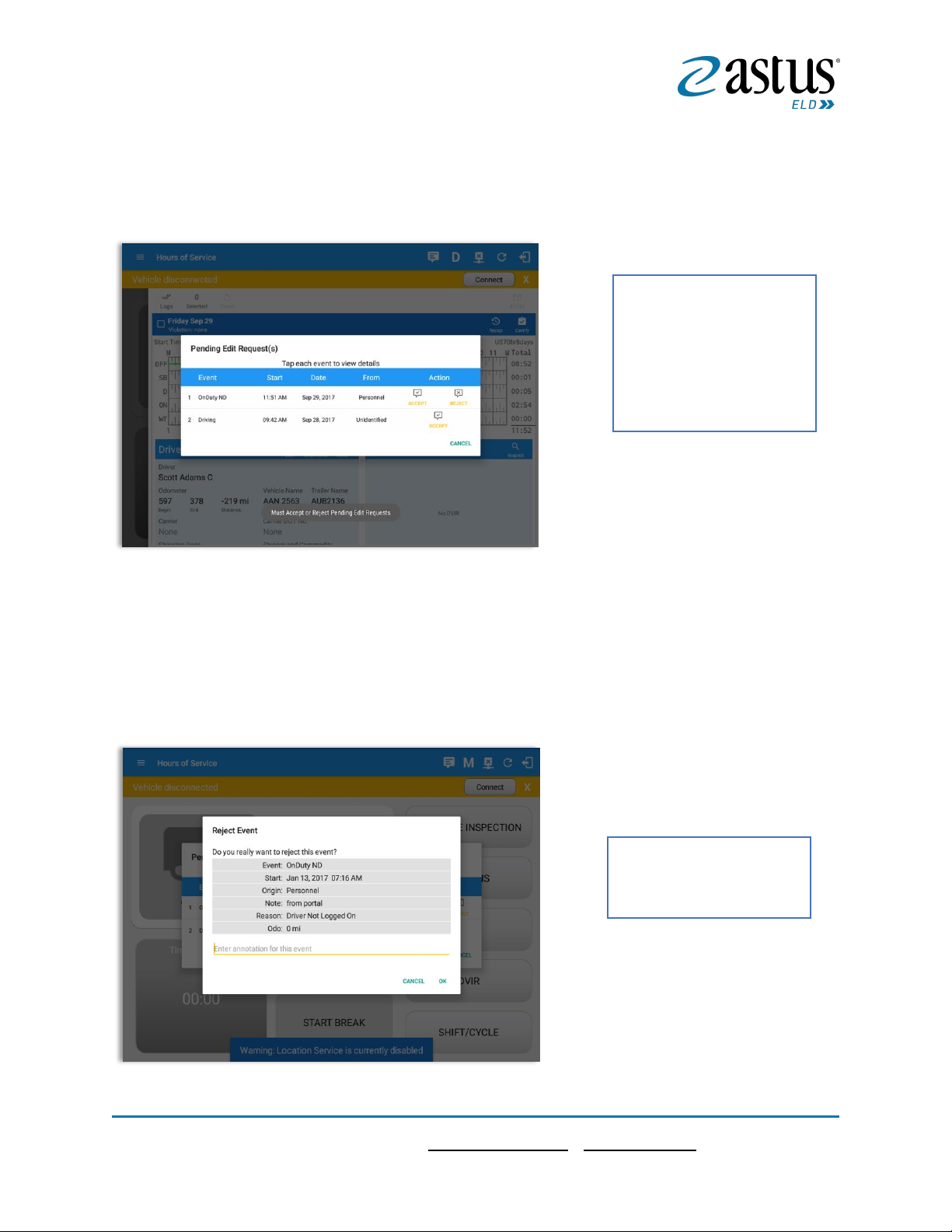

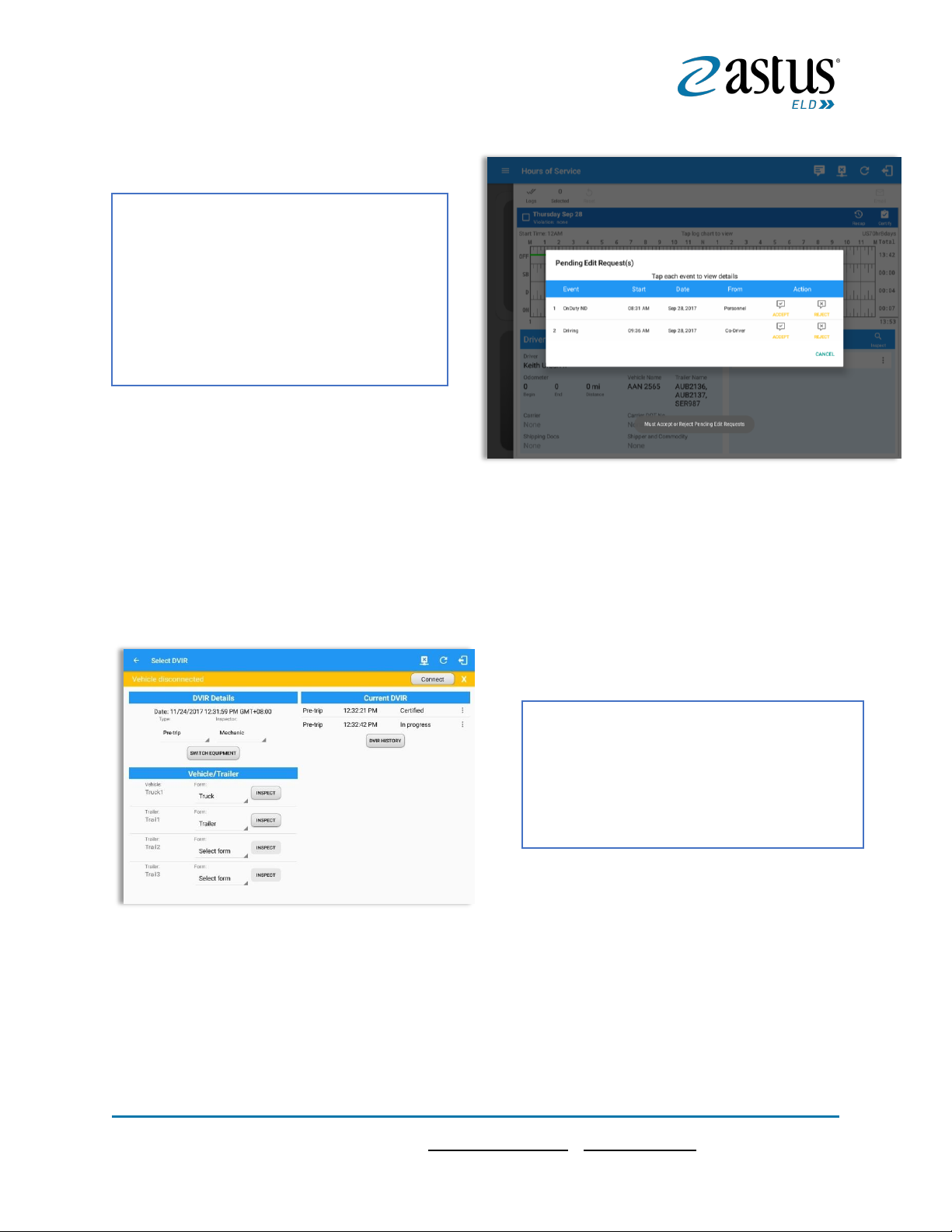

The Pending Request dialog also appears
upon certifying a log only if driver has
pending requests. Driver must accept or
reject the pending request(s) first before
certifying the days’ log.
A toast message will be displayed at the
bottom of app stating: "Must Accept or
Reject Pending Requests”.

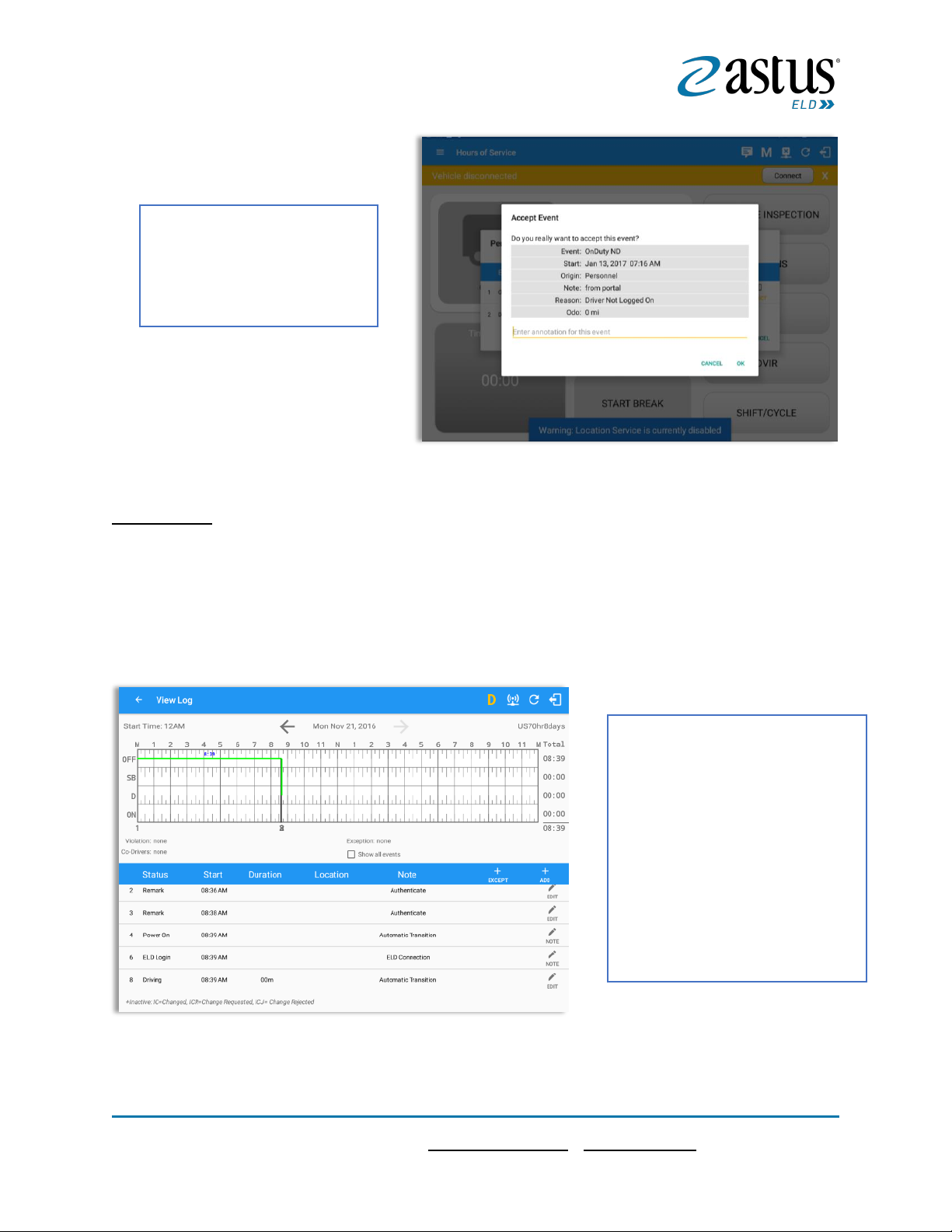

Note: The events from the 'Unidentified' driver does not require acceptance.

• DVIR can be created to suit the

vehicle types, all DVIRs will be
displayed on this screen.

• DVIR History can be viewed by

tapping the DVIR History button in
the DVIR screen.

40

Page40

1 [phone]| [e-mail] | www.astus.com

3.9 Shift/Cycle

Selecting the Shift/Cycle button from the HOS Main Screen will display the total work

hours of the driver’s current work shift and the total working hours that the driver can

legally accumulate over a certain cycle or a consecutive multi-day period:

41

Page41

1 [phone]| [e-mail] | www.astus.com

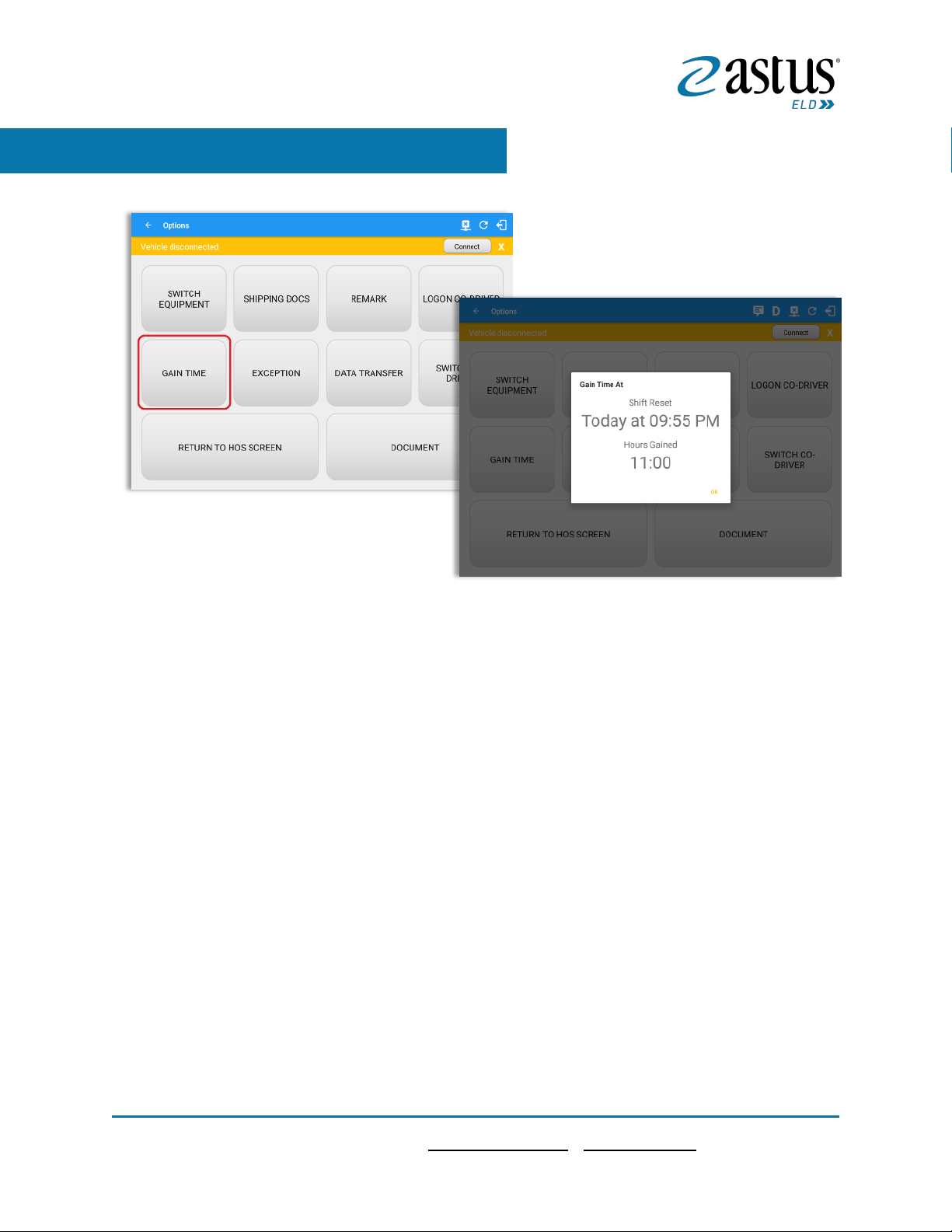

4 Check Driver Availability

From the Hours of Service Main Screen, tap the Options button and then tap the Gain
Time button, this will then display a date & time of when the driver will gain his/her
maximum hours.

42

Page42

1 [phone]| [e-mail] | www.astus.com

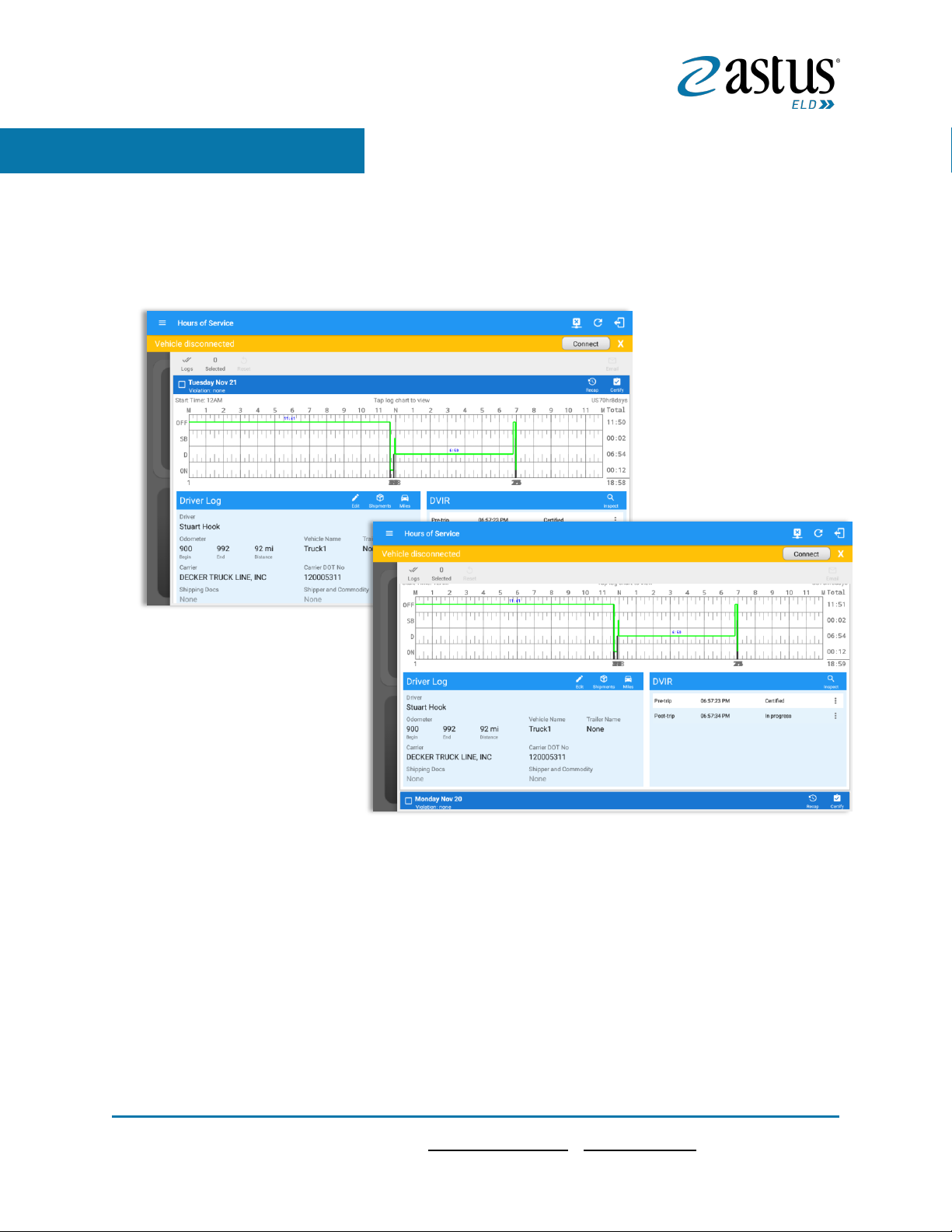

5 Driver Logs

The Driver Logs allows you to view and update the electronic recording of your duty

status events in the HOS app’s online driver logs. This is where you also store shipment

data, send the certified logs to its intended recipients and manage other driving duty
information.

Scroll the screen to view all of the information, or, tap the log grid to view the log
events. The daily log for the current day will be in expanded view by default. The daily
driver logs for the previous days will be in collapsed view.

To expand or collapse a daily log, tap the Collapsible Menu Header.

Cycles and the Start Hour time used are also shown in the Log, it is found on the upper
right corner just above the Grid Chart.

43

Page43

1 [phone]| [e-mail] | www.astus.com

5.1 Using the Driver Logs Bulk/ Multiple Selection Functions

The first part of the Driver Logs user interface feature controls and information for the
bulk/multiple selection features. These controls will allow you to perform features for
multiple selected driver logs.

Function icon

Function

Description

Selection Button

Tap the button to select all certified logs

Selected Logs Counter

This shows the number of selected
certified driver logs

Reset Button

This clears/deselects all of the selected
driver logs

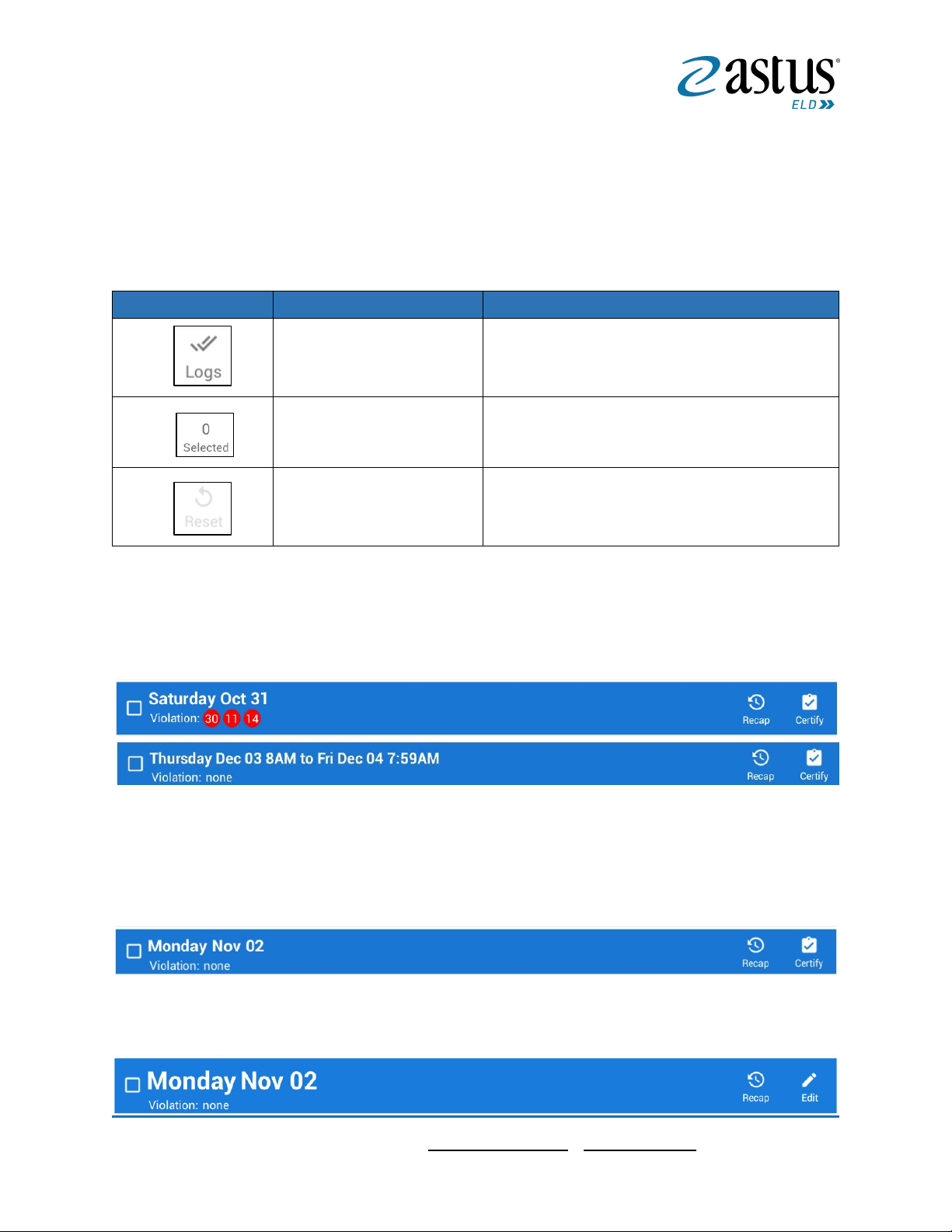

5.2 The Driver Logs Accordion Header Features

To expand or collapse a daily log, tap the Driver Logs Accordion/Collapsible Menu
Header:

Note: Driver Logs title shows the full-time range when the Start Hour time is not zero. You can change
the time by going to Settings > HOS Preferences

5.2.1 Daily Driver’s Log Entry Check-box (Uncertified Log)

Tap the check-box to certify the selected daily log:

5.2.2 Daily Driver’s Log Entry Check-box (Already Certified)

Tap the check-box to uncertify the selected daily log:

44

Page44

1 [phone]| [e-mail] | www.astus.com

5.2.3 Daily Driver’s Title Log (Recertify Log)

When a certified log has been edited in the portal, it prompts the driver to either accept

or reject the proposed changes through the “Edit Suggestions” dialog. Once the driver
accepts an edit request, it will display a note on the daily driver’s title log stating
“Recertify”, which indicates the log needs to be certified again in order to include the

records changes.

5.2.4 Recap

Tap the Recap button to bring up the recap information and corresponding cycle data
for the specified duty day

Tapping the Recap button will display a complete recap for the end of the workday including:

- On Duty & Driving Hours, - Total hours on duty last 7 days (including current day), - Total

hours available tomorrow, - Total hours On Duty last 8 days (including current day)

45

Page45

1 [phone]| [e-mail] | www.astus.com

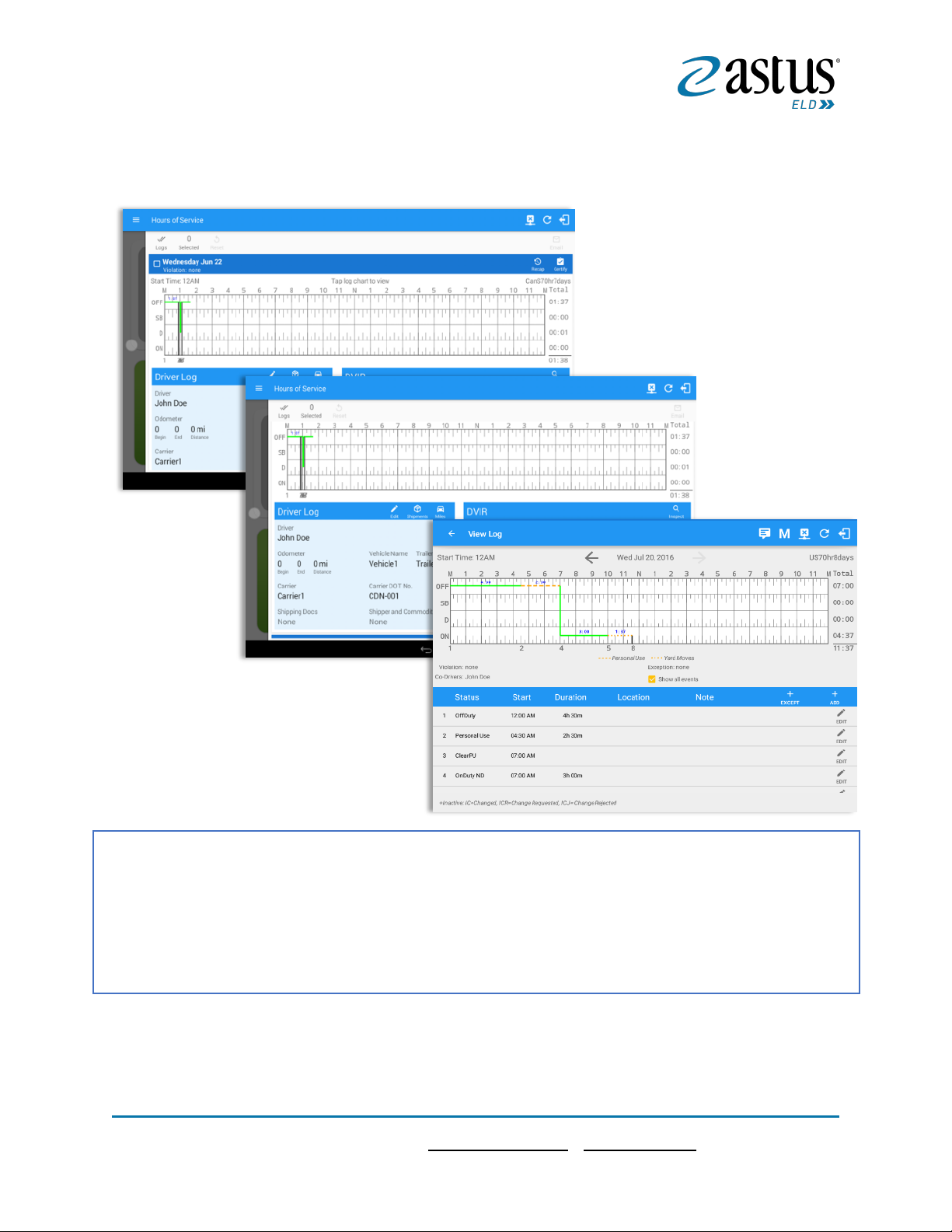

5.2.5 Daily Drivers Log Grid

Tap the driver’s log grid to view the log events and edit the log. Scroll up/down the screen to view the Daily
Driver’s Form; this is where you can view the other required information that must appear in the driver’s

daily log. In addition, not all of the events statuses are displayed on the grid chart. Personal Use and Yard
Moves are also displayed on the grid chart as an Amber color line to be visually different with the other
event statuses, a dashed line represents the Personal Use event and a dotted line represents the Yard Moves
event. The legends for Personal Use and Yard Moves event will only display when the said events occurred.

46

Page46

1 [phone]| [e-mail] | www.astus.com

5.2.6 Edit Daily Drivers Log Form

The following information can be viewed / amended within the Daily Drivers Log Grid:

Driver Information

a) Driver Name – displays the name of the driver
b) Vehicle Information

• Vehicle Name – displays the name of the current Vehicle of the driver.

• Trailer Name – displays the name of the current Trailer of the driver.

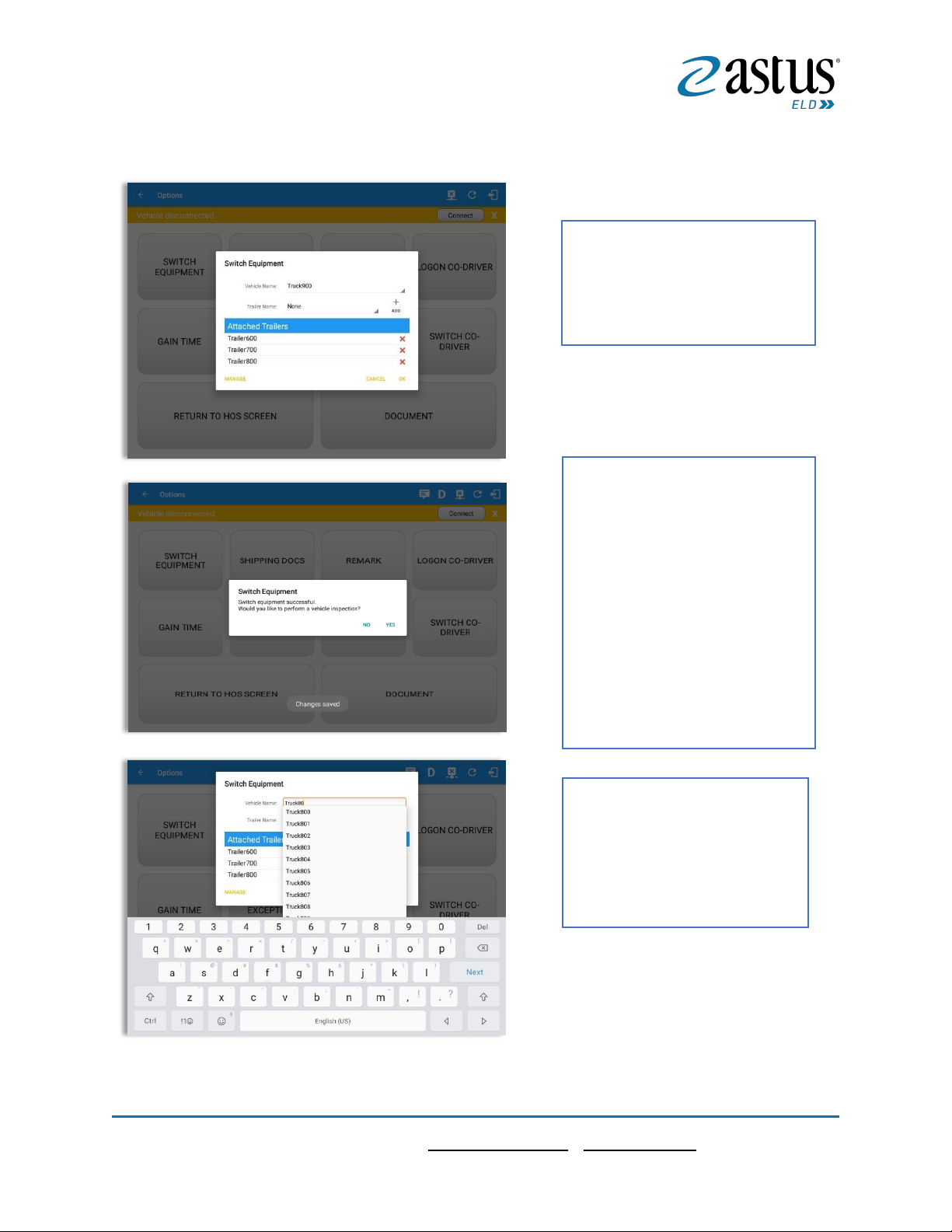

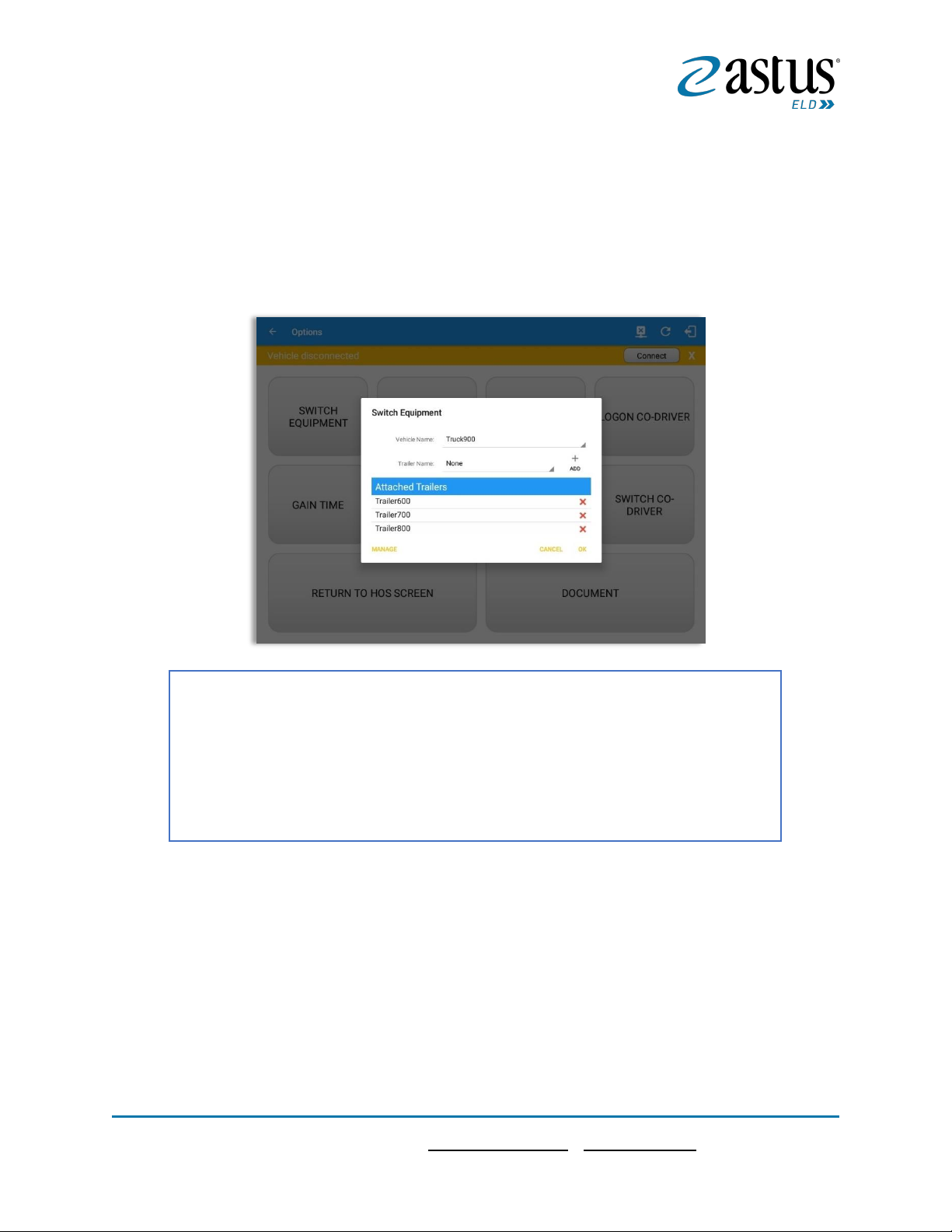

• Switch Equipment – tap this button to launch the Switch Equipment dialog to

select another Vehicle or Trailer names.

• Carrier – a non-editable field which displays the Name of the Carrier.

• Carrier DOT Number – a non-editable field which displays the Carrier DOT

Number

c) Shipping Information

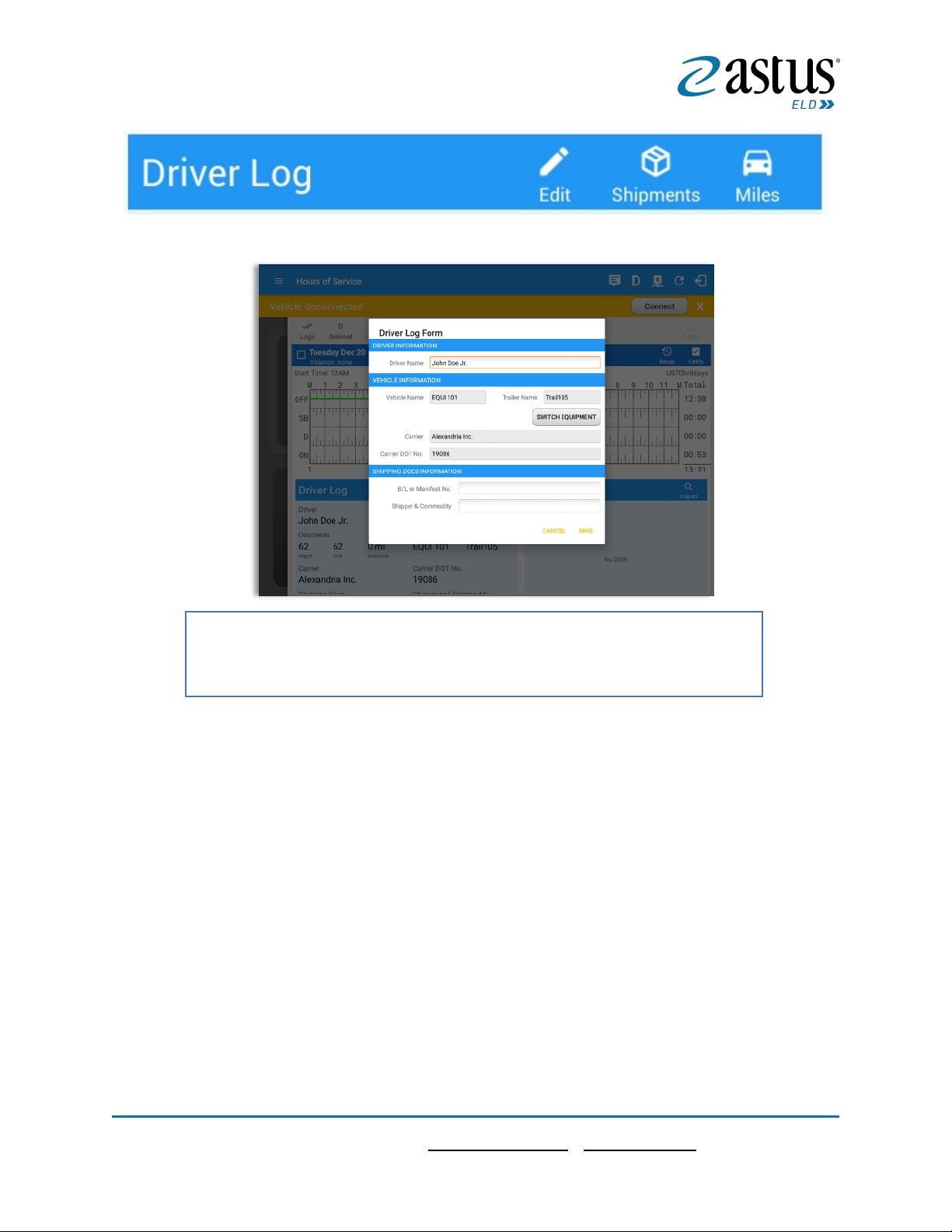

Tap the Edit button to open the Driver Log Form, from here; you can update
the other required information that must appear in the driver’s daily log
(as listed below).

47

Page47

1 [phone]| [e-mail] | www.astus.com

• Shipping docs – displays the bill of lading or manifest number entered by the

driver

• Shipper & Commodity – displays the shipper name and the type of commodity

which the shipment contains

5.2.7 Shipment Details

Data that can be included within the Shipment Details Form includes:

Shipments on Truck

• Order Number – the order number of the specific shipment item

• Weight – the weight of the shipments

• From – the point of origin of the commercial motor vehicle

• To – the destination of the commercial motor vehicle

Shipments Unloaded Today

• Order Number – the order number of the specific shipment item

• Collected or Billed – the preferred payment method

• Amount Collected – the amount collected for the shipment

• Mailed Papers From – the name of the shipment company where the shipping

related documents are from

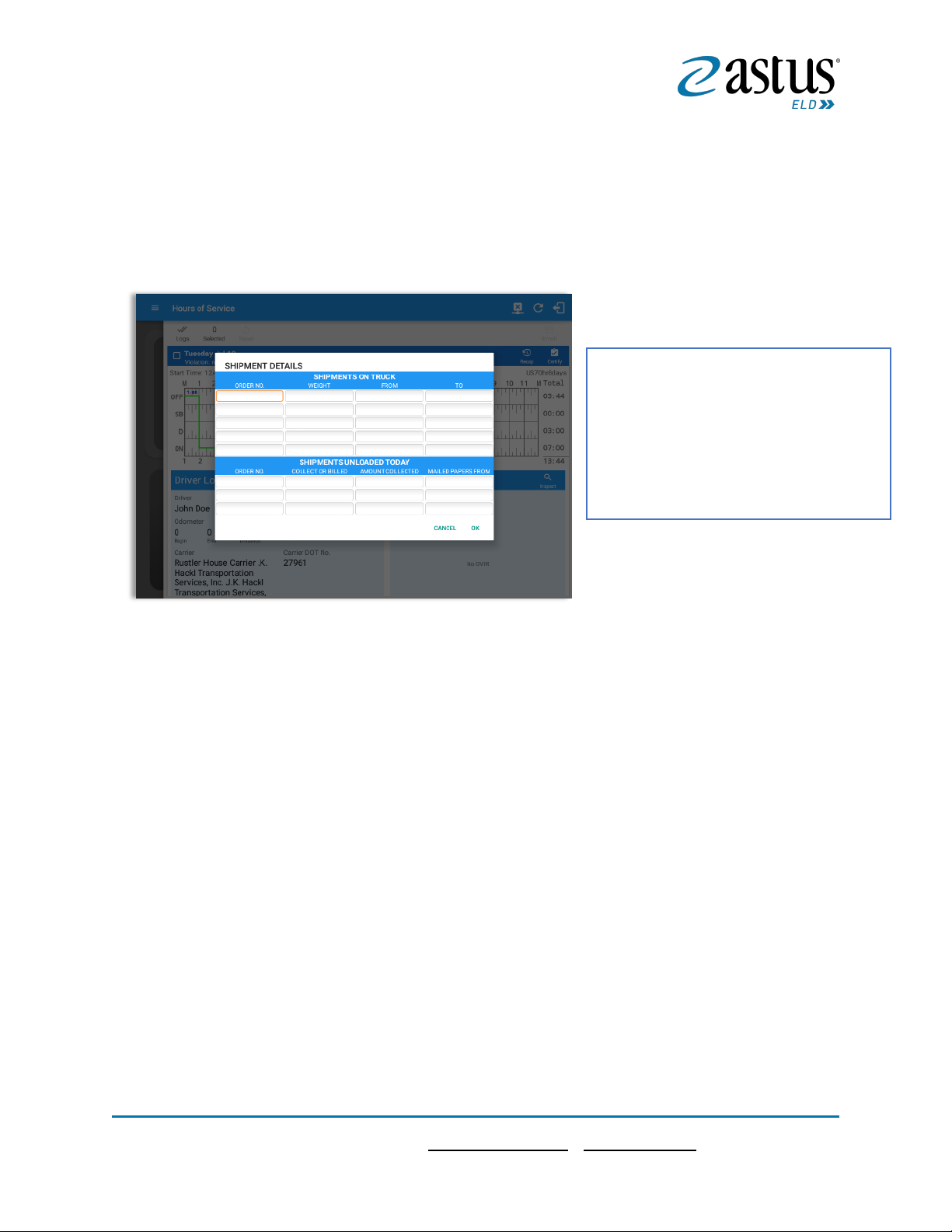

Tap the Shipments button to open the
Shipment Details Form; you can fill in
the shipment data that is
to be included in the driver’s daily log.

Note: The data that can be included in
this form is listed on the next page

48

Page48

1 [phone]| [e-mail] | www.astus.com

5.2.8 Miles Driven by State

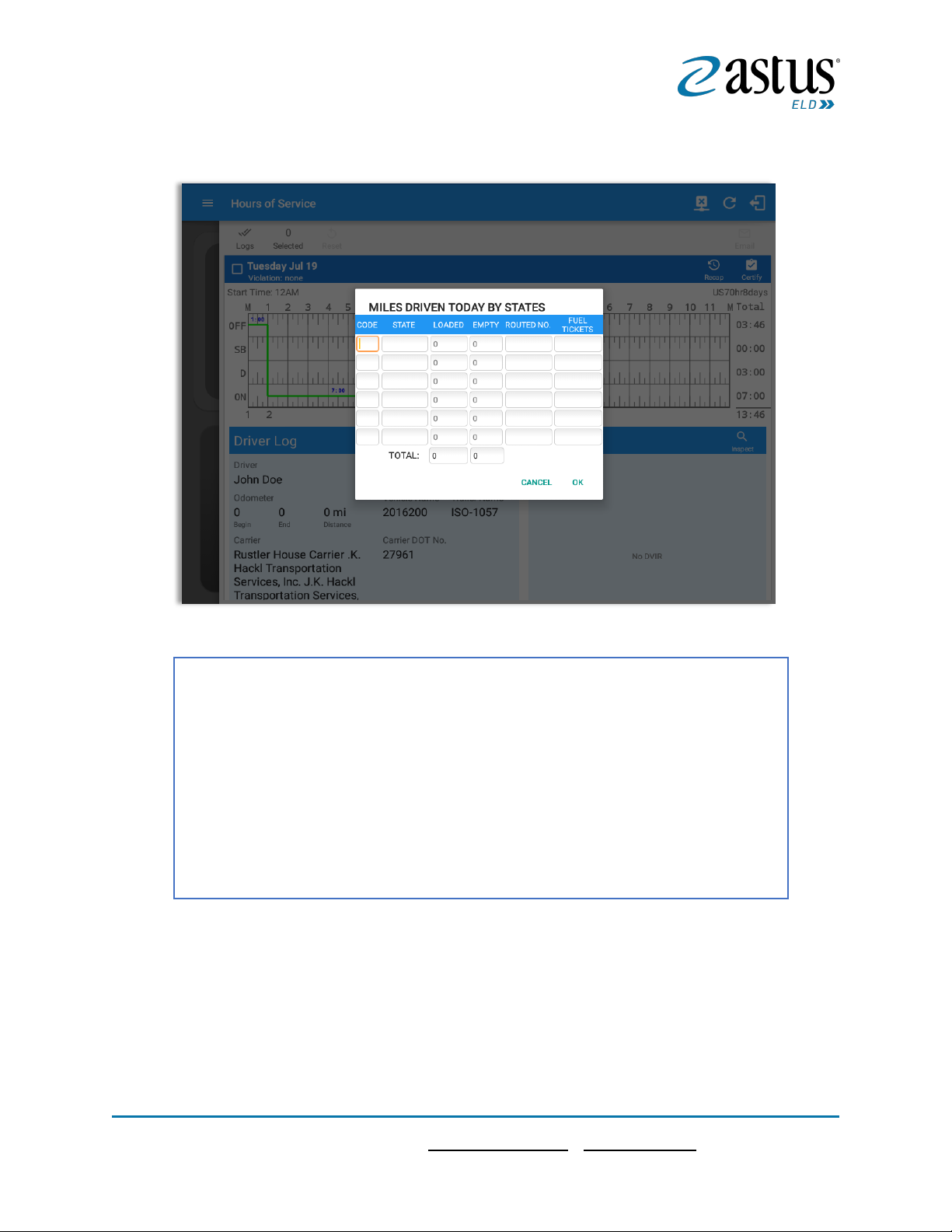

Tap the Miles button to open the Miles Driven Today by States dialog. This is where

you can fill in the shipment data that is required to be included in the driver’s daily

log. Required data includes:

Code
State
Loaded
Empty
Routed Number
Fuel Purchased Tickets Attached

49

Page49

1 [phone]| [e-mail] | www.astus.com

5.2.9 DVIR

5.2.10 Certify a Log

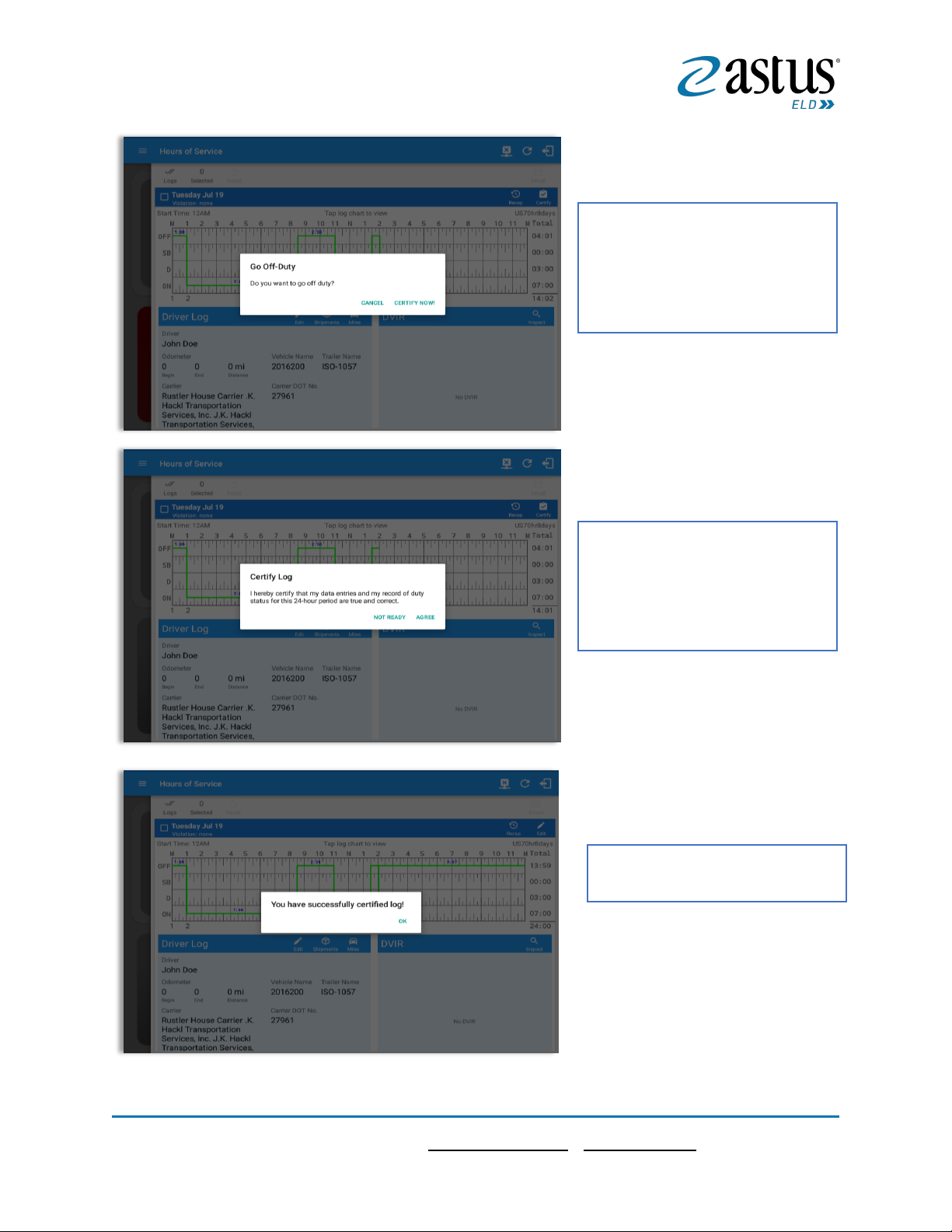

Tap the Certify button to certify the selected daily log. If the current status is Driving, a
pop-up dialog will open and you will be asked to confirm changing the status to Off
Duty:

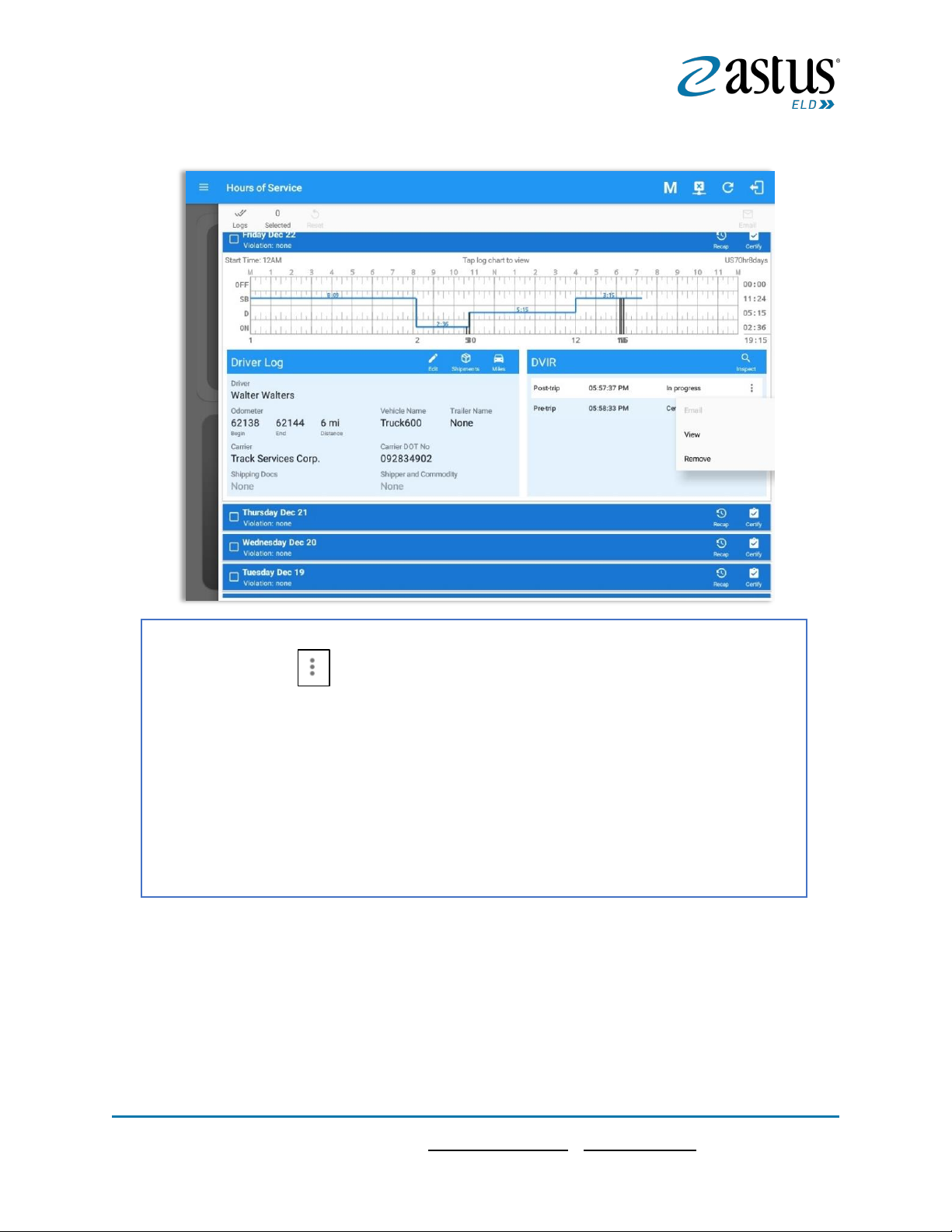

This is where you can view a list of the DVIRs conducted during the selected working day.

Tap the icon to open the pane for the email and view options.

Tap the Email button to send the completed DVIR.

Tap the View button to view the DVIR.

Tap the Remove button to remove the DVIR.

Note:

• Email button will only be enabled if the DVIR Log is already certified.

• Certified logs cannot be removed (unless uncertified).

50

Page50

1 [phone]| [e-mail] | www.astus.com

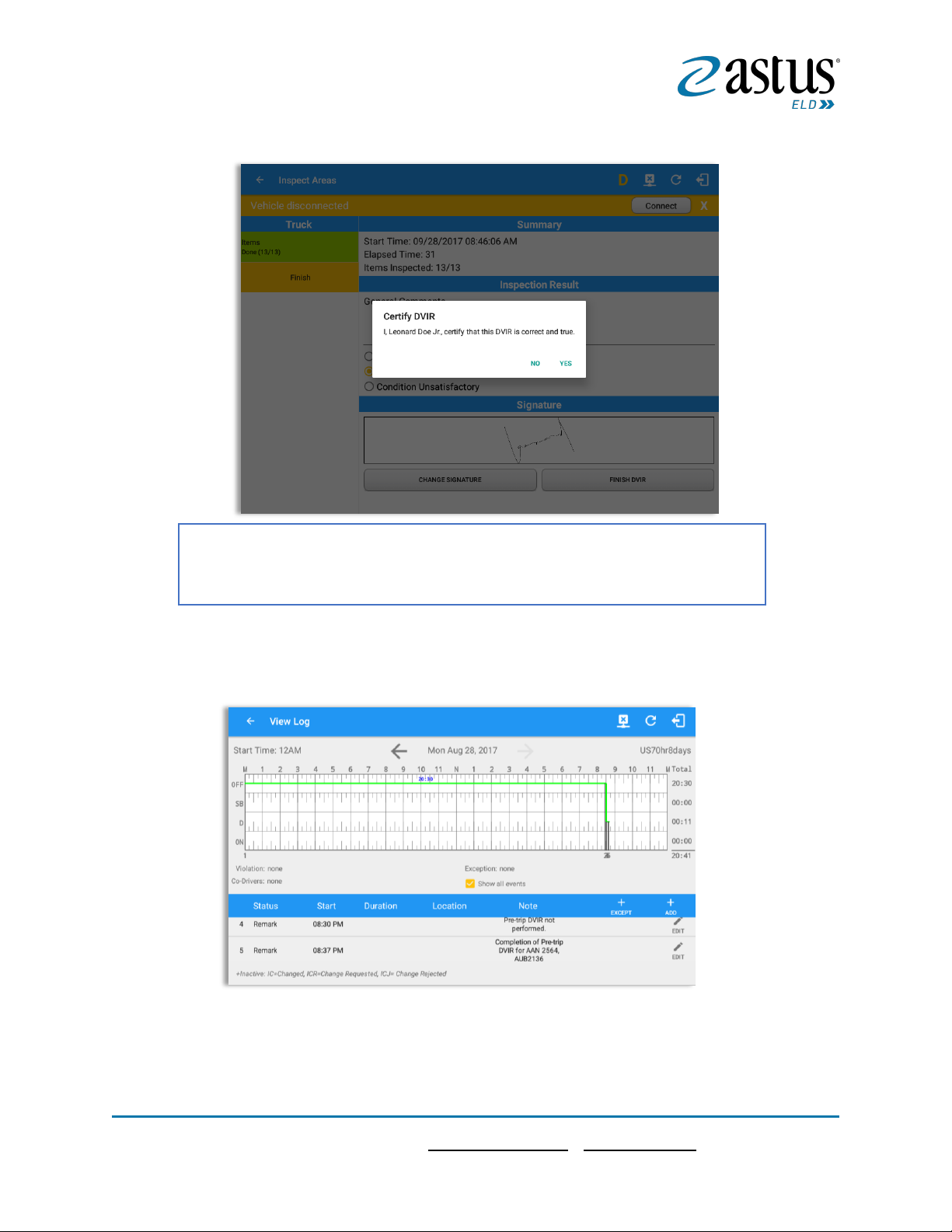

Tap the Certify Now button to
confirm you wish to go Off Duty.

Tap the Cancel button to cancel
changing the status.

Tap the Agree button to confirm
certifying a daily log.

Tap the Not Ready button to
cancel certifying a log.

Tap the OK button to close the
confirmation pop up dialog.

51

Page51

1 [phone]| [e-mail] | www.astus.com

5.2.11 Email a Log

When driver need to email a certified logs PDF to the back office, the driver can send
directly from the App used (e.g Gmail app for Android) or have the HOS Server send the
email instead of sending it directly from the mobile device.

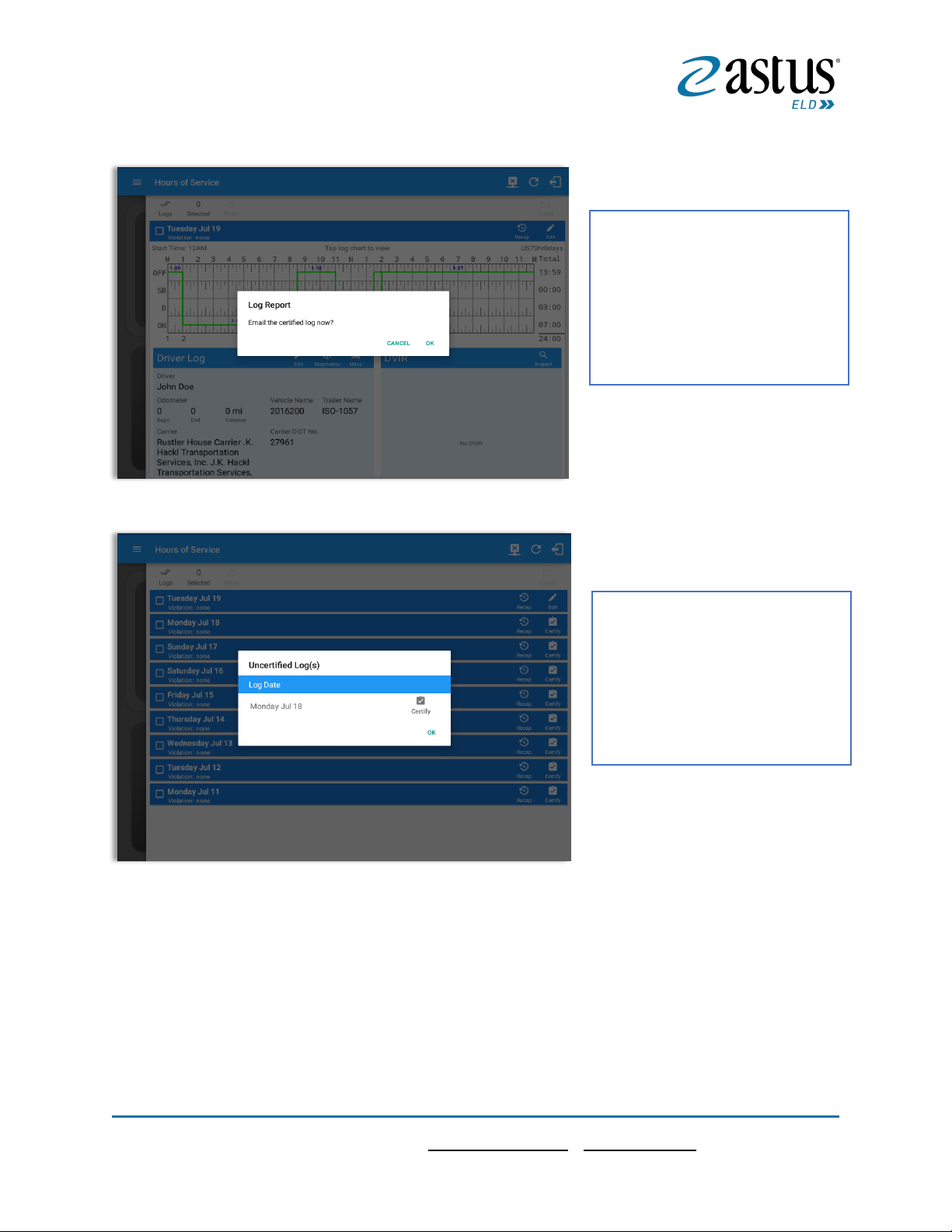

Tap the OK button if you wish to
email the certified log to a
selected recipient.

Select the Cancel button to close
the pop up dialog without
emailing the certified log.

If the driver did not certify all the
daily logs, the ELD will prompt
the driver regarding uncertified
logs upon logging in and logging
out to the app along with the
option to certify the relevant
days.

52

Page52

1 [phone]| [e-mail] | www.astus.com

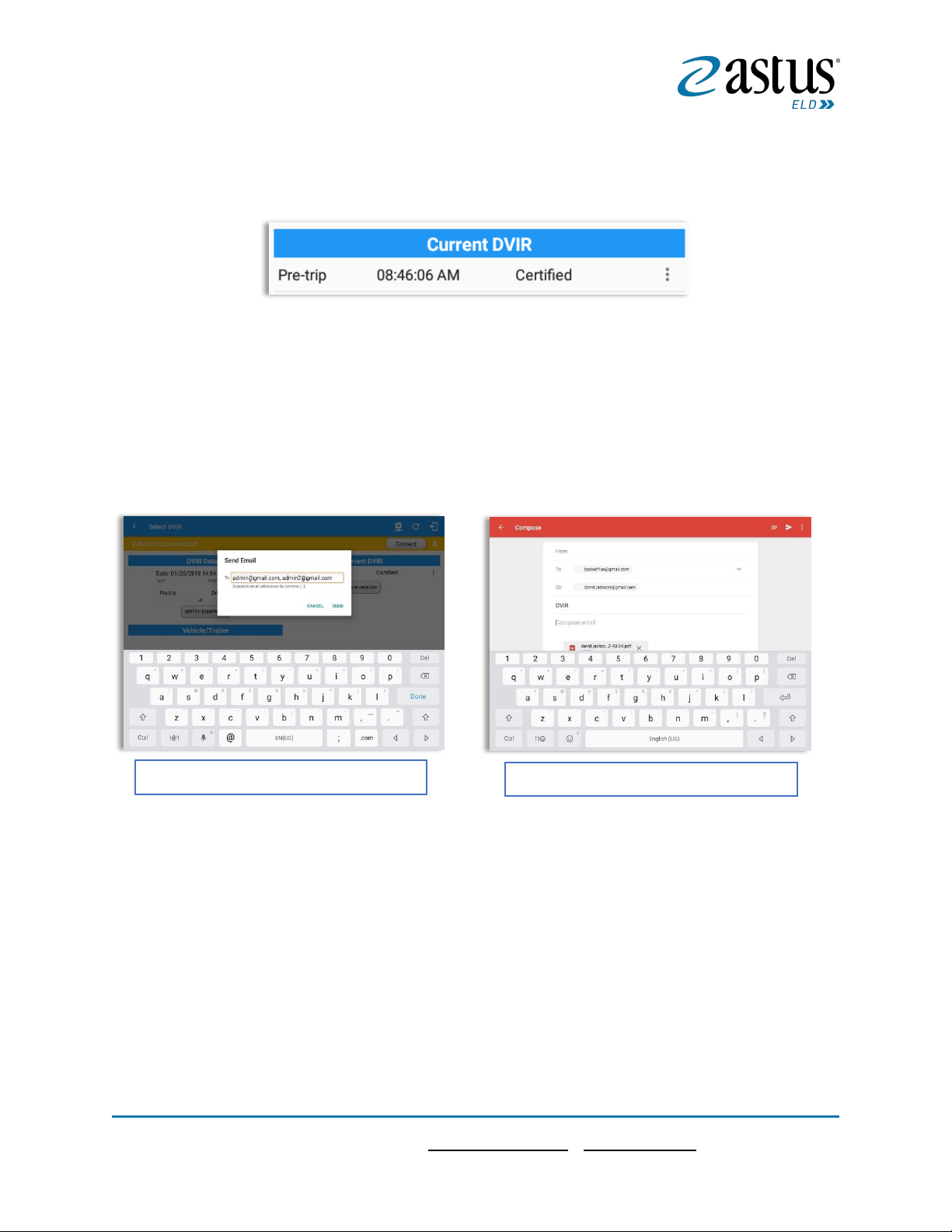

Email Log via Server

Email Log via App

An app will open (e.g. Gmail app
will open for Android device)
with a new message that has a
PDF file attached when the driver

taps ‘Yes’ on the prompt to send

certified log.

If driver has recipient email
populated in the

portal>settings>drivers’

management page>PDF Report
or in the app>settings>PDF
Report Email, then recipient
email is also pre-populated in the
email draft.

Note: To send certified log PDF
via App, set the Email Sender
option to App in Settings
screen>HOS Preferences>Other.

A Send Email dialog will display

when the driver taps ‘Yes’ on the

prompt to send certified log.

Enter the email address for the
recipient. If the recipient is more
than one, separate email
addresses by comma. Tap Send
button to send the certified log
PDF.

Note: To send certified log PDF
via HOS Server, set the Email
Sender option to Server (default
to Server) in Settings screen>HOS
Preferences>Other.

53

Page53

1 [phone]| [e-mail] | www.astus.com

5.2.12 Edit a Log

Only driver logs that have not yet been certified can be edited, you will have to uncertify
a driver log in order to update its contents, to do this, tap the Edit button to uncertify
the selected log and reopen it for editing:

The Edit Log screen can update/correct the driver’s or driving duty data entries logged
through the app. It can also view the history of an edited log.

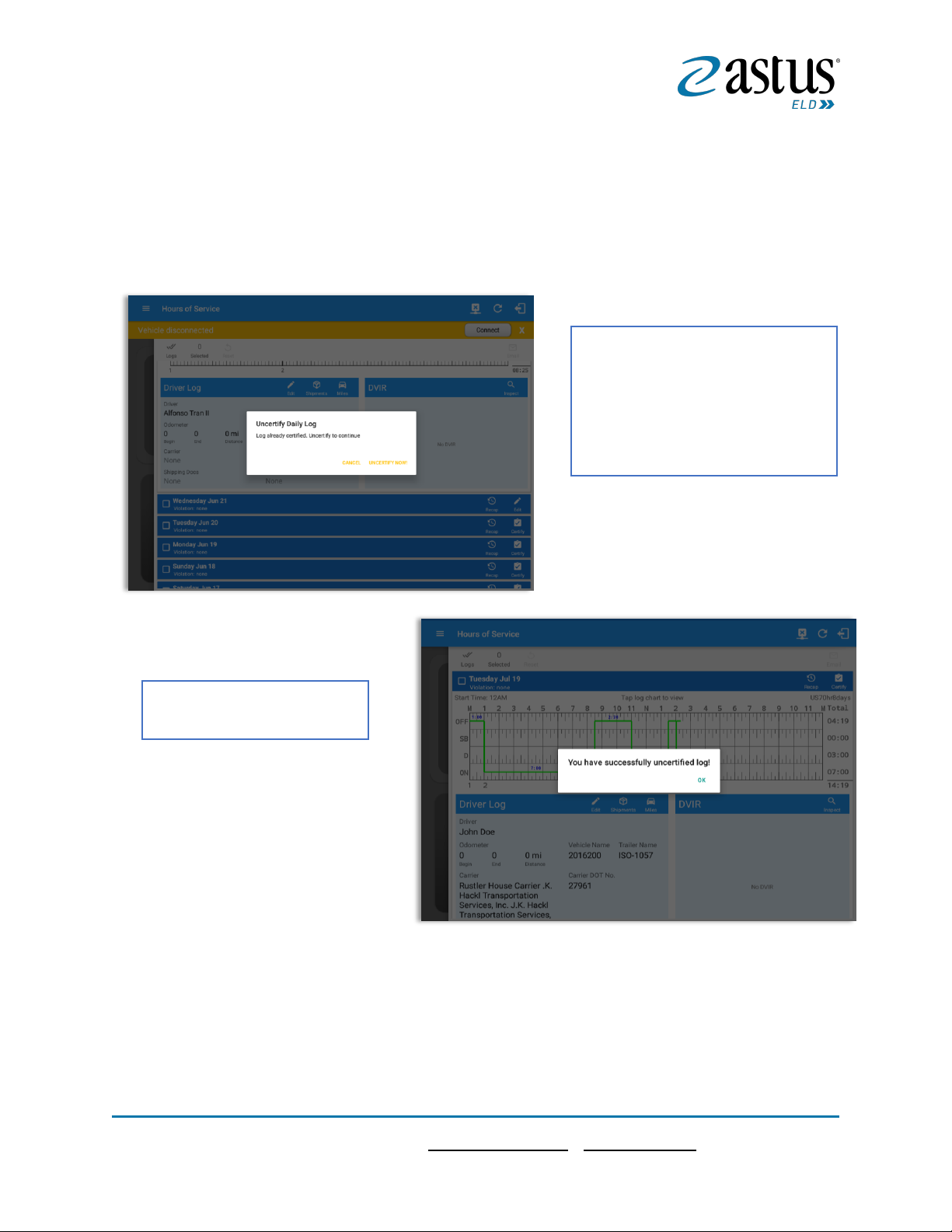

Tap the Uncertify Now button to
confirm uncertifying the selected
log.

Tap the Cancel button to cancel
uncertifying the selected log.

Tap the OK button to close

the pop-up dialog.

54

Page54

1 [phone]| [e-mail] | www.astus.com

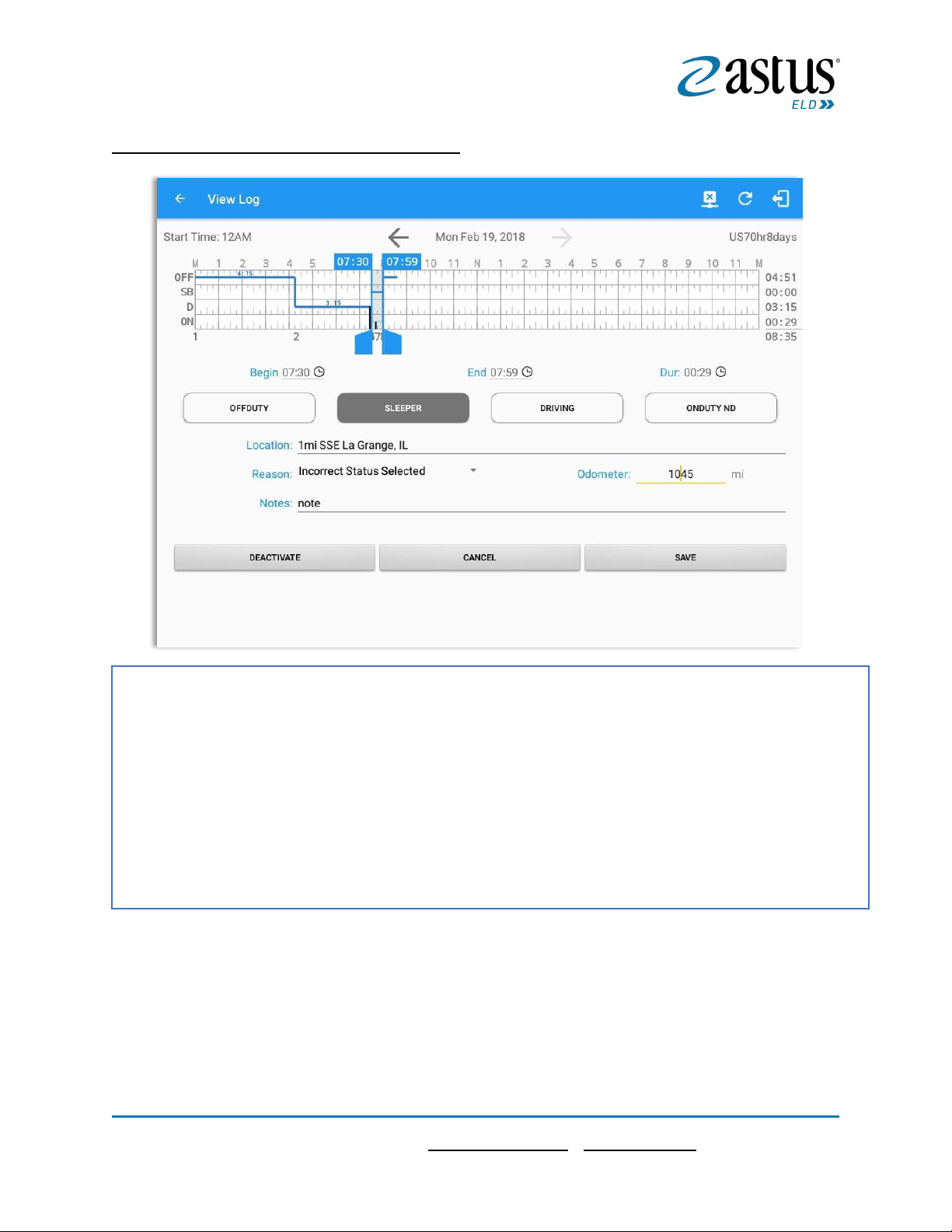

Tap the driver’s log grid to start editing it:

You can navigate through the daily driver logs

by selecting either back or forward arrows

located above the grid

Driver will be able to add a note to the
following events:

• Intermediate log

• Login/logout

• CMV Engine power up/shut

down

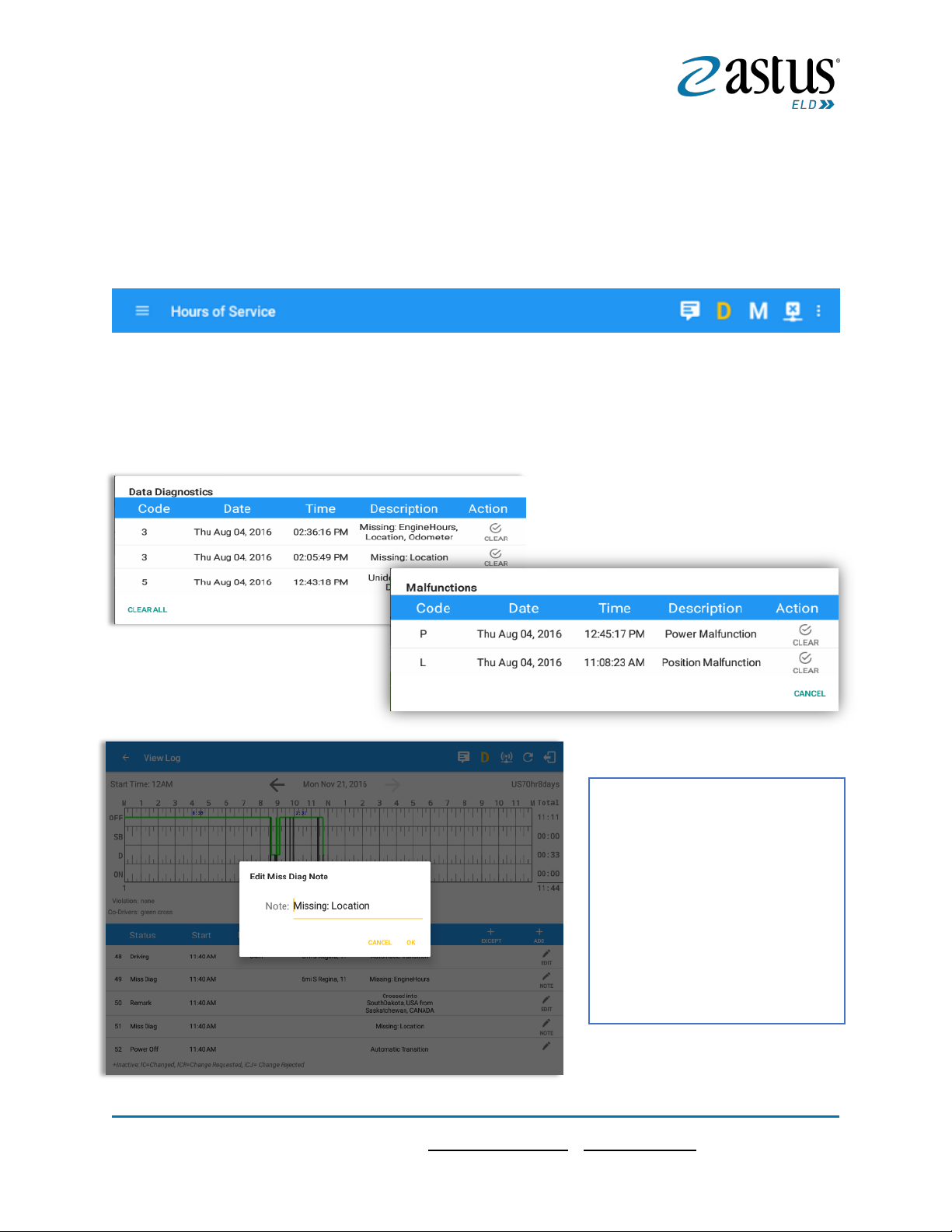

• Malfunctions and diagnostic

events

55

Page55

1 [phone]| [e-mail] | www.astus.com

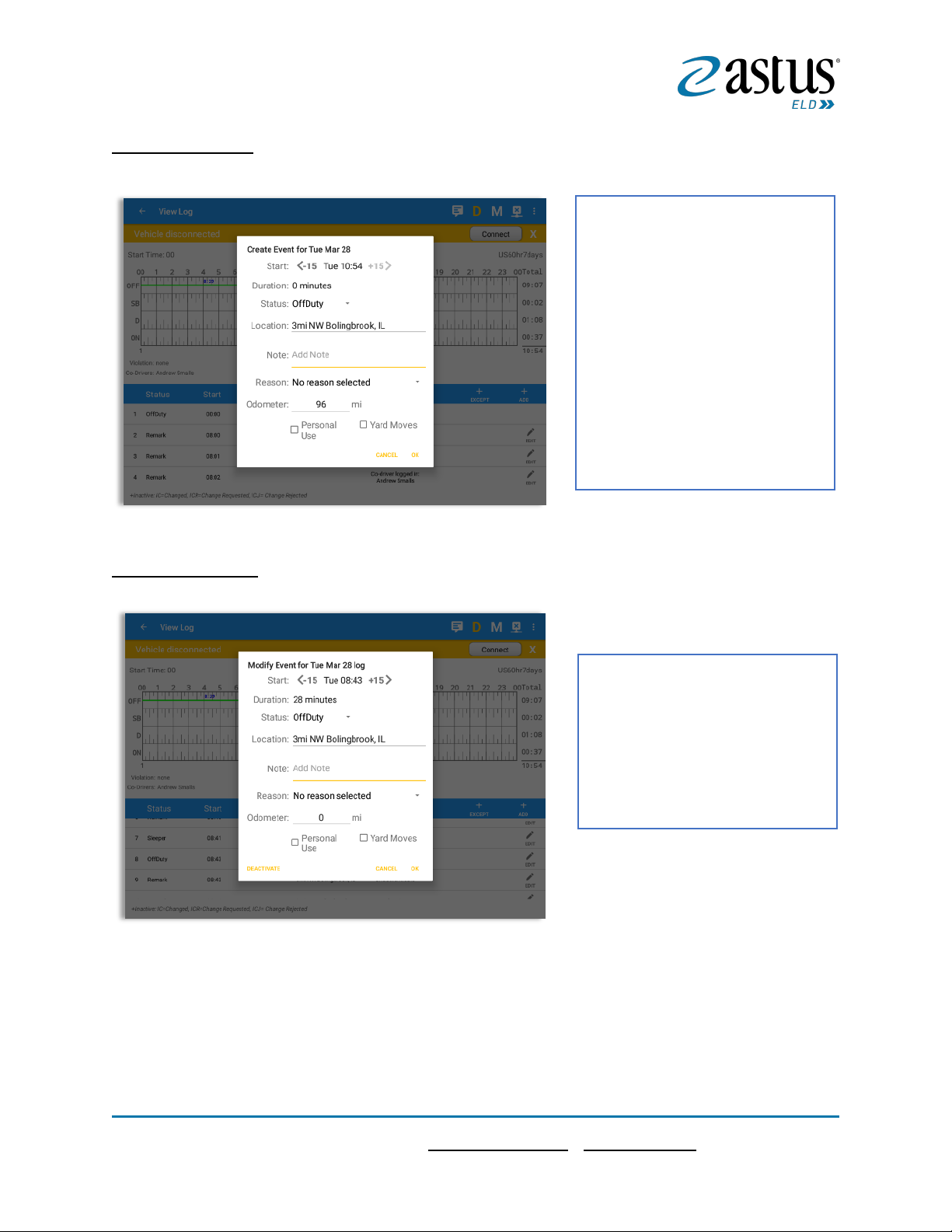

Create Log Event

Modify Log Event

Tap the Edit button adjacent to
any of the existing log events,
make any required changes,
select a reason for the edit from
the drop-down list and then
tap the OK button to save the
changes.

To add a new event to the
selected log, tap the Add button,
input the relevant details to
create the event, once complete,
tap the OK button to save the
event. Also, the current status of
the app is disabled to prevent
adding the same status
consecutively.

Note: Refer to 3.2 Changing the

Driver’s Status for ‘Personal Use’.

56

Page56

1 [phone]| [e-mail] | www.astus.com

Regardless if the vehicle currently
used is in AOBRD or ELD mode,
driver can be able to edit the
Auto OnDuty ND event the same
with editing a manually created
events.

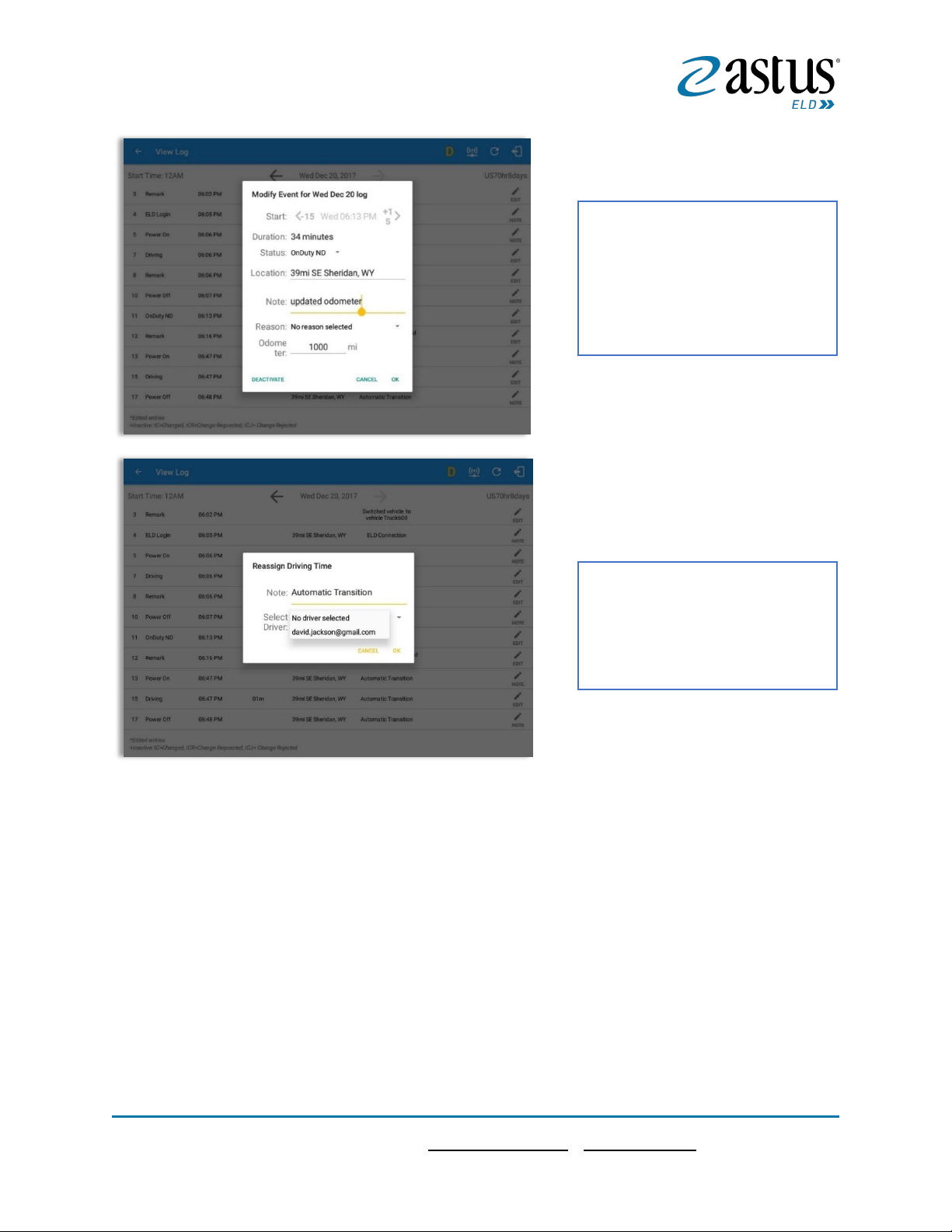

For Auto Driving event, driver
can be able to edit a note or
reassign the event to a co-driver.

(See Section 10.1 Logon Co­Driver-> Reassign Driving Time)

57

Page57

1 [phone]| [e-mail] | www.astus.com

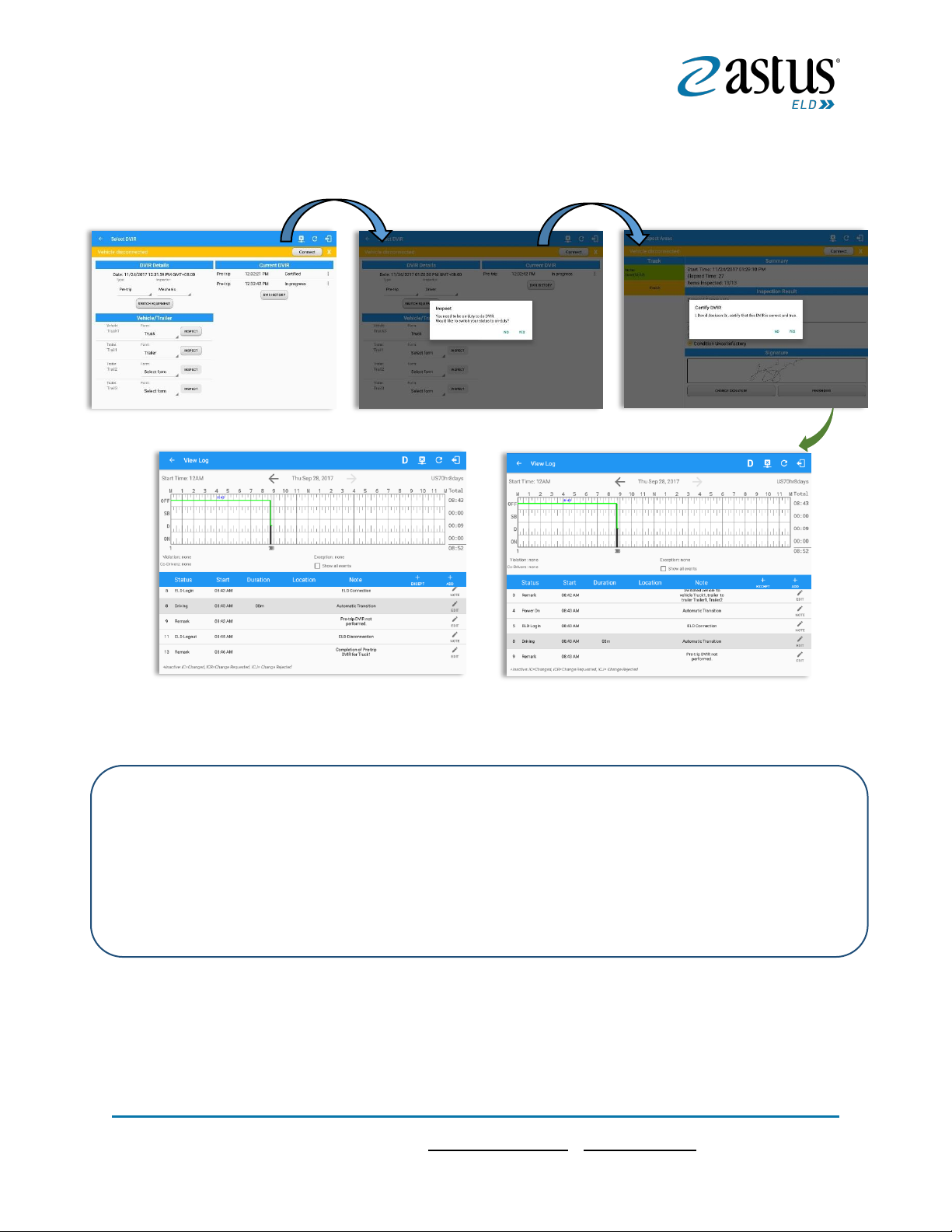

Modify Log Event Using Grid View Editing

Notes:

• All log events that have been manually created or amended, will be displayed with an asterisk

against it in the log events list depicting that it has been edited. Also scroll down to see check
boxes for Personal Use, Yard Moves and Off Road.

• Upon editing a past event, the Note field should not be empty and must contain at least 4

characters when filled out.

When Use GridView Editing is enabled in Settings->HOS Preferences, a grid view editing form will display
upon tapping Edit button to any of the existing log events or tapping the Insert Past Status button.

User can then make any required changes:

• Drag the sliders on the grid to set the Begin Time and End Time or by manually entering the time

using time picker field.

• Select Off Duty, Sleeper Berth, Driving or On Duty ND button

• Select a reason for the edit from the drop-down list.

• Fill other fields required fields.

• Then tap the Save button to save the changes.

58

Page58

1 [phone]| [e-mail] | www.astus.com

Pending Edit Requests

The Motor Carrier can request edits to the driver’s logs. In the application allows the

driver to review the requested edits which requires the driver to take necessary action
whether the driver wants to “accept” or “reject” the requested edits.

Tap the icon beside the refresh button to display the pending edit request dialog.

59

Page59

1 [phone]| [e-mail] | www.astus.com

The Pending Request dialog also appears upon certifying a log only if a driver has pending
requests. Driver must accept or reject the pending request(s) first before certifying the
days’ log.

Note: The events from the 'Unidentified' driver does not require acceptance.

The Reject and Accept Event dialog shows the comparison of the Original status vs the
changes (requested edits). Also, accepting the edits requested requires the driver to fill in
the annotation field (Required) to successfully save the changes.

If the driver rejects the
edit suggestions then the
original record remains.

A toast message will be
displayed at the bottom
of app stating, "Must
Accept or Reject Pending
Requests”.

60

Page60

1 [phone]| [e-mail] | www.astus.com

Auto Events

The ELD automatically records the driving time when the vehicle is in motion by setting
duty status to driving for the driver unless, before the vehicle is in motion, the driver has
sets the duty status to off-duty and indicates personal use of CMV, in which case duty
status must remain off-duty until driver’s indication of the driving condition ends;

Events such as Power On, Power
Off, Driving and OnDuty are
automatically created when
connecting to a device. Auto
events created were recorded
and displayed on the Events
history list indicated with a note
“Automatic Transition”.

(These events are also displayed
in the Portal)

If the driver approves the edit
suggestions, the new status
will replace the old status and
the changes will be reflected in
the events history list.

61

Page61

1 [phone]| [e-mail] | www.astus.com

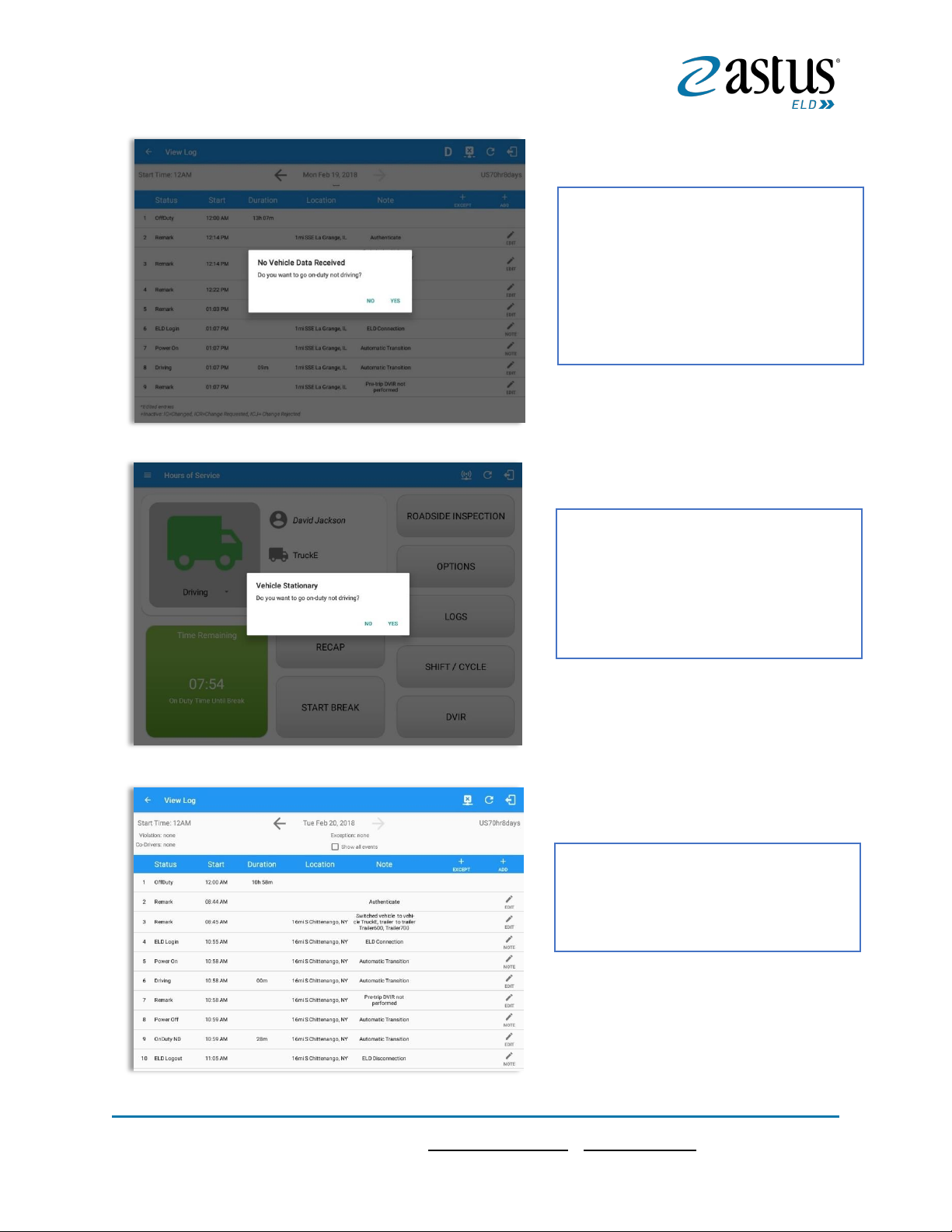

Auto OnDuty ND event is automatically
created when:

• Tapping Yes for ‘No Vehicle

Data Received dialog’. (Dialog

will display after five minutes of
idle state from the time when
app has lost VBUS connection.)

• Not responding to the ELD

prompt "Vehicle Stationary: Do
you want to go on-duty not
driving?" will automatically
change duty status to On Duty
ND after one (1) minute.

Auto OnDuty ND event created is
recorded and displayed on the Events
history list indicated with a note
“Automatic Transition”.

62

Page62

1 [phone]| [e-mail] | www.astus.com

Note: The graph-grid overlay periods of driver’s indications of authorized personal use of CMV and yard
moves using a different style line (such as the dashed or dotted line in amber color).

• A Remark will be recorded with a note “Authenticate” to the events history list if Driver

will login to app.

• A Remark will be recoded with a note “Unauthenticate” if driver will logout from app.

• ELD Login will be recorded with a note “ELD Connection” to events’ history list when app

successfully connected to VBUS Device.

• ELD Logout will be recorded with a note “ELD Disconnection” to events’ history list when

driver manually disconnect to VBUS Device by tapping the connect/disconnect icon
located at the App header.

To view all the auto created events
(primary or secondary events)
when connecting to a device, tap
on the ‘Show all events’ checkbox
to enable.

To hide all the secondary events,
tap back on the checkbox to
disable.

63

Page63

1 [phone]| [e-mail] | www.astus.com

Crossing Boundaries

The border crossing calculation uses the VBUS GPS coordinates if they are available, and
the android coordinates if they are not. The following instances happens when the
driver crossed boundaries between Canada and US (vice versa):

a. If the GPS coordinates are changed to a different state or province, a remark

event will be recorded in the driver log.

b. If the current location is in Canada, the driving rules will automatically switched

to Canadian rules. Similarly, if the location is in the US, the driving rules
automatically switched to US rules.

c. If there is a co-driver logged in, both the remark and the rules changes will be

occurring to be applied for him/her as well.

64

Page64

1 [phone]| [e-mail] | www.astus.com

5.3 Malfunction and Data Diagnostic Events

At each instance when an ELD malfunction or data diagnostic event is detected or cleared
by the ELD, the ELD records the event. The recorded malfunctions and data diagnostic
events are inconsistencies found while monitoring the app/ELD against FMCSA
compliance requirements. These instances are indicated in the application header and in
the Android notification toolbar with the letters M and D, respectively.

Note: The ELD Data Diagnostic indicator provides notification of active data diagnostics events applicable

to the active driver. The Data Diagnostics “D” icon will flash in amber color if there are new active Data

Diagnostics events that is not yet reviewed by the driver and will only turn back to white once the Data
Diagnostic dialog is closed after being reviewed by the driver. There will also be a notification in the
Android toolbar indicating a malfunction or a data diagnostic event.

The Malfunction and Data
Diagnostic events note can also
be edited on the edit log screen

Tap the Clear button to clear the
malfunction or data diagnostic
event detected

To clear all Data Diagnostic
Events, tap the Clear All button.

65

Page65

1 [phone]| [e-mail] | www.astus.com

Malfunction Events

Requirement

No.

Event Code

Event Name

Description

4.6.1.1

P / Power MF

Power

Malfunction

An ELD must set a power
compliance malfunction if the
power data diagnostics event
described in paragraph 4.6.1.1(a)
of this appendix indicates an
aggregated in-motion driving time
understatement of 30 minutes or
more on the ELD over a 24-hour
period across all driver profiles,
including the unidentified driver
profile.

4.6.1.2

E / Sync MF

Engine

Synchronization

Malfunction

An ELD must set an engine
synchronization compliance
malfunction if connectivity to any
of the required data sources
specified in section 4.3.1 of this 87
appendix is lost for more than 30
minutes during a 24-hour period
aggregated across all driver
profiles, including the unidentified
driver profile.

4.6.1.3

T / Timing MF

Timing

Malfunction

The ELD must periodically cross­check its compliance with the
requirement specified in section

4.3.1.5 of this appendix with
respect to an accurate external
UTC source and must record a
timing compliance malfunction
when it can no longer meet the
underlying compliance
requirement.

4.6.1.4

L / Pos MF

Position

Malfunction

ELD records requiring location
information must use the last valid
position measurement and include

66

Page66

1 [phone]| [e-mail] | www.astus.com

the latitude/longitude coordinates
and distance traveled, in miles,
since the last valid position
measurement.

An ELD must monitor elapsed time
during periods when the ELD fails
to acquire a valid position
measurement within 5 miles of the

CMV’s movement. When such

elapsed time exceeds a cumulative
60 minutes over a 24-hour period,
the ELD must set and record a
positioning compliance
malfunction.

4.6.1.5

R / DR MF

Data Recording

Malfunction

An ELD must monitor its storage
capacity and integrity and must
detect a data recording
compliance malfunction if it can no
longer record or retain required
events or retrieve recorded logs
that are not otherwise catalogued
remotely by the motor carrier.

4.6.1.7

S / Trans MF

Data Transfer

Malfunction

(a) An ELD must implement in­service monitoring functions to
verify that the data transfer
mechanism(s) described in section

4.9.1 of this appendix are
continuing to function properly.
An ELD must verify this
functionality at least once every 7
days. These monitoring functions
may be automatic or may involve
manual steps for a driver.

(c) After an ELD records a data
transfer data diagnostic event, the
ELD must increase the frequency

67

Page67

1 [phone]| [e-mail] | www.astus.com

of the monitoring function to
check at least once every 24-hour
period. If the ELD stays in the
unconfirmed data transfer mode
following the next three 90
consecutive monitoring checks,
the ELD must detect a data
transfer compliance malfunction.

4.6.1.8

O / Other MF

Other

Malfunction

In addition to the required
monitoring schemes described in
sections 4.6.1.1– 4.6.1.7 of this
appendix, the ELD provider may
implement additional, technology­specific malfunction and data
diagnostic detection schemes and

may use the ELD’s malfunction

status indicator and data
diagnostic status indicator
(described in sections 4.6.2.1 and

4.6.3.1) to communicate the ELD’s

malfunction or non-compliant
state to the operator(s) of the ELD.

Data Diagnostic Events

Requirement

No.

Event Code

Event Name

Description

4.6.1.1

1 / Pwd Diag

Power

Diagnostic

An ELD must monitor data it
receives from the engine ECM or
alternative sources as allowed in
sections 4.3.1.1-4.3.1.4 of this
appendix, its onboard sensors, and
data record history to identify
instances when it may not have
complied with the power
requirements specified in section

4.3.1.1, in which case, the ELD
must record a power data
diagnostics event for the
corresponding driver(s), or under

68

Page68

1 [phone]| [e-mail] | www.astus.com

the unidentified driver profile if no
drivers were authenticated at the
time of detection.

4.6.1.2

2 / Sync Diag

Engine

Synchronization

Diagnostic

An ELD required to establish a link
to the engine ECM as described in
section 4.2 must monitor its
connectivity to the engine ECM
and its ability to retrieve the
vehicle parameters described
under section 4.3.1 of this
appendix and must record an
engine-synchronization data
diagnostics event when it no
longer can acquire updated values
for the ELD parameters required
for records within 5 seconds of the
need.

4.6.1.4 (d)

3 / Miss Diag

Missing Data

Elements

Diagnostic

If a new ELD event must be
recorded at an instance when the
ELD had failed to acquire a valid
position measurement within the
most recent elapsed 5 miles of
driving, but the ELD has not yet set
a positioning compliance
malfunction, the ELD must record
the character “X” in both the
latitude and longitude fields,
unless location is 88 entered
manually by the driver, in which

case it must log the character “M”

instead. Under the circumstances
listed in this paragraph, if the ELD
event is due to a change in duty
status for the driver, the ELD must
prompt the driver to enter location
manually in accordance with
section 4.3.2.7 of this appendix. If
the driver does not enter the
location information and the

69

Page69

1 [phone]| [e-mail] | www.astus.com

vehicle is in motion, the ELD must
record a missing required data
element data diagnostic event for
the driver.

4.6.1.7

4 / Trans Diag

Data Transfer

Diagnostic

(b) If the monitoring mechanism
fails to confirm proper in-service
operation of the data transfer
mechanism(s), an ELD must record
a data transfer data diagnostic
event and enter an unconfirmed
data transfer mode.

4.6.1.6

5 / Unid Diag

Unidentified

Driver

Diagnostic

(b) If more than 30 minutes of
driving in a 24-hour period show
unidentified driver on the ELD, the
ELD must detect and record an
unidentified driving records data
diagnostic event and the data
diagnostic indicator must be
turned on for all drivers logged in
to that ELD for the current 24-hour
period and the following 7 days.

(c) An unidentified driving records
data diagnostic event can be
cleared by the ELD when driving
time logged under the unidentified
driver profile for the current 24­hour period and the previous 7
consecutive days drops to 15
minutes or less.

4.6.1.8

6 / Other Diag

Other

Diagnostic

In addition to the required
monitoring schemes described in
sections 4.6.1.1– 4.6.1.7 of this
appendix, the ELD provider may
implement additional, technology­specific malfunction and data
diagnostic detection schemes and

may use the ELD’s malfunction

status indicator and data

70

Page70

1 [phone]| [e-mail] | www.astus.com

diagnostic status indicator
(described in sections 4.6.2.1 and

4.6.3.1) to communicate the ELD’s

malfunction or non-compliant
state to the operator(s) of the ELD.

Actions for Malfunction & Data Diagnostic Events

Carrier responsibilities regarding malfunctions:

▪ Provide drivers with an instruction sheet describing the various ELD malfunction

events and recordkeeping procedures (395.22)

▪ Provide drivers with a supply of 8 days’ worth of blank paper driver records

(395.22)

▪ Repair, replacement, or service

o Motor carrier must correct the malfunction of the ELD within 8 days of

discovery of the condition or a driver's notification to the motor carrier,
whichever occurs first (395.34)

Record keeping responsibilities by the driver:

▪ Malfunction events

o Note the ELD malfunction and provide carrier with written notice within

24hrs (395.34)

o Reconstruct driving events for the current 24hr period and previous 7

consecutive days using paper logs (unless they can be retrieved from the
ELD) (395.34)

o Continue to manually prepare driving logs until ELD is serviced and

brought back into compliance (395.34)

o During inspections which take place when a malfunction has occurred:

provide safety official with manually kept driver logs (395.34)

▪ Data diagnostic events

o Driver must follow the motor carrier's and ELD provider's

recommendations in resolving the data inconsistency (395.34)

71

Page71

1 [phone]| [e-mail] | www.astus.com

Clearing of malfunction and data diagnostic events:

▪ ELD needs to capture when a malfunction or data diagnostic event has been

cleared by the driver (4.5.1.7)

▪ Unidentified driving records data diagnostic

o Events that drop to 15 minutes or less during the current 24hr period and

previous 7 days can be cleared automatically and there is no requirement
to record the automatic clear (4.6.1.6)

72

Page72

1 [phone]| [e-mail] | www.astus.com

5.4 DVIR

The DVIR feature provides a way for you to create online vehicle DVIR reports while in

the field. This helps to ensure that your vehicle confirms to the FMCSA’s safety

regulations.

There are a number of ways to access this feature:

5.4.1 DVIR Feature – Main Navigation Menu

5.4.2 DVIR Feature – Hours of Service Main Screen

From the Hours of Service Main Screen, tap the DVIR button to display the DVIR screen.

1. Slide the screen from left to
right to show the Main
Navigation Menu
Or

2. Tap the Main Navigation
Hamburger icon

to show the Main Navigation

Menu

Tap the DVIR option within the
Main Navigation Menu

73

Page73

1 [phone]| [e-mail] | www.astus.com

• When driver manually/automatically change to Driving event without completing the Pre-trip

DVIR, it will create a 'Remark' event with a note ‘Pre-trip DVIR not performed.’

• The Remark event will only be created once per shift.

• The Remark event will be created after it detects or when a first Driving event on the shift cycle is

created.

• Also, an alert is sent only once for each vehicle that begins to drive without having done a Pre-

Trip DVIR.

74

Page74

1 [phone]| [e-mail] | www.astus.com

5.4.3 Selecting Your DVIR Type

You can select a DVIR Form from

the 6 default DVIR forms or you

can also select a Customized
DVIR Forms for Asset(s) also

from the list.

Choose the appropriate DVIR

Type from the

following options.

a) Pre: A DVIR conducted

before driving the CMV.

b) Post: A DVIR conducted

after driving a CMV.

c) Ad Hoc: Any DVIR

conducted in any other
period that the ones
specified in points a & b.

Choose the appropriate

Inspector from the following

options.

75

Page75

1 [phone]| [e-mail] | www.astus.com

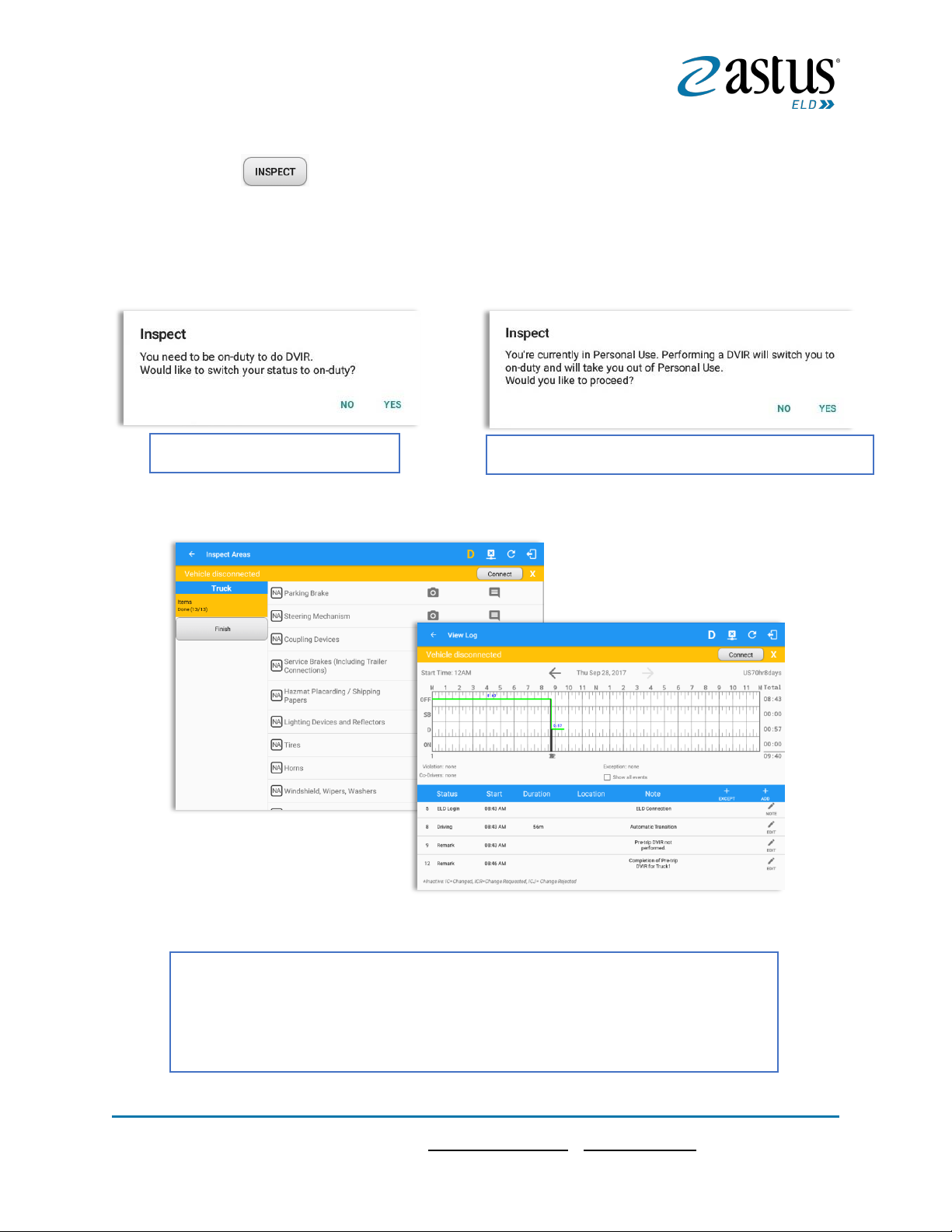

5.4.4 Starting Your DVIR

Tap the Inspect button in each equipment to start the DVIR, you will be directed
to the DVIR screen.

Note: However, a dialog as shown below will display that will ask confirmation to switch you to On Duty
status to do DVIR if current duty status is in Off Duty or will take you out to Personal Use if current status
is Off Duty under Personal Use.

5.4.5 Completing the First DVIR Area

The first DVIR Area is selected by default. You can also tap its corresponding tab to
display the DVIR items under this area.

You can select the status of each DVIR Item by tapping their respective tri-state
check boxes as listed below:

If current duty status is Off Duty

If current duty status is Off Duty under Personal Use

76

Page76

1 [phone]| [e-mail] | www.astus.com

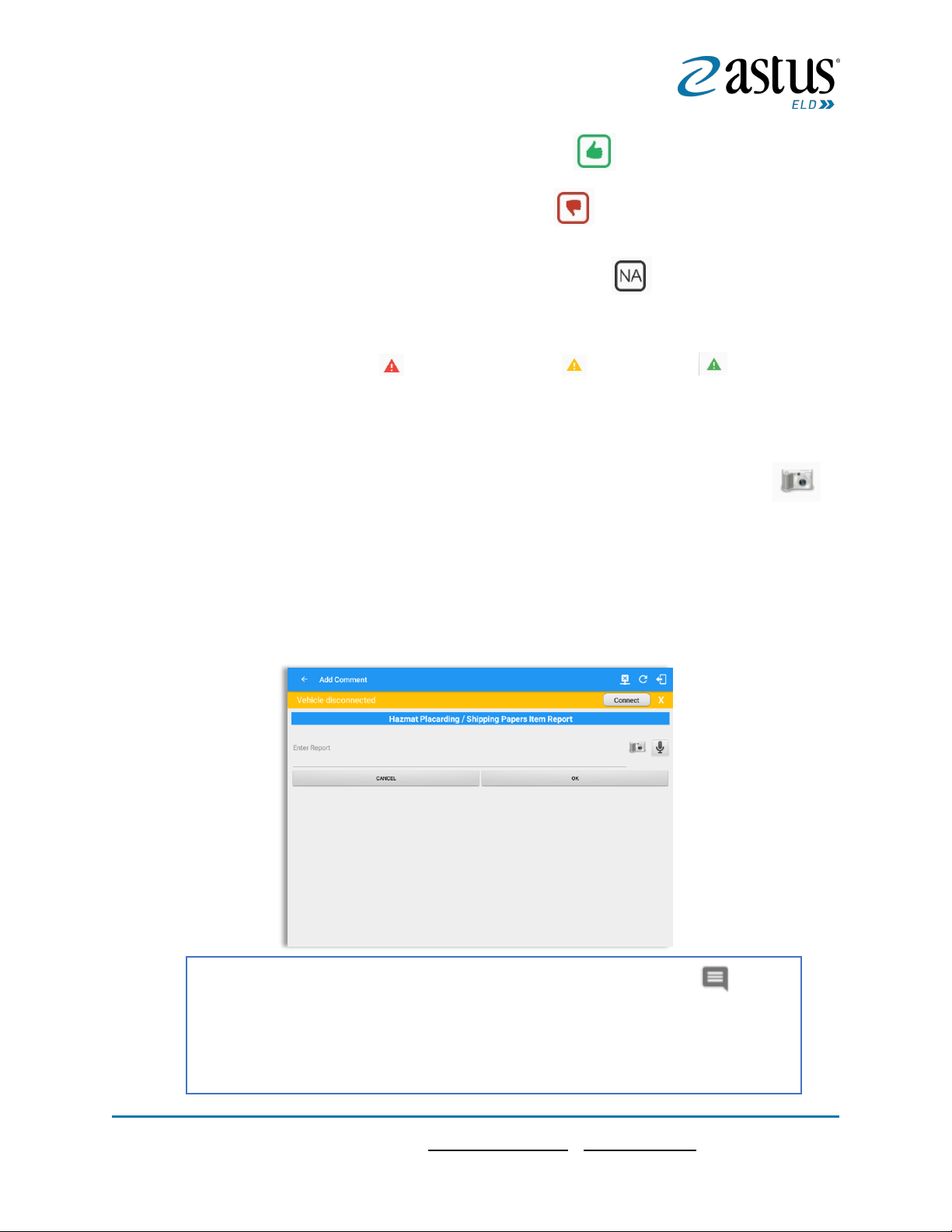

Tap the unselected check box once or select the green Thumbs Up icon to
specify that the item has passed.

Tap the unselected check box twice or select the red Thumbs Down icon to
specify that the item has failed.

Tap the unselected check box three times or select the NA icon it the item is not
applicable for the current DVIR.

When failing a DVIR, an option for selecting a severity level will appear with its
corresponding color: High – Red , Medium – Yellow , Low – Green .

Tap the Check All button to automatically select all the DVIR items.

5.4.6 Capturing an Image of a DVIR Item

If you wish to capture an image of a DVIR item, you can tap the Camera Button.
The Camera app will then appear, proceed to take a picture of the DVIR item.
After tapping the Capture Image Button, select the Save button to save the image and
add it to your item report. You can also discard the captured image by selecting the Cancel
button.

5.4.7 Add a Comment or Remark to a DVIR Item

You may add comments or remarks against a DVIR item by tapping the
Comments button, enter the relevant comment or remark in the Enter Report field,
tap the Camera button to add more images if required and select the OK button to
finish adding your images and comments or remarks.

77

Page77

1 [phone]| [e-mail] | www.astus.com

Note: You can also tap the Voice Dictation button (speech to text) to use voice dictation instead of typing
your comments or remarks.

5.4.8 Finishing / Certifying Your DVIR

If you add an image and a comment or remark to the DVIR item, the camera button will have a
numbered icon over it depicting the number of images that have been attached; also, any comments
or remarks that have been added will be displayed and will replace the Comments button

To finish / certify your
DVIR, select the Finish
tab, this will display the
information detailed on the
next page.

78

Page78

1 [phone]| [e-mail] | www.astus.com

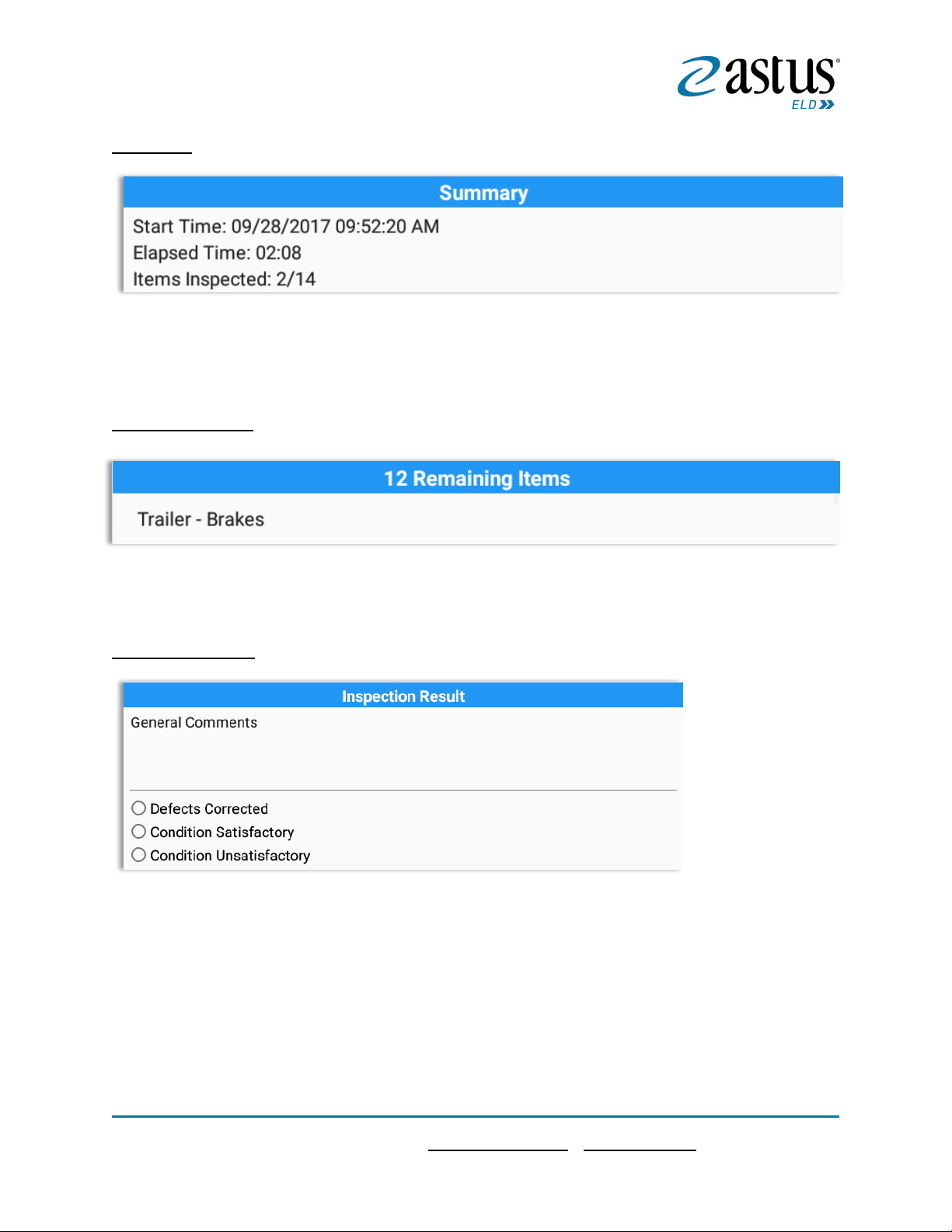

Summary

• Start Time – the date and time the DVIR was started.

• Elapsed Time – the duration of the current DVIR.

• Items Inspected – this is a counter for the number of items already inspected.

Remaining Items

This will only be displayed if you have not yet updated all of the DVIR items, this will
show the item(s) that are still to be inspected.

Inspection Result

General Comments – this is where you can enter your general DVIR report comments.

One of the following options must be selected before the DVIR can be finished /
certified.

• Defects Corrected

• Condition Satisfactory

• Condition Unsatisfactory

79

Page79

1 [phone]| [e-mail] | www.astus.com

Signature

Drivers can change their signature by tapping the Change Signature button.

Mechanics and other inspectors can create their signatures by tapping the Change
Signature button.

Selecting the Change Signature button will open the Create Your Signature Here
screen:

Tap the Done button to save your signature or tap the

Clear button to discard the signature.

80

Page80

1 [phone]| [e-mail] | www.astus.com

5.4.9 Submit or Certify the DVIR

After successfully certifying the DVIR, a remark event will be created in the Edit Logs
screen stating the completion of Pre/Post/Ad-Hoc DVIRs.

Note: A remark “Autogenerated: Pre-trip DVIR not performed.” Displayed in edit log screen when DVIR
was not performed.

Tap the Finish DVIR button to finish / certify the current vehicle DVIR. Finally, after
reviewing all of the DVIR details tap the OK button to certify the DVIR. You can
also cancel certifying the DVIR by tapping the Cancel button.

81

Page81

1 [phone]| [e-mail] | www.astus.com

5.4.10 Deleting a DVIR

Go to the Current DVIR section. This is where you can view a list of the DVIRs conducted
within the Vehicle DVIR screen:

• Tap the Email button to send the completed DVIR to an intended recipient.

• Tap the View button to view the DVIR details (once submitted, this cannot be

amended).

• Tap the Remove button to remove the DVIR (once submitted, this cannot be

removed).

5.4.11 Emailing a DVIR

• If Email Sender is set to Server, a Send Email dialog will display when the driver

taps Email button to send the completed DVIR. Enter the email address for the
recipient. If the recipient is more than one, separate email addresses by comma.

• If Email Sender is set to App, an app will open (e.g. Gmail app will open for

Android device) with a new message that has a DVIR Report PDF file attached.

Note: Email Sender option can be seen and set in settings screen>HOS Preferences>Others.

Emailing a DVIR via Server

Emailing a DVIR via App

82

Page82

1 [phone]| [e-mail] | www.astus.com

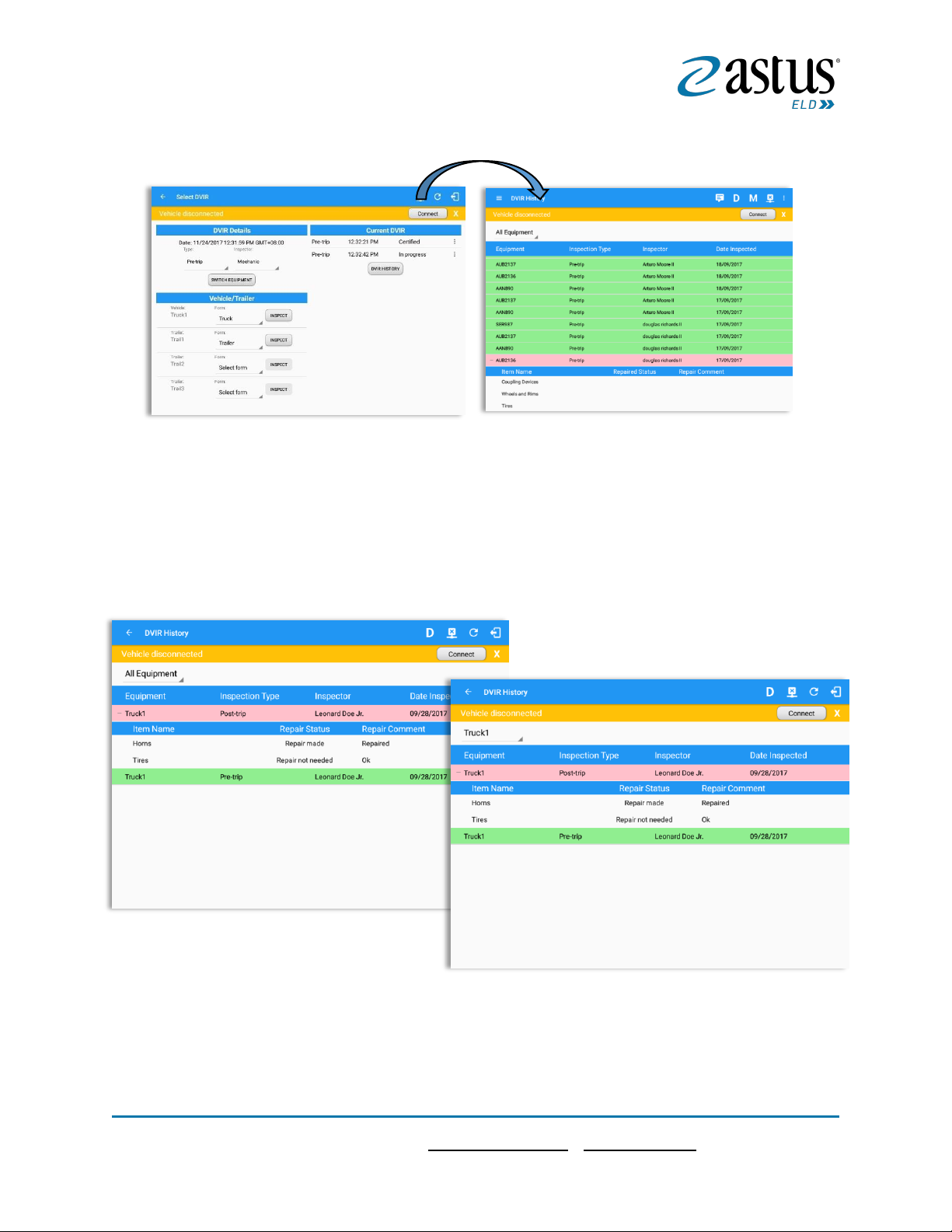

5.5 DVIR History

The DVIR History feature displays the DVIRs for the last 30 days for the currently selected
equipment. Completed DVIRs that don't have failed items shows in a row highlighted in
green color while Completed DVIRs with failed items are highlighted in red. Also, a '+' can
be tap to show the details of failed items.

5.5.1 Viewing DVIR History by Vehicle

• DVIR Screen displays DVIR inspections for all equipment by default.

• Tap the Equipment name on the upper left of the screen to view the DVIR of the

specified vehicle.

83

Page83

1 [phone]| [e-mail] | www.astus.com

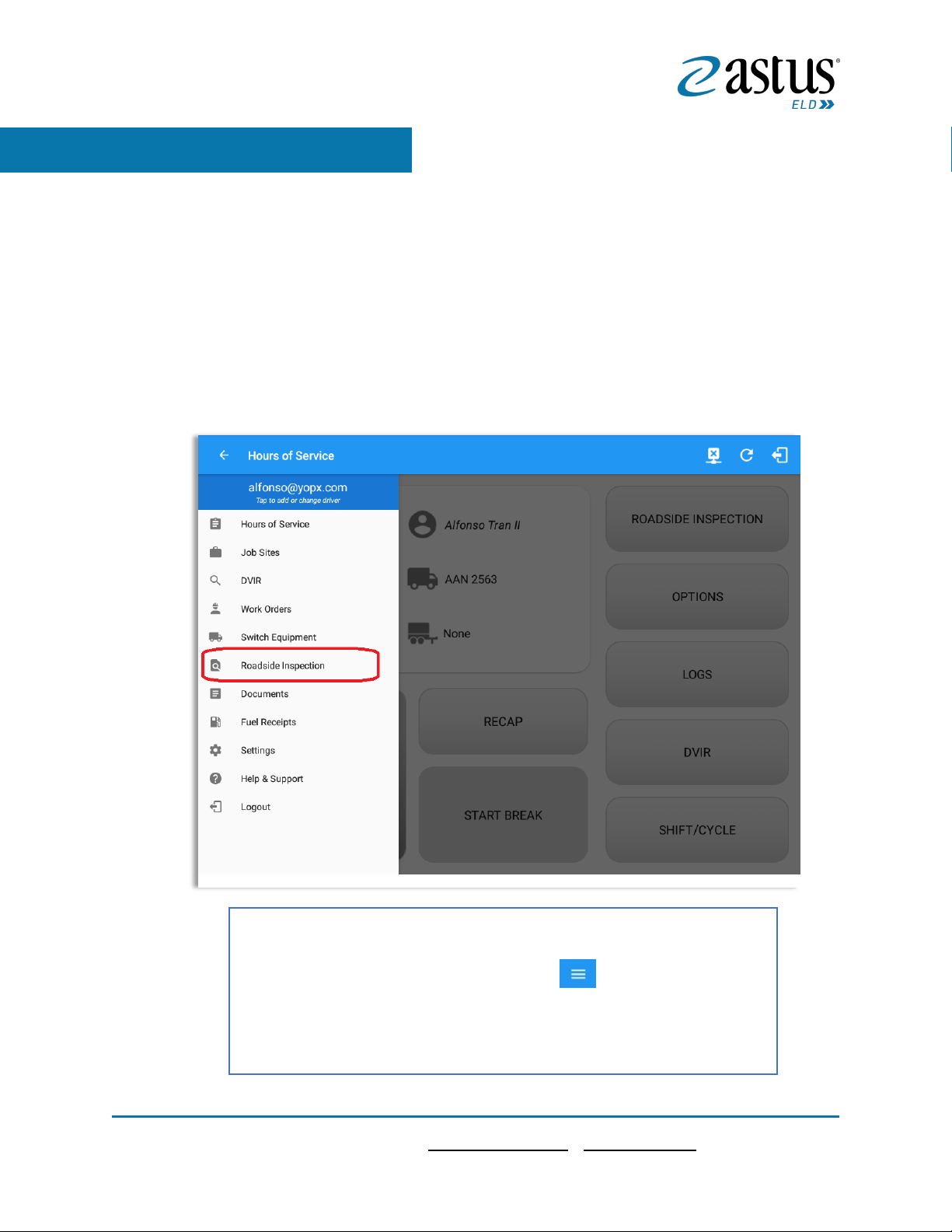

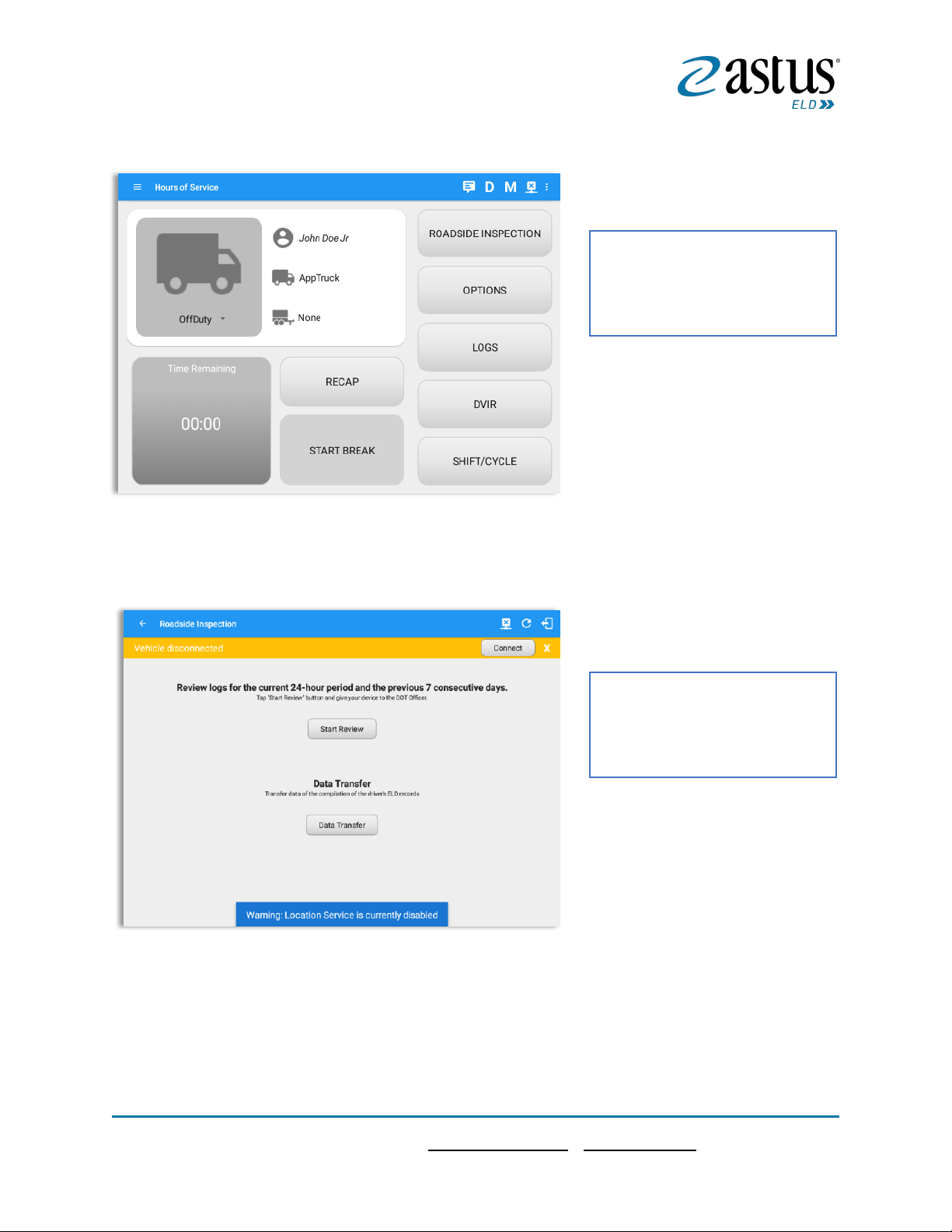

6 Roadside Inspection

The Roadside Inspection feature provides the ability to view the driver daily logs for the
past one week. It includes information on the vehicle used, shipments and driving
statuses. It also has the ability to send all the logs that have already been certified to an
intended recipient.

There are a number of ways to access this feature:

6.1 Roadside Inspection – Main Navigation Menu

1. Slide the screen from left to right to show the Main Navigation Menu.
Or

2. Tap the Main Navigation Hamburger icon to show the Main

Navigation Menu.

Tap the Roadside Inspection option within the Main Navigation Menu.

84

Page84

1 [phone]| [e-mail] | www.astus.com

6.2 Roadside Inspection – HOS Main Menu

6.3 Inspection Screen – Start Review

From the Hours of Service
Main Screen, tap the Roadside
Inspection button.

From the Roadside Inspection
Screen, tap the Start Review

button to view the Driver’s

Daily Log screen.

85

Page85

1 [phone]| [e-mail] | www.astus.com

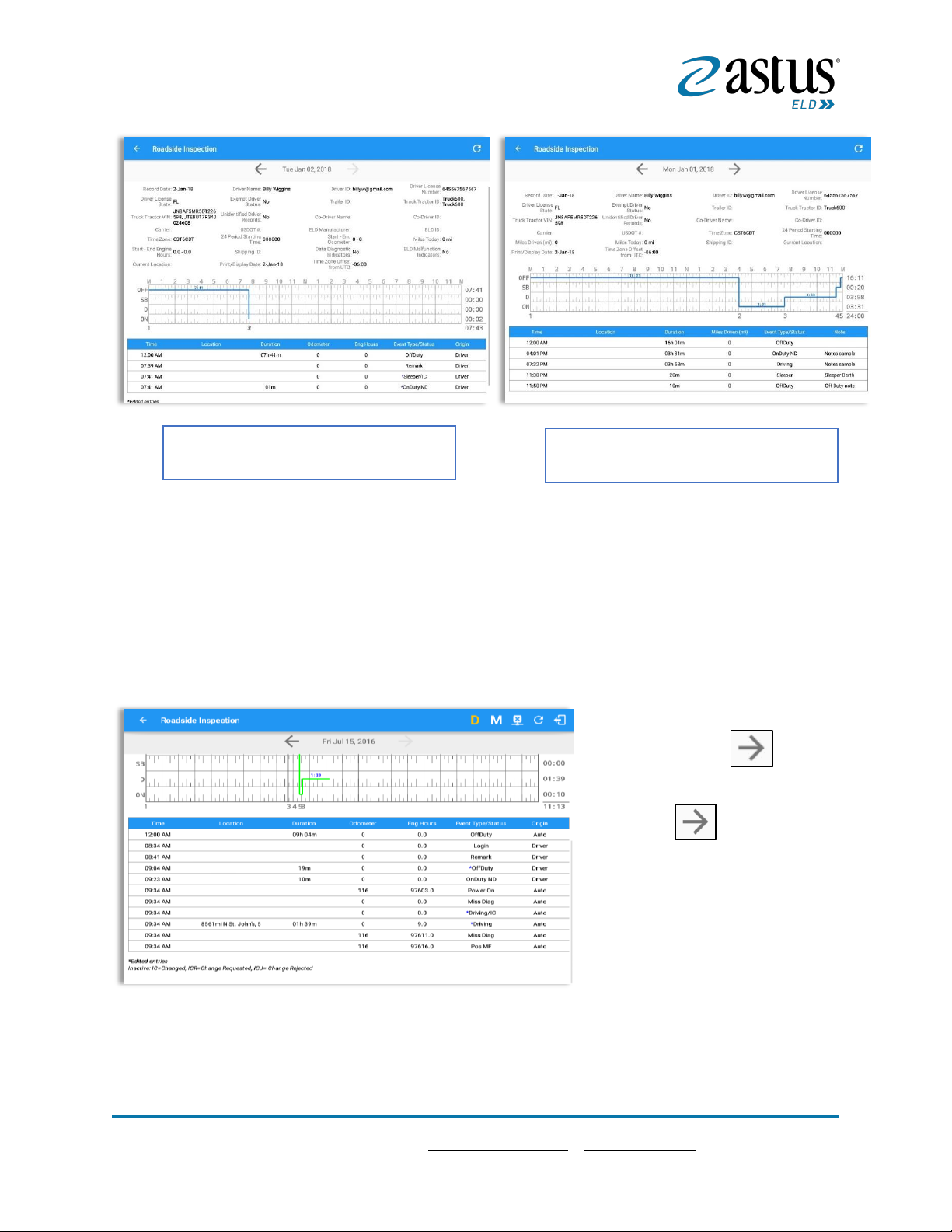

Note:

• Automatic ‘Remarks’ will not be displayed in the screen such as ‘Pre-Trip not performed’,

‘Authenticate’ and border crossing remarks if current vehicle is in AOBRD mode.

• Notes entered in an added event will be displayed in the Roadside Inspection screen under the

"Note" column when in AOBRD mode.

• Driver that is being inspected must provide a password when exiting from the Roadside

Inspection Screen.

Tap the Previous button
to navigate to the previous log

or tap the Next button
to navigate to the next log.

6.4 Roadside Inspection Screen – Data Transfer

Roadside Inspection screen for vehicle

in ELD mode

Roadside Inspection screen for vehicle

in AOBRD mode

86

Page86

1 [phone]| [e-mail] | www.astus.com

From the Roadside Inspection
Screen, tap the Data Transfer
button.

Select an option to transfer the

compilation of the driver’s ELD

records.

87

Page87

1 [phone]| [e-mail] | www.astus.com

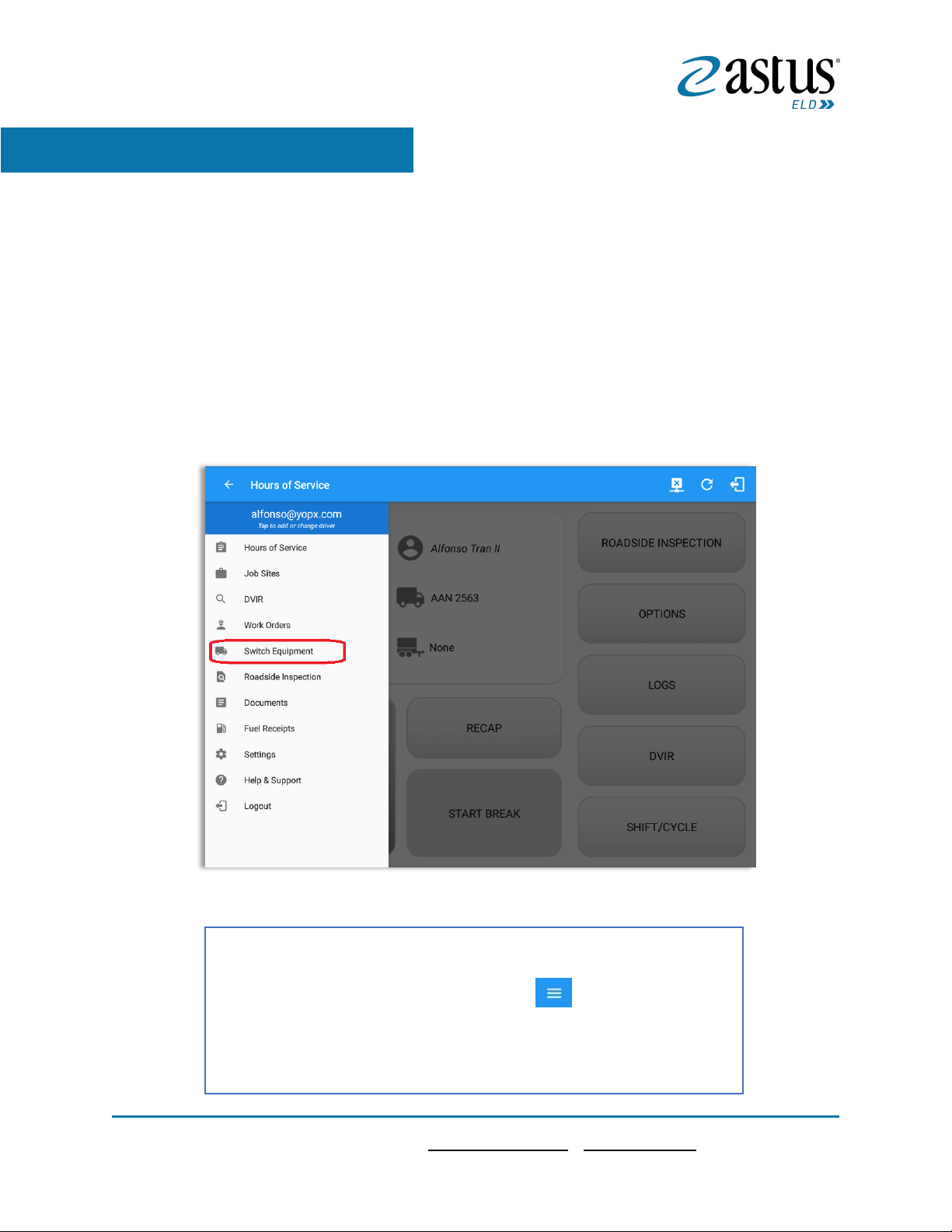

7 Switch Equipment

The Switch Equipment feature allows a driver to easily ‘switch’ from one vehicle to
another. It also assists in monitoring and documenting the vehicles being used as part of
their driver logs.

There are a number of ways to access this feature:

7.1 Switch Equipment – Main Navigation Menu

1. Slide the screen from left to right to show the Main Navigation Menu.

Or

2. Tap the Main Navigation Hamburger icon to show the Main

Navigation Menu.

Tap the Switch Equipment option within the Main Navigation Menu.

88

Page88

1 [phone]| [e-mail] | www.astus.com

7.2 Options Menu

7.3 Switch Equipment – DVIR Screen

From the Hours of Service Main

Screen, tap the Options button

and then tap the Switch

Equipment button.

1. Slide the screen from left to right to show the Main Navigation Menu.

Or

2. Tap the Main Navigation Hamburger icon to show the Main Navigation Menu

Tap the DVIR option within the Main Navigation Menu.

3. Select the DVIR button from the Main Hours of Service Menu and then select the Switch

button.

89

Page89

1 [phone]| [e-mail] | www.astus.com

7.4 Switching Equipment

Select the Vehicle ID or Trailer
ID dropdown list and select the

required vehicle or trailer, then
tap the Switch button to switch
to the selected vehicle or trailer.

After tapping the Switch button,
you will be asked if you would
like to perform a vehicle DVIR,
tap the YES button to navigate
to the Vehicle DVIR screen or
tap the NO button to close the
dialog box and continue.

Switch equipment can be
performed also in the
dashboard, by tapping the
vehicle/trailer icon.

Vehicles and Trailers can also be
filtered through text entry on
the vehicle/trailer text fields.
Text entry availability starts if the
total number of trailers/vehicles
numbers 250 or more.

90

Page90

1 [phone]| [e-mail] | www.astus.com

You can add, update and delete vehicles or trailers by tapping the Manage button;
this will display the Manage Vehicles/Trailers Screen.

The 'Manage' button is only available given a situation, that the driver is an asset
admin and that the 'Manage Equipment' option (found in the Equipment
Management Page) is also enabled. Otherwise, the button will not be available on
the Switch Equipment dialog.

Switching or selecting a Vehicle with a preconfigured VBUS device enables the app to
find and connect on the match device.

Note: On the VBUS Settings, VBUS Data and Automatic Configuration should be enabled.

7.5 Managing Vehicles / Trailers

91

Page91

1 [phone]| [e-mail] | www.astus.com

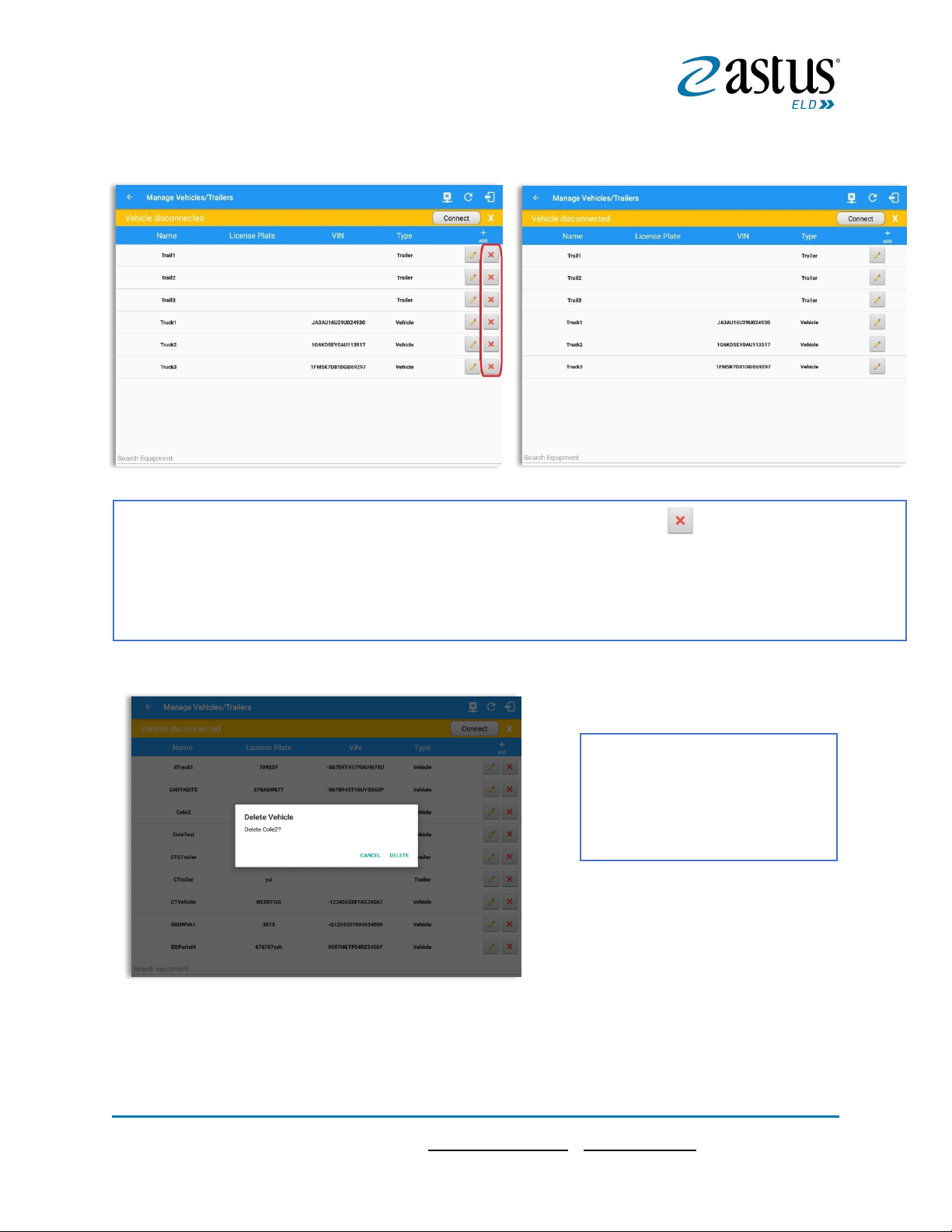

7.5.1 Manage Vehicles / Trailers – Delete

Tap the DELETE button within
the Delete Vehicle dialog to
confirm deletion or, tap the
CANCEL button to return without
deleting.

To delete any of the vehicles or trailers listed, tap the icon

Vehicles/Trailers made in the portal can be edited or deleted can be in the HOS app and vice versa.

Note: If "Allow drivers to delete equipment" is unchecked in the portal then delete button will not be displayed
or disabled in the screen.

92

Page92

1 [phone]| [e-mail] | www.astus.com

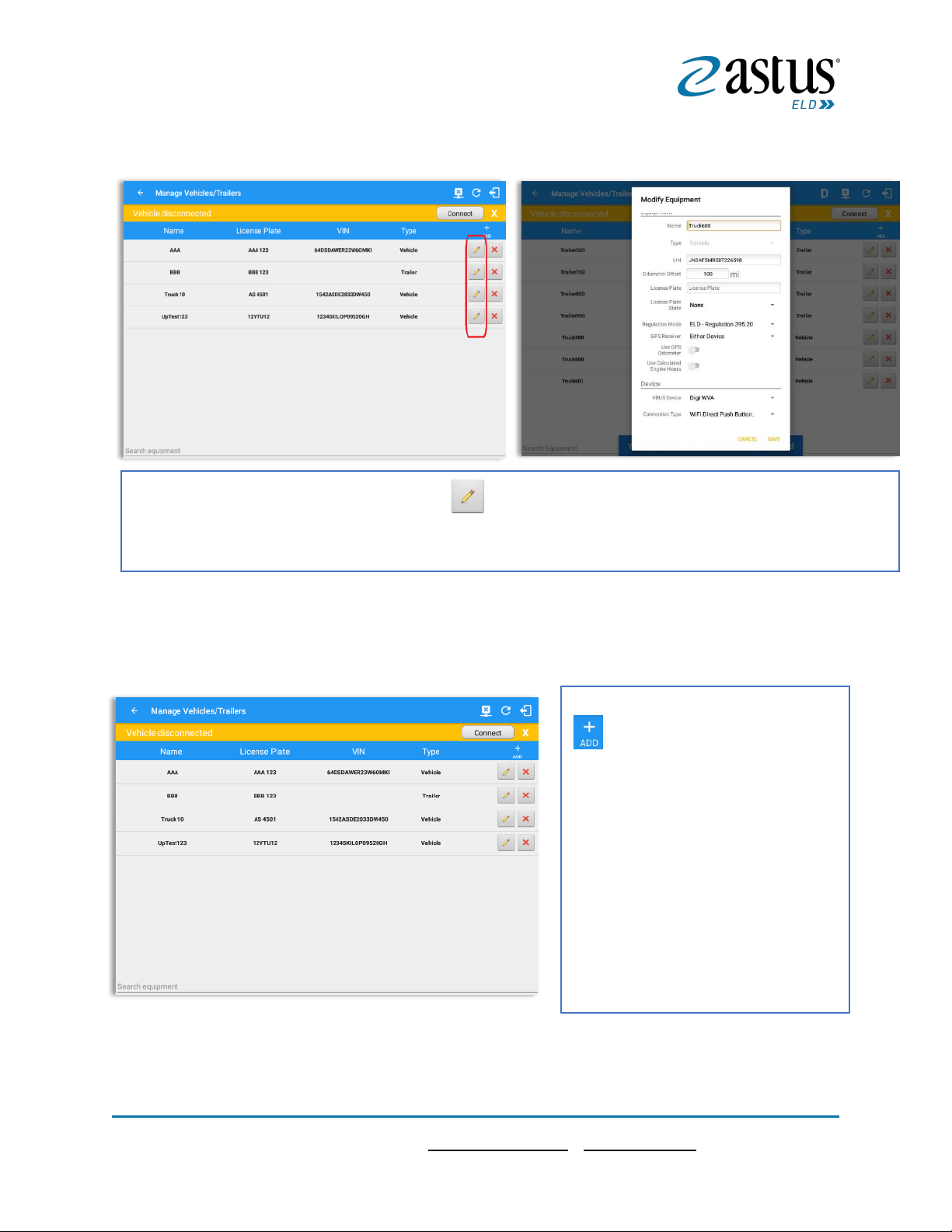

7.5.2 Manage Vehicles / Trailers - Edit

7.5.3 Manage Vehicles / Trailers – Add

To edit any of the trucks or trailers listed, tap the icon, make any required changes to the selected
truck or trailer and then tap the SAVE button to save the changes or, tap the CANCEL button to return
without saving.

To add a new truck or trailer, tap the

button, this will open the Add
Truck dialog, enter the following
details:

Vehicle Name – Truck or trailer name
VIN – Vehicle Identification Number
License Plate – license number
Vehicle Type – Vehicle or Trailer

Fill in the Device Information section
to pre-configure the Vehicle to a
specific VBUS device.

93

Page93

1 [phone]| [e-mail] | www.astus.com

When creating a new equipment, the default selected device option is set to "None".
Also, If the option "None" is selected, on the create/edit equipment screen, all other
fields on the ELD configuration section will be hidden.

Note:

• The connection type defers on the VBUS Device selected.

• For iOS app, VBUS Device information is not displayed. Only for Android application.

• If user selects “Digi WVA” in connection type, then admin password field is required.

• Firmware version field can be manually populated. For some VBUS device, it is already pre-

populated.

• In the Portal, an ability to determine on which VBUS devices will be displayed is present.

Accordingly, on the app, only those devices selected on the portal will be displayed in the “VBUS
Device” menu.

Tap the ADD button to save the new truck or trailer or Tap the CANCEL button to cancel adding the
new truck or trailer.

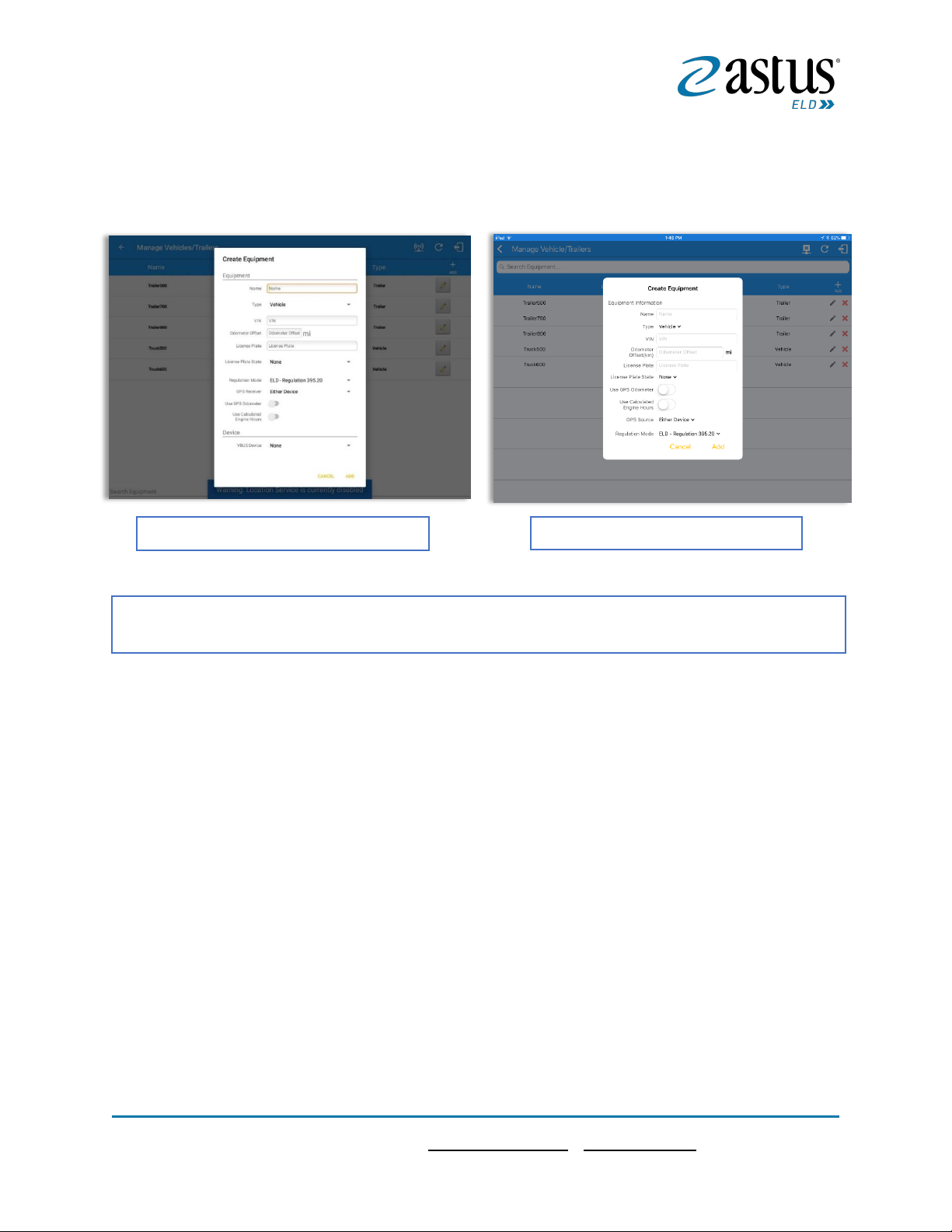

Android app Create Equipment dialog

iOS app Create Equipment dialog

94

Page94

1 [phone]| [e-mail] | www.astus.com

Notes:

• Drivers on the app cannot change the Regulation Mode unless the driver is allowed to do so by

enabling the following account control within the Account Settings->Carrier Information tab->
‘Allow drivers to specify vehicle HOS Regulation Mode (AOBRD or ELD).

• When in AOBRD mode, disables the data transfer button in the Options screen and changed the

button to ‘Email Logs’ in the Roadside Inspection screen.

• When the driver is in AOBRD mode then the edit "*" sign & events will not be displayed in the Edit

Logs screen and on the Certified PDF logs.

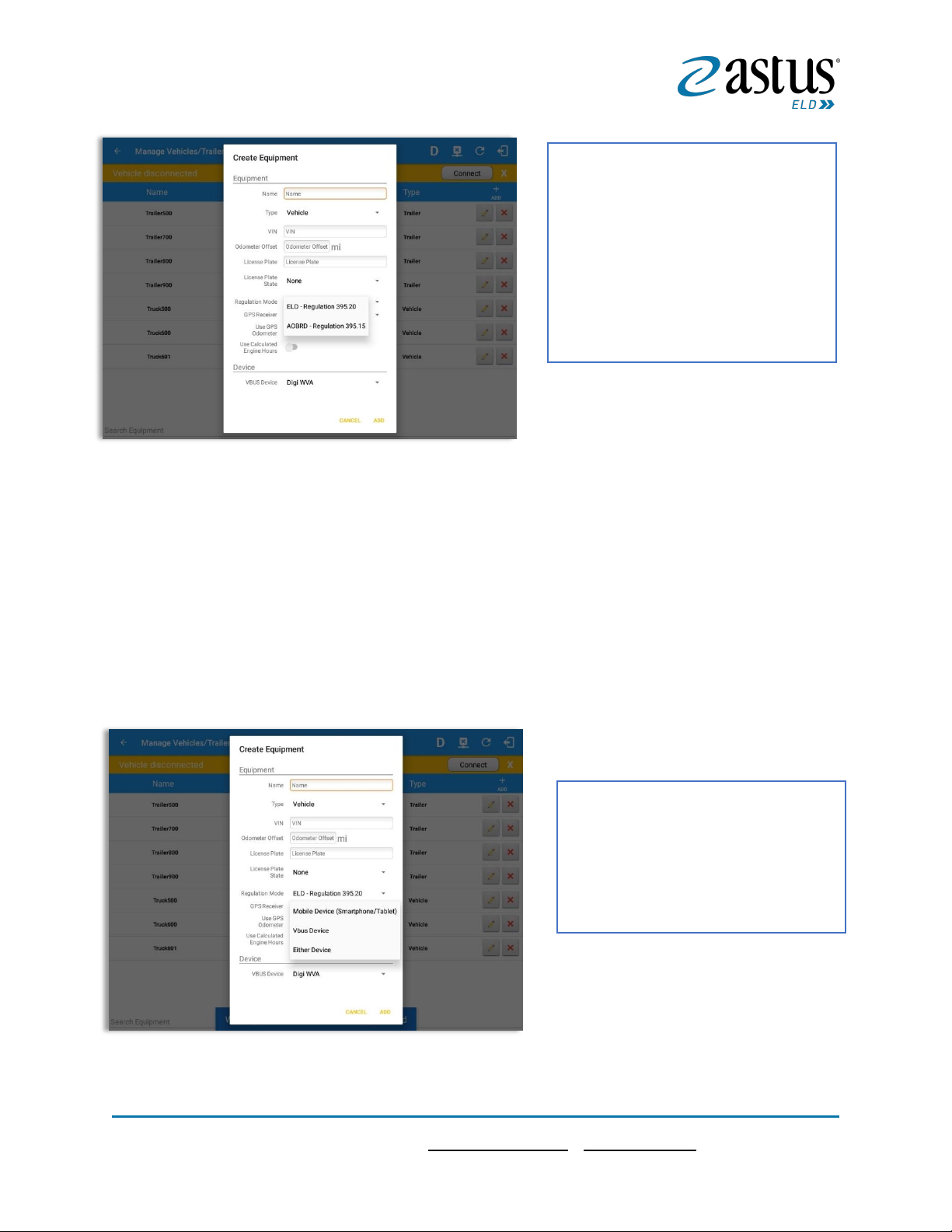

A Regulation Mode option to switch
between 395.15 (AOBRD) and 395.20
(ELD) support is available. When

395.15 (AOBRD) mode is selected it
turns off all 395.20 (ELD) features. It

simply records the drivers’ events

regardless to the FMCSA rules. ELD is
set as the default regulation mode for
all new equipment.

A GPS Receiver option allows the
user to change how to get the device
GPS positions. The GPS Receiver
settings can be set in a specific
vehicle in the portal->equipment
management page.

95

Page95

1 [phone]| [e-mail] | www.astus.com

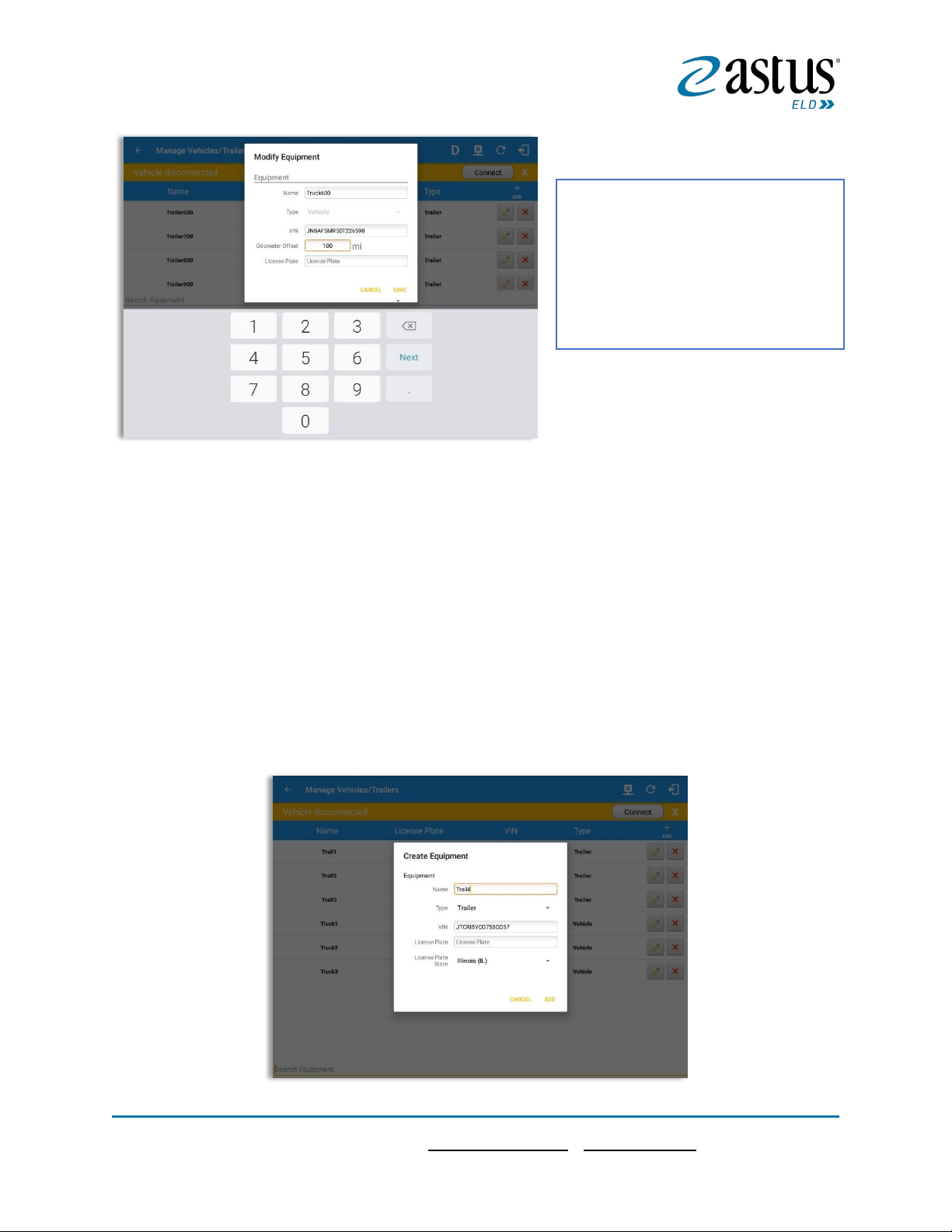

Notes:

• Negative entry for odometer offset field is allowed.

• Odometer offset does not affect app screens like Roadside Inspection and Certified Logs PDF.

• If the saved offset is 100, and the logs have odometer values of 10, 20, 30, 40, will display to the

driver 110, 120, 130, 140 (Odometer + Offset).

• If the offset is 100, and the driver edits an event to change the odometer from 140 to 130, will

display 130 - 100 (the Offset) or 30 to the log.

When creating/modifying an equipment with a selected type of “Trailer”, the VIN field is

also enabled but is not required when saving. VIN field does not require valid format.

If the VIN is optionally populated and that the source is not the engine ECM, it will be auto
converted to capital letters when saved.

An Odometer Offset allows driver or
personnel to adjust the odometer so
that the driver will see an odometer
matches their dashboard, rather the
engine odometer. Possible scenario is
when the engine is replaced and the
value is not yet synchronized.

96

Page96

1 [phone]| [e-mail] | www.astus.com

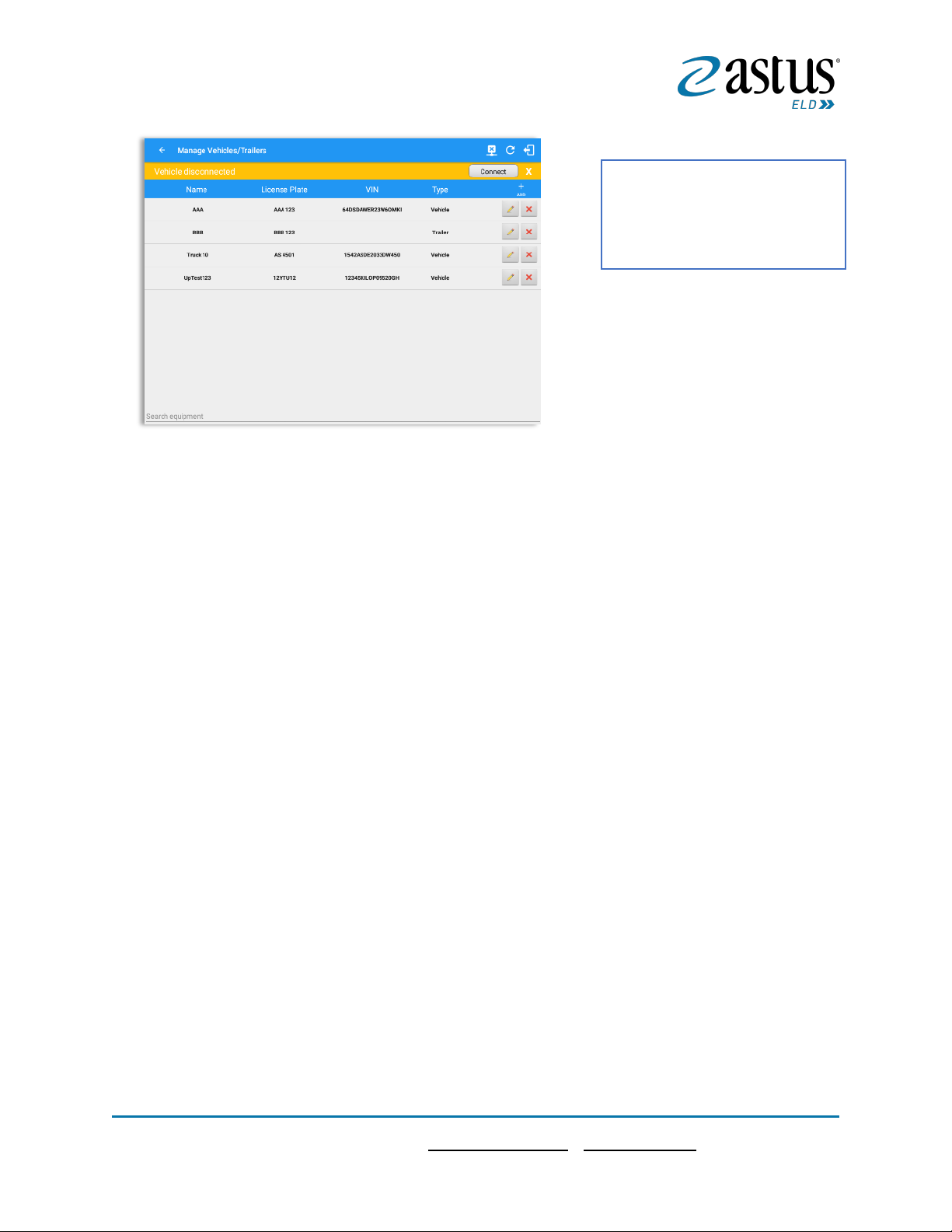

Once the new vehicle or trailer
has been added, it will be
displayed in the Manage

Vehicles/Trailers screen.

97

Page97

1 [phone]| [e-mail] | www.astus.com

8 Documents

The Documents feature provides an easy way to capture, view and email documents
related to hours of service activities. This includes documentation such as bill of lading,
fuel receipts, accident photos etc.

There are a number of ways to access this feature:

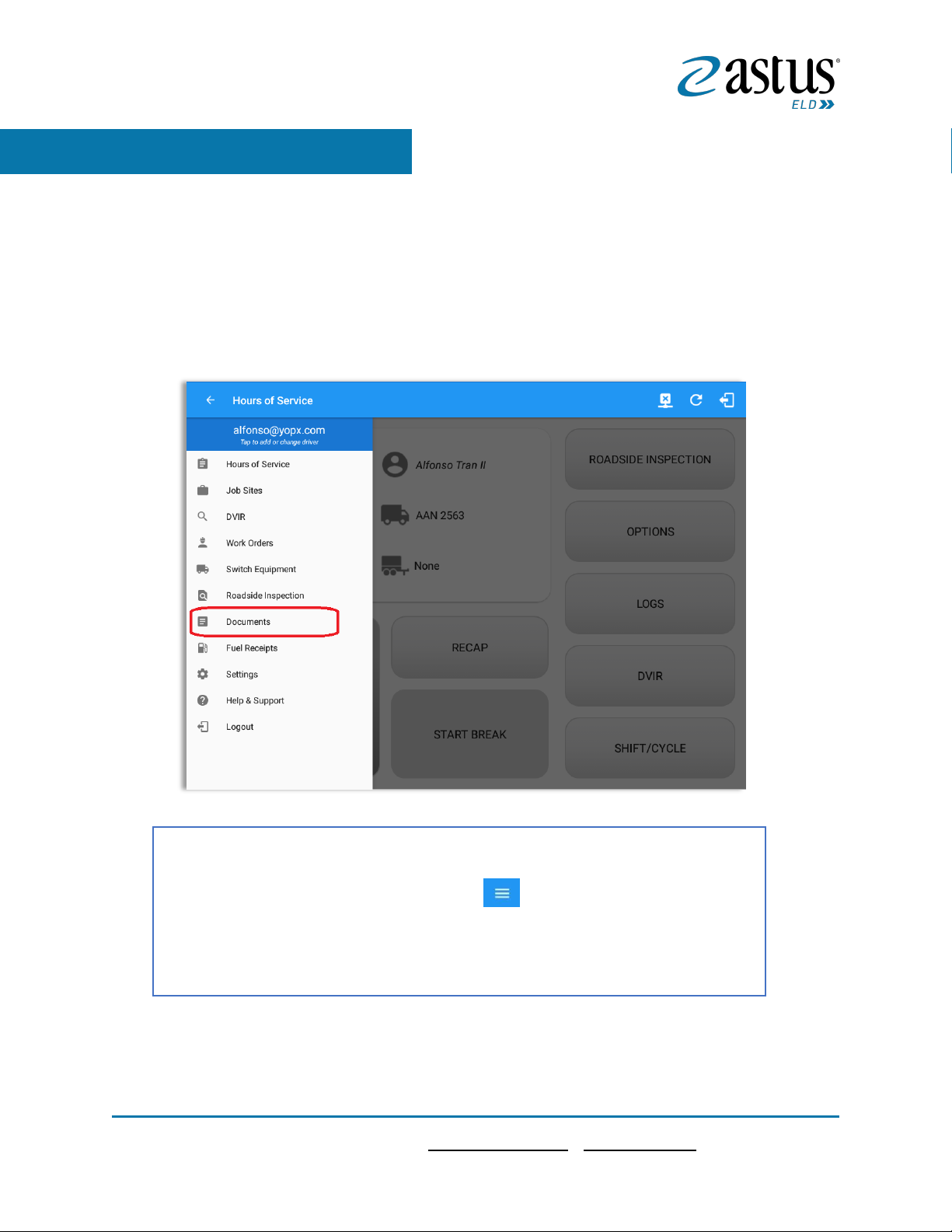

8.1 Documents – Main Navigation Menu

1. Slide the screen from left to right to show the Main Navigation Menu.

Or

2. Tap the Main Navigation Hamburger icon to show the Main Navigation
Menu.

3. Select the Documents button from the Main Hours of Service Menu.

98

Page98

1 [phone]| [e-mail] | www.astus.com

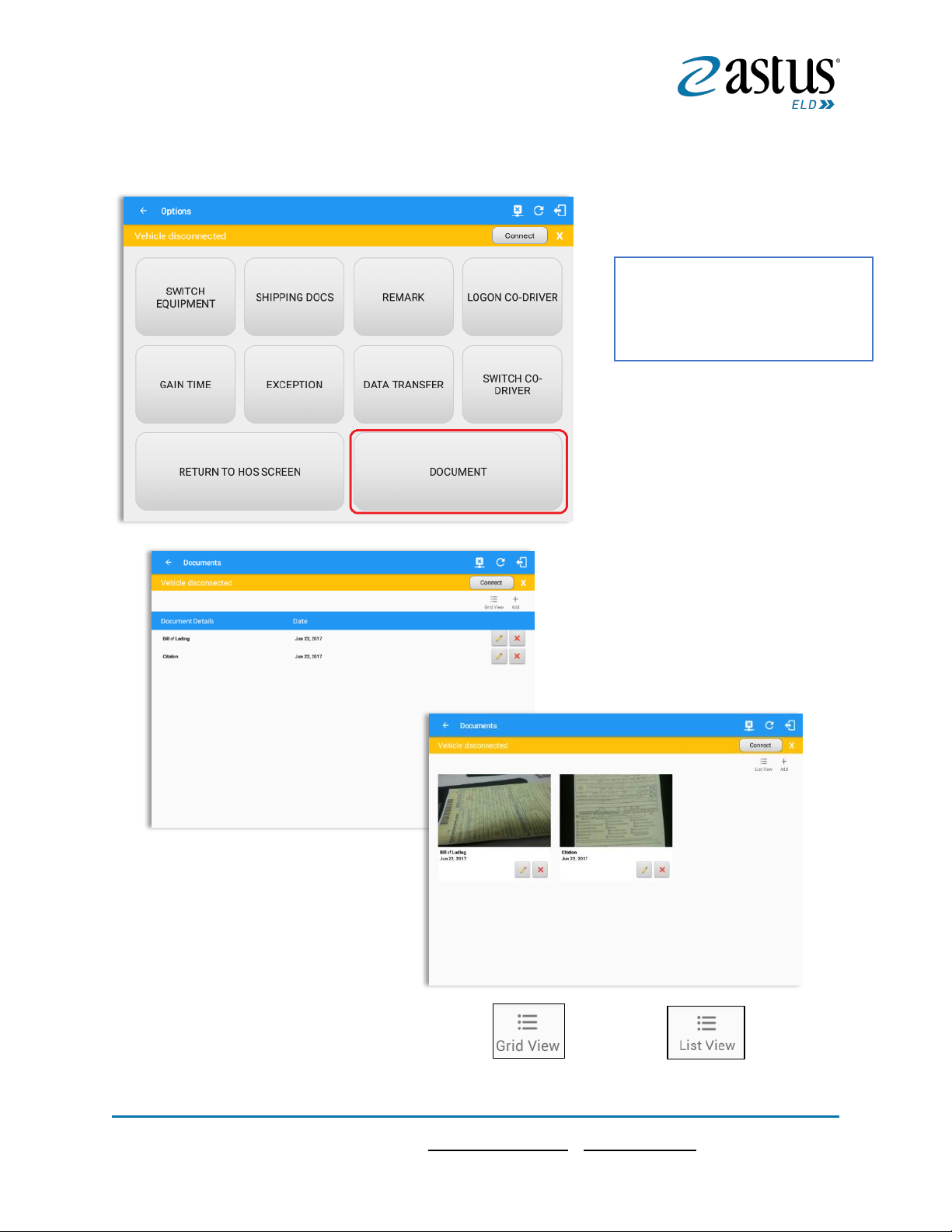

8.2 Documents – Options Menu

Note: The Documents screen has two views; Grid View or ‘List View’ .

From the Hours of Service Main
Screen, tap the Options button

and then tap the Document
button.

99

Page99

1 [phone]| [e-mail] | www.astus.com

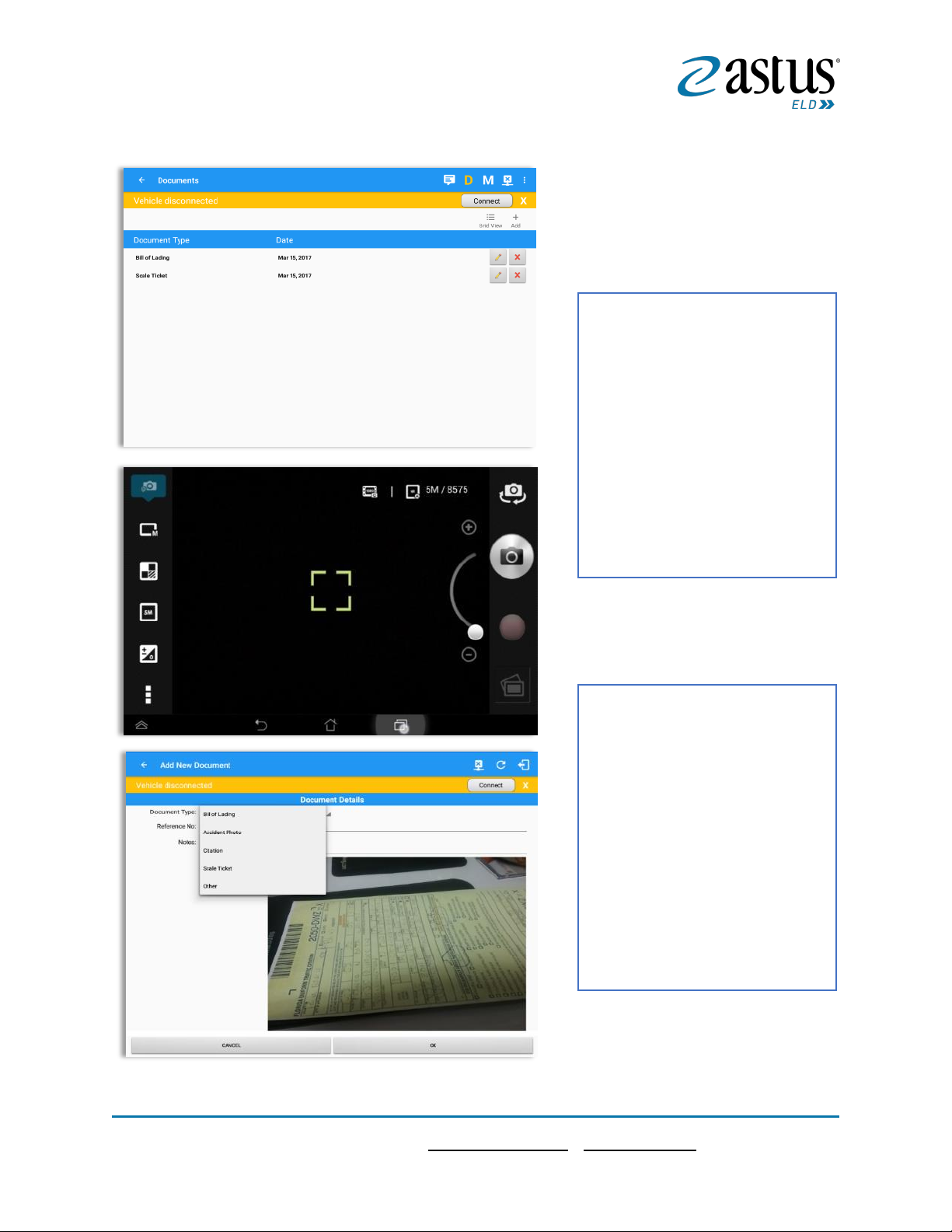

8.3 Adding Documents

Tap the Add button, the camera
app will open and you can then
take a picture of the document
or damage etc.

After tapping the Capture Image
button, tap the
Save button to save the image
and add it to your document. You
can also discard the image if you
are not happy with the picture by
tapping the Retry button.

Select the type of document you
wish to save by tapping the
Document Type drop down list
and selecting from the available
options.

Enter your Reference Number
Add any Notes to support the
image.

Tap the OK button to save and
continue or tap the CANCEL
button to return without saving.

100

Page100

1 [phone]| [e-mail] | www.astus.com

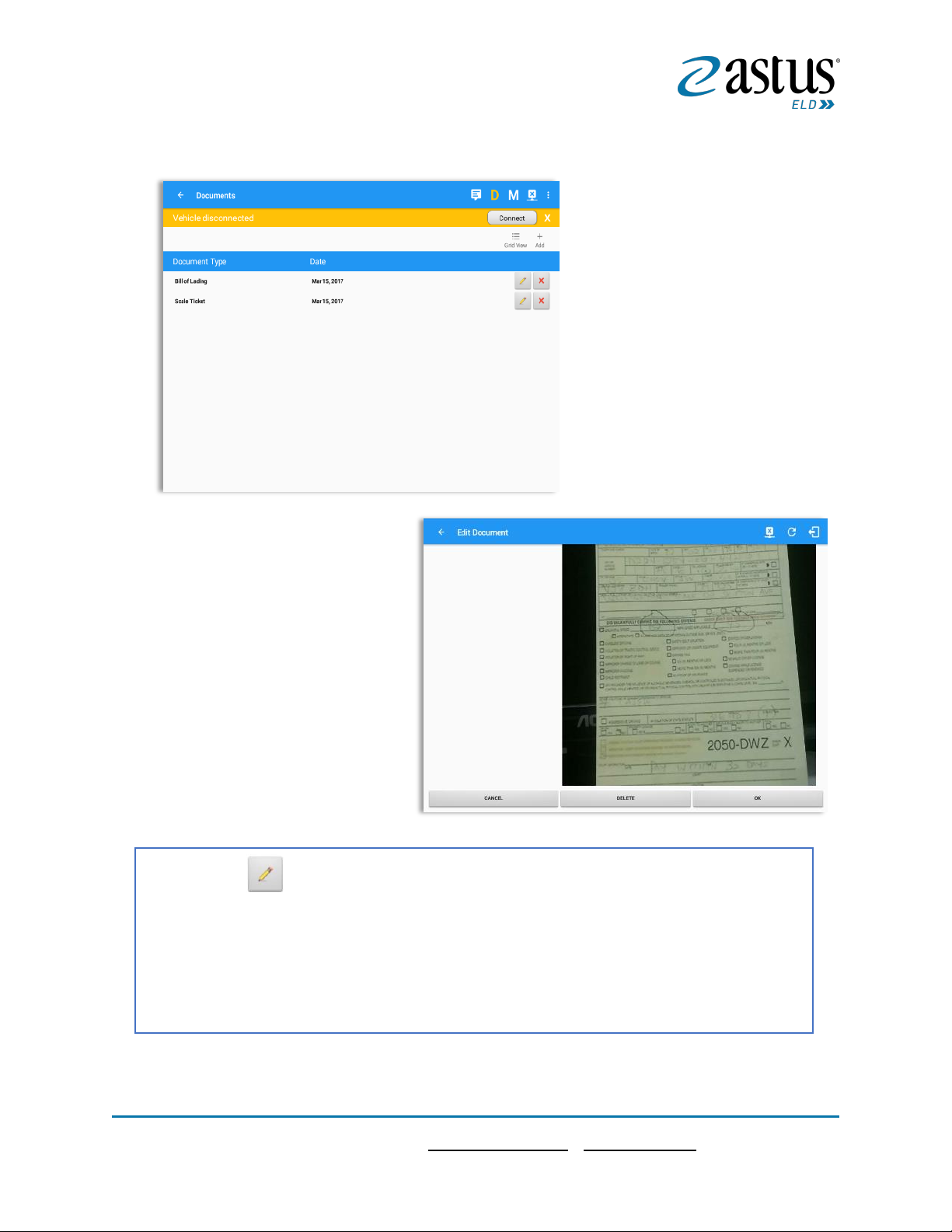

8.4 Editing / Deleting a Document

Tap the Edit button adjacent to the relevant document, make any required changes.

Tap the OK button to save the changes.

Tap the CANCEL button to return without saving the changes.

Tap the DELETE button to delete the document completely.
