AstroStart RSS-5224 User Manual

2-WAY REMOTE

CONTROL ENGINE

STARTER

USER MANUAL

Model RSS-5224

For all hybrid, gas- and diesel-

powered vehicles.

(FRANÇAIS AU VERSO)

ONSULT SAFETY PRECAUTION SECTION

BEFORE USING THIS PRODUCT.

OME FEATURES MAY REQUIRE

PATENT NOS

CAN 1.130.426

USA 4.345.554 - 5.614.883

- 5.617.819 - 5.673.017

AND OTHER PATENTS PENDING

ADDITIONAL MATERIAL (NOT INCLUDED).

GOVERNMENT REGULATIONS

This device complies with the requirements of Industry Canada (IC) - Management of Radio-frequencies, as specified in document CNR-210. Its use is authorized only on a no-interference, no-protection basis; in

authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and (2) this device must accept interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

Warning:

Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the equipment.

other words, this device must not be used if it is determined that it causes harmful interference to services

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.  Consult the dealer or an experienced radio / TV technician for help.

ELECTRONICS

188 St-Francois Xavier

Delson, Qc

J5B 1X9

www.astroflex.com

THANK YOU FOR CHOOSING AN ASTROSTART REMOTE CAR STARTER!

Like you, Astroflex is concerned with the environment.

This is why we suggest using the two-minute runtime

when you remote start your vehicle to warm up engine fluids.

We take this opportunity to remind you to properly defrost your windows

and remove all the snow from your vehicle before driving on public roads.

Rolling igloos are extremely dangerous!

We wish you an excellent journey with your remote engine starter!

USER GUIDE FOR RSS-5224 REMOTE ENGINE STARTER.

The RSS-5224 is a Bi-directional remote engine start systems. This means that it can communicate both ways and therefore return an acknowledgment to the transmitter and/or communicate the status of the vehicle.

An optional alarm kit (P/N ALA-OP) can be added to the system. If this is the case, functions inherent to the alarm system described in this manual will be attributed to it.

The functions relative to the safety system described in this manual apply only to remote starter to which an alarm kit has been added.

The RSS-5224 offers a keyless entry feature allowing the user to operate the door locks as well as access to the trunk of the vehicle. These features are optional and may require additional material and/or wiring during installation.

Table of contents

SAFETY PRECAUTIONS ____________________________________________________________________________ 4

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES---------------------------------------------------------------------------------------4

PREPARING SYSTEM----------------------------------------------------------------------------------------------------------------------------------------5

THE REMOTE CONTROL ___________________________________________________________________________ 6

PAGER --------------------------------------------------------------------------------------------------------------------------------------------------------8

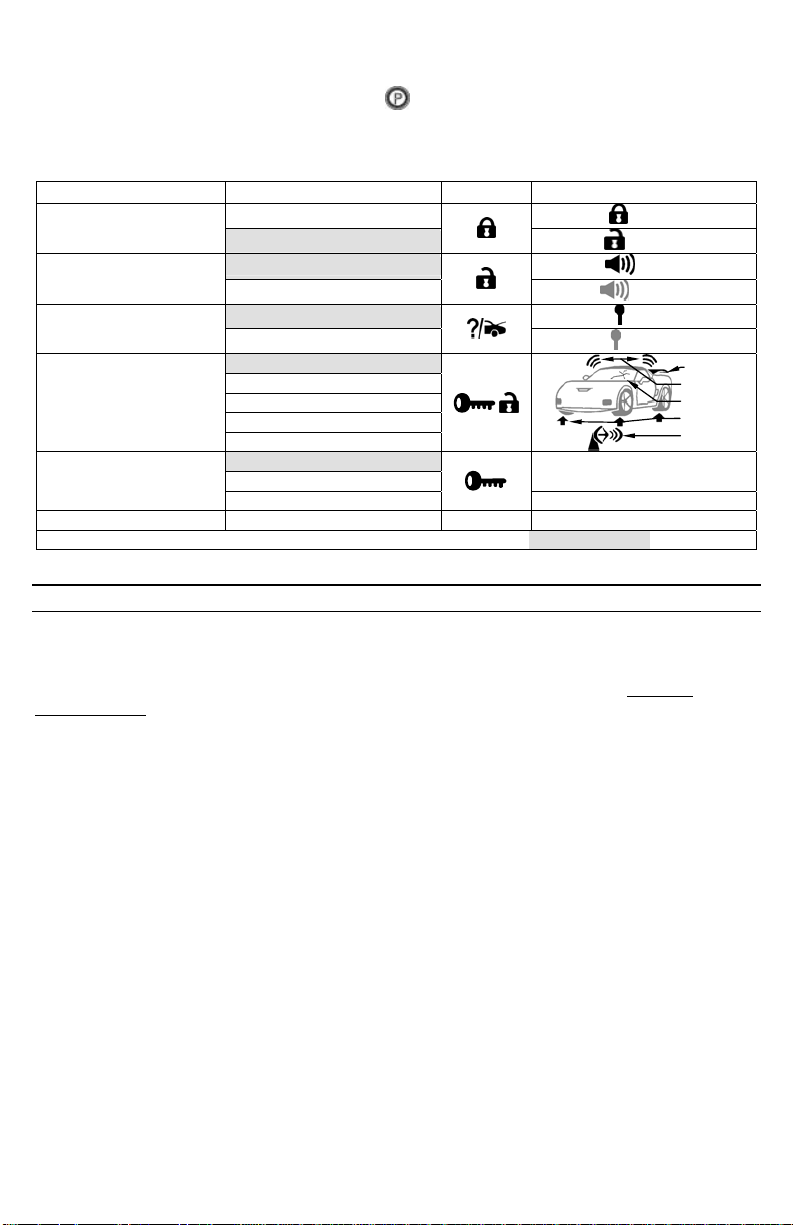

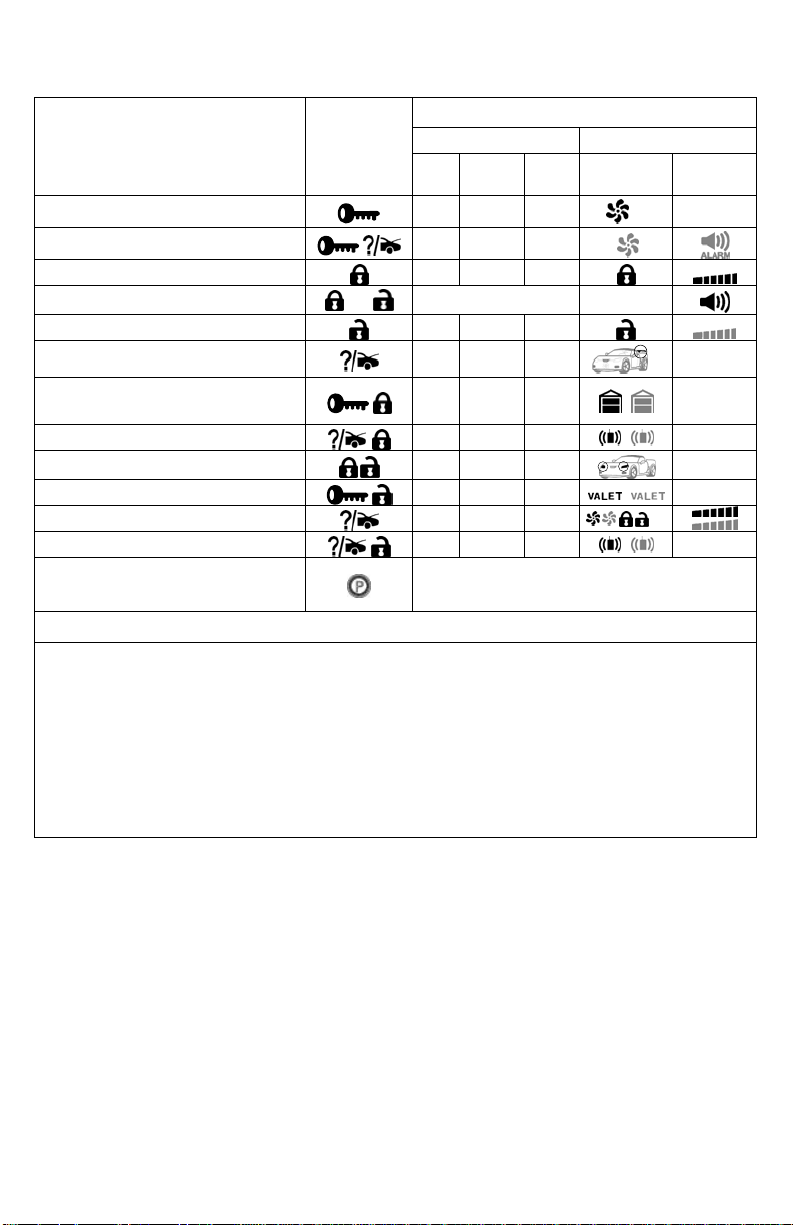

TABLE OF COMMANDS ____________________________________________________________________________ 9

START COMMANDS ---------------------------------------------------------------------------------------------------------------------------------------10

SECURITY SYSTEM ----------------------------------------------------------------------------------------------------------------------------------------13 LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING--------------------------------------------------------------------------17 OTHER COMMANDS ---------------------------------------------------------------------------------------------------------------------------------------19

CODE LEARNING OF ADDITIONAL TRANSMITTER(S) __________________________________________________ 21 SAFETY CHECKS ________________________________________________________________________________ 21

HOOD SWITCH ---------------------------------------------------------------------------------------------------------------------------------------------21 GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES-------------------------------------------------------------------21 GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES-----------------------------------------------------------------------22

REPLACING OR BOOSTING VEHICLE BATTERY_______________________________________________________ 22

SAFETY PRECAUTIONS

Before using this product, carefully read the following safety precautions.

GENERAL RULES

• Never perform a remote start

• Do not allow

control (continuous mode).

• Immediately report any malfunction to the AstroStart dealer that performed the installation.

• Under no circumstance can this product or its use be modified.

• Always turn off the main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.

• Always turn off the main switch when not using your remote starter for extended periods.

• Keep remote controls away from children

• Have your engine tuned regularly to ensure optimum performance of your remote starter.

• Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.

• Regularly check safety features that stop engine (see SAFETY CHECKS on page 20.)

• Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is

unattended in a public place.

• To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check and/or tune the remote starting system.

• Always advise service personnel that your vehicle is equipped with a remote starter.

• We strongly recommend

• All users of the vehicle should be aware

• Make sure that the warning sticker is present on the driver's window.

SPECIFIC RULES FOR MANUAL TRANSMISSION VEHICLES

• Make sure that the parking brake is operational, i.e. it can prevents the vehicle from moving

• If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the

liftgate or rear hatch) or in the case of a convertible vehicle, it is strongly recommended detector (microwave) installed with the system. This device prevents the engine from starting should any activity be detected near the gearshift.

any person or animal to remain inside the vehicle when the engine is running under remote starter

when a person or animal is inside the vehicle.

that you have your remote starter checked annually. Contact a dealer in your area.

of the safety precautions and operation procedures.

to have a motion

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES

Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in neutral position when you exit the vehicle. This series of actions is called a "Safety sequence" and is aimed at preventing any remote start in situations where remote starting the engine would not be safe. Should the hatchback or any door be opened at any time, the intrusion will be detected and the safety sequence will be cancelled by the system, thus preventing a remote start. In such cases, the sequence must be r epeated to allow for an eventual remote start. The system offers two execution modes for the sequence. These options must be set at time of inst allation. The first mode is initiated by the parking brake and the other by the remote control. The safety sequence must be performed as follows.

EQUENCE ACTIVATED BY THE PARKING BRAKE .

1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.

2. Move gearshift lever to neutral.

3. Apply the parking brake Note: The system can be set - at time of installation - to require that the parking brake be applied once or twice. If set for two actuations, pause one second between the two.

4. Remove key from ignition (the system keeps the engine running).

5. Exit the vehicle.

6. Within 60 seconds, close all doors.

7. The system will stop the engine exce pt if Turbo Mode or Continuous Mode is active and blink the parking brakes once to confirm the sequence is valid (vehicle is ready for a remote start command).

SEQUENCE ACTIVATED BY THE REMOTE CONTROL

1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.

2. Move gearshift lever to neutral.

3. Apply parking brake.

4. Press

5. Remove key from ignition (the system keeps the engine running).

6. Depending on programmed option:

Parking lights will blink once to confirm that the sequence is valid (vehicle is ready for a remote start command).

NOTES : If you release the brake pedal and depress it once more during or after the execution of the safety sequence, the safety sequence will be invalidated and any remote start will be impossible.

If the engine stops when the key is removed from the ignition, the safety sequence is invalid. Perform a new safety sequence. If problem persists, consult your installer.

button on your remote control.

Within 60 seconds exit the vehicle,

close back all the doors then, using

the remote, send the STOP command.

Note that the Turbo mode is

not available with this option.

Once Twice

Within 60 seconds exit the vehicle

then close back all the doors.

The system will stop the engine

except if either the Turbo mode

or the continuous mode is activated

PREPARING SYSTEM

When you exit the vehicle, you need to prepare the remote starter for its next use.

• If the vehicle is equipped with a manual transmission, make sure that the remote starter system has detected a valid safety sequence.

• If the vehicle is equipped with an automatic transmission, make sure that the transmission lever is in the "P" position.

• Set heating/air conditioning controls to desired position (when the remote starter starts your engine, it will also turn on your climate control system).

• Turn your windshield wipers to the OFF position to avoid strain on the mechanism should a start command be sent to the vehicle when, for example, snow prevents the wipers from moving.

• Make sure that the headlights are turned off.

• Be sure not to leave your keys inside the vehicle. Certain rearming functions can cause the doors to lock

automatically.

THE REMOTE CONTROL

The remote control can access four distinct remote starters. A maximum of four remote controls can be assigned to your vehicle. See your dealer for additional remote controls. NOTE: The range of your remote control can be affected by a weak battery, interference from nearby metal structures, hydro

poles, or crowded parking lots.

USING YOUR REMOTE CONTROL

To send a command, press for two seconds on the appropriate button. Command may not be sent if the button is not pressed long enough. The remote control beeps when a button is pressed, then emits eight short beeps during the

transmission, i.e. about one second after the button was pressed. Your remote control can transmit on four different channels, allowing control of four separate

vehicles. Only the “Panic” command is transmitted on both channels simultaneously. To select a different channel, press the “P” button located on the back and hold it for 2

secondes, when the button is released the transmitter passes to the next channel. The remote control shown may differ from that included in the kits. Your system may be programmed in such a way that it can distinguish between two groups of

remote controls (maximum: two remotes per group). These groups let you activate predefined settings (seat, mirror and other) when unlocking certain vehicles (additional optional equipment required).

As soon as a command is sent, the remote switches over to standby mode in order to receive and display confirmations sent by the command module installed in the vehicle. These confirmations are sent to all the programmed remote.

These signals are transmitted only once and could be neutralized by radio or electromagnetic interferences generated by electronic devices in the vicinity.

If no confirmation is received in a given location, move away from electronic devices and activate the "Status" command (

). The start module will inform you of the status of door locks, alarm, and running of the engine. Note that the communication between the vehicle and the transmitter operates in only one direction at a time. This is why it is recommended to wait for the confirmation before sending another command. Otherwise, the vehicle and the transmitter could transmit at the same time wich would block the command as well as the returned confirmation.

Out of range

If the vehicle is out of range, the transmitter will emit a soft chirp after 3 seconds to indicate that the command has not been received by neither the module nor the transmitter.

REPLACING THE BATTERY

The LCD of the 4-button remote has a battery icon telling you when to replace the battery. We strongly recommend keeping a replacement battery in your glove compartment.

The remote controls require one AAA battery. See your dealer for spare batteries. To replace the battery, slide the latch sideways and remove the battery cover on the back of the remote control case,

remove old battery and replace it with a new one. Make sure the battery is placed the right way (see pictogram inside the cover).

CONFIRMATIONS EMITTED BY THE REMOTE

An audible confirmation (piezo) and a visual confirmation (LCD display) are emitted each time a command is transmitted. The LCD displays the vehicule status at all time, the display is refreshed on every transmission or when the status of the

vehicle changes pertaining that the “Status confirmation” function is enable. The display shows the last confirmation received.

The following diagram shows the usefulness of each icon of the display. Descriptions in CAPITAL letters show confirmations pertaining to the security syst em’s functions.

1 2 3 4 5 6

25 24 23

22 21 20 19 18 17

Two types of confirmations are displayed on the remote : Command confirmation: These confirmations are command acknoledgement, the icon corresponding to the command is

displayed to confirm reception of the command. Status confirmations : These confirmations are displayed when the status of a zone, monitored by the system, changes.

e.i. : door openning, security system alarm state, etc. Command confirmations are returned immediatly following a command transmission whereas the status confirmations may

be returned up to 12 seconds after the event appened depending on the communication protocol between the hand-held unit and the vehicle.

Remarks: When the remote receives a confirmation that is intended to a vehicle other that the one actually selected, most audible confirmations are made more descret, vehicle icon flashes (1-4) to warn you that the display reflect the status of that specific vehicle.

When a command is transmitted, the vehicle selection gets back to the previously selected unless the confirmation was related to an alarm condition.

In that case the selected vehicle is temporarely changed, to allow stopping the alarm condition without having to change the vehicle selection, then gets back to previously selected when the alarm condition is stopped.

Out of range : In the event that the environement prevents the confirmation from being received by the remote control, all icons are cleared out. In this case, resend the command or send the status command to refresh the display.

1 Transmission 14 Battery charge indicator 2 Vehicle out of range 15 Auxiliairy outputs status

3 Reception 16 Sentinel mode status

4 Unlocking 17 SECURITY SYSTEM STATUS

5 Locking 18 ULTRASONIC SENSOR

11 12 13

PRE-ALERTMD

Panic / PRE- ALERTMD / ALARM 8 ALARM 21 Remote starter status 9 SHOCK SENSOR 22 HOOD STATUS

10 FEILD DISTURBANCE SENSOR 23 TRIGGERED ZONES 11 TRUNK LID STATUS 24 Valet mode status 12 GLASS BREAKAGE SENSOR 25 Vehicle identification 13 DOORS STATUS

19 IGNITION STATUS SENSOR 20 TILT SENSOR
