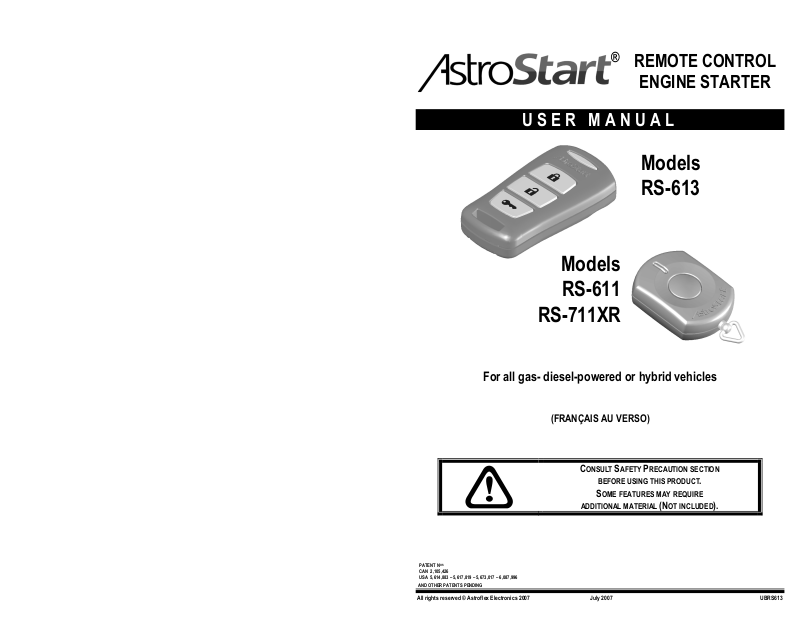

AstroStart RS-611, RS-711XR User Manual

REMOTE CONTROL

ENGINE STARTER

USER MANUAL

Models RS-613

Models

RS-611

RS-711XR

For all gas- diesel-powered or hybrid vehicles

(FRANÇAIS AU VERSO)

ONSULT SAFETY PRECAUTION SECTION

BEFORE USING THIS PRODUCT.

OME FEATURES MAY REQUIRE

PATENT NOS CAN 2,105,426 USA 5,614,883 – 5,617,819 – 5,673,017 – 6,087,996

AND OTHER PATENTS PENDING

ADDITIONAL MATERIAL (NOT INCLUDED).

GOVERNMENT REGULATIONS

This device complies with the requirements of Industry Canada (IC) - Management of Radio Frequencies, as specified in document CNR-210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and (2) this device must accept interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the distance between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio / TV technician for help.

Warning:

Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the equipment.

ELECTRONICS

188 St-François Xavier

Delson, Qc

Canada

J5B 1X9

www.astroflex.com

THANK YOU FOR CHOOSING AN ASTROSTART

REMOTE CAR STARTER!

Like you, Astroflex Electronics is concerned with the environment.

This is why we are suggesting that you use the two-minute runtime

when you remote-start your vehicle to warm up engine fluids. Ask your dealer.

We take this opportunity to remind you to properly defrost your windows

and remove all the snow on your vehicle before driving on public roads.

Rolling igloos are extremely dangerous!

We wish you an excellent journey with your remote engine starter!

USER GUIDE FOR REMOTE ENGINE STARTER MODEL RS-611, RS-613, AND RS-711XR

Model RS-611 and RS-711XR are remote controls that offers the basic start functions including all the features required to achieve safe remote starting.

In addition to the starting functions, model RS-613 offers central locking features that allows you to control the door locks as well as releasing the trunk. These features are optional and may require additional material and connecting at time of installation.

Table of contents

SAFETY PRECAUTIONS ____________________________________________________________________________ 2

SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES -------------------------------------------------------------------------------------------------------------- 3 PREPARING SYSTEM ------------------------------------------------------------------------------------------------------------------------------------------------------------ 3

THE REMOTE CONTROL____________________________________________________________________________ 4

USING YOUR REMOTE CONTROL ------------------------------------------------------------------------------------------------------------------------------------- 4

TABLE OF COMMANDS----------------------------------------------------------------------------------------------------------------------------------------------------------- 4

THE START / STOP COMMAND------------------------------------------------------------------------------------------------------------------------------------------------ 5

OTHER COMMANDS (MODELS RS-613 ONLY) -------------------------------------------------------------------------------------------------------------------------------7

CODE LEARNING OF ADDITIONAL TRANSMITTER(S) ___________________________________________________ 9 SAFETY CHECKS__________________________________________________________________________________ 9

HOOD SWITCH-------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9 GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES --------------------------------------------------------------------------------------------10 GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES------------------------------------------------------------------------------------------------10

REPLACING OR BOOSTING VEHICLE BATTERY_______________________________________________________ 10

SAFETY PRECAUTIONS

Before using this product, carefully read the following safety precautions.

GENERAL RULES

• Never perform a remote start

• Do not allow

control (continuous mode).

• Immediately report any malfunction to the AstroStart dealer that performed the installation.

• Under no circumstance can this product or its use be modified.

• Always turn off the main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.

• Always turn off the main switch when not using your remote starter for extended periods of time.

• Keep remote controls away from children

• Have your engine tuned regularly to ensure optimum performance of your remote starter.

• Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.

• Regularly check safety features that stop engine (see SAFETY CHECKS on page 9.)

• Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is

unattended in a public place.

• To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check and/or tune the remote starting system.

• Always advise service personnel that your vehicle is equipped with a remote starter.

• We strongly recommend

• All users of the vehicle should be aware

• Make sure that the warning sticker is present on the driver's window.

SPECIFIC RULES FOR MANUAL TRANSMISSION VEHICLES

• Make sure that the parking brake is operational, i.e. it can prevent the vehicle from moving

• If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the

lift-gate or rear hatch) or in the case of a convertible vehicle, it is strongly recommended to have a motion detector (microwave) installed with the system. This device prevents the engine from starting should any activity be detected near the gearshift.

any person or animal to remain inside the vehicle when the engine is running under remote starter

when a person or animal is inside the vehicle.

that you have your remote starter checked annually. Contact a dealer in your area.

of the safety precautions and operation procedures.
