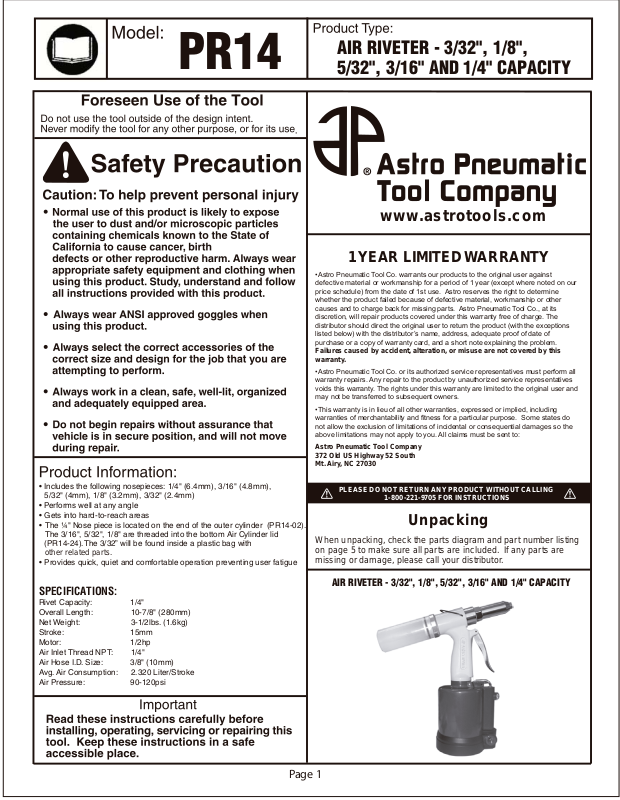

Astro Pneumatic PR14 User Manual

PR14

AIR RIVETER - 3/32", 1/8",
5/32", 3/16" AND 1/4" CAPACITY

• Includes the following nosepieces: 1/4" (6.4mm), 3/16" (4.8mm),
5/32" (4mm), 1/8" (3.2mm), 3/32" (2.4mm)

• Performs well at any angle

• Gets into hard-to-reach areas

• The ¼" Nose piece is located on the end of the outer cylinder (PR14-02).

The 3/16", 5/32", 1/8" are threaded into the bottom Air Cylinder lid
(PR14-24).The 3/32” will be found inside a plastic bag with
other related parts.

• Provides quick, quiet and comfortable operation preventing user fatigue

www.astrotools.com

•Astro Pneumatic Tool Co. warrants our products to the original user against
defective material or workmanship for a period of 1 year (except where noted on our
price schedule) from the date of 1st use. Astro reserves the right to determine
whether the product failed because of defective material, workmanship or other
causes and to charge back for missing parts. Astro Pneumatic Tool Co., at its
discretion, will repair products covered under this warranty free of charge. The
distributor should direct the original user to return the product (with the exceptions
listed below) with the distributor’s name, address, adequate proof of date of
purchase or a copy of warranty card, and a short note explaining the problem.

Failures caused by accident, alteration, or misuse are not covered by this
warranty.

•Astro Pneumatic Tool Co. or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original user and
may not be transferred to subsequent owners.

•This warranty is in lieu of all other warranties, expressed or implied, including
warranties of merchantability and fitness for a particular purpose. Some states do
not allow the exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you. All claims must be sent to:

Astro Pneumatic Tool Company
372 Old US Highway 52 South
Mt. Airy, NC 27030

Unpacking

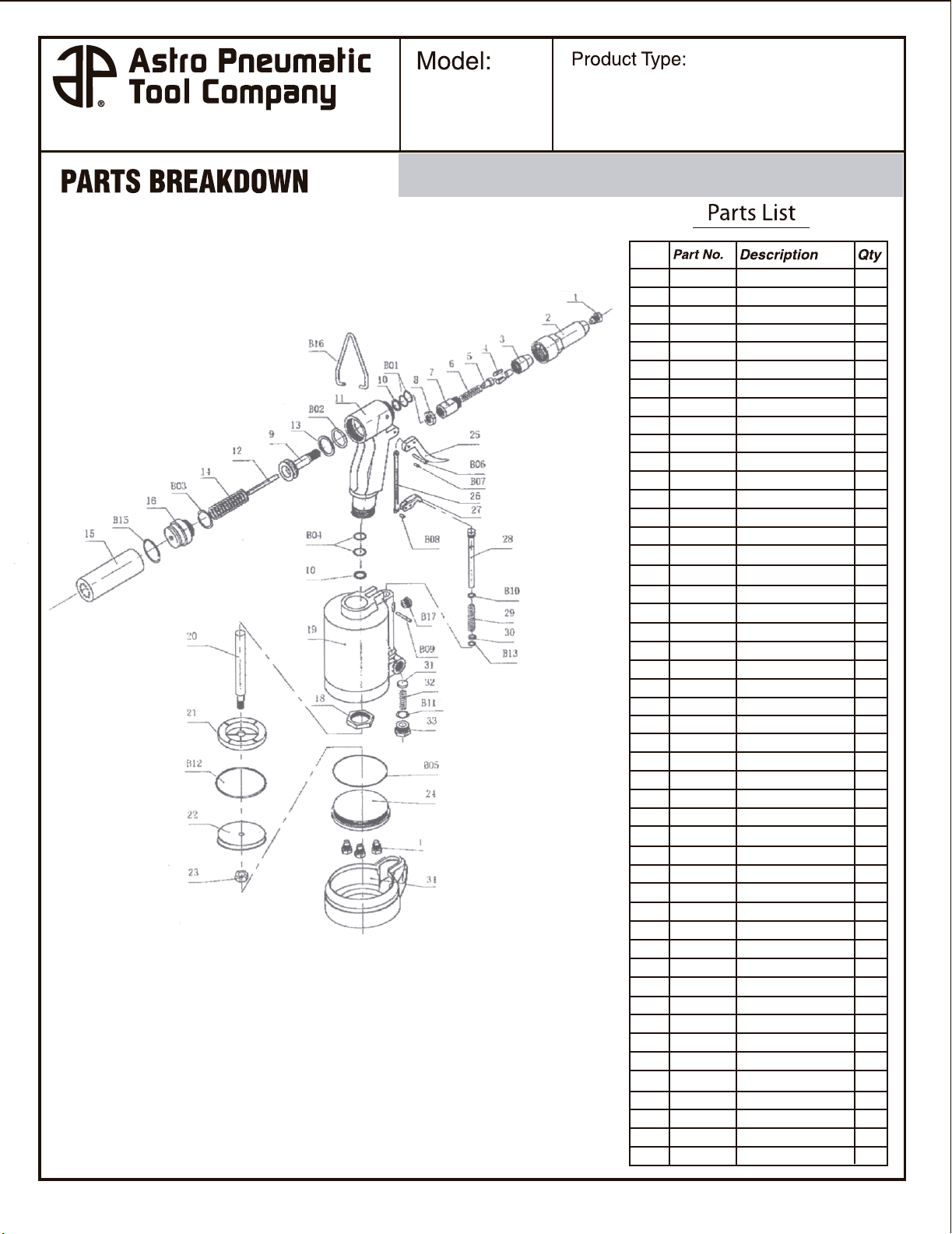

When unpacking, check the parts diagram and part number listing
on page 5 to make sure all parts are included. If any parts are
missing or damage, please call your distributor.

1 YEAR LIMITED WARRANTY

PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING

1-800-221-9705 FOR INSTRUCTIONS

SPECIFICATIONS:

Rivet Capacity: 1/4"
Overall Length: 10-7/8" (280mm)
Net Weight: 3-1/2lbs. (1.6kg)
Stroke: 15mm
Motor: 1/2hp
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 2.320 Liter/Stroke
Air Pressure: 90-120psi

AIR RIVETER - 3/32", 1/8", 5/32", 3/16" AND 1/4" CAPACITY

Page 1

PR14

AIR RIVETER - 3/32", 1/8",
5/32", 3/16" AND 1/4" CAPACITY

GENERAL OPERATION

• Power tools cannot be used in potentially explosive

atmospheres unless especially designed for that purpose.

• Unexpected tool movement or breakage of inserted
tool may cause bodily injury.

• Power tools should be disconnected from their
energy source changing or servicing any parts.

• Never put any body part, clothing hair etc. between the
tool and the work area as serious bodily injury can result.

• Guard against the risk of being injured by
whipping air hoses.

• Guard against unexpected tool movement or
breakage of the rivet may cause injury.

• Unstable postures may not allow counteracting of
normal or unexpected movement of the air tool.

AIR SUPPLY

The oil and water extractor should not be mounted on or near the air

compressor.

The temperature of air is greatly increased during compression. As the air
cools down to room temperature, in the air line, on its way to the Air Power
Tool, the moisture contained in it condenses. Thus, for maximum
effectiveness, the oil and water extractor should be mounted at some point

SUGGESTED AIR LINE CONNECTION

After unpacking the air powered rivet gun, make sure all of

the parts listed are supplied. In addition to parts supplied are

two wrenches you will need for replacement of various parts
on the PR14. Keep the packages containing wrenches, one
3/32 rivet nosepiece, one set of jaws and the bottle in a safe
place. Install the plastic rivet catcher (bottle) (#PR14-15)
and add the ¼ NPT air nipple to the air inlet side located
near the base. Add a few drops of air tool oil or #10 Spindle
oil to the air inlet near the base of the air riveter also add a
drop or two of oil to the Nose Piece Jaws (#PR14-4) through
the end of the Nose Piece (#PR14-1). Next squeeze the
operating handle Trigger (#PR14-25) several times before
inserting a rivet.

in the air supply system where the temperature of the compressed air in the
line is likely to be lowest. Air lines must be properly drained daily. Each low
point in an air line acts as a water trap. Such points should be fitted with an
easily accessible drain. See diagram below. Pitch all air lines back towards
the compressor so that condensed moisture will flow back into the air
receiver where it can be drained off. Drain daily.

Pitch pipe back toward air receiver

PIPE SIZE, I.D. (Inches)

Compressor unit

Drain
Daily

Adjust your air compressor air pressure to 90-120psi, (6.21-8.28 Bars).

NOTE:

If you use extra long air hoses more than 50 feet long you may have to increase the air pressure to compensate for reduced air operating pressure.

Always use clean, dry air that has been filtered and is free of dust, corrosives fumes or moisture. You should drain the air tank daily and
clean the filtering system as needed. To use more air pressure will shorten that air tools life and may lead to premature failure of this Air
Riveter Gun and could cause injury. Use the standard air supply information located in the above diagram.

Air Flow

CFM

10
20
30
40
50
70

Oil and Water Extractor should be at least 25 ft. from the compressor. Further if possible.

Length of Pipe (feet)

100
3/4"
3/4"
3/4"

1"
1"
1"

150
3/4"
3/4"

1-1/4"

50
1/2"
3/4"
3/4"

1"

1"

1"

200

3/4"
1"
1"
1"

1-1/4"

25 FEET OR MORE

1"
1"
1"

Install drain at

each low point

Drain
Daily

Oil and Water

Extractor

Drain
Daily

Page 2
