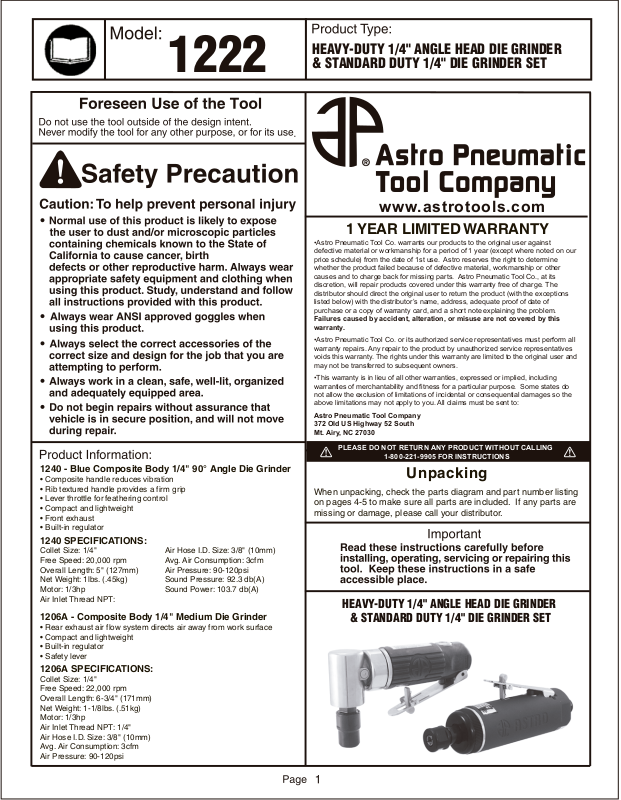

Astro Pneumatic 1222 User Manual

1222 1222

1240 - Blue Composite Body 1/4" 90° Angle Die Grinder

• Composite handle reduces vibration

• Rib textured handle provides a firm grip

• Lever throttle for feathering control

• Compact and lightweight

• Front exhaust

• Built-in regulator

1240 SPECIFICATIONS:

Collet Size: 1/4"
Free Speed: 20,000 rpm
Overall Length: 5" (127mm)
Net Weight: 1lbs. (.45kg)
Motor: 1/3hp
Air Inlet Thread NPT:

1206A - Composite Body 1/4" Medium Die Grinder

• Rear exhaust air flow system directs air away from work surface

• Compact and lightweight

• Built-in regulator

• Safety lever

1206A SPECIFICATIONS:

Collet Size: 1/4"
Free Speed: 22,000 rpm
Overall Length: 6-3/4" (171mm)
Net Weight: 1-1/8lbs. (.51kg)
Motor: 1/3hp
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 3cfm
Air Pressure: 90-120psi

Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 3cfm
Air Pressure: 90-120psi

Sound Pressure: 92.3 db(A)
Sound Power: 103.7 db(A)

HEAVY-DUTY 1/4" ANGLE HEAD DIE GRINDER
& STANDARD DUTY 1/4" DIE GRINDER SET

www.astrotools.com

1 YEAR LIMITED WARRANTY

•Astro Pneumatic Tool Co. warrants our products to the original user against
defective material or workmanship for a period of 1 year (except where noted on our
price schedule) from the date of 1st use. Astro reserves the right to determine
whether the product failed because of defective material, workmanship or other
causes and to charge back for missing parts. Astro Pneumatic Tool Co., at its
discretion, will repair products covered under this warranty free of charge. The
distributor should direct the original user to return the product (with the exceptions
listed below) with the distributor’s name, address, adequate proof of date of
purchase or a copy of warranty card, and a short note explaining the problem.

Failures caused by accident, alteration, or misuse are not covered by this
warranty.

•Astro Pneumatic Tool Co. or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original user and
may not be transferred to subsequent owners.

•This warranty is in lieu of all other warranties, expressed or implied, including
warranties of merchantability and fitness for a particular purpose. Some states do
not allow the exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you. All claims must be sent to:

Astro Pneumatic Tool Company
372 Old US Highway 52 South
Mt. Airy, NC 27030

PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING

Unpacking

When unpacking, check the parts diagram and part number listing
on pages 4-5 to make sure all parts are included. If any parts are
missing or damage, please call your distributor.

HEAVY-DUTY 1/4" ANGLE HEAD DIE GRINDER

& STANDARD DUTY 1/4" DIE GRINDER SET

1-800-221-9905 FOR INSTRUCTIONS

HEAVY-DUTY 1/4" ANGLE HEAD DIE GRINDER
& STANDARD DUTY 1/4" DIE GRINDER SET

HEAVY-DUTY 1/4" ANGLE HEAD DIE GRINDER

& STANDARD DUTY 1/4" DIE GRINDER SET

1240

BLUE COMPOSITE BODY 1/4"
90° ANGLE DIE GRINDER

1206A

COMPOSITE BODY 1/4"
MEDIUM DIE GRINDER

Page 2 Page 3
