RACAL INSTRUMENTS™
1260-43
1260 VXI SWITCHING CARD
THREE, 8X24 MATRIX, MO DUL E
Publication No.980673-067 Rev. B
Astronics Test Systems Inc.
4 Goodyear, Irvine, CA 92618
Tel: (800) 722-2528, (949) 859-8999; Fax: (949) 859-7139
[email protected] [email protected]
[email protected] http://www.astronicstestsystems.com
Copyright 2005 by Astronics Test Systems Inc. Printed in the United States of America. All rights reserved. This book or parts thereof may not be reproduced in any form without written permission of the publisher.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 3
THANK YOU FOR PURCHASING THIS
ASTRONICS TEST SYSTEMS PRODUCT
For this product, or any other Astronics Test Systems product that incorpor ates software drivers, you may access our web site t o verify and/ or download the latest driver versions. The web address for driver downloads is:
http://www.astronicstestsystems.com/support/downloads
If you have any questions about software driver downloads or our privacy policy, please contact us at:
[email protected]
WARRANTY STATEMENT
All Astronics Test Systems products are designed to exacting standards and manufactured in full compliance to our AS9100 Quality Management System pr oc ess es.
This warranty does not apply to defects resulting f rom any modification(s) of any product or part without Astronics Test Systems express written consent, or misuse of any product or part. The warranty also does not apply to fus es, software, non-recharg eable batteries, damage from bat tery leakage, or problems arising f rom normal wear, such as mechanical relay life, or failure to follow instructions.
This warranty is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness f or a particular use. The remedies provided herein are buyer’s sole and exclusive remedies.
For the specific terms of your standard warranty, contact Customer Support. Please have the following information available to facilitate service.
1. Product serial number
2. Product model number
3. Your company and contact information
You may contact Customer Support by:
E-Mail: [email protected] Telephone: +1 800 722 3262 (USA) Fax: +1 949 859 7139 (USA)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 4
RETURN OF PRODUCT
Authorization is required from Astronics Test Systems before you send us your product or sub-assem bly for service or calibration. Call or contact Custom er Support at 1-800-722-3262 or 1-949-859-8999 or via fax at 1­949-859-7139. We can also be reached at: [email protected].
If the original pack ing material is unavailable, ship the product or sub-assem bly in an ESD shielding bag and use appropriate packing materials to surround and protect the product.
PROPRIETARY NOTICE
This document and the technical data her ein disclosed, are proprietary to Astronics Test Systems, and shall not, without express written permission of Astronics Test Systems, be used in whole or in part to solicit quotations from a com petitive source or used for m anufacture by anyone other than Astronics Test Systems. The information herein has been developed at private expense, and may only be used for operation and maintenance refer ence purposes or for purposes of engineering evaluation and incorporation into tec hnical specifications and other documents which specify procurement of products from Astronics Test Systems.
TRADEMARKS AND SERVICE MARKS
All trademarks and service marks used in this document are the property of their respective owners.
• Racal Instruments, Talon Instruments, Trig-Tek, ActivATE, Adapt-A-Switch, N-GEN, and PAWS are trademarks of Astronics Test Systems in the United States.
DISCLAIMER
Buyer acknowledges and agrees that it is r esponsible for the operation of the goods purchased and should ensure that they are used properly and in accordance with this document and any other instructions pr ovided by Seller. Astronics Test Systems products are not specifically designed, manufactured or intended to be used as parts, assem blies or components in planning, construction, maintenance or oper ation of a nuclear facility, or in life support or safety critical applications in which the failure of the Astronics Test Systems product could create a situation where per s onal injury or death could occur . Should Buyer purchase Astronics Test Systems product for such unintended application, Buyer shall indemnify and hold Astronics Test Systems, its officers, employees, subsidiaries, af filiates and distributors harmless against all claims ar ising out of a claim for personal injury or death associated with such unintended use.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 5
prong adapter. This will defeat the protective feature of the third

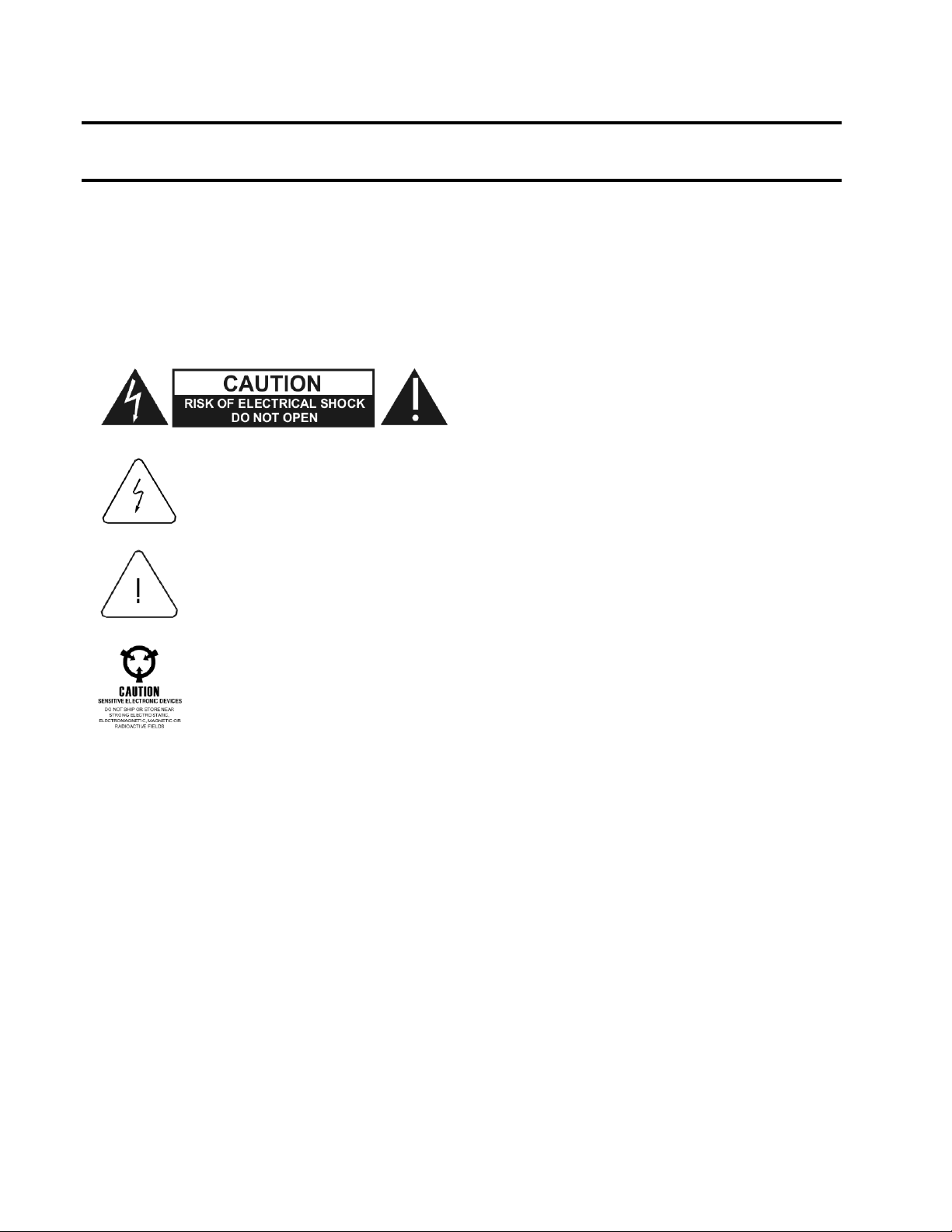

FOR YOUR SAFETY
Before undertaking any troubleshooting, maintenance or exploratory procedure, read carefully the WARNINGS and CAUTION notices.
This equipment contains voltage hazardous to human life and safety, and is capable of inflicting
If this instrument is to be powered from the AC line (mains) through an autotransform er, ensure the common connector is connected to the neutral (earth pole) of the power supply.
personal injury.
Before operating the unit, ensure the conductor (gr een wire) is connected to the ground (earth) conductor of the power outlet. Do not use a two-conductor extension cord or a three-prong/two­conductor in the power cord.
Maintenance and calibration procedures sometimes call for operation of the unit with power applied and protective covers removed. Read the procedur es and heed warnings to avoid “live” circuit points.
Before operating this instrument:
1. Ensure the proper fuse is in place for the power source to operate.
2. Ensure all other devices connected to or in proximity to this instrument are properly grounded or connected to the protective third-wire earth ground.
If the instrument:
- fails to operate satisfactorily
- shows visible damage
- has been stored under unfavorable conditions
- has sustained stress
Do not operate until performance is checked by qualified personnel.
.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 6
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 7
This page was left intentionally blank.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 8
Publication No. 980673-067 Rev. B 1260-43 User Manual
Table of Contents
Chapter 1 ........................................................................................................................... 1-1
SPECIFICATIONS ....................................................................................................................... 1-1
Introduction .............................................................................................................................. 1-1
Specifications ........................................................................................................................... 1-3
Ordering Inform at ion ................................................................................................................ 1-5
Chapter 2 ........................................................................................................................... 2-1
INSTALLATION INSTRUCTIONS ................................................................................................ 2-1
Unpacking and Inspection ........................................................................................................ 2-1
Module Installation .................................................................................................................... 2-1
Module Configuration ............................................................................................................... 2-2
Front Panel Connectors ........................................................................................................ 2-5
Mating Cables ..................................................................................................................... 2-10
More About Maximum Current Ratings ............................................................................... 2-11
Installation .............................................................................................................................. 2-11
Astronics Test Systems i
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 9
1260-43 User Manual Publication No. 980673-067 Rev. B
Chapter 3 ........................................................................................................................... 3-1
MODULE OPERATION ............................................................................................................... 3-1
Operating Modes ...................................................................................................................... 3-1
Operating The 1260-43 in Register -Based Mode ..................................................................... 3-1
Matrix Load Configuration ...................................................................................................... 3-46
Appendix A ....................................................................................................................... A-1

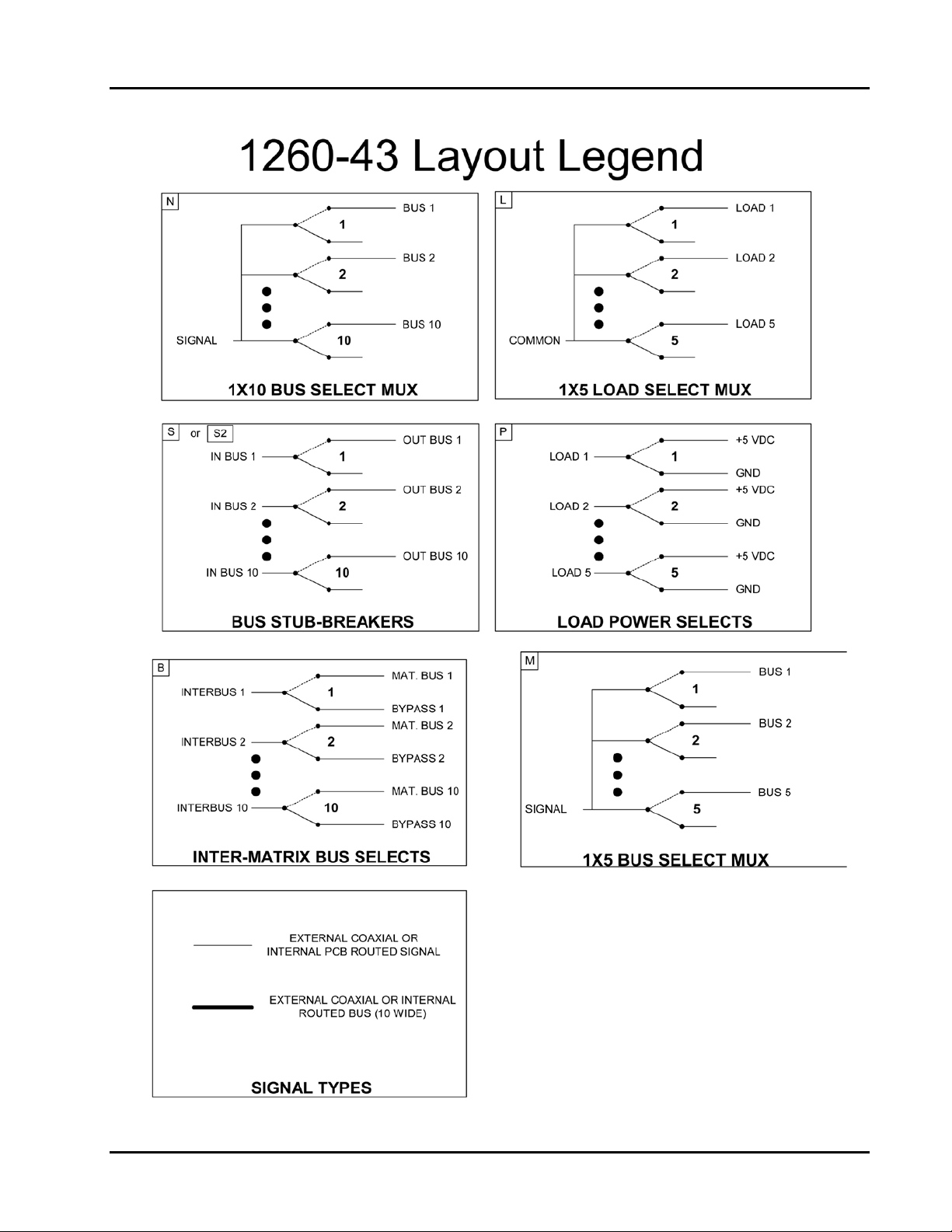

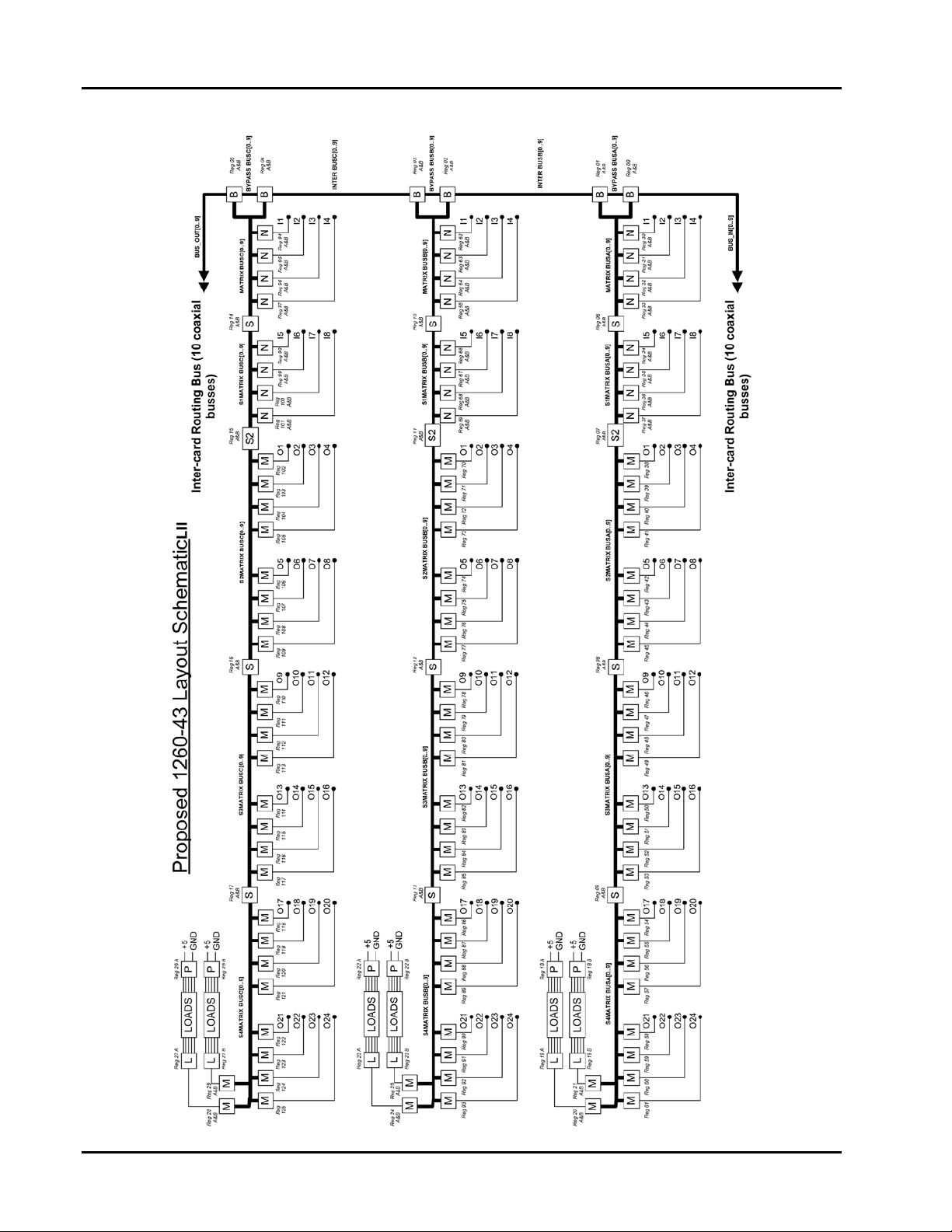

LOGICAL RELAY LAYOUT ......................................................................................................... A-1
Appendix B ....................................................................................................................... B-1

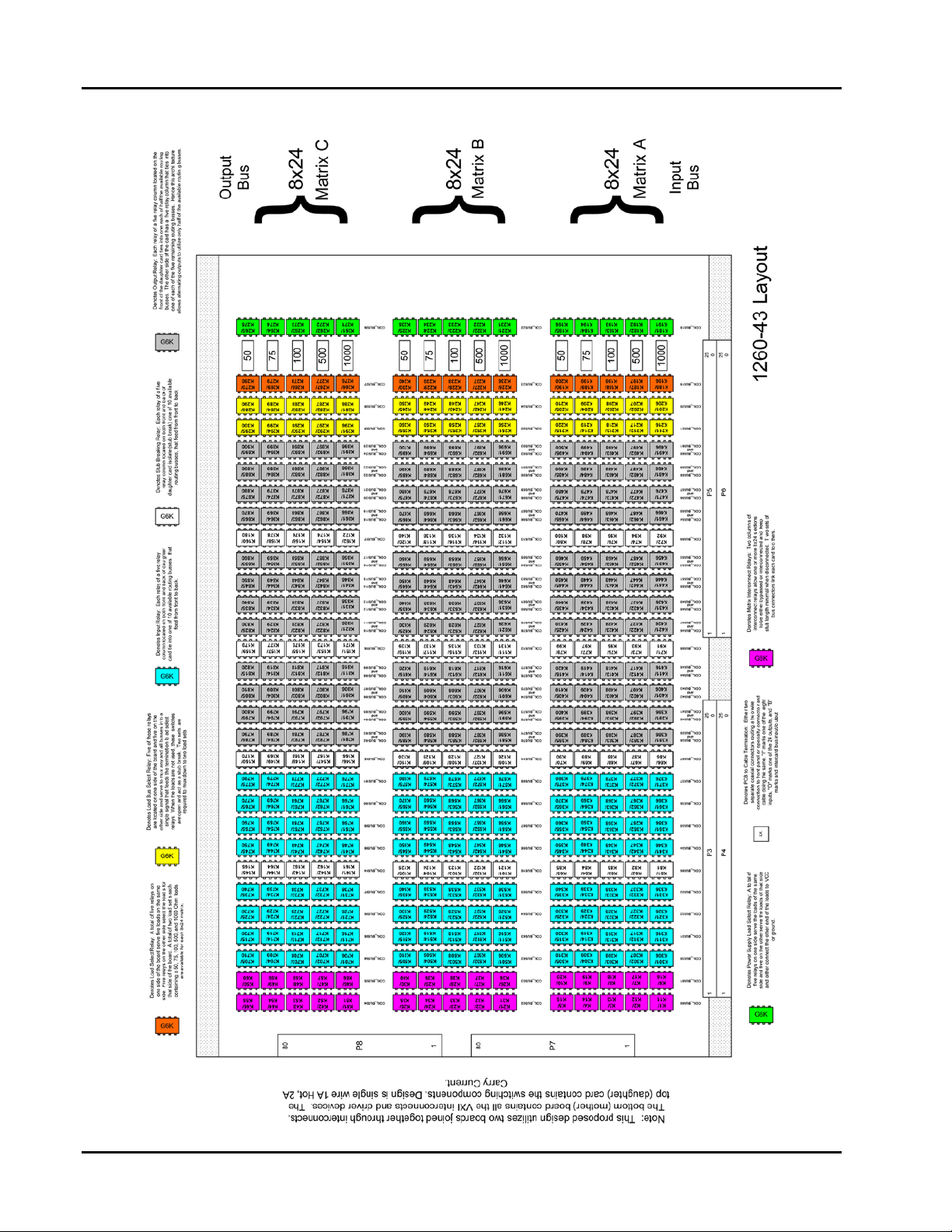

1260-43 RELAY LAYOUT ............................................................................................................ B-1
ii Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 10
Publication No. 980673-067 Rev. B 1260-43 User Manual
List of Figures
Figure 1-1, The 1260-43 .............................................................................................................. 1-2

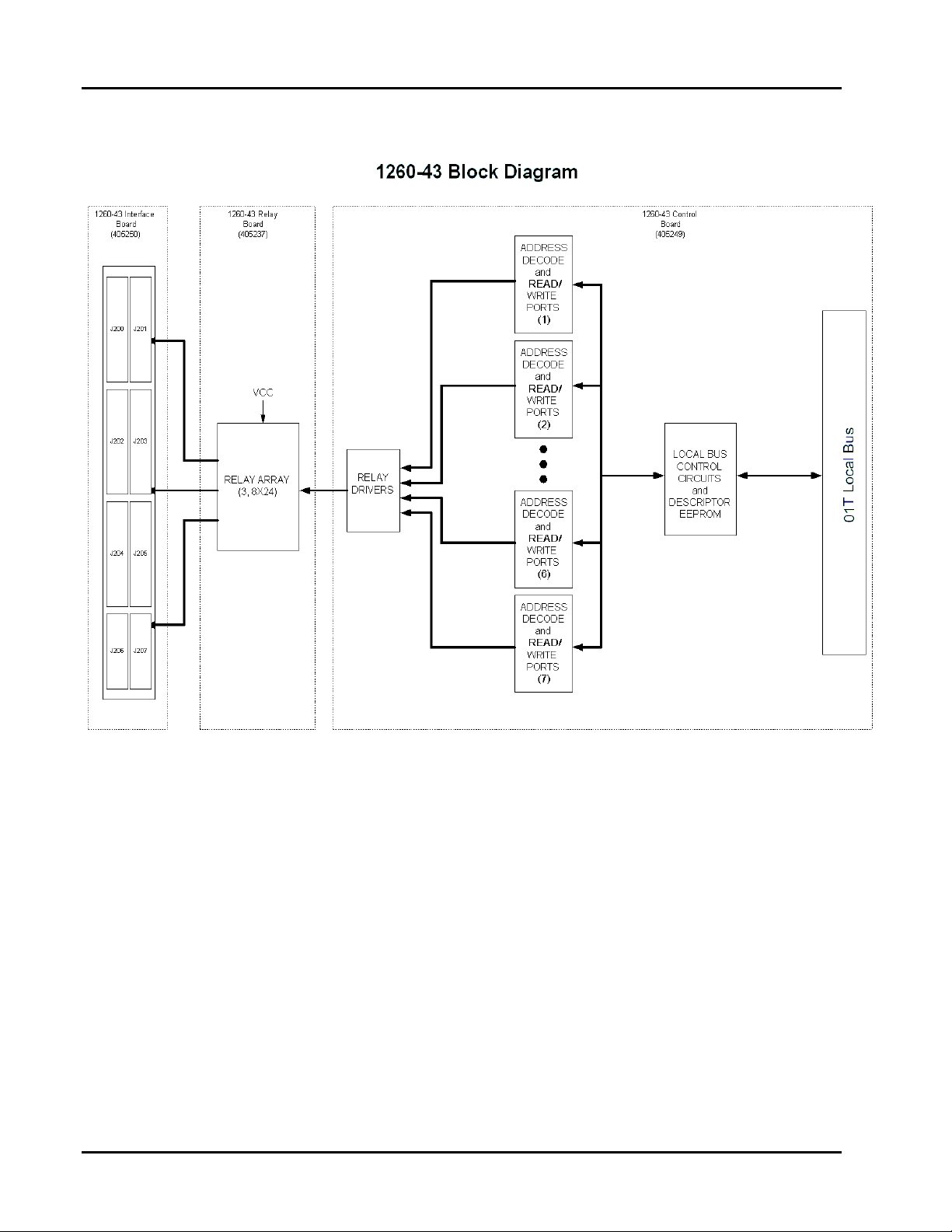

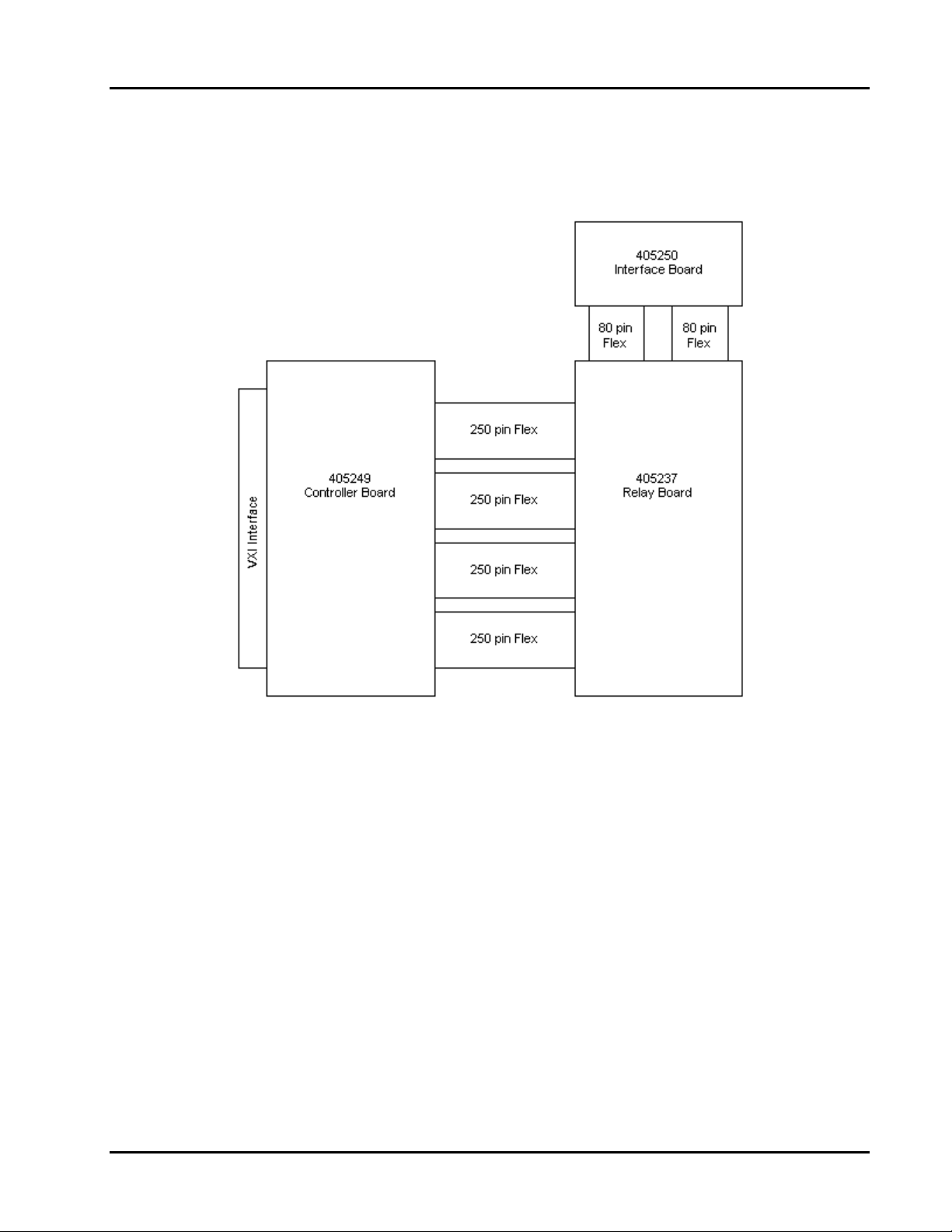

Figure 2-1, 1260-43, Physical Block Diagram .............................................................................. 2-3
Figure 2-2, 1260-43, Logical Block Diagram ................................................................................ 2-4

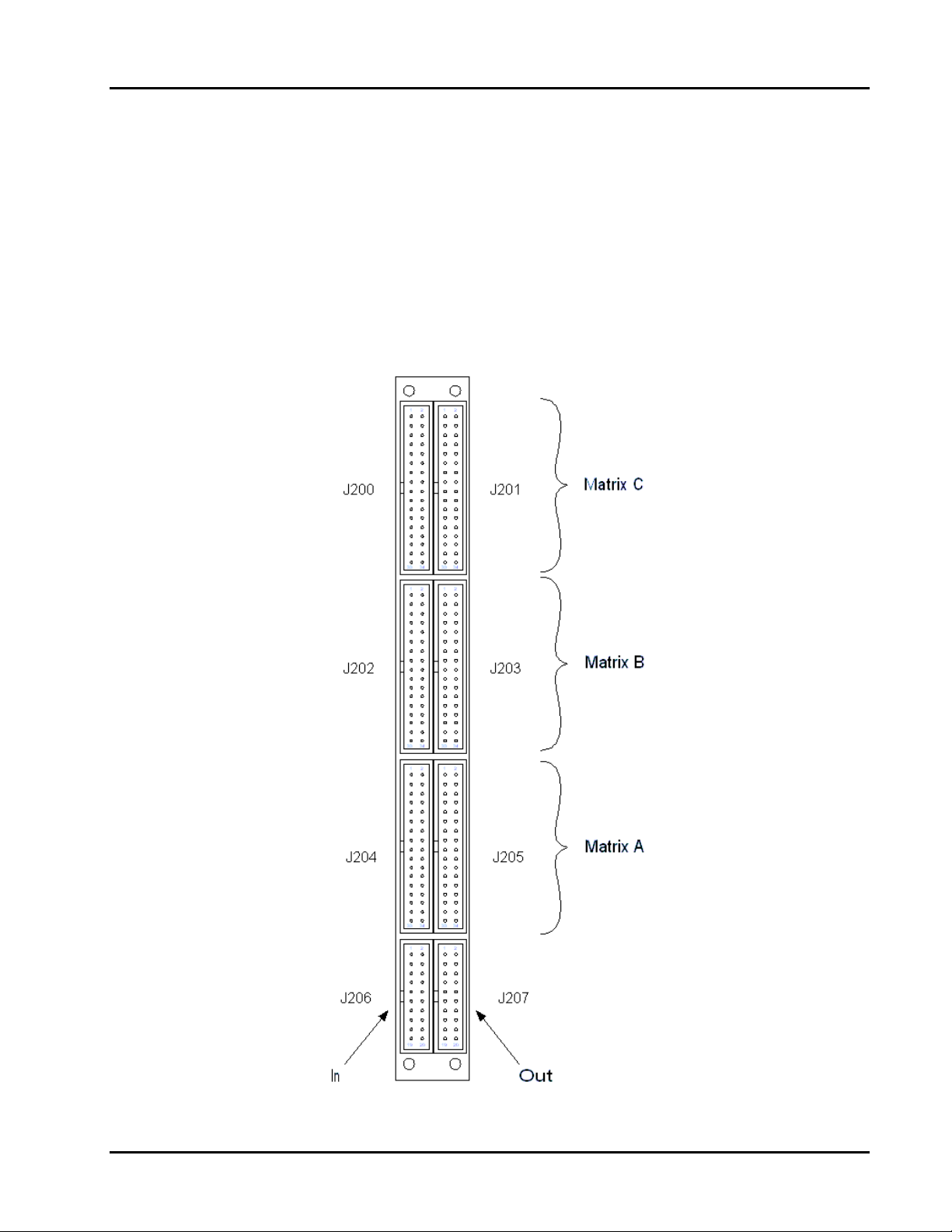

Figure 2-3, Front Panel Connector Numbering ............................................................................ 2-5
Figure 3-1, Register-Based Mode of Oper ation ............................................................................ 3-1
Astronics Test Systems iii
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 11
1260-43 User Manual Publication No. 980673-067 Rev. B
List of Tables
Table 2-1, 1260-43 Front Panel Pinouts ...................................................................................... 2-6
Table 2-2, Mating Cable Manufactures ...................................................................................... 2-10
Table 3-1, Control/ Status Regist er Addr ess O ffset Assignments ................................................ 3-3
Table 3-2, Control/ Status Regist er Relay Assignments ............................................................ 3-10
Table 3-3, Matrix Load Selection ............................................................................................... 3-46
iv Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 12
Publication No. 980673-067 Rev. B 1260-43 User Manual
Revised per EO 29965
opposite of Page no’s i thru vi.
DOCUMENT CHANGE HISTORY
Revision Date Description of Change
Revised format to current standards. Company name revised throughout manual. Manual now revision letter controlled. Added Document Change History Page v. Back of cover sheet. Revised Warranty Statement, Return of Product,
A 11/16/09
B 9/24/13 Revised per ECN03606 to change Table J207.
Proprietary Notice and Disclaimer to current standards. Removed Reshipment Instructions in (Chap. 2-1) and removed (Chap 4). Information. Now appears in first 2 sheets behind cover sheet. Updated table of contents to reflect changes made. .
Added to footer: company name… to lower corner
Astronics Test Systems v
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 13
1260-43 User Manual Publication No. 980673-067 Rev. B
This page was left intentionally blank.
vi Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 14
Publication No. 980673-067 Rev. B 1260-43 User Manual
With its combination of density, versatility, expandability, and
large numbers of instruments to a large number of test points.
01T switch controller, regardless of
Chapter 1
SPECIFICATIONS
Introduction
The 1260-43 is an ultra high-density matrix switch card. Each module consists of three 8x24 matrices, which are interconnected via a 10-lane buss. On-board configuration relays allow software control of the matrix conf iguration.
Multiple modules can be linked together via a front panel 10-lane buss to form larger matrices. This allows the user to construct very large Matrices.
excellent signal integrity, the 1260-43 is ideal for constructing large switching systems. It allows great flexibility in the connection of a
The 1260-43 is an excellent choice for continuity, audio, video, telecom, datacom, and ATE systems t es t ing.
An Option 01T is r equired to communicate with any set of switch cards. Provisions for an Option 01T is not provided for on the 1260-43. Another switch card must be in the system t hat has an Option 01T installed in order for t he 1260-43 to work.
The following features are included in the 1260-43
• Data-Driven embedded descriptor, allowing immediate use
with any Option­firmware revision level.
• Three 8x24 Matrices in a Single VXI Slot
• 10 Lane Matrix expansion Buss
• Programmable Load Terminations
• Link Multiple modules via the front panel
Each switch can handle current up to 2 Amps. The 1260-43 plug­in fits into a standard VXI chassis.
Astronics Test Systems Specifications 1-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 15
1260-43 User Manual Publication No. 980673-067 Rev. B

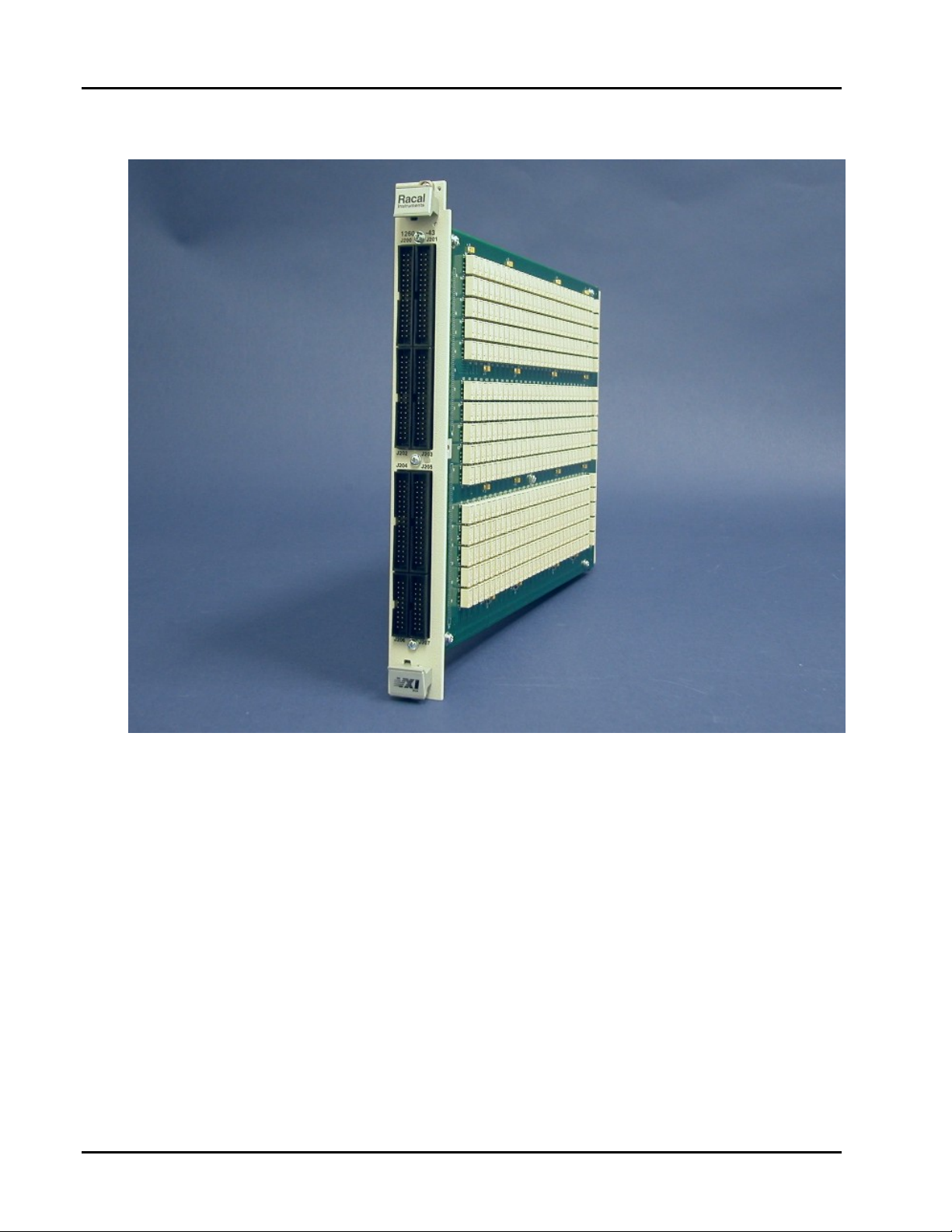

Figure 1-1, The 1260-43
Specifications 1-2 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 16
Publication No. 980673-067 Rev. B 1260-43 User Manual
Specifications
Bandwidth (-3dB) 8 x 24 cfg: > 40 MHz 1 x 4 cfg: > 40 MHz
Isolation 8 x 24 cfg:
100 KHz > 80 dB 1 MHz > 60 dB 10 MHz
1 x 4 cfg: 100 KHz > 80 dB 1 MHz > 60 dB 10 MHz
Insertion Loss 8 x 24 cfg:
10 MHz < 1 dB 40 MHz < 3 dB
1 x 4 cfg: 10 MHz < 1 dB 40 MHz < 2 dB
Crosstalk 8 x 24 cfg:
100 KHz < -70 dB 1 MHz < -55 dB 10 MHz < -38 dB
1 x 4 cfg: 100 KHz < -70 dB 1 MHz < -60 dB 10 MHz < -40 dB
Switching Voltage AC 250 V, Max DC 220 V, Max
Switching Current AC 2 A, Max. DC 2 A, Max
Switching Power 60W, 62. 5 VA, Max
Path resistance 8 x 24 cfg: < 900 mΩ @ 1A, < 1.1 Ω @ 1 mA
1 x 4 cfg: < 500 mΩ @ 1A, < 600 mΩ @ 1 mA
Note: When usi ng expansion buss in configuration, add an additional 500 mΩ
Astronics Test Systems Specifications 1-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 17
1260-43 User Manual Publication No. 980673-067 Rev. B
Module Capacitance 8 x 24 cfg: < 300 pF 1 x 4 cfg: < 250 pF
Note: When usi ng expansion buss in configuration, add an additional 50 pF
Impedance 50 Ohms @ 5 MHz Noise Floor (100Hz B/W, 0 to 10 MHz) < -100dbm Leakage to Ground > 100 MΩ Impulse Wit hstanding Voltage > 100 Vrms Insulation resistance > 109 Ω Relay Settling Tim e < 10 ms Shock 30g, 11 ms, ½ sine wave Vibration 0.013 in. P-P, 5-55 Hz Bench Handling 4 in., 45° Cooling Airflow: 5.6 liters/sec
Backpressure: 0.59 mm H2O Temperature
Operating 0°C to +55°C Non-operating -40°C to +75°C
Relative Humidity 85%, non-condensing at < 30°C Altitude
Operating 10,000 feet* Non-operating 15,000 feet
Power Requirements (for 20 mA per energized relay)
8.5 A max. @ +5V Weight 4.7 lbs MTBF (including relays) 25,535 hours (MIL-HDBK-217E) Relay Life Expectancy
Mechanical 1X10
8
operations
Electrical 500,000 operations at 30V / 1A Dimensions (Module) C-Size, Single Slot VXI buss Module *Operation at 15,000 feet r equires de-rating of maximum overall
power dissipation to 49W.
Specifications 1-4 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 18
Publication No. 980673-067 Rev. B 1260-43 User Manual
43 switch module.
Ordering
Listed below are part numbers for the 1260­The 1260-43 uses an IDC type of mating connec t or .
Information
ITEM DESCRIPTION PART #
1260-43 Switch Module 1260-43, 3, 8 x 24, 1-wire, 2A, Multiplexer,
3 Bit Output Buss Shift
Interconnecting Buss Cable Cable, 1260-43, 20 Position, 4”, Point to Point 602715-001
I/O Buss Cable Cable, 1260-43, 20 Position, 3’ 602715-002 I/O Buss Cable Cable, 1260-43, 34 Position, 3’ 602715-003
Additional Manual 980673-067
1260-43 Switch Module 1260-43, 3, 8 x 24, 1-wire, 2A Multiplexer, 1 Bit Output,
Buss Shift
Interconnecting Buss Cable Cable, 1260-43, 20 Position, 4” with built-in 2 Bit Output
Buss Shift
408006-001
408006 Note*
602780
*Note: The 602780 cable should be used when daisy-chaining two or more 408006’s together in order to meet the IFTE specification.
Astronics Test Systems Specifications 1-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 19
1260-43 User Manual Publication No. 980673-067 Rev. B
This page was left intentionally blank.
Specifications 1-6 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 20
Publication No. 980673-067 Rev. B 1260-43 User Manual
ing material for the carrier’s
electrostatic damage to the module. Do not remove the
4, is
Chapter 2
INSTALLATION INST RUCTIONS
Unpacking and Inspection
Module Installation
1. Remove the 1260-43 module and inspect it for damage. If any damage is apparent, inform the carrier immediately. Retain shipping carton and pack inspection.
2. Verify that the pieces in the packag e you received contain the correct 1260-43 module option and the 1260-43 Users Manual. Notify Customer Service if the module appears damaged in any way. Do not attempt to install a damaged module into a VXI chassis.
3. The 1260-43 module is shipped in an anti-static bag to prevent module from the anti-stat ic bag unless it is in a static-controlled
area.
Installation of the 1260-43 Switching Module into a VXI mainframe, including the setting of switches SW1-1 through SW1­described in the Setup Section of the 1260A Option 01T Users Manual, Publication No. 980806-999.
Astronics Test Systems Installation Instruct i ons 2-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 21
1260-43 User Manual Publication No. 980673-067 Rev. B
The 1260-43 is an ultra high-density matrix switch card. Each
matrices, which are
coil enabling signals from the control board to the relay board. The interface board (405250) contains 8 connectors used to
Module Configuration
module consists of three 8x24, single wire interconnected via a 10-lane buss. On-board configur ation relays allow software control of the matrix conf ig ur ation.
The 1260-43 is comprised of three boards, the 405237, 405249 and the 405250. T he main controller board ( 405249) interfaces to the VXI buss and thus has all the c ontrol logic for communicating with the buss. In addition the control board decodes the address ’s that select the relay read/write ports. The relay board (405237) contains 900 relays of which 450 relays are on top with another 450 relays on the bottom. The control board c onnects to the relay board via five 200 pin connectors. The connectors pass the relay
connect to the out side world. The interf ace board connects to the relay board using two 80-pin flex cables.
The interface board shifts the ‘Output Buss’ three positions t o the right before c onnect ing to J207. This is transparent to the user and is done so the 1260-43 is compliant with the IFTE specification when daisy-chaining two or more 1260-43’s together. This shift eliminates the need t o place the shift in the daisy-chaining cable. Thus the daisy-chaining cable becomes point-to-point.
If a 408006 (1260-43) is used, a 602780 cable is required in order to meet the IFTE specif icat ion.
Installation Instructions 2-2 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 22
Publication No. 980673-067 Rev. B 1260-43 User Manual
For a block diagram of t he 1260-43, refer to both Figure 2-1 and Figure 2-2.
Figure 2-1, 1260-43, Physical Block Diagram
Astronics Test Systems Installation Instruct i ons 2-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 23
1260-43 User Manual Publication No. 980673-067 Rev. B
Figure 2-2, 1260-43, Logical Block Diagram
Installation Instructions 2-4 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 24
Publication No. 980673-067 Rev. B 1260-43 User Manual
Front Panel
The 1260-43 has six 34-pin front-panel connectors , labeled J200-
for front panel connector
pins.
J205 and two 20-pin connectors, labeled J206 and J207. Each
Connectors
matrix consists of a pair of 34-pin connectors. The two 20-pin connectors are used for bussing t he 10-lane buss in and out of t he 1260-43. The output of the 10-lane buss that connects to J207 incorporates a 3-bit shift to the right. This allows compliancy to the IFTE specification when daisy-chaining two or more 1260-43’s in a system and eliminates the need for a special cable. If a 408006 (1260-43) is used, a 602780 cable is required in order to meet the IFTE specification. See Figure 2-3 locations. Table 2-1 shows the signal assig nments to connector
Figure 2-3, Front Panel Connector Numbering
Astronics Test Systems Installation Instruct i ons 2-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 25
1260-43 User Manual Publication No. 980673-067 Rev. B
11
GND
12
O13C+
1
GND
2
O24C+
Table 2-1, 1260-43 Front Panel Pinouts
J200
1 GND 2 O23C+ 3 GND 4 O21C+ 5 GND 6 O19C+ 7 GND 8 O17C+ 9 GND 10 O15C+
13 GND 14 O11C+ 15 GND 16 O9C+ 17 GND 18 O7C+ 19 GND 20 O5C+ 21 GND 22 O3C+ 23 GND 24 O1C+ 25 GND 26 I7C+ 27 GND 28 I5C+ 29 GND 30 I3C+ 31 GND 32 I1C+ 33 NC 34 NC
J201
3 GND 4 O22C+ 5 GND 6 O20C+ 7 GND 8 O18C+
9 GND 10 O16C+ 11 GND 12 O14C+ 13 GND 14 O12C+ 15 GND 16 O10C+ 17 GND 18 O8C+ 19 GND 20 O6C+ 21 GND 22 O4C+ 23 GND 24 O2C+ 25 GND 26 I8C+ 27 GND 28 I6C+ 29 GND 30 I4C+ 31 GND 32 I2C+ 33 NC 34 NC
Installation Instructions 2-6 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 26
Publication No. 980673-067 Rev. B 1260-43 User Manual
J202
1 GND 2 O23B+ 3 GND 4 O21B+ 5 GND 6 O19B+ 7 GND 8 O17B+
9 GND 10 O15B+ 11 GND 12 O13B+ 13 GND 14 O11B+ 15 GND 16 O9B+ 17 GND 18 O7B+ 19 GND 20 O5B+ 21 GND 22 O3B+ 23 GND 24 O1B+ 25 GND 26 I7B+ 27 GND 28 I5B+ 29 GND 30 I3B+ 31 GND 32 I1B+ 33 NC 34 NC
J203
1 GND 2 O24B+
3 GND 4 O22B+
5 GND 6 O20B+
7 GND 8 O18B+
9 GND 10 O16B+ 11 GND 12 O14B+ 13 GND 14 O12B+ 15 GND 16 O10B+ 17 GND 18 O8B+ 19 GND 20 O6B+ 21 GND 22 O4B+ 23 GND 24 O2B+ 25 GND 26 I8B+ 27 GND 28 I6B+ 29 GND 30 I4B+ 31 GND 32 I2B+ 33 NC 34 NC
Astronics Test Systems Installation Instruct i ons 2-7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 27
1260-43 User Manual Publication No. 980673-067 Rev. B
J204
1 GND 2 O23A+ 3 GND 4 O21A+ 5 GND 6 O19A+ 7 GND 8 O17A+
9 GND 10 O15A+ 11 GND 12 O13A+ 13 GND 14 O11A+ 15 GND 16 O9A+ 17 GND 18 O7A+ 19 GND 20 O5A+ 21 GND 22 O3A+ 23 GND 24 O1A+ 25 GND 26 I7A+ 27 GND 28 I5A+ 29 GND 30 I3A+ 31 GND 32 I1A+ 33 NC 34 NC
J205
1 GND 2 O24A+
3 GND 4 O22A+
5 GND 6 O20A+
7 GND 8 O18A+
9 GND 10 O16A+ 11 GND 12 O14A+ 13 GND 14 O12A+ 15 GND 16 O10A+ 17 GND 18 O8A+ 19 GND 20 O6A+ 21 GND 22 O4A+ 23 GND 24 O2A+ 25 GND 26 I8A+ 27 GND 28 I6A+ 29 GND 30 I4A+ 31 GND 32 I2A+ 33 NC 34 NC
Installation Instructions 2-8 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 28
Publication No. 980673-067 Rev. B 1260-43 User Manual
J206
1 GND 2 BUS_IN 9+ 3 GND 4 BUS_IN 8+ 5 GND 6 BUS_IN 7+ 7 GND 8 BUS_IN 6+
9 GND 10 BUS_IN 5+ 11 GND 12 BUS_IN 4+ 13 GND 14 BUS_IN 3+ 15 GND 16 BUS_IN 2+ 17 GND 18 BUS_IN 1+ 19 GND 20 BUS_IN 0+
J207
1 GND 2 BUS_OUT 0+ Buss Signal 2
3 GND 4 BUS_OUT 9+ Buss Signal 1
5 GND 6 BUS_OUT 8+ Buss Signal 0 7 GND 8 BUS_OUT 7+ Buss Signal 9
9 GND 10 BUS_OUT 6+ Buss Signal 8 11 GND 12 BUS_OUT 5+ Buss Signal 7 13 GND 14 BUS_OUT 4+ Buss Signal 6 15 GND 16 BUS_OUT 3+ Buss Signal 5 17 GND 18 BUS_OUT 2+ Buss Signal 4 19 GND 20 BUS_OUT 1+ Buss Signal 3
Astronics Test Systems Installation Instruct i ons 2-9
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 29
1260-43 User Manual Publication No. 980673-067 Rev. B
e due to the coax cabling.
contains manufacture’s part numbers for the
Mating Cables
Manufacturer 20 Pin Mating Cable 34 Pin Mating Cable
Joy Signal SSC-02-02-3-20-09-XXX.00 ZZC-02-02-03-34-01-XXX.00
Molex ZZC-02-02-03-20-01-XXX.00 SSC-02-02-3-34-09-XXX.00
The front panel connectors are a standard IDC type of connec tor. The mating connectors are uniqu Special manufacturing pr ocesses are required in joining the coax cable to the mating connect or. This prohibits manufactures from selling Individual connector parts. Only finished cable assemblies are sold. Mating cable/connector assemblies are available from Joy Signal, Molex and 3M.
Table 2-2
cable/connector assemblies used by the 1260-43.
Table 2-2, Mating Cable Manufactures
Note: XXX equals the cable length in inches.
Installation Instructions 2-10 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 30
Publication No. 980673-067 Rev. B 1260-43 User Manual
d while voltage is applied. The maximum
current carrying capacity is affected by the size of the
The current the contacts can switch while conducting,
ed heat, cooling provisions, ambient
temperature, insulation material, etc. The maximum
the heat
normal working conditions. The specification includes a safety margin. However, there are restrictions in the application of the given values. The most important
insulation temperature range, and wire bundling. The
43 Switching Module into a VXI mainframe
43 to
More About Maximum Current Ratings
The front panel connector and pins are rat ed for 2 A per pin, with all channels conducting full-rated cur rent. The relays are rated at 2 A. This keeps the temperat ur e r ise within 10°C.
Definitions:
• Max current carrying capacity
The maximum current that the r elay can conduct if the relay is not switche
conducting section of the contact at its smallest area. The listed values are obtained from several tests in laboratories under room-temperature conditions (21°C). The contact is considered to be in free air. The m aximum current carr ying for the 1260-43 is 2.5 A.
• Max operating current
without deteriorating. This depends on working conditions, such as dissipat
operating current for the 1260-43 is 2 A.
• Recommended continuous current
The maximum current recommended for indefinitely-long time periods. The primary concern here is generated in the relay. This specification can be applied for
restriction is the cross-sect ional area of the connecting wire, recommended continuous current for the 1260-43 is 2 A.
Installation
To install the 1260­chassis, engage the printed circuit board into the grooves of the desired chassis slot. Slide the 1260-43 into the chassis until its connector mates with the connector on the chassis backplane. Push firmly to fully seat the connector. Tighten the two retaining screws at the top and bottom of t he 1260-43 plug-in.
A 01T is required in the system in order for the 1260­operate. An additional VXI Switch card containing a 01T needs to be installed in the system with the slot location to the left of the 1260-43.
Astronics Test Systems Installation Instructions 2-11
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 31
1260-43 User Manual Publication No. 980673-067 Rev. B
This page was left intentionally blank.
Installation Instructions 2-12 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 32
Publication No. 980673-067 Rev. B 1260-43 User Manual
based mode is shown in
In this mode, relay operations are processed in less than 9 microseconds, not counting relay settling time or software
lay Settling Time in the
43 module. When a control register is written to, all
channels controlled by that register are operated simultaneously.
The 1260-43 has a 10-Lane buss that is routed throug h the three
PC (MXI) 1260
Write value 2 to A24 A ddress 205001
Chapter 3
MODULE OPERATION
Operating Modes
Figure 3-1, Register-Based Mode of Operation
The register-based mode provides f aster cont rol of relay channels.
The 1260-43 is operated in register-based mode. In the register-based mode, t he user writes directly to the control
registers on the 1260-43 module. The 1260-01T command module does not monitor these operations, and does not keep track of the relay states on the 1260-43 module in this mode.
A conceptual view of the register­Figure 3-1 below.
-43
overhead inherent in I/O librar ies such as VISA. To deter mine the relay settling time, refer to Re Specifications section.
Operating The 1260-43 in Register-Based Mode
Astronics Test Systems Module Operation 3-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
In register-based mode, t he 1260-43 is operated by directly writing to control regist ers and reading from st atus registers on the 1260­43 module. There are 180 control/status register pairs on the 1260-
Default value for all control register s is hex ‘00’ aft er reset.
Page 33
1260-43 User Manual Publication No. 980673-067 Rev. B
matrices (refer to Appendix A.) With the exception of the matrix comprised of 10 relays. The matrix output relay groups only
the Resource Manager program. The Resource Manager
43 module. This is a
output relay groups, each group of relays operating on the buss is operate on 5 of the 10 signals of the buss and thus have only one
control/status reg ister associated with each group. For the rest of the relay groups an A and B control/status reg ister pair is assigned to each group. Only bits 4-0 of the register are used. Bits 7-5 are not used and will display “111” when the status register is read. Register ‘A’ is assigned to buss signals 4-0 while register ‘B’ is assigned to buss signals 9-5.
The control registers are located in the VXI buss A24 Address Space. The A24 address for a contr ol r egister depends on:
1. The A24 Address Offset assigned t o the 1260-01T module by program is provided by the VXI buss slot-0 controller vendor.
The A24 Address Offset is placed into the “Offset Register” of the 1260-01T by the Resource Manager.
2. The <module address> of the 1260­value in the range 1 through 12.
3. Each control / status register on the 1260-43 has a unique address.
The base A24 address for the 1260-43 module may be calculated by:
(A24 Offset of Option-01T) + (1024 x Module Address of 1260-43).
The A24 address offset is usually expressed in hexadecimal. A typical value of 204000
is used in the examples that follow.
16
A 1260-43 with a module address of 6 would have the base A24 address computed as follows:
Base A24 Address of 1260-43 = 204000 = 205800
16
The control registers f or 1260-Series VXI modules are always on odd-numbered A24 addresses. The first two control registers for the 1260-43 reside at the firs t two odd-numbered A24 addresses for the module:
+ (40016 x 610)
16
(Base A24 Address of 1260-43) + 1 = Contr ol Reg . 0 (Base A24 Address of 1260-43) + 3 = Contr ol Reg . 1
So, for our example, the two control reg ist ers are located at:
Module Operation 3-2 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 34
Publication No. 980673-067 Rev. B 1260-43 User Manual
shows the address offset assignments for each
205801 Control Register 0 205803 Control Register 1 Table 3-1
Control/Status register while Table 3-2 shows the Control/Status Register Relay / Buss Assignments. Ref er to Appendix A and B in determining relay groups and the relay refer enc e designations.
Table 3-1, Control/ Status Register Address Offset Assignments
Control/Status
Reg. 00A 001 Input Bus to Matrix Bus ‘A’ (lower bus bits 4-0)
Reg. 00B 003 Input Bus to Matrix Bus ‘A’ (upper bus bits 9-5)
Reg. 01A 005 Bypass Matrix Bus ‘A’ to Internal Bus ‘B’ (lower bus bits 4-0)
Reg. 01B 007 Bypass Matrix Bus ‘A’ to Internal Bus ‘B’ (upper bus bits 9-5)
Reg. 02A 009 Internal Bus ‘B’ to Matrix Bus ‘B’ (lower bus bits 4-0)
Reg. 02B 00B Internal Bus ‘B’ to Matrix Bus ‘B’ (upper bus bits 9-5)
Reg. 03A 00D Bypass Matrix Bus ‘B’ to Internal Bus ‘C’ (lower bus bits 4-0)
Reg. 03B 00F Bypass Matrix Bus ‘B’ to Internal Bus ‘C’ (upper bus bits 9-5)
Reg. 04A 011 Internal Bus ‘C’ to Matrix Bus ‘C’ (lower bus bits 4-0)
Reg. 04B 013 Internal Bus ‘C’ to Matrix Bus ‘C’ (upper bus bits 9-5)
Reg. 05A 015 Bypass Matrix Bus ‘C’ to Output Bus (lower bus bits 4-0)
Reg. 05B 017 Bypass Matrix Bus ‘C’ to Output Bus (upper bus bits 9-5)
Reg. 06A 019 Matrix Bus ‘A’ Stub Break 1 (lower bus bits 4-0)
Address
Function
Reg. 06B 01B Matrix Bus ‘A’ Stub Break 1 (upper bus bits 9-5)
Reg. 07A 01D Matrix Bus ‘A’ Stub Break 2 (lower bus bits 4-0)
Reg. 07B 01F Matrix Bus ‘A’ Stub Break 2 (upper bus bits 9-5)
Reg. 08A 021 Matrix Bus ‘A’ Stub Break 3 (lower bus bits 4-0)
Reg. 08B 023 Matrix Bus ‘A’ Stub Break 3 (upper bus bits 9-5)
Reg. 09A 025 Matrix Bus ‘A’ Stub Break 4 (lower bus bits 4-0)
Reg. 09B 027 Matrix Bus ‘A’ Stub Break 4 (upper bus bits 9-5)
Reg. 10A 029 Matrix Bus ‘B’ Stub Break 1 (lower bus bits 4-0)
Astronics Test Systems Module Operation 3-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 35
1260-43 User Manual Publication No. 980673-067 Rev. B
Reg. 10B 02B Matrix Bus ‘B’ Stub Break 1 (upper bus bits 9-5)
Reg. 11A 02D Matrix Bus ‘B’ Stub Break 2 (lower bus bits 4-0)
Reg. 11B 02F Matrix Bus ‘B’ Stub Break 2 (upper bus bits 9-5)
Reg. 12A 031 Matrix Bus ‘B’ Stub Break 3 (lower bus bits 4-0)
Reg. 12B 033 Matrix Bus ‘B’ Stub Break 3 (upper bus bits 9-5)
Reserved 035-03F
Reg. 13A 041 Matrix Bus ‘B’ Stub Break 4 (lower bus bits 4-0)
Reg. 13B 043 Matrix Bus ‘B’ Stub Break 4 (upper bus bits 9-5)
Reg. 14A 045 Matrix Bus ‘C’ Stub Break 1 (lower bus bits 4-0)
Reg. 14B 047 Matrix Bus ‘C’ Stub Break 1 (upper bus bits 9-5)
Reg. 15A 049 Matrix Bus ‘C’ Stub Break 2 (lower bus bits 4-0)
Reg. 15B 04B Matrix Bus ‘C’ Stub Break 2 (upper bus bits 9-5)
Reg. 16A 04D Matrix Bus ‘C’ Stub Break 3 (lower bus bits 4-0)
Reg. 16B 04F Matrix Bus ‘C’ Stub Break 3 (upper bus bits 9-5)
Reg. 17A 051 Matrix Bus ‘C’ Stub Break 4 (lower bus bits 4-0)
Reg. 17B 053 Matrix Bus ‘C’ Stub Break 4 (upper bus bits 9-5)
Reg. 18A 055 Matrix Bus ‘A’ Pull-up/Pull-down for Load 1
Reg. 18B 057 Matrix Bus ‘A’ Pull-up/Pull-down for Load 2
Reg. 19A 059 Matrix Bus ‘A’ Resistor Selection for Load 1
Reg. 19B 05B Matrix Bus ‘A’ Resistor Selection for Load 2
Reg. 20A 05D Matrix Bus ‘A’ Load 1 Connection (lower bus bits 4-0)
Reg. 20B 05F Matrix Bus ‘A’ Load 1 Connection (upper bus bits 9-5)
Reg. 21A 061 Matrix Bus ‘A’ Load 2 Connection (lower bus bits 4-0)
Reg. 21B 063 Matrix Bus ‘A’ Load 2 Connection (upper bus bits 9-5)
Reg. 22A 065 Matrix Bus ‘B’ Pull-up/Pull-down for Load 1
Reg. 22B 067 Matrix Bus ‘B’ Pull-up/Pull-down for Load 2
Reg. 23A 069 Matrix Bus ‘B’ Resistor Selection for Load 1
Reg. 23B 06B Matrix Bus ‘B’ Resistor Selection for Load 2
Reg. 24A 06D Matrix Bus ‘B’ Load 1 Connection (lower bus bits 4-0)
Reg. 24B 06F Matrix Bus ‘B’ Load 1 Connection (upper bus bits 9-5)
Module Operation 3-4 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 36
Publication No. 980673-067 Rev. B 1260-43 User Manual
Reg. 25A 071 Matrix Bus ‘B’ Load 2 Connection (lower bus bits 4-0)
Reg. 25B 073 Matrix Bus ‘B’ Load 2 Connection (upper bus bits 9-5)
Reserved 075-07F
Reg. 26A 081 Matrix Bus ‘C’ Pull-up/Pull-down for Load 1
Reg. 26B 083 Matrix Bus ‘C’ Pull-up/Pull-down for Load 2
Reg. 27A 085 Matrix Bus ‘C’ Resistor Selection for Load 1
Reg. 27B 087 Matrix Bus ‘C’ Resistor Selection for Load 2
Reg. 28A 089 Matrix Bus ‘C’ Load 1 Connection (lower bus bits 4-0)
Reg. 28B 08B Matrix Bus ‘C’ Load 1 Connection (upper bus bits 9-5)
Reg. 29A 08D Matrix Bus ‘C’ Load 2 Connection (lower bus bits 4-0)
Reg. 29B 08F Matrix Bus ‘C’ Load 2 Connection (upper bus bits 9-5)
Reg. 30A 091 Matrix Bus ‘A’ Instrument Input 1 (lower bus bits 4-0)
Reg. 30B 093 Matrix Bus ‘A’ Instrument Input 1 (upper bus bits 9-5)
Reg. 31A 095 Matrix Bus ‘A’ Instrument Input 2 (lower bus bits 4-0)
Reg. 31B 097 Matrix Bus ‘A’ Instrument Input 2 (upper bus bits 9-5)
Reg. 32A 099 Matrix Bus ‘A’ Instrument Input 3 (lower bus bits 4-0)
Reg. 32B 09B Matrix Bus ‘A’ Instrument Input 3 (upper bus bits 9-5)
Reg. 33A 09D Matrix Bus ‘A’ Instrument Input 4 (lower bus bits 4-0)
Reg. 33B 09F Matrix Bus ‘A’ Instrument Input 4 (upper bus bits 9-5)
Reg. 34A 0A1 Matrix Bus ‘A’ Instrument Input 5 (lower bus bits 4-0)
Reg. 34B 0A3 Matrix Bus ‘A’ Instrument Input 5 (upper bus bits 9-5)
Reg. 35A 0A5 Matrix Bus ‘A’ Instrument Input 6 (lower bus bits 4-0)
Reg. 35B 0A7 Matrix Bus ‘A’ Instrument Input 6 (upper bus bits 9-5)
Reg. 36A 0A9 Matrix Bus ‘A’ Instrument Input 7 (lower bus bits 4-0)
Reg. 36B 0AB Matrix Bus ‘A’ Instrument Input 7 (upper bus bits 9-5)
Reg. 37A 0AD Matrix Bus ‘A’ Instrument Input 8 (lower bus bits 4-0)
Reg. 37B 0AF Matrix Bus ‘A’ Instrument Input 8 (upper bus bits 9-5)
Reg. 38 0B1 Matrix Bus ‘A’ Output 1
Reg. 39 0B3 Matrix Bus ‘A’ Output 2
Reserved 0B5-0BF
Astronics Test Systems Module Operation 3-5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 37
1260-43 User Manual Publication No. 980673-067 Rev. B
Reg. 40 0C1 Matrix Bus ‘A’ Output 3
Reg. 41 0C3 Matrix Bus ‘A’ Output 4
Reg. 42 0C5 Matrix Bus ‘A’ Output 5
Reg. 43 0C7 Matrix Bus ‘A’ Output 6
Reg. 44 0C9 Matrix Bus ‘A’ Output 7
Reg. 45 0CB Matrix Bus ‘A’ Output 8
Reg. 46 0CD Matrix Bus ‘A’ Output 9
Reg. 47 0CF Matrix Bus ‘A’ Output 10
Reg. 48 0D1 Matrix Bus ‘A’ Output 11
Reg. 49 0D3 Matrix Bus ‘A’ Output 12
Reg. 50 0D5 Matrix Bus ‘A’ Output 13
Reg. 51 0D7 Matrix Bus ‘A’ Output 14
Reg. 52 0D9 Matrix Bus ‘A’ Output 15
Reg. 53 0DB Matrix Bus ‘A’ Output 16
Reg. 54 0DD Matrix Bus ‘A’ Output 17
Reg. 55 0DF Matrix Bus ‘A’ Output 18
Reg. 56 0E1 Matrix Bus ‘A’ Output 19
Reg. 57 0E3 Matrix Bus ‘A’ Output 20
Reg. 58 0E5 Matrix Bus ‘A’ Output 21
Reg. 59 0E7 Matrix Bus ‘A’ Output 22
Reg. 60 0E9 Matrix Bus ‘A’ Output 23
Reg. 61 0EB Matrix Bus ‘A’ Output 24
Reg. 62A 0ED Matrix Bus ‘B’ Instrument Input 1 (lower bus bits 4-0)
Reg. 62B 0EF Matrix Bus ‘B’ Instrument Input 1 (upper bus bits 9-5)
Reg. 63A 0F1 Matrix Bus ‘B’ Instrument Input 2 (lower bus bits 4-0)
Reg. 63B 0F3 Matrix Bus ‘B’ Instrument Input 2 (upper bus bits 9-5)
Reserved 0F5-0FF
Reg. 64A 101 Matrix Bus ‘B’ Instrument Input 3 (lower bus bits 4-0)
Reg. 64B 103 Matrix Bus ‘B’ Instrument Input 3 (upper bus bits 9-5)
Reg. 65A 105 Matrix Bus ‘B’ Instrument Input 4 (lower bus bits 4-0)
Module Operation 3-6 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 38
Publication No. 980673-067 Rev. B 1260-43 User Manual
Reg. 65B 107 Matrix Bus ‘B’ Instrument Input 4 (upper bus bits 9-5)
Reg. 66A 109 Matrix Bus ‘B’ Instrument Input 5 (lower bus bits 4-0)
Reg. 66B 10B Matrix Bus ‘B’ Instrument Input 5 (upper bus bits 9-5)
Reg. 67A 10D Matrix Bus ‘B’ Instrument Input 6 (lower bus bits 4-0)
Reg. 67B 10F Matrix Bus ‘B’ Instrument Input 6 (upper bus bits 9-5)
Reg. 68A 111 Matrix Bus ‘B’ Instrument Input 7 (lower bus bits 4-0)
Reg. 68B 113 Matrix Bus ‘B’ Instrument Input 7 (upper bus bits 9-5)
Reg. 69A 115 Matrix Bus ‘B’ Instrument Input 8 (lower bus bits 4-0)
Reg. 69B 117 Matrix Bus ‘B’ Instrument Input 8 (upper bus bits 9-5)
Reg. 70 119 Matrix Bus ‘B’ Output 1
Reg. 71 11B Matrix Bus ‘B’ Output 2
Reg. 72 11D Matrix Bus ‘B’ Output 3
Reg. 73 11F Matrix Bus ‘B’ Output 4
Reg. 74 121 Matrix Bus ‘B’ Output 5
Reg. 75 123 Matrix Bus ‘B’ Output 6
Reg. 76 125 Matrix Bus ‘B’ Output 7
Reg. 77 127 Matrix Bus ‘B’ Output 8
Reg. 78 129 Matrix Bus ‘B’ Output 9
Reg. 79 12B Matrix Bus ‘B’ Output 10
Reg. 80 12D Matrix Bus ‘B’ Output 11
Reg. 81 12F Matrix Bus ‘B’ Output 12
Reg. 82 131 Matrix Bus ‘B’ Output 13
Reg. 83 133 Matrix Bus ‘B’ Output 14
Reserved 135-13F
Reg. 84 141 Matrix Bus ‘B’ Output 15
Reg. 85 143 Matrix Bus ‘B’ Output 16
Reg. 86 145 Matrix Bus ‘B’ Output 17
Reg. 87 147 Matrix Bus ‘B’ Output 18
Reg. 88 149 Matrix Bus ‘B’ Output 19
Reg. 89 14B Matrix Bus ‘B’ Output 20
Astronics Test Systems Module Operation 3-7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 39
1260-43 User Manual Publication No. 980673-067 Rev. B
Reg. 90 14D Matrix Bus ‘B’ Output 21
Reg. 91 14F Matrix Bus ‘B’ Output 22
Reg. 92 151 Matrix Bus ‘B’ Output 23
Reg. 93 153 Matrix Bus ‘B’ Output 24
Reg. 94A 155 Matrix Bus ‘C’ Instrument Input 1 (lower bus bits 4-0)
Reg. 94B 157 Matrix Bus ‘C’ Instrument Input 1 (upper bus bits 9-5)
Reg. 95A 159 Matrix Bus ‘C’ Instrument Input 2 (lower bus bits 4-0)
Reg. 95B 15B Matrix Bus ‘C’ Instrument Input 2 (upper bus bits 9-5)
Reg. 96A 15D Matrix Bus ‘C’ Instrument Input 3 (lower bus bits 4-0)
Reg. 96B 15F Matrix Bus ‘C’ Instrument Input 3 (upper bus bits 9-5)
Reg. 97A 161 Matrix Bus ‘C’ Instrument Input 4 (lower bus bits 4-0)
Reg. 97B 163 Matrix Bus ‘C’ Instrument Input 4 (upper bus bits 9-5)
Reg. 98A 165 Matrix Bus ‘C’ Instrument Input 5 (lower bus bits 4-0)
Reg. 98B 167 Matrix Bus ‘C’ Instrument Input 5 (upper bus bits 9-5)
Reg. 99A 169 Matrix Bus ‘C’ Instrument Input 6 (lower bus bits 4-0)
Reg. 99B 16B Matrix Bus ‘C’ Instrument Input 6 (upper bus bits 9-5)
Reg. 100A 16D Matrix Bus ‘C’ Instrument Input 7 (lower bus bits 4-0)
Reg. 100B 16F Matrix Bus ‘C’ Instrument Input 7 (upper bus bits 9-5)
Reg. 101A 171 Matrix Bus ‘C’ Instrument Input 8 (lower bus bits 4-0)
Reg. 101B 173 Matrix Bus ‘C’ Instrument Input 8 (upper bus bits 9-5)
Reserved 175-17F
Reg. 102 181 Matrix Bus ‘C’ Output 1
Reg. 103 183 Matrix Bus ‘C’ Output 2
Reg. 104 185 Matrix Bus ‘C’ Output 3
Reg. 105 187 Matrix Bus ‘C’ Output 4
Reg. 106 189 Matrix Bus ‘C’ Output 5
Reg. 107 18B Matrix Bus ‘C’ Output 6
Reg. 108 18D Matrix Bus ‘C’ Output 7
Reg. 109 18F Matrix Bus ‘C’ Output 8
Reg. 110 191 Matrix Bus ‘C’ Output 9
Module Operation 3-8 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 40
Publication No. 980673-067 Rev. B 1260-43 User Manual
Reg. 111 193 Matrix Bus ‘C’ Output 10
Reg. 112 195 Matrix Bus ‘C’ Output 11
Reg. 113 197 Matrix Bus ‘C’ Output 12
Reg. 114 199 Matrix Bus ‘C’ Output 13
Reg. 115 19B Matrix Bus ‘C’ Output 14
Reg. 116 19D Matrix Bus ‘C’ Output 15
Reg. 117 19F Matrix Bus ‘C’ Output 16
Reg. 118 1A1 Matrix Bus ‘C’ Output 17
Reg. 119 1A3 Matrix Bus ‘C’ Output 18
Reg. 120 1A5 Matrix Bus ‘C’ Output 19
Reg. 121 1A7 Matrix Bus ‘C’ Output 20
Reg. 122 1A9 Matrix Bus ‘C’ Output 21
Reg. 123 1AB Matrix Bus ‘C’ Output 22
Reg. 124 1AD Matrix Bus ‘C’ Output 23
Reg. 125 1AF Matrix Bus ‘C’ Output 24
ID Byte 201 Identification Byte (Read Only)
EPROM 203 EPROM Data (Read Only)
Astronics Test Systems Module Operation 3-9
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 41
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Table 3-2, Control/ Status Register Relay Assignments
Control/ Status Register
Reg. 00A
Control/ Status Register
Reg. 00B
Control/ Status Register
Reg. 01A
NC
NC
NC
Input Bus to Matrix Bus ‘A’ (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bypass Matrix Bus ‘A’ to Inter nal Bus ‘B’ (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Input Bus to Matrix Bus ‘A’ (upper bus bits 9-5)
NC
NC
K5 K4 K3 K2 K1
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K15 K14 K13 K12 K11
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K10 K9 K8 K7 K6
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 01B
Control/ Status Register
Reg. 02A
Module Operation 3-10 Astronics Test Systems
NC
NC
Bypass Matrix B us ‘A ’ to Inter nal Bus ‘B’ (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Internal Bus ‘B’ to Matrix Bus ‘B’ (lower bus bits 4-0)
NC
K20 K19 K18 K17 K16
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K25 K24 K23 K22 K21
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 42
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 02B
Control/ Status Register
Reg. 03A
Control/ Status Register
Reg. 03B
NC
NC
NC
Internal Bus ‘B’ to Matrix Bus ‘B’ (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bypass Matrix Bus ‘B’ to Internal Bus ‘C’ (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bypass Matrix Bus ‘B’ to Internal Bus ‘C’ (upper bus bits 9 -5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K35 K34 K33 K32 K31
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K30 K29 K28 K27 K26
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K40 K39 K38 K37 K36
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 04A
Control/
Status
Register
Reg. 04B
NC
NC
Internal Bus ‘C’ to Matrix Bus ‘C’ (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Internal Bus ‘C’ to Matrix Bus ‘C’ (upper bus bits 9-5)
NC
K45 K44 K43 K42 K41
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K55 K54 K53 K52 K51
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-11
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 43
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 05A
Control/ Status Register
Reg. 05B
Control/ Status Register
Reg. 06A
NC
NC
NC
Bypass Matrix Bus ‘C’ to Output Bus (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Bypass Matrix Bus ‘C’ to Output Bus (upper bus bits 9 -5)
NC
Matrix Bus ‘A’ Stub Break 1 (lower bus bits 4-0)
NC
K50 K49 K48 K47 K46
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K60 K59 K58 K57 K56
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K65 K64 K63 K62 K61
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 06B
Control/ Status Register
Reg. 07A
NC
NC
Matrix Bus ‘A’ Stub Break 1 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Stub Break 2 (lower bus bits 4-0)
NC
K85 K84 K83 K82 K81
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K70 K69 K68 K67 K66
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-12 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 44
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 07B
Control/
Status
Register
Reg. 08A
Control/ Status Register
Reg. 08B
NC
NC
NC
Matrix Bus ‘A’ Stub Break 2 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Stub Break 3 (lower bus bits 4-0)
NC
Matrix Bus ‘A’ Stub Break 3 (upper bus bits 9-5)
NC
K90 K89 K88 K87 K86
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K79 K77 K75 K73 K71
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K99 K97 K95 K93 K91
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 09A
Control/ Status Register
Reg. 09B
NC
NC
Matrix Bus ‘A’ Stub Break 4 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Stub Break 4 (upper bus bits 9-5)
NC
K80 K78 K76 K74 K72
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K100 K98 K96 K94 K92
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-13
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 45
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 10A
Control/ Status Register
Reg. 10B
Control/ Status Register
Reg. 11A
NC
NC
NC
Matrix Bus ‘B’ Stub Break 1 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Stub Break 1 (upper bus bits 9-5)
NC
Matrix Bus ‘B’ Stub Break 2 (lower bus bits 4-0)
NC
K105 K104 K103 K102 K101
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K125 K124 K123 K122 K121
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K110 K109 K108 K107 K106
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 11B
Control/ Status Register
Reg. 12A
NC
NC
Matrix Bus ‘B’ Stub Break 2 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Stub Break 3 (lower bus bits 4-0)
NC
K130 K129 K128 K127 K126
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K119 K117 K115 K113 K111
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-14 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 46
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 12B
Control/ Status Register
Reg. 13A
Control/ Status Register
Reg. 13B
NC
NC
NC
Matrix Bus ‘B’ Stub Break 3 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Stub Break 4 (lower bus bits 4-0)
NC
Matrix Bus ‘B’ Stub Break 4 (upper bus bits 9-5)
NC
K139 K137 K135 K133 K131
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K120 K118 K116 K114 K112
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K140 K138 K136 K134 K132
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 14A
Control/ Status Register
Reg. 14B
NC
NC
Matrix Bus ‘C’ Stub Break 1 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Stub Break 1 (upper bus bits 9-5)
NC
K145 K144 K143 K142 K141
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K165 K164 K163 K162 K161
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-15
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 47
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 15A
Control/ Status Register
Reg. 15B
Control/ Status Register
Reg. 16A
NC
NC
NC
Matrix Bus ‘C’ Stub Break 2 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Stub Break 2 (upper bus bits 9-5)
NC
Matrix Bus ‘C’ Stub Break 3 (lower bus bits 4-0)
NC
K150 K149 K148 K147 K146
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K170 K169 K168 K167 K166
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K159 K157 K155 K153 K151
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 16B
Control/ Status Register
Reg. 17A
NC
NC
Matrix Bus ‘C’ Stub Break 3 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Stub Break 4 (lower bus bits 4-0)
NC
K179 K177 K175 K173 K171
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K160 K158 K156 K154 K152
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-16 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 48
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 17B
Control/ Status Register
Reg. 18A
Control/ Status Register
Reg. 18B
NC
NC
NC
Matrix Bus ‘C’ Stub Break 4 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Pull-up/Pull-down for Load 1
NC
Matrix Bus ‘A’ Pull-up/Pull-down for Load 2
NC
K180 K178 K176 K174 K172
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K185 K184 K183 K182 K181
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K195 K194 K193 K192 K191
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 19A
Control/ Status Register
Reg. 19B
NC
NC
Matrix Bus ‘A’ Resistor Selection for Load 1
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Resistor Selection for Load 2
NC
K190 K189 K188 K187 K186
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K200 K199 K198 K197 K196
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-17
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 49
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 20A
Control/ Status Register
Reg. 20B
Control/ Status Register
Reg. 21A
NC
NC
NC
Matrix Bus ‘A’ Load 1 Connection (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Load 1 Connection (upper bus bits 9-5)
NC
Matrix Bus ‘A’ Load 2 Connection (lower bus bits 4-0)
NC
K205 K204 K203 K202 K201
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K210 K209 K208 K207 K206
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K215 K214 K213 K212 K211
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 21B
Control/ Status Register
Reg. 22A
NC
NC
Matrix Bus ‘A’ Load 2 Connection (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Pull-up/Pull-down for Load 1
NC
K220 K219 K218 K217 K216
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K225 K224 K223 K222 K221
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-18 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 50
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 22B
Control/ Status Register
Reg. 23A
Control/ Status Register
Reg. 23B
NC
NC
NC
Matrix Bus ‘B’ Pull-up/Pull-down for Load 2
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Resistor Selection for Load 1
NC
Matrix Bus ‘B’ Resistor Selection for Load 2
NC
K235 K234 K233 K232 K231
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K230 K229 K228 K227 K226
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K240 K239 K238 K237 K236
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 24A
Control/ Status Register
Reg. 24B
NC
NC
Matrix Bus ‘B’ Load 1 Connection (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Load 1 Connection (upper bus bits 9-5)
NC
K245 K244 K243 K242 K241
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K250 K249 K248 K247 K246
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-19
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 51
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 25A
Control/ Status Register
Reg. 25B
Control/ Status Register
Reg. 26A
NC
NC
NC
Matrix Bus ‘B’ Load 2 Connection (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Load 2 Connection (upper bus bits 9-5)
NC
Matrix Bus ‘C’ Pull-up/Pull-down for Load 1
NC
K255 K254 K253 K252 K251
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K260 K259 K258 K257 K256
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K265 K264 K263 K262 K261
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 26B
Control/ Status Register
Reg. 27A
NC
NC
Matrix Bus ‘C’ Pull-up/Pull-down for Load 2
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Resistor Selection for Load 1
NC
K275 K274 K273 K272 K271
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K270 K269 K268 K267 K266
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-20 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 52
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 27B
Control/ Status Register
Reg. 28A
Control/ Status Register
Reg. 28B
NC
NC
NC
Matrix Bus ‘C’ Resistor Selection for Load 2
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Load 1 Connection (lower bus bits 4-0)
NC
Matrix Bus ‘C’ Load 1 Connection (upper bus bits 9-5)
NC
K280 K279 K278 K277 K276
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K285 K284 K283 K282 K281
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K290 K289 K288 K287 K286
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 29A
Control/ Status Register
Reg. 29B
NC
NC
Matrix Bus ‘C’ Load 2 Connection (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Load 2 Connection (upper bus bits 9-5)
NC
K295 K294 K293 K292 K291
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K300 K299 K298 K297 K296
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-21
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 53
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 30A
Control/ Status Register
Reg. 30B
Control/ Status Register
Reg. 31A
NC
NC
NC
Matrix Bus ‘A’ Instrument Input 1 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Instrument Input 1 (upper bus bits 9-5)
NC
Matrix Bus ‘A’ Instrument Input 2 (lower bus bits 4-0)
NC
K305 K304 K303 K302 K301
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K310 K309 K308 K307 K306
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K315 K314 K313 K312 K311
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 31B
Control/ Status Register
Reg. 32A
NC
NC
Matrix Bus ‘A’ Instrument Input 2 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Instrument Input 3 (lower bus bits 4-0)
NC
K320 K319 K318 K317 K316
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K325 K324 K323 K322 K321
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-22 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 54
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 32B
Control/ Status Register
Reg. 33A
Control/ Status Register
Reg. 33B
NC
NC
NC
Matrix Bus ‘A’ Instrument Input 3 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Instrument Input 4 (lower bus bits 4-0)
NC
Matrix Bus ‘A’ Instrument Input 4 (upper bus bits 9-5)
NC
K330 K329 K328 K327 K326
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K335 K334 K333 K332 K331
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K340 K339 K338 K337 K336
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 34A
Control/ Status Register
Reg. 34B
NC
NC
Matrix Bus ‘A’ Instrument Input 5 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Instrument Input 5 (upper bus bits 9-5)
NC
K345 K344 K343 K342 K341
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K350 K349 K348 K347 K346
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-23
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 55
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 35A
Control/ Status Register
Reg. 35B
Control/ Status Register
Reg. 36A
NC
NC
NC
Matrix Bus ‘A’ Instrument Input 6 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Instrument Input 6 (upper bus bits 9-5)
NC
Matrix Bus ‘A’ Instrument Input 7 (lower bus bits 4-0)
NC
K355 K354 K353 K352 K351
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K360 K359 K358 K357 K356
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K365 K364 K363 K362 K361
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 36B
Control/ Status Register
Reg. 37A
NC
NC
Matrix Bus ‘A’ Instrument Input 7 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘A’ Instrument Input 8 (lower bus bits 4-0)
NC
K370 K369 K368 K367 K366
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K375 K374 K373 K372 K371
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-24 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 56
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 37B
Control/ Status Register
Reg. 38
Control/ Status Register
Reg. 39
NC
NC
NC
Matrix Bus ‘A’ Instrument Input 8 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K380 K379 K378 K377 K376
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Matrix Bus ‘A’ Output 1
K385 K384 K383 K382 K381
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Matrix Bus ‘A’ Output 2
K390 K389 K388 K387 K386
Bus 7 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 40
Control/ Status Register
Reg. 41
NC
NC
Matrix Bus ‘A’ Output 3
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K395 K394 K393 K392 K391
Bus 6 Bus 3 Bus 2 Bus 1 Bus 0
Matrix Bus ‘A’ Output 4
K400 K399 K398 K397 K396
Bus 6 Bus 4 Bus 2 Bus 1 Bus 0
Astronics Test Systems Module Operation 3-25
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 57
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 42
Control/ Status Register
Reg. 43
Control/ Status Register
Reg. 44
NC
NC
NC
Matrix Bus ‘A’ Output 5
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K405 K404 K403 K402 K401
Bus 5 Bus 4 Bus 2 Bus 1 Bus 0
Matrix Bus ‘A’ Output 6
K410 K409 K408 K407 K406
Bus 5 Bus 3 Bus 2 Bus 1 Bus 0
Matrix Bus ‘A’ Output 7
K415 K414 K413 K412 K411
Bus 7 Bus 6 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 45
Control/ Status Register
Reg. 46
NC
NC
Matrix Bus ‘A’ Output 8
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K420 K419 K418 K417 K416
Bus 7 Bus 4 Bus 2 Bus 1 Bus 0
Matrix Bus ‘A’ Output 9
K425 K424 K423 K422 K421
Bus 7 Bus 5 Bus 2 Bus 1 Bus 0
Module Operation 3-26 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 58
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 47
Control/ Status Register
Reg. 48
Control/ Status Register
Reg. 49
NC
NC
NC
Matrix Bus ‘A’ Output 10
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K430 K429 K428 K427 K426
Bus 5 Bus 4 Bus 3 Bus 1 Bus 0
Matrix Bus ‘A’ Output 11
K435 K434 K433 K432 K431
Bus 6 Bus 4 Bus 3 Bus 1 Bus 0
Matrix Bus ‘A’ Output 12
K440 K439 K438 K437 K436
Bus 6 Bus 5 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 50
Control/ Status Register
Reg. 51
NC
NC
Matrix Bus ‘A’ Output 13
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K445 K444 K443 K442 K441
Bus 6 Bus 4 Bus 3 Bus 2 Bus 0
Matrix Bus ‘A’ Output 14
K450 K449 K448 K447 K446
Bus 7 Bus 4 Bus 3 Bus 2 Bus 0
Astronics Test Systems Module Operation 3-27
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 59
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 52
Control/ Status Register
Reg. 53
Control/ Status Register
Reg. 54
NC
NC
NC
Matrix Bus ‘A’ Output 15
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K455 K454 K453 K452 K451
Bus 8 Bus 4 Bus 3 Bus 2 Bus 0
Matrix Bus ‘A’ Output 16
K460 K459 K458 K457 K456
Bus 8 Bus 5 Bus 3 Bus 2 Bus 0
Matrix Bus ‘A’ Output 17
K465 K464 K463 K462 K461
Bus 7 Bus 5 Bus 3 Bus 2 Bus 0
Control/ Status Register
Reg. 55
Control/ Status Register
Reg. 56
NC
NC
Matrix Bus ‘A’ Output 18
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K470 K469 K468 K467 K466
Bus 6 Bus 5 Bus 3 Bus 2 Bus 0
Matrix Bus ‘A’ Output 19
K475 K474 K473 K472 K471
Bus 8 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-28 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 60
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 57
Control/ Status Register
Reg. 58
Control/ Status Register
Reg. 59
NC
NC
NC
Matrix Bus ‘A’ Output 20
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K480 K479 K478 K477 K476
Bus 8 Bus 6 Bus 4 Bus 1 Bus 0
Matrix Bus ‘A’ Output 21
K485 K484 K483 K482 K481
Bus 7 Bus 4 Bus 3 Bus 1 Bus 0
Matrix Bus ‘A’ Output 22
K490 K489 K488 K487 K486
Bus 7 Bus 6 Bus 3 Bus 1 Bus 0
Control/ Status Register
Reg. 60
Control/ Status Register
Reg. 61
NC
NC
Matrix Bus ‘A’ Output 23
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K495 K494 K493 K492 K491
Bus 6 Bus 5 Bus 3 Bus 1 Bus 0
Matrix Bus ‘A’ Output 24
K500 K499 K498 K497 K496
Bus 7 Bus 5 Bus 3 Bus 1 Bus 0
Astronics Test Systems Module Operation 3-29
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 61
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 62A
Control/ Status Register
Reg. 62B
Control/ Status Register
Reg. 63A
NC
NC
NC
Matrix Bus ‘B’ Instrument Input 1 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Instrument Input 1 (upper bus bits 9-5)
NC
Matrix Bus ‘B’ Instrument Input 2 (lower bus bits 4-0)
NC
K505 K504 K503 K502 K501
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K510 K509 K508 K507 K506
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K515 K514 K513 K512 K511
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 63B
Control/ Status Register
Reg. 64A
NC
NC
Matrix Bus ‘B’ Instrument Input 2 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Instrument Input 3 (lower bus bits 4-0)
NC
K520 K519 K518 K517 K516
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K525 K524 K523 K522 K521
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-30 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 62
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 64B
Control/ Status Register
Reg. 65A
Control/ Status Register
Reg. 65B
NC
NC
NC
Matrix Bus ‘B’ Instrument Input 3 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Instrument Input 4 (lower bus bits 4-0)
NC
Matrix Bus ‘B’ Instrument Input 4 (upper bus bits 9-5)
NC
K530 K529 K528 K527 K526
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K535 K534 K533 K532 K531
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K540 K539 K538 K537 K536
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 66A
Control/ Status Register
Reg. 66B
NC
NC
Matrix Bus ‘B’ Instrument Input 5 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Instrument Input 5 (upper bus bits 9-5)
NC
K545 K544 K543 K542 K541
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K550 K549 K548 K547 K546
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-31
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 63
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 67A
Control/ Status Register
Reg. 67B
Control/ Status Register
Reg. 68A
NC
NC
NC
Matrix Bus ‘B’ Instrument Input 6 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Instrument Input 6 (upper bus bits 9-5)
NC
Matrix Bus ‘B’ Instrument Input 7 (lower bus bits 4-0)
NC
K555 K554 K553 K552 K551
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K560 K559 K558 K557 K556
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K565 K564 K563 K562 K561
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 68B
Control/ Status Register
Reg. 69A
NC
NC
Matrix Bus ‘B’ Instrument Input 7 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘B’ Instrument Input 8 (lower bus bits 4-0)
NC
K570 K569 K568 K567 K566
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K575 K574 K573 K572 K571
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-32 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 64
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 69B
Control/ Status Register
Reg. 70
Control/ Status Register
Reg. 71
NC
NC
NC
Matrix Bus ‘B’ Instrument Input 8 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K580 K579 K578 K577 K576
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Matrix Bus ‘B’ Output 1
K585 K584 K583 K582 K581
Bus 5 Bus 4 Bus 3 Bus 2 Bus 1
Matrix Bus ‘B’ Output 2
K590 K589 K588 K587 K586
Bus 8 Bus 4 Bus 3 Bus 2 Bus 1
Control/ Status Register
Reg. 72
Control/ Status Register
Reg. 73
NC
NC
Matrix Bus ‘B’ Output 3
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K595 K594 K593 K592 K591
Bus 7 Bus 4 Bus 3 Bus 2 Bus 1
Matrix Bus ‘B’ Output 4
K600 K599 K598 K597 K596
Bus 7 Bus 5 Bus 3 Bus 2 Bus 1
Astronics Test Systems Module Operation 3-33
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 65
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 74
Control/ Status Register
Reg. 75
Control/ Status Register
Reg. 76
NC
NC
NC
Matrix Bus ‘B’ Output 5
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K605 K604 K603 K602 K601
Bus 6 Bus 5 Bus 3 Bus 2 Bus 1
Matrix Bus ‘B’ Output 6
K610 K609 K608 K607 K606
Bus 6 Bus 4 Bus 3 Bus 2 Bus 1
Matrix Bus ‘B’ Output 7
K615 K614 K613 K612 K611
Bus 8 Bus 7 Bus 3 Bus 2 Bus 1
Control/ Status Register
Reg. 77
Control/ Status Register
Reg. 78
NC
NC
Matrix Bus ‘B’ Output 8
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K620 K619 K618 K617 K616
Bus 8 Bus 5 Bus 3 Bus 2 Bus 1
Matrix Bus ‘B’ Output 9
K625 K624 K623 K622 K621
Bus 8 Bus 6 Bus 3 Bus 2 Bus 1
Module Operation 3-34 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 66
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 79
Control/ Status Register
Reg. 80
Control/ Status Register
Reg. 81
NC
NC
NC
Matrix Bus ‘B’ Output 10
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K630 K629 K628 K627 K626
Bus 6 Bus 5 Bus 4 Bus 2 Bus 1
Matrix Bus ‘B’ Output 11
K635 K634 K633 K632 K631
Bus 7 Bus 5 Bus 4 Bus 2 Bus 1
Matrix Bus ‘B’ Output 12
K640 K639 K638 K637 K636
Bus 7 Bus 6 Bus 3 Bus 2 Bus 1
Control/ Status Register
Reg. 82
Control/ Status Register
Reg. 83
NC
NC
Matrix Bus ‘B’ Output 13
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K645 K644 K643 K642 K641
Bus 7 Bus 5 Bus 4 Bus 3 Bus 1
Matrix Bus ‘B’ Output 14
K650 K649 K648 K647 K646
Bus 8 Bus 5 Bus 4 Bus 3 Bus 1
Astronics Test Systems Module Operation 3-35
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 67
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 84
Control/ Status Register
Reg. 85
Control/ Status Register
Reg. 86
NC
NC
NC
Matrix Bus ‘B’ Output 15
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K655 K654 K653 K652 K651
Bus 9 Bus 5 Bus 4 Bus 3 Bus 1
Matrix Bus ‘B’ Output 16
K660 K659 K658 K657 K656
Bus 9 Bus 6 Bus 4 Bus 3 Bus 1
Matrix Bus ‘B’ Output 17
K665 K664 K663 K662 K661
Bus 8 Bus 6 Bus 4 Bus 3 Bus 1
Control/ Status Register
Reg. 87
Control/ Status Register
Reg. 88
NC
NC
Matrix Bus ‘B’ Output 18
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K670 K669 K668 K667 K666
Bus 7 Bus 6 Bus 4 Bus 3 Bus 1
Matrix Bus ‘B’ Output 19
K675 K674 K673 K672 K671
Bus 9 Bus 4 Bus 3 Bus 2 Bus 1
Module Operation 3-36 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 68
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 89
Control/ Status Register
Reg. 90
Control/ Status Register
Reg. 91
NC
NC
NC
Matrix Bus ‘B’ Output 20
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K680 K679 K678 K677 K676
Bus 9 Bus 7 Bus 5 Bus 2 Bus 1
Matrix Bus ‘B’ Output 21
K685 K684 K683 K682 K681
Bus 8 Bus 5 Bus 4 Bus 2 Bus 1
Matrix Bus ‘B’ Output 22
K690 K689 K688 K687 K686
Bus 8 Bus 7 Bus 4 Bus 2 Bus 1
Control/ Status Register
Reg. 92
Control/ Status Register
Reg. 93
NC
NC
Matrix Bus ‘B’ Output 23
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K695 K694 K693 K692 K691
Bus 7 Bus 6 Bus 4 Bus 2 Bus 1
Matrix Bus ‘B’ Output 24
K700 K699 K698 K697 K696
Bus 8 Bus 6 Bus 4 Bus 2 Bus 1
Astronics Test Systems Module Operation 3-37
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 69
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 94A
Control/ Status Register
Reg. 94B
Control/ Status Register
Reg. 95A
NC
NC
NC
Matrix Bus ‘C’ Instrument Input 1 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Instrument Input 1 (upper bus bits 9-5)
NC
Matrix Bus ‘C’ Instrument Input 2 (lower bus bits 4-0)
NC
K705 K704 K703 K702 K701
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K710 K709 K708 K707 K706
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K715 K714 K713 K712 K711
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 95B
Control/ Status Register
Reg. 96A
NC
NC
Matrix Bus ‘C’ Instrument Input 2 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Instrument Input 3 (lower bus bits 4-0)
NC
K720 K719 K718 K717 K716
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K725 K724 K723 K722 K721
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-38 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 70
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 96B
Control/ Status Register
Reg. 97A
Control/ Status Register
Reg. 97B
NC
NC
NC
Matrix Bus ‘C’ Instrument Input 3 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Instrument Input 4 (lower bus bits 4-0)
NC
Matrix Bus ‘C’ Instrument Input 4 (upper bus bits 9-5)
NC
K730 K729 K728 K727 K726
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K735 K734 K733 K732 K731
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K740 K739 K738 K737 K736
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Control/ Status Register
Reg. 98A
Control/ Status Register
Reg. 98B
NC
NC
Matrix Bus ‘C’ Instrument Input 5 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Instrument Input 5 (upper bus bits 9-5)
NC
K745 K744 K743 K742 K741
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K750 K749 K748 K747 K746
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Astronics Test Systems Module Operation 3-39
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 71
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 99A
Control/ Status Register
Reg. 99B
Control/ Status Register
Reg. 100A
NC
NC
NC
Matrix Bus ‘C’ Instrument Input 6 (lower bus bits 4-0)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Instrument Input 6 (upper bus bits 9-5)
NC
Matrix Bus ‘C’ Instrument Input 7 (lower bus bits 4-0)
NC
K755 K754 K753 K752 K751
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
K760 K759 K758 K757 K756
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K765 K764 K763 K762 K761
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Control/ Status Register
Reg. 100B
Control/ Status Register
Reg. 101A
NC
NC
Matrix Bus ‘C’ Instrument Input 7 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
Matrix Bus ‘C’ Instrument Input 8 (lower bus bits 4-0)
NC
K770 K769 K768 K767 K766
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
K775 K774 K773 K772 K771
Bus 4 Bus 3 Bus 2 Bus 1 Bus 0
Module Operation 3-40 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 72
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 101B
Control/ Status Register
Reg. 102
Control/ Status Register
Reg. 103
NC
NC
NC
Matrix Bus ‘C’ Instrument Input 8 (upper bus bits 9-5)
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K780 K779 K778 K777 K776
Bus 9 Bus 8 Bus 7 Bus 6 Bus 5
Matrix Bus ‘C’ Output 1
K785 K784 K783 K782 K781
Bus 6 Bus 5 Bus 4 Bus 3 Bus 2
Matrix Bus ‘C’ Output 2
K790 K789 K788 K787 K786
Bus 9 Bus 5 Bus 4 Bus 3 Bus 2
Control/ Status Register
Reg. 104
Control/ Status Register
Reg. 105
NC
NC
Matrix Bus ‘C’ Output 3
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K795 K794 K793 K792 K791
Bus 8 Bus 5 Bus 4 Bus 3 Bus 2
Matrix Bus ‘C’ Output 4
K800 K799 K798 K797 K796
Bus 8 Bus 6 Bus 4 Bus 3 Bus 2
Astronics Test Systems Module Operation 3-41
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 73
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 106
Control/ Status Register
Reg. 107
Control/ Status Register
Reg. 108
NC
NC
NC
Matrix Bus ‘C’ Output 5
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K805 K804 K803 K802 K801
Bus 7 Bus 6 Bus 4 Bus 3 Bus 2
Matrix Bus ‘C’ Output 6
K810 K809 K808 K807 K806
Bus 7 Bus 5 Bus 4 Bus 3 Bus 2
Matrix Bus ‘C’ Output 7
K815 K814 K813 K812 K811
Bus 9 Bus 8 Bus 4 Bus 3 Bus 2
Control/ Status Register
Reg. 109
Control/ Status Register
Reg. 110
NC
NC
Matrix Bus ‘C’ Output 8
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K820 K819 K818 K817 K816
Bus 9 Bus 6 Bus 4 Bus 3 Bus 2
Matrix Bus ‘C’ Output 9
K825 K824 K823 K822 K821
Bus 9 Bus 7 Bus 4 Bus 3 Bus 2
Module Operation 3-42 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 74
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 111
Control/ Status Register
Reg. 112
Control/ Status Register
Reg. 113
NC
NC
NC
Matrix Bus ‘C’ Output 10
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K830 K829 K828 K827 K826
Bus 7 Bus 6 Bus 5 Bus 3 Bus 2
Matrix Bus ‘C’ Output 11
K835 K834 K833 K832 K831
Bus 8 Bus 6 Bus 5 Bus 3 Bus 2
Matrix Bus ‘C’ Output 12
K840 K839 K838 K837 K836
Bus 8 Bus 7 Bus 4 Bus 3 Bus 2
Control/ Status Register
Reg. 114
Control/ Status Register
Reg. 115
NC
NC
Matrix Bus ‘C’ Output 13
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K845 K844 K843 K842 K841
Bus 8 Bus 6 Bus 5 Bus 4 Bus 2
Matrix Bus ‘C’ Output 14
K850 K849 K848 K847 K846
Bus 9 Bus 6 Bus 5 Bus 4 Bus 2
Astronics Test Systems Module Operation 3-43
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 75
1260-43 User Manual Publication No. 980673-067 Rev. B
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 116
Control/ Status Register
Reg. 117
Control/ Status Register
Reg. 118
NC
NC
NC
Matrix Bus ‘C’ Output 15
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K855 K854 K853 K852 K851
Bus 0 Bus 6 Bus 5 Bus 4 Bus 2
Matrix Bus ‘C’ Output 16
K860 K859 K858 K857 K856
Bus 0 Bus 7 Bus 5 Bus 4 Bus 2
Matrix Bus ‘C’ Output 17
K865 K864 K863 K862 K861
Bus 9 Bus 7 Bus 5 Bus 4 Bus 2
Control/ Status Register
Reg. 119
Control/ Status Register
Reg. 120
NC
NC
Matrix Bus ‘C’ Output 18
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K870 K869 K868 K867 K866
Bus 8 Bus 7 Bus 5 Bus 4 Bus 2
Matrix Bus ‘C’ Output 19
K875 K874 K873 K872 K871
Bus 0 Bus 5 Bus 4 Bus 3 Bus 2
Module Operation 3-44 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 76
Publication No. 980673-067 Rev. B 1260-43 User Manual
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Bit 7
(MSB)
Bit 0
(LSB)
Control/ Status Register
Reg. 121
Control/ Status Register
Reg. 122
Control/ Status Register
Reg. 123
NC
NC
NC
Matrix Bus ‘C’ Output 20
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
NC
K880 K879 K878 K877 K876
Bus 0 Bus 8 Bus 6 Bus 3 Bus 2
Matrix Bus ‘C’ Output 21
K885 K884 K883 K882 K881
Bus 9 Bus 6 Bus 5 Bus 3 Bus 2
Matrix Bus ‘C’ Output 22
K890 K889 K888 K887 K886
Bus 9 Bus 8 Bus 5 Bus 3 Bus 2
Control/ Status Register
Reg. 124
Control/ Status Register
Reg. 125
NC
NC
Matrix Bus ‘C’ Output 23
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1
NC
NC
NC
K895 K894 K893 K892 K891
Bus 8 Bus 7 Bus 5 Bus 3 Bus 2
Matrix Bus ‘C’ Output 24
K900 K899 K898 K897 K896
Bus 9 Bus 7 Bus 5 Bus 3 Bus 2
Astronics Test Systems Module Operation 3-45
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 77
1260-43 User Manual Publication No. 980673-067 Rev. B
down. Each load has 5 relay pairs used to select the load
ices. For the following tables, Kxxx is the reference
50 Ohm
Pull-down
K186=1
K181=0
50 Ohm
Pull-down
K196=1
K191=0
75 Ohm
Pull-down
K187=1
K182=0
75 Ohm
Pull-down
K197=1
K192=0
100 Ohm
Pull-down
K188=1
K183=0
100 Ohm
Pull-down
K198=1
K193=0
500 Ohm
Pull-down
K189=1
K184=0
500 Ohm
Pull-down
K199=1
K194=0
1K Ohm
Pull-down
K190=1
K185=0
1K Ohm
Pull-down
K200=1
K195=0
Matrix Load Configuration
Each matrix has two loads that can be configured as a pull-up or pull­value and set it as a pull-up or pull-down. The two loads can be used in conjunction to form a pull-up/pull-down load.
Once configured, each load can be tied to one of the ten buss signals. This is accomplished using 10 relays, one f or each buss signal. Care should be taken that only one buss/load relay is activated at any one time. This assures that buss signals are not shorted together. Both loads can be t ied to the same buss signal to form a pull-up/pull-down load.
The following tables illustrate the activation of the corresponding relays to form pull-up or pull-down loads for each of the three matr designator of the r elay used while the ‘1’ or ‘0’ is the state of the relay activation bit written in the corresponding register.
Table 3-3, Matrix Load Selection
Matrix A “Load Se lection”
Load 1 Load 2
Pull-up
Pull-up
Pull-up
Pull-up
K181=1
K182=1
K183=1
K184=1
Pull-up
Pull-up
Pull-up
Pull-up
Pull-up
K185=1
Pull-up
K191=1
K192=1
K193=1
K194=1
K195=1
Module Operation 3-46 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 78
Publication No. 980673-067 Rev. B 1260-43 User Manual
Buss 0
K201=1
Buss 0
K211=1
Buss 1
K202=1
Buss 1
K212=1
Buss 2
K203=1
Buss 2
K213=1
Buss 3
K204=1
Buss 3
K214=1
Buss 4
K205=1
Buss 4
K215=1
Buss 5
K206=1
Buss 5
K216=1
Buss 6
K207=1
Buss 6
K217=1
Buss 7
K208=1
Buss 7
K218=1
Buss 8
K209=1
Buss 8
K219=1
Buss 9
K210=1
Buss 9
K220=1
50 Ohm
Pull-down
K226=1
K221=0
50 Ohm
Pull-down
K236=1
K231=0
75 Ohm
Pull-down
K227=1
K222=0
75 Ohm
Pull-down
K237=1
K232=0
100 Ohm
Pull-down
K228=1
K223=0
100 Ohm
Pull-down
K238=1
K233=0
500 Ohm
Pull-down
K229=1
K224=0
500 Ohm
Pull-down
K239=1
K234=0
1K Ohm
Pull-down
K230=1
K225=0
1K Ohm
Pull-down
K240=1
K235=0
Buss 0
K241=1
Buss 0
K251=1
Buss 1
K242=1
Buss 1
K252=1
Buss 2
K243=1
Buss 2
K253=1
Buss 3
K244=1
Buss 3
K254=1
Buss 4
K245=1
Buss 4
K255=1
Buss 5
K246=1
Buss 5
K256=1
Buss 6
K247=1
Buss 6
K257=1
Buss 7
K248=1
Buss 7
K258=1
Buss 8
K249=1
Buss 8
K259=1
Buss 9
K250=1
Buss 9
K260=1
Matrix A “Bus/Loa d Selection”
Load 1 Load 2
Matrix B “Load Selection”
Load 1 Load 2
Pull-up
Pull-up
Pull-up
Pull-up
Pull-up
K221=1
K222=1
K223=1
K224=1
K225=1
Pull-up
Pull-up
Pull-up
Pull-up
Pull-up
Matrix B “Bus/Load Selection”
Load 1 Load 2
K231=1
K232=1
K233=1
K234=1
K235=1
Astronics Test Systems Module Operation 3-47
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 79
1260-43 User Manual Publication No. 980673-067 Rev. B
50 Ohm
Pull-down
K266=1
K261=0
50 Ohm
Pull-down
K276=1
K271=0
75 Ohm
Pull-down
K267=1
K262=0
75 Ohm
Pull-down
K277=1
K272=0
100 Ohm
Pull-down
K268=1
K263=0
100 Ohm
Pull-down
K278=1
K273=0
500 Ohm
Pull-down
K269=1
K264=0
500 Ohm
Pull-down
K279=1
K274=0
1K Ohm
Pull-down
K270=1
K265=0
1K Ohm
Pull-down
K280=1
K275=0
Buss 0
K281=1
Buss 0
K291=1
Buss 1
K282=1
Buss 1
K292=1
Buss 2
K283=1
Buss 2
K293=1
Buss 3
K284=1
Buss 3
K294=1
Buss 4
K285=1
Buss 4
K295=1
Buss 5
K286=1
Buss 5
K296=1
Buss 6
K287=1
Buss 6
K297=1
Buss 7
K288=1
Buss 7
K298=1
Buss 8
K289=1
Buss 8
K299=1
Buss 9
K290=1
Buss 9
K300=1
Matrix C “Load Selection”
Load 1 Load 2
Pull-up
Pull-up
Pull-up
Pull-up
Pull-up
K261=1
K262=1
K263=1
K264=1
K265=1
Pull-up
Pull-up
Pull-up
Pull-up
Pull-up
Matrix C “Bus/Load Selection”
Load 1 Load 2
K271=1
K272=1
K273=1
K274=1
K275=1
Module Operation 3-48 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 80
Publication No. 980673-067 Rev. B 1260-43 User Manual
Appendix A
LOGICAL RELAY LAYOUT
Astronics Test Systems Logical Relay Layout A-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 81
1260-43 User Manual Publication No. 980673-067 Rev. B
Logical Relay Layout A-2 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 82
Publication No. 980673-067 Rev. B 1260-43 User Manual
Astronics Test Systems Logical Relay Layout A-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 83
1260-43 User Manual Publication No. 980673-067 Rev. B
This page was left intentionally blank.
Logical Relay Layout A-4 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 84
Publication No. 980673-067 Rev. B 1260-43 User Manual
Appendix B
1260-43 RELAY LAYOUT
Astronics Test Systems 1260-43 Relay Layout B-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 85
1260-43 User Manual Publication No. 980673-067 Rev. B
1260-43 Relay Layout B-2 Astronics Test Systems
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 86
Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY RENTALS
• ITAR CERTIFIED SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff at our full-service, in-house repair center
Instra
Remotely inspect equipment before purchasing with our interactive website at www.instraview.com
Contact us: (888) 88-SOURCE | [email protected] | www.artisantg.com
SM
REMOTE INSPECTION
View
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more information on price quotations, drivers, technical
specications, manuals, and documentation
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
