Astro Machine AstroJet M2 Operator's Manual

630 Lively Blvd.
Elk Grove Village, IL 60007
Phone: (847) 364-6363
Fax: (847) 364-9898
www.astromachine.com
AstroJet M2
HIGH CAPACITY
COLOR PAGE PRINTER
OPERATOR MANUAL
SAFETY PRECAUTIONS
THIS EQUIPMENT PRESENTS NO PROBLEM WHEN USED PROPERLY. OBSERVE SAFETY RULES WHEN OPERATING THE M2 PRINTER.
BEFORE USING PRINTER, READ THIS MANUAL CAREFULLY AND FOLLOW RECOMMENDED PROCEDURES, SAFETY WARNINGS, AND INSTRUCTIONS:
Keep hands, hair, and clothing clear of rollers and other moving parts. Avoid touching moving parts or materials while machine is in use. Before clearing a jam, be
sure machine mechanisms come to a stop.
Always turn machine off before making adjustments, cleaning machine, or performing any
maintenance covered in this manual.
Power cord and power supply supplied with machine. Plug it into a properly grounded, easily
accessible wall outlet near machine. Failure to properly ground machine can result in severe personal injury and/or fire.
Power cord/wall plug are primary means of disconnecting machine from power supply. DO NOT use an adapter plug on power cord or wall outlet. DO NOT remove ground pin from line cord. DO NOT route power cord over sharp edges or trap it between furniture. Avoid using wall outlets that are controlled by wall switches or shared with other equipment. Make sure there is no strain on power cord caused by jamming it between equipment,
walls or furniture.
DO NOT remove covers. Covers enclose hazardous parts that should only be accessed by a
qualified service representative. Report any cover damage to your service representative.
This machine requires periodic maintenance. Contact your authorized service representative
for required service schedules.
To prevent overheating, do not cover vent openings. Use this equipment only for its intended purpose.
In addition, follow any specific occupational safety and health standards for your workplace or area.
This manual is intended solely for the use and information of Astro Machine Corp., its designated agents, customers, and their employees. The information in this guide was obtained from several different sources that are deemed reliable by all industry standards. To the best of our knowledge, that information is accurate in all respects. However, neither Astro Machine Corp. nor any of its agents or employees shall be responsible for any inaccuracies contained herein.
AstroJetTM is a registered trademark of Astro Machine Corp. Memjet® is a registered trademark.
All other trademarks are the property of their respective holders. All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means, electronic or mechanical,
including photocopying, recording, or any information storage and retrieval system, without permission in writing from the publisher.
TABLE OF CONTENTS
Table of Contents
SECTION 1 – Getting Acquainted 1
Front View 1 Rear View 2 Print Engine View 3 Ink Tank View 4 High Capacity Receiving Tray/Stacker (Optional) 5 Control Panel Button/LED Indicators 6
Feed Table (LED) Indicators 8
SECTION 2 – Installing Printer 9
Contents of Packaging 9 Choose a Location 9 Unpacking and Setup 9 Leveling Printer 10 Remove Service Station Transport Tab 11 Connecting Printer 12
Connecting to Computer 12
Install Printer Driver 13
Install Over USB Connection 13 Install Over Network Connection, Version A 15 Install Over Network Connection, Version B 18
Install Ink Tanks 20 Install Printhead Cartridge 22 Removing Media Guide 25 Connecting Optional High Capacity Receiving Tray/Stacker 26 Setting up Feed 28
SECTION 3 – Operating Printer 31
Setting Up a Job in MS Word 31 Printer Driver Properties 33 Updating Firmware 46
SECTION 4 – Maintenance 47
Replacing Ink Tanks 47 Cleaning Ink Tank Contacts 49 Cleaning/Replacing Printhead Cartridge 50 Replacing Service Station 56 Replacing Ink Waste Tray 60 Replacing Sheet Separators 60 Jams in Printer 61 Cleaning 63 Shipping or Transporting Printer 65
SECTION 5 – Troubleshooting Guide 68
MemjetTM Printhead 68 Printer 69 Errors and Warnings 70
i
TABLE OF CONTENTS
Appendices 76
Appendix A – Specifications 76 Appendix B – Supplies and Optional Hardware 76
Index 77 Printer Maintenance Schedule 80 Control Panel LED Sequences 81
ii
TABLE OF CONTENTS
NOTES
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
iii
1.
Feed Table Controls – Raise and lower Feed Table for loading media.
2.
Printer Controls – Power, Pause/Resume and Cancel Buttons.
3.
Storage Compartment – Holds media, ink and other supplies.
4.
Top Cover – Provides access to Print Engine.
5.
Front Cover – Provides access to Ink Tanks and Service Station.
SECTION 1 – Getting Acquainted
SECTION 1
GETTING ACQUAINTED
Front View
1
SECTION 1

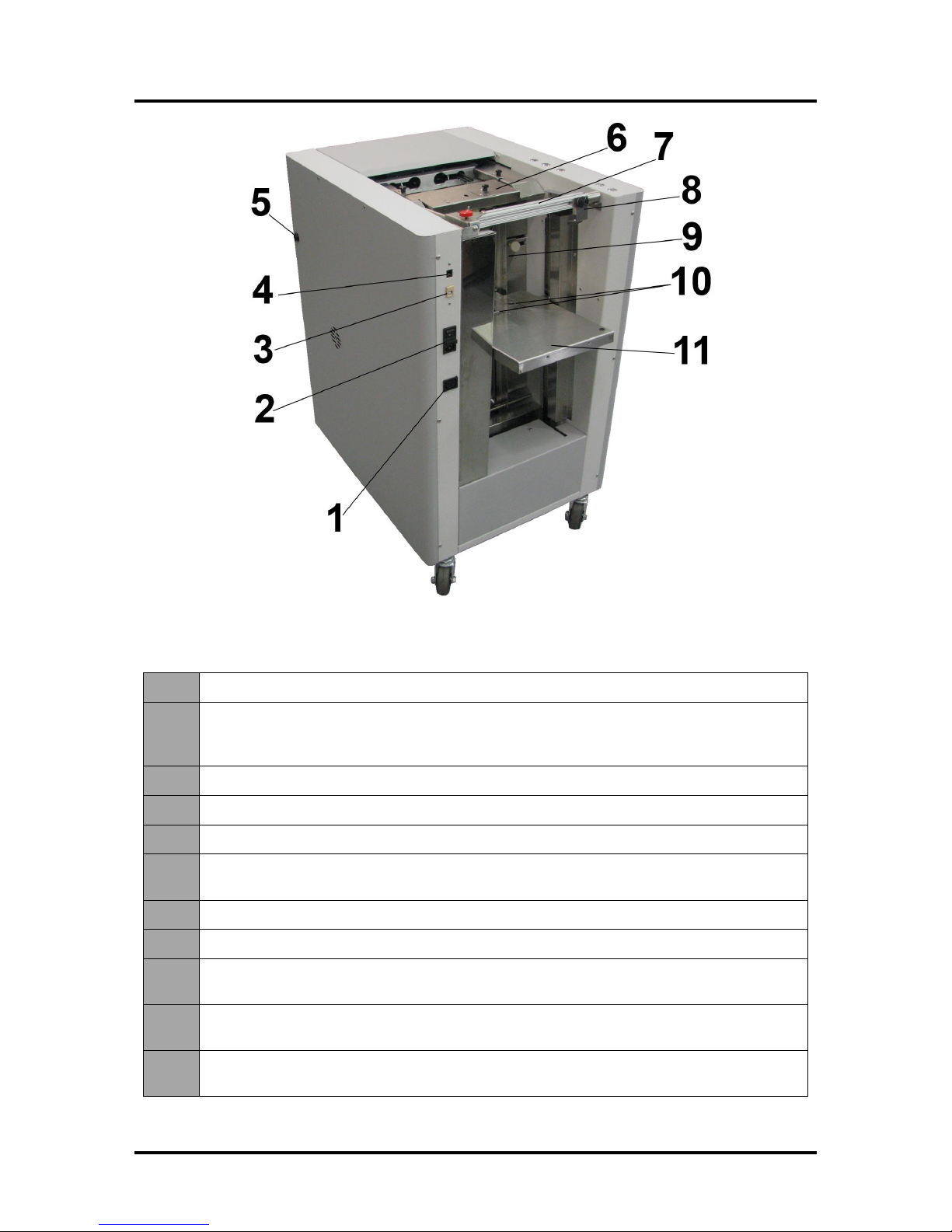

1.
Auxiliary Receptacle – Plug Optional Receiving Tray/Stacker power cord here.
2.
Switch, Receptacle and Fuse – Plug in power cord here. Switch turns main power
ON/OFF. (Use Control Panel LED Power switch to turn off machine for cleaning and maintenance). Fuse/Circuit Breaker protects Printer’s electronic circuits.
3.
USB Port Connection – USB cable from computer attaches to Printer here.
4.
Network Connection – Network cable plugs in here.
5.
Interface Port – Connects optional High Capacity Motorized Receiving Tray.
6.
Feed Rollers and Sheet Separators – Pull media into printing area and position for optimum printing.
7.
Adjustable Media Guide – Adjusts to media length.
8.
Rear Side Media Guide – Adjusts to media width.
9.
Adjustable Side Guide – All printing is registered against this Guide. It is adjustable
to fit different widths of media.
10.
Adjustable Media Supports – Slide into place to support width of media used for a particular job.
11.
Feeder Table – Load up to 5,000 sheets (10 reams). Raises and lowers with load.
Media feeds from top of stack.
GETTING ACQUAINTED
Rear View
2
SECTION 1
1.
Ink Revolver Couplings – Connect ink hoses to Printhead Cartridge.
Printhead Latch extends and retracts couplings from Printhead.
2.
Printhead Latch – When closed, connects Ink Revolver Couplings with Printhead
Cartridge. When opened, retracts Ink Couplings from Printhead Cartridge and provides access to Printhead Cartridge for cleaning and replacement.
WARNING! Never attempt to open Printhead Latch manually, severe damage will result. Use Printhead Release function in Toolbox utility on your PC or press Printhead Latch Release Button (See #3 below).
3.
Printhead Latch Release Button* – Button inside opening will initiate a Printhead
Latch release cycle. If system is primed, runs a full system deprime cycle before Latch is released. Lightly press button with a non-conductive tool.
*Same function can be accessed through Printer Toolbox User Interface screen on your computer.
4.
Printhead Cartridge – Memjet
TM
Printhead produces an 8.5" wide full color print area.
5.
Print Ink Channels Button* – Prints 5 bars (1 bar from each ink tank) to indicate how
well Printhead Nozzles are working. Press button with a non-conductive tool.
*Same function can be accessed through Printer Toolbox Diagnostics screen on your computer.
6.
Clamshell Latches – Lift both latches at same time to open top half of Print Engine. DO NOT open while Printer is operating. DO NOT lift Clamshell more than 60 degrees. DO NOT let Clamshell drop, close it gently.
GETTING ACQUAINTED
Print Engine View
3
SECTION 1

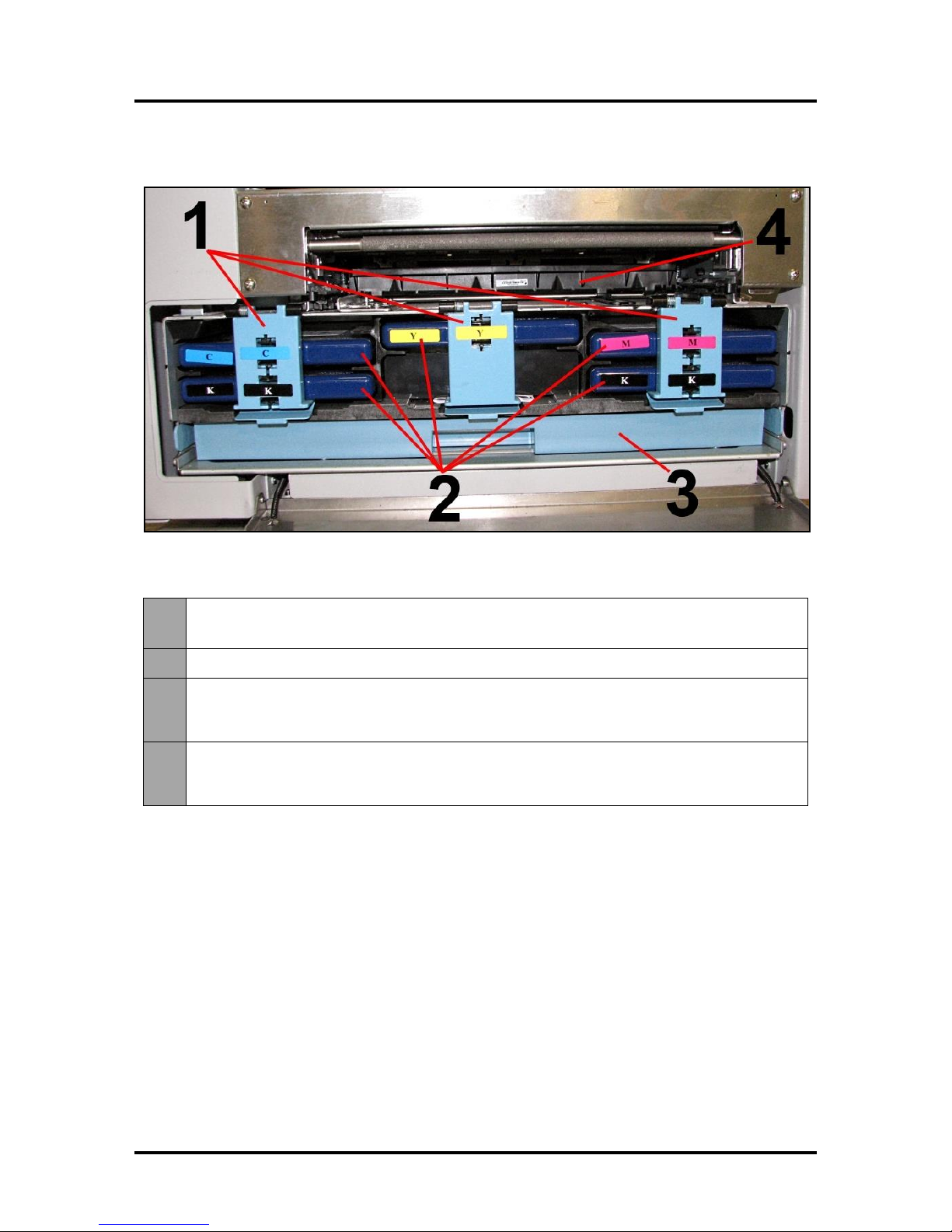

1.
Ink Tank Securing Latches – Hold Ink Tanks in place. NOTE: Check that both sides at bottom part of latch are engaged.
2.
Ink Tanks – Printer has 5 Ink Tanks. Cyan, Yellow, Magenta, Black, Black
3.
Ink Waste Tray – Catches any waste ink produced by the system. Tray is filled with
absorbent material. Tabs located at left and right sides of tray secure tray to print engine frame. Please be sure tabs click in to secure tray's position.
4.
Service Station – Cleans Printhead Cartridge of excess ink and debris, keeps
Printhead hydrated and protected when not in use, captures ink used to keep nozzles clear, and acts as a base to support media during printing.
GETTING ACQUAINTED
Ink Tank View
4
SECTION 1
1.
Control Panel – UP button raises Tray. DOWN Button lowers Tray. Pressing both buttons simultaneously for a few seconds positions Tray in “Ready position.
2.
Main Power Switch, Receptacle and Fuse – Plug in power cord here. Switch turns main power ON/OFF. Fuse/Circuit Breaker protects Tray’s electronic circuits.
3.
Printer Interface Port – Interface cable to M2 Printer plugs in here.
4.
Load Photosensor – Senses load in Tray and automatically positions Tray (raises or lowers) as necessary.
5.
Backstop Adjustment Knob – Locks and unlocks Backstop for positioning.
6.
Adjustable Backstop – Adjusts for media lengths from 4.2" to 14.5" long.
7.
Adjustable Media Guide – Adjusts for media widths up to 9" wide.
GETTING ACQUAINTED
High Capacity Receiving Tray/Stacker (Optional)
5
SECTION 1 GETTING ACQUAINTED

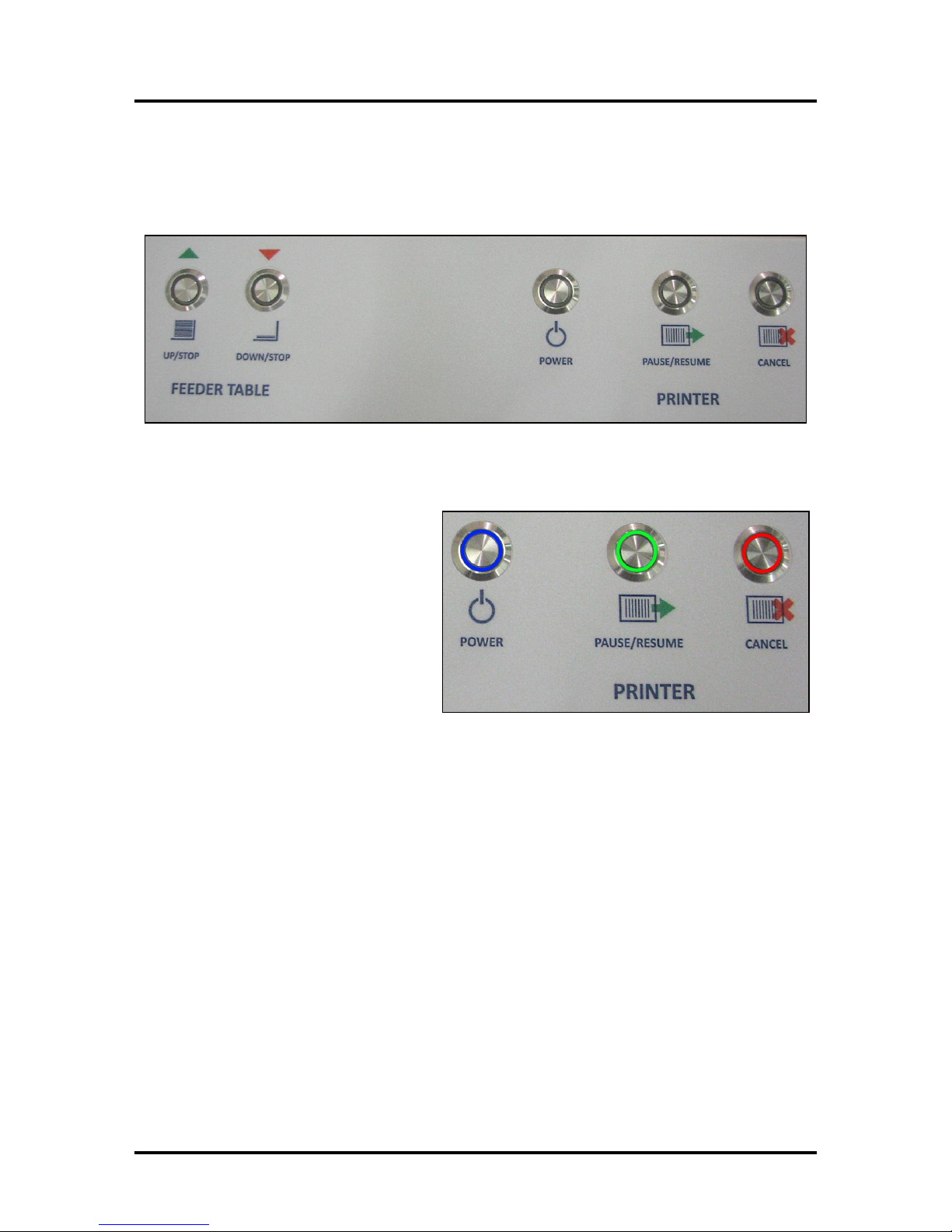

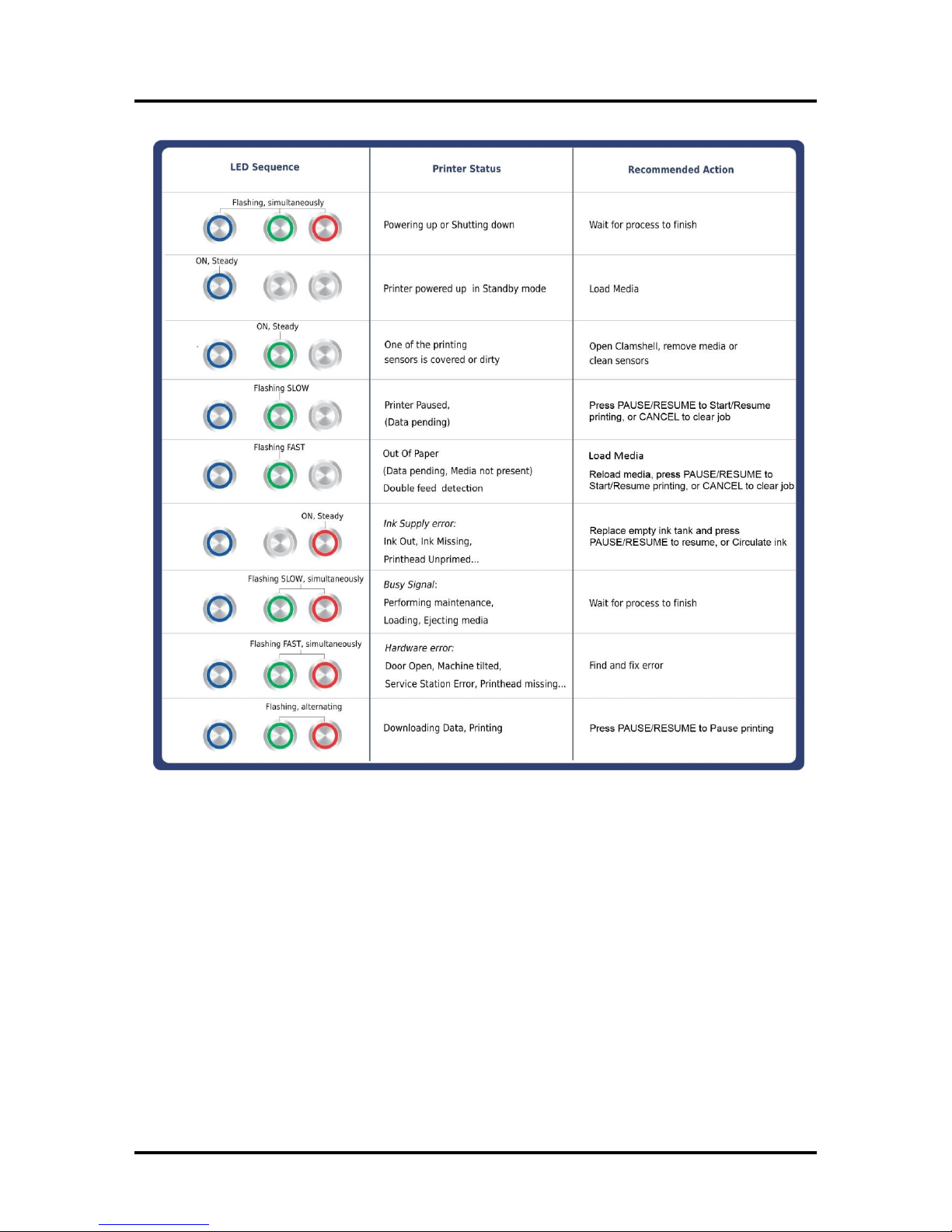

Control Panel Button/LED Indicators
Five Buttons on Control Panel to operate Feed Table and Printer.
FOR PRINTER:
Three buttons on the right control Printer: Power, Pause/Resume and Cancel. POWER (ON/OFF) – Turns Printer power
ON and OFF. Turn off power for cleaning and maintenance. (Blue)
PAUSE/RESUME (STOP JOB/RESUME) – Stops Paper Feed or Resumes Printing. (Green)
Press to stop paper feed
immediately. Printer will clear
media in Printer and stop.
Press to resume printing. Restart
printing after a paper feed error (such as a paper jam or running out of paper).
CANCEL (CANCEL JOB) – Cancels a job. (Red)
Press to cancel a job. Once Printer has stopped, pressing this button clears job from Printer and
Print Queue in Driver. NOTE: Cancelled Jobs must be reloaded before printing can resume.
6
SECTION 1
GETTING ACQUAINTED
MORE TROUBLESHOOTING GUIDES IN SECTION 5.
7
SECTION 1 GETTING ACQUAINTED
FOR FEED TABLE:
Up and Down buttons on the left control the Feed Table:
UP/STOP (Green): Press to raise Table for loading and
positioning media. It will stop automatically when load or Table reaches Top Sensor. Or press again to stop manually at any time.
DOWN/STOP (Red): Press to lower Table for loading and positioning media. It stops automatically when table reaches bottom of its travel. Or press again to stop manually at any time.
Feed Table (LED) Indicators
Lights (LED’s) on the two Control Panel buttons indicate Feed Table status.
8
1.
M2 High Capacity Printer
2.
Ink Tanks – Cyan, Magenta, Yellow, Black, Black
3.
Printhead Cartridge
4.
AC Power Cord
5.
USB Cable
6.
Operator Manual
7.
Driver Software CD
8.
Caster Adjusting Wrench
SECTION 2 – Installing Printer
Contents of Packaging
SECTION 2
INSTALLING PRINTER
Before using Printer:
Choose a location for Printer Unpack and assemble Printer Remove Service Station Transport Tab Position and Level Printer Plug in Printer and connect it to computer Install Printer Driver Install Ink Tanks Install Printhead Set up feed on Printer
Choose a Location
Position Printer on a level surface at least 9" from any walls. Use Bubble Gauge mounted on Print Engine (or a small level) to make sure Printer is level. See “Leveling Printer” on next page. Protect Printer from excessive heat, dust, and moisture. Avoid placing it in direct sunlight.
Unpacking and Setup
Remove Printer and parts from carton. Remove all packing tape. Screws that attach various parts of the guides to Printer are under the tape in their respective mounting positions.
9
SECTION 2 INSTALLING PRINTER
Leveling Printer
It is critical that Printer is level front-to-back and left-to-right (side-to-side). Printer will send a Tilt warning if it is not properly leveled. First make sure that surface you are placing Printer on is flat and level. Level Printer by adjusting casters using wrench (included).
NOTE: Steps 4 and 5 below are optional if Printer Driver is installed. To Level Printer:
1. Open Top Cover.
2. Left to Right (Side-to-Side): Check Bubble Gauge
on front bridge of Print Engine. NOTE: If no Bubble Gauge is mounted, place a small level (9" or
smaller) across front bridge of Print Engine (as shown) [A]. (If level does not fit on front bridge, you can place level on rear bridge frame on Print Engine.) Adjust casters as necessary to level Printer.
(See Step 6) NOTE: Level(s) must be placed on Print Engine or Print Engine frame (not on Printer
Cabinet) to get an accurate reading.
3. Front to Back: Place level on either Print Engine
Side Frame [B]. Adjust Printer feet/casters as necessary to level Printer. See Step 6 below.
NOTE: May have to repeat Steps 2 & 3 to level Printer.
4. If you have already installed Printer Driver, you can
use Printer Toolbox to check if Printer is level both Left-to-Right and Front-to-Back. Go to Start Menu, then open “Toolbox”.
5. On User Interface screen, find Tilt in status
information in top left corner. Reading for Front-to-Back (FB) and Left-to-Right (LR) should be 0” or very close to zero. If Tilt readings are black or purple, Printer is ready to operate. If readings are red, Printer must be leveled again.
NOTE: Printer will operate if readings are purple. This indicates readings are near zero. If readings show more
than ±2 degrees, (even if Printer operates) level Printer again to prevent damage or printing issues!
6. Adjusting Casters. Use wrench (included) to loosen large
nut on top of caster [C]. Adjust caster to desired height, then tighten nut so it snugs up against bottom of Printer to lock caster in place.
10
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM CLOSED.
TO PREVENT DAMAGE TO INK LINES, A STOP LIMITS RAISING CLAMSHELL MORE THAN 60°.

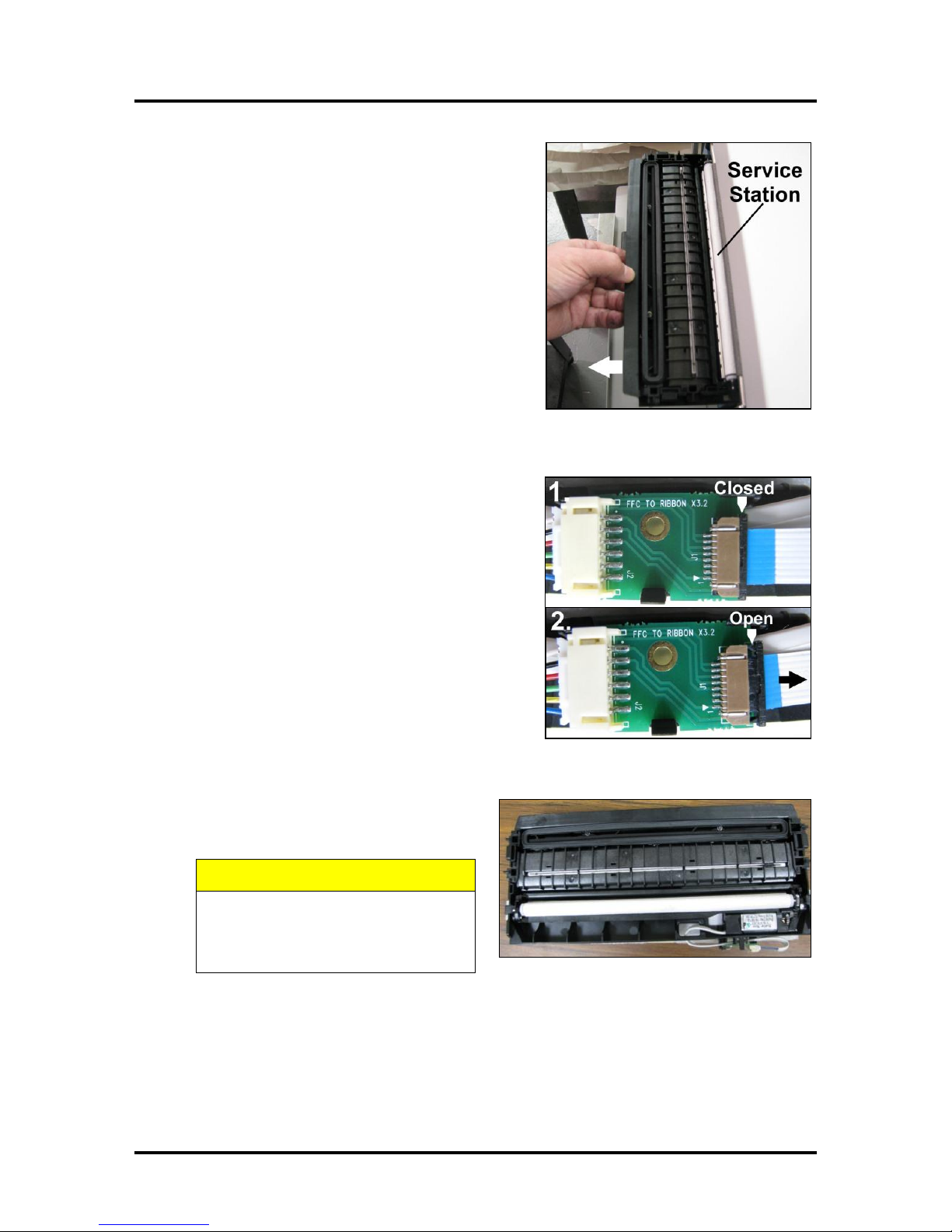

Remove Service Station Transport Tab
1. Open Top Cover.
2. Release two latches (one on either side of Print
Engine). Open top half of Clamshell by lifting both levers at same time.
3. Remove cardboard Transport Tab from
Service Station.
SECTION 2
INSTALLING PRINTER
4. Carefully close and latch Upper Clamshell.
Then close Top Cover.
11
SECTION 2
CAUTION
DO NOT USE AN ADAPTER PLUG OR EXTENSION CORD TO CONNECT PRINTER TO WALL RECEPTACLE.
DO NOT USE OUTLETS CONTROLLED BY WALL SWITCHES. DO NOT USE AN OUTLET THAT SHARES SAME CIRCUIT
WITH LARGE ELECTRICAL MACHINES OR APPLIANCES.
CAUTION
WHENEVER POWERING DOWN UNIT, ALWAYS:
1. PRESS POWER BUTTON ON CONTROL PANEL.
2. WAIT FOR PRINTER TO STOP PROCESSING.
3. THEN PRESS MAIN POWER SWITCH ON REAR PANEL.
INSTALLING PRINTER
Connecting Printer
Plugging in Printer
Plug power cord into receptacle [1] at rear of Printer. Internal power supply in Printer is rated 115 to 240VAC, 50/60 Hz. Plug optional Receiving Tray/Stacker (RTS) into auxiliary receptacle [4].
Connecting to Computer
Printer connects to computer through USB Port [2]. Network Port [3] is provided when operating in a network environment. See “Network Connection Setup” in “Using Printer Toolbox” section.
Turning Power ON and OFF
Powering Up Printer:
1. Press Main Power Switch on Rear Panel.
2. Press Power Button on Control Panel.
Powering Down Printer:
12
SECTION 2
INSTALLING PRINTER
Install Printer Driver
For Printer software to operate properly check that computer system meets these minimum requirements:
Operating System: Windows 8/8.1, Windows 10 (Desktop Mode only). Windows XP, Windows
Vista, Windows 7. Supports 32 and 64 bit systems. (You must have administrative privileges on system.) NOTE: Win 8, 8.1 and Windows 10 will only work in desktop mode. No Win 8 or10 metro apps will be supported (applications that work in a Windows 8 or 10 only environment).
Microprocessor: Pentium II, 2 GHz minimum (Pentium Dual Core, 2.5 GHz or better, is optimal) System memory: 2 GB minimum; or as recommended for your operating system. Free hard-disk space: At least 10 GB. Web Browser: Firefox recommended; Chrome, Safari, and Opera also supported. CD/DVD drive. USB port (2.0/3.0): (Ports will be identified as “USB” or “Enhanced” in Device Manager) Microsoft .Net Framework version 3.5 (for 32 bit systems) or Microsoft .Net Framework version 4
(for 64 bit systems) must be installed. NOTE: Even if you have a higher .NET Framework version installed; version 3.5 or 4 must also be installed, or Toolbox will not open.
IMPORTANT: Before installing Printer software (Toolbox and Driver), temporarily disable all antivirus programs and firewalls. In addition, you must be logged onto system with full administrative
privileges (admin rights).
NOTE: If installing over USB, do not plug in USB cable until prompted.
Install Over USB Connection
This is the procedure for installing the Print Driver over the USB connection. The procedures for installing the Print Driver over a network connection follow.
1. Check that Printer is plugged in and turned OFF.
Disconnect USB connection if you have plugged it in already. Install disk (supplied) in your CD drive.
When AutoPlay window opens, click Run Setup.exe to start.
2. Install Printer Software. Make sure computer
system meets minimum requirements and you have followed other instructions listed on screen. Click “Install Printer Software”.
13
SECTION 2 INSTALLING PRINTER
3. License Agreement. Check “I accept…” then
click Next>.
4. Printer Connections. Click Configure to print
using USB. Then click Next>”.
5. Installing Printer Software. Printer software
begins installing.
6. Would You Like to Install This Device
Software? Click Install”.
7. Connect Device Now. Turn Printer ON and
connect USB cable. Don’t click on either button. Software will finish installing.
14

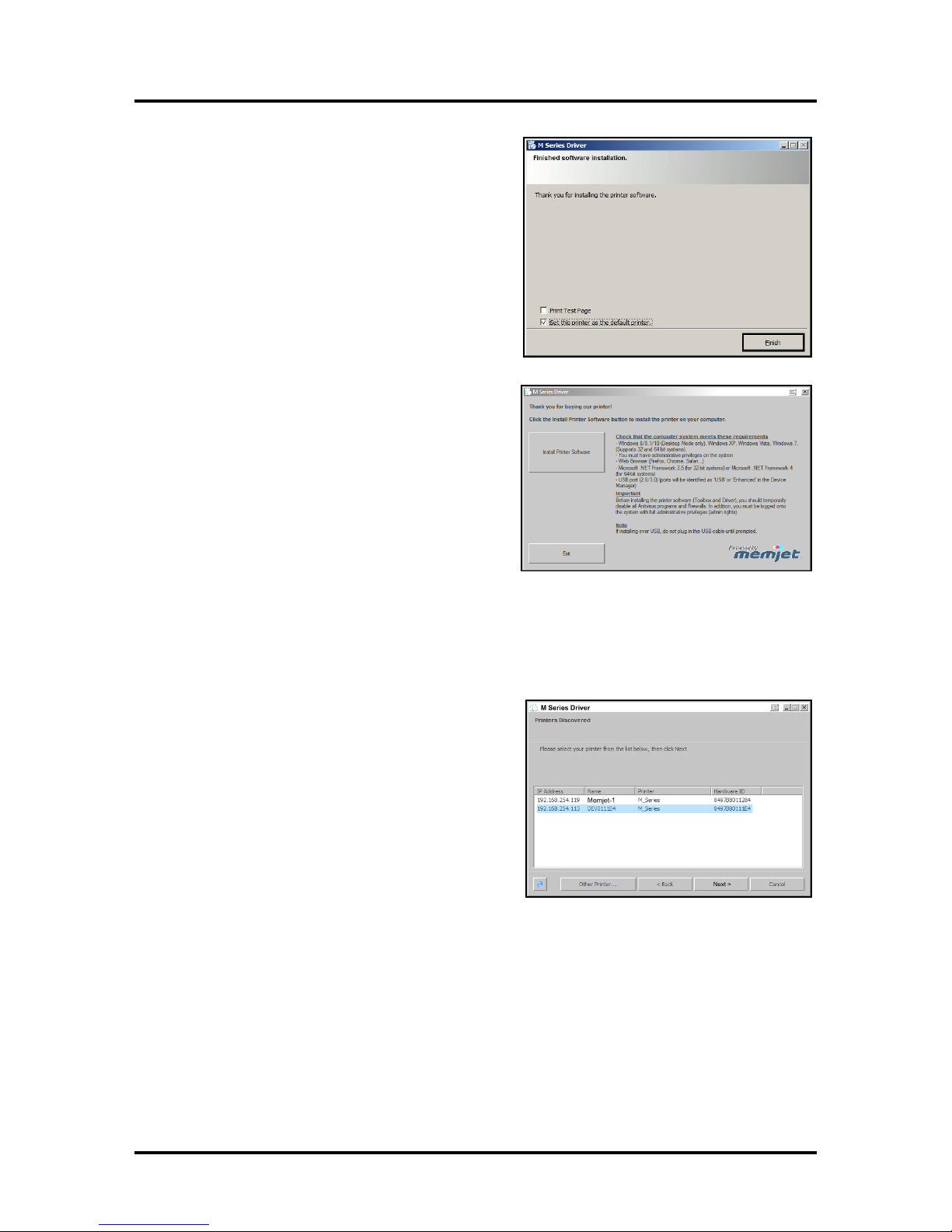

8. Finished software installation. Do not check
Print Test Page as Printer is not set up yet. You can check Set this printer as the default
printer at this time. Click Finish”.
9. Install Printer Software.
Click “Exit to close CD.
10. Restart computer to complete installation.
SECTION 2
INSTALLING PRINTER
Install Over Network Connection, Version A
Use this procedure to install the Print Driver over the Network connection. This procedure works for almost all networks that allow automatic assignment of the IP address (factory default). NOTE: Copy the
12-digit Hardware ID number listed on the Printer(s) on the label located just below the Ethernet port so you can identify the Printer(s) in a later step.
1. Check that Printer is plugged in and turned ON. Make
sure the Ethernet (network) cable is plugged into the Ethernet port on the Printer. Install disk supplied with
Printer in your CD drive. When AutoPlay Window opens, click Run Setup.exe to start.
2. Install Printer Software. Make sure computer
system meets minimum requirements and you followed other instructions listed on screen. Click Install Printer Software.
15
SECTION 2 INSTALLING PRINTER
3. License Agreement.
Check “I accept…” then click “Next>.
4. Printer Connections. Click “Configure to print
using the Network. Make sure the Printer is connected to the Network. Then click “Next>.
5. Printers Discovered. A list of available Printers
opens. Check the Printer column to verify you have an M-Series printer. Check the Hardware ID column and match the number listed to the number you copied previously from the Printer label. Select that Printer. Click Next>”.
NOTE: If the Printer does not appear on the list, the IP address may have to be assigned manually. See Install Over Network Connection, Version B.
6. Installing Printer Software.
Software download begins.
7. Would You Like to Install This Device
Software? Click Install”.
16
8. Finished software installation. Do not check the
Print Test Page as Printer is not set up yet. You
can check “Set this printer as the default printer”
at this time. Click “Finish.
9. Install Printer Software window.
Click Install Print Software again to install software on another Printer, or click Exit to close the CD.
SECTION 2
INSTALLING PRINTER
Tip: To help distinguish between multiple M-Series Drivers on your system; open the “Printers and Faxes” (Devices and Printers) folder and rename the Printers. For example, rename a network-configured
printer “M Series (Network-1)” and a USB-configured printer “M Series (USB)”. To open the “Toolbox” utility over an Ethernet (network) connection:
Click Start, All Programs, Memjet, M Series Driver, Toolbox. If more than one copy of the M-Series Driver is installed,
you will have to choose which device you want the Toolbox to connect to. To help choose the proper device, you can identify the Printer(s) using the Hardware ID you copied earlier or you can rename the Printer(s) as outlined in the Tip above.
Example:
M-Series Driver configured for USB: suggested name “M Series (USB)” M-Series Driver (Copy 1) configured for Network: suggested name “M Series (Network-1)”. M-Series Driver (Copy 2) configured for Network: suggested name “M Series (Network-2)”.
17
SECTION 2 INSTALLING PRINTER
Install Over Network Connection, Version B
Use this procedure to install the Print Driver over the Network connection on Static IP systems requiring that an IP address is assigned manually. NOTE: Copy the 12-digit Hardware ID number listed on the
Printer(s) on the label just below the Ethernet port so you can identify the Printer(s) in a later step.
1. Install the Printer Software over a USB connection. This can be done using a nearby computer or
laptop. Once the Driver and Firmware are installed on the Printer, use that same computer to open the Printer Toolbox.

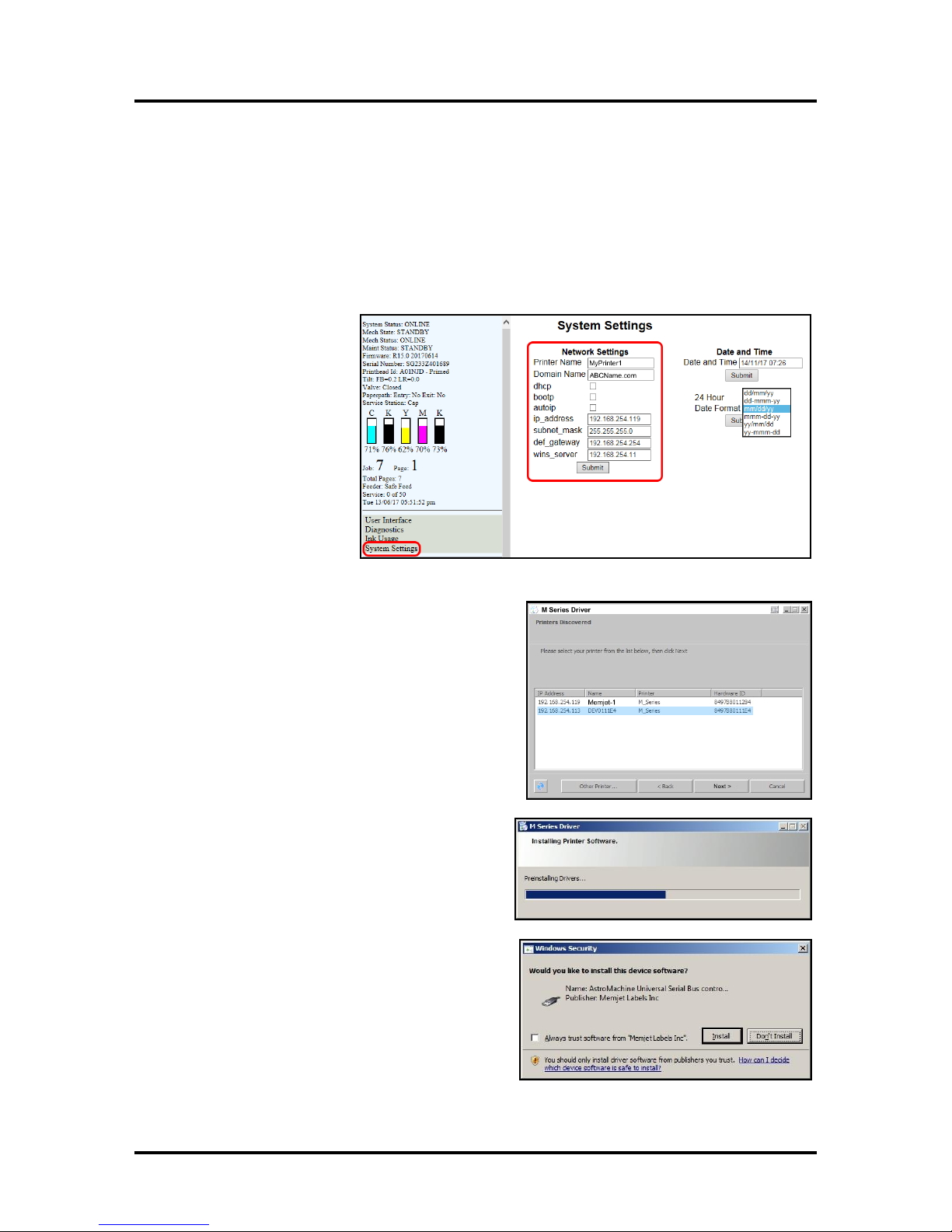

2. Click “System
Settings on the User Interface window. The System Settings
window opens. Your IT support person can fill in the necessary information under
Network Settings (or you can get it from them.) Click “Submit”.
3. Disconnect the USB
from the local computer or laptop. If not using that computer for printing, the M-Series Software can be uninstalled.
4. Connect the Ethernet cable to the Ethernet port
and rerun the “Install Over Network Connection, Version A” procedure again. The Printer should now appear on the “Printer s Discovered” window. The Printer can still be identified by its “Hardware ID”, but the new IP address entered by your IT support person (or operator) is shown. Select the desired Printer and click Next>. Follow the remaining steps.
5. Installing Printer Software.
Software download begins.
6. Would You Like to Install This Device
Software? Click Install”.
18
7. Finished software installation. Do not check the
Print Test Page as Printer is not set up yet. You
can check “Set this printer as the default printer”
at this time. Click “Finish.
8. Install Printer Software window.
Click “Exit to close the CD.
SECTION 2
INSTALLING PRINTER
Tip: To help distinguish between multiple M-Series Drivers on your system; open the “Printers and Faxes” (Devices and Printers) folder and rename the Printers. For example, rename a network-configured
printer “M Series (Network-1)” and a USB-configured printer “M Series (USB)”. To open the “Toolbox” utility over an Ethernet (network) connection:
Click Start, All Programs, Memjet, M Series Driver, Toolbox. If more than one copy of the M-Series Driver is installed,
you will have to choose which device you want the Toolbox to connect to. To help choose the proper device, you can identify the Printer(s) using the Hardware ID you copied earlier or you can rename the Printer(s) as outlined in the Tip above.
Example:
M-Series Driver configured for USB: suggested name “M Series (USB)” M-Series Driver (Copy 1) configured for Network: suggested name “M Series (Network-1)” M-Series Driver (Copy 2) configured for Network: suggested name “M Series (Network-2)”
19
SECTION 2 INSTALLING PRINTER
Install Ink Tanks
Printer uses one Printhead Cartridge and five Ink Tanks (two Black, one Cyan, one Magenta, and one Yellow).

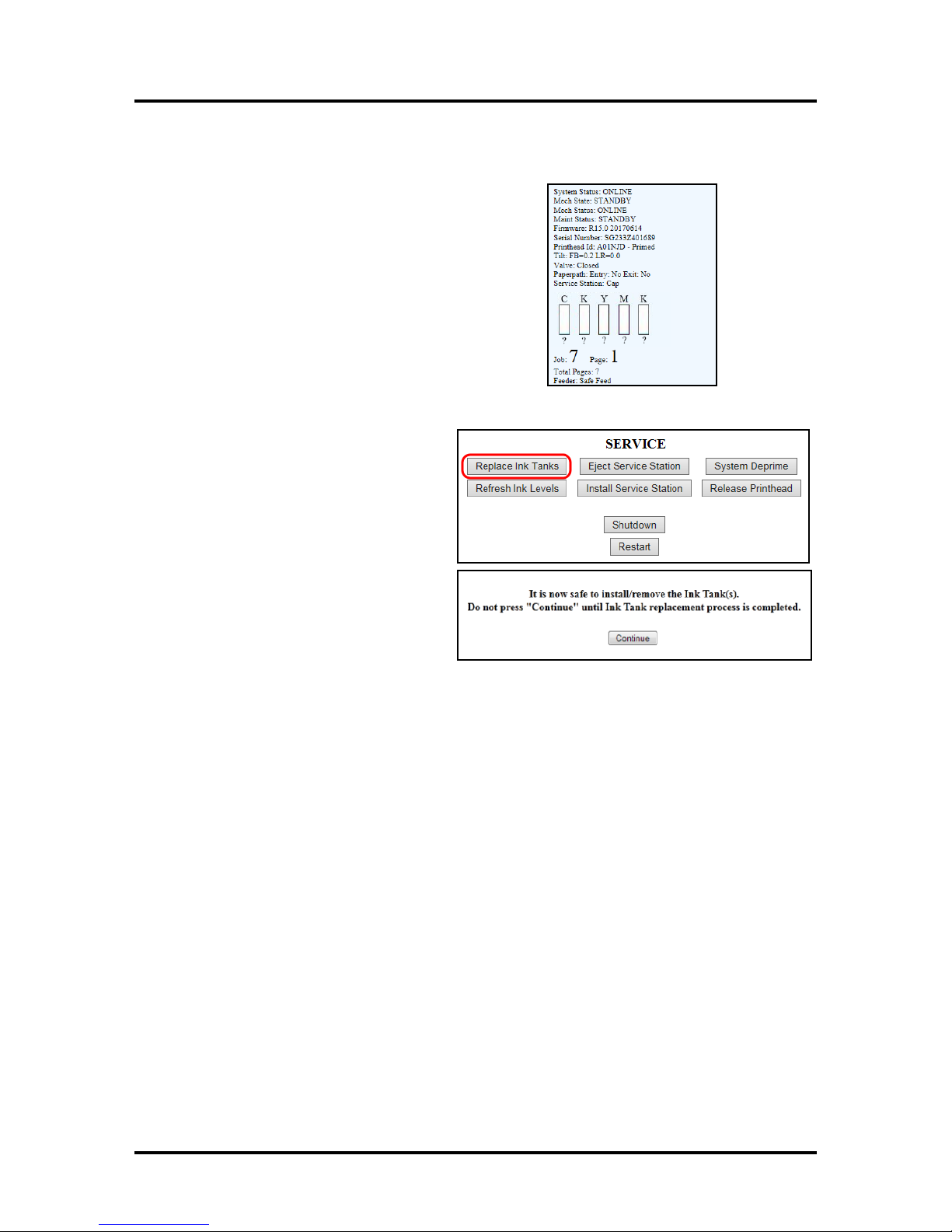

1. Open Printer Toolbox. Go to Start Menu and open
“Toolbox”. System Status information appears in upper left corner of User Interface window. Note that “CKMYK” boxes are empty.
2. Click Replace Ink Tanks.
(Disconnects Printer communication
with Ink Tanks and allows safe installation and replacement.)
Once “Confirm” screen displays, it is safe to install Ink Tanks.
IMPORTANT: DO NOT press Continue until after installing Ink Tank(s) and closing Ink Tank Latches.
20
WARNING!
Ink in Ink Tanks may be harmful if swallowed. Keep new and used Ink Tanks out of reach of children. Discard empty Ink Tanks immediately.
3. Open Front Cover (hinged at bottom).
Open three Latches [A].
4. Remove new Tank(s) from packaging.
5. Insert new Ink Tanks (labels up) into their
appropriate color slots [B]. Close three Ink Tank Latches.
INSTALLATION TIP: Make sure Ink Tanks seat properly. Insert Ink Tank into appropriate Ink Station, then pull Ink Tank back about an inch and push forward firmly to insure that Ink Nozzles penetrate seals on Ink Tanks.
SECTION 2
INSTALLING PRINTER
6. Click Continue on Confirm screen,
then Refresh Ink Levels on User Interface screen. Ink colors fill in as Ink Tanks are installed. If ink colors do not fill in after a few seconds, click Replace Ink Tanks again and reinstall Ink Tank(s).
7. Close Front Cover.
21
SECTION 2
CAUTION
Use electrostatic discharge (ESD) protection when handling. Hold Printhead Cartridge by handles ONLY. DO NOT touch ink couplings, nozzle surface or electrical contacts. DO NOT unpack Printhead Cartridge until Printer is ready for
installation. Once unwrapped, delay in installing Printhead can compromise print quality due to dehydration.
DO NOT place an unwrapped Printhead on any surface before
installing. Protect Printhead from scratches, dust, fibers, dirt and other contaminants at all times.
CAUTION
DO NOT PRY OR MANUALLY LIFT PRINTHEAD LATCH OR LATCH MAY BREAK. ONLY OPEN LATCH USING RELEASE BUTTON ON PRINTER OR PRINTHEAD RELEASE COMMAND IN PRINTER TOOLBOX.
INSTALLING PRINTER
Install Printhead Cartridge
Printhead Cartridge is a delicate precision device. Handle with extreme care to avoid damage and issues that could degrade print quality.
1. With Printer power ON, open Top Cover.
Press Printhead Latch Release Button [1]. Printer will run, then Latch will pop open [2]. Remove Cap Protectors on Ink Nozzles [3]. Be sure to open Latch fully to retract Ink Nozzles.
22
2. [A] Carefully remove
Printhead Cartridge from foil packaging.
Tear at notch or cut end with scissors.
[B] Remove protective plastic cover.
Hold Printhead by handle and unclip cover from
Printhead.
[C] Remove protective strip from Printhead Electrical Contacts. Once removed, DO NOT allow strip to touch the electrical contacts.
[D] Remove protective strip from Printhead Nozzles. Hold Printhead
by handle. Pull strip tab and slowly peel strip from Printhead.
DO NOT pull the strip at less than a 45° angle from Printhead surface. DO NOT allow removed strip to touch Printhead Nozzles.
SECTION 2
INSTALLING PRINTER
3. Carefully insert Cartridge into compartment at an angle [4], with Printhead surface facing down
and Ink Nozzles facing Ink Hoses. Once seated, gently tilt Cartridge back until it snaps into an upright position [5]. DO NOT FORCE Cartridge into position.
23
SECTION 2
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM CLOSED.
TO PREVENT DAMAGE TO INK LINES, A STOP LIMITS RAISING CLAMSHELL MORE THAN 60°.
INSTALLING PRINTER

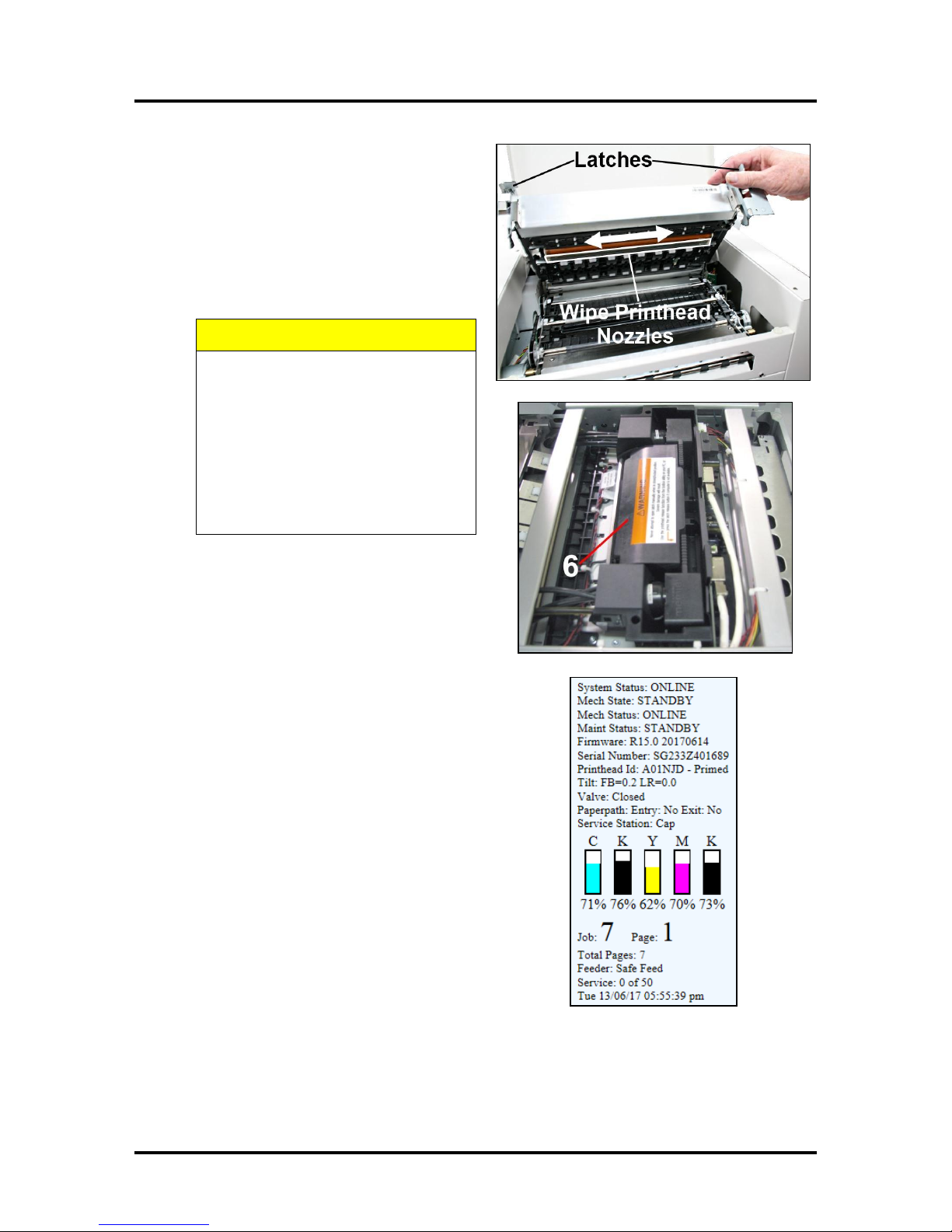

4. Wet Printhead Surface. (Ensures that
Printhead will prime correctly). Open Top
Cover. Release and lift two latches at same time to raise Print Engine Clamshell. Moisten Printhead nozzles using distilled water and a damp, lint-free cloth, wiping end to end. (Gray strip located below orange strip.) Close and latch Print Engine Clamshell.
5. Close Printhead Latch [6]. Printer starts
up and primes ink into Printhead. (May take a few minutes.) Make sure that ink is flowing
through hoses.
6. Watch Toolbox screen. Notice that some information is
in red. As Printer circulates ink and primes system these fields should all turn black.
7. When Printer stops processing and all fields in System
Status are black, Printer is ready for use. Close Top Cover.
NOTE: Printer may take up to 12 minutes to set itself up during initial startup. This is normal.
24
SECTION 2
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM CLOSED. TO PREVENT DAMAGE TO INK LINES, A STOP LIMITS RAISING
CLAMSHELL MORE THAN 60°.
INSTALLING PRINTER
Removing Media Guide
Plastic Media Guide helps prevent smearing by holding down media such as roll-fed, die-cut, matrix­removed and perforated label stock. If necessary, it is easily removable by hand.
1. Open Top Cover
2. Open Print Engine Clamshell.

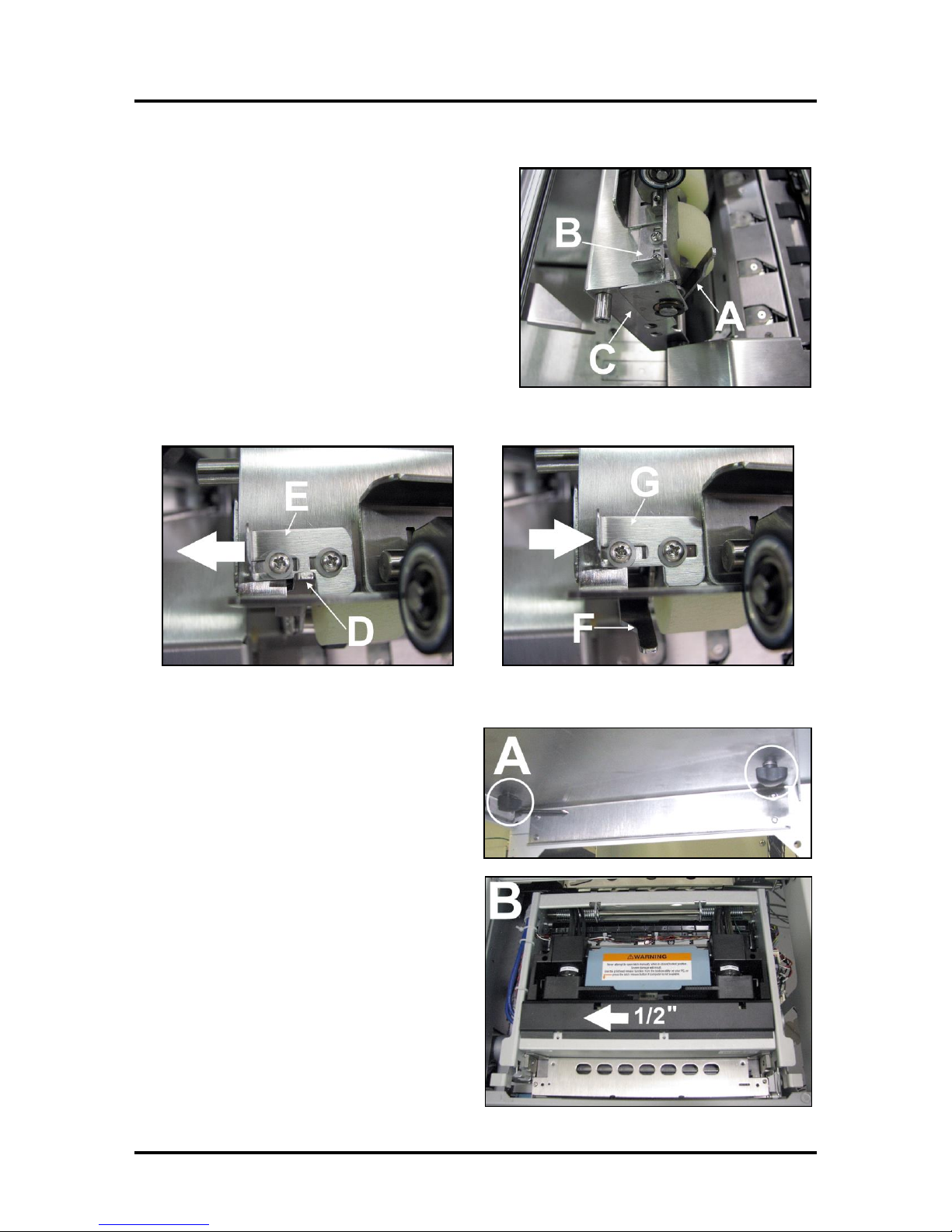

3. [A] & [B] Slide Media Guide to the
left and pull down on Guide to release it from metal support.
[C] Remove Guide from Printer. Save for later use.
25
SECTION 2
WARNING!
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY!
CAUTION
TO AVOID RISK OF INJURY OR DAMAGE
DO NOT PLACE ITEMS ON BASE OF RECEIVING TRAY!
CAUTION
DO NOT USE ADAPTER PLUGS OR EXTENSION CORDS TO CONNECT RECEIVING TRAY TO WALL RECEPTACLE.
DO NOT USE OUTLETS CONTROLLED BY WALL SWITCHES. DO NOT USE OUTLETS THAT SHARE THE SAME CIRCUIT WITH LARGE
ELECTRICAL MACHINES OR APPLIANCES.
INSTALLING PRINTER
Connecting Optional High Capacity Receiving Tray/Stacker
Optional High Capacity Receiving Tray/Stacker is designed to work automatically with M2 Printer, but can be operated semi-automatically with other printers.
Connecting to an M2 Printer:
1. Plug power cord into power receptacle on Receiving Tray. Plug
other end into Auxiliary Power Receptacle on feed end of Printer or into a grounded wall outlet.
2. Align Receiving Tray with Printer Exit. Fit alignment peg on
Printer into slot on Tray [A].
3. Connect Interface Cable to Motorized Tray and M2 Printer
Interface ports [B].
4. Turn Tray's power ON. Tray automatically moves to “Home or
Ready position. You can also press UP and DOWN buttons
simultaneously to position Tray if necessary. NOTE:Tray moves automatically when power is first turned on, after that, Tray will move into position automatically any time Printer is ready to print.
5. Check that Media Guide Stop is touching Receiving Tray [C].
If not, slide Media Guide down so Stop touches Tray.
DO NOT adjust Stop.
6. Turn Adjusting Knob [D] to unlock Backstop. Use one piece of
media and/or the scale on Control Panel to set Backstop for media length. Adjust Media Guide [E] to fit media width.
Before operating, check that Receiving Tray/Stacker Base is clear:
26
WARNING!
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY!
CAUTION
TO AVOID RISK OF INJURY OR DAMAGE
DO NOT PLACE ITEMS ON BASE OF RECEIVING TRAY!
Using Receiving Tray with Other Printers:
1. Plug power cord into power receptacle on Receiving Tray.
Plug other end into a grounded wall outlet.
2. Align edge of Receiving Tray with right end of exit opening on
printer. NOTE: Printer exit opening should be at least 1/2" higher than top of Receiving Tray in its uppermost position.
3. Turn Tray's power ON. Press UP and DOWN buttons
simultaneously until lights flash. Tray moves automatically into
Home or Ready position.
4. Check that Media Guide Stop is touching Receiving Tray [C].
If not, slide Media Guide down so Stop touches Tray.
DO NOT adjust Stop.
5. Turn Adjusting Knob [D] to unlock Backstop. Use one piece of
media and/or scale on Control Panel to set Backstop for media length. Adjust Media Guide [E] to fit media width.
SECTION 2
INSTALLING PRINTER
Before operating, check that Receiving Tray/Stacker Base is clear:
27
SECTION 2
WARNING!
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY!
CAUTION
TO AVOID RISK OF INJURY OR DAMAGE
DO NOT PLACE ITEMS ON SURFACE UNDER FEED TRAY!
INSTALLING PRINTER
Setting up Feed
Load Media: Before loading media, check space under Feed Table:
1. Position Feed Table [A]. Press “Up” or “Down”
Button on Control Panel.
2. Media Supports [B]. Slide into place to support
width of media used.
3. Adjust Side Guide [C]. Stack media on table. Make
sure media is flush against the Fixed Side Guide [C1], NOT the rear wall of the Feed Area (see below); severe Printer damage may result. Position Adjustable Side Guide to within 1/32" of edge of media.
For narrow media:
Open Feed Roller Assembly. Loosen two
thumbscrews [D] and slide latches back [arrows]. Then open Feed Roller Assembly [E].
Two Sheet Separators [F] have a tab [G] located
below them. Depress 1 or 2 Separators, then push down tabs to lock Separators in place. This allows you to slide Side Guide to the desired width. Close and latch Feed Roller Assembly.
Finish loading media.
28
INSTALLING PRINTER
NOTE: Feeder may not feed larger and heavier media when stack is full. Amount of media that can be stacked on Printer is determined by weight of material. If this is the case, reduce amount of media in stack until Feeder functions properly.
4. Adjust Feed for Media Thickness. Media Thickness Adjustment Knob [H] sets uppermost
stopping point of the Feed Table to accommodate single sheets or heavier card stock/cardboard. (Media thickness range – 0.004"/0.1 mm to 0.020"/0.5 mm thick) NOTE: Indicator provides a quick visual check of setting:
Up = thicker setting, Flush with surface = single sheet setting.
Single Sheet: Turn
Thickness Adjustment Knob counterclock­wise until it stops.
Cardstock/Cardboard: Turn Thickness Adjustment Knob clockwise until it stops.
6. Press “Up” Button until Top Sensor stops
platform automatically.
7. Adjust Media Guide Assembly. Loosen side knob to
adjust Guide [I] to fit media length.
8. Adjust Rear Side Media Guide [J] to fit media width.
Retighten knobs.
SECTION 2
29
SECTION 2 INSTALLING PRINTER
Feed Alignment Roller Latch Occasionally, during normal feeding, the Feed Alignment
Roller [A] (which normally helps keep the media aligned) may start pulling the media out of line. The Roller Latch [B] allows the Roller to be locked up out of the way so it
will not affect the feed. The Feed Alignment Roller is mounted in the Feed Head Assembly [C].
1. Unlatch and open the Feed Head Assembly.
2. Locking the Roller. Pull up the Feed Alignment
Roller Tab [D]. Slide Roller Latch [E] to the left to lock Roller in the raised position.
3. Releasing the Roller [F]. Slide Latch [G] to the
right so Roller Assembly moves freely.
NOTE: Normal position is unlocked. Locking the Roller should only be used if media seems to be pulled out of line due to the action of this Roller.
Adjusting Print Engine Position for Wider Media
Print Engine can be moved manually up to 1/2" toward operator side to adjust position of print area for media over 8.5"/215.9mm wide.
1. Open Storage Cabinet Door. Two Print
Engine Locking Knobs [A] are located on top of storage space.
2. Unlock two knobs.
3. Print Engine will slide up to 1/2" to the side
[B]. Position as needed.
4. Tighten Locking Knobs. NOTE: Default or “home” position –
pushed to end of adjustment slot toward non-operator side.
30
SECTION 3
OPERATING PRINTER
SECTION 3 – Operating Printer
Once Printer Driver is installed and Printhead is primed, you are ready to start printing. Set up your job and send it to Printer. Printer will start and print.
This rest of this section is divided into two parts:
1. How to set up a job to print from Microsoft Word.
2. Driver properties and the various options available when you run a job.
Printer Driver installed in Section 2 should be set as default driver. It is then accessible through your applications (such as Microsoft Word). Other types of applications and database management software will work in a similar manner when using this Driver. This Section further assumes that feed is set up and Printer is connected to your computer.
Setting Up a Job in MS Word
When setting up a job to print in MS Word or any other application, first determine the print area of the Printer and the media sizes it can handle.

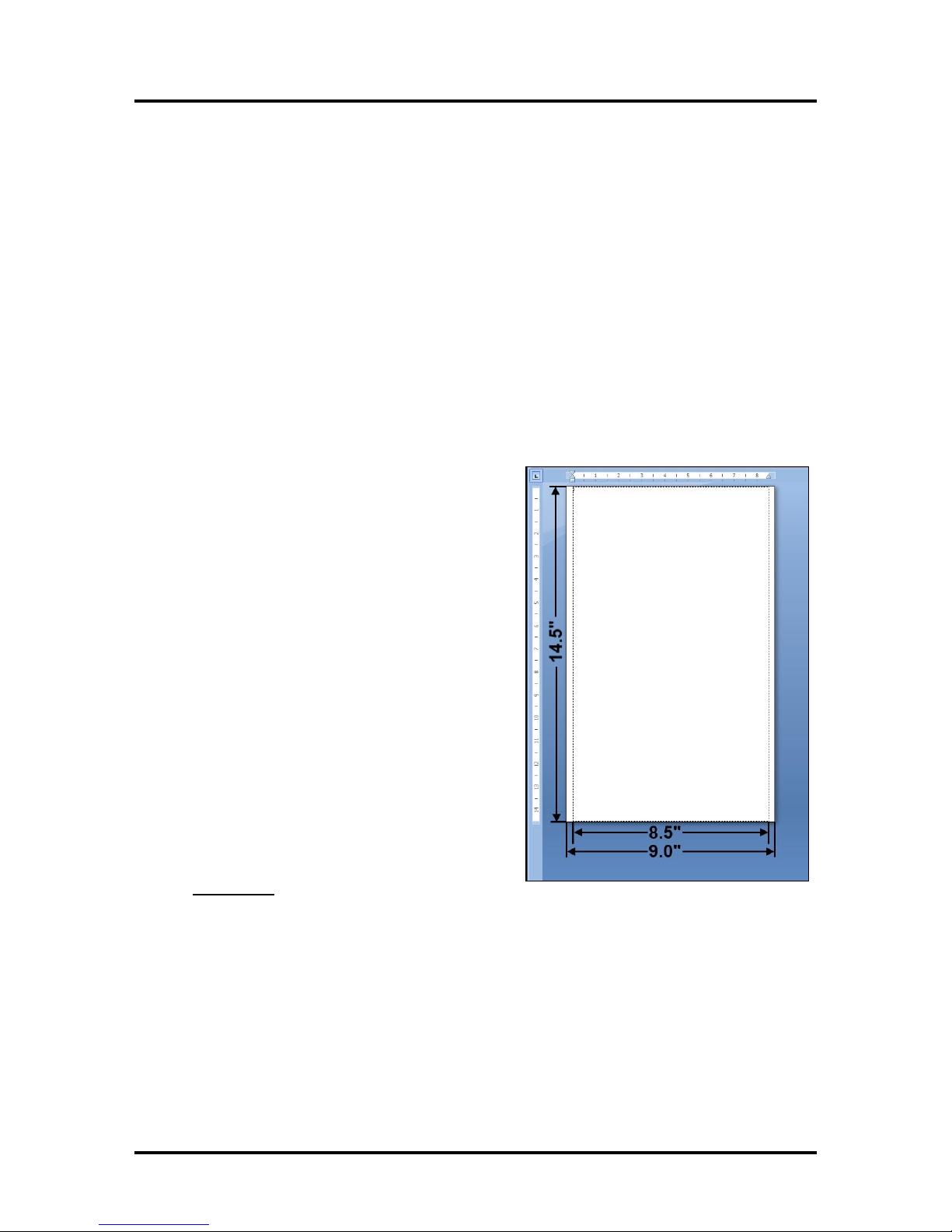

Maximum print area for Printer:
8.5" wide x 14.5" long. Maximum paper size Printer can feed:
9" wide x 14.5" long. (See diagram at right.) Minimum paper size Printer can feed:
3" wide x 4.2" long.
To set up maximum print area for a 9" x 14.5" document, set paper size to 9" wide x 14.5" long in Custom Paper setting. Set top and bottom margins to 0" or any margin needed. Set right-hand and left hand margins to 0.25". You can now lay out job and print maximum printing area.
For other page sizes such as 8.5" x 11" (standard letter) or
8.5" x 14" (legal size) set paper size to exact size and set margins as needed.
NOTE: Set Left-hand Side Guide to proper 9" position
when running 9" wide media. Set Guide to 8.5" position when running 8.5" or narrower media.
31
SECTION 3 OPERATING PRINTER
Printing a Typical Job on 8.5" x 5.5" Paper
Printer can print edge-to-edge on an 8.5" x 5.5" document.
To set up a job:

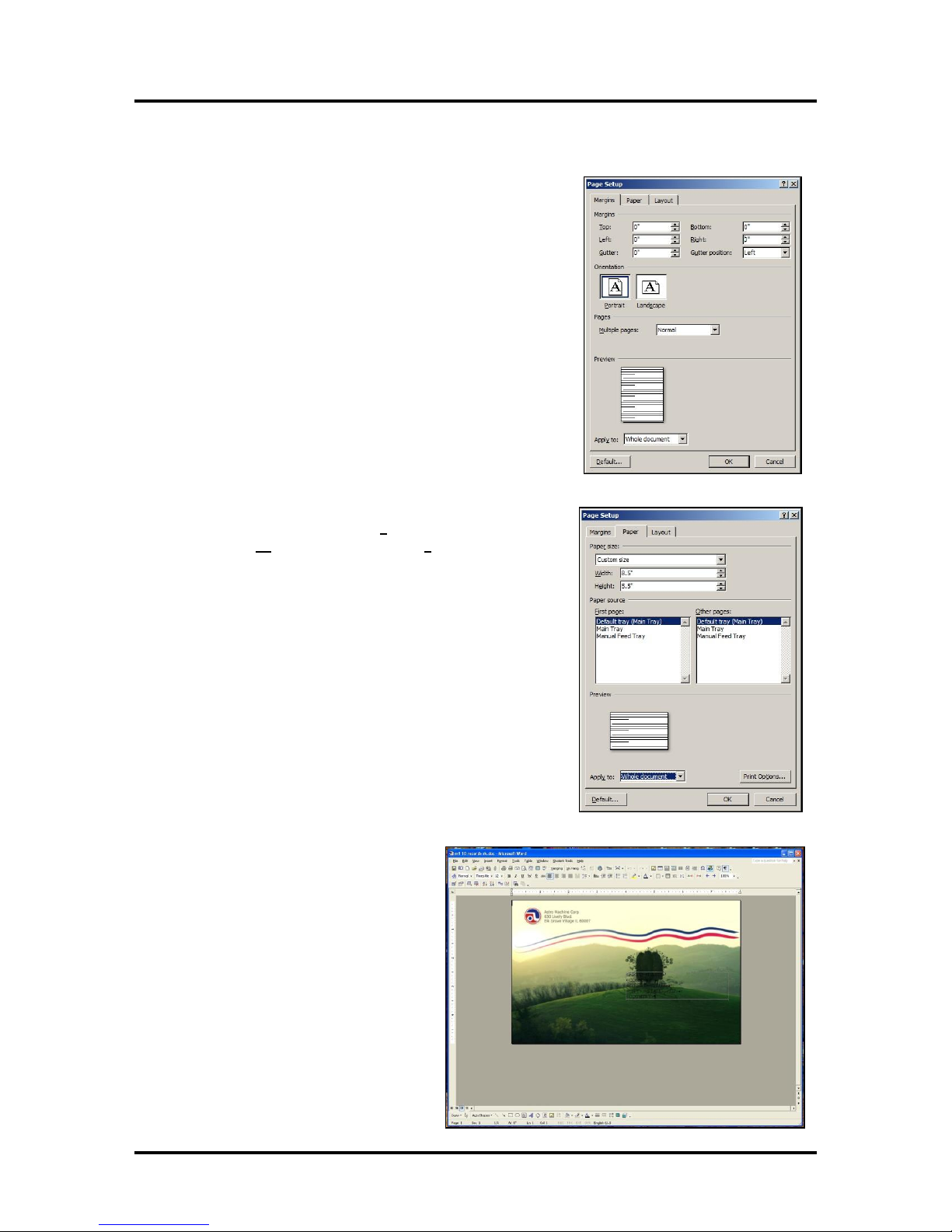

1. Go to File, then Page Setup and select 0" margins.
2. Select Paper tab, select Paper size “Custom size” then
set paper Width to 8.5" and paper Height to 5.5". Then click OK.
3. Screen at right is an example of a job
to be printed. Once job is ready for printing, select Print from File menu and print job.
For more information about changes that can be made in Driver, see Printer Driver section.
32
SECTION 3
OPERATING PRINTER
Printer Driver Properties
Printer Driver works the same as any other Printer Driver for Windows. It does have some enhancements to help you maximize Printer's ability to print variable addressed pieces quickly and efficiently.
Windows XP, Vista, Windows 7, Windows 8: Once job is set up, click File,
then Print. Window at right opens. Make sure M Series Driver is selected Printer. Clicking on Properties opens “Properties” window.
General Tab
General tab lets you select:
Orientation – Portrait (default),
Landscape, Rotate 180° and Mirrored.
Job Management:
Page Buffering – Loads entire print
job before printing starts.
Mask Optimization (checked is default) optimizes images for
printing in most applications.
NOTE: Some applications (like FlexMail) may display image
boundaries when printed, unchecking Mask Optimization box eliminates these lines. (Remember to check box when changing applications.) Back Page Unavailable unless Printer is attached to M1DX Duplex Printer. PC Capture When checked, saves a Print File (*.prn) on the PC (C:\Windows\Temp) for later use. (Unchecked is default.) NOTE: Use the box below the selection to name the file, otherwise the Printer assigns the current date and a numerical name.
Copies – Enter the number of copies to be printed. NOTE: Default setting (Reverse Order
unchecked) prints job starting with first page. Printing starts as soon as first page loads.
Reverse Order allows job to start printing from last page. Since entire job has to load into Printer before printing starts, large jobs may take longer to load.
33
SECTION 3
MEDIA PROFILE
MEDIA TYPE
Plain Paper
Plain Paper Bright White Paper
Matte Paper
Presentation Paper Postcards Matte Brochure Matte Labels Matte Other Inkjet Paper Matte
Premium Matte Coated Paper
Premium Inkjet Paper Premium Photo Paper Matte
Glossy Paper
Photo Paper Semi-gloss Photo Paper Glossy Labels Glossy Postcards Glossy Brochure Glossy
Premium Glossy Paper
Premium Photo Paper Glossy
OPERATING PRINTER
Media – Choose a type of media or
different size media than document was originally designed for. Type: Chart at right lists media profiles associated with type of media chosen. Sizes: 21 sizes are available. Document is automatically resized to fit new media. Also create and save a
Custom Size to suit your needs. NOTE: Do not exceed maximum paper size for Printer.
Duplex Settings – Feature is
unavailable on this Printer.
Color Selection – Set Printing for
Color, Composite Black (uses all colors to print Black), or Black Only (uses only Black ink).
Print Quality – Select Normal or Best. Normal is 1600 x 800 dpi. Best setting is 1600 x 1600
dpi, for use when high quality images are required. Checking “Half Speed” box slows printing for higher quality on glossy stock. NOTE: Half Speed not available when using Best setting.
My Print Settings – Access your saved custom print settings for various jobs.
Layout Tab
Layout allows you change how document prints
without changing original document.
Resizing – Specify Original Size or
Custom Resize: Resizes original as a %
of normal size. Printer prints document in size you selected regardless of paper size selected. Print on: Specify particular size of paper that you want to print on regardless of size of original document. Checking Scale to Fit automatically resizes document to fit on new page size.
Printing Adjustments – Make minor
positioning changes to image position in relation to media if needed*. Also set measurements to be in Inches, Millimeters or Pixels.
NOTE: Printing Adjustments only works when Print Area is less than full print width (less than 8.5"/215.9mm wide). See Using Layout Tab Printing Adjustments on next page.
*You can also move Print Engine up to 1/2" to one side to accommodate 9" wide media, see page 23.
34
OPERATING PRINTER
Using Layout Tab Printing Adjustments
Image Image Position – Left Adjustment moves image area (-3mm left to +200mm right) from
left edge of media. Top Adjustment moves image up or down (-5mm up to +200mm down) from top left corner of media used. (0.1mm increments)
Max Page Width Sets width of actual print area. (0.1mm increments) This shuts off nozzles in non-printing area (not used for printing) and saves ink. NOTE: Can be no larger than maximum print width for Printer (8.5"/215.9mm).
SECTION 3
Purge Bar Position* – In operation, Printhead spits a small amount of ink in gap between pieces to keep nozzles refreshed. For irregular-shaped pieces, Sensor may misread the irregular edge as the actual edge of media and spray on the piece prematurely instead of in actual gap between pieces. This feature allows you to manually set gap (in 0.1mm increments) to account for extra length needed to reach actual gap.
* See also Purge Bar Position in Printer Toolbox section.
Watermark – Prints a light background watermark in paper while printing original document.
When this option is selected, First page only option prints watermark on first page, but not subsequent pages, unchecking box prints watermark on all pages. Custom button lets you create a new watermark or edit an existing watermark, including font selection, color, size and printing angle.
35
SECTION 3
IMPORTANT!
BEFORE UPDATING PRINTER FIRMWARE, REMEMBER TO FIRST EXPORT ANY CUSTOM MEDIA SIZES, WATERMARKS OR PRINT SETTINGS YOU HAVE ADDED TO AN OUTSIDE HOLDING FILE. THIS PREVENTS LOSS OF YOUR CUSTOM SETTINGS.
OPERATING PRINTER

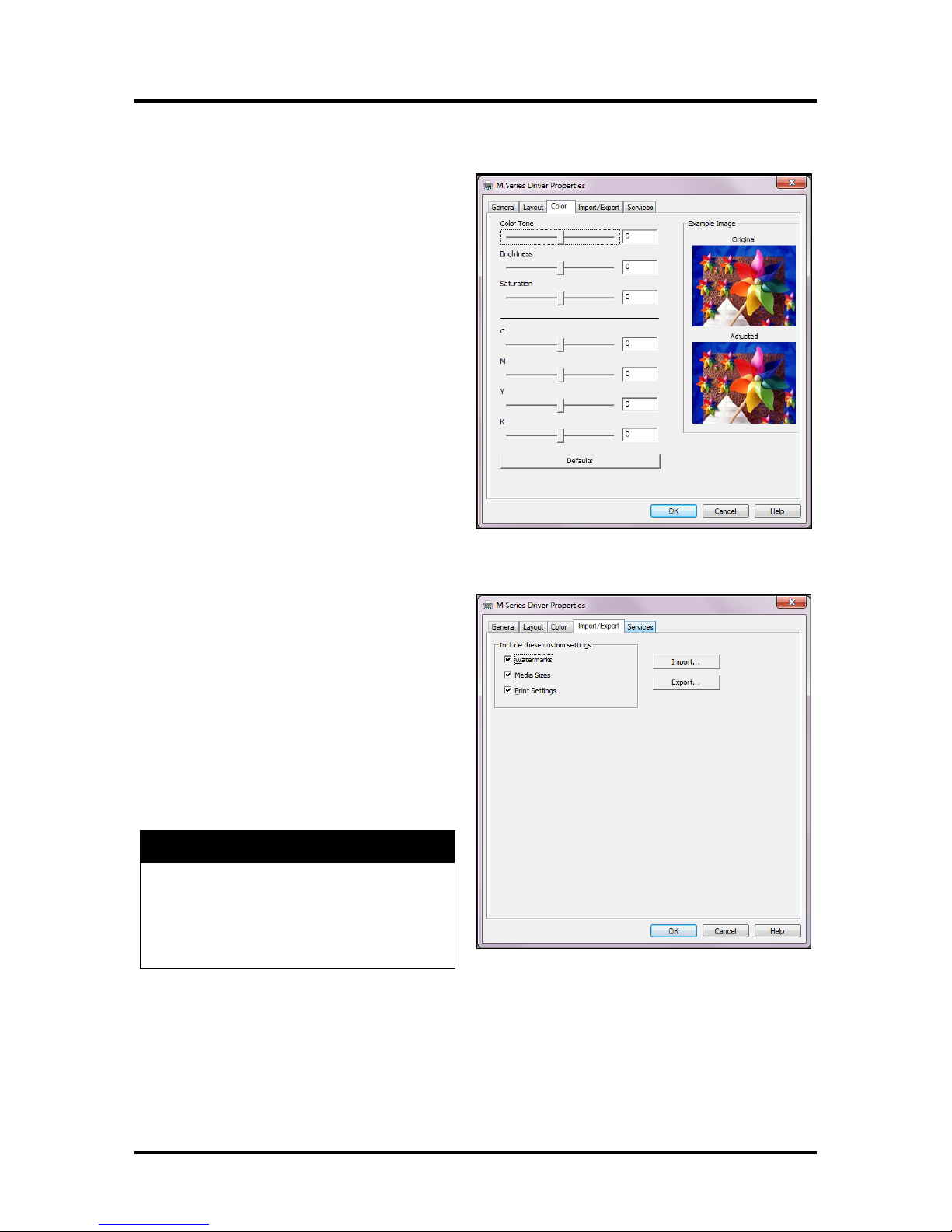

Color Tab
Color is used to adjust the color output of the Printer. Use the sliders to adjust Color Tone, Brightness and Saturation. The C, M, Y, K
sliders adjust individual colors. Use Defaults to reset to 0 settings.
Import/Export Tab
Import/Export is used to preserve any custom
Media Sizes, Watermarks and/or Print Settings you may have developed and saved for various jobs when you update Printer firmware.
Export – Send custom settings to a
holding file before downloading new firmware.
Import – Return custom settings after
firmware installation is complete.
Tab is also used to import custom media size packages or watermarks from your dealer (if available).
36
Services Tab
Services allows you to:

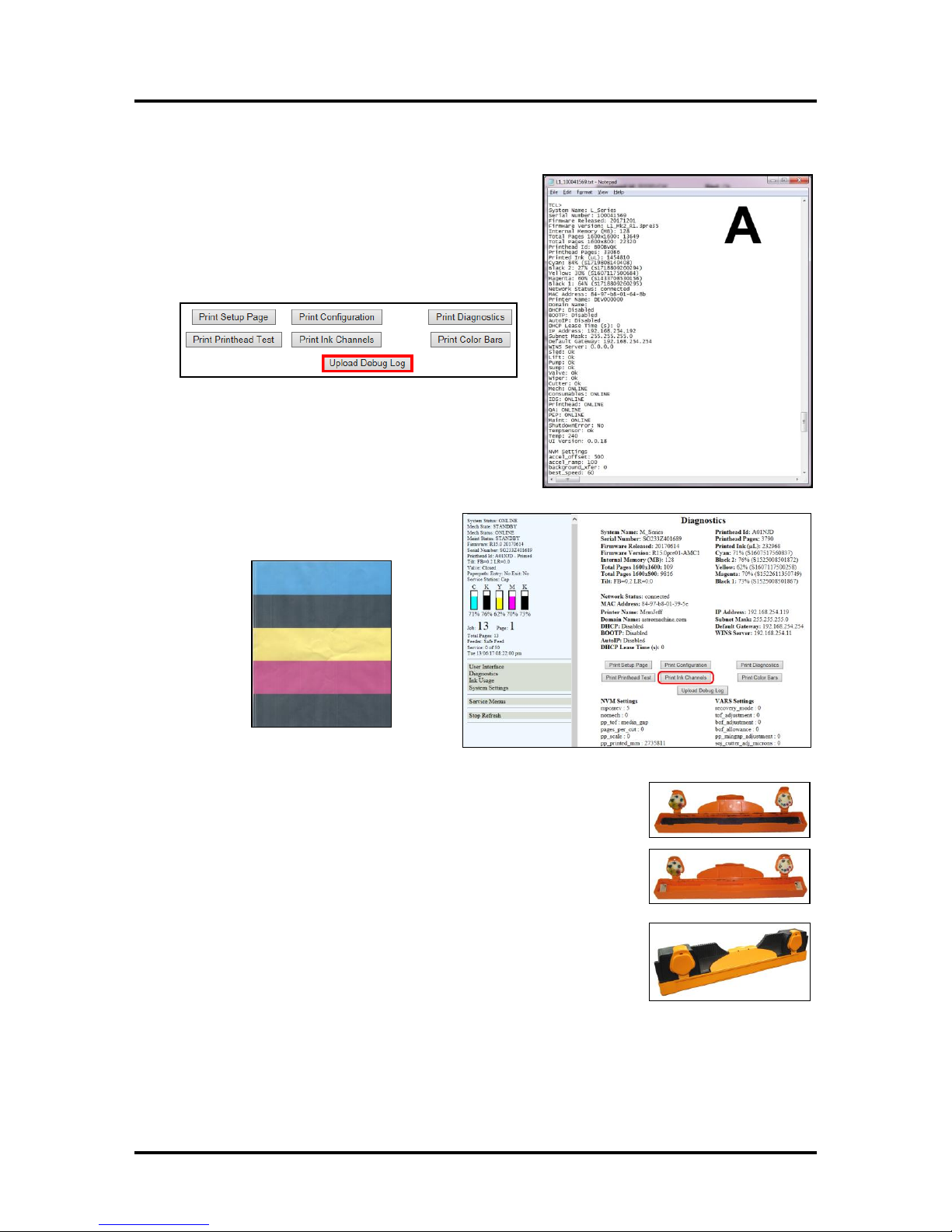

Print Configuration Page –
Prints out current configuration of Printer including current Firmware Version, Network Connection, printer Serial Number and more.
Print Colorbar Page – Prints type and
color bands to check print quality.
Print Diagnostic Page – Displays basic
Printer information, memory, Network Settings, Event Log and RAM partitions.
Clean Printhead Buttons:
Provide 3 levels of cleaning for Printhead Cartridge.
Quick Clean Printhead Circulates ink, wipes and cleans Printhead Cartridge.
Normal Clean Printhead Runs cleaning and wiping routine twice for better flushing and cleaning.
Full Clean Printhead Runs cleaning routine multiple times for the most thorough flushing and cleaning of Printhead.
NOTE: If Printer is connected to a network and Driver buttons fail to activate cleaning process, perform same functions from Toolbox User Interface.
Wipe Printhead – Wipes and cleans excess ink from Printhead Cartridge.
SECTION 3
OPERATING PRINTER
37
SECTION 3 OPERATING PRINTER
Using Printer Toolbox
Once Printer Driver is installed you can access Printer Toolbox. Check printer status, monitor ink usage, perform diagnostic checks, print reports and run maintenance tasks on Printer from your computer.
To open Toolbox: Open Start Menu, then click on Toolbox. When User Interface window opens you will find a series of
Menu Options at lower left of screen. Check Printer Status in upper left part of screen.
User Interface
[A] Screen Buttons: Perform
maintenance and operating tasks. PRINT buttons:
Pause/Resume, Cancel a Job, Clear Errors, Reset Job Counter, and Reset Page Counter.
MAINTENANCE buttons:
Circulate Ink – Purges air from lines
and primes system after replacing Ink Tanks or Printhead Cartridge.
Quick Clean Printhead Circulates ink; and wipes and cleans Printhead Cartridge.
Normal Clean Printhead Runs cleaning and wiping routine twice for better flushing and cleaning.
Full Clean Printhead Runs cleaning routine multiple times for most thorough flushing and cleaning of Printhead.
Wipe Printhead – Activates Service Station to wipe Printhead. Wiper Preemptive Maintenance – Re-saturates Wiper with ink to remove dried residue if Printer is
inactive for long periods of time.
38
OPERATING PRINTER
[B] SETUP Settings Lets you adjust automated service and cleaning intervals, adjust feeder speed for a job and adjust Printer for pre-printed media.
KWS Setting – (Keep Web Spitting) Keeps Printhead hydrated while running a job. Select from 3 settings: None, Light (default), Heavy, to determine how much ink will “spit” from Printhead Nozzles. Set in conjunction with “Mid-Job Servicing” which determines frequency of Printer stopping for self-servicing during a job.
Cutsheet Feeding Mode Permits you to change how Printer feeds media depending on type of job you are running:
Safe Feed Leaves a larger gap between pieces to reduce overprinting onto next piece. This setting is useful for more intricate printing jobs or jobs requiring best print quality.
Max_Throughput Allows fastest printing speed. Printer works like a stream feeder. This setting is useful for simple printing jobs. NOTE: A few extra blank pieces may run through at end of job.
SECTION 3
NOTE: These two settings can be changed without stopping job. Example: While running a job in “Max-Throughput” you find that the media is jamming
excessively due to speed. Open Toolbox, check “Safe Feed” and click “Submit”. Printer automatically adjusts without having to pause or stop job.
Mid-Job Servicing Sets frequency of automatic maintenance cycles run during a job after a set amount of media is run. Settings are: 50 Pages* (Default), 100 Pages, 250 Pages, 500 Pages, 1000 Pages and
2500 Pages. NOTE: Changing setting from “Default” may cause print quality issues and reduce Printhead life. *Use 50 Pages (Default) setting only with media at least letter-sized or A4 length or longer.
Purge Bar Position – In operation, Printhead spits a small amount of ink in gap between pieces to keep
nozzles refreshed. For irregular-shaped pieces (like an envelope flap), Sensor may read lower end as the edge and spray on the tip of flap instead of actual gap between pieces. This feature allows you to manually set gap (1 micron increments) to account for extra length needed to reach actual gap.
Ignore Exit Sensor – Checking this box turns Exit Sensor OFF. Sensor may not detect trailing edge of a piece of pre-printed media if back of that media is dark or black. (Example: adding addresses to a pre- printed postcard.) This may cause Sensor to react as if a jam has occurred. Turning Sensor OFF prevents these “false jams” from stopping job.
Overlap Detection – Detects differences in media thickness and stops the Printer if two or more single sheets pass through the sensor stacked on top of each other. Default is not activated (box not checked). If running envelopes or media with varying thickness, turn this feature OFF (uncheck box). NOTE: Remember to turn feature back ON if running single sheets again.
Click Submit to apply settings.
39
SECTION 3 OPERATING PRINTER
[C] SERVICE buttons control functions that require Printer to be out of service for extended periods of time while they are being performed.
Replace Ink Tanks Disconnects Printer communication with Ink Tank Sensor. Allows safe removal of Ink Tanks for replacement.
Refresh Ink Levels – Updates or confirms ink levels shown at left of screen.

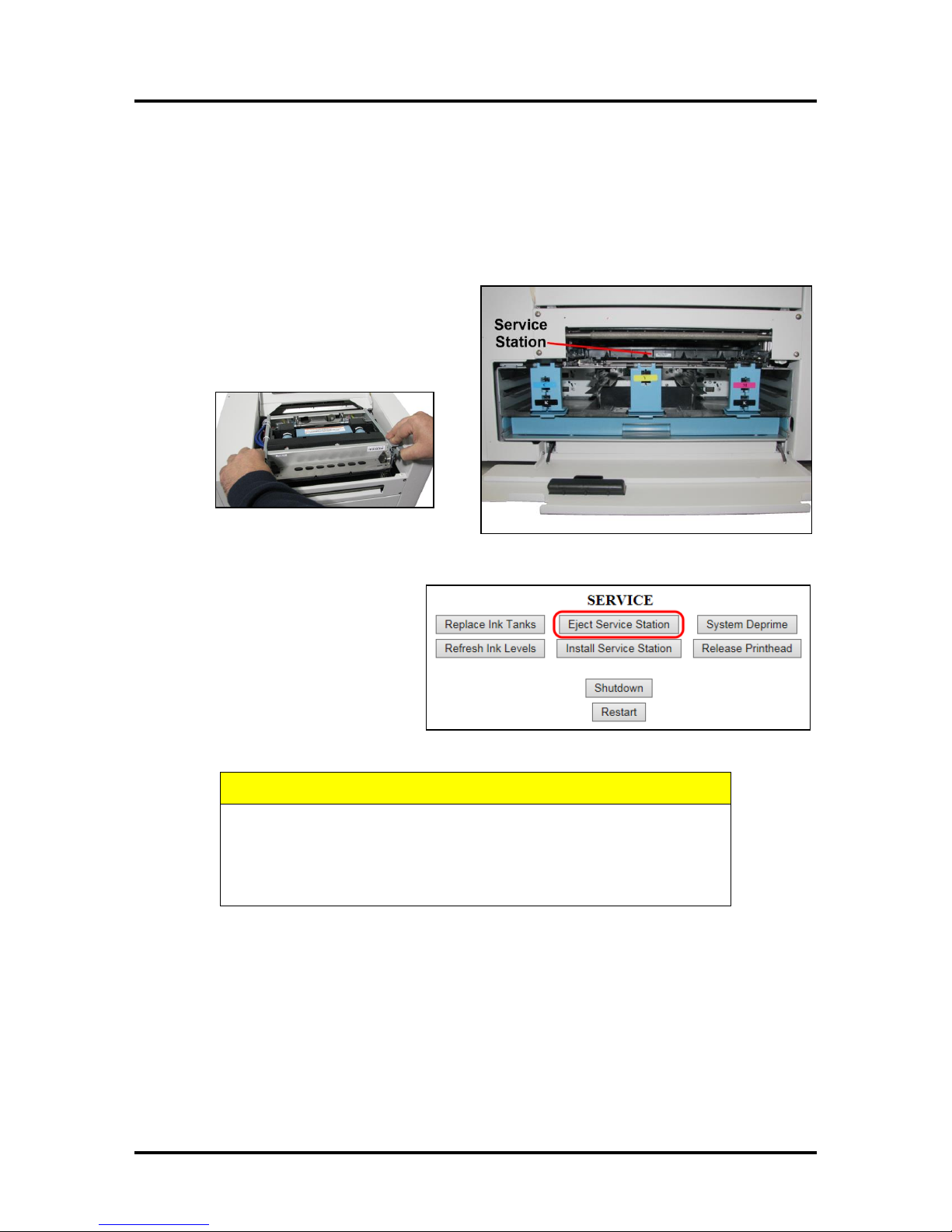

Eject Service Station Releases Service Station for removal for cleaning, repair or replacement.
Install Service Station Pulls Service Station back into place after cleaning, repair or replacement.
System Deprime Pumps ink back into Ink Tanks prior to replacing Printhead Cartridge or transporting Printer.
Release Printhead Pumps ink back into Ink Tanks and opens Printhead Latch to remove or install Printhead Cartridge. NOTE: This
function can also be performed by pressing Printhead Release button on Print Engine (Control Panel Side).
Shutdown – Turns Printer OFF. For best system performance, it is recommended to keep Print Engine powered-up (ON/OFF light illuminated) at all times. If you do turn Printer off, first power-down Print Engine using “Shutdown” button in Toolbox or ON/OFF button on Control Panel. Wait until all Control Panel buttons go out before turning off Main Power Switch.
Restart – Restart Printer without having to perform the startup routine (purging ink tanks, priming, etc.)

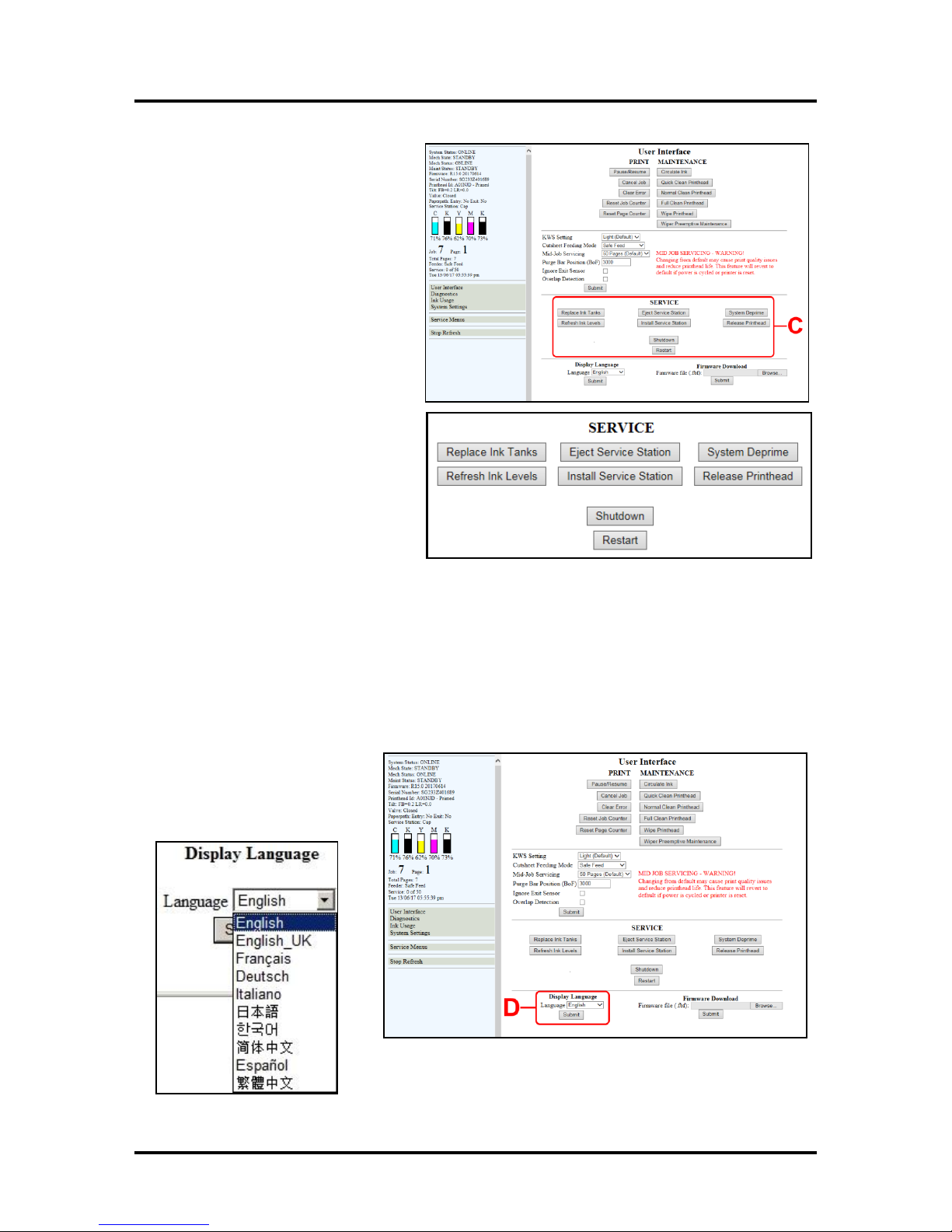

[D] Display Language – Selects
language EWS (Toolbox) will display. Click “Submit” after selecting language.
40
[E] Firmware Download Get latest version of firmware for your Printer. NOTE: This is an
alternative method for downloading firmware. See Updating Firmware for recommended procedure.
WARNING: This procedure should only be performed by qualified service personnel. In some cases firmware must be
loaded using “Firmware Migration Tool”. If this process is not
performed properly, Printer is rendered inoperable.
SECTION 3
OPERATING PRINTER
41
SECTION 3 OPERATING PRINTER
Diagnostics
From this screen you can see current status of your Printer. You can also:
Print Setup Page Prints a printing pattern used for positioning image on the page.
Print Printhead Test Prints color bands, text and patterns to check condition of Printhead's ink nozzles.
NOTE: Uses less ink than Print Ink Channels or Print Color Bars.
Print Configuration Page –
Prints current Printer configuration including Firmware Version, Network Connection, Printer Serial Number and more.
Print Ink Channels Prints 5 bars (1 bar from each ink tank) to indicate how well Printhead Nozzles are working. NOTE: Function can also be accessed by pressing “Print Ink Channels” button on right side
of Print Engine. Print Diagnostics Page – Prints basic Printer information, memory, Network Settings, Event Log and
RAM partitions. Print Color Bars Page Prints a series of 7 color bars to indicate how well Printhead is
mixing colors and printing. Upload Debug Log Download and save a log of the Printer
status to send to a technician to help diagnose a problem. Clicking this button creates a snapshot log showing everything going on with the Printer during the undiagnosed problem. (See Sample Log at right).
Other Information on Diagnostics window:
Event Log – Displays significant events occurring on the
Printer (such as firmware updates, errors, power off, etc.) Useful in troubleshooting Printer problems.
NVM Settings Displays Printer's current NVM (Non-Volatile Memory) settings. (Once settings are
saved, they remain even when Printer is turned off, until they are manually changed.)
VARS Settings Displays Printer's current VARs (Variable) settings. (Settings that are set for a particular
job that automatically revert to default settings when Printer is turned off or rebooted.)
42
Ink Usage

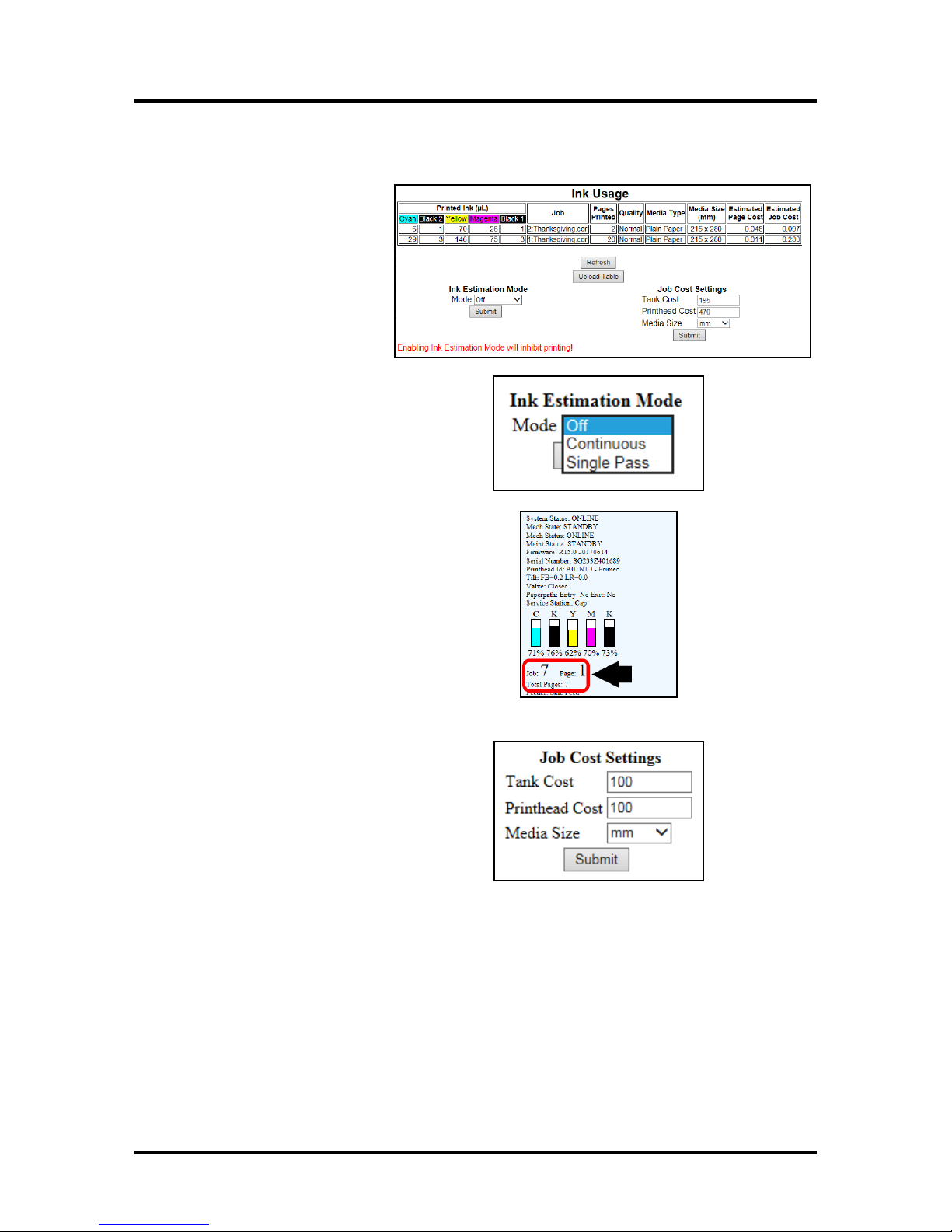

Displays the amount of ink used and other information for each job sent to the Printer. Also tracks estimated Page and Job Costs if information is entered in Job Cost Settings.
Upload Table – Creates and opens a linkable tabular data file using programs such as Microsoft Excel (default is Excel).
Ink Estimation Mode Lets you predetermine how much ink a given job may use prior to printing a job. This is useful for determining per piece costs. Job is sent to Printer and loads, but does not print. Once job is loaded, click “Refresh” to show amount of ink (by color) that job will use.
Mode selection:
Off – Feature is disabled. Continuous – Ink Estimation Mode continues
running (Printer will not print) until feature is turned OFF.
Single Pass Ink Estimation Mode runs once, then turns off. Printer will then be ready to print.
SECTION 3
OPERATING PRINTER
Click “Submit” to activate Mode setting selected.
NOTE: Estimating process takes as long as job would take to print (i.e., if job would take 1 hour to print,
estimate will take 1 hour to display. Track progress on the Counter located under the Ink boxes).
Job Cost Settings Enter your ink cost and printhead cost and media size preference (inches or mm). Set a minimum of at least 100 pcs. to ensure a large enough sample size. Click Submit. In Ink Estimation Mode, this feature estimates per page cost and job cost without printing job. With Ink Estimation Mode disabled, Printer still tracks estimated per page cost and estimated job cost as job is being printed. Once costs are entered, they will remain until changed again, even if Printer is turned OFF.
NOTE: This is only an estimate and does not include other factors such as Printer maintenance routines, (printhead wiping and cleaning, power up/down, etc.) that may affect overall result.
43
SECTION 3 OPERATING PRINTER
System Settings
Set up a network connection for the Printer. Also set and configure Printer Date and Time.
Network Settings – Permits you to view, enter or change settings to connect Printer to your network.
Network Connection Set Up:
1. Printer is still connected to
computer via USB cable.
To connect Printer to a network, open Toolbox. On User Interface screen, click “System Settings”.
2. “System Settings” screen opens.
Use Network Settings to enter correct settings for your network.
NOTE: If manually changing the ip_address, make sure the
“dhcp” and “autoip” boxes are
unchecked. (Default is checked.) Enter changes in the appropriate boxes.
3. Click “Submit”.
4. Connect Ethernet cable to Network Port on Rear Panel of Printer.
44
Date and Time Enter or change the way the date and time will appear in the Printer Status section of the Toolbox screens.
Enter or change Date and Time:
1. Open the User Interface screen,
click “System Settings.”
2. “System Settings” screen opens.
Use Date and Time options to enter, edit and configure the Date and Time for the Printer.
3. Click “Submit”.
Service Menu
For authorized service personnel only.
Provides access to more advanced Printer control and maintenance menus.
SECTION 3
OPERATING PRINTER
45
SECTION 3 OPERATING PRINTER
Updating Firmware
Get latest version of firmware for your Printer.
NOTE: Use this procedure to update firmware AFTER you have updated Printer Driver. Printer Driver update procedure is included with an
“Update Package” which includes both updated Printer Drivers and firmware updates).
How to download new firmware:
1. When you are notified that new firmware is
available for your Printer, download “*.bin” file and save it to your desktop.
2. From Start Menu, open All Programs.
Open “Memjet” folder, then M Series
Driver. Click Update Firmware”.
3. Click “Browse” button. Find and select file
you just saved to your desktop. Click Open.
4. When Update printer firmware window
opens, select M Series printer you want to update. NOTE: You can only update one
printer at a time.
5. Click “Update”. DO NOT touch Printer
until firmware is loaded! A message
appears on screen warning you not to unplug or shut off Printer.
6. Once firmware finishes loading (about 5-10 minutes), Control Panel lights and Printer shuts OFF,
then restarts automatically to complete installation.
46
SECTION 4
MAINTENANCE
SECTION 4 – Maintenance
General, periodic maintenance is needed to keep Printer in good working order. This section covers how to care for Ink Tanks, Printhead Cartridge, Service Station, and clear paper jams.
Replacing Ink Tanks
Replace Ink Tanks when ink runs out.
1. Open Printer Toolbox. Go to Start Menu and open
Toolbox. System Status information appears in upper left corner of User Interface screen. Note that some or all CKMYK boxes (ink levels) may be low or empty.
2. Click Replace Ink Tanks. (Disconnects Printer
communication with Ink Tanks and allows safe installation and replacement.) Once Confirm screen
displays, it is safe to remove Ink Tanks.
IMPORTANT: DO NOT press Continue until after you have removed and replaced Ink Tank(s) and closed Ink Tank Latches.
3. Open Front Cover (hinged at
bottom). Open three Latches [A] and remove Ink Tank(s).
4. Remove new Ink Tank(s)
from packaging.
47
SECTION 4
WARNING!
Ink in Ink Tanks may be harmful if swallowed. Keep new and used Ink Tanks out of reach of children. Discard empty Ink Tanks immediately.
MAINTENANCE
5. Slide new Ink Tanks (labels up) into their
appropriate color slots [B]. Close three Ink Tank Latches.
INSTALLATION TIP: Make sure Ink Tanks seat properly. Insert Ink Tank into appropriate Ink Station, then pull Ink Tank back about an inch and push forward firmly to insure that Ink Nozzles penetrate seals on Ink Tanks.
6. Click “Continue” on Confirm screen,
then “Refresh Ink Levels” on User Interface screen. Ink colors fill in as
Ink Tanks are installed. If ink colors do not fill in after a few seconds, click Replace Ink Tanks again and reinstall Ink Tank(s).
NOTE: If Ink Tank is installed, but Ink Tank indicator still does not refresh, see Cleaning Ink Tank Contacts below.
7. When Printer stops processing and all fields in System
Status are black, Printer is ready for use.
8. Close Front Cover.
48
SECTION 4
MAINTENANCE
Cleaning Ink Tank Contacts
When reinstalling or replacing Ink Tanks, Ink Level indicator in Toolbox may not refresh. This may be due to a dirty Ink Tank Level Prism and/or QA Chip contacts on that Ink Tank(s). Clean contacts as follows:
1. Remove Ink Tank(s).
Open Toolbox. Click Replace Ink Tanks”. Once Confirm” window opens, it is safe to remove Ink Tanks.
IMPORTANT: DO NOT press
“Continue” until after you have replaced
Ink Tank(s) and closed Ink Tank Latches.
2. Open Front Cover.
Release Ink Tank Latch(es) [A]. Remove Ink Tank(s) [B] that did not refresh.
3. Clean Ink Level Prism [A] and QA Chip
contacts [B] with a clean, dry, lint-free cloth.
NOTE: You can dampen cloth with distilled water to wipe Prism, but DO NOT get QA Chip contacts wet.
4. Reinstall Ink Tank(s) (labels up),
latch Ink Tank Latch(es) and click
Continueon Confirm screen, then “Refresh Ink Levels” on User
Interface screen.
5. Close Front Cover.
49
SECTION 4
CAUTION
Use electrostatic discharge (ESD) protection when handling. Hold Printhead Cartridge by handles ONLY. DO NOT touch ink couplings, nozzle surface or electrical contacts. DO NOT unpack Printhead Cartridge until Printer is ready for
installation. Once unwrapped, delay in installing Printhead can compromise print quality due to dehydration.
DO NOT place an unwrapped Printhead on any surface before
installing. Protect Printhead from scratches, dust, fibers, dirt and other contaminants at all times.
MAINTENANCE
Storage
New Ink Tanks should be stored in original packaging and kept away from heat. Opened Ink Tanks should remain in Printer.
Nominal Ink expiration date: 24 months following date of manufacture (ink fill date).
Disposal
Safely dispose of Ink and Ink Tanks in accordance with local/national regulations. Clean up spills with soap and water. Abrasive soap is effective in cleaning ink off your hands.
Cleaning/Replacing Printhead Cartridge
Cleaning
Printhead is cleaned automatically each time Printer is turned on or when Quick Clean Printhead button is performed. (Found under Services Tab in Printer Driver or User Interface in Printer Toolbox.) Use Normal Clean Printhead and Full Clean Printhead to more thoroughly clean Printhead.
If running automated Cleaning buttons doesn’t help improve print quality, Printhead Cartridge can be cleaned manually.
1. Open Top Cover.
2. Release and lift two latches (at same time)
to raise Print Engine Clamshell.
3. Moisten Printhead nozzles using
deionized/distilled water (reference ASTM D5127-90 Type E-II Electronic Grade Water) and a damp, lint-free cloth, wiping end to end. (Gray strip located below orange strip.) Take care not to damage
copper contacts, metal plate, or gold Printhead surface.
4. Close and latch Print Engine Clamshell.
Generally, when ink supply is adequate and print quality remains poor, or when automated cleaning processes or manually cleaning Printhead has not helped image quality, Printhead should be replaced.
50
CAUTION
DO NOT PRY OR MANUALLY LIFT PRINTHEAD LATCH OR LATCH MAY BREAK. ONLY OPEN LATCH USING RELEASE BUTTON ON PRINTER OR PRINTHEAD RELEASE COMMAND IN PRINTER TOOLBOX.
Replacing Printhead Cartridge
1. Open Toolbox. System Status information appears in upper
left corner of User Interface screen.
SECTION 4
MAINTENANCE
2. Open Top Cover. Press Printhead Latch Release
button [1]. Printer pumps any ink in system back into Ink Tanks. Then Printhead Latch pops open [2].
NOTE: Perform this same function from your computer by clicking Printhead Release button in Printer Toolbox.
3. Make sure Printhead Latch is fully opened to retract
ink lines. Remove used Printhead Cartridge by tilting it toward ink lines [3], then carefully lifting it out of Printhead compartment.
51
SECTION 4 MAINTENANCE
4. [A] Carefully remove
Printhead Cartridge from foil packaging.
Tear at notch or cut end with scissors.
[B] Remove protective plastic cover.
Hold Printhead by handle and unclip cover from
Printhead.
[C] Remove protective strip from Printhead electrical contacts. Once removed, DO NOT allow strip to touch electrical contacts.
[D] Remove protective strip from Printhead Nozzles. Hold Printhead by
handle. Pull strip tab and slowly peel strip from Printhead.
DO NOT pull strip at less than a 45° angle from Printhead surface. DO NOT allow removed strip to touch Printhead Nozzles. NOTE: Keep foil packaging to store/dispose of old Printhead Cartridge.
5. Carefully insert Cartridge into the
compartment at an angle [4], with Printhead surface facing down and Ink Nozzles facing Ink Hoses. Once seated, gently tilt Cartridge back until it snaps into an upright position [5]. DO NOT FORCE Cartridge
into position.
52
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM CLOSED.
TO PREVENT DAMAGE TO INK LINES, A STOP LIMITS RAISING CLAMSHELL MORE THAN 60°.
IMPORTANT!
CHECK INK TANKS. PRINTER MAY NOT FULLY REPRIME IF TANKS ARE LESS THAN 1/3 FULL.
6. Wet Printhead Surface. (Ensures
Printhead will prime correctly.)
Open Top Cover. Release and lift two latches (at same time) to raise Print Engine Clamshell.
Moisten Printhead nozzles using distilled water and a damp, lint-free cloth, wiping end to end. (Gray strip
located below orange strip.) Close and latch Print Engine Clamshell.
SECTION 4
MAINTENANCE
7. Close Printhead Latch [6]. Printer starts up and
primes ink into Printhead. (May take a few minutes.) Make sure that ink is flowing through hoses. If air bubbles appear, you may have to tap lines or click Circulate Ink in Printer Toolbox to purge them.
8. Watch Toolbox screen. Notice that some information is in
red. As Printer circulates ink and primes system these fields should all turn black.
9. When Printer stops processing and all fields in System Status
are black, Printer is ready for use. Close Top Cover.
NOTE: Printer may take up to 12 minutes to set itself up during initial startup. This is normal.
53
SECTION 4
Storage Temperature Range:
Long Term: 14° F to 86° F (-10° C to 30° C) Short Term: -11° F to 140° F (-25° C to 60° C)
NOTE: Cumulative storage duration above 86° F (30° C)
must not exceed 72 hours.
Humidity Range:
5% to 95% Relative Humidity, non-condensing
Atmospheric Pressure Range:
70 kPa to 106 kPa
Electrostatic Discharge:
8 kV air discharges or 4 kV contact discharges*
*When tested in accordance with IEC 61000-4-2
MAINTENANCE
Printhead Storage
Store and transport cartridge as indicated by this side up arrow symbol on packaging.
Cartridge and ink supply must be within operating temperature range before attempting to prime cartridge with ink and starting to print. When stored at temperatures below operating range it may take up to 3 hours for a cartridge in its packaging to reach operating temperature. NOTE: Additional packaging will increase time
needed to reach operating temperature. Storage Life: 12 months from date of manufacture (printed on shipping box).
Printhead Service Life
Projected: 50,000,000 ejections per nozzle. Printhead has a total of 70,400 nozzles (14,080 per color
channel.) Since printing does not use the entire length of Printhead, some nozzles do not fire as often. The most often used Nozzles will degrade more quickly. Noticing effects of failing nozzles depends partly on relative position of those nozzles to each other. In simple terms, the number of images printed and the amount of ink that will pass through printhead prior to printhead degradation will depend on the make-up of the images printed, operating environment, servicing, media characteristics (including cleanliness) and other factors.
M-Series Printhead Return Policy
Limited Printhead Replacement Policy: M-Series Printheads are manufactured to be free from defects in
materials and workmanship. However, should an M-Series Printhead display an obvious defect or exhibit a significant degradation of print quality prematurely, the Printhead may be returned for replacement.
Returns for these conditions can be made:
Up to 12 months after the shipping date from Astro Machine Corp. and The Printhead's Total pages printed = 40,000 or fewer pages (at 15% page coverage), whichever
comes first.
This return policy excludes damage due to mishandling, tampering or misuse, improper storage or transport, or material incompatibility*.
*See Printhead Installation and Replacement sections of this manual.
54
Ink Channels Printout
Return Procedure:
1. Make sure Printer is powered up and connected via
USB or network. To check Printhead Page count:
Open “Diagnostics” screen in the computer's Toolbox. Select “Upload Debug Log”. Open and print the file [A] to include with your return.
SECTION 4
MAINTENANCE
2. Open Printer Toolbox. Open Diagnostics
page and click Print Ink Channels button.
3. Remove Printhead Cartridge from Printer per replacement instructions
found in Operator's Manual.
4. Snap Printhead back into orange plastic protective cover it was shipped
in. IMPORTANT! Make sure all foam pads that came with
protective cover are installed and in place (two versions shown in images at right).
5. Reseal Printhead and Cover in a plastic bag (reuse and reseal original
packaging if possible).
6. Place Printhead, Printhead Page Count printout and Ink Channels printout
in a shipping box. Remember to include your company name, contact information and return address as well.
7. Return package to your Astro Dealer.
55
SECTION 4
CAUTION
WHENEVER POWERING DOWN UNIT, ALWAYS:
1. PRESS POWER BUTTON ON CONTROL PANEL.
2. WAIT FOR PRINTER TO STOP PROCESSING.
3. THEN PRESS MAIN POWER SWITCH ON REAR PANEL.
MAINTENANCE
Replacing Service Station
Service Station (located above Ink Tank Station) cleans Printhead Cartridge of excess ink and debris, keeps Printhead hydrated and protected when not in use, captures ink used to keep nozzles clear, and acts as a base to support media during printing. It is designed to provide a long service life. However, should it need to be cleaned, serviced or replaced, follow these steps to remove it.
1. Open Front Cover (hinged at bottom).
Open Top Cover. Release two latches and open Print
Engine Clamshell. Service Station will not fully eject with Clamshell closed.
2. Open Printer Toolbox. Click
Eject Service Station. Once Printer pushes Service Station out, turn Printer OFF.
TURN PRINTER POWER OFF.
56
CAUTION
MAKE SURE LATCHES ON WIPER ROLLER ARE FULLY LOCKED BEFORE INSTALLING SERVICE STATION.
3. Carefully slide Service Station out of Service Station
port. NOTE: DO NOT pull Service Station all the
way out until you disconnect Ribbon Cable. USEFUL TIP: Place an absorbent towel under
Service Station before you remove it to catch any drips or leaks.
4. Disconnect Ribbon Cable. Slide Latch open on
Service Station Circuit Board to release Ribbon Cable. Remove Service Station.
SECTION 4
MAINTENANCE
5. Carefully unwrap new Service Station.
NOTE: Loose parts may fall out. Keep roller side up when removing packaging.
57
SECTION 4 MAINTENANCE
6. Slide Latch open on Service Station Circuit Board.
7. [1] Plug Ribbon Connector (blue side up) into
space under Latch.
[2] Close Latch.
8. [1] Slide Service Station into Service Station port until it touches bar. Align with tracks along
sides and Guide on Service Station dock floor.
[2] Look down through Top Cover to make sure Service Station is aligned with bar. IMPORTANT! Service Station must be perfectly aligned with bar to prevent misalignment
and operating problems.
58
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM CLOSED.
9. GENTLY push Service Station while
turning large Gear on right side of Print Engine clockwise. Gear should engage gear on Service Station Roller and pull it in. Once Service Station starts moving, stop turning gear.
10. Power up unit, then click
Install Service Station in Printer Toolbox to pull Service Station in.
SECTION 4
MAINTENANCE
NOTE: Make sure wick hanging below Service Station is inside plastic trough in Ink Tank Station to prevent ink seepage.
NOTE: Service Station should operate smoothly. If it binds, chatters or grinds, reinstall Service Station. Lubricate Side Tracks and Guide if necessary.
11. Close Clamshell Cover.
Close Front Cover.
59
SECTION 4 MAINTENANCE
Replacing Ink Waste Tray
Ink Waste Tray soaks up any excess ink that may drip from Print Engine during operation. After a period of time it may become saturated and need replacement.
1. Open Front Cover.
2. Push in on Tabs to release Ink Waste Tray
and remove it from unit.
3. Replace with a new Ink Waste Tray.
Replacing Sheet Separators
Sheet Separators ensure separation of media as it is fed into Printer. If you experience double sheet feeding or other feed issues, Separators may be worn and need replacing.
Replacement is not difficult:
1. Turn Printer OFF and unplug it and
from power source.
2. Open Feed Roller Assembly.
Loosen two thumbscrews [A] and slide latches back [arrows]. Then open Feed Roller Assembly [B].
3. Remove locking screws on
Separators [C].
4. Install a new Separator and reinstall
mounting screw. Repeat for each Separator. DO NOT overtighten screw to prevent distorting or damaging Separator.
60
MAINTENANCE
CAUTION
DO NOT BEND, PINCH OR CUT INK LINES LOCATED DIRECTLY IN FRONT OF ASSEMBLY.
Jams in Printer
If a jam occurs, STOP the Printer. Some possible causes for jamming are:
1. Feeding more than one piece of media (double-feeding).
2. Damaged media, such as dog-eared (turned down corners).
3. Media that is not stiff enough may not be usable. Media that meets Postal stiffness requirements
for automated feeding is acceptable in the Printer.
Removing Jammed Media
Clearing a jam depends on where jam occurred. Feed Section: Open Feed Roller Assembly.
Loosen two thumbscrews [A] and slide latches back
[arrows]. Open Feed Roller Assembly [B]. Hold Down Media Bracket Assembly:
Release Media Bracket Assembly by opening Latch [C]. Slide Assembly toward Control Panel [D]. Carefully lift Assembly up [E]. Remove jammed media. Reinstall Assembly.
SECTION 4
NOTE: Make sure Assembly is correctly reinstalled and aligned before starting to print. Assembly should sit flat on transport area surface.
61
SECTION 4
CAUTION
HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW CLAMSHELL TO DROP OR SLAM CLOSED.
TO PREVENT DAMAGE TO INK LINES, A STOP LIMITS RAISING CLAMSHELL MORE THAN 60°.
B
Unlatch Print Engine Clamshell
B
Raise Print Engine Clamshell
C
MAINTENANCE
Print Engine Area: Open Top Cover. Release and lift two latches [B] (one on each side of Print Engine Clamshell) at same time to raise Print Engine Clamshell [C]. Clear jam, then carefully lower and relatch Print Engine Clamshell. Close Top Cover.
TIP: In some cases, you may have to clear entire paper path (Feed Section, Hold Down Media Bracket Assembly and Print Engine area) before Printer will resume printing.
Misfeeds
Misfeeds can be corrected by readjusting Sheet Separators to media or replacing them. See Replacing Sheet Separators on previous page.
62
SECTION 4
WARNING!
PRINTER IS A PRECISION MACHINE THAT SHOULD BE CLEANED REGULARLY TO INSURE MANY YEARS OF SERVICE. BEFORE PERFORMING ANY MAINTENANCE, DISCONNECT MACHINE FROM ITS POWER SOURCE!
DO NOT REMOVE SIDE COVERS! HIGH VOLTAGES PRESENT.
CAUTION
NEVER SPRAY OR POUR CLEANERS DIRECTLY ON OR INTO PRINTER. EXCESS LIQUID COULD HARM ELECTRONIC PARTS. DAMPEN A LINT-FREE CLOTH WITH THE CLEANER AND APPLY IT TO PARTS TO BE CLEANED.
CAUTION
USE ONLY DEIONIZED/DISTILLED WATER TO CLEAN PRINT ENGINE COMPONENTS. AVOID CONTAMINATING PRINTHEAD WITH CLEANERS, LUBRICANTS OR OTHER CHEMICALS.
MAINTENANCE
Cleaning
Clean Printer regularly to remove accumulated paper dust and ink. Depending on types of media run, paper dust may accumulate inside Printer and on Transport.
1. Turn Printer OFF and unplug it from power receptacle. Then open or remove Covers.
2. Interior: Use a vacuum with a soft brush attachment or a can of compressed air to help loosen
dust particles. NOTE: Be careful around ink tray and capping station in Print Engine area as accumulated ink may splash onto other parts of Printer. Take care not to damage PC Boards or electrical wiring.
3. Exterior: Wipe clean with a lint-free cloth using any standard nonabrasive household cleaner that
does not contain plastic-harming solvents.
Feed Rollers and Forwarding Rollers
Feed and Forwarding Rollers can become glazed with paper lint and ink from media. Clean regularly with a mild abrasive household cleaner on a damp lint-free cloth.
NOTE: Avoid using solvents on Rubber Rollers.
Print Engine
Areas in Print Engine can become glazed with a buildup of dust, paper lint and accumulated ink and have to be cleaned regularly. Open Top Cover. Open Clamshell Assembly by releasing two latches. Use a vacuum to pick up any loose debris.
NOTE: Be careful around Ink Tray and Capping Station in Print Engine area as accumulated ink may splash onto other parts of Printer. Take care not to damage PC Boards or electrical wiring.
63
SECTION 4 MAINTENANCE
[A] Grit Rollers: Clean as needed by moistening a small hard-bristled brush or toothbrush with distilled water. DO NOT use anything other than distilled water to clean Rollers.
[B] Media Sensors: Paper lint and dust may build up on Media Sensors. Use a can of compressed air or a damp (not wet) foam or lint-free cotton swab to gently swab Sensors. Take care not to drip water into Circuit Boards. Use a clean, dry swab to dab surfaces dry. Remember to wipe clear panel over Sensor Receiver in upper Printhead Assembly (see inset).
[C] Capping Station Seal and Squeegee. Clean as needed with distilled water on a damp, lint-free cloth. Be careful not to splash or drip ink on other parts of Printer.
[D] Printing Platen. Wipe with distilled water on a damp, lint-free cloth. Pat dry with a lint-free cloth.
Cleaning Ink Revolver Couplings
1. First Deprime system and remove
Printhead Cartridge.
2. Moisten a foam swab in distilled water.
3. Insert swab into one of the ink channels and
rotate to clean.
4. Use a new swab for each remaining ink
channel until all 10 openings are clean. (5 on each side.)
64
SECTION 4
CAUTION
DO NOT PRY OR MANUALLY LIFT PRINTHEAD LATCH OR LATCH MAY BREAK. ONLY OPEN LATCH USING RELEASE BUTTON ON PRINTER OR PRINTHEAD RELEASE COMMAND IN PRINTER TOOLBOX.
MAINTENANCE
Shipping or Transporting Printer
If you have to ship or transport Printer for any reason, unit will have to be prepared. Once Printer is prepared, carefully package Printer, Printhead Cartridge, Service Station and Ink Tanks in their original packaging.
Deprime System
1. Depriming forces all of
ink to return to Ink Tanks. Do this by accessing Toolbox User Interface screen and clicking
“System Deprime”.
Remove Printhead Cartridge
1. Open Top Cover. Press Printhead Latch Release
button [1]. Printer pumps any ink in system back into Tanks. Then Printhead Latch pops open [2].
NOTE: Perform this same function from your computer by clicking Printhead Release button in Printer Toolbox.
2. Make sure Printhead Latch is fully opened to retract
ink lines. Remove Printhead Cartridge by tilting it toward ink lines [3], then carefully lift it out of Printhead Compartment.
3. Pack Printhead Cartridge area with absorbent towels to catch any ink drips or spills.
Carefully pack Cartridge using original packaging.
65
SECTION 4
CAUTION
WHENEVER POWERING DOWN UNIT, ALWAYS:
1. PRESS POWER BUTTON ON CONTROL PANEL.
2. WAIT FOR PRINTER TO STOP PROCESSING.
3. THEN PRESS MAIN POWER SWITCH ON REAR PANEL.
MAINTENANCE
Remove Service Station
1. Open Front Cover (hinged at bottom).
Open Top Cover. Release two latches and open Print Engine
Clamshell. Service Station will not fully eject with Clamshell closed.
2. Open Printer Toolbox.
Click Eject Service Station. Once Printer pushes Service Station out, turn Printer OFF.
TURN PRINTER POWER OFF.
3. Carefully slide Service Station out of Service Station port.
NOTE: DO NOT pull Service Station all the way out until you disconnect Ribbon Cable.
USEFUL TIP: Place an absorbent towel under Service
Station before you remove it to catch any drips or leaks.
66
4. Disconnect Ribbon Cable. Slide Latch open on
Service Station Circuit Board to release Ribbon Cable.
Remove Service Station.
Remove Ink Tanks
SECTION 4
MAINTENANCE
1. Open Front Cover (hinged at bottom).
Unlatch three Locks [A] and pull Ink Tank(s) out of Printer.
2. Carefully package Ink Tanks in
original packaging. IMPORTANT: Make sure ink seals on Ink Tanks are face up to prevent leakage.
3. Pack Ink Tank bays with absorbent towels to catch any ink drips or spills.
67
SECTION 5
CONDITION
PROBLEM
SOLUTION
Missing parts of letters or text.
Air and bubbles blocking Nozzles.
Clean Printhead using recirculation, priming or cycles of depriming and priming found in Driver or Toolbox.
Rehydrate Printhead using distilled water and a wet, clean, lint-free cloth.
Bubbles often disappear with Printer use.
Print shows regularly missing or misdirected nozzles or ink color mixing.
Debris on Printhead.
Perform startup routine. Clean Printhead using
Cleaning Levels in Driver or Toolbox.
Wipe Printhead with distilled water and a wet, clean, lint­free cloth.
Replace Printhead.
Ink mixing – Mixed or muddy colors.
Causes: Ink flooding, air in
Printhead or a dirty Printhead.
Clean Printhead using Cleaning Levels in Driver or Toolbox. Wipe Printhead with distilled water and a wet, clean, lint­free cloth.
No print or crisp blocks of missing drops.
Electrical failure or poor electrical connection.
Reseat Printhead. Replace Printhead.
System will not reprime ink after replacing Printhead Cartridge.
Printhead nozzles dry.
Ink Tanks may be 1/3 full or less.
Wipe Printhead with distilled water and a wet, clean, lint­free cloth.
Replace Ink Tanks.
WARNING!
DO NOT REMOVE SIDE COVERS OF PRINTER!
HIGH VOLTAGES PRESENT BEHIND THE COVERS!
TROUBLESHOOTING
SECTION 5 – Troubleshooting Guide
Troubleshooting Guides are provided to assist you in solving any problems that might occur with Printer. We have tried to make them as complete as possible. The best advice we can offer is to make sure that system is set up properly, plugged in, and that it has an adequate supply of ink before attempting to troubleshoot any problem.
MemjetTM Printhead
68
CONDITION
PROBLEM
SOLUTION
Ink Tank installed, no Ink Level indication in Toolbox
Ink Tank contacts dirty, preventing Printer/Ink Tank communication.
Remove Ink Tank(s). Clean prism and QA Chip contacts, see Maintenance, Cleaning Ink Tank Contacts.
Extra lines; losing data
Database problem.
Check data in database program.
Improper output (address information out of order, misfeeding, etc.)
Wrong interface settings.
Static electricity.
Dirty Media Sensor.
Check software or database on PC.
Close software, then turn Printer OFF and ON.
Clean Media Sensor.
Media jams
Double feeding.
Media is curled or bent. Media is too thin.
Check Sheet Separators for wear, replace as necessary. Clear jam from Feed section, Feed Transport area or Print Engine. See
Maintenance, Removing Jammed Media.
Uncurl media. Minimum thickness for
media is 0.004".
No communication
Improper cabling / connector.
Unit not receiving power.
Use proper USB cable (see Operator Manual.)
Check plug connections, ON/OFF button and fuse on back panel.
Print too light or missing character dots
Clogged or dirty Printhead. Running out of ink.
Check Printhead. Check Ink Tanks.
Blurry address
Image is not sharp.
Clean Printhead using Cleaning Levels in Driver or Toolbox.
Clean Printhead using distilled water and a wet, clean, lint-free cloth.
Feeding problems
Double sheets. Misfeeds.
Adjust Sheet Separators.
Job is sent to print but does not print.
Printer not turned ON. Printer not connected to
computer. Media Sensor is covered in
Print Engine.
Check that Printer is ON. Connect printer cable to
computer and resend job. Open Print Engine and
remove media.
Printer
SECTION 5
TROUBLESHOOTING
69
SECTION 5
MESSAGE
SOLUTION
Cleaning in Progress
Wait until message disappears. Printer will start printing your job once cleaning process is complete.
Excessive Tilt Error
See details under “Toolbox System Status Messages” section.
Incompatible Printhead
Remove and reinsert your Printhead Cartridge. Replace Printhead. Printhead Cartridges must be purchased from authorized supplier for this printer model.
Incorrect … Ink Tank
Replace Ink Tank. Ink Tanks must be purchased from authorized supplier for this printer model.
…. Ink Low
Example: Black Ink Low
Reorder Ink.
…. Out of Ink
Example: Cyan Ink Out
Replace empty Ink Tank.
Load Paper
Out of Paper. Load paper into Printer and press PAPER button to resume printing.
Mechanical Jam
Check for and remove obstruction, then press PAPER button to resume printing.
Check/Clean Sensors. If problem persists, contact technical support.
Missing Printhead
Remove Printhead Cartridge. Check/clean electrical contacts. Reinsert Printhead. Replace Printhead. If problem persists contact technical support.
Multiple Inks Low
Reorder Ink.
Multiple Ink Tanks Out
Replace empty Ink Tanks.
Multiple Ink Tanks are missing
Insert missing Ink Tanks. Clean electrical contacts and reseat Ink Tanks.
Multiple Unauthorized Ink Tanks
Remove and reinsert Ink Tank. Replace Ink Tank. Ink Tanks must be purchased from authorized supplier for this printer model.
Paper Jam
Remove jammed media. Check for proper feed setup then press PAPER button to resume printing.
Check/Clean Sensors. If problem persists, contact technical support.
Printhead Latch Open
Ensure that Printhead Cartridge has been inserted properly then close Printhead Latch so it locks.
Print Zone Assembly (Clamshell) Open
Check to be sure Clamshell is completely closed and latched. Make sure Print Engine Latches are secure.
The … Ink Tank is
missing
Insert missing Ink Tank. Clean electrical contacts and reseat Ink Tank.
Unauthorized … Ink
Tank Installed
Ink Tanks must be purchased from authorized supplier for this printer model.
Unauthorized Printhead
Printhead Cartridges must be purchased from authorized supplier for this printer model.
TROUBLESHOOTING
Errors and Warnings
Printer Alert Window Messages
Messages sent from Driver and displayed on PC screen in a small popup window.
70

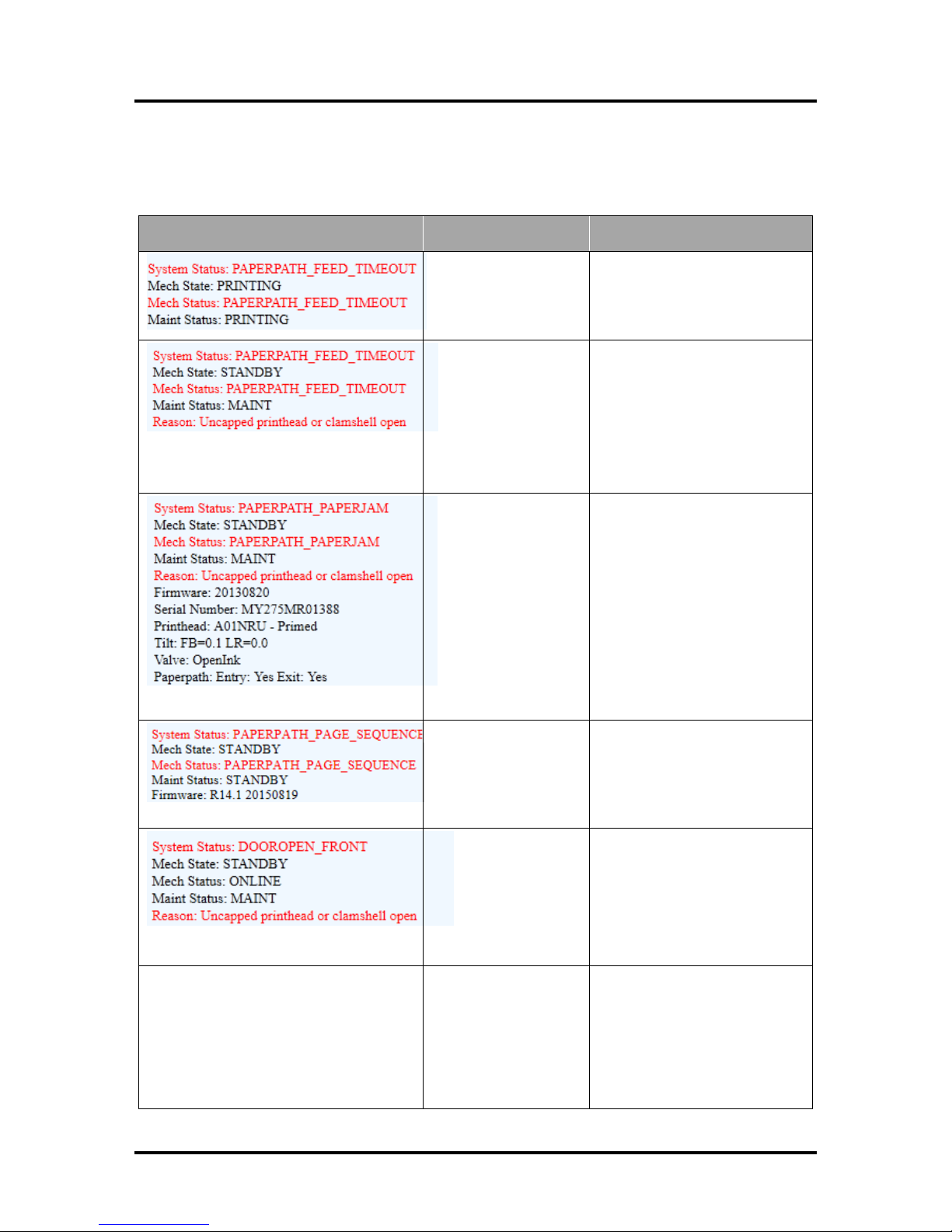

SYSTEM STATUS
SOURCE
SOLUTION
Out of Paper Media is not reaching
Print Engine. Hesitation in media feed.
Load media into Printer and press PAPER button to resume printing.
If media is present; check/adjust Guides and Separators.
Paper Jam When “Out of Paper”
error is shown in combination with
“Uncapped
Printhead” or “Clamshell open”
error, a paper jam is indicated.
See below
Paper/Media jam detected.
Printer has detected that one (or both) Media Sensors are blocked (interrupted).
Carefully remove jammed media from Printer and close Print Engine. System Status message in red should go away.
Toolbox “Paperpath” line should change to:
Paperpath: Entry: No Exit: No After jam is cleared, you can:
Press PAPER to resume printing.
Press CANCEL to cancel job then manually clear t job from computer’s print queue.
Media thickness problem detected.
Indicates one or more single sheets stuck together and fed through Printer.
Remove stuck together media from Printer. Press PAPER to resume printing.
Indicates that “Clamshell” is open.
Sensor cable unplugged P202.
Verify that Clamshell is closed and securely latched on both sides. Make sure that Clamshell switch (located on opposite side) is activated by Clamshell Lever.
Use Scan Sensors in Toolbox to check that Clamshell switch is functioning.
DATA_PATH_UNDERRUN
Media is not moving from Entry Sensor to Exit Sensor within a specified time.
Possible issue with format or orientation of job being sent.
Dirty Encoder Wheel.
Check/clean Transport Rollers. Check/clean Sensors.
Try changing orientation setting in software/driver or setting a different media size.
Check/clean Encoder Wheel. If problem persists contact
technical support.
Toolbox System Status Messages
Displayed in red in Printer Toolbox. (Valid for printers with firmware version 20130820 or higher installed.)
SECTION 5
TROUBLESHOOTING
71

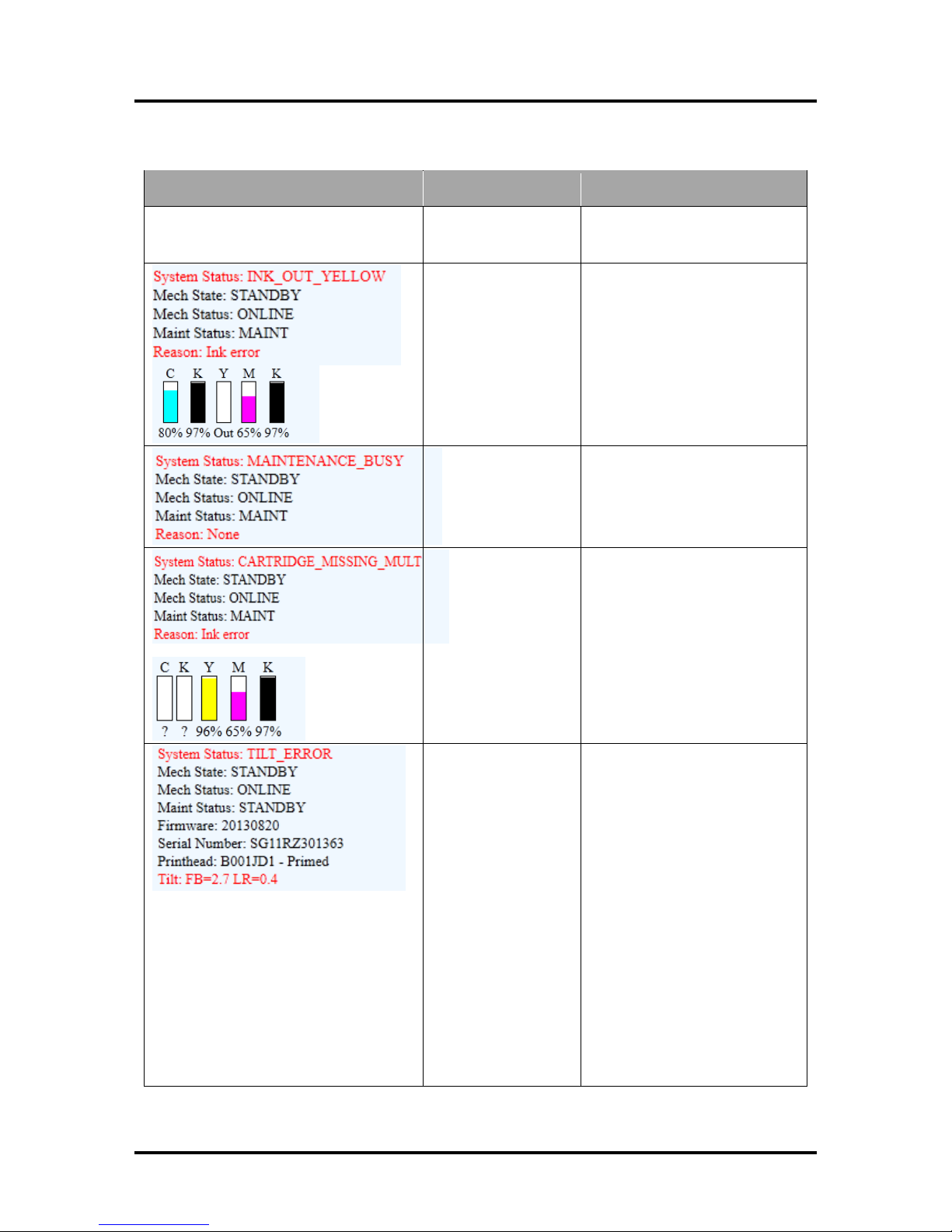

SECTION 5
SYSTEM STATUS
SOURCE
SOLUTION
INK _LOW
X = Color. One or more Ink
Tanks are low on ink.
Ink Tank replacement will be necessary soon. Reorder Ink.
X = Color. One or more Ink
Tanks are out of ink.
Replace empty Ink Tank(s), using Replace Ink Tanks command from EWS.
Verify that Ink Tanks are seated firmly and latches are fully closed.
Clear error using “Refresh Ink Levels command in Toolbox or
just press PAPER to refresh ink levels and continue printing.
Machine is performing a maintenance procedure.
No action required.
Ink Tank is missing or not recognized (obtained from an unauthorized reseller).
If correct ink, check contacts.
Insert missing Ink Tank or pop Ink Tank in and out to improve connection.
Clear error using Refresh Ink Levels” command in Toolbox or just press PAPER to refresh ink levels and continue printing.
Printer is not level*.
Printer’s electronics
have detected that Print Engine is too far out of level.
Tilt Sensor needs to be recalibrated.
P2005 unplugged.
*NOTE: Tilt should be less than ±2 degrees. If Tilt warning indicates more than ±2 degrees FB or LR, (even if Printer continues to run) Printer must be leveled again to prevent damage or print issues.
Make sure that Printer is placed on level surface. Failure to do so may result in severe ink mixing and cause an inaccurate ink level reading in Ink Tanks.
If just powered on, wait a few minutes; error may clear by itself. Once Tilt Level drops to 1.99 or less, clear error using “Clear Error” feature in Toolbox.
Make sure Printer is placed on a sturdy, level worktable. DO NOT move Printer while power is on.
If Tilt Level is 1.99 or less, you can clear this error using “Clear Error” feature in M Series Toolbox.
Contact technical support person to have them check level and possibly Zero Tilt Sensor.
TROUBLESHOOTING
Toolbox System Status Messages (Continued)
72

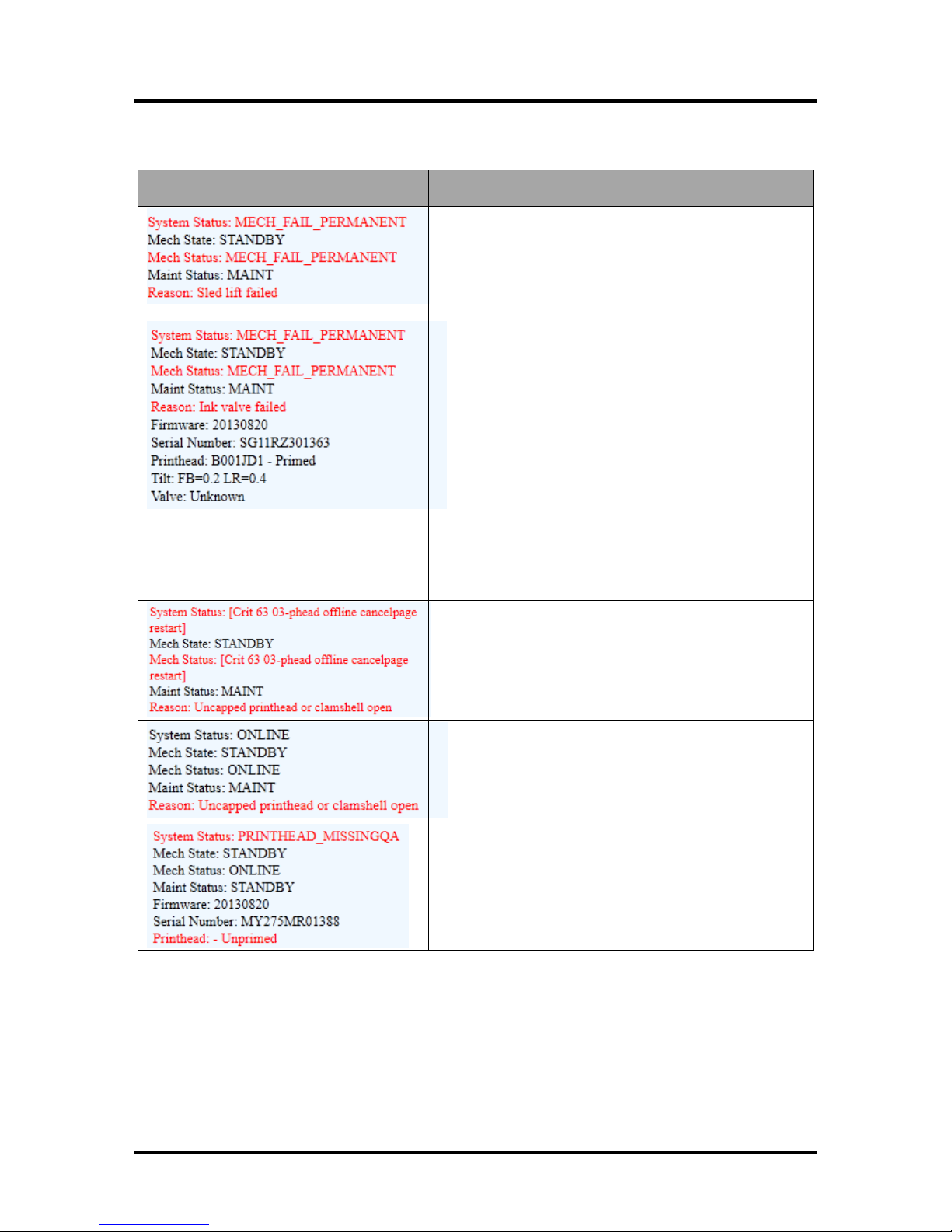

SYSTEM STATUS
SOURCE
SOLUTION
Mechanical error One of Printer's
mechanical components was not properly registered at expected position.
Mechanical failure or Sensor failure.
Visually inspect component stated as a Reason for failure.
Using Scan Sensors page in Toolbox, perform toggle test on Sensor responsible for registration of failed mechanical component position.
Lifter Arm Sensor is dirty or damaged, Lifter Motor Cable is unplugged, operator's side Lifting Arm is damaged, or Lifting Arm mechanism is stuck.
Dual Pinch Valve problem: Check Sensor board connector and flag/sensors alignment. Check Valve motor connector. Check P2005 cable on MPCA.
At this point, this error may represent an Ink Pump error, since there is no return signal from pump and therefore, a separate message describing an Ink Pump error.
Data Cables unplugged, dirty Printhead contacts, dirty PPCA contacts.
Check data cables (P250, P260), clean Printhead contacts, and/or clean PPCA contacts.
Service Station is ejected, Service Station position sensors are damaged or malfunctioning.
Check Service Station position. Using Scan Sensors page in Toolbox, perform toggle test on the two Sensors responsible for registration of Service Station position.
Printhead missing and one or more of the Ink Tanks are missing, When this error occurs, Multiple EWS monitoring is disabled.
Install Printhead. Install Ink Tanks.
Toolbox System Status Messages (Continued)
SECTION 5
TROUBLESHOOTING
73
SECTION 5
SYSTEM STATUS
SOURCE
SOLUTION
Printhead missing and one or more of the Ink Tanks are missing. When this error occurs, Multiple EWS monitoring is disabled.
Install Printhead. Install Ink Tanks.
No Printhead installed or Printhead not making proper connections.
J2001 cable unplugged.
Printhead Latch is open.
If Printer was just powered on, wait a minute; error may clear by itself.
Install Printhead Cartridge. Remove and reinstall Printhead. Replace Printhead. Refer to
appropriate sections in this manual for removing and installing Printhead Cartridge.
PRINTHEAD_UNPRIMED
Printhead priming process has failed.
If Printer was just powered on, wait a minute; error may clear by itself.
Remove Printhead Cartridge, wet print nozzles using deionized or distilled water and reinstall Printhead Cartridge. Refer to appropriate sections in this manual for removing and installing Printhead Cartridge. If you continue to have trouble priming Printhead; check for kinked or pinched color tubes.
MECH_CANCELPAGE
Job was cancelled by user pressing the CANCEL button.
Job was interrupted by
“Clamshell” being
momentarily opened.
Wait until print job has cleared from Printer. Then manually
clear job from computer’s print
queue. Then send new print job.
Check to be sure “Clamshell” is
securely latched, then press “Clear Error” button to continue. If problem persists, contact service support.
TROUBLESHOOTING
Toolbox System Status Messages (Continued)
74
SYSTEM STATUS
SOURCE
SOLUTION
WIPER OVERTEMP
Wiper Motor is overheated due to performing a Wiper Transfer (removing
excess ink off Service Station Wiper) too
often or for multiple or extended periods. Printer will continue maintenance after Wiper Motor cools down. Message will disappear once the temperature returns to operating range.
Wait for Wiper Motor to cool down, Printer will automatically
resume operation. NOTE: If running a number of short jobs or jobs on smaller media, reset the Mid-Job Servicing interval to a higher number of pages.
WIPER ERROR
Wiper Roller is not turning. This can be due to:
1. White flex cable is dirty, broken or not connected.
2. Wiper Module (motor) failure.
3. DPCA failed at J17 terminal.
1. Check white flex cable and connections.
2. Replace Wiper Module.
3. Check and/or replace DPCA board.
Toolbox System Status Messages (Continued)
SECTION 5
TROUBLESHOOTING
75
PRINT RESOLUTION
Best: 1600 x 1600 DPI Normal: 1600 x 800 DPI
SPEED (color or mono)
Up to 3600 letter size pages per hour
PRINT AREA
8.5" x 30" (215 mm x 762 mm)
MEDIA SIZE
Minimum: 3" x 4.2" (76 mm x 107 mm) Maximum: 9" x 14.5" (228 mm x 368 mm)
MEDIA THICKNESS
Minimum: 0.004" (0.1 mm) Maximum: 0.020" (0.5 mm)
FEEDER CAPACITY
5,000 Single sheets (10 reams)
DUTY CYCLE
350,000 per month
SOFTWARE
WindowsTM Printer Drivers for WindowsTM 8, 8.1, 10.
RIP available
INK
Water-based ink. 5 individual 250 ml ink tanks (CMYKK)
PRINT CARTRIDGE
Memjet® Replaceable Printhead
PC INTERFACE
USB 2.0
NETWORK INTERFACE
Ethernet Port
ACCESSORY INTERFACE
Port for connecting optional High Capacity Motorized Receiving Tray
ELECTRICAL
110 VAC, 50/60 Hz (220-240 VAC, 50/60 Hz available)
DIMENSIONS
20.5" W x 33" L x 37" H (52 cm x 84 cm x 94 cm)
WEIGHT
175 lbs. (79 kg)
SUPPLIES
Black Ink Tank
123-2412
Cyan Ink Tank
123-2413
Magenta Ink Tank
123-2414
Yellow Ink Tank
123-2415
OPTIONAL HARDWARE
High Capacity Receiving Tray/Stacker
RTS
APPENDICES
Appendix A – Specifications
All Specifications Subject To Change Without Notice
Appendix B – Supplies and Optional Hardware
The following supply items and optional hardware are available from your Astro Machine Distributor:
76
Index
9" x 14.5" Paper Setup ...................................... 31
A
Adjustable Media Guide ..................................... 2
Adjustable Media Supports ................................ 2
C
Cancel Button ................................................. 1, 6
Cartridge, Printhead ............................................ 3
Choose Location ................................................. 9
Clamshell Latches .............................................. 3
Cleaning
Ink Revolvers .............................................. 64
Ink Tank Contacts ....................................... 49
Print Engine ................................................ 63
Printer ......................................................... 63
Printhead ..................................................... 50
Rollers ......................................................... 63
Color Tab, Printer Driver .............................. 36
Connection
Computer .................................................... 12
Network .................................................. 2, 12
Printer ......................................................... 12
Receiving Tray............................................ 26
USB .................................................. 2, 12, 14
Control Panel
Cancel Button ............................................... 6
Feed Table .................................................... 8
Feed Table Buttons ....................................... 1
LED Chart Cutouts ..................................... 81
Paper Button ................................................. 6
Power Button ................................................ 6
Printer ........................................................... 6
Printer Buttons .............................................. 1
Receiving Tray.............................................. 5
Control Panel Button Functions ......................... 6
D
Date and Time, Toolbox ................................... 44
Diagnostics, Toolbox ........................................ 42
Disposal
Ink Tanks .................................................... 50
E
Error Messages ................................................. 70
F
Feed Rollers ........................................................ 2
Feed Setup ........................................................ 28
Feed Table ......................................................... 2
Control Panel Buttons .................................. 1
Control Panel ................................................ 8
Feed Table Light Indicators ................................ 8
INDEX
Firmware Download ........................................ 41
Firmware, Updating ......................................... 46
Front Cover ........................................................ 1
Fuse
Printer .......................................................... 2
Receiving Tray ............................................. 5
G
General Tab ..................................................... 33
I
Import/Export Tab, Printer Driver ................... 36
Indicators, Control Panel Button ....................... 6
Ink Revolver Couplings ..................................... 3
Ink Revolvers ................................................... 64
Ink Tanks ......................................................... 4
Cleaning Contacts ...................................... 49
Disposal ..................................................... 50
Installing .................................................... 20
Latches ................................ ......................... 4
Remove/Replace ...................................47, 67
Storage ....................................................... 50
Ink Usage, Toolbox ......................................... 43
Ink Waste Tray .............................................4, 60
Installing
Ink Tanks ................................................... 20
Printer Driver ............................................. 13
Printer Driver Over USB ........................... 13
Printer Driver, Network Version A ............ 15
Printer Driver, Network Version B ............ 18
Printhead .................................................... 22
Interface Port
Motorized Receiving Tray ........................... 5
Printer .......................................................... 2
J
Jams in Printer ................................................. 61
Job Setup in MS Word ..................................... 31
L
Latches
Clamshell ..................................................... 3
Ink Tank ....................................................... 4
Printhead ...................................................... 3
Layout Tab ....................................................... 34
Leveling the Printer ......................................... 10
Location, Choose ............................................... 9
M
Maintenance .................................................... 47
Maintenance Schedule ..................................... 80
Media Guide .................................................... 25
Media Profiles Chart ........................................ 34
77
INDEX
Minimum Requirements, System ..................... 13
Misfeeds ........................................................... 62
MS Word .......................................................... 31
N
Network Connection ..................................... 2, 12
Network Settings, Toolbox ............................... 44
O
Operating Printer .............................................. 31
Optional Hardware ........................................... 76
P
Package Contents ............................................... 9
Paper Button ................................................... 1, 6
Paper Media Guide ............................................. 2
Power Button .................................................. 1, 6
Power Connection .............................................. 2
Power Switch
Printer ........................................................... 2
Receiving Tray.............................................. 5
Print Engine
Cleaning ...................................................... 63
Ink Revolvers .............................................. 64
Print Ink Channels ........................................ 3
Printhead Release Button .............................. 3
Service Station .............................................. 4
Printer
Cleaning ...................................................... 63
Connection .................................................. 12
Control Panel ................................................ 6
Control Panel Buttons ................................... 1
Control Panel LED Cutouts ........................ 81
Feed Rollers .................................................. 2
Feed Table .................................................... 2
Fuse, Main .................................................... 2
Interface Port ................................................ 2
Jams ............................................................ 61
Leveling ...................................................... 10
Main Power Switch ....................................... 2
Maintenance ................................................ 47
Media Profiles Chart ................................... 34
MediaGuide ................................................ 25
Operating .................................................... 31
Optional Hardware ...................................... 76
Receptacle, Power ......................................... 2
Service Station Transport Tab .................... 11
Setup ............................................................. 9
Sheet Separators............................................ 2
Shipping/Transporting ................................ 65
Specifications .............................................. 76
Storage Compartment ................................... 1
Supplies ...................................................... 76
Troubleshooting .......................................... 69
Unpacking ..................................................... 9
Updating Firmware ..................................... 46
Printer Driver
Color Tab ................................................... 36
General Tab................................................ 33
Import/Export Tab ..................................... 36
Installing .................................................... 13
Layout Tab ................................................. 34
Network Install, Version A ........................ 15
Network Install, Version B ........................ 18
Properties ................................................... 33
Services Tab ............................................... 37
USB Install ................................................. 13
Printer Toolbox
Date and Time ............................................ 44
Diagnostics ................................................ 42
Ink Usage ................................................... 43
Service Menu ............................................. 45
System Settings .......................................... 44
User Interface ............................................. 38
Using .......................................................... 38
Printhead .......................................................... 3
Cleaning ..................................................... 50
Installing .................................................... 22
Latch ............................................................ 3
Remove/Replace ...................................50, 65
Return Policy ............................................. 54
Return Procedure ....................................... 55
Service Life ................................................ 54
Storage ....................................................... 54
Troubleshooting ......................................... 68
R
Receiving Tray
Connecting ................................................. 26
Control Panel ............................................... 5
Fuse .............................................................. 5
Interface Port................................................ 5
Power Switch ............................................... 5
Receptacle, Power ............................................. 2
Remove/Replace
Ink Tanks ..............................................47, 67
Media Guide .............................................. 25
Printer Jams................................................ 61
Printhead ...............................................50, 65
Service Station ......................................56, 66
Service Station Tab .................................... 11
Sheet Separators ......................................... 60
Rollers, Cleaning ............................................. 63
S
Schedule, Maintenance .................................... 80
Service Life
Printhead .................................................... 54
Service Menu, Toolbox ................................... 45
Service Station ................................................. 4
Remove/Replace ...................................56, 66
Transport Tab ............................................. 11
78
INDEX
Services Tab ..................................................... 37
Setup
9" x 14.5" Paper Setup ................................ 31
Feed ............................................................ 28
MS Word .................................................... 31
Network Settings ........................................ 44
Printer ........................................................... 9
Sheet Separators ............................................... 2
Remove/Replace ......................................... 60
Shipping/Transporting Printer .......................... 65
Specifications, Printer ....................................... 76
Storage
Ink Tanks .................................................... 50
Printhead ..................................................... 54
Storage Compartment ................................ ......... 1
Supplies, Printer ............................................... 76
Supports, Adjustable Media ............................... 2
System Requirements, Minimum ..................... 13
System Settings, Toolbox ................................. 44
T
Top Cover ........................................................... 1
Troubleshooting .............................................. 68
Errors and Warnings ................................... 70
Printer ......................................................... 69
Printhead ..................................................... 68
U
Unpacking .......................................................... 9
USB Port ................................................ 2, 12, 14
User Interface, Toolbox .................................... 38
Using Printer Toolbox ...................................... 38
W
Warning Messages ........................................... 70
79
COMPONENTS/TASKS
MAINTENANCE TYPE
DAILY
BI-WEEKLY
MONTHLY
YEARLY
AS
NEEDED
PERFORMED BY OPERATOR
Printhead (Manual Wiping)
WIPE
Ink Revolver Couplings and Connections: Inspection/Cleaning
EVERY
PRINTHEAD
REMOVAL
Residue and Debris Removal
CLEAN
CLEAN
CLEAN
CLEAN
CLEAN
Optical Sensors (Media Path)
CLEAN
CLEAN
CLEAN
Wiper Assembly: Inspection
INSPECT
INSPECT
INSPECT
Grit Rollers (Media Path)
INSPECT
CLEAN
Ink Tank Latches/Ink Bay
INSPECT
Ink Tubing, Couplings, Components
INSPECT
INSPECT
Ink Waste Tray
INSPECT
INSPECT
REPLACE
Lift Motor Gear
INSPECT
INSPECT
PERFORMED BY SERVICE TECHNICIAN
Lubrication
APPLY
APPLY
Pen Driver PCA Contacts: Cleaning
EVERY
PRINTHEAD
REMOVAL
Moving Parts/Motor
TEST
Service Station Sled Assembly
CLEAN
Wiper Assembly: Cleaning
CLEAN
WARNING!
ALWAYS POWER DOWN PRINTER BEFORE CONNECTING OR DISCONNECTING ANY WIRING HARNESSES OR CABLE CONNECTIONS TO AVOID SERIOUS SHOCK OR INJURY.
CAUTION
ALWAYS USE APPROPRIATE PERSONAL PROTECTION EQUIPMENT (PPE). USE ELECTROSTATIC DISCHARGE (ESD) PROTECTION WHEN MAINTAINING EQUIPMENT.
DISPOSE OF ALL MAINTENANCE WASTE IN ACCORDANCE WITH LOCAL REGULATIONS.
PRINTER MAINTENANCE SCHEDULE
General, periodic maintenance is needed to keep Printer in good working order. Many tasks can be performed by operators with basic supplies, no special tools needed. Other tasks should only be performed by trained service personnel. NOTE: High volume usage may require more frequent maintenance.
Maintenance Supplies & Equipment: Flashlight, small telescoping mirror, hard-bristled toothbrush or equivalent, powder-free nitrile gloves, protective clothing and eyewear, small flathead screwdriver, tweezers, vacuum with wand, deionized distilled water, Super Lube 21030 synthetic grease (or equivalent), Loctite 38650 copper anti-seize (or equivalent), can of compressed air, foam or lint-free cotton swabs, lint­free wipes, disposable shop towels.
Control Panel LED Sequences
Print and cut out this chart to mount on printer if desired. Suggested location: Top Cover. See next page for Feed Table LED Chart.
Feed Table Status Light Indicator Chart
Copyright © 2018 ASTRO MACHINE CORP.
Elk Grove Village, IL 60007
03/29/2018
Part Number: 200-M2 REV. G
Loading...
