Astro 1221 User Manual
Blue Composite Body 1/4" 90° Angle Die Grinder
AND 1/4" Mini Die Grinder with Safety Lever
1221 1221
AND 8pc. Double Cut Carbide Rotary Burr Set 1/4" Shank
1240 - Blue Composite Body 1/4" 90° Angle Die Grinder
Front Exhaust - 20,000rpm
• Composite handle reduces vibration
• Rib textured handle provides a firm grip
• Lever throttle for feathering control
• Compact and lightweight
• Front exhaust
• Built-in regulator
Specifications:
Collet Size:1/4"
Free Speed:20,000rpm
Overall Length:5-3/4" (146mm)
Net Weight:1lbs. (.45kg)
Motor:1/3hp
1205 - Composite Body 1/4" Mini Die Grinder with Safety
Lever - 25,000rpm
• Composite handle reduces vibration
• Rib textured handle provides a firm grip
• Lever throttle for feathering control
• Compact and lightweight
• Front exhaust
• Built-in regulator
Specifications:
Collet Size:1/4"
Free Speed: 25,000rpm
Overall Length: 4-3/4" (120mm)
Net Weight: 13/16lbs. (.37kg)
Motor:1/3hp
2181 - 8pc. Double Cut Carbide Rotary Burr Set 1/4" Shank
• Set Includes:
SA-5: Cylindrical shape 1/2" X 1"
SA-3: Cylindrical shape 3/8" X 3/4"
SC-3: Cylindrical radius end 3/8" X 3/4"
SC-1: Cylindrical radius end 1/4" X 5/8"
SD-1: Ball shape 1/4"
SD-3: Ball shape 3/8"
SF-3: Tree shaped radius end 3/8" X 3/4"
SF-5: Tree shaped radius end 1/2" X 1"
• Should not exceed maximum 30000rpm
• All above burrs are 1/4" shank
Air Inlet Thread NPT:1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 3cfm
Sound Pressure: 92.3 db(A)
Sound Power: 103.7 db(A)
Vibration Level: less than 2.5 m/s2
Air Pressure: 90-120psi
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption:. 3cfm
Sound Pressure: 92.3 db(A)
Sound Power: 103.7 db(A)
Vibration Level: less than 2.5 m/s2
Air Pressure: 90-120psi
www.astrotools.com
1 YEAR LIMITED WARRANTY
•Astro Pneumatic Tool Co. warrants our products to the original
user against defective material or workmanship for a period of 1
year (except where noted on our price schedule) from the date
of 1st use. Astro reserves the right to determine whether the
product failed because of defective material, workmanship or
other causes and to charge back for missing parts. Astro
Pneumatic Tool Co., at its discretion, will repair products
covered under this warranty free of charge. The distributor
should direct the original user to return the product (with the
exceptions listed below) with the distributor’s name, address,
adequate proof of date of purchase or a copy of warranty card,
and a short note explaining the problem. Failures caused by
accident, alteration, or misuse are not covered by this
warranty.
•Astro Pneumatic Tool Co. or its authorized service representa-
tives must perform all warranty repairs. Any repair to the product
by unauthorized service representatives voids this warranty. The
rights under this warranty are limited to the original user and
may not be transferred to subsequent owners.
•This warranty is in lieu of all other warranties, expressed or
implied, including warranties of merchantability and fitness for a
particular purpose. Some states do not allow the exclusion of
limitations of incidental or consequential damages so the above
limitations may not apply to you. All claims must be sent to:
Astro Pneumatic Tool Company
372 Old US Highway 52 South
Mt. Airy, NC 27030
PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING
1-800-221-9705 FOR INSTRUCTIONS
Unpacking

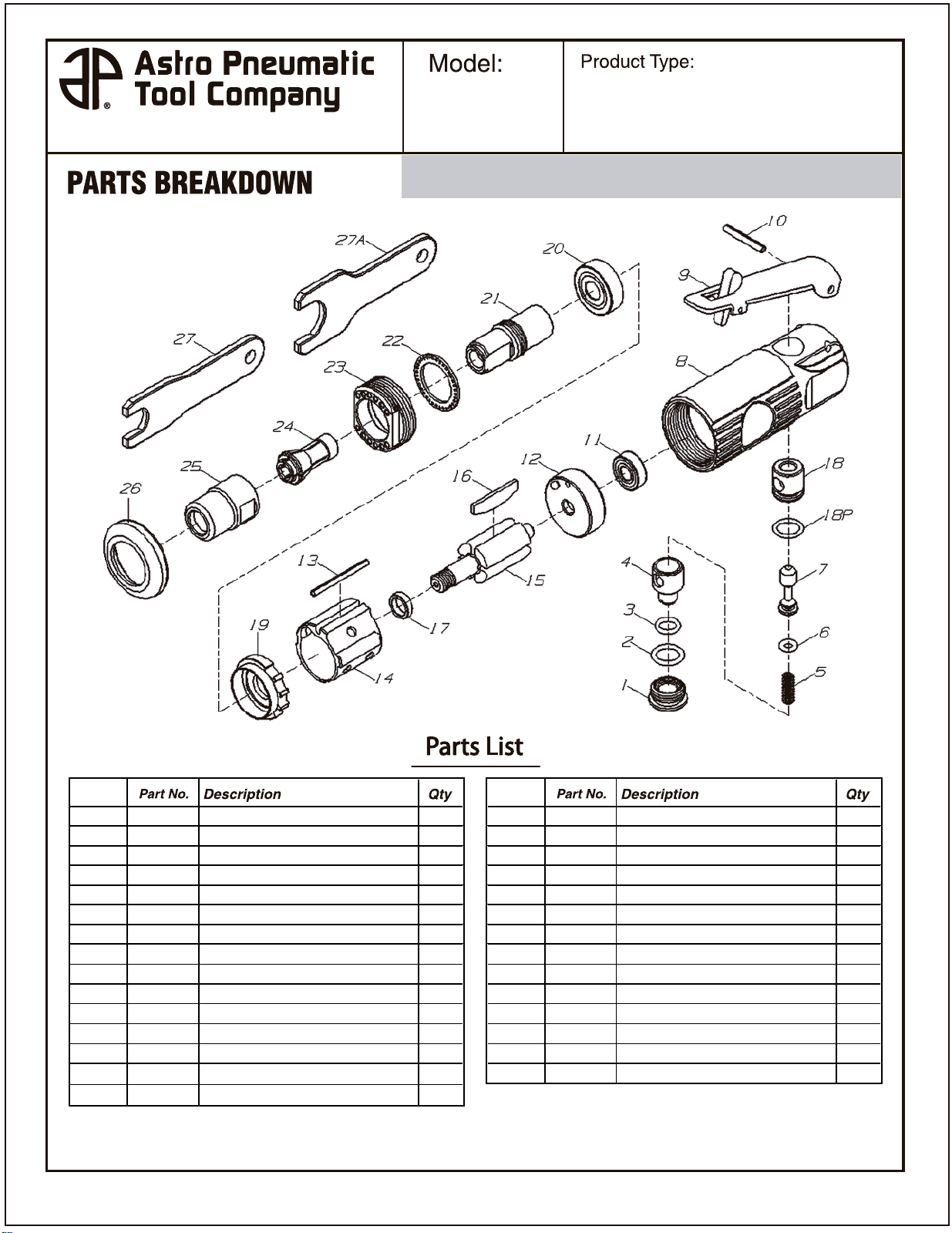

When unpacking, check the parts diagram and part number listing
on pages 3-5 to make sure all parts are included. If any parts are
missing or damage, please call your distributor.
Blue Composite Body 1/4" 90° Angle Die Grinder
AND 1/4" Mini Die Grinder with Safety Lever
AND 8pc. Double Cut Carbide Rotary Burr Set 1/4" Shank
Blue Composite Body 1/4" 90° Angle Die Grinder
AND 1/4" Mini Die Grinder with Safety Lever
AND 8pc. Double Cut Carbide Rotary Burr Set 1/4" Shank
1240
BLUE COMPOSITE BODY 1/4"
90° ANGLE DIE GRINDER
1205
COMPOSITE BODY 1/4" MINI DIE
GRINDER WITH SAFETY
LEVER - 25,000RPM
2181
8PC. DOUBLE CUT CARBIDE
ROTARY BURR SET 1/4" SHANK
Page 2
