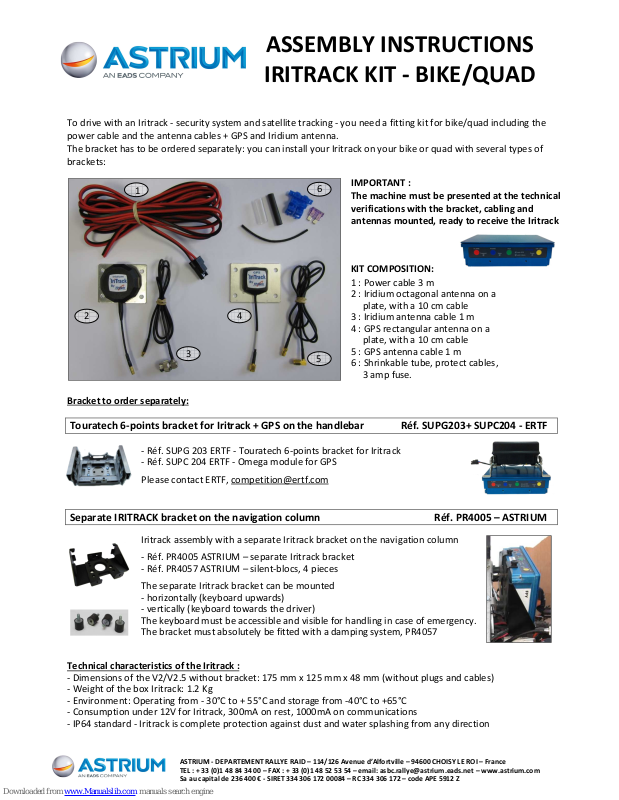

Astrium IRITRACK Assembly Instructions Manual

To drive with an Iritrack - security system and satellite tracking - you need a fitting kit for bike/quad including the
power cable and the antenna cables + GPS and Iridium antenna.
The bracket has to be ordered separately: you can install your Iritrack on your bike or quad with several types of
brackets:

KIT COMPOSITION:

1 : Power cable 3 m
2 : Iridium octagonal antenna on a
plate, with a 10 cm cable
3 : Iridium antenna cable 1 m
4 : GPS rectangular antenna on a
plate, with a 10 cm cable
5 : GPS antenna cable 1 m
6 : Shrinkable tube, protect cables,
3 amp fuse.

Bracket to order separately:

Touratech 6-points bracket for Iritrack + GPS on the handlebar Réf. SUPG203+ SUPC204 - ERTF

- Réf. SUPG 203 ERTF - Touratech 6-points bracket for Iritrack

- Réf. SUPC 204 ERTF - Omega module for GPS

Please contact ERTF, [e-mail]

Separate IRITRACK bracket on the navigation column Réf. PR4005 – ASTRIUM

Iritrack assembly with a separate Iritrack bracket on the navigation column

- Réf. PR4005 ASTRIUM – separate Iritrack bracket

- Réf. PR4057 ASTRIUM – silent-blocs, 4 pieces

The separate Iritrack bracket can be mounted

- horizontally (keyboard upwards)

- vertically (keyboard towards the driver)
The keyboard must be accessible and visible for handling in case of emergency.
The bracket must absolutely be fitted with a damping system, PR4057

Technical characteristics of the Iritrack :

- Dimensions of the V2/V2.5 without bracket: 175 mm x 125 mm x 48 mm (without plugs and cables)

- Weight of the box Iritrack: 1.2 Kg

- Environment: Operating from - 30°C to + 55°C and storage from -40°C to +65°C

- Consumption under 12V for Iritrack, 300mA on rest, 1000mA on communications

- IP64 standard - Iritrack is complete protection against dust and water splashing from any direction

ASSEMBLY INSTRUCTIONS

IRITRACK KIT - BIKE/QUAD

4 2

5

3

IMPORTANT :

The machine must be presented at the technical
verifications with the bracket, cabling and
antennas mounted, ready to receive the Iritrack

1 6

ASTRIUM

-

DEPARTEMENT RALLYE RAID

– 114/126 Avenue d’Alfortville

– 94600 CHOISY LE ROI

– France

TEL : + 33 (0)1 48 84 34 00 – FAX : + 33 (0)1 48 52 53 54 – email: [e-mail] – www.astrium.com
Sa au capital de 236 400 € - SIRET 334 306 172 00084 – RC 334 306 172 – code APE 5912 Z

BRACKET

• The bracket can be mounted on
the dashboard. The buttons on the
Iritrack must be visible and
accessible by the pilot in case of
emergency

• It is essential to have sufficient
space in order to move fingers at
the back of the box to check the
connection of the cables: about
10cm.

Iritrack assembly with separate
Iritrack bracket:
The separate Iritrack bracket must
absolutely be fitted with a

damping system
(silent-blocs available on request, réf PR4057
ASTRIUM).
If there is no damping system, a no­compliance will be declared during the
technical verifications.

EXTENSION OF POWER

• Connect the red wire on the +12 V / +24 V (red terminal) and the black wire to the negative pole of the battery

• Install the 3A fuse on the red wire.

• L’Iritrack must be connected directly to the battery, as required by the FIM regulations (no breaker and no

contact on power).

• Bring power to the bracket

GPS IRITRACK & IRIDIUM ANTENNAS AND CABLES

•

The antenna must be installed in front of the bike / quad
(middle of the front fender, the top of the bubble or the head of instrumentation).

•

It is strongly advised to place plastic collars (type Rislan) to maintain the antennas

• GPS and Iridium antennas can be side by side. They must be installed horizontally and clear of all obstacles at

180 degrees towards the sky. It is forbidden to paint them. Screw the cables from each antenna and bring the
connections to the bracket.

At this stage of the installation you must have at the back of the support
with a margin of 10 cm:

1. Power cable

2. Iridium antenna cable

3. GPS antenna cable

Treat your cable ducts.

• Avoid friction locations.

• It is recommended each day to check the fixings, the wear of
the cables and to tight the connectors

ASTRIUM

-

DEPARTEMENT RALLYE RAID

– 114/126 Avenue d’Alfortville

– 94600 CHOISY LE ROI

– France

TEL : + 33 (0)1 48 84 34 00 – FAX : + 33 (0)1 48 52 53 54 – email: [e-mail] – www.astrium.com

Sa au capital de 236

400 € - SIRET 334 306 172 00084

–

RC 334 306 172

– code APE 5912 Z

CAUTION

: It

is very important to put

a shrinkable tube on each antenna /
cable to couple them.
Before heating the shrinkable tube,
make sure the connectors are
properly locked.

Mounting with s

eparate

Iritrack

bracket

on the

navigation column

Touratech 6

-

points

bracket for

Iritrack

with Omega

GPS bracket
