Installation and Operation Instructions

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

P/N 900077-02 Rev. NC 03/2014

Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 900077-03.

P900077-02

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

Models
Rhapsody42TEN Rhapsody54TEN

Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.

WARNING AVERTISSEMENT AVISO

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

UNE SURFACE VITRÉE CHAUDE PEUT

CAUSER DES BRÛLURES.

LAISSER REFROIDIR LA SURFACE VITRÉE

AVANT D’Y TOUCHER.

EL VIDRIO CALIENTE

CAUSARÁ QUEMADURAS.

USTED DEBE NUNCA TOCAR

EL VIDRIO CALIENTE.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity
of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.

• If you cannot reach your gas supplier, call
the fire department.

— Installation and service must be performed

by a qualified installer, service agency or the
gas supplier.

NE PERMETTEZ JAMAIS À UN ENFANT DE

TOUCHER LA SURFACE VITRÉE.

LOS NIÑOS DEBEN NUNCA

TOCAR EL VIDRIO.

AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d’incindie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.

— Ne pas entreposer ni utilizer d’essence ni d’autres

vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.

— QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucan interrupteur. Ne pas vous

servir des téléphones se trouvant dans le bâtiment
où vous trouvez.

• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.

— L’installation et l’entretien doivent être assurés par un

installateur ou un service d’entretien qualifié ou par le
fournisseur de gaz.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

General Information

900077-02, 03/2014

Safety and Your

Fireplace

All parts of your

IHP fireplace get

EXTREMELY HOT!

 To prevent severe

burns and injuries,
install a screen or
physical barrier to
prevent direct contact
with the glass.

 Follow the safety instructions

below and be sure everyone in
your household understands this
burn hazard:

• The surfaces on your fireplace get
EXTREMELY HOT!

• The glass on the front of the
fireplace reaches EXTREMELY
HIGH temperatures and can cause
severe burns if touched.

• Keep children away from an
operating fireplace. Closely
supervise children in any room
where a fireplace is operating to
prevent contact with glass.

• Keep clothing, furniture,
gasoline, and other flammable
liquids away from the fireplace.

• Even after the gas is turned
off, fireplace surfaces remain
extremely hot.

 Be sure to attach the enclosed

Safety-in-Operation Warnings where
you turn on your fireplace, to help
remind everyone of the dangers
associated with high temperatures
(Page 45).

 Read Important Safety Information

(Page 4)

2

Toutes les parties de votre

EXTRÊMEMENT CHAUDES !

La sécurité et

votre foyer

foyer IHP deviennent

 Afin d'éviter de vous

brûler gravement ou de
vous blesser, installez
une grille ou une barrière
physique pour empêcher
tout contact direct avec la vitre.

 Suivez les instructions de sécurité

ci-dessous et veillez à ce que tous les
membres de votre famille soient conscients
du danger de brûlure encouru :

• Les surfaces de votre foyer deviennent
EXTRÊMEMENT CHAUDES !

• La vitre située à l'avant du
foyer atteint des températures
EXTRÊMEMENT ÉLEVÉES et peut
causer de graves blessures en
cas de contact.

• Tenez les enfants à l'écart
du foyer lorsqu'il fonctionne.
Surveillez attentivement les
enfants dans les pièces où un
foyer est utilisé afin d'éviter qu'ils
ne soient en contact avec la vitre.

• Tenez tous les vêtements, les
meubles, l'essence et tout autre liquide
inflammable à l'écart du foyer.

• Même après fermeture du gaz,
les surfaces du foyer restent
extrêmement chaudes.

 Veillez à coller les Étiquettes de mise

en garde relatives à la sécurité
d'utilisation à l'endroit où vous

utilisez le foyer, pour rappeler à tous
les utilisateurs les dangers liés aux
températures élevées (Page 45).

 Lisez L’information de sûreté

importante (Page 45).

[FRENCH][ENGLISH]

Seguridad y su

chimenea

¡Todas las partes de la

chimenea IHP se ponen

MUY CALIENTES!

 Instale una malla o barrera física para evitar

el contacto directo con el vidrio y prevenir
las quemaduras y lesiones graves.

 Siga las instrucciones de seguridad

a continuación y asegúrese de que
todos en su hogar sepan acerca de
este peligro de quemadura:

• ¡Las superficies de la chimenea
se ponen MUY CALIENTES!

• El vidrio delante de la
chimenea alcanza temperaturas
EXTREMADAMENTE ALTAS
y puede causar quemaduras
graves si se toca.

• Mantenga a los niños alejados de
la chimenea en funcionamiento.
Supervise en forma cercana a los
niños en cualquier cuarto donde haya
una chimenea funcionando para
impedir el contacto con el vidrio.

• Mantenga la ropa, mobiliario,
gasolina y otros líquidos
inflamables alejados de la
chimenea.

• Aún después de haber apagado
el gas, las superficies de
la chimenea permanecen
extremadamente calientes.

 Asegúrese de colocar las Etiquetas

de advertencia de seguridad
de operación en el lugar donde

enciende la chimenea, para que todos
recuerden los peligros asociados con
las altas temperaturas (Página 45).

 Lea Información importante de

seguridad (Página 4).

[SPANISH]

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

THANK YOU FOR YOUR PURCHASE. WE APPRECIATE YOUR BUSINESS!

Please carefully read and follow all instructions in this manual. Pay special attention to all warnings and safety
information. Following these safety, care, and operation instructions will help ensure many years of dependable and
enjoyable service from your fireplace.

General Information

900077-02, 03/2014

Please read and understand these instructions before installing,
operating, or servicing this product.

General Information

Important Safety Information ............................................................4

Fireplace Installation, Operation, and Maintenance Notices ............... 5

Packaging .......................................................................................... 7

Introduction ....................................................................................... 7

Installation

Requirements for the Commonwealth of Massachusetts ................10

Cold Climate Insulation .................................................................... 10

Manufactured Home Requirements ................................................. 11

Location ...........................................................................................11

Vent Termination Clearances ...........................................................12

Minimum Clearances to Combustibles ............................................14

Wall Finishes / Surrounds / Mantels ................................................15

Installation Preparation ....................................................................15

Installation Sequence ......................................................................16

Construct the Fireplace Framing ...................................................... 16

Route the Gas Supply Line into the Fireplace ..................................18

Install the Vent System ....................................................................24

Complete the Field Wiring ................................................................35

Optional: Wire and Install the Power Vent .......................................37

Optional: Route Backlighting Wiring ................................................ 37

Connect the Gas Line ....................................................................... 37

Verify Proper Fireplace Operation ....................................................38

We recommend that our
gas hearth products be
installed and serviced by
professionals who are
certied in the U.S. by the
National Fireplace Institute®
(NFI) as NFI Gas Specialists.

Optional: Install the Backlighting Reflector ...................................... 39

Install the Firebox Liners .................................................................39

Optional: Install the Backlighting Light Assemblies .........................39

Install the Glass Media ....................................................................39

Install the Baffle ............................................................................... 39

Install the Glass Door ......................................................................39

Adjust the Air Shutter to Ensure Proper Flame Appearance ............. 39

Install the Finishing Materials .......................................................... 41

Optional: Install the Bezel ................................................................43

Install the Wall Switch Receiver .......................................................44

Initialize the Remote Control System ............................................... 44

Attach the Safety-in-Operation Warnings.........................................45

Installation Accessories ................................................................... 50

Gas Conversion Kits ........................................................................48

Installing Firebox Liners ..................................................................56

Operation

Maintenance .................................................................................... 59

Required Accessory Components ....................................................62

Optional Accessory Components ..................................................... 63

Lighting Instructions .......................................................................68

Troubleshooting ...............................................................................69

Replacement Parts ..........................................................................69

Warranty ..........................................................................................71

3

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

General Information

900077-02, 03/2014

GENERAL INFORMATION

IMPORTANT SAFETY INFORMATION L’information de sûreté importante Información importante de seguridad

WARNING AVERTISSEMENT ADVERTENCIA

Do not operate appliance with the
glass front removed, cracked or
broken.

Do not use this fireplace if any part has
been under water. Immediately call a
qualified service technician to inspect the
fireplace and to replace any part of the
control system and any gas control which
has been under water.

Due to high temperatures, the fireplace
should be located out of traffic and away
from furniture and draperies.

Children and adults should be alerted to
the hazards of high surface temperature
and should stay away to avoid burns or
clothing ignition.

Clothing or other flammable material
should not be placed on or near the
fireplace.

Young children should be carefully
supervised when they are in the same
room as the fireplace. Toddlers, young
children, and others may be susceptible
to accidental contact burns. A physical
barrier is recommended if there are
at-risk individuals in the house. To
restrict access to a fireplace or stove,
install an adjustable safety gate to keep
toddlers, young children, and other at­risk individuals out of the room and away
from hot surfaces.

Any safety screen or guard removed for
servicing a fireplace must be replaced
prior to operating the fireplace.

Installation and repair should be done
by a qualified service person. The
fireplace should be inspected before use
and at least annually by a professional
service person. More frequent cleaning
may be required due to excessive lint
from carpeting, bedding material, et
cetera. It is imperative that control
compartments, burners, and circulating
air passageways of the fireplace be kept
clean (Maintenance on Page 59).

[English] [French] [Spanish]

Ne pas utiliser l’appareil si le
panneau frontal en verre n’est pas
en place, est craqué ou brisé.

Ne pas utiliser cet appareil s’il a été
plongé, même partiellement, dans l’eau.
Appeler un technicien qualifié pour
inspecter l’appareil et remplacer toute
partie du système de commande et toute
commande qui a été plongée dans l’eau.

En raison des températures élevées,
l’appareil devrait être installé dans un
endroit où il y a peu de circulation et loin
du mobilier et des tentures.

Les enfants et les adultes devraient être
informés des dangers que posent les
températures de surface élevées et se
tenir à distance afin d’éviter des brûlures
ou que leurs vêtements ne s’enflamment.

On ne devrait pas placer de vêtements
ni d’autres matières inflammables sur
l’appareil ni à proximité.

Les jeunes enfants devraient être
surveillés étroitement lorsqu’ils se
trouvent dans la même pièce que
l’appareil. Les tout petits, les jeunes
enfants ou les adultes peuvent subir des
brûlures s’ils viennent en contact avec
la surface chaude. Il est recommandé
d’installer une barrière physique si des
personnes à risques habitent la maison.
Pour empêcher l’accès à un foyer ou à un
poêle, installez une barrière de sécurité
; cette mesure empêchera les tout petits,
les jeunes enfants et toute autre personne
à risque d’avoir accès à la pièce et aux
surfaces chaudes.

Tout écran ou protecteur retiré pour
permettre l’entretien de l’appareil doit
être remis en place avant de mettre
l’appareil en marche.

L’installation et la réparation devrait
être confiées à un technicien qualifié.
L’appareil devrait faire l’objet
d’une inspection par un technicien
professionnel avant d’être utilisé et au
moins une fois l’an par la suite. Des
nettoyages plus fréquents peuvent être
nécessaires si les tapis, la literie, et
cetera produisent une quantité importante
de poussière. Il est essentiel que les
compartiments abritant les commandes,
les brûleurs et les conduits de circulation
d’air de l’appareil soient tenus propres
(Page 59).

No opere el artefacto con el frente
de vidrio quitado, agrietado o roto.

No use este artefacto si alguna de sus
partes ha estado bajo agua. Llame
de inmediato a un técnico de servicio
calificado para que inspeccione el
artefacto y reemplace cualquier parte del
sistema de control y cualquier control de
gas que haya estado bajo agua.

Debido a las altas temperaturas, el
artefacto debe situarse fuera de las
áreas de tráfico y lejos del mobiliario y
cortinas.

Se debe alertar a los niños y adultos
sobre los peligros de las altas
temperaturas en la superficie y que
se mantengan alejados para evitar
quemaduras o ignición de la ropa.

No debe colocarse ropa u otros
materiales inflamables sobre y cerca del
artefacto.

Se debe supervisar de cerca a los niños
cuando estén en el mismo cuarto que
el artefacto. Los niños pequeños, los
jóvenes y otras personas pueden ser
susceptibles a quemaduras por contacto
accidental. Se recomienda instalar
una barrera física si hay personas en
riesgo en la casa. Para restringir el
acceso a una chimenea o estufa, instale
una puerta de seguridad ajustable
para mantener a los niños pequeños,
jóvenes y otras personas en riesgo fuera
del cuarto y lejos de las superficies
calientes.

Cualquier malla o resguardo de seguridad
quitado para dar servicio a un artefacto,
debe reinstalarse antes de operar
el artefacto.

Una persona de servicio competente
debe realizar la instalación y reparación.
Una persona de servicio profesional
debe inspeccionar el artefacto antes
de usar al menos una vez por año. Se
puede requerir limpieza más frecuente
debido a la pelusa excesiva del
alfombrado, del material de cobijas,
etc. Es imprescindible mantener limpios
los compartimientos de control, los
quemadores y los pasajes de circulación
del aire del artefacto (Página 59).

4

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

FIREPLACE INSTALLATION, OPERATION, AND MAINTENANCE NOTICES

DO NOT ATTEMPT TO ALTER OR MODIFY THE CONSTRUCTION OF THE APPLIANCE OR ITS COMPONENTS. ANY
MODIFICATION OR ALTERATION MAY VOID THE WARRANTY, CERTIFICATION, AND LISTINGS OF THIS UNIT.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to this manual. For assistance or additional information consult a
qualified installer, service agency or the gas supplier.

AVERTISSEMENT

Une installation, un réglage,une modification, une réparation ou un entretien mal effectué
peut causer des dommages matériels ou des blessures. Voir la notice de l’utilisateur qui
accompagne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez
un installateur, un technicien agréé ou le fournisseur de gaz.

WARNING

General Information

900077-02, 03/2014

Failure to comply with these installation instructions will result in an improperly installed
and operating appliance, voiding its warranty. Any change to this appliance and/or its
operating controls is dangerous.

5

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Clothing or other flammable material should not be placed on or near the appliance.

On ne devrait pas placer de vêtements ni d’autres matières inflammables sur l’appareil ni à proximité.

Improper installation or use of this appliance can cause serious injury or death from fire, burns,
explosion or carbon monoxide poisoning.

Hot while in operation. Do not touch. Severe Burns may result. Keep children, clothing
furniture, gasoline and other liquids having flammable vapors away.

General Information

900077-02, 03/2014

WARNING

AVERTISSEMENT

WARNING

CAUTION

ATTENTION

L’appareil est chaud lorsqu’il fonctionne. Ne pas toucher l’appareil. Risque de brûlures
graves. Surveiller les enfants. Garder les vêtements, les meubles, l’essence ou autres
liquides produisant des vapeur inflammables loin de l’appareil.

NOTE:

• Only accessory kits supplied by the manufacturer shall be used in the installation of this appliance.

• These fireplaces are designed as supplemental heaters, and are not to be used as the primary heat source when

installed in a dwelling.

• Provide adequate clearances around air openings and adequate accessibility clearance for service and proper
operation. Never obstruct the front or back openings of the fireplace.

• These fireplaces are designed to operate on natural or propane gas only. The use of other fuels or combination of
fuels will degrade the performance of this system and may be dangerous.

• These fireplaces must not be connected to a chimney or flue serving a separate solid fuel burning fireplace.

• These fireplaces are vented gas appliances. Do not burn wood or other material in these appliances.

• Only trim kit(s) supplied by the manufacturer shall be used in the installation of this fireplace.

Remarqué :

• Seules les trousses de garniture fournies par le fabricant doivent être utilisées pour l’installation de cet appareil.

6

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

INSTALLATION

PACKAGING

All models include

The assembled vented gas fireplace heater is packaged with:

• Literature Kit (Installation and Operation Instructions (this manual), and Safety-In-Operation Warning Labels)

• Vent restrictor assembly

• Baffle (shipped on fireplace floor)

• Three (3) Non-combustible fiber boards

• Three (3) AAA batteries

• Handheld remote control (transmitter)

• Remote control receiver (wall switch) assembly with four (4) AA batteries

Required accessories

• Firebox liner kit

• Floor kit

• Glass media kit (required with DESIGNER style floor kits only)

NOTE: Ensure all required accessory kits are available before installing the fireplace.

Optional accessories

• Surround kit

• Bezel kit

• Panel backlighting kit

• Power vent kit (Requires Rhapsody power vent adaptor kit)

• Gas conversion kit

Installation

900077-02, 03/2014

INTRODUCTION

These vented gas fireplace heaters are sealed combustion, air-circulating gas fireplaces designed for residential,
manufactured home, and commercial applications. Direct-vent appliances operate with the combustion chamber
isolated from the indoor environment. All air for combustion is brought in from the outside, and exhaust gases are
vented through the same direct-vent, coaxial (intake/exhaust) vent system.

These appliances are designed to operate on natural or propane gas only. The use of other fuels or fuel combinations
will degrade the performance of this system, may be dangerous, and may void the warranty.

Electronic fireplaces are designed with an electronic intermittent pilot ignition system. External electrical power is
required to operate these units. In the event of a power outage, four (4) AA batteries (in battery holder) provide
backup power for fireplace operation.

Batteries will operate the gas valve OPEN/CLOSE and pilot ON/OFF functions only. Electrical power (120V AC line
voltage) is required to operate the following components:

• Blower

• Power vent system

• Panel backlighting kit

A remote control system is included with all models and provides remote operation of several fireplace functions
(manual adjustment of the gas valve settings is not possible).

NOTE: Installation and repair should be done by a qualified service person. The fireplace should be inspected before
use and at least annually by a professional service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etcetera. It is imperative that control compartments, burners and circulating air
passageways of the fireplace be kept clean.

Remarqué : L’installation et la réparation devrait être confiées à un technicien qualifié. L’appareil devrait faire
l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite.
Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité
importante de pous-sière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les
conduits de circulation d’air de l’appareil soient tenus propres.

NOTE: Diagrams and illustrations are not necessarily shown to scale.

7

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Approved Vent Components

These fireplaces are designed, tested and listed for operation and installation with the following vent
components only:

• Secure Vent® Direct-Vent System Components,

• Secure Flex® Flexible Vent Components, and

• Z-FLEX® Model GA Venting Systems listed to UL1777 and ULCS635 manufactured by Flexmaster

Canada Limited.

Use only the correct size venting (4 1/2” inner and 7 1/2” outer).
These approved vent system components are labeled for identification. DO NOT use any other manufacturer’s vent

components with these fireplaces.

Codes and Standards

These fireplaces comply with National Safety Standards and are tested and listed by Intertek (Report No.
100404899PRT-001) to ANSI Z21.88 (in Canada, CSA-2.33), and CAN/CGA-2.17-M91 (CSA P4.1) in both USA and
Canada, as vented gas fireplace heaters.

These fireplaces are listed for installation in bedrooms, aftermarket mobile homes, and manufactured homes.
The installation must conform to local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI

Z223.1/NFPA 54—latest edition (In Canada, the current CAN/CGA-B149.1 installation code).
The fireplace, when installed, must be electrically grounded and wired in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70—latest edition, or the Canadian Electrical
Code, CSA C22.1—latest edition.

Installation

900077-02, 03/2014

BTU Input

Gas Pressure

Table 1: Input Rate, Gas Valves

42”

54”

Models

Low 19,500 19,500
High 27,000 25,000
Low 26,000 27,000
High 37,000 34,000

Natural Gas Propane (field converted)

Table 2: Thermal Efficiency (%)

Model

42” 67 61 68.5 66
54” 70.2 66.9 69.8 71.8

* AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.

AFUE * P4 ** AFUE * P4 **

Natural Gas Propane (field converted)

Table 3: Inlet Gas Supply Pressure

Fuel Minimum Maximum

Natural Gas 5” WC / (1.25 kPa) 10.5” WC / (2.61 kPa)

Propane 11.0” WC / (2.74 kPa) 13.0” WC / (3.23 kPa)

Input Rate (BTU/HR)

Table 4: Manifold Gas Supply Pressure

Fuel Low High

Natural Gas 1.6” WC / (0.4 kPa) 3.5” WC / (0.87 kPa)

Propane 6.3” WC / (1.57 kPa) 10.0” WC / (2.49 kPa)

The control valves have a 3/8” (10 mm) NPT thread inlet and outlet side of the valve (Figure 1).

8

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Figure 1: Electronic Gas Valve

Installation

900077-02, 03/2014

(from DFC Wire Harness)

Manifold (OUT)

Inlet (IN) Test Port

Orange Wire

(from DFC Wire

Harness)

Main Gas Inlet

3/8" NPT

Green Wire

Test Port

Connect GTMS
wire harness

Pressure Regulator
Tower

Yellow Ground Wire
(from DFC Wire Harness)

Test gauge connections are provided on the front of the electronic gas control valve (identified IN for the inlet and
OUT for the manifold side). To access the pressure taps on the valve, remove the four (4) screws in the access plate
below the burner. A set of external 1/8” NPT test ports is also provided just below the glass door, to the right of
center (Figure 2). If installed, remove the optional bezel and surround to access the ports.

Figure 2: Electronic Gas Valve Test Ports

Lower right corner

of fireplace

Air shutter

adjustment lever

Inlet (IN)

Manifold (OUT)

NOTE: Before accessing the test ports, the fireplace must be OFF and COLD. Turn OFF the main gas supply before
connecting to the pressure taps.

Propane tanks are at pressures that will cause damage to valve components. Verify that the tanks have step down
regulators to reduce the pressure to safe levels.

Using a propane tank smaller than 100 lbs may create pressure loss and insufficient fuel delivery, which can cause
sooting, severe delayed ignition, or other malfunctions (see NPFA 58).

Any damage as a result of insufficient tank size or other improper installation is NOT covered under the
limited warranty.

The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).

The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

9

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

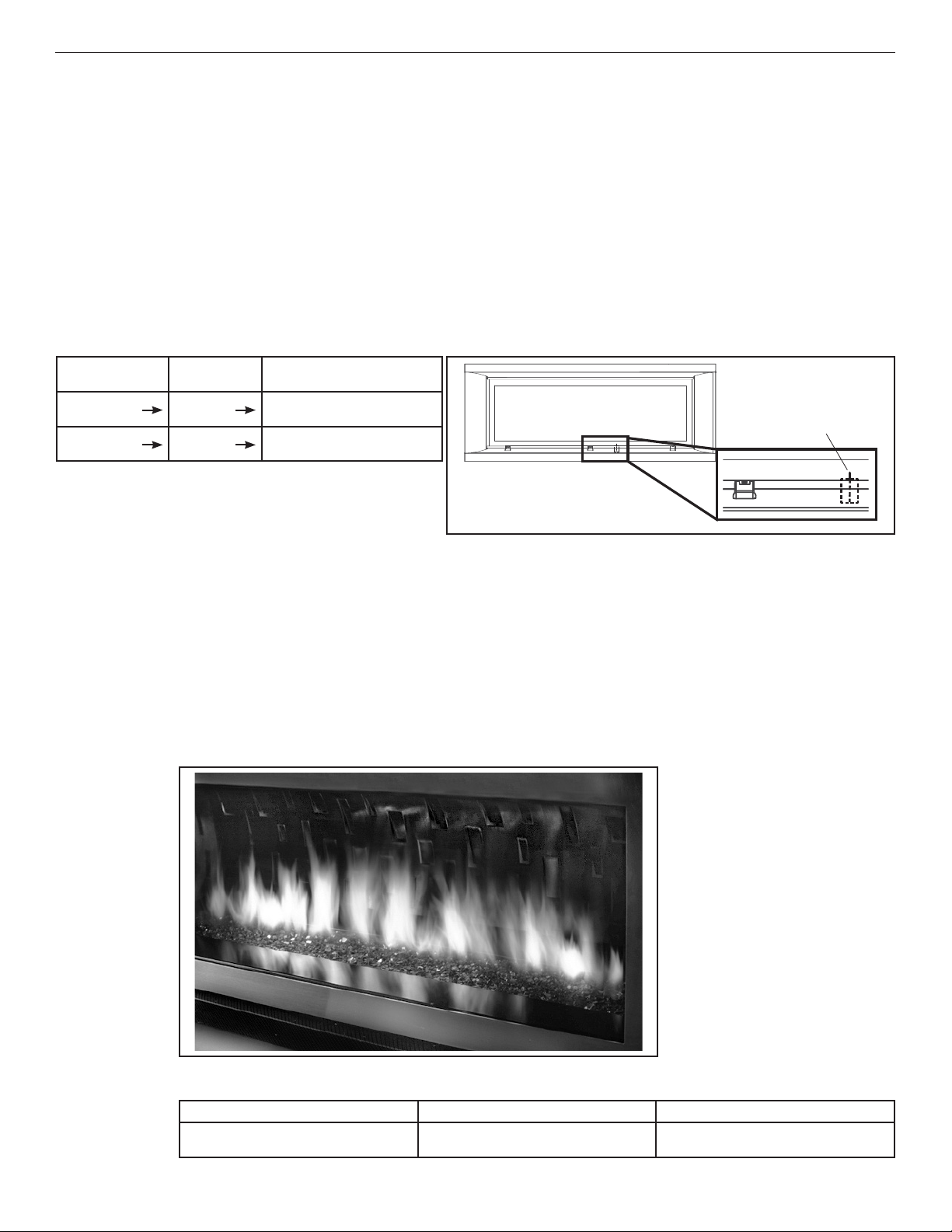

Orifice Sizes—Sea Level to High Altitude

These fireplaces are tested and approved for installation at elevations of 0–4500 ft (0–1372 m) above sea level
using the standard burner orifice sizes (Table 5). For elevations above 4500 ft, contact your gas supplier or qualified
service technician.

Table 5: Burner Orifice Sizes, Elevation 0–4500 ft ( 0–1372 m)

Model

42” #40 (.098”)* #54 (.055”)*
54” #32 (.116”)* #51 (.067”)*

* Standard size installed at factory

Deration

At elevations above 4500 ft, the amount of BTU fuel value delivered must be reduced by either:

• Using gas that has been derated by the gas company.

• Changing the burner orifice to a smaller size as regulated by the local authorities having jurisdiction and by the

(USA) National Fuel Gas Code NFPA 54/ANSI Z223.1—latest edition or, in Canada, the CAN/CGA-B149.1 codes—
latest edition.

NOTE: Flame breadth, height and width will diminish 4% for every 1,000 ft of altitude.

IN CANADA—CAN/CGA-2.17-M91 (HIGH ALTITUDE):
THE CONVERSION SHALL BE CARRIED OUT BY A MANUFACTURER’S AUTHORIZED REPRESENTATIVE,

IN ACCORDANCE WITH THE REQUIREMENTS OF THE MANUFACTURER, PROVINCIAL OR TERRITORIAL
AUTHORITIES HAVING JURISDICTION AND IN ACCORDANCE WITH THE REQUIREMENTS OF THE CAN/
CGA-B149.1 OR CAN/CGA-B149.2 INSTALLATION CODES.

Natural Gas

drill size

Installation

900077-02, 03/2014

Propane
drill size

REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS

These fireplaces are approved for installation in the U.S. state of Massachusetts if the following additional
requirements are met:

• Install this fireplace in accordance with Massachusetts Rules and Regulations 248 C.M.R..

• Installation and repair must be done by a plumber or gas fitter licensed in the Commonwealth of Massachusetts.

• The flexible gas line connector used shall not exceed 36” (914 mm) in length.

• The individual manual shutoff must be a T-handle type valve.

Massachusetts Horizontal Vent Requirements

In the Commonwealth of Massachusetts, horizontal terminations installed less than seven (7) ft above the finished
grade must comply with the following additional requirements:

• A hard wired carbon monoxide detector with an alarm and battery back-up must be installed on the floor level
where the gas fireplace is installed. The carbon monoxide detector must comply with NFPA 720, be ANSI/UL
2034 listed and be ISA certified.

• A metal or plastic identification plate must be permanently mounted to the exterior of the building at a minimum height
of eight (8) ft above grade and be directly in line with the horizontal termination. The sign must read, in print size no
less than one-half (1/2) inch in size, GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.

COLD CLIMATE INSULATION

For cold climate installations, seal all cracks around your fireplace with noncombustible material and wherever cold
air could enter the room. It is especially important to insulate outside chase cavity between studs and under floor on
which fireplace rests, if floor is above ground level. Gas line holes and other openings should be caulked or stuffed
with unfaced fiberglass insulation. Caulk the firestop only where the pipe penetrates an outside wall, attic, or other
unconditioned space.

10

NOTE: Do not use loose, or blown-in insulation in the cavity surrounding the fireplace.

If the fireplace is being installed on a cement slab in cold climates, a sheet of plywood or other raised platform can
be placed underneath to prevent conduction of cold transferring to the fireplace and into the room. It also helps to
sheetrock inside surfaces and tape for maximum air tightness and caulk firestops.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

MANUFACTURED HOME REQUIREMENTS

This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes.

Cet appareil peut être installé dans une maison préfabriquée (mobile) déjà installée à demeure si les règlements
locaux le permettent.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.

Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil ne
peut être converti à d’autres gaz, sauf si une trousse de conversion est utilisée.

Ensure that the cross members are not cut or weakened during installation. The structural
integrity of the manufactured home floor, wall, and ceiling / roof must be maintained.

This appliance must be grounded to the chassis of the manufactured home in accordance
with local codes or in the absence of local codes, with the National Electrical Code ANSI /
NFPA 70—latest edition or the Canadian Electrical Code CSA C22.1—latest edition.

Installation

900077-02, 03/2014

CAUTION

CAUTION

LOCATION

In selecting the location, the aesthetic and functional use of the fireplace are primary concerns. However, vent
system routing to the exterior and access to the fuel supply are also important. The fireplace may be located on or
near conventional construction materials. See Construct the Fireplace Framing on Page 16 for more information.

Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draperies.

En raison des températures élevées, l’appareil devrait être installé dans un endroit où il y a peu de
circulation et loin du mobilier et des tentures.

The location should also be free of electrical, plumbing or other heating/air conditioning ducting.

Be aware that this is a heat producing fireplace. Objects placed above the unit are exposed to elevated temperatures.
Do not insulate the space between the fireplace and the area above it.

Figure 3: Typical Locations and Venting

Top Vent

Top Vent

Recessed

Installation

Top Vent

Vertical Vent

(Top Vent)

Top Vent Top Vent

Top Vent

Horizontal Vent

(Top Vent)

11

Innovative Hearth Products

12

X

Roof pitch is X/12

2 ft

minimum

2 ft minimum

Lowest

discharge

opening

H*

*H = minimum height from roof to

lowest discharge opening of vent

Horizontal overhang

Vertical

wall

Vent

termination

Storm collar

Concentric

vent pipe

Flashing

1” (25.4 mm) minimum
clearance to combustibles

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

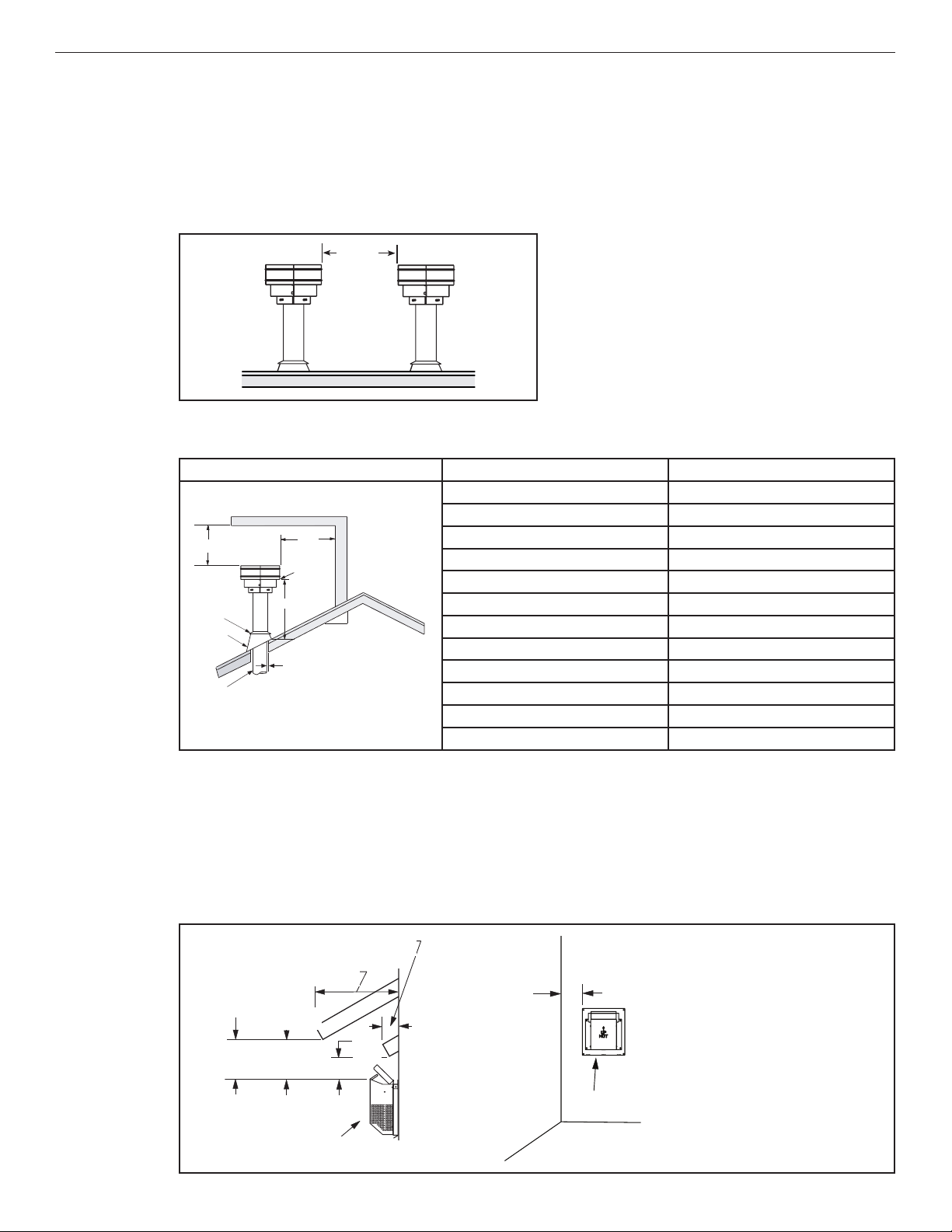

VENT TERMINATION CLEARANCES

These instructions should be used as a guideline and do not supersede local codes in any way. Install venting
according to local codes, these instructions, the current National Fuel Gas Code (ANSI Z223.1/NFPA 54) in the USA or
the current standards of CAN/CGA-B149.1 in Canada.

Vertical Vent Termination Clearances

Terminate multiple vent terminations according to the installation codes listed above and Figure 4.

Figure 4: Multiple Terminations

Terminate single vent caps relative to building components according to Table 6 and Figure 4.

Table 6: Termination Heights for Vents above Flat or Sloped Roofs (NFPA 54 / ANSI Z223.1)—Gas Vent Rule

Installation

900077-02, 03/2014

12”

(305 mm)

minimum

Roof Pitch Termination Height *

Flat to 6/12 1.0 ft (0.3 m)
6/12 to 7/12 1.25 ft (0.38 m)
7/12 to 8/12 1.5 ft (0.46 m)
8/12 to 9/12 2.0 ft (0.61 m)

9/12 to 10/12 2.5 ft (0.76 m)
10/12 to 11/12 3.25 ft (0.99 m)
11/12 to 12/12 4.0 ft (1.22 m)
12/12 to 14/12 5.0 ft (1.52 m)
14/12 to 16/12 6.0 ft (1.83 m)
16/12 to 18/12 7.0 ft (2.13 m)
18/12 to 20/12 7.5 ft (2.29 m)
20/12 to 21/12 8.0 ft (2.44 m)

Horizontal Vent Termination Clearances

12

The horizontal vent termination must have a minimum of 6” (152 mm) clearance to any overhead combustible
projection of 2 1/2” (64 mm) or less (Figure 5). For projections exceeding 2 1/2” (64 mm) (Figure 5). For additional
vent location restrictions refer to Table 7.

All horizontal terminations may be located as close as 6” (152mm) to any (non-combustible and combustible)
exterior sidewall. This distance may be decreased to 2” (51mm) for noncombustible exterior sidewalls with all
approved terminations (Table 21).

Figure 5: Horizontal Vent Termination Clearances

Combustible projection

2 1/2” or less in length

Combustible projection

greater than 2 1/2” in length

Ventilated

soffit

Unventilated

soffit

18”

(457 mm)

12”

(305 mm)

Termination kit

6

(152)

6”

Termination kit

NOTE: See Figure 28
on Page 31 for
exterior wall recess
allowances for horizontal
termination.

Innovative Hearth Products

(TERMINATION PROHIBITED)

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

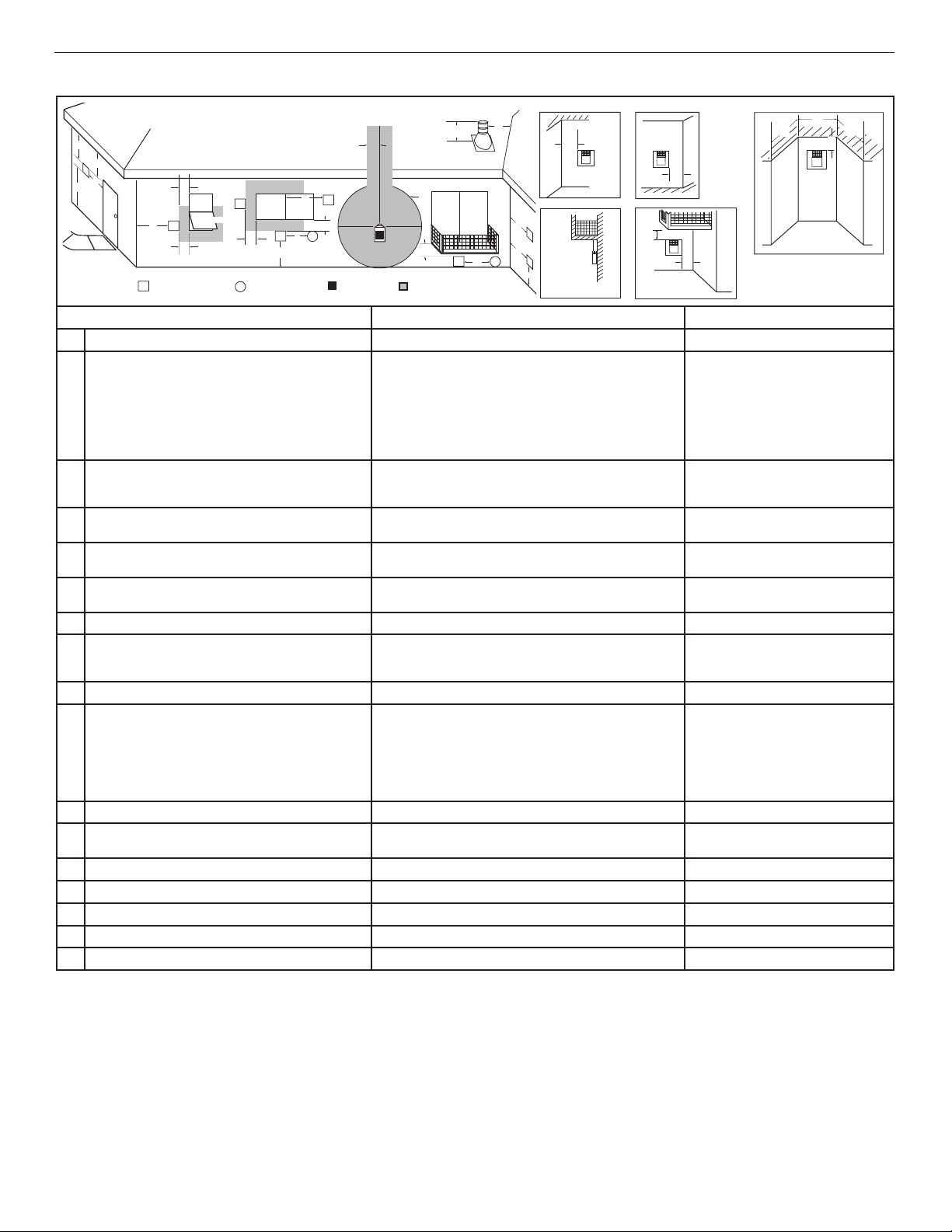

Table 7: Horizontal vent termination clearances for buildings with combustible and noncumbustible exteriors

Inside Corner

D

E

V

B

L

C

F

V

B

TERMINATION CAP

V

Fixed

Closed

Openable

V

Openable

V

B

A

AIR SUPPLY INLET

X

Fixed

Closed

J

B

V

B

X

G

GAS METER RESTRICTED AREA

H

G

See Table 6

I

M

G

V

Balcony with No Side WallVBalcony with Perpendicular Side Wall

G

V

G

V

K

V

X

A

M

V

U.S. Installation ** Canadian Installation *

Clearance above grade, veranda, porch, desk, or balcony 12” (300 mm) ** 12” (300 mm) *

A

Clearance to window or door that may be opened 6” (150 mm)

B

for fireplaces < 10,000 Btu/h (3 kW),
9” (230 mm)

for fireplaces > 10,000 Btu/h (3 kW), and < 50,000 Btu/h
(15 kW),

12” (300 mm)
for fireplaces > 50,000 Btu/h (15 kW) **

Clearance to permanently closed window 9” (229 mm)

C

Vertical clearance to ventilated soffit located above the

D

termination within a horizontal distance of 18” (458 mm)
Clearance to unventilated soffit 12” (305 mm)

E

Clearance to outside corner 5” (127 mm)

F

Clearance to inside corner 2” (51 mm) minimum 2” (51 mm) minimum

G

Clearance to each inside of center line extended above

H

meter / regulator assembly

Clearance to service regulator vent outlet 36” (910 mm)** 36” (910 mm)*

I

Clearance to nonmechanical air supply inlet to building or

J

the combustion air inlet to any other fireplace

recommended to prevent window condensation

18” (458 mm) 18” (458 mm)

30” (760 mm) to vinyl soffit

minimum

36” (910 mm)
within a height of 15 ft above the meter / regulator assembly **

6” (150 mm)
for fireplaces < 10,000 Btu/h (3 kW),

9” (230 mm)
for fireplaces > 10,000 Btu/h (3 kW) and < 50,000 Btu/h (15 kW),

12” (300 mm)
for fireplaces > 50,000 Btu/h (15 kW)**

Clearance to a mechanical air supply inlet 36” (910 mm) above if within 10 ft (3 m) horizontally ** 72” (1830 mm) *

K

Clearance above paved sidewalk or paved diveway located

L

on public property
Clearance under veranda, porch, deck or balcony 12” (300 mm) *‡ 12” (300 mm) *‡

M

Depth of alcove (maximum) 72” (1830 mm) ** 72” (1830 mm) *

N

Clearance to termination (alcove) 6” (15.2 mm) ** 6” (15.2 mm)*

O

Width of alcove (minimum) 36” (910 mm) ** 36” (910 mm) *

P

Clearance to combustible above (alcove) 18” (457 mm) ** 18” (457 mm) *

Q

*

In accordance with the current CSA-B149.1 National Gas And Propane Installation Code

**

In accordance with the curent ANSI Z223.1/NFPA 54 National Fuel Gas Codes

‡

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings

*‡

Only permitted if veranda, porch, deck, or balcony is fully-open on a minimum two sides beneath the floor

84” (2130 mm) ‡ 84” (2130 mm) ‡

Outside Corner Recessed Location

V

F

M

6” (150 mm)
for fireplaces < 10,000 Btu/h (3 kW),

12” (300 mm)
for fireplaces > 10,000 Btu/h (3 kW)

12” (305 mm)
recommended to prevent
window condensation

12” (305 mm)
30” (760 mm) to vinyl soffit

5” (127 mm)
minimum

36” (910 mm)
within a height of 15 ft above the meter /
regulator assembly *

6” (150 mm)
for fireplaces < 10,000 Btu/h (3 kW),

12” (300 mm)
for fireplaces > 10,000 Btu/h (3 kW)

Installation

900077-02, 03/2014

P

N

O

Q

V

13

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

MINIMUM CLEARANCES TO COMBUSTIBLES
Fireplace And Vent Clearances

The fireplace is approved with zero clearance to combustible materials on all sides (Table 8), with the
following exceptions:

• When unit is recessed, the side walls surrounding the unit must not extend beyond unit front edge (allowance
made for mantel legs / side trim in Figure 6).

• When the unit is installed with one side flush with a wall, the wall on the other side of the unit must not extend
beyond the front edge of the unit (Figure 6).

Table 8: Minimum Clearances *

From Bottom of Unit to Ceiling

Front Service Clearance—

clearance immediately in front of viewing area(s)

* 3” (76 mm) above any horizontal/inclined vent component.
** See Page 19 for clearance requirements to the nailing flange located at each side of the unit and any screw heads adjacent to it.

Back

Sides

Top Spacers

Floor

Vent

Installation

900077-02, 03/2014

1/2” (13 mm) to wrapper

0” (0 mm) to Spacers

1/2” (13 mm) to wrapper
0” (0 mm) to Spacers **

0” (0 mm)
0” (0 mm)

65” (1651 mm)

3” (76 mm)—Top *

1” (25.4 mm)—Sides and Bottom

36” (914 mm)

Hearth Extension

A hearth extension is not required with this fireplace. If a hearth extension is used, do not block the lower control
compartment door. Any hearth extension used is for appearance only and does not have to conform to standard
hearth extension installation requirements.

Shelf Height

The venting attached to the top vent should be routed in a way to minimize obstructions to the space above the
fireplace. Do not insulate the space between the fireplace and the area above it (Table 9). The minimum height from
the base of the fireplace to the underside of combustible materials used to construct a utility shelf in this fashion is
shown in Table 9.

NOTE: This is a heat-producing appliance. Objects placed above the unit are exposed to elevated temperatures.

Table 9: Combustible Shelf Height—Top Vent

Model

42” * 57 1/2” (1450 mm) 59” (1500 mm)

54” ** 55” (1400 mm) 56 3/4” (1441 mm)

* 12” straight vent section required before 90° elbow
** 6” straight vent section required before 90° elbow

Top Vent with one 90° Elbow

Secure Vent

®

Secure Flex® (flex elbow)

Shelf Height

(see table)

No combustibles
or insulation
in the shaded
area between
the appliance
and the shelf
above it.

14

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Wall Finishes / Surrounds / Mantels

Clearances to combustible mantels vary according to mantel depth (Figure 6).
Mantels constructed of non-combustible material may be installed at any height above the appliance opening; however, do

NOT allow anything to hang below the top edge of the fireplace door.
Minimum clearance requirements include any projections such as shelves, window sills, mantels, etc. above

the fireplace.

NOTE: To avoid heat-related finish damage, use finish materials rated 175 °F, or higher, on the underside of the mantel.
NOTE: The factory-supplied non-combustible fiber board MUST be installed around the fireplace opening.

Figure 6: Combustible Side Clearances Figure 7: Mantel Height

At 14” minimum
side wall
clearance, a
combustible wall
can project to
any length.

14

14”

(356)

(356 mm)

At 8 1/4” side
wall clearance, a
combustible wall
can project 12”

8 1/4”

8-1/4

(209 mm)

(209)

Installation

900077-02, 03/2014

Top View of

Fireplace

o

45

5 (127)

(127 mm)

12 (305)

(305 mm)

17 (431)

(431 mm)

Combustible materials
allowed in shaded area

5”

“Safe Zone”.

Combustible walls
shown in dark gray

12”

Combustible mantel
legs may project
beyond either side of
the fireplace opening
as long as they are kept
within the shaded area

17”

illustrated here.

28 (711)

26 (660)

24 (610)

22 (559)

20 (508)

18 (457)

in. (mm)

12

(305)

Mantel depth

8

(203)

10

(254)

6

(152)

4

(102)

(51)

2

Fireplace

INSTALLATION PREPARATION

The fireplace is shipped with all gas controls and components installed and pre-wired. Before installing the fireplace,
follow these steps:

1. Remove and retain the shipping carton.

2. Confirm receipt of required items listed in Packaging on Page 7.

3. Retrieve the (3) pieces of non-combustible fiber board from behind the fireplace, and set aside in a safe location

for later installation.

4. If not already done, remove the glass door (Page 57), and set aside in a secure location for later reinstallation.
NOTE: Place the glass door on the shipping carton to protect its surface.

5. Remove baffle and other items shipped inside firebox. Set aside in a secure location for later installation.

15

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

INSTALLATION SEQUENCE

The typical sequence of installation is outlined below; however, each installation is unique and may result in
variations to the steps described.

See the pages referenced in the following steps for detailed instructions.

Framing

1. Construct the Fireplace Framing (Page 16).

2. Prepare the Fireplace Top Spacers (Page 18).

3. Route the Gas Supply Line into the Fireplace (Page 18).

4. Rough in the Electrical Supply, if Needed (Page 19).

5. Prepare the Fireplace Nailing Flanges (Page 19).

6. Place the Fireplace in the Framing and Secure (Page 20).

Venting

7. Select a Horizontal or Vertical Vent System (Page 20).

8. Install the Vent Restrictor (if necessary) (Page 20).

9. Install the Vent System (Page 24).

Electrical Connection

10. Complete the Field Wiring (Page 35).

11. Optional: Wire and Install the Power Vent (Page 37).

12. Optional: Route Backlighting Wiring (Page 37).

Gas Connection

13. Connect the Gas Line (Page 37).

14. Verify Proper Fireplace Operation (Page 38).

Finishing

15. Optional: Install the Backlighting Reflector (Page 39).

16. Install the Firebox Liners (Page 56).

17. Optional: Install the Backlighting Light Assemblies (Page 39).

18. Install the Glass Media (Page 56).

19. Install the Baffle (Page 39).

20. Install the Glass Door (Page 57).

21. Adjust the Air Shutter to Ensure Proper Flame Appearance (Page 39).

22. Install the Finishing Materials (Page 41).

23. Optional: Install the Bezel (Page 43).

24. Install the Wall Switch Receiver (Page 44).

25. Initialize the Remote Control System (Page 44).

26. Attach the Safety-in-Operation Warning Labels (Page 44).

Installation

900077-02, 03/2014

1. Construct the Fireplace Framing

1. Frame the fireplace as illustrated in Table 10. All framing details must allow for a minimum clearance to combustible

framing members as shown in Table 8. Steel studs are strongly recommended where exposed to heat.

2. Mount the fireplace on a fully supported base extending the full width and depth of the unit. If installed on
combustible materials, such as carpeting, vinyl tile, or combustible material other than wood flooring, the
appliance shall be installed on a metal or wood panel extending the full width and depth of the fireplace.

NOTE: Headers may be in direct contact with the fireplace top standoff spacers when they are bent up vertically,
maintaining the 9 3/8” clearance to the fireplace top, but must not be supported by them or notched to fit around
them. All construction above the fireplace must be self-supporting. DO NOT use the fireplace for structural support.

16

Innovative Hearth Products

9 7/8

(251)

Inches

(millimeters)

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Table 10: Fireplace Framing Dimensions

Model a b c d

42”

54”

53 3/4

1366

65 3/4

1670

18 1/2

470

18 1/2

470

42

1067

46 3/4

1184

NOTE: Illustration provided for dimensions. Fireplace must be adequately
framed and supported with 2 x 4, or larger building materials.

a. Required frame opening width (1/2 of a = horizontal centerline of

fireplace and vent framing opening)

b. Required frame opening depth with 1/2” (13mm) thick wall finish

material (for other wall finish thicknesses, adjust frame opening depth
and nailing flanges accordingly)

c. Minimum frame opening height (from base of appliance to header)
d. Minimum height from appliance base to vertical centerline of horizontal

termination vent pipe (with 6” [54” models] or 12” [42” models]
straight vent section and 90° elbow off appliance vent collar)

NOTE: The vertical centerline of the horizontal termination vent pipe is NOT the same as
the vertical centerline of the vent frame opening because of firestop/spacer offset.

e. Minimum height from appliance base front to ceiling
f. Mounting platform
NOTE: Mount on a fully supported platform extending full width and depth of unit.

50 3/8

1280

48 1/4

1226

e

65

(1651)

CEILING

Installation

900077-02, 03/2014

10-1/2

(267)

7

(178)

5-1/8

(130)

d

c

b

a

1/2 of A

~

12-1/8

(308)

f

inches

(millimeters)

Table 11: Fireplace Framing Specifications—Corner Installation with Horizontal Termination

Model

42”

54”

A B C D E

53 3/4”

(1365 mm)

65 3/4”

(1670 mm)

81 1/4”

(2063 mm)

98 5/8”

(2505 mm)

57 1/2”

(1459 mm)

70 5/16”

(1786 mm)

40 5/8”

(1032 mm)

49 3/4”

(1264 mm)

22 3/16”

(564 mm)

28 1/2”

(724 mm)

NOTE: Back wall of chase/enclosure (including finishing materials) shown.

C

E

7 (178)

D

A

B

Table 12: Fireplace Dimensions Table 13: Viewable Glass

40” W x 10 1/2” H

1016 mm x 267 mm

51” W x 14 3/4” H

1295 mm x 375 mm

9 3/8

(238.1)

42” models

E

18 1/2

(471.2)

54” models

Table 14: Surround Dimensions

55” W x 22 1/4” H

1397 mm x 565 mm

67” W x 26” H

1702 mm x 660 mm

9 7/8

(251)

Top/Bottom

D

A

B

Inches

(millimeters)

9 7/8

(251)

F

C

Nailing
langes

42” models

54” models

Top View

Model A B C D E F

42”

54”

26 7/8”

(683 mm)

32 1/2”

(826 mm)

53 3/4”

(1366 mm)

65 3/4”

(1670 mm)

32 1/2”

(826 mm)

36 3/8”

(924 mm)

NOTE: Assemble top standoffs before installing fireplace.

Front View

15 3/4”

(400 mm)

19 3/4”

(502 mm)

44 1/8”

(1121 mm)

56 1/8”

(1426 mm)

Right Side View

15 11/16”
(398 mm)

19 5/8”

(498 mm)

Table 15: Vent Collar

All models 4 1/2” inner x 7 1/2” outer

NOTE: Before installing fireplace,
nailing flanges MUST be adjusted
according to finish (cleanface or
surround) and wall finish material
thickness. This is critical to ensure
proper fireplace location, especially if
installing optional surround and bezel.

17

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

2. Prepare the Fireplace Top Spacers

1. The two (2) 9 3/8” standoff spacers on top of the fireplace cabinet are shipped flat (Figure 8).

2. Bend the standoffs as shown (Figure 8):

3. Align the holes in the standoff with the holes in the fireplace top, and secure with the supplied screws (Figure 8).

Figure 8: Standoffs Figure 9: Routing the gas line through the framing

Assembled

standoff

Positioned flat as
shipped from the

factory

1 5/8”

(43 mm)

Left side front corner of
fireplace framing shown.
Gas line may also enter on
the right side or bottom.

Pipe coupling
(recommended)

13 3/4”
(351 mm)

3. Route the Gas Supply Line into the Fireplace

1. Route a 1/2” (13 mm) gas line to the left side of the fireplace (Figure 9).

2. Route the gas line through the gas supply line access opening (Figure 11).

Installation

NOTE: The gas supply line should not be connected to the appliance until step 13. Connect the Gas Line
(Page 37).

NOTE: Gas lines must be routed, assembled, and made of materials that are in strict accordance with local codes and
regulations. Never use galvanized or plastic pipe.

NOTE: See Page 53 for more information on Accessing the Control Compartment.

Figure 10: Front access panel Figure 11: Routing the gas line into the fireplace

Remove front

access panel
by removing

the four (4)

screws indicated

by arrows

Access

Panel

Gas supply

line access

opening

Gas flex line

Gas line shutoff valve
(disconnected from flex line)

Proper Sizing of Gas Line

Properly size and route the gas supply line from the supply regulator to the area where the appliance is to be installed
per requirements outlined in the National Fuel Gas Code, NFPA 54—latest edition (USA) or CAN/CGA-B149.1—
latest edition (Canada).

NOTE:

• All fireplaces are factory-equipped with a flexible gas line connector and 1/2” shutoff valve (Figure 36).

• See Massachusetts Horizontal Vent Requirements for additional requirements for installations in the state of

Massachusetts in the USA.

• A pipe joint compound rated for gas should be used on the threaded joints. Ensure propane-resistant
compounds are used in propane applications. Be very careful that the pipe compound does not get inside
the pipe.

• A sediment trap in the supply line as close as possible to the fireplace is recommended.

• Check with the local building official for local code requirements (e.g., Are below grade penetrations of the gas

line allowed?, etc).

18

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

If propane is used, be aware that with a tank that is too small (i.e., under 100 lbs, if this
is the only gas appliance in the dwelling—see NPFA 58), there may be a loss of pressure.
This can result in insufficient fuel delivery that can cause sooting, delayed ignition, or other
malfunctions. Any damage resulting from an improper installation is not covered by the
limited warranty.

4. Rough in the Electrical Supply, if Needed

1. As necessary, rough in the fireplace electrical supply per NEC and local codes.

5. Prepare the Fireplace Nailing Flanges

NOTE: Nailing flanges, combustible members, and screw heads in areas directly adjacent to the nailing flanges are

EXEMPT from the 1/2” clearance to combustible requirements for the firebox outer wrapper. Combustible framing
may be in direct contact with the nailing flanges and may be located within 1/2” of screw heads and the firebox
wrapper in areas adjacent to the nailing flanges.

Nailing flange positions are provided for the following wall finish thicknesses:

• 1/2”

• 3/4”

• 1”

• 1 1/4”

• 1 1/2”

Installation

900077-02, 03/2014

CAUTION

NOTE: A second, field-supplied noncombustible board should be installed over the supplied noncombustible board.

The fireboard supplied with the unit is not intended to be the finish material. Consider this when calculating the total
wall finish thickness for nailing flange positioning.

Preparing the nailing flanges for a cleanface finish installation

1. If the wall finish material is thicker than 1/2”, move the nailing flanges to the correct horizontal position.

NOTE: The nailing flanges are set at the factory in the correct vertical position for a cleanface installation (Figure 12).

Figure 12: Vertical nailing flange settings for cleanface finish Figure 13: Vertical nailing flange settings for surround/bezel finish

Preparing the nailing flanges for a surround/bezel finish installation

1. Move the nailing flanges to the correct vertical positions (Figure 13).

2. Adjust the nailing flanges to the correct horizontal position.

19

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

6. Place the Fireplace in the Framing and Secure

1. Secure the fireplace to the side framing members using the unit’s nailing flanges —one top and bottom on each

side of the fireplace front (Figure 14). Use 8d nails or the equivalent.

Figure 14: Nailing flange attachment

Unit nailing flange

Side

framing

(no clearance to combustible
framing is required)

VENT SYSTEM PREPARATION

7. Select a Horizontal or Vertical Vent System

1. With the fireplace secured in the framing, determine the vent route and identify the exterior termination location.

The following sections describe vertical (roof) and horizontal (exterior wall) vent applications. Use only approved
vent components (Page 8 and Page 50).

NOTE: This fireplace must be vented directly to the outside.

Installation

900077-02, 03/2014

The vent system may not service multiple appliances, and must never be connected to a
flue serving a separate solid fuel burning appliance.

NOTE: The vent pipe is tested to be run inside an enclosed wall (such as a chase). There is no requirement for

inspection openings in the enclosing wall at any of the joints in the vent pipe.

8. Install the Vent Restrictor (if necessary)

1. Use the vent run descriptions in Figure 15 to determine if a vent restrictor is necessary.

2. If necessary, assemble the vent restrictor and wings as detailed in Figure 15 and Figure 17.

3. If necessary, install the appropriate vent restrictor with the flaps facing up (Figure 16). The vent restrictor is held in

place by friction. The vent restrictor must not be visible inside the firebox.

NOTE: If the baffle and back panel are installed, remove them before installing the vent restrictor.
NOTE: The vent restrictor is shipped in the firebox.

WARNING

20

Innovative Hearth Products

Base

3.3

10

20

40

6

40

20 ft Maximum

horizontal run

60 ft Maximum vertical run

60

2

20

Horizontal Distance (ft)

Vertical Height (ft)

Vertical Height (ft)

6 1/2

13 1/2

1

5 10

15

Position 2Position 1

6 ft Minimum
vertical run

6 ft Minimum

10

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installation

900077-02, 03/2014

Figure 15: When to use a vent restrictor Figure 16: Vent restrictor installation, Top vent

*

U-Shaped

Vent

Restrictor

Inner

Fireplace

Collar

Appliance Top Vent Outlet

Vent

Collar

Vent

Restrictor

(held in

place by

friction)

Figure 17: Vent restrictor assembly

Base Vent Restrictor

Vent Restrictor Position 1

*

* For straight runs or runs with elbows as illustrated in Vertical Vent Figures/Tables starting on Page 27.

Vent Restrictor with Vertical Terminations

When vertically terminating the vent system through the roof and using the vent restrictor, install the vent restrictor
in the top vent of the fireplace outlet.

If installing more than 6 ft of vertical venting, install the restrictor (Figure 16), from inside or outside the unit, in the
inner fireplace collar. The vent restrictor is held in place by friction.

Vent Restrictor with Horizontal Terminations

When horizontally terminating a vent system with a vertical vent run up to 6 ft through an exterior wall, no vent restrictor is required.
If installing more than 6 ft of vertical venting, install the restrictor (Figure 16), from inside or outside the unit, in the

inner fireplace collar. The vent restrictor is held in place by friction.

Table 16: Effective Vent Length

Model Effective Length

SV4.5L6 4 1/2”
SV4.5L12 10 1/2”
SV4.5L24 22 1/2”
SV4.5L36 34 1/2”
SV4.5L48 46 1/2”

Vent Restrictor Position 2

21

Innovative Hearth Products

SV4.5E90

(90

°

Elbow)

8 1/8 in.

(206 mm)

Swivel Joint

(360

°

swivel)

4 13/16 in.

(122 mm)

SV4.5E45

(45

°

Elbow)

Swivel Joint

(360

°

swivel)

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Connecting the vent pipe

Secure Vent® SV4.5 direct-vent system components are unitized concentric pipe components featuring positive twist lock connections
(Figure 18 and Figure 19). All of the fireplaces covered in this document are fitted with collars having locking inclined channels. The
dimpled end of the vent components fit over the fireplace/vent collar to create the positive twist lock connection.

1. Align the dimpled end over the collar, adjusting the radial alignment until the four (4) locking dimples are aligned

with the inlet of the four (4) inclined channels on the collar (Figure 18).

2. Push the vent component against the collar until it fully engages, then twist the component clockwise, running

the dimples down and along the incline channels until they seat at the end of the channels.

NOTE: The unitized design of the Secure Vent® components will engage and seal both the inner and outer vent pipe.

3. If desired, a #6 x 1/2” screw can be used at the joint, but is not required as the pipe will securely lock

when twisted (Figure 19).

Where required, a telescopic vent section (SV4.5LA) may be used to provide the installer with an option to install
in tight and confined spaces, or where the vent run made up of fixed length pieces develops a joint in a undesirable
location, or will not build up to the required length. The telescopic vent section has an effective length of from
1 1/2–7 1/2” (38–191 mm). The telescopic vent section is fitted with a locking inclined channel end (identical to a
normal vent section component) and a plain end with three (3) pilot holes. Slip the plain end over the locking channel
end of a standard SV4.5 vent component the required distance and secure with three (3) screws.

Installation

900077-02, 03/2014

Figure 18: Connecting vent

Vent elbows

Vent elbows are available in 90° and 45° configurations. Refer to Figure 20 for the SV4.5E45 and SV4.5E90
elbow dimensions. The elbows feature a twist section to allow them to be routed about the center axis of their initial
collar section to align with the required direction of the next vent run element. Two 45° elbows may be used in place
of one 90° elbow. When planning vent runs, make allowances for elbows.

NOTE: A 90° elbow may NOT be attached directly to the appliance collar. A minimum of 12” (42” fireplaces) or 6” (54” fireplaces)
of vent pipe must be used between the fireplace collar and a 90° elbow. An elbow is accepatble as 1 ft of vertical rise.

1. Rotate the elbow in a clockwise direction (to avoid the possiblity of unlocking any of the previously connected
vent sections) for proper alignment (Figure 20). See Connecting the vent pipe for more information.

Vent section length table

components

Arrow

Dimple

Locking
Incline
Channel

Appliance Collar or
Vent Section

Figure 19: Connected vent

components

Dimple

Locking

Incline

Channel

Arrow

Figure 20: Elbow Dimensions

4 13/16”
(122 mm)

Swivel Joint

(360°)

SV4.5E45

(45° elbow)

Swivel Joint

(360°)

SV4.5E90

(90° elbow)

8 1/8”
(206 mm)

22

Table 17 will assist calculating how many vent sections are needed for the planned vent configuration. When a vent
section is engaged with another section, its effective length will be 1 1/2” shorter.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Table 17: Vent Section Length

Nominal Section

Length (in.)

Net Section Length

(in.)

Height of Vent

in. ft in. ft

4.5 0.375 1 0 0 0 0 1 252 21 0 1 0 7 0 8

9 0.75 2 0 0 0 0 2 276 23 0 0 0 8 0 8

10.5 0.875 0 1 0 0 0 1 279 23.25 0 0 0 0 6 6

15 1.25 1 1 0 0 0 2 280.5 23.375 1 0 0 8 0 9

22.5 1.875 0 0 1 0 0 1 289.5 24.125 0 1 0 0 6 7

31.5 2.625 0 3 0 0 0 3 301.5 25.125 0 0 1 0 6 7

34.5 2.875 0 0 0 1 0 1 310.5 25.875 0 0 0 9 0 9

37.5 3.125 1 1 1 0 0 3 325.5 27.125 0 0 0 0 7 7

43.5 3.625 0 2 1 0 0 3 330 27.5 1 0 0 0 7 8

45 3.75 0 0 2 0 0 2 345 28.75 0 0 0 10 0 10

46.5 3.875 0 0 0 0 1 1 349.5 29.125 1 0 0 10 0 11

51 4.25 1 0 0 0 1 2 372 31 0 0 0 0 8 8

55.5 4.625 0 1 2 0 0 3 379.5 31.625 0 0 0 11 0 11

57 4.75 0 0 1 1 0 2 418.5 34.875 0 0 0 0 9 9

67.5 5.625 0 0 3 0 0 3 465 38.75 0 0 0 0 10 10

69 5.75 0 0 0 2 0 2 475.5 39.625 0 1 0 0 10 11

73.5 6.125 1 0 0 2 0 3 480 40 1 1 0 0 10 12

79.5 6.625 0 1 0 2 0 3 492 41 1 0 1 0 10 12

81 6.75 0 0 0 1 1 2 499.5 41.625 0 0 0 1 10 11

91.5 7.625 0 0 2 0 1 3 504 42 1 0 0 1 10 12

93 7.75 0 0 0 0 2 2 511.5 42.625 0 0 0 0 11 11

97.5 8.125 1 0 0 0 2 3 520.5 43.375 0 2 0 1 11 14

103.5 8.625 0 0 0 3 0 3 531 44.25 0 2 2 0 11 15

108 9 1 0 0 3 0 4 538.5 44.875 1 0 0 2 11 14

117 9.75 1 0 5 0 0 6 549 45.75 1 0 2 1 11 15

118.5 9.875 1 1 0 3 0 5 558 46.5 0 0 0 0 12 12

126 10.5 0 0 1 3 0 4 562.5 46.875 1 0 0 0 12 13

130.5 10.875 1 0 1 3 0 5 568.5 47.375 0 1 0 0 12 13

135 11.25 0 0 6 0 0 6 573 47.75 1 1 0 0 12 14

139.5 11.625 0 0 0 0 3 3 580.5 48.375 0 0 1 0 12 13

142.5 11.875 1 0 0 4 0 5 589.5 49.125 0 1 2 2 10 15

144 12 1 0 0 0 3 4 595.5 49.625 1 1 1 0 12 15

154.5 12.875 1 1 0 0 3 5 604.5 50.375 0 0 0 0 13 13

160.5 13.375 0 2 0 0 3 5 615 51.25 0 1 0 0 13 14

172.5 14.375 0 0 0 5 0 5 625.5 52.125 0 2 0 0 13 15

177 14.75 1 0 0 5 0 6 631.5 52.625 1 0 1 0 13 15

186 15.5 0 0 0 0 4 4 637.5 53.125 0 1 1 0 13 15

196.5 16.375 0 1 0 0 4 5 651 54.25 0 0 0 0 14 14

207 17.25 0 0 0 6 0 6 655.5 54.625 1 0 0 0 14 15

211.5 17.625 1 0 0 6 0 7 672 56 0 2 0 0 14 16

217.5 18.125 0 1 0 6 0 7 678 56.5 1 0 1 0 14 16

229.5 19.125 0 0 1 6 0 7 688.5 57.375 1 1 1 0 14 17

232.5 19.375 0 0 0 0 5 5 697.5 58.125 0 0 0 0 15 15

241.5 20.125 0 0 0 7 0 7 702 58.5 1 0 0 0 15 16

246 20.5 1 0 0 7 0 8 712.5 59.375 1 1 0 0 15 17

6 12 24 36 48

4.5 10.5 22.5 34.5 46.5 Net Section Length (in.) 4.5 10.5 22.5 34.5 46.5

Number of Vent Sections

Nominal Section Length

Total Qty

(in.)

Height of Vent

720 60 0 0 1 0 15 16

6 12 24 36 48

Number of Vent Sections

Installation

Total Qty

23

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Clearance to combustibles

Maintain the minimum clearance to combustibles (e.g., framing, attic, ceiling insulation, etc.).
For all vertical runs:

• 1” (25 mm) from all sides

NOTE: Attic insulation shield (96K94) must be installed when blown or loose-fill insulation is used, and is
recommended for all attic installations.

For all horizontal/inclined runs:

• 3” (76 mm) from the top

• 1” (25 mm) from the sides

• 1” (25 mm) from the bottom

9. Install the Vent System

Install the Vertical Termination Vent System

These instructions should be used as a guideline and do not supersede local codes in any way. Install venting
according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the
current standards of CAN/CGA-B149.1 in Canada.

Ensure clearances are in accordance with local installation codes and the requirements of the gas supplier.

Dégagement conforme aux codes d’installa tion locaux et aux exigences du foumisseunde gaz.

Vertical vent systems terminate through the roof. The minimum vent height above the roof and/or adjacent walls
is specified in ANSI Z223.1 (In Canada, the current CAN/CGA-B149.1 installation code) by major building codes.
Always consult your local codes for specific requirements. A general guide to follow is the gas vent rule (Table 6).

The following figures and their associated vertical vent tables illustrate the various configurations that are possible
for use with these fireplaces. Secure Vent® pipe is shown in these figures; Secure Flex® pipe may also be used.
A table summarizes each configuration’s minimum and maximum vertical and horizontal length parameters for a
variety of applications.

1. Refer to Figure 26, Table 19, and Table 20 on Page 27–28 to select the type of vertical installation desired.
Elbows are available in 90° and 45° configurations. Refer to Figure 20 on Page 22 for the SV4.5E45 and
SV4.5E90 elbow dimensional specifications.

Installation

900077-02, 03/2014

Vertical (Straight) Installation

1. Determine the number of straight vent sections required—See Effective Vent Length on Page 21 for more
information. Plan the vent lengths so that a joint does not occur at the intersection of ceiling or roof joists.

Figure 21: Vertical (Straight) Installation

Max. 60 ft

(18 m)

Min. 6 ft

(1.8 m)

Vertical termination

Flashing and
storm collar

See Table 8

Vertical
firestop/spacer

SecureVent®
vent sections

24

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Vertical (Offset) Installation

1. Analyze the vent route and determine the number of vent sections and elbows required—See Effective Vent
Length on Page 21 for more information. Plan the venting so that a joint does not occur in the ceiling or roof
joists. Allow for elbows (Figure 20). Maintain the minimum clearances for combustibles (Page 24).

2. Frame the ceiling opening—Use a plumb line from the ceiling above the fireplace to locate the center of the

vertical run. Cut and/or frame an opening, 10 1/2 x 10 1/2” (267 x 267 mm) inside dimensions, about this center
mark (Figure 22).

Figure 22: Framing the ceiling opening

Roof
Framing

10 1/2” (267 mm)

minimum 10 1/2 in.
(267 mm)

10 1/2” (267 mm) minimum

minimum 10 1/2 in.
(267 mm)

minimum

Installation

900077-02, 03/2014

Ceiling
Framing

Plumb Bob

3. Attach the vent components to the fireplace—See Connecting the vent pipe on Page 22.

4. Attach the vent components to each other—See Connecting the vent pipe on Page 22.

5. Install firestop/spacer at ceiling—When using Secure Vent®, use SV4.5VF firestop/spacer at ceiling joists; when

using Secure Flex®, use SF4.5VF firestop/spacer. If there is living space above the ceiling level, the firestop/
spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the firestop/spacer
must be installed on the top side of the joist. Route the vent sections through the framed opening and secure the
firestop/spacer with 8d nails or other appropriate fasteners at each corner.

Remember to maintain 1” (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation
when running vertical chimney sections. The gap between the vent pipe and a vertical firestop can be sealed with
non-combustible caulking.

NOTE: Attic insulation shield (96K94) must be installed when blown or loose-fill insulation is used, and is
recommended for all attic installations.

6. Support the vertical vent run sections—Support the vertical portion of the venting system every 8 ft (2.4 m)
above the fireplace vent outlet. One method of support is by utilizing field provided support straps (conventional
plumber’s tape). Secure the plumber’s tape to the framing members with nails or screws. Loop the tape around
the vent, securing the ends of the tape to the framing. If desired, sheet metal screws #6 x 1/2” length may be
used to secure the support straps to the vent pipe (Figure 23).

NOTE: Proper venting support is very important. Never use the fireplace to support the weight of the venting.

Figure 23: Supporting the Vertical Vent Run

Blocking

Support straps
(plumber’s tape,
not provided)

8 ft (2.4 m)

maximum

1/2” (12.7 mm)
minimum
clearance to
combustibles

7. Change vent direction of horizontal/inclined run—Install the SV4.5E45 and SV4.5E90 elbows in the same
manner as the straight vent sections. See Vent elbows on Page 22 for more information.

25

Innovative Hearth Products

C

D

Storm
Collar

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

8. Continue installation of horizontal/inclined sections—Continue with the installation of the straight vent
sections in horizontal/inclined run. Install support straps every 5 ft (1.52 m) along horizontal/inclined vent runs
using conventional plumber’s tape.

Rise per foot run ratios are acceptable all the way to level. For best results, maintain the horizontal/inclined run in
a straight (no dips), slightly elevated plane of approximately 1/4” per 1 ft (20 mm per 1 m).

Maintain the required clearances to combustibles (Page 24).

9. Frame the roof opening—Identify the location for the vent at the roof. Cut and/or frame opening (Table 18).

Table 18: Roof Framing Dimensions

10. Install the roof flashing—Extend the vent sections through the roof structure. Install the roof flashing over the
vent section and position such that the vent column rises vertically (use carpenters level). Nail along perimeter
to secure flashing or adjust roofing to overlap the flashing edges at top and sides only and trim where necessary.
Seal the top and both sides of the flashing with waterproof caulking.

11. Install the storm collar—Install the storm collar, supplied with the flashing, over the vent/flashing joint
(Figure 24). Loosen the storm collar screw. Slide collar down until it meets the top of the flashing. Tighten the
adjusting screw. Apply non-combustible caulking or mastic around the circumference of the joint to provide a
water tight seal.

Installation

900077-02, 03/2014

Pitch C D

0/12 10 1/2” (267 mm) 10 1/2” (267 mm)
6/12 10 1/2” (267 mm) 12” (305 mm)

12/12 10 1/2” (267 mm) 17 3/4” (451 mm)

Figure 24: Installing the Storm Collar Figure 25: Installing the Vertical Termination

12. Install the vertical termination—Extend the vent sections to the correct height (Figure 4). The SV4.5CGV-1
Vertical Termination (Figure 25) installs in the exact same fashion as any other Secure Vent® section.

If the vent system extends more than 5 ft (1.5 m) above the roof flashing, stabilizers may be necessary.
Additional screws may be used at section joints for added stability. Guide wires or roof support assemblies may
be attached to the joint for additional support on multiple joint configurations.

26

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Vertical Vent Figures/Tables

NOTE: If the parameters of your vent run fall outside the parameters described herein, consider installing the Power Vent Kit.
NOTE: Rise per foot run ratios are acceptable all the way to level. For best results, maintain the horizontal/inclined

run in a straight (no dips), slightly elevated plane of approximately 1/4” per 1 ft (20 mm per 1 m).
NOTE: SV4.5VF (Secure Vent), SF4.5VF (Secure Flex) firestop/spacer must be used anytime vent pipe passes

through a combustible floor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex)firestop/spacer must be used
anytime vent pipe passes through a combustible wall.

NOTE: Two (2) 45° elbows may be used in place of one (1) 90° elbow. The same rise to run ratios, as shown in the
venting figures for 90° elbows, must be followed if 45° elbows are used.

NOTE: An elbow is acceptable as 1 ft of vertical rise, except where an elbow is the only vertical component in
the system.

Do NOT join separate sections of concentric flexible vent pipe.

Figure 26: Top Vent—Straight

Vertical

Termination

Installation

900077-02, 03/2014

WARNING

Flashing and
Storm Collar

See Clearance to

combustibles on
Page 24

Vertical Firestop/
Spacer

u

Max. 60 ft
(18 m)

Min. 6 ft
(1.8 m)

Maximum total H Minimum total V

feet meters feet meters

5 1.524 3.3 1.006
10 3.1 6.5 1.981
15 4.65 10 3.048
20 6.096 13.5 4.115

Total H = Max. 20 ft (6.096 m)
Total H + Total V = Max. 60 ft (18.3 m)
Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical rise. See Page 20 for more information.

Secure Vent
Vent Sections



A 20-ft total Horizontal vent run requires min. 13.5 ft total vertical venting.

Vertical firestop/spacer must be used anywhere vent pipe passes through a combustible floor or ceiling.

u

Horizontal firestop/spacer must be used anywhere vent pipe passes through a combustible wall.

 Install the provided vent restrictor, if required.
 A 90° elbow may NOT be attached directly to the appliance collar. A minimum of 6” pipe (54” models) or 12”

(42” models) must be used between the fireplace collar and a 90° elbow.

27

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Table 19: Top Vent—Two 90° Elbows Table 20: Top Vent—Three Elbows

H

Vertical Firestop/
Spacer

Vertical Firestop/
Spacer

u

V

1

u

900077-02, 03/2014

Horizontal Firestop/
Spacer

u

Installation



Horizontal
Firestop/
Spacer

V

1

u



H

1

V

H



Maximum total H Minimum total V Maximum total H Minimum total V

feet meters feet meters feet meters feet meters

5 1.524 3.3 1.006 5 1.524 3.3 1.006

10 3.1 6.5 1.981 10 3.1 6.5 1.981

15 4.65 10 3.048 15 4.65 10 3.048

20 6.096 13.5 4.115 20 6.096 13.5 4.115

Total H = Max. 20 ft (6.096 m)
Total H + Total V = Max. 60 ft (18.3 m)
Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical

rise. See Page 20 for more information.

A 20-ft total Horizontal vent run requires min. 13.5 ft total
vertical venting.

Vertical firestop/spacer must be used anywhere vent pipe

u

passes through a combustible floor or ceiling. Horizontal firestop/
spacer must be used anywhere vent pipe passes through a
combustible wall.

 Install the provided vent restrictor, if required.
 A 90° elbow may NOT be attached directly to the appliance

collar. A minimum of 6” pipe (54” models) or 12” (42” models)
must be used between the fireplace collar and a 90° elbow.

Total H = Max. 20 ft (6.096 m)
Total H + Total V = Max. 60 ft (18.3 m)
Install the U-shaped vent restrictor in any vent run with more than 6 ft of

vertical rise. See Page 20 for more information.

A 20-ft total Horizontal vent run requires min. 13.5 ft total
vertical venting.

Vertical firestop/spacer must be used anywhere vent

u

pipe passes through a combustible floor or ceiling. Horizontal
firestop/spacer must be used anywhere vent pipe passes through
a combustible wall.

 Install the provided vent restrictor, if required.
 A 90° elbow may NOT be attached directly to the

appliance collar. A minimum of 6” pipe (54” models) or 12”
(42” models) must be used between the fireplace collar and a
90° elbow.

V



28

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Install the Horizontal Termination Vent System

These instructions should be used as a guideline and do not supersede local codes in any way. Install venting
according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the
current standards of CAN/CGA-B149.1 in Canada.

Ensure clearances are in accordance with local installation codes and the requirements of the gas supplier.

Dégagement conforme aux codes d’installa tion locaux et aux exigences du foumisseunde gaz.

Horizontal vent systems terminate through an outside wall. Building Codes limit or prohibit terminating in
specific areas (Table 7).

The following figures and their associated horizontal vent tables illustrate the various configurations that are possible
for use with these fireplaces. Secure Vent® pipe is shown in these figures; Secure Flex® pipe may also be used.
A table summarizes each configuration’s minimum and maximum vertical and horizontal length parameters for a
variety of applications. For more information on connecting the vent pipe, see Page 22.

Figure 27: Typical Horizontal Vent Installation

Building
support
framing

Horizontal

support

brackets

Horizontal/inclined run

Horizontal
firestop /
spacer

u

Installation

900077-02, 03/2014

90° Elbow

Vertical
rise

* A 90° elbow may NOT be attached directly to the appliance collar. A minimum of 6” pipe
(54” models) or 12” (42” models) must be used between the fireplace collar and a 90° elbow.



Ceiling

Vertical
firestop /
spacer

u

Support vertical venting every
8 ft (2.4 m) above fireplace
vent outlet.

Place horizontal support brackets
every 5 ft (1.524 m).

Fireplace

Straight vent
sections

*

Horizontal
termination

Exterior
wall

Horizontal
termination

1. Analyze the vent route and determine the number of vent sections and elbows required—See Effective Vent
Length on Page 21 for more information. Plan the venting so that a joint does not occur in the ceiling or roof
joists. Allow for elbows (Figure 20). Maintain the minimum clearances for combustibles (Page 24).

2. Frame the exterior wall opening—Locate the center of the vent outlet on the exterior wall (Table 10). Cut and/

or frame an opening, 10 1/2 x 12 1/8” (267 x 308 mm) inside dimensions, about this center.

3. Frame the ceiling opening—If the vertical route is to penetrate a ceiling, use plumb line to locate the center
above the fireplace. Cut and/or frame an opening, 10 1/2 x 10 1/2” (267 x 267 mm) inside dimensions, about
this center (Figure 22).

4. Attach the vent components to the fireplace—See Connecting the vent pipe on Page 22.

5. Attach the vent components to each other—See Connecting the vent pipe on Page 22.

6. Install the firestop/spacer at the ceiling—When using Secure Vent®, use SV4.5VF firestop/spacer at ceiling

joists; when using Secure Flex®, use SF4.5VF firestop/spacer. If there is living space above the ceiling level,
the firestop/ spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the
firestop/spacer must be installed on the top side of the joist. Route the vent sections through the framed opening
and secure the firestop/spacer with 8d nails or other appropriate fasteners at each corner.

Maintain 1” (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation when running
vertical chimney sections.

NOTE: Attic insulation shield (96K94) must be installed when blown or loose-fill insulation is used, and is
recommended for all attic installations.

29

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

7. Support the vertical run sections—On the vertical run, support the venting system every 8 ft (2.4 m) above the
fireplace vent outlet with field provided support straps (Plumber’s tape). Attach the straps to the vent pipe and
secure to the framing members with nails or screws (Figure 23).

NOTE: Proper venting support is very important. Never use the fireplace to support the weight of the venting.

8. Change vent direction—At transition from or to a horizontal/inclined run, install SV4.5E45 or SV4.5E90 elbows

in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed
about the center axis of their initial collar section to align with the required direction of the next vent run element.
Twist elbow sections in a clockwise direction only so as to avoid the possiblity of unlocking any of the previously
connected vent sections (Figure 20).

9. Continue installation of horizontal/inclined sections—Continue with the installation of the straight vent
sections in horizontal/inclined run. Install support straps every 5 ft. (1.52 m) along horizontal/inclined vent runs
using conventional plumber’s tape or catalog number SV4.5SU (Figure 27). Maintain the horizontal/inclined run
in a straight (no dips), slightly elevated plane. The recommended incline is approximately 1/4” per 1 ft (20 mm
per 1 m) horizontal, in a direction away from the fireplace. Smaller rise per foot run ratios are acceptable all the
way to at or near level. Use a carpenter’s level to measure from a constant surface and adjust the support straps
as necessary.

Maintain the required clearances to combustibles (Page 24).

10. Assemble the vent run to the exterior wall—If not previously measured, locate the center of the vent at the
exterior wall. Prepare the opening. Assemble the vent system until the terminus of the last section is within
5” (127 mm) to 8 1/2” (216 mm) inboard of the exterior surface to which the SV4.5 HT termination is to be
attached (Figure 28). If the terminus of the last section is not within this distance, use the telescopic vent section
SV4.5LA, as the last vent section. Table 21 lists the additional venting components needed (in addition to the
termination and adaptor) for a range of wall thicknesses.

11. Attach the termination adaptor—Attach the adaptor (SV4.5RCH, provided with the termination) to the vent
section or telescoping vent section, elbow or fireplace collar (Figure 28).

Installation

900077-02, 03/2014

NOTE: If blown insulation is to be used, the through-wall shield kit (H5816) MUST be installed.

12. Install the firestop/spacer at the exterior wall—When using the square termination, install SV4.5HF (Secure

Vent), SF4.5HF (Secure Flex) Firestop/Spacer over the opening at the exterior side of the framing, long side up,
with the 3” spacer clearance at the top (Figure 28) and nail into place.

NOTE: The firestop/spacer may also be installed over the opening at the interior side of the framing.

13. Install the termination (SV4.5HT-2 and SV4.5HTSS for 42” model only)—From outside the exterior wall,

slide the collars of the termination onto the adaptor (the outer over the outer and the inner inside the inner)
until the termination seats against the exterior wall surface to which it will be attached. Orient the housing of
the termination with the arrow pointed upwards. Secure the termination to the exterior wall. The horizontal
termination must not be recessed into the exterior wall or siding by more than the 1 1/4” (32 mm) (Figure 29).

NOTE: If the venting exits the building below grade, or close to grade, see Installation Accessories on
Page 50 for available snorkel terminations. The termination must be above grade and above the expected
level of snow accumulation.

NOTE: The vent termination is hot while in operation and for a period of time following the use of the fireplace.

To prevent contact with hot surfaces, use a horizontal termination guard; available for purchase at your
local dealer.

The horizontal terminations have been designed to perform in a wide range of weather conditions. Our
terminations meet or exceed industry standards.

When selecting the locations of your horizontal terminations, do not place the termination where water from
eaves and adjoining rooflines may create a heavy flow of cascading water onto the termination cap. If the cap
must be placed where the possibility of cascading water exists, it is the responsibility of the builder to direct the
water away from the termination cap by using gutters or other means.

Take care to carefully follow the installation instructions for the termination, including the use of silicone caulking
where required.

30

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Figure 28: Installing the Horizontal Termination

6 to 48 inch Vent Section,

Telescopic vent section,

Elbow or Appliance Collar

12-1/8"

(308 mm)

Adaptor

SV4.5RCH

5-1/8"

(130 mm)

7"

(178)

Firestop/Spacer (SV4.5HF) shown
on the exterior side of the wall. It

may also be installed on the

interior side.

10-1/2"

(267 mm)

Note: Centerline of Vent Piping is

NOT the Same as the Centerline of

the Frame Opening.

Base of Appliance

See Table 10 for the minimum distance

Termination

1"

(25.4 mm)

to the base of the fireplace.

Typical

Shown

3"

(76 mm)

Installation

900077-02, 03/2014

NOTE: To help minimize water infiltration install the firestop/spacer (SV4.5HF) on the exterior side of the wall.

Figure 29: Venting Connection and Exterior Wall Recessing of the Horizontal Termination

** For thicknesses greater

than 10” (254 mm) see

Table 21.

Siding

Caulk*

Caulk*

Stucco

*Use silicone caulk to seal the top and sides of the termination,
up to the underlayment, stucco, or masonry wall surface.

Interior Surface of

Finished Wall

Maximum Extent of

Vent Run Section
Relative to Exterior
Surface of Framing

Last Vent Section

(Use Telescopic
Vent Section,

if necessary.)

Typical Horizontal
Termination

Termination

Adaptor

Max. 9-1/4" (235 mm)
Wall Thickness**

Exterior Surface of Siding

Exterior Surface
of Framing

6" to 9-1/4"
(152 to 235 mm)**

Typical Horizontal
Termination

Max. 1-1/4" Recess of
Horizontal Termination into
Exterior Finishing Material

31

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Table 21: Venting Components Required for Various Exterior Wall Thicknesses, when using Typical Termination Kits

Vent Components Required Exterior Wall Thickness

Termination Kit Only 6–9 1/4” (152–235 mm)

Termination Kit and 6” Vent Section (SV4.5L6) 10 3/4–14” (273–356 mm)

Termination Kit and 12” Vent Section (SV4.5L12) 16 3/4–20” (426–508 mm)

Termination Kit and Telescopic Section (SV4.5L12) 11 3/4–20” (299–508 mm)

NOTE: See Figure 29 for wall thickness ranges when using SV4.5HT-2 termination kit.

Horizontal Vent Figures/Tables

NOTE: Secure Vent® rigid vent pipe and terminal are shown in the figures. Secure Flex® flexible vent pipe and
terminal may also be used.

NOTE: If the parameters of your vent run fall outside the parameters described herein, consider installing the Power Vent Kit.
NOTE: Two (2) 45° elbows may be used in place of one (1) 90° elbow. The same rise to run ratios, as shown in the

venting figures for 90° elbows, must be followed if 45° elbows are used.
NOTE: Rise per foot run ratios are acceptable all the way to level. For best results, maintain the horizontal/inclined

run in a straight (no dips), slightly elevated plane of approximately 1/4” per 1 ft (20 mm per 1 m).
NOTE: SV4.5VF (Secure Vent), SF4.5VF (Secure Flex) firestop/spacer must be used any time vent pipe passes

through a combustible floor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) firestop/spacer must be used
any time vent pipe passes through a combustible wall.

Installation

900077-02, 03/2014

WARNING

Do not join separate sections of concentric flexible vent together.

Table 22: Top Vent—One 90° Elbow

Maximum total H Minimum total V

feet meters feet meters

2 0.610 1 0.305

4.5 1.372 3 0.914

6 1.829 4 1.220

7.5 2.286 5 1.524

9 2.743 6 1.729

15 4.572 10 3.048

Total H = 15 ft (4.572 m) maximum
Total H + Total V = 60 ft (18.3 m) maximum

Install the U-shaped vent restrictor in any vent run with more than 6 1/2 ft of
vertical rise. See Page 20 for more information.

Small square termination (SV4.5HT-2) shown.
See Table 21 as an aid in venting component selection for a particular range of exterior

wall thicknesses.
15 ft total horizontal vent run requires a minimum of 10 ft total vertical vent.

Vertical firestop/spacer must be used anywhere vent pipe passes through a combustible floor or ceiling. Horizontal firestop/

u

Horizontal

Termination

Horizontal Firestop/

Spacer

u

H

Vertical Firestop/

Spacer u

spacer must be used anywhere vent pipe passes through a combustible wall.

 Install the provided vent restrictor, if required.
 A 90° elbow may NOT be attached directly to the appliance collar. A minimum of 6” pipe (54” models) or 12” (42” models)

must be used between the fireplace collar and a 90° elbow.



V



32

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installation

900077-02, 03/2014

Table 23: Top Vent—Two 90° Elbows

Maximum total H Minimum total V

feet meters feet meters

2 0.610 1 0.305

4.5 1.372 3 0.914

6 1.829 4 1.220

7.5 2.286 5 1.524

9 2.743 6 1.729

15 4.572 10 3.048

Total H = 15 ft (4.572 m) maximum
Total H + Total V = 60 ft (18.3 m) maximum

Install the U-shaped vent restrictor in any vent run with
more than 6 1/2 ft of vertical rise. See Page 20 for more
information.

Small square termination (SV4.5HT-2) shown.
See Table 21 as an aid in venting component selection for a particular range of exterior wall thicknesses.
15 ft total horizontal vent run requires a minimum of 10 ft total vertical vent.

Vertical firestop/spacer must be used anywhere vent pipe passes through a combustible floor or ceiling. Horizontal firestop/spacer

u

Horizontal

Termination

Horizontal Firestop/

Spacer

u

H

H

1

Vertical Firestop/

Spacer u





must be used anywhere vent pipe passes through a combustible wall.

 Install the provided vent restrictor, if required.
 A 90° elbow may NOT be attached directly to the appliance collar. A minimum of 6” pipe (54” models) or 12” (42” models)

must be used between the fireplace collar and a 90° elbow.

V

Table 24: Top Vent—Three 90° Elbows

Maximum total H Minimum total V

feet meters feet meters

2 0.610 1 0.305

4.5 1.372 3 0.914

6 1.829 4 1.220

7.5 2.286 5 1.524

9 2.743 6 1.729

15 4.572 10 3.048

Total H = 15 ft (4.572 m) maximum
Total H + Total V = 60 ft (18.3 m) maximum

Install the U-shaped vent restrictor in any vent run with
more than 6 1/2 ft of vertical rise. See Page 20 for more
information.

Small square termination (SV4.5HT-2) shown.
See Table 21 as an aid in venting component selection for a particular

range of exterior wall thicknesses.
15 ft total horizontal vent run requires a minimum of 10 ft total vertical

vent.

Vertical firestop/spacer must be used anywhere vent pipe passes through a combustible floor or ceiling. Horizontal firestop/spacer

u

Horizontal
Termination

Horizontal Firestop/

Spacer

u

H

1

Vertical Firestop/Spacer

H

V

1

u





must be used anywhere vent pipe passes through a combustible wall.

 Install the provided vent restrictor, if required.
 A 90° elbow may NOT be attached directly to the appliance collar. A minimum of 6” pipe (54” models) or 12” (42” models)

must be used between the fireplace collar and a 90° elbow.

V

33

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Vertical or Horizontal Venting Using Secure Flex Kits and Components

Secure Flex venting kits and components may be used in any other vent installation where rigid Secure Vent® (SV4.5)
direct-vent components can be used. All restrictions, clearances and allowances pertaining to rigid vent also apply to
flexible vent. Do NOT modify Secure Flex kits . Also, do NOT join separate sections of flex vent together. Secure Flex
kits can be installed on the end of a Secure Vent (SV4.5) rigid vent run, provided that doing so does not violate any
of the venting length, height, routing, horizontal to vertical ratio requirements, or clearance considerations detailed in
this manual.

Secure Flex kits come with an included adaptor that can be installed on the fireplace collar or the inclined channel
end of the last Secure Vent (SV4.5) vent section in a rigid system in the exact same fashion as any other Secure Vent
section. Align the dimpled end of the adaptor over the previously installed section or fireplace collar, adjusting the
radial alignment until the four locking dimples of the adaptor are aligned with the inlets of the four incline channels of
the last vent section or collar. Push on the adaptor until it is fully engaged, then twist the adaptor clockwise running
the dimples down and along the incline channels until they seat at the end of the channels.

Figure 30: Flexible Vent Adaptor Figure 31: Flexible Vent

Apply ONLY MIL-PAC BLACK

HIGH TEMPERATURE

SEALANT (P/N 10K81) to

the outside surface of both

collars of the adaptor (fill the

grooves of the outer collar to

be covered by the flexible pipe)

and slide the flexible vent over

the inner and outer adaptor

collars

Installation

900077-02, 03/2014

Flexible vent Flexible vent section

Securing screws in
three (3) places just
below the gear clamp

5” (127 mm)
radius minimum

Gear clamps

1 3/4” (44 mm) flexible

vent and adaptor outer

collar overlap

Adaptor (SV4.5RF)

NOTE: Outer vent pipe is pulled away
to show inner vent pipe details.

Attach adaptor to vent collar or Secure Vent sections

1 3/4” (44 mm) flexible
vent and adaptor inner
collar overlap

Securing screws in
three (3) places just
below the gear clamp

1. Install the Inner Flex Pipe.
a. Install the small gear clamp loosely around the inner flexible vent, then push it back out of the way.

b. Apply a bead of Mill-Pac Black (700 °F) high temperature sealant (P/N 10K81) to the inner adaptor collar,

approximately 1/2” from the end.

c. Pull and extend the inner flexible vent.
d. Slide the inner flex vent over the adaptor collar at least 1 3/4”.
NOTE: Ensure the flex vent is free from damage or tears.
e. Slide the gear clamp down and tighten it fully to secure the flexible vent to the adaptor inner collar

approximately 3/4” from the end of the flex.

f. Install three (3) screws 120° apart through the flexible vent and into the adaptor collar just below the gear

clamp to provide additional security to the connection.

2. Install the outer Flex Pipe.
a. Install the large gear clamp loosely around the outer flexible vent pipe, then push it back out of the way.

34

b. Apply a bead of Mill-Pac Black (700 °F) high temperature sealant (P/N 10K81) to the outer adaptor collar.

Cover to the grooves of the collar that extend approximately 1” from the end and to the flat surface,
approximately 1 3/8” from the end.

c. Pull and extend the outer flexible vent.
d. Slide the outer flexible vent over the adaptor collar. Ensure the flexible vent completely engages the adaptor collar

1 3/4” from the end, and that it is free from damage or tears.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

e. Slide the gear clamp down and tighten it fully to secure the flexible vent to the adaptor outer collar

approximately 3/4” from the end of the flexible vent.

f. Install three (3) screws 120° apart through the flexible vent and into the adaptor collar just below the gear

clamp to provide additional security to the connection.

3. Route the flexible vent.
NOTE: Ensure that the flexible vent is properly routed to provide the required clearance. Do NOT allow the flexible vent

to bend in a radius tighter than 5” (127 mm) (Figure 31). Place the internal flexible vent spacers evenly and avoid
kinking the inner vent. Support horizontal sections of flexible vent with metal straps at 2 ft (0.61 m) intervals.

4. Install firestop/spacers at ceiling and wall penetrations.

• SF4.5 VF firestop/spacer for ceilings

• SF4.5 HF firestop/spacer for walls

NOTE: See the appropriate sections and figures shown throughout the venting section for installation
requirements.

5. Attach the flexible vent to the termination.
NOTE: Secure Flex® components can be purchased separately and attached to bulk lengths of Secure Flex flexible

vent cut to size at the job site. Attach the flexible vent to the Secure Flex terminations as it was attached to the
adaptor (Figure 30).

NOTE: Attach Secure Flex vent to Secure Flex terminations only. Do NOT substitute Secure Vent
or Secure Vent adaptor for Secure Flex components. Secure Flex termination and adaptor collars are a
different circumference than Secure Vent collars. Secure Flex vent has a longer center tube to improve
ease-of-installation.

Installation

900077-02, 03/2014

®

terminations

10. Complete the Field Wiring

The ground supply lead must be connected to the wire attached to the green ground screw
located on the outlet box (see wiring diagrams). Failure to do so will result in a potential
safety hazard. The appliance must be electrically grounded in accordance with local codes
or, in the absence of local codes, the National Electrical Code, ANSI/NFPA 70—latest
edition (in Canada, the current CSA C22-1 Canadian Electrical Code).

Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.

Au moment de l’entretien des commandes, étiquetez tous les fils avant de les débrancher.
Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

Verify proper operation after servicing.

S’assurer que l’appareil fonctionne adéquatement une fois l’entretien terminé.

The gas valve is set in place and pre-wired at the factory.

CAUTION

CAUTION

ATTENTION

Wire the fireplace

NOTE: Must be connected to the main power supply.

1. Route a 3-wire, 120 Vac, 60 Hz, 1 ph power supply to the fireplace junction box.
NOTE: The junction box can be moved to the bottom of the box or to the right side (Figure 34). To move the

junction box remove the cover plate, compress junction box to release it from the fireplace. Select the new
location. For the bottom location, install the 3-wire 120 Vac supply wire and strain relief in the hole provided.
Connect the wires (Figure 32). Reinstall the junction box by compressing the sides, then place the small flange
of the Junction box in the small slot. Place the larger flange into the larger slot and release. Reinstall the cover
over the original junction box location.

35

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Figure 32: Wiring Diagram—Electronic Gas Valves

Schematic Representation Only

COLOR CODE:

B = BLACK

BB = BROWN W/BLACK STRIPE
BG = BROWN W/GREEN STRIPE

BL = BLUE
BR = BROWN
G = GREEN
GY = GRAY
O = ORANGE
R = RED
W = WHITE
Y = YELLOW

Models w/o pressure switch have
these connectors plugged together

Air Pressure Switch

Power Vent Only

Optional Circulation

Blower

Main Wire

Harness

BR

G

Y

Optional Variable Light

B

W

G

Battery Holder w/Switch

Battery Holder w/Switch
ON/ Remote
/OFF

Y

Battery Holder
Wire Harness

GR

BB

BG

ON/Remote/Off

B

O

R

BL

O

GR

BL

G

W

R

B

R

B

WH

B

W

Power Vent Blower

Power Vent

Models Only

885 Valve

G

BR

BB

Split Flow

Reset Switch

“see instructions”

B

Pilot Tube

Control Module

IPI Pilot

B

Fuse

BG

Installation

900077-02, 03/2014

Flame Sensor

Spark Electrode

B

Ground Y

B

G

W

Main Power Cord

2. Remove the electrical inlet cover plate from the side of the unit by removing the plate securing screws. The
junction box can be moved to the bottom of the fireplace for bottom electrical entry.

3. Remove the cover plate knockout, then feed the power supply wire through the knockout opening and into the
unit junction box.

4. Connect the black power supply wire to the power outlet red pigtail lead (Figure 32 and Figure 33). Connect the
white power supply wire to the outlet common terminal.

Figure 33: Junction Box Wiring, 120 V, 60 hz, 1 phase Figure 34: Junction box locations

Fireplace
Right Side

Junction box locations

Tab intact

Green
ground
screw

Green

Neutral
side of
receptacle

White

Hot side of
receptacle

Black

Tab intact

Ground—green
Neutral—white

120 VAC—black

(power supply unswitched)

Junction box

Red

Field wired

Factory wired

5. Connect the ground supply wire to the pigtail lead attached to the outlet’s green ground screw. Restrain the inlet
power lead per NEC or local codes.

6. Mount the wall switch in a convenient location on a wall near the fireplace.

7. Wire the wall switch low voltage circuit (Figure 32).

Fireplace Back

Fireplace Bottom

36

NOTE: The supplied wire has one end connected to the gas valve circuit and the other end loose in the

bottom compartment.

8. After the wiring is complete, replace the cover plate.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Electronic models of these appliances are equipped with a three-prong (grounding)
plug utilized in connecting the electronic components to the junction box in the lower
compartment. This grounding plug provides protection against shock hazard and should be
plugged directly into a properly grounded three-prong receptacle. DO NOT cut or remove the
grounding prong from the plug.

Install the wiring for the wall switch receiver

The wall switch receiver for the Total Comfort Control™ remote control system connects directly to the gas valve,
stepper motor, and fan control module with an umbilical cord wiring harness.

1. Install a junction box (not provided) on the wall adjacent to the appliance, within reach of the remote system
umbilical cord wiring harness.

2. Position the terminal in the junction box.

Fire hazard. Can cause severe injury or death. The wall switch receiver causes ignition of the
appliance. The appliance can turn on suddenly. Keep away from the appliance burner when
operating the remote system or activating manual bypass of the remote control system.

Installation

900077-02, 03/2014

WARNING

WARNING

Property damage hazard. Excessive heat can cause property damage. The appliance can
stay lit for many hours. Turn OFF the appliance if it is not going to be attended for any length
of time. Always place the remote control transmitter where children cannot reach it.

11. Optional: Wire and Install the Power Vent

See the kit literature for more information.

12. Optional: Route Backlighting Wiring

See the kit literature for more information.

NOTE: Only route the wiring for the kit at this point. Do not install the light assemblies until after Installing the
Firebox Liners on Page 56.

13. Connect the Gas Line

The gas control valve is located in the lower control compartment (Figure 35).
All codes require a shutoff valve mounted in the supply line. Figure 36 illustrates the method for connecting the gas

supply. The flex-line method is acceptable in the U.S., however, Canadian requirements vary depending on locality.
Installation must be in compliance with local codes. The provided gas-line shutoff valve (located in the control
compartment) is intended as a service shutoff. National and local codes may require installation of a second gas-line
shutoff valve (not provided) in a readily accessible location. Consult local codes.

These fireplaces are equipped with a gas flex line for use (where permitted) in connecting the unit to the gas line. A
gas flex line is provided to aid in attaching the direct-vent fireplace to the gas supply. The gas flex line can only be
used where local codes permit. The flex line is rated for both natural and propane gas. A manual shutoff valve is also
provided with the flex line.

WARNING

NOTE: Ensure the system is set to intermittent mode on the remote with the pilot in the OFF position. See
Continuous Pilot Ignition / Intermittent Pilot Ignition on Page 56 for more information.

NOTE: A sediment trap is recommended in the gas piping within the home to prevent moisture and debris in the line

from damaging the valve.
NOTE: Secure all joints tightly using appropriate tools and sealing compounds. Ensure propane resistant compounds

are used in propane applications.
NOTE: Seal around the gas line to prevent cold air leakage. Gas line holes and other openings can be caulked or

stuffed with unfaced fiberglass insulation.

1. Unscrew the shutoff valve from the gas flex-line. Apply thread sealant appropriate for the gas type, and then
connect the shutoff valve to the gas stub.

NOTE: Position the shutoff valve to allow easy operation through the access opening in the fireplace floor.

37

Innovative Hearth Products

Flex Line Connector

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

2. Connect the flare fitting on the flex-line to the shutoff valve. Tighten by hand, and then use a pipe wrench to
tighten completely, 1/4-turn at a time.

Figure 35: Control Compartment Figure 36: Gas Line Connection

Installation

900077-02, 03/2014

Main gas shutoff valve

Access the Control Compartment

See Page 53 for instructions on Accessing the Control Compartment.
The control valve has a 3/8” (10 mm) NPT thread inlet port.
Secure all joints tightly using appropriate tools and sealing compounds (ensure propane resistant compounds are

used in propane applications). Optionally, seal around the gas line to prevent cold air leakage. Gas line holes and
other openings can be caulked or stuffed with unfaced fiberglass insulation.

All codes require a shutoff valve mounted in the supply line. The orientation of the shutoff valve should face the
front. Figure 36 illustrates two methods for connecting the gas supply. A sediment trap is recommended to prevent
moisture and debris in the gas line from damaging the valve.

Test Factory and Field Connections for Gas Leaks

1/2 x 3/8” Flare

1/2" x 3/8" Flare

shutoff valve

Shut-Off Valve

Gas

Gas

Stub

stub

ON

OFF

3/8" NPT x 3/8"

3/8 NPT x 3/8”

Flare Fitting

Flare fitting

3/8" Flex Tubing

3/8” Flex tubing

Gas

Gas
Valve

valve

WARNING

Never use an open flame to check for leaks.

Turn on gas supply and test for gas leaks, using a gas leak test solution—also known as bubble leak solution.
NOTE: Using a soapy water solution is an effective leak test solution but it is not recommended, because the soap

residue that is left on the pipes/fittings can result in corrosion over time.

1. Light the fireplace (refer to the lighting instructions label in the control compartment or Page 68).

2. Brush all joints and connections with the gas leak test solution to check for leaks. If bubbles are formed, or gas

odor is detected, turn the receiver or remote control to the OFF position. Either tighten or refasten the leaking
connection, and then retest as described above.

3. When the gas lines are tested and leak free, rinse off the leak testing solution.

14. Verify Proper Fireplace Operation

1. With the gas line installed, inspect the system before closing the front of the unit.

2. Follow the pilot lighting instructions (Page 68).
NOTE: When lighting the fireplace for the first time, it will take a few minutes for the gas line to purge itself of air.

When purged, the pilot and burner will light and operate as indicated. Subsequent lighting of the fireplace will not
require purging.

3. To light the burner, turn ON the wall or remote control switch. Ensure the igniter lights the pilot. The pilot flame
should engulf the flame rod (Figure 37).

Figure 37: Electronic Pilot

Igniter

Pilot Hood

38

Flame

Rod

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

15. Optional: Install the Backlighting Reflector

See the kit literature for more information.

16. Install the Firebox Liners

1. See Page 56 for instructions on Installing the Firebox Liners.

17. Optional: Install the Backlighting Light Assemblies

See the kit literature for more information.

18. Install the Glass Media

1. See Page 56 for instructions on Installing the Glass Media.

19. Install the Baffle

1. With the baffle oriented as shown in Figure 38, slide the rear tabs into the slots in the back panel.

Figure 38: Baffle

Clip

Baffle

Installation

900077-02, 03/2014

Firebox Ceiling

Tabs

2. While sliding the tabs into the slots, slide the front lip of the baffle under the clips in the firebox ceiling.

20. Install the Glass Door

1. See Page 57 for instructions on Installing and removing the glass door.

21. Adjust the Air Shutter to Ensure Proper Flame Appearance

•Air shutter adjustment should only be performed by a qualified professional service technician.

•Ensure glass door is in place and sealed during adjustment.

•Soot will be produced if the air shutter is closed too much. Any damage due to sooting,

resulting from improperly setting the air shutter, is not covered under the warranty.

•The air shutter rod and nearby appliance surfaces are hot. Exercise caution to avoid injury
while adjusting flame appearance.

Back Panel

WARNING

CAUTION

Flame Appearance and Sooting

The flame should be blue at the base, and yellow-orange in the body of the flame.
When the fireplace is first lit, the entire flame may be blue and will gradually turn yellow-orange during the first 30

minutes of operation. If the flame remains blue, or if the flame is orange with evidence of sooting (black tip), the air
shutter opening may need to be adjusted.

If the air shutter opening is closed too far, sooting may develop. Sooting is indicated by black puffs developing at
the tips of very long orange flames. Sooting results in black deposits forming on the fireplace inside surfaces and on
exterior surfaces adjacent to the vent termination.

39

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Sooting is caused by incomplete combustion in the flames and lack of combustion air entering the air shutter
opening. To achieve a warm yellow-orange flame with an orange body that does not soot, the shutter opening must
be adjusted between these two extremes.

Air Shutter Adjustment Guidelines

• If there is smoke or soot present, first ensure that the flames are not impinging on any of the panels. If the
panels are properly positioned and a sooting condition still exists, increase the air shutter opening.

• The more offsets in the vent system, the wider the air shutter will need to be opened.

• The length and configuration of the chimney vent will afffect flame appearance.

• A fireplace operated with the air shutter opened too far may have flames that appear blue and transparent. These

weak, blue, and transparent flames are termed anemic.

• Propane models may exhibit flames that candle or appear stringy. If this condition is present and persists, adjust
the air shutter to a more open position, then operate the fireplace for a few more minutes to ensure that the
flame normalizes and the flames do not appear sooty. The following chart is provided to help achieve the correct
air shutter adjustment for your installation.

Table 25: Air Shutter Adjustment Guidelines Figure 39: Air Shutter Adjustment

Amount of Primary

Air

If air shutter is
closed too far

If air shutter is

open too far

Flame Color Air Shutter Adjustment

Flame will

be orange

Flame will

be blue

Air shutter gap should be increased:

PULL lever toward front of fireplace

Air shutter gap should be decreased:

PUSH lever toward back of fireplace

Installation

900077-02, 03/2014

Air shutter adjustment lever
(below glass door)

1. Move the adjustment lever (Figure 39) down to decrease air flow and up to increase it. Position the air shutter to
the factory setting (Table 26).

2. Light the fireplace. Follow the lighting procedure on the lighting label in the control compartment or Page 68.

3. Allow the burner to operate for at least thirty (30) minutes while observing the flame continuously to ensure that

the proper flame appearance is achieved (Figure 40). If the following conditions are present, adjust accordingly.

• If flame appears weak or sooty, adjust the air shutter, incrementally, to a more open position until the proper

flame appearance is achieved.

• If flame remains blue, adjust the air shutter, incrementally, to a more closed position until the proper flame

appearance is achieved.

4. When satisfied that the burner flame appearance is normal, proceed to finish the installation.

Figure 40: Flame Appearance

40

Table 26: Main Burner Shutter Opening—Factory Setting

Models Natural Gas Propane

All

1/16”

(1.6 mm)

1/8”

(3.2 mm)

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

22. Install the Finishing Materials

NOTE: To install the fireplace facing flush with the finished wall, position framework to accommodate the thickness

of the finished wall.

NOTE: See Cold Climate Insulation on Page 10 and Vent Termination Clearances on Page 12.

1. Complete finished interior wall. Maintain a minimum 1” (25 mm) clearance from the door frame outer edge to

any finish material.
NOTE: NEVER install combustible material (wall finish, surround, trim, etc.) on, in front of, or overlapping any

part of the fireplace front face.

Finishing without optional Surround and Bezel—Cleanface Finish

1. Ensure the top and bottom nailing flanges are attached to the fireplace in the correct vertical position for a
cleanface finish and the correct horizontal position for the wall finish material thickness (Page 19).

NOTE: Install a second, field-supplied noncombustible board over the supplied noncombustible board. The
fireboard supplied with the unit is not intended to be the finish material.

2. Ensure the left and right side nailing flanges are properly installed (Page 19).
NOTE: The fireplace ships from factory with the all nailing flanges positioned for a cleanface installation.

3. Ensure the two filler/angle brackets are installed (Figure 41).
NOTE: Fireplace ships from factory with both filler/angle brackets installed. Do NOT remove brackets for

cleanface finish; they are required for proper combustion.

4. Attach the longer piece of fiber board to the top nailing flange and secure using installer-supplied screws. Attach
the two shorter pieces of fiber board vertically to the left and right side nailing flanges using installer-supplied
screws through the countersunk holes in the fiber board (Figure 42).

5. Cover the lower portion of the fireplace with finish material.

6. Skim-coat all drywall, and mud all joints.

Installation

900077-02, 03/2014

NOTE: If skimming the provided fiber board to match drywall, use Sheetrock® brand Durabond® 90 setting
type joint compound to fill all joints. These trademarks are owned by United States Gypsum Company or a
related company

7. For a painted wall finish, apply two (2) coats of quality primer and high-temperature paint.

8. After finishing all interior walls, install the glass door, if not already installed (Page 57).

Figure 41: Filler/Angle Brackets Figure 42: Noncombustible Material with Cleanface Finish

TOP Non-combustible
Fiber Board (secured

to TOP Nailing Flange)

Left SIDE Non­Combustible
Fiber Board (secured to Left SIDE NailingFlange)

Right Side
Nailing Flange

Right SIDE Non­Combustible
Fiber Board

Secure to
Right SIDE
Nailing Flange.

41

Innovative Hearth Products

Min. 1"

(25 mm)

Min. 3"

(76 mm)

Top Nailing Flange*

Bottom Nailing Flange*

Spacer

Combustible material NOT ALLOWED

BELOW THIS POINT on face of unit.

Lip on Top Nailing Flange

Bottom edge of Fiber Board abuts lip.

Combustible Wall Finish Material

Top Non-Combustible

Fiber Board (provided

with fireplace)

Wall
Stud

*

*

Insulation and combustible

material NOT ALLOWED in
clearance zones around vent
components.

*

Header

Header

*Position of Top
and Bottom Nailing
Flanges depends on
type and thickness
of wall finish. See
“UNIT NAILING
FLANGES” section.

For Surround finish,
cut Top Fiber Board
to height of installed
Top Spacers.

Combustible

material

NOT ALLOWED

BELOW THIS

POINT on

face of unit.

Side Non-Combustible

Fiber Board (one of two;

provided with fireplace)

Minimum 6"

Vertical Vent

and 90° Elbow

Min. 1"

(25 mm)

Min. 3"

(76 mm)

Spacer

Wall
Stud

*

*

Minimum 6"
Vertical Vent

and 90° Elbow

Header

*Position of Top
and Bottom Nailing
Flanges depends on
type and thickness
of wall finish. See
“UNIT NAILING
FLANGES” section.

For Surround finish,
cut Top Fiber Board
to height of installed
Top Spacers.

Combustible

material

NOT ALLOWED

BELOW THIS

POINT on

face of unit.

Min. 1"

(25 mm)

Min. 3"

(76 mm)

Spacer

Wall
Stud

*

*

Minimum 6"
Vertical Vent
and 90° Elbow

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installation

900077-02, 03/2014

Figure 43: Noncombustible Material with Cleanface Finish—

Profile View

* Insulation and combustible
materials not allowed in clearance
zones around vent components.

Combustible wall finish material

Combustible material

NOT ALLOWED BELOW

THIS POINT on face of wall

Top non-combustible fiber

board (provided)

Top nailing flange *

Lip of top nailing flange

(bottom edge of fiber

board abuts lip)

Side non-combustible fiber

board (one of two, provided)

**

Figure 44: Noncombustible Material with Surround and Bezel—

Profile View

* Insulation and combustible
materials not allowed in clearance
zones around vent components.

Combustible material

NOT ALLOWED BELOW

THIS POINT on face of wall

**

For surround finish, cut top

fiber board to height of installed

top standoffs

* Position of top and bottom

nailing flanges depends on type

and thickness of wall finish

(Page 19)

Bottom nailing flange *

** 42” fireplaces = 12” straight vent section required before 90° elbow

54” fireplaces = 6” straight vent section required before 90° elbow

NOTE: Insulation and combustible materials not allowed in clearance zones around vent components.

Finishing with optional Surround and Bezel

42

1. Ensure the top and bottom nailing flanges are attached to the fireplace in the correct vertical position for

2. Ensure the left and right side nailing flanges are removed, and discarded appropriately (Page 19).

surround/bezel finish and the correct horizontal position for the wall finish material thickness (Page 19).

3. Remove the two filler/angle brackets (Figure 41), and discard appropriately.

4. Attach the top non-combustible fiber board to the top nailing flange, and secure using installer-supplied screws

(Figure 46). Discard the two smaller side non-combustible fiber boards (not used with surround).
NOTE: The provided non-combustible fiber board may be faced with any NON-combustible finish material

appropriate for use (brick, tile, stone, high-temperature paint, etc.). For painted wall finish, use two (2) coats of
quality primer and high-temperature paint on provided fiber board.

5. Cover the lower portion of the fireplace with finish material.

6. Skim-coat all drywall, and mud all joints.
NOTE: If skimming the provided fiber board to match drywall, use Sheetrock® brand Durabond® 90 setting

type joint compound to fill all joints. These trademarks are owned by United States Gypsum Company or a
related company

7. After finishing all interior walls, install the glass door, if not already installed (Page 57).

8. Attach the surround, and secure using the nine (9) screws provided with the surround kit (Figure 45).

9. Attach the bezel to the glass door, if not already done (Page 58).

Innovative Hearth Products

Hot Fireplace Will Cause

Severe Burns

Never Allow Children to

Touch Glass or other Fire­place Parts

WARNING

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Figure 45: Installing the Surround Figure 46: Noncombustible Material with Surround and Bezel

Top Non-Combustible Fiber Board

Cut to height of installed Top Spacers.

Top Nailing

Flange

Remove Left

(and Right)

SIDE Nailing

Flanges.

Remove Left
(and Right)
Filler/Angle Brackets.

Bezel

Figure 47: Wall Receiver Switch Figure 48: Remote Control Transmitter

Installation

Three-position slider switch in
REMOTE position

23. Optional: Install the Bezel

1. See Page 58 for instructions on Installing the Optional Bezel.

24. Optional: Install the Modesty Panel

1. Insert the four (4) hooks on the modesty panel into the four slots on the door flange (Figure 49).

Figure 49: Installing the Modesty Panel

Remote

PRG

Off

On

LCD Display

ON/OFF Key

ROOM
TEMPERATURE
Key

UP/DOWN
Arrow Key

MODE Key

Modesty Panel

2. Slide the modesty panel to the left until it is fully seated (Figure 49).

Hook on

modesty panel

door flange

Insert hooks into slots

(4 places), then slide

panel left until seated

Slot on

43

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

25. Install the Wall Switch Receiver

The wall switch receiver for the Total Comfort Control™ remote control system connects directly to the gas valve,
stepper motor, and fan control module with an umbilical cord wiring harness.

1. When wall finish is complete, install the wall switch receiver in the previously installed junction box, and connect
the terminal to the connector on the back of the receiver.

2. Install the receiver cover plate. Ensure the receiver switch is properly aligned with the switch cover

26. Initialize the Remote Control System

After completing fireplace installation, initialize the remote control system before operating the fireplace.

1. Insert the three (3) provided AAA batteries into the battery bay in the remote control (Figure 48). Correctly align polarity (+/–).

2. Insert the (4) provided AA batteries into the receiver battery bay (behind the wall switch plate). Correctly align polarity (+/–).

3. Position the wall switch receiver three-position slider switch in the REMOTE position (Figure 47).

4. On the wall switch receiver cover plate, insert the end of a paper clip (or other similar small object) into the hole

marked PRG (Figure 47). The receiver will beep three (3) times to indicate it is ready to synchronize with the
Remote control.

5. On the remote control, press the ON button (Figure 48).
NOTE: The wall switch receiver will beep four (4) times to indicate acceptance of the remote control command

(and set the Receiver to the Transmitter’s specific code).

6. See Page 53 for information on remote control operation.

Installation

900077-02, 03/2014

27. Attach the Safety-in-Operation Warning Labels

1. Attach the furnished safety instruction labels at all fireplace operation and control points (Page 45).

NOTE: The installer MUST ensure these warnings are properly attached during installation. The warning labels are a

critical means of informing consumers of safe operation practices.

44

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installation

900077-02, 03/2014

ATTACH THE SAFETY-IN-OPERATION WARNINGS

NOTE: It is the installer’s responsibility to ensure these warnings are properly affixed during installation. These warning labels are a

critical step in informing consumers of safe operation of this fireplace.

Attaching Safety-in-Operation Warnings

It is required that the set of safety instruction
labels that have been furnished with the fireplace
be affixed to the operation and control points of
the fireplace. A safety instruction label must be
affixed to the receiver wall switch plate where
the fireplace is turned on and off (Figure A)
and on the remote control handheld transmitter
(Figure B). To properly complete the installation
of this fireplace, locate the multilingual adhesive
labels provided with the Care and Operation
Instructions and proceed as follows:

1. Locate the wall receiver that controls the

fireplace (verify the switch operates the
fireplace by turning it on and off). Clean the
wall receiver plate thoroughly to remove
any dust and oils. Affix the label to the
surface of the plate of the wall receiver that
controls the fireplace (Figure A). Choose the
language primarily spoken in the home. If
unknown, affix the English language label.

2. Locate the remote control transmitter and

clean it thoroughly to remove any dust
and oils. Affix the label to the surface of
handheld transmitter (Figure B). Choose the
language primarily spoken in the home. If
unknown, affix the English language label.

3. If you are unable to locate the labels, please

call Innovative Hearth Products or your
nearest Innovative Hearth Products dealer
to receive additional safety instruction labels
free of charge.

Cat. No. H8024 Replacement Label Kit Étiquettes de remplacement, n° cat. H8024 Juego de etiquetas de repuesto - Nº de cat. H8024
NOTE: English is red text on clear label. French

and Spanish are white text on black label.

SAFETY LABEL DIAGRAMS DIAGRAMMES DES ÉTIQUETTES DE SÉCURITÉ DIAGRAMAS DE ETIQUETAS DE SEGURIDAD

Apposition des mises en garde relatives
à la sécurité d’utilisation

Il est impératif que le jeu d’étiquettes de sécurité
qui ont été fournies avec le foyer soient collées
à côté des dispositifs de contrôle du foyer. Une
étiquette de sécurité doit être collée sur la plaque
du récepteur mural contrôlant l’allumage du foyer
(Figure A) et sur le boîtier de la télécommande
(Figure B). Pour achever l’installation correcte de
ce foyer, procédez comme suit avec les étiquettes
adhésives en langues étrangères fournies avec
les instructions d’utilisation et d’entretien :

1. Repérez le récepteur mural qui contrôle le

foyer (vérifiez que l’interrupteur contrôle
le fonction- nement du foyer en le faisant
basculer de Marche à Arrêt, et vice-versa).
Nettoyez soigneusement la plaque du
récepteur mural pour éliminer la poussière
et les traces de graisse ou d’huile. Collez
l’étiquette sur la surface de la plaque
du récepteur mural qui contrôle le foyer
(Figure A). Choisissez la langue qui est
principalement parlée dans la résidence du
propriétaire. En cas de doute, collez l’étiquette
en anglais.

2. Repérez la télécommande et nettoyez-la

soigneusement pour éliminer la poussière
et les traces de graisse ou d’huile. Collez
l’étiquette sur le boîtier de la télécommande
(Figure B). Choisissez la langue qui est
principalement parlée dans la résidence
du propriétaire. En cas de doute, collez
l’étiquette en anglais.

3. Si vous ne trouvez pas les étiquettes, veuillez

appeler Innovative Hearth Products ou votre
distributeur Innovative Hearth Products local
pour recevoir gratuitement des étiquettes
supplémentaires.

Remarqué : Le texte anglais est rouge sur un
support transparent. Le texte français et espagnol
est blanc sur un support noir.

Colocación de advertencias de
seguridad en operación

Se requiere que el juego de etiquetas de
instrucciones de seguridad que se incluyeron con la
chimenea se coloque en los puntos de operación y
control de la misma. Se debe colocar una etiqueta
de instrucciones de seguridad en la placa del
interruptor de pared del receptor desde el cual
se enciende y se apaga la chimenea (Figura A)
y en el transmisor de control remoto (Figura B).
Para completar correctamente la instalación de
esta chimenea, encuentre las etiquetas adhesivas
multilingües incluidas con las instrucciones de
cuidado y operación y haga lo siguiente:

1. Identifique el receptor de pared que

controla la chimenea (verifique que el
interruptor opera la chimenea encendiéndola
y apagándola). Limpie bien la placa del
receptor de pared para quitar el polvo y
aceite. Pegue la etiqueta en la superficie de
la placa del receptor de pared que controla
la chimenea (Figura A). Seleccione el idioma
que más se habla en la casa. Si no sabe cuál
es, use la etiqueta en inglés.

2. Identifique el transmisor de control remoto

y límpielo bien para quitar el polvo y aceite.
Pegue la etiqueta en la superficie del
transmisor (Figura B). Seleccione el idioma
que más se habla en la casa. Si no sabe cuál
es, use la etiqueta en inglés.

3. Si no puede encontrar las etiquetas, sírvase

llamar a Innovative Hearth Products o al
distribuidor de Innovative Hearth Products
más cercano para recibir etiquetas de
instrucciones de seguridad adicionales
gratuitas.

Nota: La etiqueta en inglés es transparente con
texto rojo. Las etiquetas en francés y español son
negras con texto blanco.

Illustrations are for example only.
Your accessories may be different.

Les illustrations sont par exemple
uniquement. Vos accessoires
peuvent être différents.

Las ilustraciones son sólo ejemplos.
Tu accesorios pueden ser diferentes.

Innovative Hearth Products

Figure A
Figura A

PRG

On

Remote

Off

Figure B
Figura B

45

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

INSTALLATION ACCESSORIES

Table 42: Table 27: Listed Secure Vent® Components (Note: All Small Terminations are for 42” Models Only!)

Catalog Number Model Description Catalog Number Model Description

Installation

900077-02, 03/2014

H1968 SV4.5HT-2

94L10 SV4.5HTSS

H5817 SV4.5-20SSWSK

H2152 SV4.5CGV-1

H8914 SV4.5TK90HT2

Horizontal Square

Termination with

Firestop/Spacer

(H2246), and

Adaptor (74L61)

Rigid, Horizontal,

Small Square

Termination

with Firestop/

Spacer (H2246),
Adaptor (74L61)

(see 750204M)

Rigid, Small,

Square

Termination,

20” with Shield

and Firestop

(see 750247M

and 750204M)

Vertical Termination

Cap, High Wind

Horizontal

Termination

Kit HT-2 with

90° elbow

77L78 SV4.5F Flat Roof Flashing

77L79 SV4.5FA

77L80 SV4.5FB

77L81 SV4.5SC6 Storm Collar (6 pack)

H6183 SV4.5HF5

H6184 SF4.5HF5

H2246 SV4.5HF-10

1/12 to 7/12

Adjustable Flashing

7/12 to 12/12

Adjustable Flashing

Firestop Spacer, 5”,

rigid

Firestop Spacer,

5”, flex

Firestop/Spacer-

Horizontal, rigid
(3-1-1 spacing),

10 Pack

Vent Sections (Rigid)
77L70 SV4.5L6 6” (152 mm)
77L71 SV4.5L12 12” (305 mm)

77L72 SV4.5L24 24” (610 mm) 17M53 SV4.5HGS-12

77L73 SV4.5L36 36” (914 mm)
77L74 SV4.5L48 48” (1219 mm)

77L75 SV4.5LA

77L76 SV4.5E45 45° Elbow

77L77 SV4.5E90 90° Elbow

Telescopic Length

Slip Section

(2–7 1/2” rigid)

17M52 SV4.5HGS-1

87L02 SV4.5HGS

H5820 SV4.5HTSK

Termination Guard,

Square (1 pack)

(see 750109M)

Termination
Guard, Horizontal
Square (12 pack)

(see 750109M)

Termination Guard

for Horizontal

Square Termination

(Deluxe)(1 pack)

(see 750055M)

Termination

Shroud (Guard) for

Horizontal Square

Termination (1 pack)

(see 750246M)

46

Innovative Hearth Products

S

e

a

l

a

n
t

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Table 43: Table 27: Listed Secure Vent® Components

Catalog Number Model Description Catalog Number Model Description

H5816

750,247M

SV4.5-TWSK10

Through Wall

Shield Kit (to
shield direct-

vent pipe from

blown insulation)

(see 750247M)

H3907 SV4.5ARSA

Installation

900077-02, 03/2014

Attic Insulation Shield

with adjustable
height, 12–22”

96K93 SV4.5SU Support Strap

99L02 SV4.5HRK14

99L03 SV4.5HRK36

Table 44: Table 28: Listed Secure Flex® Components

Catalog
Number

H1969 SF4.5HT-2

77L87 SFKIT12S

77L88 SFKIT18S

77L89 SFKIT24S

77L90 SFKIT36S

77L91 SFKIT48S

91L66 SFGC4-6

91L67 SFGC7-6

Model Description

Horizontal Square Termination for

flex (without flex)

Square Term. for flex with

12” (305 mm)* compressed flex

Square Term. for flex with

18” (457 mm)* compressed flex

Square Term. for flex with

24” (610 mm)* compressed flex

Square Term. for flex with

36” (914 mm)* compressed flex

Square Term. for flex with

48” (1219 mm)* compressed flex

Gear Clamp 4.5” (114 mm) for flex

Gear Clamp 7.5” (190.5 mm) for

flex (6 pack)

Horizontal Riser Kit,

14”(see 750146M)

Horizontal Riser Kit,
36” (see 750146M)

(6-pack)

10K81 SFMP

89L40 SFMP-12

Catalog

Number

Model Description

Vertical Termination for flex (flat to 6/12)

56L74 SFVT30

with flex adaptor, section of rigid vent, roof
support collar assembly, roof flashing and

storm collar. (see 750052M)

Vertical Termination for flex (6/12 to 12/12)

56L75 SFVT45

with flex adaptor, section of rigid vent, roof
support collar assembly, roof flashing and

storm collar. (see 750052M)

36” Flex Connector Kit.

H7748 H7748

36” of flex with two adaptors for

mating two rigid sections of vent

*All compressed flex vents can be expanded up to two times.

Mill-Pac, Black, High-

Temperature Sealant

Mill-Pac, Black, High-

Temperature Sealant

(bulk 12-pack)

together.

47

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Operation

GAS CONVERSION KITS

WARNING

This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s
instructions and all applicable codes and requirements of the authority having jurisdiction. If the
information in these instructions is not followed exactly, a fire, explosion, or the production of carbon
monoxide may result; causing property damage, personal injury, or loss of life. The qualified service agency
is responsible for the proper installation of this kit. The installation is not proper and complete until the
operation of the converted appliance is checked as specified in the manufacturer’s instructions supplied with
the kit.The qualified service agency performing this installation assumes responsibility for this conversion.

AVERTISSEMENT

Cette trousse de conversion doit être installée par un technicien agréé, selon les instructions du fabricant
et selon toutes les exigences et tous les codes pertinents de l’autorité compétente. Assurez-vous de bien
suivre les instructions dans cette notice pour réduire au minimum le risque d’incendie, d’explosion ou la
production de monoxyde de carbone pouvant causer des dommages matériels, des blessures ou la mort.
Le tecnicien agréé est responsable de l’installation de cette trousse. L’installation n’est pas adéquate ni
complète tant que le bon fonctionnement de l’appareil converti n’a pas été vérifié selon les instructions du
fabricant fournies avec la trousse. Le fournisseur de service qualifié ayant réalisé l’installation assume les
responsabilités liées à la conversion.

In Canada:
The conversion shall be carried out in accordance with the requirements of the provincial authorities having

jurisdiction and in accordance with the requirements of the CAN/CGA-B149.1 Installation code.

La conversion devra être effectuée conformément aux recommandations des autorités provinciales ayant
juridiction et conformément aux exigences du code d’installation CAN/CGA-B149.1.

Gas conversion kits are available to adapt your fireplace from the use of one type of gas to the use of another. These
kits contain all the necessary components needed to complete the task including labeling that must be affixed to
ensure safe operation.

Refer to the instructions provided with the conversion kit when performing any gas conversion.

Table 27: Electronic Systems, Natural Gas To Propane Gas Conversion Kits

Model Model Number Catalog Number

42” and 54” GCK-RHAP-NP H8540

48

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installing Gas Conversion Kits

The gas supply shall be shut OFF prior to disconnecting the electrical power, before
proceeding with the conversion.

Avant d’effecteur la conversion, coupez d’abord l’alimentation en gaz, ensuite, coupez
l’alimentation electrique.

1. TURN OFF THE GAS SUPPLY TO THE FIREPLACE and disconnect power supply at the circuit breaker. Ensure

fireplace is cold.

2. If installed, remove the bezel.

3. If installed, remove the surround.

4. Remove the glass door (Page 57).

5. Remove the glass media (Page 60).

6. Remove floors if installed.

7. Remove the two (2) screws securing the burner assembly. Remove the burner assembly with the attached

venturi tube (Figure 50).

8. Remove the control compartment access door and gasket (Figure 50).

Operation

900077-02, 03/2014

WARNING

AVERTISSEMENT

Figure 50: Removing the Burner and Accessing the Control Compartment

Remove two screws

to remove burner

assembly.

Burner
Assembly

Venturi

Right Burner

Bracket

Burner
Orifice

Control Compartment

Access Panel and Gasket

Right Burner Bracket

9. Refer to the instructions provided with the SIT regulator conversion kit. Using a Torx T20 driver (with 1/4”

shank) or slotted screwdriver, remove and discard the two (2) pressure regulator mounting screws, pressure
regulator tower, the diaphragm assembly (if applicable) and the spring. Ensure the rubber gasket installed on the
back of the replacement pressure regulator is properly positioned. Discard all removed components.

10. Install the new pressure regulator assembly using the supplied screws. Tighten the screws to 25 in. lbs.

11. Install the enclosed identification label to the valve body where it can be easily seen.

49

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

12. Make stepper motor and valve electrical connections.

13. Remove the pilot hood assembly to access the hex pilot orifice (Figure 51). Remove and replace the pilot

orifice with the one provided with the kit. Exercise extreme care to prevent damage to or breakage of the
igniter assembly.

14. Remove the burner orifice from the manifold and replace it with the one provided in the kit (Figure 52).
NOTE: See Table 5 for burner orifice sizes.

Figure 51: Pilot Figure 52: Orifice

Pilot

Orifice

15. Apply pipe joint compound or Teflon® tape to all pipe fittings before installing.
NOTE: Ensure propane resistant compounds are used in propane applications, do not use pipe joint compounds

on flare fittings.

16. Reinstall the control compartment access door and gasket. Secure using the twelve (12) screws removed
previously (Figure 50).

17. Reinstall the air shutter adjustment lever.

18. Place the burner assembly into position. Replace the screws securing the burner to the burner brackets

(Figure 50).

Operation

900077-02, 03/2014

Pilot
Hood

NOTE: Ensure the air shutter clears the pilot bracket.

19. Turn ON the gas supply to the fireplace and relight the appliance (Page 68). With the main burner ON, use a
gas leak test solution to test the new pressure regulator assembly and all gas line joints for leaks (Page 38).

20. Attach the conversion information label to the rating plate.

21. Locate the external test ports just under the door on the right side of the fireplace. Remove the 1/8 in. NPT plugs

for both line and manifold pressure (manifold pressure will be the tap on the left side). Retain the plugs for later
reinstallation. Using a manometer, test the inlet and manifold gas pressures. Insert 1/8 in. NPT hose barb fittings
(installer supplied) to connect the manometer to the fireplace (Table 3 and Table 4).

NOTE: Always test pressures with the valve regulator control at the highest setting.

22. Reinstall the media, glass door, and bezel (if applicable).

23. Relight the main burner and verify proper burner ignition and operation (Page 38).

24. Inspect the pilot system for proper flame. The pilot flame should engulf the flame sensor (Figure 37).

25. Turn OFF the gas supply to the fireplace.

26. Disconnect the manometer NPT hose barb fittings. Reinstall the line and manifold NPT plugs.

27. Turn ON the gas supply to the fireplace. Use a gas leak test solution to test the NPT plugs for leaks.

28. Read Flame Appearance and Sooting and Air Shutter Adjustment Guidelines before proceeding. Before

adjusting the air shutter, allow the burner to operate for at least thirty (30) minutes while continuously observing
the flame.

29. Adjust the air shutter using the lever located just under the door, slightly right of center (Page 39).

30. Reinstall all optional accessories.

50

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Operation

OPERATION

WARNING

Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.

AVERTISSEMENT

Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trouvent dans la même pièce que
l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en
contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes
à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de
sécurité; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque
d’avoir accès à la pièce et aux surfaces chaudes.

WARNING

Do not operate the fireplace if:

•The glass front is removed, cracked, or broken

CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are similar to the flu with
headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Turn off the gas
supply to the appliance and have it serviced by a qualified professional, as it may not be operating correctly.
Some people are more affected by carbon monoxide than others, including pregnant women, people with heart
or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

NOTE: Do not place furniture or other combustible materials within 36” of the front of viewing area(s).
NOTE: Children and adults should be alerted to the hazards of high surface temperature and should stay away to

avoid burns or clothing ignition.

Remarqué : Les enfants et les adultes devraient être infor-més des dangers que posent les températures de
surface élevées et se tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne s’enflamment.

NOTE: Installation and repair should be done by a qualified service person. The fireplace should be inspected before
use and at least annually by a professional service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etcetera. It is imperative that control compartments, burners and circulating air
passageways of the fireplace be kept clean.

Remarqué : L’installation et la réparation devrait être confiées à un technicien qualifié. L’appareil devrait faire
l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite.
Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité
importante de pous-sière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les
conduits de circulation d’air de l’appareil soient tenus propres.

NOTE: Do not use these fireplaces if any part has been under water. Immediately call a qualified, professional service
technician to inspect the fireplace and to replace any parts of the control system and any gas control which have
been under water.

Remarqué : Ne pas utiliser cet appareil s’il a été plongé, même partiellement, dans l’eau. Appeler un technicien qualifié pour
inspecter l’appareil et remplacer toute partie du système de commande et toute commande qui a été plongée dans l’eau.

51

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Operation

ATTACH THE SAFETY-IN-OPERATION WARNINGS

NOTE: It is the installer’s responsibility to ensure these warnings are properly affixed during installation. These warning labels are a

critical step in informing consumers of safe operation of this fireplace.

Attaching Safety-in-Operation Warnings

Your fireplace has been furnished with safety
instruction labels that are to be affixed to the
operation and control points of the fireplace. A
safety instruction label should be affixed to the
receiver wall switch plate where the fireplace
is turned on and off (Figure A) and the remote
control handheld transmitter (Figure B). The
warnings should already have been put in place
when the fireplace initial set-up was completed.
If they are not affixed at these spots, locate the
multilingual adhesive labels provided with these
instructions and proceed as follows:

1. Locate the wall receiver that controls the

fireplace (verify the switch operates the
fireplace by turning it on and off). Clean the
wall receiver plate thoroughly to remove
any dust and oils. Affix the label to the
surface of the plate of the wall receiver that
controls the fireplace (Figure A). Choose the
language primarily spoken in the home.

2. Locate the remote control transmitter and

clean it thoroughly to remove any dust
and oils. Affix the label to the surface of
handheld transmitter (Figure B). Choose the
language primarily spoken in the home.

3. If you are unable to locate the labels, please

call Lennox Hearth Products or your nearest
Lennox Hearth Products dealer to receive
additional safety instruction labels free
of charge.

Cat. No. H8024 Replacement Label Kit Étiquettes de remplacement, n° cat. H8024 Juego de etiquetas de repuesto - Nº de cat. H8024
NOTE: English is red text on clear label. French

and Spanish are white text on black label.

SAFETY LABEL DIAGRAMS DIAGRAMMES DES ÉTIQUETTES DE SÉCURITÉ DIAGRAMAS DE ETIQUETAS DE SEGURIDAD

Apposition des mises en garde relatives
à la sécurité d’utilisation

Votre foyer a été livré avec des étiquettes de
sécurité qui doivent être collées à côté des
dispositifs de contrôle du foyer. Une étiquette
de sécurité devrait être collée sur la plaque du
récepteur mural contrôlant l’allumage du foyer
(Figure A) et sur le boîtier de la télécommande
(Figure B). Les mises en garde auraient dû être
collées au moment de l’installation initiale du
foyer. Si ce n’est pas le cas, prenez les étiquettes
adhésives multilingues fournies avec ces
instructions et procédez comme suit :

1. Repérez le récepteur mural qui contrôle le

foyer (vérifiez que l’interrupteur contrôle le
fonctionnement du foyer en le faisant basculer
de Marche à Arrêt, et vice-versa). Nettoyez
soigneusement la plaque du récepteur mural
pour éliminer la poussière et les traces de
graisse ou d’huile. Collez l’étiquette sur la
surface de la plaque du récepteur mural qui
contrôle le foyer (Figure A). Choisissez la
langue qui est principalement parlée dans la
résidence du propriétaire.

2. Repérez la télécommande et nettoyez-la

soigneusement pour éliminer la poussière
et les traces de graisse ou d’huile. Collez
l’étiquette sur le boîtier de la télécommande
(Figure B). Choisissez la langue qui est
principalement parlée dans la résidence
du propriétaire.

3. Si vous ne trouvez pas les étiquettes, veuillez

appeler Lennox Hearth Products ou votre
distributeur Lennox Hearth Products local
pour recevoir gratuitement des étiquettes
supplémentaires.

Remarqué : Le texte anglais est rouge sur un
support transparent. Le texte français et espagnol
est blanc sur un support noir.

Colocación de advertencias de
seguridad en operación

Su chimenea incluye etiquetas de instrucciones de
seguridad que deben colocarse en los puntos de
operación y control de la chimenea. Se debe colocar
una etiqueta de instrucciones de seguridad en la
placa del interruptor de pared del receptor desde el
cual se enciende y se apaga la chimenea (Figura A)
y en el transmisor de control remoto (Figura B).
Las advertencias ya deben haberse colocado
cuando se completó la instalación inicial de la
chimenea. Si no están colocadas en estos lugares,
encuentre las etiquetas adhesivas multilingües
proporcionadas con estas instrucciones y prosiga
de la siguiente manera:

1. Identifique el receptor de pared que

controla la chimenea (verifique que el
interruptor opera la chimenea encendiéndola
y apagándola). Limpie bien la placa del
receptor de pared para quitar el polvo y
aceite. Pegue la etiqueta en la superficie de
la placa del receptor de pared que controla
la chimenea (Figura A). Seleccione el idioma
que más se habla en la casa.

2. Identifique el transmisor de control remoto

y límpielo bien para quitar el polvo y aceite.
Pegue la etiqueta en la superficie del
transmisor (Figura B). Seleccione el idioma
que más se habla en la casa.

3. Si no puede encontrar las etiquetas,

sírvase llamar a Lennox Hearth Products
o al distribuidor de Lennox Hearth
Products más cercano para recibir
etiquetas de instrucciones de seguridad
adicionales gratuitas.

Nota: La etiqueta en inglés es transparente con
texto rojo. Las etiquetas en francés y español son
negras con texto blanco.

52

Illustrations are for example only.
Your accessories may be different.

Les illustrations sont par exemple
uniquement. Vos accessoires
peuvent être différents.

Las ilustraciones son sólo ejemplos.
Tu accesorios pueden ser diferentes.

Innovative Hearth Products

Figure A
Figura A

PRG

On

Remote

Off

Figure B
Figura B

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Burn-in Period

The first few times this fireplace is operated, there will be an odor from the curing of paint and the burning off of the
lubricants used in the manufacturing process. Depending on usage, the burn-in period may take a few hours or a
few days.

NOTE: Ventilate the site during the burn-in period. The resulting odor and haze may set off a smoke detector. Do not
operate the blower during the burn-in period.

A white film may develop on the glass front during the first few fires as part of the burn-in period. The glass
should be kept clean during the burn-in period to prevent the film from baking on—making it very difficult to
remove (Cleaning the glass door and firebox on Page 59).

Accessing the Control Compartment

Access the control compartment (Figure 35) by removing the following components, as necessary, in this order:

1. Surround (optional)

2. Bezel (optional)

3. Glass door

4. Floor

5. Burner

6. Control compartment access panel (Figure 53)

Operation

900077-02, 03/2014

Figure 53: Accessing the control compartment

Closing the Control Compartment

Reinstall the items removed in Accessing the Control Compartment, in reverse order.

Gas Controls

Shutoff Valves

As part of your fireplace installation, the installer may have provided a readily accessible gas shutoff valve near
your fireplace. Make sure this valve is fully open before operating the fireplace. If gas is not flowing to the pilot and
burner, the service shutoff valve located in the fireplace control compartment may need to be opened. Contact your
dealer or distributor for more information.

To access the service shutoff valve, remove the bezel (if applicable), glass door, burner, floor panels, and control
compartment access panel in the fireplace floor.

Remote Control System

The remote control system provides remote operation of the following fireplace functions:

• Primary burner ON/OFF

• Flame height and heat output adjustment (six levels)

• Blower fan speed (six levels)

• Lighting ON/OFF (for optional Panel Backlight Kit)

The wall switch receiver accepts commands via radio frequency from the remote control transmitter and does not
require line-of-sight operation. The slider switch on the receiver can be set to one of three positions:

• ON (manual override)

• OFF (manual override)

• REMOTE (remote control)

Detailed lighting instructions are found on Page 64. Also, electronic fireplace lighting instructions are found on the
pull-out lighting instructions tied to the bracket under the door.

53

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

The fireplace main burner can be turned ON/OFF with the wall switch or remote control. Check the batteries, at least
every three (3) months to ensure they are properly charged.

To light the fireplace in a power outage:

1. Confirm that batteries are installed in the battery pack.

2. Set the unit-mounted switch, or wall switch to the ON Position.

3. The unit should spark at the pilot and light.
NOTE: If there is no spark, replace the batteries.

4. Operate the fireplace normally.

NOTE: Install new batteries (4 AA) in the battery holder before the burn season. Then, the fireplace can automatically

switch to battery power in the event of a power outage.

900077-02, 03/2014

WARNING

Fire hazard. Can cause severe injury or death. The wall switch receiver causes ignition of the appliance. The
appliance can turn on suddenly. Keep away from the appliance burner when operating the remote system or
activating manual bypass of the remote control system.

WARNING

Operation

Property damage hazard. Excessive heat can cause property damage. The appliance can stay lit for many
hours. Turn OFF the appliance if it is not going to be attended for any length of time. Always place the
remote control transmitter where children cannot reach it.

Wall Switch Receiver Low Battery Power

Battery life depends on several factors, including battery quality, number of fireplace ignitions, and number of
thermostat temperature setting changes. When the batteries are low or depleted, the fireplace can only be operated
manually (ON/OFF).

1. To test the batteries in the wall switch receiver, press the handheld remote control ON/OFF key (Figure 47) one time.

• If the wall switch receiver emits a beep, the batteries have enough power.

• If the wall switch receiver does not emit a beep, remove the wall switchplate and replace the (4) AA batteries.

Remote Control Transmitter Low Battery Power Detection

When the batteries in the handheld remote control are low, a battery icon will appear on the LCD screen (Figure 48)
before battery power is lost. Battery life depends on several factors, including battery quality, number of fireplace
ignitions, and number of thermostat temperature setting changes. When the batteries are low or depleted, the
fireplace can only be operated manually (ON/OFF).

1. Replace the three (3) AAA batteries in the handheld remote control. The battery icon will disappear (Figure 54).

Remotely Turning ON the Appliance

1. Slide the wall switch to the REMOTE position (Figure 47).

2. Press the remote control ON/OFF key (Figure 48).

3. A single beep from the receiver will confirm receipt of the command. The remote control LCD screen will display

icons for all active modes, and the burner will light.

54

Remotely Turning OFF the Appliance

1. Press the remote control ON/OFF key (Figure 48).

2. The wall switch receiver will beep one time, the remote control LCD screen will display only the room

temperature icon, and the burner will turn OFF.

Key Lock

The key lock function disables the remote control keys to prevent unintended operation.

1. To activate or deactivate the key lock function, press the MODE and UP ARROW keys at the same time

(Figure 48).

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Figure 54: Remote Control Transmitter Display

Transmission

Operation

900077-02, 03/2014

Child Safety Lock-Out

Low Battery Alarm

[1] When a mode icon is outlined, that function is currently active (ON)
[2] Optional accessory

Flame Control

The system has six flame levels (1–5 and MAX).

1. With the system ON, repeatedly press MODE until the flame icon displays (Figure 48).

2. Press the UP/DOWN ARROW key to increase/decrease the flame height (Figure 55).

Figure 55: Flame Levels

Thermostat

OFF/ON/SMART

Set Point

Temp./Level/State

Fan Control

Flame On

Maximum Level
Indicatiors

Room
Temperature

Light On

Flame Level 5 Flame Level Maximum

NOTE: Pressing the UP ARROW key while the system is ON but the flame is OFF will cause the flame to turn
on in the highest (MAX) position. The wall switch receiver will beep each time the UP/DOWN ARROW key is
pressed, to confirm receipt of the command.

Turn ON Thermostat

1. Repeatedly press the THERMOSTAT key to cycle the thermostat between ON, OFF, and SMART modes

(Figure 48).

2. To change the temperature scale (°F to °C): With the system in the OFF position, press the THERMOSTAT and

MODE keys at the same time (Figure 48).

Set Thermostat Temperature

1. Repeatedly press the THERMOSTAT key until ON displays next to the thermostat icon. The thermostat set

temperature displays in the mode setting area of the LCD screen (Figure 54).

2. Press the UP/DOWN ARROW key until the desired temperature displays (Figure 48).

Set SMART Thermostat Control

1. Repeatedly press the THERMOSTAT key until SMART displays next to the thermostat icon (Figure 54).

2. The SMART thermostat function will automatically adjust the flame height (up or down) when the room

temperature varies from the thermostat set temperature by more than 5°.

Blower Control

Turning OFF the fireplace with the wall switch will NOT turn OFF the blower. To turn OFF these functions, use the
remote control before turning OFF the fireplace with the wall switch receiver.

1. Repeatedly press MODE until the blower icon displays (Figure 54).

2. Press the UP/DOWN ARROW key to adjust the blower speed through six levels (1–5 and OFF) (Figure 55).
55

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Optional Lighting Control

Turning OFF the fireplace with the wall switch will NOT turn OFF the lighting (if installed). To turn OFF these functions,
use the remote control before turning OFF the fireplace with the wall switch receiver.

1. Repeatedly press MODE until the LIGHT icon displays (Figure 54).

2. Press the UP/DOWN ARROW key to toggle through light intensity levels to OFF.

Manual ON—Remote Control System Bypass (flame operation only)

When bypassing the remote control system, the fireplace will operate at the last setting (Hi or Low).

1. Slide the wall switch to the ON position (Figure 47). This will bypass the remote control, and the burner will light.

Manual OFF—Remote Control System Bypass (flame operation only)

When bypassing the remote control system, the fireplace will operate at the last setting (Hi or Low).

1. Slide the wall switch receiver to the OFF position (Figure 47). The burner will shut OFF.

Continuous Pilot Ignition / Intermittent Pilot Ignition

These fireplaces have continuous pilot ignition (CPI) / intermittent pilot ignition (IPI) functionality; controlled by the
remote control transmitter:

• Intermittent Mode—The pilot is extinguished when the fireplace is OFF.

• Continuous Mode—The pilot stays ON when the fireplace is OFF.

In periods of extreme cold, condensation may form on the glass door when the fireplace is OFF and the pilot is in
intermittent mode. Also, with the pilot in intermittent mode, the fireplace may cycle startup (i.e., the pilot and burner ignite,
but the burner extinguishes and reignites several times until the flue reaches the temperature for proper drafting).

• To save energy—switch to intermittent mode.

• For a standing pilot that will help prevent glass door condensation and cycle startup—switch to continuous mode.

Operation

900077-02, 03/2014

NOTE: Continuous mode is indicated by a pilot that comes ON and remains lit when the fireplace is OFF.

Installing the Firebox Liners

Install the side panels (from kit)

1. Align screw hole in top flange of side panel with upper hole in inside wall of fireplace.

2. Align screw holes in bottom flanges of side panel with holes in front ledge and rear ledge.

3. Secure each panel with three (3) screws provided with the kit.

Install back panel (from kit)

1. Insert bottom edge of back panel into fireplace. Lift it over the tabs on rear ledge of fireplace, then position it in

front of the previously installed reflector.

2. Align screw holes in top and bottom edges of back panel with holes in fireplace ceiling and rear ledge. Secure

using seven (7) screws provided with the kit.

WARNING

•Do NOT attempt to install firebox liner panels until the fireplace is installed, the gas-line has been
connected and tested for leaks, and initial burner operation has been confirmed.

•The glass media was designed to provide a safe, reliable, attractive flame. Any attempt to use media not specified for
this fireplace will result in incomplete combustion, sooting, poor flame quality, and will void the warranty.

•Glass media gets very HOT during fireplace use and will remain hot up to ONE HOUR after gas supply is turned
off. HANDLE MEDIA ONLY WHEN COOL. Turn OFF all electricity to the appliance before installing media.

• If glass media is not installed according to the installation instructions, flame impingement and improper combustion could
occur, resulting in soot and/or excessive production of carbon monoxide (CO), a TOXIC gas that is colorless and odorless.

•This appliance is NOT designed to burn wood. Any attempt to burn wood in this fireplace may be a safety
hazard, cause irrepairable damage the appliance, and void the warranty.

Installing the Glass Media

56

1. Install the glass media in the recessed area between the front and rear floors.
NOTE: 42” fireplaces require less than a full bag of glass media. 54” fireplaces require an entire bag of media.

2. Spread the glass media in a thin layer, evenly around the burner. Do NOT mound the media.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installing and removing the glass door

900077-02, 03/2014

Operation

WARNING

HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED.

•Remove glass door only when fireplace is OFF and COLD.

•Fireplace surfaces get EXTREMELY HOT!

•The glass on the front of the fireplace reaches EXTREMELY HIGH temperatures and can cause severe burns

if touched. Even after the gas is turned off, fireplace surfaces remain extremely hot.

WARNING

•Do not attempt to substitute the materials used on these doors, or replace cracked or broken glass.

•Handle this glass with extreme care! Glass is susceptible to damage—Do not scratch or handle roughly

while reinstalling the glass door frame.

•The glass door of this appliance must only be replaced as a complete unit as provided by the
manufacturer. Do not attempt to replace broken, cracked or chipped glass separately.

•Do not attempt to touch the front enclosure glass with your hands while the fireplace is in use.

WARNING

Do not operate appliance with the glass front removed, cracked, or broken.

AVERTISSEMENT

Ne pas utiliser l’appareil si le panneau frontal en verre n’est pas en place, est craqué, ou brisé.

WARNING

Any safety screen or guard removed for servicing the appliance must be replaced prior to operating
the appliance.

AVERTISSEMENT

Tout écran ou protecteur retiré pour permettre l’entretien de l’appareil doit être remis en place avant de
mettre l’appareil en marche.

Only doors certified with the fireplace shall be used.

Seules des portes certifiées pour cet appareil doivent être utilisées.

CAUTION

Do NOT abuse the glass door by striking it or slamming it shut.

57

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Installing the glass door

1. Visually inspect the gasket on the backside of the glass door.
NOTE: The gasket surface must be clean, free of irregularities, and seated firmly. Ensure it is properly located.

Make sure the bead is not rolled into the channel at the top of the door, but remains flat against the top of
the glass.

2. While holding the glass door by the sides, hook the top edge onto the fireplace, and swing the bottom of the
glass door gently in towards the fireplace ensuring that the gasket seats evenly as the door draws shut.

NOTE: If the lower flange of the door does NOT clear the lower front frame of the fireplace, ensure the door
UPPER mounting flange is completely and properly engaged on the fireplace frame BEFORE INSERTING THE
SCREWS. Proper door alignment and sealing are important to the operation and performance of the fireplace.
Ensure the door seal is contacting the frame and that no air leaks are present.

3. Align the screw holes below the glass door with the holes in the fireplace, and secure using the three (3)
provided screws (Figure 56).

4. Install the modesty panel (Page 43).

Removing the glass door

1. Remove the modesty panel (Page 43).

2. Remove the three (3) screws beneath the door (Figure 56).

3. Swing the bottom of the glass door away from the fireplace to a 45° angle.

4. Carefully grip the door at the top and bottom, and remove it from the fireplace. Place the door in a safe location

for later reinstallation.

Operation

900077-02, 03/2014

Figure 56: Glass Door Figure 57: Bezel

Glass Door

Lower

Rating plate and lighting instructions
are attached to door bracket.

Flange

Installing the Optional Bezel

1. Hook the bezel upper flange over the top edge of the glass door and swing the lower edge of the bezel toward the

door (Figure 56).

2. Gently push the lower edge of the bezel to attach the bezel lower flange to the lower edge of the glass door
(Figure 56).

Bezel
Upper
Flange

Glass
Door
Frame

Bezel

[CROSS-SECTION]

58

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

MAINTENANCE

Refer to the Maintenance Schedule on Page 61 for maintenance tasks, procedures, frequency, and a listing of by
whom the tasks should be performed. Always verify proper fireplace operation after servicing.

Turn OFF gas and electrical power to the fireplace and allow it to cool before cleaning or
servicing the appliance.

Wear gloves and safety glasses for protection while doing required maintenance.

Verify proper operation after servicing.

S’assurer que l’appareil fonctionne adéquatement une fois l’entretien terminé.

Always turn OFF gas before cleaning. Before relighting, refer to the lighting instructions in this manual.
Instructions are also found on a pull-out panel located in the control compartment.

Always keep the appliance area clear and free from combustible materials, gasoline and other flammable liquids.
NOTE: Prior to the first use of the fireplace and each burn season and periodically during the burn season, inspect the

horizontal termination for debris such as bird nests, leaves, paper or branches. Remove any items from the surfaces of the
termination prior to use. Also be aware of shrubs and plantings that may encroach on the termination.

Operation

900077-02, 03/2014

WARNING

CAUTION

Inspecting the venting system

The fireplace and venting system should be thoroughly inspected before initial use and at least annually by a qualified
service technician. Inspection should include ensuring that exhaust or intake passages are unobstructed and vent
components are properly assembled and not damaged.

The homeowner must contact a qualified service technician at once if any abnormal condition is observed.

If the venting system is disassembled for any reason, a qualified service technician should follow vent installation
instructions for proper reassembly and proper sealing of the venting system components. However, more frequent
periodic inspections and cleanings should be performed by the homeowner.

NOTE: Prior to the first use of the fireplace and each burn season and periodically during the burn season,
inspect the horizontal termination for debris such as bird nests, leaves, paper or branches. Remove any items
from the surfaces of the termination prior to use. Also be aware of shrubs and plantings that may encroach on
the termination.

Inspecting the burner flame appearance

Periodically inspect the burner and pilot flame. Ensure that the burner flame appearance resembles the flame shown
in Figure 40 on Page 40 and as described in Flame Appearance and Sooting on Page 39. Any necessary
burner flame adjustments must be performed by qualified personnel only (Page 39). Refer to Page 38 for more
information about the pilot flame appearance. Contact a qualified service technician at once if any abnormal condition
is observed.

Cleaning the glass door and firebox

Do not use abrasive cleaners on glass. Never clean the glass when it is hot.

CAUTION

Clean the glass and firebox during the Burn-in Period, and then only when necessary and when the fireplace is cool.
Wipe the surface with a clean, dampened, soft cloth. Follow with a dry, soft towel as desired. Take care not to scratch
the surface. Periodically, remove any build-up caused by the following:

• During start-up, it is normal for condensation to form on the inside of the glass (this condensation and fog will
usually disappear in a few minutes). The moisture can cause lint, dust and other airborne particles to cling to the
glass surface.

• Initial curing of the high temperature paint and burning off of lubricants used in the manufacturing process may
result in a film on the glass.

• A white coating may form on the glass as a result of impurities and minerals in the fuel.

Clean the glass two or three times each heating season, depending on the circumstances present. The following
cleaning solutions are approved for use:

• Non-ammonia based glass cleaner

• 50/50 mixture of white vinegar / water

• Gas fireplace/stove glass cleaner

59

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Inspecting the glass gasket

Visually inspect the gasket on the backside of the glass door. The gasket surface must be clean, free of irregularities,
and seated firmly.

Cleaning the control compartment

Keep the control compartment clean by vacuuming or brushing it out at least twice a year. More frequent cleaning
may be required due to excessive lint from carpeting, bedding material, etcetera. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept clean.

Touching up paint in small areas

Only use a factory-supplied paint kit for any touch-ups. Paint is available at your local IHP dealer. Never attempt
to paint a hot fireplace. Do not attempt to repaint the fireplace until the finish is completely cured (Burn-in Period on

Page 53). If the surface becomes stained or marred, it may be lightly sanded and touched up.

Glass Media

Removing and cleaning the glass media

Risk of personal injury. Allow the media to completely cool before handling.

Use a clean, dry, empty shop vac to remove glass media. Wash the media in warm, soapy water. Rinse and dry
before reinstalling.

Operation

900077-02, 03/2014

CAUTION

Reinstalling the glass media

Carefully follow the placement instructions (Page 56). This will ensure a proper flame and safe combustion.
NOTE: Improper positioning of media can create carbon build-up and will alter the performance of the fireplace.

Replacing the media

If the media needs replacement, use only the proper replacement media from manufacturer (Page 69).

Cleaning the burner

Carefully remove the media. Vacuum out any foreign matter on the burner (e.g., lint, carbon, etc.). Ensure the burner
ports are free of debris.

NOTE: Improper positioning of media can create carbon build-up and will alter the performance of the fireplace.

Inspecting the wiring

Refer to the wiring diagram (Figure 32).

When servicing controls, label all wires prior to disconnection. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.

Au moment de l’entretien des commandes, étiquetez tous les fils avant de les débrancher.
Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

CAUTION

ATTENTION

60

Inspect and clean all wire connections. Ensure that there is no wire melting or damage. The inspection
should include:

• Terminals at the valve

• ON/OFF switch

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Operation

MAINTENANCE SCHEDULE

See the tables below for detailed information about required maintenance, both regular and annual.

Table 28: Maintenance Performed Annually—Before the Burning Season

Maintenance Task Performed By Procedure

Inspecting/Cleaning Burner/valve, Panels,
and Controls

Checking Flame Patterns and
Flame Height

Inspecting/Cleaning Pilot and Burner Qualified Service Technician Remove any surface build-up on pilot and

Checking Vent System Qualified Service Technician Remove baffle, inspect the vent system at

Fireplace Inspection Qualified Service Technician Perform the appropriate fireplace inspection

Replacing Batteries Homeowner/Qualified Services Technician For electronic gas valve models:

Qualified Service Technician Inspect valve and ensure it is properly

operating. Check piping for leaks. Vacuum
the control compartment and burner area.

Qualified Service Technician Verify the flame pattern and height displayed

by the fireplace (Figure 40). Flames must not
touch the panels or fireplace ceiling.

burner assembly. Wipe the pilot nozzles,
igniter/flame rod and hood. Ensure the pilot
flame engulfs the flame sensor.

the top and at the base (within the firebox)
for signs of blockage or obstruction. Look
for any signs of dislocation of the vent
components.

procedure detailed in this manual.

Replace the batteries in the battery holder.

Table 29: Maintenance Performed Periodically—After the Burning Season

Maintenance Task Performed By Procedure

Cleaning Firebox Interior Homeowner Carefully remove glass media. Vacuum

out interior of the firebox. Clean firebox
walls. Replace removed items as detailed in
this manual.

Checking Flame Patterns and
Flame Height

Homeowner Verify the flame pattern and height displayed

by the fireplace (Figure 40).

Cleaning Glass Door Homeowner Clean as necessary following the directions

provided in this manual (Page 59). Do not
touch or attempt to clean the glass while hot.

61

Innovative Hearth Products

Rhapsody Linear Panel Kit:
ILLUSION CITYSCAPE

Rhapsody Linear Panel Kit:
ILLUSION METROSCAPE

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

REQUIRED ACCESSORY COMPONENTS
Firebox Liner Kits

Illusion style firebox liner kits are designed for use with a backlighting kit.

Table 30: Firebox Liner Kits

Illusion Cityscape Back Panel

Illusion Metroscape Back Panel

Left Side

Panel

Right Side

Panel

Catalog Model Description Used on

Illusion Cityscape

Black Porcelain

Illusion Metroscape

Black Porcelain

Nake Black Porcelain H8834 NPK-BLP-RAP42

Nake Black
Satin Paint

Illusion Cityscape

Black Porcelain

Illusion Metroscape

Black Porcelain

Nake Black Porcelain H8422 NPK-BLP-RAP54

Nake Black
Satin Paint

H8832 IPK-CBLKP-RAP42

H8833 IPK-MBLKP-RAP42

H8835 NPK-BLS-RAP42

H8420 IPK-CBLKP-RAP54

H8421 IPK-MBLKP-RAP54

H8423 NPK-BLS-RAP54

Operation

900077-02, 03/2014

42” models

54” models

Floor Kits

Glass Media Kits

Designer style floors require one glass media kit (5 lb bag). Reflection style floors do not use glass media.

Table 31: Floor Kits

Catalog Model Description Used on

H8836 RFK-BLP-RAP42

H8837 DFK-BLS-RAP42

H8425 RFK-BLP-RAP54

Designer Floor Kit

H8426 DFK-BLS-RAP54

Reflection—

Black Porcelain

Designer—

Black Porcelain

Designer—
Black Satin

Reflection—

Black Porcelain

Designer—

Black Porcelain

Designer—
Black Satin

42” modelsH8838 DFK-BLP-RAP42

54” modelsH8427 DFK-BLP-RAP54

One glass media kit (5 lb bag) is required with Designer style floors. Reflection style floors do not use glass media.

Table 32: Glass Media

Catalog Model Description

H8412 CRSHGL-RBLK Bag of Glass Media, Reflective Black
H8424 CRSHGL-RBLU Bag of Glass Media, Reflective Blue
H8413 CRSHGL-P Bag of Glass Media, Platinum
H8538 CRSHGL-GF Bag of Glass Media, Goldfinger
H8539 CRSHGL-C Bag of Glass Media, Copper

62

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

OPTIONAL ACCESSORY COMPONENTS
Surround/Bezel Kits

Table 33: Surround Kits

Table 34: Bezel Kits

Operation

900077-02, 03/2014

Catalog No. Model No. Description

H8825 CS-BLS-RAP42 Black Satin, 42” models
H8826 CS-CF-RAP42 Carbon Fiber, 42” models
H8827 CS-WG-RAP42 Wood Grain, 42” models
H8414 CS-BLS-RAP54 Black Satin, 54” models
H8415 CS-CF-RAP54 Carbon Fiber, 54” models
H8416 CS-WG-RAP54 Wood Grain, 54” models

Catalog No. Model No. Description

H8829 BZL-BRNI-RAP42 Brushed Nickel, 42” models
H8830 BZL-BLNI-RAP42 Black Nickel, 42” models
H8831 BZL-BLS-RAP42 Black Satin, 42” models
H8417 BZL-BRNI-RAP54 Brushed Nickel, 54” models
H8418 BZL-BLNI-RAP54 Black Nickel, 54” models
H8419 BZL-BLS-RAP54 Black Satin, 54” models

Backlighting Kits

Table 35: Backlighting Kits

SimFlame

Power Vent Kits

Table 36: Power Vent Kits

Touch-Up Paint Kit

Table 37: Touch-Up Paint Kit

Termination Guard Kits

Catalog No. Model No. Description

H8866 IPBLK-RAP42 Panel Backlighting Kit, 42” models
H8429 IPBLK-RAP54 Panel Backlighting Kit, 54” models

Catalog No. Model No. Description

H7387 LPVK-110 Power Vent Kit
H8574 PVK-RHAP Power Vent Adaptor Kit

Catalog No. Model No.

90L73 FTPK-B

Table 38: Termination Guard Kits

Termination

Shroud

(fits H1968)

Deluxe

Termination

Guard

(fits 94L10

and H1968)

Square

Termination

Guard

(fits 94L10

and H1968)

Catalog Model Description

H5820 4.5HTSK Termination Shroud

87L02 SV4.5HGS Termination Guard, Deluxe

17M52 SV4.5HGS-1 Termination Guard, Square

63

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

LIGHTING INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result,
causing property damage, personal injury, or loss of life.

A. This appliance is equipped with an ignition device which

automatically lights the pilot. Do not try to light the pilot by hand.

B. BEFORE OPERATING smell all around the appliance area for gas. Be

sure to smell next to the floor because some gas is heavier than air
and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. Read this manual including the section on Remote Control System.

3. Slide the switch on the receiver to OFF.

4. Press ON/OFF button on remote control transmitter to OFF.

5. Turn OFF all electric power to the appliance.

6. This appliance is equipped with an ignition device which automatically

lights the pilot. Do not try to light the pilot by hand.

7. Wait five (5) minutes to clear out any gas. Then smell for gas,

including near the floor. If you then smell gas, STOP! Follow B in
FOR YOUR SAFETY READ BEFORE LIGHTING. If you do not smell

gas, go to the next step.

8. Turn ON all electric power to the appliance.

9. Slide the switch on the receiver to REMOTE.

10. Press ON/OFF button on remote control transmitter to ON.

11. (If applicable) Set thermostat on remote control transmitter to

desired setting.

12. If the appliance will not operate, follow the instructions TO TURN

OFF GAS TO APPLIANCE and call your service technician or

gas supplier.

Operation

900077-02, 03/2014

C. If any portion of this appliance does not operate as the instructions

indicate, do not try to repair it, call a qualified service technician.
Do not use tools. Force or attempted repair may result in a fire
or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.

Electronic Gas

Control Valve

Wall Switch

Receiver

On

Remote

Off

PRG

Electronic Pilot

Assembly

Remote Control

Transmitter

ON/OFF Key

Thermostat
Key

1. Slide the switch on the receiver to OFF.

2. Press ON/OFF button on remote control transmitter to OFF.

64

TO TURN OFF GAS TO APPLIANCE

3. Turn OFF all electric power to the appliance if service is to

be performed.

4. Close the main line gas shutoff valve.

WARNING

Hot glass will cause burns.
Do not touch glass until cooled.
Never allow children to touch glass.

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

POUR PLUS DE SÉCURITÉ, LIRE AVANT DE METTRE EN MARCHE

AVERTISSEMENT : Quiconque ne respecte pas à la lettre les instructions dans la présente
notice risque de déclencher un incendie ou une explosion entraînant des dommages, des
blessures ou la mort.

A. Cet appareil est muni d’un dispositif d’allumage qui allume

automatiquement la veilleuse. Ne tentez pas d’allumer la
veilleuse manuellement.

B. AVANT DE FAIRE FONCTIONNER, reniflez tout autour de l’appareil

pour déceler une odeur de gaz. Reniflez près du plancher, car
certains gaz sont plus lourds que l’air et peuvent s’accumuler au
niveau du sol.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones

se trouvant dans le bâtiment.

INSTRUCTIONS DE MISE EN MARCHE

1. ARRÊTEZ ! Lisez les avertissements de sécurité à l’endos de

cette étiquette.

2. Lisez le manuel d’utilisation et d’entretien incluant la section

« Système de télécommande ».

3. Placez l’interrupteur du récepteur en position OFF.

4. Appuyez sur le bouton “ON/OFF” pour sélectionner OFF.

5. Coupez l’alimentation électrique de l’appareil.

6. Cet appareil est muni d’un dispositif d’allumage qui allume

automatiquement la veilleuse. Ne tentez pas d’allumer la veilleuse
manuellement.

7. Allendre cinq (5) minutes pour laisser échapper tout le gaz. Reniflez

tout autour de l’appareil, y compris près du plancher, pour déceler
une odeur de gaz. Si VOus sentez une odeur de gaz, ARRÊTE !
Passez à l’étape B des instructions de sécurité sur la portion
supérieure de cette étiquette. S’il n’y a pas d’odeur de gaz, passez à
l’étape suivante.

8. Mettez l’appareil sous tension.

9. Placez l’interrupteur du récepteur en position REMOTE.

10. Appuyez sur le bouton “ON/OFF” pour sélectionner ON.

11. (Si applicable) Ajustez le thermostat sur la télécommande à

l’ajustement désiré.

12. Si l’appareil ne se met pas en marche, suivez les instructions

intitulées « COMMENT COUPER L’ADMISSION DE GAZ DE
L’APPAREIL » et appelez un technicien qualifié ou le fournisseur

de gaz.

Operation

900077-02, 03/2014

• Appelez immédiatement votre fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur, appelez le service
des incendies.

C. Si un élément de cette unité ne fonctionne pas tel que décrit dans

les instructions, n’essayez pas de le réparer, appelez un technicien
qualifié. N’utilisez-pas d’outils. Le fait de forcer la manette ou de la
réparer peut déclencher une explosion ou un incendie.

D. N’utilisez pas cet appareil s’il a été plongé dans l’eau, même

partiellement. Faites inspecter l’appareil par un technicien
qualifié et remplacez toute partie du système de contrôle et toute
commande qui ont été plongés dans l’eau.

Valve électronique

Récepteur

On

Remote

Off

PRG

Module de

veilleuse

électronique

Télécommande

ON/OFF Bouton

THERMOSTAT
Bouton

COMMENT COUPER L’ADMISSION DE GAZ DE L’APPAREIL

1. Coupez l’alimentation électrique de l’appareil s’il faut procéder à

l’entretien.

2. Sélectionnez OFF sur le récepteur.

AVERTISSEMENT

UNE SURFACE VITRÉE CHAUDE PEUT CAUSER DES BRÛLURES.
LAISSER REFROIDIR LA SURFACE VITRÉE AVANT D’Y TOUCHER.
NE PERMETTEZ JAMAIS À UN ENFANT DE TOUCHER LA SURFACE VITRÉE.

3. Appuyez sur le bouton “ON/OFF” pour sélectionner OFF.

4. Fermer la valve de gaz principale.

65

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

Operation

TROUBLESHOOTING

Before troubleshooting, ensure that the fireplace main line gas shutoff valve and the wall switch are in the ON position. The following
troubleshoots the fireplace only to an elementary level. For detailed remote and ignition system troubleshooting, refer to the
instructions provided with the remote.

Detailed valve system troubleshooting should only be performed by a qualified service technician.

Table 45: Troubleshooting Electronic Systems

1. Nothing happens

when the fireplace is
turned ON/OFF.

2. The main burner

does not light and the
igniter is sparking.

3. The main Burner

comes on but then
goes out.

4. Soot is present on

the glass.

5. Poor flame and/or

blue flame.

*The unit may have multiple gas supply shutoffs (the main gas supply valve in the house, the gas supply valve in the fireplace control compartment, and/or an
additional shutoff valve near the fireplace).

a. Remote is not functioning properly. Check that the wall switch plate is set to REMOTE.

Operate the fireplace from the wall plate switch.
Replace remote and/or wall switch batteries.

b. Gas is not reaching the fireplace. Check the gas supply and gas shutoff valves. *
c. Unit is not receiving power. Check/replace backup batteries behind the wall plate.

Replace unit battery backup.
Check building circuit breakers to ensure power is ON

to the fireplace.

a. Gas is not reaching the fireplace. Check the gas supply and gas shutoff valves.
b. Loose wires to the valve. Check control compartment for any obviously loose

wiring (call a service technician, if necessary).

c. Loose wires to ignition module. Check control compartment for any obviously loose

wiring (call a service technician, if necessary).

d. Air in the gas line. Purge gas line of air (call a service technician if

required).

e. Unit is not receiving power. Replace unit battery backup.
a. Gas is not reaching the fireplace. Check the gas supply and gas shutoff valves.
b. Loose wires to the valve or ignition

module.

Check control compartment for any obviously loose
wiring (call a service technician, if necessary).

c. Pilot flame is not engulfing the sensor. Call a service technician.
d. Obstructed vent system. Call a service technician.
a. Initial fireplace operation. A white film may develop on the glass during the first

few fires as part of the burn-in process.
The first few times you use the fireplace, clean

the glass after each use (AFTER THE GLASS HAS
COMPLETELY COOLED); otherwise, the white film will
bake onto the glass and become difficult to remove.

See glass cleaning instructions in the MAINTENANCE
section of this manual.

b. Improper vent restrictor setting. Open the air shutter by adjusting the air shutter

adjustment lever according to the instructions in
this manual.

c. Improper air shutter opening. Open the air shutter by pushing in the rod.
d. Excessive flame impingement on panels

Properly position the media.

and fireplace ceiling.

a. Door seal is not properly aligned, causing

gaps and air leaks.

Remove and realign the door so the gasket seal is
fully engaged around the door frame.

66

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

900077-02, 03/2014

REPLACEMENT PARTS

Contact an IHP dealer to obtain any of these parts. Contact IHP for the phone number of your nearest IHP dealer.

Table 46: Installer Replacement Parts

Description

1 Control Compartment Access Door H8435 1 H8435 1
2 Control Compartment Access Door Gasket H8436 1 H8436 1
3 Orifice, #32, NG — 1 37L82 1
4 Orifice, #51, LP — 1 H8303 1
5 Orifice, #40, NG 69L96 1 — 1
6 Orifice, #54, LP 99K79 1 — 1
7 Burner Assembly H8794 1 H8432 1
8 Wall Switch Receiver Kit H8752 1 H8752 1

9 Ground Wire H7278 1 H7278 1
10 NG Gas Valve H7270 1 H7270 1
11 Propane Gas Valve H7271 1 H7271 1
12 NG Pilot Assembly H7268 1 H7268 1
13 Propane Pilot Assembly H7269 1 H7269 1
14 Control Module H8656 1 H8856 1
15 Glass Door Latch H8433 1 H8433 1
16 Flex Gas Connector Assembly 93L32 1 93L32 1
17 Orifice Connector H7847 1 H7847 1
18 ON/OFF Jumper Switch H8809 1 H8809 1
19 Assembly Harness, Wall to Proflame II, 12 ft H8813 1 H8813 1
20 Assembly Harness, Valve to Proflame II H8814 1 H8814 1
21 Assembly Harness, Power to Proflame II H8811 1 H8811 1
22 Assembly Harness, Blower Plug-In H8817 1 H8817 1
23 Assembly Harness, Light and Fan Connector, 5” H8815 1 H8815 1
24 Non-combustible Board Kit (3-pc. kit) H8788 1 H8447 1

Catalog Number Qty Catalog Number Qty

42” 54”

Operation

WARNING

Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.

AVERTISSEMENT

Risque de dommages ou de blessures si les pièces ne sont pas installées conformément à ces schémas et
ou si des pièces autres que celles spécifiquement approuvées avec cet appareil sont utilisées.

WARNING

Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards.

67

Innovative Hearth Products

25-1675 DB REV 004

25-1675 DB REV 004

Power

120V

Out

Fan

Aux

Out

Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

Figure 59: Replacement Parts

10

9

8

On

Remote

Off

PRG

12

13

11

14

Operation

900077-02, 03/2014

25-1675 DB REV 004

15

26

27

28

29

SimFlame

30

Table 47: Homeowner Replacement Parts

Description

Catalog Number Qty Catalog Number Qty

25 Remote Control Transmitter Kit H8753 1 H8753 1

26 Glass Door H8799 1 H8431 1

27 Top Baffle H8787 1 H8583 1

28 Blower Assembly FBK-100 80L84 1 80L84 1

29 SimFlame (light flicker)—module only H8439 1 H8439 1

30 Light Bulb 25W H8438 1 H8438 1

42” 54”

68

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

WARRANTY

THE WARRANTY

Innovative Hearth Products (“IHP”) Limited Lifetime Warranty warrants your Astria™ brand gas fireplace (“Product”) to be free from defects in materials and workmanship
at the time of manufacture. The Product body and firebox carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal
breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Lifetime Warranty
period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not
commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing
labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to
this Limited Lifetime Warranty as described herein.

COVERAGE COMMENCEMENT DATE

Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six
months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following
the date of product shipment from IHP, regardless of the installation or occupancy date.

EXCLUSIONS AND LIMITATIONS

This Limited Lifetime Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed
instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.

This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be
provided. The Product body and firebox carry the Limited Lifetime Warranty from the date of installation. Vent components, trim components and paint are excluded from
this Limited Lifetime Warranty. The following do not carry the Limited Lifetime Warranty but are warranted as follows:

Operation

900077-02, 03/2014

Innovative Hearth Products

Astria™ Brand Gas Fireplace

Limited Lifetime Warranty

Burner – Repair or replacement for five years from the date of installation
Gas components & electrical components – Repair or replacement for one year from the date of installation
Gaskets – Repair or replacement for one year from the date of installation
Gold & nickel plating – Replacement for two years from date of installation. Excludes tarnishing
Labor coverage – Prevailing IHP labor rates apply for the warranty period of the component
Light bulbs & batteries – Replacement for 90 days from the date of installation
Logs – Replacement for five years from the date of installation against thermal breakage only
Optional blowers & remote controls – Repair or replacement for one year from the date of installation
Optional glass doors & optional glass accessories – Repair or replacement for 90 days from the date of installation
Optional surrounds – Stone/Natural Materials: Replacement for one year against cracking or breakage due to thermal stress. Other Materials: Replacement for one

year. Excludes surface and hairline cracks and scratches or slight color changes that do not affect the operation or safety of the unit

Tempered Glass -Replacement for one year from the date of installation

Parts not otherwise listed carry a 90 day warranty from the date of installation.
Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the Product.

IHP will not be responsible for: (a) damages caused by normal wear and tear, accident, riot, fire, flood or acts of God; (b) damages caused by abuse, negligence, misuse,
or unauthorized alteration or repair of the Product affecting its stability or performance (The Product must be subjected to normal use. The Product is designed to
burn either natural or propane gas only. Burning conventional fuels such as wood, coal or any other solid fuel will cause damage to the Product, will produce excessive
temperatures and could result in a fire hazard.); (c) damages caused by failing to provide proper maintenance and service in accordance with the instructions provided
with the Product; (d) damages, repairs or inefficiency resulting from faulty installation or application of the Product.

IHP is not responsible for inadequate fireplace system draft caused by air conditioning and heating systems, mechanical ventilation systems, or general construction
conditions which may generate negative pressure in the room in which the appliance is installed. Additionally IHP assumes no responsibility for drafting conditions caused
by venting configurations, adjoining trees or buildings, adverse wind conditions or unusual environmental factors and conditions that affect the operation of the unit.

This Limited Lifetime Warranty covers only parts and labor as provided herein. In no case shall IHP be responsible for materials, components or construction, which are not
manufactured or supplied by IHP or for the labor necessary to install, repair or remove such materials, components or construction. Additional utility bills incurred due to any
malfunction or defect in equipment are not covered by this warranty. All replacement or repair components will be shipped F.O.B. from the nearest stocking IHP factory.

LIMITATION ON LIABILITY

It is expressly agreed and understood that IHP’s sole obligation and the purchaser’s exclusive remedy under this warranty, under any other warranty, expressed or implied,
or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified herein.

In no event shall IHP be liable for any incidental or consequential damages caused by defects in the Product, whether such damage occurs or is discovered before or
after repair or replacement, and whether such damage is caused by IHP’s negligence. IHP has not made and does not make any representation or warranty of fitness for a
particular use or purpose, and there is no implied condition of fitness for a particular use or purpose.

IHP makes no expressed warranties except as stated in this Limited Lifetime Warranty. The duration of any implied warranty is limited to the duration of this expressed warranty.
No one is authorized to change this Limited Lifetime Warranty or to create for IHP any other obligation or liability in connection with the Product. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The provisions of
this Limited Lifetime Warranty are in addition to and not a modification of or subtraction from any statutory warranties and other rights and remedies provided by law.

INVESTIGATION OF CLAIMS AGAINST WARRANTY

IHP reserves the right to investigate any and all claims against this Limited Lifetime Warranty and to decide, in its sole discretion, upon the method of settlement.
To receive the benefits and advantages described in this Limited Lifetime Warranty, the appliance must be installed and repaired by a licensed contractor approved by IHP.
Contact IHP at the address provided herein to obtain a listing of approved dealers/distributors. IHP shall in no event be responsible for any warranty work done by a

contractor that is not approved without first obtaining IHP’s prior written consent.

HOW TO REGISTER A CLAIM AGAINST WARRANTY

In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/
distributor, then you must notify IHP in writing. IHP must be notified of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the
IHP Warranty Department at 1508 Elm Hill Pike, Suite 108, Nashville, TN 37210 or visit our website at WWW.ASTRIA.US.COM.

Printed in U.S.A. © 2013 Innovative Hearth Products LLC

P/N 900199-00, Rev. NC 12/2013

Innovative Hearth Products

1508ElmHillPike,Suite108•Nashville,TN37210

69

Innovative Hearth Products
Astria™ Rhapsody Linear Direct-Vent Gas Fireplaces

www.astria.US.com

Record the following important information about your fireplace:

Installation and Operation Instructions

900077-02, 03/2014

Fireplace model number

Fireplace serial number

Date fireplace was Installed

Type of gas fireplace uses

Dealer name

P900077-02

Innovative Hearth Products reserves the right to make changes at any time, without notice, in
design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.

Printed in U.S.A. © 2013 Innovative Hearth Products LLC
P/N 900077-02 Rev. NC 03/2014 1508ElmHillPike,Suite108•Nashville,TN37210
