Installation and Operation Instructions

USC

P900005-00

Envy™ Direct-Vent Gas Fireplaces

P/N 900005-00 Rev. B 10/2015

Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 900005-01

PFS

Report No. F14-105

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

Models

Envy35TEN EnvyCD35TEN

Envy40TEN EnvyCD40TEN

Envy45TEN EnvyCD45TEN

Installateur : Laissez cette notice avec l’appareil. Consommateur : Conservez cette notice pour consultation ultérieure.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁed kit is used.

Cet appareil peut installé dans une maison préfabriquée (mobile) déjà installée à demeure, si les réglements locaux le permettent. Ce appareil doit être utilisé uniquement avec le type de gaz indiqué sure la plaque signalétique. Cet appareil ne peut être converti à d’autres gaz, sauf si une trousse de conversion est utilsée.

WARNING:

FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage.

- Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Leave the building immediately.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

- Installation and service must be performed by a qualiﬁed installer, service agency or the gas supplier.

AVERTISSEMENT: RISQUED’INDENDIE OU D’EXPLOSION

Le non-respect Des avertissements de sécurité pourrait d’entraîner des blessures graves, la mort ou des dommages matériels.

- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs ou liquides inﬂammables dans le voisinage de cet appareil ou de tout autre appareil.

- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucan interrupteur. Ne pas vous servir des téléphones se trouvant dans le bâtiment où vous trouvez.

• Sortez immédiatement de bâtiment.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des incindies.

- L’installation et l’entretien doivent être assurés par un installateur ou un service d’entretien qualiﬁé ou par le fournisseur de gaz.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

SAFETY AND YOUR FIREPLACE

See attached color ﬂyer for proper color representation

General Information

900005-00, 10/2015

DANGER

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

Voir ci-joint tract pour une bonne représentation de la couleur

DANGER

L’écran pare-étincelles fourni avec ce foyer réduit le risque de brûlure en cas de contact accidentel avec la vitre chaude et doit être installé pour la protection Des enfants et Des personnes à risques.

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

VITRE CHAUDE

RISQUE DE BRÛLURES.

NE TOUCHEZ PAS UNE VITRE

NON REFROIDIE.

NE LAISSEZ JAMAIS UN ENFANT

DE TOUCHER LA VITRE.

Vea el volante adjunto para la representación de color adecuado

PELIGRO

CAUSARÁ QUEMADURAS.

TOCAR EL VIDRIO CALIENTE.

LOS NIÑOS DEBEN NUNCA

Una barrera diseñada para reducir el riesgo de quemaduras desde la mirilla (vidrio) caliente es proveida con este aparato y deberá instalarse para la protección de los niños y otros individuos en riesgo.

EL VIDRIO CALIENTE

USTED DEBE NUNCA

TOCAR EL VIDRIO.

Innovative Hearth Products Astria™ Signature Series Envy Direct-Vent Gas Fireplaces

General Information

900005-00, 10/2015

Safety and Your

Fireplace

All parts of your

IHP ﬁreplace get

EXTREMELY HOT!

 To prevent severe burns

and injuries, do Not remove the barrier on the appliance which prevents direct contact with the glass.

 Follow the safety instructions below

and be sure everyone in your household understands this burn hazard:

• The surfaces on your ﬁreplace get EXTREMELY HOT!

• The glass on the front of the ﬁreplace reaches EXTREMELY HIGH temperatures and can cause severe burns if touched.

• Keep children away from an operating ﬁreplace. Closely supervise children in any room where a ﬁreplace is operating to prevent contact with glass.

• Keep clothing, furniture, gasoline, and other ﬂammable liquids away from the ﬁreplace.

• Even after the gas is turned off, ﬁreplace surfaces remain extremely hot.

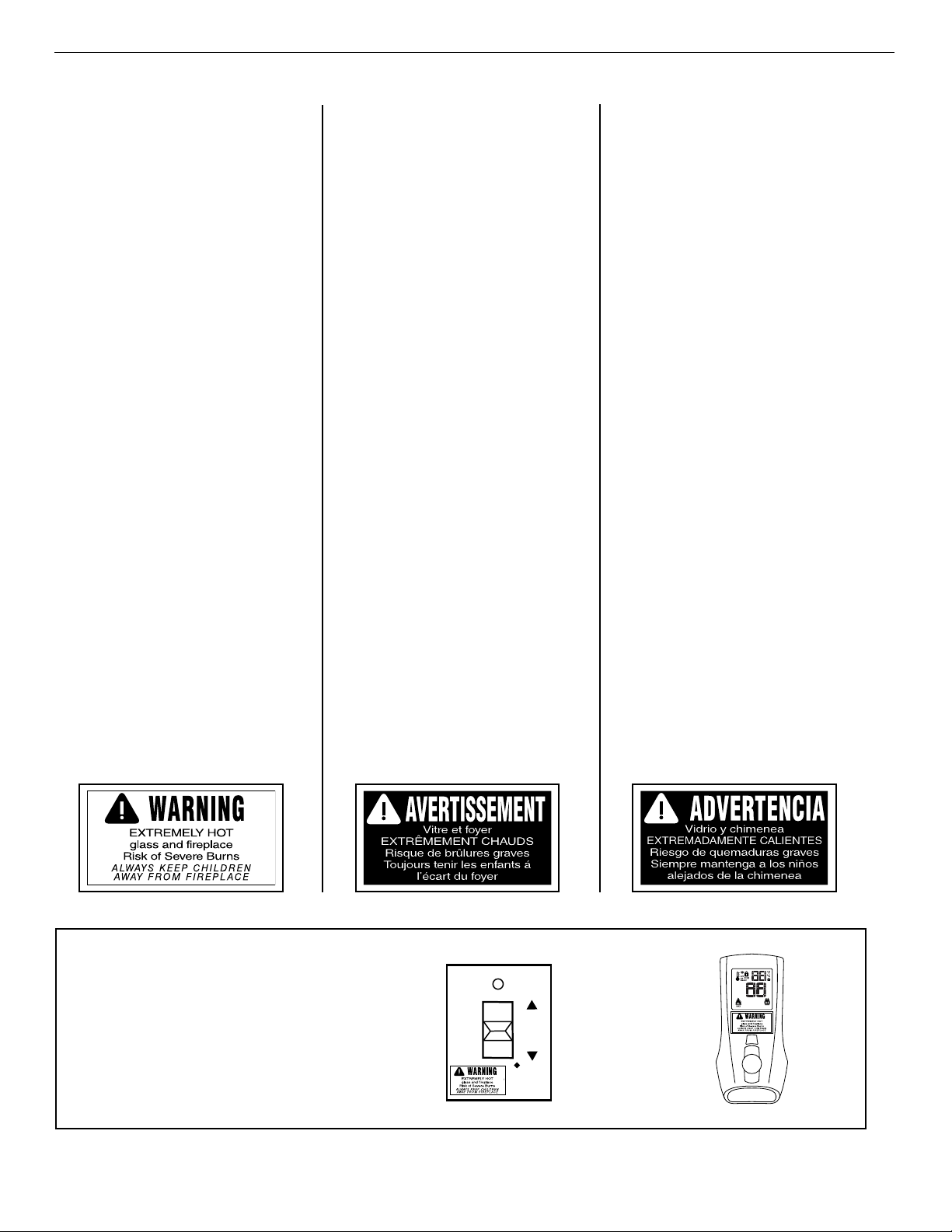

 Be sure to attach the enclosed Safety-

in-Operation Warnings where you

turn on your ﬁreplace, to help remind everyone of the dangers associated with high temperatures

 Read Important Safety Information

(Page 5)

(Page 42)

La sécurité et

votre foyer

Toutes les parties de votre

foyer IHP deviennent

EXTRÊMEMENT CHAUDES !

 Aﬁn d’éviter les brûlures

graves ou les blessures, ne pas retirer l’écran de protection de la foyer qui empêche tout contact direct avec la vitre.

 Suivez les instructions de sécurité

ci-dessous et veillez à ce que tous les membres de votre famille soient conscients du danger de brûlure encouru :

• Les surfaces de votre foyer deviennent EXTRÊMEMENT CHAUDES !

• La vitre située à l'avant du foyer atteint des températures EXTRÊMEMENT ÉLEVÉES et peut causer de graves blessures en cas de contact.

• Tenez les enfants à l'écart du foyer lorsqu'il fonctionne. Surveillez attentivement les enfants dans les pièces où un foyer est utilisé aﬁn d'éviter qu'ils ne soient en contact avec la vitre.

• Tenez tous les vêtements, les meubles, l'essence et tout autre liquide inﬂammable à l'écart du foyer.

• Même après fermeture du gaz, les surfaces du foyer restent extrêmement chaudes.

 Veillez à coller les Étiquettes de mise

en garde relatives à la sécurité d'utilisation à l'endroit où vous

utilisez le foyer, pour rappeler à tous les utilisateurs les dangers liés aux

températures élevées



Lisez L’information de sûreté importante (Page 5)

(Page 42)

Seguridad y su

chimenea

¡Todas las partes de la

chimenea IHP se ponen

MUY CALIENTES!

Para evitar quemaduras y lesiones

graves, no quite el protector de malla o guardia de seguridad que evita el contacto directo con el vidrio.

 Siga las instrucciones de seguridad

a continuación y asegúrese de que todos en su hogar sepan acerca de este peligro de quemadura:

• ¡Las superﬁcies de la chimenea se ponen MUY CALIENTES!

• El vidrio delante de la chimenea alcanza temperaturas EXTREMADAMENTE ALTAS y puede causar quemaduras graves si se toca.

• Mantenga a los niños alejados de la chimenea en funcionamiento. Supervise en forma cercana a los niños en cualquier cuarto donde haya una chimenea funcionando para impedir el contacto con el vidrio.

• Mantenga la ropa, mobiliario, gasolina y otros líquidos inﬂamables alejados de la chimenea.

• Aún después de haber apagado el gas, las superﬁcies de la chimenea permanecen extremadamente calientes.

 Asegúrese de colocar las Etiquetas de

advertencia de seguridad de operación

en el lugar donde enciende la chimenea, para que todos recuerden los peligros asociados con las altas temperaturas (Página 44)



Lea Información importante de

seguridad (Páginax 5).

[FRENCH][ENGLISH]

[SPANISH]

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Traditional Fireplace Contemporary Fireplace

THANK YOU FOR YOUR PURCHASE. WE APPRECIATE YOUR BUSINESS!

Please carefully read and follow all instructions in this manual. Pay special attention to all warnings and safety information. Following these safety, care, and operation instructions will help ensure many years of dependable and enjoyable service from your ﬁreplace.

General Information

900005-00, 10/2015

General Information

Safety and Your Fireplace ..................................................................2

Important Safety Information ............................................................5

Fireplace Installation, Operation, and Maintenance Notices ............... 6

Packaging .......................................................................................... 8

Introduction ....................................................................................... 8

Installation

Requirements for the Commonwealth of Massachusetts ................10

Cold Climate Insulation .................................................................... 10

Manufactured Home Requirements ................................................. 11

Location ...........................................................................................11

Vent Termination Clearances ...........................................................12

Minimum Clearances to Combustibles ............................................14

Wall Finishes / Surrounds / Mantels ................................................15

Installation Preparation ....................................................................15

Installation Sequence ......................................................................16

Construct the Fireplace Framing ...................................................... 16

Prepare the Fireplace Top Standoffs ................................................ 18

Route the Gas Supply Line to the Fireplace .....................................18

Rough in the Electrical Supply, if Needed ........................................19

Place the Fireplace in the Framing and Secure ................................19

Select a Horizontal or Vertical Vent System .....................................21

Install the Vent System ....................................................................23

Complete the Field Wiring ................................................................33

Install and initializing the Remote Control System ...........................34

Connect the Gas Line ....................................................................... 36

Please read and understand these instructions before installing, operating, or servicing this product.

Verify Proper Fireplace Operation ....................................................37

Install the Firebox Liners .................................................................37

Contemporary Fireplaces: Install the Glass Media ........................... 37

Traditional Fireplaces: Install the Logs .............................................37

Install the Glass Door ......................................................................37

Adjust the Air Shutter to Ensure Proper Flame Appearance ............. 37

Install the Vent Restrictor (if necessary) ..........................................40

Install the Finishing Materials .......................................................... 41

Attach the Safety-in-Operation Warning Labels ...............................42

Installation Accessories ................................................................... 44

Gas Conversion Kits ........................................................................45

Operation

Operation ......................................................................................... 48

Remote Control System ...................................................................51

Firebox Liners .................................................................................. 53

Glass Media ..................................................................................... 53

Installing the Logs ........................................................................... 54

Installing and Removing the Glass Door ..........................................56

Maintenance .................................................................................... 58

Accessory Components ................................................................... 62

Lighting Instructions .......................................................................63

Troubleshooting ...............................................................................65

Replacement Parts ..........................................................................66

Barrier Identiﬁcation and Replacement ............................................ 68

Warranty ..........................................................................................69

We recommend that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the National Fireplace Institute® (NFI) as NFI Gas Specialists.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

IMPORTANT SAFETY INFORMATION

General Information

900005-00, 10/2015

Important Safety Information

1. WARNING: Do not operate appliance with the glass front removed, cracked or broken.

2. Do not use this appliance if any part has been under water. Immediately call a qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

3. Due to high temperatures, the appliance should be located out of trafﬁc and away from furniture and draperies.

4. Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition.

5. Clothing or other ﬂammable material should not be placed on or near the appliance.

6. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are atrisk individuals in the house. To restrict access to a ﬁreplace or stove, install an adjustable safety gate to keep toddlers, young children, and other at-risk individuals out of the room and away from hot surfaces.

7. Any safety screen, guard or barrier removed for servicing an appliance must be replaced prior to operating the appliance.

8. Installation and repair should be done by a qualiﬁed service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative that control compartments, burners, and circulating air passageways of the appliance be kept clean. See maintenance instructions on Page 58.

L’information de sûreté importante

1. AVERTISSEMENT. Ne pas utiliser l’appareil si le panneau frontal en verre n’est pas en place, est craqué ou brisé.

2. Ne pas se servir de cet appareil s’il a été plongé dans l’eau, même partiellement. Faire inspecter l'appareil par un technicien qualiﬁé et remplacer toute partie du systéme de contrôle et toute commande qui ont été plongées dans l'eau.

3. En raison des températures élevées, l’appareil devrait être installé dans un endroit où il y a peu de circulation et loin du mobilier et des tentures.

4. Les enfants et les adultes devraient être informés des dangers que posent les températures de surface élevées et se tenir à distance aﬁn d’éviter des brûlures ou que leurs vêtements ne s’enﬂamment.

5. On ne devrait pas placer de vêtements ni d’autres matières inﬂammables sur l’appareil ni à proximité.

6. Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trouvent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de sécurité ; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque d’avoir accès à la pièce et aux surfaces chaudes.

7. Tout écran ou protecteur retiré pour permettre l’entretien de l’appareil doit être remis en place avant de mettre l’appareil en marche.

8. L’installation et la réparation devrait être conﬁées à un technicien qualiﬁé. L’appareil devrait faire l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite. Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité importante de poussière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les conduits de circulation d’air de l’appareil soient tenus propres. Voyez les instructions d’entretien à la Page 58.

Información importante de seguridad

1. ADVERTENCIA: No opere el artefacto con el

2. No use este artefacto si alguna de sus partes

3. Debido a las altas temperaturas, el artefacto

4. Se debe alertar a los niños y adultos sobre

5. No debe colocarse ropa u otros materiales

6. Se debe supervisar de cerca a los niños cuando

7. Cualquier malla o resguardo de seguridad

8. Una persona de servicio competente debe

frente de vidrio quitado, agrietado o roto.

ha estado bajo agua. Llame de inmediato a un técnico de servicio caliﬁcado para que inspeccione el artefacto y reemplace cualquier parte del sistema de control y cualquier control de gas que haya estado bajo agua.

debe situarse fuera de las áreas de tráﬁco y lejos del mobiliario y cortinas.

los peligros de las altas temperaturas en la superﬁcie y que se mantengan alejados para evitar quemaduras o ignición de la ropa.

inﬂamables sobre y cerca del artefacto.

estén en el mismo cuarto que el artefacto. Los niños pequeños, los jóvenes y otras personas pueden ser susceptibles a quemaduras por contacto accidental. Se recomienda instalar una barrera física si hay personas en riesgo en la casa. Para restringir el acceso a una chimenea o estufa, instale una puerta de seguridad ajustable para mantener a los niños pequeños, jóvenes y otras personas en riesgo fuera del cuarto y lejos de las superﬁcies calientes.

quitado para dar servicio a un artefacto, debe reinstalarse antes de operar el artefacto.

realizar la instalación y reparación. Una persona de servicio profesional debe inspeccionar el artefacto antes de usar al menos una vez por año. Se puede requerir limpieza más frecuente debido a la pelusa excesiva del alfombrado, del material de cobijas, etc. Es imprescindible mantener limpios los compartimientos de control, los quemadores y los pasajes de circulación del aire del artefacto. Ver las instrucciones de mantenimiento en la página 58.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

APPLIANCE INSTALLATION, SERVICE, AND MAINTENANCE NOTICES

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult a qualiﬁed installer, service agency or the gas supplier.

AVERTISSEMENT

Une installation, un réglage,une modiﬁcation, une réparation ou un entretien mal effectué peut causer des dommages matériels ou des blessures. Voir la notice de l’utilisateur qui accompagne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz.

WARNING

Failure to comply with these installation instructions will result in an improperly installed and operating appliance, voiding its warranty. Any change to this appliance and/or its operating controls is dangerous.

General Information

900005-00, 10/2015

Only trim kit(s) supplied by the manufacturer shall be used in the installation of this appliance.

Seules des portes certiﬁées pour cet appareil doivent être utilisées.

These appliances must not be connected to a chimney or ﬂue serving a separate solid fuel burning appliance.

Any change to this appliance and/or its operating controls is dangerous. Improper installation or use of this appliance can cause serious injury or death from ﬁre, burns, explosion or carbon monoxide poisoning.

CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are similar to the ﬂu with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Turn off the gas supply to the appliance and have it serviced by a qualiﬁed professional, as it may not be operating correctly. Some people are more affected by carbon monoxide than others, including pregnant women, people with heart or lung disease or anemia, those under the inﬂuence of alcohol, and those at high altitudes.

Turn off gas and electrical power to the appliance and allow it to cool before cleaning or servicing the appliance.

If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.

Si l’écran est endommagé, il doit être remplacé par celui fournit par le fabricant de cet appareil.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Installation

900005-00, 10/2015

For use with barrier(s) Part No(s). J7407 (35” Models), J7408 (40” Models), and J7409 (45” Models). Follow installation instructions.

Reinstall any barrier removed before operating the appliance. The barrier is designed to reduce the risk of burns from hot glass. Do not operate the appliance without the barrier installed.

APPLIANCE OPERATION NOTICES

These ﬁreplaces are vented gas appliances. Do not burn wood or other material in these appliances.

These appliances are designed to operate on natural gas or propane gas only. The use of other fuels or combinations of fuels will degrade the performance of this system and may be dangerous.

Provide adequate clearances around air openings and adequate accessibility clearance for service and proper operation. Never obstruct the front openings of the appliance.

These appliances are designed to operate on natural or propane gas only. The use of other fuels or combination of fuels will degrade the performance of this system and may be dangerous.

These appliances are designed as supplemental heaters. Therefore, it is advisable to have an alternate primary heat source when installed in a dwelling.

WARRANTY INFORMATION

Your gas appliance is covered by a limited lifetime warranty. You will ﬁnd a copy of the warranty accompanying this manual. Please read the warranty to be familiar with its coverage.

Retain this manual. File it with your other documents for future reference.

Failure to comply with the installation and operating instructions provided will result in an improperly installed and operating appliance, voiding its warranty.

Do not attempt to alter or modify the construction of the appliance or its components. Any modiﬁcation or alteration may void the warranty, certiﬁcation, and listings of this unit.

IMPORTANT SAFETY AND WARNING INFORMATION

CAUTION

Hot while in operation. Do not touch. Severe Burns may result. Keep children, clothing furniture, gasoline and other liquids having ﬂammable vapors away.

ATTENTION

L’appareil est chaud lorsqu’il fonctionne. Ne pas toucher l’appareil. Risque de brûlures graves. Surveiller les enfants. Garder les vêtements, les meubles, l’essence ou autres liquides produisant des vapeur inﬂammables loin de l’appareil.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

INSTALLATION

PACKAGING

All models include

The assembled vented gas ﬁreplace heater is packaged with:

• Literature Kit (Installation and Operation Instructions (this manual), Safety Flyer, Glass and Barrier Flyer and Safety-in-Operation Warning Labels

• Three (3) Non-combustible ﬁber boards

• Three (3) AAA batteries

• Handheld remote control (transmitter)

• Remote control receiver (wall switch) assembly with four (4) AA batteries

• (1) U-Shaped Vent Restrictor

Traditional models also include

• Floor kit

Required accessories (Traditional models)

• Porcelain Liner kit or Ceramic Fiber liner kit

• Log Set

Required accessories (Contemporary models)

• Porcelain liner kit

• Glass Media

Installation

900005-00, 10/2015

Optional accessories

INTRODUCTION

NOTE: Ensure all required accessory kits are available before installing the ﬁreplace.

• Volcanic stone (Traditional models - 1.5 lbs. bag)

• Adniron kit (Traditional models)

• Facade Kit

• Gas conversion kit

Envy ﬁreplaces are designed to operate on natural or propane gas. An electronic intermittent pilot ignition system provides safe, efﬁcient operation. External electrical power is required to operate these units. In the event of a power outage, four (4) AA batteries provide backup power for appliance operation (excluding blower). Envy ﬁreplaces come standard with a remotely-modulated gas valve. Flame appearance and heat output cannot be controlled at the gas valve. These vented gas ﬁreplace heaters are sealed combustion, air-circulating gas ﬁreplaces designed for residential applications.

NOTE: Installation and repair should be done by a qualiﬁed service person. The ﬁreplace should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etcetera. It is imperative that control compartments, burners and circulating air passageways of the ﬁreplace be kept clean.

Remarqué : L’installation et la réparation devrait être conﬁées à un technicien qualiﬁé. L’appareil devrait faire l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite. Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité importante de pous-sière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les conduits de circulation d’air de l’appareil soient tenus propres.

NOTE: Diagrams and illustrations are not necessarily shown to scale.

Approved Vent Components

These ﬁreplaces are designed, tested and listed for operation and installation with the following vent components only:

• Secure Vent® Direct-Vent System Components,

• Secure Flex® Flexible Vent Components, and

• Z-FLEX® Model GA Venting Systems listed to UL1777 and ULCS635 manufactured by Flexmaster Canada Limited.

Use only the correct size venting (4 1/2” inner and 7 1/2” outer). These approved vent system components are labeled for identiﬁcation. DO NOT use any other manufacturer’s vent

components with these ﬁreplaces.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Codes and Standards

These ﬁreplaces comply with National Safety Standards and are tested and listed by PFS Corporation (Report No.F14-105) to ANSI Z21.88 (in Canada, CSA-2.33), and CAN/CGA-2.17-M91 in both USA and Canada, as vented gas ﬁreplace heaters.

These ﬁreplaces are listed for installation in bedrooms and manufactured homes. The installation must conform to local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI

Z223.1/NFPA 54—latest edition (In Canada, the current CAN/CGA-B149.1 installation code). The ﬁreplace, when installed, must be electrically grounded and wired in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70—latest edition, or the Canadian Electrical Code, CSA C22.1—latest edition.

BTU Input

Table 1 - Input Rate, Gas Valves

900005-00, 10/2015

Models

35” Traditional 35,500 high, 15,500 low 35,000 high, 18,000 low

35” Contemporary 31,000 high, 16,000 low 28,000 high, 15,000 low

40” Traditional 41,500 high, 15,500 low 37,000 high, 14,500 low

40” Contemporary 40,000 high, 21,000 low 32,000 high, 18,500 low

45” Traditional 47,000 high, 18,000 low 45,000 high, 18,000 low

45” Contemporary 47,000 high, 24,000 low 40,000 high, 22,000 low

Natural Gas Propane Gas

Input Rate (BTU/HR)

Installation

Gas Pressure

Table 2 - Inlet Gas Supply Pressure

Fuel Minimum Maximum

Natural Gas 4.5” WC (1.12 kPa) 10.5” WC (2.61 kPa)

Propane 11.0” WC (2.74 kPa) 13.0” WC (3.23 kPa)

Table 3 - Manifold Gas Supply Pressure

Fuel Low High

Natural Gas 1.6” WC (0.40 kPa) 3.5” WC (0.87 kPa)

Propane 6.3” WC (1.57 kPa) 10.0” WC (2.49 kPa)

Test gauge connections are provided on the front of the millivolt and electronic gas control valve (identiﬁed IN for the inlet and OUT for the manifold side). The control valves have a 3/8” (10 mm) NPT thread inlet and outlet side of the valve (Figure 1).

Figure 1 - Electronic Gas Valve - SIT ProFlame II

Green Wire (from DFC wire harness)

Inlet (IN) Test Port

Manifold (OUT) Test Port

Orange Wire (from DFC wire harness)

Hi/Lo Flame Control Knob

Main Gas Inlet 3/8” NPT

Yellow Ground Wire (from DFC wire harness)

Propane tanks are at pressures that will cause damage to valve components. Verify that the tanks have step down regulators to reduce the pressure to safe levels.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).

The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

Oriﬁce Sizes—Sea Level to High Altitude

These ﬁreplaces are tested and approved for installation at elevations of 0–4500 ft (0–1372 m) above sea level using the standard burner oriﬁce sizes (Table 4). For elevations above 4500 ft, contact your gas supplier or qualiﬁed service technician.

Table 4 - Burner Oriﬁce Sizes, Elevation 0–4500 ft ( 0–1372 m)

Model Natural Gas drill size Propane drill size

35” Traditional Front: #49 (0.073”)*, Back: #43 (0.089”)* Front: #57 (0.043”)*, Back: #54 (0.055”)*

35” Contemporary Front: #42 (0.0935”)*, Back: #55 (0.052”)* Front: #55 (0.052”)*, Back: #60 (0.040”)*

40” Traditional Front: #41 (0.096”)*, Back: #43 (0.089”)* Front: #55 (0.052”)*, Back: #55 (0.052”)*

40” Contemporary Front: #35 (0.11”)*, Back: #52 (0.0635”)* Front: #53 (0.0595”)*, Back: #65 (0.035”)*

45” Traditional Front: #40 (0.098”)*, Back: #40 (0.098”)* Front: #54 (0.055”)*, Back: #54 (0.055”)*

45” Contemporary Front: #32 (0.116”)*, Back: #49 (0.073”)* Front: #51 (0.067”)*, Back: #62 (0.038”)*

* Standard size installed at factory

Deration

At elevations above 4500 ft, the amount of BTU fuel value delivered must be reduced by either:

• Using gas that has been derated by the gas company.

• Changing the burner oriﬁce to a smaller size as regulated by the local authorities having jurisdiction and by the (USA) National Fuel Gas Code NFPA 54/ANSI Z223.1—latest edition or, in Canada, the CAN/CGA-B149.1 codes— latest edition.

Installation

900005-00, 10/2015

NOTE: Flame breadth, height and width will diminish 4% for every 1,000 ft of altitude.

IN CANADA—CAN/CGA-2.17-M91 (HIGH ALTITUDE): THE CONVERSION SHALL BE CARRIED OUT BY A MANUFACTURER’S AUTHORIZED REPRESENTATIVE,

IN ACCORDANCE WITH THE REQUIREMENTS OF THE MANUFACTURER, PROVINCIAL OR TERRITORIAL AUTHORITIES HAVING JURISDICTION AND IN ACCORDANCE WITH THE REQUIREMENTS OF THE CAN/ CGA-B149.1 OR CAN/CGA-B149.2 INSTALLATION CODES.

COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS

These appliances are approved for installation in the US state of Massachusetts if the following additional requirements are met:

• Install this appliance in accordance with Massachusetts Rules and Regulations 248 C.M.R. Sections 4.00 through 8.00.

• Installation and repair must be done by a plumber or gas ﬁtter licensed in the Commonwealth of Massachusetts.

• The ﬂexible gas line connector used shall not exceed 36 inches (92 centimeters) in length.

• The individual manual shut-off must be a T-handle type valve.

Massachusetts Horizontal Vent Requirements

In the Commonwealth of Massachusetts, horizontal terminations installed less than seven (7) feet above the ﬁnished grade must comply with the following additional requirements:

• A hard wired carbon monoxide detector with an alarm and battery back-up must be installed on the ﬂoor level where the gas ﬁreplace is installed. The carbon monoxide detector must comply with NFPA 720, be ANSI/UL 2034 listed and be ISA certiﬁed.

• A metal or plastic identiﬁcation plate must be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade and be directly in line with the horizontal termination. The sign must read, in print size no less than one-half (1/2) inch in size, GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.

COLD CLIMATE INSULATION

For cold climate installations, seal all cracks around your ﬁreplace with noncombustible material and wherever cold air could enter the room. It is especially important to insulate outside chase cavity between studs and under ﬂoor on which ﬁreplace rests, if ﬂoor is above ground level. Gas line holes and other openings should be caulked or stuffed with unfaced ﬁberglass insulation.

NOTE: Do not use loose, or blown-in insulation in the cavity surrounding the ﬁreplace. If the ﬁreplace is being installed on a cement slab in cold climates, a sheet of plywood or other raised platform can

be placed underneath to prevent conduction of cold transferring to the ﬁreplace and into the room. It also helps to sheetrock inside surfaces and tape for maximum air tightness and caulk ﬁrestops.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

MANUFACTURED HOME REQUIREMENTS

This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

Cet appareil peut être installé dans une maison préfabriquée (mobile) déjà installée à demeure si les règlements locaux le permettent.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁed kit is used.

Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil ne peut être converti à d’autres gaz, sauf si une trousse de conversion est utilisée.

Ensure that the cross members are not cut or weakened during installation. The structural integrity of the manufactured home ﬂoor, wall, and ceiling / roof must be maintained.

This appliance must be grounded to the chassis of the manufactured home in accordance with local codes or in the absence of local codes, with the National Electrical Code ANSI / NFPA 70—latest edition or the Canadian Electrical Code CSA C22.1—latest edition.

Installation

900005-00, 10/2015

CAUTION

LOCATION

In selecting the location, the aesthetic and functional use of the ﬁreplace are primary concerns. However, vent system routing to the exterior and access to the fuel supply are also important.

Due to high temperatures, the ﬁreplace should be located out of trafﬁc and away from furniture and draperies.

En raison des températures élevées, l’appareil devrait être installé dans un endroit où il y a peu de circulation et loin du mobilier et des tentures.

The location should also be free of electrical, plumbing or other heating/air conditioning ducting. These direct-vent ﬁreplaces are uniquely suited for installations requiring a utility shelf positioned directly above the

ﬁreplace. Utility shelves like these are commonly used for locating television sets and decorative plants.

Be aware that this is a heat producing ﬁreplace. Objects placed above the unit are exposed to elevated temperatures. Do not insulate the space between the ﬁreplace and the area above it.

The minimum height from the base of the ﬁreplace to the underside of combustible materials used to construct a utility shelf in this fashion is shown in Table 8.

The appliance should be mounted on a fully supported base extending the full width and depth of the unit. The appliance may be located on or near conventional construction materials. However, if installed on combustible materials, such as carpeting, vinyl tile, etc., a metal or wood barrier covering the entire bottom surface must be used.

Figure 2 - Typical Locations and Venting

NOITACILPPA

NEVP

APPLICATION

TOP VENT

NOITACILPPA

TNEVPOT

N O

TNEVPOT

T A C

I L P P A

HORIZONTAL VENT

(Top Vent Application)

RECESSED

INSTALLATION

TOP VENT

APPLICATION

VERTICAL VENT

(Top Vent Application)

Innovative Hearth Products

Roof pitch is X/12

2 ft

minimum

2 ft minimum

Lowest

discharge

opening

*H = minimum height from roof to

lowest discharge opening of vent

Horizontal overhang

Vertical

wall

Vent

termination

Storm collar

Concentric

vent pipe

Flashing

1” (25.4 mm) minimum clearance to combustibles

Envy™ Direct-Vent Gas Fireplaces

VENT TERMINATION CLEARANCES

These instructions should be used and do not supersede local codes in any way. Install venting according to local codes, these instructions, the current National Fuel Gas Code (ANSI Z223.1/NFPA 54) in the USA or the current standards of CAN/CGA-B149.1 in Canada.

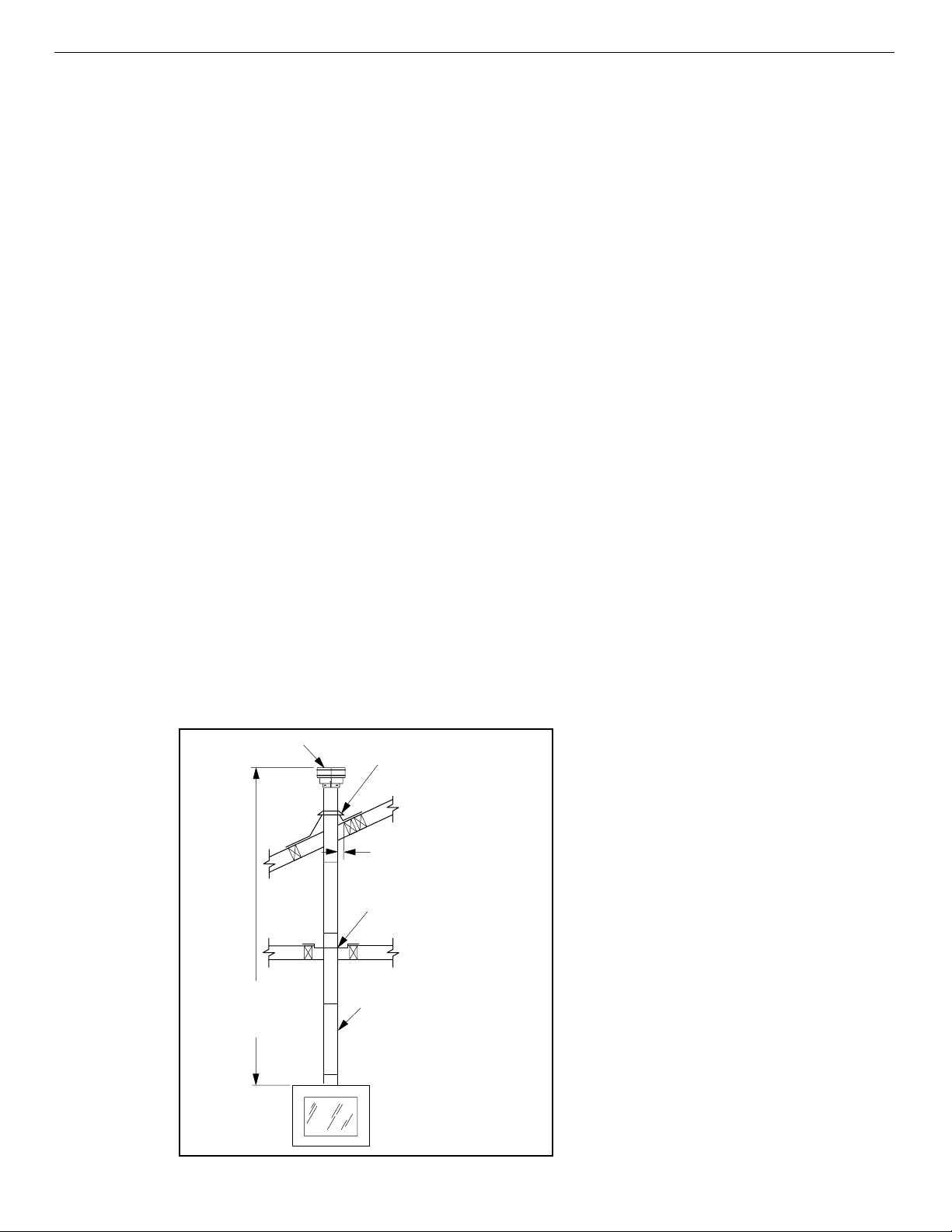

Vertical Vent Termination Clearances

Terminate multiple vent terminations according to the installation codes listed above and Figure 3.

Figure 3 - Multiple Terminations

Terminate single vent caps relative to building components according to Table 5 and Figure 3.

Table 5 - Termination Heights for Vents above Flat or Sloped Roofs (NFPA 54 / ANSI Z223.1)—Gas Vent Rule

Installation

900005-00, 10/2015

12”

(305 mm)

minimum

Roof Pitch Termination Height *

Flat to 6/12 1.0 ft (0.3 m) 6/12 to 7/12 1.25 ft (0.38 m) 7/12 to 8/12 1.5 ft (0.46 m) 8/12 to 9/12 2.0 ft (0.61 m)

9/12 to 10/12 2.5 ft (0.76 m) 10/12 to 11/12 3.25 ft (0.99 m) 11/12 to 12/12 4.0 ft (1.22 m) 12/12 to 14/12 5.0 ft (1.52 m) 14/12 to 16/12 6.0 ft (1.83 m) 16/12 to 18/12 7.0 ft (2.13 m) 18/12 to 20/12 7.5 ft (2.29 m) 20/12 to 21/12 8.0 ft (2.44 m)

Horizontal Vent Termination Clearances

The horizontal vent termination must have a minimum of 6” (152 mm) clearance to any overhead combustible projection of 2-1/2” (64 mm) or less (Figure 4). For projections exceeding 2-1/2” (64 mm) (Figure 4). For additional vent location restrictions refer to Table 6.

All horizontal terminations may be located as close as 6” (152mm) to any combustible exterior sidewall. This distance may be decreased to 2” (51mm) for noncombustible exterior sidewalls with all approved terminations (Table 6).

Figure 4 - Horizontal Vent Termination Clearances

Combustible projection 2-1/2”

Combustible projection greater

than 2-1/2” in length

Ventilated

sofﬁt

Unventilated

sofﬁt

18”

(457 mm)

12”

(305 mm)

Termination kit

or less in length

(152)

6”

Termination kit

NOTE: See Figure 23 on Page 29 for exterior wall recess allowances for square horizontal termination.

Innovative Hearth Products

(TERMINATION PROHIBITED)

Inside Corner

Balcony with No Side

Envy™ Direct-Vent Gas Fireplaces

Table 6 - Horizontal vent termination clearances for buildings with combustible and noncumbustible exteriors

Outside Corner Recessed Location

TERMINATION CAP

Fixed

Closed

Openable

AIR SUPPLY INLET

Fixed

Closed

GAS METER RESTRICTED AREA

A Clearance above grade, veranda, porch, desk, or balcony 12” (300 mm) ** 12” (300 mm) * B Clearance to window or door that may be opened 6” (150 mm)

C Clearance to permanently closed window 9” (229 mm)

D Vertical clearance to ventilated sofﬁt located above the

termination within a horizontal distance of 18” (458 mm)

E Clearance to unventilated sofﬁt 12” (305 mm)

F Clearance to outside corner 5” (127 mm)

G Clearance to inside corner 2” (50.8 mm) ***

H Clearance to each inside of center line extended above

meter / regulator assembly

I Clearance to service regulator vent outlet 36” (910 mm)** 36” (910 mm)*

J Clearance to nonmechanical air supply inlet to building or

the combustion air inlet to any other ﬁreplace

K Clearance to a mechanical air supply inlet 36” (910 mm) above if within 10 ft (3 m) horizontally ** 72” (1830 mm) * L Clearance above paved sidewalk or paved diveway located

on public property

M Clearance under veranda, porch, deck or balcony 12” (300 mm) *‡ 12” (300 mm) *‡

N Depth of alcove (maximum) 72” (1830 mm) ** 72” (1830 mm) * O Clearance to termination (alcove) 6” (15.2 mm) ** 6” (15.2 mm)*

P Width of alcove (minimum) 36” (910 mm) ** 36” (910 mm) *

Q Clearance to combustible above (alcove) 18” (457 mm) ** 18” (457 mm) *

See Table 5

WallVBalcony with Perpendicular Side Wall

U.S. Installation ** Canadian Installation *

6” (150 mm)

for ﬁreplaces < 10,000 Btu/h (3 kW), 9” (230 mm)

for ﬁreplaces > 10,000 Btu/h (3 kW), and < 50,000 Btu/h (15

for ﬁreplaces < 10,000 Btu/h (3 kW), 12” (300 mm)

for ﬁreplaces > 10,000 Btu/h (3 kW)

kW), 12” (300 mm)

for ﬁreplaces > 50,000 Btu/h (15 kW) **

12” (305 mm)

recommended to prevent window condensation

18” (458 mm) 18” (458 mm)

12” (305 mm)

30” (760 mm) to vinyl sofﬁt

30” (760 mm) to vinyl sofﬁt 5” (127 mm)

minimum

minimum 2” (50.8 mm) ***

minimum—SV4.5HT-2 • 6” (152 mm) ***

minimum—SV4.5HTSS 36” (910 mm)

within a height of 15 ft above the meter / regulator assembly **

minimum—SV4.5HT-2 • 6” (152 mm) ***

minimum—SV4.5HTSS 36” (910 mm)

within a height of 15 ft above the meter / regulator assembly *

6” (150 mm) for ﬁreplaces < 10,000 Btu/h (3 kW),

9” (230 mm) for ﬁreplaces > 10,000 Btu/h (3 kW) and < 50,000 Btu/h (15 kW),

6” (150 mm) for ﬁreplaces < 10,000 Btu/h (3 kW),

12” (300 mm) for ﬁreplaces > 10,000 Btu/h (3 kW)

12” (300 mm) for ﬁreplaces > 50,000 Btu/h (15 kW)**

84” (2130 mm) ‡ 84” (2130 mm) ‡

Installation

900005-00, 10/2015

* In accordance with the current CAN/CGA-B149.1 National Gas And Propane Installation Code ** In accordance with the curent ANSI Z223.1/NFPA 54 National Fuel Gas Codes *** This distance may be decreased to 2” (51mm) for noncombustible exterior sidewalls with all approved terminations ‡ A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings *‡ Only permitted if veranda, porch, deck, or balcony is fully-open on a minimum two sides beneath the ﬂoor

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

MINIMUM CLEARANCES TO COMBUSTIBLES Fireplace And Vent Clearances

The ﬁreplace is approved with zero clearance to combustible materials on all sides (Table 7), with the following exception: The unit may not be recessed (allowance made for mantel legs / side trim in Figure 5). When the unit is installed with one side ﬂush with a wall, the wall on the other side of the unit must not extend beyond the front edge of the unit (Figure 5).

Table 7 - Minimum Clearances *

From Bottom of Unit to Ceiling 78” (1981 mm)

Front Service Clearance—

clearance immediately in front of viewing area(s)

* 3” (76 mm) above any horizontal/inclined vent component. ** See Page 19 for clearance requirements to the nailing ﬂange located at each side of the unit and any screw heads adjacent to it.

Back

Sides

Top Standoffs 0” (0 mm)

Floor 0” (0 mm)

Vent

1/2” (13 mm) to wrapper

0” (0 mm) to Spacers

1/2” (13 mm) to wrapper

0” (0 mm) to Spacers **

3” (76 mm)—Top * **

1” (25.4 mm)—Sides and Bottom

36” (914 mm)—Front

12” (305 mm)—Sides and Bottom

Installation

900005-00, 10/2015

The ﬁreplace must be mounted on a fully supported base extending the full width and depth of the unit. The ﬁreplace may be located on or near conventional construction materials. However, if installed on combustible materials, such as carpeting, vinyl tile or other combustible material other than wood ﬂooring, the appliance shall be installed on a metal or wood panel extending the full width and depth of the appliance.

Hearth Extension

A hearth extension must be built from non-combustible, heat-resistant materials (e.g., Micore® 160, Glasscrete®, Durock®, or a similar material). It must extend the width of the ﬁreplace opening and at least 20” in front of the ﬁreplace.

• A hearth extension is required if the ﬁreplace is installed less than 6” above the ﬁnished ﬂoor surface.

• A hearth extension is not required if the ﬁreplace is installed at least 6” above the ﬁnished ﬂoor surface.

Shelf Height

To provide the lowest possible shelf surface, the venting attached to the top vent should be routed in a way to minimize obstructions to the space above the ﬁreplace. Do not insulate the space between the ﬁreplace and the area above it (Table 8). The minimum height from the base of the ﬁreplace to the underside of combustible materials used to construct a utility shelf in this fashion is shown in Table 8.

Table 8 - Combustible Shelf Height—Top Vent

Model

All 73-1/2” (1867 mm) * 73-1/2” (1867 mm) *

* Includes 3” (76 mm) clearance to combustibles (required above vent components)

Top Vent with one 90° Elbow

Secure Vent

Secure Flex® (ﬂex elbow)

78”

Minimum

Shelf Height

(see table)

Minimum 12” (305 mm) vent section required before elbow.

No combustibles or insulation in the shaded area between the appliance and the shelf above it.

Innovative Hearth Products

5 (127)

12 (305)

Envy™ Direct-Vent Gas Fireplaces

Installation

900005-00, 10/2015

Figure 5 - Combustible Side Clearances

At 14-1/2” minimum side wall clearance, a combustible wall can project to any length.

At 13-3/4” side wall clearance, a combustible wall can project 12”

At 5-1/2” side wall clearance, a combustible wall can project 5”

Protected wall shown in white

Wall Finishes / Surrounds / Mantels

NOTE: Combustible wall ﬁnish materials and/or surround materials must not be allowed to encroach the area deﬁned by the ﬁreplace front face (black sheet metal). Never allow combustible materials to be positioned in front of or overlapping the ﬁreplace face (Figure 42).

Non-combustible materials, such as surrounds and other ﬁreplace trim, may be installed on the ﬁreplace face, but they must not cover any portion of the removable glass panel or control compartment.

Vertical installation clearances to combustible mantels vary according to the depth of the mantel (Figure 6). Mantels constructed of non-combustible materials may be installed at any height above the ﬁreplace opening. However, do not allow anything to hang below the ﬁreplace hood. Minimum clearance requirements include any projections such as shelves, window sills, mantels, etc. above the ﬁreplace.

in. (mm)

Top View of

Fireplace

Combustible Materials Allowed In Shaded Area “Safe Zone”

Combustible Walls shown in dark gray

Combustible materials may project beyond one side of the ﬁreplace opening as long as they are kept within the shaded areas illustrated here.

Figure 6 - Mantel Height

Mantel Depth

28 (711)

26 (660)

24 (607)

22 (559)

20 (508)

18 (457)

Mantel Height

(305)

(203)

(254)

in. (mm)

(152)

(102)

(51)

Standoff

Top of ﬁreplace

NOTE: To avoid heat-related ﬁnish damage, use ﬁnish materials rated 175 °F, or higher, on the underside of the mantel.

INSTALLATION PREPARATION

The ﬁreplace is shipped with all gas controls and components installed and pre-wired. Before installing the ﬁreplace, follow these steps:

1. Remove the shipping carton and the shipping pad.

2. Remove the top louver, then remove the surround trim assembly by detaching it at the top of the ﬁreplace and

lifting it 1” to disengage the side tabs, then pulling it away from the ﬁreplace exposing the front glass door.

3. Locate the four (4) spring-loaded latches; two above and two

below the glass door (Figure 57).

4. Release the lower latches, by pulling each handle out and

down to unhook it from the glass door.

5. Lightly press against the door, to hold it in position, while

releasing the two upper latches.

6. Carefully grip the door at the top and bottom, and remove it

from the ﬁreplace. Place the door in a secure location where it will not be damaged.

Figure 7 - Removing the surround trim assembly

Side Tabs

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

INSTALLATION SEQUENCE

The typical sequence of installation is outlined below; however, each installation is unique and may result in variations to the steps described.

See the pages referenced in the following steps for detailed instructions.

Framing

1. Construct the Fireplace Framing (Page 16).

2. Prepare the Fireplace Top Standoffs (Page 18).

3. Route the Gas Supply Line to the Fireplace (Page 18).

4. Rough in the Electrical Supply, if Needed (Page 19).

5. Place the Fireplace in the Framing and Secure (Page 19).

Venting

6. Select a Horizontal or Vertical Vent System (Page 20).

7. Install the Vent Restrictor (if necessary) (Page 21).

8. Install the Vent System (Page 23).

Electrical Connection

9. Complete the Field Wiring (Page 33).

10. Installing and initializing the Remote Control System (Page 34).

Gas Connection

11. Connect the Gas Line (Page 36).

12. Verify Proper Fireplace Operation (Page 37).

Finishing

13. Install the Firebox Liners (Page 37).

14. Traditional Fireplaces: Install the Logs (Page 37).

15. Contemporary Fireplaces: Install the Glass Media (Page 37).

16. Install the Glass Door (Page 37).

17. Adjust the Air Shutter to Ensure Proper Flame Appearance (Page 37).

18. Install the Finishing Materials (Page 41).

19. Attach the Safety-in-Operation Warning Labels (Page 42).

Installation

900005-00, 10/2015

1. Construct the Fireplace Framing

1. Frame the ﬁreplace as illustrated in Table 9. For corner framing installations, use Table 11. All framing details

must allow for a minimum clearance to combustible framing members as shown in Table 7.

2. If the ﬁreplace is to be elevated above ﬂoor level, a solid continuous platform must be constructed below the ﬁreplace. NOTE: Headers may be in direct contact with the ﬁreplace top Standoffs maintaining the 15-1/2” (394 mm) clearance

to the ﬁreplace top, but must not be supported by them or notched to ﬁt around them. All construction above the ﬁreplace must be self-supporting. DO NOT use the ﬁreplace for structural support.

Innovative Hearth Products

FLUE OUTLET 4-1/2 (114)

COMBUSTION AIR 7-1/2 (190)

14-3/4

(267)

15-1/2

(394)

(584)

Envy™ Direct-Vent Gas Fireplaces

Table 9 - Fireplace Framing Speciﬁcations

Model A B C D

35”

40”

45”

39-3/4”

1010 mm

44-3/4”

1137 mm

49-3/4”

1264 mm

45-1/4”

1149 mm

49”

1245 mm

52-5/8”

1337 mm

24”

610 mm

24”

610 mm

24”

610 mm

1187 mm

1283 mm

1378 mm

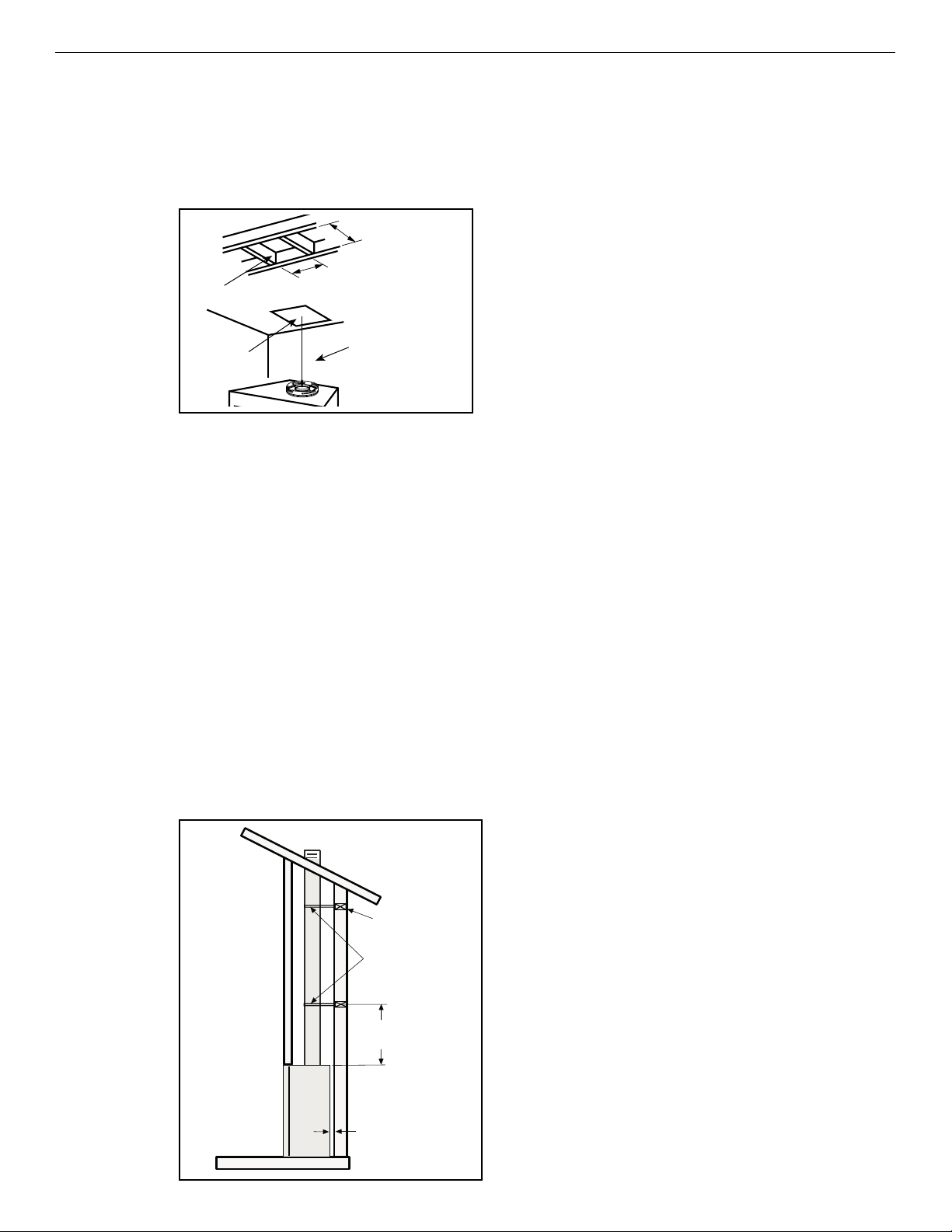

Vertical Venting Through the Ceiling:

To frame the ceiling opening, use a plumb line from the ceiling above the appliance to locate center of the vertical run. Cut and/ or frame an opening, 10-1/2 x 10-1/2” (267 x 267 mm) inside dimensions, about this center mark.

46-3/4”

50-1/2”

54-1/4”

Vent Framing— Top Vent with 12” rise and one 90° Elbow

Inches (millimeters)

Framing should

267

)

be constructed of 2x4 or larger

10-1/2

(

material

(178)

5-1/8 (130)

1/2

C is the required framing depth dimension when the ﬁnish material (drywall) thickness is 1/2” (13mm)

Installation

900005-00, 10/2015

12-1/8

(308)

Table 10 - Fireplace Speciﬁcations

Model A B C D E F G

35”

40”

45”

1143 mm

48-3/4”

1238 mm

52-3/8”

1330 mm

24-3/4”

629 mm

28”

711 mm

32-1/4”

819 mm

28-3/4”

730 mm

33-3/4”

857 mm

38-3/4”

984 mm

39-1/4”

997 mm

44-1/4”

1124 mm

49-1/4”

1251 mm

21-7/8”

555 mm

27”

686 mm

32”

813 mm

11”

278 mm

13-1/2”

343 mm

16”

406 mm

Table 11 - Corner Framing with Horizontal Termination

Model A B C D E

35”

40”

45”

39-1/4”

1000 mm

44-1/4”

1124 mm

49-1/4”

1251 mm

68”

1727 mm

73”

1854 mm

78”

1981 mm

48-1/8”

1222 mm

51-5/8”

1311 mm

55-1/8”

1400 mm

13-3/4”

349 mm

15-1/2”

394 mm

17-1/4”

438 mm

34”

864 mm

36-1/2”

927 mm

39”

991 mm

NOTE: The horizontal vent length of “A” to “B” must not exceed 28” (711 mm).

28-1/2”

724 mm

32-1/4”

819 mm

36”

914 mm

Minimum 1” clearance to wall from back of unit.

15-1/2

Standoff Assembly

(394)

(178 mm)

7”

Back wall of chase/enclosure

(including any finishing materials)

A B

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Prepare the Fireplace Top Standoffs

1. Bend each of the two (2) L-shaped standoff components, at the designated places, into a U-shape (Figure 8).

2. Align the closed end of each U-shaped standoff component with the left/right side of the top, front of the

ﬁreplace and the attachement holes in the top of the ﬁreplace (Figure 8). Attach each U-shaped standoff component with two (2) 5/16” hex head screws (Figure 8 and Figure 9).

3. Align the center support with the holes in the U-shaped standoff components and the top of the ﬁreplace. Attach

the center support with two (2) 5/16” hex head screws in the top and two (2) screws in the bottom (Figure 9). NOTE: Position the center support with the larger holes at the bottom and the smaller holes at the top.

Figure 8 - Attaching the right standoff Figure 9 - Attaching the left standoff and center

Installation

900005-00, 10/2015

support

Screws

Route the Gas Supply Line to the Fireplace

1. Route a 1/2” (13 mm) gas line to the left side of the ﬁreplace (Figure 10). NOTE: Gas lines must be routed, assembled, and made of materials that are in strict accordance with local codes and

regulations. All ﬁreplaces are factory-equipped with a ﬂexible gas line connector and a 1/2” shutoff valve (Page 36).

Figure 10 - Routing the gas line

1-1/2”

(38 mm)

Proper Sizing of Gas Line

Properly size and route the gas supply line from the supply regulator to the area where the appliance is to be installed per requirements outlined in the National Fuel Gas Code, NFPA 54—latest edition (USA) or CAN/CGA-B149.1—latest edition (Canada).

The gas supply line should not be connected to the appliance until step 11. Connect the Gas Line (Page 36).

Left Side Front

Corner of

Fireplace Framing

4-1/2”

(114 mm)

4”

(102 mm)

NOTE:

• Never use galvanized or plastic pipe. Refer to Table 12 for proper sizing of the gas supply line, if black iron pipe is being used. Gas lines must be routed, constructed and made of materials that are in strict accordance with local codes and regulations.

• Hire a qualiﬁed plumber or gas ﬁtter to correctly size and route the gas supply line to the appliance. Installing a gas supply line from the fuel supply to the appliance involves numerous considerations of materials, protection, sizing, locations, controls, pressure, sediment, and more. No one unfamiliar and unqualiﬁed should attempt sizing or installing gas piping.

• See Massachusetts Horizontal Vent Requirements for additional requirements for installations in the state of Massachusetts in the USA.

Innovative Hearth Products

Framing

Flanges

Envy™ Direct-Vent Gas Fireplaces

• A pipe joint compound rated for gas should be used on the threaded joints. Ensure propane-resistant compounds are used in propane applications. Be very careful that the pipe compound does not get inside the pipe.

• A sediment trap in the supply line as close as possible to the ﬁreplace is recommended.

• Check with the local building ofﬁcial for local code requirements (e.g., Are below grade penetrations of the gas line allowed?, etc).

Table 12 - Schedule 40 Black Iron Pipe, Inside Diameter

If propane is used, be aware that with a tank that is too small (i.e., under 100 lbs, if this is the only gas appliance in the dwelling—see NPFA 58), there may be a loss of pressure. This can result in insufﬁcient fuel delivery that can cause sooting, delayed ignition, or other malfunctions. Any damage resulting from an improper installation is not covered by the limited warranty.

Installation

900005-00, 10/2015

Pipe Length Natural Gas Propane Gas

0–10 ft 1/2” 3/8”

10–40 ft 1/2” 1/2”

40–100 ft 1/2” 1/2” 100–150 ft 3/4” 1/2” 150–200 ft 3/4” 1/2”

CAUTION

4. Rough in the Electrical Supply, if Needed

1. As necessary, rough in the ﬁreplace electrical supply per NEC and local codes.

5. Place the Fireplace in the Framing and Secure

NOTE: Combustible framing may be in direct contact with the nailing ﬂanges and may be located within 1/2” of screw

heads and the ﬁrebox wrapper in areas adjacent to the nailing ﬂanges. Frame the opening to the exact dimensions speciﬁed in the framing details in this manual.

1. Bend out the appropriate nailing ﬂanges for the drywall / ﬁnish material to be used (Figure 11). Nailing ﬂanges

are provided for:

• ﬂush framing,

• 1/2”, and

• 5/8” framing depths.

2. Secure the ﬁreplace to the side framing members using the unit’s nailing ﬂanges—one top and bottom on each

side of the ﬁreplace front (Figure 11). Use 8d nails or the equivalent.

Figure 11 - Nailing Flanges

5/8”

5/8 in.

1/2”

1/2 in.

Side

framing

Flush

Nailing Flanges

Unit nailing ﬂange

Are Provided At

(no clearance to combustible

All Four Corners

framing is required)

Unit Nailing

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

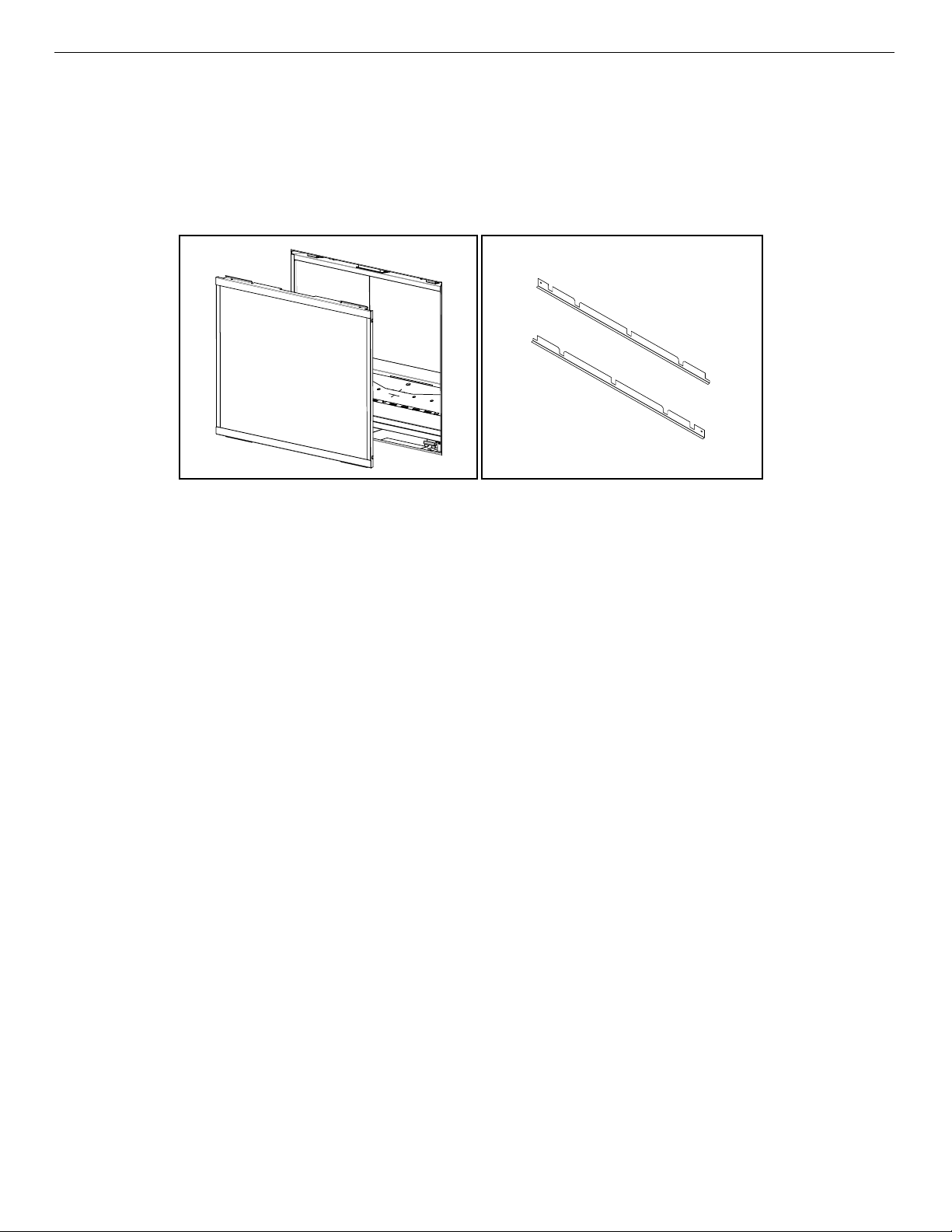

If desired install lower front ﬁller panel

Unit is shipped from the factory with a ﬁller shipped loose with the unit. This ﬁller is not needed if the non combustible hearth material extends up 7/8” above the base of the ﬁreplace.

This ﬁller can be used to ﬁll the gap below the barrier frame assembly to be ﬂush with other hearth designs. It extends out .5” to be ﬂush with the trim on the barrier or out to 1-1/2” for deeper ﬁnish material. To adjust from 1/2” to 1-1/2” bend tabs opposite direction and install upside down. Filler is secured to unit with one screw each side.

Installation

900005-00, 10/2015

Without Bottom Trim

DIAGRAM A

Bend Tab Back and

Forth Until it Breaks Off

DIAGRAM B

Bottom Trim Barrier

Flush Position

Bend Tab Back

and Forth Until

it Breaks Off

DIAGRAM C

Bottom Trim Barrier

Extended Position

Innovative Hearth Products

BaseNo Restrictor

3.3

16 ft Maximum

horizontal run

60 ft Maximum vertical run

2.5

Horizontal Distance (ft)

Vertical Height (ft)

Vertical Height (ft) ending in horizontal termination

4.75 7.5

Position 2Position 1

6 ft Minimum vertical run

6 ft Minimum

12” vertical

rise required

before elbow

Envy™ Direct-Vent Gas Fireplaces

VENT SYSTEM PREPARATION

6. Select a Horizontal or Vertical Vent System

1. With the ﬁreplace secured in the framing, determine the vent route and identify the exterior termination location.

2. The following sections describe vertical (roof) and horizontal (exterior wall) vent applications. Use only approved vent components (Page 8 and Page 44).

The vent system may not service multiple appliances, and must never be connected to a ﬂue serving a separate solid fuel burning appliance.

NOTE: The vent pipe is tested to be run inside an enclosed wall (such as a chase). There is no requirement for

inspection openings in the enclosing wall at any of the joints in the vent pipe. NOTE: These instructions should be used as a guideline and do not supersede local codes in any way. Install

venting according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the current standards of CAN/CSA-B149.1 in Canada.

NOTE: Ensure clearances are in accordance with local installation codes and the requirements of the gas supplier.

Remarqué : Dégagement conforme aux codes d’installation locaux et aux exigences du foumisseunde gaz.

NOTE: Use only approved venting components. These ﬁreplaces must be vented directly to the outside.

Installation

900005-00, 10/2015

WARNING

Figure 12 - When to use a vent restrictor

Figure 13 - Vent restrictor installation, Top vent

U-Shaped

Vent

Restrictor

Inner

Fireplace

Collar

Appliance Top Vent Outlet

Vent

Collar

Vent

Restrictor

(held in

place by

friction)

Figure 14 - Vent restrictor assembly

Base Vent Restrictor

* For straight runs or runs with elbows as illustrated in Vertical Vent Figures/Tables starting on Page 26.

Intermediate Vent Restrictor

Maximum Vent Restrictor

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Table 13 - Vent Section Length

Nominal Section

Length (in.)

Net Section Length

(in.)

Height of Vent

in. ft in. ft

4.5 0.375 1 0 0 0 0 1 252 21 0 1 0 7 0 8

9 0.75 2 0 0 0 0 2 276 23 0 0 0 8 0 8

10.5 0.875 0 1 0 0 0 1 279 23.25 0 0 0 0 6 6

15 1.25 1 1 0 0 0 2 280.5 23.375 1 0 0 8 0 9

22.5 1.875 0 0 1 0 0 1 289.5 24.125 0 1 0 0 6 7

31.5 2.625 0 3 0 0 0 3 301.5 25.125 0 0 1 0 6 7

34.5 2.875 0 0 0 1 0 1 310.5 25.875 0 0 0 9 0 9

37.5 3.125 1 1 1 0 0 3 325.5 27.125 0 0 0 0 7 7

43.5 3.625 0 2 1 0 0 3 330 27.5 1 0 0 0 7 8

45 3.75 0 0 2 0 0 2 345 28.75 0 0 0 10 0 10

46.5 3.875 0 0 0 0 1 1 349.5 29.125 1 0 0 10 0 11

51 4.25 1 0 0 0 1 2 372 31 0 0 0 0 8 8

55.5 4.625 0 1 2 0 0 3 379.5 31.625 0 0 0 11 0 11

57 4.75 0 0 1 1 0 2 418.5 34.875 0 0 0 0 9 9

67.5 5.625 0 0 3 0 0 3 465 38.75 0 0 0 0 10 10

69 5.75 0 0 0 2 0 2 475.5 39.625 0 1 0 0 10 11

73.5 6.125 1 0 0 2 0 3 480 40 1 1 0 0 10 12

79.5 6.625 0 1 0 2 0 3 492 41 1 0 1 0 10 12

81 6.75 0 0 0 1 1 2 499.5 41.625 0 0 0 1 10 11

91.5 7.625 0 0 2 0 1 3 504 42 1 0 0 1 10 12

93 7.75 0 0 0 0 2 2 511.5 42.625 0 0 0 0 11 11

97.5 8.125 1 0 0 0 2 3 520.5 43.375 0 2 0 1 11 14

103.5 8.625 0 0 0 3 0 3 531

108 9 1 0 0 3 0 4 538.5 44.875 1 0 0 2 11 14

117 9.75 1 0 5 0 0 6 549 45.75 1 0 2 1 11 15

118.5 9.875 1 1 0 3 0 5 558 46.5 0 0 0 0 12 12

126 10.5 0 0 1 3 0 4 562.5 46.875 1 0 0 0 12 13

130.5 10.875 1 0 1 3 0 5 568.5 47.375 0 1 0 0 12 13

135 11.25 0 0 6 0 0 6 573 47.75 1 1 0 0 12 14

139.5 11.625 0 0 0 0 3 3 580.5 48.375 0 0 1 0 12 13

142.5 11.875 1 0 0 4 0 5 589.5 49.125 0 1 2 2 10 15

144 12 1 0 0 0 3 4 595.5 49.625 1 1 1 0 12 15

154.5 12.875 1 1 0 0 3 5 604.5 50.375 0 0 0 0 13 13

160.5 13.375 0 2 0 0 3 5 615 51.25 0 1 0 0 13 14

172.5 14.375 0 0 0 5 0 5 625.5 52.125 0 2 0 0 13 15

177 14.75 1 0 0 5 0 6 631.5 52.625 1 0 1 0 13 15

186 15.5 0 0 0 0 4 4 637.5 53.125 0 1 1 0 13 15

196.5 16.375 0 1 0 0 4 5 651 54.25 0 0 0 0 14 14

207 17.25 0 0 0 6 0 6 655.5 54.625 1 0 0 0 14 15

211.5 17.625 1 0 0 6 0 7 672 56 0 2 0 0 14 16

217.5 18.125 0 1 0 6 0 7 678 56.5 1 0 1 0 14 16

229.5 19.125 0 0 1 6 0 7 688.5 57.375 1 1 1 0 14 17

232.5 19.375 0 0 0 0 5 5 697.5 58.125 0 0 0 0 15 15

241.5 20.125 0 0 0 7 0 7 702 58.5 1 0 0 0 15 16

246 20.5 1 0 0 7 0 8 712.5 59.375 1 1 0 0 15 17

6 12 24 36 48

4.5 10.5 22.5 34.5 46.5 Net Section Length (in.) 4.5 10.5 22.5 34.5 46.5

Number of Vent Sections

Nominal Section Length

Total Qty

(in.)

Height of Vent

44.25 0 2 2 0 11 15

720 60 0 0 1 0 15 16

6 12 24 36 48

Number of Vent Sections

Installation

Total Qty

Innovative Hearth Products

SV4.5CGV-1

(18.3 m)

Envy™ Direct-Vent Gas Fireplaces

Install the Vent System

Install the Vertical Termination Vent System

These instructions should be used as a guideline and do not supersede local codes in any way. Install venting according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the current standards of CAN/CGA-B149.1 in Canada.

Ensure clearances are in accordance with local installation codes and the requirements of the gas supplier.

Dégagement conforme aux codes d’installa tion locaux et aux exigences du foumisseunde gaz.

Vertical vent systems terminate through the roof. The minimum vent height above the roof and/or adjacent walls is speciﬁed in ANSI Z223.1 (In Canada, the current CAN/CGA-B149.1 installation code) by major building codes. Always consult your local codes for speciﬁc requirements. A general guide to follow is the gas vent rule (Table 5).

The following ﬁgures and their associated vertical vent tables illustrate the various conﬁgurations that are possible for use with these ﬁreplaces. Secure Vent® pipe is shown in these ﬁgures; Secure Flex® pipe may also be used. A table summarizes each conﬁguration’s minimum and maximum vertical and horizontal length parameters for a variety of applications.

1. Refer to Figure 20, Table 15, and Table 16 on Page 26 to select the type of vertical installation desired. Elbows are available in 90° and 45° conﬁgurations. Refer to Figure 38 on Page 40 for the SV4.5E45 and SV4.5E90 elbow dimensional speciﬁcations.

Clearance to combustibles

Maintain the minimum clearance to combustibles (e.g., framing, attic, ceiling insulation, etc.). For all vertical runs:

• 1” (25 mm) from all sides

Installation

900005-00, 10/2015

NOTE: Attic insulation shield (H3907) must be installed when blown or loose-ﬁll insulation is used, and is required for all attic installations.

For all horizontal/inclined runs:

• 3” (76 mm) from the top

• 1” (25 mm) from the sides

• 1” (25 mm) from the bottom

Vertical (Straight) Installation

1. Determine the number of straight vent sections required (Table 13). Plan the vent lengths so that a joint does not occur at the intersection of ceiling or roof joists.

Figure 15 - Vertical (Straight) Installation

Termination

SV4.5FA OR SV4.5FB Flashing AND SV4.5SC STORM COLLAR

1” (25.4 mm) Minimum Clearance to Combustibles

SV4.5VF



Firestop/Spacer

60 ft Maximum

6 ft Minimum

(1.8 m)

SV4.5L6/12/24/36/48 Vent Sections

When using Secure Flex



use Firestop/Spacer

SF4.5VF

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Vertical (Offset) Installation

1. Analyze the vent route—Determine the number of vent sections (Table 13) and elbows (Figure 38) required.

2. Frame the ceiling opening—Use a plumb line from the ceiling above the ﬁreplace to locate the center of the

vertical run. Cut and/or frame an opening, 10-1/2 x 10-1/2” (267 x 267 mm) inside dimensions, about this center mark (Figure 16).

Figure 16 - Framing the Ceiling Opening

Roof Framing

10-1/2” (267 mm)

minimum 10 1/2 in. (267 mm)

10-1/2” (267 mm) minimum

minimum 10 1/2 in. (267 mm)

minimum

Installation

900005-00, 10/2015

Ceiling Framing

Plumb Bob

3. Install the rope gasket—Slide the rope gasket over the ﬁrst vent component and position it snugly against the apppliance.

4. Attach the vent components to the ﬁreplace—See Connecting the vent pipe on Page 40.

5. Attach the vent components to each other—See Connecting the vent pipe on Page 40.

6. Install ﬁrestop/spacer at ceiling—When using Secure Vent®, use SV4.5VF ﬁrestop/spacer at ceiling joists; when

using Secure Flex®, use SF4.5VF ﬁrestop/spacer. If there is living space above the ceiling level, the ﬁrestop/ spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the ﬁrestop/spacer must be installed on the top side of the joist. Route the vent sections through the framed opening and secure the ﬁrestop/spacer with 8d nails or other appropriate fasteners at each corner.

Remember to maintain 1” (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation when running vertical chimney sections. The gap between the vent pipe and a vertical ﬁrestop can be sealed with non-combustible caulking.

NOTE: Attic insulation shield (H3907) must be installed when blown or loose-ﬁll insulation is used, and is required for all attic installations.

7. Support the vertical vent run sections—Support the vertical portion of the venting system every 8 ft (2.4 m) above the ﬁreplace vent outlet. One method of support is by utilizing ﬁeld provided support straps (conventional plumber’s tape). Secure the plumber’s tape to the framing members with nails or screws. Loop the tape around the vent, securing the ends of the tape to the framing. If desired, sheet metal screws #6 x 1/2” length may be used to secure the support straps to the vent pipe (Figure 17).

NOTE: Proper venting support is very important. The weight of the vent must not be supported by the ﬁreplace.

Figure 17 - Supporting the Vertical Vent Run

Blocking

Support straps (plumber’s tape)

8 ft (2.4 m)

maximum

1/2” (12.7 mm) minimum clearance to combustibles

Innovative Hearth Products

Storm Collar

Envy™ Direct-Vent Gas Fireplaces

8. Change vent direction of horizontal/inclined run—Install the SV4.5E45 and SV4.5E90 elbows in the same manner as the straight vent sections. See Vent elbows on Page 40 for more information.

9. Continue installation of horizontal/inclined sections—Continue with the installation of the straight vent sections in horizontal/inclined run. Install support straps every 5 ft (1.52 m) along horizontal/inclined vent runs using conventional plumber’s tape.

Rise per foot run ratios are acceptable all the way to level. For best results, maintain the horizontal/inclined run in a straight (no dips), slightly elevated plane of approximately 1/4” per 1 ft (20 mm per 1 m).

Maintain the required clearances to combustibles (Page 23).

10. Frame the roof opening—Identify the location for the vent at the roof. Cut and/or frame opening (Table 14).

Table 14 - Roof Framing Dimensions

11. Install the roof ﬂashing—Extend the vent sections through the roof structure. Install the roof ﬂashing over the vent section and position such that the vent column rises vertically. Nail along perimeter to secure ﬂashing or adjust rooﬁng to overlap the ﬂashing edges at top and sides only and trim where necessary. Seal the top and both sides of the ﬂashing with waterproof caulking.

12. Install the storm collar—Install the storm collar, supplied with the ﬂashing, over the vent/ﬂashing joint (Figure

18). Loosen the storm collar screw. Slide collar down until it meets the top of the ﬂashing. Tighten the adjusting

screw. Apply non-combustible caulking or mastic around the circumference of the joint to provide a watertight seal.

Installation

900005-00, 10/2015

Pitch C D

0/12 10-1/2” (267 mm) 10-1/2” (267 mm) 6/12 10-1/2” (267 mm) 12” (305 mm)

12/12 10- 1/2” (267 mm) 17-3/4” (451 mm)

Figure 18 - Installing the Storm Collar Figure 19 - Installing the Vertical Termination

13. Install the vertical termination—Extend the vent sections to the correct height (Table 5). The SV4.5CGV-1 Vertical Termination (Figure 19) installs in the exact same fashion as any other Secure Vent® section.

If the vent system extends more than 5 ft (1.5 m) above the roof ﬂashing, stabilizers may be necessary. Additional screws may be used at section joints for added stability. Guide wires or roof support assemblies may be attached to the joint for additional support on multiple joint conﬁgurations.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

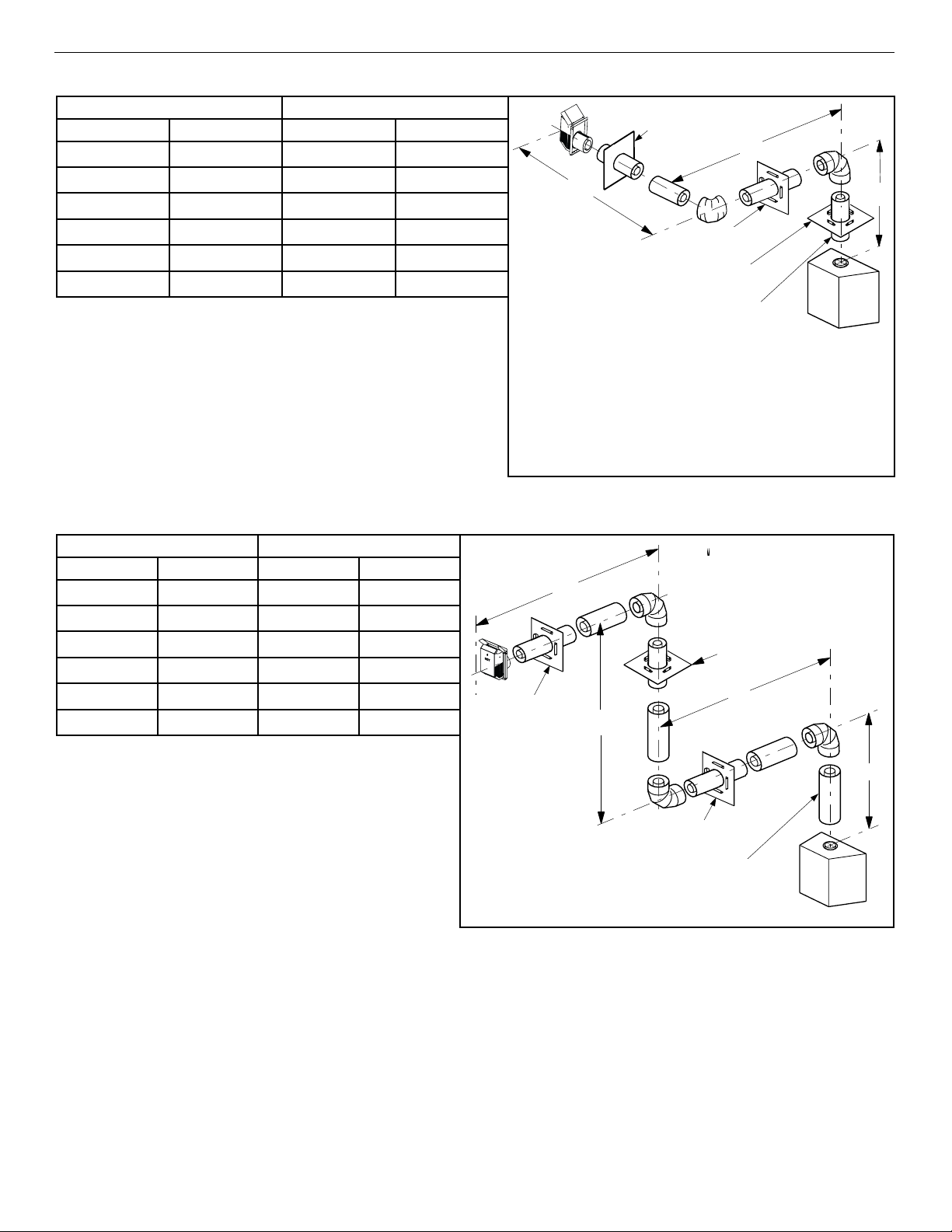

Vertical Vent Figures/Tables

NOTE: Secure Vent® rigid vent pipe is shown in the ﬁgures; Secure Flex® ﬂexible vent pipe may also be used. NOTE: Rise per foot run ratios are acceptable all the way to level. For best results, maintain the horizontal/inclined

run in a straight (no dips), slightly elevated plane of approximately 1/4” per 1 ft (20 mm per 1 m). NOTE: SV4.5VF (Secure Vent), SF4.5VF (Secure Flex) ﬁrestop/spacer must be used anytime vent pipe passes

through a combustible ﬂoor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex)ﬁrestop/spacer must be used anytime vent pipe passes through a combustible wall.

NOTE: Two (2) 45° elbows may be used in place of one (1) 90° elbow. The same rise to run ratios, as shown in the venting ﬁgures for 90° elbows, must be followed if 45° elbows are used.

NOTE: An elbow is acceptable as 1 ft of vertical rise, but may not be connected directly to the appliance vent collar.

WARNING

Do NOT join separate sections of concentric ﬂexible vent pipe.

Figure 20 - Top Vent-Straight Table 15 - Top Vent—Two 90° Elbows Table 16 - Top Vent—Three Elbows

Installation

900005-00, 10/2015

Ceiling

ﬁrestop/

spacer

SV4.5VF *

Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical rise. See Page 21 for more information.

60 ft (18.3 m)

maximum

When using Secure Flex®, use ceiling ﬁrestop/spacer SF4.5VF.

Ceiling ﬁrestop/ spacer SV4.5VF *

Wall ﬁrestop/ spacer SV4.5HF

When using Secure Flex®, use

ceiling ﬁrestop/spacer SF4.5VF. When using Secure Flex, use

wall ﬁrestop/spacer SF4.5HF.

H Maximum V Minimum feet meters feet meters

feet meters feet meters 5 1.524 1 0.305

5 1.524 2 0.610 10 3.048 2 0.610

10 3.048 3 0.914 15 4.572 3 0.914

15 4.572 4 1.219 20 6.096 4 1.219

20 6.096 5 1.524

V + V

+ H = 60 ft (18.3 m) maximum

H = 20 ft (6.096 m) maximum Install the U-shaped vent restrictor in any vent run with

more than 6 ft of vertical rise. See Page 21 for more information.

If 20 ft of (H) horizontal vent run is needed, then 4 ft (straight section) minimum of (V) vertical vent will be required.

This table shows a 1 (V) to 5 (H) ratio. For every 1 ft of (V) vertical, you are allowed 5 ft of (H) horizontal run, up to a maximum horizontal run of 20 ft.

An elbow is acceptable as 1 ft of vertical rise, but may not be connected directly to the appliance vent collar.

When using Secure Flex®, use

ceiling ﬁrestop/spacer SF4.5VF. When using Secure Flex, use

wall ﬁrestop/spacer SF4.5HF.

H + H

H + H1 = 20 ft (6.1 m) maximum V + V1 + H + H1 = 60 ft (18.3 m) maximum

Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical rise. See Page 21 for more information.

If 20 ft of (H) horizontal vent run is needed, then 4 ft (straight section) minimum of (V) vertical vent will be required.

This table shows a 1 (V) to 5 (H) ratio. For every 1 ft of (V) vertical, you are allowed 5 ft of (H) horizontal run, up to a maximum horizontal run of 20 ft.

An elbow is acceptable as 1 ft of vertical rise, but may not be connected directly to the appliance vent collar.

NOTE: The vent system may have a maximum of three (3) 90° elbows.

Ceiling ﬁrestop/ spacer SV4.5VF *

Maximum V Minimum

Wall ﬁrestop/ spacer SV4.5HF **

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Install the Horizontal Termination Vent System

Ensure clearances are in accordance with local installation codes and the requirements of the gas supplier.

Dégagement conforme aux codes d’installa tion locaux et aux exigences du foumisseunde gaz.

Horizontal vent systems terminate through an outside wall. Building Codes limit or prohibit terminating in speciﬁc areas (Table 6).

The following ﬁgures and their associated horizontal vent tables illustrate the various conﬁgurations that are possible for use with these ﬁreplaces. Secure Vent A table summarizes each conﬁguration’s minimum and maximum vertical and horizontal length parameters for a variety of applications. For more information on connecting the vent pipe, see Page 40.

Figure 21 - Typical Horizontal Vent Installation

Building Support Framing

90° elbow

pipe is shown in these ﬁgures; Secure Flex® pipe may also be used.

Horizontal Support Brackets

Installation

900005-00, 10/2015

Vertical Rise

Ceiling

Vertical Firestop/ Spacer

Support vertical venting every 8 ft (2.4 m) above ﬁreplace vent outlet

Place horizontal support brackets every 5 ft (1.524 m)

12” straight section required before a 90° elbow

Fireplace

Exterior Wall

Horizontal Termination

1. Plan the vent run—Determine the number of straight vent sections required (Table 13). Plan the venting so that a joint does not occur in the ceiling or roof joists. Allow for elbows (Figure 38). Maintain

the minimum clearances to combustibles (Page 23).

2. Frame the exterior wall opening—Locate the center of the vent outlet on the exterior wall (Table 9). Cut and/or frame an opening, 10-1/2 x 12-1/8” (267 x 308 mm) inside dimensions, about this center.

3. Frame the ceiling opening—If the vertical route is to penetrate a ceiling, use plumb line to locate the center above the ﬁreplace. Cut and/or frame an opening, 10-1/2 x 10-1/2” (267 x 267 mm) inside dimensions, about this center (Figure 16).

4. Install the rope gasket—Slide the rope gasket over the ﬁrst vent component and position it snugly against the apppliance.

5. Attach the vent components to the ﬁreplace—See Connecting the vent pipe on Page 40. NOTE: An elbow may not be attached directly to the appliance collar. At a minimum, a 12” (305 mm) straight

vent section is required before attaching the ﬁrst elbow.

6. Attach the vent components to each other—See Connecting the vent pipe on Page 40.

7. Install the ﬁrestop/spacer at the ceiling—When using Secure Vent®, use SV4.5VF ﬁrestop/spacer at ceiling

joists; when using Secure Flex®, use SF4.5VF ﬁrestop/spacer. If there is living space above the ceiling level, the ﬁrestop/ spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the ﬁrestop/spacer must be installed on the top side of the joist. Route the vent sections through the framed opening and secure the ﬁrestop/spacer with 8d nails or other appropriate fasteners at each corner.

Maintain 1” (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation when running vertical chimney sections.

8. Support the vertical run sections—On the vertical run, support the venting system every 8 ft (2.4 m) above the ﬁreplace vent outlet with ﬁeld provided support straps (Plumber’s tape). Attach the straps to the vent pipe and secure to the framing members with nails or screws (Figure 17).

9. Change vent direction—At transition from or to a horizontal/inclined run, install SV4.5E45 or SV4.5E90 elbows in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element. Twist elbow sections in a clockwise direction only so as to avoid the possiblity of unlocking any of the previously connected vent sections (Figure 38).

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

10. Continue installation of horizontal/inclined sections—Continue with the installation of the straight vent sections in horizontal/inclined run. Install support straps every 5 ft. (1.52 m) along horizontal/inclined vent runs using conventional plumber’s tape (Figure 21). Maintain the horizontal/inclined run in a straight (no dips), slightly elevated plane. The recommended incline is approximately 1/4” per 1 ft (20 mm per 1 m) horizontal, in a direction away from the ﬁreplace. Smaller rise per foot run ratios are acceptable all the way to at or near level.

Maintain the required clearances to combustibles (Page 23).

11. Assemble the vent run to the exterior wall—If not previously measured, locate the center of the vent at the exterior wall. Prepare the opening. Assemble the vent system until the terminus of the last section is within 7” (178 mm) to 11-1/4” (286 mm) inboard of the exterior surface to which the SV4.5 HT termination is to be attached (Figure 22). If the terminus of the last section is not within this distance, use the telescopic vent section SV4.5LA, as the last vent section. Table 17 lists the additional venting components needed (in addition to the termination and adaptor) for a range of wall thicknesses.

Table 17 - Venting Components Required for Various Exterior Wall Thicknesses, when using Typical Termination Kits

NOTE: See Figure 23 for wall thickness ranges when using SV4.5HT-2 termination kit.

12. Attach the termination adaptor—Attach the adaptor (SV4.5RCH, provided with the termination) to the vent

section or telescoping vent section, elbow, or ﬁreplace collar (Figure 22).

13. Install the ﬁrestop/spacer at the exterior wall—When using the square termination, install SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) Firestop/Spacer over the opening at the exterior side of the framing, long side up, with the 3” spacer clearance at the top (Figure 22) and nail into place.

Installation

900005-00, 10/2015

Vent Components Required Exterior Wall Thickness

Termination Kit Only 6 to 9-1/4” (152 to 235 mm)

Termination Kit and 6” Vent Section (SV4.5L6) 10-3/4 to 14” (273 to 356 mm)

Termination Kit and 12” Vent Section (SV4.5L12) 16-3/4 to 20” (426 to 508 mm)

Termination Kit and Telescopic Section (SV4.5L12) 11-3/4 to 20” (299 to 508 mm)

NOTE: The ﬁrestop/spacer also may be installed over the opening on the interior side of framing. The gap between the vent pipe and a ﬁrestop can be sealed with noncombustible caulking.

14. Install the termination (SV4.5HT-2)—From outside the exterior wall, slide the collars of the termination onto the adaptor (the outer over the outer and the inner inside the inner) until the termination seats against the exterior wall surface to which it will be attached. Orient the housing of the termination with the arrow pointed upwards. Secure the termination to the exterior wall. The horizontal termination must not be recessed into the exterior wall or siding by more than the 1-1/4” (32 mm) (Figure 25).

NOTE: If the venting exits the building below grade, or close to grade, see Installation Accessories on Page 44 for available snorkel terminations. The termination must be above grade and above the expected level of snow accumulation.

NOTE: The vent termination is hot while in operation and for a period of time following the use of the ﬁreplace.

To prevent contact with hot surfaces, use a horizontal termination guard; available for purchase at your local dealer.

The horizontal terminations have been designed to perform in a wide range of weather conditions. Innovative Hearth Products terminations meet or exceed industry standards.

When selecting the location for a horizontal termination, do not place the termination where water from eaves and adjoining rooﬂines may create a heavy ﬂow of cascading water onto the termination cap. If the cap must be placed where the possibility of cascading water exists, it is the responsibility of the builder to direct the water away from the termination cap with gutters or other means.

Carefully follow the installation instructions for the termination, including the use of silicone caulking where required.

Innovative Hearth Products

Elbow or Appliance Collar

Envy™ Direct-Vent Gas Fireplaces

Figure 22 - Installing the Horizontal Termination

Installation

900005-00, 10/2015

Termination

1”

(25.4 mm)

Typical

Shown

3”

(76 mm)

12-1/8”

(308 mm)

5-1/8”

(130 mm)

Adaptor

SV4.5RCH

6” to 48” Vent Section,

Telescopic vent section,

7”

(178)

Firestop/Spacer (SV4.5HF) shown on the exterior side of the wall. It

may also be installed on the

interior side.

10-1/2”

(267 mm)

Note: Centerline of Vent Piping is

NOT the Same as the Centerline of

the Frame Opening.

Base of Appliance

See Table 9 for the minimum distance

to the base of the ﬁreplace.

NOTE: To help minimize water inﬁltration install the ﬁrestop/spacer (SV4.5HF) on the exterior side of the wall. The ﬁrestop may be caulked with mill base caulk (such as 10K81) or high-temperature silicone.

Figure 23 - Venting Connection and Exterior Wall Recessing of the Horizontal Termination

*Use silicone caulking to seal the top and sides of the termination, up to the underlayment, stucco, or masonry wall surface.

*Caulk

Stucco

Interior Surface of

Finished Wall

Maximum Extent of

Siding

Vent Run Sections Relative to Exterior Surface of Framing

Last Vent Section. Use Telescopic Vent Section (SV4.5LA), If Necessary

SV4.5HT-2

Square Termination

Shown

Adaptor

SV4.5RCH

** For thicknesses greater than 9-1/4” (235 mm) see Table 17.

Maximum wall thickness

9-1/4” (235 mm)**

Exterior Surface of Siding

Exterior Surface of

Framing

6” to 9-1/4”

(152 to 235 mm)**

SV4.5HT-2

Square Termination

Shown

1-1/4” Maximum Recess of the Square Termination into Exterior Finishing Material

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Horizontal Vent Figures/Tables

NOTE: Secure Vent® rigid vent pipe and terminal are shown in the ﬁgures. Secure Flex® ﬂexible vent pipe and terminal may also be used.

NOTE: Two (2) 45° elbows may be used in place of one (1) 90° elbow. The same rise to run ratios, as shown in the venting ﬁgures for 90° elbows, must be followed if 45° elbows are used.

NOTE: Maintain the horizontal/inclined run in a straight (no dips), slightly elevated plane. The recommended incline is approximately 1/4” per 1 ft (20 mm per 1 m) horizontal, in a direction away from the ﬁreplace. Smaller rise per foot run ratios are acceptable all the way to at or near level. The maximum horizontal run is 16 ft.

NOTE: SV4.5VF (Secure Vent), SF4.5VF (Secure Flex) ﬁrestop/spacer must be used any time vent pipe passes through a combustible ﬂoor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) ﬁrestop/spacer must be used any time vent pipe passes through a combustible wall.

NOTE: An elbow is acceptable as 1 ft of vertical rise, but may not be connected directly to the appliance collar.

Do not join separate sections of concentric ﬂexible vent together.

Table 18 - Top Vent—One 90° Elbow, Elbow Connection NOT at Fireplace

V + H = 60 ft (18.3 m) maximum H = 16 ft (4.87 m) maximum

Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical rise. See Page 21 for more information.

Square termination (SV4.5HT-2) shown. This table shows a 1 (V) to 1.6 (H) ratio. For every 1 ft of (V) vertical, you are allowed 1.6 ft of (H) horizontal run, up to a maximum horizontal run of 16

ft (4.87 m).

WARNING

H Maximum V Minimum

feet meters feet meters

3 0.91 1.6 0.490

5.2 1.58 3 0.914

6.8 2.07 4 1.22

8.4 2.56 5 1.524

10 3.05 6 1.729

16 4.87 10 3.050

using Secure Flex,

SF4.5VF.

using Secure Flex,

SF4.5HF.

Wall ﬁrestop/spacer SV4.5HF **

Wall Firestop/Spacer



When using Secure Flex®, use

(SV4.5HF)

ceiling ﬁrestop/spacer SF4.5VF. When using Secure Flex, use

wall ﬁrestop/spacer SF4.5HF.

Min. One

1 ft vent

Foot Vent

section

Section

required

Required

Ceiling



Firestop/Spacer

(SV4.5VF)

Installation

900005-00, 10/2015

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Table 19 - Top Vent—Two 90° Elbows

H + H1 Maximum V Minimum

feet meters feet meters

3 0.91 1.6 0.490

5.2 1.58 3 0.914

6.8 2.07 4 1.22

8.4 2.56 5 1.524

10 3.05 6 1.729

16 4.87 10 3.050

V + H + H1 = 60 ft (18.3 m) maximum H + H1 = 16 ft (4.87 m) maximum

Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical rise. See Page 21 for more information.

Square termination (SV4.5HT-2) shown. See Table 17 as an aid in venting component selection for a particular range of exterior

wall thicknesses. This table shows a 1 (V) to 1.6 (H) ratio. For every 1 ft of (V) vertical, you are allowed 1.6

ft of (H) horizontal run, up to a maximum horizontal run of 16 ft (4.87 m). An elbow is acceptable as 1 ft of vertical rise, but may not be connected directly to the appliance collar.

Wall ﬁrestop/spacer



SV4.5HF **

Note - When using



Secure Flex

Firestop/Spacer SF4.5VF.

When using SecureFlex,



When using Secure Flex®, use

use Firestop/Spacer

ceiling ﬁrestop/spacer SF4.5VF. When using Secure Flex, use

SF4.5HF.

, use

wall ﬁrestop/spacer SF4.5HF.

Wall Firestop/Spacer

(SV4.5HF)

Wall ﬁrestop/

Wall



Firestop/Spacer

spacer

(SV4.5HF)

SV4.5HF **

Ceiling



ﬁrestop/spacer

Firestop/Spacer

SV4.5VF *

(SV4.5VF)

Minimum 1 ft required

Min. One Foot Vent

Section Required

Installation

900005-00, 10/2015

Table 20 - Top Vent—Three 90° Elbows

H Maximum V Minimum

feet meters feet meters

3 0.91 1.6 0.490

5.2 1.58 3 0.914

6.8 2.07 4 1.22

8.4 2.56 5 1.524

10 3.05 6 1.729

16 4.87 10 3.050

H + H1 = 16 ft (4.87 m) maximum V + V1 +H + H1 = 60 ft (18.3 m) maximum

Install the U-shaped vent restrictor in any vent run with more than 6 ft of vertical rise. See Page 21 for more information.

Square termination (SV4.5HT-2) shown. See Table 17 as an aid in venting component selection for a particular range of

exterior wall thicknesses. This table shows a 1 (V) to 1.6 (H) ratio. For every 1 ft of (V) vertical, you are allowed

1.6 ft of (H) horizontal run, up to a maximum horizontal run of 16 ft (4.87 m). An elbow is acceptable as 1 ft of vertical rise, but may not be connected directly to

the appliance collar.

Wall ﬁrestop/spacer

Wall Firestop/Spacer



(SV4.5HF)

SV4.5HF **

When using Secure Flex®, use

When using Secure Flex



ceiling ﬁrestop/spacer SF4.5VF.

use Firestop/Spacer

When using Secure Flex, use wall

SF4.5VF.

ﬁrestop/spacer SF4.5HF.

When using Secure



Flex, use Firestop/Spacer

SF4.5HF.

Ceiling



Firestop/Spacer

ﬁrestop/spacer

(SV4.5VF)

SV4.5VF *

Wall ﬁrestop/spacer

Wall Firestop/Spacer



(SV4.5HF)

SV4.5HF **

Minimum 1 ft required

Min. One Foot Vent

Section Required

TM,

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Vertical or Horizontal Venting Using Secure Flex Kits and Components

Secure Flex venting kits and components may be used in any other vent installation where rigid Secure Vent® (SV4.5) direct-vent components can be used. All restrictions, clearances and allowances pertaining to rigid vent also apply to ﬂexible vent. Do NOT modify Secure Flex kits . Also, do NOT join separate sections of ﬂex vent together. Secure Flex kits can be installed on the end of a Secure Vent (SV4.5) rigid vent run, provided that doing so does not violate any of the venting length, height, routing, horizontal to vertical ratio requirements, or clearance considerations detailed in this manual. When combined, a rigid vent should not be installed between two ﬂexible vents.

Secure Flex kits come with an included adaptor that can be installed on the ﬁreplace collar or the inclined channel end of the last Secure Vent (SV4.5) vent section in a rigid system in the exact same fashion as any other Secure Vent section. Align the dimpled end of the adaptor over the previously installed section or ﬁreplace collar, adjusting the radial alignment until the four locking dimples of the adaptor are aligned with the inlets of the four incline channels of the last vent section or collar. Push on the adaptor until it is fully engaged, then twist the adaptor clockwise running the dimples down and along the incline channels until they seat at the end of the channels.

Figure 24 - Flexible Vent Adaptor Figure 25 - Flexible Vent

Apply ONLY MIL-PAC BLACK

HIGH TEMPERATURE

SEALANT (P/N 10K81) to

the outside surface of both

collars of the adaptor (ﬁll the

grooves of the outer collar to

be covered by the ﬂexible pipe)

and slide the ﬂexible vent over

the inner and outer adaptor

collars

Installation

900005-00, 10/2015

Flexible vent Flexible vent section

Securing screws in three (3) places through serrations and into the pipe

5” (127 mm) radius minimum

Gear clamps

1-3/4” (44 mm) ﬂexible

vent and adaptor outer

collar overlap

Adaptor (SV4.5RF)

NOTE: Outer vent pipe is pulled away to show inner vent pipe details.

Attach adaptor to vent collar or Secure Vent® sections

1-3/4” (44 mm) ﬂexible vent and adaptor inner collar overlap

Shown here: 36” Flex Connector Kit

36” of ﬂex with two adaptors for mating

two rigid sections of vent together.

(H7748)

1. Install the Inner Flex Pipe. a. Install the small gear clamp loosely around the inner ﬂexible vent, then push it back out of the way.

b. Apply a bead of Mill-Pac Black (700 °F) high temperature sealant (P/N 10K81) to the inner adaptor collar,

approximately 1/2” from the end.

c. Pull and extend the inner ﬂexible vent. d. Slide the inner ﬂex vent over the adaptor collar at least 1-3/4”. NOTE: Ensure the ﬂex vent is free from damage or tears. e. Slide the gear clamp down and tighten it fully to secure the ﬂexible vent to the adaptor inner collar

approximately 3/4” from the end of the ﬂex.

f. Install three (3) screws 120° apart through the ﬂexible vent and into the adaptor collar just below the gear

clamp to provide additional security to the connection.

2. Install the outer Flex Pipe. a. Install the large gear clamp loosely around the outer ﬂexible vent pipe, then push it back out of the way.

b. Apply a bead of Mill-Pac Black (700 °F) high temperature sealant (P/N 10K81) to the outer adaptor collar.

Cover to the grooves of the collar that extend approximately 1” from the end and to the ﬂat surface, approximately 1-3/8” from the end.

c. Pull and extend the outer ﬂexible vent. d. Slide the outer ﬂexible vent over the adaptor collar. Ensure the ﬂexible vent completely engages the adaptor collar

1-3/4” from the end, and that it is free from damage or tears.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

e. Slide the gear clamp down and tighten it fully to secure the ﬂexible vent to the adaptor outer collar

f. Install three (3) screws 120° apart through the ﬂexible vent and into the adaptor collar just below the gear

3. Route the ﬂexible vent. NOTE: Ensure that the ﬂexible vent is properly routed to provide the required clearance. Do NOT allow the ﬂexible vent

to bend in a radius tighter than 5” (127 mm) (Figure 25). Place the internal ﬂexible vent spacers evenly and avoid kinking the inner vent. Support horizontal sections of ﬂexible vent with metal straps at 2 ft (0.61 m) intervals.

4. Install ﬁrestop/spacers at ceiling and wall penetrations.

• SF4.5 VF ﬁrestop/spacer for ceilings

• SF4.5 HF ﬁrestop/spacer for walls NOTE: See the appropriate sections and ﬁgures shown throughout the venting section for installation

requirements.

5. Attach the ﬂexible vent to the termination. NOTE: Secure Flex

vent cut to size at the job site. Attach the ﬂexible vent to the Secure Flex terminations as it was attached to the adaptor (Figure 24).

NOTE: Attach Secure Flex vent to Secure Flex terminations only. Do NOT substitute Secure Vent or Secure Vent adaptor for Secure Flex components. Secure Flex termination and adaptor collars are a different circumference than Secure Vent collars. Secure Flex vent has an longer center tube to improve ease-of-installation.

approximately 3/4” from the end of the ﬂexible vent.

clamp to provide additional security to the connection.

components can be purchased separately and attached to bulk lengths of Secure Flex ﬂexible

Installation

900005-00, 10/2015

terminations

8. Complete the Field Wiring

Electrical Grounding Instructions This appliance is equipped with a three-prong (grounding) plug for your protection

against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. DO NOT cut or remove the grounding prong from this plug.

The ground supply lead must be connected to the wire attached to the green ground screw located on the outlet box (see wiring diagrams). Failure to do so will result in a potential safety hazard. The appliance must be electrically grounded in accordance with local codes or, in the absence of local codes, the National Electrical Code, ANSI/NFPA 70—latest edition (in Canada, the current CSA C22.1 Canadian Electrical Code).

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

WARNING

CAUTION

ATTENTION

Au moment de l’entretien des commandes, étiquetez tous les ﬁls avant de les débrancher. Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

Verify proper operation after servicing.

S’assurer que l’appareil fonctionne adéquatement une fois l’entretien terminé.

The gas valve is set in place and pre-wired at the factory. This appliance must be connected to 120 Vac power.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Figure 26 - Wiring Diagram—Electronic Gas Valves Figure 27 - Wiring Diagram—Junction Box

Schematic Representation Only

COLOR CODE:

B = BLACK

BB = BROWN W/BLACK STRIPE BG = BROWN W/GREEN STRIPE

BL = BLUE BR = BROWN G = GREEN GY = GRAY O = ORANGE R = RED W = WHITE Y = YELLOW

Models w/o pressure switch have these connectors plugged together

Air Pressure Switch

Circulation

Blower

Power Vent Only

Main Wire

Harness

Variable Light

Battery Holder w/Switch

Battery Holder w/Switch ON/ Remote /OFF

Battery Holder Wire Harness

ON/Remote/Off

IPI Pilot

Pilot Tube

885 Valve

Split Flow

Flame Sensor

Spark Electrode

Tab Intact

Green

Ground

Screw

Reset Switch

“see instructions”

Control Module

Fuse

Ground Y

Main Power Cord

Green

Neutral Side of Receptacle

White

Black

Tab Intact

Hot Side of Receptacle

Red

Junction Box

J-BOX / RECEPTACLE

WIRING 120V, 60HZ, 1PH

Factory Wired

Installation

900005-00, 10/2015

Ground - Green

Neutral - White

120 VAC - Black

(Power Supply

Unswitched)

Field Wired

One of the following optional controls may be used:

• ON/OFF Wall Switch,

• Thermostat, or

• Remote Control.

See the Operation section on Page 40 for more details.

1. Route a 3-wire, 120 Vac, 60 Hz, 1 ph power supply to the ﬁreplace junction box.

2. Remove the electrical inlet cover plate from the side of the unit by removing the plate’s securing screws.

3. Remove the cover plate knockout. Install a strain relief. Then, feed the power supply wire through the knockout

opening and into the unit junction box.

4. Use wire nuts to connect the leads from the appliance to the power supply leads.

5. Replace the cover plate.

6. Install the wall-mounted ON/OFF control in a convenient location near the ﬁreplace.

9. Installing and initializing the Remote Control System

Install the remote control system

Required Items (not provided):

• Standard Junction Box

• Paper Clip or similar object (for remote control system initialization)

The receiver for the remote control system connects directly to the gas valve, stepper motor, and fan control module with an umbilical cord wiring harness.

1. Install a junction box (not provided) on the wall adjacent to the appliance, within reach of the remote system umbilical cord wiring harness.

2. Position the terminal within the junction box in preparation for attachment to the remote wall switch.

3. When wall ﬁnish is complete, install the wall switch in the previously installed junction box, and connect the

terminal to the connector on the back of the wall switch.

4. Install the wall switch cover plate, taking care to ensure the wall switch is properly indexed with the switch cover when aligning the components for attachments.

Innovative Hearth Products

Hot Fireplace Will Cause Severe Burns

Never Allow Children to Touch Glass or other Fire-

place Parts

WARNING

Envy™ Direct-Vent Gas Fireplaces

Initialize the remote control system

After completing ﬁreplace installation, initialize the remote control system before operating the ﬁreplace.

1. Insert the three (3) provided AAA batteries into the battery bay in the transmitter. Correctly align polarity (+/–).

2. Insert the four (4) provided AA batteries into the wall switch battery bay (behind the wall switch plate). Correctly

align polarity (+/–).

3. On the wall switch, place the three-position slider switch in the REMOTE position (Figure 28).

4. On the wall switch front cover, insert the end of a paper clip (or other similar object) into the hole marked PRG. NOTE: The Receiver will beep three (3) times to indicate it is ready to synchronize with the transmitter.

5. On the transmitter, press the ON button. The receiver will beep four (4) times to indicate acceptance of the

transmitter’s command (and set the receiver to the transmitter’s speciﬁc code). The system is now initialized.

The receiver accepts commands via radio frequency from the transmitter and does not require line-of-sight for operation. The remote control system can operate the following ﬁreplace functions:

• Primary burner ON/OFF

• Auxiliary burner ON/OFF

• Dimmable light function

• 6-speed blower operation

• Flame height and heat output adjustment (six levels)

The slider on the wall switch can be set to one of three positions:

• ON (manual override)

• OFF (manual override)

• REMOTE (remote control)

Installation

900005-00, 10/2015

See the Operation section on Page 48 for more details.

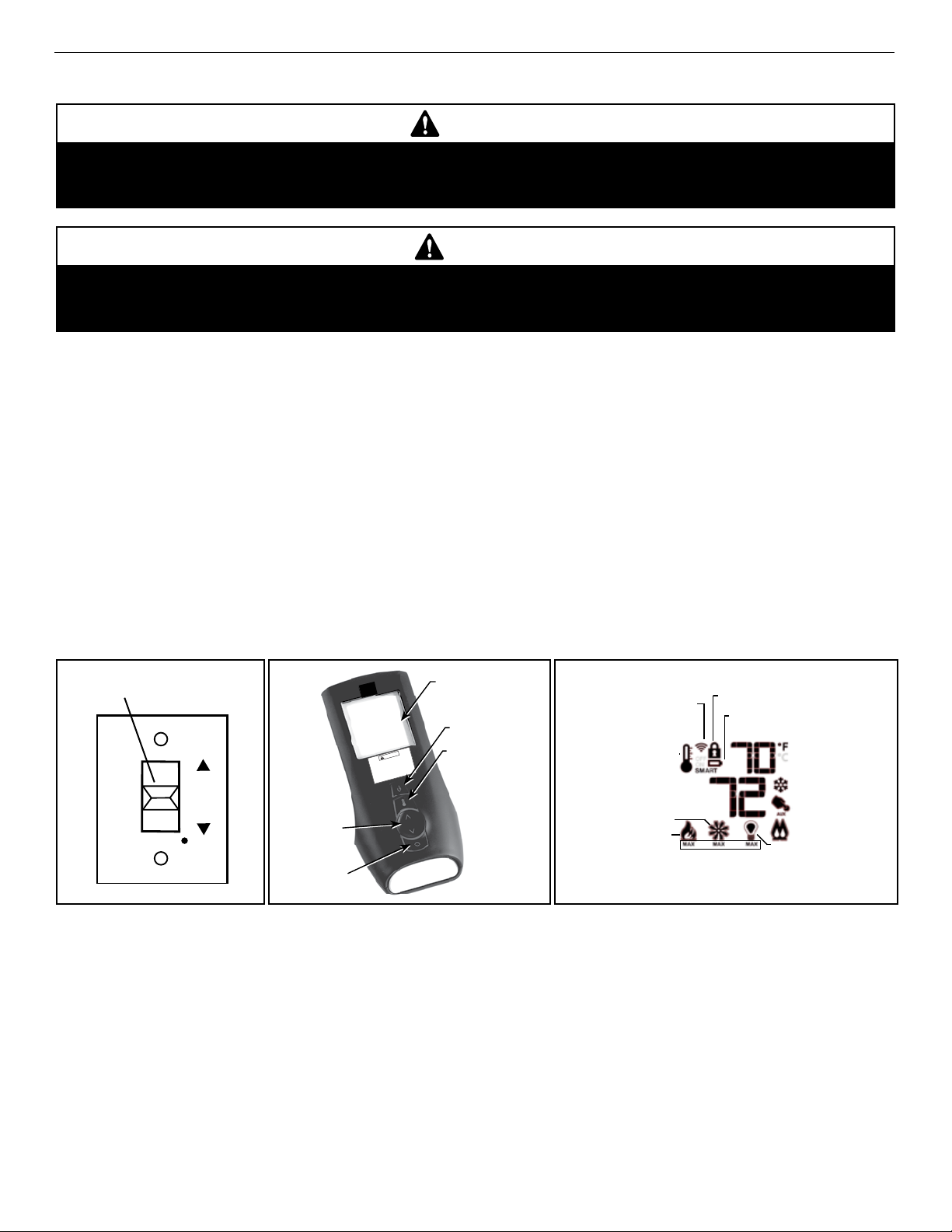

Figure 28 - Wall Switch Figure 29 - Transmitter (Remote Control)

Three-position slider switch in REMOTE position

Remote

Off

PRG

UP/DOWN

ARROW

button

MODE

button

LCD Display

ON/OFF button

THERMOSTAT button

WARNING

Fire hazard. Can cause severe injury or death. The receiver causes ignition of the appliance. The appliance can turn on suddenly. Keep away from the appliance burner when operating the remote system or activating manual bypass of the remote system.

CAUTION

Property damage hazard. Excessive heat can cause property damage. The appliance can stay lit for many hours. Turn off the appliance if it is not going to be attended for any length of time. Always place the Transmitter where children can not reach it.

Innovative Hearth Products

Access Plate

Gas Stub

1/2 in. x 3/8 in. Flare

Shut-Off Valve

3/8 in. Flex Tubing

3/8 in. NPT x 3/8 in.

Flare Fitting

Gas Valve

Flex Line Connector

Envy™ Direct-Vent Gas Fireplaces

Connect the Gas Line

10.

All codes require a shutoff valve mounted in the supply line. The shutoff valve should be oriented to face the ﬁreplace front. The ﬂex-line method is acceptable in the U.S.A. where local codes permit it. In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas ﬁtter. Canadian requirements vary depending on locality. Installation must be in compliance with local codes. These appliances are equipped with a gas ﬂex line for use in connecting the unit to the gas line (Figure 31). The ﬂex line is rated for both natural and propane gas. A manual shutoff valve is also provided with the ﬂex line.

NOTE: A sediment trap is recommended in the gas piping within the home to prevent moisture and debris in the line from damaging the valve.

NOTE: Secure all joints tightly using appropriate tools and sealing compounds (ensure propane resistant compounds are used in propane applications). Optionally, seal around the gas line to prevent cold air leakage. Gas line holes and other openings can be caulked or stuffed with unfaced ﬁberglass insulation.

The gas control valve is located on the left of the ﬁrebox, in the side control compartment. The valve is accessible with the glass door removed (Figure 30).

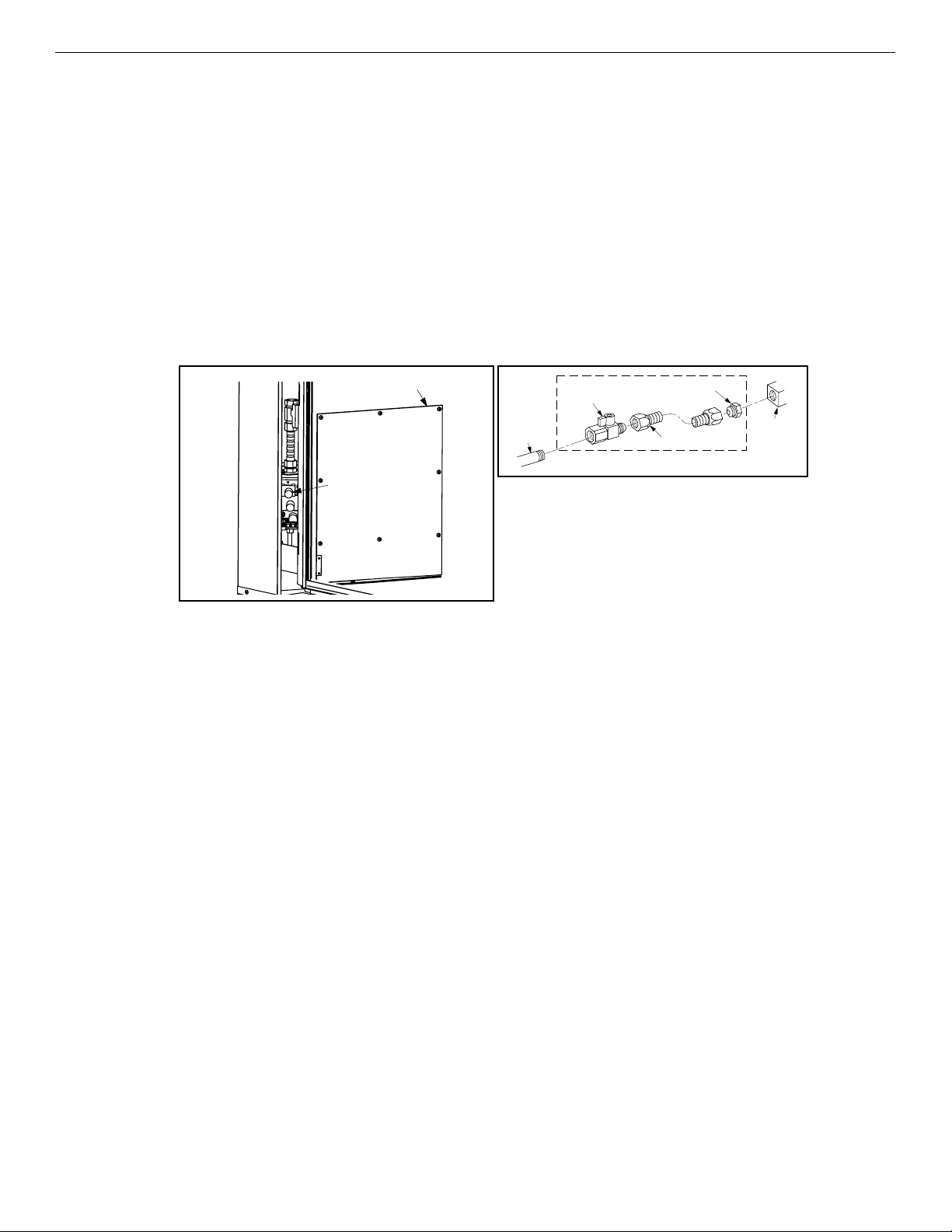

Figure 30 - Control Compartment Figure 31 - Gas Line Connection

Installation

900005-00, 10/2015

Gas Valve

Gas valve

Access

1/2 x 3/8” Flare shutoff valve

Gas stub

3/8 NPT x 3/8” Flare ﬁtting

3/8” Flex tubing

Gas

valve

These ﬁreplaces are equipped with a gas ﬂex line for use (where permitted) in connecting the unit to the gas line. A gas ﬂex line is provided to aid in attaching the direct-vent ﬁreplace to the gas supply. The gas ﬂex line can only be used where local codes permit. The ﬂex line is rated for both natural and propane gas. A manual shut off valve is also provided with the ﬂex line.

1. Route a hard pipe from the lefthand side to a spot directly below the access plate opening.

2. Locate the shutoff valve and gas ﬂex line and pull the assembly forward, out of the compartment. Separate the

shutoff valve from the gas ﬂex line. Determine the length of pipe needed to route the gas line from the last ﬁtting to a point directly below the access plate opening.

3. Using pipe-dressing materials appropriate for the gas type, securely afﬁx the shutoff valve to this pipe at a convenient location outside of the appliance control compartment.

4. Insert the last length of gas pipe with the attached shutoff valve into the control compartment, and pass it through the gas line access hole on the left side of the appliance outer wrapper.

5. Using materials appropriate for the gas type, thread the last length of pipe into the end of the gas vent run and tighten it in place using a pipe wrench.

6. Turn the last piece of gas pipe in the last ﬁtting until the shutoff valve is positioned in a way that allows the shutoff valve handle to be accessed in the control compartment and easily operated through its full range of motion.

7. Bring the ﬂex line to the shutoff valve by hand and align the ﬂare ﬁttings. Tighten the ﬁttings by hand, and then use a wrench to tighten completely, 1/4 turn at a time.

Access the Control Compartment

See Page 50 for instructions on Accessing the Control Compartment. Electronic control valves have a 3/8” (10 mm) NPT thread inlet port. Secure all joints tightly using appropriate tools and sealing compounds (ensure propane resistant compounds are

used in propane applications). Optionally, seal around the gas line to prevent cold air leakage. Gas line holes and other openings can be caulked or stuffed with unfaced ﬁberglass insulation.

All codes require a shutoff valve mounted in the supply line. The orientation of the shutoff valve should face the front. Figure 31 illustrates two methods for connecting the gas supply. A sediment trap is recommended to prevent moisture and debris in the gas line from damaging the valve.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Test Factory and Field Connections for Gas Leaks

Never use an open ﬂame to check for leaks.

1. Turn ON the gas supply and test for gas leaks, using a gas leak test solution—also known as bubble leak solution. NOTE: Using a soapy water solution is an effective leak test solution but it is not recommended, because the

soap residue that is left on the pipes/ﬁttings can result in corrosion over time.

2. Light the ﬁreplace (refer to the lighting instructions label in the control compartment or Page 50).

3. Brush all joints and connections with the gas leak test solution to check for leaks. If bubbles are formed, or gas

odor is detected, turn the gas control knob to the OFF position. Either tighten or refasten the leaking connection, and then retest as described above.

4. When the gas lines are tested and leak free, rinse off the leak testing solution

11. Verify Proper Fireplace Operation

1. With the gas line installed, inspect the system before closing the front of the unit.

2. Follow the pilot lighting instructions (Page 63). NOTE: When lighting the ﬁreplace for the ﬁrst time, it will take a few minutes for the gas line to purge itself of air.

When purged, the pilot and burner will light and operate as indicated. Subsequent lighting of the ﬁreplace will not require purging. Inspect the pilot ﬂame (carefully remove logs, if necessary).

3. To light the burner, turn ON the wall or (optional) remote control switch. Ensure the igniter lights the pilot. The pilot ﬂame should engulf the ﬂame rod (Figure 32).

Installation

900005-00, 10/2015

WARNING

Figure 32 - Pilot

Igniter

Flame Rod

12. Install the Firebox Liners

1. See Page 53 for instructions on Installing the Firebox Liners.

13. Contemporary Fireplaces: Install the Glass Media

1. See Page 53 for instructions on Installing the Glass Media.

14. Traditional Fireplaces: Install the Logs

1. See Page 54 for instructions on Installing the logs.

15. Install the Glass Door

Pilot Hood

1. See Page 56 for instructions on Installing and removing the glass door.

16. Adjust the Air Shutter to Ensure Proper Flame Appearance

• Air shutter adjustment should only be performed by a qualiﬁed professional service technician.

• Ensure glass door is in place and sealed during adjustment.

WARNING

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

• Soot will be produced if the air shutter is closed too much. Any damage due to sooting, resulting from improperly setting the air shutter, is not covered under the warranty.

• The air shutter rod and nearby appliance surfaces are hot. Exercise caution to avoid injury while adjusting ﬂame appearance.

Flame Appearance and Sooting

The ﬂame should be blue at the base, and yellow-orange in the body of the ﬂame. When the ﬁreplace is ﬁrst lit, the entire ﬂame may be blue and will gradually turn yellow-orange during the ﬁrst 15

minutes of operation. If the ﬂame remains blue, or if the ﬂame is orange with evidence of sooting (black tip), the air shutter opening may need to be adjusted.

If the air shutter opening is closed too far, sooting may develop. Sooting is indicated by black puffs developing at the tips of very long orange ﬂames. Sooting results in black deposits forming on the logs, ﬁreplace inside surfaces, and on exterior surfaces adjacent to the vent termination.

Sooting is caused by incomplete combustion in the ﬂames and lack of combustion air entering the air shutter opening. To achieve a warm yellow-orange ﬂame with an orange body that does not soot, the shutter opening must be adjusted between these two extremes.

Air Shutter Adjustment Guidelines

The rear burner circuit is equipped with an adjustable air shutter the front air shutter is ﬁxed. The front air shutter is set for best performance in most installations. However for long vent runs or at high altitude the front air shutter may need to be adjusted. It is recommended to adjust the rear air shutter ﬁrst then if needed remove the burner assembly and adjust the front shutter.

Installation

900005-00, 10/2015

CAUTION

• If smoke or soot is present, ﬁrst check the log set positioning to ensure that the ﬂames are not impinging on any of the logs. If the log set is properly positioned and a sooting condition persists, then the air shutter should be opened more.

• The more offsets in the vent system, the wider the air shutter will need to be opened.

• A ﬁreplace operated with the air shutter opened too far may have ﬂames that appear blue and transparent. These weak, blue, and transparent ﬂames are termed anemic.

• Propane models may exhibit ﬂames that candle or appear stringy. If this condition is present and persists, adjust the air shutter to a more closed position, then operate the ﬁreplace for a few more minutes to ensure that the ﬂame normalizes and the ﬂames do not appear sooty.The following chart is provided to help achieve the correct air shutter adjustment for your installation.

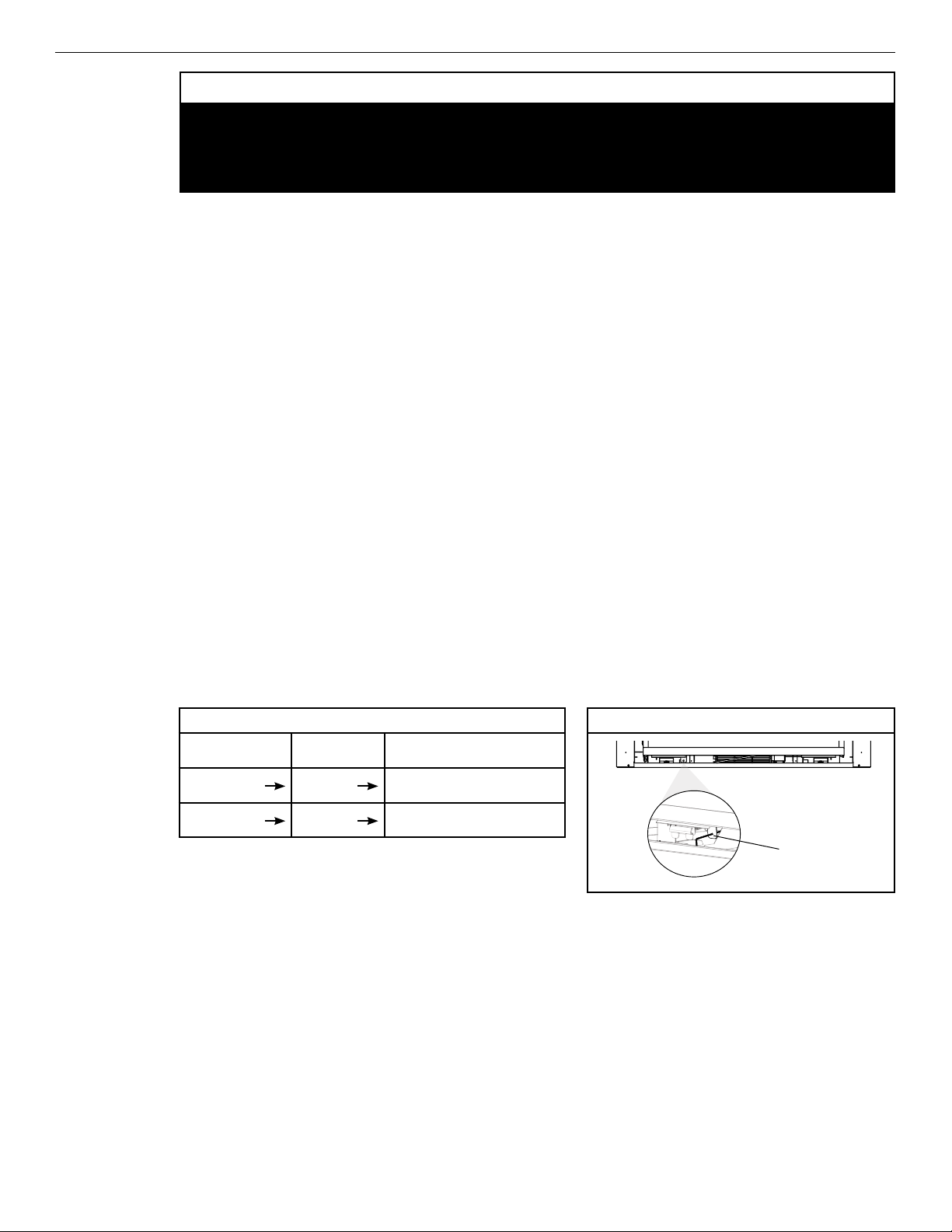

Table 21 - Air Shutter Adjustment Guidelines

Amount of Primary

Air

If air shutter is

closed too far

If air shutter is

open too far

Flame Color Air Shutter Adjustment

Flame will be orange

Flame will

be blue

Air shutter gap should be increased

Air shutter gap should be decreased

Figure 33 - Air Shutter Adjustment Rod

Air Shutter Adjustment Rod

To adjust the front air shutter:

With barrier, door and logs or media removed. Remove 2 or 3 screws securing the burner (2 on right side one of left for traditional ﬁreplaces).

Lift the right hand side and slide burner to the right to remove burner from unit. Loosen screw securing front air shutter to factory setting. Open air shutter as desired. Tighten screw to secure air

shutter position and reinstall burner in reverse order. Note: Rear air shutter has a self aligning air shutter linkage. Make sure linkage engages the air shutter when

reinstalling the burner.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

1. Remove the top louver and the surround trim assembly (Page 41).

2. Locate the air shutter adjustment rod in the lower control compartment (Figure 33), and adjust it to the standard

setting.

NOTE: Pull the rod out to close, and push the rod in to open the air shutter.

3. Light the ﬁreplace. Follow the lighting procedure on the lighting label in the control compartment or Page 63.

4. Allow the burner to operate for at least ﬁfteen (15) minutes while observing the ﬂame continuously to ensure

that the proper ﬂame appearance is achieved (Figure 34 and Figure 35). If the following conditions are present, adjust accordingly.

• If ﬂame appears weak or sooty, adjust the air shutter, incrementally, to a more open position until the proper

• If ﬂame remains blue, adjust the air shutter, incrementally, to a more closed position until the proper ﬂame

5. When satisﬁed that the burner ﬂame appearance is normal, reinstall the surround trim assembly and top louver, then proceed to ﬁnish the installation.

Installation

900005-00, 10/2015

ﬂame appearance is achieved.

appearance is achieved.

Figure 34 - Traditional Fireplaces Flame Appearance

Table 22 - Main Burner Shutter Opening—Factory Setting

Models Natural Gas Propane

35” 3/16” (4.8 mm) 7/16” (11.1 mm) 40” 3/16” (4.8 mm) 3/8” (9.5 mm) 45” 3/16” (4.8 mm) 3/8” (9.5 mm)

Figure 35 - Contemporary Fireplaces Flame Appearance

Innovative Hearth Products

SV4.5E90

(90

Elbow)

8 1/8 in.

(206 mm)

Swivel Joint

(360

swivel)

4 13/16 in.

(122 mm)

SV4.5E45

(45

Elbow)

Swivel Joint

(360

swivel)

Envy™ Direct-Vent Gas Fireplaces

17. Install the Vent Restrictor (if necessary)

A vent restrictor may be needed with this appliance. The restrictor is installed in the appliance top ﬂue outlet, either before adding vent from above, or after installation of vent from below—within the ﬁrebox. The restrictor is self securing with a positive friction ﬁt.

1. Use the vent run descriptions below to determine if a vent restrictor is necessary.

• Base vent restrictor for:

• Horizontal termination with total vertical run of more than 6 ft

• Vertical termination with total vertical run of 6–10 ft

• Intermediate setting for:

• Vertical termination with total vertical run of >10–40 ft

• Maximum setting for:

• Vertical termination with total vertical run of >40–60 ft

2. If necessary, assemble the vent restrictor and wing as detailed in Figure 14.

3. If necessary, install the appropriate vent restrictor (Figure 13).

NOTE: The vent restrictor is shipped in the ﬁrebox.

Connecting the vent pipe

Secure Vent® SV4.5 direct-vent system components are unitized concentric pipe components featuring positive twist lock connections (Figure 36 and Figure 37). All of the ﬁreplaces covered in this document are ﬁtted with collars having locking inclined channels. The dimpled end of the vent components ﬁt over the ﬁreplace/vent collar to create the positive twist lock connection.

1. Align the dimpled end over the collar, adjusting the radial alignment until the four (4) locking dimples are aligned with the inlet of the four (4) inclined channels on the collar (Figure 37).

2. Push the vent component against the collar until it fully engages, then twist the component clockwise, running the dimples down and along the incline channels until they seat at the end of the channels.

Installation

900005-00, 10/2015

Table 23 - Effective Vent Length

Model Effective Length

SV4.5L6 4-1/2” SV4.5L12 10-1/2” SV4.5L24 22-1/2” SV4.5L36 34-1/2” SV4.5L48 46-1/2”

SV4.5LA 1-1/2 to 7”

Vent elbows

NOTE: The unitized design of the Secure Vent® components will engage and seal both the inner and outer vent pipe.

3. If desired, a #6 x 1/2” screw can be used at the joint, but is not required as the pipe will securely lock when

twisted (Figure 37).

Where required, a telescopic vent section (SV4.5LA) may be used to provide the installer with an option to install in tight and conﬁned spaces, or where the vent run made up of ﬁxed length pieces develops a joint in a undesirable location, or will not build up to the required length. The SV4.5LA Telescopic Vent Section has an effective length of from 1-1/2 to 7” (38–191 mm). The SV4.5LA is ﬁtted with a locking inclined channel end (identical to a normal vent section component) and a plain end with three (3) pilot holes. Slip the plain end over the locking channel end of a standard SV4.5 vent component the required distance and secure with three (3) screws.

Figure 36 - Connecting vent

components

Arrow

Dimple

Locking Incline Channel

Appliance Collar or Vent Section

Figure 37 - Connected vent

components

Dimple

Locking

Incline

Channel

Arrow

Figure 38 - Elbow Dimensions

4-13/16” (122 mm)

Swivel Joint

(360°)

SV4.5E45

(45° elbow)

Swivel Joint

(360°)

SV4.5E90

(90° elbow)

8-1/8” (206 mm)

Vent elbows are available in 90° and 45° conﬁgurations. Refer to Figure 38 for the SV4.5E45 and SV4.5E90 elbow dimensions. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element.

1. Rotate the elbow in a clockwise direction (to avoid the possiblity of unlocking any of the previously connected vent sections) for proper alignment (Figure 37). See Connecting the vent pipe for more information.

Vent section length table

Table 13 will assist calculating how many vent sections are needed for the planned vent conﬁguration. When a vent section is engaged with another section, its effective length will be 1-1/2” shorter.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Install the Finishing Materials

18.

1. Complete ﬁnished interior wall. NOTE: To install the ﬁreplace facing ﬂush with the ﬁnished wall, position framework to accommodate the

thickness of the ﬁnished wall.

2. Remove the surround trim assembly (Figure 7)

3. Remove the ﬁnish trim gap ﬁllers from the side of the ﬁreplace, and identify the left and right side pieces (Figure

39).

Figure 39 - Finish Trim Gap Fillers Figure 40 - Finish Trim Fasteners

Installation

900005-00, 10/2015

Fireplace Top

Right

Left

Screws

NOTE: Integrated ﬁnish trim shown in gray. Three (3) screws on right side not shown, but mirror left side.

4. Loosen the nine (9) screws securing the integrated ﬁnish trim and slide the trim out and away from the ﬁreplace door (Figure 40).

NOTE: The integrated ﬁnish trim is designed to be “ﬂush face” with a minimum thickness of 1” (25 mm) in a non-combustible wall. The ﬁreplace is supplied with 1/2” (13 mm) non-combustible wall material (Figure 41).

NOTE: A “ﬂush face” installation will require a minimum of an additional 1/2” (13 mm) non-combustible (installer-supplied) wall material (Figure 42) to create the minimum 1” (25 mm) thick wall. The ﬁreboard supplied with the unit is not intended to be the ﬁnish material.The supplied ﬁreboard must be covered with additional ﬁeld supplied non-combustible material.

Innovative Hearth Products

15 1/

Envy™ Direct-Vent Gas Fireplaces

NOTE: The integrated ﬁnish trim is adjustable to accommodate a wall thickness of an additional 1” (25 mm)—for a 2” (51 mm) total thickness.

NOTE: For wall thicknesses greater than 2” (51 mm), remove the three integrated ﬁnish trim pieces (Figure 40).

Figure 41 - Non-combustible Wall Figure 42 - Wall Finishing

(394)

Shaded area is non-combustible wall

Combustible

ﬁnished wall

materials

Combustible

materials

not allowed

below this

point on the

face of the

appliance

15-1/2”

394 mm

The shaded area must remain clear of combustible materials

1” (25 mm) Minimum

Spacer

Top of Appliance

Top of Door Frame

Installation

900005-00, 10/2015

NOTE: See Cold Climate Insulation on Page 10 and Vent Termination Clearances on Page 12.

5. Slide the ﬁnish trim in until it is ﬂush with the ﬁnished wall surface. Tighten the nine (9) screws (Figure 40)

securing the ﬁnish trim.

6. Install the surround trim assembly (Figure 48).

7. Slide the left ﬁnish trim gap ﬁller into the left gap between the ﬁnish trim and the surround trim assembly

(Figure 47).

NOTE: NOTE: Ensure the ﬁnish trim gap ﬁller slides into the spring clip, as shown.

8. Slide the right ﬁnish trim gap ﬁller into the right gap between the ﬁnish trim and the surround trim assembly

(Figure 47).

NOTE: Ensure the ﬁnish trim gap ﬁller slides into the spring clip, as shown.

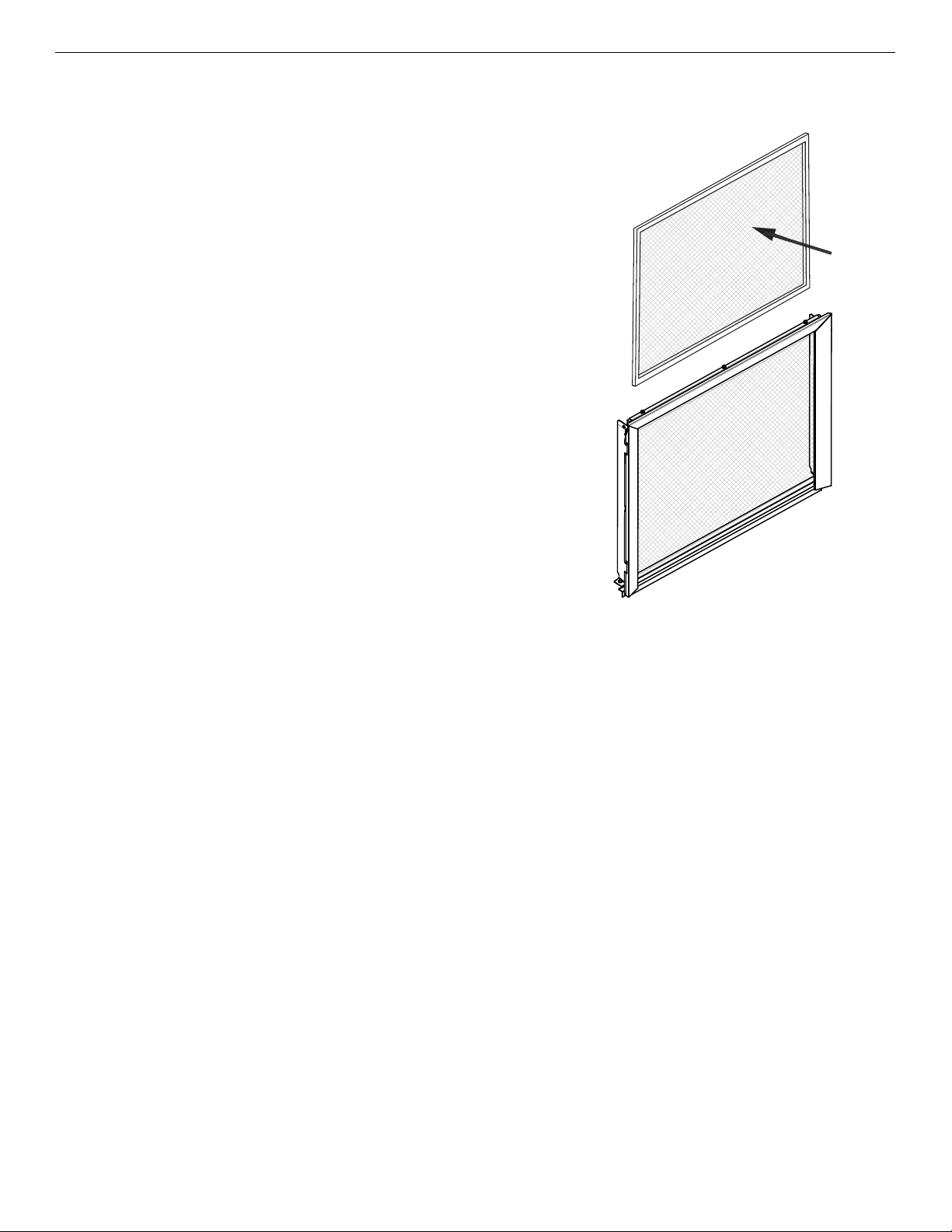

The surround trim assembly includes an integrated barrier to reduce the risk of burns from the hot viewing glass. Do not operate the ﬁreplace without the surround trim assembly / barrier installed.

19. Attach the Safety-in-Operation Warning Labels

1. Attach the furnished safety instruction labels at all ﬁreplace operation and control points (Page 43). NOTE: The installer MUST ensure these warnings are properly attached during installation. The warning labels

are a critical means of informing consumers of safe operation practices.

WARNING

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Installation

900005-00, 10/2015

INSTALLER INSTRUCTIONS—ATTACHING SAFETY-IN-OPERATION WARNINGS It is the installers responsibility to ensure these warnings are properly afﬁxed during installation. These warning labels are a critical

step in informing consumers of safe operation of this appliance.

ATTACHING SAFETY IN OPERATION WARNINGS

It is required that the set of safety instruction labels that have been furnished with the ﬁreplace be afﬁxed to the operation and control points of the ﬁreplace. A safety instruction label must be afﬁxed to the receiver wall switch plate where the ﬁreplace is turned on and off (See Figure A) and on the remote control handheld transmitter (See Figure B). To properly complete the installation of this ﬁreplace, locate the multi-lingual adhesive labels provided with the Care and Operation Instructions and proceed as follows:

1. Locate the wall receiver that controls the ﬁreplace (verify the switch operates the ﬁreplace by turning it on and off). Clean the wall receiver plate thoroughly to remove any dust and oils. Afﬁx the label to the surface of the plate of the wall receiver that controls the ﬁreplace (Figure A). Choose the language primarily spoken in the home. If unknown, afﬁx the English language label.

2. Locate the remote control transmitter and clean it thoroughly to remove any dust and oils. Afﬁx the label to the surface of handheld transmitter (Figure B). Choose the language primarily spoken in the home. If unknown, afﬁx the English language label.

3. If you are unable to locate the labels, please call Innovative Hearth Products or your nearest Innovative Hearth Products dealer to receive additional safety instruction labels free of charge.

Cat. No. H8024 Replacement Label Kit

Astria.us.com

NOTE: English is red text on clear label. French and Spanish are white text on black label.

APPOSITION DES MISES EN GARDE RELATIVES À LA SÉCURITÉ D’UTILISATION

Il est impératif que le jeu d’étiquettes de sécurité qui ont été fournies avec le foyer soient collées à côté des dispositifs de contrôle du foyer. Une étiquette de sécurité doit être collée sur la plaque du récepteur mural contrôlant l’allumage du foyer (voir Figure A) et sur le boîtier de la télécommande (Figure B). Pour achever l’installation correcte de ce foyer, procédez comme suit avec les étiquettes adhésives en langues étrangères fournies avec les instructions d’utilisation et d’entretien :

1. Repérez le récepteur mural qui contrôle le foyer (vériﬁez que l’interrupteur contrôle le fonction nement du foyer en le faisant basculer de Marche à Arrêt, et vice-versa). Nettoyez soigneusement la plaque du récepteur mural pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur la surface de la plaque du récepteur mural qui contrôle le foyer (Figure A). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire. En cas de doute, collez l’étiquette en anglais.

2. Repérez la télécommande et nettoyez-la soigneusement pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur le boîtier de la télécommande (Figure B). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire. En cas de doute, collez l’étiquette en anglais.

3. Si vous ne trouvez pas les étiquettes, veuillez appeler Innovative Hearth Products ou votre distributeur Innovative Hearth Products local pour recevoir gratuitement des étiquettes supplémentaires.

Étiquettes de remplacement, n° cat. H8024

Astria.us.com

Remarque : Le texte anglais est rouge sur un support transparent. Le texte français et espagnol est blanc sur un support noir.

COLOCACIÓN DE ADVERTENCIAS DE SEGURIDAD EN OPERACIÓN

Se requiere que el juego de etiquetas de instrucciones de seguridad que se incluyeron con la chimenea se coloque en los puntos de operación y control de la misma. Se debe colocar una etiqueta de instrucciones de seguridad en la placa del interruptor de pared del receptor desde el cual se enciende y se apaga la chimenea (ver la Figura A) y en el transmisor de control remoto (ver la Figura B). Para completar correctamente la instalación de esta chimenea, encuentre las etiquetas adhesivas multilingües incluidas con las instrucciones de cuidado y operación y haga lo siguiente:

1. Identiﬁque el receptor de pared que controla la chimenea (veriﬁque que el interruptor opera la chimenea encendiéndola y apagándola). Limpie bien la placa del receptor de pared para quitar el polvo y aceite. Pegue la etiqueta en la superﬁcie de la placa del receptor de pared que controla la chimenea (Figura A). Seleccione el idioma que más se habla en la casa. Si no sabe cuál es, use la etiqueta en inglés.

2. Identiﬁque el transmisor de control remoto y límpielo bien para quitar el polvo y aceite. Pegue la etiqueta en la superﬁcie del transmisor (Figura B). Seleccione el idioma que más se habla en la casa. Si no sabe cuál es, use la etiqueta en inglés.

3. Si no puede encontrar las etiquetas, sírvase llamar a Innovative Hearth Products o al distribuidor de Innovative Hearth Products más cercano para recibir etiquetas de instrucciones de seguridad adicionales gratuitas.

Juego de etiquetas de repuesto—Nº de cat. H8024

Astria.us.com

Nota: La etiqueta en inglés es transparente con texto rojo. Las etiquetas en francés y español son negras con texto blanco.

SAFETY LABEL

DIAGRAMS

Illustrations are for example only. Your accessories may be different.

Les illustrations sont par exemple uniquement. Vos accessoires peuvent être différents.

Las ilustraciones son sólo ejemplos. Tu accesorios pueden ser diferentes.

DIAGRAMMES DES ÉTIQUETTES

DE SÉCURITÉ

Figure A

Remote

PRG

DIAGRAMAS DE ETIQUETAS

DE SEGURIDAD

Figure B

Off

Innovative Hearth Products

n t

Envy™ Direct-Vent Gas Fireplaces

INSTALLATION ACCESSORIES

Table 24 - Listed Secure Vent™ Components

Catalog Number

H1968 SV4.5HT-2

77L70 SV4.5L6 6” (152 mm) H1985 CTSO-33

77L71 SV4.5L12 12” (305 mm) H1987 CTSO-44

77L72 SV4.5L24 24” (610 mm) H1986 CTSO-46

77L73 SV4.5L36 36” (914 mm) 77L74 SV4.5L48 48” (1219 mm) 60L10 SF-18 18 ft (5.49 m)* compressed ﬂex

77L75 SV4.5LA

Models Description

Horizontal square termination with ﬁrestop / spacer (H2246)

and adaptor (74L61)

Telescopic length slip section

(2–7 1/2”, rigid)

Catalog

Number

H1988 CTSA-33

Models Description

Chase top shroud kit, arch top, 3

Chase top shroud kit, open top, 3

Chase top shroud kit, open top, 4

Table 25 - Listed Secure Flex™ Components

98K03 SF-12 12 ft (3.66 m)* compressed ﬂex

Operation

900005-00, 10/2015

x 3 ft

x 4 ft

x 6 ft

77L76 SV4.5E45 45° Elbow H2248 SF4.5HF-10

77L77 SV4.5E90 90° Elbow H2249 SF4.5VF-10

77L78 SV4.5F Flat roof ﬂashing *

H1969 SF4.5HT-2 without ﬂex

Firestop/spacer—horizontal, ﬂex

(3-1-1 spacing), 10 pk

Firestop/Spacer—vertical, ﬂex

(1-1-1 spacing), 10 pk

77L79 SV4.5FA 1/12–7/12 Adjustable ﬂashing * 77L87 SFKIT12S with 12” (305 mm)* compressed flex 77L80 SV4.5FB 7/12–12/12 Adjustable ﬂashing * 77L88 SFKIT18S with 18” (457 mm)* compressed flex

77L81 SV4.5SC6 Storm collar (6/box) * 77L89 SFKIT24S with 24” (610 mm)* compressed flex

H6183 SV4.5HF5 Firestop spacer, 5”, rigid * 77L90 SFKIT36S with 36” (914 mm)* compressed flex H6184 SF4.5HF5 Firestop spacer, 5”, ﬂex * 77L91 SFKIT48S with 48” (1219 mm)* compressed flex

H2246 SV4.5HF-10

H2247 SV4.5VF-10

Firestop/spacer—Horizontal,

rigid (3-1-1 spacing), 10 Pack *

Firestop/spacer—vertical,

rigid (1-1-1 spacing), 10 Pack *

96K92 SV4.5SP Support plate *

Horizontal square

termination for ﬂex

56L74 SFVT30

Vertical termination for ﬂex,

ﬂat–6/12

with ﬂex adaptor, section of rigid

vent, roof support collar assembly,

roof ﬂashing and storm collar

17M52 SV4.5HGS-1 Termination guard, square (1 pack)

17M53 SV4.5HGS-12

87L02 SV4.5HGS

H5820 SV4.5HTSK

H5816 SV4.5-TWSK10

Termination guard, horizontal

square (12 pack)

Termination guard for horizontal

square termination (deluxe) (1 pack)

Termination guard for horizontal

square termination (1 pack)

Through wall shield kit (used to shield the direct-vent pipe from

56L75 SFVT45

91L66 SFGC4-6

Vertical termination for ﬂex

6/12–12/12

with ﬂex adaptor, section of rigid

vent, roof support collar assembly,

roof ﬂashing and storm collar

Gear clamp

4 1/2” (114 mm) for ﬂex (6 pk)

blown insulation)

H3907 SV4.5ARSA

96K93 SV4.5SU Support strap

Attic insulation shield w/

adjustable height, 12–22”

91L67 SFGC7-6

Gear clamp

7 1/2” (191 mm) for ﬂex (6 pk)

10K81 SFMP

H8914 SV4.5TK90HT2

H8915 SV4.5TK90SS

Mill-Pac, black, high temperature

sealant

Horizontal Termination Kit with

SV4.5 90° elbow

H7748 H7748

36” Flex connector kit, 36” of ﬂex with two adapters for mating two

rigid sections of vent together

* Flashing comes packaged with a storm collar.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Operation

GAS CONVERSION KITS

WARNING

This conversion kit shall be installed by a qualiﬁed service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a ﬁre, explosion, or the production of carbon monoxide may result; causing property damage, personal injury, or loss of life. The qualiﬁed service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the converted appliance is checked as speciﬁed in the manufacturer’s instructions supplied with the kit.The qualiﬁed service agency performing this installation assumes responsibility for this conversion.

AVERTISSEMENT

Cette trousse de conversion doit être installée par un technicien agréé, selon les instructions du fabricant et selon toutes les exigences et tous les codes pertinents de l’autorité compétente. Assurez-vous de bien suivre les instructions dans cette notice pour réduire au minimum le risque d’incendie, d’explosion ou la production de monoxyde de carbone pouvant causer des dommages matériels, des blessures ou la mort. Le tecnicien agréé est responsable de l’installation de cette trousse. L’installation n’est pas adéquate ni complète tant que le bon fonctionnement de l’appareil converti n’a pas été vériﬁé selon les instructions du fabricant fournies avec la trousse. Le fournisseur de service qualiﬁé ayant réalisé l’installation assume les responsabilités liées à la conversion.

In Canada: The conversion shall be carried out in accordance with the requirements of the provincial authorities having

jurisdiction and in accordance with the requirements of the CAN/CGA-B149.1 Installation code.

La conversion devra être effectuée conformément aux recommandations des autorités provinciales ayant juridiction et conformément aux exigences du code d’installation CAN/CGA-B149.1.

Gas conversion kits are available to adapt your ﬁreplace from the use of one type of gas to the use of another. These kits contain all the necessary components needed to complete the task including labeling that must be afﬁxed to ensure safe operation.

Refer to the instructions provided with the conversion kit when performing any gas conversion.

Table 26 - Traditional Fireplaces—Natural Gas to Propane Conversion Kits

Models Catalog Number

35” Contemporary/Traditional H8754 40” Contemporary/Traditional H8722 45” Contemporary/Traditional H8757

Table 27 - Traditional Fireplaces—Propane to Natural Gas Conversion Kits

Models Catalog Number

35” Contemporary/Traditional H8755 40” Contemporary/Traditional H8756 45” Contemporary/Traditional H8758

Table 28 - Contemporary Fireplaces—Natural Gas to Propane Conversion Kits

Models Catalog Number

35” Contemporary/Traditional H8759 40” Contemporary/Traditional H8760 45” Contemporary/Traditional H8761

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Installing Gas Conversion Kits

The gas supply shall be shut OFF prior to disconnecting the electrical power, before proceeding with the conversion.

Avant d’effecteur la conversion, coupez d’abord l’alimentation en gaz, ensuite, coupez l’alimentation electrique.

1. TURN OFF THE GAS SUPPLY TO THE FIREPLACE and disconnect power supply at the circuit breaker. Ensure

ﬁreplace is cold.

2. Open the lower control compartment door (Page 50).

3. Remove the front glass door/frame from the ﬁreplace (Page 56).

4. Remove the logs / glass media. If necessary, remove the log grate. NOTE: Exercise care so as not to break the logs (Page 54).

5. Remove the sub ﬂoor.

6. Remove the two (2) screws securing the burner assembly. Remove the burner assembly with the attached

venturi tube.

Operation

900005-00, 10/2015

WARNING

AVERTISSEMENT

Electronic Ignition System Fireplaces

7. Refer to the instructions provided with the SIT Regulator Conversion Kit, and Figure 43. Using a Torx T20 driver (with 1/4” shank) or slotted screwdriver, remove and discard the pressure regulator mounting screws (two screws for electronic models, three screws for millivolt models), pressure regulator tower, the diaphragm assembly (if applicable) and the spring. Discard all removed components.

Figure 43 - ElectronicValve Regulator

Stepper

Motor

Pressure

Regulator

Tower

8. Install the new pressure regulator assembly using the supplied screws. Tighten the screws to 25 in. lbs.

9. Install the enclosed identiﬁcation label to the valve body where it can be easily seen.

10. Remove the pilot hood assembly to access the hex pilot oriﬁce. Remove and replace the pilot oriﬁce with the one

provided with the kit. Exercise extreme care to prevent damage to or breakage of the igniter assembly.

11. Remove the burner oriﬁce from the manifold and replace it with the one provided in the kit (Figure 45). NOTE: See Table 4 for burner oriﬁce sizes.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Figure 44 - Pilot Figure 45 - Oriﬁce

12. Use pipe joint compound or Teﬂon® tape on all pipe ﬁttings before installing. NOTE: Ensure propane resistant compounds are used in propane applications, do not use pipe joint compounds

on ﬂare ﬁttings.

13. Retrieve the burner and hold the venturi tube above the oriﬁce. Place the shutter adjusting rod in the slot of the shutter arm (Figure 33). Set the burner assembly into its position and secure the trapezoidal plate with the two screws previously removed.

14. Reinstall the bafﬂe with the two bafﬂe securing screws.

15. Reassemble the remaining components.

16. Turn on gas supply and test for gas leaks (Page 37).

17. Relight the main burner. The lighting instructions can be found on the lighting label in the control compartment or Page 63. Verify proper burner ignition and operation (Page 37).

18. Inspect the pilot system for proper ﬂame. The pilot ﬂame should engulf the ﬂame sensor (Figure 32).

19. Using a manometer, test the inlet and manifold gas pressures (Table 2 and Table 3).

Operation

900005-00, 10/2015

Pilot

Oriﬁce

NOTE: Always test pressures with the valve regulator control at the highest setting.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Operation

OPERATION

WARNING

Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a ﬁreplace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.

AVERTISSEMENT

Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trouvent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de sécurité; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque d’avoir accès à la pièce et aux surfaces chaudes.

WARNING

Reinstall any barrier removed before operating the ﬁreplace. The barrier is designed to reduce the risk of burns from hot glass. Do not operate the ﬁreplace without the barrier installed.

WARNING

Do not operate the ﬁreplace if:

• The glass front is removed, cracked, or broken

• The surround trim assembly and screen are not installed

NOTE: Do not place furniture or other combustible materials within 36” of the front of viewing area(s). NOTE: Children and adults should be alerted to the hazards of high surface temperature and should stay away to

avoid burns or clothing ignition.

Remarqué : Les enfants et les adultes devraient être infor-més des dangers que posent les températures de surface élevées et se tenir à distance aﬁn d’éviter des brûlures ou que leurs vêtements ne s’enﬂamment.

Remarqué : L’installation et la réparation devrait être conﬁées à un technicien qualiﬁé. L’appareil devrait

faire l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite. Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité importante de pous-sière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les conduits de circulation d’air de l’appareil soient tenus propres.

NOTE: Do not use these ﬁreplaces if any part has been under water. Immediately call a qualiﬁed, professional service technician to inspect the ﬁreplace and to replace any parts of the control system and any gas control which have been under water.

Remarqué : Ne pas utiliser cet appareil s’il a été plongé, même partiellement, dans l’eau. Appeler un technicien qualiﬁé pour inspecter l’appareil et remplacer toute partie du système de commande et toute commande qui a été plongée dans l’eau.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

HOMEOWNER’S INSTRUCTIONS - ATTACHING SAFETY IN OPERATION WARNINGS

Operation

900005-00, 10/2015

ATTACHING SAFETY IN OPERATION WARNINGS

Your ﬁreplace has been furnished with safety instruction labels that are to be afﬁxed to the operation and control points of the ﬁreplace. A safety instruction label should be afﬁxed to the receiver wall switch plate where the ﬁreplace is turned on and off (See Figure A) and the remote control handheld transmitter (Figure B). The warnings should already have been put in place when the ﬁreplace initial set-up was completed. If they are not afﬁxed at these spots, locate the multi-lingual adhesive labels provided with these instructions and proceed as follows:

3. If you are unable to locate the labels, please call Innovative Hearth Products or your nearest Innovative Hearth Products dealer to receive additional safety instruction labels free of charge.

Cat. No. H8024 Replacement Label Kit

INNOVATIVE HEARTH PRODUCTS Astria.us.com

Note: English is red text on clear label. French and Spanish are white text on black label.

APPOSITION DES MISES EN GARDE RELATIVES À LA SÉCURITÉ D’UTILISATION

Votre foyer a été livré avec des étiquettes de sécurité qui doivent être collées à côté des dispositifs de contrôle du foyer. Une étiquette de sécurité devrait être collée sur la plaque du récepteur mural contrôlant l’allumage du foyer (voir Figure A) et sur le boîtier de la télécommande (Figure B). Les mises en garde auraient dû être collées au moment de l’installation initiale du foyer. Si ce n’est pas le cas, prenez les étiquettes adhésives multilingues fournies avec ces instructions et procédez comme suit:

1. Repérez le récepteur mural qui contrôle le foyer (vériﬁez que l’interrupteur contrôle le fonctionnement du foyer en le faisant basculer de Marche à Arrêt, et vice-versa). Nettoyez soigneusement la plaque du récepteur mural pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur la surface de la plaque du récepteur mural qui contrôle le foyer (Figure A). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire.

3. Si vous ne trouvez pas les étiquettes, veuillez appeler Innovative Hearth Products ou votre distribu teur Innovative Hearth Products local pour recevoir gratuitement des étiquettes supplémentaires.

Étiquettes de remplacement, n° cat. H8024

INNOVATIVE HEARTH PRODUCTS Astria.us.com

Remarque : Le texte anglais est rouge sur un support transparent. Le texte français et espagnol est blanc sur un support noir.

COLOCACIÓN DE ADVERTENCIAS DE SEGURIDAD EN OPERACIÓN

Su chimenea incluye etiquetas de instrucciones de seguridad que deben colocarse en los puntos de operación y control de la chimenea. Se debe colocar una etiqueta de instrucciones de seguridad en la placa del interruptor de pared del receptor desde el cual se enciende y se apaga la chimenea (ver la

Figura A) y en el transmisor de control remoto (Figura B). Las advertencias ya deben haberse colocado cuando

se completó la instalación inicial de la chimenea. Si no están colocadas en estos lugares, encuentre las etiquetas adhesivas multilingües proporcionadas con estas instrucciones y prosiga de la siguiente manera:

Juego de etiquetas de repuesto - Nº de cat. H8024

INNOVATIVE HEARTH PRODUCTS Astria.us.com

Nota: La etiqueta en inglés es transparente con texto rojo. Las etiquetas en francés y español son negras con texto blanco.

SAFETY LABEL DIAGRAMS DIAGRAMAS DE ETIQUETAS DE

Illustrations are for example only. Your accessories may be different.

Les illustrations sont par exemple uniquement. Vos accessoires peuvent être différents.

Las ilustraciones son sólo ejemplos. Tu accesorios pueden ser diferentes.

DIAGRAMMES DES ÉTIQUETTES

DE SÉCURITÉ

Figure A

Remote

Off

PRG

SEGURIDAD

Figure B

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Burn-in Period

The ﬁrst few times this ﬁreplace is operated, there will be an odor from the curing of paint and the burning off of the lubricants used in the manufacturing process. Depending on usage, the burn-in period may take a few hours or a few days.

NOTE: Ventilate the site during the burn-in period. The resulting odor and haze may set off a smoke detector. Do not operate the blower during the burn-in period.

A white ﬁlm may develop on the glass front during the ﬁrst few ﬁres as part of the burn-in period. The glass should be kept clean during the burn-in period to prevent the ﬁlm from baking on—making it very difﬁcult to remove (Cleaning the glass door on Page 59).

Accessing the Control Compartment

Access the control compartment (Figure 46) by removing the surround trim assembly.

Figure 46 - Control Compartment Figure 47 - Finish Trim Gap Fillers Figure 48 - Surround Trim Assembly

Operation

Gas Valve

Air Shutter Adjustment Lever

Removing the surround trim assembly

1. Remove the top louver.

2. Remove the left ﬁnish trim gap ﬁller from between the ﬁnish trim and the surround trim assembly (Figure 47).

Remove the right ﬁnish trim gap ﬁller. Retain the ﬁnish trim gap ﬁllers for later reinstallation.

3. Detach the surround trim assembly at the top of the ﬁreplace and lift it 1” to disengage the side tabs (Figure 48).

4. Pull the surround trim assembly away from the ﬁreplace exposing the front glass door.

5. Place the surround trim assembly in a secure location to prevent damage to it until it is reinstalled.

Gas Controls

Finish Trim

Finish Trim Gap Filler

Surround Trim Assembly

Side Tabs

The standard controls for ﬁreplace operation are located in the control compartment (Figure 30). Familiarize yourself with the gas control valve and the lighting procedure (Page 63). If the electronic ﬁreplace is equipped with an optional remote wall switch or remote control, the ﬁreplace main

burner can be turned ON/OFF with the wall switch or remote control. If the electronic ﬁreplace is not equipped with a wall switch or remote control, the main burner must be turned ON/

OFF with a gas control switch installed separately. Contact the installer for more information. Check the batteries, if installed, at least every three (3) months to ensure they are properly charged.

To light the ﬁreplace in a power outage:

1. Conﬁrm that batteries are installed in the battery pack.

2. Set the unit-mounted switch, or wall switch to the ON Position.

3. The unit should spark at the pilot and light. NOTE: If there is no spark, replace the batteries.

4. Operate the ﬁreplace normally.

NOTE: Install new batteries (4 AA) in the battery holder before the burn season. Then, the ﬁreplace can automatically

switch to battery power in the event of a power outage.

Innovative Hearth Products

Hot Fireplace Will Cause Severe Burns

Never Allow Children to Touch Glass or other Fire-

place Parts

WARNING

Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Operation

Remote Control System

WARNING

CAUTION

The remote and receiver allow you to command the functions of your ﬁreplace from the comfort of you chair and are conﬁgured to control the ON/OFF primary burner operation, six (6) ﬂame levels, and provide ON/OFF and smart thermostatic control. The system controls fan speed through six (6) levels and has a constantly powered 110V/60Hz power outlet. The receiver is powered by four (4) AA batteries. It accepts commands via radio frequency from the transmitter and does not require line-of-sight operation. The wall switch can be set to one of three (3) positions:

• ON (Manual Override)

• REMOTE (Remote Control)

• OFF

Initializing the remote control system for the ﬁrst time

1. Install the four (4) AA batteries into the wall switch battery bay (behind the switch plate). NOTE: Check the polarity (+/-) of the batteries and insert them into the battery bay as indicated on the battery

cover.

2. Place the three-position slider switch in the REMOTE position (Figure 49).

Figure 49 - Wall Switch Figure 50 - Transmitter (Remote Control) Figure 51 - Remote Control Display—Indicator

Icons

Three-position slider switch in REMOTE position

Remote

Off

PRG

3. Insert the end of a paper clip, or other similar object, into the hole marked PRG on the wall switch front cover.

The receiver will beep three (3) times to indicate that it is ready to synchronize with a transmitter.

4. Install the three (3) AAA batteries in the transmitter battery bay, located on the base of the transmitter.

5. Push the ON button. The receiver will beep four (4) times to indicate that the transmitter’s command has been

accepted and sets it to the particular code of that transmitter. The system is now initialized.

UP/DOWN

ARROW

Key

MODE Key

LCD Display

ON/OFF Key

THERMOSTAT Key

Transmission

Thermostat

OFF/ON/SMART

Set Point

Temp./Level/State

Fan Control

Flame On

Child Safety Lock-Out

Low Battery Alarm

Maximum Level Indicatiors

Room Temperature

Light On

Temperature indicator display

1. With the system in the OFF position, press the THERMOSTAT key and the MODE key at the same time (Figure

50).

2. Look at the LCD screen on the transmitter to verify that a C or F is visible to the right of the room temperature display (Figure 51).

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Turn ON the appliance

1. Press the ON/OFF key on the transmitter.

2. The transmitter display will show all active Icons on the screen. At the same time, the receiver will connect the

thermopile to the gas valve millivolt coil and the appliance main burner will turn on. A single beep from the receiver will conﬁrm reception of the command.

Turn OFF the appliance

1. Press the ON/OFF key on the transmitter.

2. The transmitter LCD display will only show the room temperature and icon. The receiver will disconnect the gas valve

and the appliance burner will turn OFF. A single beep from the receiver will conﬁrm reception of the command.

Remote ﬂame control

The system has six (6) ﬂame levels. With the system ON, and the ﬂame level at the maximum in the appliance, each press of the DOWN ARROW key will reduce the ﬂame height by one step until the ﬂame is turned OFF.

The UP ARROW key will increase the ﬂame height each time it is pressed. If the UP ARROW key is pressed while the system is ON but the ﬂame is OFF, the ﬂame will come ON in the high position. A single beep will conﬁrm reception of the command.

Room thermostat—transmitter operation

The remote control can operate as a room thermostat.

1. Press the THERMOSTAT key.

2. The LCD display on the transmitter will change to show that the room temperature is ON and the set temperature

will be displayed.

3. To adjust the set temperature, press the UP or DOWN ARROW keys until the desired set temperature is displayed on the LCD screen of the transmitter.

Operation

900005-00, 10/2015

Smart thermostat—transmitter operation

The smart thermostat function adjusts the ﬂame height in accordance to the difference between the set point temperature and the actual room temperature. As the room temperature gets closer to the set point, the smart function will modulate the ﬂame down.

1. Press the THERMOSTAT key until the word SMART appears to the right of the temperature bulb graphic.

2. To adjust the set temperature, press the UP or DOWN ARROW keys until the desired temperature is displayed on

the LCD screen of the transmitter.

Fan speed control

This appliance is equipped with a hot air circulating fan. The speed of the fan is controlled by the remote, and can be adjusted through six (6) speeds.

1. Press the MODE key to index to the fan control icon.

2. Press the UP/DOWN ARROW keys to turn ON, OFF, or adjust the fan speed. A single beep will conﬁrm reception

of the command. NOTE: The fan can be controlled only by the remote. Turning the ﬁreplace OFF with the wall-mounted, three-

position slider switch will not turn OFF the fan. To turn OFF the fan, use the remote instead of or prior to shuting OFF the ﬁreplace at the wall. Fan speed will be indicated by either an OFF, Level Bar, or HI shown in the Set Point/ Temp/Level/State indicator area.

Key lock

This function will lock the keys to avoid unsupervised operation.

1. Press the MODE and UP keys at the same time.

2. To deactivate this function, press the MODE and UP keys at the same time.

Intermittent/standing pilot mode

This ﬁreplace can be switched from intermittent ignition to a standing pilot simply by toggling the switch located in the lower control compartment (Figure 46). To save energy, switch to intermittent mode. To have a standing pilot that will help startup in the winter by warming the ﬂue and the glass, switch to standing pilot.

The standing pilot mode is indicated by a pilot that comes ON and remains lit when the ﬁreplace is OFF.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Manual bypass of the remote control system

If the batteries of the wall switch or transmitter are low or depleted, the appliance can be turned on manually.

1. Set the three-position slider switch to the ON position.

2. This will bypass the remote control feature of the system and the appliance main burner will come on if the gas

valve is in the ON position.

Low Battery Power Detection

The life span of the wall switch batteries depends on several factors:

• the quality of the batteries used,

• the number of appliance ignitions,

• the number of changes to the thermostat set point, etc..

If the wall switch batteries are low, the reciever will emit two beeps when it receives an ON/OFF command from the transmitter. This is an alert for a low battery condition. When the batteries are replaced, the receiver will emit a the beep when the ON/OFF key is pressed (Initializing the remote control system for the ﬁrst time).

Installing the Firebox Liners

Ceramic Firebox Liners

1. Remove the four (4) ﬁrebox liner panels from the packing materials.

2. Carefully position the rear panel, upper edge ﬁrst, in the ﬁrebox against the rear wall.

3. While holding the rear panel, carefully position the left side panel in the ﬁrebox.

4. While holding the left panel, carefully position the top panel, left edge up to a resting position on the upper edge

of the left panel.

5. Raise the right end of the top panel, and hold it in position while installing the right panel in the following step.

6. Carefully position the right side panel in the ﬁrebox.

7. Lower the top panel onto the upper edge of the right side panel.

Operation

900005-00, 10/2015

NOTE: Do not force the top panel into place. Excessive force may cause breakage. If the top panel is correctly positioned, it will ﬁt snugly in place.

8. Ensure the top panel is positioned over both the left side and right side panels and that all panels are aligned with the sides and rear of the ﬁrebox.

Porcelain Firebox Liners

1. Remove the four (4) ﬁrebox liner panels from the packing materials.

2. Locate the rear, left, and right panels.

3. Position the rear panel, upper edge ﬁrst, in the ﬁrebox against the rear wall. Insert the lower mounting tabs into the mounting

slots in the ﬁrebox base. Secure the panel to the rear wall with a 5/16” screw through the upper mounting tab.

4. Position the left panel in the ﬁrebox against the left wall and the rear panel.

5. Position the top panel, left edge up, so that it rests on the upper edge of the left panel.

6. Raise the right edge of the top panel, and hold it against the ﬁrebox ceiling when installing the right panel in the

following step.

7. Position the right panel in the ﬁrebox against the right wall and the rear panel.

8. Lower the top panel onto the upper edge of the right panel, and slide it under the two tabs on the left and right panels.

9. Ensure the top panel is positioned over both the left side and right side panels and that all panels are aligned with

the sides and rear of the ﬁrebox.

10. Use an ammonia-free glass cleaner and a soft, non-abrasive cloth to remove ﬁngerprints and smudges from the porcelain ﬁrebox liner panels.

Installing the Glass Media

1. Install the glass media in the recessed area between the front and rear ﬂoors. NOTE: 35” ﬁreplaces require less than a full bag of glass media. 40” ﬁreplaces require an entire bag of media.

45” ﬁreplaces require an extra bag of media (sold separately).

2. Spread the glass media in a thin layer, evenly over the burner and pilot. NOTE: Do NOT mound the media.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Operation

Installing the logs

WARNING

• Turn OFF all gas and electricity to the appliance before installing the logs.

• Do NOT install the logs until the appliance has been competely installed, the gas line connected and tested for leaks, and the initial burner operation has been conﬁrmed.

• Use of an unapproved log set in the ﬁreplace will void the warranty and will result in incomplete combustion, sooting, and poor ﬂame quality.

• Logs get very hot and remain hot for up to one hour after the gas supply is turned OFF. Handle the logs only when cool.

• This appliance is not designed to burn wood. Any attempt to do so could cause irreparable damage to appliance and prove hazardous.

• If the logs are not installed according to these instructions, improper combustion could occur. This could result in the excessive production of soot and/or the colorless, odorless, toxic gas carbon monoxide (CO).

NOTE: Turn off all electricity to the appliance before installing logs. NOTE: The log set and ﬁre are artistically arranged to provide an asymmetrical ﬁre. The ﬁre does not burn in the left

rear quarter of the log set.

Table 29 - Envy Log Sets

Log Number Description

Catalog number for the entire set:

35” H8707 40” H8708 45” H8824

1 2 3 4 5 6

Bottom Right Log Rear Log Bottom Left Log Front Log Top Right Log Top Left Log

Table 29 is representative of all ﬁreplace models. Logs 5 and 6 may vary in appearance from those shown above. NOTE: The logs have notches/tabs to assist proper positioning. Upper logs rest on lower logs via notches/tabs.

Proper log placement is critical to prevent sooting. Place the logs in the gaps between ﬂame peaks, so they do not impinge the ﬂames. Follow the log placement instructions precisely.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

NOTE: Do not cover the burner ports.

1. If necessary, remove the glass door (Page 57).

2. Place Log 1 on the burner as shown (Figure 52).

Figure 52 - Placing Log 1 Figure 53 - Placing Log 2

3. Align the two holes in the bottom of Log 2 over the two tabs at the rear of the burner and lean against Log 1

(Figure 53).

4. Place Log 3 in position with the base aligned in the burner surface (Figure 54).

Figure 54 - Placing Log 3 Figure 55 - Placing Log 4

Operation

900005-00, 10/2015

5. Insert the left end of Log 4 under Log 1 and position the right end of Log 4 in the notch on the top, right end of

Log 1 (Figure 55).

6. Ensure all logs are properly positioned on the surface of the burner and interlocked with each other (Figure 55).

7. Place Log 5 in position in the notches on the upper right portions of Logs 1 and 2 (Figure 56).

Figure 56 - Placing Logs 5 and 6

8. Place Log 6 in position in the notches near the left ends of Logs 3 and 4 (Figure 56).

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Installing and removing the glass door

900005-00, 10/2015

Operation

WARNING

• Do not attempt to substitute the materials used on these doors, or replace cracked or broken glass.

• Handle this glass with extreme care! Glass is susceptible to damage—Do not scratch or handle roughly while reinstalling the glass door frame.

• The glass door of this appliance must only be replaced as a complete unit as provided by the manufacturer. Do not attempt to replace broken, cracked or chipped glass separately.

• Do not attempt to touch the front enclosure glass with your hands while the ﬁreplace is in use.

WARNING

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed.

AVERTISSEMENT

Une barrière conçue pour réduire le risque de brûlure par le hublot chaude est fournie avec l’appareil et doit être installé.

WARNING

Do not operate appliance with the glass front removed, cracked, or broken.

AVERTISSEMENT

Ne pas utiliser l’appareil si le panneau frontal en verre n’est pas en place, est craqué, ou brisé.

WARNING

Any safety screen or guard removed for servicing the appliance must be replaced prior to operating the appliance.

AVERTISSEMENT

Tout écran ou protecteur retiré pour permettre l’entretien de l’appareil doit être remis en place avant de mettre l’appareil en marche.

Only doors certiﬁed with the ﬁreplace shall be used.

Seules des portes certiﬁées pour cet appareil doivent être utilisées.

CAUTION

Do NOT abuse the glass door by striking it or slamming it shut.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Installing the glass door

1. Visually inspect the gasket on the backside of the glass door. NOTE: The gasket surface must be clean, free of irregularities, and seated ﬁrmly. Ensure it is properly located.

Make sure the bead is not rolled into the channel at the top of the door, but remains ﬂat against the top of the glass.

2. Locate the four (4) spring-loaded latches; two above and two below the ﬁreplace opening (Figure 57).

Figure 57 - Glass Door Figure 58 - Finish Trim Gap Fillers

Operation

900005-00, 10/2015

Latch

Right

Left

Latch

3. Carefully grip the door at the top and bottom, and align it with the ﬁreplace opening. Lightly press against the door, to hold it in position.

NOTE: Ensure the glass door is centered—with even spacing on each side.

4. Secure the two upper latches by pulling each handle down and pressing in to hook it to the glass door.

5. Secure the two lower latches.

6. Install the surround trim assembly by lowering it onto the appliance and pressing in to secure it (Figure 7).

Installing the Surround Trim Assembly

1. Identify the left and right side ﬁnish trim gap ﬁllers (Figure 58).

2. Install the surround trim assembly by lowering it onto the appliance and pressing in to secure it.

3. Slide the left ﬁnish trim gap ﬁller into the left gap between the ﬁnish trim and the surround trim assembly.

Ensure the ﬁnish trim gap ﬁller slides into the spring clip, as shown (Figure 47).

4. Slide the right ﬁnish trim gap ﬁller into the right gap between the ﬁnish trim and the surround trim assembly. Ensure the ﬁnish trim gap ﬁller slides into the spring clip, as shown (Figure 47).

Removing the glass door

1. Remove the top louver, then remove the surround trim assembly by detaching it at the top of the ﬁreplace and lifting it 1” to disengage the side tabs, then pulling it away from the ﬁreplace exposing the front glass door.

2. Locate the four (4) spring-loaded latches; two above and two below the enclosure (Figure 57).

3. Release the lower latches, by pulling each handle out and down to unhook it from the glass door.

4. Lightly press against the door, to hold it in position, while releasing the two upper latches.

5. Carefully grip the door at the top and bottom, and remove it from the ﬁreplace. NOTE: When removing the glass door, place it in a safe location for later reinstallation.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

MAINTENANCE

Refer to the Maintenance Schedule on Page 61 for maintenance tasks, procedures, frequency, and a listing of by whom the tasks should be performed. Always verify proper ﬁreplace operation after servicing.

Turn OFF gas and electrical power to the ﬁreplace and allow it to cool before cleaning or servicing the appliance.

Wear gloves and safety glasses for protection while doing required maintenance.

Verify proper operation after servicing.

S’assurer que l’appareil fonctionne adéquatement une fois l’entretien terminé.

Always turn OFF gas before cleaning. Before relighting, refer to the lighting instructions in this manual. Instructions are also found on a pull-out panel located in the control compartment.

Always keep the appliance area clear and free from combustible materials, gasoline and other ﬂammable liquids.

Inspecting the venting system

The ﬁreplace and venting system should be thoroughly inspected before initial use and at least annually by a qualiﬁed service technician. Inspection should include ensuring that exhaust or intake passages are unobstructed and vent components are properly assembled and not damaged.

The homeowner must contact a qualiﬁed service technician at once if any abnormal condition is observed.

If the venting system is disassembled for any reason, a qualiﬁed service technician should follow vent installation instructions for proper reassembly and proper sealing of the venting system components. However, more frequent periodic inspections and cleanings should be performed by the homeowner.

Operation

900005-00, 10/2015

WARNING

CAUTION

NOTE: Prior to the ﬁrst use of the ﬁreplace and each burn season and periodically during the burn season, inspect

the horizontal termination for debris such as bird nests, leaves, paper or branches. Remove any items from the surfaces of the termination prior to use. Also be aware of shrubs and plantings that may encroach on the termination.

Inspecting the ﬁreplace lamp

Use the remote control to conﬁrm the ﬁreplace lamp is operational. If the lightbulb is burned out, replace the lightbulb.

Replacing the ﬁreplace lamp lightbulb

1. Remove the ﬁreplace glass door.

2. Locate the lamp inside the top, front of the ﬁrebox.

3. Using a 5/16” nut driver, remove the two (2) outside screws securing the lamp glass cover bracket. Carefully,

remove the metal bracket, lamp glass cover, and gasket. Retain all items with the screws in a secure location for later reinstallation.

4. Unscrew the lightbulb cap and retain in a secure location for later reinstallation. Unscrew the lightbulb and discard.

5. Install the new lightbulb.

6. Use only 25 W, 572 °F (300 °C) rated oven lightbulbs.

7. Reinstall the lightbulb cap.

8. Carefully, position the gasket, lamp glass cover, and metal bracket into place and secure using the two (2)

screws previously removed.

9. Reinstall the glass door.

Inspecting the burner ﬂame appearance

Periodically inspect the burner and pilot ﬂame. Ensure that the burner ﬂame appearance resembles the ﬂame shown in Figure 34 or 35 and as described in Flame Appearance and Sooting on Page 38. Any necessary burner ﬂame adjustments must be performed by qualiﬁed personnel only (Page 37). Refer to Page 37 for more information about the pilot ﬂame appearance. Contact a qualiﬁed service technician at once if any abnormal condition is observed.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Cleaning the glass door

Do not use abrasive cleaners on glass. Never clean the glass when it is hot.

Clean the glass during the Burn-in Period, and then only when necessary and when the ﬁreplace is cool. Wipe the surface with a clean, dampened, soft cloth. Follow with a dry, soft towel as desired. Take care not to scratch the glass surface. Periodically, remove any build-up caused by the following:

• During start-up, it is normal for condensation to form on the inside of the glass (this condensation and fog will usually disappear in a few minutes). The moisture can cause lint, dust and other airborne particles to cling to the glass surface.

• Initial curing of the high temperature paint and burning off of lubricants used in the manufacturing process may result in a ﬁlm on the glass.

• A white coating may form on the glass as a result of impurities and minerals in the fuel.

Clean the glass two or three times each heating season, depending on the circumstances present. The following cleaning solutions are approved for use:

• Non-ammonia based glass cleaner

• Gas ﬁreplace/stove glass cleaner

Inspecting the glass gasket

Visually inspect the gasket on the backside of the glass door. The gasket surface must be clean, free of irregularities, and seated ﬁrmly.

Operation

900005-00, 10/2015

CAUTION

Cleaning the control compartment

Keep the control compartment clean by vacuuming or brushing it out at least twice a year. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etcetera. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.

Touching up paint in small areas

Only use a factory-supplied paint kit for any touch-ups. Paint is available at your local IHP dealer. Never attempt to paint a hot ﬁreplace. Do not attempt to repaint the ﬁreplace until the ﬁnish is completely cured (Burn-in Period on Page

50). If the surface becomes stained or marred, it may be lightly sanded and touched up.

Logs

Removing and cleaning the logs

The ﬁber logs become very fragile after curing.

Carefully remove the logs. Vacuum out any foreign matter on the burner (e.g., lint, carbon, etc.). Ensure the burner ports are free of debris. Remove any carbon deposits from the underside of the logs using a vacuum cleaner, or a soft bristle brush (e.g., paint brush).

Reinstalling the logs

Carefully follow the placement instructions (Page 54). All logs should ﬁt onto the corresponding pins and/or log stoppers. This will ensure proper ﬂame and safe combustion.

NOTE: Improper positioning of logs can create carbon build-up and will alter the performance of the ﬁreplace.

CAUTION

Replacing the logs

If the logs become damaged and need replacement, use only the proper replacement logs from manufacturer (Page 66).

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Inspecting the wiring

Refer to the wiring diagram (Figure 26, Page 34).

When servicing controls, label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

Au moment de l’entretien des commandes, étiquetez tous les ﬁls avant de les débrancher. Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

Inspect and clean all wire connections. Ensure that there is no wire melting or damage. The inspection should include:

• Terminals at the Valve

• OFF/ON Switch

• Remote Control, or Remote Wall Switch Kit

Glass Media

Removing and cleaning the glass media

Operation

900005-00, 10/2015

CAUTION

ATTENTION

Risk of personal injury. Allow the media to completely cool before handling.

Use a clean, dry, empty shop vac to remove glass media. Wash the media in warm, soapy water. Rinse and dry before reinstalling.

Reinstalling the glass media

Carefully follow the placement instructions (Page 53). This will ensure a proper ﬂame and safe combustion. NOTE: Improper positioning of media can create carbon build-up and will alter the performance of the ﬁreplace.

Replacing the media

If the media needs replacement, use only the proper replacement media from manufacturer (Page 62).

Cleaning the burner

Carefully remove the logs/media. Vacuum out any foreign matter on the burner (e.g., lint, carbon, etc.). Ensure the burner ports are free of debris.

NOTE: Improper positioning of logs/media can create carbon build-up and will alter the performance of the ﬁreplace.

CAUTION

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Operation

MAINTENANCE SCHEDULE

See the tables below for detailed information about required maintenance, both regular and annual.

Table 30 - Maintenance Performed Annually—Before the Burning Season

Maintenance Task Performed By Procedure

Inspecting/Cleaning Burner, Logs, and Controls

Traditional Fireplaces Only: Check Flame Patterns and Flame Height

Contemporary Fireplaces Only: Check Flame Patterns and Flame Height

Inspecting/Cleaning Pilot and Burner Qualiﬁed Service Technician Remove any surface build-up on pilot and

Checking Vent System Qualiﬁed Service Technician Inspect the vent system at the top and at

Appliance Inspection Qualiﬁed Service Technician Perform the appropriate appliance inspection

Replacing Glowing Ember (rockwool) Materials

Qualiﬁed Service Technician Inspect valve and ensure it is properly

operating. Check piping for leaks. Vacuum the control compartment, ﬁreplace logs and burner area.

Qualiﬁed Service Technician Verify the ﬂame pattern and height displayed

by the appliance. Flames must not impinge on the logs.

Qualiﬁed Service Technician Verify the ﬂame pattern and height displayed

by the appliance.

burner assembly. Wipe the pilot nozzles, ignitor/ﬂame rod and hood. Ensure the pilot ﬂame engulfs the ﬂame sensor as shown.

the base (within the ﬁrebox) for signs of blockage or obstruction. Look for any signs of dislocation of the vent components.

procedure detailed in this manual.

Homeowner/Qualiﬁed Services Technician Remove old glowing embers material and

vacuum the glowing embers placement area. Place new glowing embers as described in this document.

Table 31 - Maintenance Performed Periodically—After the Burning Season

Maintenance Task Performed By Procedure

Traditional Fireplaces Only: Cleaning Firebox Interior

Homeowner Carefully remove logs, glowing embers

and vermiculite. Vacuum out interior of the ﬁrebox. Clean ﬁrebox walls and log grate. Replace logs and glowing embers as detailed in this manual.

Contemporary Fireplaces Only: Cleaning Firebox Interior

Homeowner Carefully remove media. Vacuum out interior

of the ﬁrebox. Clean ﬁrebox walls and burner. Replace media as detailed in this manual.

Traditional Fireplaces Only: Check Flame Patterns and Flame Height

Homeowner Verify the ﬂame pattern and height displayed

by the appliance. Flames must not impinge on the logs.

Contemporary Fireplaces Only: Check Flame Patterns and Flame Height

Homeowner Verify the ﬂame pattern and height displayed

by the appliance.

Checking Vent System Homeowner Inspect the vent system at the top and at

the base (within the ﬁrebox) for signs of blockage or obstruction. Look for any signs of dislocation of the vent components.

Cleaning Front Glass Door Homeowner Clean as necessary following the directions

provided in this manual.

Do not touch or attempt to clean the glass while hot.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

ACCESSORY COMPONENTS

Operation

900005-00, 10/2015

Santa Fe

Firebox Liner Kits (Traditional)

Choose from ceramic brick or porcelain panels.

Andiron Kit (Traditional)

For use with Envy™ Traditional ﬁreplaces only.

Andiron Kit

Cat. No. Model Description

H8723 AK-CLS-NV Classic

Touch-Up Paint Kit

Repair of minor scratches and discoloration of the appliances black painted surfaces may be accomplished with the touch-up paint kit.

Touch-Up Paint Kit

Cat.

No. F1881 SCITPSAB Black Paint Kit, Interior F1882 SCTPSAB Black Paint Kit, Exterior

Bag of Glowing Embers Bag of Volcanic Stone Bag of Platinum Embers

Replacement ember material, volcanic stone and vermiculite are available for use with these appliances. Order them to replace materials as part of the periodic maintenance of the appliance.

Firebox Accessories/Parts (Traditional)

Cat. No. Model Description

88L53 FGE Bag of Glowing Embers 80L42 FDVS Bag of Volcanic Stone H8312 PGE Bag of Platinum Embers

Model Description

Balustrade

Deco

Façade Kits

These façade kits, available in three (3) styles can be installed on Envy traditional and contemporary ﬁreplaces to provide a distinctive ﬁnished appearance.

Facade Kits

Cat.

H8739 FAC-SF-BK-NV35

H8740 FAC-BAL-BK-NV35

H8741 FAC-DECO-BK-NV35

H8715 FAC-SF-BK-NV40

H8716 FAC-BAL-BK-NV40

H8717 FAC-DECO-BK-NV40

H8719 FAC-SF-BK-NV45

H8720 FAC-BAL-BK-NV45

H8721 FAC-DECO-BK-NV45

Model Number Desc. Model

No.

Facade,

Sante Fe,

Black

Facade,

Balustrade,

Black

Facade,

Deco, Black

Facade,

Sante Fe,

Black

Facade,

Balustrade,

Black

Facade,

Deco, Black

Facade,

Sante Fe,

Black

Facade,

Balustrade,

Black

Facade,

Deco, Black

35”

40”

45”

Firebox Liner Kits

Cat. No. Model Description

H8955 LKP-BK-NV35

H8729 LKC-T-RD-NV35

H8730 LKC-T-BF-NV35

H8956 LKP-BK-NV40

H8711 LKC-T-RD-NV40

H8712 LKC-T-BF-NV40

H8957 LKP-BK-NV45

H8732 LKC-T-RD-NV45

H8733 LKC-T-BF-NV45

Sky

Rain

Cloud

35” Porcelain

Liner, Black

35” Ceramic Fiber

Liner, Merlot

35” Ceramic Fiber Liner, Champagne

40”Porcelain Liner,

Black

40” Ceramic Fiber

Liner, Merlot

40” Ceramic Fiber Liner, Champagne

45” Porcelain Liner,

Black

45” Ceramic Fiber

Liner, Merlot

45” Ceramic Fiber Liner, Champagne

Midnight

Sunset

Glass Media Kits (Contemporary)

Choose from Sky, Midnight, Rain, Sunset or Cloud.

Glass Media Kits

Cat. No. Model Description

H9021 GB-SKY 5LB Bag, Disk, Sky H9022 GB-MIDNIGHT 5LB Bag, Disk, Midnight H9023 GB-RAIN 5LB Bag, Disk, Rain H9024 GB-SUNSET 5LB Bag, Disk, Sunset H9025 GB-CLOUD 5LB Bag, Disk, Cloud

Innovative Hearth Products

9-5/8"

Envy™ Direct-Vent Gas Fireplaces

LIGHTING INSTRUCTIONS - ENGLISH

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

Operation

900005-00, 10/2015

FOR YOUR SAFETY READ BEFORE OPERATING

A. This appliance is equipped with an ignition device which automatically lights

the pilot. Do not try to light the pilot by hand.

B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to

smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS:

• Donottrytolightanyappliance.

• Donottouchanyelectricswitch;donotuseanyphoneinyourbuilding.

• Immediatelycallyour gas supplier from aneighbor’sphone. Followthegas

supplier’s instructions.

• Ifyoucannotreachyourgassupplier,callthefiredepartment.

C. If any portion of this appliance does not operate as the instructions indicate,

do not try to repair it, call a qualified service technician. Do not use tools. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call

a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

OPERATING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. Read the Care and Operation manual including the section on "Remote Control System."

3. Slide the switch on the receiver to "OFF."

4. Press ON/OFF button on remote control transmitter to "OFF."

5. Turn "OFF" all electric power to the appliance.

6. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand.

7. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell gas, go to the next step.

8. Turn on all electric power to the appliance.

9. Slide the switch on the receiver to REMOTE.

10. Press ON/OFF button on remote control transmitter to "ON."

11. (if applicable)

12. If the appliance will not operate, follow the instructions "To Turn Off Gas To Appliance" and call your service technician or gas supplier.

Set thermostat on remote control to desired setting.

Electronic Gas Control

Valve - SIT Proﬂame

Receiver

PRG

Remote

Off

Electronic Pilot Assembly

Remote Control

Transmitter

ON/OFF Key THERMOSTAT Key UP/DOWN Arrow Key

MODE Key

TO TURN OFF GAS TO APPLIANCE

1. Slide the switch on the receiver to "OFF."

2. Press ON/OFF button on remote control transmitter to "OFF."

DANGER

3. Turn off all electric power to the appliance if service is to be performed.

4. Close the main line gas shut-off valve.

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

P/N 900335-00, Rev. 0

Innovative Hearth Products

9-5/8"

Envy™ Direct-Vent Gas Fireplaces

LIGHTING INSTRUCTIONS - FRENCH

POUR PLUS DE SÉCURITÉ LIRE AVANT DE METTRE EN MARCHE

AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice risque de déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort.

Operation

900005-00, 10/2015

A. Cet appareil est muni d’un dispositif d’allumage qui allume

automatiquement la veilleuse. Ne tentez pas d’allumer la veilleuse manuellement.

B. AVANT DE FAIRE FONCTIONNER, reniflez tout autour de l’appareil pour

déceler une odeur de gaz. Reniflez près du plancher, car certains gaz sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se

trouvant dans le bâtiment.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les

instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies.

C. Si un élément de cette unité ne fonctionne pas tel que décrit dans les

instructions, n’essayez pas de le réparer, appelez un technicien qualifié. N’utilisez-pas d’outils. Le fait de forcer la manette ou de la réparer peut déclencher une explosion ou un incendie.

D. N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement.

Faites inspecter l’appareil par un technicien qualifié et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.

INSTRUCTIONS DE MISE EN MARCHE

1. ARRÊTEZ ! Lisez les avertissements de sécurité à l’endos de cette étiquette.

2. Lisez le manuel d’utilisation et d’entretien incluant la section « Système de télécommande ».

3. Placez l’interrupteur du récepteur en position “OFF”.

4. Appuyez sur le bouton “ON/OFF” pour sélectionner “OFF”.

5. Coupez l’alimentation électrique de l’appareil.

6. Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse. Ne tentez pas d’allumer la veilleuse manuellement.

7. Attendre cinq (5) minutes pour laisser échapper tout le gaz. Reniflez tout autour de l’appareil, y compris près du plancher, pour déceler une odeur de gaz. Si vous sentez une odeur de gaz, ARRÊTEZ ! Passez à l’étape B des instructions de sécurité sur la portion supérieure de cette étiquette. S’il n’y a pas d’odeur de gaz, passez à l’étape suivante.

8. Mettez l’appareil sous tension.

9. Placez l’interrupteur du récepteur en position “REMOTE”.

10. Appuyez sur le bouton “ON/OFF” pour sélectionner “ON”.

11.

(Si applicable) désiré.

12. Si l’appareil ne se met pas en marche, suivez les instructions intitulées « Comment couper l’admission de gaz de l’appareil » et appelez un technicien qualifié ou le fournisseur de gaz.

Ajustez le thermostat sur la télécommande à l’ajustement

Valve électronique -

Récepteur

SIT Proﬂame

Remote

Off

PRG

Module de veilleuse

électronique

Télécommande

Bouton ON/OFF Bouton THERMOSTAT

COMMENT COUPER L’ADMISSION DE GAZ DE L’APPAREIL

1. Coupez l’alimentation électrique de l’appareil s’il faut procéder à

l’entretien.

2. Sélectionnez OFF sur le récepteur.

DANGER

3. Appuyez sur le bouton ON/OFF et sélectionnez OFF.

4. Fermer la valve de gaz principale.

VITRE CHAUDE

RISQUE DE BRÛLURES.

NE TOUCHEZ PAS UNE VITRE

NON REFROIDIE.

NE LAISSEZ JAMAIS UN ENFANT

DE TOUCHER LA VITRE.

L'écran pare-étincelles fourni avec ce foyer réduit le risque de brûlure en cas de contact accidentel avec la vitre chaude et doit être installé pour la protection Des enfants et Des personnes à risques.

P/N 900336-00, Rev. 0

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

900005-00, 10/2015

Operation

TROUBLESHOOTING

Before troubleshooting, ensure that the ﬁreplace main line gas shutoff valve and the wall switch are in the ON position. The following troubleshoots the ﬁreplace only to an elementary level. For detailed remote and ignition system troubleshooting, refer to the instructions provided with the remote.

Detailed valve system troubleshooting should only be performed by a qualiﬁed service technician.

Table 32 - Troubleshooting Electronic Systems

1. Nothing happens

when the ﬁreplace is turned ON/OFF.

2. The main burner

does not light and the igniter is sparking.

3. The main Burner

comes on but then goes out.

4. Soot is present on the

logs and glass.

5. Poor ﬂame and/or

blue ﬂame.

*The unit may have multiple gas supply shutoffs (the main gas supply valve in the house, the gas supply valve in the ﬁreplace control compartment, and/or an additional shutoff valve near the ﬁreplace).

a. Remote is not functioning properly. Check that the wall switch plate is set to REMOTE.

Operate the ﬁreplace from the wall plate switch. Replace remote and/or wall switch batteries.

b. Gas is not reaching the ﬁreplace. Check the gas supply and gas shutoff valves. * c. Unit is not receiving power. Check/replace backup batteries behind the wall plate.

Replace unit battery backup. Check building circuit breakers to ensure power is ON

to the ﬁreplace.

a. Gas is not reaching the ﬁreplace. Check the gas supply and gas shutoff valves. b. Loose wires to the valve. Check control compartment for any obviously loose

wiring (call a service technician, if necessary).

c. Loose wires to ignition module. Check control compartment for any obviously loose

wiring (call a service technician, if necessary).

d. Air in the gas line. Purge gas line of air (call a service technician if

required).

e. Unit is not receiving power. Replace unit battery backup. a. Gas is not reaching the ﬁreplace. Check the gas supply and gas shutoff valves. b. Loose wires to the valve or ignition

module.

Check control compartment for any obviously loose wiring (call a service technician, if necessary).

c. Pilot ﬂame is not engulﬁng the sensor. Call a service technician. d. Obstructed vent system. Call a service technician. a. Excessive ﬂame impingement on the logs. Properly position the logs as detailed on Page 54. b. Initial ﬁreplace operation. A white ﬁlm may develop on the glass during the ﬁrst

few ﬁres as part of the burn-in process. The ﬁrst few times you use the ﬁreplace, clean

the glass after each use (AFTER THE GLASS HAS COMPLETELY COOLED); otherwise, the white ﬁlm will bake onto the glass and become difﬁcult to remove.

See glass cleaning instructions in the MAINTENANCE section of this manual.

c. Improper vent restrictor setting. Open the air shutter by adjusting the air shutter

adjustment lever according to the instructions in this manual.

d. Improper air shutter opening. Open the air shutter by pushing in the rod. a. Door seal is not properly aligned, causing

gaps and air leaks.

Remove and realign the door so the gasket seal is fully engaged around the door frame.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

REPLACEMENT PARTS

Operation

900005-00, 10/2015

Description

1 Electronic Pilot Assembly, Natural Gas H7268 1 H7268 1 H7268 1 2 Flex Hose Connector, 24” H8997 1 H8997 1 H8997 1 3 Flex Hose Connector, 12” H8979 1 H8979 1 H8979 1

--- Flex Hose, 10” H8724 1 H8724 1 H8724 1

--- Remote Control Kit H8753 1 H8753 1 H8753 1

--- ON/OFF Jumper H8809 1 H8809 1 H8809 1 7 Gas Valve, SIT Proﬂame, Natural Gas H7270 1 H7270 1 H7270 1 8 Shield Standoff H8980 1 H8981 1 H8982 1

--- Firebox Access Door Gasket H8983 1 H8983 1 H8983 1

10 Single Air Shutter Burner - Contemporary J8017 1 J8018 1 J8019 1

--- Single Air Shutter Burner - Traditional J8020 1 J8021 1 J8022 1

12 Vent Restrictor Base H8987 1 H8987 1 H8987 1 13 Vent Restrictor Wing H8988 1 H8988 1 H8988 1

--- Gas Train Assembly Gasket H8989 1 H8989 1 H8989 1

15 Door Latch Assembly, Top H9063 1 H9063 1 H9063 1 16 Door Latch Assembly, Bottom H9064 1 H9064 1 H9064 1 17 Firebox Lamp H8991 1 H8991 1 H8991 1

--- Firebox Lamp Gasket H8993 1 H8993 1 H8993 1

--- Ceramic Glass, 4-1/2” x 2” H8992 1 H8992 1 H8992 1

20 Control Module, SIT H8656 1 H8656 1 H8656 1

--- Flare 90° Elbow, 3/8” NPT (M) X 3/8” H8994 1 H8994 1 H8994 1

--- Flare Straight Fitting, 3/8” NPT (M) X 3/8” H8995 1 H8995 1 H8995 1

29 Split Valve H8996 1 H8996 1 H8996 1

--- Assembly Harness, Wall to Proﬂame II, 12 ft H8813 1 H8813 1 H8813 1

--- Assembly Harness, Valve to Proﬂame II H8814 1 H8814 1 H8814 1

--- Assembly Harness, Power to Proﬂame II H8811 1 H8811 1 H8811 1

--- Assembly Harness, Blower Plug-In H8817 1 H8817 1 H8817 1

--- Assembly Harness, Lights to Proﬂame II H8810 1 H8810 1 H8810 1

--- Assembly Harness, Split Flow to Proﬂame II H8812 1 H8812 1 H8812 1

--- Assembly Harness, Light and Fan Connector, 5” H8815 1 H8815 1 H8815 1

--- Log Set (Traditional) H8707 1 H8708 1 H8824 1

Catalog Number Qty Catalog Number Qty Catalog Number Qty

35 40 45

Oriﬁce Kits

Model Natural Gas - Drill Size (Cat. No.) Propane - Drill Size (Cat. No.)

35” Traditional Front: #49 (H8807), Back: #43 (H2289) Front: #57 (J8128), Back: #54 (H8763)

35” Contemporary Front: #42 (H4816), Back: #55 (H8839) Front: #55 (H8839), Back: #60 (J8123)

40” Traditional Front: #41 (J8121), Back: #43 (H2289) Front: #55 (H8839), Back: #55 (H8839)

40” Contemporary Front: #35(H8828), Back: #52 (H8003) Front: #53 (H8005), Back: #65 (H8767)

45” Traditional Front: #40 (H8933), Back: #40 (H8933) Front: #54 (H8763), Back: #54 (H8763)

45” Contemporary Front: #32 (H8002), Back: #49 (H8807) Front: #51 (J8122), Back: #62 (J8124)

WARNING

Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Figure 59 - Replacement Parts

Operation

900005-00, 10/2015

PRG

Remote

Off

Table 33 - Homeowner Replacement Parts

Description

38 Surround Trim Assembly H8734 1 H8713 1 H8735 1 39 Glass Door H9017 1 H9018 1 H9019 1

--- Literature Kit H9020 1 H9020 1 H9020 1 41 Remote Control Receiver Wall Switch Kit H8752 1 H8752 1 H8752 1 42 Touch-Up Paint 90L73 1 90L73 1 90L73 1 43 Blower Assembly H8736 1 H8736 1 H8736 1

--- Barrier J7407 1 J7408 1 J7409 1

--- Front, Bottom Trim Piece J7997 1 J7998 1 J7999 1

NOTE: See Page 62 for Glass Media Kits

Catalog Number Qty Catalog Number Qty Catalog Number Qty

35 40 45

WARNING

Failure to position the parts in accordance with these diagrams or failure to use only parts speciﬁcally approved with this appliance may result in property damage or personal injury.

AVERTISSEMENT

Risque de dommages ou de blessures si les pièces ne sont pas installées conformément à ces schémas et ou si des pièces autres que celles spéciﬁquement approuvées avec cet appareil sont utilisées.

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

REPLACING A DAMAGED BARRIER

• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.

• For use with barrier(s) Part No(s). J7407 (35” Models), J7408 (40” Models), and J7409 (45” Models). Follow installation instructions.

Operation

900005-00, 10/2015

Removing the damaged Barrier

1. Make sure the unit is OFF and COLD.

2. Remove the Barrier in Clean Face Surround from the

front of the unit by gripping both sides ﬁrmly, then lifting, and swinging out from the top.

3. Remove the three Phillips head screws from the trim

piece attaching the bottom of the Clean Face Surround to the Barrier.

4. Remove the 5/16ths inch hex head screws attaching the

Barrier to the Clean Face Surround; three (3) from the top and three (3) from both the left and right side.

5. Remove the damaged Barrier by sliding Barrier out

through the bottom of the Clean Face Surround. NOTE: Pilot holes are not provided. Drill pilot holes

manually.

Installing the new listed Barrier

6. Push the replacement Barrier into the Clean Face

Surround from the bottom, until the Barrier seats to the top surround piece.

BARRIER

Barrier in Clean-Face Surround

Barrier in Clean Face Surround

7. Replace the three screws in the top of the Barrier

removed in step 3.

8. Replace all the screws removed in step 4.

9. Reinstall the Barrier in Clean Face Surround to the front

of the unit by easing it over and onto the front.

Innovative Hearth Products

Astria™ Brand Gas Fireplace

Limited Lifetime Warranty

THE WARRANTY

Innovative Hearth Products ("IHP") Limited Lifetime Warranty warrants your Astria™ brand gas ﬁreplace ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body and ﬁrebox carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Lifetime Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to ﬁve years. THERE ARE EXCLUSIONS AND LIMITATIONS to this Limited Lifetime Warranty as described herein.

COVERAGE COMMENCEMENT DATE

Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on the date of ﬁrst occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.

EXCLUSIONS AND LIMITATIONS

This Limited Lifetime Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.

This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The Product body and ﬁrebox carry the Limited Lifetime Warranty from the date of installation. Vent components, trim components and paint are excluded from this Limited Lifetime Warranty. The following do not carry the Limited Lifetime Warranty but are warranted as follows:

Burner – Repair or replacement for ﬁve years from the date of installation Gas components & electrical components – Repair or replacement for one year from the date of installation Gaskets – Repair or replacement for one year from the date of installation Gold & nickel plating - Replacement for two years from date of installation. Excludes tarnishing Labor coverage – Prevailing IHP labor rates apply for the warranty period of the component Light bulbs & batteries – Replacement for 90 days from the date of installation Logs – Replacement for ﬁve years from the date of installation against thermal breakage only Optional blowers & remote controls – Repair or replacement for one year from the date of installation Optional glass doors & optional glass accessories – Repair or replacement for 90 days from the date of installation Optional surrounds – Stone/Natural Materials: Replacement for one year against cracking or breakage due to thermal stress. Other Materials: Replacement for one

year. Excludes surface and hairline cracks and scratches or slight color changes that do not affect the operation or safety of the unit Tempered Glass -Replacement for one year from the date of installation

Parts not otherwise listed carry a 90 day warranty from the date of installation. Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the Product.

IHP will not be responsible for: (a) damages caused by normal wear and tear, accident, riot, ﬁre, ﬂood or acts of God; (b) damages caused by abuse, negligence, misuse, or unauthorized alteration or repair of the Product affecting its stability or performance (The Product must be subjected to normal use. The Product is designed to burn either natural or propane gas only. Burning conventional fuels such as wood, coal or any other solid fuel will cause damage to the Product, will produce excessive temperatures and could result in a ﬁre hazard.); (c) damages caused by failing to provide proper maintenance and service in accordance with the instructions provided with the Product; (d) damages, repairs or inefﬁciency resulting from faulty installation or application of the Product.

IHP is not responsible for inadequate ﬁreplace system draft caused by air conditioning and heating systems, mechanical ventilation systems, or general construction conditions which may generate negative pressure in the room in which the appliance is installed. Additionally IHP assumes no responsibility for drafting conditions caused by venting conﬁgurations, adjoining trees or buildings, adverse wind conditions or unusual environmental factors and conditions that affect the operation of the unit.

This Limited Lifetime Warranty covers only parts and labor as provided herein. In no case shall IHP be responsible for materials, components or construction, which are not manufactured or supplied by IHP or for the labor necessary to install, repair or remove such materials, components or construction. Additional utility bills incurred due to any malfunction or defect in equipment are not covered by this warranty. All replacement or repair components will be shipped F.O.B. from the nearest stocking IHP factory.

LIMITATION ON LIABILITY

It is expressly agreed and understood that IHP’s sole obligation and the purchaser’s exclusive remedy under this warranty, under any other warranty, expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as speciﬁed herein.

In no event shall IHP be liable for any incidental or consequential damages caused by defects in the Product, whether such damage occurs or is discovered before or after repair or replacement, and whether such damage is caused by IHP’s negligence. IHP has not made and does not make any representation or warranty of ﬁtness for a particular use or purpose, and there is no implied condition of ﬁtness for a particular use or purpose.

IHP makes no expressed warranties except as stated in this Limited Lifetime Warranty. The duration of any implied warranty is limited to the duration of this expressed warranty. No one is authorized to change this Limited Lifetime Warranty or to create for IHP any other obligation or liability in connection with the Product. Some states and provinces

do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The provisions of this Limited Lifetime Warranty are in addition to and not a modiﬁcation of or subtraction from any statutory warranties and other rights and remedies provided by law.

INVESTIGATION OF CLAIMS AGAINST WARRANTY

IHP reserves the right to investigate any and all claims against this Limited Lifetime Warranty and to decide, in its sole discretion, upon the method of settlement. To receive the beneﬁts and advantages described in this Limited Lifetime Warranty, the appliance must be installed and repaired by a licensed contractor approved by IHP. Contact IHP at the address provided herein to obtain a listing of approved dealers/distributors. IHP shall in no event be responsible for any warranty work done by a

contractor that is not approved without ﬁrst obtaining IHP's prior written consent.

HOW TO REGISTER A CLAIM AGAINST WARRANTY

In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/ distributor, then you must notify IHP in writing. IHP must be notiﬁed of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108, Nashville, TN 37210 or visit our website at WWW.ASTRIA.US.COM.

P/N 900199-00, Rev. NC 12/2013

Innovative Hearth Products

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210

Innovative Hearth Products Envy™ Direct-Vent Gas Fireplaces

Installation and Operation Instructions

Contact an IHP dealer to obtain any of these parts. Please contact IHP for the phone number of your nearest IHP dealer. Astria.us.com Record the following important information about your ﬁreplace:

900005-00, 10/2015

Fireplace model number

Fireplace serial number

Date ﬁreplace was Installed

Type of gas ﬁreplace uses

Dealer name

P900005-00

Innovative Hearth Products reserves the right to make changes at any time, without notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles and products. Consult your local distributor for ﬁreplace code information.

IHP.us.com

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210

Astria Envy35TEN, EnvyCD40TEN, Envy45TEN, EnvyCD45TE, EnvyCD35TEN Installation And Operating Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
