Installation and Operation Instructions

Astria™ Unvented (Vent-Free) Gas Log Heater

P/N 126835-01 Rev.A 01/2014 Models

Blaze&Glow18MN Blaze&Glow18MP Blaze&Glow24MN Blaze&Glow24MP

P126835-01

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built ﬁreplace or in a listed ventless ﬁrebox enclosure. It is design-certiﬁed for these installations in accordance with ANSI Z21.11.2. Exception: DO NOT install this appliance in a factory-built ﬁreplace that includes instructions stating it has not been tested or should not be used with unvented gas logs.

This is an unvented gas-ﬁred heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation section on page 6 of this manual.

WARNING: If the information in these instructions is not followed exactly, a ﬁre or explosion may result

causing property damage, personal injury or loss of life.

— Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other

appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

— Installation and service must be performed by a qualiﬁed installer, service agency or the gas supplier.

Page 2

TABLE OF CONTENTS

Safety .................................................................. 2

Unpacking............................................................ 5

Product Identication ........................................... 5

Local Codes......................................................... 5

Optional Remote Control Accessories ................. 5

Product Features ................................................. 6

Air For Combustion and Ventilation ..................... 6

Installation ........................................................... 9

Operation ........................................................... 25

Inspecting Burners............................................. 27

SAFETY

Cleaning and Maintenance ................................ 28

Wiring Diagram .................................................. 29

Troubleshooting ................................................. 30

Specications .................................................... 34

Blaze&Glow Log Sets ........................................ 34

Service Hints ..................................................... 35

Technical Service............................................... 35

Replacement Parts ............................................ 35

Parts .................................................................. 36

Accessories ....................................................... 42

Warranty ............................................................ 43

WARNING: Improper

installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-

built replace or in a listed

ventless firebox enclo-

sure. It is design-certied

for these installations in accordance with ANSI Z21.11.2. Exception: DO NOT install this appliance

in a factory-built replace

that includes instructions stating it has not been tested or should not be used with unvented gas logs.

WARNING: This is an

unvented gas-red heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air

for Combustion and Ventilation section on page 6

of this manual.

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Page 3

SAFETY

Continued

WARNING: This product contains and/or generates chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, op-

erate or service this replace. Improper use of this replace

can cause serious injury or death from burns, re, explosion, electrical shock and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of

carbon monoxide poisoning resemble the u, with headaches, dizziness or nausea. If you have these signs, the replace may not be

working properly. Get fresh air at once! Have replace serviced. Some people are more affected by carbon monoxide than others. These

include pregnant women, people with heart or lung disease or anemia, those under the inu-

ence of alcohol and those at high altitudes. Natural and Propane/LP gases are odorless.

An odor-making agent is added to these gases.

The odor helps you detect a gas leak. However,

the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of

this replace.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.

WARNING: Do not allow fans

to blow directly into the replace.

Avoid any drafts that alter burner

ame patterns. Ceiling fans can create drafts that alter burner ame

patterns. Altered burner patterns can cause sooting.

Due to high temperatures, the appliance should be located out of

trafc and away from furniture and

draperies.

Do not place clothing or other

ammable material on or near the

appliance. Never place any objects on the heater.

Heater base assembly becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with heater. When using the hand-held remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this heater with

the replace screen and hood in place. Make sure replace screen

and hood are in place before running

heater. The replace screen shall

have openings for introduction of combustion air.

Keep the appliance area clear and free from combustible materials, gasoline and other ammable vapors and liquids.

Page 4

SAFETY

Continued

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/ LP supply tank(s) outdoors (propane/LP units only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not

use any phone in your building

• immediately call your gas supplier from

a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier,

call the re department

4. This heater shall not be installed in a bed-

room or bathroom, unless installed as a

vented appliance. See Installing Damper Clamp Accessory for Vented Operation,

page 12. This gas log set may not be installed as a vented appliance in a bedroom or bathroom in the Commonwealth of Massachusetts.

5. Before installing in a solid fuel burning replace, the chimney ue and rebox must be cleaned of soot, creosote, ashes and loose paint by a qualied chimney cleaner.

Creosote will ignite if highly heated. A dirty

chimney ue may create and distribute

soot within the house. Inspect chimney

ue for damage. If damaged, repair ue and rebox before operating heater.

6. Do not burn solid-fuel in a replace in

which a vent-free room heater is installed.

7. If replace has glass doors, never operate

this heater with glass doors closed. Any glass doors shall be fully opened when the appliance is in operation. If you operate

heater with doors closed, heat buildup inside replace will cause glass to burst.

Make sure there are no obstructions

across openings of replace.

8. To prevent the creation of soot, follow the

instructions in Cleaning and Maintenance, page 30.

9. Before using furniture polish, wax, carpet cleaner or similar products, turn heater off. If heated, the vapors from these products may

create a white powder residue within burner box or on adjacent walls and furniture.

10. This heater needs fresh, outside air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if enough fresh air is not available. See Air for Combustion and Ventilation,

page 6. If heater keeps shutting off, see Troubleshooting, page 32.

11. Do not run heater

• where ammable liquids or vapors are

used or stored

• under dusty conditions

12. Do not use this heater to cook food or burn paper or other objects.

13. Do not use heater if any part has been exposed to or under water. Immediately call

a qualied service technician to inspect

the room heater and to replace any part of the control system and any gas control which has been under water.

14. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

15. Turn heater off and let cool before servic-

ing, installing or repairing. Make sure the

selector switch is in the OFF position. Only

a qualied service person should install,

service or repair heater.

16. Make sure the selector switch is in the OFF position when you are away from home for long periods of time.

17. Remote-ready heaters must not be connected to any external electrical source.

18. Operating heater above elevations of

4,500 feet may cause pilot outage.

19. To prevent performance problems, do not

use propane/LP fuel tank of less than 100 lb. capacity (propane/LP units only).

20. Provide adequate clearances around air openings.

www.Astria.US.com

126835-01A4

Page 5

UNPACKING

CAUTION: Do not remove the data plates from the grate assembly. The data plates contain important warranty and safety information.

1. Remove logs and heater base assembly from cartons.

PRODUCT IDENTIFICATION

Note: Do not pick up heater base assem-

bly by burners. This could damage heater. Always handle base assembly by grate.

2. Remove all protective packaging applied to logs and heater for shipment.

3. Check heater for any shipping damage. If heater is damaged call INNOVATIVE HEARTH PRODUCTS at 1-800-655-2008 for replacement parts before returning to dealer.

Log Set

Left Side

Ignitor

Front

Base Assembly

Figure 1 - Product Identication

LOCAL CODES

Install and use heater with care. Follow all

local codes. In the absence of local codes,

use the latest edition of The National Fuel Gas Code, ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

National Fire Protection Association, Inc.

1430 Broadway

New York, NY 10018

Batterymarch Park

Quincy, MA 02269

Rear Burner

Right Side

Flame Adjustment Knob

Control Knob

State of Massachusetts: The installation must be made by a licensed plumber or gas fitter in the Commonwealth of Massachusetts.

Sellers of unvented propane or natural

gas-red supplemental room heaters shall

provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

Vent-free gas products are prohibited for bedroom and bathroom installation in the Commonwealth of Massachusetts.

OPTIONAL REMOTE CONTROL ACCESSORIES

There are ve optional remote controls that

can be purchased separately:

• wall switch

•

hand-held ON/OFF remote

•

wall thermostat

• hand-held thermostat remote

• touch screen hand-held remote

126835-01A 5

www.Astria.US.com

See Accessories, page 47. The wall thermostat or hand-held thermostat

may not be used where vented decorative listing is required.

Page 6

PRODUCT FEATURES

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by

both realistic ames and glowing coals. This

heater is designed for vent-free operation with

ue damper closed. It has been tested and

approved to ANSI Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use of vent-free heaters. This heater may also be operated as a vented decorative (ANSI Z21.60) product by opening

the ue damper.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method described in the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, the International Fuel Gas Code, or

applicable local codes. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efcient than ever. New materials, increased insulation

and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in.

During heating months, home owners want

their homes as airtight as possible. While it is good to make your home energy

efcient, your home needs to breathe. Fresh

air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, replaces, clothes dryers and

fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

www.Astria.US.com

SAFETY DEVICE

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

ELECTRONIC IGNITION SYSTEM

This heater has an electronic ignitor to light heater fuel supply.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three

following ventilation classications:

1. Unusually Tight Construction

2. Unconned Space

3. Conned Space

The information on pages 6 through 8 will help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion

and ventilation. However, in buildings of unusually tight construction, you must provide

additional fresh air.

Unusually tight construction is dened as

construction where: a. walls and ceilings exposed to the out-

side atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 less with openings gasketed or sealed and

b. weather stripping has been added on

openable windows and doors and

c. caulking or sealants are applied to

areas such as joints around window and door frames, between sole plates

and oors, between wall-ceiling joints,

between wall panels, at penetrations for plumbing, electrical and gas lines and at other openings.

-11

kg per pa-sec-m2) or

126835-01A6

Page 7

AIR FOR COMBUSTION AND VENTILATION

Continued

If your home meets all of the three criteria above, you must provide additional fresh air. See Ventilation Air From Outdoors, page 8.

If your home does not meet all of the three criteria above, proceed to Determining Fresh-Air Flow For Heater Location, below.

Conned and Unconned Space

The National Fuel Gas Code, ANSI Z223.1/ NFPA 54 denes a conned space as a space

whose volume is less than 50 cubic feet per

1,000 Btu/hr (4.8 m3 per kw) of the aggregate

input rating of all appliances installed in that

space and an unconned space as a space

whose volume is not less than 50 cubic feet

per 1,000 Btu/hr (4.8 m3 per kw) of the ag-

gregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are

installed*, through openings not furnished with doors, are considered a part of the unconned space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Conned or Unconned Space

Use this work sheet to determine if you have

a conned or unconned space.

Space: Includes the room in which you will install

replace plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height =__________cu. ft.

(volume of space)

Example: Space size 20 ft. (length) x 16 ft.

(width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)

If additional ventilation to adjoining room

is supplied with grills or openings, add the

volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support)

Example: 2560 cu. ft. (volume of space) x 20

= 51,200 (maximum Btu/Hr the space can

support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free replace __________Btu/Hr Gas water heater* __________ Btu/Hr Gas furnace __________ Btu/Hr Vented gas heater __________Btu/Hr Gas replace logs __________ Btu/Hr Other gas appliances* + _________ Btu/Hr Total = _________ Btu/Hr * Do not include direct-vent gas appliances.

Direct-vent draws combustion air from the outdoors and vents to the outdoors.

Example: Gas water heater __________ Btu/Hr Vent-free replace + _________Btu/Hr Total = _________ Btu/Hr

Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_______ Btu/Hr (maximum can support) _______ Btu/Hr (actual amount used) Example: 51,200 Btu/Hr (maximum the

73,000 Btu/Hr (actual amount of

The space in the above example is a conned

space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an

adjoining room. If the extra space provides an unconned space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 8.

B. Vent room directly to the outdoors. See

Ventilation Air From Outdoors, page 8.

C. Install a lower Btu/Hr replace, if lower Btu/

Hr size makes room unconned.

If the actual Btu/Hr used is less than the maxi-

mum Btu/Hr the space can support, the space is an unconned space. You will need no additional

fresh air ventilation.

space can support)

Btu/Hr used)

40,000 33,000 73,000

126835-01A 7

www.Astria.US.com

Page 8

AIR FOR COMBUSTION AND VENTILATION

Outlet Air

Ventilated Attic

Outlet A

Inlet Air

Ventilated

Crawl Space

Crawl

Space

To Attic

Remove Door into Adjoining

Room, Option

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilation

Grills Into Adjoining

Room,

Option 1

12"

Continued

WARNING: If the area in which the heater may be operated does not meet the required volume for indoor combustion air, combustion and ventilation air shall be provided by one of the methods described in the National Fuel

Gas Code, ANSI Z223.1/NFPA 54,

the International Fuel Gas Code, or applicable local codes.

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining

unconned space. When ventilating to an adjoining unconned space, you must provide

two permanent openings: one within 12" of the

ceiling and one within 12" of the oor on the

wall connecting the two spaces (see options

1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2).

Follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation for required size of ventilation

grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling

and one within 12" of the oor. Connect these

items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation for required size

of ventilation grills or ducts. IMPORTANT: Do not provide openings for

inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Figure 3 - Ventilation Air from Outdoors

Figure 2 - Ventilation Air from Inside Building

www.Astria.US.com

126835-01A8

Page 9

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualied service person must install heater. Follow all local codes.

NOTICE: State or local codes may only allow operation of this appli-

ance in a vented conguration.

Check your state or local codes.

WARNING: Seal any fresh air vents or ash clean-out doors located on oor or wall of replace. If not, drafting may cause pilot outage or sooting. Use a heat-resistant sealant. Do not

seal chimney ue damper.

WARNING: Never install the heater

• in a bedroom or bathroom

unless installed as a vented appliance, see page 12

• in a recreational vehicle

• where curtains, furniture,

clothing or other ammable

objects are less than 36" from the front and 42" from top heater, For side clearances see Figure 4 page 10

• in high trafc areas

• in windy or drafty areas

WARNING: Before installing

in a solid fuel burning replace, the chimney ue and rebox

must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly

heated. A dirty chimney ue may

create and distribute soot within the house. Inspect chimney and

rebox ue for damage. If damaged, repair ue and rebox

before operating heater.

Any outside air ducts and/or ash

dumps in the replace shall be

permanently closed at time of

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning uids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

IMPORTANT: Vent-free heaters add moisture

to the air. Although this is benecial, installing

heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventila-

tion, page 6.

appliance installation.

126835-01A 9

www.Astria.US.com

Page 10

INSTALLATION

Continued

CHECK GAS TYPE

Use the correct type of gas (natural or propane/ LP). If your gas supply is not the correct gas

type, do not install heater. Call dealer where

you bought heater for proper type heater.

WARNING: This appliance is equipped for either natural gas or propane/LP gas but not both. Gas type is indicated on the rating plate. Field conversion is not permitted.

INSTALLATION AND CLEARANCES FOR VENT-FREE OPERATION

WARNING: Maintain the minimum clearances. If you can, provide greater clearances

from oor, ceiling and adjoining

wall.

Minimum Fireplace Clearance to

Combustible Materials

Side Wall 16", Ceiling 42", Floor 5",

LOG SIZING REQUIREMENTS

Log Set

Model No.

BisonMtn18

BisonMtn24

BisonMtn30

AndesMtn18

AndesMtn24

AndesMtn30

AndesMtn36

RedWoodM18

RedWoodM24

RedWoodM30

Front 36"

Minimum Firebox Size

Height Depth

17'' 14.5'' 26'' 20'' 17'' 14.5'' 29'' 22'' 21'' 14.5'' 32'' 22'' 17" 13.5" 20" 14" 17" 13.5" 26" 18" 21'' 13.5'' 32'' 22'' 21'' 13.5'' 38'' 27.5'' 17'' 13.5'' 20'' 14'' 17'' 13.5'' 26'' 18'' 21'' 13.5'' 32'' 22''

Front

Width

Rear* Width

Carefully follow these instructions. This will

ensure safe installation into a masonry, UL127-listed manufactured replace or listed vent-free rebox.

Minimum Clearances For Side Combustible Material, Side Wall and Ceiling

A. Clearances from the side of the replace

cabinet to any combustible material and wall should follow diagram in Figure 4.

Example: The face of a mantel, bookshelf,

etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side

of the replace cabinet (see Figure 4).

Note: When installing your gas logs into

a manufactured rebox, follow rebox

manufacturer’s instructions for minimum clearances to combustible materials.

B. Clearances from the top of the replace

opening to the ceiling should not be less than 42".

NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater

with chimney ue damper open.

If running heater with damper open, noncombustible material

above replace opening is not

needed. Go to Installing Damper Clamp Accessory for Vented Operation, page 12.

Example

*Minimum 16" from Side Wall

Figure 4 - Minimum Clearance for

www.Astria.US.com

Combustible to Wall

126835-01A10

Page 11

INSTALLATION

Heat Resistant Material

(A)

Minimum Noncombustible Material

Minimum Noncombustible Material Height

Distances to Underside of Mantel

Top of Fireplace Opening

Underside of Mantel Shelf

12"

(A)

18"

14"

20"

17"

22"

19"

24"

20"

All minimum distances are in inches

Log Set 24"/30"/36" Models 18" Model

2 1/2"

10"

Mantel Shelf

Continued

MINIMUM NONCOMBUSTIBLE MATERIAL CLEARANCES

If Not Using Mantel

Note: If using a mantel proceed to If Using Mantel. If not using a mantel, follow the information on this page.

You must have noncombustible material(s)

above the replace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2" thick. With sheet metal,

you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombus-

tible material is less than 12", you must install the replace hood accessory (24", 30" and

36" Models Only). See Figure 5 for minimum clearances.

Noncombustible

Material

Distance (A)

2" or more Noncombustible mate-

Between 8" and 12"

Less than 8"

Requirements for Safe

Installation

rial OK.

24", 30" or 36" Models: Install replace hood

accessory (GA6050 or GA6053 see Acces-

sories, page 47). 18"

Model: Noncombustible material OK. Noncombustible material must be extended to at least 8". See

Between 8" and 12",

above. If you cannot ex-

tend material, you must operate heater with ue

damper open.

If Using Mantel

You must have noncombustible material(s)

above the replace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2" thick. With sheet metal,

you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombus-

tible material is less than 12", you must install the replace hood accessory (24", 30" and 36"

Models Only). Even if noncombustible mate-

rial is more than 12", you may need the hood accessory to deect heat away from your

mantel shelf. See Figures 5 and 6 and Figure

7, page 12, for minimum clearances.

IMPORTANT: If you cannot meet these mini-

mum clearances, you must operate heater with chimney ue damper open. Go to Install-

ing Damper Clamp Accessory for Vented Operation, page 12.

MANTEL CLEARANCES

In addition to meeting noncombustible mate-

rial clearances, you must also meet required clearances between replace opening and

mantel shelf. If you do not meet the clearances

listed below, you will need a hood.

Determining Minimum Mantel Clearance

If you meet minimum clearance between

mantel shelf and top of replace opening, a

hood is not required (see Figure 6).

126835-01A 11

www.Astria.US.com

Figure 5 - Heat Resistant Material (Slate,

Marble, Tile, etc.) Above Fireplace

Figure 6 - Minimum Mantel Clearances

Without Using Hood

Page 12

Minimum Noncombustible Material

8" Min.

12" 15" 18"

All minimum distances are in inches

Log Sets 18", 24", 30" & 36" Models

20"

10"

12"

Distances to Underside of Mantel

Hood (GA6050 or GA6053)

Top of Fireplace Opening

Underside of Mantel Shelf

Mantel Shelf

14" Min.

Combustible Material

Noncombustible Material

Hearth

5" Min.

Combustible Material

INSTALLATION

Continued

Determining Minimum Mantel Clearance When Using a Hood

If minimum clearances in Figure 6, page 11, are not met, you must have a hood. When using

a hood there are still certain minimum mantel clearances required. Follow minimum clear-

ances shown in Figure 7, when using hood.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• operate the logs only with the

ue damper open

• raise the mantel to an accept-

able height

• remove the mantel

Figure 7 - Minimum Mantel Clearances

When Using Hood

www.Astria.US.com

FLOOR CLEARANCES

A. If installing appliance on the oor level,

you must maintain the minimum distance of 14" to combustibles (see Figure 8).

B. If combustible materials are less than

14" to the replace, you must install appliance at least 5" above the top surface

of combustible ooring including tile and

carpet (see Figure 9).

Figure 8 - Minimum Fireplace Clearances

If Installed at Floor Level

Figure 9 - Minimum Fireplace Clearances

Above Combustible Flooring

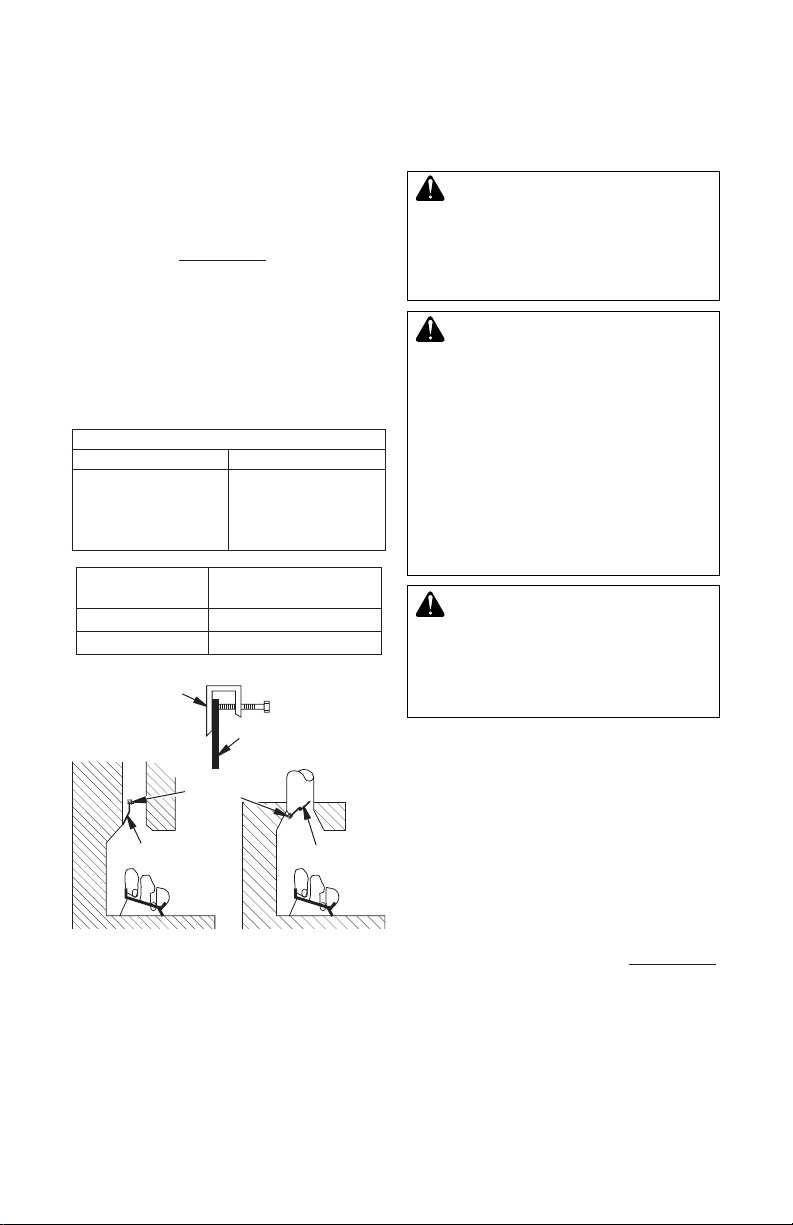

INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION

Note: When used as a vented heater, appliance must be installed only in a solid-fuel burning replace with a working ue and constructed of noncombustible material.

For Massachusetts Residents Only: Installation of this gas log set as a vented appliance in the Commonwealth of Massachusetts requires the damper be permanently removed or welded in the fully open position.

If your heater is a manually-controlled model,

you may use this heater as a vented product. There are three reasons for operating your heater in the vented mode.

1. The replace does not meet the clearance

to combustibles requirements for ventfree operation.

126835-01A12

Page 13

INSTALLATION

Continued

2. State or local codes do not permit ventfree operation.

3. You prefer vented operation.

If reasons number 1 or 2 apply to you, you must permanently open chimney ue damper.

You must install the damper clamp accessory

(to order, see Accessories, page 47). This

will insure vented operation (see Figure 10). The damper clamp will keep damper open. Installation instructions are included with clamp accessory.

See chart below for minimum permanent ue

opening you must provide. Attach damper clamp so the minimum permanent ue opening will be maintained at all times.

Area of Various Standard Round Flues

Diameter Area

5" 20 sq. inches 6" 29 sq. inches 7" 39 sq. inches 8" 51 sq. inches

Chimney Height

6' to 15' 39 sq. inches

15' to 30' 29 sq. inches

Damper Clamp

Damper

Masonry Fireplace

Figure 10 - Attaching Damper Clamp

Minimum Permanent

Flue Opening

Damper

Damper Clamp

Damper

Manufactured Fireplace

INSTALLING HEATER BASE ASSEMBLY

WARNING: You must secure

this heater to replace oor. If

not, heater will move when you adjust controls. Moving heater may cause a gas leak.

WARNING: If installing in a

sunken replace, special care

is needed. You must raise the

replace oor to allow access

to heater control panel. This

will insure adequate air ow

and guard against sooting and controls being damaged. Raise replace oor with noncombustible material. Make sure material is secure.

CAUTION: Do not pick up heater base assembly by burners. This could damage heater. Only handle base assembly by grates.

IMPORTANT: Make sure the heater burners

are level. If heater is not level, heater will not

work properly.

Installation Items Needed

• hardware package (provided with heater)

• approved exible gas hose and ttings (if

allowed by local codes)

• sealant (resistant to propane/LP gas, not

provided)

• electric drill with 3/16” masonry drill bit

Note: Install optional Receiver and HandHeld Remote Control Kit (see Accessories, page 47) before installing gas log heater. See installation instructions included with the kit.

126835-01A 13

www.Astria.US.com

Page 14

INSTALLATION

Continued

1. Apply pipe joint sealant lightly to male

threads of gas tting (provided). Connect approved exible gas hose to inlet side of

gas control (see Figure 11).

IMPORTANT: Hold gas regulator with

wrench when connecting flexible gas hose.

2. Position heater base assembly in fireplace.

3. Mark screw locations through holes in front panel of base (see Figure 12). If

installing in a brick-bottom replace, mark

screw locations in mortar joint of bricks.

4. Remove heater base from replace.

5. Drill holes at marked locations using 3/16" drill bit.

6. Attach base, through holes in front panel of base, to replace oor using masonry

screws provided in hardware package (see Figure 12).

7. Connect to gas supply. See Connecting To Gas Supply.

Gas Control

Flexible Gas Hose (if allowed by local codes)

Figure 11 - Attaching Flexible Gas Hose

to Heater Gas Regulator

Masonry

Screw

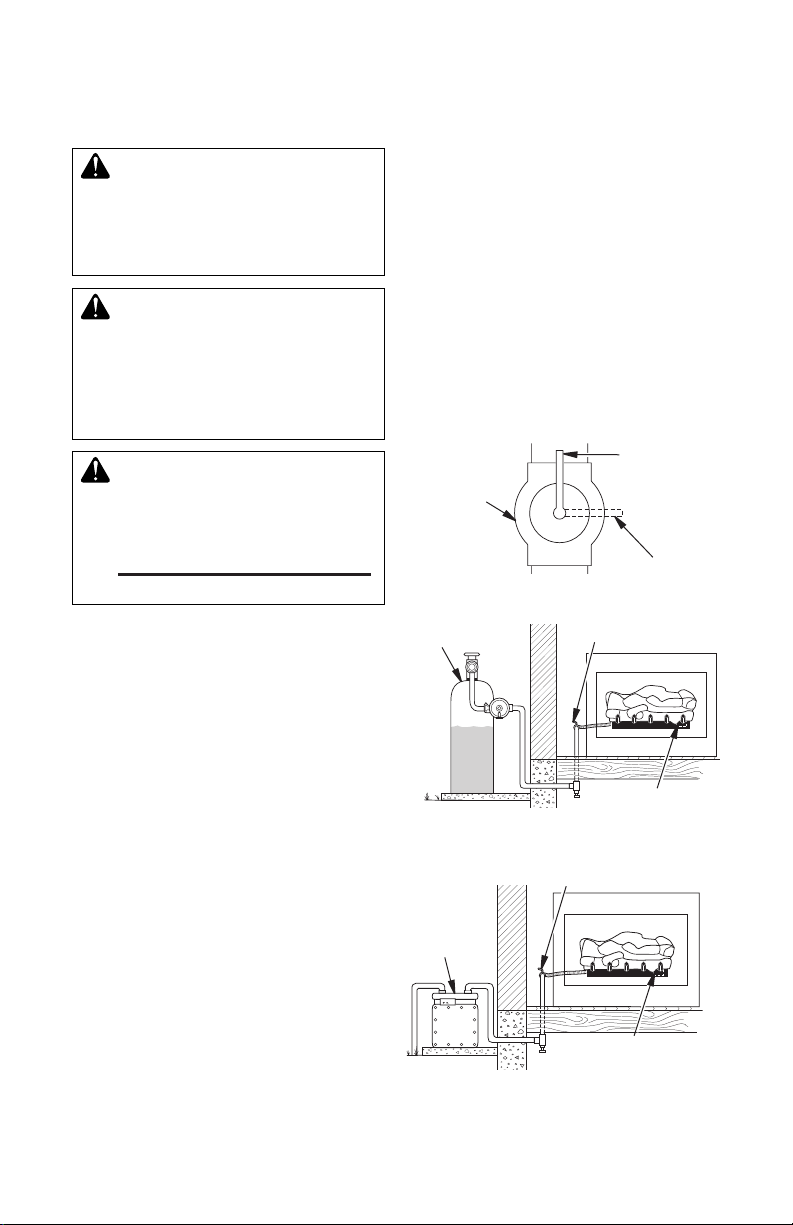

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 3/8" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualied service person must connect heater to gas supply. Follow all local codes.

CAUTION: Never connect

propane/LP replace directly

to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

WARNING: Never connect

natural gas replace to private

(non-utility) gas wells. This gas is commonly known as wellhead gas.

Installation Items Needed

Before installing heater, make sure you have

the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved exible gas line with gas connec-

tor (if allowed by local codes)

* An equipment shutoff valve with 1/8" NPT tap

is an acceptable alternative to test gauge connection. Purchase the optional equipment shutoff valve from your dealer.

Figure 12 - Attaching Base to Fireplace

Floor

www.Astria.US.com

126835-01A14

Page 15

INSTALLATION

Continued

For propane/LP units, the installer must

supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11" and 14" of water. If you do not re-

duce incoming gas pressure, heater regulator

damage could occur. Install external regulator with the vent pointing down as shown in Figure

13. Pointing the vent down protects it from freezing rain or sleet.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of volume will occur.

Propane/LP Supply Tank

Figure 13 - External Regulator With Vent

Pointing Down

Installation must include an equipment shutoff

valve, union and plugged 1/8" NPT tap. Locate

NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 14).

IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff

valve to replaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

126835-01A 15

External Regulator with Vent Pointing Down

www.Astria.US.com

Equipment Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Hose (if allowed by local codes)

3" Minimum

Pipe Cap Tee

Gas Control

Figure 14 - Gas Connection

* Purchase the optional equipment shutoff

valve from your dealer.

**Minimum inlet pressure for purpose of input

adjustment.

Nipple Joint

Sediment Trap

PROPANE/LP

From External

Regulator

(11" W.C.**

to 14" W.C.

Pressure)

NATURAL

From Gas

Meter

(5" W.C.**

to 10.5"

Pressure)

WARNING: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 14. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not

installed or is installed wrong, heater may

not run properly.

CAUTION: Avoid damage to gas control. Hold gas control with wrench when connecting it

to gas piping and/or ttings.

W.C.

Page 16

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections, internal and external to unit, for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an

open ame to check for a leak.

Apply a noncorrosive leak detec-

tion uid to all joints. Bubbles

forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and heater. See guidelines under Connecting to Gas Supply, page 14.

PRESSURE TESTING GAS SUPPLY PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig (3.5 kPa) will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection

uid to all joints. Bubbles forming show

a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected

ttings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 15).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

3. Check all joints from gas meter to equipment shutoff valve for natural gas or propane/LP supply to equipment shutoff valve for propane/LP (see Figure 16 or 17).

Apply noncorrosive leak detection uid to

all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Equipment Shutoff Valve

Figure 15 - Equipment Shutoff Valve

Propane/LP Supply Tank

Figure 16 - Checking Gas Joints

(Propane/LP Only)

Equipment Shutoff Valve

Gas Meter

Control Valve Location

Figure 17 - Checking Gas Joints (Natural

Gas Only)

Open

Closed

Equipment Shutoff Valve

Control Valve Location

www.Astria.US.com

126835-01A16

Page 17

INSTALLATION

Continued

PRESSURE TESTING HEATER GAS CONNECTIONS

1. Open equipment shutoff valve (see Figure 18).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knob of heater is in the OFF position.

4. Check all joints from equipment shutoff valve to gas valve (see Figure 16 or 17).

Apply noncorrosive leak detection uid to

all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operation, page 27 depending on your model). Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to

Appliance, page 28, depending on your

model).

INSTALLING LOGS

WARNING: Failure to position the parts in accordance with these diagrams or failure

to use only parts specically

approved with this heater may result in property damage or personal injury.

Blaze&Glow Series Burner System - Log

Burner System

Blaze&Glow18MN

Blaze&Glow18MP

Blaze&Glow24MN

Blaze&Glow24MP

Compatibility Chart

Models

Fiber Log

Models

AndesMtn18

AndesMtn24 AndesMtn30 AndesMtn36

Concrete Log

Models

BisonMtn18

RedWoodM18

BisonMtn24

BisonMtn30 RedWoodM24 RedwoodM30

Log Support Brackets

If installing a AndesMtn36, attach log support brackets before installing logs. These brackets are provided with the Blaze&Glow24 series burner systems.

1. Install left bracket to left side of chassis using 2 screws provided (see Figure 18).

2. Install right bracket to right front of chassis using 2 screws provided (see Figure 18). This bracket will also be used as remote control bracket if remote is installed.

Chassis

Left Log Support Bracket

Right Log Support

Right Front of Chassis

Bracket

Figure 18 - Installing Log Support

Brackets

INSTALLING SWITCH

A AUTO/OFF/ON switch and wire assembly is supplied with this burner system. This switch needs to be used only if remote or wall switch is not being used. Place the wire assembly and switch into the switch log. Remove the jumper wire from the control valve and then connect the wires to the valve from the switch assembly as shown in Figure 19.

To OFF Terminal on Switch

To AUTO

Control Valve

Terminal on Switch

Figure 19 - Connecting Wires

126835-01A 17

www.Astria.US.com

Page 18

INSTALLATION

Continued

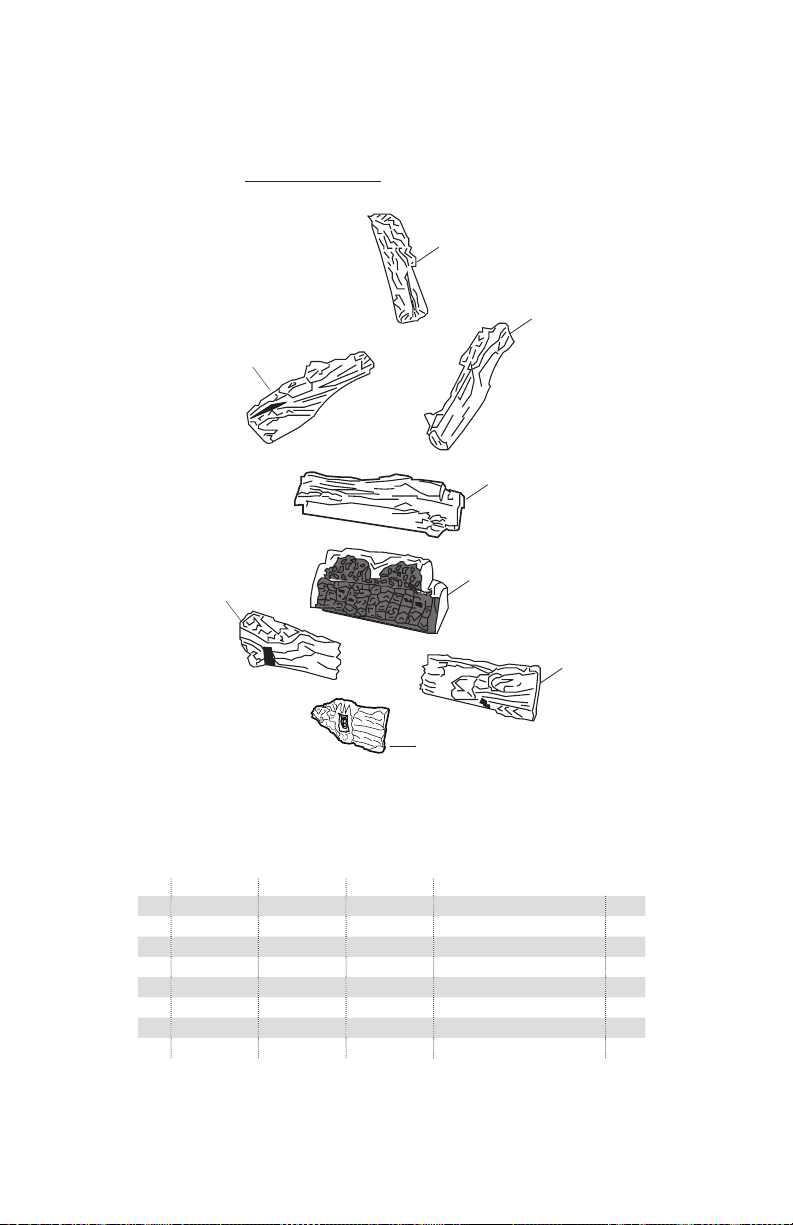

FIBER LOG MODELS AndesMtn(18, 24, 30, 36)

Note: Your appliance may vary from model shown but log placement will be the same.

1. Place bottom log in center of the base assembly as shown in Figure 20.

2. Rest rear log in back corner sections of base assembly as shown in Figure 20. Make sure log is completely vertical and

not leaning in toward burner where ame will touch the log. The log must sit at on

the black sheet metal and behind the left

metal tab as shown in gure 20-a.

Middle Left Log

Middle Right Log

Ramp

Metal Tab

Figure 20-a - Installing Log Set

Front Left Log

Grate Prongs

Bottom Log

Base Assembly

Figure 20 - Installing Log Set

3. Position front right log against right side of grate prongs (see Figure 20).

4. Position front left log against left side of grate prongs (see Figure 20).

5. Place middle right log over front right and bottom logs as shown in Figure 21. Be

Log

Rear Log

Front Right Log

www.Astria.US.com

Pin on Front Left Log

Figure 21 - Installing Log Sets

sure hole in middle right log seats over pin in bottom log.

6. Place middle left log over front left and bottom logs as show in Figure 21. Be sure hole in middle left log seats over pin in front left log.

7. For AndesMtn36, the front right and

left logs are longer and are supported with brackets on each end (see Figure

22). Place left and right small front logs under left bracket and beside right bracket.

8. For AndesMtn36, position left and right

control cover logs as shown in Figure

23, page 19. These may be placed as

desired to hide controls.

Left Small Front Log

Left Control Cover Log

Right Control Cover Log

Figure 22 - Installing AndesMtn36 Model

Bracket

Right Small Front Log

Control Cover Logs

Bottom Log

126835-01A18

Page 19

INSTALLATION

Continued

AndesMtn(18,24,30) MODELS

AndesMtn36 MODELS

Figure 23 - Correct Log Placement

CONCRETE LOG MODELS RedWoodM(18, 24, 30)

Each log is marked with a number. These numbers will help you identify the log when installing (see chart on page 20). It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

Note: Your appliance may vary from model shown but log placement will be the same.

1. Place ber ramp-log in center on chassis as shown in Figure 24. The ber ramp-log can be identied by its shape and much

lighter weight when compared to the other logs.

Ramp Log

Ramp

Metal Tab

Figure 25 - Installing Log Set

3. Place front left and right logs and rear log as shown in Figure 26.

4. Place top left log as shown in Figure 27.

The bottom of the log is shaped to t onto

the recessed areas of the front left log and the rear log. The recessed areas are painted yellow.

5. Place top right log as shown in Figure 27.

The bottom of the log is shaped to t onto

the recessed areas of the front right log and the rear log. The recessed areas are painted yellow.

Rear Log

Front Left Log

Front Right Log

Figure 26 - Installing Logs

Top Left Log

Top Right Log

Log

Base Assembly

Figure 24 - Installing Log Set

2. The log must sit at on the black sheet

metal and behind the left metal tab as shown in Figure 25.

126835-01A 19

www.Astria.US.com

Front Left Log

Front Right Log

Figure 27 - Installing Logs

Page 20

INSTALLATION

Continued

6. Place the small top right log as shown in Figure 28. The bottom of the log is shaped

to t onto the recessed areas of the top

right log and the front right log. The recessed areas are painted yellow.

Small Top Log

Figure 28 - Installing Log

Top Right Log

Front Right Log

CONCRETE LOG MODELS

BisonMtn(18, 24, 30)

Note: Your appliance may vary from model shown but log placement will be the same.

1. Before placing any logs on the chassis you will need to remove the Air Shield located on the left side near the rear burner as shown in Figure 28. The Air Shield is held

in place with one screw, remove the Air

Shield and place the screw back into the hole in the chassis. Place the Air Shield with you owner's manual and keep.

Screw

Air Shield

Description Qty

RedWoodM18

RedWoodM30

RedWoodM24

Front Left Log 012 001 007 1

Front Right Log 013 002 008 1

Rear Log 014 003 009 1

Top Left Log 016 005 0 11 1

Top Right Log 015 004 010 1

Small Top Right Log 006 006 006 1

www.Astria.US.com

Figure 28 - Removing Air Shield

2. Place ber ramp log in center of chassis as shown in Figure 39, page 21. The ber ramp log can be identied by the shape

and much lighter weight when compared

to the other logs. The log must sit at on

the black sheet metal and behind the left metal tab as shown. Make sure the side marked ''BOTTOM'' is setting down.

126835-01A20

Page 21

INSTALLATION

Continued

Ramp Log

Metal Tab

Figure 29 - Installing Fiber Ramp Log

3. Place front left (18" D-064, 24" D-057 & 30" D-038) and front right (18" D-065, 24" D-058

& 30" D-039) logs as shown in Figure 30.

5. The right ember bed log 24" & 30'' (D-

047) has a hole in the log that sets on

the grate nger and the other end rest on the replace oor, place log as shown in

Figure 32. The right ember bed logs for 18" (D-072) has a groove on the side that sets on the ember bed pan and the back of the log needs to rest against the front of the

base. Make sure the ame from the ember

pan does not touch the ember bed log. The back side of this log needs to rest against

the front of the base assembly, make sure the ame from the ember pan does not

touch the ember bed log.

Right Front Log

Left Front Log

Figure 30 - Installing Left/Right Front Logs

4. Place left ember bed log (18" D-073, 24"

& 30" D-048) as shown in Figure 31. The log has groove on one side that sets on the ember bed pan. The back side of this log needs to rest against the front of the base

assembly. Make sure the ame from the

ember pan does not touch the ember bed log.

Left Ember Bed Log

Right Ember Bed Log

Hole Underneath

Grate Prong

Figure 32 - Installing Right Ember Bed Log

6. The left middle log (18" D-066, 24" & 30"

D-040) has a groove on the bottom to sit on the chassis and has to sit on the tab on the back of the left front log as shown in Figure 33.

Left Middle Log

Figure 33 - Installing Left Middle Log

Figure 31 - Installing Left Ember Bed Log

126835-01A 21

www.Astria.US.com

Page 22

INSTALLATION

Continued

7. The right middle log (18" D-067, 24" & 30"

D-041) has a groove on the bottom to sit on the chassis and has to sit on the tab on the back of the right front. The right middle log

should have a recess area that ts around

the ramp log as shown in Figure 34.

Right Middle Log

Figure 34 - Installing Right Middle Log

9. Rest the rear log (18" D-069, 24" & 30"

D-043) on the chassis behind the rear burner as shown in Figure 36. The bottom of the rear log will sit into the rear log supports.

Rear Log

8. The rear middle log (18" D-068, 24" & 30" D-042) should t between the ramp

log and the rear burner. The left and right middle logs have recessed areas for the rear middle log to sit into (See Figure 35). There may be a small gap between the rear

middle log and the ramp log, this is normal..

Be careful not to push the rear burner out of position while installing this log.

Rear Middle Log

Figure 35 - Installing Rear Middle Log

Figure 36 - Installing Rear Log

10. Place the left top log (D-046) onto the rear log and the left middle log. Make sure to place the projection on the bottom of the left top log into the recessed areas on the rear and left middle logs (see Figure 37).

Left Top Log

Rear Log

Left Middle Log

Figure 37 - Installing Left Top Log

www.Astria.US.com

126835-01A22

Page 23

INSTALLATION

Continued

11. Rest the middle crossover log (18" D-070,

24" & 30" D-044) onto the right middle log and the left front log (see Figure 38). Make sure to match the projection on the bottom of the crossover log with the recess area in the right middle log and the left front log.

EMBER PLACEMENT - BGE SERIES BURNER SYSTEMS

WARNING: Do not use any other ember material not supplied with this unit.

Middle Crossover Log

Figure 38 - Installing Middle Crossover Log

12. Place the top rear log (18" D-071, 24" &

30" D-045) onto the rear log as shown. The

rear log has a projection that will t into the

recess area on the bottom of the top rear log (see Figure 39).

Top Rear Log

Rear Log

Figure 39 - Installing Top Rear Log

WARNING: Do not operate unit without ember material correctly in place as shown in Figures 41 & 42. Do NOT place ember material anywhere else on the unit. Use only ember material supplied with unit. Excessive or incorrectly placed ember material may produce carbon monoxide or soot.

1. Ember Chunk Placement. The Blaze&Glow24 burner systems include three ember chunks that are designed to

t over shoulder screws on the ember pan

burner. The bottom of each ember chunk has a hole for securing the ember chunk in place when it is placed over a shoulder screw. Place the ember chunks as shown in Figure 40 on page 24 by placing the ember chunk with the number "1" on the

left, "2" in the center, and "3" on the right.

These numbers are embossed on the back of each piece for identication purposes. Please note that Blaze&Glow18 burner systems do not include ember chunks.

2. Two ember materials are supplied with this log set. Platinum Bright Embers give a bright glow appearing as hot coals. Follow instructions for the ember material you choose. Should embers need replac-

ing, see Parts, page 36.

Platinum Bright Ember placement. Add

embers to front, at burner. Gently remove

embers from bag. Separate pieces of ember material and place on surface of

at burner just behind horizontal ports as

shown in Figure 41.

Rock Wool placement. Place rock wool

material on front at burner in areas away

from ports as shown in Figure 42.

126835-01A 23

www.Astria.US.com

Page 24

INSTALLATION

Continued

3. Add lava rock and small decorative logs around base of heater if desired. DO NOT

place rock or additional logs on front burner or on logs. Placing any material

on unit other than ember material on front

burner may result in production of carbon monoxide or soot. Use lava rock to hide wires from switch/log to control valve. Place switch/log so the switch is easy to access.

If replacement embers are needed, the replacement embers must be purchased from IHP. See page 36 for part numbers.

Ember Chunk #1

Figure 40 - Ember Chunk Placement Blaze&Glow24 Series

Ember Chunk #2

WARNING: All previously applied loose material must be removed prior to reapplication.

Ember Chunk #3

Flat Front Burner

Ember Material

Figure 41 - Platinum Bright Embers

Rock Wool

Figure 42 - Placement of Rock Wool

(shown with Platinum Bright Embers)

www.Astria.US.com

Flat Front Burner

126835-01A24

Page 25

ON OFF REMOTE

OPERATION

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not fol-

low these instructions exactly,

a re or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must

be lighted by hand. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around

the appliance area for gas. Be sure to

smell next to the oor because some

gas is heavier than air and will settle

on the oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

C. Use only your hand to push in or turn

the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a quali-

ed service technician or gas supplier.

Force or attempted repair may result in

a re or explosion.

D. Do not use this appliance if any part

has been under water. Immediately call

a qualied service technician to inspect

the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange ame will also be present. Open damper or window to vent smell. This will only last a few hours.

WARNING:

• If replace has glass doors,

never operate this heater with glass doors closed. If you operate heater with doors closed,

heat buildup inside replace

will cause glass to burst. Make sure there are no obstructions

across openings of replace.

• You must operate this heater with a replace screen in place. Make sure replace screen is

closed before running heater.

Note: Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However,

there may be times you will desire the full ames of the HI heat setting but will nd the heat output

excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

WARNING: Damper handle will be hot if heater has been running.

1. STOP! Read the safety information.

2. Make sure equipment shutoff valve is fully open.

3. Press in and turn control knob clockwise to the OFF position (see Figure 43).

Control Knob

Ignitor Button

Figure 43 - Control Knob and Ignitor

Button Location

Flame Adjustment Knob

126835-01A 25

www.Astria.US.com

Page 26

OPERATION

Continued

WARNING: Burners will come on automatically within one minute when the selector switch is in the ON position after the pilot is lit.

5. Wait ve (5) minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas, STOP! Follow B in the safety information, page 26. If you don’t smell gas, go to the next step.

6. Press in and turn control knob counterclockwise to the PILOT position.

Press in control knob for ve (5) seconds (see Figure 43, page 25).

Note: You may be running this heater

for the rst time after hooking up to gas

supply. If so, the control knob may need to be pressed in for 30 seconds or less. This will allow air to bleed from the gas system.

7. With control knob pressed in, press and

release ignitor button. This will light pilot. The pilot is attached to the front burner. If

needed, keep pressing ignitor button until

pilot lights.

Note: If pilot does not stay lit, contact a

qualied service person or gas supplier

for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure.

8. Keep control knob pressed in for 30 sec-

onds after lighting pilot. After 30 seconds,

release control knob.

• If control knob does not pop out when

released, contact a qualified service

person or gas supplier for repairs.

Note: If pilot goes out, repeat steps 4

through 8.

9. Slightly push in and turn control knob counterclockwise to the ON position.

11. Set ame adjustment knob to any level

between HI and LO.

12. You may shut off the burners and keep the pilot lit by doing one of the following:

a. Turn control knob clockwise to

the PILOT position.

Use remote control manual OFF button.

Pilot Burner

Figure 44 - Pilot (Propane/LP)

Pilot Burner

Figure 45 - Pilot (Natural)

Ignitor Electrode

TO TURN OFF GAS

TO APPLIANCE

1. Turn control knob clockwise to the OFF position.

2. If Using Optional Hand-Held Remote: Set selector switch in the OFF position to prevent draining battery.

3. Close equipment shutoff valve (see Figure

16 or 17, page 16).

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 6 under Lighting Instructions, page 27.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 sec-

onds after lighting pilot. After 30 seconds,

release control knob. Now follow steps 9

through 11, Lighting Instructions, page 27.

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

www.Astria.US.com

126835-01A26

Page 27

INSPECTING BURNERS

Check pilot ame pattern and burner ame

patterns often.

PILOT FLAME PATTERN

Figure 46 shows a correct pilot ame pattern. Figure 47 shows an incorrect pilot ame pattern. The incorrect pilot ame is not touching

the thermocouple. This will cause the thermo-

couple to cool. When the thermocouple cools,

the heater will shut down.

If pilot ame pattern is incorrect, as shown

in Figure 47

• turn heater off (see To Turn Off Gas to Appliance, page 26

• see Troubleshooting, page 30

Note: The pilot ame on natural gas units will have a slight curve, but ame should be blue

and have no yellow or orange color.

Propane/LP Gas PilotNatural Gas Pilot

Thermocouple

Figure 46 - Correct Pilot Flame Pattern

(Your pilot may vary from pilots shown)

Pilot Burner

Thermocouple

WARNING: If incorrect

burner ame occurs, your heater

could produce increased levels of carbon monoxide.

NOTICE: Do not mistake orange

ames with yellow tipping. Dirt or other ne particles are burned

by heater, causing brief patches

of orange ame.

If burner ame pattern is incorrect, as shown

in Figure 49

• turn heater off (see To Turn Off Gas to Appliance, page 26

• see Troubleshooting, page 30

Bright yellow rear

Middle burner

ame should

be blue with the ramp/blue with the ramp/log glowing orange/ red

burner ame; ame

will be blue next to burner

Small blue

ame on ember

burner with no yellow tipping

Propane/LP Gas PilotNatural Gas Pilot

Thermocouple

Figure 47 - Incorrect Pilot Flame Pattern (Your pilot may vary from pilots shown)

BURNER FLAME PATTERN

Figure 48 shows correct burner ame pattern. Figure 49 shows incorrect burner ame

pattern.

126835-01A 27

Pilot Burner

Thermocouple

Figure 48 - Correct Burner Flame Pattern

Yellow tipping on ember burner

Figure 49 - Incorrect Burner Flame

www.Astria.US.com

Dark orange rear

burner ame

Pattern

Yellow or dark orange middle burner

ame

Page 28

CLEANING AND MAINTENANCE

WARNING: Turn off heater

and let cool before cleaning.

CAUTION: You must keep control areas, burners and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a quali-

ed service person. Heater may

need more frequent cleaning due to excessive lint from carpeting, pet hair, bedding material, etc.

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.

BURNER ORIFICE HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these

holes clear of dust, dirt, lint and pet hair.

Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit

every three months during operation and

have heater inspected yearly by a qualied

service person. We also recommend that you keep the burner

tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI.

Your local computer store, hardware store or

home center may carry compressed air in a

can. If using compressed air in a can, please

follow the directions on the can. If you don’t follow directions on the can, you could damage the pilot assembly.

1. Shut off unit, including pilot. Allow unit to

cool for at least thirty minutes.

2. Inspect burner, pilot and primary air inlet holes on orice holder for dust and dirt

(see Figure 50).

3. Blow air through the ports/slots and holes in the burner.

Orice Holder

Ports/Slots

Burner Tube

Primary Air Inlet Holes

Figure 50 - Orice Holder On Outlet

Burner Tube

www.Astria.US.com

126835-01A28

Page 29

CLEANING AND MAINTENANCE

Thermopile

TPTH

Continued

4. Check orice holder located at the end of

the burner tube again. Remove any large

particles of dust, dirt, lint or pet hair with

a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the

orice holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps

3 and 4, beginning on page 30.

Clean pilot assembly also. A yellow tip on the

pilot ame indicates dust and dirt in the pilot

assembly. There is a small pilot air inlet hole

about 2" from where the pilot ame comes out

of the pilot assembly (see Figure 61). With the

unit off, lightly blow air through the air inlet

hole. You may blow through a drinking straw if compressed air is not available.

Pilot Air Inlet Hole

Pilot Assembly

Figure 61 - Pilot Inlet Air Hole (Your pilot

may vary from pilot shown)

LOGS

• If you remove logs for cleaning, refer to Installing Logs, page 17, to properly replace

logs.

• Replace log(s) if broken or chipped (dime-

sized or larger).

MAIN BURNER

Periodically inspect all burner ame holes with the heater running. All slotted burner ame holes should be open with yellow ame present. All round burner ame holes should be open with a small blue ame present. Some burner ame holes may become blocked by debris or rust, with no ame present. If so, turn off heater and let cool. Remove blockage, blocked burner ame holes will create soot.

WIRING DIAGRAM

126835-01A 29

www.Astria.US.com

Page 30

TROUBLESHOOTING

WARNING: Turn off heater and let cool before servicing. Only a

qualied service person should service and repair heater.

CAUTION: Never use a wire, needle or similar object to clean

ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

When ignitor button is

pressed, there is no spark

at ODS/pilot

When ignitor button is

pressed, there is spark at

ODS/pilot but no ignition

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Broken ignitor cable

4. Bad ignitor

5. Ignitor electrode positioned wrong

6. Ignitor electrode broken

7. Battery not installed, battery

power low or battery not installed correctly (electronic ignition models only)

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Replace ignitor cable

4. Replace ignitor

5. Replace pilot assembly

6. Replace pilot assembly

7. Install new alkaline battery in electronic ignitor. Verify battery is installed correctly

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see

Cleaning and Maintenance,

page 30) or replace ODS/ pilot assembly

7. Replace gas regulator

www.Astria.US.com

126835-01A30

Page 31

OBSERVED PROBLEM

ODS/pilot lights but ame

goes out when control knob is released

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been triggered

4. Equipment shutoff valve not fully open

5. Pilot flame not touching

thermocouple, which allows thermocouple to cool, causing pilot ame to go out. This

problem could be caused by one or both of the following:

A) Low gas pressure B) Dirty or partially clogged

ODS/pilot

6. Thermocouple connection loose at control valve

7. Thermocouple damaged

8. Control valve damaged

REMEDY

1. Press in control knob fully

2. After ODS/pilot lights, keep

control knob pressed in 30 seconds

3. Wait one minute for safety interlock system to reset. Repeat ignition operation

4. Fully open equipment shutoff valve

5. A) Contact local natural or propane/LP gas company

B) Clean ODS/pilot (see

Cleaning and Maintenance,

page 30) or replace ODS/ pilot assembly

6. Hand tighten until snug,

then tighten 1/4 turn more

7. Replace pilot assembly

8. Replace control valve

One or both burners do not light after ODS/pilot is lit

Delayed ignition of one or both burners

Burner backfiring during combustion

126835-01A 31

1. Inlet gas pressure is too low

2. Burner orice(s) clogged

3. Mislocated crossover tube

4. Wire disconnected from gas control

1. Manifold pressure is too low

2. Burner orice(s) clogged

3. Mislocated crossover tube

1. Burner orice is clogged or

damaged

2. Damaged burner

3. Gas regulator defective

www.Astria.US.com

1. Contact local natural or propane/LP gas company

2. Clean burner(s) (see

Cleaning and Maintenance,

page 30) or replace burner

orice(s)

3. Contact qualified service person

See Wiring Diagram, page 26

1. Contact local natural or propane/LP gas company

2. Clean burner(s) (see

Cleaning and Maintenance,

page 30) or replace burner

orice(s)

3. Contact qualified service person

1. Clean burner (see Cleaning

and Maintenance, page 30) or replace burner orice

2. Replace damaged burner

3. Replace gas regulator

Page 32

OBSERVED PROBLEM

Yellow ame in front burner

during burner combustion

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Not enough air

2. Gas regulator defective

REMEDY

1. Check burner(s) for dirt

and debris. If found, clean

burner(s) (see Cleaning and Maintenance, page 30)

2. Replace gas regulator

Slight smoke or odor during initial operation

Heater produces a whistling noise when burners are lit

White powder residue forming within burner box or on adjacent walls or furniture

Moisture/condensation noticed on windows

Heater produces a clicking/ ticking noise just after burners are lit or shut off

1. Residues from manufacturing processes and logs curing

1. Turning control knob to HI position when burners are cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged

burner orice(s)

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. may turn into

white powder residue

1. Not enough combustion/ ventilation air

1. Metal expanding while heating or contracting while cooling

1. Problem will stop after a few hours of operation

1. Turn control knob to LO position and let warm up for a minute

2. Operate burners until air is removed from line. Have gas line checked by local natural or propane/LP gas company

3. Observe minimum installation clearances (see pages 9 through 11)

4. Clean burners (see Clean-

ing and Maintenance,

page 30) or replace burner

orice(s)

1. Turn heater off when us-

ing furniture polish, wax,

carpet cleaners or similar products

1. Refer to Air for Combustion and Ventilation requirements (page 6)

1. This is normal with most heaters. If noise is excessive, contact qualied service person

www.Astria.US.com

126835-01A32

Page 33

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning sup-

plies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc.,

create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Heater produces unwanted odors

POSSIBLE CAUSE

1. Heater burning vapors from

paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See IMPOR-

TANT statement above)

2. Low fuel supply (propane/ LP only)

3. Gas leak. See Warning

statement at top of page

REMEDY

1. Open window to ventilate room. Stop using odor causing products while heater is running

2. Rell supply tank (propane/

LP only)

3. Locate and correct all leaks (see Checking Gas Con-

nections, page 16)

Heater shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

Gas odor during combustion

Log set cycles to pilot, but

room temperature drops to a lower than ideal level before log set comes back on

126835-01A 33

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See Warning

statement at top of page

2. Control valve or gas control defective

1. Foreign matter between control valve and burner

2. Gas leak. See Warning

statement at top of page

1. Optional Hand-held remote control is too close to heater (Remote-Ready Models Only)

www.Astria.US.com

1. Open window and/or door for ventilation

2. Contact local natural or propane/LP gas company

3. Clean ODS/pilot (see

Cleaning and Maintenance,

page 30)

1. Locate and correct all leaks (see Checking Gas Con-

nections, page 16)

2. Replace control valve or gas control

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Checking Gas Con-

nections, page 16)

1. Move hand-held remote control unit farther away from the heater

Page 34

SPECIFICATIONS

BLAZE&GLOW18MP

• Rating (Variable): 21,000/28,000 Btu/Hr

• Type Gas: Propane/LP

• Ignition: Electronic

• Manifold Pressure: 7.9" W.C.

• Inlet Gas Pressure (in. of water): Max - 14" W.C., Min* - 11" W.C.

BLAZE&GLOW18MN

• Rating (Variable): 19,000/28,000 Btu/Hr

• Type Gas: Natural

• Ignition: Electronic

• Manifold Pressure: 3.4" W.C.

• Inlet Gas Pressure (in. of water): Max - 10.5" W.C., Min* - 5" W.C.

*For purpose of input adjustment

BLAZE&GLOW24MP

• Rating (Variable): 27,000/39,000 Btu/Hr

• Type Gas: Propane/LP

• Ignition: Electronic

• Manifold Pressure: 7.9" W.C.

• Inlet Gas Pressure (in. of water): Max - 14" W.C., Min* - 11" W.C.

BLAZE&GLOW24MN

• Rating (Variable): 25,000/39,000 Btu/Hr

• Type Gas: Natural

• Ignition: Electronic

• Manifold Pressure: 3.4" W.C.

• Inlet Gas Pressure (in. of water): Max - 10.5" W.C., Min* - 5" W.C.

BLAZE & GLOW LOG SETS

Model Description

BisonMtn18 18" Bison Mountain Log Set Refractory

BisonMtn24 24" Bison Mountain Log Set Refractory

BisonMtn30 30" Bison Mountain Log Set Refractory

AndesMtn18 18" Andes Mountain Log Set Fiber

AndesMtn24 24" Andes Mountain Log Set Fiber

AndesMtn30 30" Andes Mountain Log Set Fiber

AndesMtn36 36" Andes Mountain Log Set Fiber

RedWoodM18 18" Red Wood Mountain Log Set Refractory

RedWoodM24 24" Red Wood Mountain Log Set Refractory

RedWoodM30 30" Red Wood Mountain Log Set Refractory

www.Astria.US.com

126835-01A34

Page 35

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specied heat

• propane/LP gas supply may be low

You may feel your gas pressure is too low. If

so, contact your local propane/LP or natural

gas supplier.

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

Contact authorized dealers of this product. If

they can’t supply original replacement part(s),

call INNOVATIVE HEARTH PRODUCTS at 1-800-655-2008.

TECHNICAL SERVICE

You may have further questions about instal-

lation, operation or troubleshooting. If so,

contact INNOVATIVE HEARTH PRODUCTS at 1-800-655-2008. When calling please have your model and serial numbers of your heater ready.

You can also visit INNOVATIVE HEARTH PRODUCTS technical services web site at www.IHP.US.com.

When calling, have ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

•

type of gas used (propane/LP or natural gas)

• purchase date Usually, we will ask you to return the part to

the factory.

126835-01A 35

www.Astria.US.com

Page 36

PARTS

REMOTE-READY CONTROL MODELS

BLAZE&GLOW18MN, BLAZE&GLOW18MP, BLAZE&GLOW24MN, BLAZE&GLOW24MP

KEY NO. PART NO. DESCRIPTION Blaze&Glow18MN Blaze&Glow18MP Blaze&Glow24MN Blaze&Glow24MP QTY.

101480-12 Wire Harness • • • • 1 100563-01 Warning Plate • • • • 1 103877-01 Lighting Instruction Plate • • • • 1 100639-12 Caution Decal • • • • 1 101137-02 Hardware Kit • • • • 1 101140-01 Lava Rock • • • • 1 125557-01 Left Ember Chunk #1 • • 1 125557-02 Middle Ember Chunk #2 • • 1 125557-03 Right Ember Chunk #3 • • 1 125071-01 Rockwool Embers • • • • 1 125070-01 Platinum Embers • • • • 1 099998-01 Switch • • • • 1 103284-01 Wire Harness • • • • 1

PARTS AVAILABLE NOT SHOWN

** Not a eld replaceable part.

www.Astria.US.com

126835-01A36

Page 37

This list contains replaceable parts used in your heater. When ordering parts, follow the

PARTS

instructions listed under Replacement Parts on page 37 of this manual.

KEY NO. PART NO. DESCRIPTION Blaze&Glow18MN Blaze&Glow18MP Blaze&Glow24MN Blaze&Glow24MP QTY.

1 098271-12 Cable Ignitor • • • • 1 2 099387-09 Pilot Tube LP • • 1

099387-12 Pilot Tube NG • • 1 3 099918-02 Pilot Regulator • • 1 4 100609-01 Pilot Tubing • • 1 5 101004-04 Orice, 0.0750 • • 1

101004-09 Orice, 0.0400 • 1

101004-15 Orice, 0.0470 • 1 6 101004-09 Orice, 0.0400 • 1

101004-12 Orice, 0.0595 • 1

101004-14 Orice, 0.0720 • 1

101004-15 Orice, 0.0470 • 1 7 111819-10 Orice Elbow • • 1

111819-11 Orice Elbow • 1

099056-45 Orice, 0.0280 • 1 8 103778-01 Pilot, ODS LP • • 1

103779-01 Pilot, ODS NG • • 1 9 103781-05 Gas Valve NG • • 1

103781-06 Gas Valve LP • • 1 10 103784-03 Knob Extension Pilot • • • • 1 11 103784-04 Knob Extension HI-LO • • • • 1 12 ** Plate, NG Conversion • • 1 13 111435-01 Electronic Ignitor • • • • 1 14 112465-01 Front Ramp Burner • • 1

112465-02 Front Ramp Burner • • 1 15 113242-01 Rear Ramp Burner • • 1

113242-02 Rear Ramp Burner • • 1 16 112713-01 Pilot Bracket • • • • 1 17 112715-01 Heat Shield • • • • 1 18 120466-02 Flex Tube • • • • 1 19 121120-01 Air Shield • 1 20 097384-01 Captive Washer Nut • • • • 2 21 125019-01 Ignitor Bracket • • • • 1 22 119795-01 Burner Gasket • • • • 1 23 119321-01 Venturi • • • • 1 24 112829-02 Air Shutter • • • • 1 25 119416-01 Elbow • • • • 1 26 098265-02 Elbow • • • • 1 27 125003-01 Air Shield • • 1 28 ** Assembly, Ramp Base • • • • 1 29 125468-01 Burner Inlet Tube • • 1

125468-02 Burner Inlet Tube • • 1 30 125301-01 Pan Burner Bracket • • • • 2 31 125306-01 Pan Burner Assembly • • 1

125306-02 Pan Burner Assembly • • 1 32 125489-01 Air Shield • • 1

125489-02 Air Shield • • 1 33 125300-01 Valve Support Bracket • • • • 1 34 125300-02 Valve Support Bracket • • • • 1 35 124933-01 Orice Holder • 1 36 125499-01 Log Support Bracket • • 1 37 120761-01 Log Support Bracket • • 1

126835-01A 37

www.Astria.US.com

Page 38

PARTS

LOG MODELS AndesMtn18, AndesMtn24, AndesMtn30

This list contains replaceable parts used in your heater. When ordering parts, follow the

instructions listed under Replacement Parts on page 37 of this manual.

KEY NO.

1 121699-05 121699-11 121699-17 Front Right Log 1 2 121699-04 121699-10 121699-16 Front Left Log 1

MODEL NUMBER

DESCRIPTION QTYAndesMtn18 AndesMtn24 AndesMtn30

3 121699-02 125683-01 125683-01 Middle Right Log 1 4 121699-03 121699-09 121699-15 Middle Left Log 1 5 121699-01 121699-13 121699-13 Bottom Log (Remote) 1 6 121699-06 121699-12 121699-18 Rear Log 1 7 126080-01 126080-01 126080-01 Switch Log 1

www.Astria.US.com

126835-01A38

Page 39

PARTS

LOG MODELS AndesMtn36

This list contains replaceable parts used in your heater. When ordering parts, follow the

instructions listed under Replacement Parts on page 37 of this manual.

MODEL NUMBER

KEY NO.

DESCRIPTION QTYAndesMtn36

1 121699-13 Bottom Log 1 2 125683-01 Middle Right Log 1 3 121699-15 Middle Left Log 1 4 121699-20 Front Left Log 1 5 121699-21 Front Right Log 1 6 121699-22 Back Log 1 7 121699-23 Left Small Front Log 1 8 121699-24 Right Small Front Log 1 9 121699-25 Left Control Cover Log 1 10 121699-26 Right Control Cover Log 1 11 126080-01 Switch Log 1

126835-01A 39

www.Astria.US.com

Page 40

PARTS

LOG MODELS RedWoodM18, RedWoodM24, RedWoodM30

This list contains replaceable parts used in your heater. When ordering parts, follow the

instructions listed under Replacement Parts on page 37 of this manual.

KEY NO.

1 125055-13 125055-02 125055-08 Front Right Log 1 2 125055-12 125055-01 125055-07 Front Left Log 1 3 125055-15 125055-04 125055-10 Middle Right Log 1 4 125055-16 125055-05 125055-11 Middle Left Log 1 5 125056-01 125056-02 125056-02 Ramp Log 1 6 125055-14 125055-03 125055-09 Rear Log 1 7 125055-06 125055-06 125055-06 Top Log 1 8 121079-01 121079-01 121079-01 Log Switch 1

PART NUMBER

DESCRIPTION QTYRedWoodM18 RedWoodM24 RedWoodM30

www.Astria.US.com

126835-01A40

Page 41

PARTS

LOG MODELS BisonMtn18, BisonMtn24, BisonMtn30

This list contains replaceable parts used in your heater. When ordering parts, follow the

instructions listed under Replacement Parts on page 37 of this manual.

LOG MODELS

BisonMtn18, BisonMtn24, BisonMtn30

Cross reference log numbers.

BisonMtn18

KEY No.

1 125851-01 NONE 125852-01 NONE 125852-01 NONE Log, Ramp 1 2 125851-02 D-064 125852-02 D-057 125853-01 D-038 Log, Left Front 1 3 125851-03 D-065 125852-03 D-058 125853-02 D-039 Log, Right Front 1 4 125851-04 D-073 125852-04 D-048 125852-04 D-048 Log, Left Front Ember Bed 1 5 125851-05 D-072 125852-05 D-047 125852-05 D-047 Log, Right Front Ember Bed 1 6 125851-06 D-066 125852-06 D-040 125852-06 D-040 Log, Left Middle 1 7 125851-07 D-067 125852-07 D-041 125852-07 D-041 Log, Right Middle 1 8 125851-08 D-068 125852-08 D-042 125852-08 D-042 Log, Rear Middle 1 9 125851-09 D-069 125852-09 D-043 125852-09 D-043 Log, Rear 1 10 125851-10 D-046 125851-10 D-046 125851-10 D-046 Log, Left Top 1 11 125851-11 D-070 125852-11 D-044 125852-11 D-044 Log, Middle Crossover 1 12 125851-12 D-071 125852-12 D-045 125852-12 D-045 Log, Top Rear 1 13 121079-01 NONE 121079-01 NONE 121079-01 NONE Log, LBG-BM Switch 1

126835-01A 41

LOG ID

No.

BisonMtn24

BisonMtn30

LOG ID

No.

www.Astria.US.com

LOG ID

No. DESCRIPTION QTY

Page 42

TEMPSETONROOM

OFF

MODE

SET

ACCESSORIES

Purchase these heater accessories from your local dealer. If they can not supply these

accessories, call INNOVATIVE HEARTH

PRODUCTS at 1-800-655-2008 for referral information. You can also write to the address listed on the back page of this manual.

FIREPLACE HOOD

Black - GA6050 Brushed Brass - GA6053 For all models. Helps deect heat away from

mantel or wall above replace. Fits openings

28" to 48" wide.

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - TRC

For all models. Allows the replace to be

operated in a manually or thermostatically

controlled mode. You can turn the replace

on and off without ever leaving the comfort of your easy chair.

OFF

MODE

PROG

SET

RECEIVER AND REMOTE CONTROL KIT - TSRC

For all Remote-Ready Models. Allows the

burner system to be operated in a manually or thermostatically controlled mode. Remote is programmable for your convenience and has a large bright LCD Touch Screen for

easy use.

WALL-MOUNT THERMOSTAT SWITCH

- GWMT1

For all models. The desired comfort setting

can be selected on the wall thermostat and the log heater will automatically cycle from pilot to the heat setting selected.

WALL-MOUNT ON/OFF SWITCH GWMS2

For all models. Allows the gas log heater to

be turned on and off with a wall switch.

FLOOR MEDIA KIT - FM100

For all models. Includes lava rock, burner

embers, and burner cinders

CONTROL COVER KIT - CC100

For all models. Includes control cover log

and 6 unique fall-away logs.

DAMPER CLAMP - GA6080

For all models. Permanently opens chimney

ue damper for vented operation.

LAVA ROCK - GA6060

For all models. Order when additional rock

is desired.

RECEIVER AND HAND-HELD REMOTE CONTROL KIT - MRC

For all models. Allows the replace to be

turned on and off by using a hand-held remote control.

www.Astria.US.com

126835-01A42

Page 43

Innovative Hearth Products

Astria™ Brand Gas Log Set & Outdoor Gas Fire Pit

Limited Three Year Warranty

THE WARRANTY

Innovative Hearth Products Limited Three Year Warranty ("IHP") warrants your Astria™ brand Gas Log Set or Outdoor Gas Fire Pit ("Product") to be free from defects in materials and workmanship at the time of manufacture. The logs and grate carry the Limited Three Year Warranty. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Three Year Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components. THERE ARE EXCLUSIONS AND LIMITATIONS to this Limited Three Year Warranty as described herein.

COVERAGE COMMENCEMENT DATE

Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on the date of ﬁrst occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.

EXCLUSIONS AND LIMITATIONS

This Limited Three Year Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.

This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The following do not carry the Limited Three Year Warranty but are warranted as follows:

Gas components – Repair or replacement for one year from the date of installation. Remote control – Repair or replacement for one year from the date of installation. Labor coverage – Prevailing IHP labor rates apply for the warranty period of the component.

Parts not otherwise listed carry a 90 day warranty from the date of installation.

Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the product.

IHP will not be responsible for: (a) damages caused by normal wear and tear, accident, riot, ﬁre, ﬂood or acts of God; (b) damages caused by abuse, negligence, misuse, or unauthorized alteration or repair of the Product affecting its stability or performance (The Product must be subjected to normal use. The Product is designed to burn either natural or propane gas only. Burning conventional fuels such as wood, coal or any other solid fuel will cause damage to the Product, will produce excessive temperatures and could result in a ﬁre hazard.); (c) damages caused by failing to provide proper maintenance and service in accordance with the instructions provided with the Product; (d) damages, repairs or inefﬁciency resulting from faulty installation or application of the Product.

This Limited Three Year Warranty covers only parts and labor as provided herein. In no case shall IHP be responsible for materials, components or construction which are not manufactured or supplied by IHP or for the labor necessary to install, repair or remove such materials, components or construction. Additional utility bills incurred due to any malfunction or defect in equipment are not covered by this warranty. All replacement or repair components will be shipped F.O.B. from the nearest stocking IHP factory.

LIMITATION ON LIABILITY

It is expressly agreed and understood that IHP’s sole obligation and the purchaser’s exclusive remedy under this warranty, under any other warranty, expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as speciﬁed herein.

In no event shall IHP be liable for any incidental or consequential damages caused by defects in the Product, whether such damage occurs or is discovered before or after replacement or repair, and whether such damage is caused by IHP’s negligence. IHP has not made and does not make any representation or warranty of ﬁtness for a particular use or purpose, and there is no implied condition of ﬁtness for a particular use or purpose.

IHP makes no expressed warranties except as stated in this Limited Three Year Warranty. The duration of any implied warranty is limited to the duration of this expressed warranty.

No one is authorized to change this Limited Three Year Warranty or to create for IHP any other obligation or liability in connection with the Product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The provisions of this Limited Three Year Warranty are in addition to and not a modiﬁcation of or subtraction from any statutory warranties and other rights and remedies provided by law.

INVESTIGATION OF CLAIMS AGAINST WARRANTY

IHP reserves the right to investigate any and all claims against this Limited Three Year Warranty and to decide, in its sole discretion, upon the method of settlement.

To receive the beneﬁts and advantages described in this Limited Three Year Warranty, the appliance must be installed and repaired by a licensed contractor approved by IHP.

Contact IHP at the address provided herein to obtain a listing of approved dealers/distributors. IHP shall in no event be responsible for any warranty work done by a

contractor that is not approved without ﬁrst obtaining IHP's prior written consent.

HOW TO REGISTER A CLAIM AGAINST WARRANTY

In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/ distributor, then you must notify IHP in writing. IHP must be notiﬁed of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108; Nashville, TN 37210 or visit our website at WWW.ASTRIA.US.COM.

P/N 900201-00, Rev. NC 12/2013

Innovative Hearth Products

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210

Page 44

KEEP THIS WARRANTY

Model (

located on product or identication tag

Serial No. (

located on product or identication tag

Date Purchased __________________________

Keep receipt for warranty verication.

WARRANTY

) _____________________________

) __________________________

www.Astria.US.com

126835-01A44

Page 45

NOTES

_____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________

126835-01A 45

www.Astria.US.com

Page 46

NOTES

www.Astria.US.com

126835-01A46

Page 47

NOTES

126835-01A 47

www.Astria.US.com

Page 48

P126835-01

1508 Elm Hill Pike, Suite 108

Nashville, TN 37210

1-800-655-2008

www.IHP.US.com

126835-01 Rev. A 02/14

Astria Blaze&Glow18MN, Blaze&Glow18MP, Blaze&Glow24MN, Blaze&Glow24MP Installation And Operation Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
