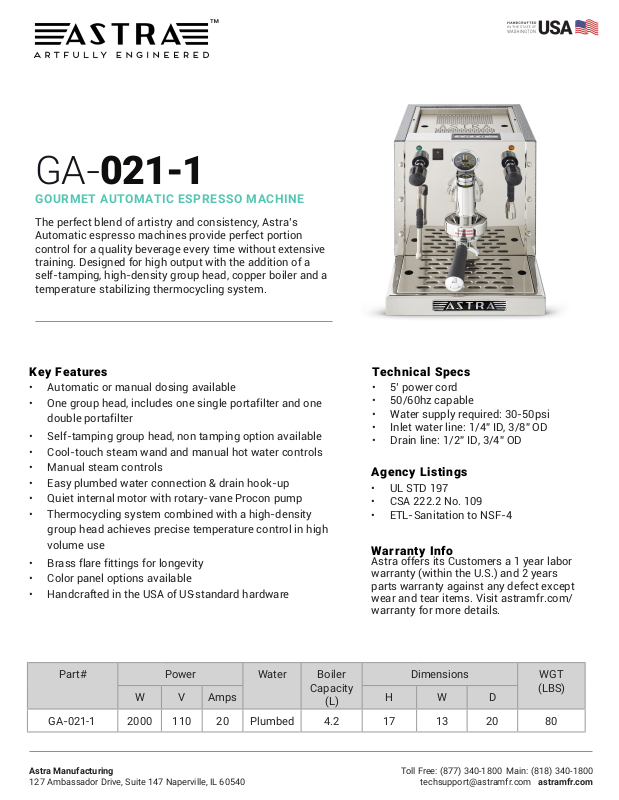

GA-021-1
GOURMET AUTOMATIC ESPRESSO MACHINE
The perfect blend of artistry and consistency, Astra’s
Automatic espresso machines provide perfect portion
control for a quality beverage every time without extensive
training. Designed for high output with the addition of a
self-tamping, high-density group head, copper boiler and a
temperature stabilizing thermocycling system.
Key Features
• Automatic or manual dosing available
• One group head, includes one single portafilter and one
double portafilter
• Self-tamping group head, non tamping option available
• Cool-touch steam wand and manual hot water controls
• Manual steam controls
• Easy plumbed water connection & drain hook-up
• Quiet internal motor with rotary-vane Procon pump
• Thermocycling system combined with a high-density
group head achieves precise temperature control in high
volume use
• Brass flare fittings for longevity
• Color panel options available
• Handcrafted in the USA of US -standard hardware
Technical Specs
• 5’ power cord
• 50/60hz capable
• Water supply required: 30-50psi
• Inlet water line: 1/4” ID, 3/8” OD
• Drain line: 1/2” ID, 3/4” OD
Agency Listings
• UL STD 197
• CSA 222.2 No. 109
• ETL-Sanitation to NSF-4
Warranty Info
Astra offers its Customers a 1 year labor
warranty (within the U.S.) and 2 years
parts warranty against any defect except
wear and tear items. Visit astramfr.com/
warranty for more details.
Part# Power Water Boiler
W V Amps H W D
GA-021-1
Astra Manufacturing
127 Ambassador Drive, Suite 147 Naperville, IL 60540
2000 110 20 Plumbed 4.2 17 13 20 80
Capacity
(L)
Dimensions WGT
(LBS)
Toll Free: (877) 340-1800 Main: (818) 340-1800
[email protected] astramfr.com
