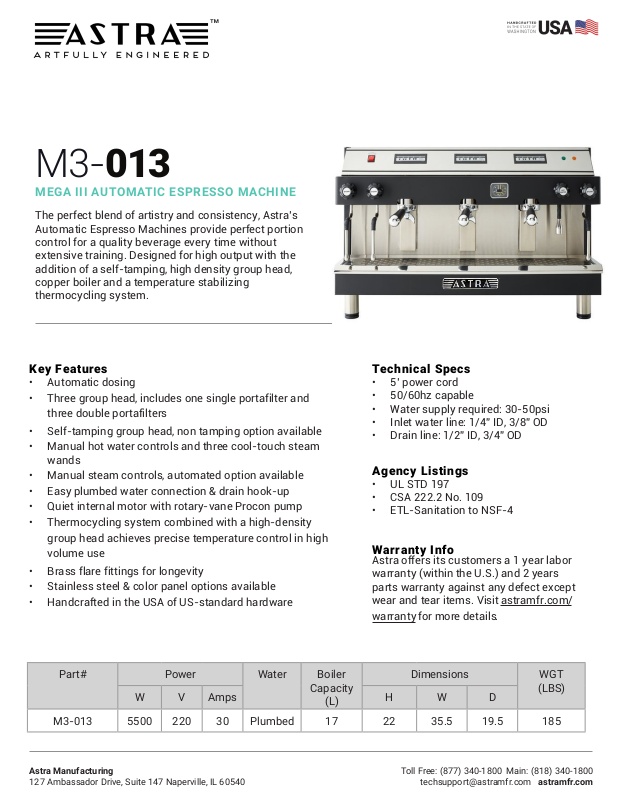

M3-013
MEGA III AUTOMATIC ESPRESSO MACHINE
The perfect blend of artistry and consistency, Astra’s
Automatic Espresso Machines provide perfect portion
control for a quality beverage every time without
extensive training. Designed for high output with the
addition of a self-tamping, high density group head,
copper boiler and a temperature stabilizing
thermocycling system.
Key Features
• Automatic dosing
• Three group head, includes one single portafilter and
three double portafilters
• Self-tamping group head, non tamping option available
• Manual hot water controls and three cool-touch steam
wands
• Manual steam controls, automated option available
• Easy plumbed water connection & drain hook-up
• Quiet internal motor with rotary-vane Procon pump
• Thermocycling system combined with a high-density
group head achieves precise temperature control in high
volume use
• Brass flare fittings for longevity
• Stainless steel & color panel options available
• Handcrafted in the USA of US-standard hardware
Technical Specs
• 5’ power cord
• 50/60hz capable
• Water supply required: 30-50psi
• Inlet water line: 1/4” ID, 3/8” OD
• Drain line: 1/2” ID, 3/4” OD
Agency Listings
• UL STD 197
• CSA 222.2 No. 109
• ETL-Sanitation to NSF-4
Warranty Info
Astra offers its customers a 1 year labor
warranty (within the U.S.) and 2 years
parts warranty against any defect except
wear and tear items. Visit astramfr.com/
warranty for more details.
Part# Power Water Boiler
W V Amps H W D
M3-013
Astra Manufacturing
127 Ambassador Drive, Suite 147 Naperville, IL 60540
5500 220 30 Plumbed 17 22 35.5 19.5 185
Capacity
(L)
Dimensions WGT
(LBS)
Toll Free: (877) 340-1800 Main: (818) 340-1800
[email protected] astramfr.com
