Page 1

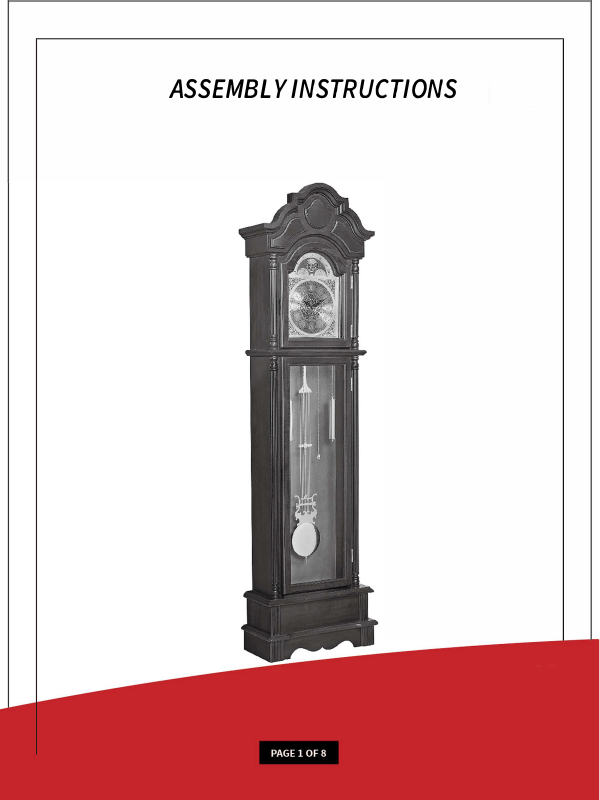

ASSEMBLY INSTRUCTIONS
Page 2
Your clock is fitted with a Westminster Chiming movement. This has an automatic night silence function that silences the
Chimes between 10.00 P.M. and 6.00 A.M.(last strike 9:00PM, first strike 6:00AM).
Please make sure you have 2 x D Alkaline batteries, as these are not included. You will also need a screwdriver.
ALKALINE BATTERIES REQUIRED
SIZE D
2 PCS
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don’t attempt to repair or modify patrs that are broken or defective. Please contact the store immediatelly.
2.This product is for home use only and not intended for commercial establishments.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
ASSEMBLY TIME PER UNIT: 20 MINUTES

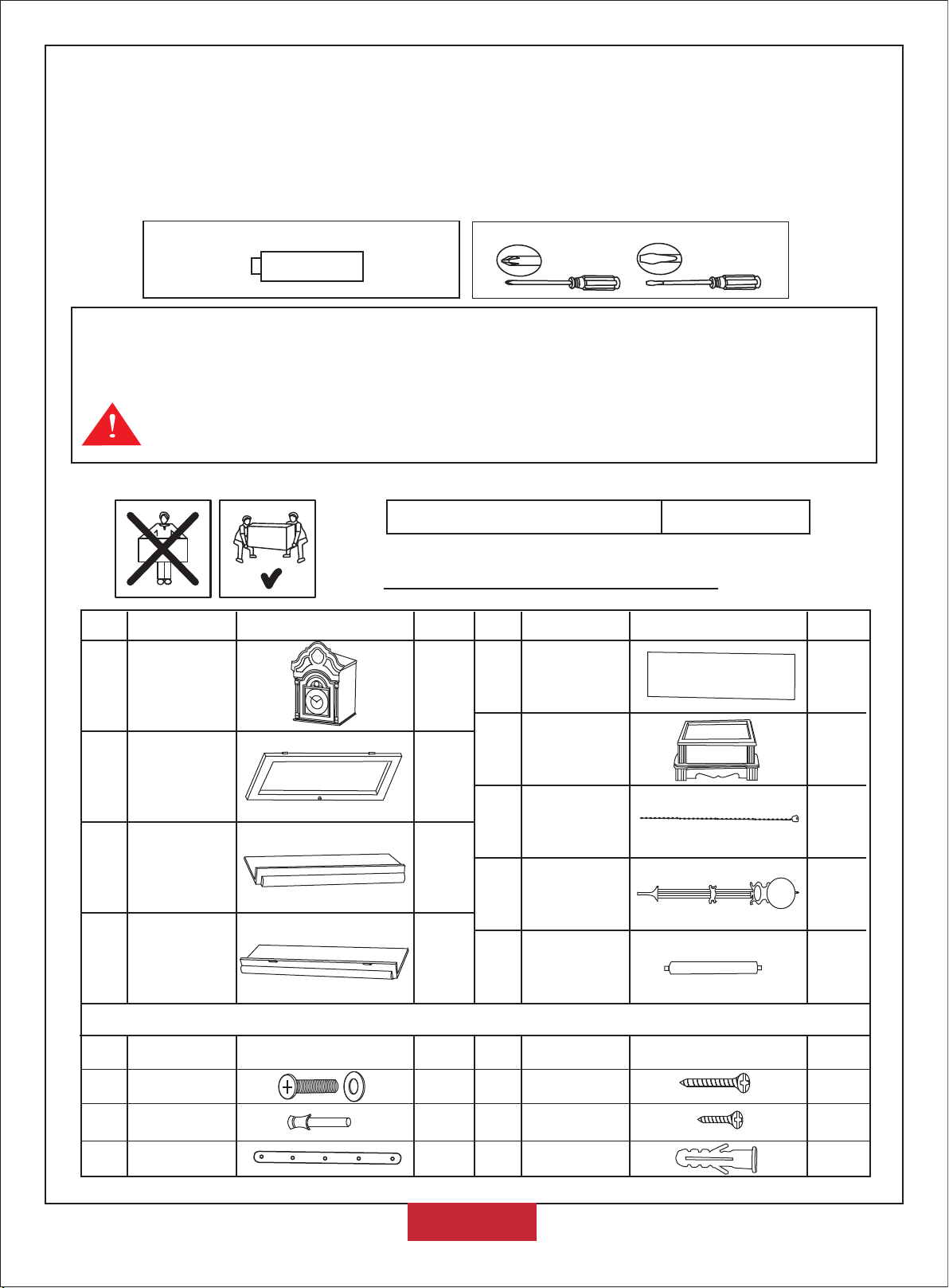

PARTS IDENTIFICATION
PART NAME FIGURE QTY PART NAME FIGURE QTY
A TOP UNIT 1PCE
1PC
BACK PANEL
B
C
D
Z
1
2
3
FRONT DOOR
LEFT SIDE
PANEL
RIGHT SIDE
PANEL
BOLTφ8*40mm
FIXING BARS
CABLE TIE
1PC
1PC
1PC
F
G
H
I
BASE UNIT
DECORATION
CHAINS
PENDULUM
DECORATION
WEIGHTS
HARDWARE IDENTIFICATION
QTYFIGUREDESCRIPTION DESCRIPTION QTYFIGURE
8PCS
2PCS
1PC 1PC
4
5
6
LONG SCREW
SHORT SCREW
PLASTIC ANCHOR
1PC
4PCS
1PC
2PCS
1PC
1PC
PAGE 2 OF 8
Page 3
E
NOTES: PLEASE MAKE SURE CLOCK IS IN LEVEL POSITION, OTHERWISE
IT WILL NOT OPERATE PROPERLY.

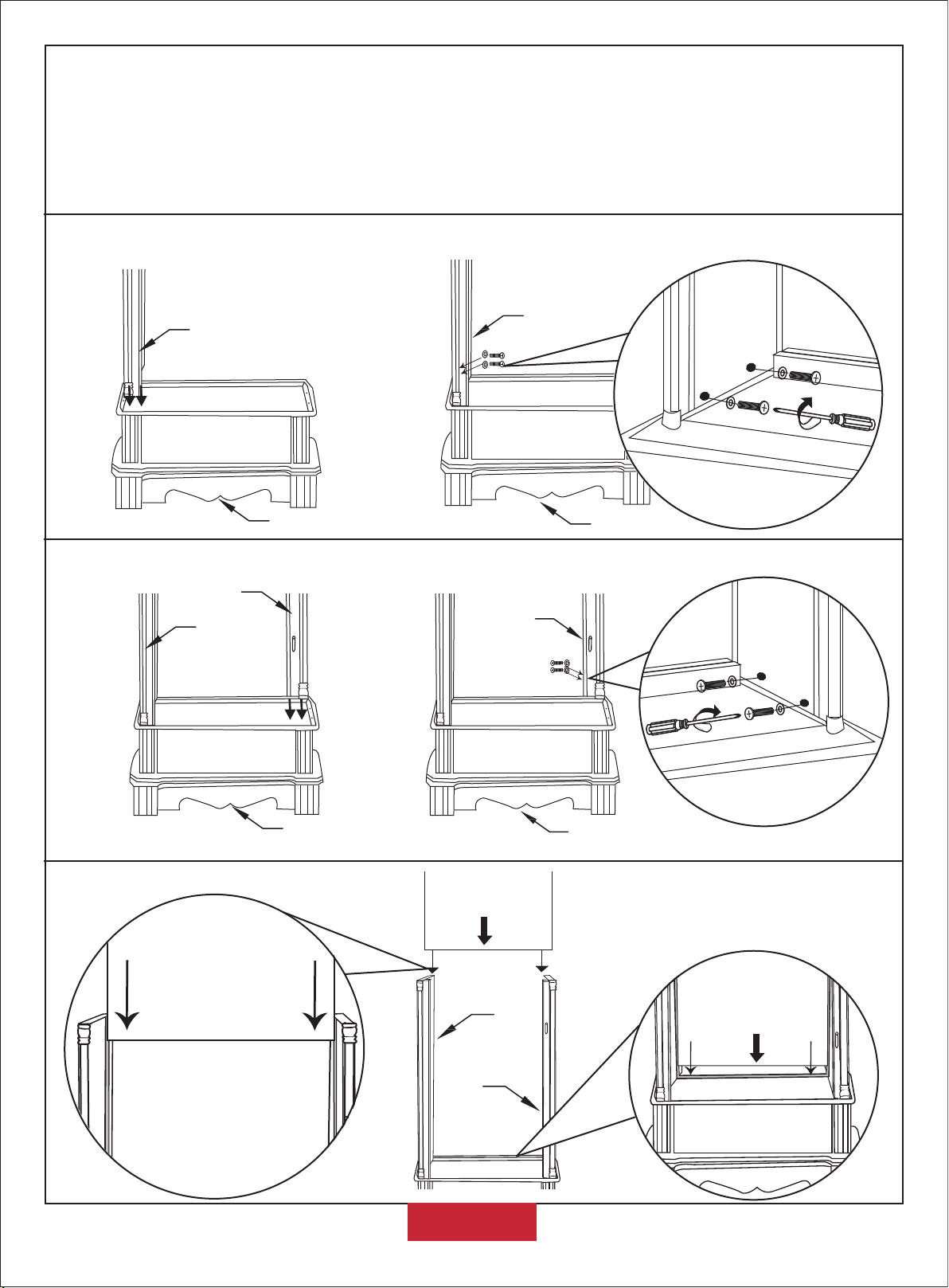

STEP 1-1 STEP 1-2
C
C
①
F
STEP 2-1 STEP 2-2
D
C
①
F
D
①
STEP 3
F
F
E
C
D
PAGE 3 OF 8
Page 4
①
①

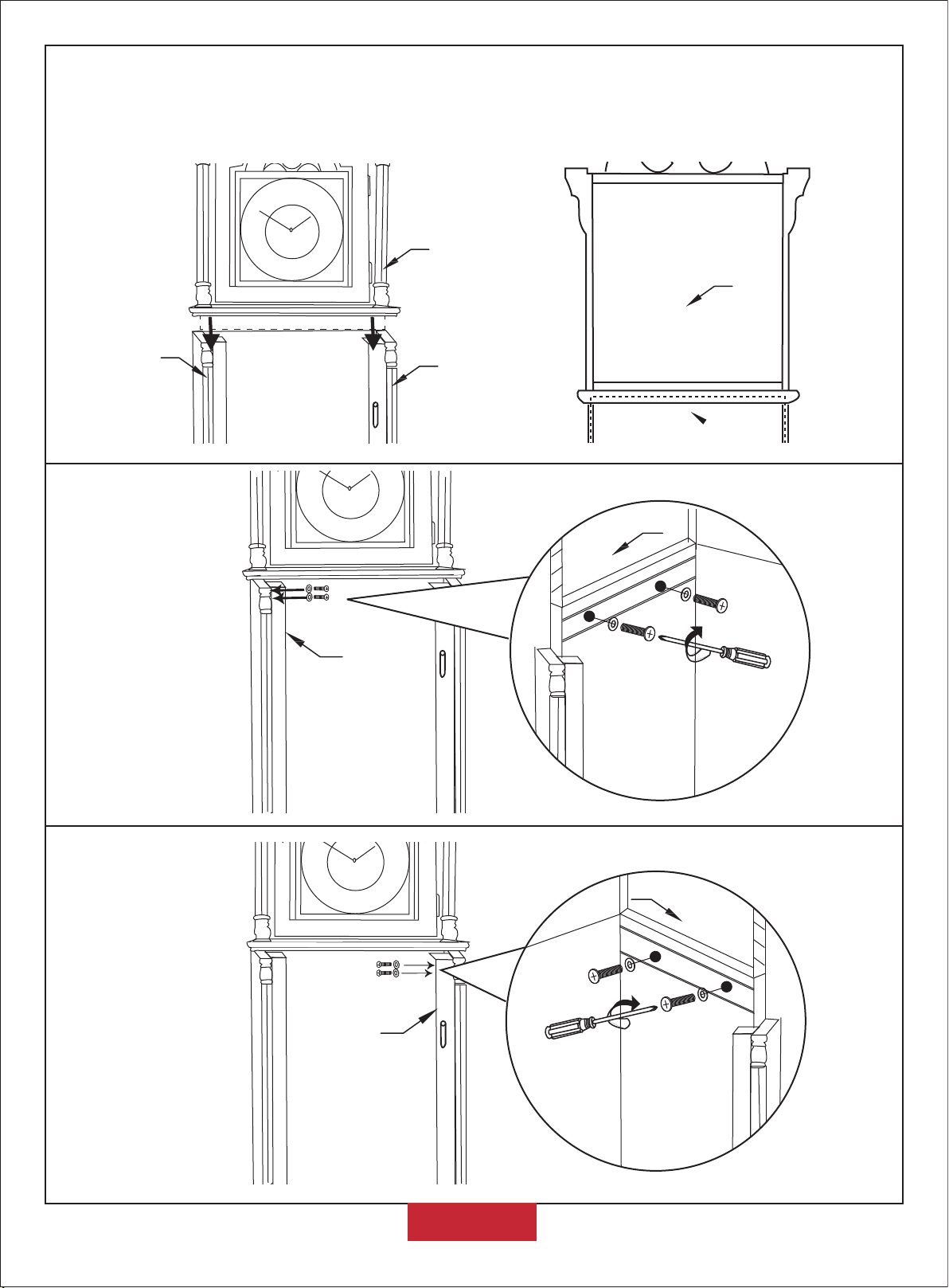

STEP 4-1
STEP 4-2
A
A
STEP 5
C
D
E
A
①
C
STEP 6
A
①
D
PAGE 4 OF 8
Page 5

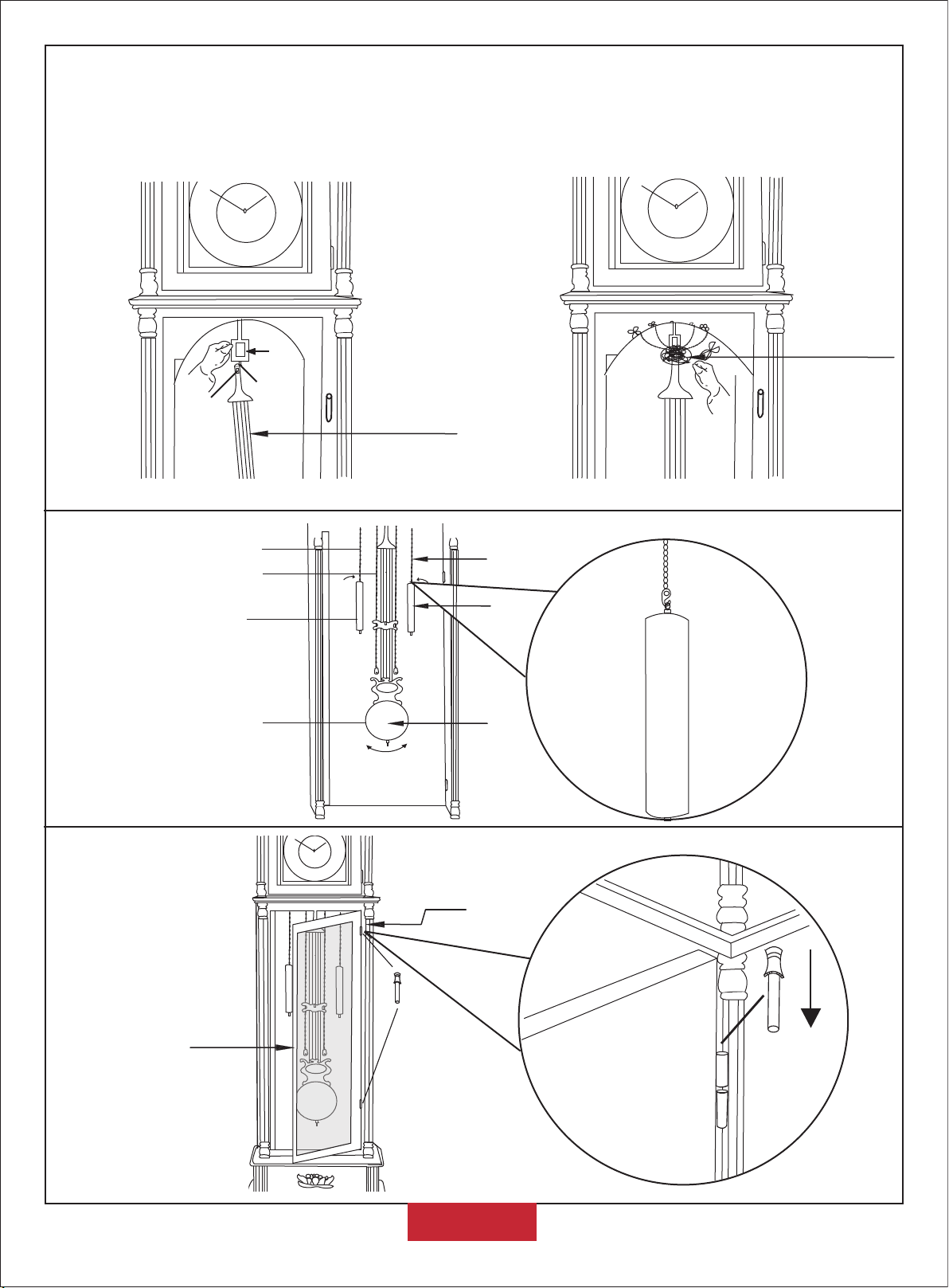

STEP 7-1 STEP 7-2
ｈｏｌｅ
ｈｏｏｋ
G
STEP 8
STEP 9
ｈｏｌｅ
short chain
long chain
weight
pendulum
H
G
I
H
B
D
②
PAGE 5 OF 8
Page 6

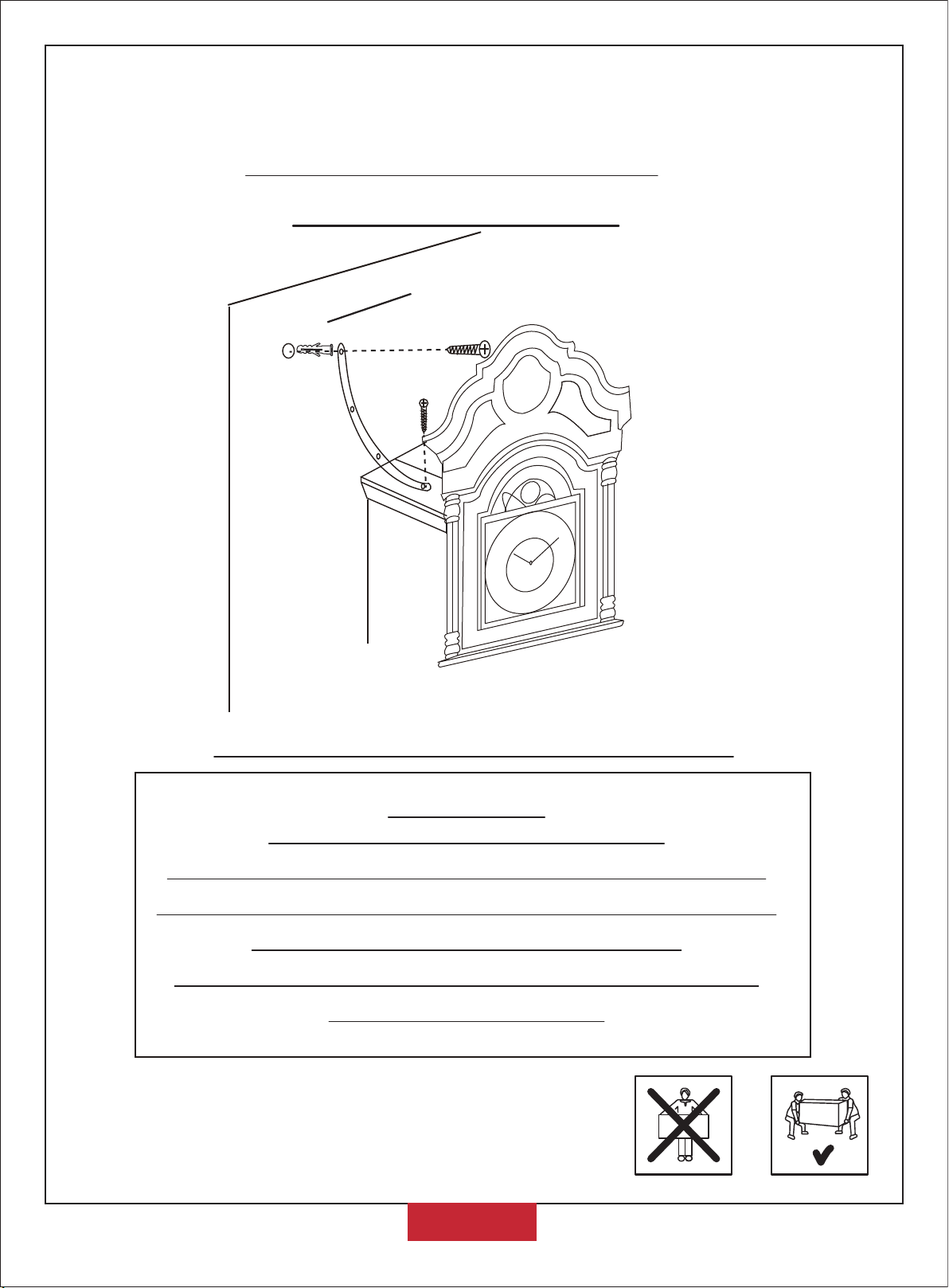

STEP 10
ATTENTION: ANTI TIPPING SAFEGUARD
BACK OF THE CLOCK
WALL
⑥
③
④
FURNITURE TIPPING RESTRAINT
WARNING
Injury may result from tipping furniture.
This restraint is not a substitute for proper adult supervision.
This restraint may provide protection against tipping furniture.
Do not allow children to climb on furmiture.
Failure to detach this restraint before moving furniture may
result in injury and damage.
PAGE 6 OF 8
Page 7

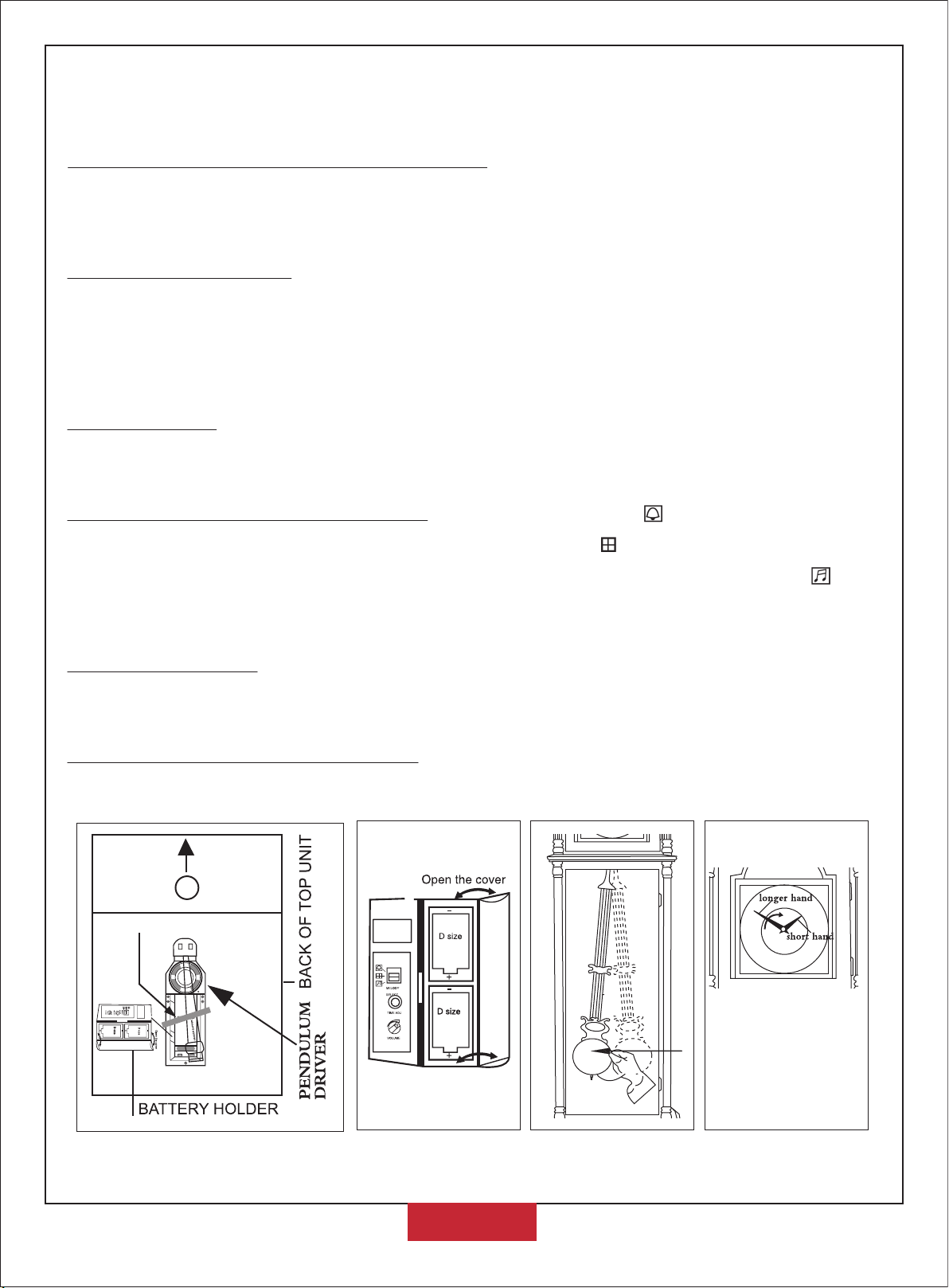

Operating the clocks as following pictures.
* DON’T PUT BATTERIES INTO THE MOVEMENT BEHIND OF PENDULUM DRIVER.
1.TO START THE CLOCK
Li the up-cover from the back of the top unit(A), you will find a battery holder. Open the
battery cover, insert 2 new 1.5 volt "D" alkaline batteries into the Battery Holder and making
sure the battery is as indicated(picture 1). Push the bob of pendulum(H) lewards to let the
clock run(picture 3).
2.TO SET TIME: Turn the minute hand(Longer hand)clock wise tenderly until the desired time
is obtained on the dial. Do not push too hard or turn the hand counter clockwise (never turn
the short hand), otherwise it will cause damage of movement(picture 4).
3. TO ADJUST MELODY SELECTION: The button in position( ): this selection will only
have the striking sound every hour. The button in position( ): this selection will have both
the striking sound and Westminster chime every hour. The button in position( ): this
selection will only have the Westminster chime every hour. The clock will not sound from
10:00 pm to 5:59 am(picture 2).
4.TO ADJUST TIME: Press the "time adj" button for adding the time of striking. For example,
if the clock counts 2 times at 4 o’clock, please press button two times then it gives corrected
strike(picture 2).
5. TO ADJUST VOLUME CONTROL: To turn button rightward or leward to obtain the
desired sound(picture 2).
TAKE OFF PAPER LABEL
ｔｕｒｎ ｔｈｅ ｌｏｎｇｅｒ
ｈａｎｄ ｏｎｌｙ
BATTERY HOLDER
４５
H
．
ｐｉｃｔｕｒｅ
１
ｐｉｃｔｕｒｅ
２
PAGE 7 OF 8
ｐｉｃｔｕｒｅ
３
ｐｉｃｔｕｒｅ
４
Page 8
CAUTION
Do not mix Old and New batteries. Do not mix Alkaline, and Standard(Carbon - Zinc) or
Rechargeable(Nickel - Cadmium) batteries.
TROUBLESHOOTING
Here are a few symptoms that are associated with 'Defective Batteries' or 'Incorrect Installation'
and do not indicate that the clock itself is defective:
Problem
Your clock strikes six(6) times on every hour.
Solution
Change the chime section batteries, and set time and chime again by following "SETTING TIME AND
CHIME"procedure.
Problem
Your clock starts to chime erratically on every hour.
Solution
Press the Red "Set" Button, the clock will chime, and increase one chime per push, push to the
correct chime.
If this method still does not solve the problem, replace the chime battery, and set time and chime
again by following the "SETTING TIME AND CHIME" procedure.
Problem
Your clocks chimes are getting quieter and quieter.
Solution
Change the chiming section batteries and turn the volume down to about half way.
Problem
Your clock does not chime at 10 pm.
Solution
Your clock has an Automatic night mute with the last strike at 9pm and the first strike at 6am.
Problem
Can I change when the night mute starts and stops?
Solution
No, this function is not available.
Problem
You clock does not chime during the day.
Solution
Reset the clock according to the "SETTING TIME AND CHIME" procedure.
PAGE 8 OF 8
