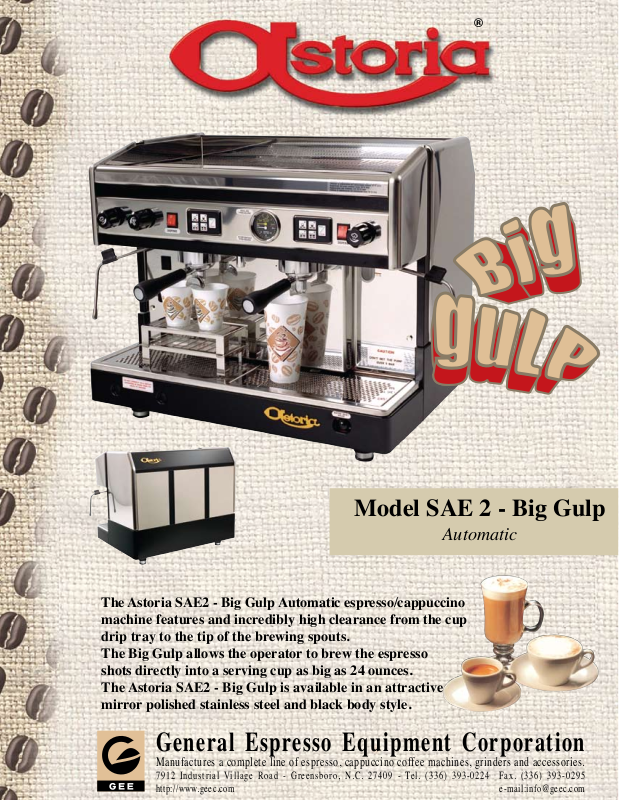

Astoria SAE 2 User Manual

®

Model SAE 2 - Big Gulp

Automatic

The Astoria SAE2 - Big Gulp Automatic espresso/cappuccino
machine features and incredibly high clearance from the cup
drip tray to the tip of the brewing spouts.
The Big Gulp allows the operator to brew the espresso
shots directly into a serving cup as big as 24 ounces.
The Astoria SAE2 - Big Gulp is available in an attractive
mirror polished stainless steel and black body style.

General Espresso Equipment Corporation

Manufactures a complete line of espresso, cappuccino coffee machines, grinders and accessories.

7912 Industrial Village Road - Greensboro, N.C. 27409 - Tel. [phone] Fax. [phone]
http://www.geec.com e-mail:[e-mail]

24

®

Water and Drain Connections

Water inlet

21

1

/

2

27

A microprocessor controls operation, providing a volumetric measure of water
for coffee brewing. The touch pad control can program 4 different coffee
dosages, selecting them automatically and independently for each group.
There is also a push button control for semiautomatic brewing.

Drain

11”

Description : SAE 2-group Automatic “Big Gulp”

Boiler Capacity.............. 12 qts. Width....................... 27

1/2 inches

Frame Contruction........ Galvanized Steel Depth....................... 21 inches

Steam Wands............... Stainless Steel Height....................... 24 - 28

Sides, Rear Panels......... Mirror Polished

(Adjustable)

inches

Stainless Steel

Cup Height............... 9 inches

(Group Head to Tray)

Net Weight............... 177 lbs.

Shipping Weight....... 208 lbs.

Shipping Weight
with Water Softener 226 lbs
Electrical Specifications

3”

8”

Voltage, Single Phase, 60 Cycle..... 220V

Amp Rating.................................... 17,4 Amps

Element Wattage............................ 4.000W

Electrical Cord Length................... 5 ft.

Motor Pump................................... Built-in

Note : Big Gulp is available in 2 group model.

Astoria Espresso and Cappuccino Machines are UL listed for
electrical safety and ETL listed to NSF standards for sanitation

GENERAL ESPRESSO EQUIPMENT CORPORATION

All technical data, pictures and drawings contained
in this leaflet are not binding on the manufacturer,
nor can the manufacturer be held liable for any
modification of the machine in part or completely.
