Astoria AEP 2 User Manual

RAPALLO
ALAEP
RAPALLO AEP
EN

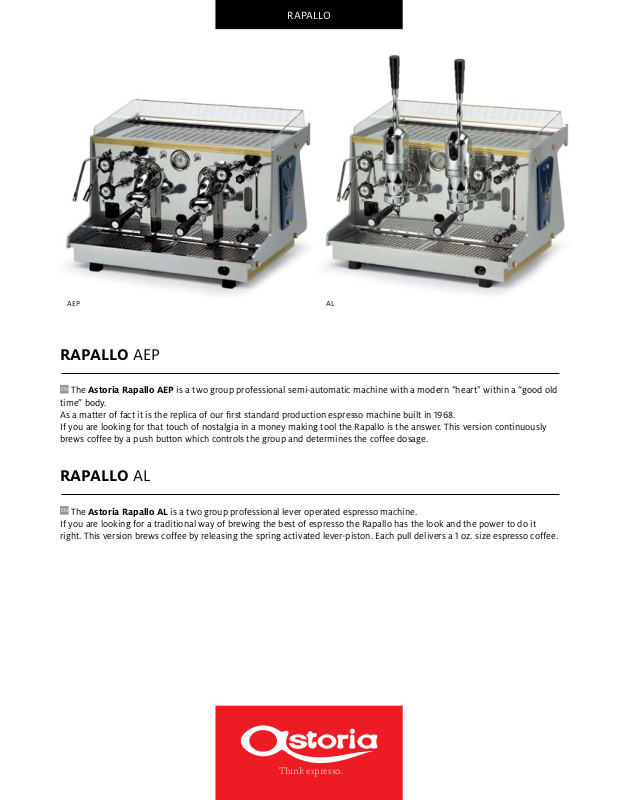

The Astoria Rapallo AEP is a two group professional semi-automatic machine with a modern “heart” within a “good old
time” body. As a matter of fact it is the replica of our first standard production espresso machine built in 1968. If you are looking for that touch of nostalgia in a money making tool the Rapallo is the answer. This version continuously brews coffee by a push button which controls the group and determines the coffee dosage.
RAPALLO AL
EN
If you are looking for a traditional way of brewing the best of espresso the Rapallo has the look and the power to do it right. This version brews coffee by releasing the spring activated lever-piston. Each pull delivers a 1 oz. size espresso coffee.
Think espresso.
Rapallo
EN
Features
– Beautiful neon light on the back of the machine – Automatic water refill (A.W.R.) – Two stainless steel steam wands – One hot water spout – Rechargeable water softener (only AEP) – Body made of baked enamel steel and painted alluminum – Frame structure is galvanized steel assembled without welding – Boiler and pipes made in copper and brass – Dual gauges for boiler and pump pressure control (only AEP) – Indicator light to inform the machine is on
RAPALLO
ALAEP
Equipment kit:
– 2 double & 1 single portafilter – Blind filter – Plastic tamper – Spoon – Connecting hoses – 6” drain line – 3/8 reducer
Color: metallic gray-blue
Technical specifications
AEP 2 AL 2
Boiler capacity qts 12 12
Heating element W 4000 4000
Total wattage W 4400 4000
Voltage (single phase, 50/60 Hz) V 208 minimun 208 minimum
Amps A 19.2 17.4
Electrical cord length Ft 6 6
Motor Pump remote no
Width in 28
Depth in 23” 23”
Height in 21
Top cups holding surface in 13/
Cup height - tray to group head in 5
Net weight lbs 170 164
Shipping weight lbs 212 188
Astoria espresso/cappuccino machines are “ UL” listed for safety.
General Espresso Equipment Corporation
Supplier of the most complete line of espresso, cappuccino coffee machines, coffee grinders and accessories.
7912 Industrial Village Road - Greensboro, N.C. 27409 Tel. (336) 393-0224 - Fax (336) 393-0295 www.usa.astoria.com - e-mail: info@geec.com
1/2 28 1/2
1/2”(4” adjustable legs) 21 1/2”(4” adjustable legs)
3/4 26 1/4
3/4 5 3/4
Astoria espresso/cappuccino machines are “ ETL” listed for sanitation under “NSF-4” standards.
distributed by:
code 02801206/GEEC - 10/2010
