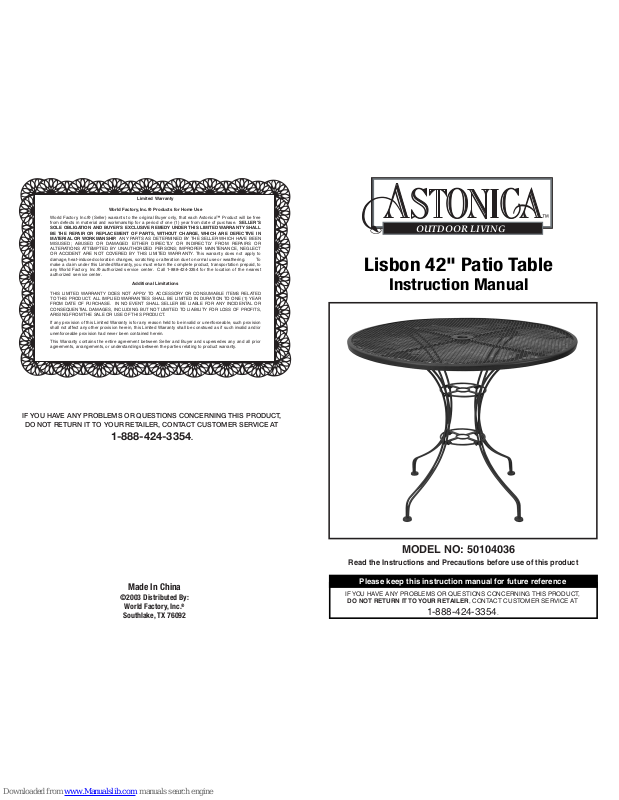

Page 1
OUTDOOR LIVING
Lisbon 42" Patio Table
Instruction Manual
Read the Instructions and Precautions before use of this product
MODEL NO: 50104036
Limited Warranty
World Factory, Inc.® Products for Home Use
World Factory, Inc.® (Seller) warrants to the original Buyer only, that each Astonica™ Product will be free
from defects in material and workmanship for a period of one (1) year from date of purchase. SELLER’S
SOLE OBLIGATION AND BUYER’S EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE THE REPAIR OR REPLACEMENT OF PARTS, WITHOUT CHARGE, WHICH ARE DEFECTIVE IN
MATERIAL OR WORKMANSHIP. ANY PARTS AS DETERMINED BY THE SELLER WHICH HAVE BEEN
MISUSED; ABUSED OR DAMAGED EI THER DIRECT LY OR INDIREC TLY FROM REPAIRS OR
ALTERATIONS ATTEMPTED BY UNAUTHORIZED PERSONS; IMPROPER MAINTENANCE, NEGLECT
OR ACCIDENT ARE NOT COVERED BY THIS LIMITED WARRANTY. This warranty does not apply to
damage, heat-induced coloration changes, scratching or alteration due to normal use or weathering. To
make a claim under this Limited Warranty, you must return the complete product, transportation prepaid, to
any World Factory, Inc.® authorized service center. Call 1-888-424-3354 for the location of the nearest
authorized service center.
Additional Limitations
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY OR CONSUMABLE ITEMS RELATED
TO THIS PRODUCT. ALL IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE (1) YEAR
FROM DATE OF PURCHASE. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS,
ARISING FROM THE SALE OR USE OF THIS PRODUCT.
If any provision of this Limited Warranty is for any reason held to be invalid or unenforceable, such provision
shall not affect any other provision herein, this Limited Warranty shall be construed as if such invalid and/or
unenforceable provision had never been contained herein.
This Warranty contains the entire agreement between Seller and Buyer and supersedes any and all prior
agreements, arrangements, or understandings between the parties relating to product warranty.
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER, CONTACT CUSTOMER SERVICE AT
1-888-424-3354.
Please keep this instruction manual for future reference
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER, CONTACT CUSTOMER SERVICE AT
1-888-424-3354.
Made In China
©2003 Distributed By:
World Factory, Inc.
®
Southlake, TX 76092
Page 2
General household tools will be needed for assembly.
1. Begin by mounting the legs (C) to the two center support rings (B)
with the nuts (E) (Figure 1).
2. Holding one of the legs (C) and one support ring (B) together so that
the support ring threaded stud lines up with the hole in the tab
mounted on the leg. Slide the stud through the tab hole.
3. Screw 1 nut (E) onto the bolt until hand-tight.
4. Repeat steps 2 and 3 with the other support ring.
5. Repeat steps 2 - 4 with the other three legs.
6. At this point all four legs should be attached to the two center
support rings
7. Place tabletop (A) upside down on a non-scratching surface such
as the table box, carpet, blanket or large towel (Figure 2).
8. Turn the leg assembly upside down, and place the legs against
the tabletop (A) so that the four holes in the tops of the legs slide
onto the four threaded studs mounted underneath. Thread a
wing nut (D) onto each one, and tighten securely.
9. Tighten each of the nuts (D) attaching the legs to the support rings
securely to ensure stability.
10. Have someone help you turn the table right side up.
PARTS & HARDWARE LIST
A Table Top 1
B Center Support Ring 2
C Table Leg 4
D Wing Nut 4
E Nut 8
PART # DESCRIPTION QUANTITY
ASSEMBLY INSTRUCTIONS
A
B
B
C
D
E
FIGURE 1
FIGURE 2
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER, CONTACT CUSTOMER SERVICE AT
1-888-424-3354.
E
C
Carefully remove the contents from the package.
If any parts are missing do not attempt to use the product until they
have been obtained and correctly installed.
D
A
