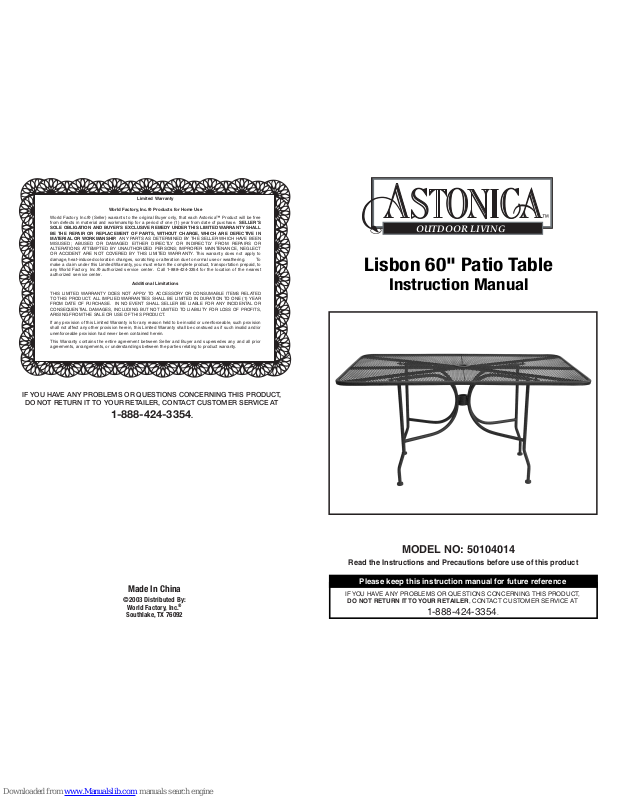

Page 1
OUTDOOR LIVING
Lisbon 60" Patio Table
Instruction Manual
Read the Instructions and Precautions before use of this product
MODEL NO: 50104014
Made In China
©2003 Distributed By:
World Factory, Inc.
®
Southlake, TX 76092
Limited Warranty
World Factory, Inc.® Products for Home Use
World Factory, Inc.® (Seller) warrants to the original Buyer only, that each Astonica™ Product will be free
from defects in material and workmanship for a period of one (1) year from date of purchase. SELLER’S
SOLE OBLIGATION AND BUYER’S EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE THE REPAIR OR REPLACEMENT OF PARTS, WITHOUT CHARGE, WHICH ARE DEFECTIVE IN
MATERIAL OR WORKMANSHIP. ANY PARTS AS DETERMINED BY THE SELLER WHICH HAVE BEEN
MISUSED; ABUSED OR DAMAGED EI THER DIRECT LY OR INDIRECT LY FROM REPAIRS OR
ALTERATIONS ATTEMPTED BY UNAUTHORIZED PERSONS; IMPROPER MAINTENANCE, NEGLECT
OR ACCIDENT ARE NOT COVERED BY THIS LIMITED WARRANTY. This warranty does not apply to
damage, heat-induced coloration changes, scratching or alteration due to normal use or weathering. To
make a claim under this Limited Warranty, you must return the complete product, transportation prepaid, to
any World Factory, Inc.® authorized service center. Call 1-888-424-3354 for the location of the nearest
authorized service center.
Additional Limitations
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY OR CONSUMABLE ITEMS RELATED
TO THIS PRODUCT. ALL IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE (1) YEAR
FROM DATE OF PURCHASE. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS,
ARISING FROM THE SALE OR USE OF THIS PRODUCT.
If any provision of this Limited Warranty is for any reason held to be invalid or unenforceable, such provision
shall not affect any other provision herein, this Limited Warranty shall be construed as if such invalid and/or
unenforceable provision had never been contained herein.
This Warranty contains the entire agreement between Seller and Buyer and supersedes any and all prior
agreements, arrangements, or understandings between the parties relating to product warranty.
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER, CONTACT CUSTOMER SERVICE AT
1-888-424-3354.
Please keep this instruction manual for future reference
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER, CONTACT CUSTOMER SERVICE AT
1-888-424-3354.
Page 2
ASSEMBLY INSTRUCTIONS
Carefully remove the contents from the package. If any parts are missing
do not attempt to use the product until they have been obtained and
correctly installed.
Caution: Do not over tighten fasteners.
PARTS & HARDWARE LIST
PART # DESCRIPTION QUANTITY
A 1Table Top
B 1Leg Assembly Part 1
C 1Leg Assembly Part 2
D
4
Wing Nut
E
1
Plastic Center Hole Bushing
2. (See Figure 2) Turn the leg assembly (B)
upside down so that the holes at the top
of the assembly slides onto the threaded
studs that are pre-mounted underneath
the table top (A). Attach the wing nuts
(D) to the threaded studs and
tighten securely.
1. (See Figure 1) Place the table top (A)
upside down on a non-scraching surface.
3. (See Figure 3) Slide the Plastic Center
Hole Bushing (E) onto the center hole
ring of leg assembly (C) repeat 2nd step
with Leg Assembly (C). The center
support holes should fit flush together.
Attach the wing nuts (D) to the threaded
studs and tighten securely.
4. (See Figure 4) Turn the assembled table
right side up.
Note: All four legs should sit flat.
If the table rocks, you have
the leg assemblies mounted
in reverse order.
If so, repeat step 2 reversing
the placement order of the
legs.
A
B
C
D
FIGURE 2
FIGURE 3
FIGURE 4
FIGURE 1
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER. CONTACT CUSTOMER SERVICE AT
1-888-424-3354.
A
A
B
E
A
D D
E
C
