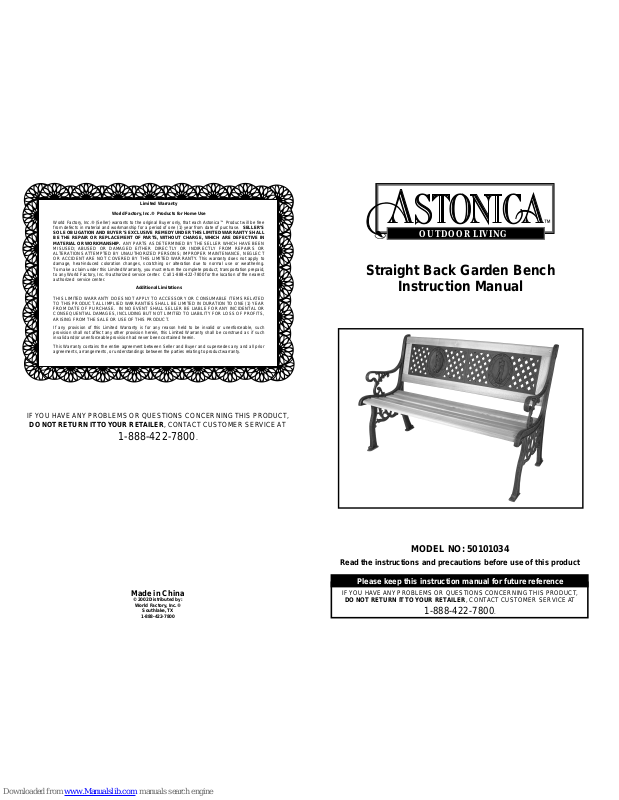

Straight Back Garden Bench
Instruction Manual
Page 2
A
E
E
F
G
I
F
G
I
FIGURE 1
C
IF YOU HAVE ANY PROBLEMS OR QUESTIONS CONCERNING THIS PRODUCT,
DO NOT RETURN IT TO YOUR RETAILER. CONTACT CUSTOMER SERVICE AT
1-888-422-7800.
Carefully remove the contents from the package.
If any parts are missing do not attempt to use the product until
they have been obtained and correctly installed.
G
H
I
ASSEMBLY INSTRUCTIONS
Caution: Do not over tighten fasteners.
2. (SEE FIGURE 2) Attach the wood slats (B)
to the arm and leg support (C) with bolts (E),
washers (F) and nuts (G). Repeat on the
other side and do not tighten bolts until all
wood slats (B) are in place and bench is at
90 degrees with floor.
3. (SEE FIGURE 3) Turn the bench over on a
non-scratch surface and attach middle
support bracket (D) to the slats at the
midway point between leg & arm braces
(C) using wood screws (H). Work from the
front to back, bending bracket (D) as
necessary to fit the contour of the bench.
4. Ensure all fasteners are securely tightened.
Place plastic nut covers (I) over exposed
nuts on back of bench.
1. (SEE FIGURE 1) Using Bolts (E) washers (F)
and nuts (G) attach one end of the Bench
Back (A) to the Cast Iron Leg & Arm
Brace (C). Attached the other end of the
back to the second leg & arm brace (C).
PARTS & HARDWARE LIST
PART # DESCRIPTION QUANTITY
A 1Straight Bench Back
B 5Wood Seat Slats
C 2Cast Iron Legs & Arm Brace
D 1
Middle Support Bracket
E
6mm x 30mm Bolt
F
14
6mm Washer
G
16
6mm Nut
H
16
Phillips Wood Screw
I
Plastic Nut Cover
5
4
A
B
C
D
F
FIGURE 2
FIGURE 3
B
C
F
G
E
D
H
C
C
E
